FCIA CODE EFFORTS FCIA Spring Conference 2003 By

FCIA CODE EFFORTS FCIA Spring Conference 2003 By William E. Koffel, P. E. Koffel Associates, Inc.

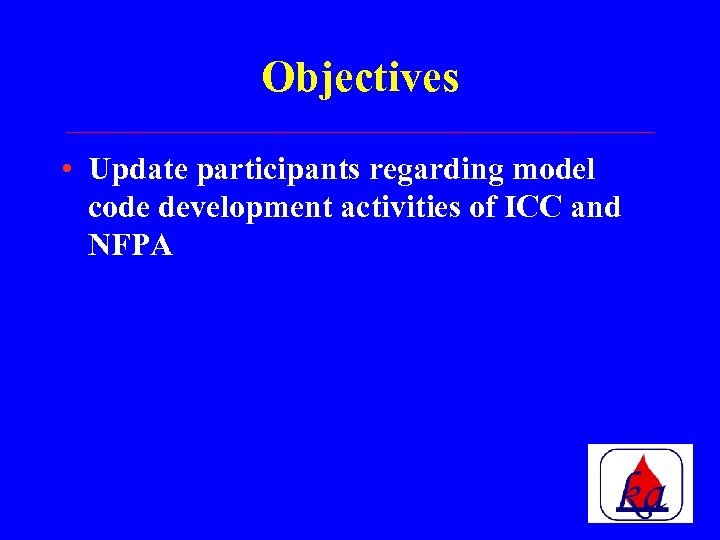

Objectives • Update participants regarding model code development activities of ICC and NFPA

Message The Future is NOW!!!

ICC • Consolidation of the three organizations into one organization • 2003 Edition of the International Codes available – ICC Performance Code – International Existing Buildings Code

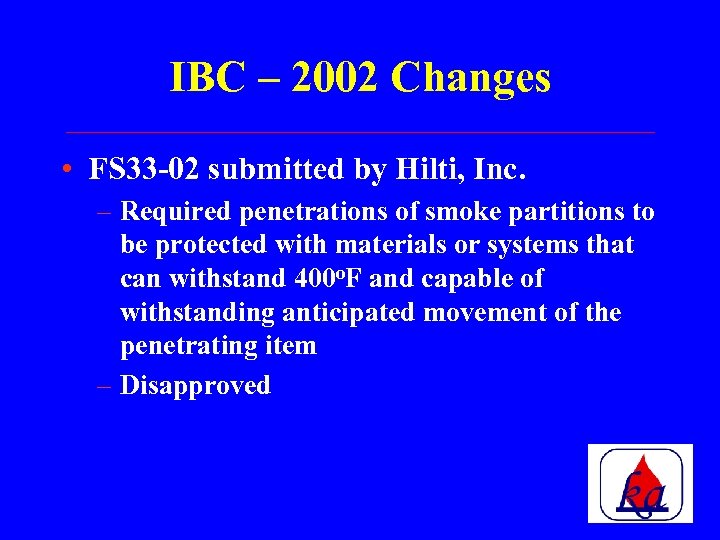

IBC – 2002 Changes • FS 33 -02 submitted by Hilti, Inc. – Required penetrations of smoke partitions to be protected with materials or systems that can withstand 400 o. F and capable of withstanding anticipated movement of the penetrating item – Disapproved

IBC – 2002 Changes • FS 38 -02 submitted by 3 M Company – Required penetrations of corridor walls and smoke barriers to meet a leakage rate of 25 cfm per sq ft as determined by UL 1479. – Disapproved – Public Comment submitted by the IFC but the item was still disapproved.

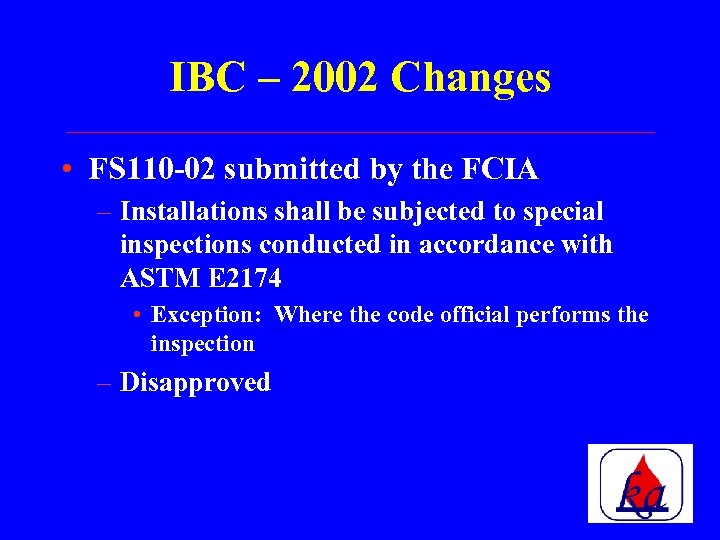

IBC – 2002 Changes • FS 110 -02 submitted by the FCIA – Installations shall be subjected to special inspections conducted in accordance with ASTM E 2174 • Exception: Where the code official performs the inspection – Disapproved

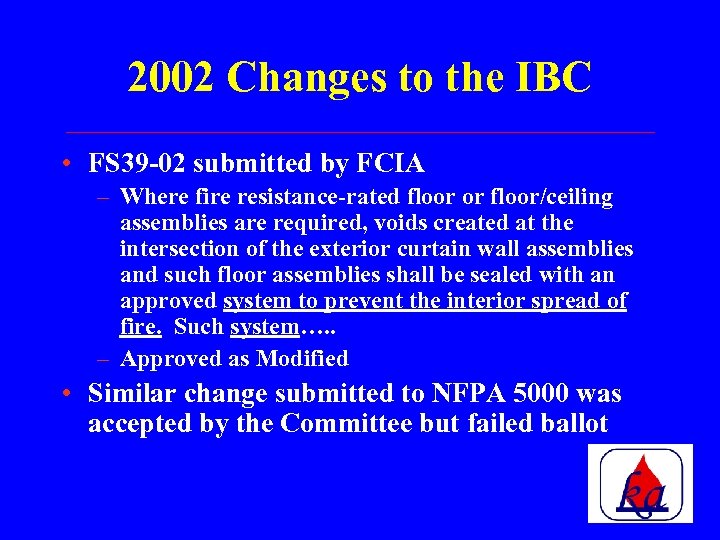

2002 Changes to the IBC • FS 39 -02 submitted by FCIA – Where fire resistance-rated floor or floor/ceiling assemblies are required, voids created at the intersection of the exterior curtain wall assemblies and such floor assemblies shall be sealed with an approved system to prevent the interior spread of fire. Such system…. . – Approved as Modified • Similar change submitted to NFPA 5000 was accepted by the Committee but failed ballot

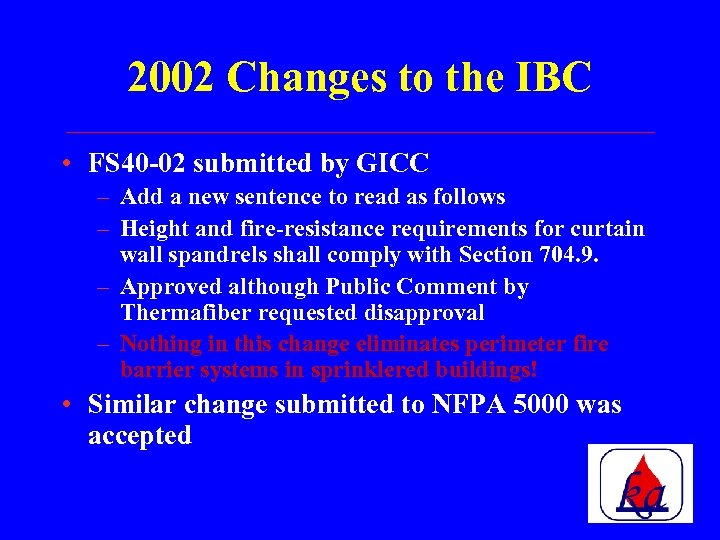

2002 Changes to the IBC • FS 40 -02 submitted by GICC – Add a new sentence to read as follows – Height and fire-resistance requirements for curtain wall spandrels shall comply with Section 704. 9. – Approved although Public Comment by Thermafiber requested disapproval – Nothing in this change eliminates perimeter fire barrier systems in sprinklered buildings! • Similar change submitted to NFPA 5000 was accepted

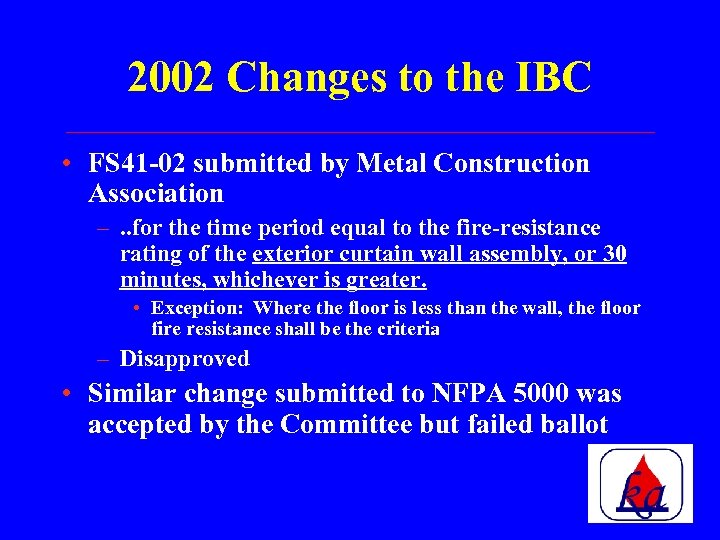

2002 Changes to the IBC • FS 41 -02 submitted by Metal Construction Association –. . for the time period equal to the fire-resistance rating of the exterior curtain wall assembly, or 30 minutes, whichever is greater. • Exception: Where the floor is less than the wall, the floor fire resistance shall be the criteria – Disapproved • Similar change submitted to NFPA 5000 was accepted by the Committee but failed ballot

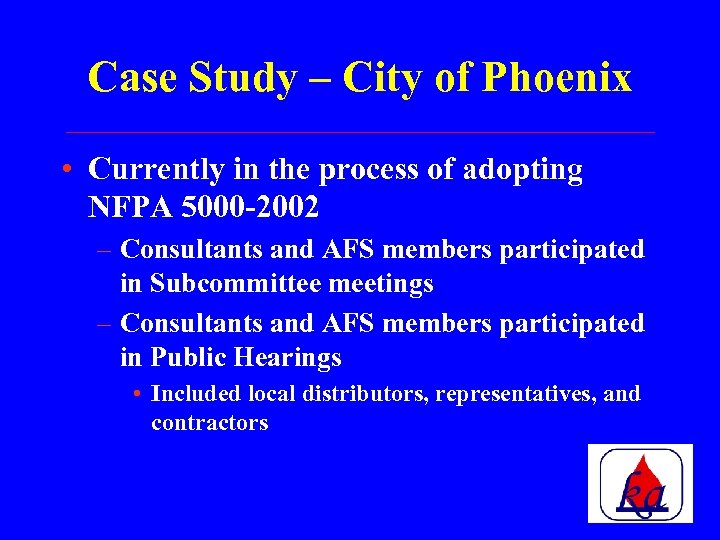

Case Study – City of Phoenix • Currently in the process of adopting NFPA 5000 -2002 – Consultants and AFS members participated in Subcommittee meetings – Consultants and AFS members participated in Public Hearings • Included local distributors, representatives, and contractors

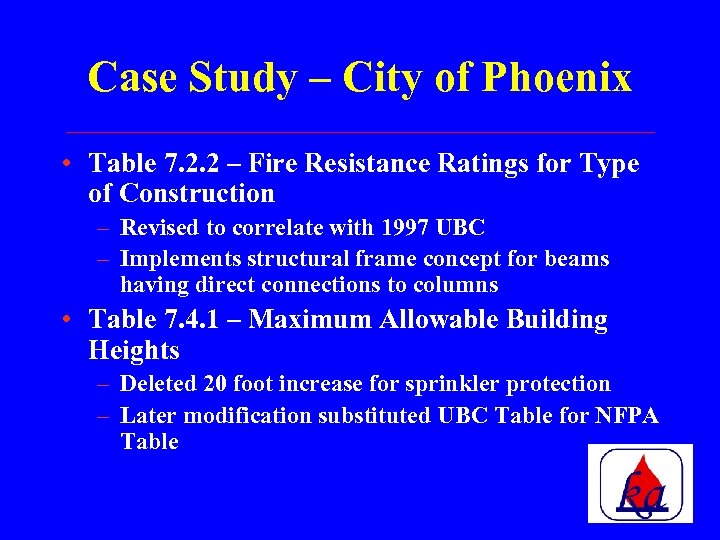

Case Study – City of Phoenix • Table 7. 2. 2 – Fire Resistance Ratings for Type of Construction – Revised to correlate with 1997 UBC – Implements structural frame concept for beams having direct connections to columns • Table 7. 4. 1 – Maximum Allowable Building Heights – Deleted 20 foot increase for sprinkler protection – Later modification substituted UBC Table for NFPA Table

Case Study – City of Phoenix • Section 7. 4. 3. 2 – Sprinkler Increases – Eliminated “double dipping” for height and area – No longer necessary since UBC Table and method substituted for NFPA Table and method • Section 8. 3. 1 – Fire Wall Ratings – Revised to correlate with 1997 UBC instead of twohour fire wall requirement in NFPA 5000

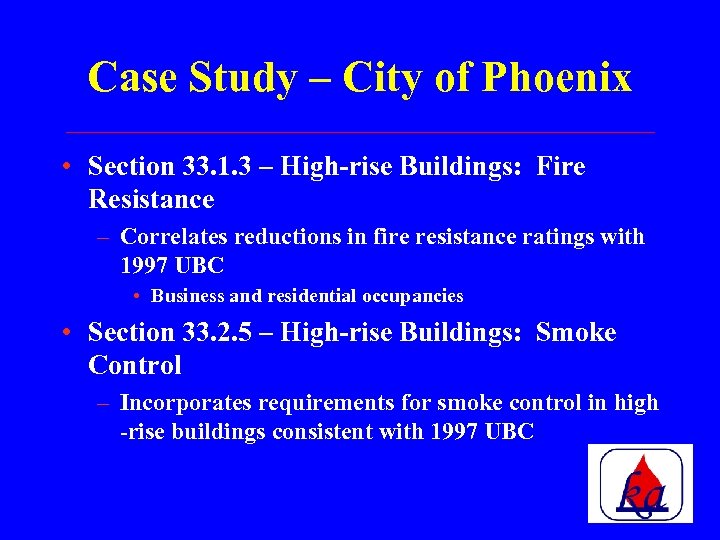

Case Study – City of Phoenix • Section 33. 1. 3 – High-rise Buildings: Fire Resistance – Correlates reductions in fire resistance ratings with 1997 UBC • Business and residential occupancies • Section 33. 2. 5 – High-rise Buildings: Smoke Control – Incorporates requirements for smoke control in high -rise buildings consistent with 1997 UBC

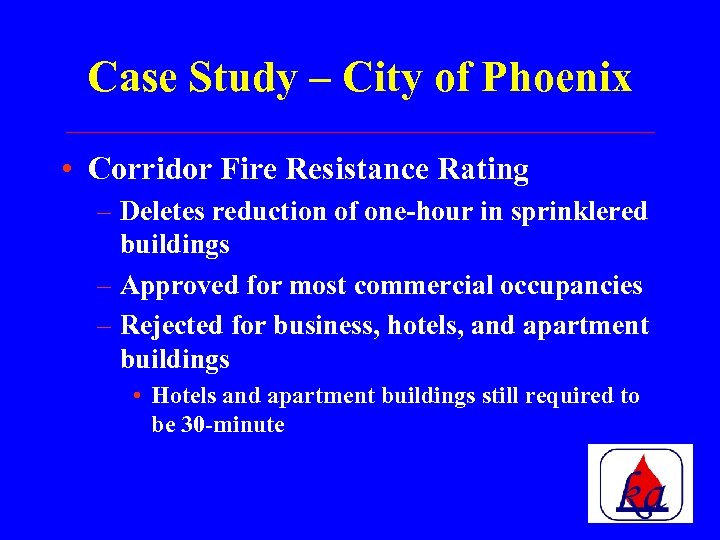

Case Study – City of Phoenix • Corridor Fire Resistance Rating – Deletes reduction of one-hour in sprinklered buildings – Approved for most commercial occupancies – Rejected for business, hotels, and apartment buildings • Hotels and apartment buildings still required to be 30 -minute

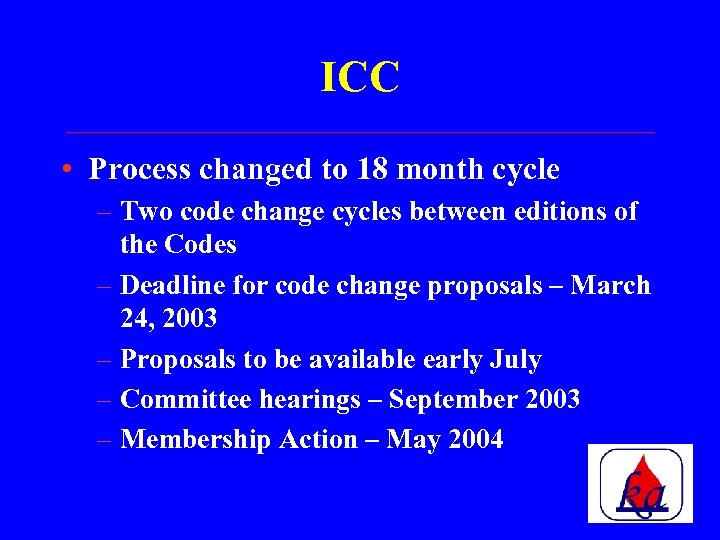

ICC • Process changed to 18 month cycle – Two code change cycles between editions of the Codes – Deadline for code change proposals – March 24, 2003 – Proposals to be available early July – Committee hearings – September 2003 – Membership Action – May 2004

ICC • Second cycle starts in Fall 2004 – Committee hearings – February 2005 – Membership Action – September 2005 • Issues – Clarify that automatic sprinkler protection does not eliminate need for perimeter fire barrier system – Resist, retard, restrict, and limit smoke

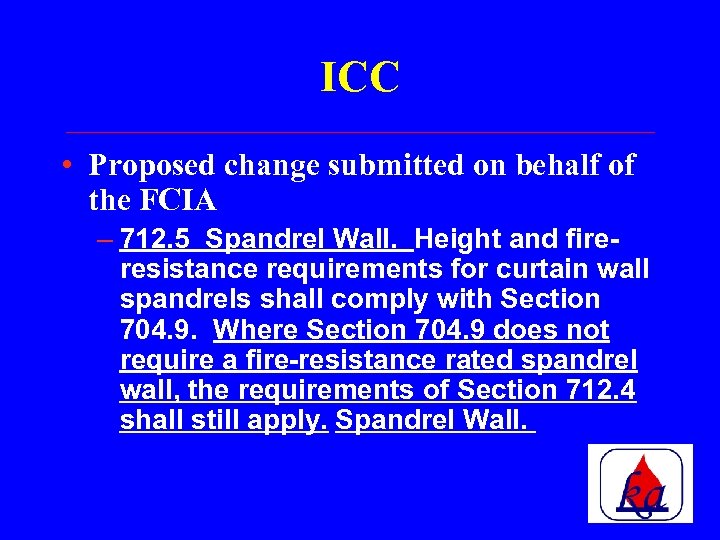

ICC • Proposed change submitted on behalf of the FCIA – 712. 5 Spandrel Wall. Height and fireresistance requirements for curtain wall spandrels shall comply with Section 704. 9. Where Section 704. 9 does not require a fire-resistance rated spandrel wall, the requirements of Section 712. 4 shall still apply. Spandrel Wall.

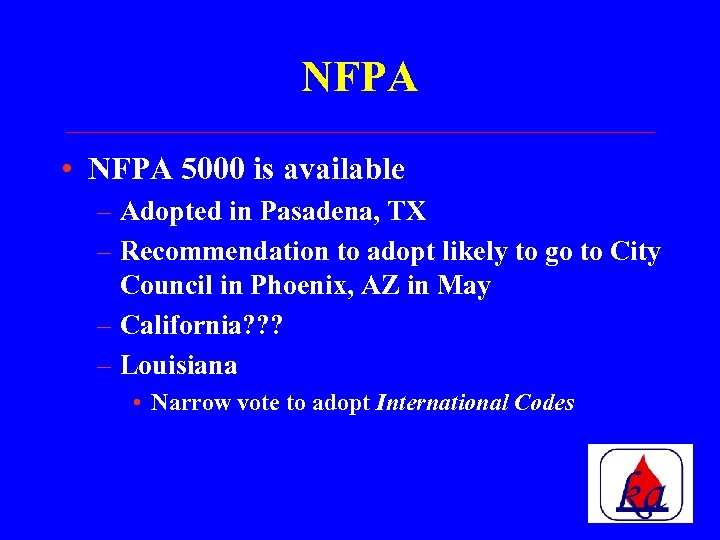

NFPA • NFPA 5000 is available – Adopted in Pasadena, TX – Recommendation to adopt likely to go to City Council in Phoenix, AZ in May – California? ? ? – Louisiana • Narrow vote to adopt International Codes

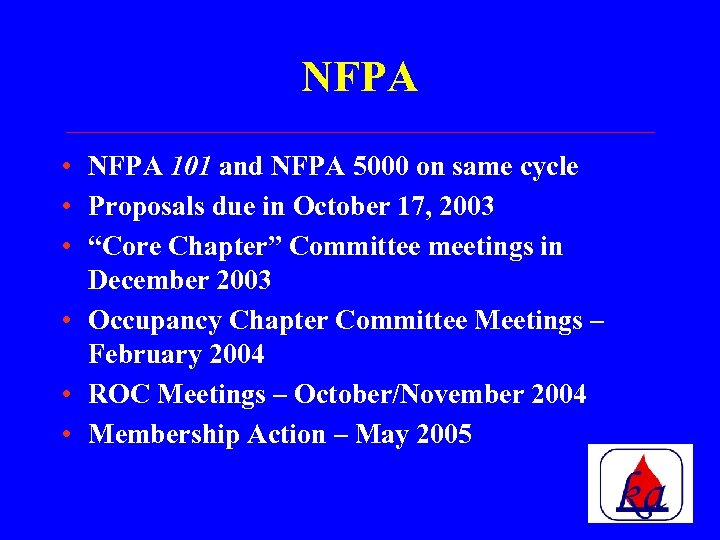

NFPA • NFPA 101 and NFPA 5000 on same cycle • Proposals due in October 17, 2003 • “Core Chapter” Committee meetings in December 2003 • Occupancy Chapter Committee Meetings – February 2004 • ROC Meetings – October/November 2004 • Membership Action – May 2005

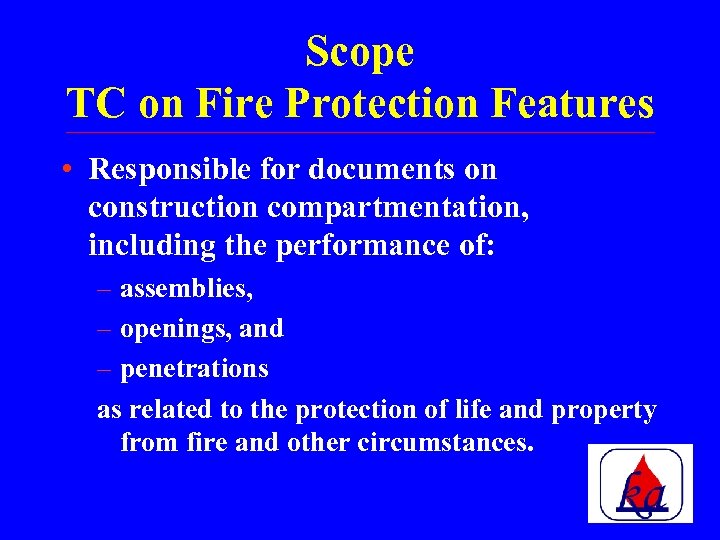

Scope TC on Fire Protection Features • Responsible for documents on construction compartmentation, including the performance of: – assemblies, – openings, and – penetrations as related to the protection of life and property from fire and other circumstances.

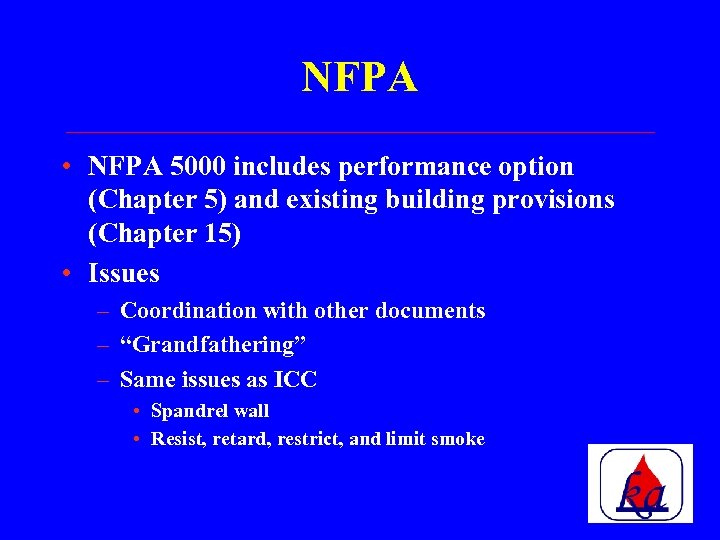

NFPA • NFPA 5000 includes performance option (Chapter 5) and existing building provisions (Chapter 15) • Issues – Coordination with other documents – “Grandfathering” – Same issues as ICC • Spandrel wall • Resist, retard, restrict, and limit smoke

Questions? ? ?
