FADC Upgrade for SPring 8 TEXONO KS Ø 40

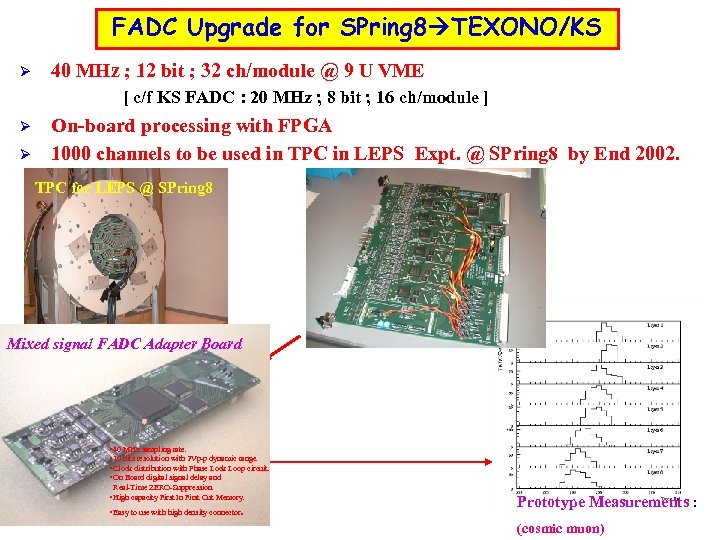

FADC Upgrade for SPring 8 TEXONO/KS Ø 40 MHz ; 12 bit ; 32 ch/module @ 9 U VME [ c/f KS FADC : 20 MHz ; 8 bit ; 16 ch/module ] Ø Ø On-board processing with FPGA 1000 channels to be used in TPC in LEPS Expt. @ SPring 8 by End 2002. TPC for LEPS @ SPring 8 Mixed signal FADC Adapter Board § 40 MHz sampling rate. § 10 bits resolution with 2 Vp-p dynamic range. §Clock distribution with Phase Lock Loop circuit. §On Board digital signal delay and Real-Time ZERO-Suppression. §High capacity First In First Out Memory. . §Easy to use with high density connector Prototype Measurements : (cosmic muon)

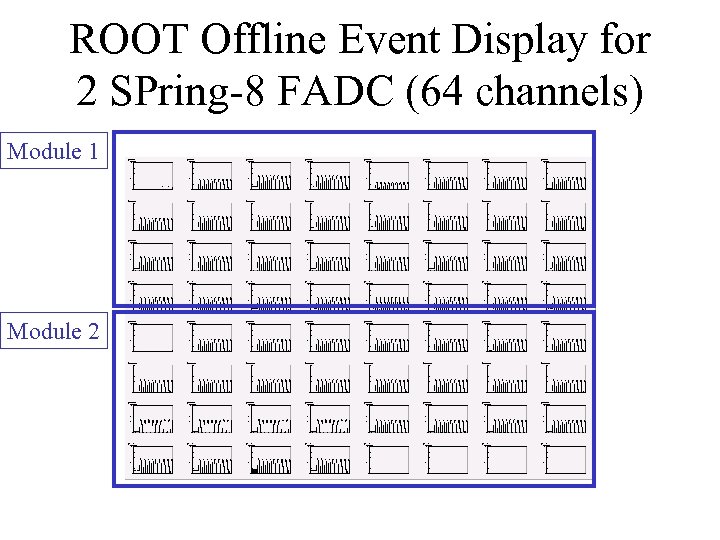

ROOT Offline Event Display for 2 SPring-8 FADC (64 channels) Module 1 Module 2

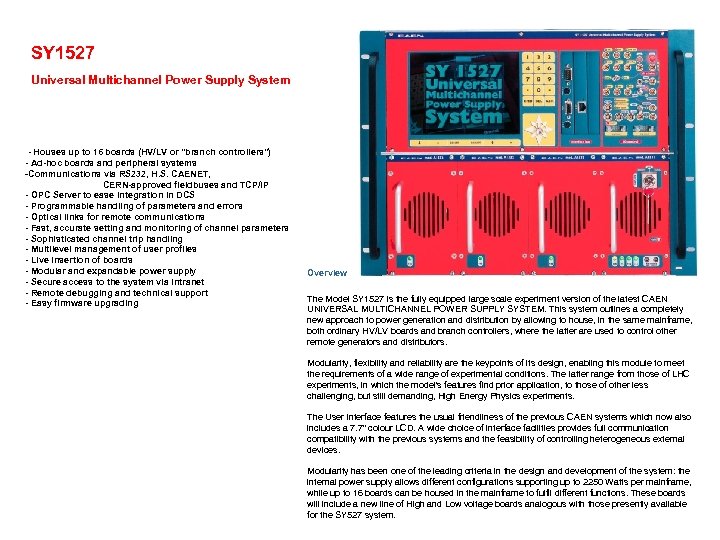

SY 1527 Universal Multichannel Power Supply System - Houses up to 16 boards (HV/LV or "branch controllers") - Ad-hoc boards and peripheral systems -Communications via RS 232, H. S. CAENET, CERN-approved fieldbuses and TCP/IP - OPC Server to ease integration in DCS - Programmable handling of parameters and errors - Optical links for remote communications - Fast, accurate setting and monitoring of channel parameters - Sophisticated channel trip handling - Multilevel management of user profiles - Live insertion of boards - Modular and expandable power supply Overview - Secure access to the system via Intranet - Remote debugging and technical support The Model SY 1527 is the fully equipped large scale experiment version of the latest CAEN - Easy firmware upgrading UNIVERSAL MULTICHANNEL POWER SUPPLY SYSTEM. This system outlines a completely new approach to power generation and distribution by allowing to house, in the same mainframe, both ordinary HV/LV boards and branch controllers, where the latter are used to control other remote generators and distributors. Modularity, flexibility and reliability are the keypoints of its design, enabling this module to meet the requirements of a wide range of experimental conditions. The latter range from those of LHC experiments, in which the model's features find prior application, to those of other less challenging, but still demanding, High Energy Physics experiments. The User interface features the usual friendliness of the previous CAEN systems which now also includes a 7. 7" colour LCD. A wide choice of interface facilities provides full communication compatibility with the previous systems and the feasibility of controlling heterogeneous external devices. Modularity has been one of the leading criteria in the design and development of the system: the internal power supply allows different configurations supporting up to 2250 Watts per mainframe, while up to 16 boards can be housed in the mainframe to fulfil different functions. These boards will include a new line of High and Low voltage boards analogous with those presently available for the SY 527 system.

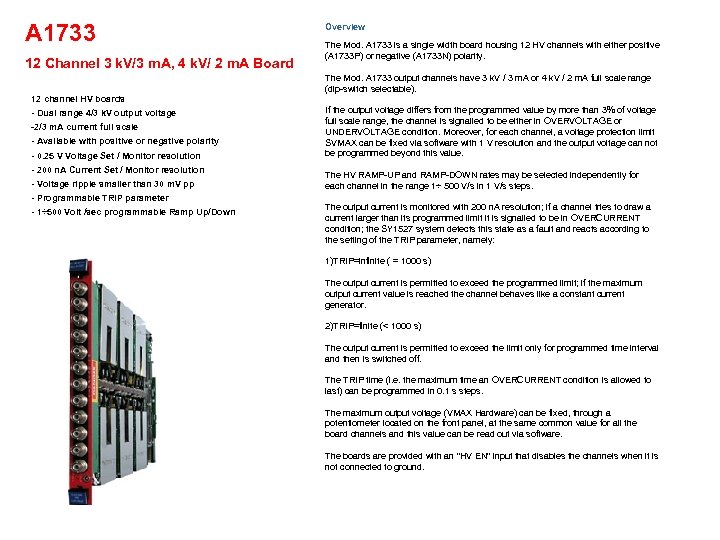

A 1733 Overview 12 Channel 3 k. V/3 m. A, 4 k. V/ 2 m. A Board The Mod. A 1733 is a single width board housing 12 HV channels with either positive (A 1733 P) or negative (A 1733 N) polarity. The Mod. A 1733 output channels have 3 k. V / 3 m. A or 4 k. V / 2 m. A full scale range (dip-switch selectable). 12 channel HV boards If the output voltage differs from the programmed value by more than 3% of voltage full scale range, the channel is signalled to be either in OVERVOLTAGE or UNDERVOLTAGE condition. Moreover, for each channel, a voltage protection limit SVMAX can be fixed via software with 1 V resolution and the output voltage can not be programmed beyond this value. - Dual range 4/3 k. V output voltage -2/3 m. A current full scale - Available with positive or negative polarity - 0. 25 V Voltage Set / Monitor resolution - 200 n. A Current Set / Monitor resolution The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷ 500 V/s in 1 V/s steps. - Voltage ripple smaller than 30 m. V pp - Programmable TRIP parameter The output current is monitored with 200 n. A resolution; if a channel tries to draw a current larger than its programmed limit it is signalled to be in OVERCURRENT condition; the SY 1527 system detects this state as a fault and reacts according to the setting of the TRIP parameter, namely: 1)TRIP=infinite ( = 1000 s) - 1÷ 500 Volt /sec programmable Ramp Up/Down The output current is permitted to exceed the programmed limit; if the maximum output current value is reached the channel behaves like a constant current generator. 2)TRIP=finite (< 1000 s) The output current is permitted to exceed the limit only for programmed time interval and then is switched off. The TRIP time (i. e. the maximum time an OVERCURRENT condition is allowed to last) can be programmed in 0. 1 s steps. The maximum output voltage (VMAX Hardware) can be fixed, through a potentiometer located on the front panel, at the same common value for all the board channels and this value can be read out via software. The boards are provided with an "HV EN" input that disables the channels when it is not connected to ground.

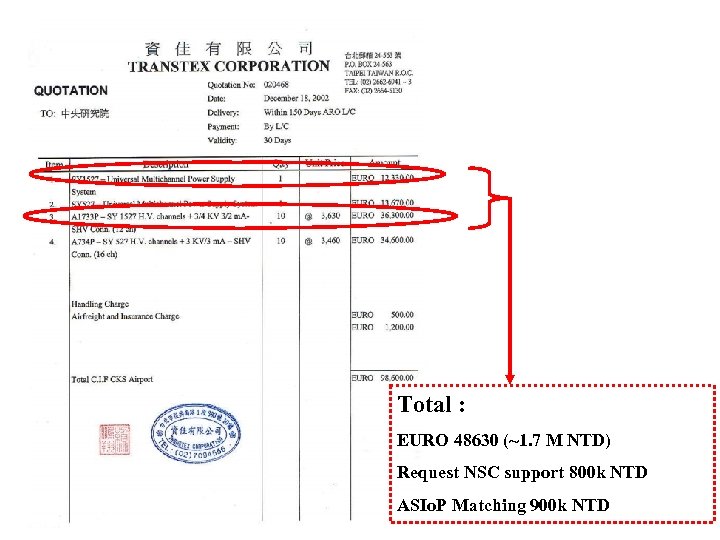

Total : EURO 48630 (~1. 7 M NTD) Request NSC support 800 k NTD ASIo. P Matching 900 k NTD

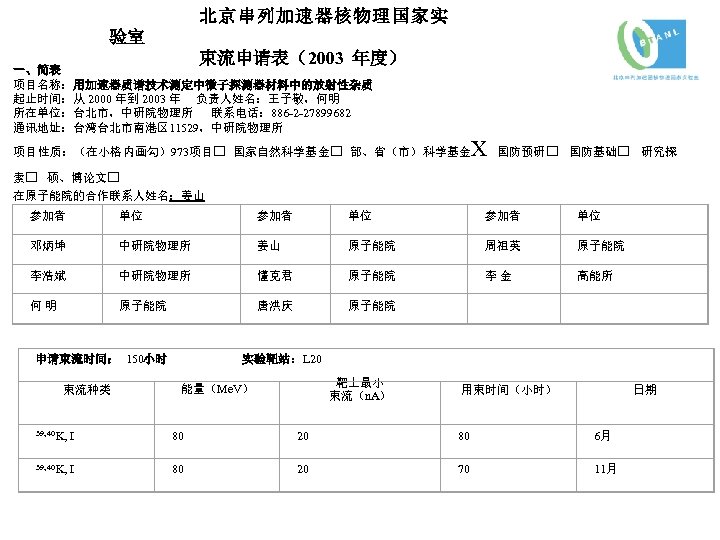

北京串列加速器核物理国家实 验室 束流申请表（2003 年度） 一、简表 项目名称：用加速器质谱技术测定中微子探测器材料中的放射性杂质 起止时间：从 2000 年到 2003 年 负责人姓名：王子敬，何明 所在单位：台北市，中研院物理所 联系电话： 886 -2 -27899682 通讯地址：台湾台北市南港区 11529，中研院物理所 项目性质：（在小格内画勾）973项目 □ □ 国家自然科学基金□ 部、省（市）科学基金X 国防预研□ 国防基础□ 研究探 □ 索 硕、博论文 在原子能院的合作联系人姓名：姜山 参加者 单位 邓炳坤 中研院物理所 姜山 原子能院 周祖英 原子能院 李浩斌 中研院物理所 懂克君 原子能院 李 金 高能所 何 明 原子能院 唐洪庆 原子能院 申请束流时间： 150小时 实验靶站：L 20 束流种类 靶上最小 束流（n. A） 能量（Me. V） 用束时间（小时） 日期 39, 40 K, I 80 20 80 6月 39, 40 K, I 80 20 70 11月

二、摘要 (对新开项目请写意义、主要内容及目标；对继续执行 项目请写今年实验内容与结果)，（不超过400字）。 2001年，通过合作研究，在中国原子能科学研究院的HI-13串列 加速器的AMS装置上首次（国际上首次）测量了中微子探测器材料 Cs. I中长寿命超底含量的放射性杂质 129 I和 40 K的含量。主要的测量结 果是：（1）Cs. I中 129 I与127 I的原子比值为 1× 10 -12（129 I在Cs. I中大约 为 5× 10 -13 g/g）；（2）Cs. I中 39 K与127 I的原子比值大约为 6× 10 -6（相 当于Cs. I中的40 K约为 1. 7× 10 -10 g/g）。 上述的结果是一个初步的测量结果，尤其是对 39 K的测量存在两 个问题，一是测量本底问题，测量结果中存在有来自离子源（包括， 靶锥和Cs+束）的本底；二是K离子的引出效率与传输效率问题。这 两个问题将在 2003年进行研究。 三、三年内在串列上取得的成果登记（1论文，按作者、题目、刊物、期、 年和页； 2国际会议报告，按会议、日期、地点、作者、题目； 3获奖及专利。） 本計劃乃新的研究方向，為國際上首次，於 2001年已有初步結果，並未在國際期刊 發表。於 2003年的重點，就是把結果確認，瞭解系統誤差、效率等問題，然後定可 於一流期刊發表。 本合作團隊於 2000年作中子對Cs. I nuclear recoil 的測量，獲得良好數據，發表於 “Nuclear Recoil Measurement in Cs. I(Tl) crystal for Cold Dark Matter Detection”, M. Z. Wang et al. , Phys. Lett. B 536, 203 (2002)
