Faculty of Mechanical Engineering Institute of Power Engineering, Professorship of Energy System Engineering and Heat Economy Adapted control systems for house service connection stations of huge performance – domestic hot water supply based on continuous flow system Dipl. -Ing. Norbert Wünsche, Dr. -Ing. Karin Rühling TU Dresden, Institut of Power Engineering This presentation is based on a research project financially supported by the German Federal Ministry of Economy within the PROgramm “INNOvationskompetenz mittelständischer Unternehmen” (KF 0100804 KMH 3) Second Euroheat & Power RTD Workshop Brussels, 2 -3 February 2006

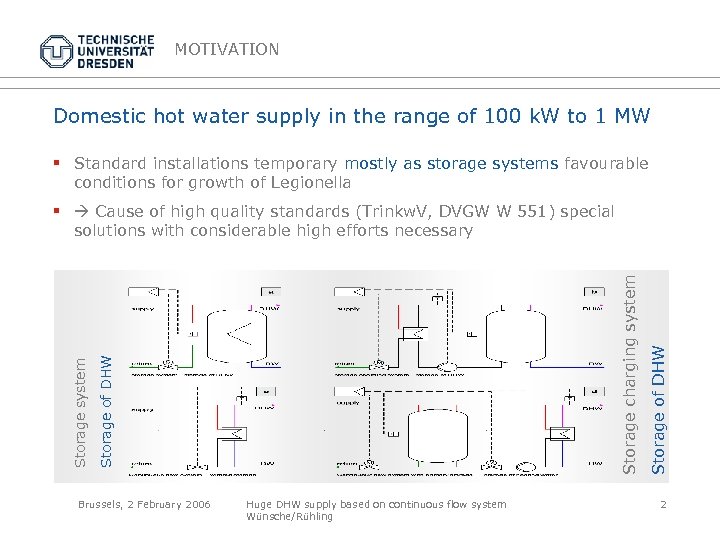

MOTIVATION Domestic hot water supply in the range of 100 k. W to 1 MW § Standard installations temporary mostly as storage systems favourable conditions for growth of Legionella Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling Storage of DHW Storage charging system Storage of DHW Storage system § Cause of high quality standards (Trinkw. V, DVGW W 551) special solutions with considerable high efforts necessary 2

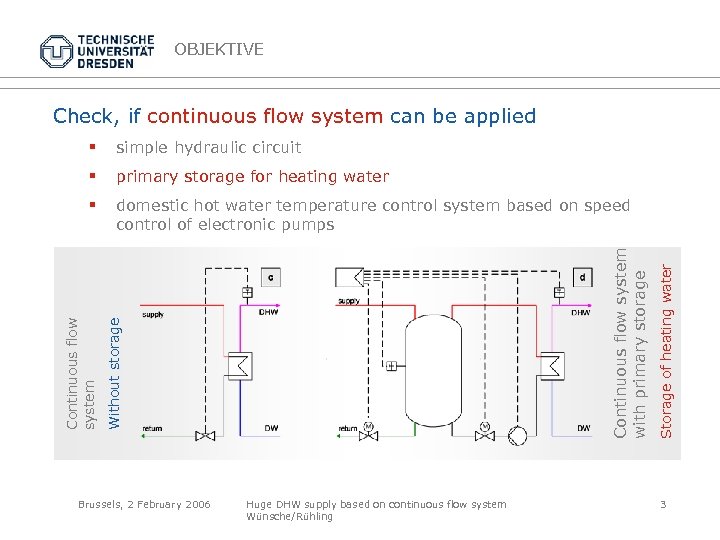

OBJEKTIVE Check, if continuous flow system can be applied primary storage for heating water § domestic hot water temperature control system based on speed control of electronic pumps Without storage Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling Storage of heating water § Continuous flow system with primary storage simple hydraulic circuit Continuous flow system § 3

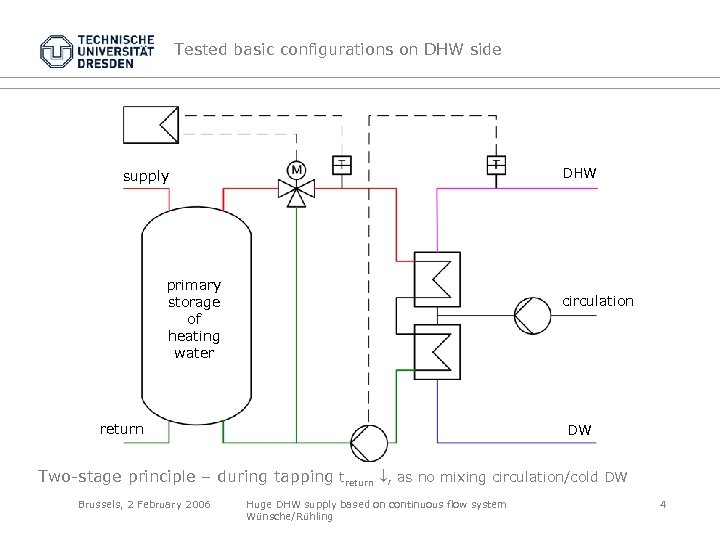

Tested basic configurations on DHW side DHW supply primary storage of heating water circulation return DW Two-stage principle – during tapping treturn , as no mixing circulation/cold DW Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 4

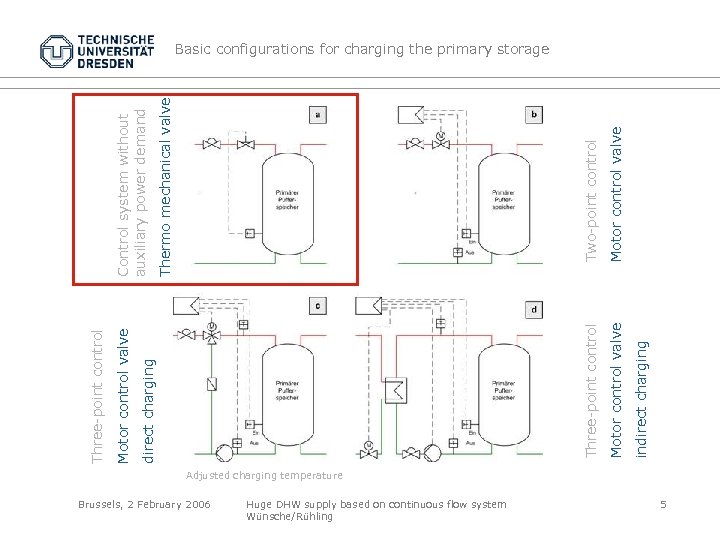

Two-point control Thermo mechanical valve Control system without auxiliary power demand Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling Motor control valve indirect charging Motor control valve Three-point control Basic configurations for charging the primary storage Adjusted charging temperature 5

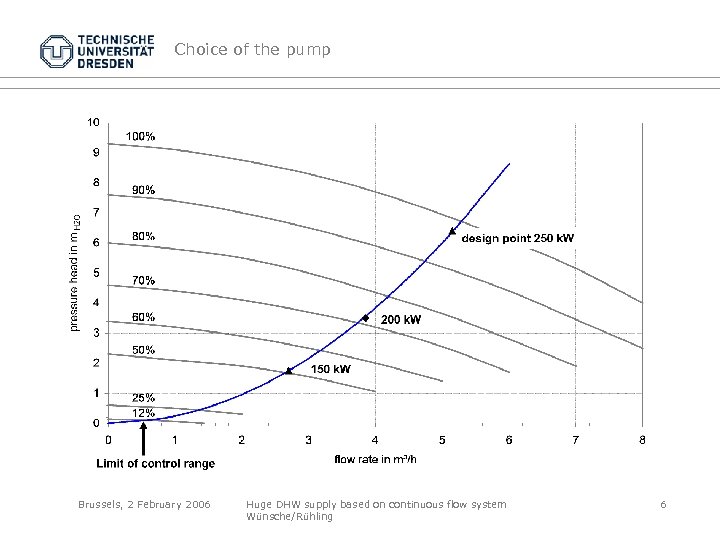

Choice of the pump Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 6

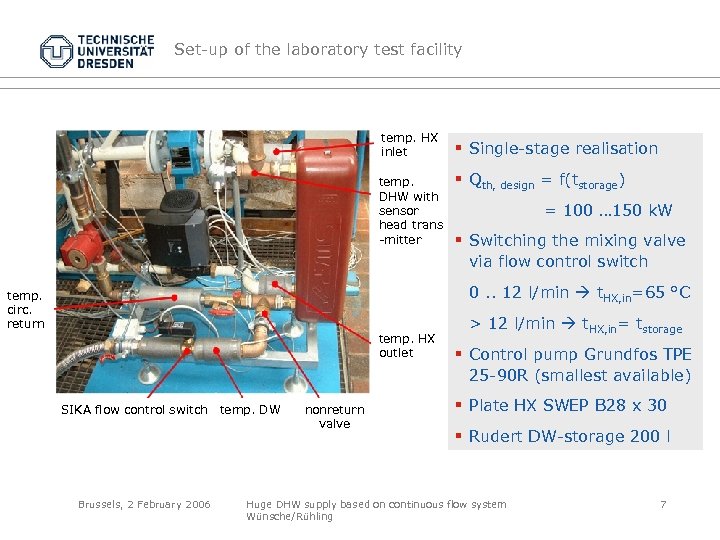

Set-up of the laboratory test facility temp. HX inlet temp. DHW with sensor head trans -mitter § Single-stage realisation § Qth, design = f(tstorage) = 100 … 150 k. W § Switching the mixing valve via flow control switch 0. . 12 l/min t. HX, in=65 °C temp. circ. return temp. HX outlet SIKA flow control switch Brussels, 2 February 2006 temp. DW nonreturn valve > 12 l/min t. HX, in= tstorage § Control pump Grundfos TPE 25 -90 R (smallest available) § Plate HX SWEP B 28 x 30 § Rudert DW-storage 200 l Huge DHW supply based on continuous flow system Wünsche/Rühling 7

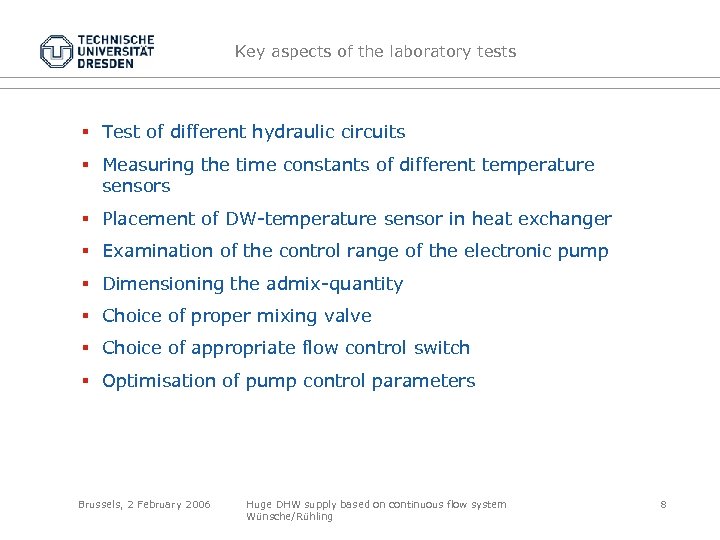

Key aspects of the laboratory tests § Test of different hydraulic circuits § Measuring the time constants of different temperature sensors § Placement of DW-temperature sensor in heat exchanger § Examination of the control range of the electronic pump § Dimensioning the admix-quantity § Choice of proper mixing valve § Choice of appropriate flow control switch § Optimisation of pump control parameters Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 8

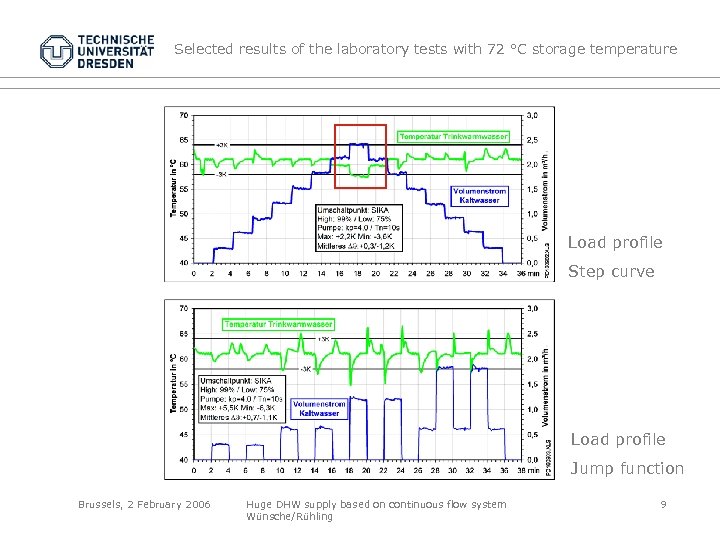

Selected results of the laboratory tests with 72 °C storage temperature Load profile Step curve Load profile Jump function Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 9

Selected results of the laboratory tests Maximum values Minimum values average positive deviation average negative deviation Load function / storage temperature Step curve 72 °C +2, 2 K -3, 6 K +0, 3 K -1, 2 K Jump function 72 °C +5, 5 K -3, 6 K +0, 7 K -1, 1 K Step curve 80 °C +2, 1 K -1, 9 K +0, 2 K -0, 4 K Jump function 80 °C +6, 5 K -5, 7 K +0, 5 K -0, 7 K Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 10

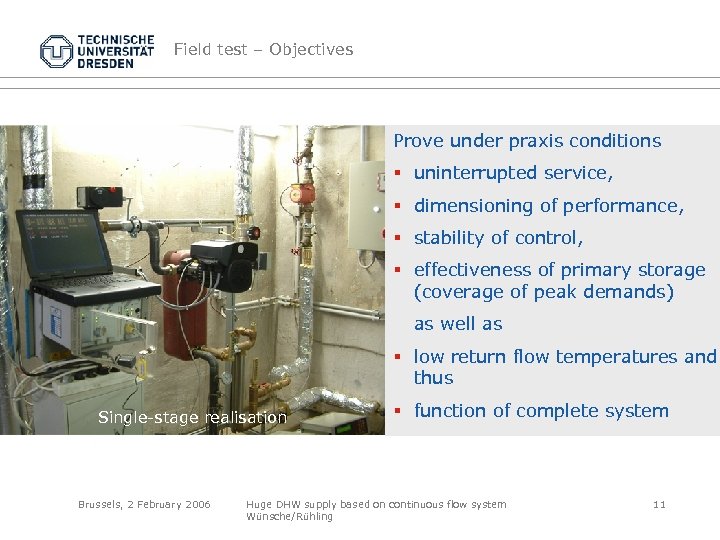

Field test – Objectives Prove under praxis conditions § uninterrupted service, § dimensioning of performance, § stability of control, § effectiveness of primary storage (coverage of peak demands) as well as § low return flow temperatures and thus Single-stage realisation Brussels, 2 February 2006 § function of complete system Huge DHW supply based on continuous flow system Wünsche/Rühling 11

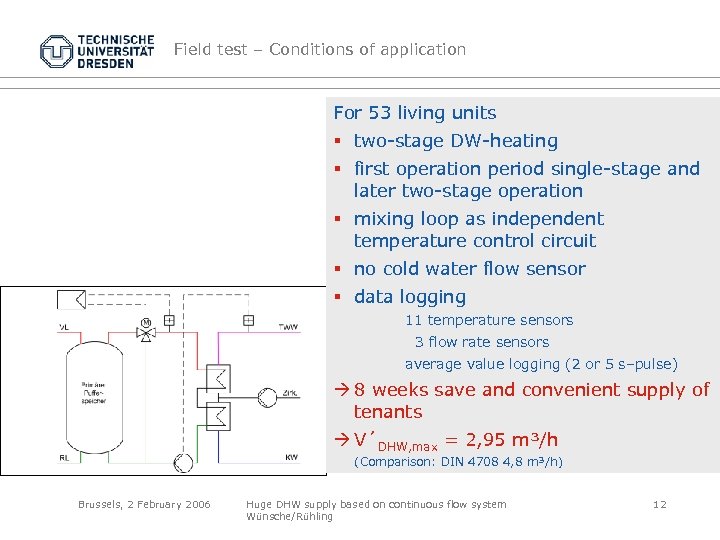

Field test – Conditions of application For 53 living units § two-stage DW-heating § first operation period single-stage and later two-stage operation § mixing loop as independent temperature control circuit § no cold water flow sensor § data logging 11 temperature sensors 3 flow rate sensors average value logging (2 or 5 s–pulse) 8 weeks save and convenient supply of tenants V´DHW, max = 2, 95 m³/h (Comparison: DIN 4708 4, 8 m³/h) Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 12

Field test - Selected results – Daily average values Remarkable higher control stability in the two-stage realisation (± 2 K) Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 13

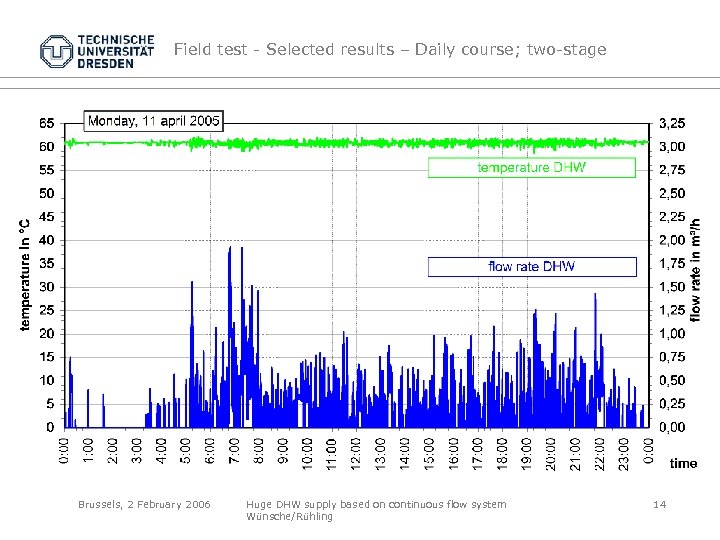

Field test - Selected results – Daily course; two-stage Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 14

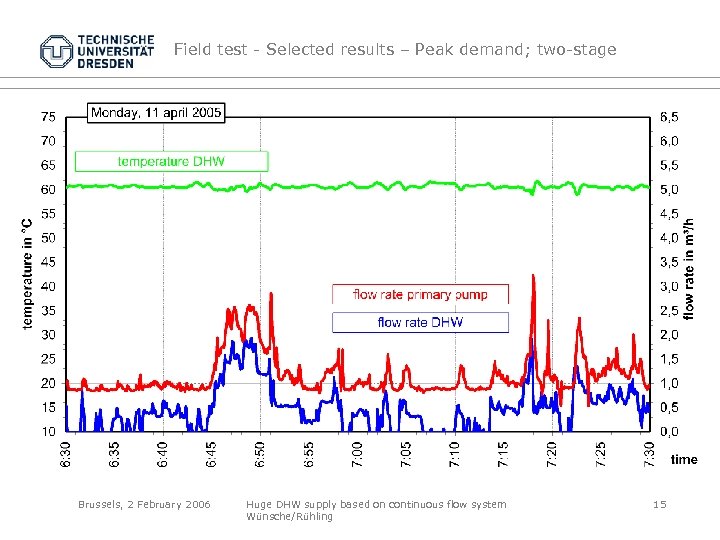

Field test - Selected results – Peak demand; two-stage Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 15

flow rate in m 3/h Field test - Selected results – Frequency distribution DHW demand frequency distribution flow rate of area-equivalent rectangle: 0, 134 m 3/h time in % § DHW-demand only 32 % of the time § only during 10 % of the time demand > 0, 5 m³/h § dimensioning of primary storage = f (circulation demand, operation parameter of heat exchanger, mixing loop, storage temperature. . ) program for dimensioning Brussels, 2 February 2006 Huge DHW supply based on continuous flow system Wünsche/Rühling 16
