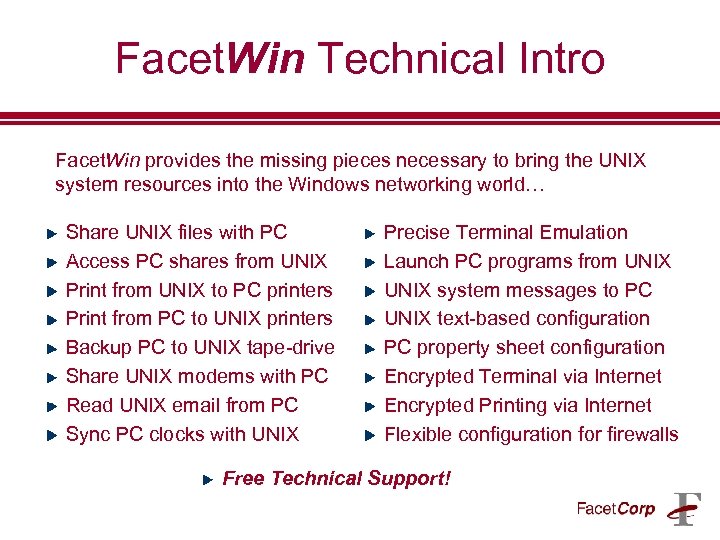

Facet. Win Technical Intro Facet. Win provides the missing pieces necessary to bring the UNIX system resources into the Windows networking world… Share UNIX files with PC Access PC shares from UNIX Print from UNIX to PC printers Print from PC to UNIX printers Backup PC to UNIX tape-drive Share UNIX modems with PC Read UNIX email from PC Sync PC clocks with UNIX Precise Terminal Emulation Launch PC programs from UNIX system messages to PC UNIX text-based configuration PC property sheet configuration Encrypted Terminal via Internet Encrypted Printing via Internet Flexible configuration for firewalls Free Technical Support!

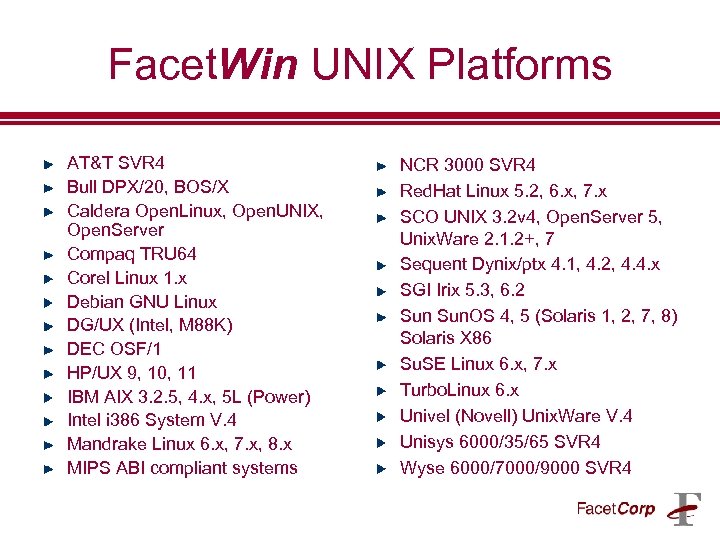

Facet. Win UNIX Platforms AT&T SVR 4 Bull DPX/20, BOS/X Caldera Open. Linux, Open. UNIX, Open. Server Compaq TRU 64 Corel Linux 1. x Debian GNU Linux DG/UX (Intel, M 88 K) DEC OSF/1 HP/UX 9, 10, 11 IBM AIX 3. 2. 5, 4. x, 5 L (Power) Intel i 386 System V. 4 Mandrake Linux 6. x, 7. x, 8. x MIPS ABI compliant systems NCR 3000 SVR 4 Red. Hat Linux 5. 2, 6. x, 7. x SCO UNIX 3. 2 v 4, Open. Server 5, Unix. Ware 2. 1. 2+, 7 Sequent Dynix/ptx 4. 1, 4. 2, 4. 4. x SGI Irix 5. 3, 6. 2 Sun. OS 4, 5 (Solaris 1, 2, 7, 8) Solaris X 86 Su. SE Linux 6. x, 7. x Turbo. Linux 6. x Univel (Novell) Unix. Ware V. 4 Unisys 6000/35/65 SVR 4 Wyse 6000/7000/9000 SVR 4

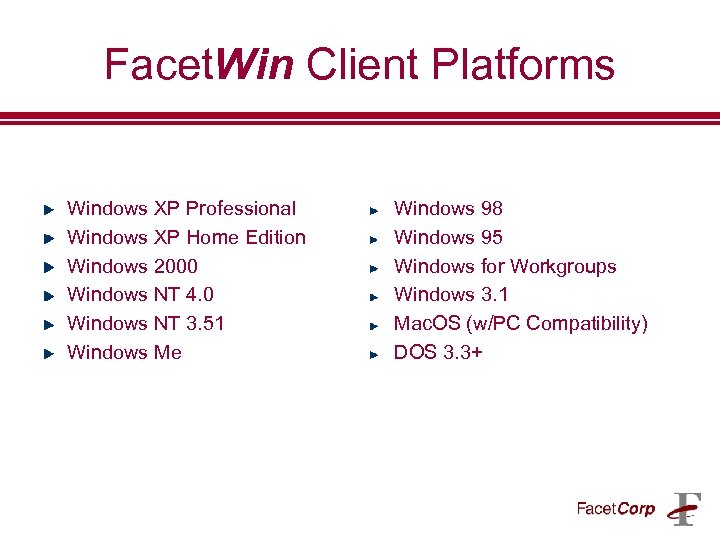

Facet. Win Client Platforms Windows XP Professional Windows XP Home Edition Windows 2000 Windows NT 4. 0 Windows NT 3. 51 Windows Me Windows 98 Windows 95 Windows for Workgroups Windows 3. 1 Mac. OS (w/PC Compatibility) DOS 3. 3+

Getting Facet. Win Software Facet. Win is available on CDROM, on floppy disk, or by download… Same installation media can be used for multiple installs Pick the right port for your UNIX platform Evaluation, Installation, and Upgrade software all the same Installation package contains both client and server software Client software is the same for all versions of Windows Full manual in PDF format on CDROM and website http: //www. facetcorp. com/manuals. html Example utility scripts available for download from FTP site ftp: //ftp. facetcorp. com/scripts/facetwin

Facet. Win Installation Procedure Typical Facet. Win installation procedure: 1. Put installation files on UNIX system. mount installation CDROM (“mount –r /dev/cd 0 /mnt”) or FTP downloaded files from PC to UNIX 2. Run UNIX installation shell script. 3. as “root” user, run “sh install. sh” 3. Run “setup. exe” Windows client installation program. 4. via Network Neighborhood (“\UNIXFacet. Win. PCsetup. exe”) 5. or directly from CDROM in PC

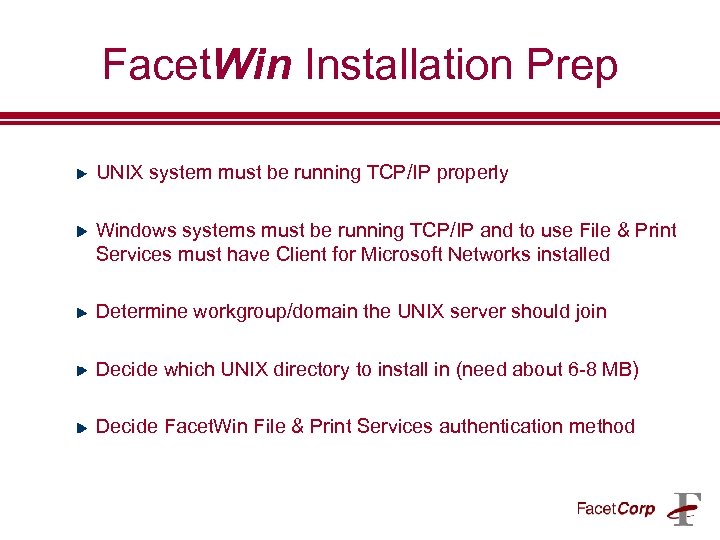

Facet. Win Installation Prep UNIX system must be running TCP/IP properly Windows systems must be running TCP/IP and to use File & Print Services must have Client for Microsoft Networks installed Determine workgroup/domain the UNIX server should join Decide which UNIX directory to install in (need about 6 -8 MB) Decide Facet. Win File & Print Services authentication method

Facet. Win UNIX Installation Before installing Facet. Win for the first time, you must Read the "Preparing UNIX Installation Notes" section in the Installation booklet, the CD help file, or the install. txt file. This will explain how to choose a security mode. Have you prepared the UNIX installation notes as described in the installation instructions [Y/N] (default N)? y Checking Facet. Win software installation files. Checking for Facet. Win servers already running. Specify destination directory [press ENTER for default /usr/facetwin]: /usr/facetwin Creating directory "/usr/facetwin". ==================== Thu Apr 4 15: 45: 11 PST 2002 Preparing to install Facet. Win software in /usr/facetwin. Which security method do you want to use for file and print services? Enter 1 for NT SERVER 2 for UNIX 3 for LANMAN 4 for RHOST Select Method [1 -4] (or "Q" to quit): 2 pass_security=UNIX Enter name of the workgroup or domain that should include this machine (or QUIT to quit): fcorp workgroup=fcorp Installing Facet. Win software. 11431 blocks Setting up default configuration. Updating /etc/services and /etc/inetd. conf files Installing links to programs. ('0 Blocks' is normal. ) 0 blocks Links installed. Installing Facet. Win man pages. ('0 Blocks' is normal. ) 0 blocks Man pages installed. Start FACETWIN LICENSE server Start FACETWIN WINS server Start FACETWIN BROWSER server All Facet. Win servers started. Installation is done

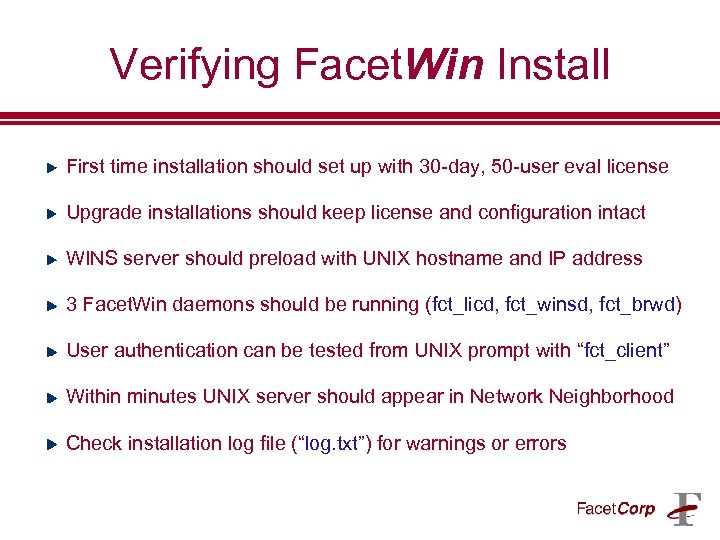

Verifying Facet. Win Install First time installation should set up with 30 -day, 50 -user eval license Upgrade installations should keep license and configuration intact WINS server should preload with UNIX hostname and IP address 3 Facet. Win daemons should be running (fct_licd, fct_winsd, fct_brwd) User authentication can be tested from UNIX prompt with “fct_client” Within minutes UNIX server should appear in Network Neighborhood Check installation log file (“log. txt”) for warnings or errors

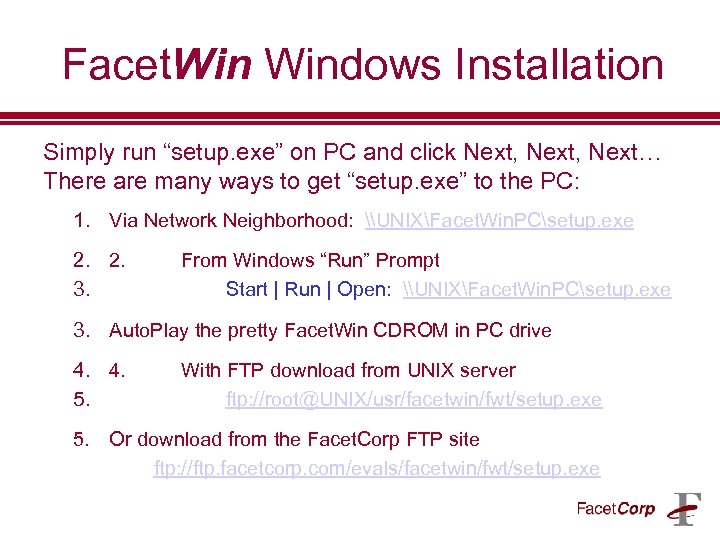

Facet. Windows Installation Simply run “setup. exe” on PC and click Next, Next… There are many ways to get “setup. exe” to the PC: 1. Via Network Neighborhood: \UNIXFacet. Win. PCsetup. exe 2. 2. 3. From Windows “Run” Prompt Start | Run | Open: \UNIXFacet. Win. PCsetup. exe 3. Auto. Play the pretty Facet. Win CDROM in PC drive 4. 4. 5. With FTP download from UNIX server ftp: //root@UNIX/usr/facetwin/fwt/setup. exe 5. Or download from the Facet. Corp FTP site ftp: //ftp. facetcorp. com/evals/facetwin/fwt/setup. exe

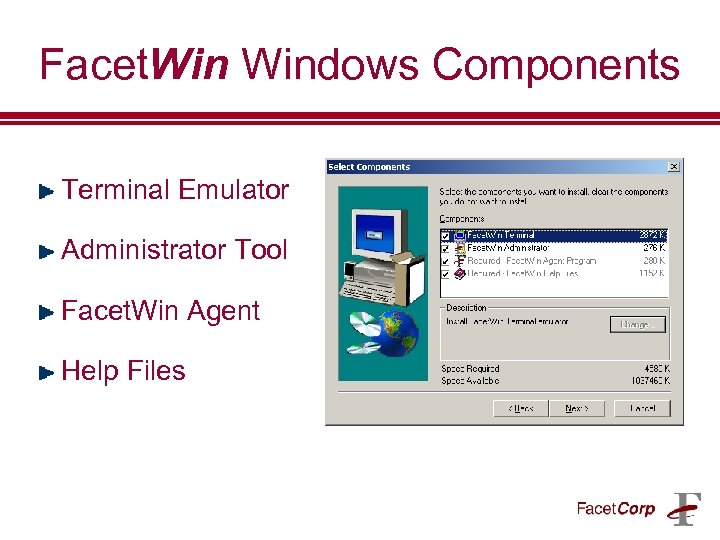

Facet. Windows Components Terminal Emulator Administrator Tool Facet. Win Agent Help Files

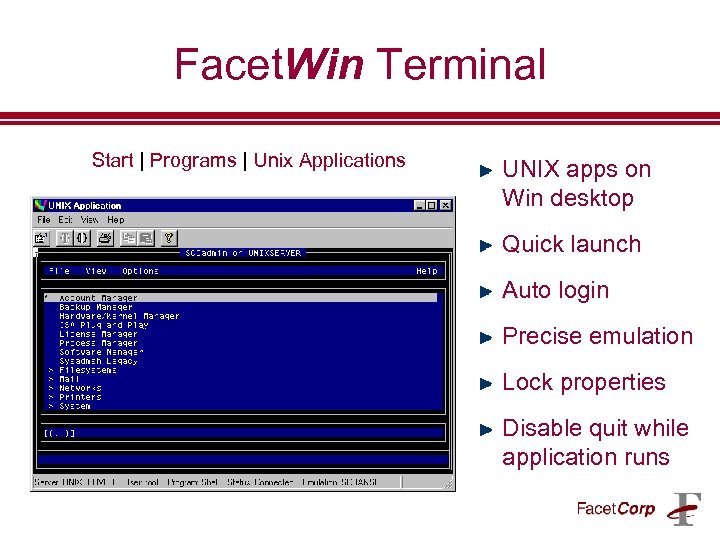

Facet. Win Terminal Start | Programs | Unix Applications UNIX apps on Win desktop Quick launch Auto login Precise emulation Lock properties Disable quit while application runs

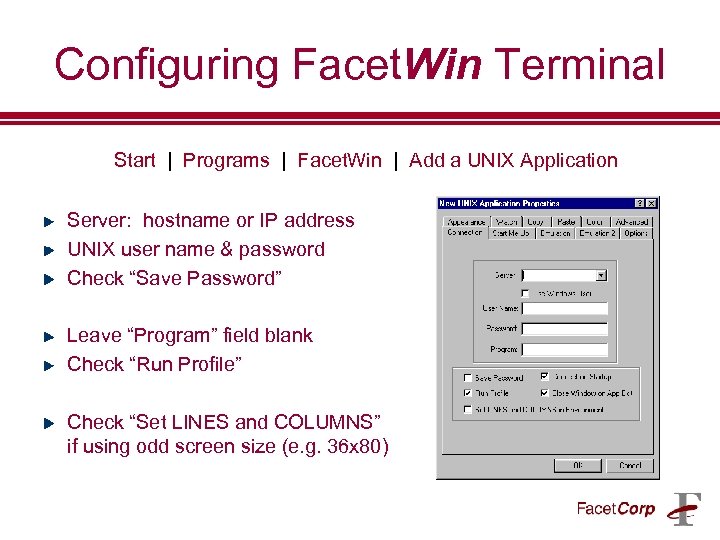

Configuring Facet. Win Terminal Start | Programs | Facet. Win | Add a UNIX Application Server: hostname or IP address UNIX user name & password Check “Save Password” Leave “Program” field blank Check “Run Profile” Check “Set LINES and COLUMNS” if using odd screen size (e. g. 36 x 80)

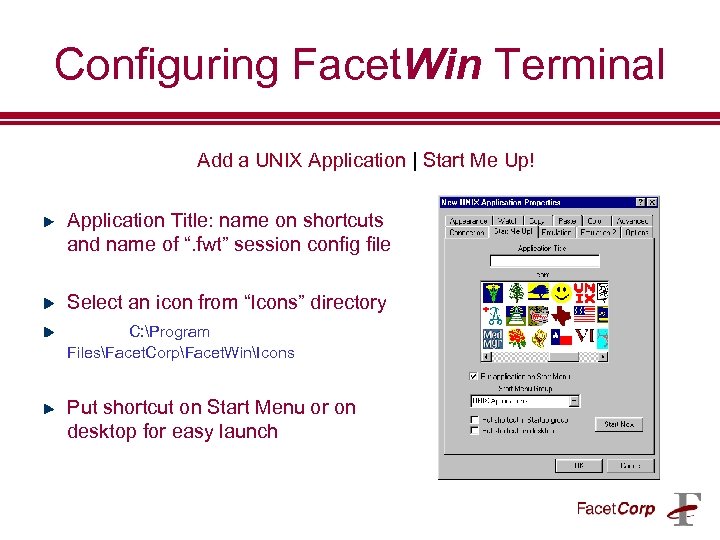

Configuring Facet. Win Terminal Add a UNIX Application | Start Me Up! Application Title: name on shortcuts and name of “. fwt” session config file Select an icon from “Icons” directory C: Program FilesFacet. CorpFacet. WinIcons Put shortcut on Start Menu or on desktop for easy launch

Configuring Facet. Win Terminal Add a UNIX Application | Emulation Select an Emulation mode: IBM 3151, IBM 3164, SCO ANSI, VT 100/102, VT 220, VT 320, VT 420, VT 525, WY 50, WY 60 SCO Default Colors Copy, Paste, and Print Screen Hotkeys

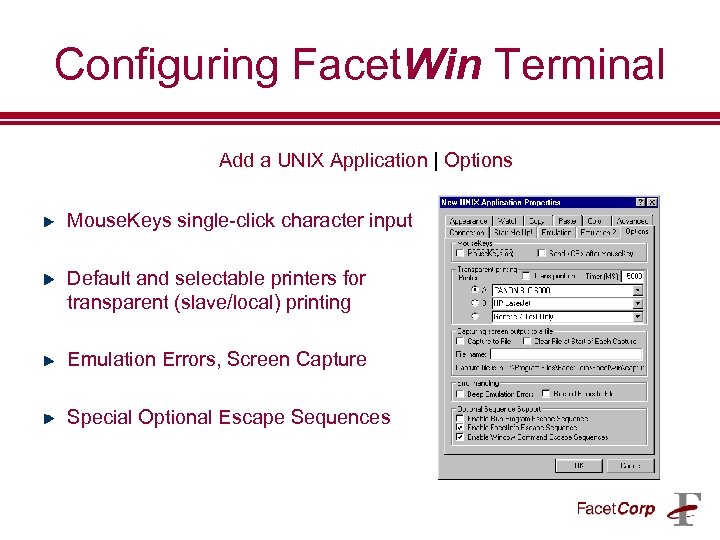

Configuring Facet. Win Terminal Add a UNIX Application | Options Mouse. Keys single-click character input Default and selectable printers for transparent (slave/local) printing Emulation Errors, Screen Capture Special Optional Escape Sequences

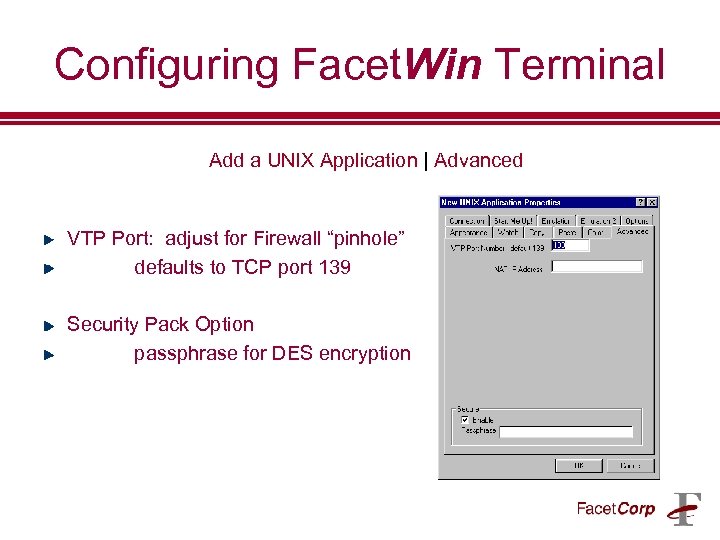

Configuring Facet. Win Terminal Add a UNIX Application | Advanced VTP Port: adjust for Firewall “pinhole” defaults to TCP port 139 Security Pack Option passphrase for DES encryption

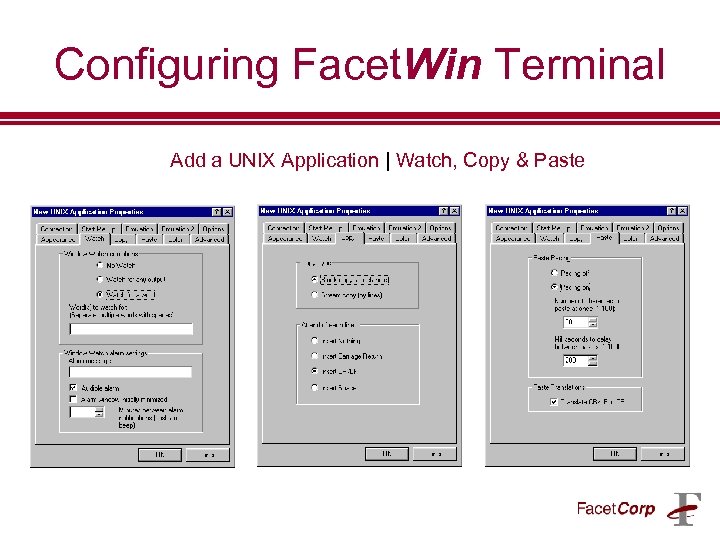

Configuring Facet. Win Terminal Add a UNIX Application | Watch, Copy & Paste

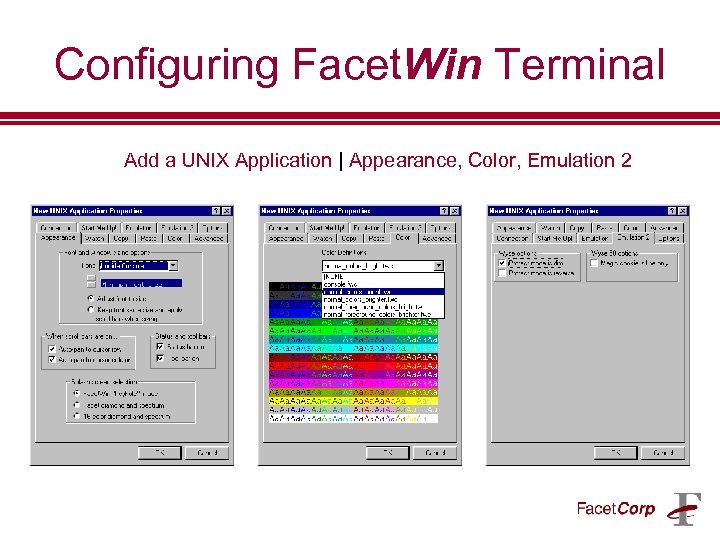

Configuring Facet. Win Terminal Add a UNIX Application | Appearance, Color, Emulation 2

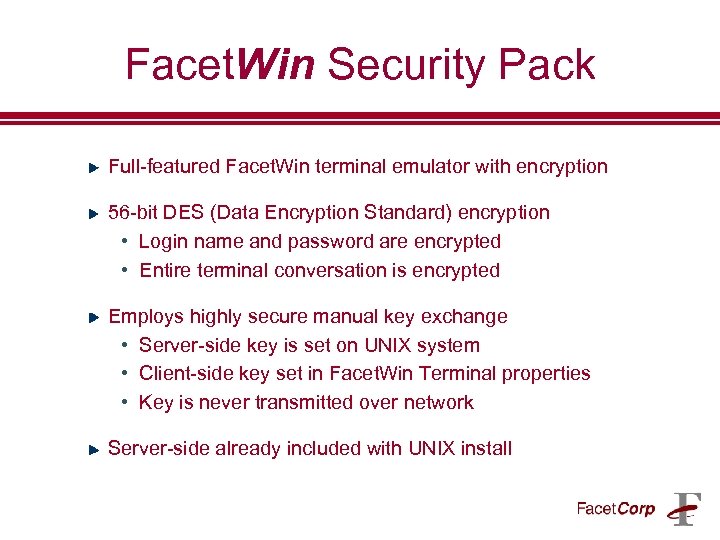

Facet. Win Security Pack Full-featured Facet. Win terminal emulator with encryption 56 -bit DES (Data Encryption Standard) encryption • Login name and password are encrypted • Entire terminal conversation is encrypted Employs highly secure manual key exchange • Server-side key is set on UNIX system • Client-side key set in Facet. Win Terminal properties • Key is never transmitted over network Server-side already included with UNIX install

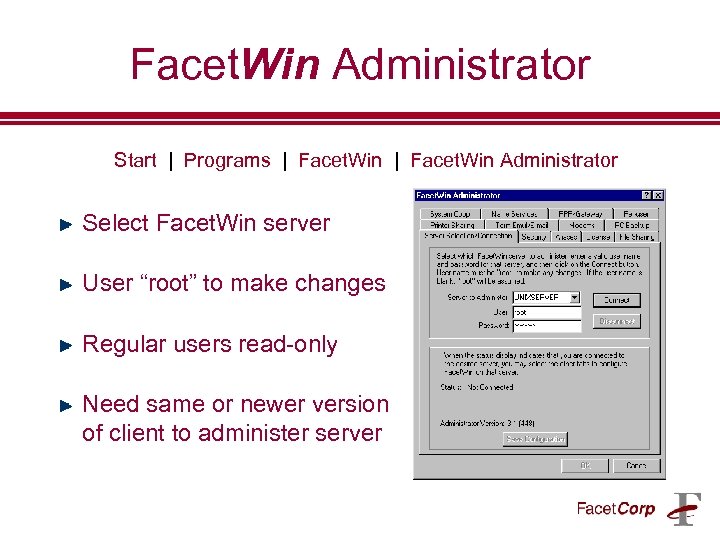

Facet. Win Administrator Start | Programs | Facet. Win Administrator Select Facet. Win server User “root” to make changes Regular users read-only Need same or newer version of client to administer server

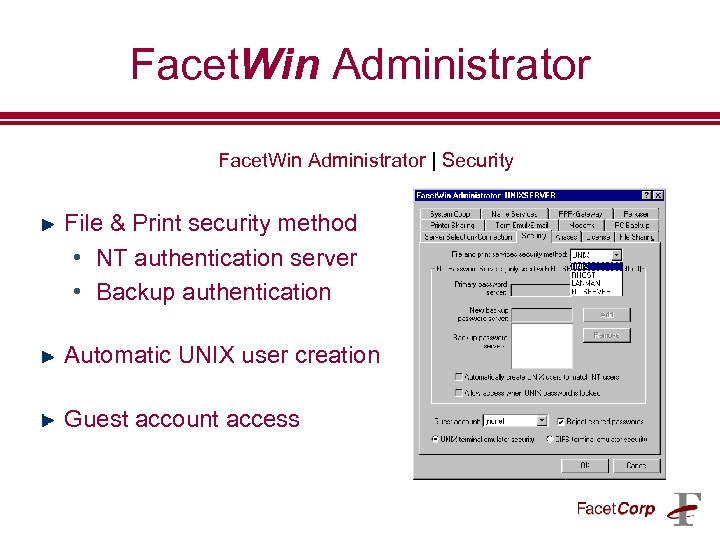

Facet. Win Administrator | Security File & Print security method • NT authentication server • Backup authentication Automatic UNIX user creation Guest account access

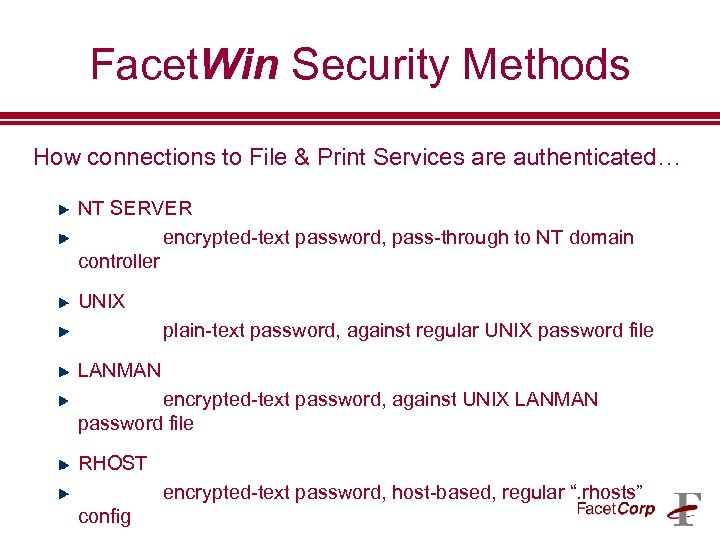

Facet. Win Security Methods How connections to File & Print Services are authenticated… NT SERVER encrypted-text password, pass-through to NT domain controller UNIX plain-text password, against regular UNIX password file LANMAN encrypted-text password, against UNIX LANMAN password file RHOST encrypted-text password, host-based, regular “. rhosts” config

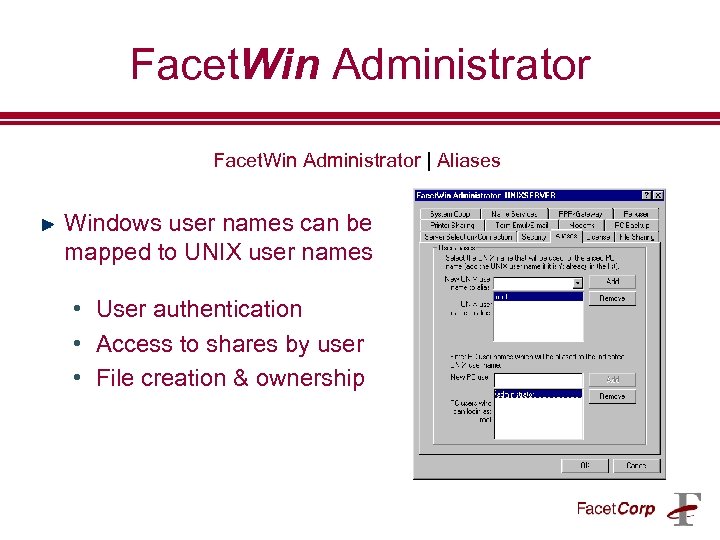

Facet. Win Administrator | Aliases Windows user names can be mapped to UNIX user names • User authentication • Access to shares by user • File creation & ownership

Facet. Win Administrator | File Sharing Adding UNIX file shares Read-only oplocks for speed Per share access restrictions by user or by machine name

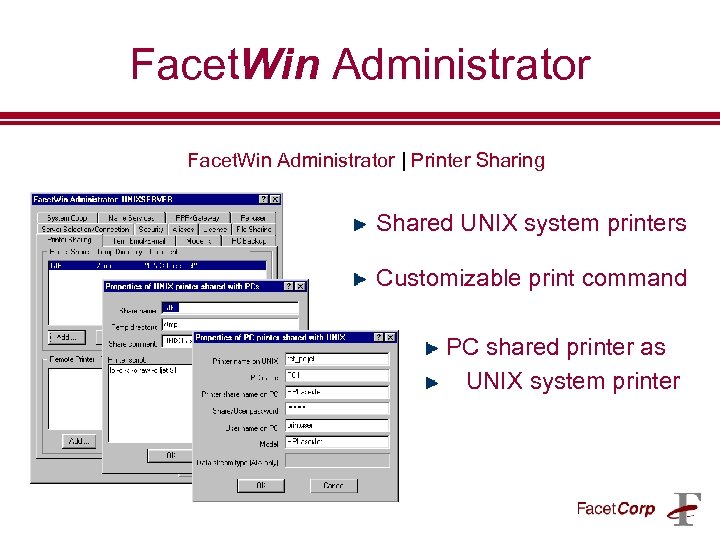

Facet. Win Administrator | Printer Sharing Shared UNIX system printers Customizable print command PC shared printer as UNIX system printer

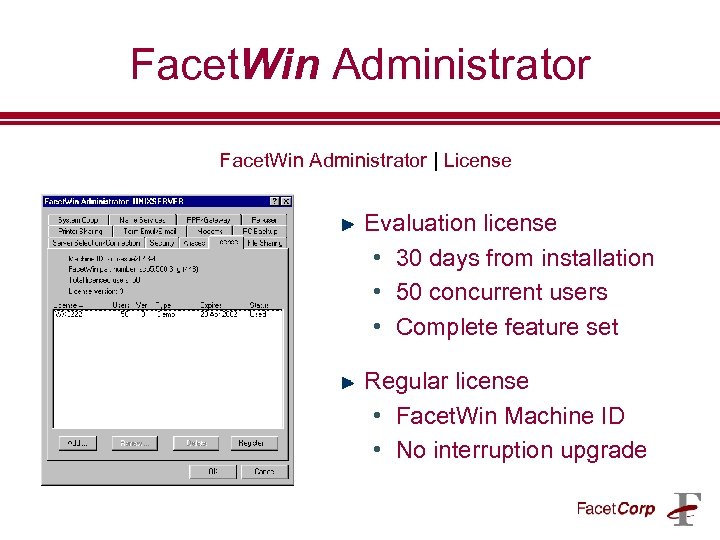

Facet. Win Administrator | License Evaluation license • 30 days from installation • 50 concurrent users • Complete feature set Regular license • Facet. Win Machine ID • No interruption upgrade

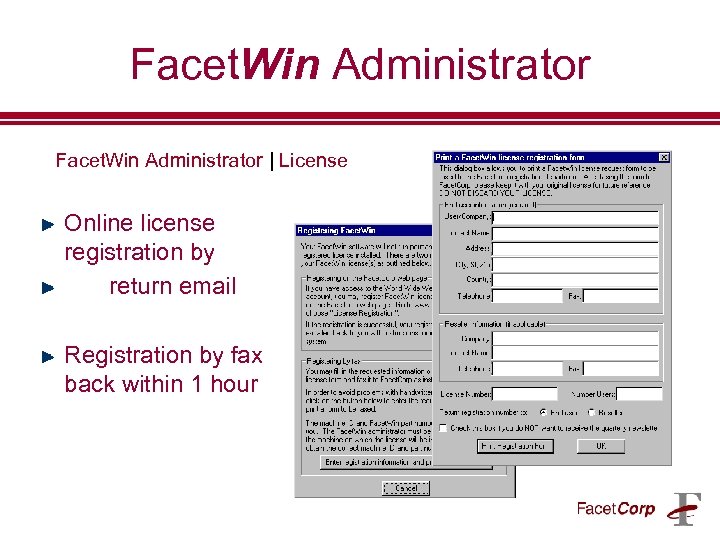

Facet. Win Administrator | License Online license registration by return email Registration by fax back within 1 hour

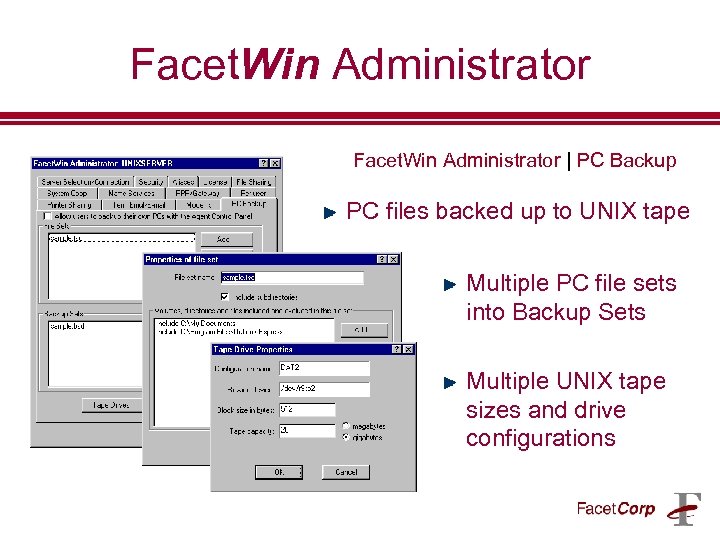

Facet. Win Administrator | PC Backup PC files backed up to UNIX tape Multiple PC file sets into Backup Sets Multiple UNIX tape sizes and drive configurations

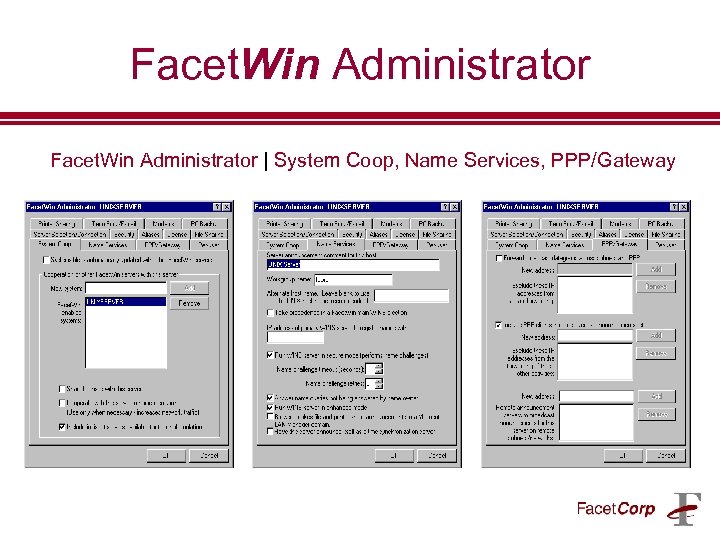

Facet. Win Administrator | System Coop, Name Services, PPP/Gateway

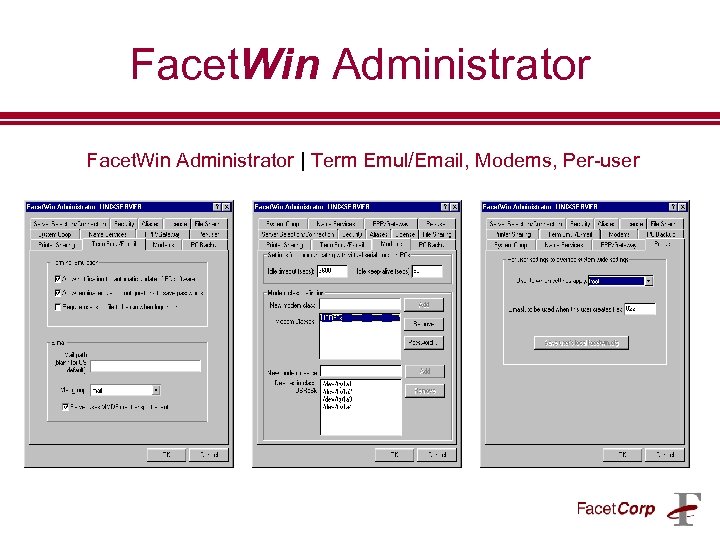

Facet. Win Administrator | Term Emul/Email, Modems, Per-user

Facet. Win Agent Start | Programs | Facet. Win Agent Modem Server configuration • Virtual Serial Port • Attach to UNIX modem Local control of PC Backup Enable Plain-text Passwords Default file creation mask

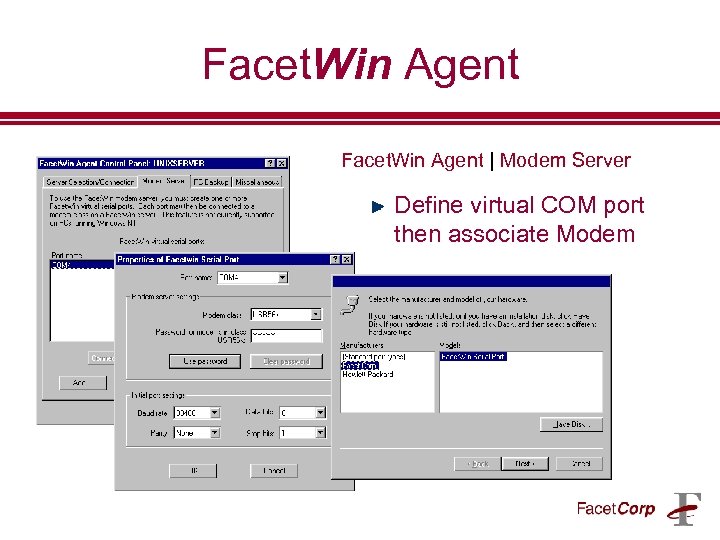

Facet. Win Agent | Modem Server Define virtual COM port then associate Modem

Facet. Win Agent | PC Backup Select files, then “Backup Now” Detailed backup log

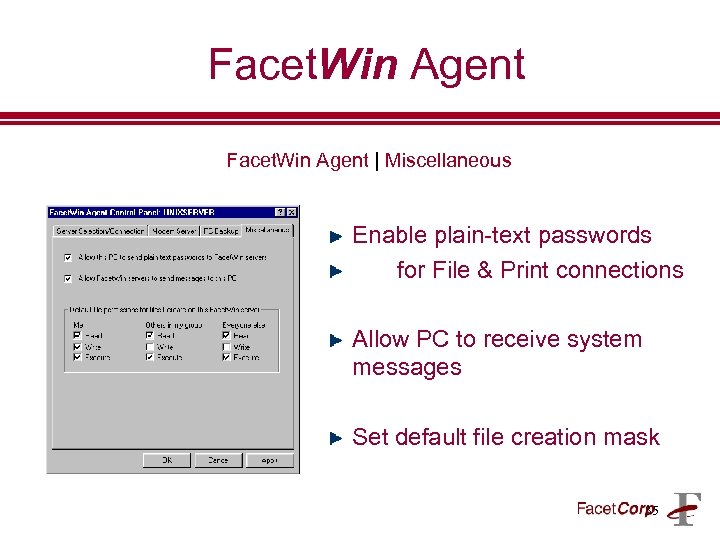

Facet. Win Agent | Miscellaneous Enable plain-text passwords for File & Print connections Allow PC to receive system messages Set default file creation mask 35

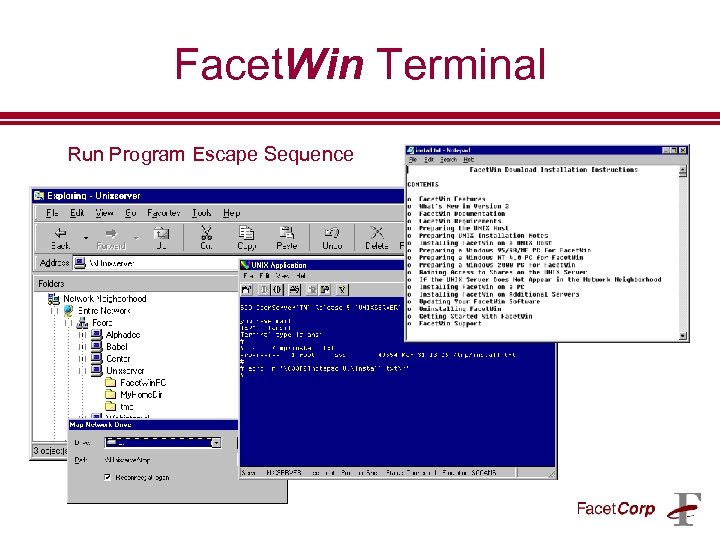

Facet. Win Terminal Run Program Escape Sequence

Facet. Win Utilities Access PC shares Admin tools

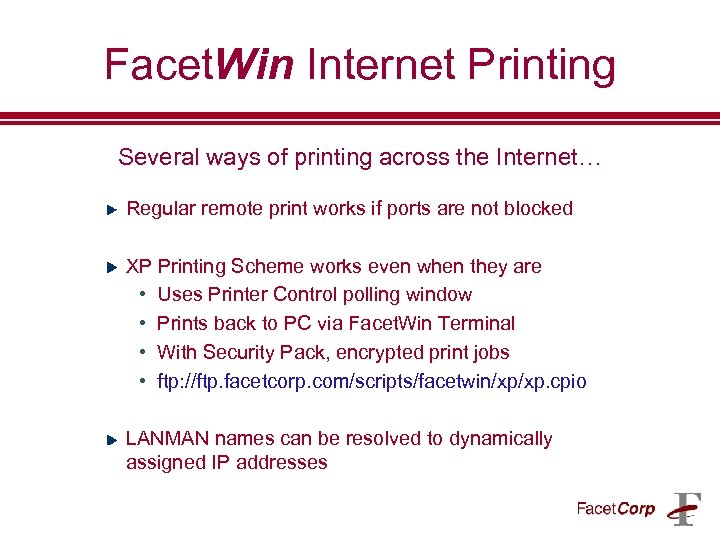

Facet. Win Internet Printing Several ways of printing across the Internet… Regular remote print works if ports are not blocked XP Printing Scheme works even when they are • Uses Printer Control polling window • Prints back to PC via Facet. Win Terminal • With Security Pack, encrypted print jobs • ftp: //ftp. facetcorp. com/scripts/facetwin/xp/xp. cpio LANMAN names can be resolved to dynamically assigned IP addresses

Facet. Win Trouble-shooting Many ways of diagnosing and fixing problems… Check UNIX “syslog” messages Facet. Win daemons have special debug mode Windows error dialog boxes Terminal session capture files Emulation errors (screen garbage) logged Online technical application notes http: //www. facetcorp. com/tnotes Tech Support email: support@facetcorp. com Free & available Support Engineers 1 -877 -322 -3846 (1 -877 -Facet. Go) 1 -972 -985 -9901 (outside North America)
