Extraction and Indexing of Triplet Based Knowledge Using

Extraction and Indexing of Triplet. Based Knowledge Using Natural Language Processing From Text to Information

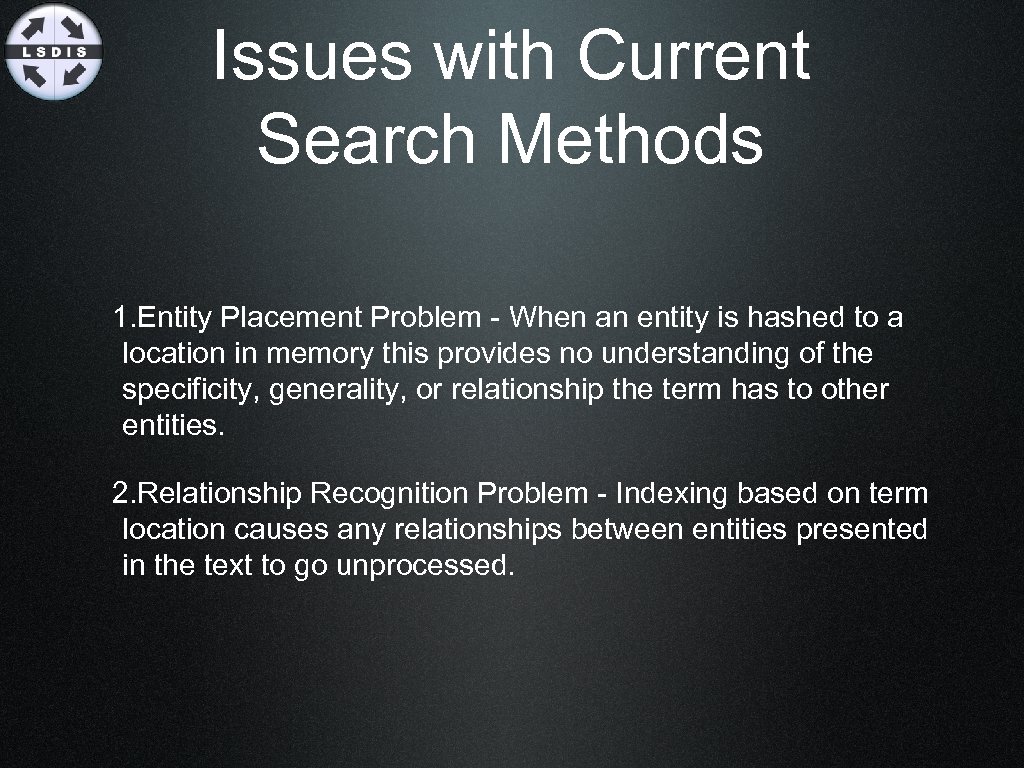

Issues with Current Search Methods 1. Entity Placement Problem - When an entity is hashed to a location in memory this provides no understanding of the specificity, generality, or relationship the term has to other entities. 2. Relationship Recognition Problem - Indexing based on term location causes any relationships between entities presented in the text to go unprocessed.

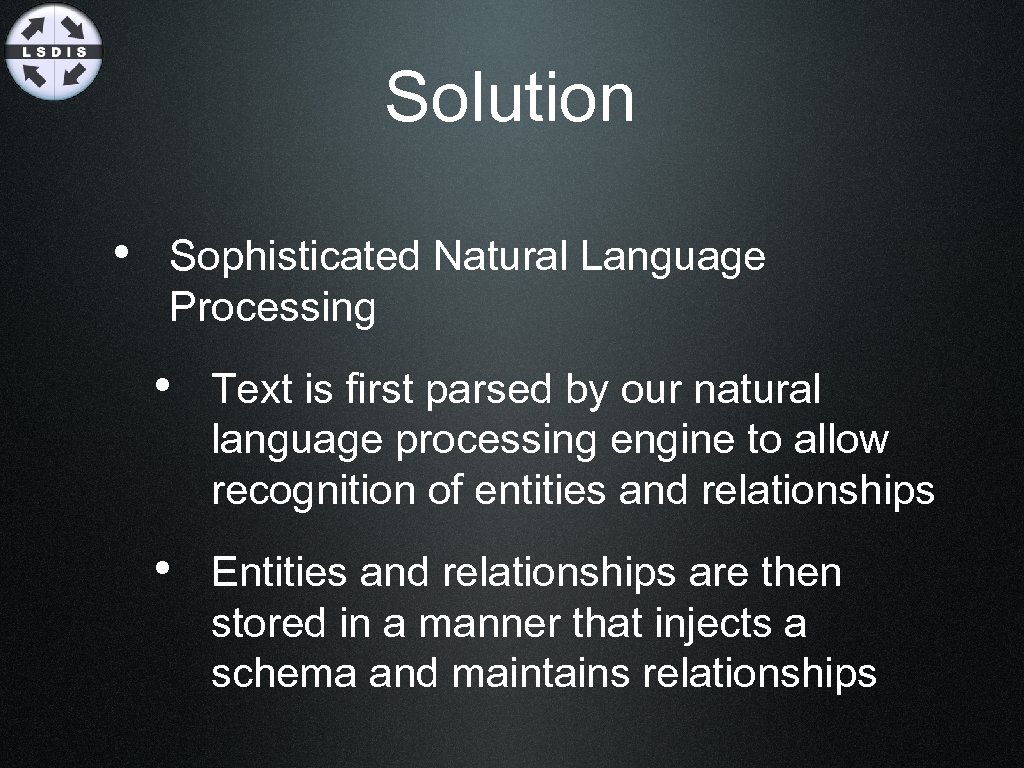

Solution • Sophisticated Natural Language Processing • Text is first parsed by our natural language processing engine to allow recognition of entities and relationships • Entities and relationships are then stored in a manner that injects a schema and maintains relationships

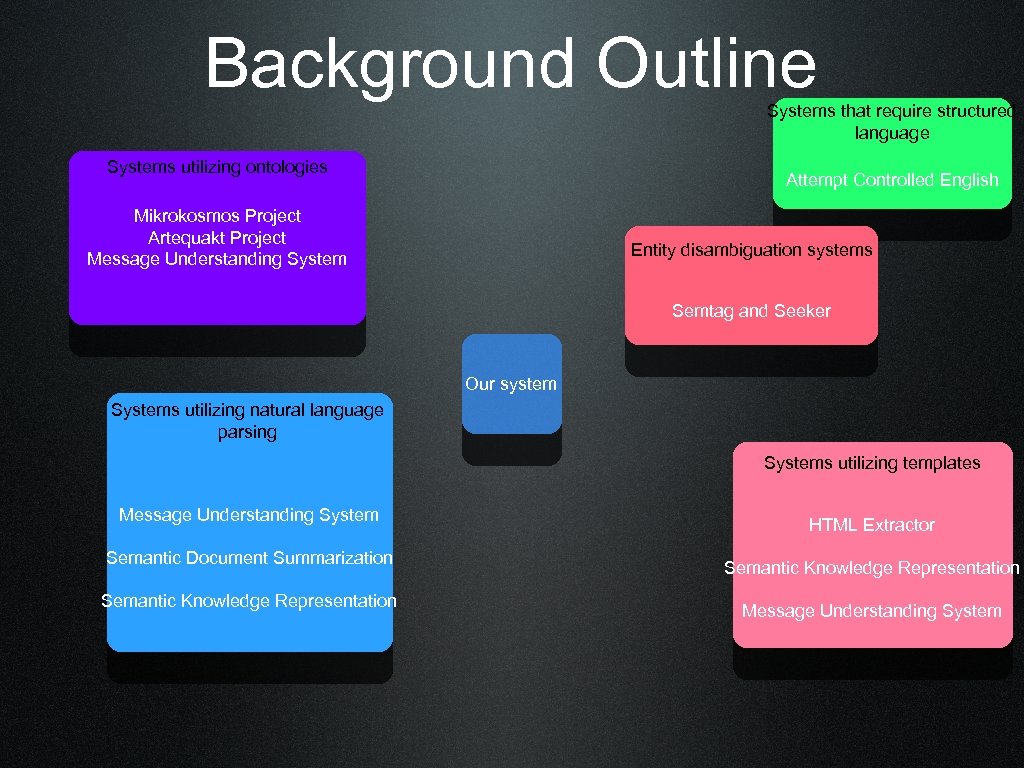

Background Outline Systems that require structured language Systems utilizing ontologies Attempt Controlled English Mikrokosmos Project Artequakt Project Message Understanding System Entity disambiguation systems Semtag and Seeker Our system Systems utilizing natural language parsing Systems utilizing templates Message Understanding System Semantic Document Summarization Semantic Knowledge Representation HTML Extractor Semantic Knowledge Representation Message Understanding System

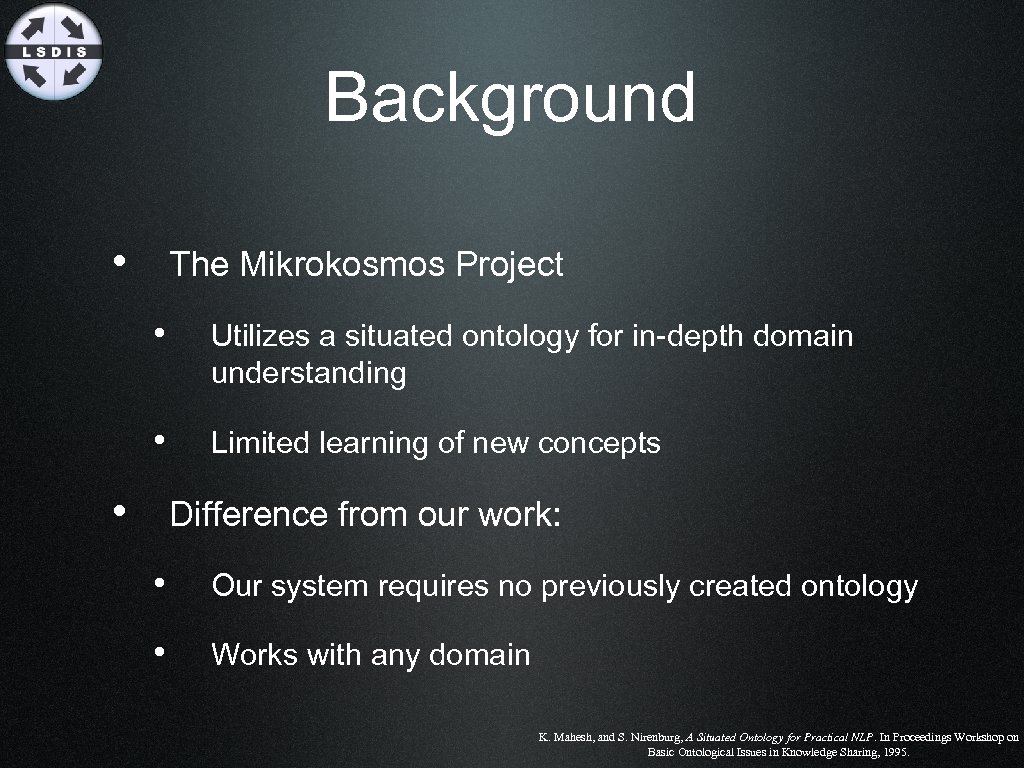

Background • The Mikrokosmos Project • Utilizes a situated ontology for in-depth domain understanding • Limited learning of new concepts • Difference from our work: • Our system requires no previously created ontology • Works with any domain K. Mahesh, and S. Nirenburg, A Situated Ontology for Practical NLP. In Proceedings Workshop on Basic Ontological Issues in Knowledge Sharing, 1995.

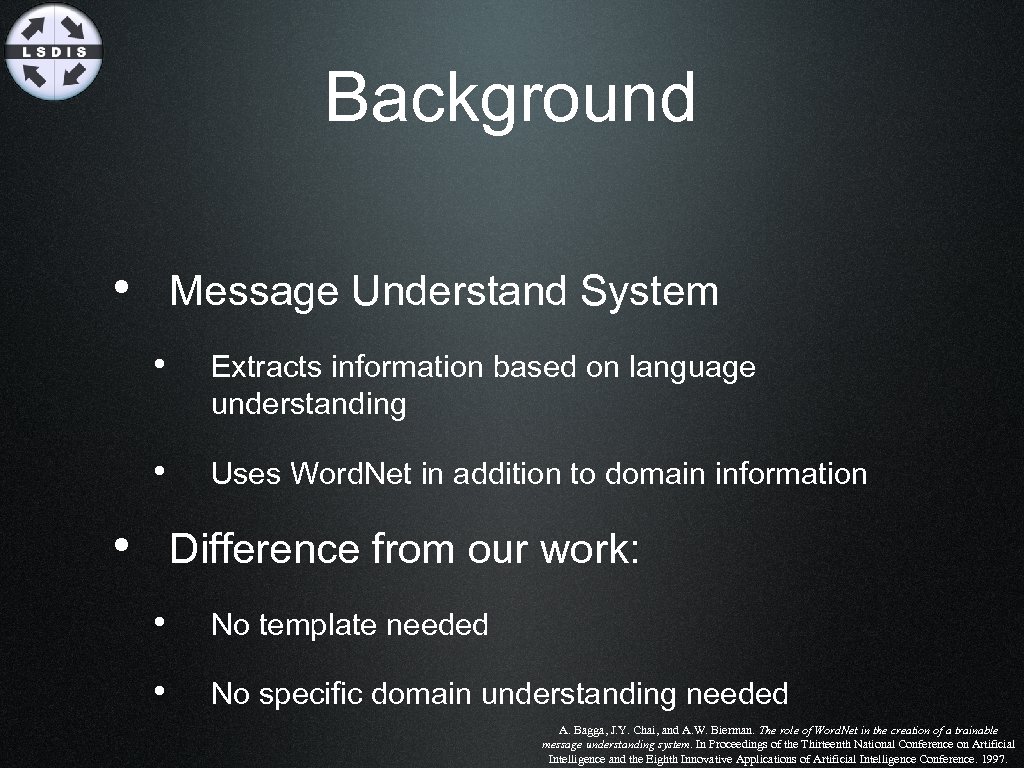

Background • Message Understand System • Extracts information based on language understanding • Uses Word. Net in addition to domain information • Difference from our work: • No template needed • No specific domain understanding needed A. Bagga, J. Y. Chai, and A. W. Bierman. The role of Word. Net in the creation of a trainable message understanding system. In Proceedings of the Thirteenth National Conference on Artificial Intelligence and the Eighth Innovative Applications of Artificial Intelligence Conference. 1997.

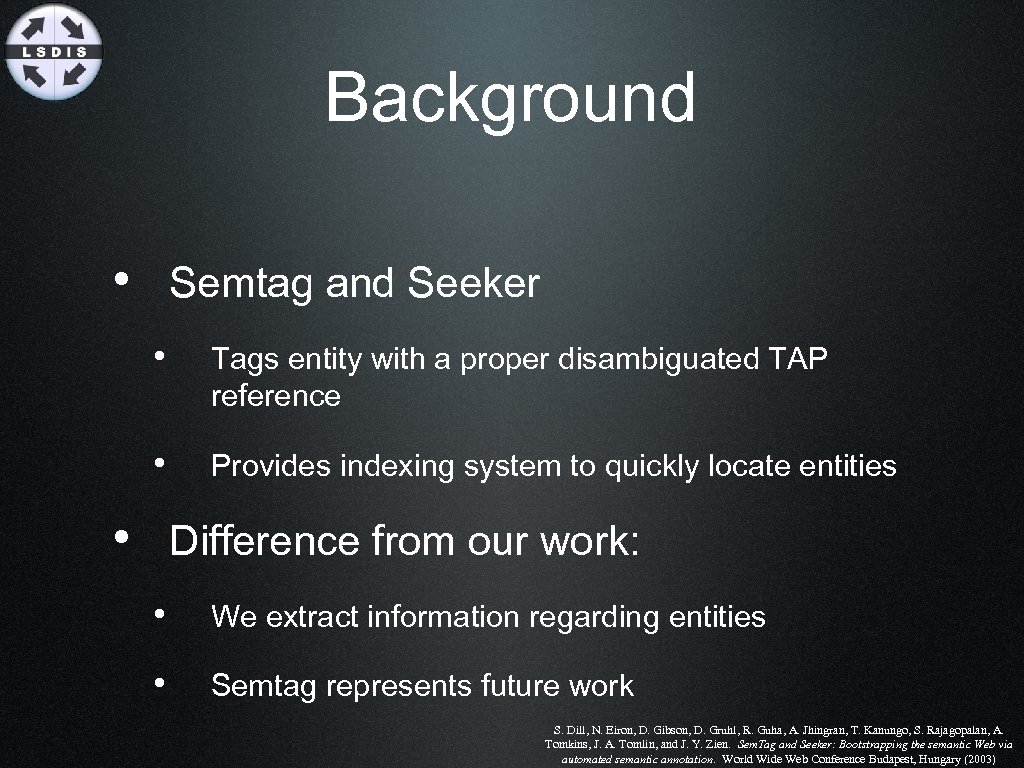

Background • Semtag and Seeker • Tags entity with a proper disambiguated TAP reference • Provides indexing system to quickly locate entities • Difference from our work: • We extract information regarding entities • Semtag represents future work S. Dill, N. Eiron, D. Gibson, D. Gruhl, R. Guha, A. Jhingran, T. Kanungo, S. Rajagopalan, A. Tomkins, J. A. Tomlin, and J. Y. Zien. Sem. Tag and Seeker: Bootstrapping the semantic Web via automated semantic annotation. World Wide Web Conference Budapest, Hungary (2003)

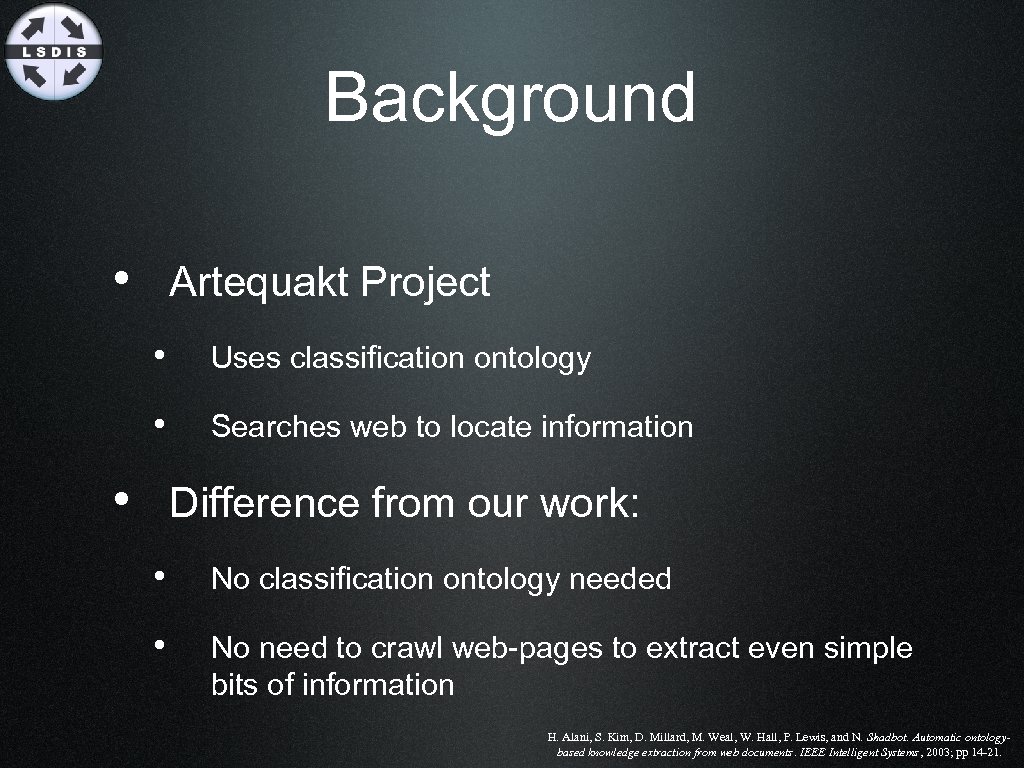

Background • Artequakt Project • Uses classification ontology • Searches web to locate information • Difference from our work: • No classification ontology needed • No need to crawl web-pages to extract even simple bits of information H. Alani, S. Kim, D. Millard, M. Weal, W. Hall, P. Lewis, and N. Shadbot. Automatic ontologybased knowledge extraction from web documents. IEEE Intelligent Systems, 2003; pp 14 -21.

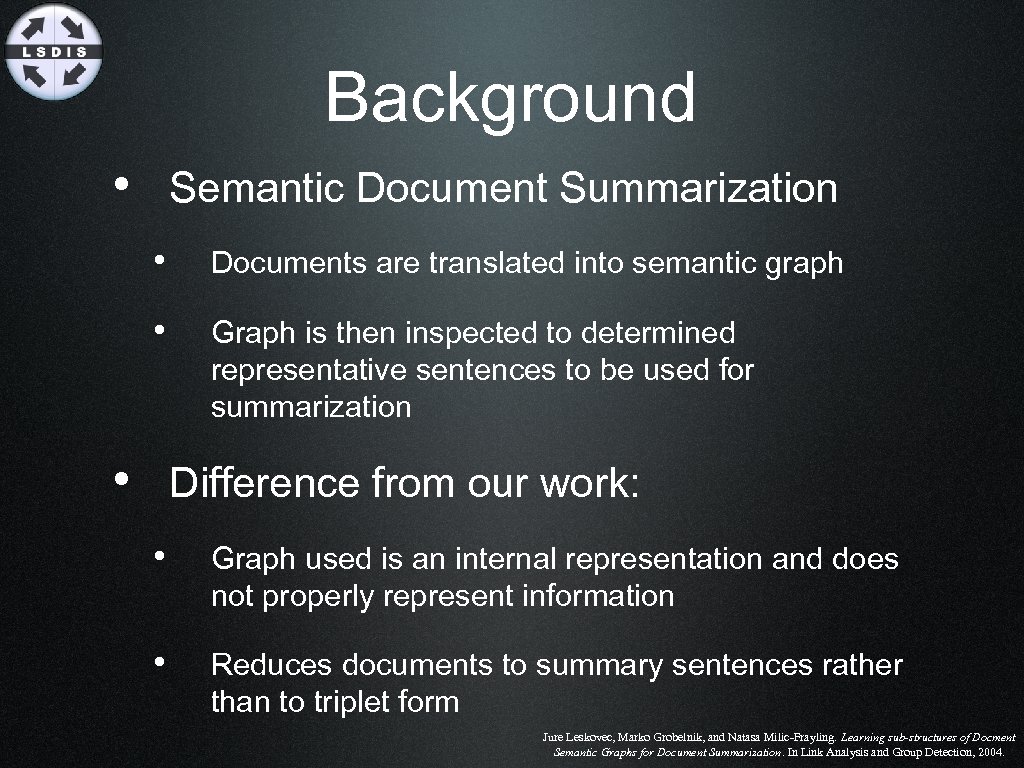

Background • Semantic Document Summarization • Documents are translated into semantic graph • Graph is then inspected to determined representative sentences to be used for summarization • Difference from our work: • Graph used is an internal representation and does not properly represent information • Reduces documents to summary sentences rather than to triplet form Jure Leskovec, Marko Grobelnik, and Natasa Milic-Frayling. Learning sub-structures of Docment Semantic Graphs for Document Summarization. In Link Analysis and Group Detection, 2004.

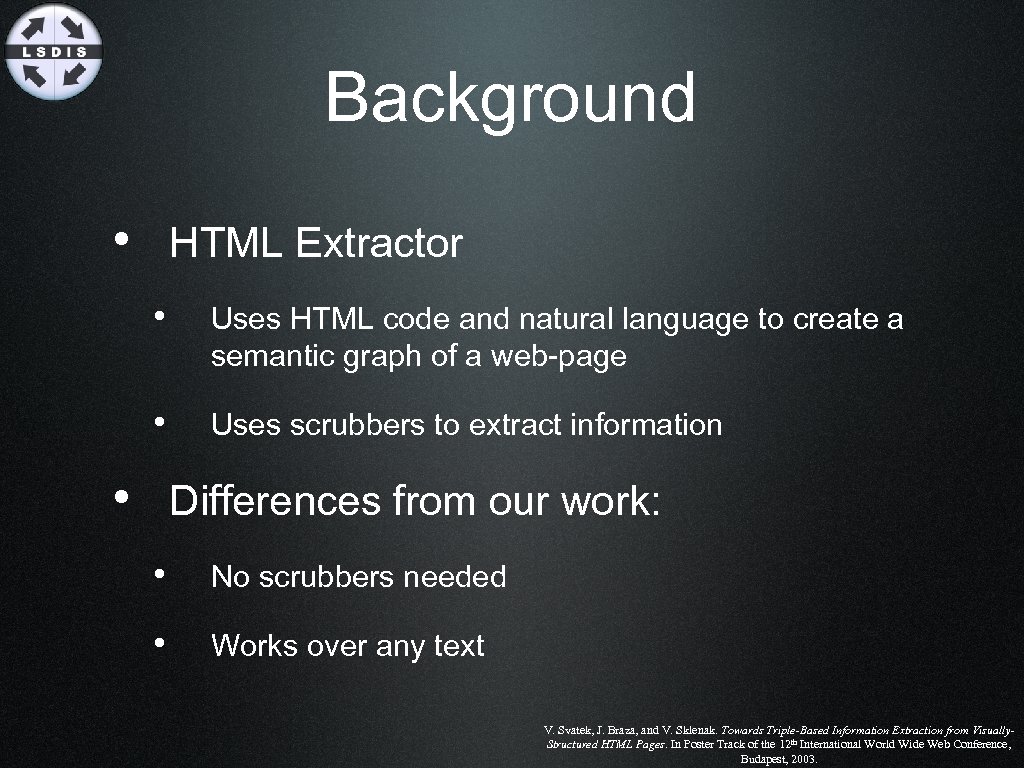

Background • HTML Extractor • Uses HTML code and natural language to create a semantic graph of a web-page • Uses scrubbers to extract information • Differences from our work: • No scrubbers needed • Works over any text V. Svatek, J. Braza, and V. Sklenak. Towards Triple-Based Information Extraction from Visually. Structured HTML Pages. In Poster Track of the 12 th International World Wide Web Conference, Budapest, 2003.

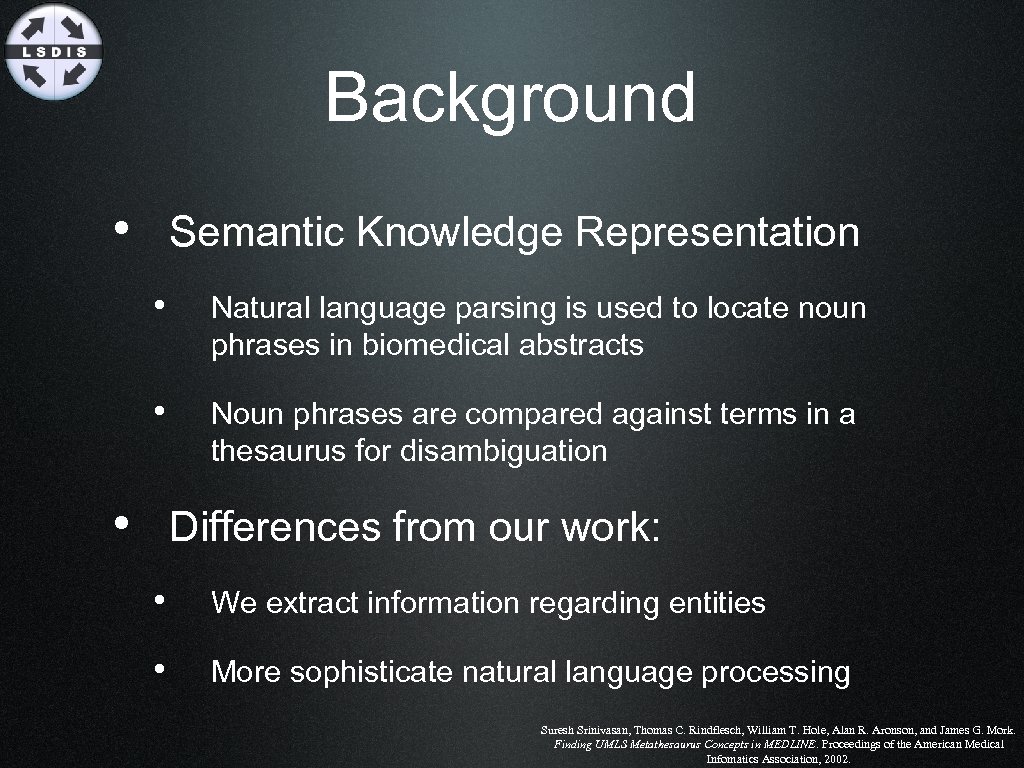

Background • Semantic Knowledge Representation • Natural language parsing is used to locate noun phrases in biomedical abstracts • Noun phrases are compared against terms in a thesaurus for disambiguation • Differences from our work: • We extract information regarding entities • More sophisticate natural language processing Suresh Srinivasan, Thomas C. Rindflesch, William T. Hole, Alan R. Aronson, and James G. Mork. Finding UMLS Metathesaurus Concepts in MEDLINE. Proceedings of the American Medical Infomatics Association, 2002.

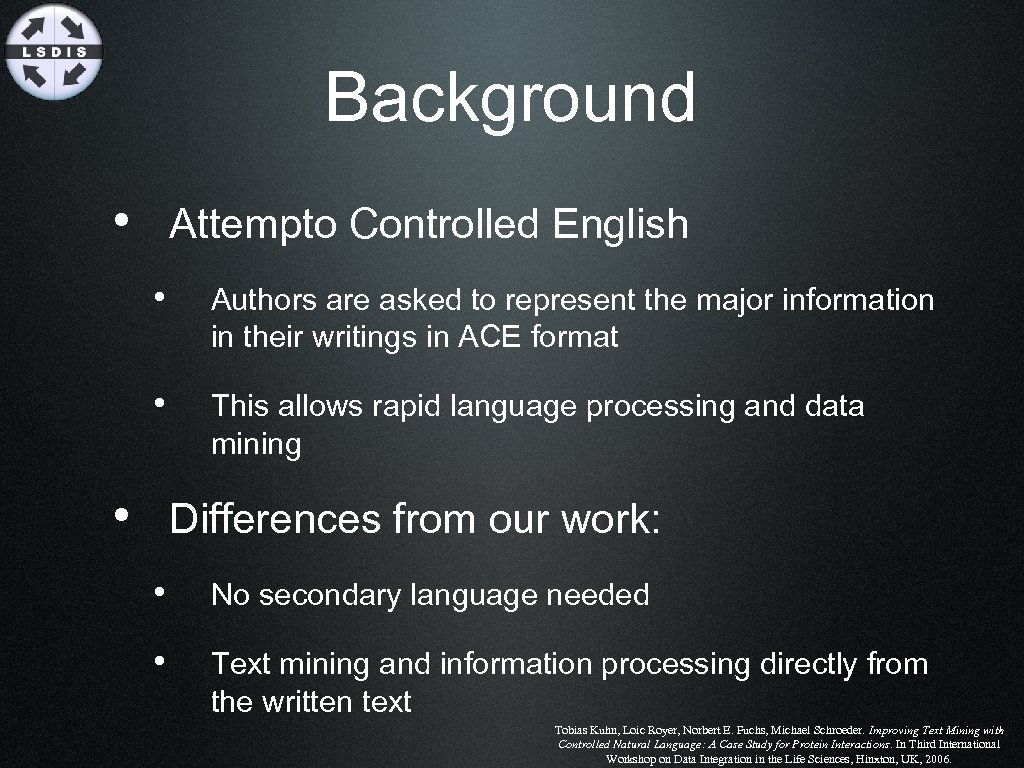

Background • Attempto Controlled English • Authors are asked to represent the major information in their writings in ACE format • This allows rapid language processing and data mining • Differences from our work: • No secondary language needed • Text mining and information processing directly from the written text Tobias Kuhn, Loic Royer, Norbert E. Fuchs, Michael Schroeder. Improving Text Mining with Controlled Natural Language: A Case Study for Protein Interactions. In Third International Workshop on Data Integration in the Life Sciences, Hinxton, UK, 2006.

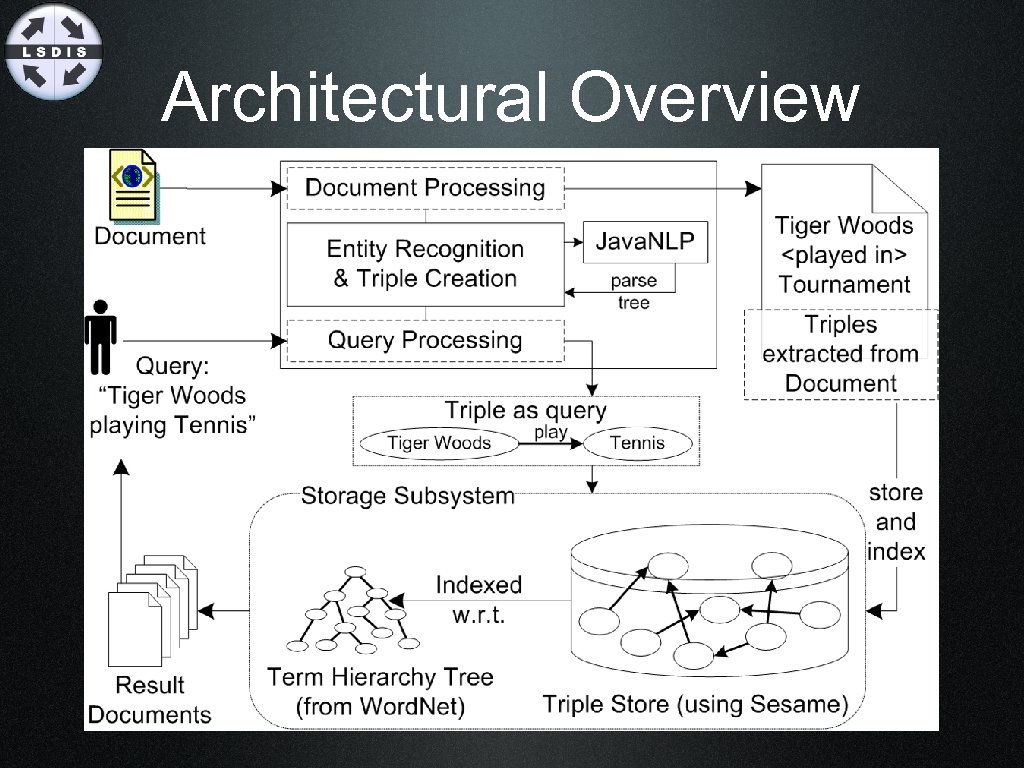

Architectural Overview

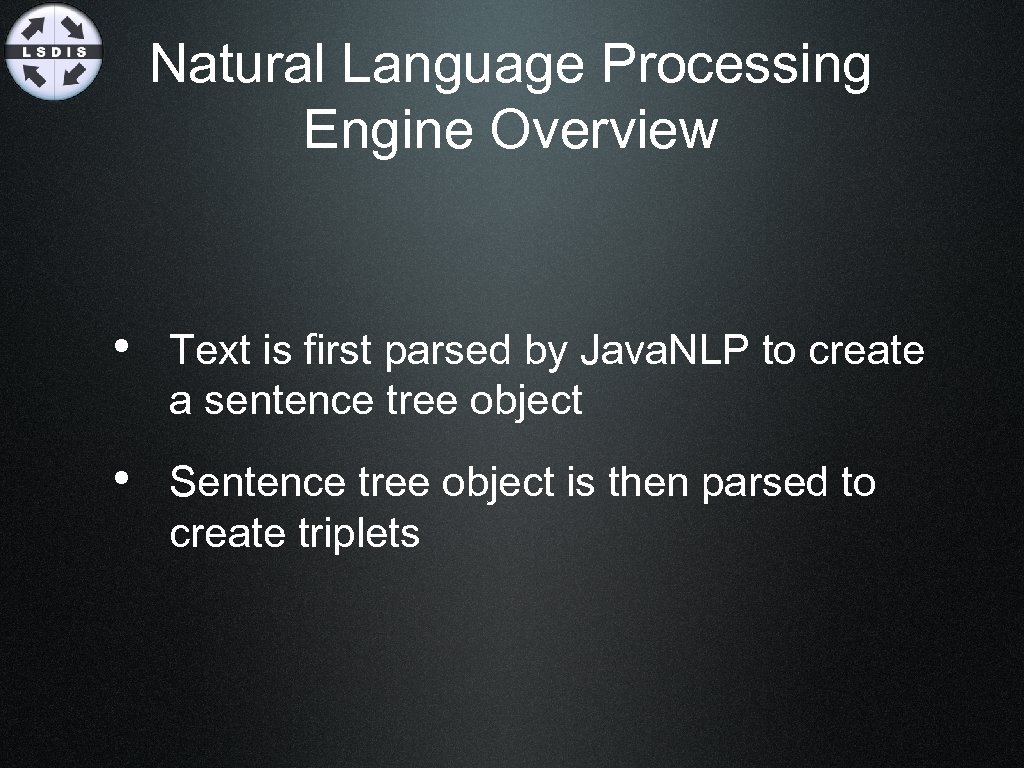

Natural Language Processing Engine Overview • Text is first parsed by Java. NLP to create a sentence tree object • Sentence tree object is then parsed to create triplets

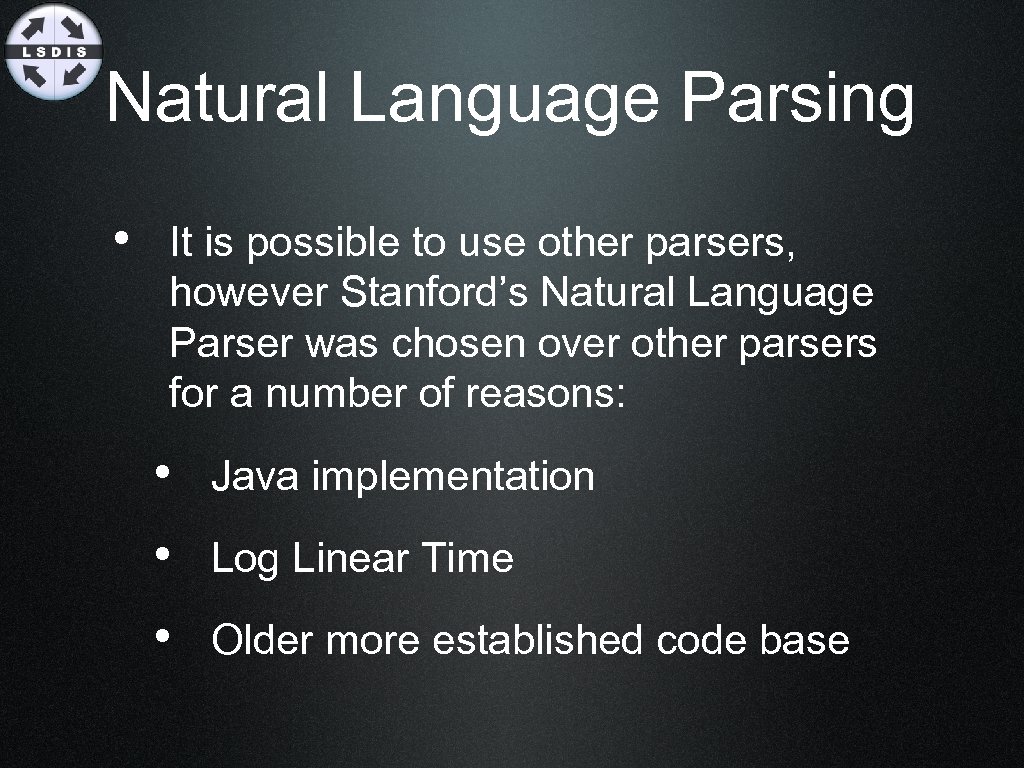

Natural Language Parsing • It is possible to use other parsers, however Stanford’s Natural Language Parser was chosen over other parsers for a number of reasons: • Java implementation • Log Linear Time • Older more established code base

The Sentence Tree (ROOT [69. 474] (S [69. 371] (NP [20. 560] (NNP [8. 264] Tiger) (NNP [9. 812] Woods)) (VP [47. 672] (VBZ [11. 074] donates) (PP [31. 541] (TO [0. 003] to) (NP [27. 963] (NP [15. 561] (DT [1. 413] a) (JJ [5. 475] large) (NN [5. 979] number)) (PP [11. 856] (IN [0. 669] of) (NP [10. 784] (NNS [7. 814] charities)))))) (. [0. 002]. )))

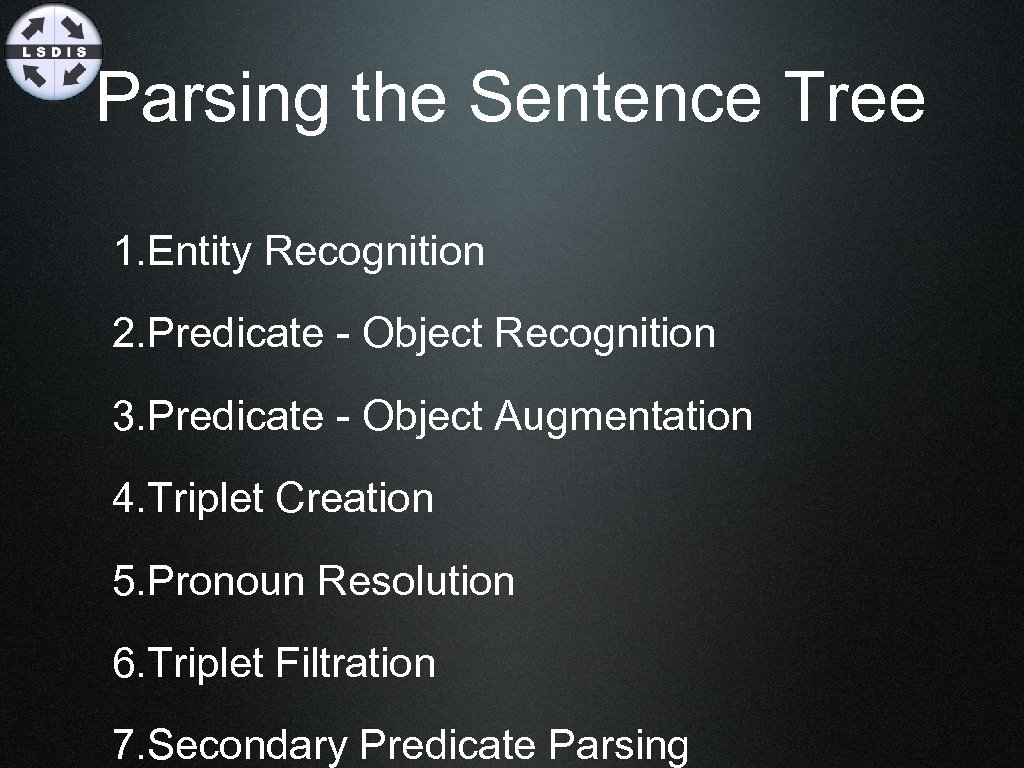

Parsing the Sentence Tree 1. Entity Recognition 2. Predicate - Object Recognition 3. Predicate - Object Augmentation 4. Triplet Creation 5. Pronoun Resolution 6. Triplet Filtration 7. Secondary Predicate Parsing

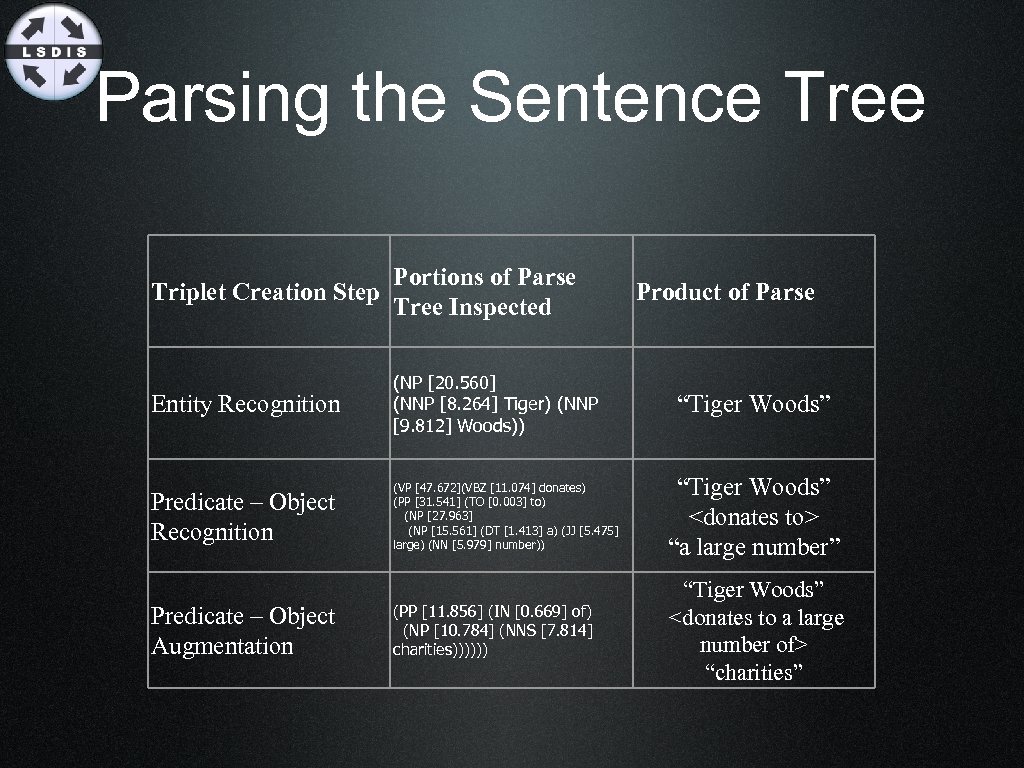

Parsing the Sentence Tree Portions of Parse Triplet Creation Step Tree Inspected Product of Parse Entity Recognition (NP [20. 560] (NNP [8. 264] Tiger) (NNP [9. 812] Woods)) Predicate – Object Recognition (VP [47. 672](VBZ [11. 074] donates) (PP [31. 541] (TO [0. 003] to) (NP [27. 963] (NP [15. 561] (DT [1. 413] a) (JJ [5. 475] large) (NN [5. 979] number)) “Tiger Woods” <donates to> “a large number” (PP [11. 856] (IN [0. 669] of) (NP [10. 784] (NNS [7. 814] charities)))))) “Tiger Woods” <donates to a large number of> “charities” Predicate – Object Augmentation “Tiger Woods”

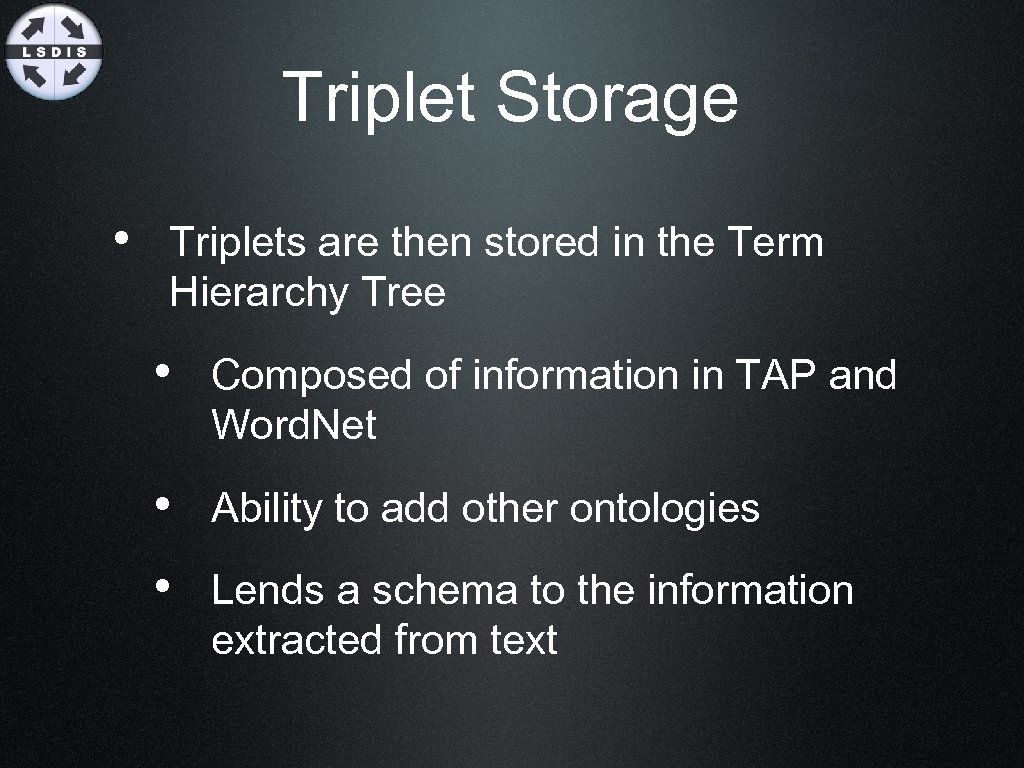

Triplet Storage • Triplets are then stored in the Term Hierarchy Tree • Composed of information in TAP and Word. Net • Ability to add other ontologies • Lends a schema to the information extracted from text

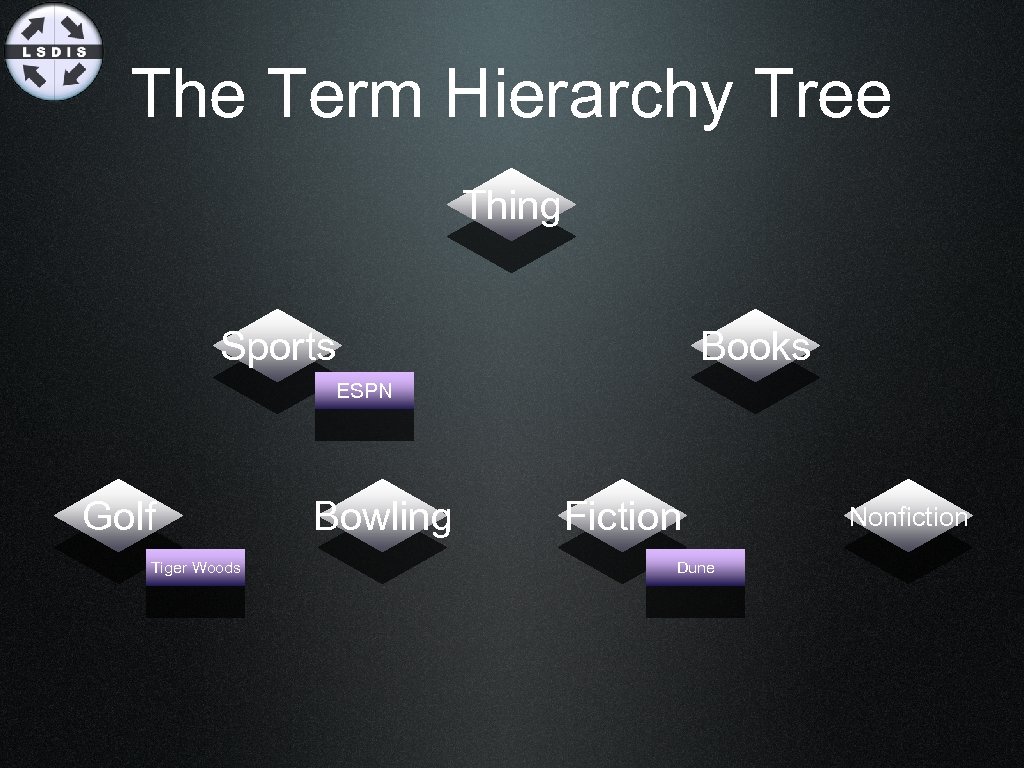

The Term Hierarchy Tree Thing Sports Books ESPN Golf Tiger Woods Bowling Fiction Dune Nonfiction

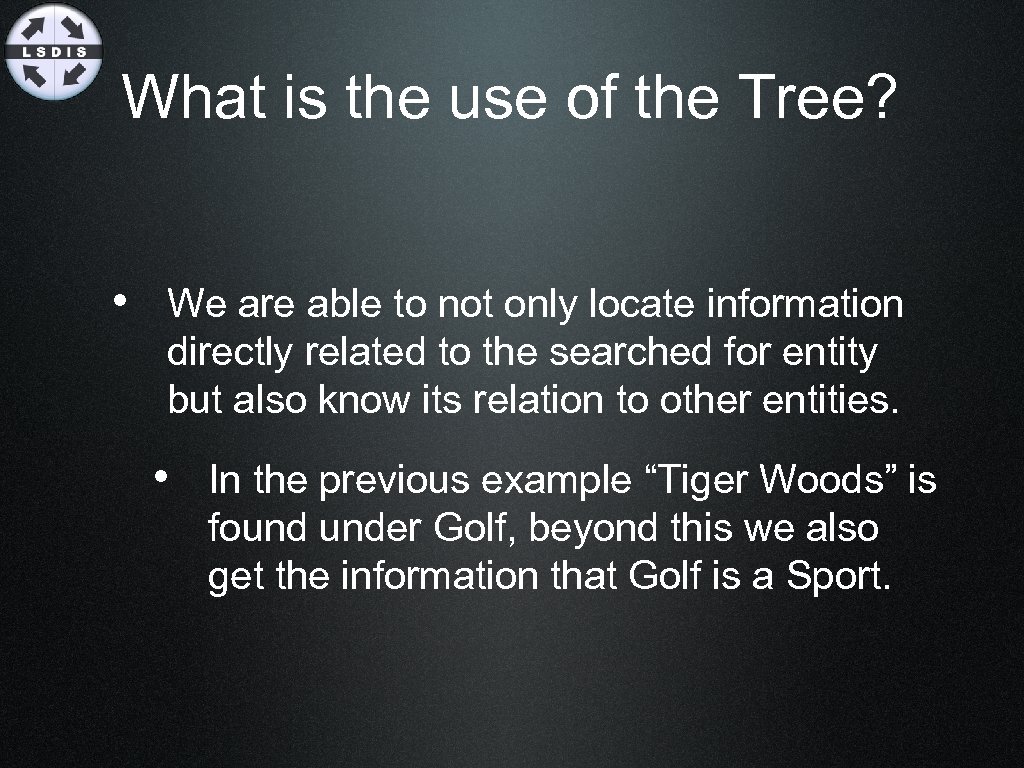

What is the use of the Tree? • We are able to not only locate information directly related to the searched for entity but also know its relation to other entities. • In the previous example “Tiger Woods” is found under Golf, beyond this we also get the information that Golf is a Sport.

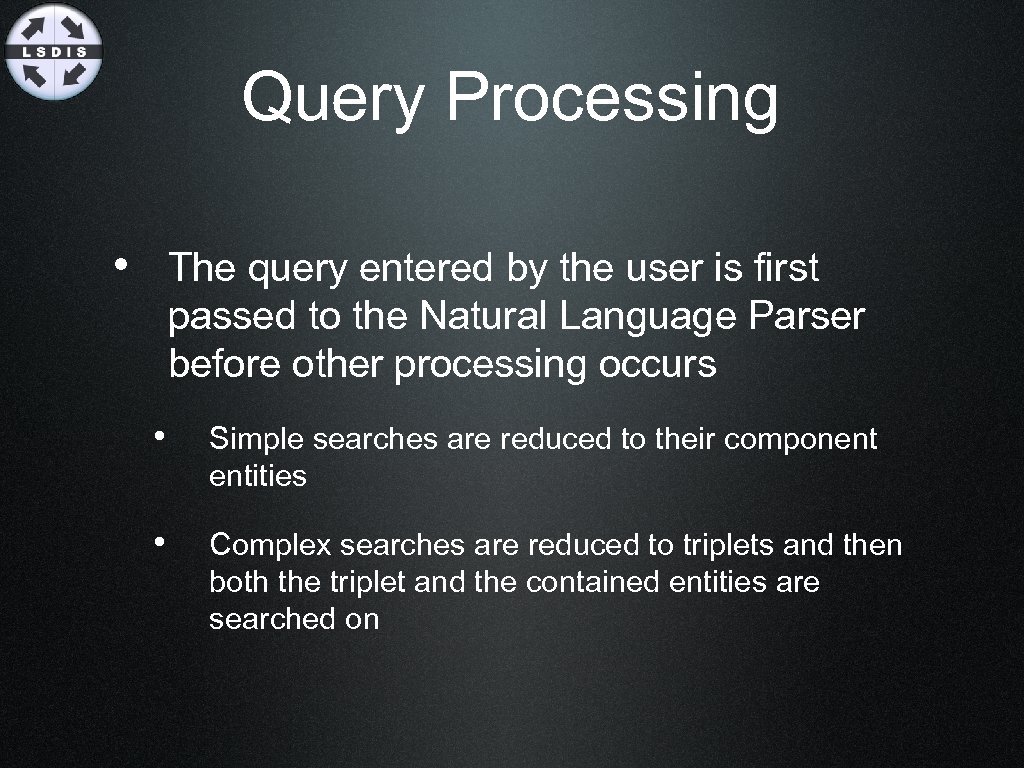

Query Processing • The query entered by the user is first passed to the Natural Language Parser before other processing occurs • Simple searches are reduced to their component entities • Complex searches are reduced to triplets and then both the triplet and the contained entities are searched on

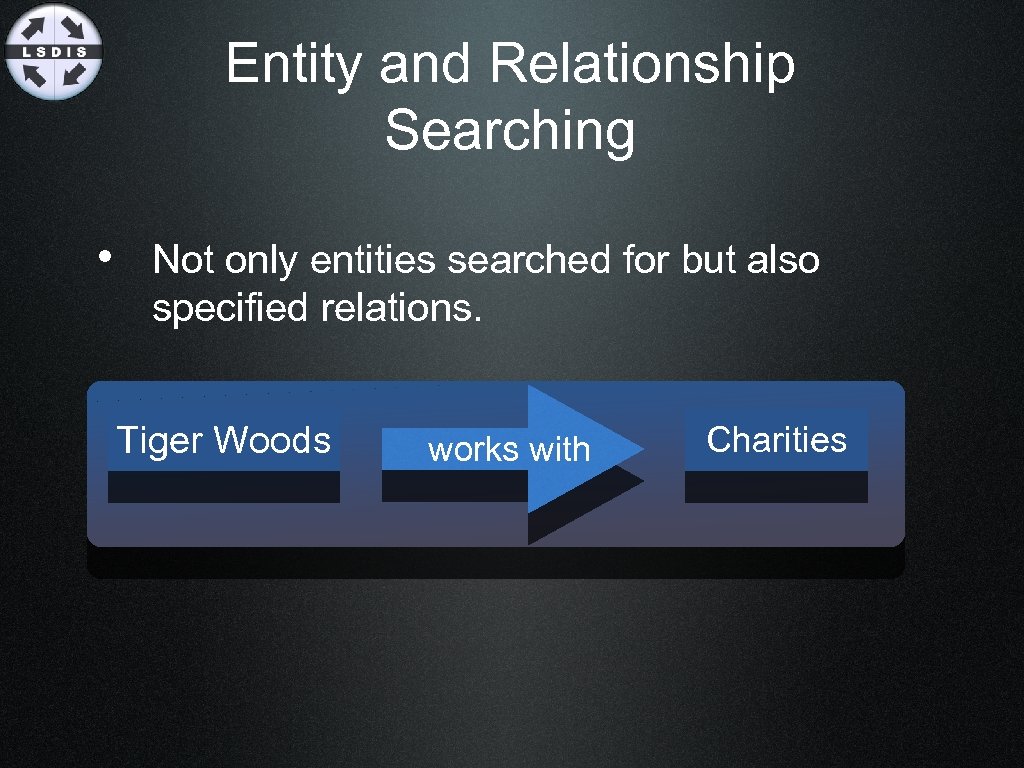

Entity and Relationship Searching • Not only entities searched for but also specified relations. Tiger Woods works with Charities

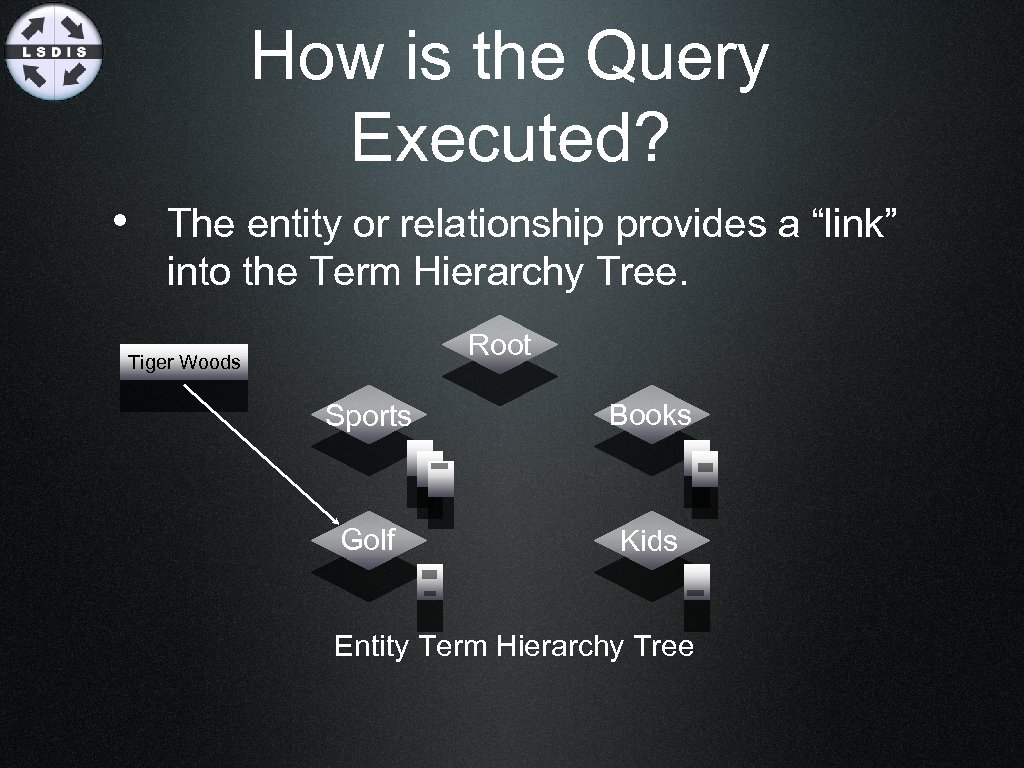

How is the Query Executed? • The entity or relationship provides a “link” into the Term Hierarchy Tree. Root Tiger Woods Sports Books Golf Kids Entity Term Hierarchy Tree

Document Storage Document X Tiger Woods Entity Recognition Triplet Creation PGA Tiger Woods <played in> tournament Root Document Metrics Tiger Woods: 12 PGA: 5 Ping: 3 Storage functions Sports Books Golf Kids

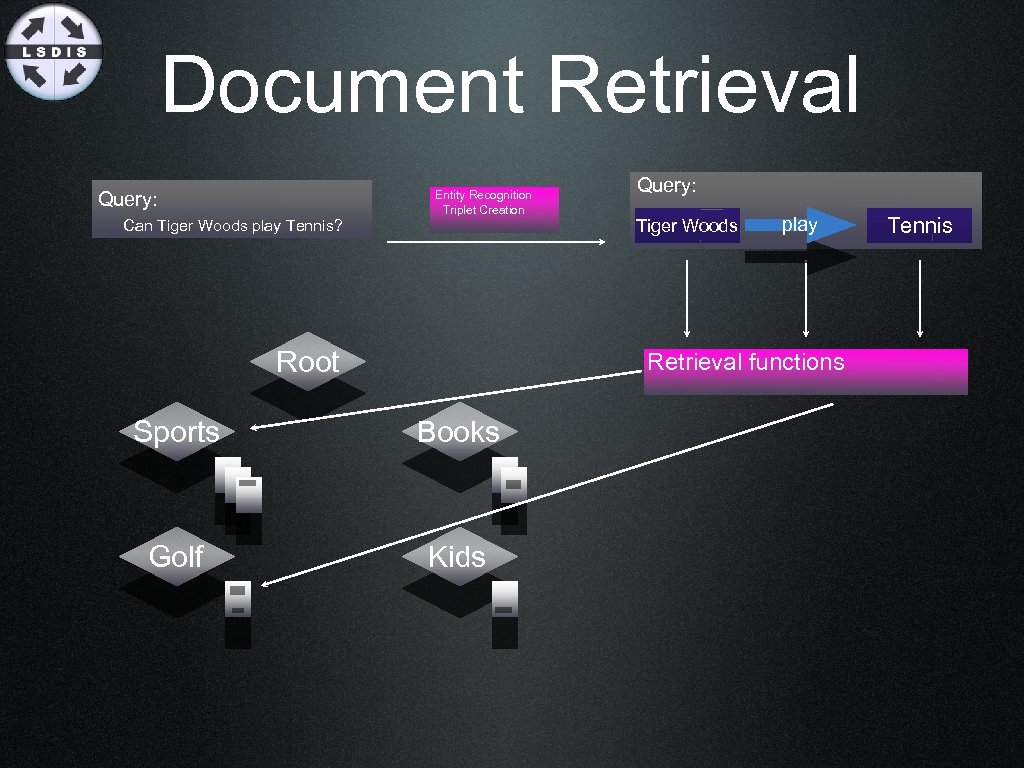

Document Retrieval Query: Entity Recognition Triplet Creation Can Tiger Woods play Tennis? Root Query: Tiger Woods play Retrieval functions Sports Books Golf Kids Tennis

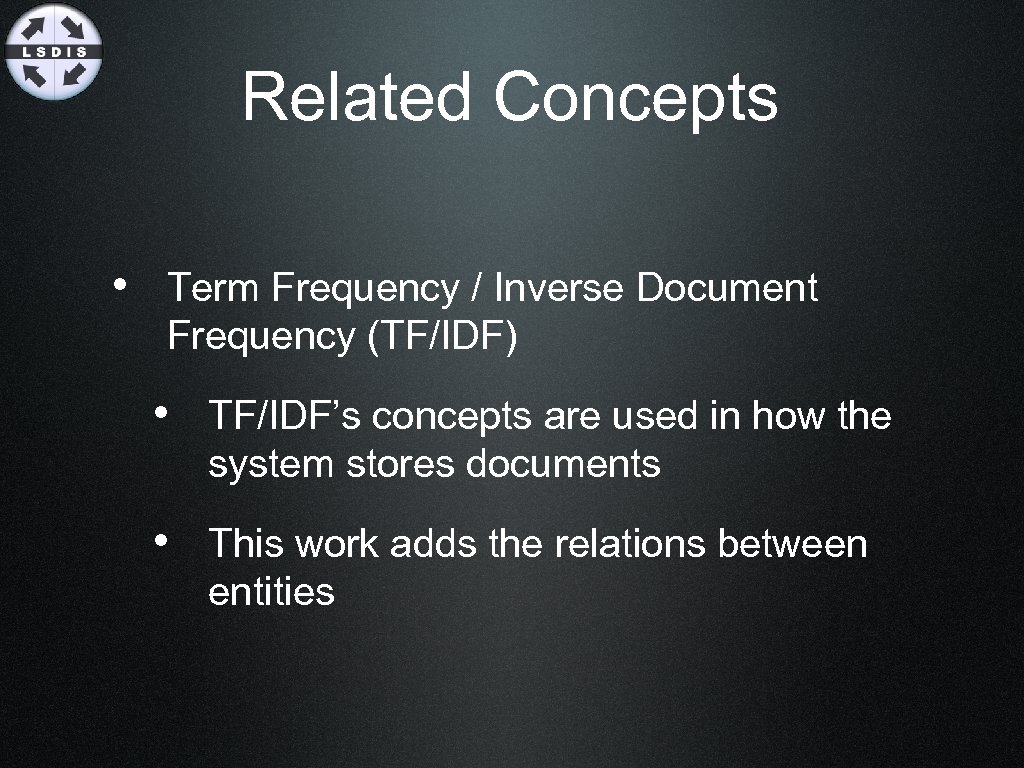

Related Concepts • Term Frequency / Inverse Document Frequency (TF/IDF) • TF/IDF’s concepts are used in how the system stores documents • This work adds the relations between entities

Triplet Production Testing • Testing occurred in two phases: • Expert Testing • Inexpert Testing

Results from Expert Testing

Expert Testing Results

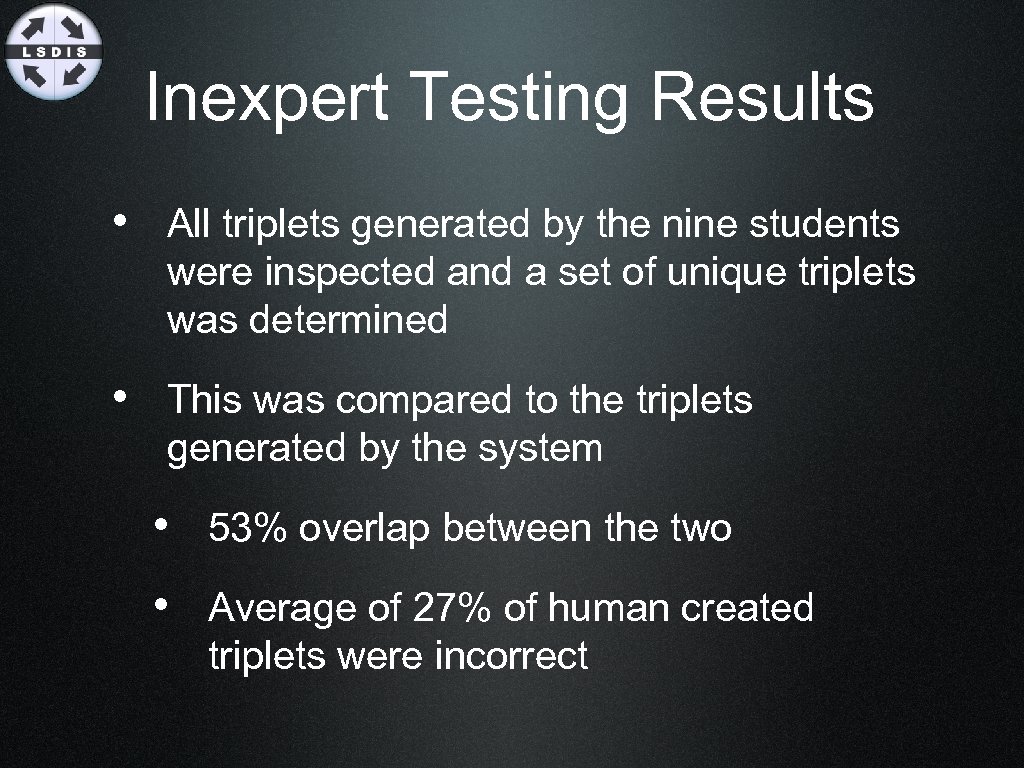

Inexpert Testing Results • All triplets generated by the nine students were inspected and a set of unique triplets was determined • This was compared to the triplets generated by the system • 53% overlap between the two • Average of 27% of human created triplets were incorrect

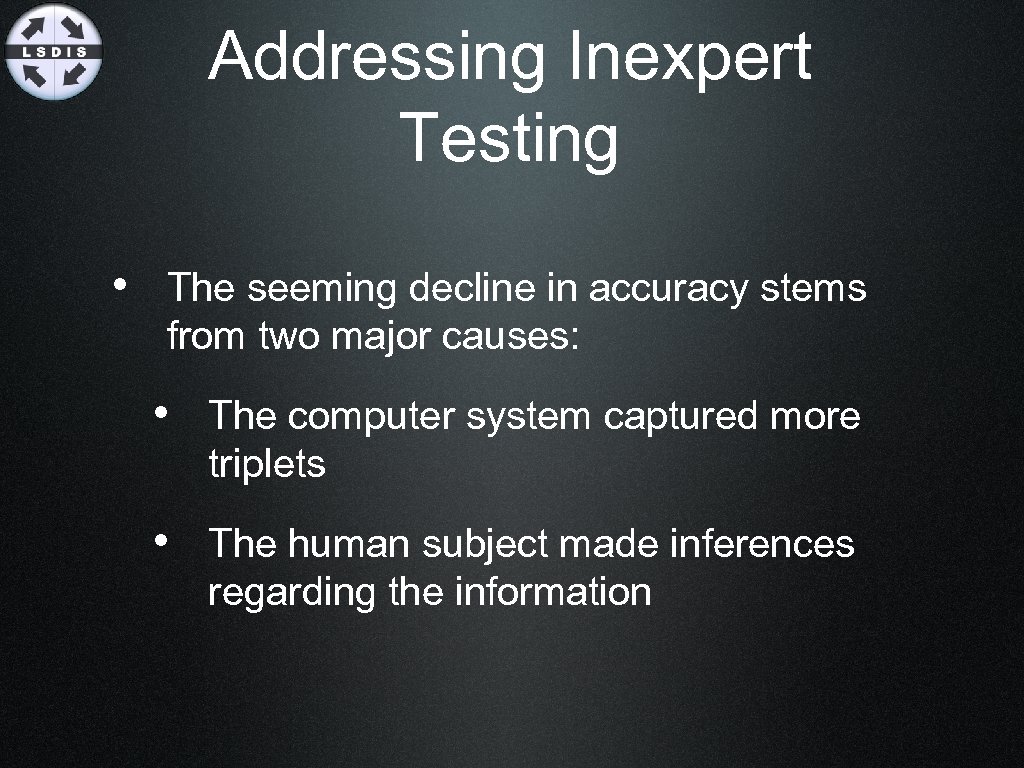

Addressing Inexpert Testing • The seeming decline in accuracy stems from two major causes: • The computer system captured more triplets • The human subject made inferences regarding the information

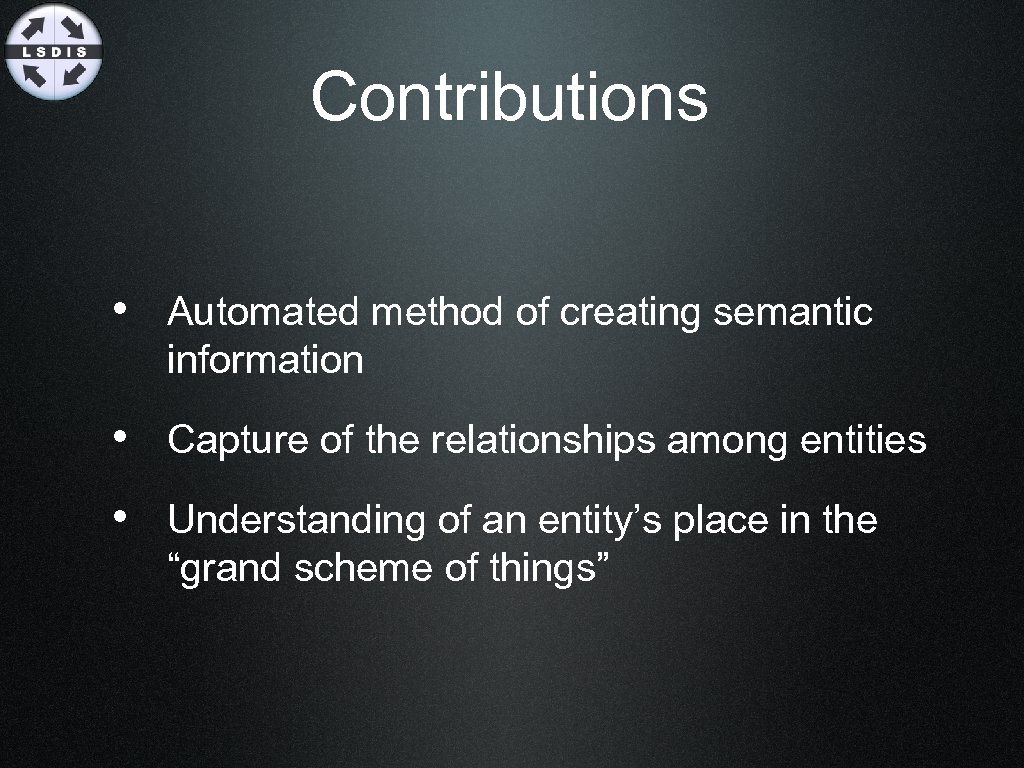

Contributions • Automated method of creating semantic information • Capture of the relationships among entities • Understanding of an entity’s place in the “grand scheme of things”
