External Storage Chapter 10 Plus Considerable Instructor Notes

External Storage Chapter 10 Plus Considerable Instructor Notes from Other Sources.

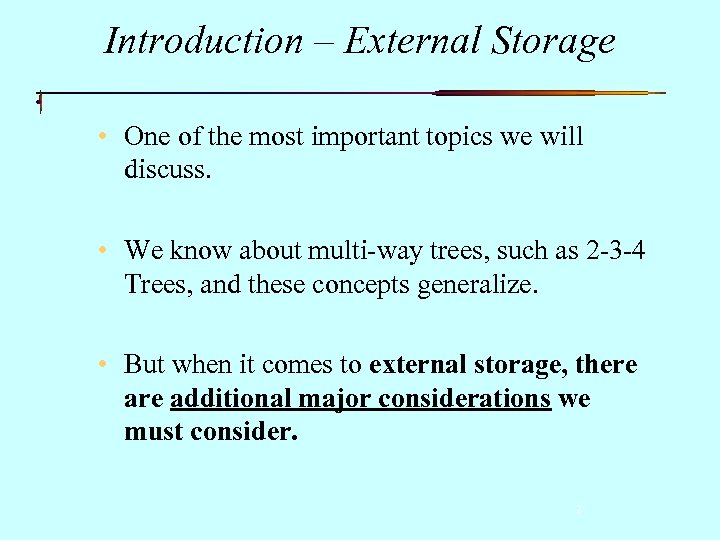

Introduction – External Storage • One of the most important topics we will discuss. • We know about multi-way trees, such as 2 -3 -4 Trees, and these concepts generalize. • But when it comes to external storage, there additional major considerations we must consider. 2

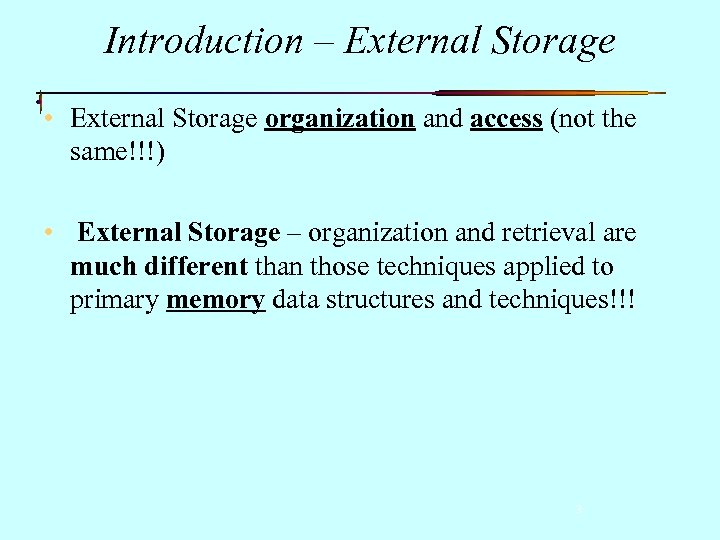

Introduction – External Storage • External Storage organization and access (not the same!!!) • External Storage – organization and retrieval are much different than those techniques applied to primary memory data structures and techniques!!! 3

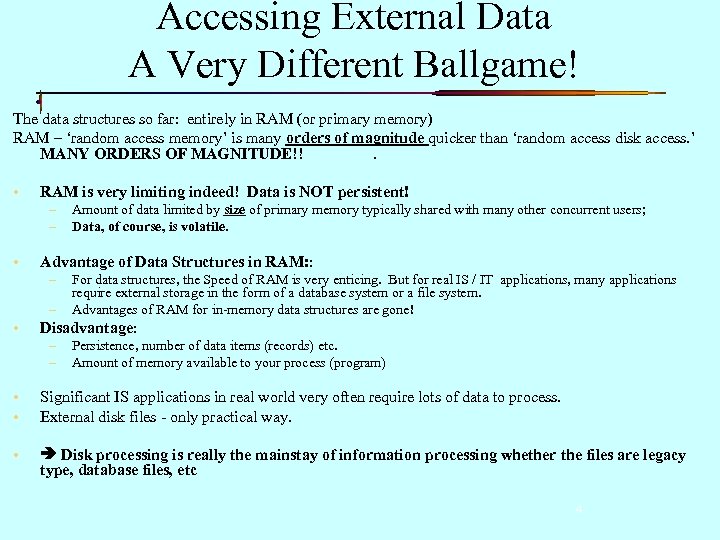

Accessing External Data A Very Different Ballgame! The data structures so far: entirely in RAM (or primary memory) RAM – ‘random access memory’ is many orders of magnitude quicker than ‘random access disk access. ’ MANY ORDERS OF MAGNITUDE!!. • RAM is very limiting indeed! Data is NOT persistent! – – • Advantage of Data Structures in RAM: : – – • Amount of data limited by size of primary memory typically shared with many other concurrent users; Data, of course, is volatile. For data structures, the Speed of RAM is very enticing. But for real IS / IT applications, many applications require external storage in the form of a database system or a file system. Advantages of RAM for in-memory data structures are gone! Disadvantage: – – Persistence, number of data items (records) etc. Amount of memory available to your process (program) • • Significant IS applications in real world very often require lots of data to process. External disk files - only practical way. • Disk processing is really the mainstay of information processing whether the files are legacy type, database files, etc 4

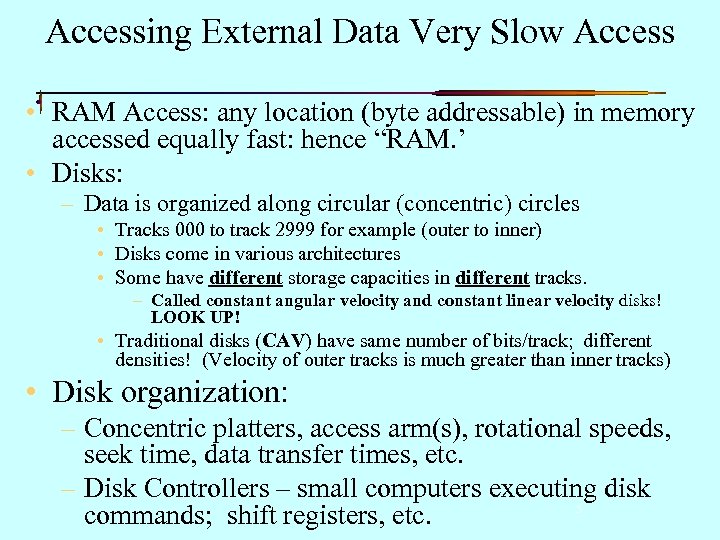

Accessing External Data Very Slow Access • RAM Access: any location (byte addressable) in memory accessed equally fast: hence “RAM. ’ • Disks: – Data is organized along circular (concentric) circles • Tracks 000 to track 2999 for example (outer to inner) • Disks come in various architectures • Some have different storage capacities in different tracks. – Called constant angular velocity and constant linear velocity disks! LOOK UP! • Traditional disks (CAV) have same number of bits/track; different densities! (Velocity of outer tracks is much greater than inner tracks) • Disk organization: – Concentric platters, access arm(s), rotational speeds, seek time, data transfer times, etc. – Disk Controllers – small computers executing disk 5 commands; shift registers, etc.

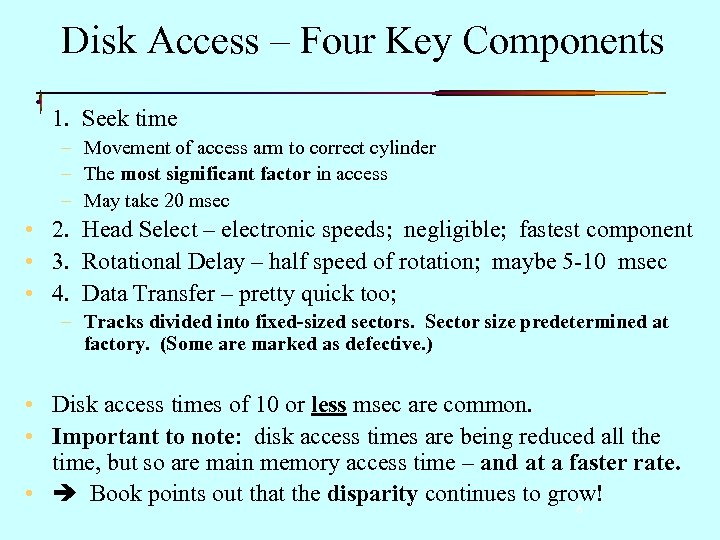

Disk Access – Four Key Components 1. Seek time – Movement of access arm to correct cylinder – The most significant factor in access – May take 20 msec • 2. Head Select – electronic speeds; negligible; fastest component • 3. Rotational Delay – half speed of rotation; maybe 5 -10 msec • 4. Data Transfer – pretty quick too; – Tracks divided into fixed-sized sectors. Sector size predetermined at factory. (Some are marked as defective. ) • Disk access times of 10 or less msec are common. • Important to note: disk access times are being reduced all the time, but so are main memory access time – and at a faster rate. • Book points out that the disparity continues to grow! 6

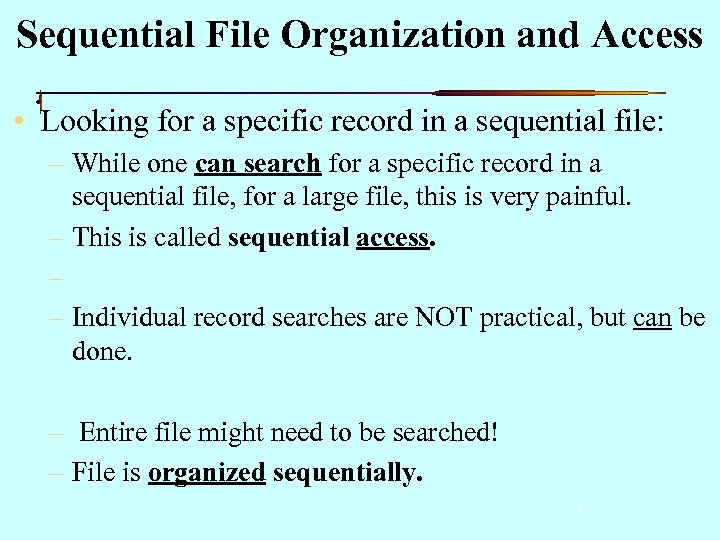

Sequential File Organization and Access • Looking for a specific record in a sequential file: – While one can search for a specific record in a sequential file, for a large file, this is very painful. – This is called sequential access. – – Individual record searches are NOT practical, but can be done. – Entire file might need to be searched! – File is organized sequentially. 7

More on Sequential Files • Sequential files are great for reporting, printing / displaying information, etc. , but not for on-line retrieval of records!! • Insertions? Book does a poor job here. – While it is true that conceptually inserting a record into an existing file would require all records to be ‘moved’ forward (assuming the blocks are full), in practice this is often NOT done because the file would not be available for online access during this physical update! • Sequential files are NOT USED for online processing. • Transactions may be batched up during the day and the file is typically updated one time and offline – (Note: no one can access the file during updating) prior to generating end-of-day reports, exception reporting, summary reports, inventory reports, sales reports, statistical reports, listings, etc. if required. . . 8

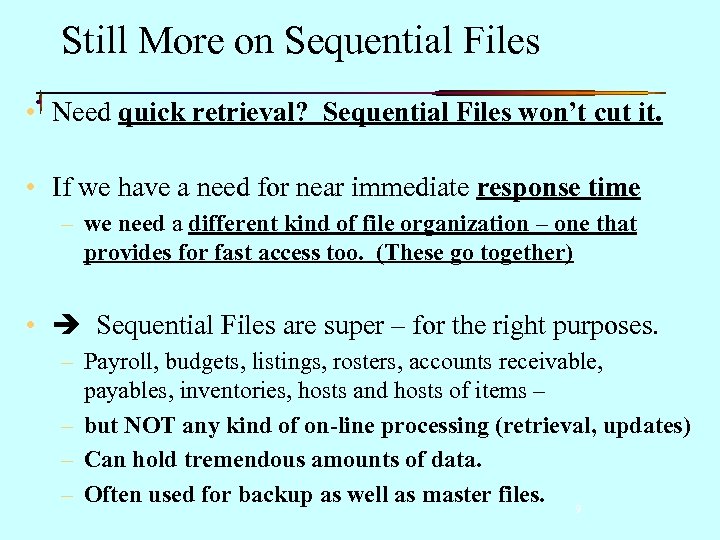

Still More on Sequential Files • Need quick retrieval? Sequential Files won’t cut it. • If we have a need for near immediate response time – we need a different kind of file organization – one that provides for fast access too. (These go together) • Sequential Files are super – for the right purposes. – Payroll, budgets, listings, rosters, accounts receivable, payables, inventories, hosts and hosts of items – – but NOT any kind of on-line processing (retrieval, updates) – Can hold tremendous amounts of data. – Often used for backup as well as master files. 9

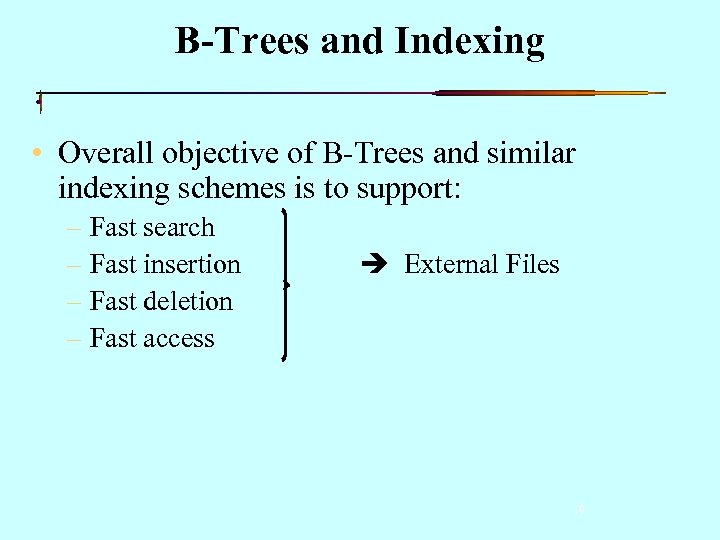

B-Trees and Indexing • Overall objective of B-Trees and similar indexing schemes is to support: – Fast search – Fast insertion – Fast deletion – Fast access External Files 10

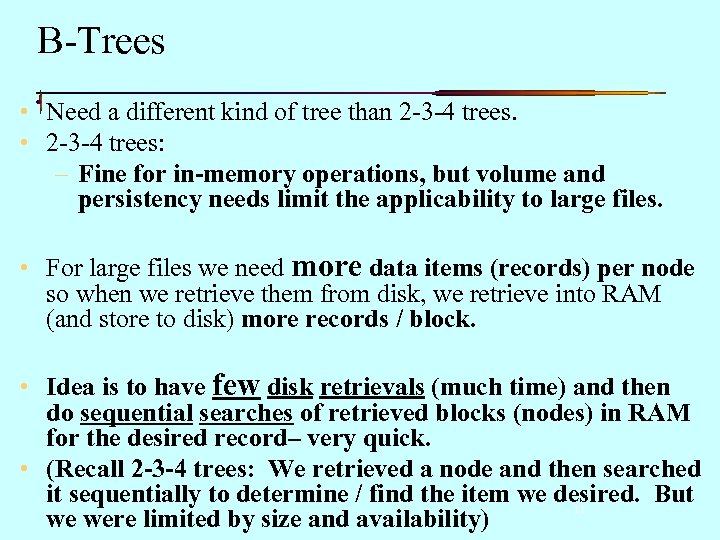

B-Trees • Need a different kind of tree than 2 -3 -4 trees. • 2 -3 -4 trees: – Fine for in-memory operations, but volume and persistency needs limit the applicability to large files. • For large files we need more data items (records) per node so when we retrieve them from disk, we retrieve into RAM (and store to disk) more records / block. • Idea is to have few disk retrievals (much time) and then do sequential searches of retrieved blocks (nodes) in RAM for the desired record– very quick. • (Recall 2 -3 -4 trees: We retrieved a node and then searched it sequentially to determine / find the item we desired. But 11 we were limited by size and availability)

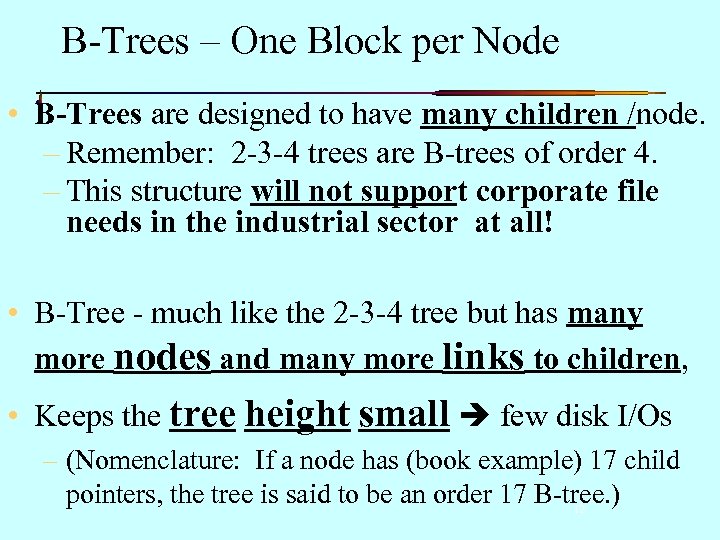

B-Trees – One Block per Node • B-Trees are designed to have many children /node. – Remember: 2 -3 -4 trees are B-trees of order 4. – This structure will not support corporate file needs in the industrial sector at all! • B-Tree - much like the 2 -3 -4 tree but has many more nodes and many more links to children, • Keeps the tree height small few disk I/Os – (Nomenclature: If a node has (book example) 17 child pointers, the tree is said to be an order 17 B-tree. ) 12

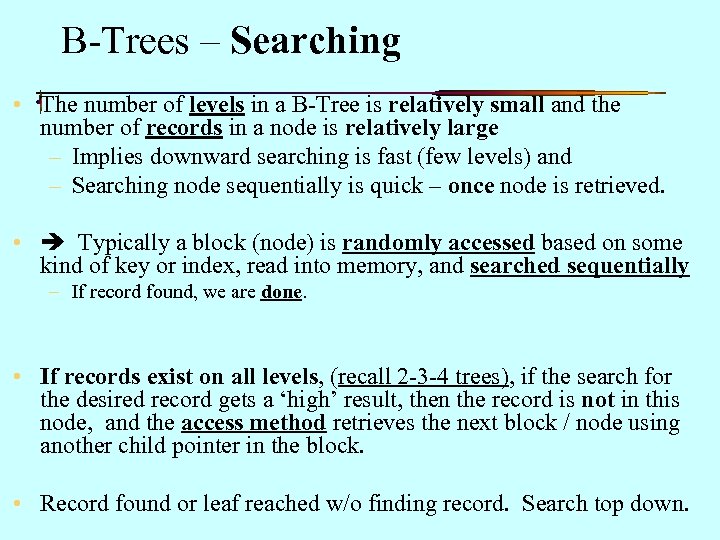

B-Trees – Searching • The number of levels in a B-Tree is relatively small and the number of records in a node is relatively large – Implies downward searching is fast (few levels) and – Searching node sequentially is quick – once node is retrieved. • Typically a block (node) is randomly accessed based on some kind of key or index, read into memory, and searched sequentially – If record found, we are done. • If records exist on all levels, (recall 2 -3 -4 trees), if the search for the desired record gets a ‘high’ result, then the record is not in this node, and the access method retrieves the next block / node using another child pointer in the block. • Record found or leaf reached w/o finding record. Search top down. 13

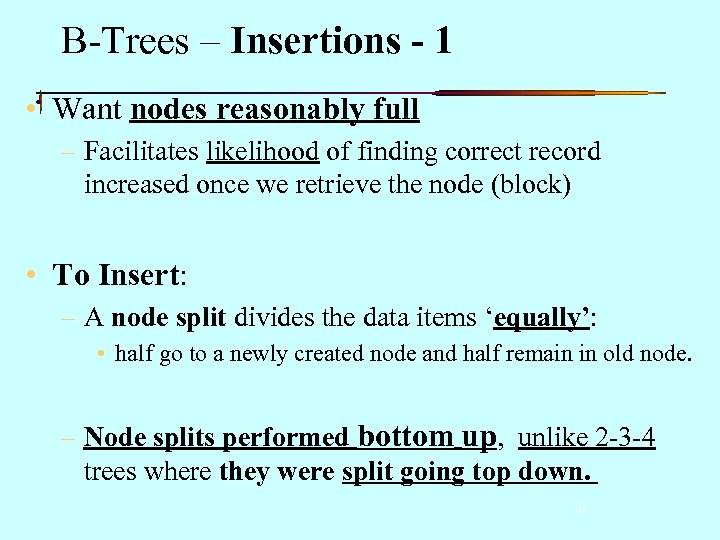

B-Trees – Insertions - 1 • Want nodes reasonably full – Facilitates likelihood of finding correct record increased once we retrieve the node (block) • To Insert: – A node split divides the data items ‘equally’: • half go to a newly created node and half remain in old node. – Node splits performed bottom up, unlike 2 -3 -4 trees where they were split going top down. 14

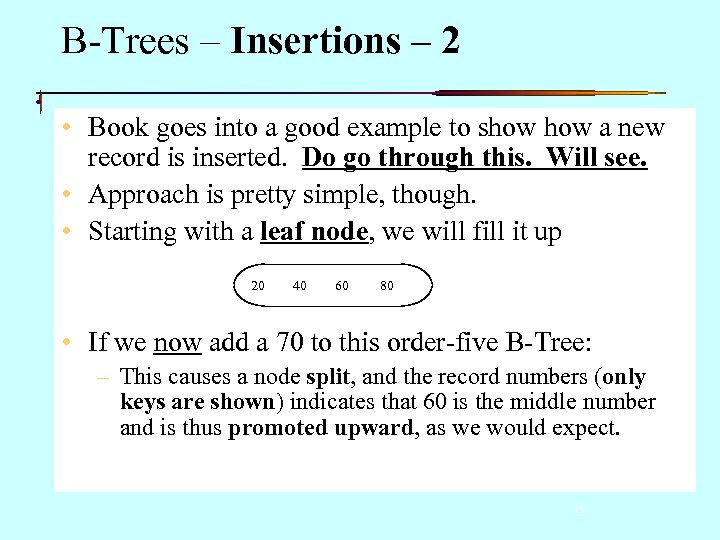

B-Trees – Insertions – 2 • Book goes into a good example to show a new record is inserted. Do go through this. Will see. • Approach is pretty simple, though. • Starting with a leaf node, we will fill it up 20 40 60 80 • If we now add a 70 to this order-five B-Tree: – This causes a node split, and the record numbers (only keys are shown) indicates that 60 is the middle number and is thus promoted upward, as we would expect. 15

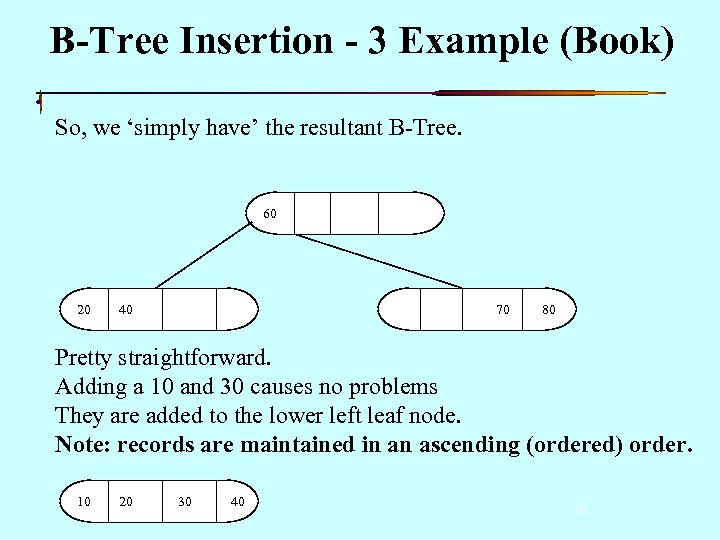

B-Tree Insertion - 3 Example (Book) So, we ‘simply have’ the resultant B-Tree. 60 20 40 70 80 Pretty straightforward. Adding a 10 and 30 causes no problems They are added to the lower left leaf node. Note: records are maintained in an ascending (ordered) order. 10 20 30 40 16

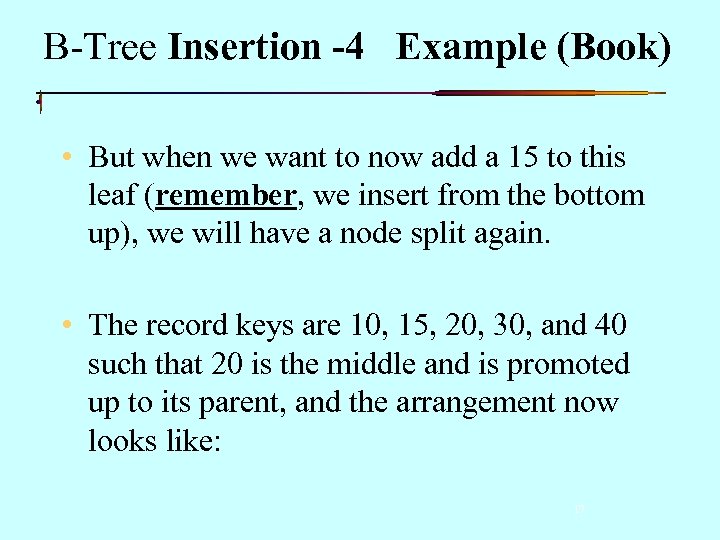

B-Tree Insertion -4 Example (Book) • But when we want to now add a 15 to this leaf (remember, we insert from the bottom up), we will have a node split again. • The record keys are 10, 15, 20, 30, and 40 such that 20 is the middle and is promoted up to its parent, and the arrangement now looks like: 17

B-Trees – Insertion -5 Algorithm continued The 20 is the middle record; the node is split evenly with the middle record promoted up. Records in the node (block) are kept sequential. 20 10 15 60 30 40 70 80 The process continues. Ultimately, the root node above will also become full, and, using the exact same algorithm, the tree grows by one level – upwards! 18

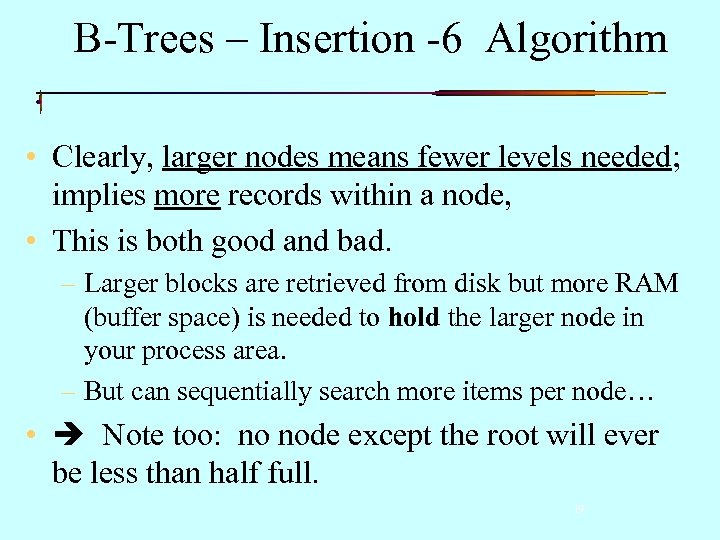

B-Trees – Insertion -6 Algorithm • Clearly, larger nodes means fewer levels needed; implies more records within a node, • This is both good and bad. – Larger blocks are retrieved from disk but more RAM (buffer space) is needed to hold the larger node in your process area. – But can sequentially search more items per node… • Note too: no node except the root will ever be less than half full. 19

B-Tree Efficiency • Very fast organization and access for retrievals / updates • Because there are so many records / node, the number of levels is relatively small. – If we have a B-Tree of order 9, the height of tree is somewhat less than log 9 n; (log base 9 of n) that is 9 raised to what power equals n. – Number is going to be one more than the max height of the tree. – Example: Let n = 500, 000 recs. 96= 531, 441. Tree = six levels. – This means that as a max, only six accesses are necessary to find the correct node in the file of 500, 000 records. • Book: at 10 msec /access, 60 msec to get the right block (node) (internal comparisons and searches are negligible re to disk accesses). • Cannot even compare this to those figures of retrieval of a record in a sequential file. 20

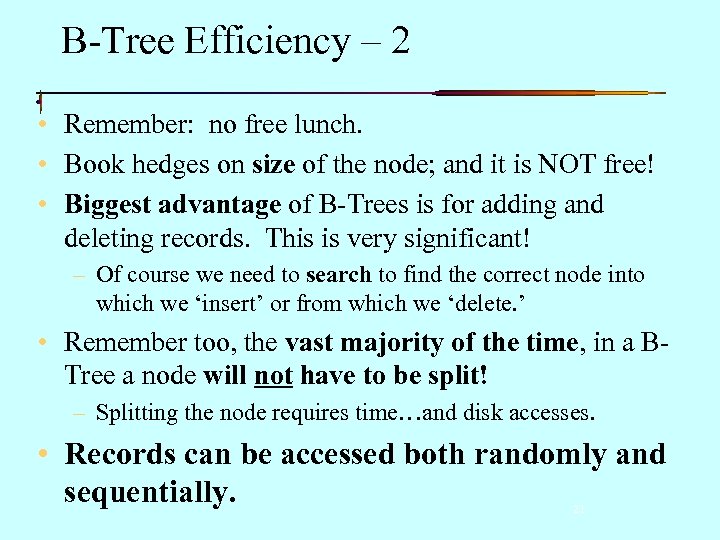

B-Tree Efficiency – 2 • Remember: no free lunch. • Book hedges on size of the node; and it is NOT free! • Biggest advantage of B-Trees is for adding and deleting records. This is very significant! – Of course we need to search to find the correct node into which we ‘insert’ or from which we ‘delete. ’ • Remember too, the vast majority of the time, in a BTree a node will not have to be split! – Splitting the node requires time…and disk accesses. • Records can be accessed both randomly and sequentially. 21

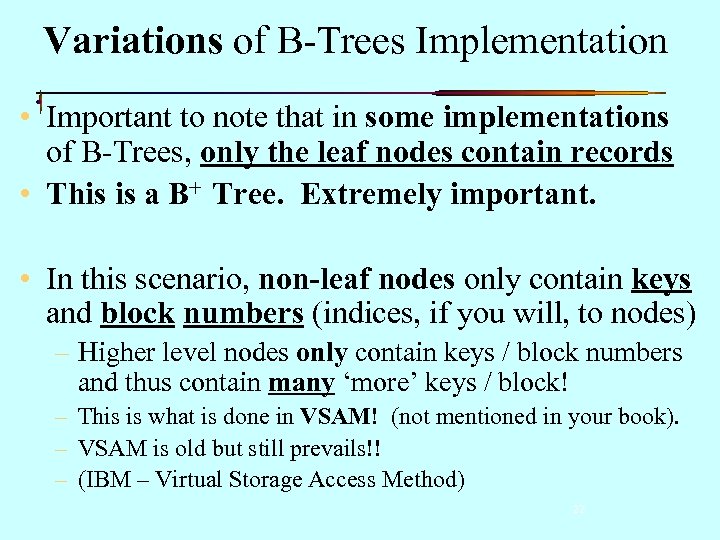

Variations of B-Trees Implementation • Important to note that in some implementations of B-Trees, only the leaf nodes contain records • This is a B+ Tree. Extremely important. • In this scenario, non-leaf nodes only contain keys and block numbers (indices, if you will, to nodes) – Higher level nodes only contain keys / block numbers and thus contain many ‘more’ keys / block! – This is what is done in VSAM! (not mentioned in your book). – VSAM is old but still prevails!! – (IBM – Virtual Storage Access Method) 22

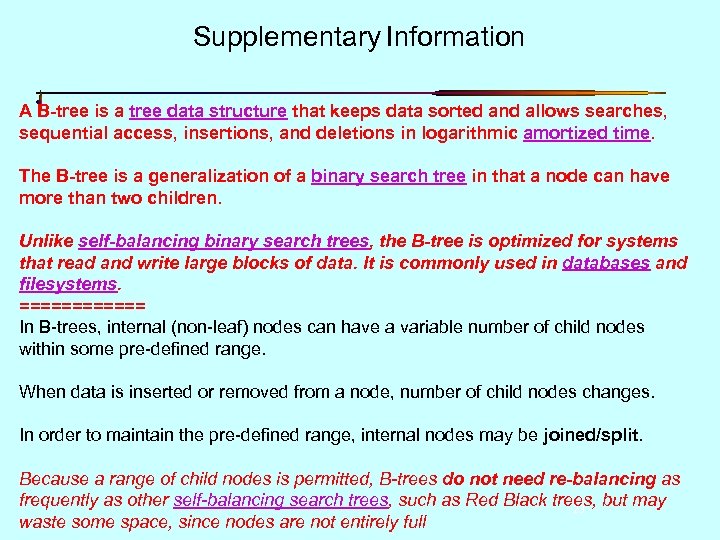

Supplementary Information A B-tree is a tree data structure that keeps data sorted and allows searches, sequential access, insertions, and deletions in logarithmic amortized time. The B-tree is a generalization of a binary search tree in that a node can have more than two children. Unlike self-balancing binary search trees, the B-tree is optimized for systems that read and write large blocks of data. It is commonly used in databases and filesystems. ====== In B-trees, internal (non-leaf) nodes can have a variable number of child nodes within some pre-defined range. When data is inserted or removed from a node, number of child nodes changes. In order to maintain the pre-defined range, internal nodes may be joined/split. Because a range of child nodes is permitted, B-trees do not need re-balancing as frequently as other self-balancing search trees, such as Red Black trees, but may 23 waste some space, since nodes are not entirely full

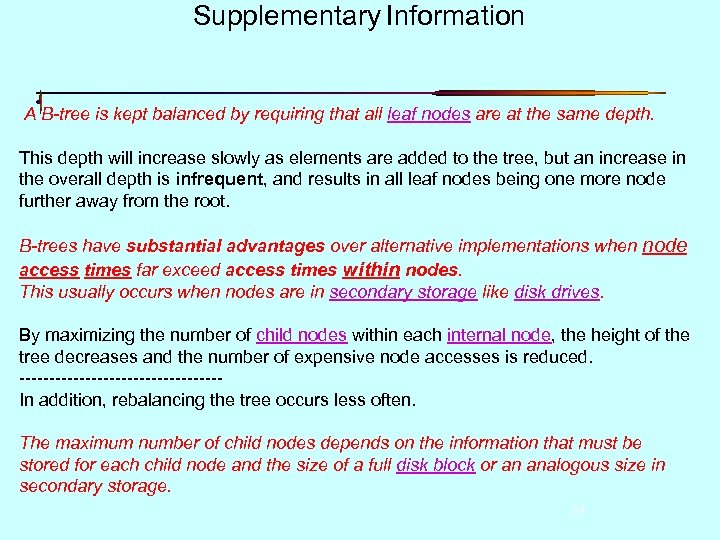

Supplementary Information A B-tree is kept balanced by requiring that all leaf nodes are at the same depth. This depth will increase slowly as elements are added to the tree, but an increase in the overall depth is infrequent, and results in all leaf nodes being one more node further away from the root. B-trees have substantial advantages over alternative implementations when node access times far exceed access times within nodes. This usually occurs when nodes are in secondary storage like disk drives. By maximizing the number of child nodes within each internal node, the height of the tree decreases and the number of expensive node accesses is reduced. -----------------In addition, rebalancing the tree occurs less often. The maximum number of child nodes depends on the information that must be stored for each child node and the size of a full disk block or an analogous size in secondary storage. 24

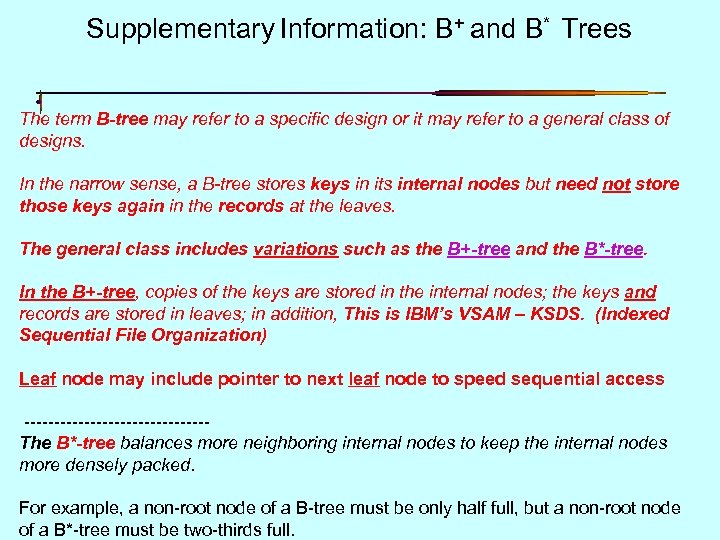

Supplementary Information: B+ and B* Trees The term B-tree may refer to a specific design or it may refer to a general class of designs. In the narrow sense, a B-tree stores keys in its internal nodes but need not store those keys again in the records at the leaves. The general class includes variations such as the B+-tree and the B*-tree. In the B+-tree, copies of the keys are stored in the internal nodes; the keys and records are stored in leaves; in addition, This is IBM’s VSAM – KSDS. (Indexed Sequential File Organization) Leaf node may include pointer to next leaf node to speed sequential access ---------------The B*-tree balances more neighboring internal nodes to keep the internal nodes more densely packed. 25 For example, a non-root node of a B-tree must be only half full, but a non-root node of a B*-tree must be two-thirds full.

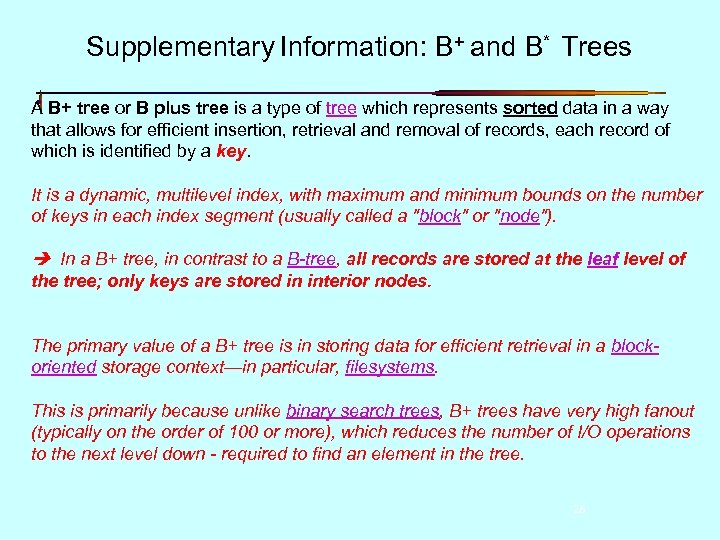

Supplementary Information: B+ and B* Trees A B+ tree or B plus tree is a type of tree which represents sorted data in a way that allows for efficient insertion, retrieval and removal of records, each record of which is identified by a key. It is a dynamic, multilevel index, with maximum and minimum bounds on the number of keys in each index segment (usually called a "block" or "node"). In a B+ tree, in contrast to a B-tree, all records are stored at the leaf level of the tree; only keys are stored in interior nodes. The primary value of a B+ tree is in storing data for efficient retrieval in a blockoriented storage context—in particular, filesystems. This is primarily because unlike binary search trees, B+ trees have very high fanout (typically on the order of 100 or more), which reduces the number of I/O operations to the next level down - required to find an element in the tree. 26

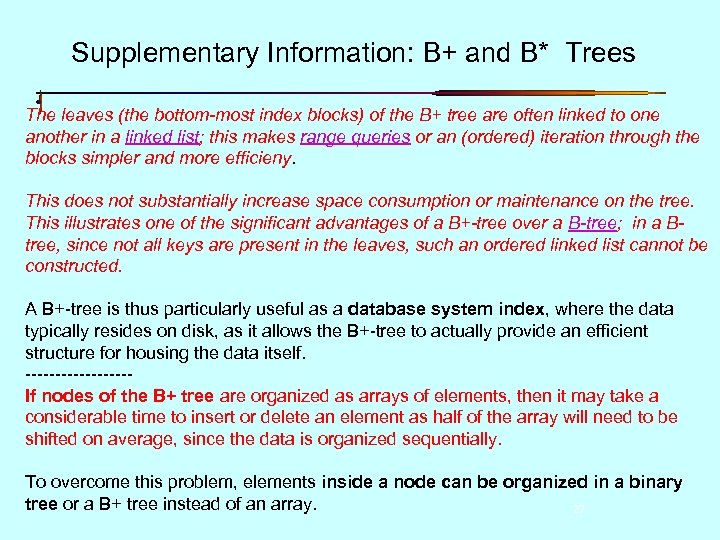

Supplementary Information: B+ and B* Trees The leaves (the bottom-most index blocks) of the B+ tree are often linked to one another in a linked list; this makes range queries or an (ordered) iteration through the blocks simpler and more efficieny. This does not substantially increase space consumption or maintenance on the tree. This illustrates one of the significant advantages of a B+-tree over a B-tree; in a Btree, since not all keys are present in the leaves, such an ordered linked list cannot be constructed. A B+-tree is thus particularly useful as a database system index, where the data typically resides on disk, as it allows the B+-tree to actually provide an efficient structure for housing the data itself. ---------If nodes of the B+ tree are organized as arrays of elements, then it may take a considerable time to insert or delete an element as half of the array will need to be shifted on average, since the data is organized sequentially. To overcome this problem, elements inside a node can be organized in a binary tree or a B+ tree instead of an array. 27

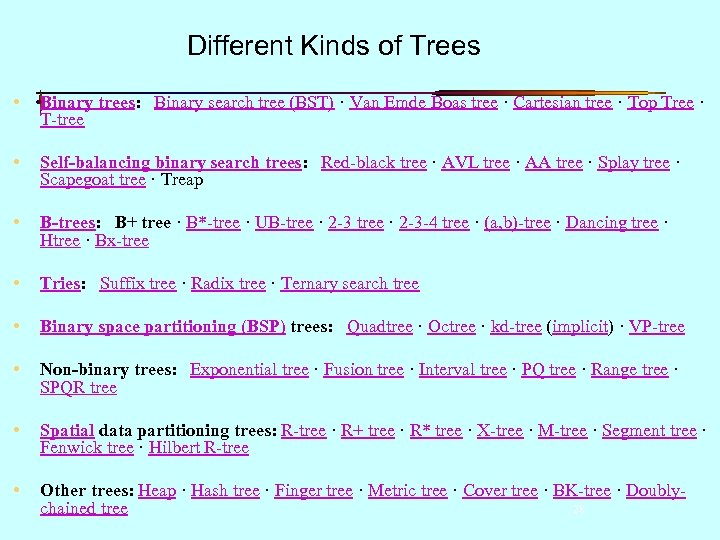

Different Kinds of Trees • Binary trees: Binary search tree (BST) · Van Emde Boas tree · Cartesian tree · Top Tree · T-tree • Self-balancing binary search trees: Red-black tree · AVL tree · AA tree · Splay tree · Scapegoat tree · Treap • B-trees: B+ tree · B*-tree · UB-tree · 2 -3 -4 tree · (a, b)-tree · Dancing tree · Htree · Bx-tree • Tries: Suffix tree · Radix tree · Ternary search tree • Binary space partitioning (BSP) trees: Quadtree · Octree · kd-tree (implicit) · VP-tree • Non-binary trees: Exponential tree · Fusion tree · Interval tree · PQ tree · Range tree · SPQR tree • Spatial data partitioning trees: R-tree · R+ tree · R* tree · X-tree · M-tree · Segment tree · Fenwick tree · Hilbert R-tree • Other trees: Heap · Hash tree · Finger tree · Metric tree · Cover tree · BK-tree · Doubly 28 chained tree

Databases A Database is a collection of data organized in a fashion that facilitates updating, retrieving, and managing the data. – Can consist of anything, including, but not limited to names, addresses, pictures, and numbers. Databases are commonplace and are used everyday. • Very common for a database to contain millions of records requiring many gigabytes of storage. • Because databases cannot typically be maintained entirely in memory, B-trees are often used to index data and provide fast access. • Searching an unindexed and unsorted database containing n key values will have a worst case running time of O(n); • If same data is indexed with a B-tree, same search operation will run in O(log n). • 29

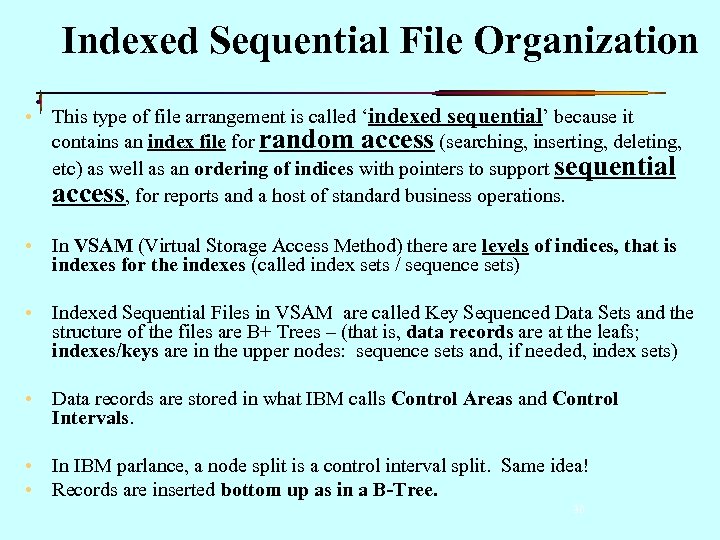

Indexed Sequential File Organization • This type of file arrangement is called ‘indexed sequential’ because it contains an index file for random access (searching, inserting, deleting, etc) as well as an ordering of indices with pointers to support sequential access, for reports and a host of standard business operations. • In VSAM (Virtual Storage Access Method) there are levels of indices, that is indexes for the indexes (called index sets / sequence sets) • Indexed Sequential Files in VSAM are called Key Sequenced Data Sets and the structure of the files are B+ Trees – (that is, data records are at the leafs; indexes/keys are in the upper nodes: sequence sets and, if needed, index sets) • Data records are stored in what IBM calls Control Areas and Control Intervals. • In IBM parlance, a node split is a control interval split. Same idea! • Records are inserted bottom up as in a B-Tree. 30

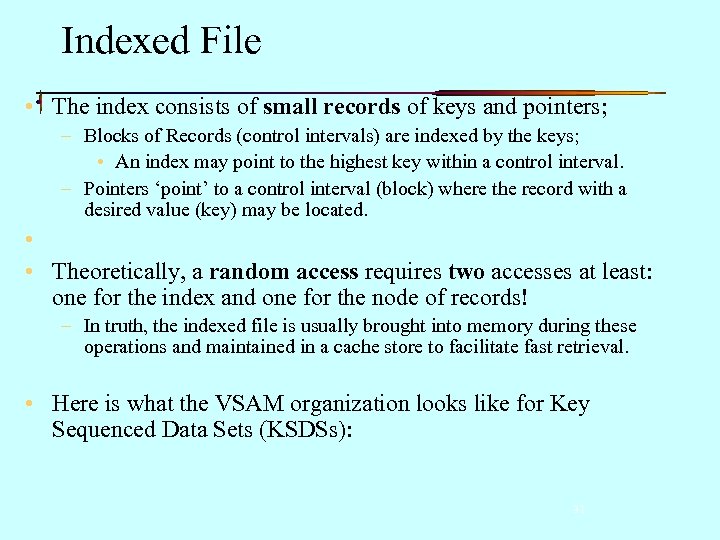

Indexed File • The index consists of small records of keys and pointers; – Blocks of Records (control intervals) are indexed by the keys; • An index may point to the highest key within a control interval. – Pointers ‘point’ to a control interval (block) where the record with a desired value (key) may be located. • • Theoretically, a random access requires two accesses at least: one for the index and one for the node of records! – In truth, the indexed file is usually brought into memory during these operations and maintained in a cache store to facilitate fast retrieval. • Here is what the VSAM organization looks like for Key Sequenced Data Sets (KSDSs): 31

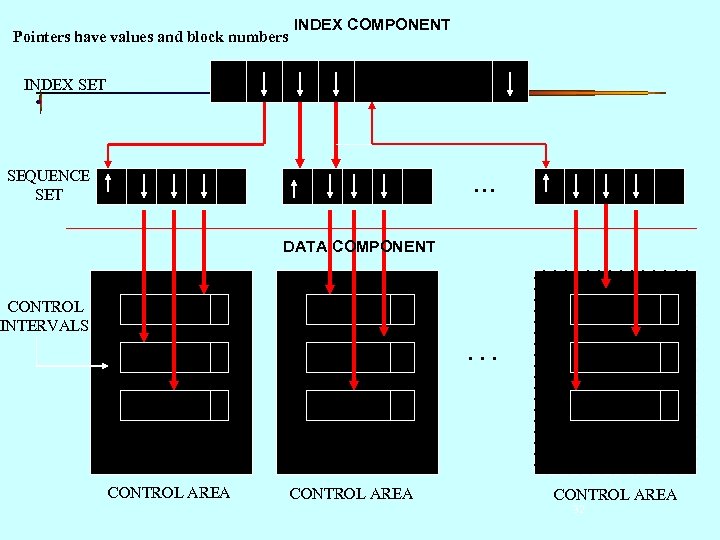

Pointers have values and block numbers INDEX COMPONENT … INDEX SET SEQUENCE SET . . . DATA COMPONENT CONTROL INTERVALS . . . CONTROL AREA 32

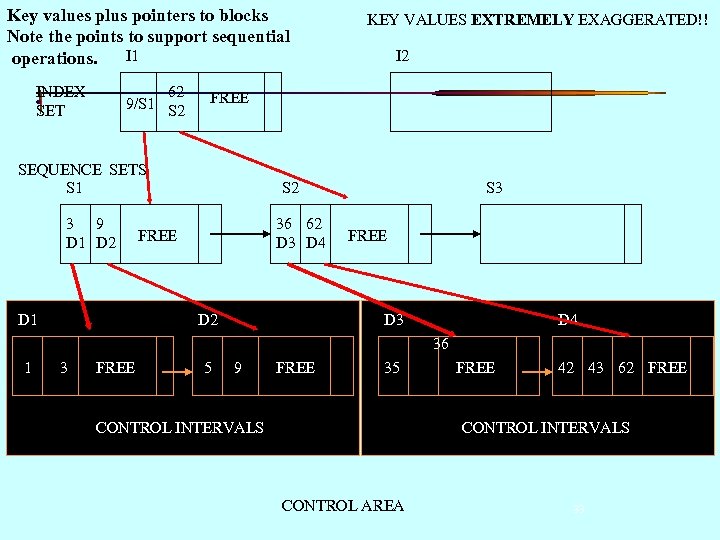

Key values plus pointers to blocks Note the points to support sequential I 1 operations. INDEX SET 62 9/S 1 S 2 D 1 I 2 FREE SEQUENCE SETS S 1 3 9 D 1 D 2 KEY VALUES EXTREMELY EXAGGERATED!! S 2 36 62 D 3 D 4 FREE D 2 S 3 FREE D 3 D 4 36 1 3 FREE 5 9 FREE 35 CONTROL INTERVALS FREE 42 43 62 FREE CONTROL INTERVALS CONTROL AREA 33

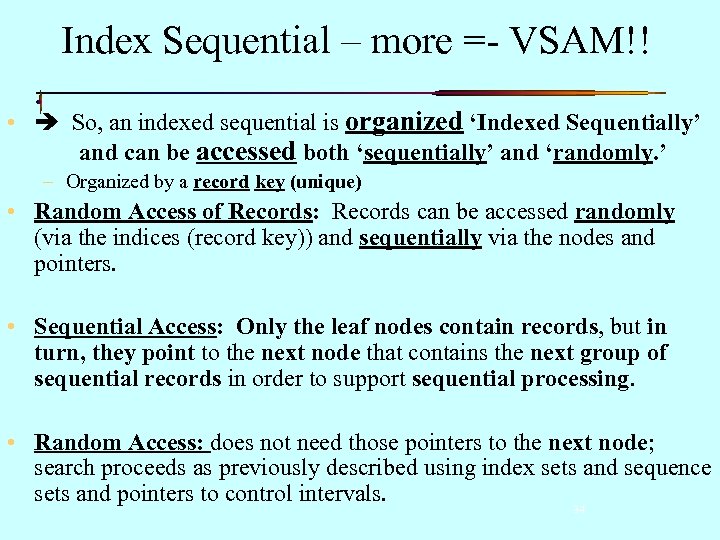

Index Sequential – more =- VSAM!! • So, an indexed sequential is organized ‘Indexed Sequentially’ and can be accessed both ‘sequentially’ and ‘randomly. ’ – Organized by a record key (unique) • Random Access of Records: Records can be accessed randomly (via the indices (record key)) and sequentially via the nodes and pointers. • Sequential Access: Only the leaf nodes contain records, but in turn, they point to the next node that contains the next group of sequential records in order to support sequential processing. • Random Access: does not need those pointers to the next node; search proceeds as previously described using index sets and sequence sets and pointers to control intervals. 34

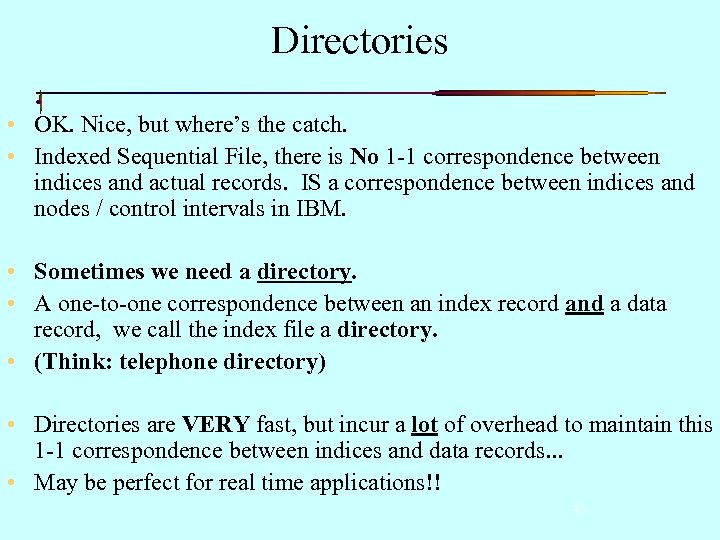

Directories • OK. Nice, but where’s the catch. • Indexed Sequential File, there is No 1 -1 correspondence between indices and actual records. IS a correspondence between indices and nodes / control intervals in IBM. • Sometimes we need a directory. • A one-to-one correspondence between an index record and a data record, we call the index file a directory. • (Think: telephone directory) • Directories are VERY fast, but incur a lot of overhead to maintain this 1 -1 correspondence between indices and data records. . . • May be perfect for real time applications!! 35

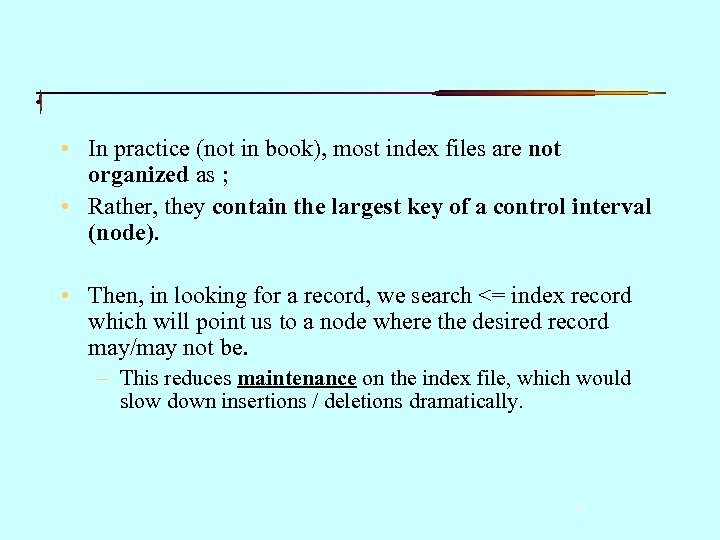

• In practice (not in book), most index files are not organized as ; • Rather, they contain the largest key of a control interval (node). • Then, in looking for a record, we search <= index record which will point us to a node where the desired record may/may not be. – This reduces maintenance on the index file, which would slow down insertions / deletions dramatically. 36

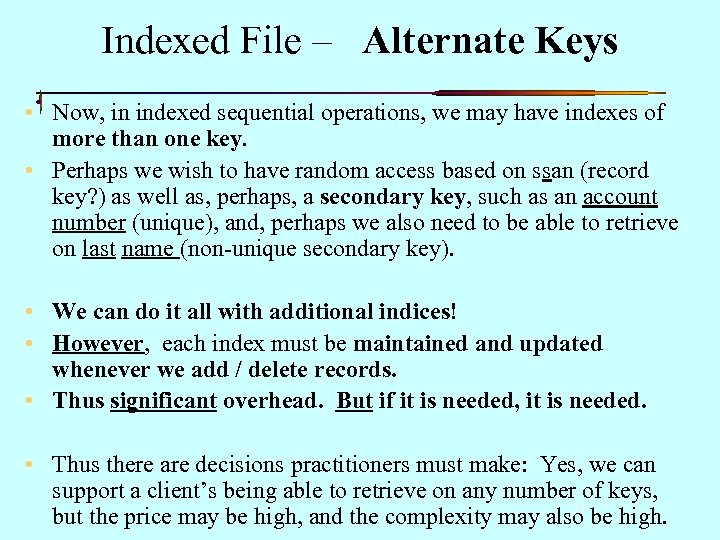

Indexed File – Alternate Keys • Now, in indexed sequential operations, we may have indexes of more than one key. • Perhaps we wish to have random access based on ssan (record key? ) as well as, perhaps, a secondary key, such as an account number (unique), and, perhaps we also need to be able to retrieve on last name (non-unique secondary key). • We can do it all with additional indices! • However, each index must be maintained and updated whenever we add / delete records. • Thus significant overhead. But if it is needed, it is needed. • Thus there are decisions practitioners must make: Yes, we can support a client’s being able to retrieve on any number of keys, 37 but the price may be high, and the complexity may also be high.
