Exploratory Data Analysis Hal Varian 20 March 2006 Exploratory Data Analysis Hal Varian 20 March 2006

What is EDA? n Goals n n Examine and summarize data Look for patterns What is EDA? n Goals n n Examine and summarize data Look for patterns and suggest hypotheses Provide guidance for more systematic analysis Methods of analysis n n Primarily graphics and tables Online reference n n http: //www. itl. nist. gov/div 898/handbook/eda. htm http: //www. math. yorku. ca/SCS/Courses/eda/

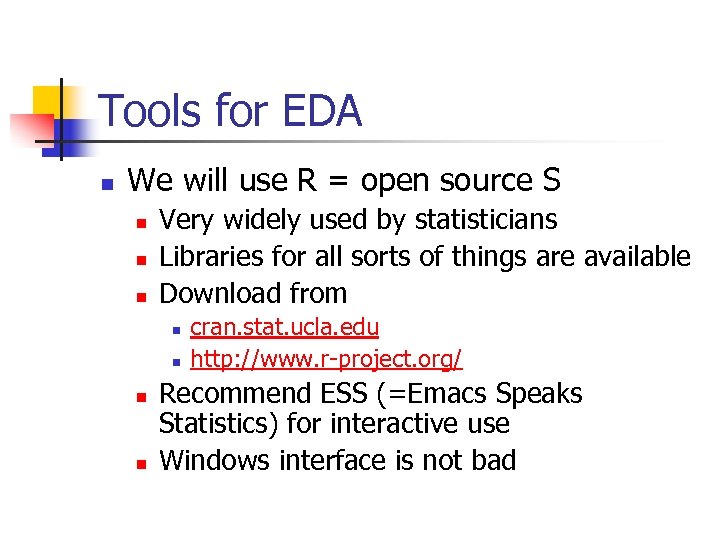

Tools for EDA n We will use R = open source S n n Tools for EDA n We will use R = open source S n n n Very widely used by statisticians Libraries for all sorts of things are available Download from n n cran. stat. ucla. edu http: //www. r-project. org/ Recommend ESS (=Emacs Speaks Statistics) for interactive use Windows interface is not bad

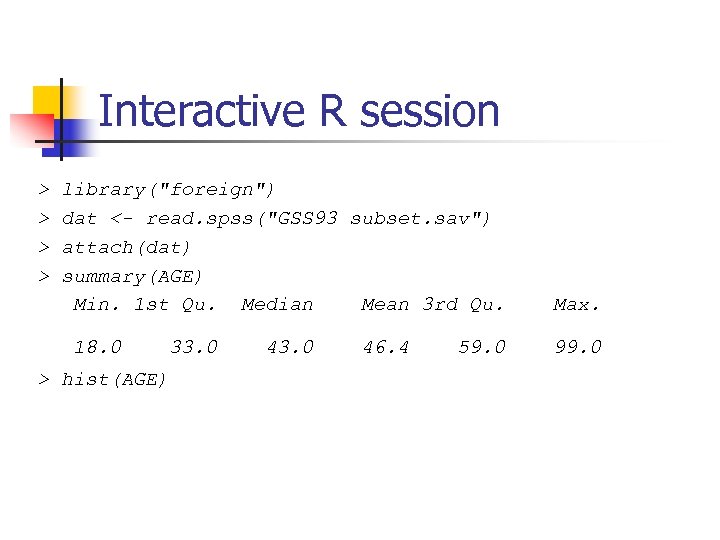

Interactive R session > > library( Interactive R session > > library("foreign") dat <- read. spss("GSS 93 subset. sav") attach(dat) summary(AGE) Min. 1 st Qu. Median Mean 3 rd Qu. 18. 0 33. 0 > hist(AGE) 43. 0 46. 4 59. 0 Max. 99. 0

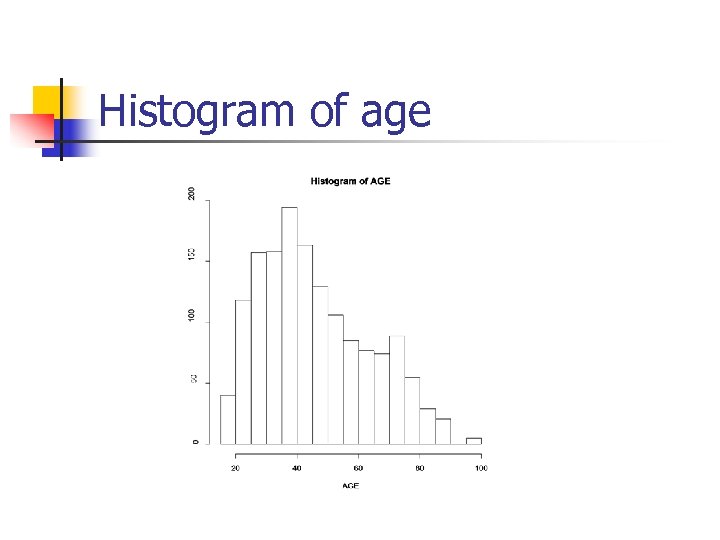

Histogram of age Histogram of age

Recode missing data n n n AGE[AGE>90] <- NA plot(density(AGE, na. rm=T)) #plot both Recode missing data n n n AGE[AGE>90] <- NA plot(density(AGE, na. rm=T)) #plot both together hist(AGE, freq=F) lines(density(AGE, na. rm=T))

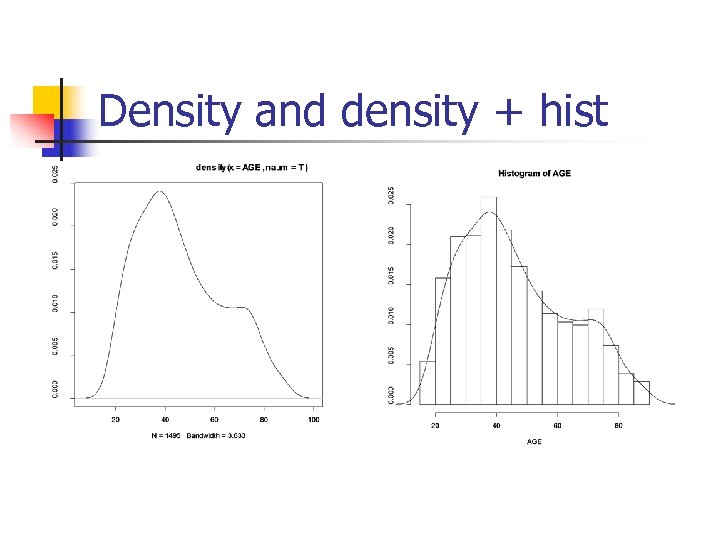

Density and density + hist Density and density + hist

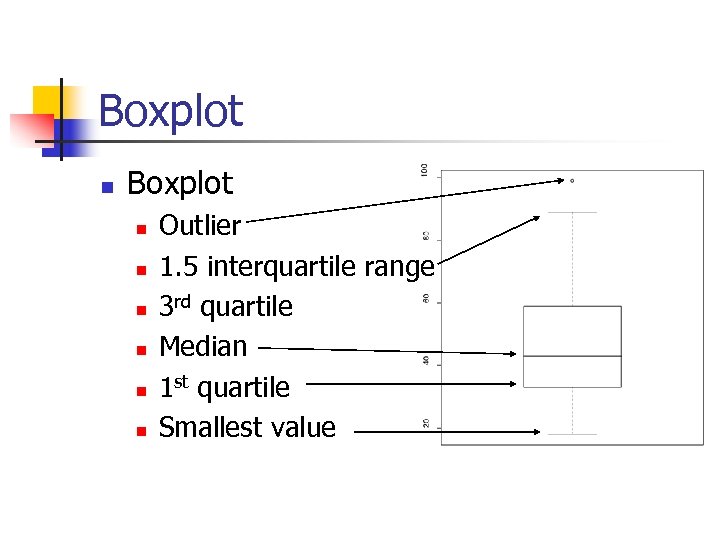

Boxplot n n n n Outlier 1. 5 interquartile range 3 rd quartile Median Boxplot n n n n Outlier 1. 5 interquartile range 3 rd quartile Median 1 st quartile Smallest value

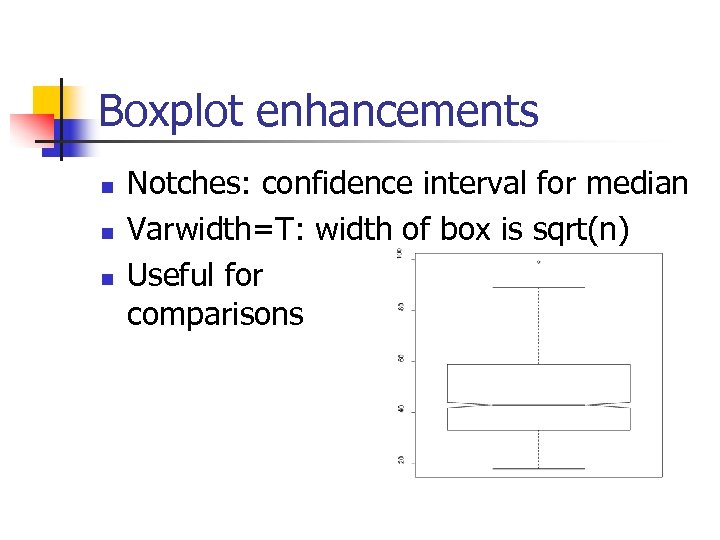

Boxplot enhancements n n n Notches: confidence interval for median Varwidth=T: width of box Boxplot enhancements n n n Notches: confidence interval for median Varwidth=T: width of box is sqrt(n) Useful for comparisons

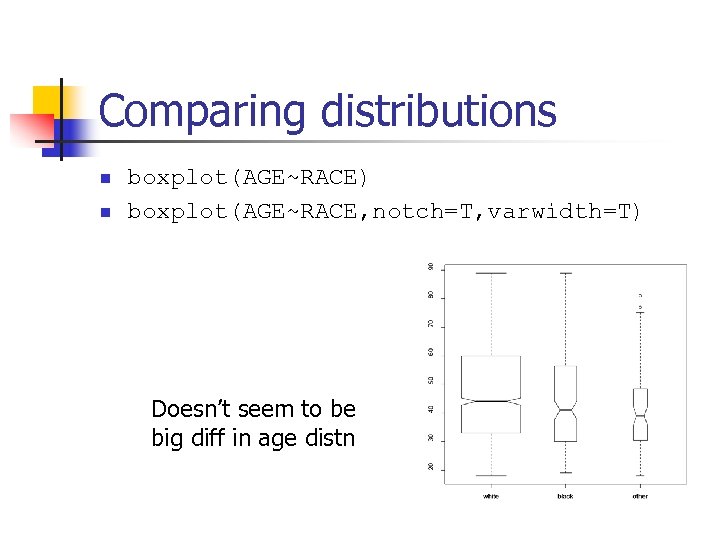

Comparing distributions n n boxplot(AGE~RACE) boxplot(AGE~RACE, notch=T, varwidth=T) Doesn’t seem to be big diff Comparing distributions n n boxplot(AGE~RACE) boxplot(AGE~RACE, notch=T, varwidth=T) Doesn’t seem to be big diff in age distn

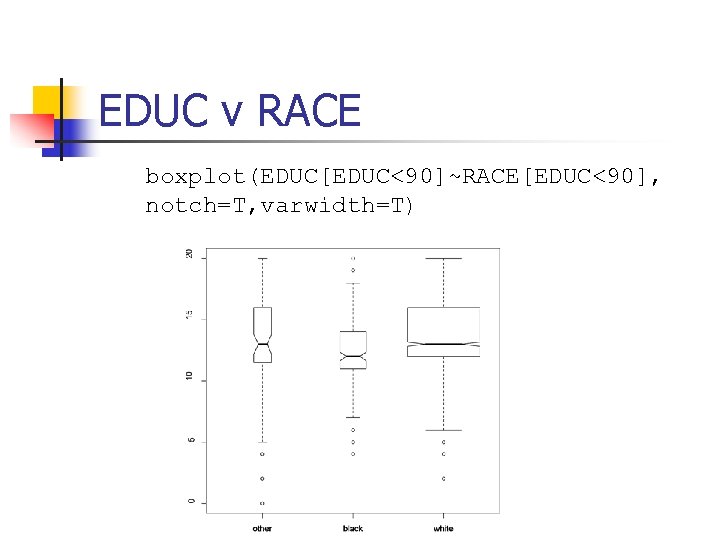

EDUC v RACE boxplot(EDUC[EDUC<90]~RACE[EDUC<90], notch=T, varwidth=T) EDUC v RACE boxplot(EDUC[EDUC<90]~RACE[EDUC<90], notch=T, varwidth=T)

Violin plot n n Combines density plot and boxplot Good for weird shaped distributions… Violin plot n n Combines density plot and boxplot Good for weird shaped distributions…

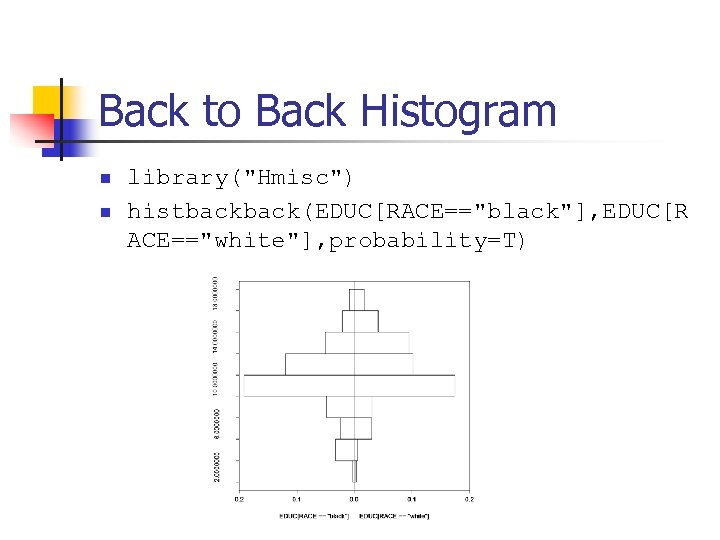

Back to Back Histogram n n library( Back to Back Histogram n n library("Hmisc") histback(EDUC[RACE=="black"], EDUC[R ACE=="white"], probability=T)

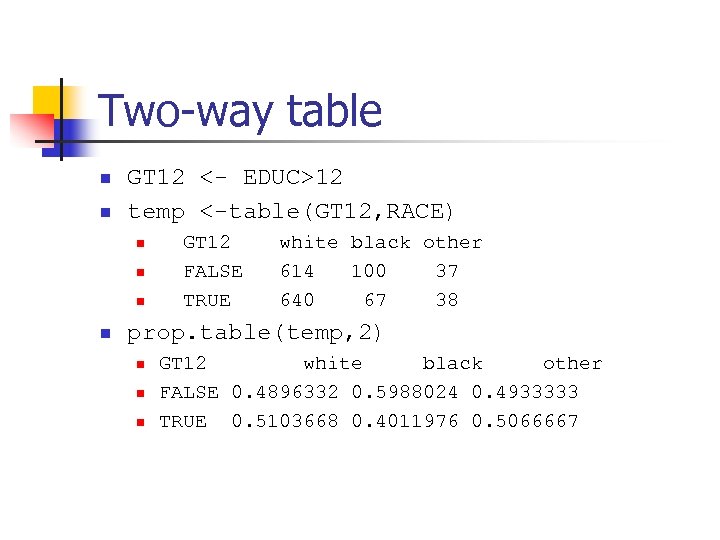

Two-way table n n GT 12 <- EDUC>12 temp <-table(GT 12, RACE) n n Two-way table n n GT 12 <- EDUC>12 temp <-table(GT 12, RACE) n n GT 12 FALSE TRUE white black other 614 100 37 640 67 38 prop. table(temp, 2) n n n GT 12 white black other FALSE 0. 4896332 0. 5988024 0. 4933333 TRUE 0. 5103668 0. 4011976 0. 5066667

Comparing distributions n qqplot = quantile-quantile plot n n n Shapes n n Fraction Comparing distributions n qqplot = quantile-quantile plot n n n Shapes n n Fraction of data less than k in x Fraction of data less than k in y Straight line: same distribution Vertical intercepts differ: different mean Slopes differ: different variance Reference distribution can be theoretical distn n qnorm – compare to standardized normal Skew to right: both tails below straight line Heavy tails: lower tail above, upper tail below line

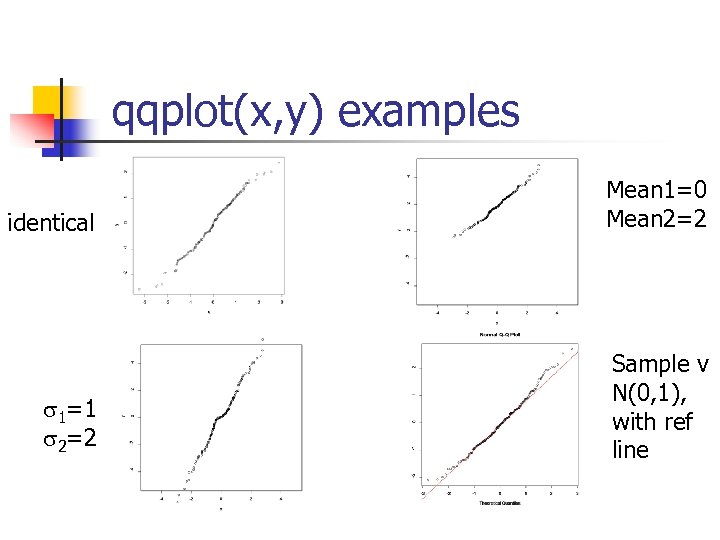

qqplot(x, y) examples identical Mean 1=0 Mean 2=2 s 1=1 s 2=2 Sample v qqplot(x, y) examples identical Mean 1=0 Mean 2=2 s 1=1 s 2=2 Sample v N(0, 1), with ref line

More qqnorm examples Skewed to right Heavy tails www. maths. murdoch. edu. au/units/statsnotes/samplestats/qqplot. html More qqnorm examples Skewed to right Heavy tails www. maths. murdoch. edu. au/units/statsnotes/samplestats/qqplot. html

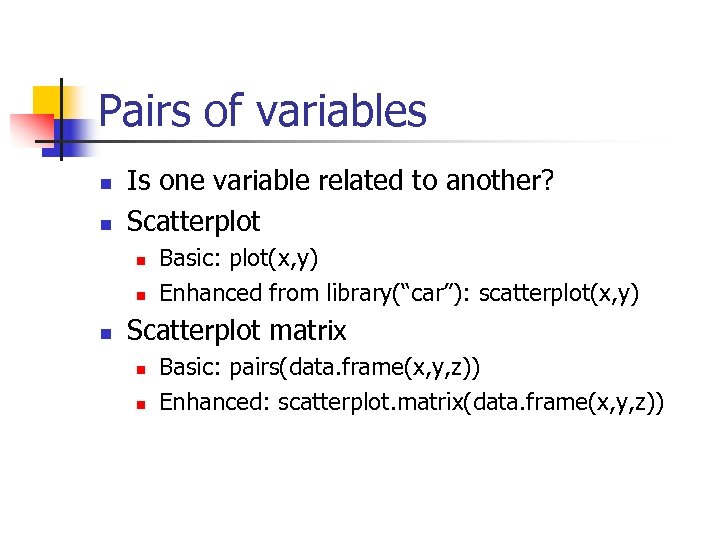

Pairs of variables n n Is one variable related to another? Scatterplot n n Pairs of variables n n Is one variable related to another? Scatterplot n n n Basic: plot(x, y) Enhanced from library(“car”): scatterplot(x, y) Scatterplot matrix n n Basic: pairs(data. frame(x, y, z)) Enhanced: scatterplot. matrix(data. frame(x, y, z))

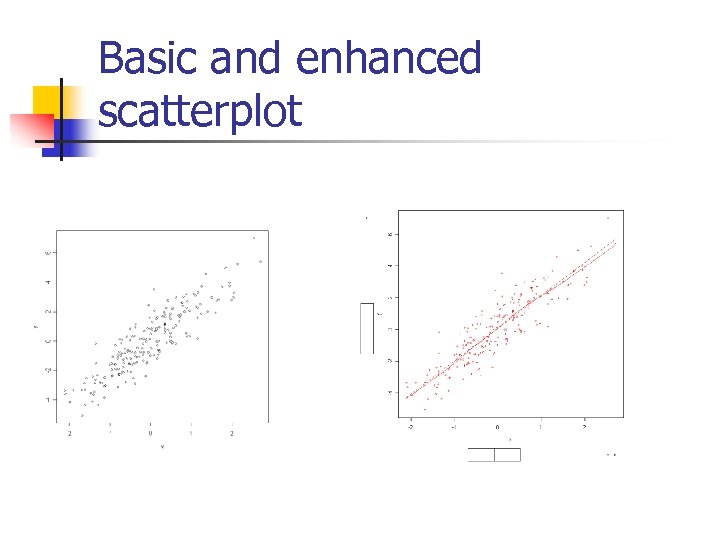

Basic and enhanced scatterplot Basic and enhanced scatterplot

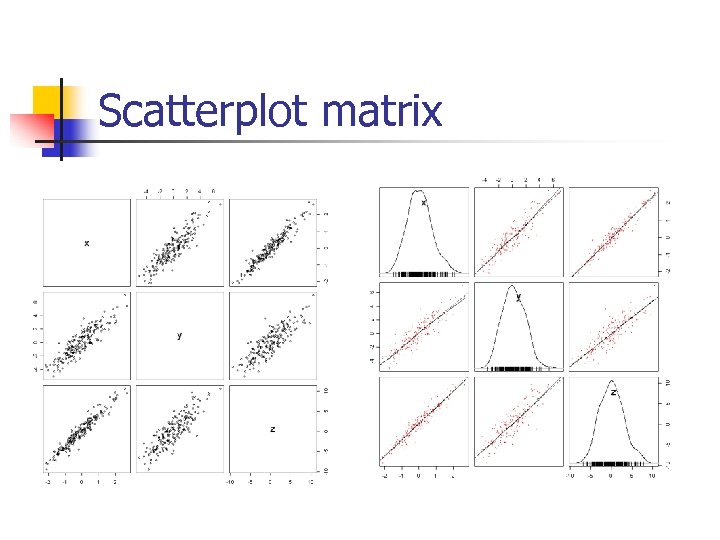

Scatterplot matrix Scatterplot matrix

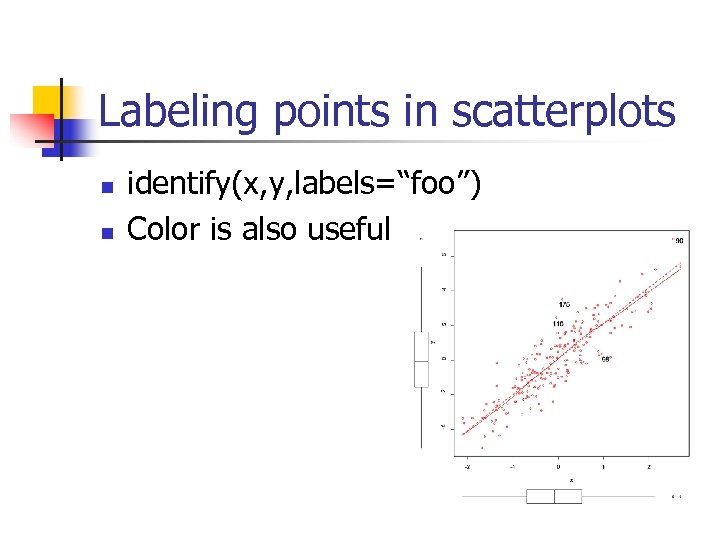

Labeling points in scatterplots n n identify(x, y, labels=“foo”) Color is also useful Labeling points in scatterplots n n identify(x, y, labels=“foo”) Color is also useful

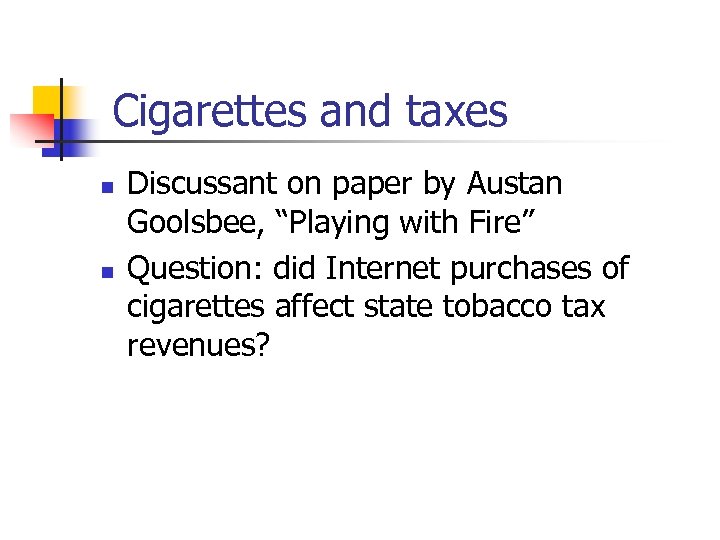

Cigarettes and taxes n n Discussant on paper by Austan Goolsbee, “Playing with Fire” Cigarettes and taxes n n Discussant on paper by Austan Goolsbee, “Playing with Fire” Question: did Internet purchases of cigarettes affect state tobacco tax revenues?

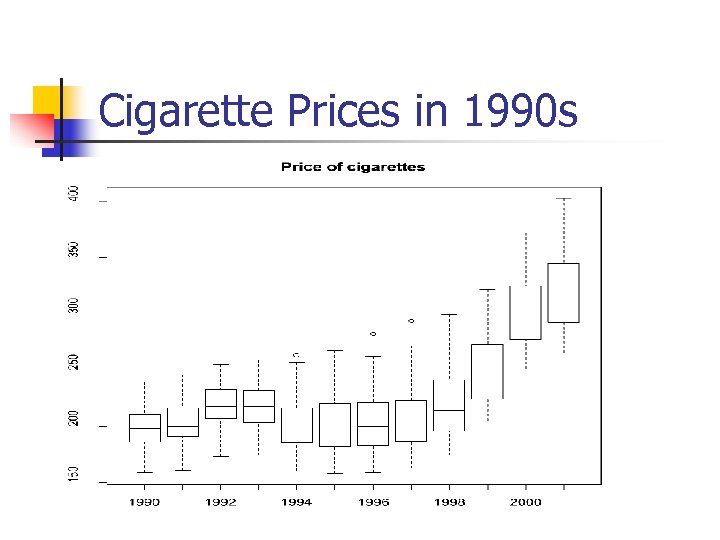

Cigarette Prices in 1990 s Cigarette Prices in 1990 s

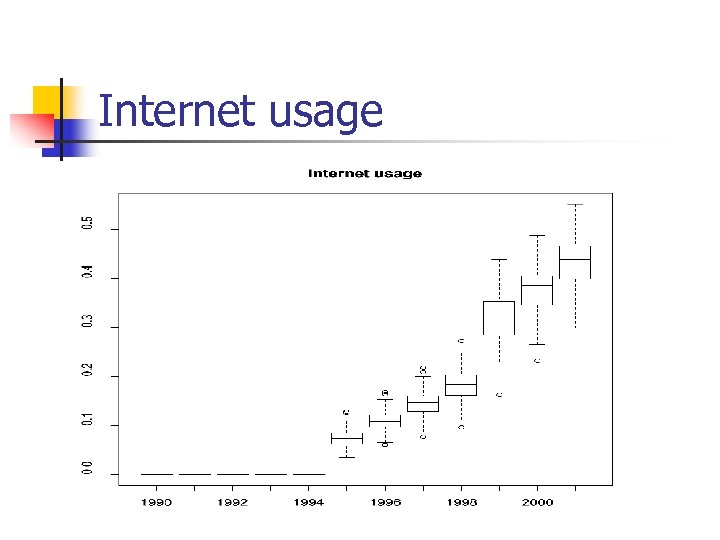

Internet usage Internet usage

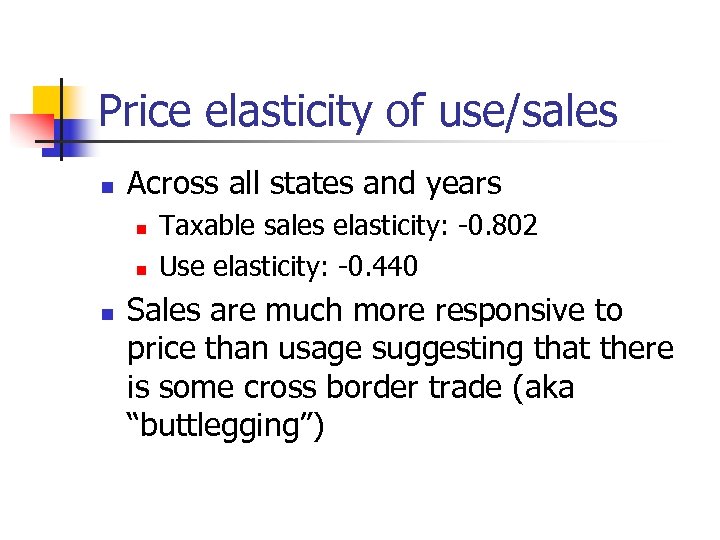

Price elasticity of use/sales n Across all states and years n n n Taxable Price elasticity of use/sales n Across all states and years n n n Taxable sales elasticity: -0. 802 Use elasticity: -0. 440 Sales are much more responsive to price than usage suggesting that there is some cross border trade (aka “buttlegging”)

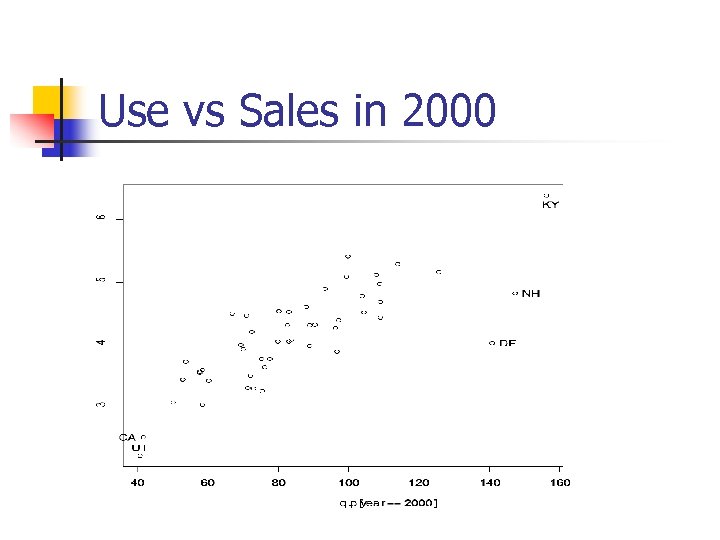

Use vs Sales in 2000 Use vs Sales in 2000

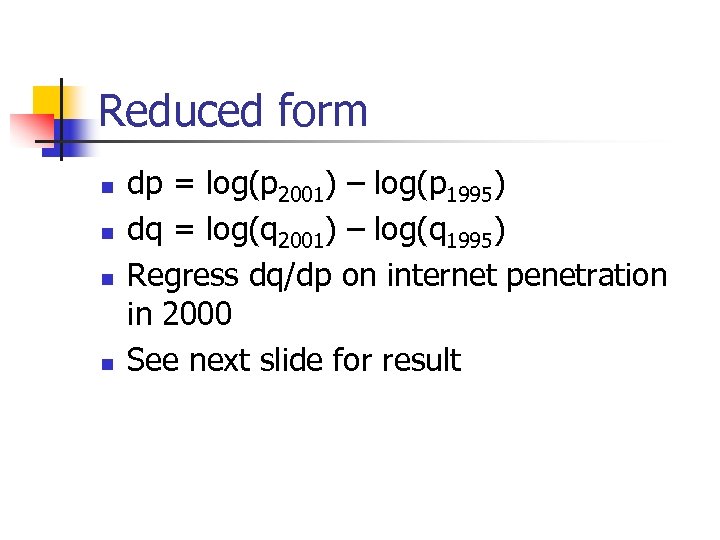

Reduced form n n dp = log(p 2001) – log(p 1995) dq = log(q Reduced form n n dp = log(p 2001) – log(p 1995) dq = log(q 2001) – log(q 1995) Regress dq/dp on internet penetration in 2000 See next slide for result

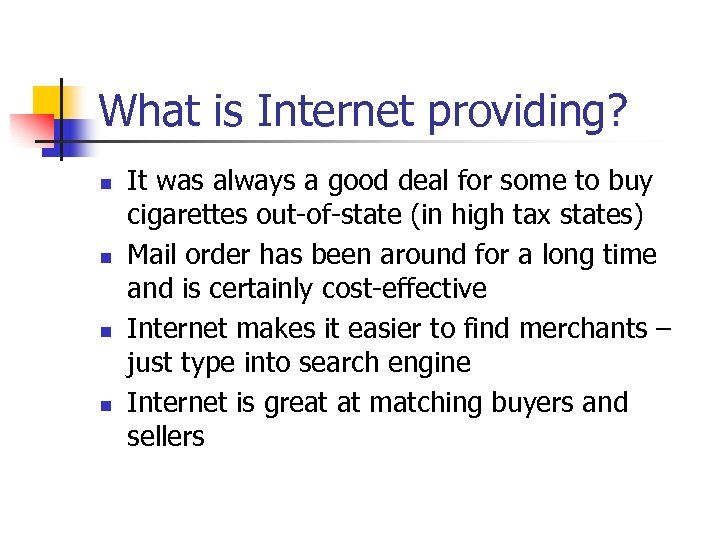

What is Internet providing? n n It was always a good deal for some What is Internet providing? n n It was always a good deal for some to buy cigarettes out-of-state (in high tax states) Mail order has been around for a long time and is certainly cost-effective Internet makes it easier to find merchants – just type into search engine Internet is great at matching buyers and sellers

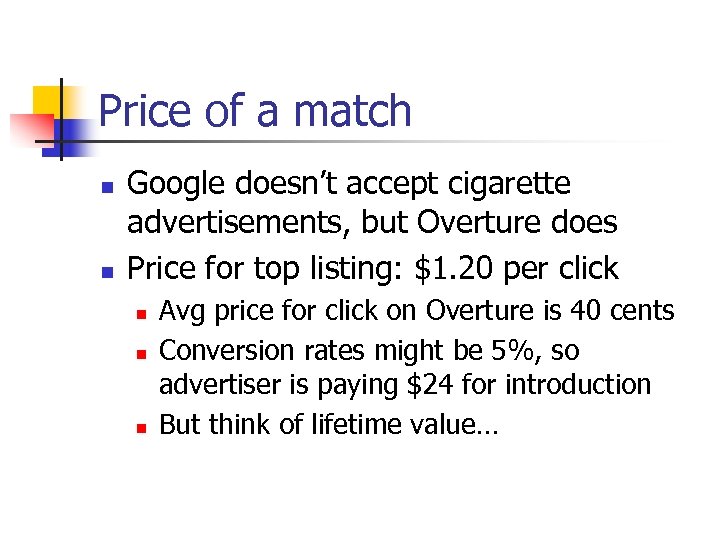

Price of a match n n Google doesn’t accept cigarette advertisements, but Overture does Price of a match n n Google doesn’t accept cigarette advertisements, but Overture does Price for top listing: $1. 20 per click n n n Avg price for click on Overture is 40 cents Conversion rates might be 5%, so advertiser is paying $24 for introduction But think of lifetime value…

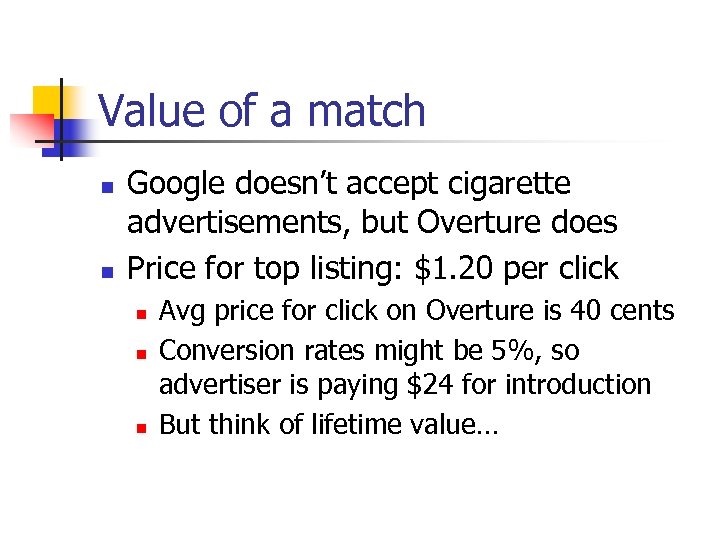

Value of a match n n Google doesn’t accept cigarette advertisements, but Overture does Value of a match n n Google doesn’t accept cigarette advertisements, but Overture does Price for top listing: $1. 20 per click n n n Avg price for click on Overture is 40 cents Conversion rates might be 5%, so advertiser is paying $24 for introduction But think of lifetime value…

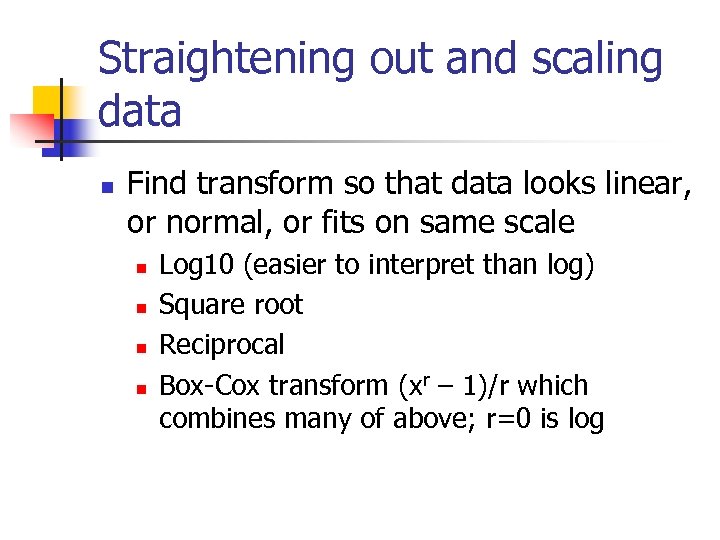

Straightening out and scaling data n Find transform so that data looks linear, or Straightening out and scaling data n Find transform so that data looks linear, or normal, or fits on same scale n n Log 10 (easier to interpret than log) Square root Reciprocal Box-Cox transform (xr – 1)/r which combines many of above; r=0 is log

City sizes: regular & log 10 City sizes: regular & log 10
