Experiences from the Field: Building a Water Distribution System in Rural Honduras Ethan La. Rochelle Northeastern University Engineers Without Borders Building a Better World, One Community at a Time
Travel and Lodging • Travel with Americans Caring Teaching and Sharing (ACTS) • Accommodations • Local guides • Communication

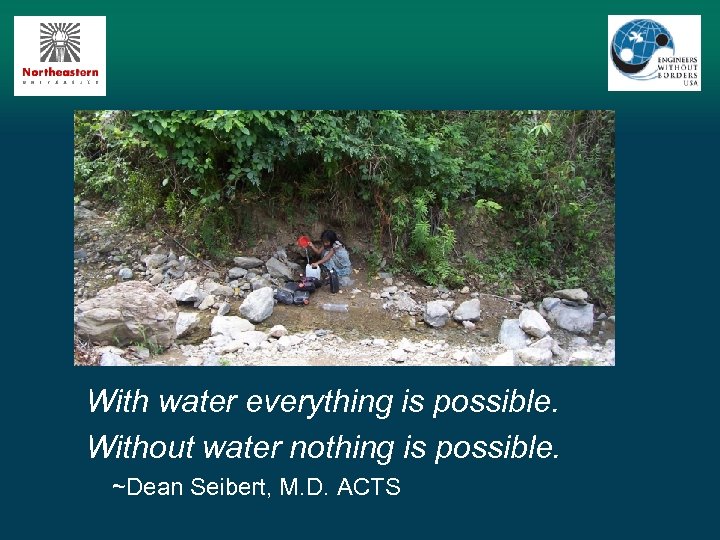

With water everything is possible. Without water nothing is possible. ~Dean Seibert, M. D. ACTS
EWB by the Numbers • 2001: EWB-USA founded • 300 chapters • 12, 000 members • 280 Projects in over 40 countries • 2004: EWB-NEU founded • 2005: EWB-NEU travels on first trip • 5 successful trips • 118: Population of Los Planes

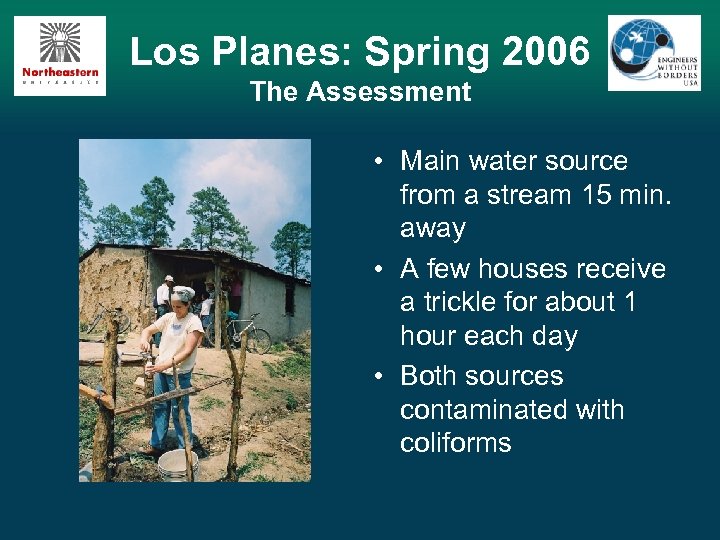

Los Planes: Spring 2006 The Assessment • Main water source from a stream 15 min. away • A few houses receive a trickle for about 1 hour each day • Both sources contaminated with coliforms

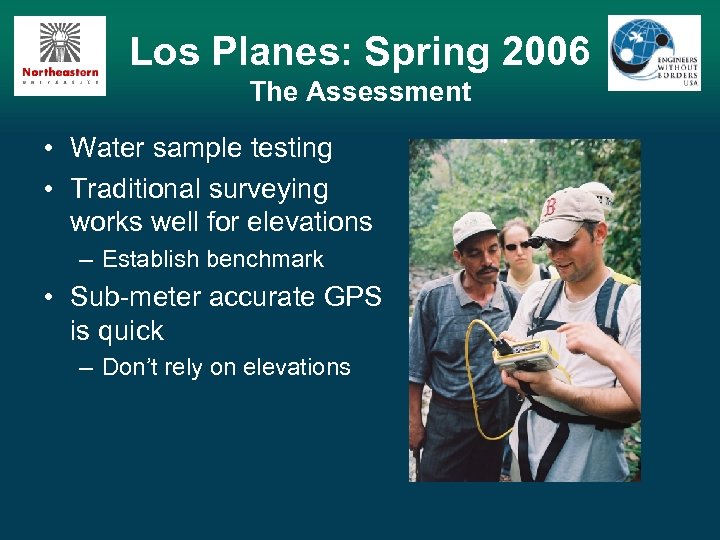

Los Planes: Spring 2006 The Assessment • Water sample testing • Traditional surveying works well for elevations – Establish benchmark • Sub-meter accurate GPS is quick – Don’t rely on elevations
Los Planes: Spring 2006 The Assessment • On average 6 people live in each home • Villagers report going without food 2 -3 days a week • Very little variety in diet • Malnutrition is a major problem

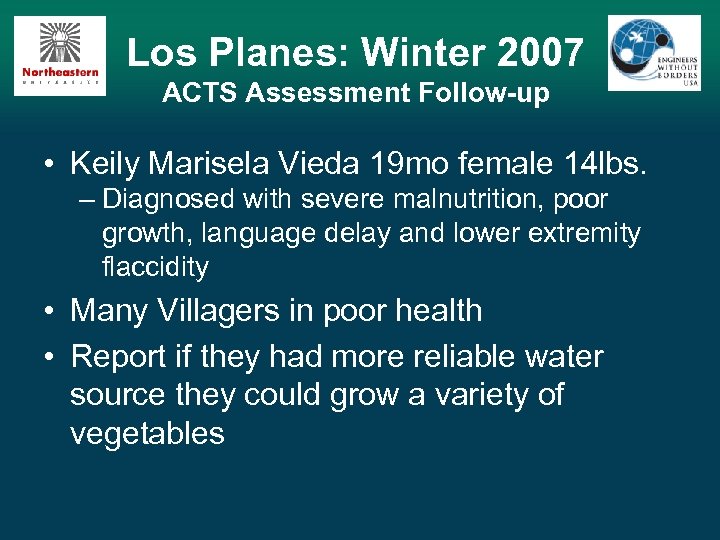

Los Planes: Winter 2007 ACTS Assessment Follow-up • Keily Marisela Vieda 19 mo female 14 lbs. – Diagnosed with severe malnutrition, poor growth, language delay and lower extremity flaccidity • Many Villagers in poor health • Report if they had more reliable water source they could grow a variety of vegetables

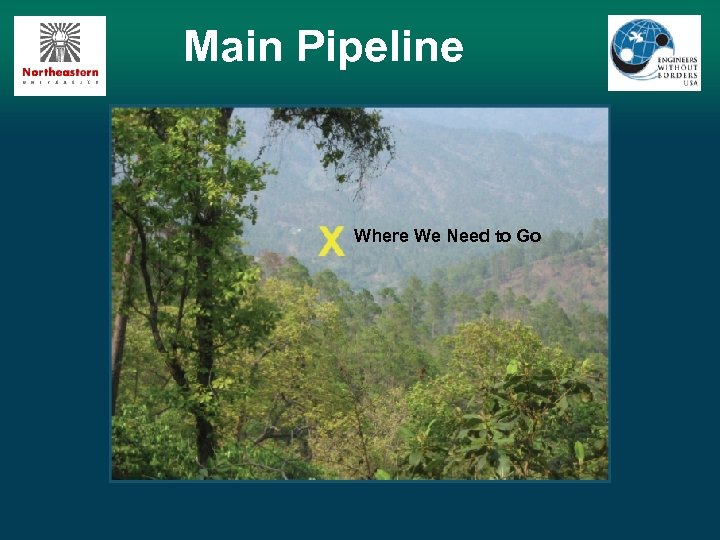

Main Pipeline Where We Need to Go

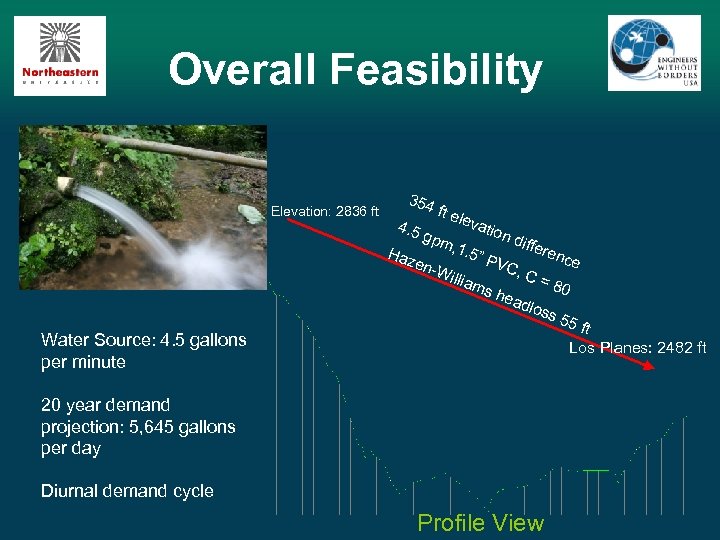

Overall Feasibility Elevation: 2836 ft Water Source: 4. 5 gallons per minute 354 ft el eva tion gpm diffe , 1. 5 ren Haz ” PV ce en. C, C Will =8 iam 0 s he adlo ss 5 5 f 4. 5 t Los Planes: 2482 ft 20 year demand projection: 5, 645 gallons per day Diurnal demand cycle Profile View

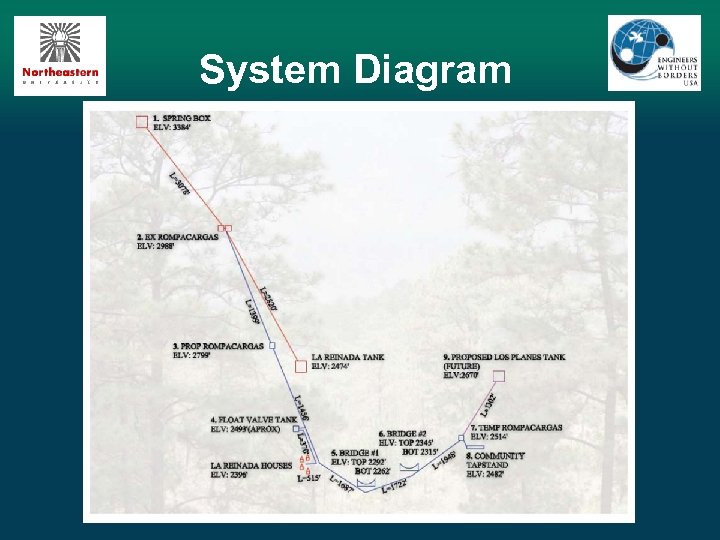

System Diagram

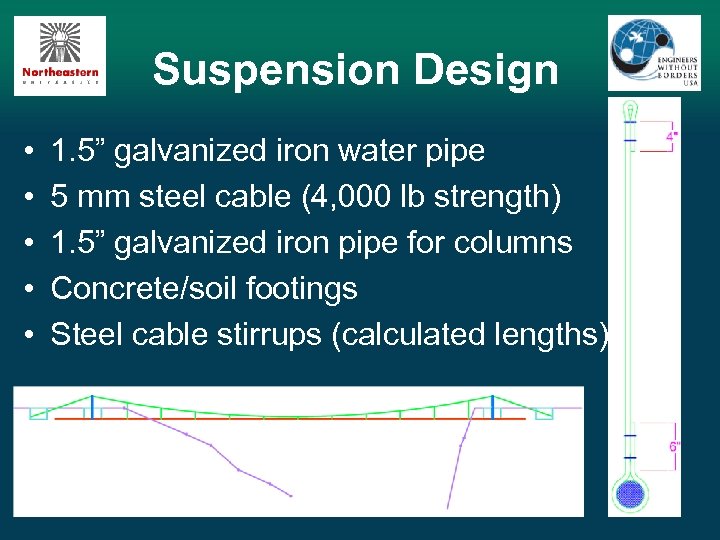

Suspension Design • • • 1. 5” galvanized iron water pipe 5 mm steel cable (4, 000 lb strength) 1. 5” galvanized iron pipe for columns Concrete/soil footings Steel cable stirrups (calculated lengths)
Design Process • Excel Hazen-Williams water flow model • Multi-phase implementation • Phase 1 – Transmission pipe – Suspension river crossings – Break pressure tanks – Community tap stand • Phase 2 – Reservoir Tank – Distribution Network

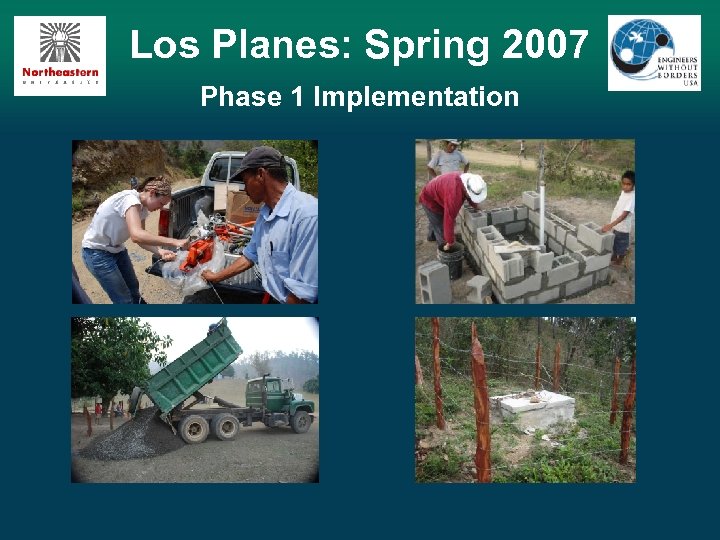

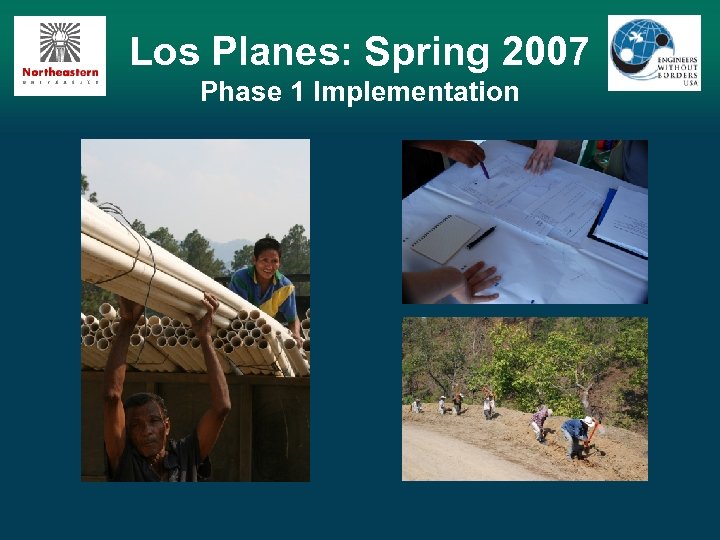

Los Planes: Spring 2007 Phase 1 Implementation

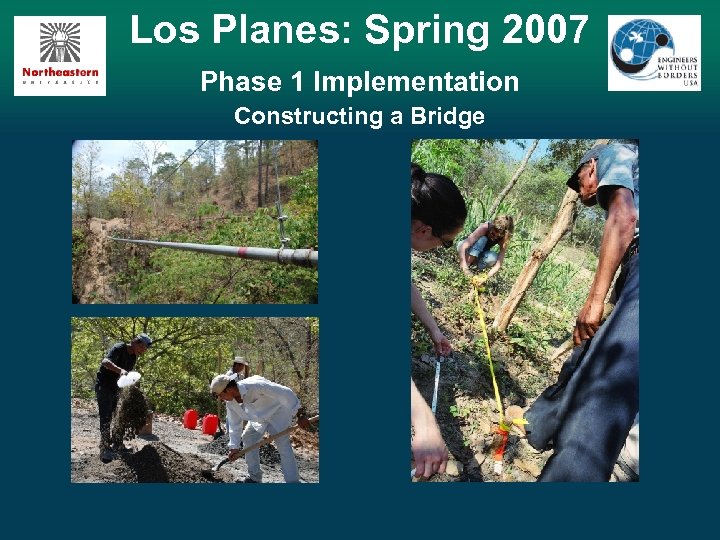

Los Planes: Spring 2007 Phase 1 Implementation Constructing a Bridge
Los Planes: Spring 2007 Phase 1 Implementation

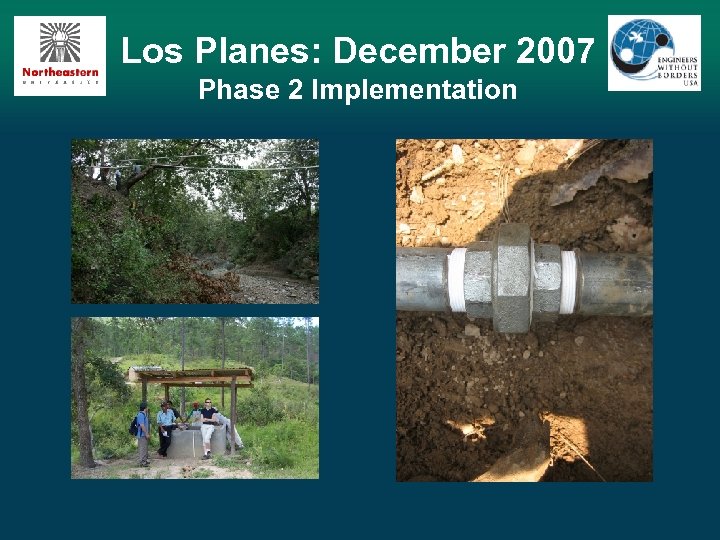

Los Planes: December 2007 Phase 2 Implementation

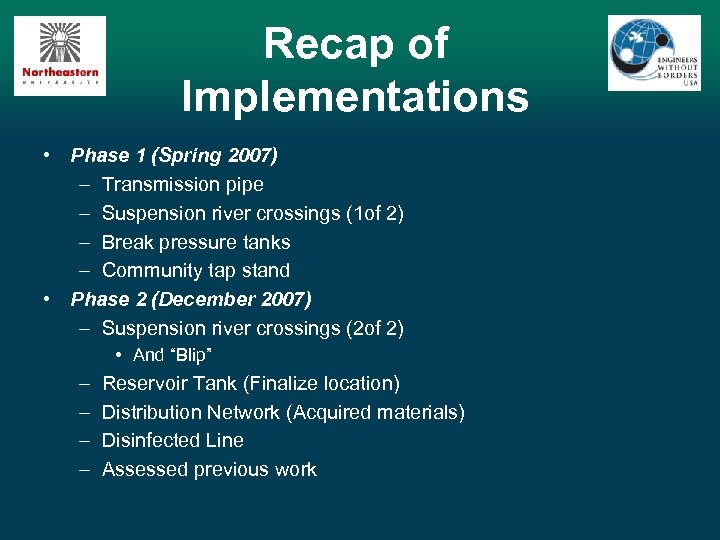

Recap of Implementations • Phase 1 (Spring 2007) – Transmission pipe – Suspension river crossings (1 of 2) – Break pressure tanks – Community tap stand • Phase 2 (December 2007) – Suspension river crossings (2 of 2) • And “Blip” – – Reservoir Tank (Finalize location) Distribution Network (Acquired materials) Disinfected Line Assessed previous work

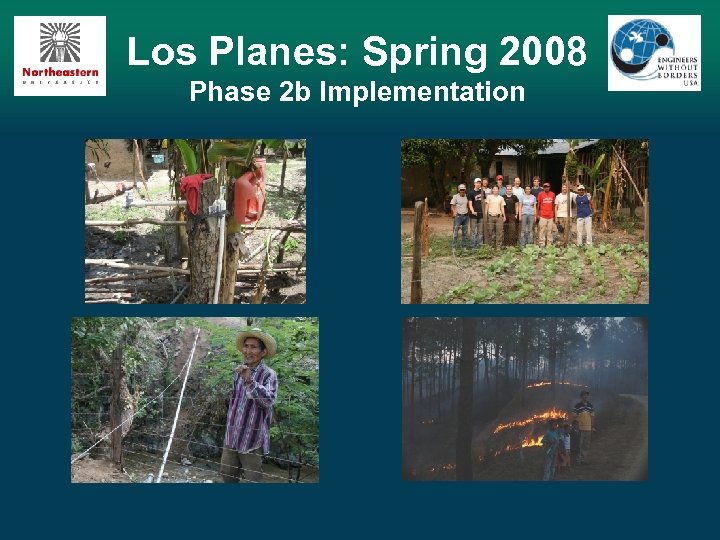

Los Planes: Spring 2008 Phase 2 b Implementation
Los Planes: Spring 2008 Phase 2 b Implementation
Los Planes: Spring 2008 Phase 2 b Implementation Education
Los Planes: Spring 2008 Phase 2 b Implementation
Important Lessons Learned • Consider arriving on a Thursday to allow shopping on Friday. • Allow twice as much time as you think you'll need for everything. Allow more if the task involves conversation or other human interactions. • Have another person check your work or calculations, especially if it is after 10: 00 pm or before 6: 00 AM. • Bring large format pictures and drawings to show at the “kick off” meetings. • Make lists of things to do and bring the night before. • The most focused and productive meetings can occur while driving on bumpy roads before sunrise. • The villagers are resourceful. And don’t need to be micromanaged. • Use designs that feature easy construction. • Always bring the PVC saw, duct tape, string and rope. The tree vice was crucial for working with GI
Do Not Touch Animals

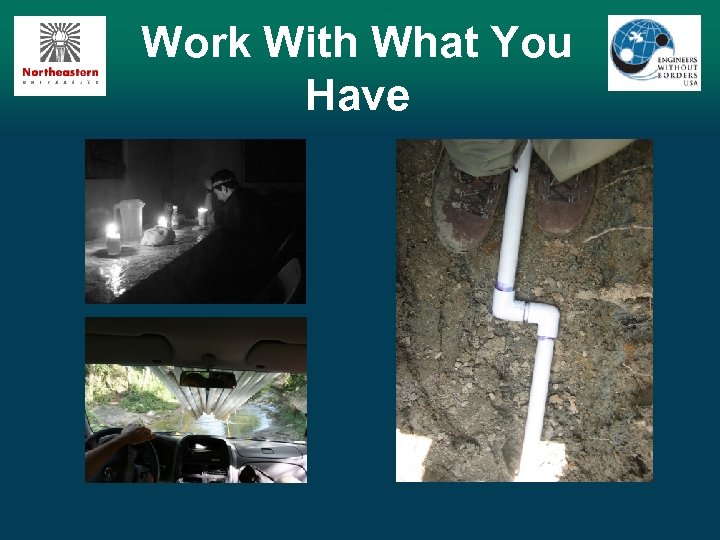

Work With What You Have

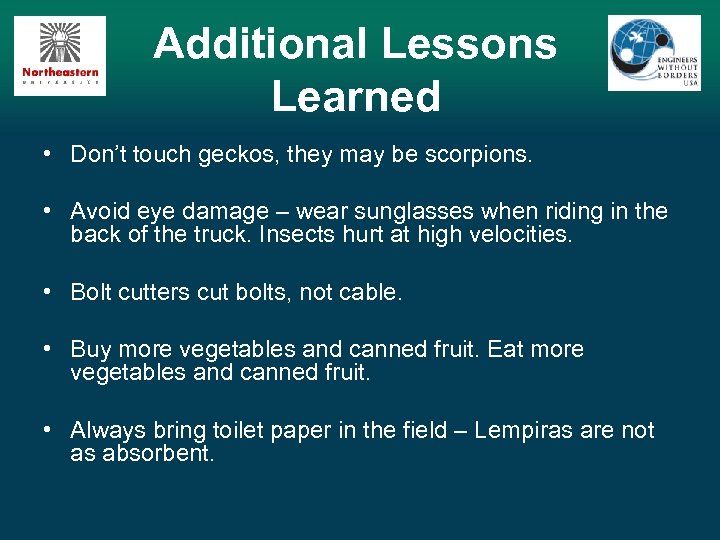

Additional Lessons Learned • Don’t touch geckos, they may be scorpions. • Avoid eye damage – wear sunglasses when riding in the back of the truck. Insects hurt at high velocities. • Bolt cutters cut bolts, not cable. • Buy more vegetables and canned fruit. Eat more vegetables and canned fruit. • Always bring toilet paper in the field – Lempiras are not as absorbent.

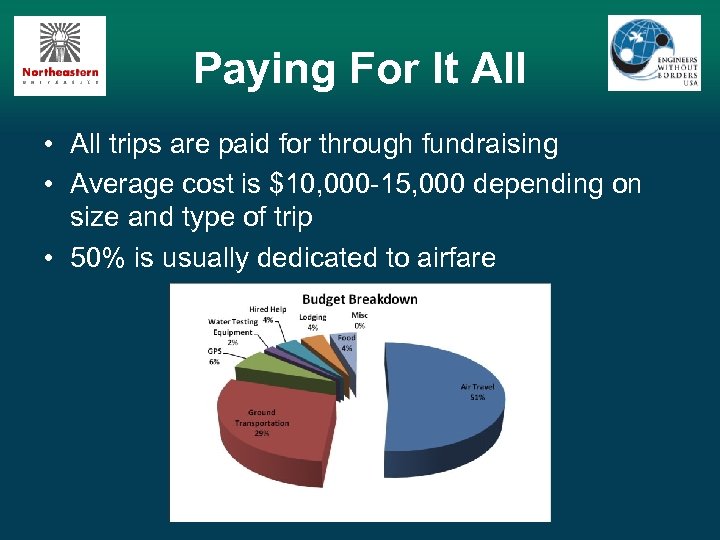

Paying For It All • All trips are paid for through fundraising • Average cost is $10, 000 -15, 000 depending on size and type of trip • 50% is usually dedicated to airfare
Fundraising • Donations CIVILized Solutions – Engineering Companies – Grants – Family and Friends Smurfit-Stone Container Co.
![Questions? • Contact Information – Ethan La. Rochelle : Ethan. La. Rochelle[AT]gmail[DOT]com • For](https://present5.com/presentation/99d76710b206ed427be811efa9e95bd7/image-30.jpg "Questions? • Contact Information – Ethan La. Rochelle : Ethan. La. Rochelle[AT]gmail[DOT]com • For")
Questions? • Contact Information – Ethan La. Rochelle : Ethan. La. Rochelle[AT]gmail[DOT]com • For more information: – www. ewb. neu. edu • Pictures and video: – www. ewbneu. smugmug. com Thank you!
