Evolution of IMT-2000 & Systems Beyond David Mc. Farlane Systems and Applications Nokia Networks 1 © NOKIA 2001
In This Presentation. . . • High level summary of the current activities for the on-going enhancement of IMT-2000, and a picture of a longer-term path to “Systems Beyond” • Current research, specification and standardisation environment • Evolution of 3 G systems • Current ITU-R schedule for update of the IMT-2000 radio interface Recommendations • Some spectrum aspects of 3 G and beyond • A possible pathway to “Systems Beyond • A possible high level Vision of “Systems Beyond” 2 © NOKIA 2001

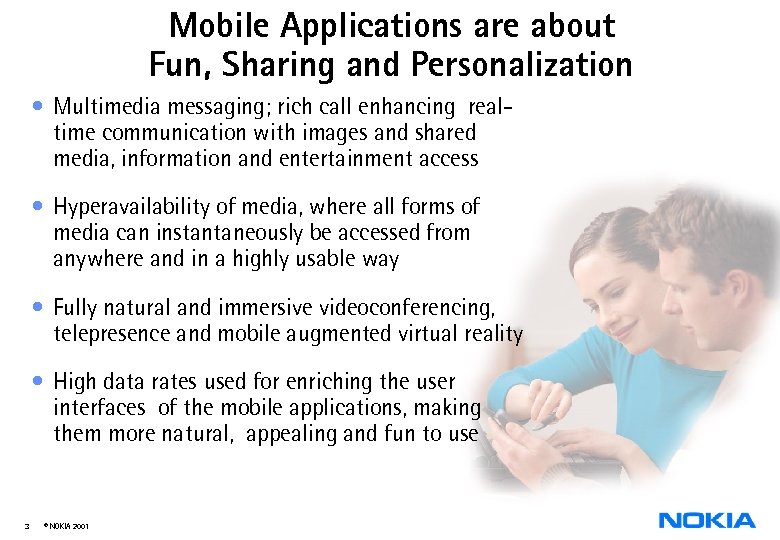

Mobile Applications are about Fun, Sharing and Personalization • Multimedia messaging; rich call enhancing realtime communication with images and shared media, information and entertainment access • Hyperavailability of media, where all forms of media can instantaneously be accessed from anywhere and in a highly usable way • Fully natural and immersive videoconferencing, telepresence and mobile augmented virtual reality • High data rates used for enriching the user interfaces of the mobile applications, making them more natural, appealing and fun to use 3 © NOKIA 2001

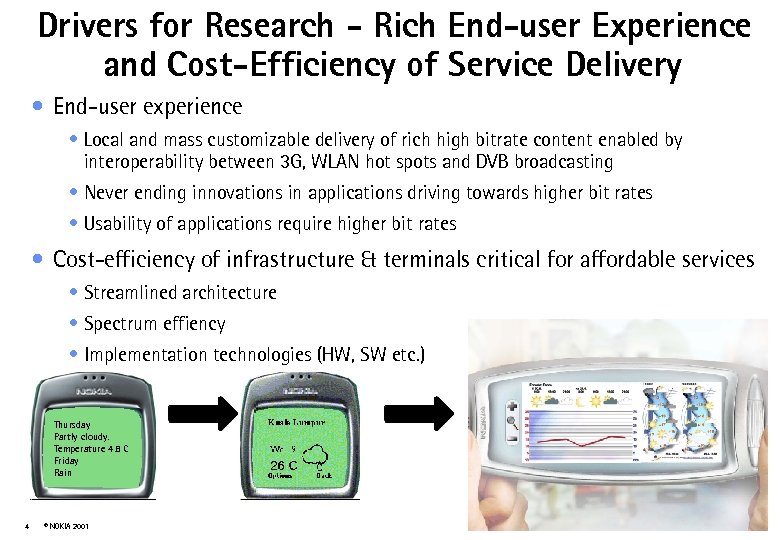

Drivers for Research - Rich End-user Experience and Cost-Efficiency of Service Delivery • End-user experience • Local and mass customizable delivery of rich high bitrate content enabled by interoperability between 3 G, WLAN hot spots and DVB broadcasting • Never ending innovations in applications driving towards higher bit rates • Usability of applications require higher bit rates • Cost-efficiency of infrastructure & terminals critical for affordable services • Streamlined architecture • Spectrum effiency • Implementation technologies (HW, SW etc. ) Thursday Partly cloudy. Temperature 4. 8 C Friday Rain 4 © NOKIA 2001

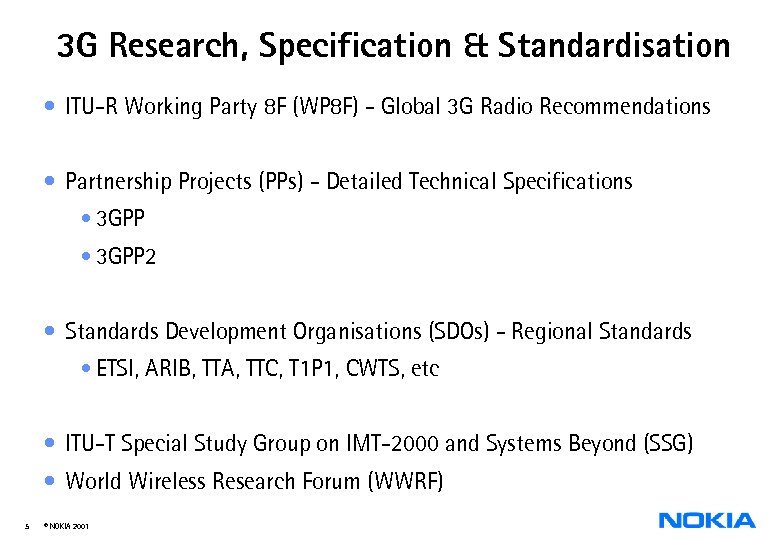

3 G Research, Specification & Standardisation • ITU-R Working Party 8 F (WP 8 F) - Global 3 G Radio Recommendations • Partnership Projects (PPs) - Detailed Technical Specifications • 3 GPP 2 • Standards Development Organisations (SDOs) - Regional Standards • ETSI, ARIB, TTA, TTC, T 1 P 1, CWTS, etc • ITU-T Special Study Group on IMT-2000 and Systems Beyond (SSG) • World Wireless Research Forum (WWRF) 5 © NOKIA 2001

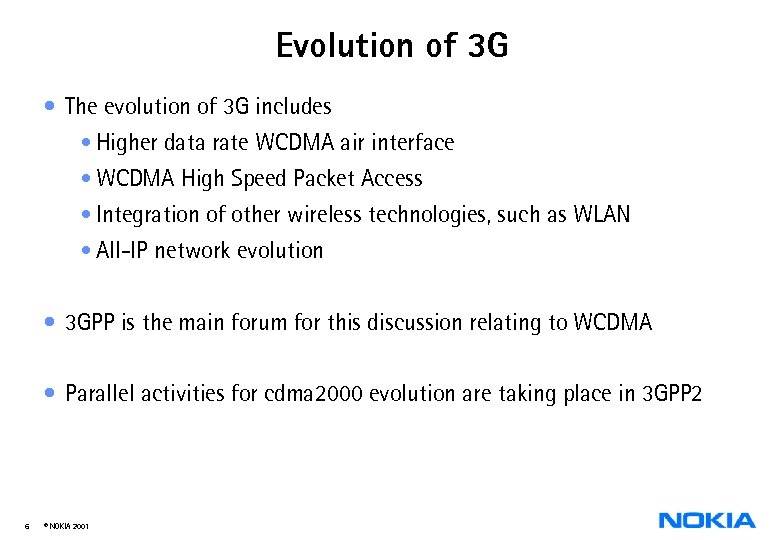

Evolution of 3 G • The evolution of 3 G includes • Higher data rate WCDMA air interface • WCDMA High Speed Packet Access • Integration of other wireless technologies, such as WLAN • All-IP network evolution • 3 GPP is the main forum for this discussion relating to WCDMA • Parallel activities for cdma 2000 evolution are taking place in 3 GPP 2 6 © NOKIA 2001

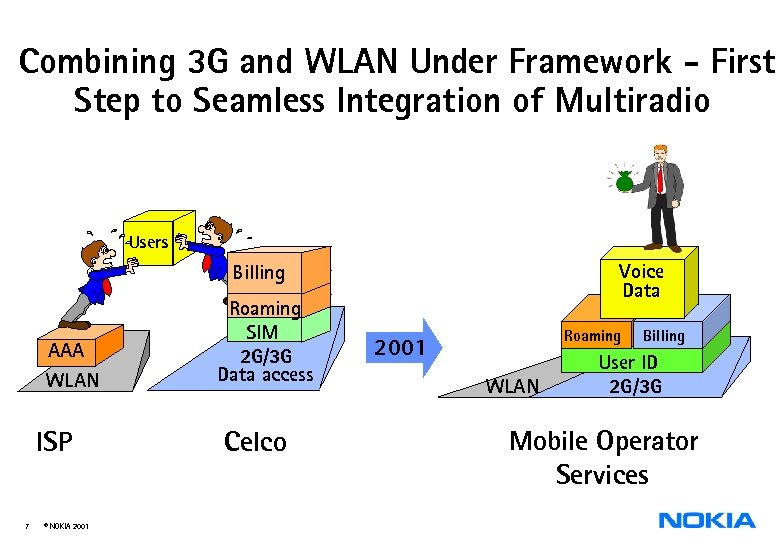

Combining 3 G and WLAN Under Framework - First Step to Seamless Integration of Multiradio Users Vo. IP Voice Data Billing AAA WLAN ISP 7 © NOKIA 2001 Roaming SIM 2 G/3 G Data access Celco Roaming 2001 WLAN Billing SIM User ID 2 G/3 G Mobile Operator Services
Operator Wireless LAN Architecture - Available HLR Today GSM Roaming Global SS 7 MSC Corporate Intranet ( Internet ) WLAN MAP Gateway Billing System GPRS Charging Gateway WLAN Authentication Server MSC Site P 022 Access Controller A 032 Access Point 8 © NOKIA 2001 Access Zone C 110 Network Interface Card
Operator Wireless LAN Authentication HLR GSM Roaming Global SS 7 MSC Corporate Intranet ( Internet ) WLAN MAP Gateway Billing System GPRS Charging Gateway WLAN Authentication Server MSC Site P 022 Access Controller A 032 Access Point 9 © NOKIA 2001 Access Zone C 110 Network Interface Card
Operator Wireless LAN Data Traffic HLR GSM Roaming Global SS 7 MSC Corporate Intranet ( Internet ) WLAN MAP Gateway Billing System GPRS Charging Gateway WLAN Authentication Server MSC Site P 022 Access Controller A 032 Access Point 10 © NOKIA 2001 Access Zone C 110 Network Interface Card

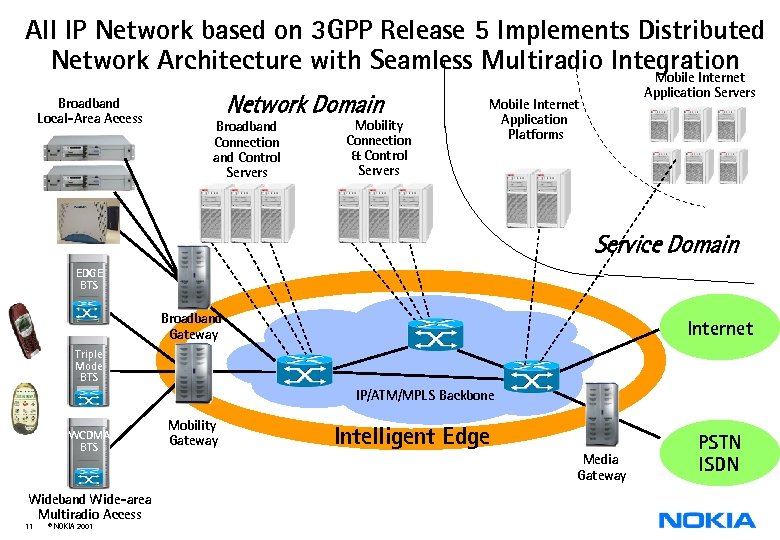

All IP Network based on 3 GPP Release 5 Implements Distributed Network Architecture with Seamless Multiradio Integration Mobile Internet Broadband Local-Area Access Network Domain Broadband Connection and Control Servers Mobility Connection & Control Servers Application Servers Mobile Internet Application Platforms Service Domain EDGE BTS Broadband Gateway Internet Triple Mode BTS IP/ATM/MPLS Backbone WCDMA BTS Wideband Wide-area Multiradio Access 11 © NOKIA 2001 Mobility Gateway Intelligent Edge Media Gateway PSTN ISDN
Enhancement of IMT-2000 • 3 G evolution activity has already been started in 3 GPP, the standards group responsible for WCDMA and relevant network standards. • 3 GPP is processing a High Speed Downlink Packet Access (HSDPA) standard which will increase the WCDMA downlink data rate to about 10 Mbit/s. The standard is expected to be ready at the end of 2001. • It is expected that there will be new work items in 3 GPP which will further improve the capacity and data rates of the WCDMA system. 12 © NOKIA 2001
Enhancement of IMT-2000 • Within the ITU work has also started on enhancements to IMT-2000 and there a number of enhancements to the existing IMT-2000 radio interfaces being considered this year, e. g. • HSDPA for WCDMA • Enhanced Data Only (DO) for cdma 2000 • Enhanced Data & Voice (DV) for cdma 2000 • The additional global spectrum for IMT-2000 is anticipated to be available around 2007 in some parts of the world such as Europe • The global spectrum for 'systems beyond' is not anticipated to be identified until the World Radio Conference in 2006, and not available until at least 2010 at the earliest. 13 © NOKIA 2001

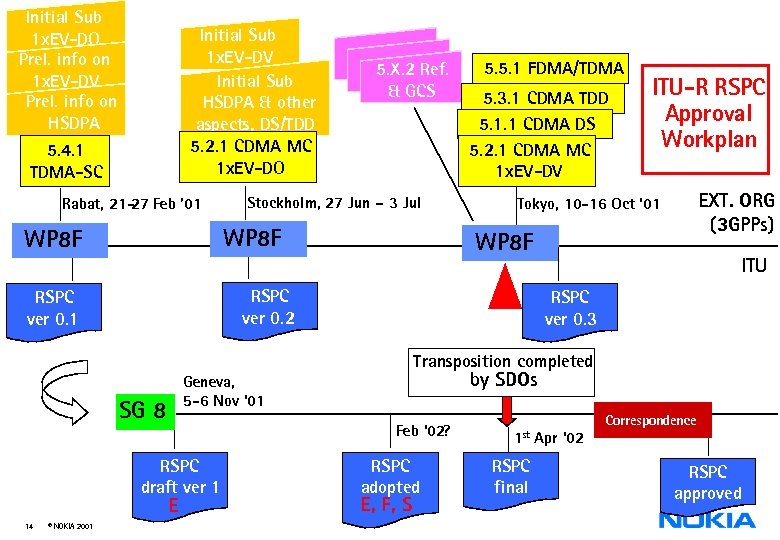

Initial Sub 1 x. EV-DO Prel. info on 1 x. EV-DV Prel. info on HSDPA Initial Sub 1 x. EV-DV Initial Sub HSDPA & other aspects, DS/TDD 5. 2. 1 CDMA MC 1 x. EV-DO 5. 4. 1 TDMA-SC Rabat, 21 -27 Feb ’ 01 5. X. 2 Ref. & GCS Stockholm, 27 Jun – 3 Jul WP 8 F 5. 5. 1 FDMA/TDMA 5. 3. 1 CDMA TDD 5. 1. 1 CDMA DS 5. 2. 1 CDMA MC 1 x. EV-DV EXT. ORG (3 GPPs) Tokyo, 10 -16 Oct ‘ 01 WP 8 F ITU RSPC ver 0. 2 RSPC ver 0. 1 ITU-R RSPC Approval Workplan RSPC ver 0. 3 Transposition completed SG 8 Feb ‘ 02? RSPC draft ver 1 E 14 © NOKIA 2001 by SDOs Geneva, 5 -6 Nov ‘ 01 RSPC adopted E, F, S 1 st RSPC final Apr ‘ 02 Correspondence RSPC approved

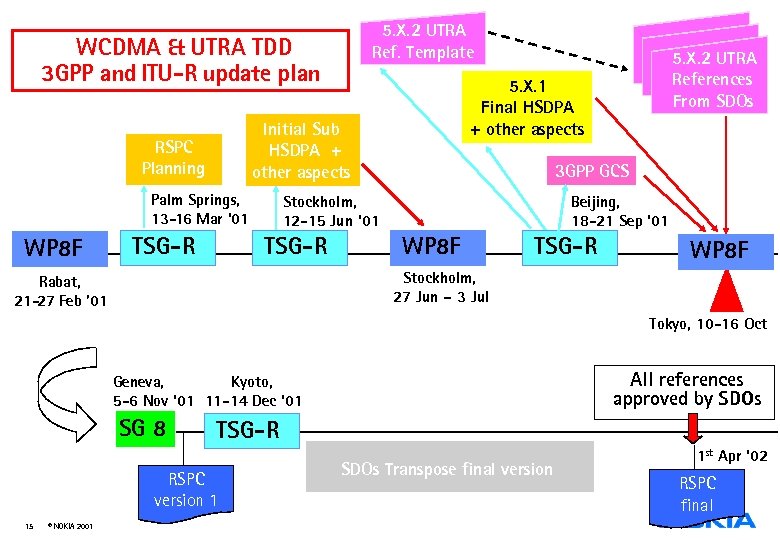

5. X. 2 UTRA Ref. Template WCDMA & UTRA TDD 3 GPP and ITU-R update plan Palm Springs, 13 -16 Mar ‘ 01 WP 8 F 5. X. 1 Final HSDPA + other aspects Initial Sub HSDPA + other aspects RSPC Planning TSG-R Stockholm, 12 -15 Jun ‘ 01 TSG-R 5. X. 2 UTRA References From SDOs 3 GPP GCS WP 8 F Beijing, 18 -21 Sep ‘ 01 TSG-R WP 8 F Stockholm, 27 Jun – 3 Jul Rabat, 21 -27 Feb ’ 01 Tokyo, 10 -16 Oct All references approved by SDOs Geneva, Kyoto, 5 -6 Nov ‘ 01 11 -14 Dec ‘ 01 SG 8 TSG-R RSPC version 1 15 © NOKIA 2001 SDOs Transpose final version 1 st Apr ‘ 02 RSPC final

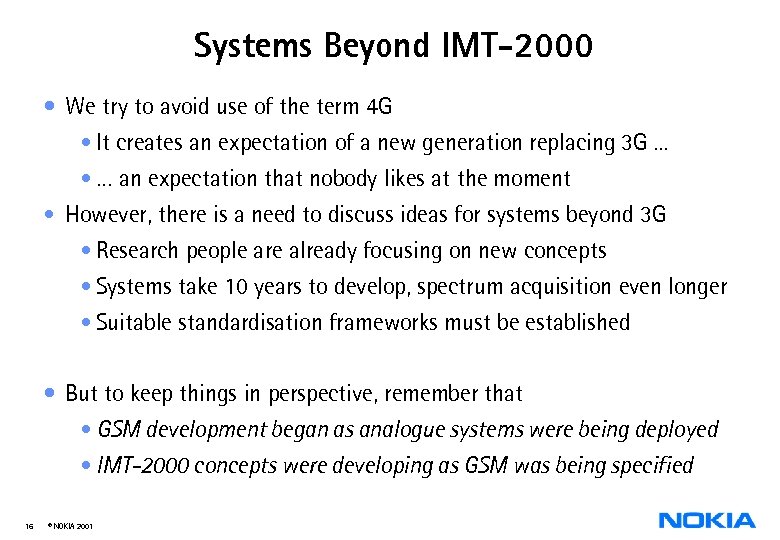

Systems Beyond IMT-2000 • We try to avoid use of the term 4 G • It creates an expectation of a new generation replacing 3 G. . . • … an expectation that nobody likes at the moment • However, there is a need to discuss ideas for systems beyond 3 G • Research people are already focusing on new concepts • Systems take 10 years to develop, spectrum acquisition even longer • Suitable standardisation frameworks must be established • But to keep things in perspective, remember that • GSM development began as analogue systems were being deployed • IMT-2000 concepts were developing as GSM was being specified 16 © NOKIA 2001

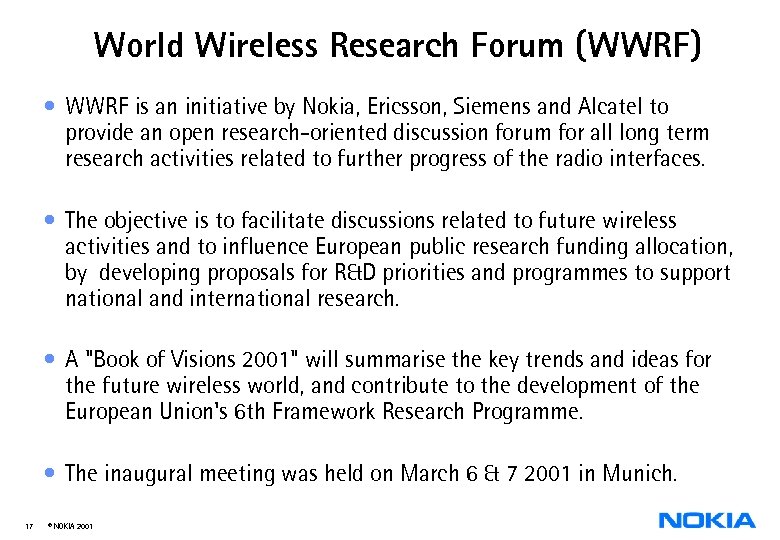

World Wireless Research Forum (WWRF) • WWRF is an initiative by Nokia, Ericsson, Siemens and Alcatel to provide an open research-oriented discussion forum for all long term research activities related to further progress of the radio interfaces. • The objective is to facilitate discussions related to future wireless activities and to influence European public research funding allocation, by developing proposals for R&D priorities and programmes to support national and international research. • A "Book of Visions 2001" will summarise the key trends and ideas for the future wireless world, and contribute to the development of the European Union's 6 th Framework Research Programme. • The inaugural meeting was held on March 6 & 7 2001 in Munich. 17 © NOKIA 2001

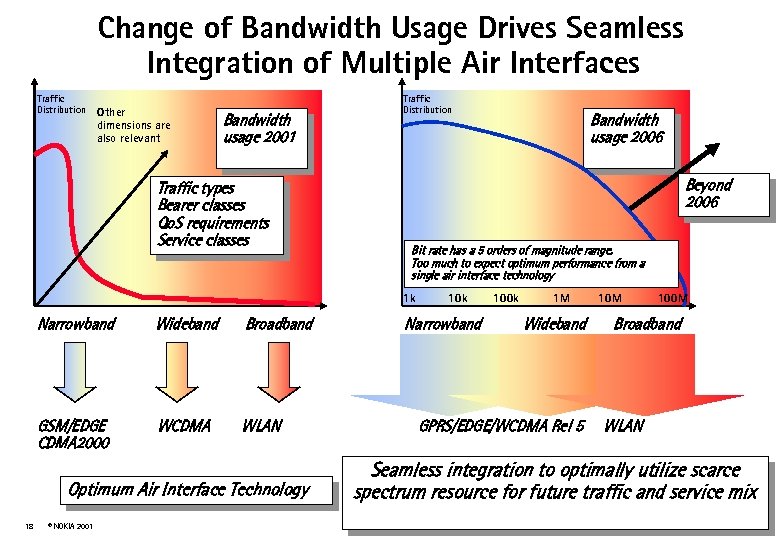

Change of Bandwidth Usage Drives Seamless Integration of Multiple Air Interfaces Traffic Distribution Other dimensions are also relevant Bandwidth usage 2001 Traffic types Bearer classes Qo. S requirements Service classes Traffic Distribution Beyond 2006 Bit rate has a 5 orders of magnitude range. Too much to expect optimum performance from a single air interface technology 1 k Narrowband Wideband Broadband GSM/EDGE CDMA 2000 WCDMA WLAN Optimum Air Interface Technology 18 © NOKIA 2001 Bandwidth usage 2006 10 k Narrowband 100 k 1 M Wideband GPRS/EDGE/WCDMA Rel 5 10 M 100 M Broadband WLAN Seamless integration to optimally utilize scarce spectrum resource for future traffic and service mix
Different Evolution Speeds of System Layers Require Different Approach in R&D and Standardization Speed of Change CONTENT Video News Innovation Images required. Music now for 3 G APPLICATIONS Video-Codec Browser Mobile Messaging MIDDLEWARE fastest Games CNN Phonebook JAVA EPOC WCDMA IPv 4 19 © NOKIA 2001 CONNECTION INFRASTRUCTURE EDGE WLAN Bluetooth IPv 6 SS 7 Ir. DA Radio has the longest "duty cycle" slowest

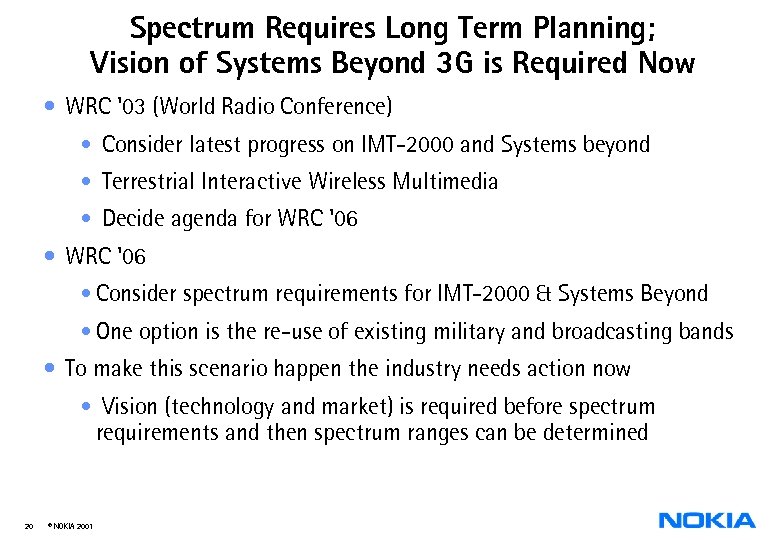

Spectrum Requires Long Term Planning; Vision of Systems Beyond 3 G is Required Now • WRC '03 (World Radio Conference) • Consider latest progress on IMT-2000 and Systems beyond • Terrestrial Interactive Wireless Multimedia • Decide agenda for WRC '06 • WRC '06 • Consider spectrum requirements for IMT-2000 & Systems Beyond • One option is the re-use of existing military and broadcasting bands • To make this scenario happen the industry needs action now • Vision (technology and market) is required before spectrum requirements and then spectrum ranges can be determined 20 © NOKIA 2001

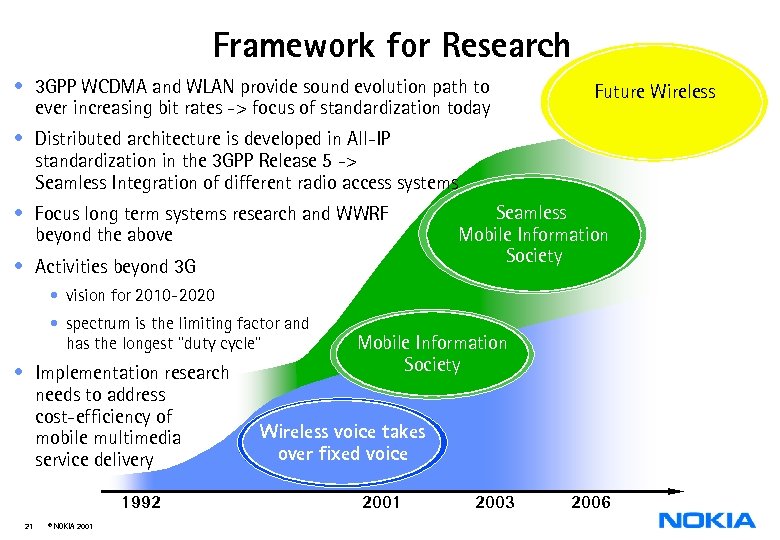

Framework for Research • 3 GPP WCDMA and WLAN provide sound evolution path to ever increasing bit rates -> focus of standardization today Future Wireless • Distributed architecture is developed in All-IP standardization in the 3 GPP Release 5 -> Seamless Integration of different radio access systems • Focus long term systems research and WWRF beyond the above • Activities beyond 3 G Seamless Mobile Information Society • vision for 2010 -2020 • spectrum is the limiting factor and has the longest "duty cycle" • Implementation research needs to address cost-efficiency of mobile multimedia service delivery 1992 21 © NOKIA 2001 Mobile Information Society Wireless voice takes over fixed voice 2001 2003 2006
Successive Mobile Visions 22 © NOKIA 2001

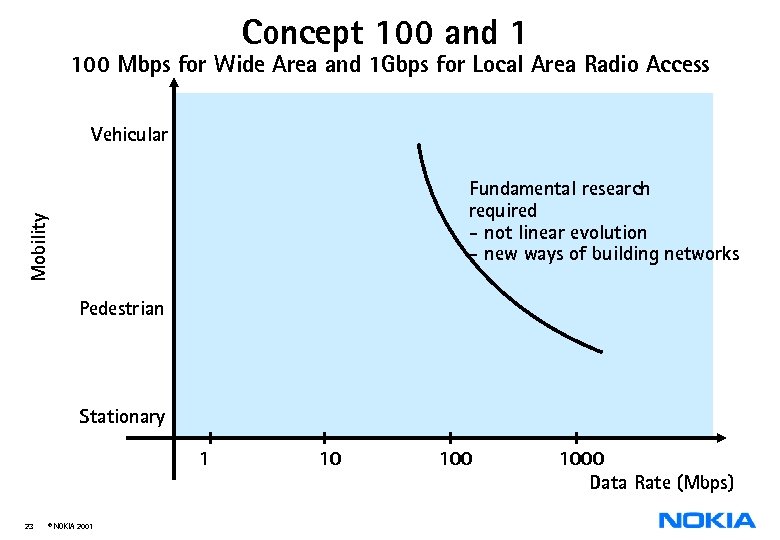

Concept 100 and 1 100 Mbps for Wide Area and 1 Gbps for Local Area Radio Access Vehicular Mobility Fundamental research required - not linear evolution - new ways of building networks Pedestrian Stationary 1 23 © NOKIA 2001 10 1000 Data Rate (Mbps)

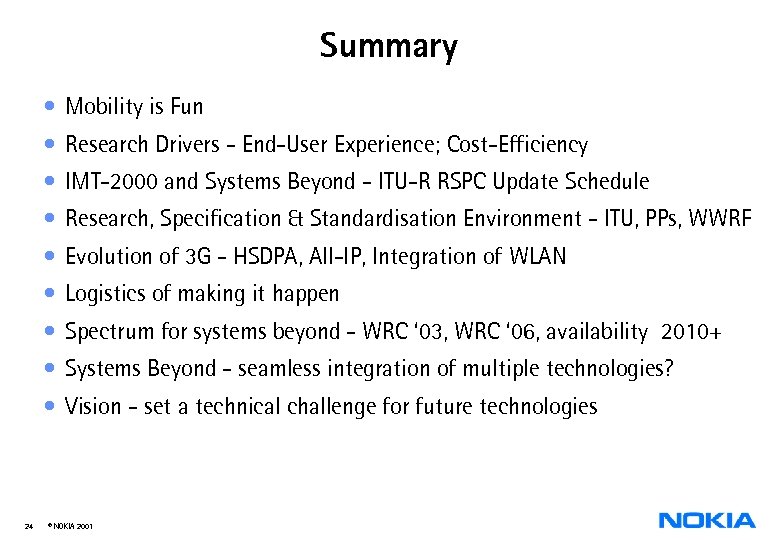

Summary • Mobility is Fun • Research Drivers - End-User Experience; Cost-Efficiency • IMT-2000 and Systems Beyond - ITU-R RSPC Update Schedule • Research, Specification & Standardisation Environment - ITU, PPs, WWRF • Evolution of 3 G - HSDPA, All-IP, Integration of WLAN • Logistics of making it happen • Spectrum for systems beyond - WRC ‘ 03, WRC ‘ 06, availability 2010+ • Systems Beyond - seamless integration of multiple technologies? • Vision - set a technical challenge for future technologies 24 © NOKIA 2001
