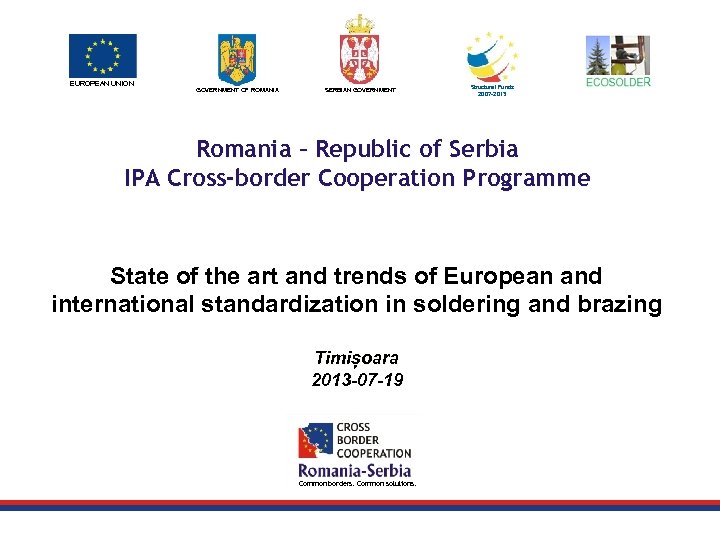

EUROPEAN UNION GOVERNMENT OF ROMANIA SERBIAN GOVERNMENT Structural Funds 2007 -2013 Romania – Republic of Serbia IPA Cross-border Cooperation Programme State of the art and trends of European and international standardization in soldering and brazing Timișoara 2013 -07 -19 Common borders. Common solutions.

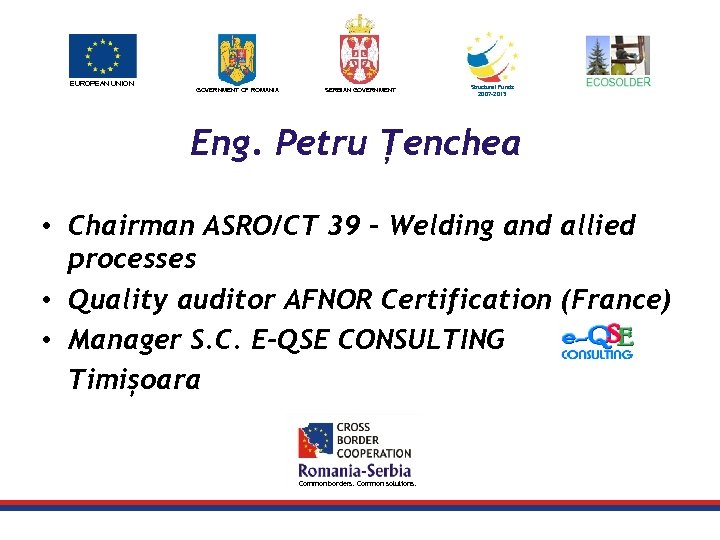

EUROPEAN UNION GOVERNMENT OF ROMANIA SERBIAN GOVERNMENT Structural Funds 2007 -2013 Eng. Petru Țenchea • Chairman ASRO/CT 39 – Welding and allied processes • Quality auditor AFNOR Certification (France) • Manager S. C. E-QSE CONSULTING Timișoara Common borders. Common solutions.

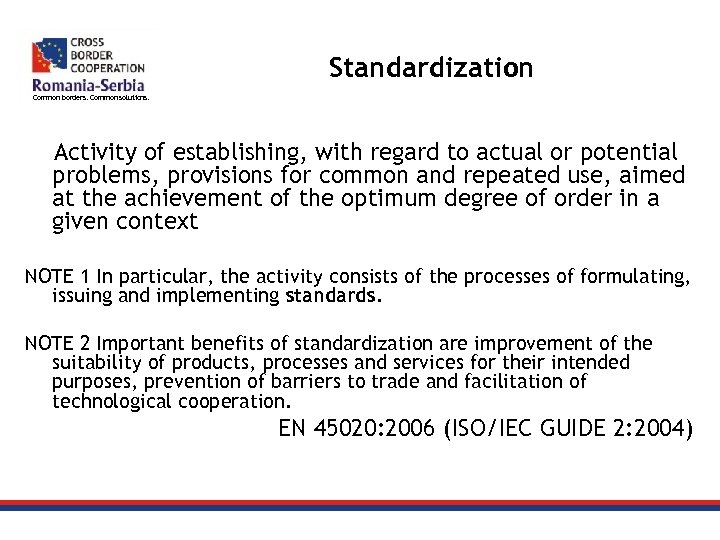

Standardization Common borders. Common solutions. Activity of establishing, with regard to actual or potential problems, provisions for common and repeated use, aimed at the achievement of the optimum degree of order in a given context NOTE 1 In particular, the activity consists of the processes of formulating, issuing and implementing standards. NOTE 2 Important benefits of standardization are improvement of the suitability of products, processes and services for their intended purposes, prevention of barriers to trade and facilitation of technological cooperation. EN 45020: 2006 (ISO/IEC GUIDE 2: 2004)

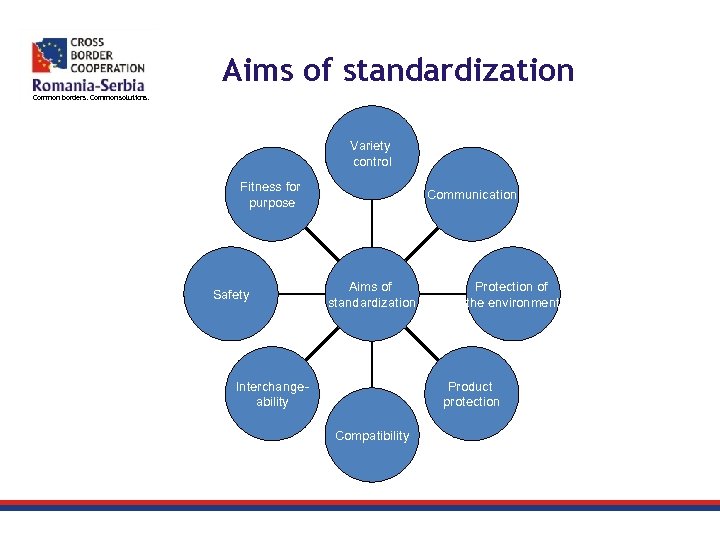

Aims of standardization Common borders. Common solutions. Variety control Fitness for purpose Safety Communication Aims of standardization Interchangeability Protection of the environment Product protection Compatibility

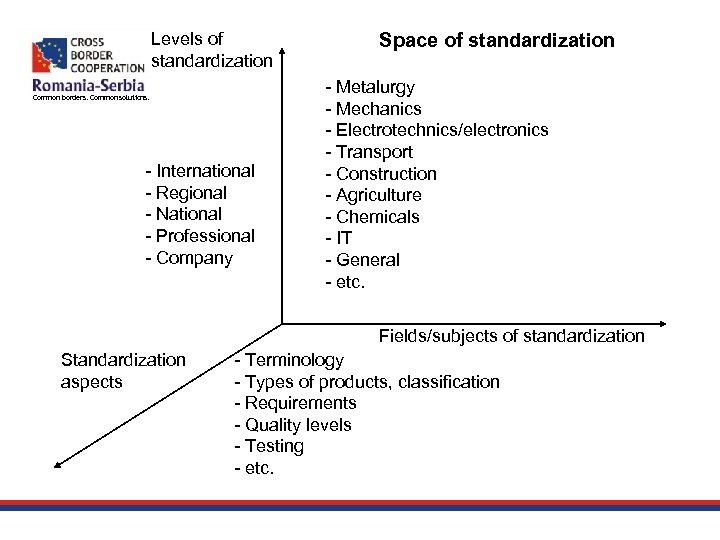

Levels of standardization Common borders. Common solutions. - International - Regional - National - Professional - Company Space of standardization - Metalurgy - Mechanics - Electrotechnics/electronics - Transport - Construction - Agriculture - Chemicals - IT - General - etc. Fields/subjects of standardization Standardization aspects - Terminology - Types of products, classification - Requirements - Quality levels - Testing - etc.

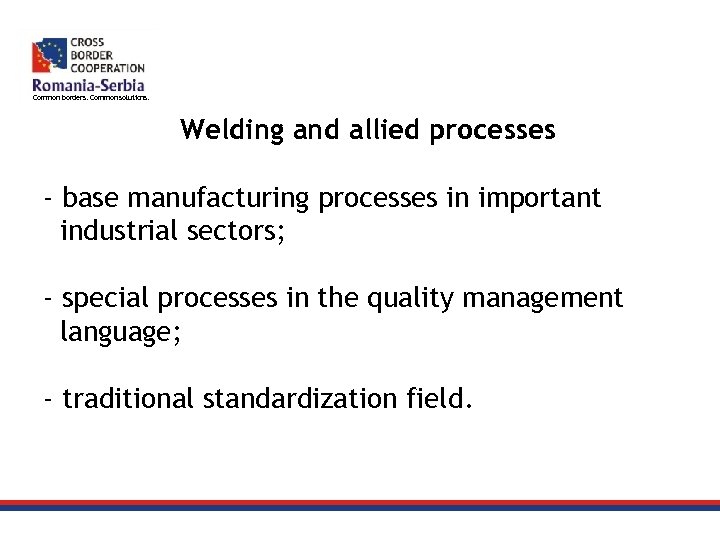

Common borders. Common solutions. Welding and allied processes - base manufacturing processes in important industrial sectors; - special processes in the quality management language; - traditional standardization field.

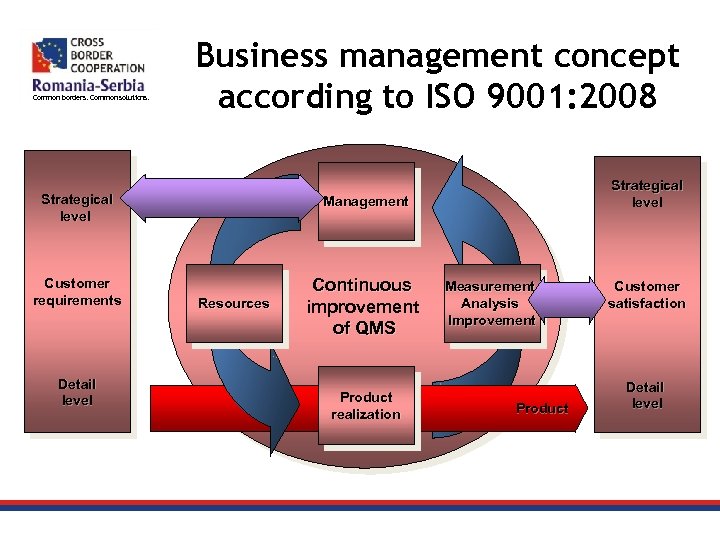

Common borders. Common solutions. Business management concept according to ISO 9001: 2008 Strategical level Management Customer requirements Continuous improvement of QMS Strategical level Detail level Resources Product realization Measurement Analysis Improvement Product Customer satisfaction Detail level

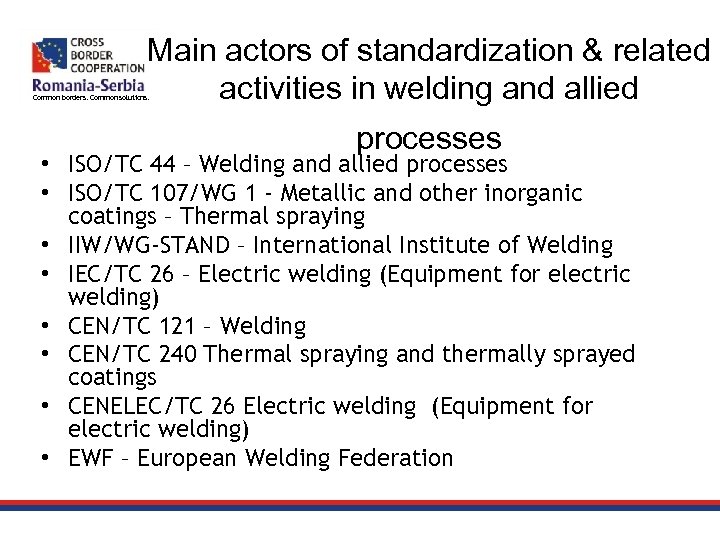

Main actors of standardization & related activities in welding and allied Common borders. Common solutions. processes • ISO/TC 44 – Welding and allied processes • ISO/TC 107/WG 1 - Metallic and other inorganic coatings – Thermal spraying • IIW/WG-STAND – International Institute of Welding • IEC/TC 26 – Electric welding (Equipment for electric welding) • CEN/TC 121 – Welding • CEN/TC 240 Thermal spraying and thermally sprayed coatings • CENELEC/TC 26 Electric welding (Equipment for electric welding) • EWF – European Welding Federation

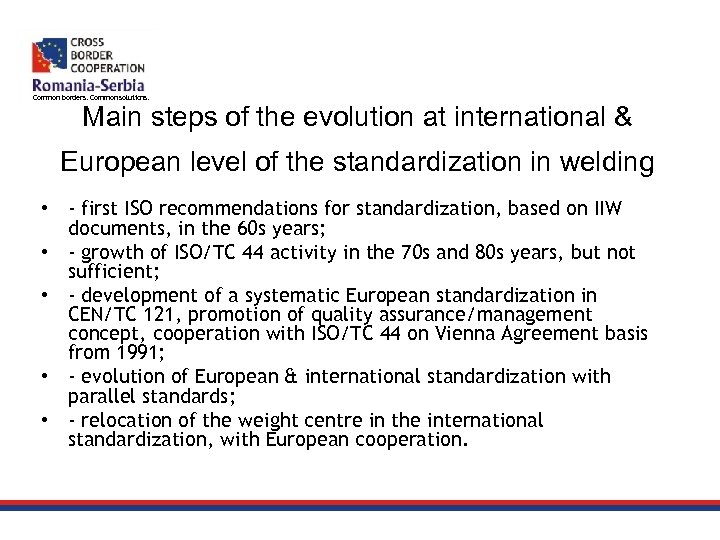

Common borders. Common solutions. Main steps of the evolution at international & European level of the standardization in welding • - first ISO recommendations for standardization, based on IIW documents, in the 60 s years; • - growth of ISO/TC 44 activity in the 70 s and 80 s years, but not sufficient; • - development of a systematic European standardization in CEN/TC 121, promotion of quality assurance/management concept, cooperation with ISO/TC 44 on Vienna Agreement basis from 1991; • - evolution of European & international standardization with parallel standards; • - relocation of the weight centre in the international standardization, with European cooperation.

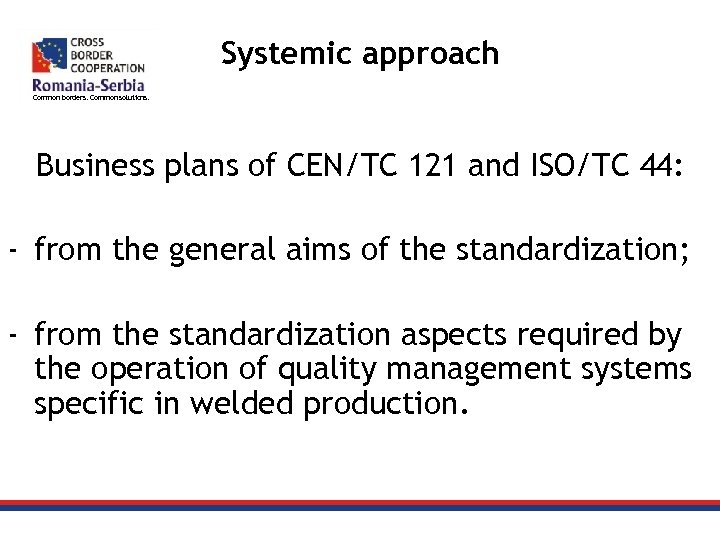

Systemic approach Common borders. Common solutions. Business plans of CEN/TC 121 and ISO/TC 44: - from the general aims of the standardization; - from the standardization aspects required by the operation of quality management systems specific in welded production.

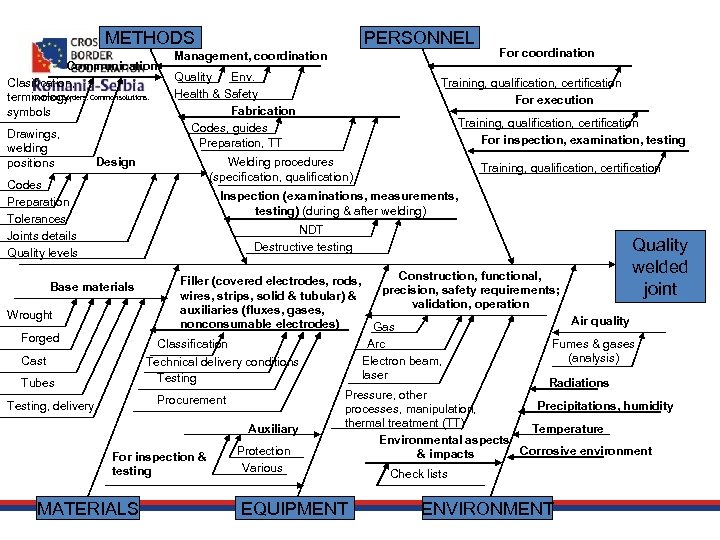

METHODS Communication Clasification, Common borders. terminology, Common solutions. symbols Drawings, welding positions Design Codes Preparation Tolerances Joints details Quality levels PERSONNEL Management, coordination Quality Env. Health & Safety Fabrication Codes, guides Preparation, TT For coordination Training, qualification, certification For execution Training, qualification, certification For inspection, examination, testing Welding procedures (specification, qualification) Training, qualification, certification Inspection (examinations, measurements, testing) (during & after welding) NDT Destructive testing Quality welded joint Construction, functional, Filler (covered electrodes, rods, precision, safety requirements; wires, strips, solid & tubular) & validation, operation auxiliaries (fluxes, gases, Air quality nonconsumable electrodes) Gas Classification Arc Fumes & gases (analysis) Electron beam, Technical delivery conditions laser Testing Radiations Pressure, other Procurement Precipitations, humidity processes, manipulation, thermal treatment (TT) Auxiliary Temperature Environmental aspects Protection Corrosive environment & impacts For inspection & Various testing Check lists Base materials Wrought Forged Cast Tubes Testing, delivery MATERIALS EQUIPMENT ENVIRONMENT

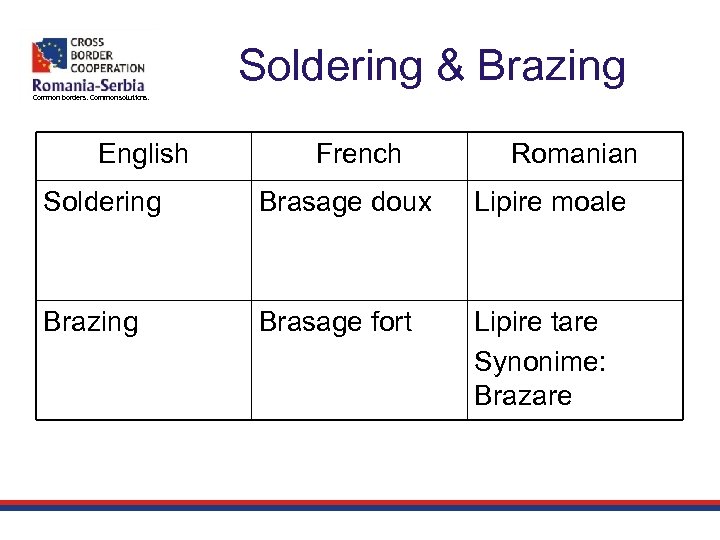

Soldering & Brazing Common borders. Common solutions. English French Romanian Soldering Brasage doux Lipire moale Brazing Brasage fort Lipire tare Synonime: Brazare

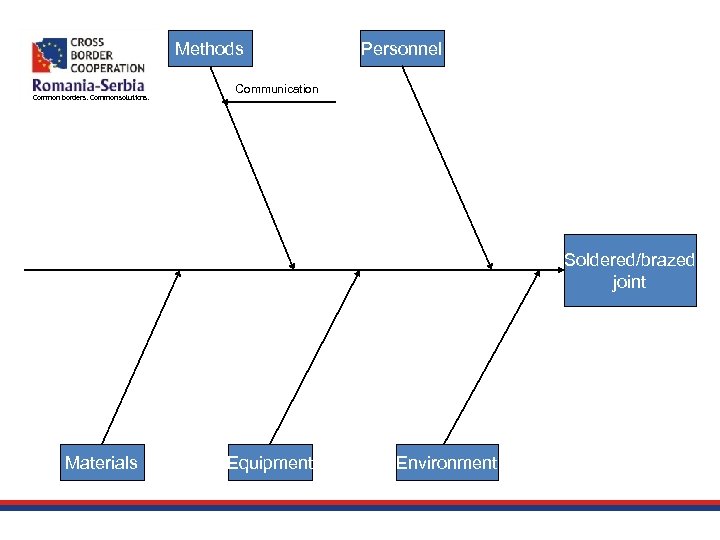

Methods Common borders. Common solutions. Personnel Communication Soldered/brazed joint Materials Equipment Environment

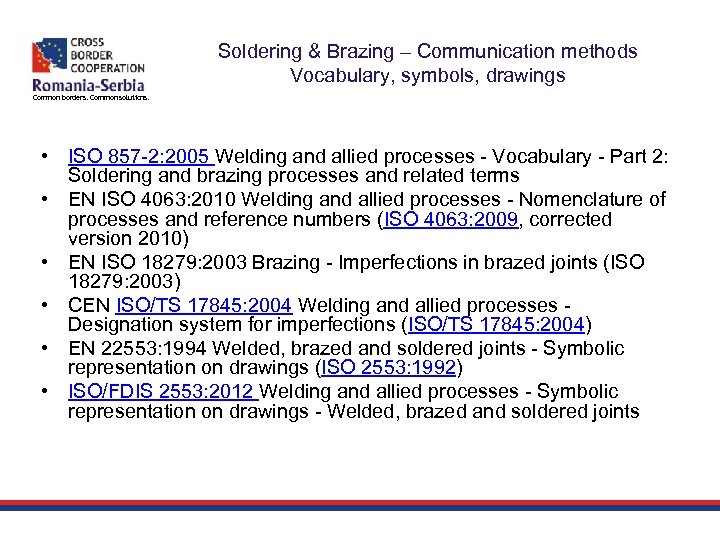

Soldering & Brazing – Communication methods Vocabulary, symbols, drawings Common borders. Common solutions. • ISO 857 -2: 2005 Welding and allied processes - Vocabulary - Part 2: Soldering and brazing processes and related terms • EN ISO 4063: 2010 Welding and allied processes - Nomenclature of processes and reference numbers (ISO 4063: 2009, corrected version 2010) • EN ISO 18279: 2003 Brazing - Imperfections in brazed joints (ISO 18279: 2003) • CEN ISO/TS 17845: 2004 Welding and allied processes Designation system for imperfections (ISO/TS 17845: 2004) • EN 22553: 1994 Welded, brazed and soldered joints - Symbolic representation on drawings (ISO 2553: 1992) • ISO/FDIS 2553: 2012 Welding and allied processes - Symbolic representation on drawings - Welded, brazed and soldered joints

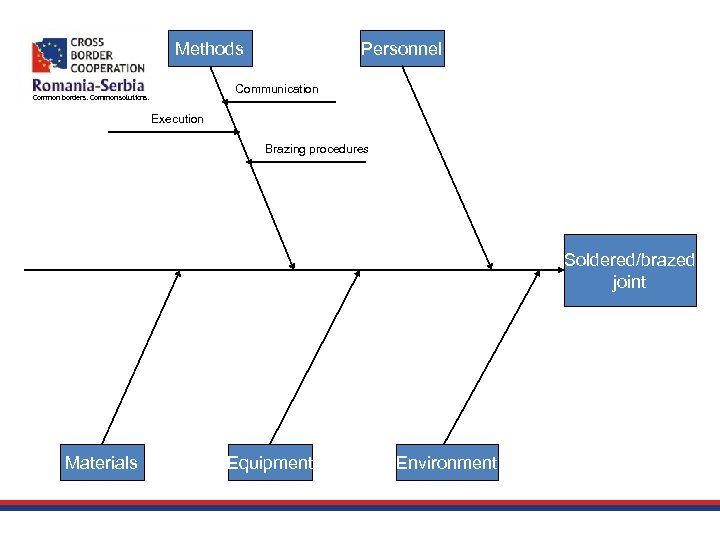

Methods Personnel Communication Common borders. Common solutions. Execution Brazing procedures Soldered/brazed joint Materials Equipment Environment

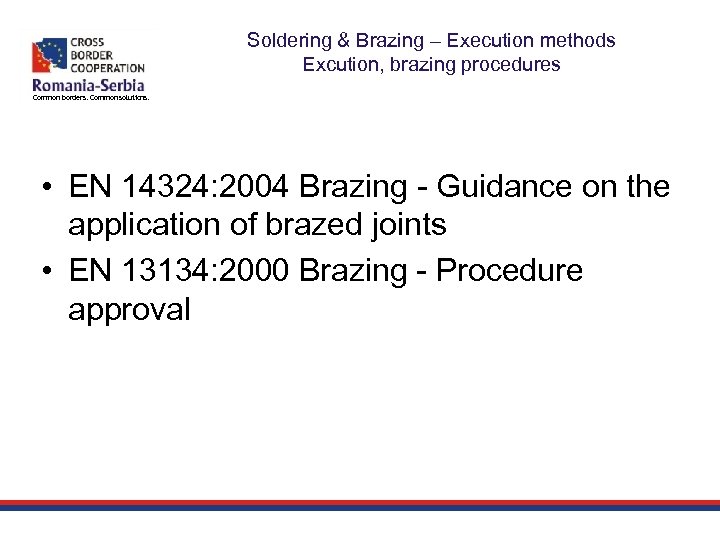

Soldering & Brazing – Execution methods Excution, brazing procedures Common borders. Common solutions. • EN 14324: 2004 Brazing - Guidance on the application of brazed joints • EN 13134: 2000 Brazing - Procedure approval

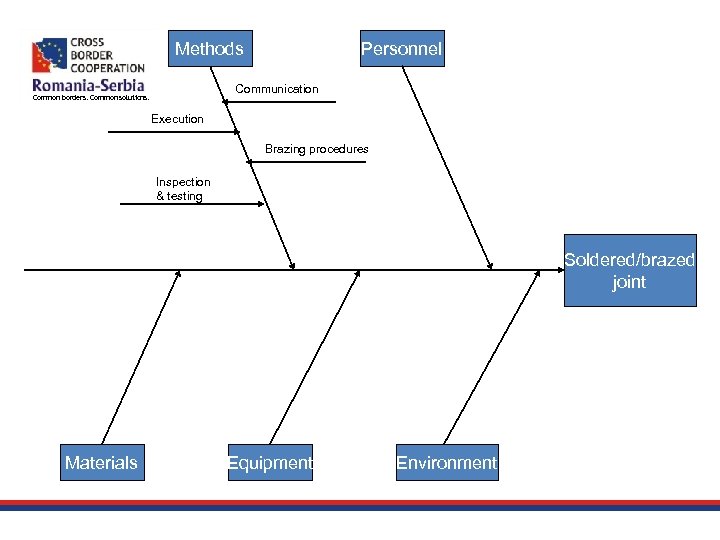

Methods Personnel Communication Common borders. Common solutions. Execution Brazing procedures Inspection & testing Soldered/brazed joint Materials Equipment Environment

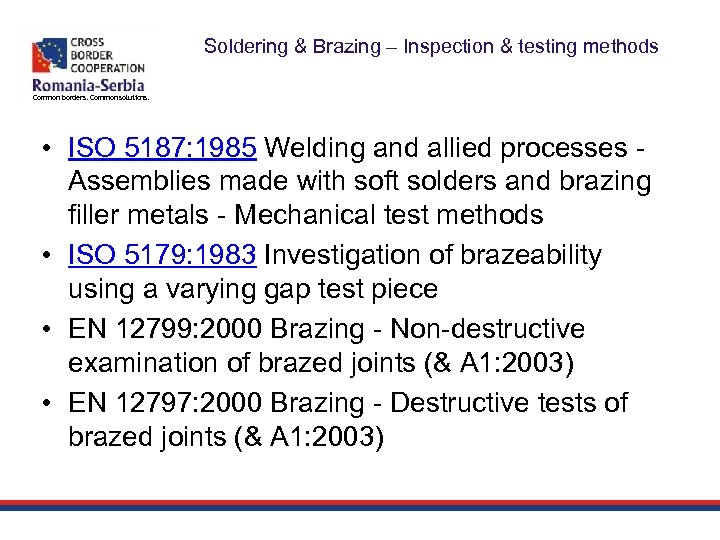

Soldering & Brazing – Inspection & testing methods Common borders. Common solutions. • ISO 5187: 1985 Welding and allied processes Assemblies made with soft solders and brazing filler metals - Mechanical test methods • ISO 5179: 1983 Investigation of brazeability using a varying gap test piece • EN 12799: 2000 Brazing - Non-destructive examination of brazed joints (& A 1: 2003) • EN 12797: 2000 Brazing - Destructive tests of brazed joints (& A 1: 2003)

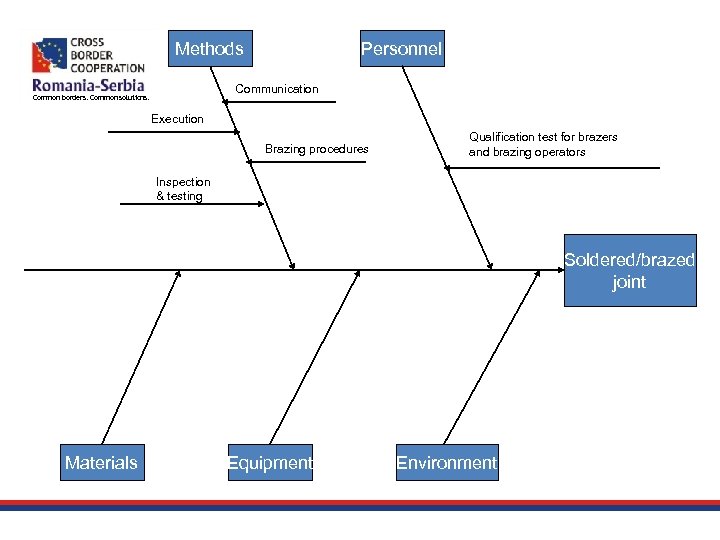

Methods Personnel Communication Common borders. Common solutions. Execution Brazing procedures Qualification test for brazers and brazing operators Inspection & testing Soldered/brazed joint Materials Equipment Environment

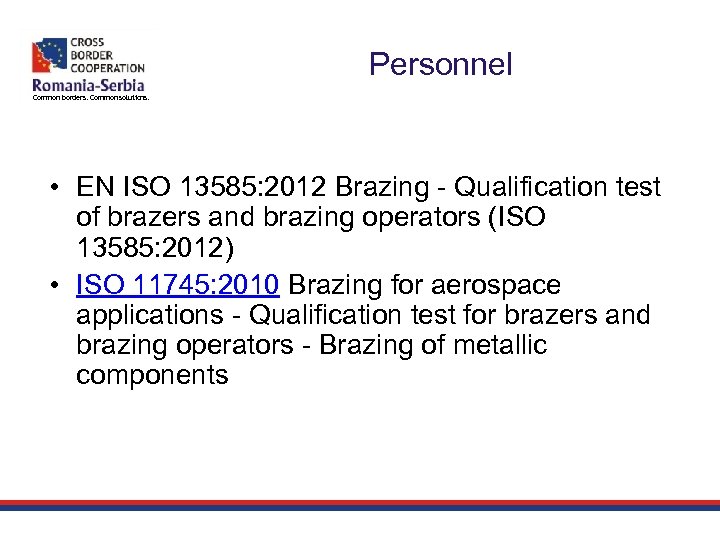

Personnel Common borders. Common solutions. • EN ISO 13585: 2012 Brazing - Qualification test of brazers and brazing operators (ISO 13585: 2012) • ISO 11745: 2010 Brazing for aerospace applications - Qualification test for brazers and brazing operators - Brazing of metallic components

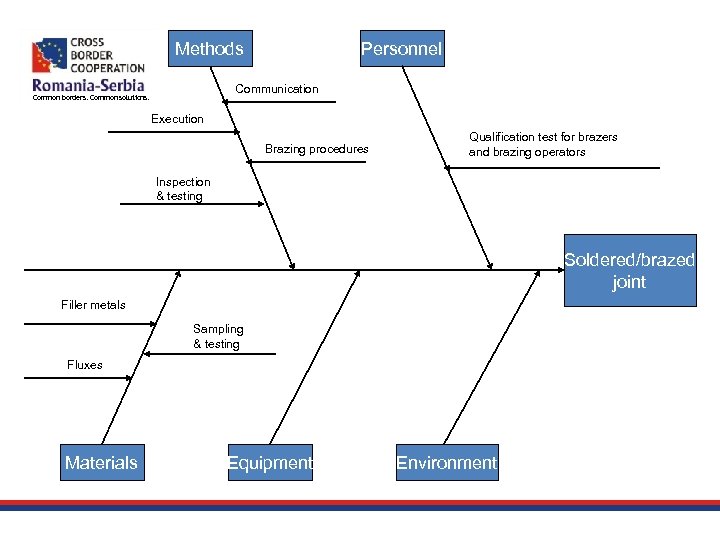

Methods Personnel Communication Common borders. Common solutions. Execution Brazing procedures Qualification test for brazers and brazing operators Inspection & testing Soldered/brazed joint Filler metals Sampling & testing Fluxes Materials Equipment Environment

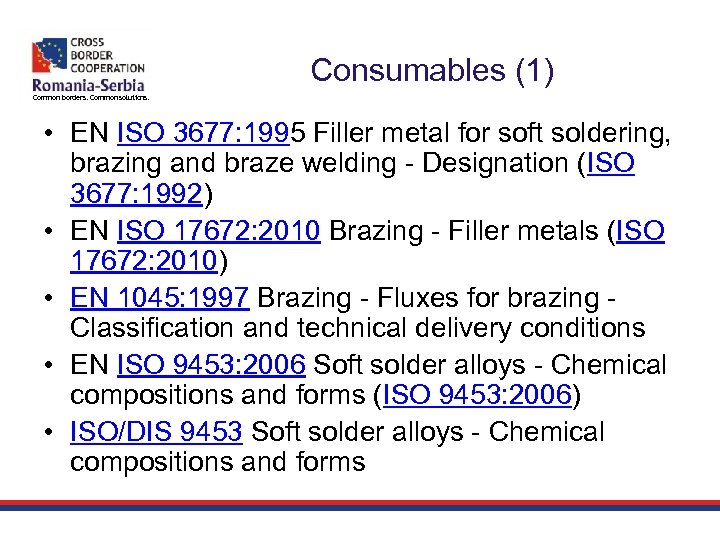

Consumables (1) Common borders. Common solutions. • EN ISO 3677: 1995 Filler metal for soft soldering, brazing and braze welding - Designation (ISO 3677: 1992) • EN ISO 17672: 2010 Brazing - Filler metals (ISO 17672: 2010) • EN 1045: 1997 Brazing - Fluxes for brazing Classification and technical delivery conditions • EN ISO 9453: 2006 Soft solder alloys - Chemical compositions and forms (ISO 9453: 2006) • ISO/DIS 9453 Soft solder alloys - Chemical compositions and forms
Consumables (2) Common borders. Common solutions. • EN ISO 10564: 1997 Soldering and brazing materials Methods for the sampling of soft solders for analysis (ISO 10564: 1993) • EN ISO 12224 -1: 1998 Solder wire, solid and flux cored Specification and test methods - Part 1: Classification and performance requirements (ISO 12224 -1: 1997) • EN ISO 12224 -2: 1999 Flux cored solder wire Specification and test methods - Part 2: Determination of flux content (ISO 12224 -2: 1997) • EN ISO 12224 -3: 2003 Solder wire, solid and flux cored Specifications and test methods - Part 3: Wetting balance test method for flux cored solder wire efficacy (ISO 12224 -3: 2003)

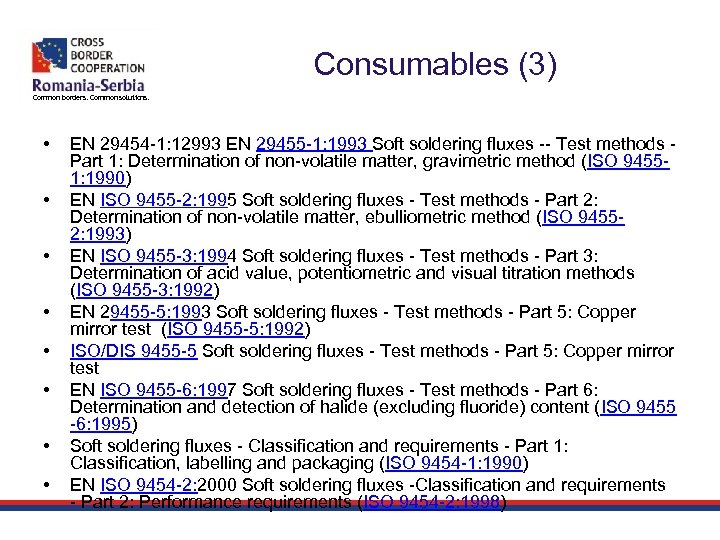

Consumables (3) Common borders. Common solutions. • • EN 29454 -1: 12993 EN 29455 -1: 1993 Soft soldering fluxes -- Test methods Part 1: Determination of non-volatile matter, gravimetric method (ISO 94551: 1990) EN ISO 9455 -2: 1995 Soft soldering fluxes - Test methods - Part 2: Determination of non-volatile matter, ebulliometric method (ISO 94552: 1993) EN ISO 9455 -3: 1994 Soft soldering fluxes - Test methods - Part 3: Determination of acid value, potentiometric and visual titration methods (ISO 9455 -3: 1992) EN 29455 -5: 1993 Soft soldering fluxes - Test methods - Part 5: Copper mirror test (ISO 9455 -5: 1992) ISO/DIS 9455 -5 Soft soldering fluxes - Test methods - Part 5: Copper mirror test EN ISO 9455 -6: 1997 Soft soldering fluxes - Test methods - Part 6: Determination and detection of halide (excluding fluoride) content (ISO 9455 -6: 1995) Soft soldering fluxes - Classification and requirements - Part 1: Classification, labelling and packaging (ISO 9454 -1: 1990) EN ISO 9454 -2: 2000 Soft soldering fluxes -Classification and requirements - Part 2: Performance requirements (ISO 9454 -2: 1998)

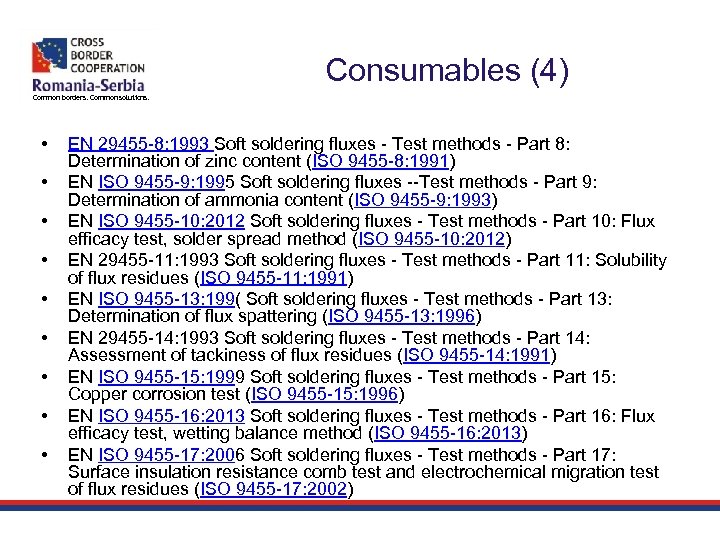

Consumables (4) Common borders. Common solutions. • • • EN 29455 -8: 1993 Soft soldering fluxes - Test methods - Part 8: Determination of zinc content (ISO 9455 -8: 1991) EN ISO 9455 -9: 1995 Soft soldering fluxes --Test methods - Part 9: Determination of ammonia content (ISO 9455 -9: 1993) EN ISO 9455 -10: 2012 Soft soldering fluxes - Test methods - Part 10: Flux efficacy test, solder spread method (ISO 9455 -10: 2012) EN 29455 -11: 1993 Soft soldering fluxes - Test methods - Part 11: Solubility of flux residues (ISO 9455 -11: 1991) EN ISO 9455 -13: 199( Soft soldering fluxes - Test methods - Part 13: Determination of flux spattering (ISO 9455 -13: 1996) EN 29455 -14: 1993 Soft soldering fluxes - Test methods - Part 14: Assessment of tackiness of flux residues (ISO 9455 -14: 1991) EN ISO 9455 -15: 1999 Soft soldering fluxes - Test methods - Part 15: Copper corrosion test (ISO 9455 -15: 1996) EN ISO 9455 -16: 2013 Soft soldering fluxes - Test methods - Part 16: Flux efficacy test, wetting balance method (ISO 9455 -16: 2013) EN ISO 9455 -17: 2006 Soft soldering fluxes - Test methods - Part 17: Surface insulation resistance comb test and electrochemical migration test of flux residues (ISO 9455 -17: 2002)

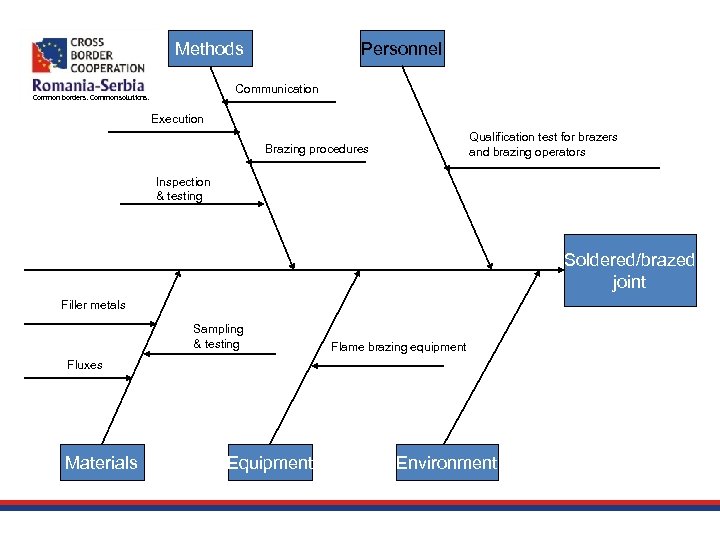

Methods Personnel Communication Common borders. Common solutions. Execution Qualification test for brazers and brazing operators Brazing procedures Inspection & testing Soldered/brazed joint Filler metals Sampling & testing Flame brazing equipment Fluxes Materials Equipment Environment

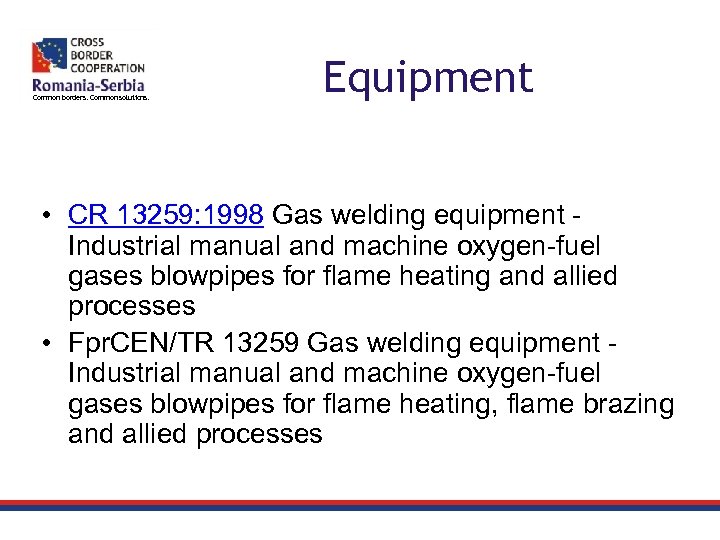

Common borders. Common solutions. Equipment • CR 13259: 1998 Gas welding equipment Industrial manual and machine oxygen-fuel gases blowpipes for flame heating and allied processes • Fpr. CEN/TR 13259 Gas welding equipment Industrial manual and machine oxygen-fuel gases blowpipes for flame heating, flame brazing and allied processes
Methods Personnel Communication Common borders. Common solutions. Execution Qualification test for brazers and brazing operators Brazing procedures Inspection & testing Soldered/brazed joint Filler metals Sampling & testing Flame brazing equipment Fluxes Materials Environmental check list Equipment Environment

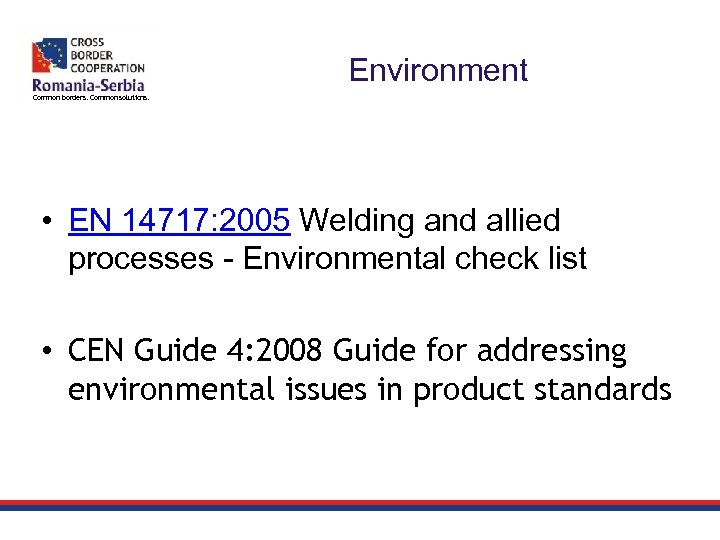

Environment Common borders. Common solutions. • EN 14717: 2005 Welding and allied processes - Environmental check list • CEN Guide 4: 2008 Guide for addressing environmental issues in product standards

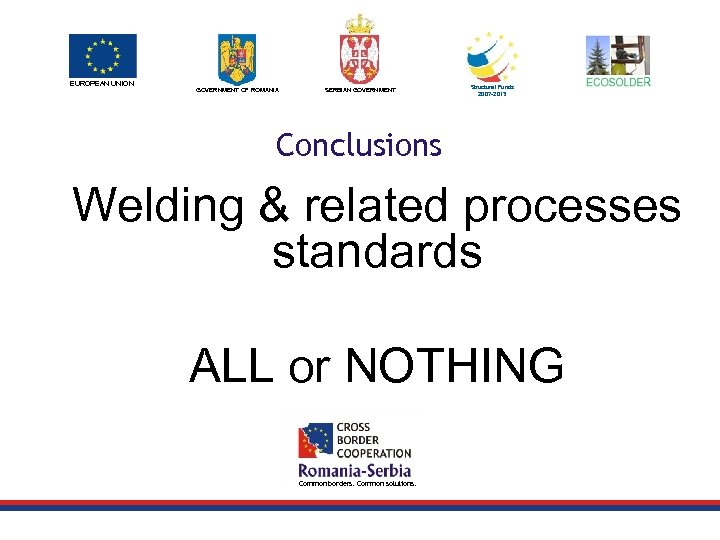

EUROPEAN UNION GOVERNMENT OF ROMANIA SERBIAN GOVERNMENT Structural Funds 2007 -2013 Conclusions Welding & related processes standards ALL or NOTHING Common borders. Common solutions.
EUROPEAN UNION GOVERNMENT OF ROMANIA SERBIAN GOVERNMENT Common borders. Common solutions. Structural Funds 2007 -2013
