European Organization for Nuclear Research Geneva - Switzerland Large Scale Parallel Print Service Ivan European Organization for Nuclear Research Geneva - Switzerland Large Scale Parallel Print Service Ivan Deloose - CERN IT Division PC UNIX TCPIP Mac Appletalk Novell

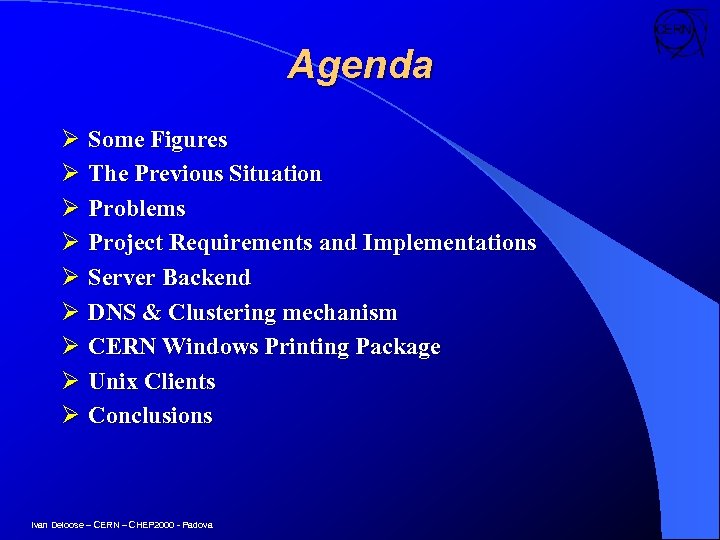

Agenda Ø Some Figures Ø The Previous Situation Ø Problems Ø Project Requirements and Agenda Ø Some Figures Ø The Previous Situation Ø Problems Ø Project Requirements and Implementations Ø Server Backend Ø DNS & Clustering mechanism Ø CERN Windows Printing Package Ø Unix Clients Ø Conclusions Ivan Deloose – CERN – CHEP 2000 - Padova

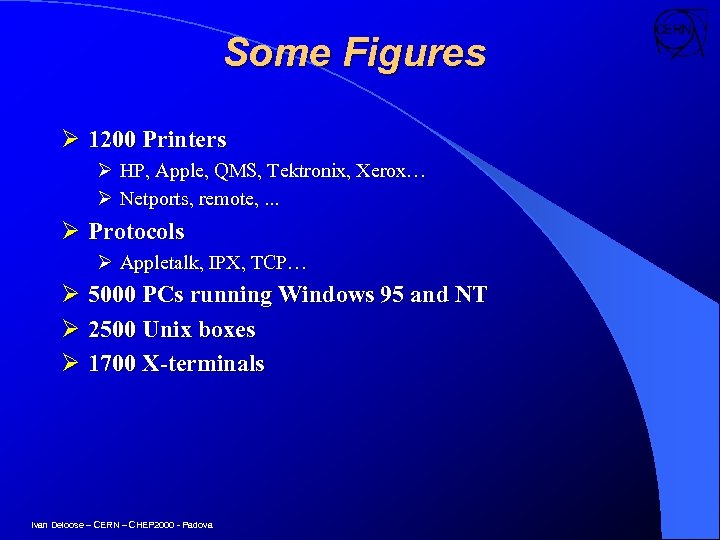

Some Figures Ø 1200 Printers Ø HP, Apple, QMS, Tektronix, Xerox… Ø Netports, remote, Some Figures Ø 1200 Printers Ø HP, Apple, QMS, Tektronix, Xerox… Ø Netports, remote, . . . Ø Protocols Ø Appletalk, IPX, TCP… Ø 5000 PCs running Windows 95 and NT Ø 2500 Unix boxes Ø 1700 X-terminals Ivan Deloose – CERN – CHEP 2000 - Padova

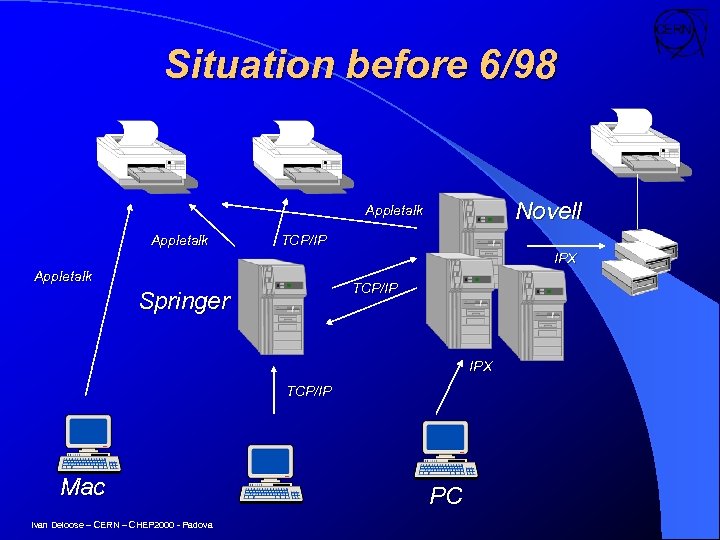

Situation before 6/98 Novell Appletalk TCP/IP IPX Appletalk TCP/IP Springer IPX TCP/IP Mac Ivan Situation before 6/98 Novell Appletalk TCP/IP IPX Appletalk TCP/IP Springer IPX TCP/IP Mac Ivan Deloose – CERN – CHEP 2000 - Padova PC

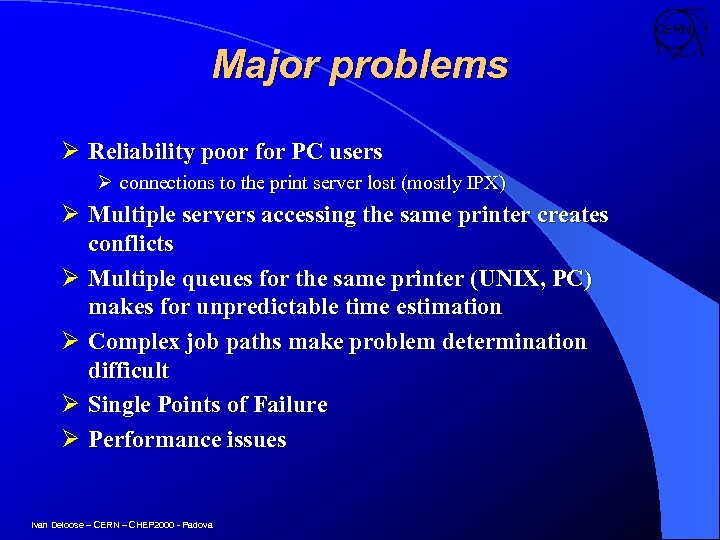

Major problems Ø Reliability poor for PC users Ø connections to the print server Major problems Ø Reliability poor for PC users Ø connections to the print server lost (mostly IPX) Ø Multiple servers accessing the same printer creates conflicts Ø Multiple queues for the same printer (UNIX, PC) makes for unpredictable time estimation Ø Complex job paths make problem determination difficult Ø Single Points of Failure Ø Performance issues Ivan Deloose – CERN – CHEP 2000 - Padova

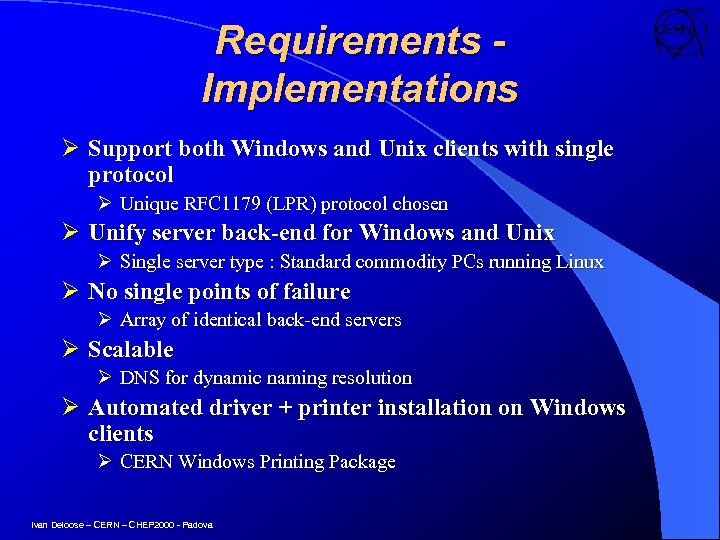

Requirements Implementations Ø Support both Windows and Unix clients with single protocol Ø Unique Requirements Implementations Ø Support both Windows and Unix clients with single protocol Ø Unique RFC 1179 (LPR) protocol chosen Ø Unify server back-end for Windows and Unix Ø Single server type : Standard commodity PCs running Linux Ø No single points of failure Ø Array of identical back-end servers Ø Scalable Ø DNS for dynamic naming resolution Ø Automated driver + printer installation on Windows clients Ø CERN Windows Printing Package Ivan Deloose – CERN – CHEP 2000 - Padova

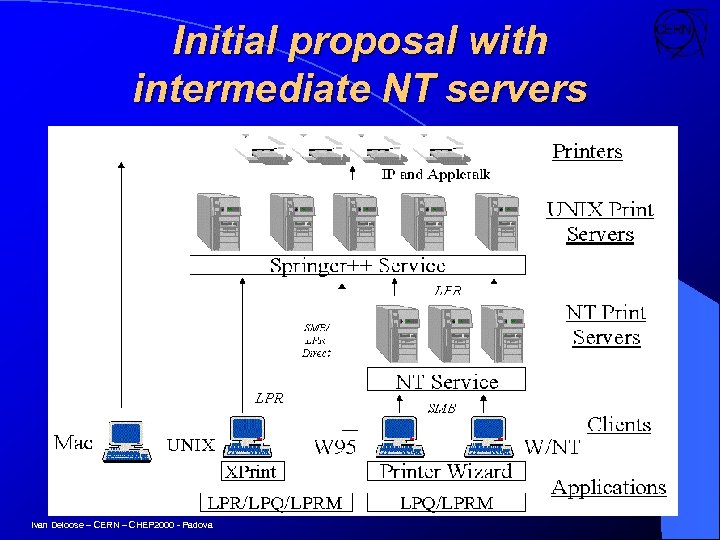

Initial proposal with intermediate NT servers Ivan Deloose – CERN – CHEP 2000 - Initial proposal with intermediate NT servers Ivan Deloose – CERN – CHEP 2000 - Padova

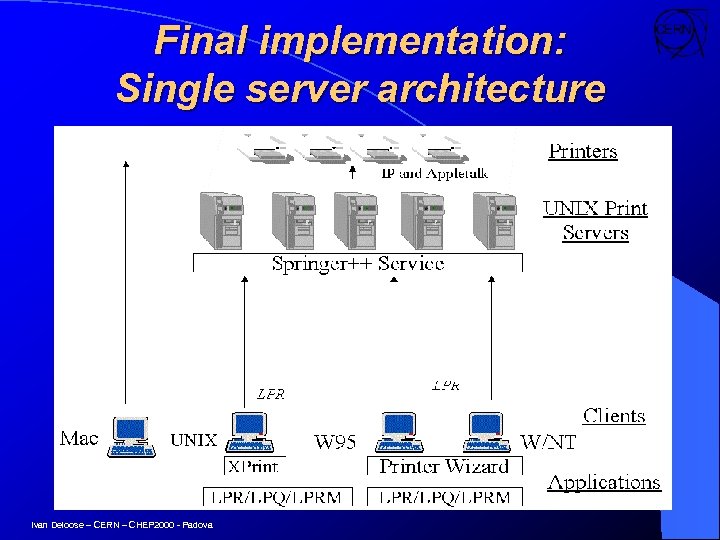

Final implementation: Single server architecture Ivan Deloose – CERN – CHEP 2000 - Padova Final implementation: Single server architecture Ivan Deloose – CERN – CHEP 2000 - Padova

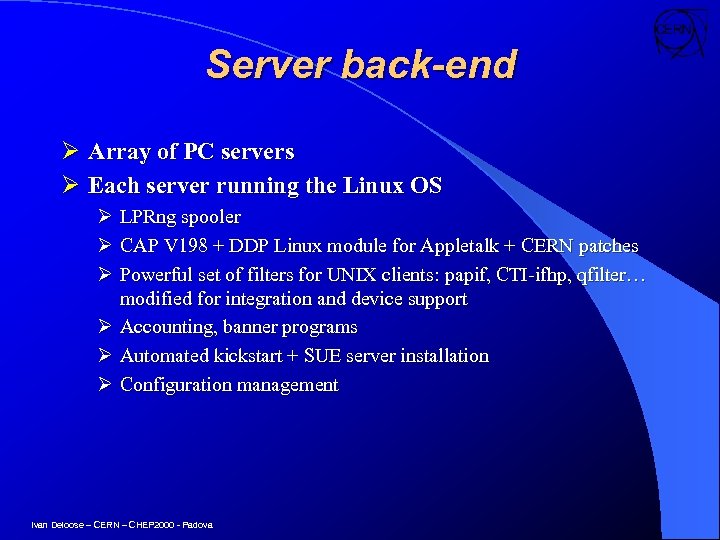

Server back-end Ø Array of PC servers Ø Each server running the Linux OS Server back-end Ø Array of PC servers Ø Each server running the Linux OS Ø LPRng spooler Ø CAP V 198 + DDP Linux module for Appletalk + CERN patches Ø Powerful set of filters for UNIX clients: papif, CTI-ifhp, qfilter… modified for integration and device support Ø Accounting, banner programs Ø Automated kickstart + SUE server installation Ø Configuration management Ivan Deloose – CERN – CHEP 2000 - Padova

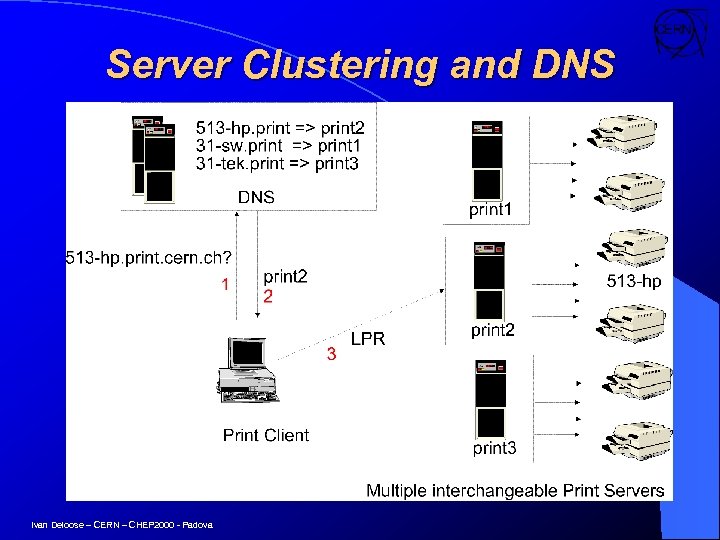

Server Clustering and DNS Ivan Deloose – CERN – CHEP 2000 - Padova Server Clustering and DNS Ivan Deloose – CERN – CHEP 2000 - Padova

Clustering: Recovery Ivan Deloose – CERN – CHEP 2000 - Padova Clustering: Recovery Ivan Deloose – CERN – CHEP 2000 - Padova

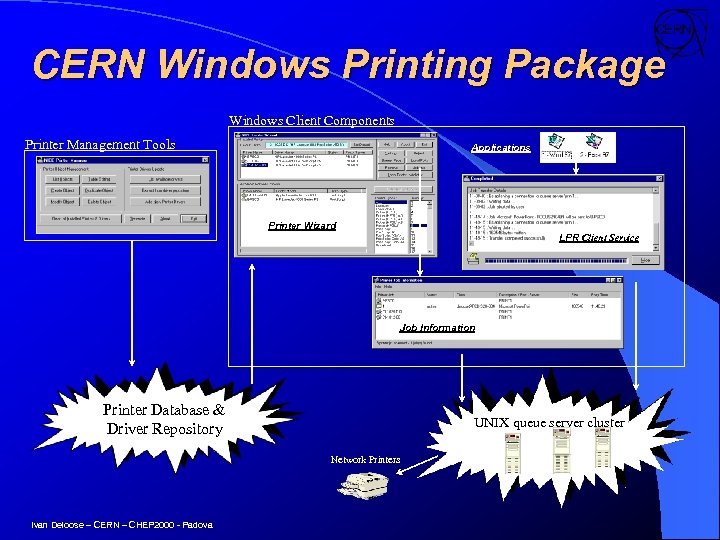

CERN Windows Printing Package Windows Client Components Printer Management Tools Applications Printer Wizard LPR CERN Windows Printing Package Windows Client Components Printer Management Tools Applications Printer Wizard LPR Client Service Job Information Printer Database & Driver Repository UNIX queue server cluster Network Printers Ivan Deloose – CERN – CHEP 2000 - Padova

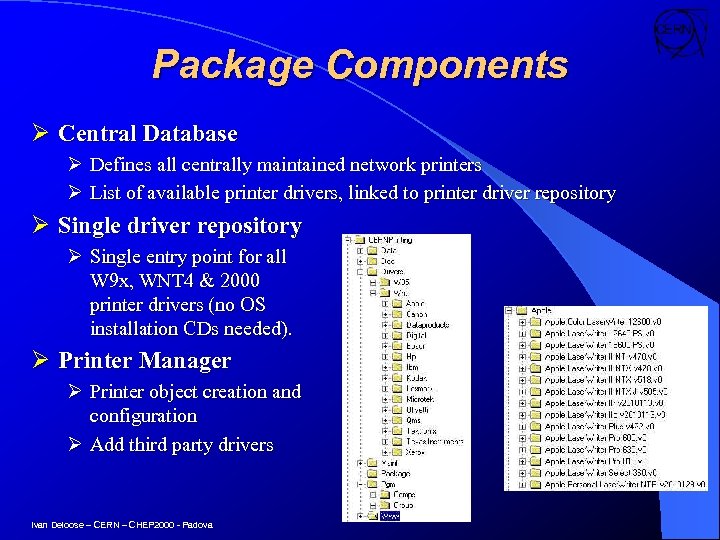

Package Components Ø Central Database Ø Defines all centrally maintained network printers Ø List Package Components Ø Central Database Ø Defines all centrally maintained network printers Ø List of available printer drivers, linked to printer driver repository Ø Single entry point for all W 9 x, WNT 4 & 2000 printer drivers (no OS installation CDs needed). Ø Printer Manager Ø Printer object creation and configuration Ø Add third party drivers Ivan Deloose – CERN – CHEP 2000 - Padova

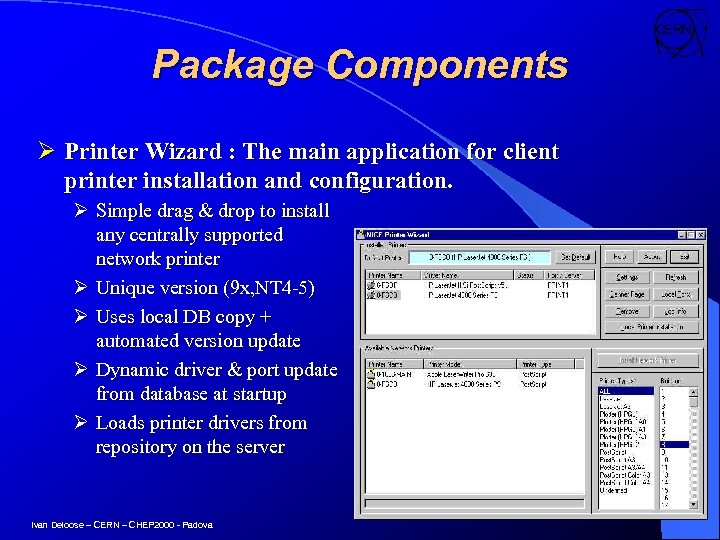

Package Components Ø Printer Wizard : The main application for client printer installation and Package Components Ø Printer Wizard : The main application for client printer installation and configuration. Ø Simple drag & drop to install any centrally supported network printer Ø Unique version (9 x, NT 4 -5) Ø Uses local DB copy + automated version update Ø Dynamic driver & port update from database at startup Ø Loads printer drivers from repository on the server Ivan Deloose – CERN – CHEP 2000 - Padova

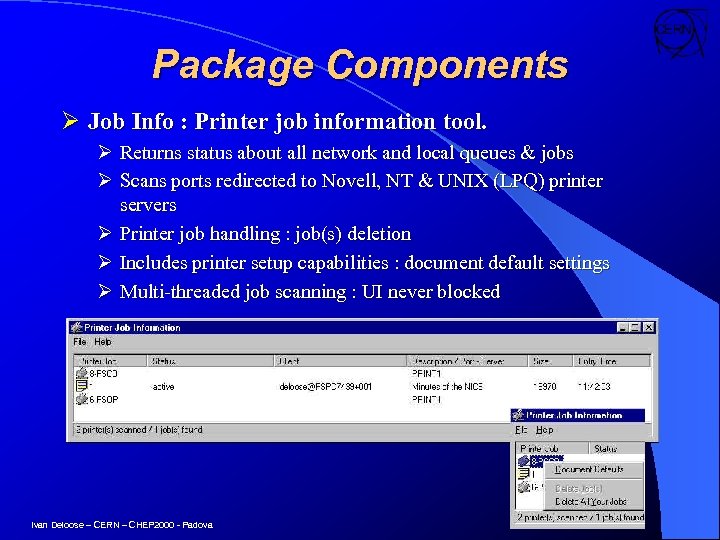

Package Components Ø Job Info : Printer job information tool. Ø Returns status about Package Components Ø Job Info : Printer job information tool. Ø Returns status about all network and local queues & jobs Ø Scans ports redirected to Novell, NT & UNIX (LPQ) printer servers Ø Printer job handling : job(s) deletion Ø Includes printer setup capabilities : document default settings Ø Multi-threaded job scanning : UI never blocked Ivan Deloose – CERN – CHEP 2000 - Padova

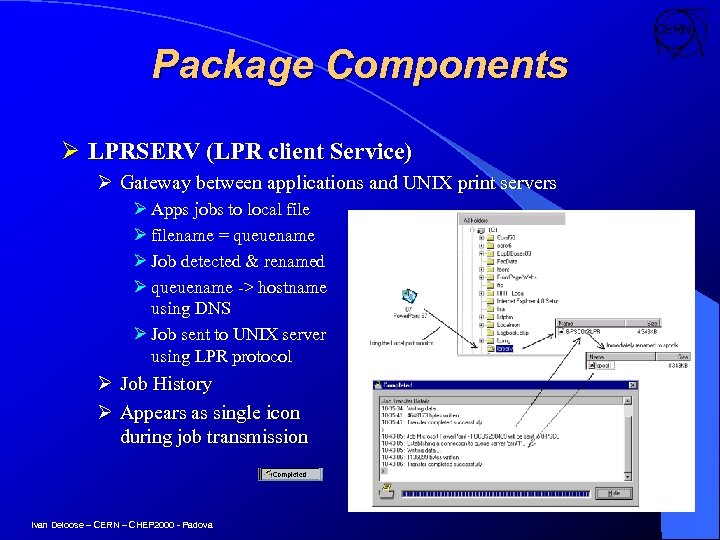

Package Components Ø LPRSERV (LPR client Service) Ø Gateway between applications and UNIX print Package Components Ø LPRSERV (LPR client Service) Ø Gateway between applications and UNIX print servers Ø Apps jobs to local file Ø filename = queuename Ø Job detected & renamed Ø queuename -> hostname using DNS Ø Job sent to UNIX server using LPR protocol Ø Job History Ø Appears as single icon during job transmission Ivan Deloose – CERN – CHEP 2000 - Padova

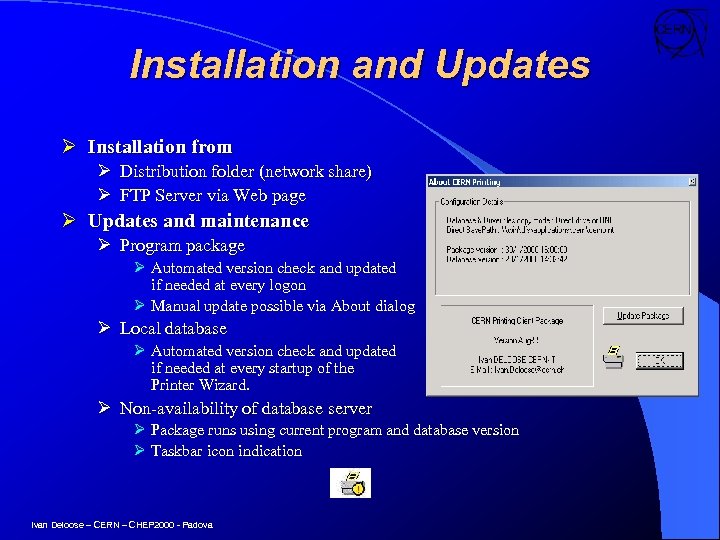

Installation and Updates Ø Installation from Ø Distribution folder (network share) Ø FTP Server Installation and Updates Ø Installation from Ø Distribution folder (network share) Ø FTP Server via Web page Ø Updates and maintenance Ø Program package Ø Automated version check and updated if needed at every logon Ø Manual update possible via About dialog Ø Local database Ø Automated version check and updated if needed at every startup of the Printer Wizard. Ø Non-availability of database server Ø Package runs using current program and database version Ø Taskbar icon indication Ivan Deloose – CERN – CHEP 2000 - Padova

Unix print Clients Ø From LPRng Ø Modified to support DNS resolution for print Unix print Clients Ø From LPRng Ø Modified to support DNS resolution for print server addressing Ø -P printername => -P [email protected] print. cern. ch Ø Lightweight Ø no spooling configuration Ø Backwards compatibility implemented Ø CERN’s XPRINT adapted Ivan Deloose – CERN – CHEP 2000 - Padova

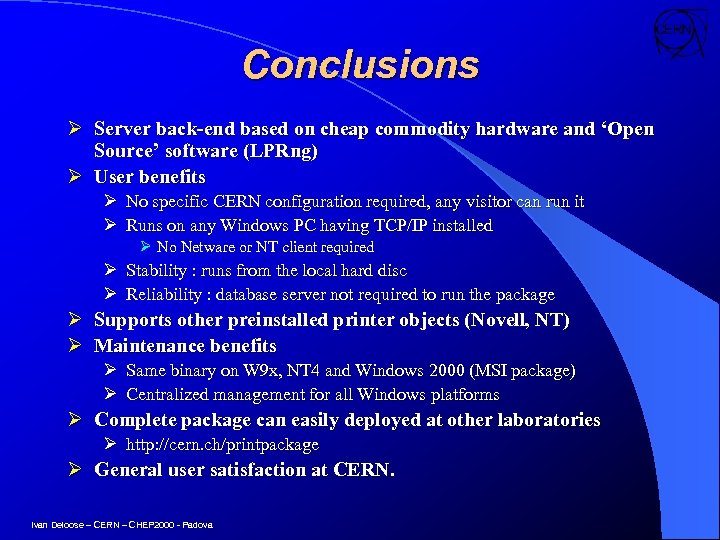

Conclusions Ø Server back-end based on cheap commodity hardware and ‘Open Source’ software (LPRng) Conclusions Ø Server back-end based on cheap commodity hardware and ‘Open Source’ software (LPRng) Ø User benefits Ø No specific CERN configuration required, any visitor can run it Ø Runs on any Windows PC having TCP/IP installed Ø No Netware or NT client required Ø Ø Stability : runs from the local hard disc Reliability : database server not required to run the package Ø Supports other preinstalled printer objects (Novell, NT) Ø Maintenance benefits Ø Same binary on W 9 x, NT 4 and Windows 2000 (MSI package) Ø Centralized management for all Windows platforms Ø Complete package can easily deployed at other laboratories Ø http: //cern. ch/printpackage Ø General user satisfaction at CERN. Ivan Deloose – CERN – CHEP 2000 - Padova

Contacts Ø ivan. deloose@cern. ch Ø Windows Printing Package Ø Download and information: http: Contacts Ø ivan. [email protected] ch Ø Windows Printing Package Ø Download and information: http: //cern. ch/printpackage Ø ignacio. [email protected] ch Ø Print Server backend and UNIX clients Ivan Deloose – CERN – CHEP 2000 - Padova
