European AIS — 30 years of evolution Eduard

European AIS - 30 years of evolution Eduard POROSNICU Senior AIM Specialist EUROCONTROL 1 AIXM User European Organisation for the Safety of Air Navigation Conference 2008

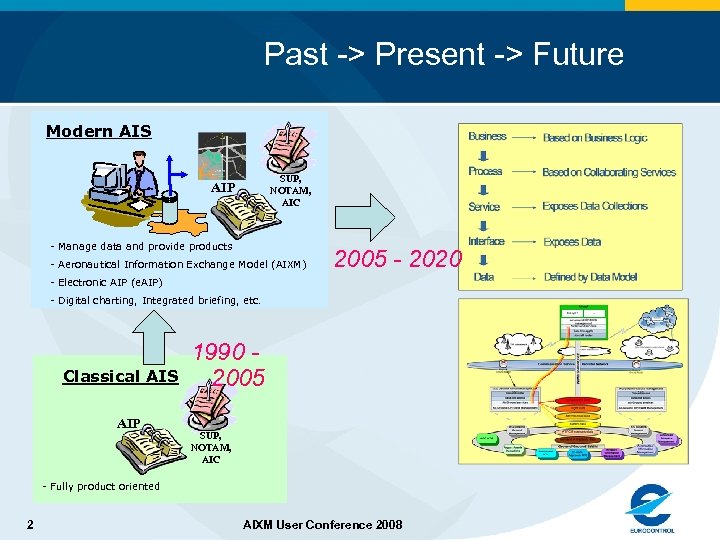

Past -> Present -> Future Modern AIS SUP, NOTAM, AIC AIP - Manage data and provide products - Aeronautical Information Exchange Model (AIXM) 2005 - 2020 - Electronic AIP (e. AIP) - Digital charting, Integrated briefing, etc. Classical AIS AIP 1990 2005 SUP, NOTAM, AIC - Fully product oriented 2 AIXM User Conference 2008

AIXM History AIP 3 AIXM User Conference 2008

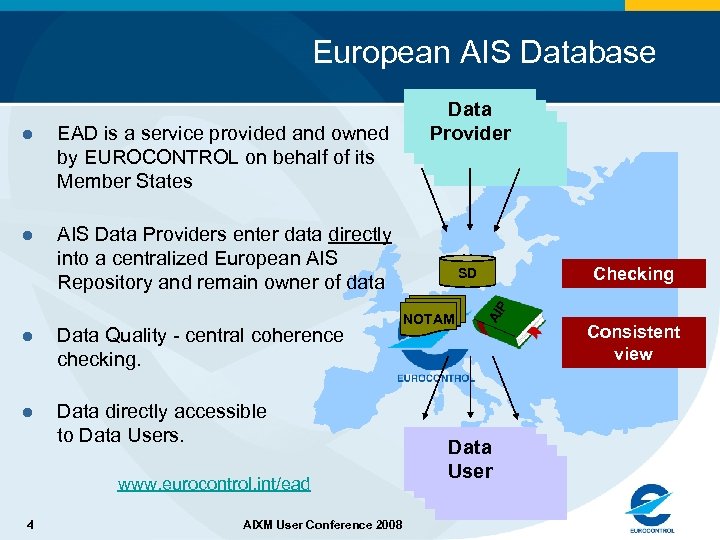

European AIS Database l AIS Data Providers enter data directly into a centralized European AIS Repository and remain owner of data l Data Quality - central coherence checking. l Data directly accessible to Data Users. www. eurocontrol. int/ead 4 AIXM User Conference 2008 Checking SD NOTAM P EAD is a service provided and owned by EUROCONTROL on behalf of its Member States AI l Data Provider Data User Data Provider Consistent view

AIXM History (cont’d) l Internationalization l l Global Requirements l Complete Data Model (Military/Civilian) 5 AIXM User Conference 2008 Since 2003 aggressive FAA and EUROCONTROL partnership 2005 AIXM 4 and AIXM 4. 5 2005 vision of an AIXM 5

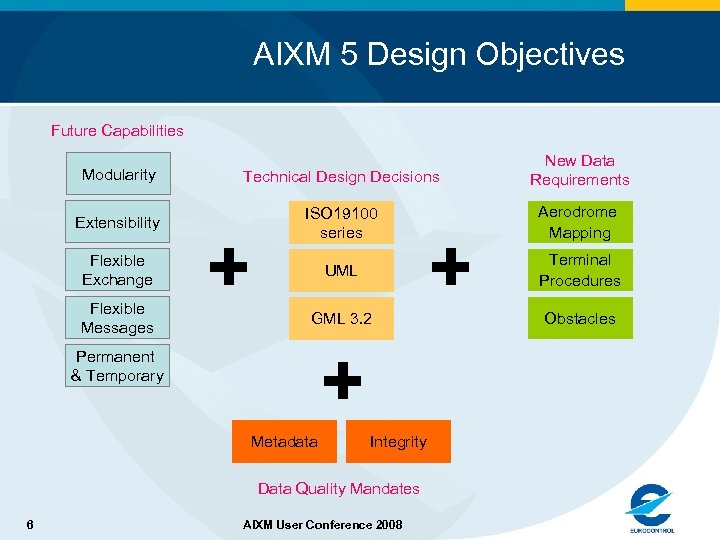

AIXM 5 Design Objectives Future Capabilities Modularity Technical Design Decisions New Data Requirements Extensibility ISO 19100 series Aerodrome Mapping Flexible Exchange UML Terminal Procedures Flexible Messages GML 3. 2 Obstacles Permanent & Temporary Metadata Integrity Data Quality Mandates 6 AIXM User Conference 2008

AIXM History (cont’d) l Global Standard l l 7 2006 Global AIS Congress and the announcement of AIXM 5 2006 -2007 Progressive adoption – Japan, Canada, US, others… 2007 AIXM 5 Release Candidates 2007 the Digital NOTAM (x. NOTAM) concepts AIXM User Conference 2008

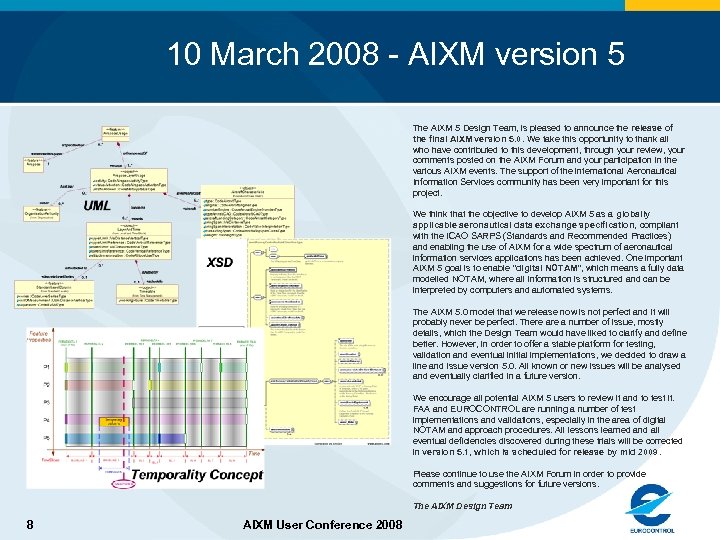

10 March 2008 - AIXM version 5 The AIXM 5 Design Team, is pleased to announce the release of the final AIXM version 5. 0. We take this opportunity to thank all who have contributed to this development, through your review, your comments posted on the AIXM Forum and your participation in the various AIXM events. The support of the international Aeronautical Information Services community has been very important for this project. We think that the objective to develop AIXM 5 as a globally applicable aeronautical data exchange specification, compliant with the ICAO SARPS (Standards and Recommended Practices) and enabling the use of AIXM for a wide spectrum of aeronautical information services applications has been achieved. One important AIXM 5 goal is to enable "digital NOTAM", which means a fully data modelled NOTAM, where all information is structured and can be interpreted by computers and automated systems. The AIXM 5. 0 model that we release now is not perfect and it will probably never be perfect. There a number of issue, mostly details, which the Design Team would have liked to clarify and define better. However, in order to offer a stable platform for testing, validation and eventual initial implementations, we decided to draw a line and issue version 5. 0. All known or new issues will be analysed and eventually clarified in a future version. We encourage all potential AIXM 5 users to review it and to test it. FAA and EUROCONTROL are running a number of test implementations and validations, especially in the area of digital NOTAM and approach procedures. All lessons learned and all eventual deficiencies discovered during these trials will be corrected in version 5. 1, which is scheduled for release by mid 2009. Please continue to use the AIXM Forum in order to provide comments and suggestions for future versions. The AIXM Design Team 8 AIXM User Conference 2008

By the way… l XML is ten years old! l 9 XML 1. 0 Recommendation published on 10 th February 1998 AIXM User Conference 2008

Electronic AIP (e. AIP) www. eurocontrol. int/eaip 10 AIXM User Conference 2008

Other achievements l l l 11 ISO 9000 certification WGS 84 implementation Move towards integrated briefing AIS Agora CHAIN Etc. AIXM User Conference 2008

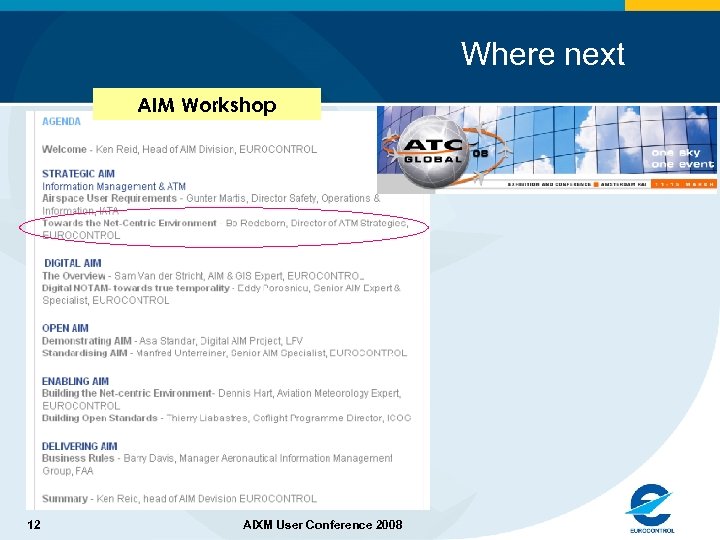

Where next AIM Workshop http: //www. atcevents. com/atc 08/show_link 8. asp? id=main. Lnk 8 12 AIXM User Conference 2008

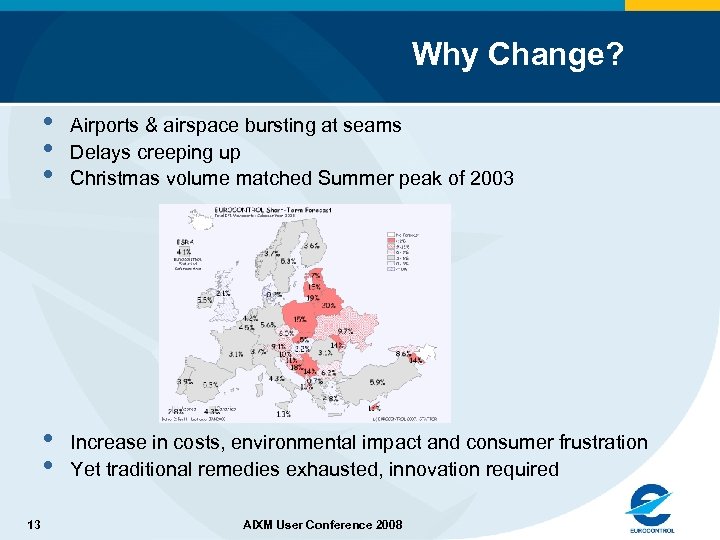

Why Change? • • • Airports & airspace bursting at seams Delays creeping up Christmas volume matched Summer peak of 2003 Forecast Summer 2008 • • 13 Increase in costs, environmental impact and consumer frustration Yet traditional remedies exhausted, innovation required AIXM User Conference 2008

European Response - SESAR • • 14 Joint European Commission/Eurocontrol project Industry & performance based approach Highly challenging project to 2020 & beyond Will require innovative technology AIXM User Conference 2008

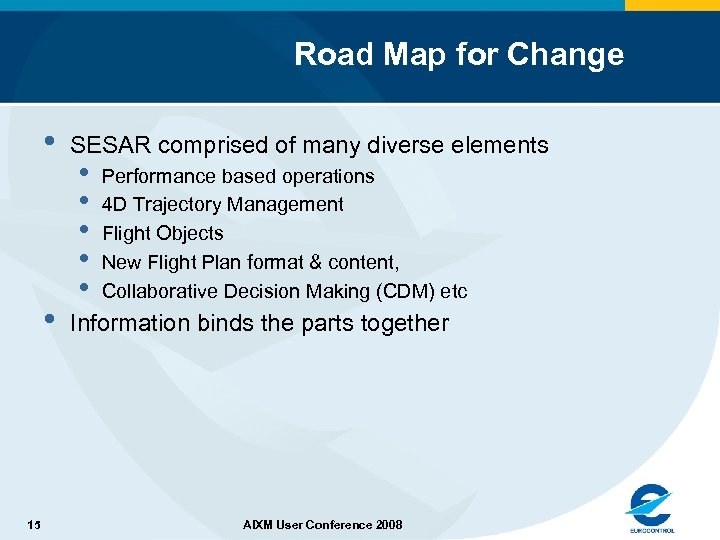

Road Map for Change • • 15 SESAR comprised of many diverse elements • • • Performance based operations 4 D Trajectory Management Flight Objects New Flight Plan format & content, Collaborative Decision Making (CDM) etc Information binds the parts together AIXM User Conference 2008

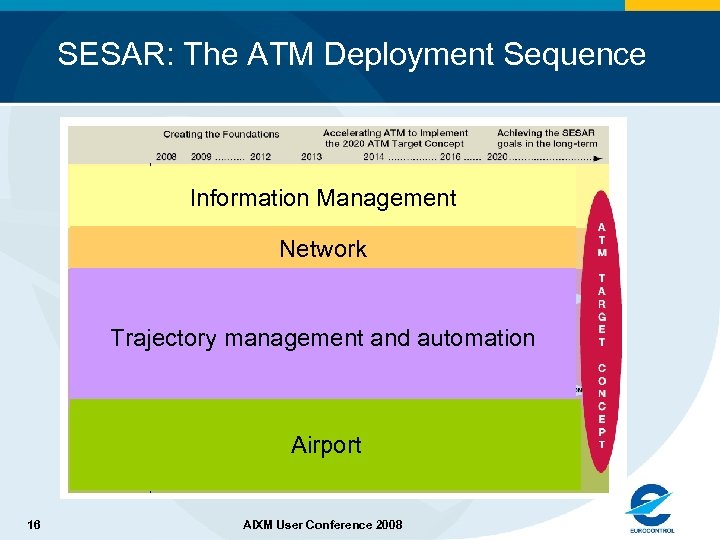

SESAR: The ATM Deployment Sequence Information Management Network Trajectory management and automation Airport 16 AIXM User Conference 2008

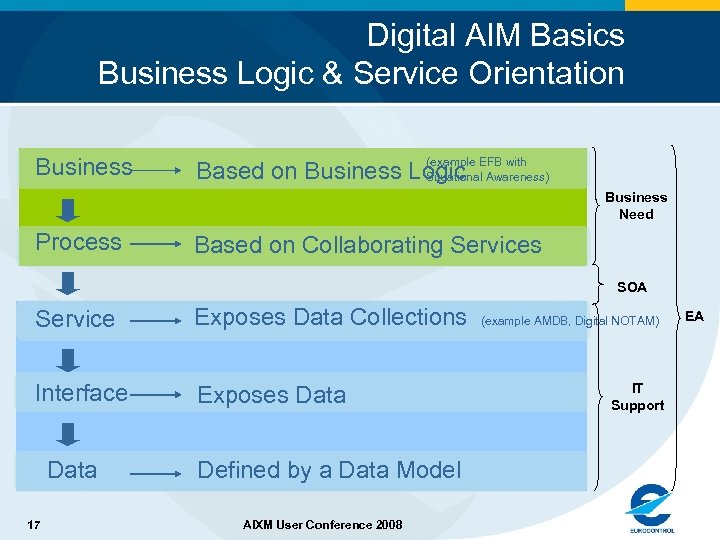

Digital AIM Basics Business Logic & Service Orientation Business (example EFB with Based on Business Logic Situational Awareness) Business Need Process Based on Collaborating Services SOA Service Exposes Data Collections (example AMDB, Digital NOTAM) Interface Exposes Data 17 Defined by a Data Model AIXM User Conference 2008 IT Support EA

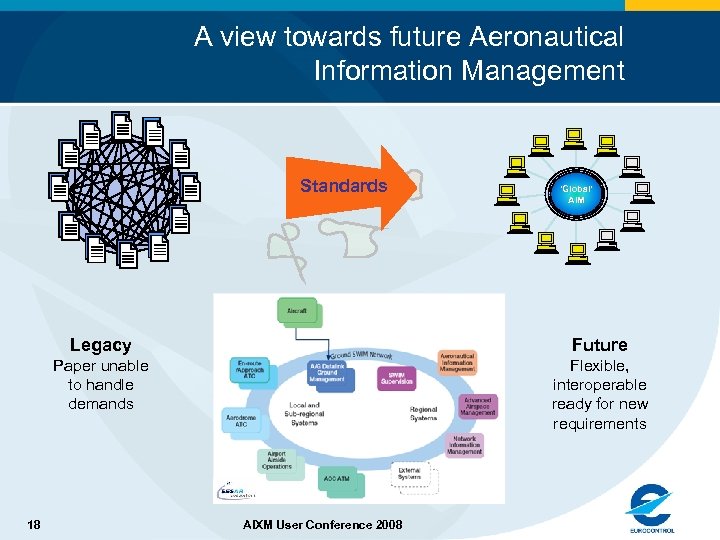

A view towards future Aeronautical Information Management Standards ‘Global’ AIM Legacy Paper unable to handle demands 18 Future Flexible, interoperable ready for new requirements AIXM User Conference 2008

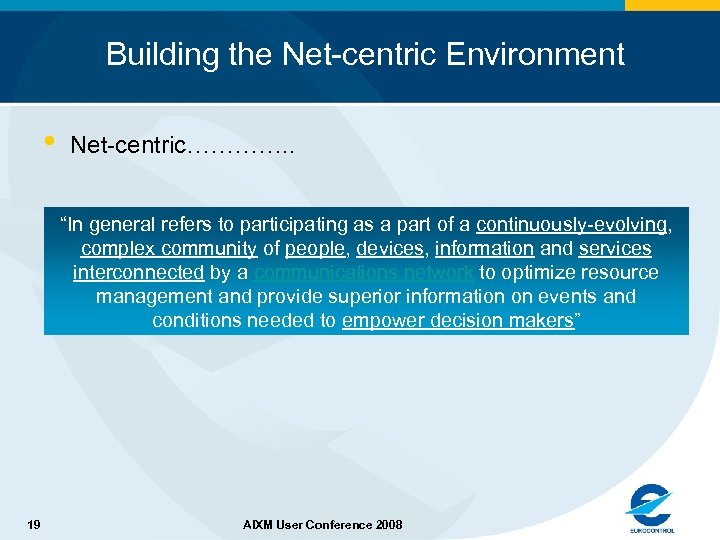

Building the Net-centric Environment • Net-centric…………. . “In general refers to participating as a part of a continuously-evolving, complex community of people, devices, information and services interconnected by a communications network to optimize resource management and provide superior information on events and conditions needed to empower decision makers” 19 AIXM User Conference 2008

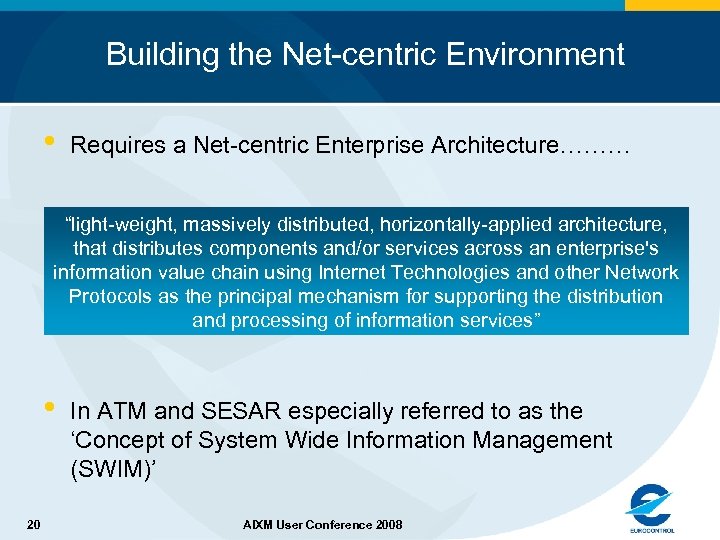

Building the Net-centric Environment • Requires a Net-centric Enterprise Architecture……… “light-weight, massively distributed, horizontally-applied architecture, that distributes components and/or services across an enterprise's information value chain using Internet Technologies and other Network Protocols as the principal mechanism for supporting the distribution and processing of information services” • 20 In ATM and SESAR especially referred to as the ‘Concept of System Wide Information Management (SWIM)’ AIXM User Conference 2008

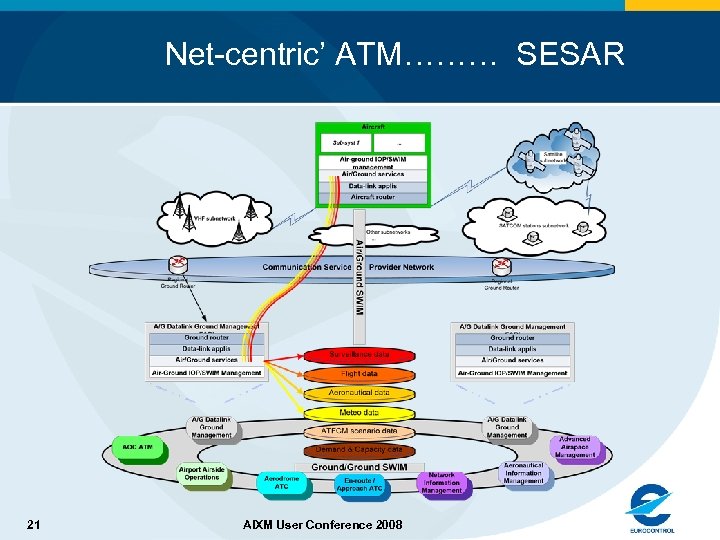

Net-centric’ ATM……… SESAR 21 AIXM User Conference 2008

Building net-centricity l 22 Identification of SESAR R&D Plan WBS AIXM User Conference 2008 Courtesy: SESAR D 6 draft 4

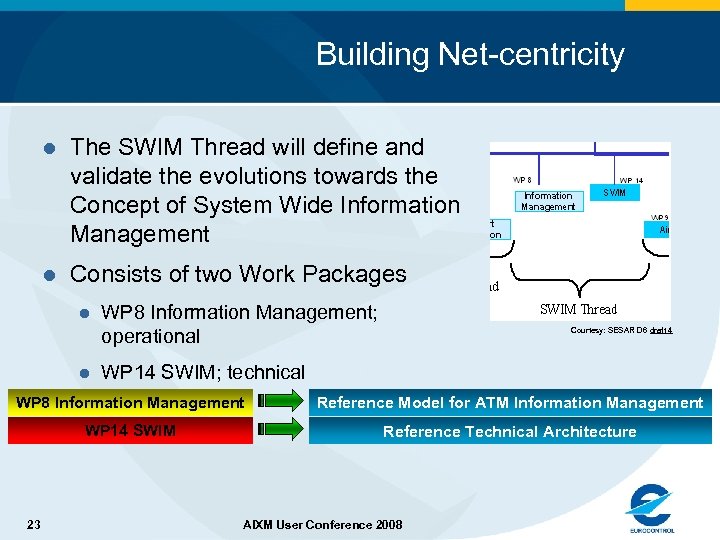

Building Net-centricity l The SWIM Thread will define and validate the evolutions towards the Concept of System Wide Information Management l Consists of two Work Packages l l WP 8 Information Management; operational Courtesy: SESAR D 6 draft 4 WP 14 SWIM; technical WP 8 Information Management Reference Model for ATM Information Management WP 14 SWIM Reference Technical Architecture 23 AIXM User Conference 2008

Standards l It is because standards exist, that we achieve… Int er o 24 pe ra bil ity AIXM User Conference 2008

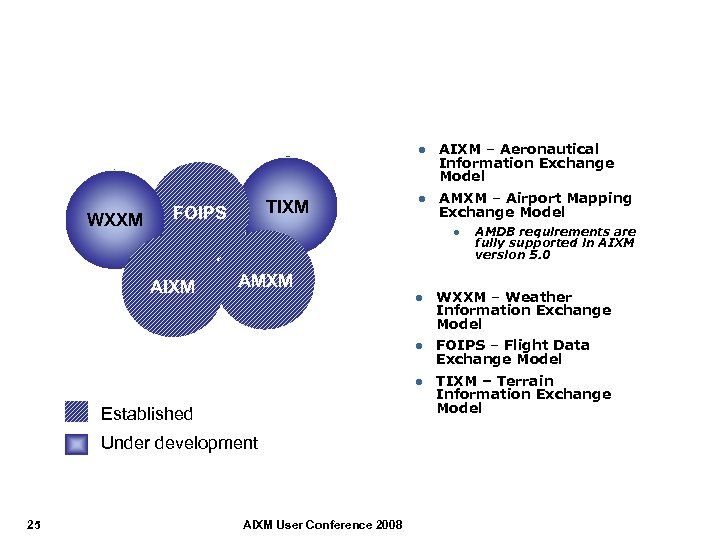

Digital AIM Basics Data Modeling l WXXM TIXM FOIPS AIXM – Aeronautical Information Exchange Model l AMXM – Airport Mapping Exchange Model l AIXM AMDB requirements are fully supported in AIXM version 5. 0 l l Under development 25 AIXM User Conference 2008 FOIPS – Flight Data Exchange Model l Established WXXM – Weather Information Exchange Model TIXM – Terrain Information Exchange Model

Near term evolution AIM 26 AIXM User Conference 2008

The Airlines view Günter Martis, IATA, Director Safety, Operations & Infrastructure Europe Conclusion 27 AIXM User Conference 2008
