ETK 1524099 Confidential Automatic Adaptive Core Fusion Splicer T-55 Excellent Performance User Friendly High Environment Durability 2/23

ETK 1524099 Confidential Excellent Performance Rapid 7 Splicing Speed sec. splice time “SM G 652 Quick” Mode Comparison T-55 vs T-71 C+ Model Splice time T-55 T-71 C+ 3/23 7 sec 6 sec

ETK 1524099 Confidential Excellent Performance 20 Heater Performance sec. heating time Comparison T-55 vs T-71 C+ Model Heating time T-55 Single 20 sec T-71 C+ 4/23 #of heater Dual 14 sec

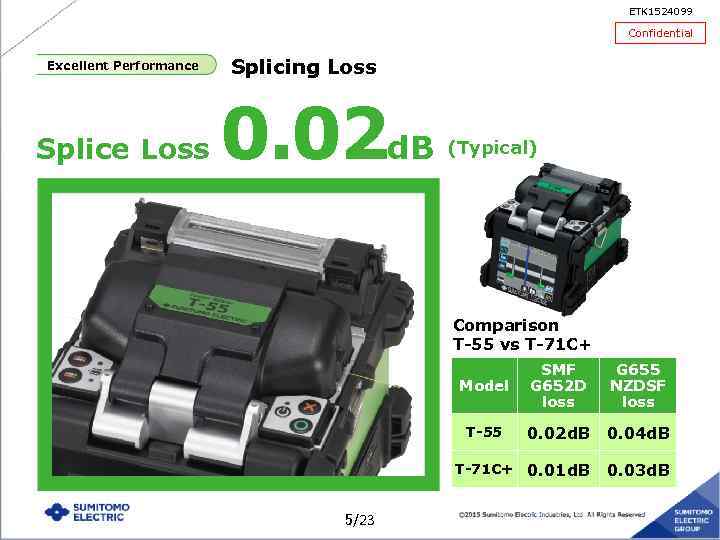

ETK 1524099 Confidential Excellent Performance Splice Loss Splicing Loss 0. 02 d. B (Typical) Comparison T-55 vs T-71 C+ Model G 655 NZDSF loss T-55 0. 02 d. B 0. 04 d. B T-71 C+ 0. 01 d. B 5/23 SMF G 652 D loss 0. 03 d. B

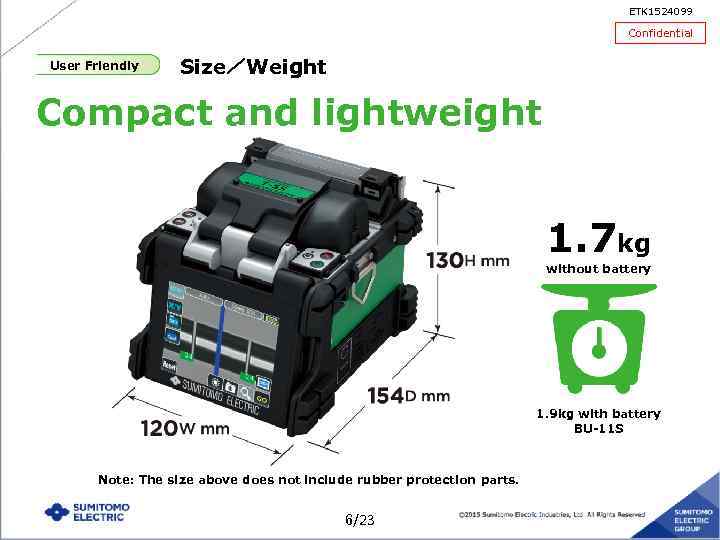

ETK 1524099 Confidential User Friendly Size／Weight Compact and lightweight 1. 7 kg without battery 1. 9 kg with battery BU-11 S Note: The size above does not include rubber protection parts. 6/23

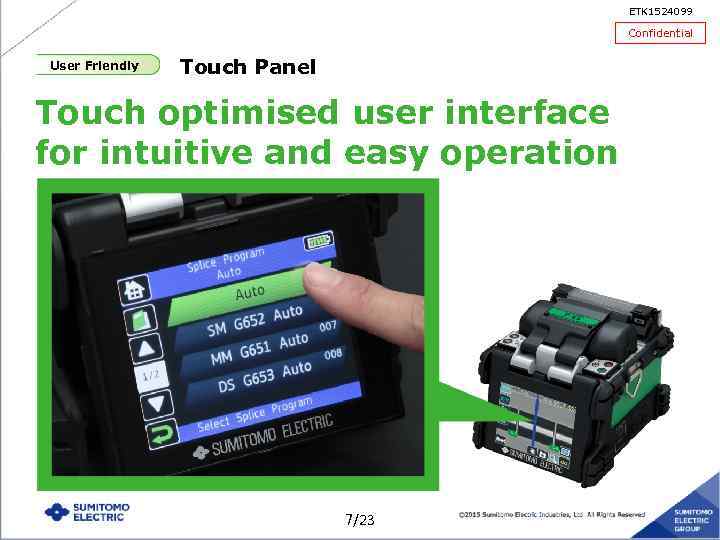

ETK 1524099 Confidential User Friendly Touch Panel Touch optimised user interface for intuitive and easy operation 7/23

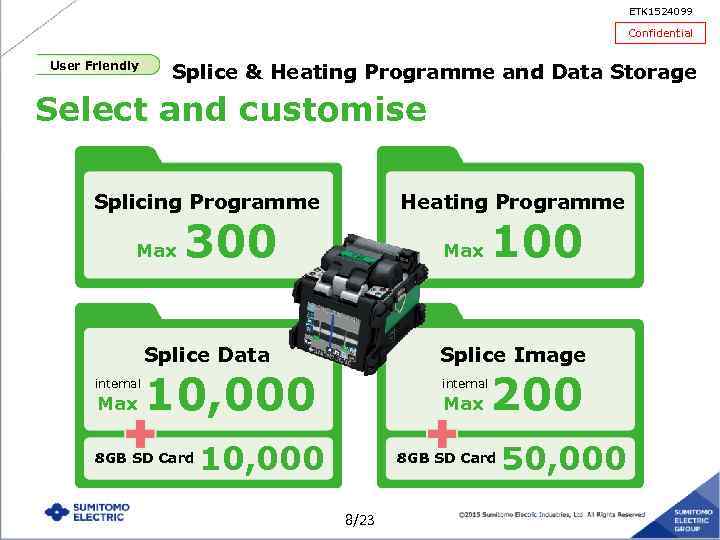

ETK 1524099 Confidential User Friendly Splice & Heating Programme and Data Storage Select and customise Splicing Programme Max Heating Programme 300 Max Splice Data internal Max Splice Image 10, 000 8 GB SD Card 100 internal Max 10, 000 200 8 GB SD Card 8/23 50, 000

ETK 1524099 Confidential Durability Water Proof High Environmental Durability Passes IPx 2 test IPx 2 Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15°from its normal position. Test duration: 10 min, Water equivalent to 3 mm rainfall per minute. IPx 2 water protection 9/23

ETK 1524099 Confidential T-55 vs T-71 C+ Comparison 10/23

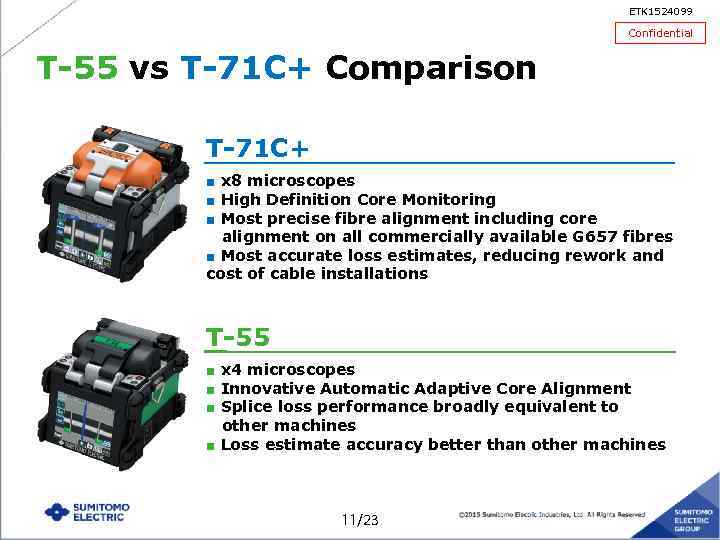

ETK 1524099 Confidential T-55 vs T-71 C+ Comparison T-71 C+ ■ x 8 microscopes ■ High Definition Core Monitoring ■ Most precise fibre alignment including core alignment on all commercially available G 657 fibres ■ Most accurate loss estimates, reducing rework and cost of cable installations T-55 ■ x 4 microscopes ■ Innovative Automatic Adaptive Core Alignment ■ Splice loss performance broadly equivalent to other machines ■ Loss estimate accuracy better than other machines 11/23

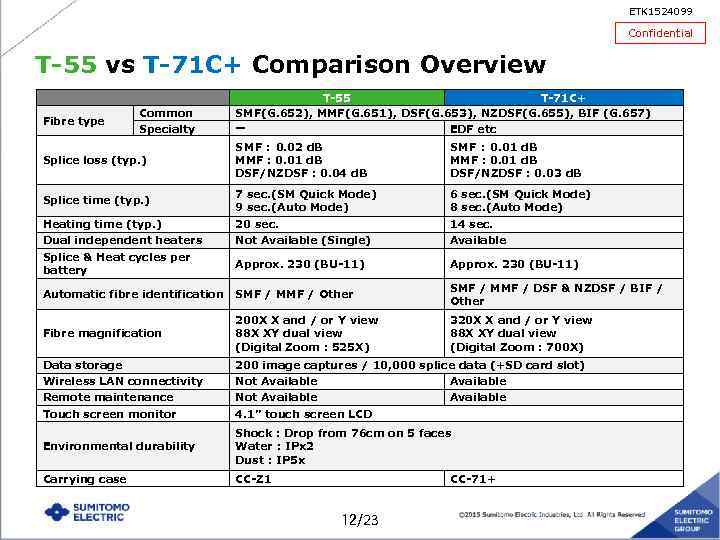

ETK 1524099 Confidential T-55 vs T-71 C+ Comparison Overview Fibre type Common Specialty T-55 T-71 C+ SMF(G. 652), MMF(G. 651), DSF(G. 653), NZDSF(G. 655), BIF (G. 657) － EDF etc Splice loss (typ. ) SMF : 0. 02 d. B MMF : 0. 01 d. B DSF/NZDSF : 0. 04 d. B SMF : 0. 01 d. B MMF : 0. 01 d. B DSF/NZDSF : 0. 03 d. B Splice time (typ. ) 7 sec. (SM Quick Mode) 9 sec. (Auto Mode) 6 sec. (SM Quick Mode) 8 sec. (Auto Mode) Heating time (typ. ) Dual independent heaters 20 sec. Not Available (Single) 14 sec. Available Splice & Heat cycles per battery Approx. 230 (BU-11) Automatic fibre identification SMF / MMF / Other SMF / MMF / DSF & NZDSF / BIF / Other Fibre magnification 200 X X and / or Y view 88 X XY dual view (Digital Zoom : 525 X) 320 X X and / or Y view 88 X XY dual view (Digital Zoom : 700 X) Data storage Wireless LAN connectivity Remote maintenance Touch screen monitor 200 image captures / 10, 000 splice data (+SD card slot) Not Available 4. 1” touch screen LCD Environmental durability Shock : Drop from 76 cm on 5 faces Water : IPx 2 Dust : IP 5 x Carrying case CC-Z 1 CC-71+ 12/23

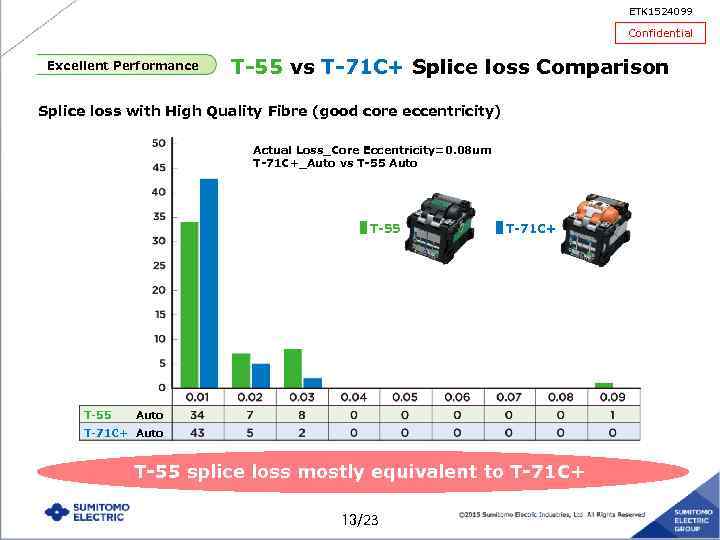

ETK 1524099 Confidential Excellent Performance T-55 vs T-71 C+ Splice loss Comparison Splice loss with High Quality Fibre (good core eccentricity) Actual Loss_Core Eccentricity=0. 08 um T-71 C+_Auto vs T-55 Auto T-55 T-71 C+ Auto T-55 splice loss mostly equivalent to T-71 C+ 13/23

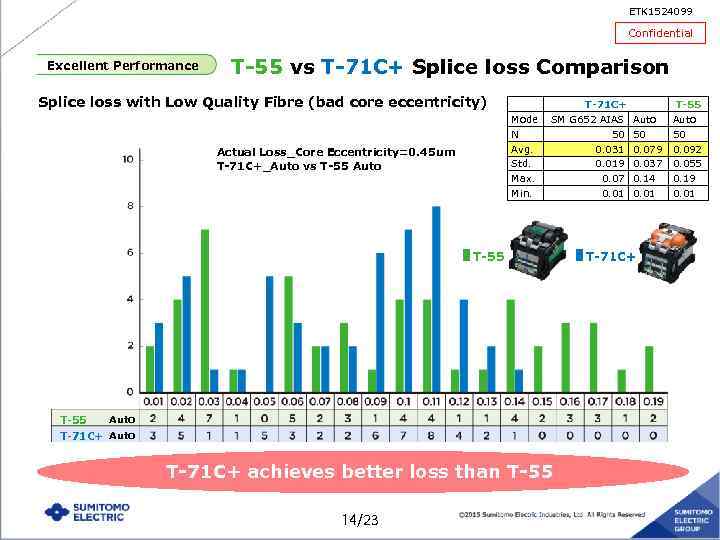

ETK 1524099 Confidential Excellent Performance T-55 vs T-71 C+ Splice loss Comparison Splice loss with Low Quality Fibre (bad core eccentricity) Mode N Avg. Std. Max. Min. Actual Loss_Core Eccentricity=0. 45 um T-71 C+_Auto vs T-55 Auto T-71 C+ SM G 652 AIAS 50 0. 031 0. 019 0. 07 0. 01 T-55 Auto T-71 C+ achieves better loss than T-55 14/23 Auto 50 0. 079 0. 037 0. 14 0. 01 T-71 C+ T-55 Auto 50 0. 092 0. 055 0. 19 0. 01

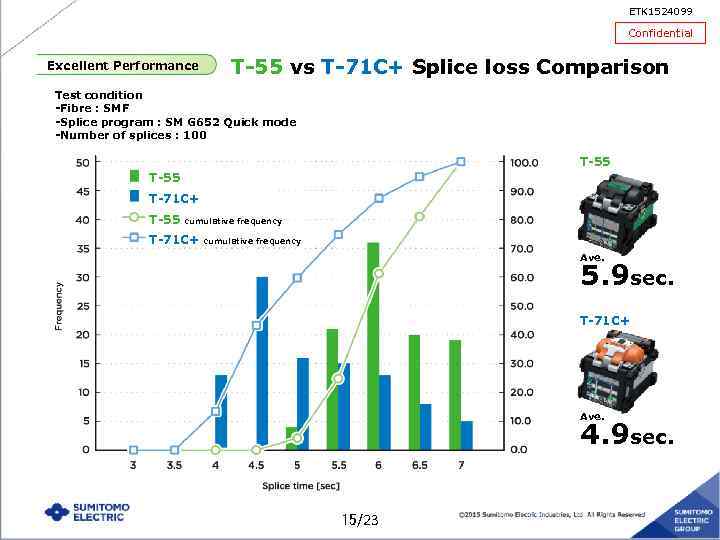

ETK 1524099 Confidential Excellent Performance T-55 vs T-71 C+ Splice loss Comparison Test condition -Fibre : SMF -Splice program : SM G 652 Quick mode -Number of splices : 100 T-55 T-71 C+ T-55 cumulative frequency T-71 C+ cumulative frequency Ave. 5. 9 sec. T-71 C+ Ave. 4. 9 sec. 15/23

ETK 1524099 Confidential T-55 vs Cladding Aligner (Fujikura 22 S & Inno View 3) 16/23

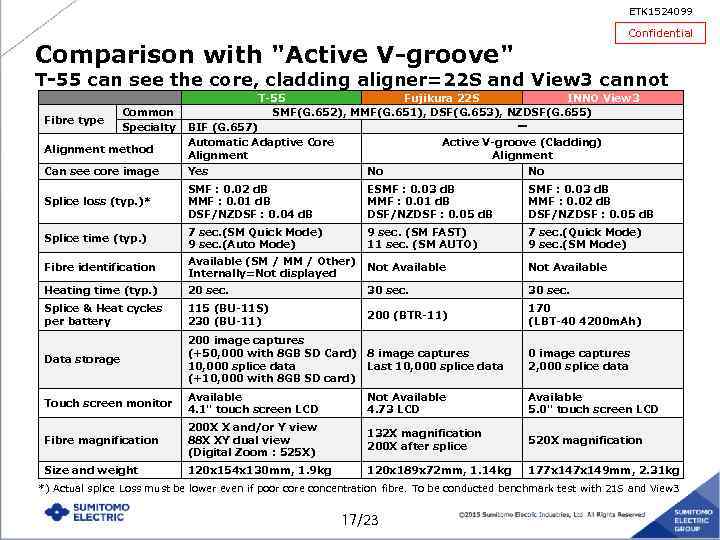

ETK 1524099 Confidential Comparison with "Active V-groove" T-55 can see the core, cladding aligner=22 S and View 3 cannot Fibre type Common Specialty T-55 Fujikura 22 S INNO View 3 SMF(G. 652), MMF(G. 651), DSF(G. 653), NZDSF(G. 655) － BIF (G. 657) Alignment method Automatic Adaptive Core Alignment Active V-groove (Cladding) Alignment Can see core image Yes No No Splice loss (typ. )* SMF : 0. 02 d. B MMF : 0. 01 d. B DSF/NZDSF : 0. 04 d. B ESMF : 0. 03 d. B MMF : 0. 01 d. B DSF/NZDSF : 0. 05 d. B SMF : 0. 03 d. B MMF : 0. 02 d. B DSF/NZDSF : 0. 05 d. B Splice time (typ. ) 7 sec. (SM Quick Mode) 9 sec. (Auto Mode) 9 sec. (SM FAST) 11 sec. (SM AUTO) 7 sec. (Quick Mode) 9 sec. (SM Mode) Fibre identification Available (SM / MM / Other) Internally=Not displayed Not Available Heating time (typ. ) 20 sec. 30 sec. Splice & Heat cycles per battery 115 (BU-11 S) 230 (BU-11) 200 (BTR-11) 170 (LBT-40 4200 m. Ah) Data storage 200 image captures (+50, 000 with 8 GB SD Card) 8 image captures 10, 000 splice data Last 10, 000 splice data (+10, 000 with 8 GB SD card) 0 image captures 2, 000 splice data Touch screen monitor Available 4. 1" touch screen LCD Not Available 4. 73 LCD Available 5. 0" touch screen LCD Fibre magnification 200 X X and/or Y view 88 X XY dual view (Digital Zoom : 525 X) 132 X magnification 200 X after splice 520 X magnification Size and weight 120 x 154 x 130 mm, 1. 9 kg 120 x 189 x 72 mm, 1. 14 kg 177 x 149 mm, 2. 31 kg *) Actual splice Loss must be lower even if poor core concentration fibre. To be conducted benchmark test with 21 S and View 3 17/23

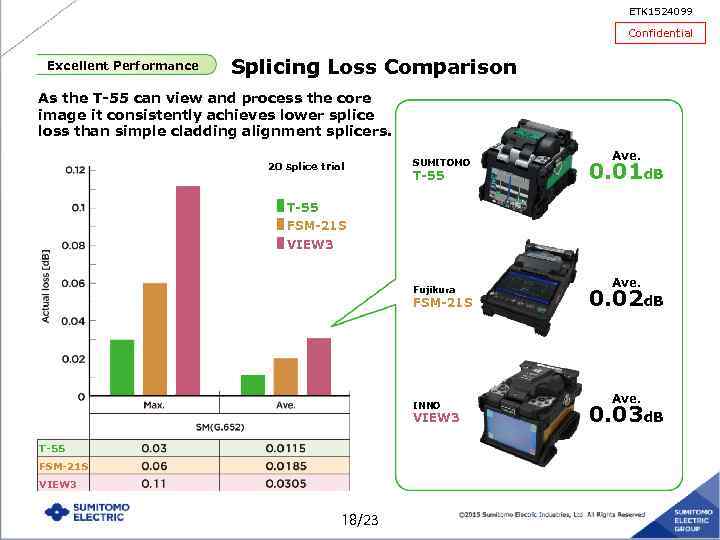

ETK 1524099 Confidential Excellent Performance Splicing Loss Comparison As the T-55 can view and process the core image it consistently achieves lower splice loss than simple cladding alignment splicers. 20 splice trial SUMITOMO T-55 Ave. 0. 01 d. B T-55 FSM-21 S VIEW 3 Fujikura FSM-21 S INNO VIEW 3 T-55 FSM-21 S VIEW 3 18/23 Ave. 0. 02 d. B Ave. 0. 03 d. B

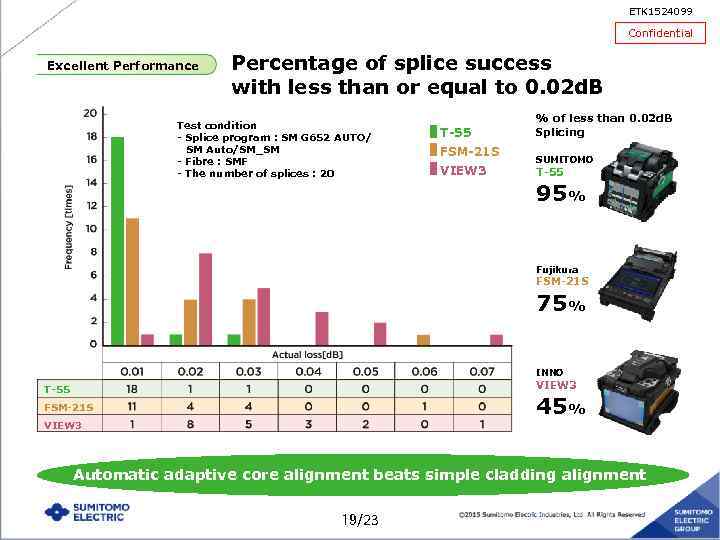

ETK 1524099 Confidential Excellent Performance Percentage of splice success with less than or equal to 0. 02 d. B Test condition - Splice program : SM G 652 AUTO/ SM Auto/SM_SM - Fibre : SMF - The number of splices : 20 T-55 FSM-21 S VIEW 3 % of less than 0. 02 d. B Splicing SUMITOMO T-55 95% Fujikura FSM-21 S 75% INNO VIEW 3 T-55 45% FSM-21 S VIEW 3 Automatic adaptive core alignment beats simple cladding alignment 19/23

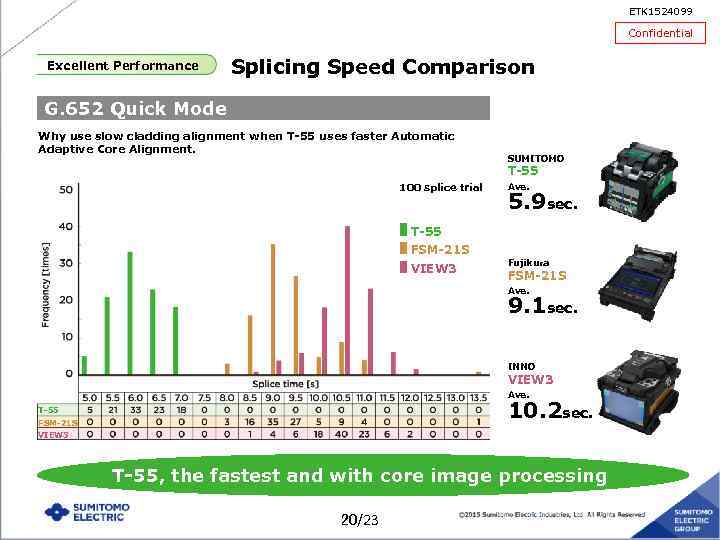

ETK 1524099 Confidential Excellent Performance Splicing Speed Comparison G. 652 Quick Mode Why use slow cladding alignment when T-55 uses faster Automatic Adaptive Core Alignment. SUMITOMO T-55 100 splice trial Ave. 5. 9 sec. T-55 FSM-21 S VIEW 3 Fujikura FSM-21 S Ave. 9. 1 sec. INNO VIEW 3 Ave. 10. 2 sec. T-55 FSM-21 S VIEW 3 T-55, the fastest and with core image processing 20/23

ETK 1524099 Confidential Excellent Performance Accurate Loss Estimate Comparison Sumitomo Splicers guide you in RIGHT direction. Other Splicer brands guide you NOWHERE. SUMITOMO Fujikura T-55 INNO FSM-21 S VIEW 3 Est. 0. 01 d. B Est. Actual 0. 08 d. B 0. 01 d. B Est. 0. 05 d. B Actual 0. 24 d. B Actual 0. 72 d. B Not telling you the truth 21/23

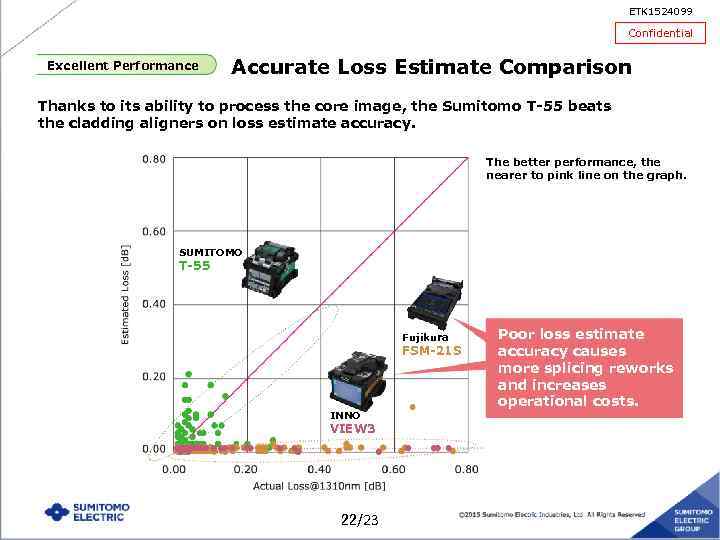

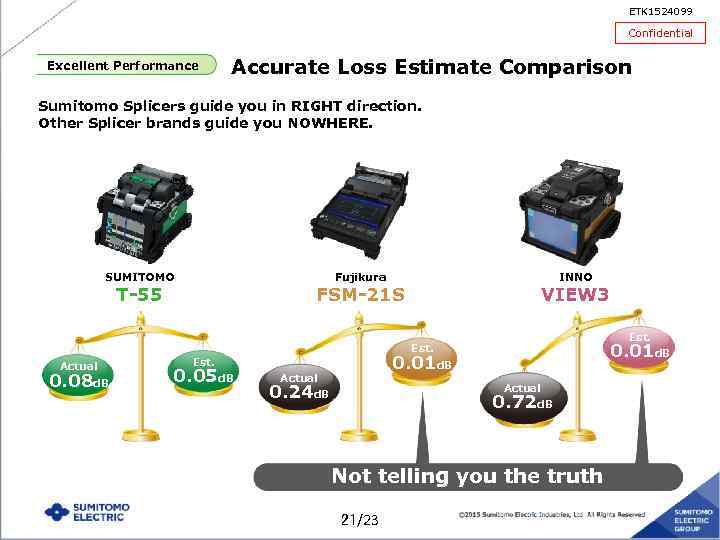

ETK 1524099 Confidential Excellent Performance Accurate Loss Estimate Comparison Thanks to its ability to process the core image, the Sumitomo T-55 beats the cladding aligners on loss estimate accuracy. The better performance, the nearer to pink line on the graph. SUMITOMO T-55 Fujikura FSM-21 S INNO VIEW 3 22/23 Poor loss estimate accuracy causes more splicing reworks and increases operational costs.

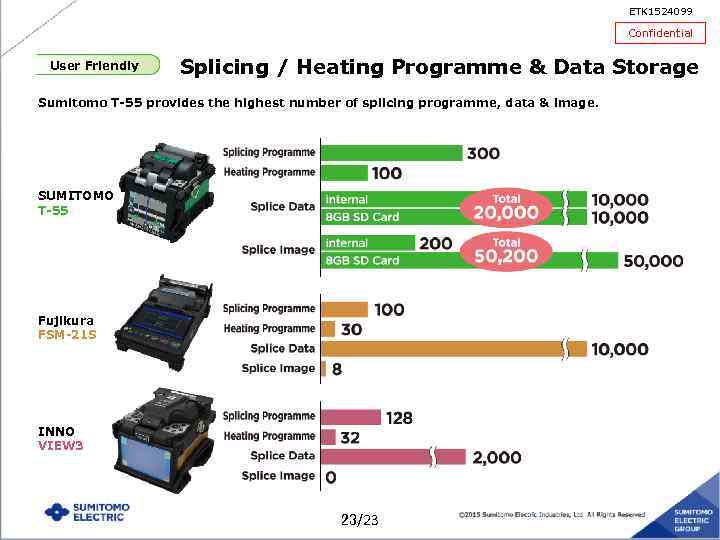

ETK 1524099 Confidential User Friendly Splicing / Heating Programme & Data Storage Sumitomo T-55 provides the highest number of splicing programme, data & image. SUMITOMO T-55 Fujikura FSM-21 S INNO VIEW 3 23/23
