Etiquette & Equity in Automated Aerospace Systems Kevin M. Corker Human Automation Integration Laboratory (HAIL) San Jose State University 11/15/02

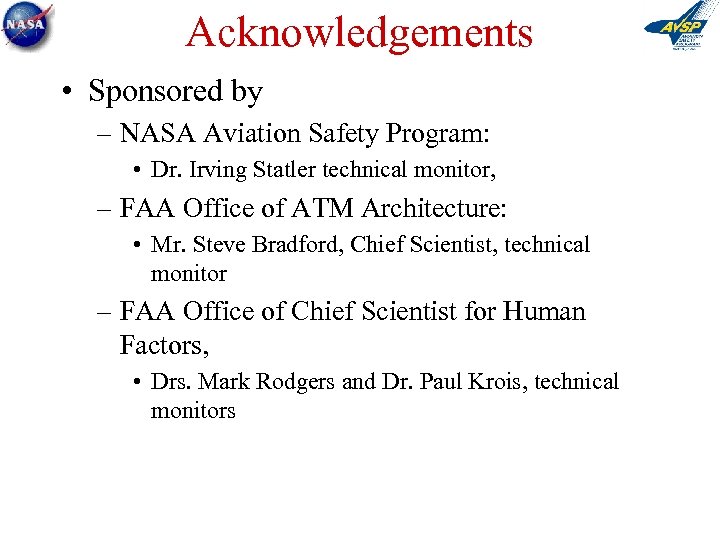

Acknowledgements • Sponsored by – NASA Aviation Safety Program: • Dr. Irving Statler technical monitor, – FAA Office of ATM Architecture: • Mr. Steve Bradford, Chief Scientist, technical monitor – FAA Office of Chief Scientist for Human Factors, • Drs. Mark Rodgers and Dr. Paul Krois, technical monitors

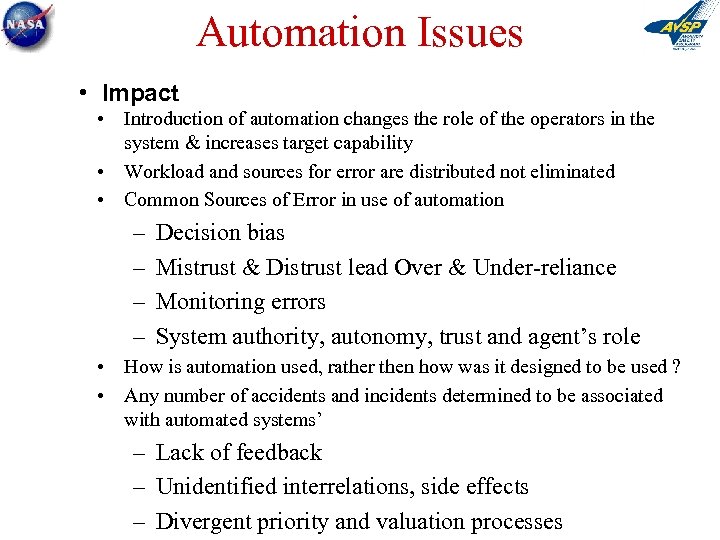

Automation Issues • Impact • Introduction of automation changes the role of the operators in the system & increases target capability • Workload and sources for error are distributed not eliminated • Common Sources of Error in use of automation – – Decision bias Mistrust & Distrust lead Over & Under-reliance Monitoring errors System authority, autonomy, trust and agent’s role • How is automation used, rather then how was it designed to be used ? • Any number of accidents and incidents determined to be associated with automated systems’ – Lack of feedback – Unidentified interrelations, side effects – Divergent priority and valuation processes

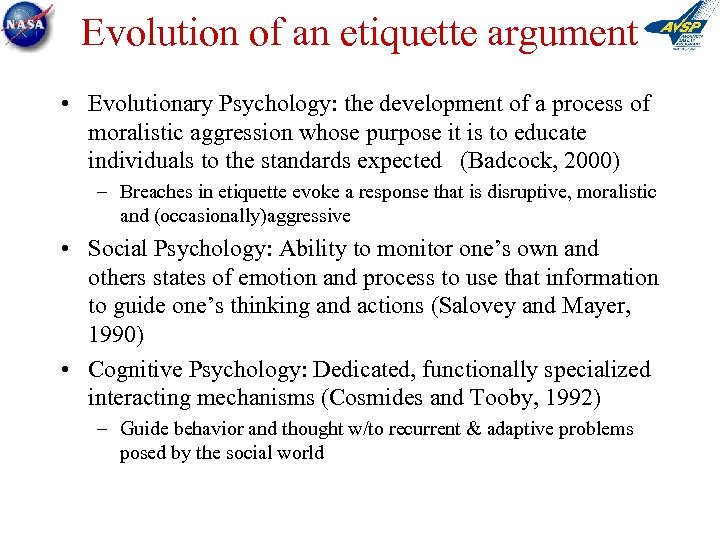

Evolution of an etiquette argument • Evolutionary Psychology: the development of a process of moralistic aggression whose purpose it is to educate individuals to the standards expected (Badcock, 2000) – Breaches in etiquette evoke a response that is disruptive, moralistic and (occasionally)aggressive • Social Psychology: Ability to monitor one’s own and others states of emotion and process to use that information to guide one’s thinking and actions (Salovey and Mayer, 1990) • Cognitive Psychology: Dedicated, functionally specialized interacting mechanisms (Cosmides and Tooby, 1992) – Guide behavior and thought w/to recurrent & adaptive problems posed by the social world

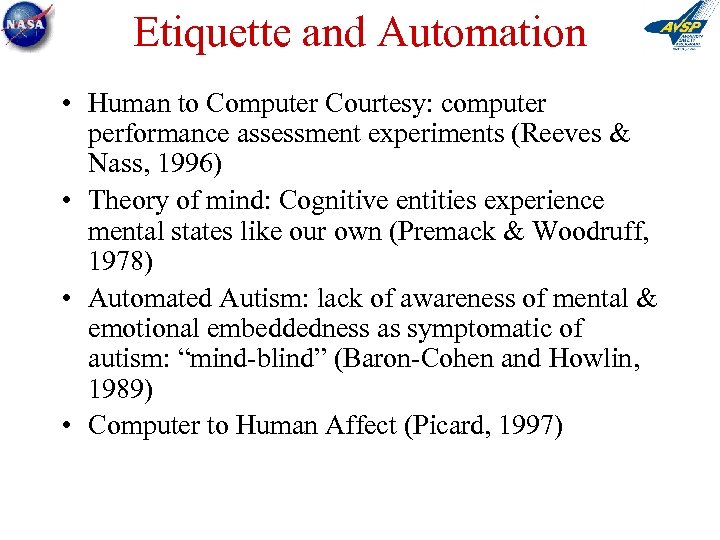

Etiquette and Automation • Human to Computer Courtesy: computer performance assessment experiments (Reeves & Nass, 1996) • Theory of mind: Cognitive entities experience mental states like our own (Premack & Woodruff, 1978) • Automated Autism: lack of awareness of mental & emotional embeddedness as symptomatic of autism: “mind-blind” (Baron-Cohen and Howlin, 1989) • Computer to Human Affect (Picard, 1997)

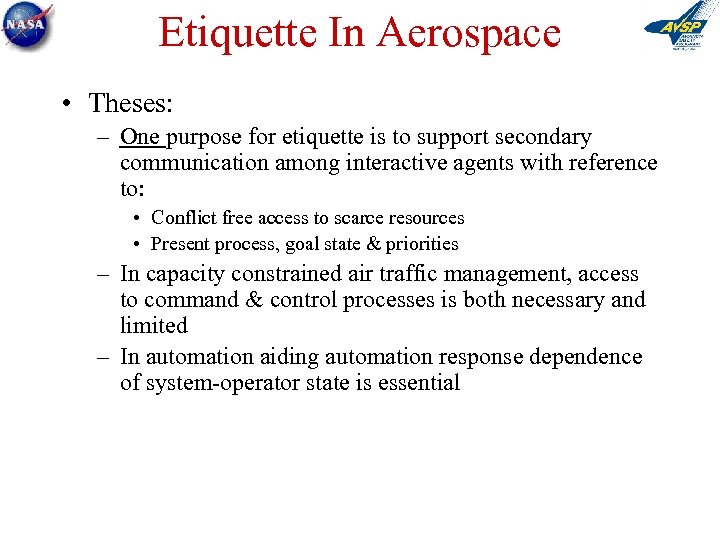

Etiquette In Aerospace • Theses: – One purpose for etiquette is to support secondary communication among interactive agents with reference to: • Conflict free access to scarce resources • Present process, goal state & priorities – In capacity constrained air traffic management, access to command & control processes is both necessary and limited – In automation aiding automation response dependence of system-operator state is essential

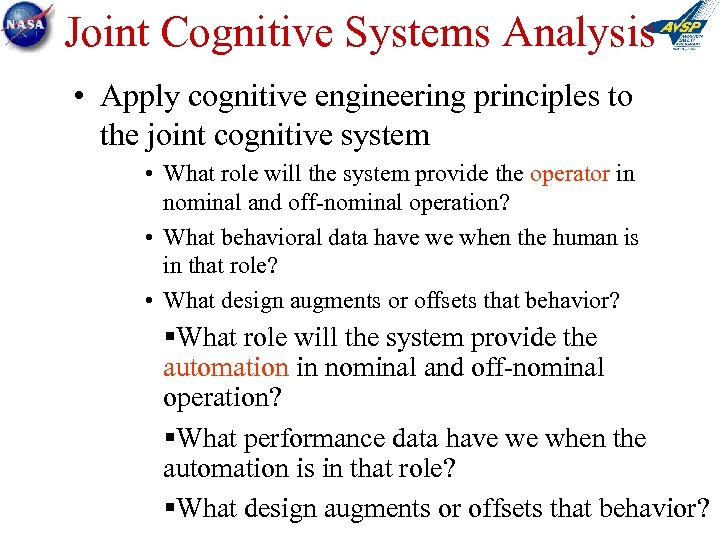

Joint Cognitive Systems Analysis • Apply cognitive engineering principles to the joint cognitive system • What role will the system provide the operator in nominal and off-nominal operation? • What behavioral data have we when the human is in that role? • What design augments or offsets that behavior? §What role will the system provide the automation in nominal and off-nominal operation? §What performance data have we when the automation is in that role? §What design augments or offsets that behavior?

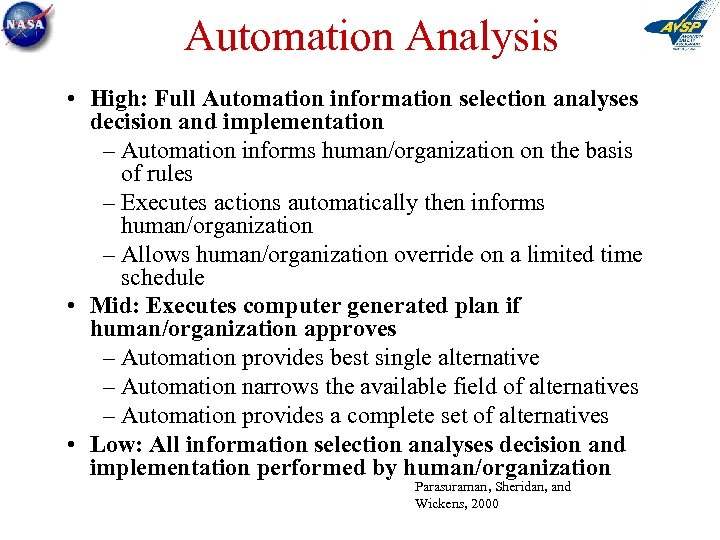

Automation Analysis • High: Full Automation information selection analyses decision and implementation – Automation informs human/organization on the basis of rules – Executes actions automatically then informs human/organization – Allows human/organization override on a limited time schedule • Mid: Executes computer generated plan if human/organization approves – Automation provides best single alternative – Automation narrows the available field of alternatives – Automation provides a complete set of alternatives • Low: All information selection analyses decision and implementation performed by human/organization Parasuraman, Sheridan, and Wickens, 2000

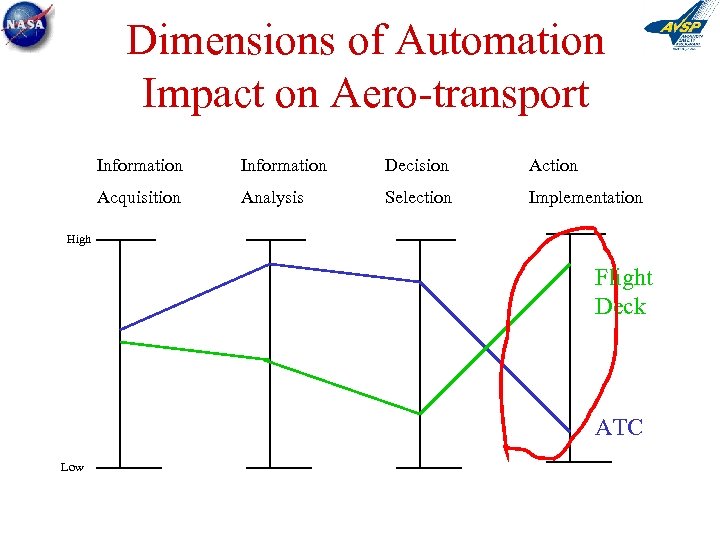

Dimensions of Automation Impact on Aero-transport Information Decision Action Acquisition Analysis Selection Implementation High Flight Deck ATC Low

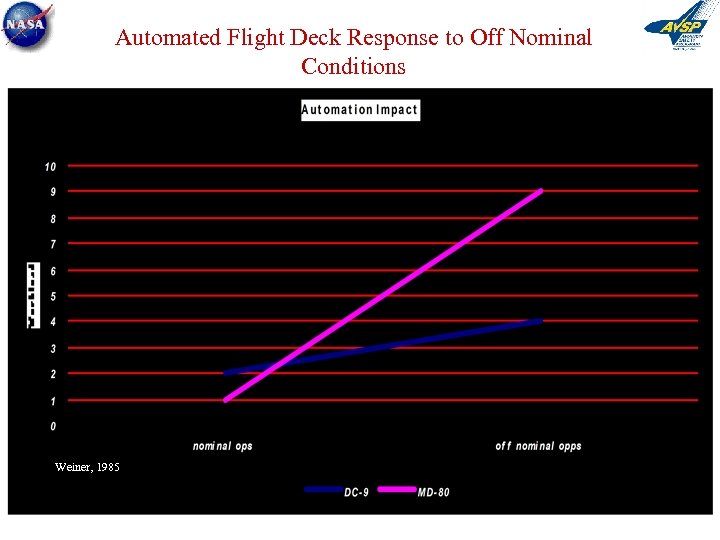

Automated Flight Deck Response to Off Nominal Conditions Weiner, 1985

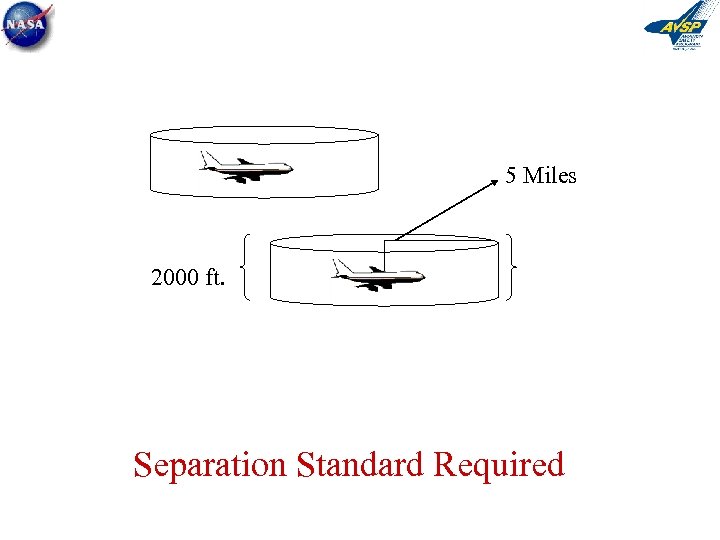

5 Miles 2000 ft. Separation Standard Required

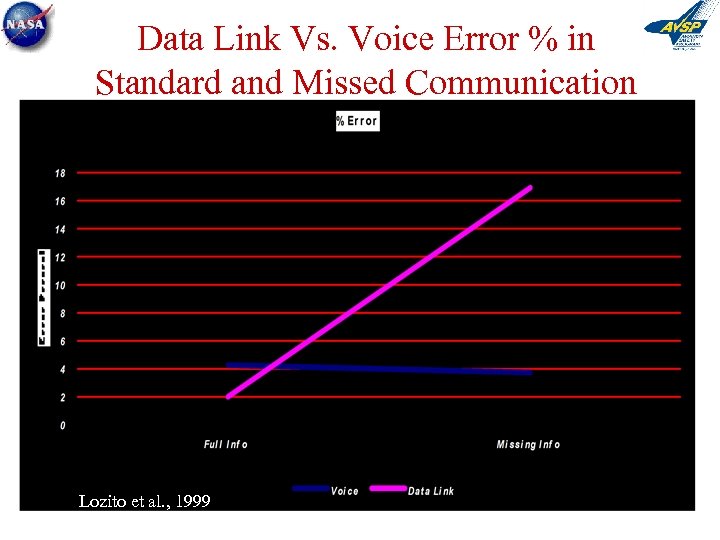

Data Link Vs. Voice Error % in Standard and Missed Communication Lozito et al. , 1999

Data vs. Voice Communication Time In Clarification Lozito et al. , 1999

Automation Aiding System • Present Flight Data in Digital Form • Provide an “exploration” capability for alternative flight paths • Provide conflict prediction based on trajectory synthesis (20 min look ahead) – Current flight path as filed and radar track – Planned Flight Path • Flight Deck Aiding System (60 -40 sec look ahead)

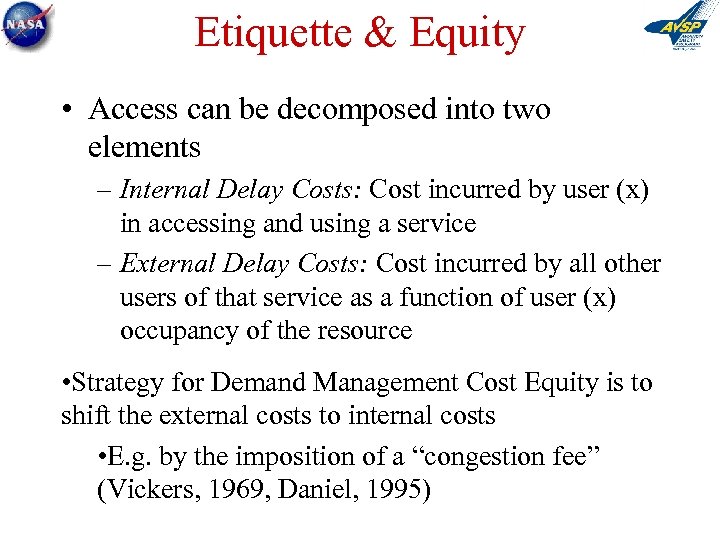

Etiquette & Equity • Access can be decomposed into two elements – Internal Delay Costs: Cost incurred by user (x) in accessing and using a service – External Delay Costs: Cost incurred by all other users of that service as a function of user (x) occupancy of the resource • Strategy for Demand Management Cost Equity is to shift the external costs to internal costs • E. g. by the imposition of a “congestion fee” (Vickers, 1969, Daniel, 1995)

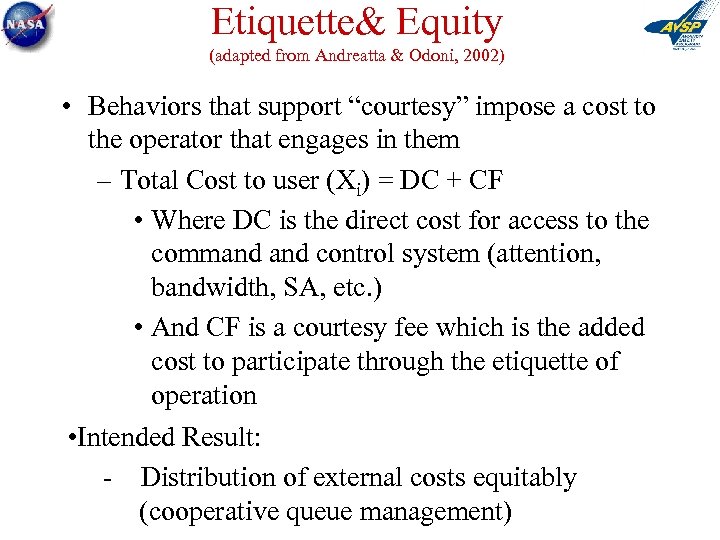

Etiquette& Equity (adapted from Andreatta & Odoni, 2002) • Behaviors that support “courtesy” impose a cost to the operator that engages in them – Total Cost to user (Xi) = DC + CF • Where DC is the direct cost for access to the command control system (attention, bandwidth, SA, etc. ) • And CF is a courtesy fee which is the added cost to participate through the etiquette of operation • Intended Result: - Distribution of external costs equitably (cooperative queue management)

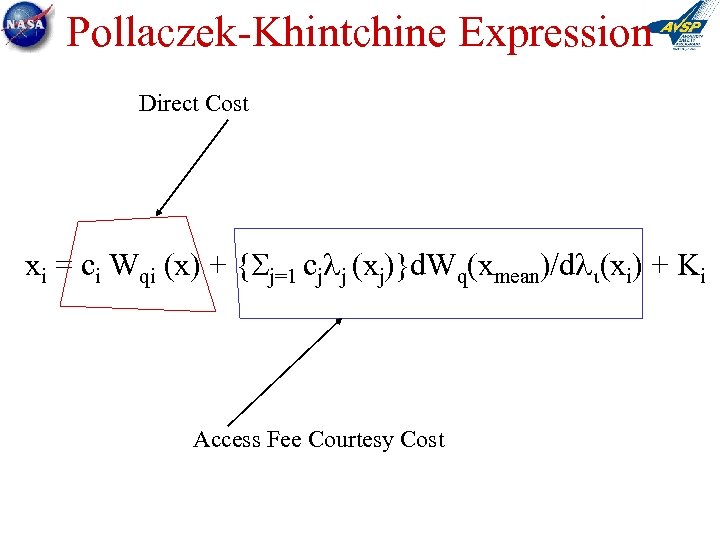

Pollaczek-Khintchine Expression Direct Cost xi = ci Wqi (x) + {Sj=1 cjlj (xj)}d. Wq(xmean)/dli(xi) + Ki Access Fee Courtesy Cost

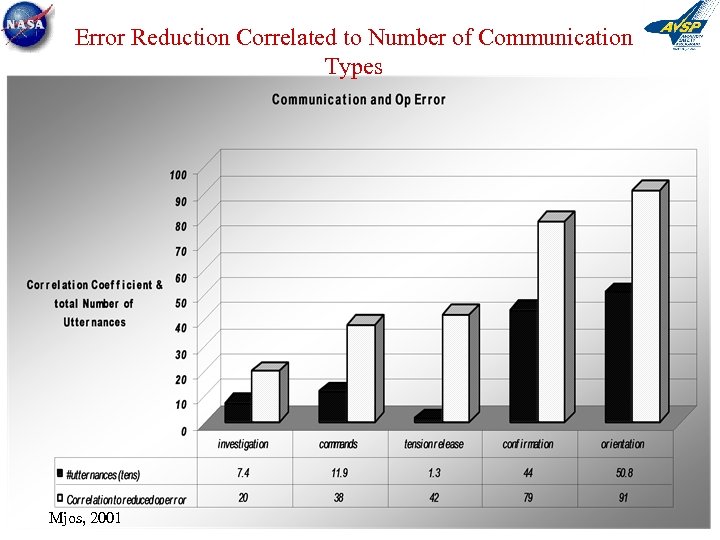

Error Reduction Correlated to Number of Communication Types Mjos, 2001

Etiquette and Aerospace Systems • Current automated ATM systems do not support “etiquette functions” in human interaction – Communication is asynchronous, loop closure is delayed (e. g. digital data link) – Contract State Assurance is missing (“shot clock” and “flash & dash” procedures) – Queue Management Functions are missing – Mechanisms for mediation are “clumsy” (data link “stand-by” message) – Automation is blind to system-operator state • Hypothesized Result: Class of error & Response under load

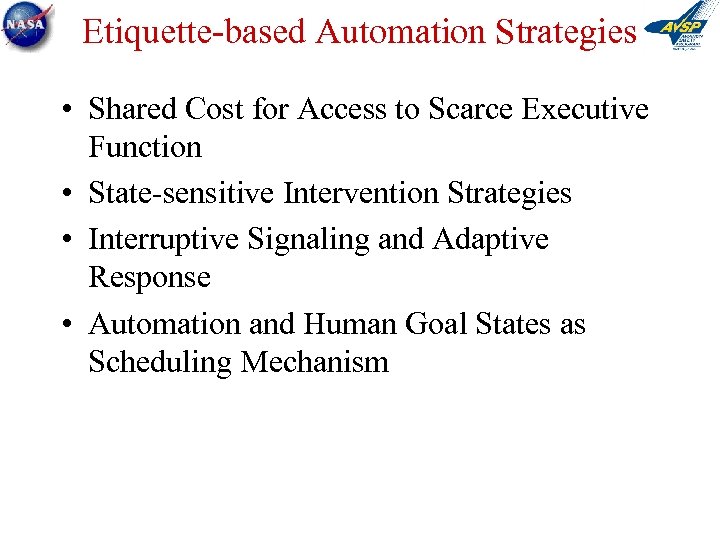

Etiquette-based Automation Strategies • Shared Cost for Access to Scarce Executive Function • State-sensitive Intervention Strategies • Interruptive Signaling and Adaptive Response • Automation and Human Goal States as Scheduling Mechanism
