Essential Rhapsody in C Part Two Case Study

Essential Rhapsody in C++ Part Two Case Study 1 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Case Study : Cash Register 2 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

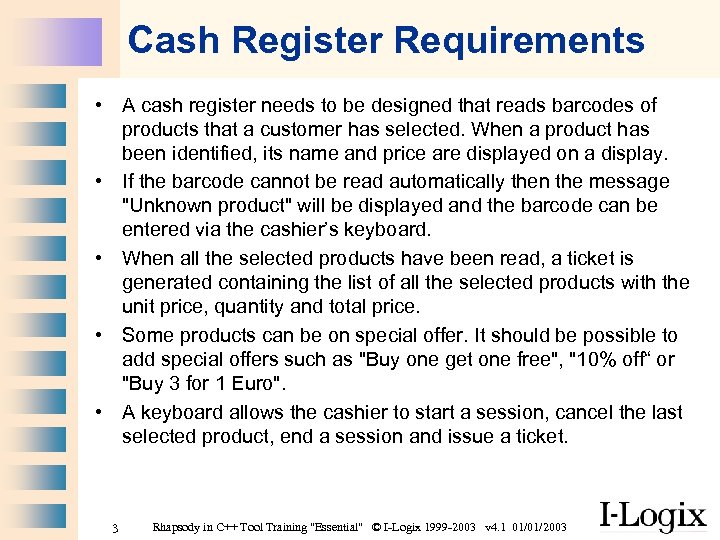

Cash Register Requirements • A cash register needs to be designed that reads barcodes of products that a customer has selected. When a product has been identified, its name and price are displayed on a display. • If the barcode cannot be read automatically then the message "Unknown product" will be displayed and the barcode can be entered via the cashier’s keyboard. • When all the selected products have been read, a ticket is generated containing the list of all the selected products with the unit price, quantity and total price. • Some products can be on special offer. It should be possible to add special offers such as "Buy one get one free", "10% off“ or "Buy 3 for 1 Euro". • A keyboard allows the cashier to start a session, cancel the last selected product, end a session and issue a ticket. 3 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Part Two Case Study Use Case Analysis 4 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

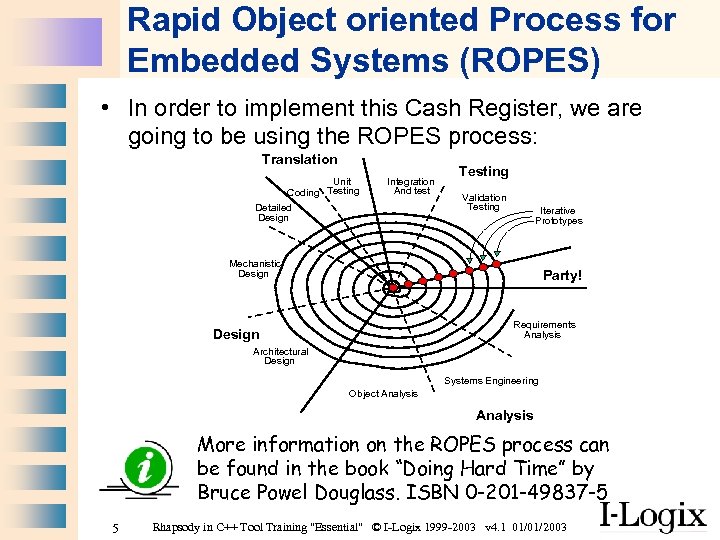

Rapid Object oriented Process for Embedded Systems (ROPES) • In order to implement this Cash Register, we are going to be using the ROPES process: Translation Unit Coding Testing Integration And test Detailed Design Testing Validation Testing Iterative Prototypes Mechanistic Design Party! Requirements Analysis Design Architectural Design Systems Engineering Object Analysis More information on the ROPES process can be found in the book “Doing Hard Time” by Bruce Powel Douglass. ISBN 0 -201 -49837 -5 5 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

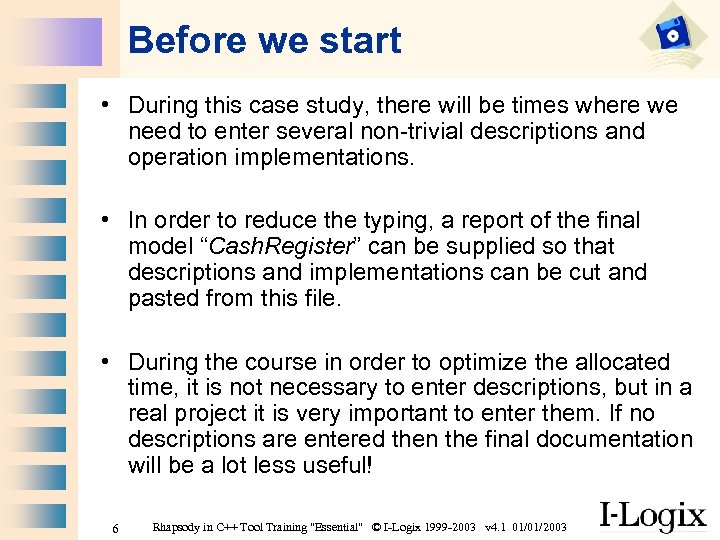

Before we start • During this case study, there will be times where we need to enter several non-trivial descriptions and operation implementations. • In order to reduce the typing, a report of the final model “Cash. Register” can be supplied so that descriptions and implementations can be cut and pasted from this file. • During the course in order to optimize the allocated time, it is not necessary to enter descriptions, but in a real project it is very important to enter them. If no descriptions are entered then the final documentation will be a lot less useful! 6 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

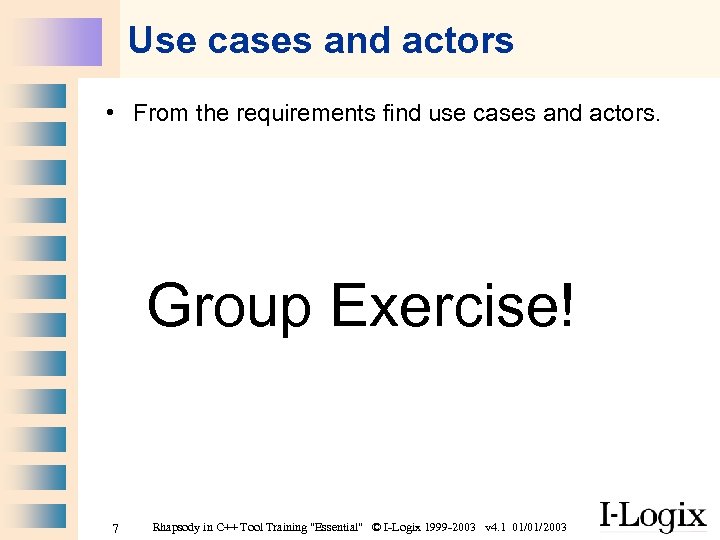

Use cases and actors • From the requirements find use cases and actors. Group Exercise! 7 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

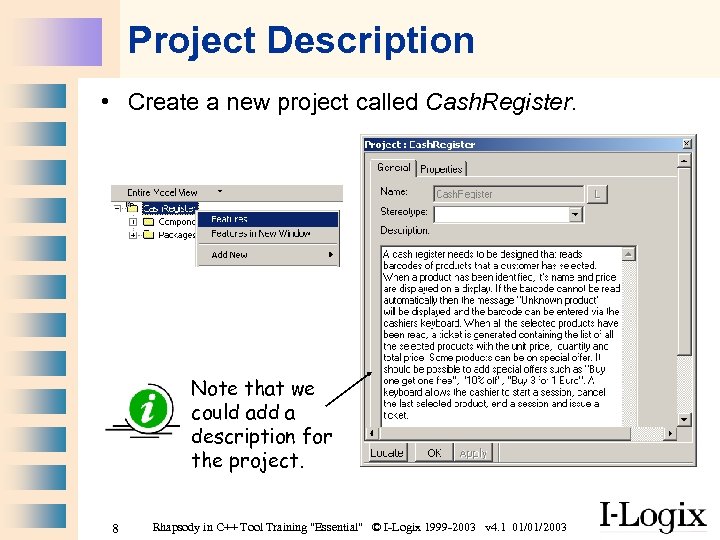

Project Description • Create a new project called Cash. Register. Note that we could add a description for the project. 8 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Hyperlinks • We could also add hyperlinks into our description in order to reference external documents or web pages: 9 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

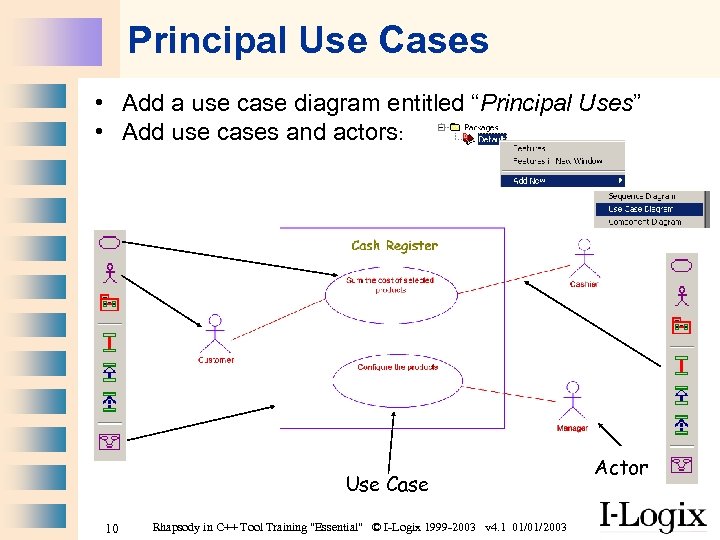

Principal Use Cases • Add a use case diagram entitled “Principal Uses” • Add use cases and actors: Use Case 10 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003 Actor

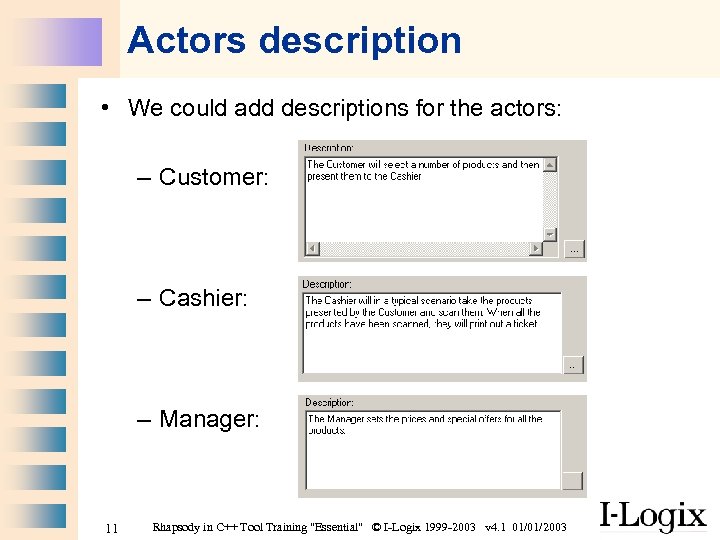

Actors description • We could add descriptions for the actors: – Customer: – Cashier: – Manager: 11 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

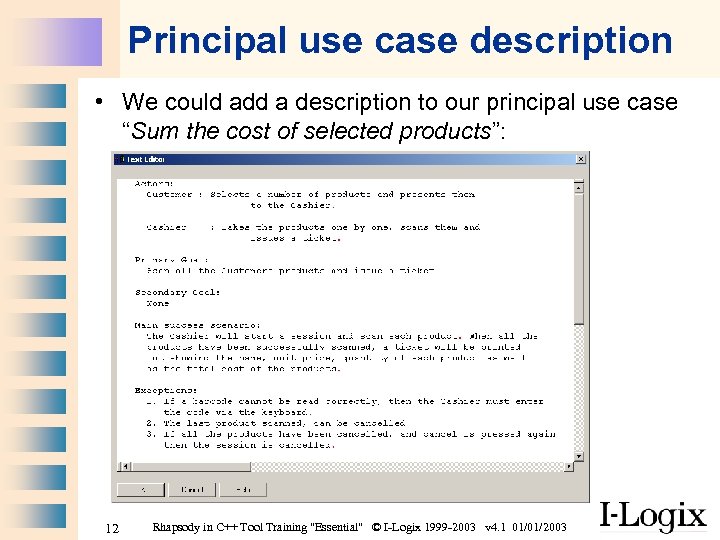

Principal use case description • We could add a description to our principal use case “Sum the cost of selected products”: 12 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

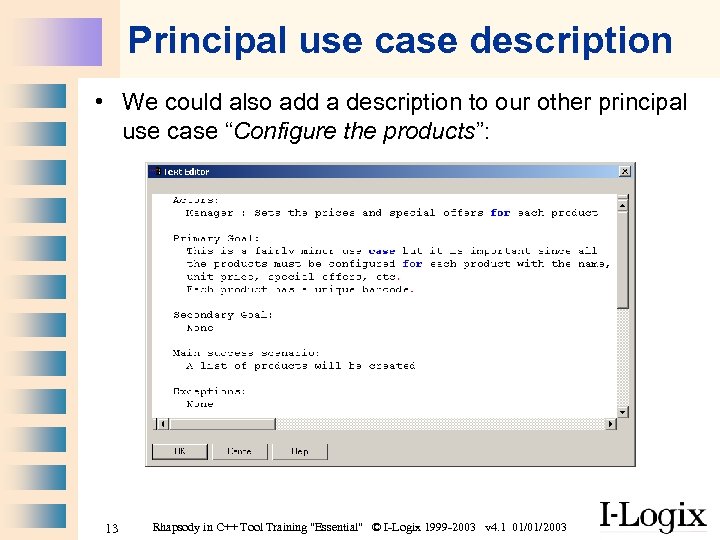

Principal use case description • We could also add a description to our other principal use case “Configure the products”: 13 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

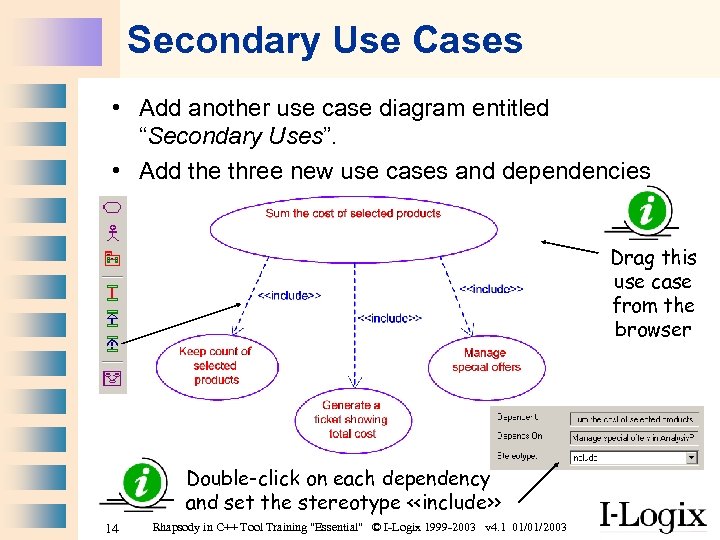

Secondary Use Cases • Add another use case diagram entitled “Secondary Uses”. • Add the three new use cases and dependencies Drag this use case from the browser Double-click on each dependency and set the stereotype <> 14 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

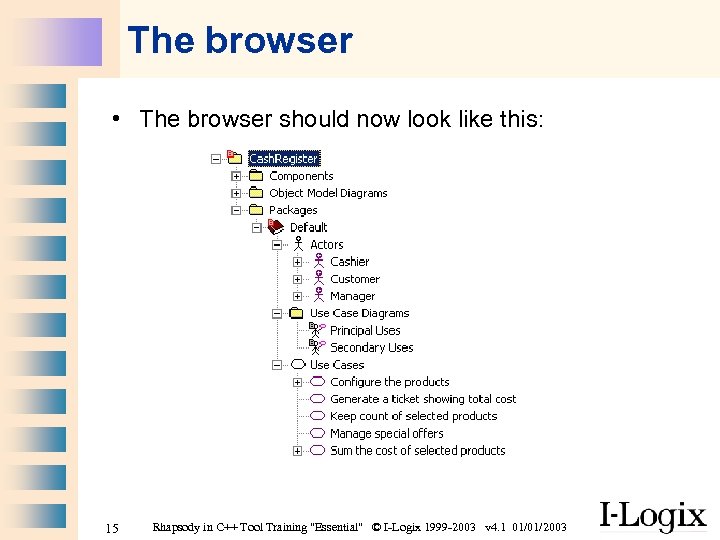

The browser • The browser should now look like this: 15 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

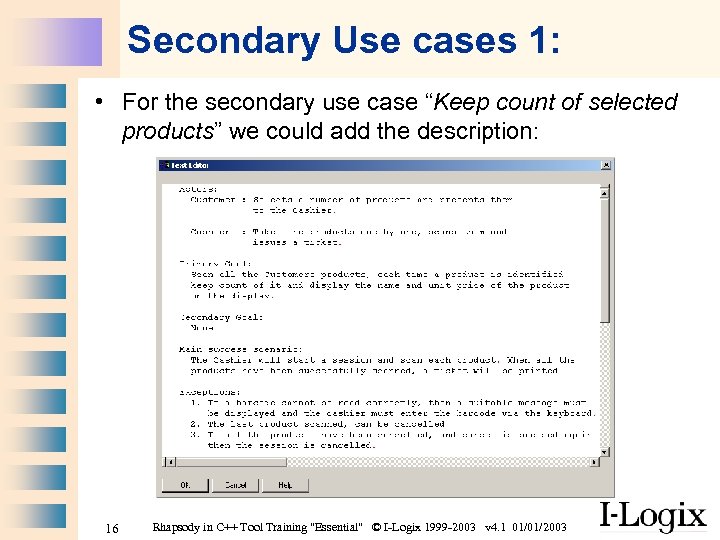

Secondary Use cases 1: • For the secondary use case “Keep count of selected products” we could add the description: 16 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

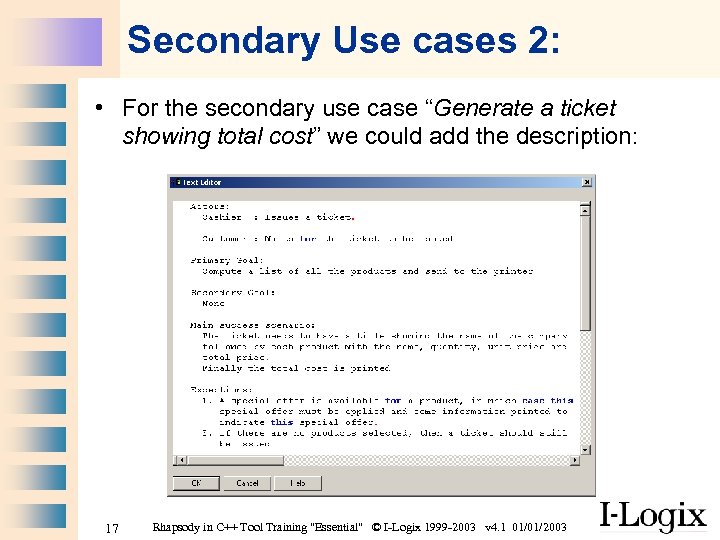

Secondary Use cases 2: • For the secondary use case “Generate a ticket showing total cost” we could add the description: 17 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

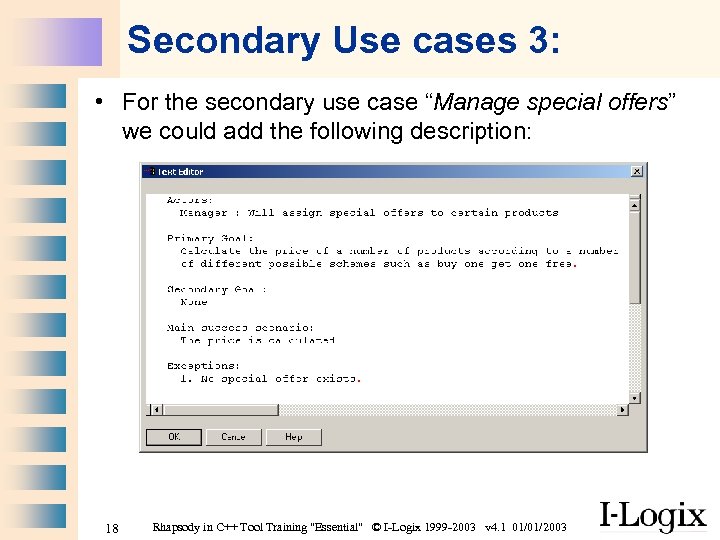

Secondary Use cases 3: • For the secondary use case “Manage special offers” we could add the following description: 18 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

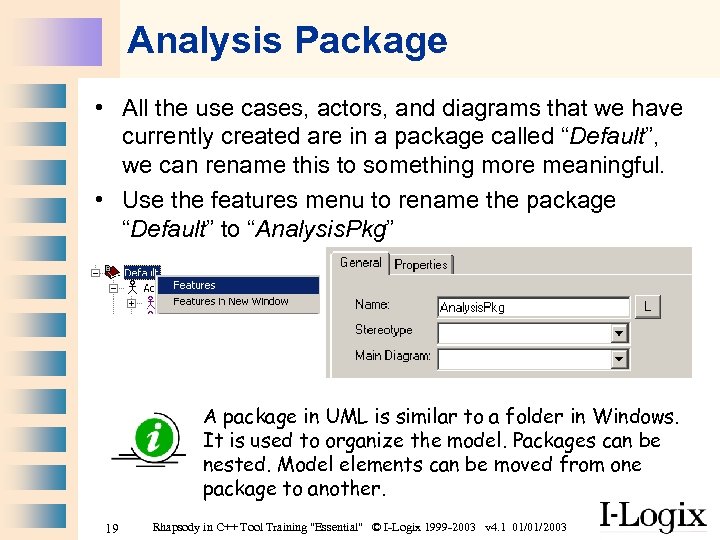

Analysis Package • All the use cases, actors, and diagrams that we have currently created are in a package called “Default”, we can rename this to something more meaningful. • Use the features menu to rename the package “Default” to “Analysis. Pkg” A package in UML is similar to a folder in Windows. It is used to organize the model. Packages can be nested. Model elements can be moved from one package to another. 19 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

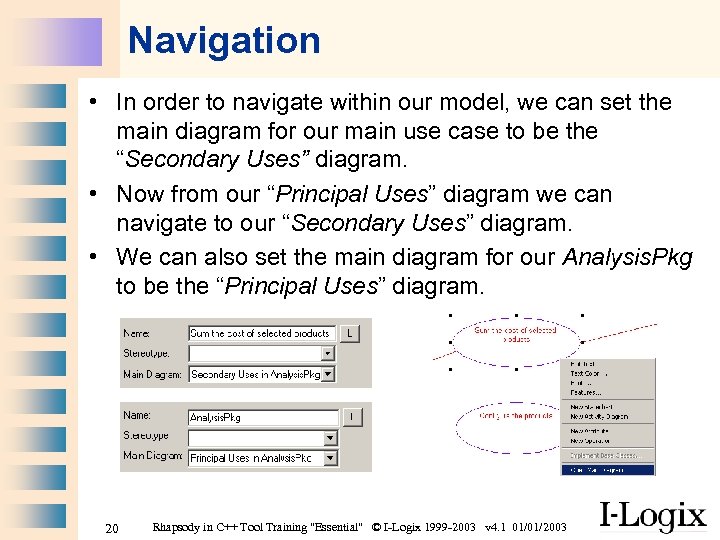

Navigation • In order to navigate within our model, we can set the main diagram for our main use case to be the “Secondary Uses” diagram. • Now from our “Principal Uses” diagram we can navigate to our “Secondary Uses” diagram. • We can also set the main diagram for our Analysis. Pkg to be the “Principal Uses” diagram. 20 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Part Two Case Study Finding Objects 21 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Brainstorming to find objects • Spend a few minutes and come up with a list of possible objects: • Find some classes and a short description for each one about their responsibility • Think about possible relations between these classes • Should we use generalization? • Are any classes reactive? • Are any classes active? Group Exercise! 22 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

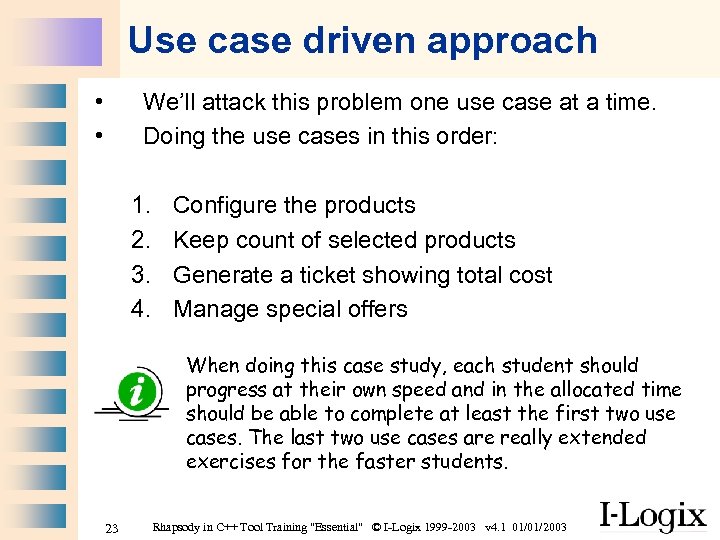

Use case driven approach • • We’ll attack this problem one use case at a time. Doing the use cases in this order: 1. 2. 3. 4. Configure the products Keep count of selected products Generate a ticket showing total cost Manage special offers When doing this case study, each student should progress at their own speed and in the allocated time should be able to complete at least the first two use cases. The last two use cases are really extended exercises for the faster students. 23 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

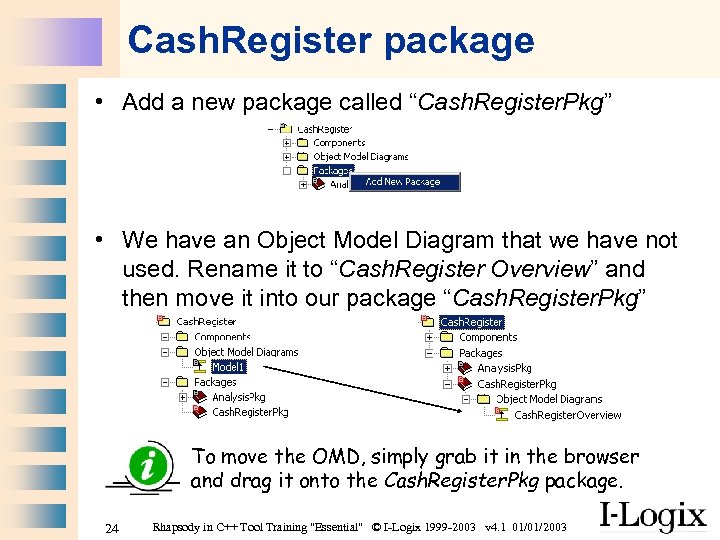

Cash. Register package • Add a new package called “Cash. Register. Pkg” • We have an Object Model Diagram that we have not used. Rename it to “Cash. Register Overview” and then move it into our package “Cash. Register. Pkg” To move the OMD, simply grab it in the browser and drag it onto the Cash. Register. Pkg package. 24 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Cash. Register Overview • Add classes and directed relations to the “Cash. Register Overview” OMD. Note multiplicity * (many) Use the Show option in the relation features window for the Role name 25 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

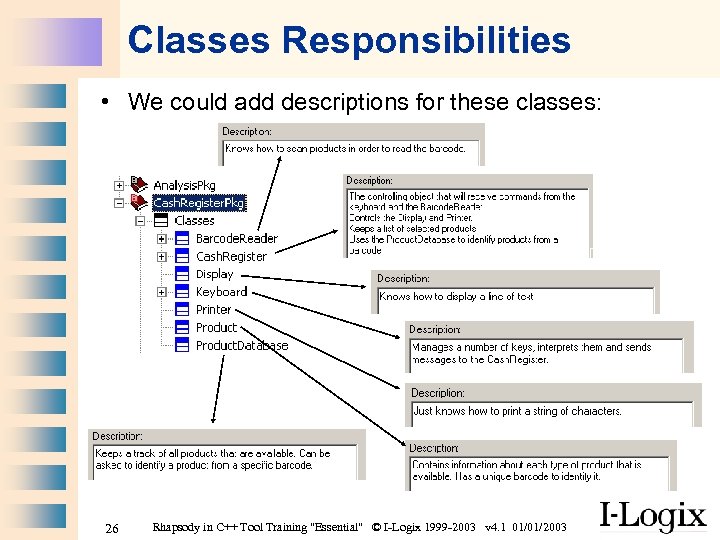

Classes Responsibilities • We could add descriptions for these classes: 26 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Part Two Use Case 1 “Configure the products” 27 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

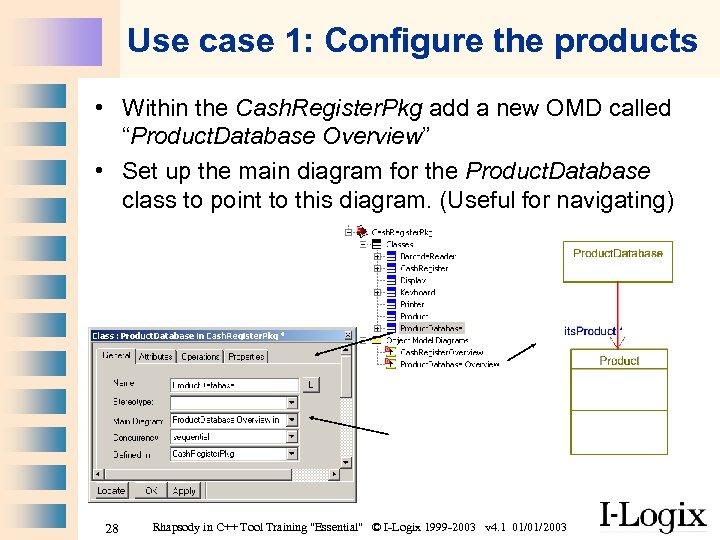

Use case 1: Configure the products • Within the Cash. Register. Pkg add a new OMD called “Product. Database Overview” • Set up the main diagram for the Product. Database class to point to this diagram. (Useful for navigating) 28 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

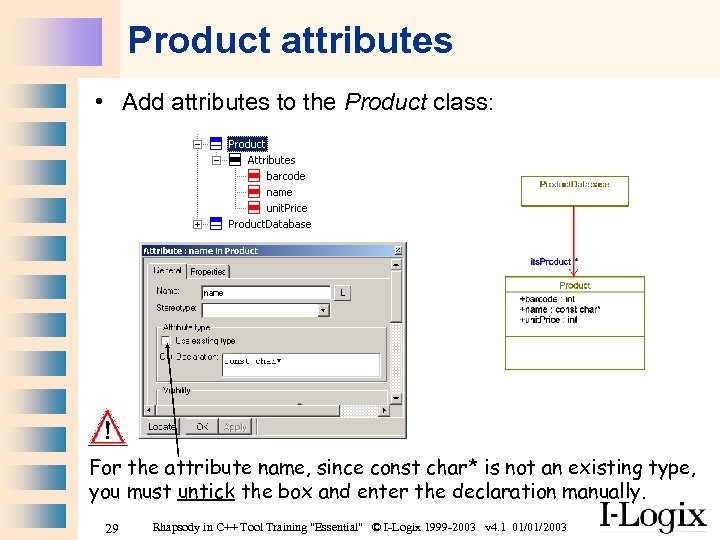

Product attributes • Add attributes to the Product class: For the attribute name, since const char* is not an existing type, you must untick the box and enter the declaration manually. 29 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

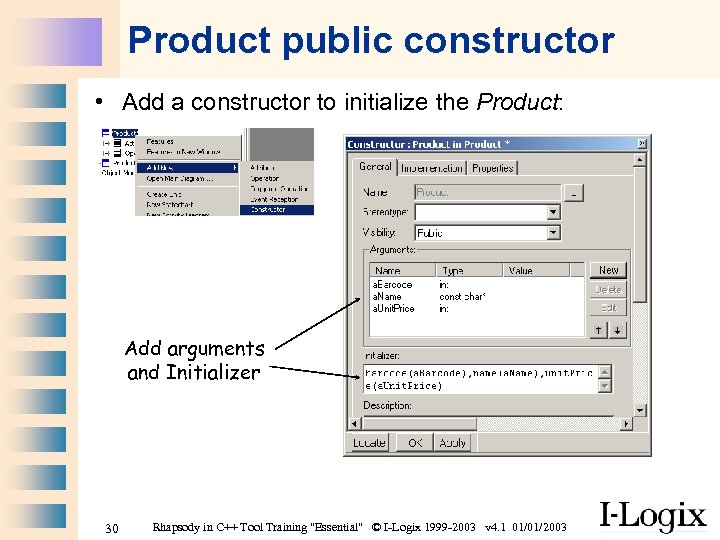

Product public constructor • Add a constructor to initialize the Product: Add arguments and Initializer 30 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

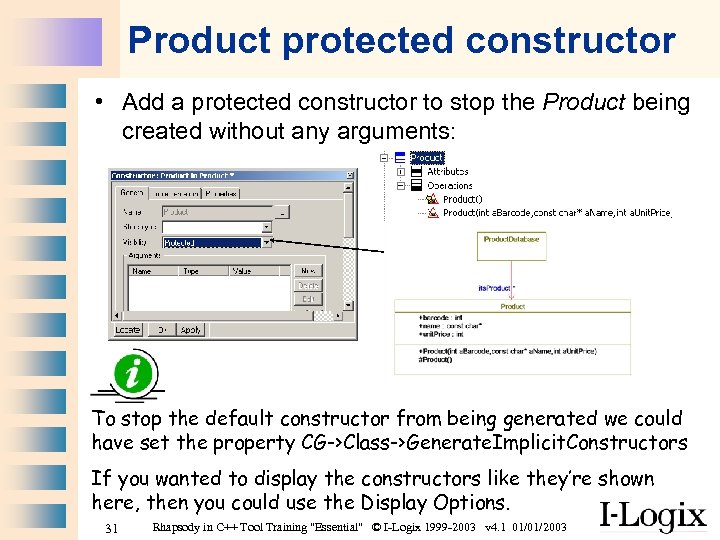

Product protected constructor • Add a protected constructor to stop the Product being created without any arguments: To stop the default constructor from being generated we could have set the property CG->Class->Generate. Implicit. Constructors If you wanted to display the constructors like they’re shown here, then you could use the Display Options. 31 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

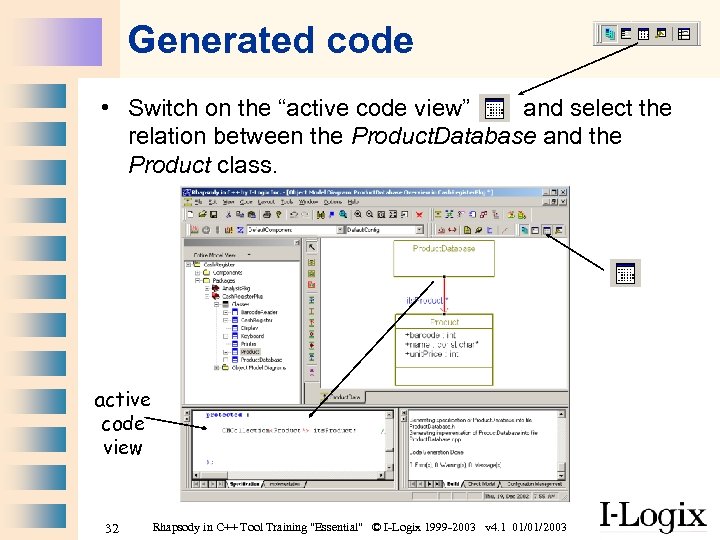

Generated code • Switch on the “active code view” and select the relation between the Product. Database and the Product class. active code view 32 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

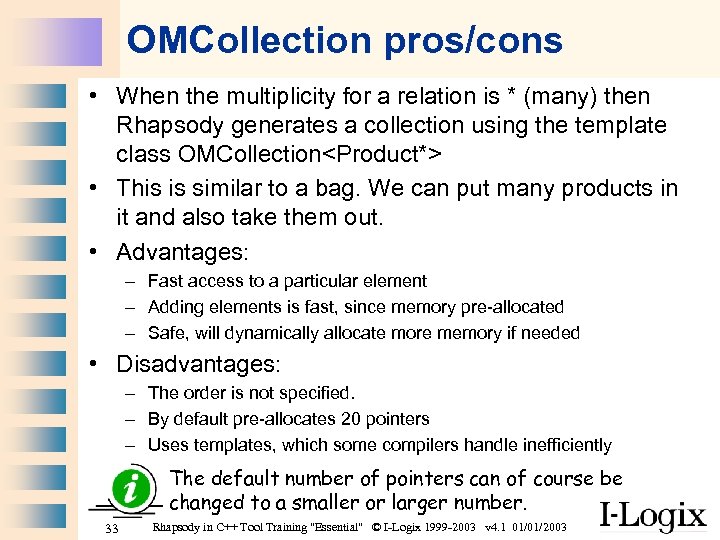

OMCollection pros/cons • When the multiplicity for a relation is * (many) then Rhapsody generates a collection using the template class OMCollection • This is similar to a bag. We can put many products in it and also take them out. • Advantages: – Fast access to a particular element – Adding elements is fast, since memory pre-allocated – Safe, will dynamically allocate more memory if needed • Disadvantages: – The order is not specified. – By default pre-allocates 20 pointers – Uses templates, which some compilers handle inefficiently The default number of pointers can of course be changed to a smaller or larger number. 33 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

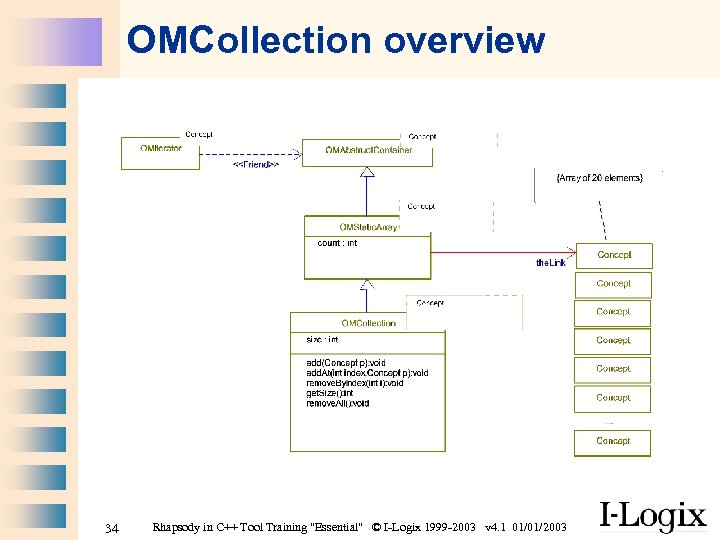

OMCollection overview 34 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Ordered property • Set the Ordered property for the relation to True. 35 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

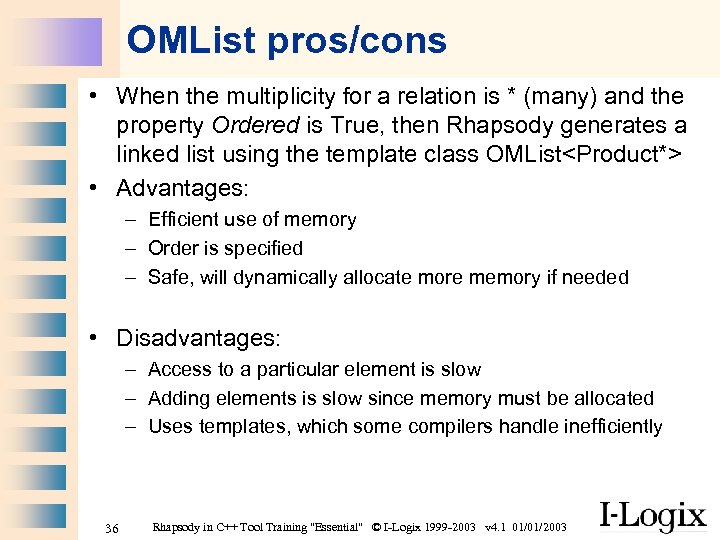

OMList pros/cons • When the multiplicity for a relation is * (many) and the property Ordered is True, then Rhapsody generates a linked list using the template class OMList • Advantages: – Efficient use of memory – Order is specified – Safe, will dynamically allocate more memory if needed • Disadvantages: – Access to a particular element is slow – Adding elements is slow since memory must be allocated – Uses templates, which some compilers handle inefficiently 36 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

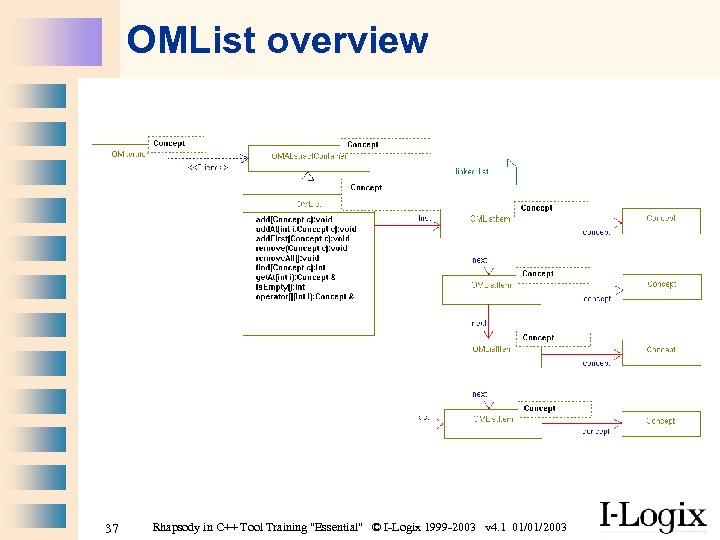

OMList overview 37 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

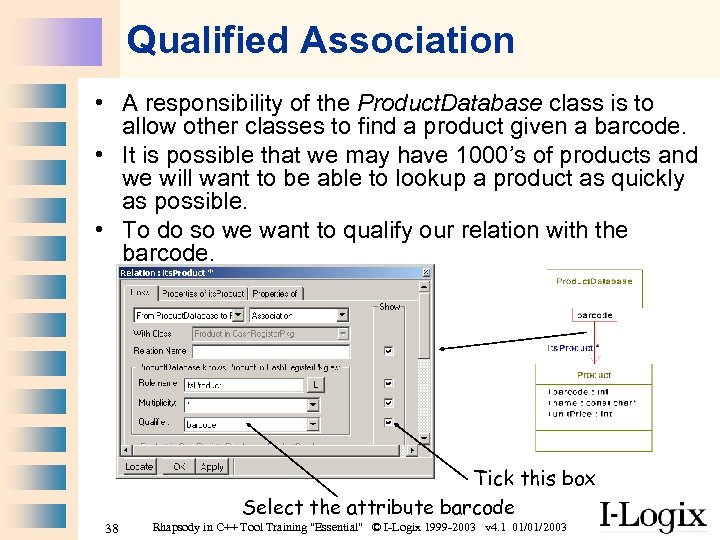

Qualified Association • A responsibility of the Product. Database class is to allow other classes to find a product given a barcode. • It is possible that we may have 1000’s of products and we will want to be able to lookup a product as quickly as possible. • To do so we want to qualify our relation with the barcode. Tick this box Select the attribute barcode 38 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

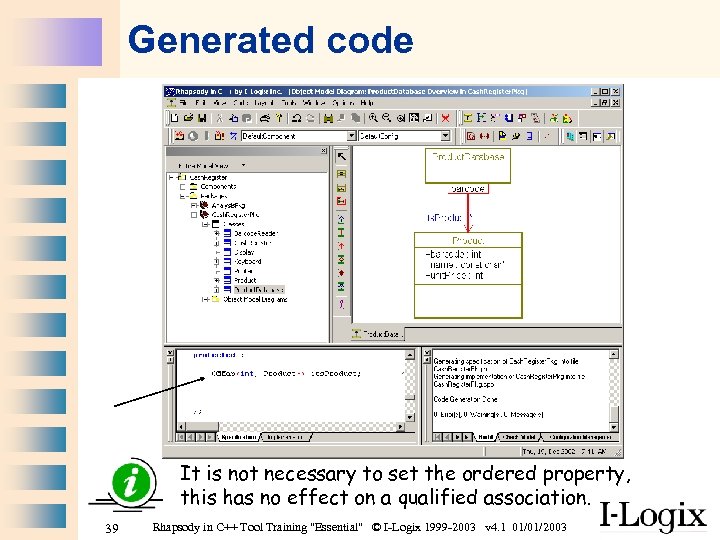

Generated code It is not necessary to set the ordered property, this has no effect on a qualified association. 39 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

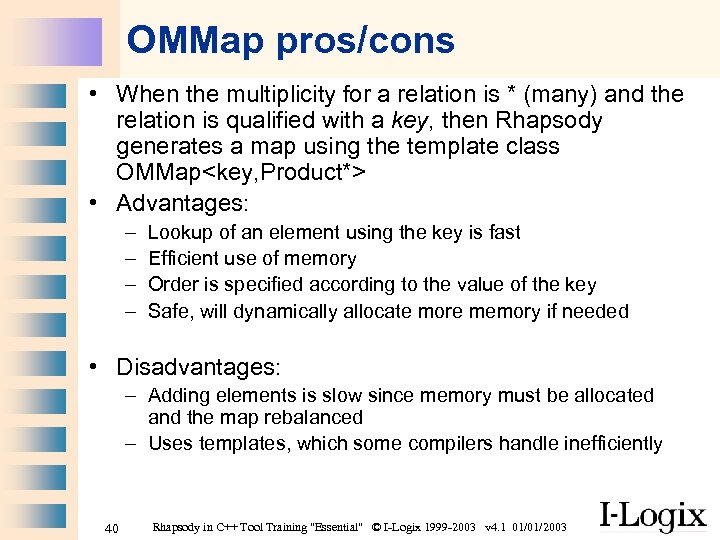

OMMap pros/cons • When the multiplicity for a relation is * (many) and the relation is qualified with a key, then Rhapsody generates a map using the template class OMMap • Advantages: – – Lookup of an element using the key is fast Efficient use of memory Order is specified according to the value of the key Safe, will dynamically allocate more memory if needed • Disadvantages: – Adding elements is slow since memory must be allocated and the map rebalanced – Uses templates, which some compilers handle inefficiently 40 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

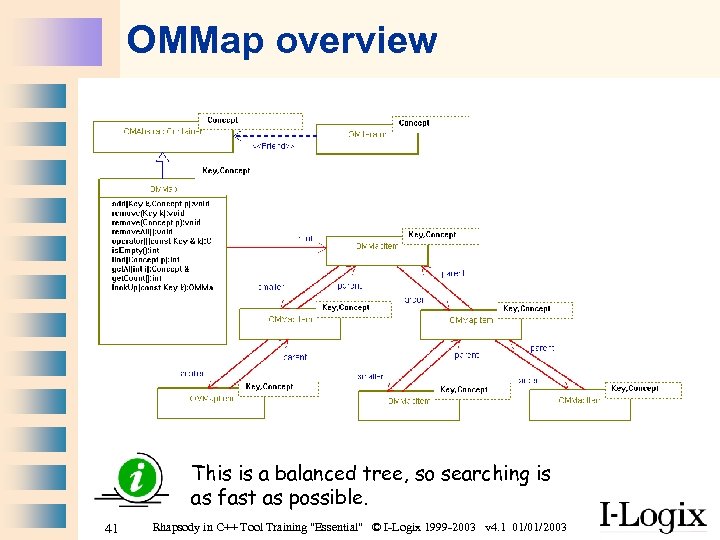

OMMap overview This is a balanced tree, so searching is as fast as possible. 41 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

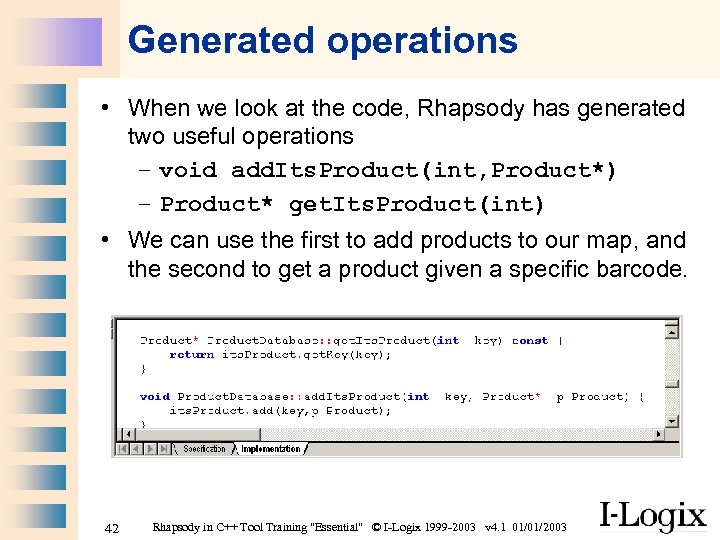

Generated operations • When we look at the code, Rhapsody has generated two useful operations – void add. Its. Product(int, Product*) – Product* get. Its. Product(int) • We can use the first to add products to our map, and the second to get a product given a specific barcode. 42 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

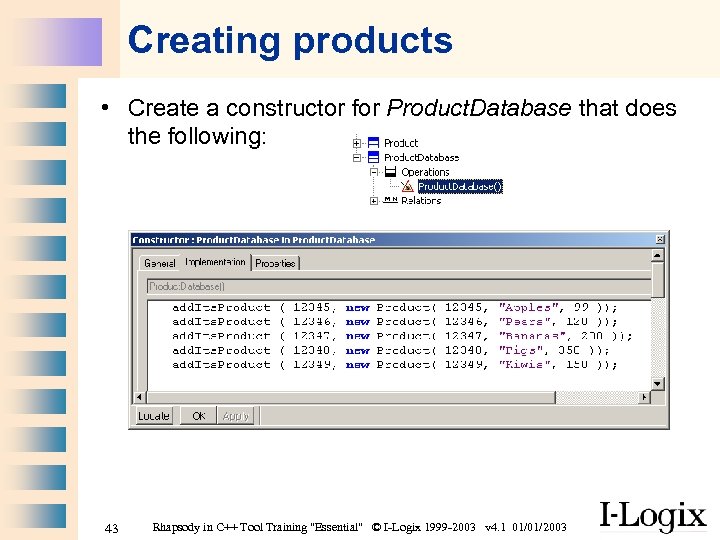

Creating products • Create a constructor for Product. Database that does the following: 43 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

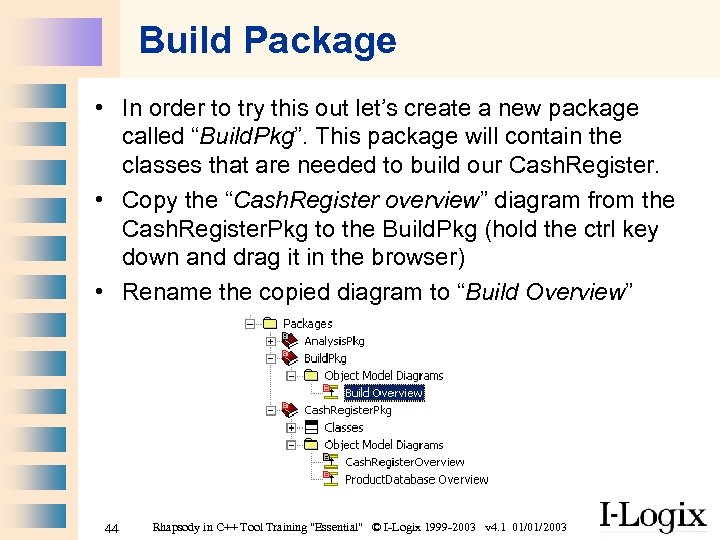

Build Package • In order to try this out let’s create a new package called “Build. Pkg”. This package will contain the classes that are needed to build our Cash. Register. • Copy the “Cash. Register overview” diagram from the Cash. Register. Pkg to the Build. Pkg (hold the ctrl key down and drag it in the browser) • Rename the copied diagram to “Build Overview” 44 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

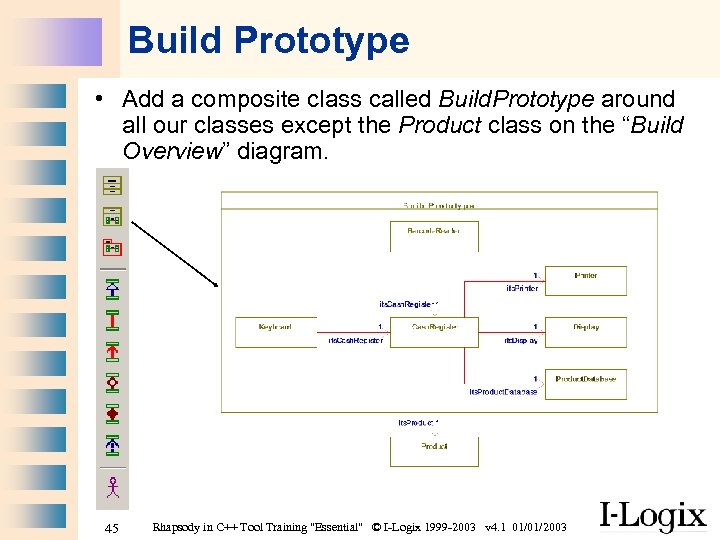

Build Prototype • Add a composite class called Build. Prototype around all our classes except the Product class on the “Build Overview” diagram. 45 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

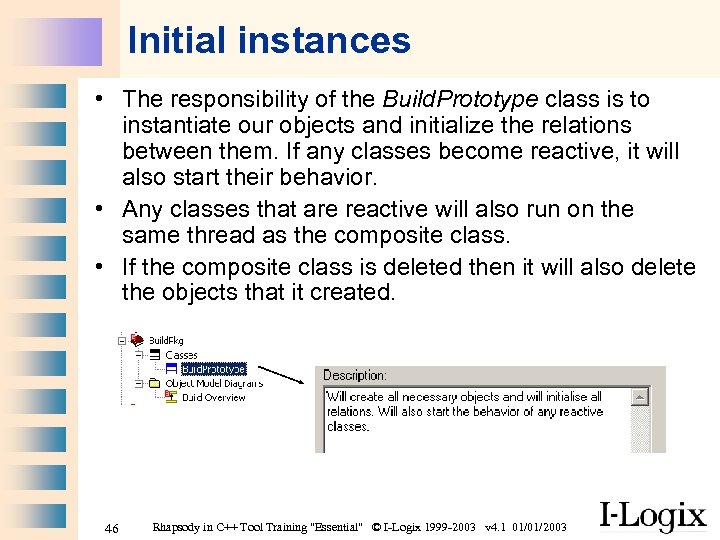

Initial instances • The responsibility of the Build. Prototype class is to instantiate our objects and initialize the relations between them. If any classes become reactive, it will also start their behavior. • Any classes that are reactive will also run on the same thread as the composite class. • If the composite class is deleted then it will also delete the objects that it created. 46 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

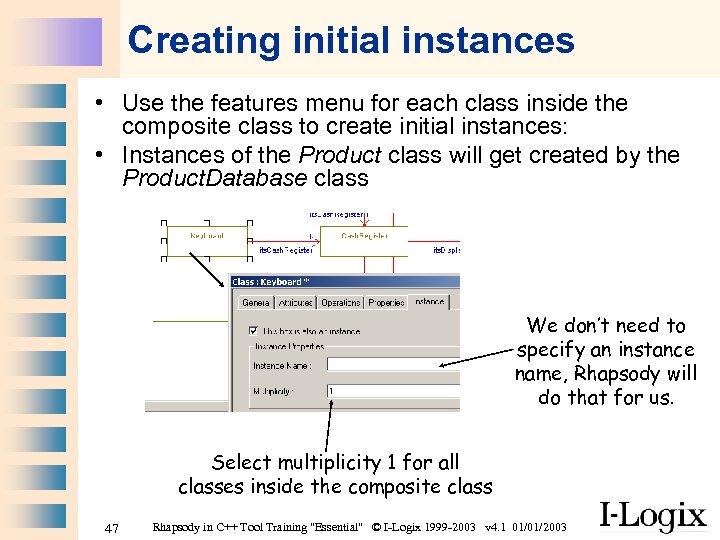

Creating initial instances • Use the features menu for each class inside the composite class to create initial instances: • Instances of the Product class will get created by the Product. Database class We don’t need to specify an instance name, Rhapsody will do that for us. Select multiplicity 1 for all classes inside the composite class 47 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

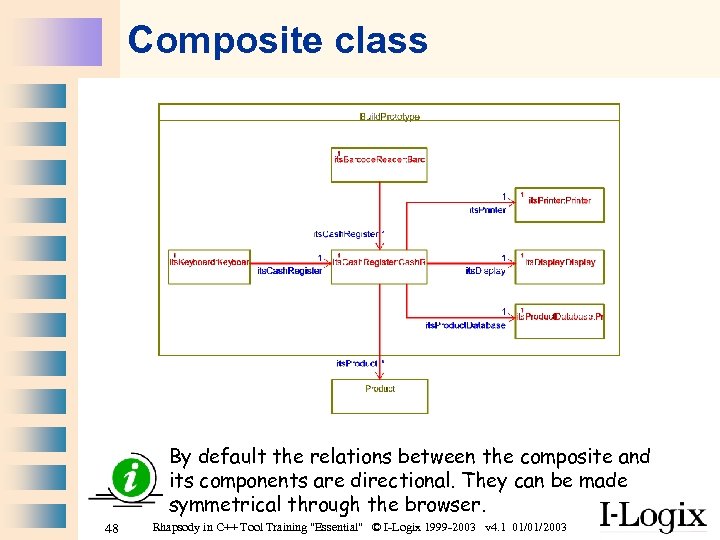

Composite class By default the relations between the composite and its components are directional. They can be made symmetrical through the browser. 48 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Links • If a relation is drawn inside the composite class, then that relation will be automatically initialized at run time by Rhapsody. This is known as a link. • Rhapsody shows all these links in the browser. 49 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

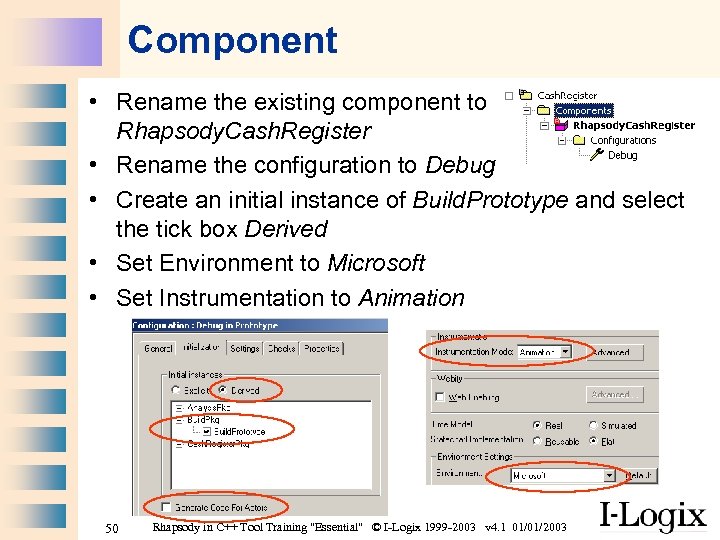

Component • Rename the existing component to Rhapsody. Cash. Register • Rename the configuration to Debug • Create an initial instance of Build. Prototype and select the tick box Derived • Set Environment to Microsoft • Set Instrumentation to Animation 50 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

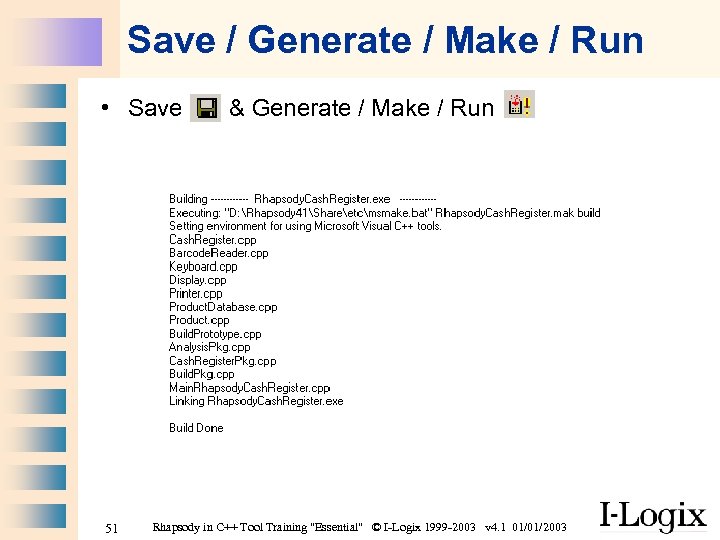

Save / Generate / Make / Run • Save 51 & Generate / Make / Run Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

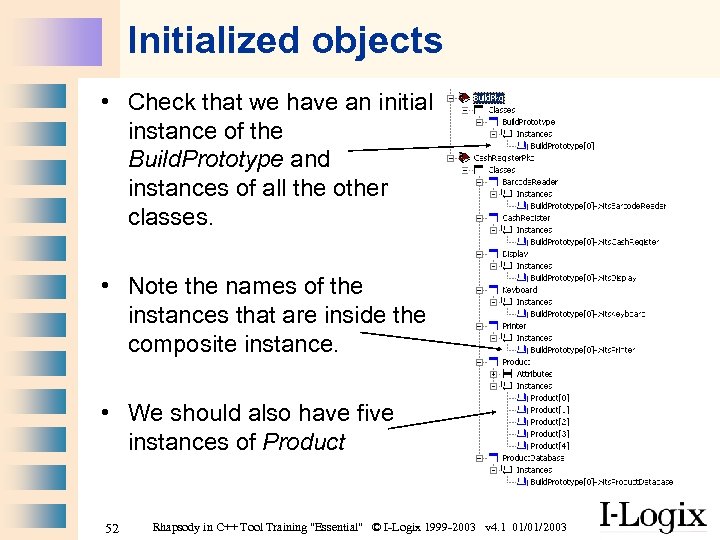

Initialized objects • Check that we have an initial instance of the Build. Prototype and instances of all the other classes. • Note the names of the instances that are inside the composite instance. • We should also have five instances of Product 52 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

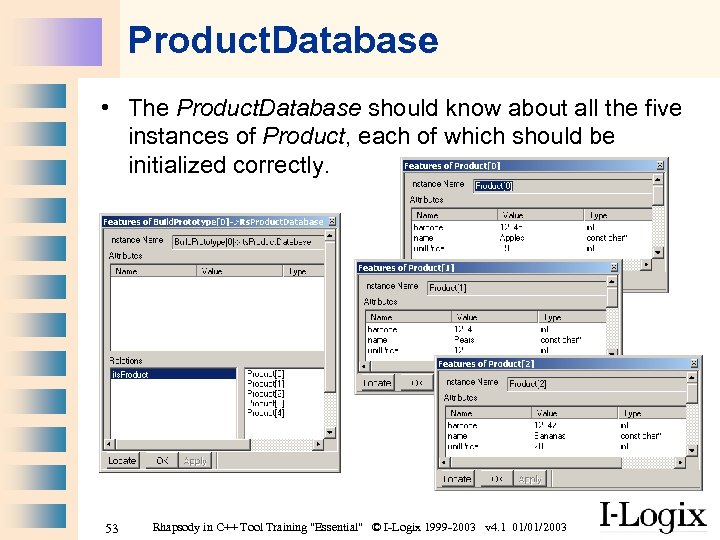

Product. Database • The Product. Database should know about all the five instances of Product, each of which should be initialized correctly. 53 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

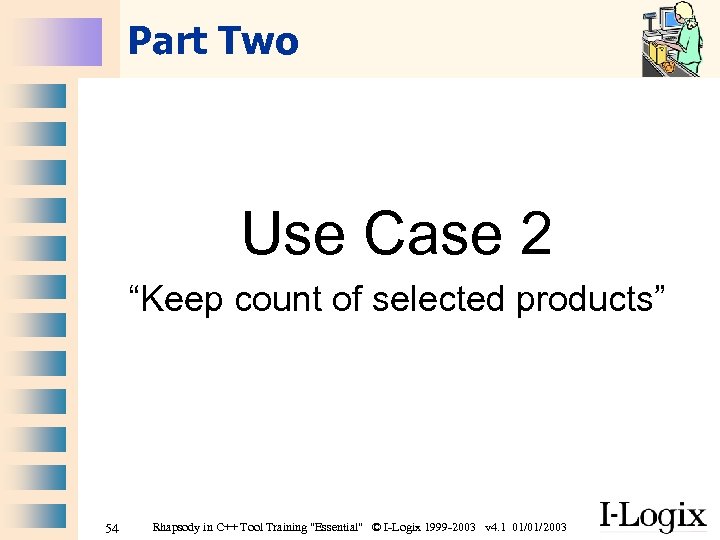

Part Two Use Case 2 “Keep count of selected products” 54 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Scenarios • • For this use case we can create some sequence diagrams which will help us understand how the Cash Register works: For example we’ll look at the following scenarios: 1. Selecting products 2. Cancelling products 3. Manually entering a barcode 55 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

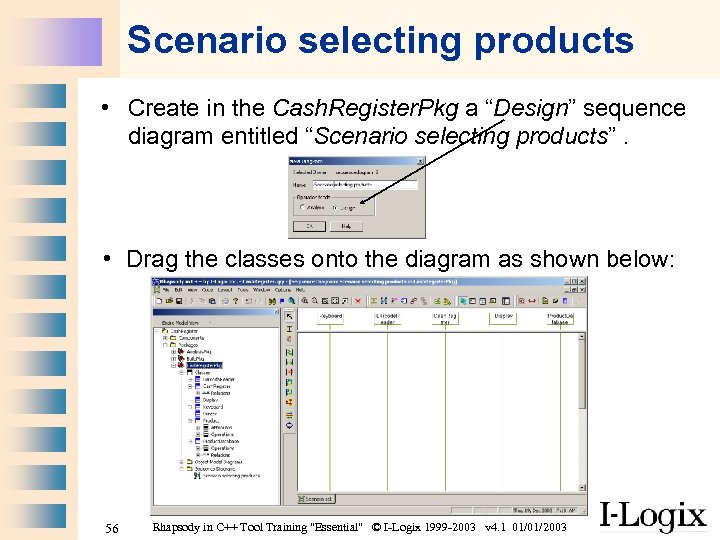

Scenario selecting products • Create in the Cash. Register. Pkg a “Design” sequence diagram entitled “Scenario selecting products”. • Drag the classes onto the diagram as shown below: 56 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Starting the scenario • Add a condition mark called idle and two partition lines with associated text. 57 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

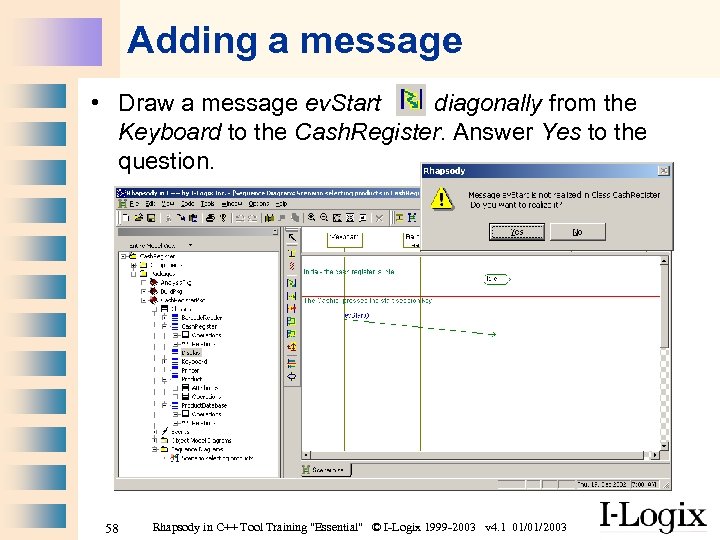

Adding a message • Draw a message ev. Start diagonally from the Keyboard to the Cash. Register. Answer Yes to the question. 58 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

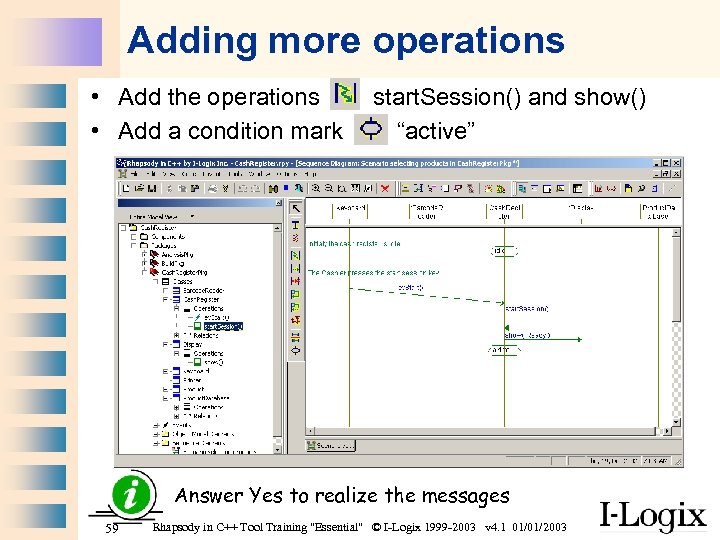

Adding more operations • Add the operations • Add a condition mark start. Session() and show() “active” Answer Yes to realize the messages 59 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

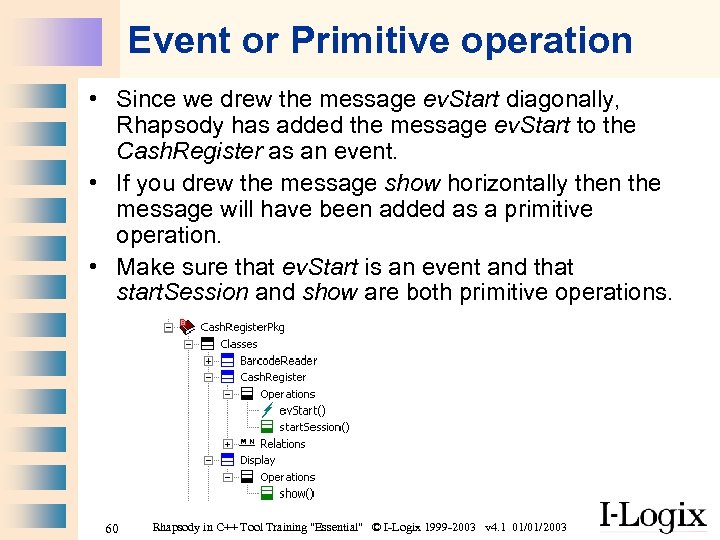

Event or Primitive operation • Since we drew the message ev. Start diagonally, Rhapsody has added the message ev. Start to the Cash. Register as an event. • If you drew the message show horizontally then the message will have been added as a primitive operation. • Make sure that ev. Start is an event and that start. Session and show are both primitive operations. 60 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

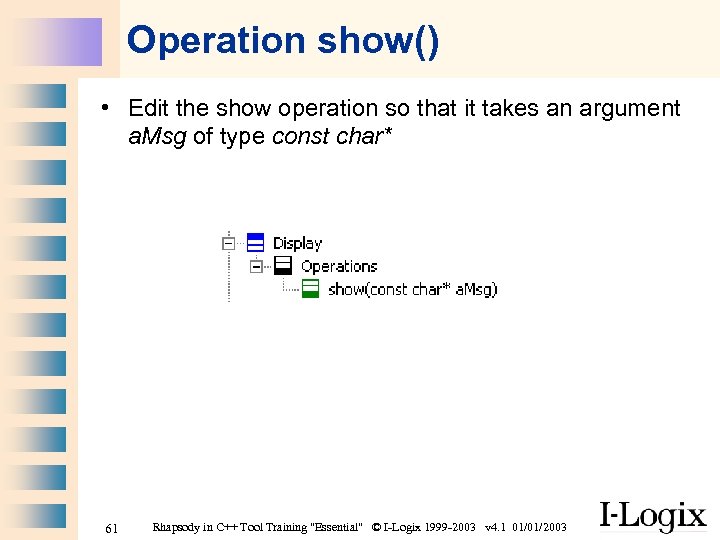

Operation show() • Edit the show operation so that it takes an argument a. Msg of type const char* 61 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

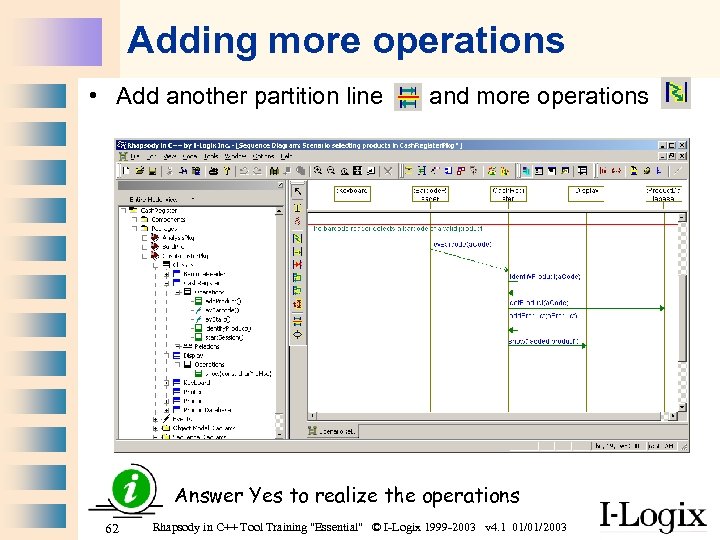

Adding more operations • Add another partition line and more operations Answer Yes to realize the operations 62 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

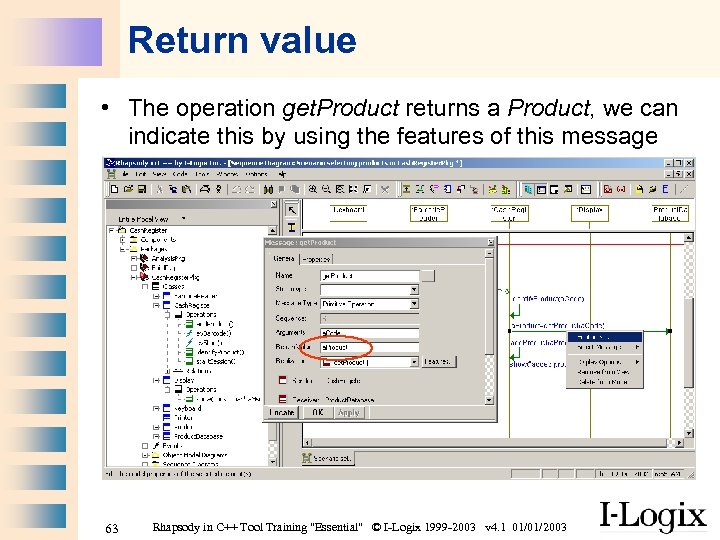

Return value • The operation get. Product returns a Product, we can indicate this by using the features of this message 63 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

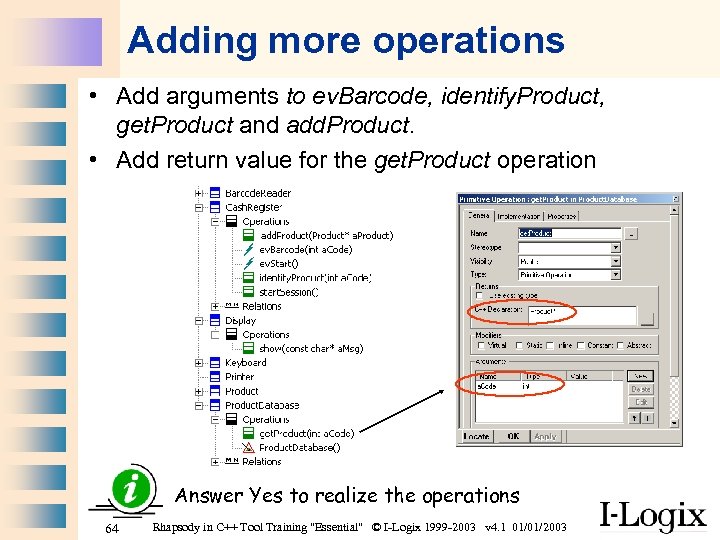

Adding more operations • Add arguments to ev. Barcode, identify. Product, get. Product and add. Product. • Add return value for the get. Product operation Answer Yes to realize the operations 64 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

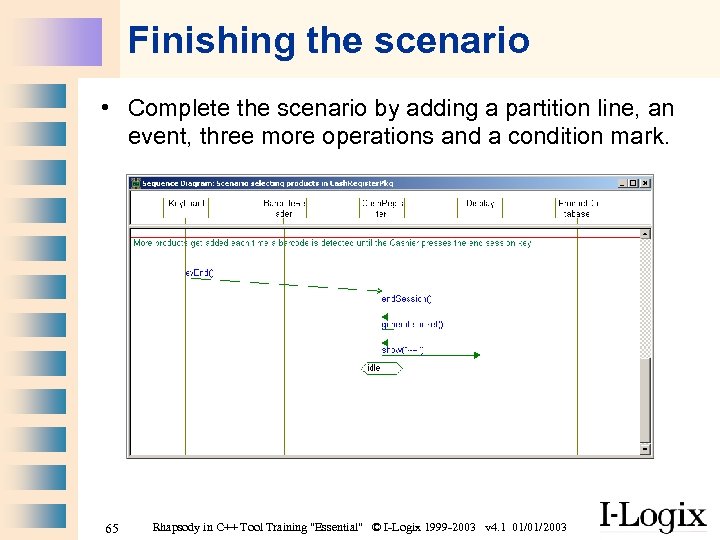

Finishing the scenario • Complete the scenario by adding a partition line, an event, three more operations and a condition mark. 65 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

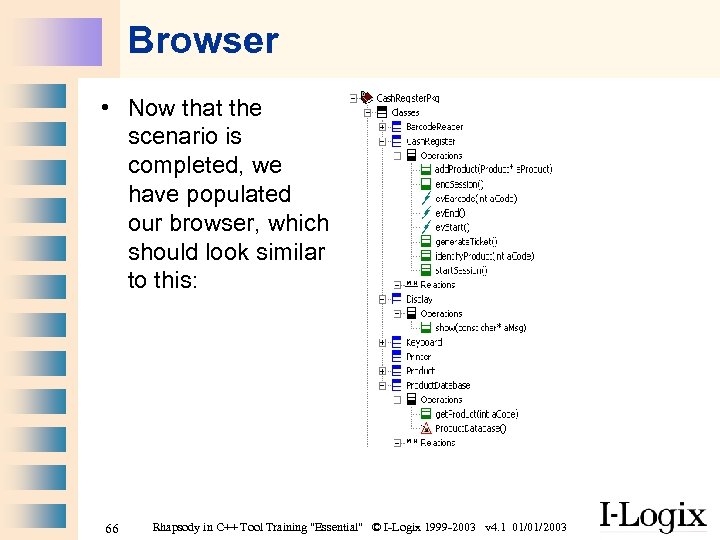

Browser • Now that the scenario is completed, we have populated our browser, which should look similar to this: 66 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

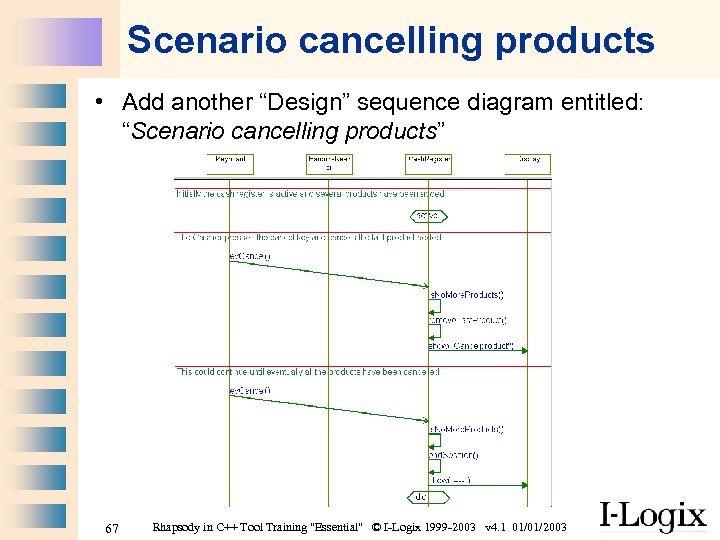

Scenario cancelling products • Add another “Design” sequence diagram entitled: “Scenario cancelling products” 67 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

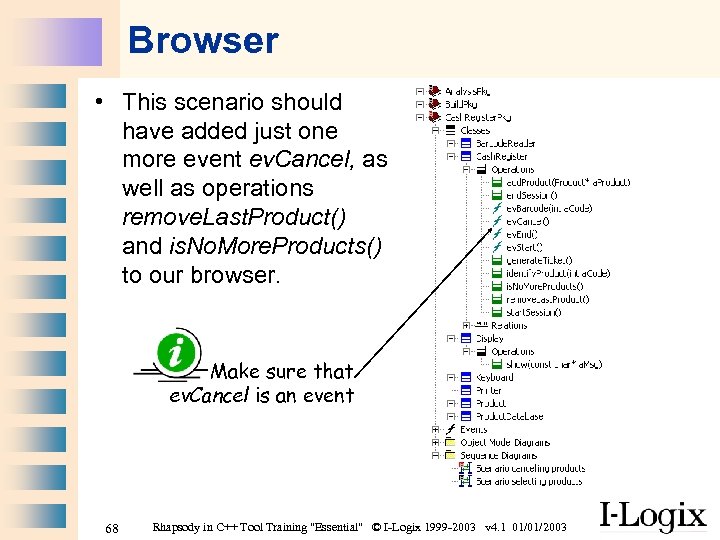

Browser • This scenario should have added just one more event ev. Cancel, as well as operations remove. Last. Product() and is. No. More. Products() to our browser. Make sure that ev. Cancel is an event 68 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

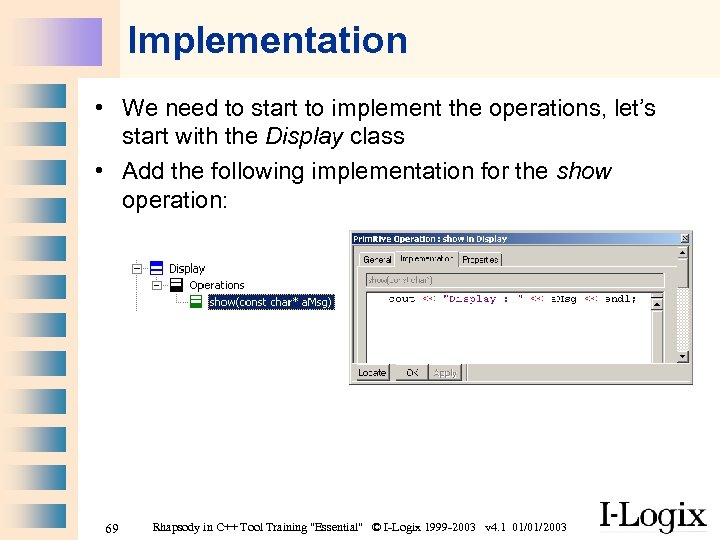

Implementation • We need to start to implement the operations, let’s start with the Display class • Add the following implementation for the show operation: 69 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

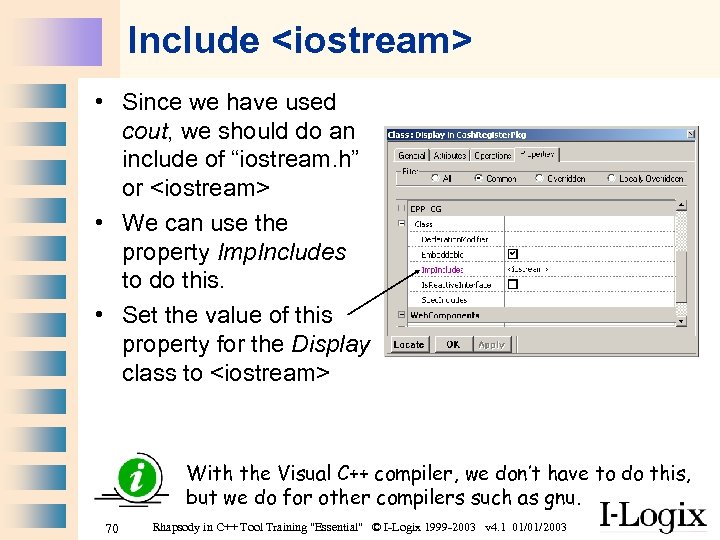

Include • Since we have used cout, we should do an include of “iostream. h” or • We can use the property Imp. Includes to do this. • Set the value of this property for the Display class to With the Visual C++ compiler, we don’t have to do this, but we do for other compilers such as gnu. 70 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

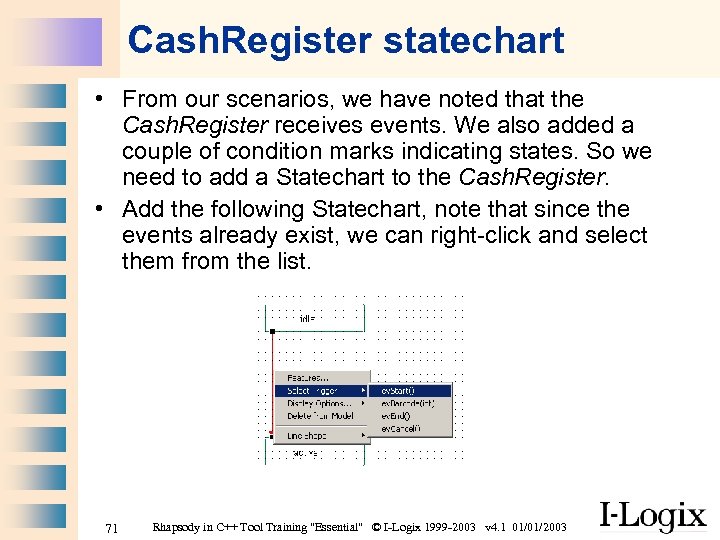

Cash. Register statechart • From our scenarios, we have noted that the Cash. Register receives events. We also added a couple of condition marks indicating states. So we need to add a Statechart to the Cash. Register. • Add the following Statechart, note that since the events already exist, we can right-click and select them from the list. 71 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Completing the Statechart • Complete the Statechart: Remember that params is a Rhapsody generated pointer that allows access to the arguments of the event. 72 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Ordered Relation • Since we need to be able to remove the last product added, the order of our products is important so we need to make our relation ordered. • For the relation its. Product, set the property ordered to True 73 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

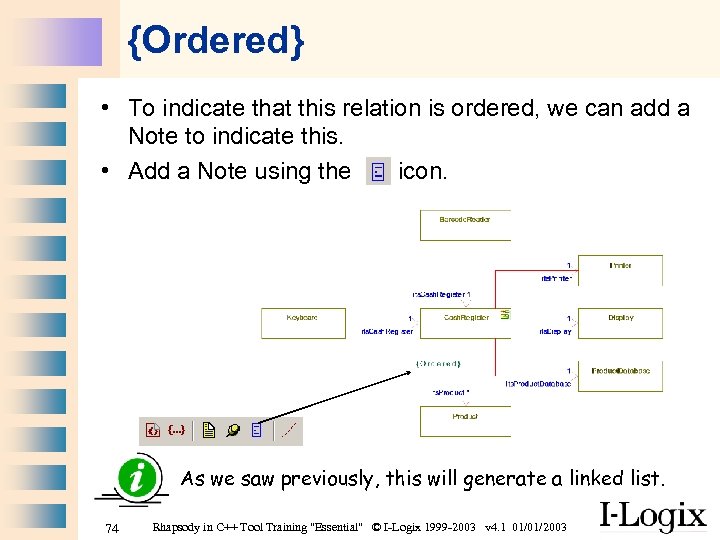

{Ordered} • To indicate that this relation is ordered, we can add a Note to indicate this. • Add a Note using the icon. As we saw previously, this will generate a linked list. 74 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Cash. Register add. Product() • Add the implementation to the add. Product() operation of the Cash. Register class 75 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

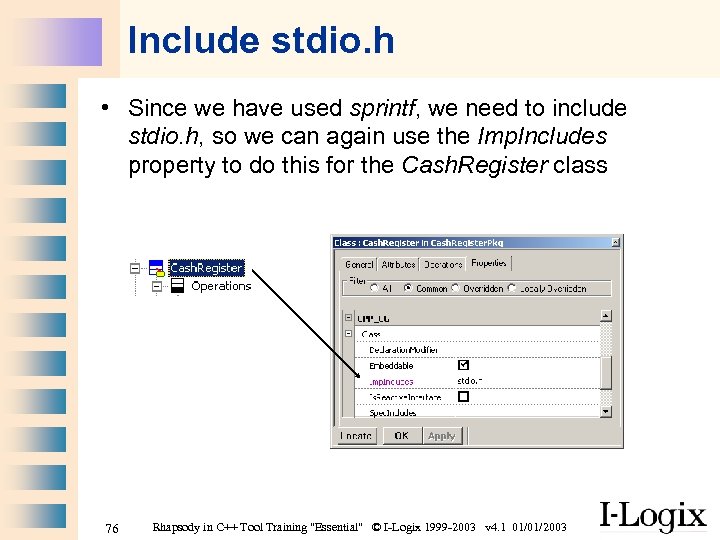

Include stdio. h • Since we have used sprintf, we need to include stdio. h, so we can again use the Imp. Includes property to do this for the Cash. Register class 76 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

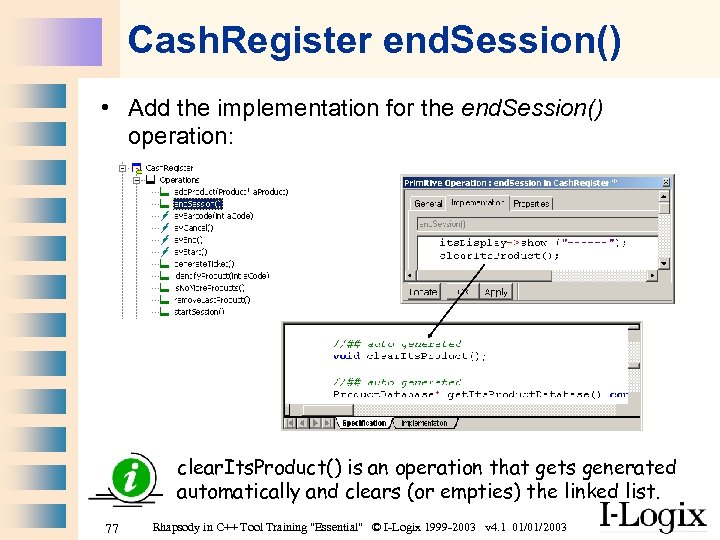

Cash. Register end. Session() • Add the implementation for the end. Session() operation: clear. Its. Product() is an operation that gets generated automatically and clears (or empties) the linked list. 77 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

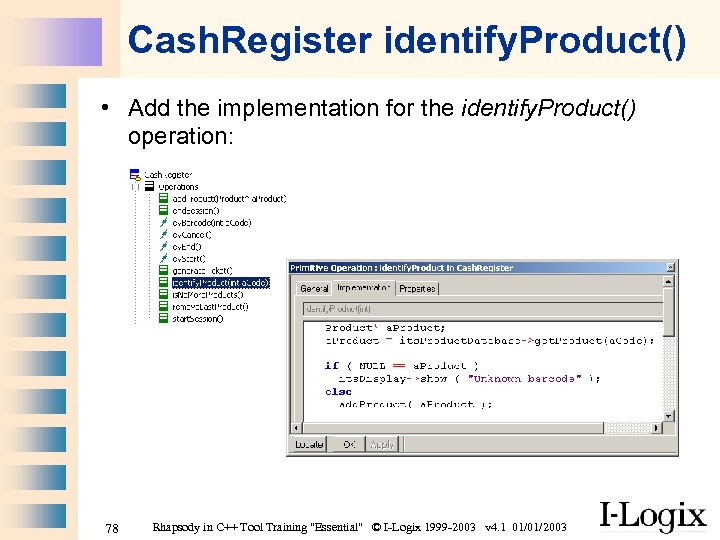

Cash. Register identify. Product() • Add the implementation for the identify. Product() operation: 78 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Cash. Register is. No. More. Products() • Ensure that the is. No. More. Products() operation returns an int and make it inline and constant. • Add the implementation: Operation of OMList to check if list is empty. 79 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

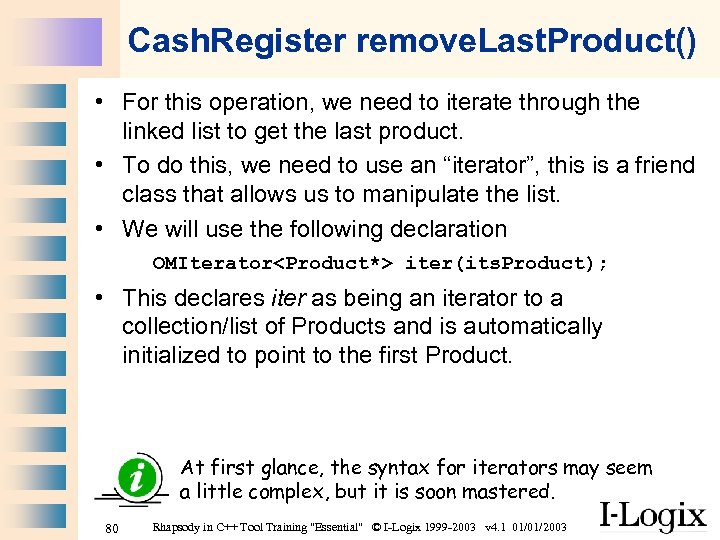

Cash. Register remove. Last. Product() • For this operation, we need to iterate through the linked list to get the last product. • To do this, we need to use an “iterator”, this is a friend class that allows us to manipulate the list. • We will use the following declaration OMIterator iter(its. Product); • This declares iter as being an iterator to a collection/list of Products and is automatically initialized to point to the first Product. At first glance, the syntax for iterators may seem a little complex, but it is soon mastered. 80 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

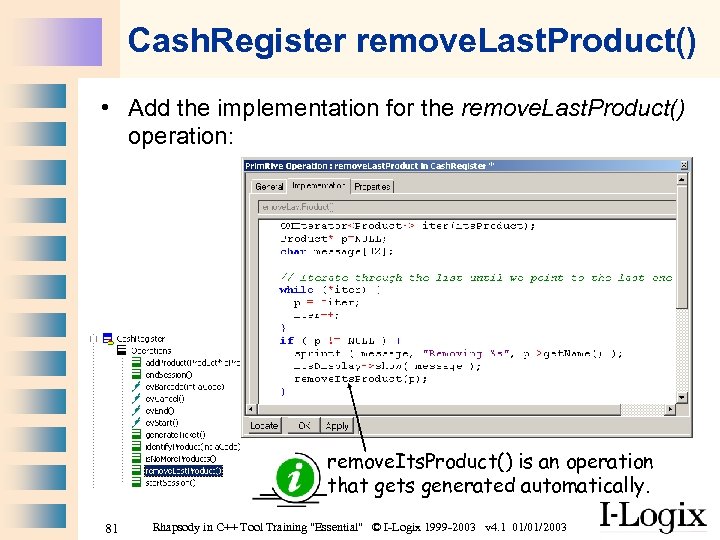

Cash. Register remove. Last. Product() • Add the implementation for the remove. Last. Product() operation: remove. Its. Product() is an operation that gets generated automatically. 81 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

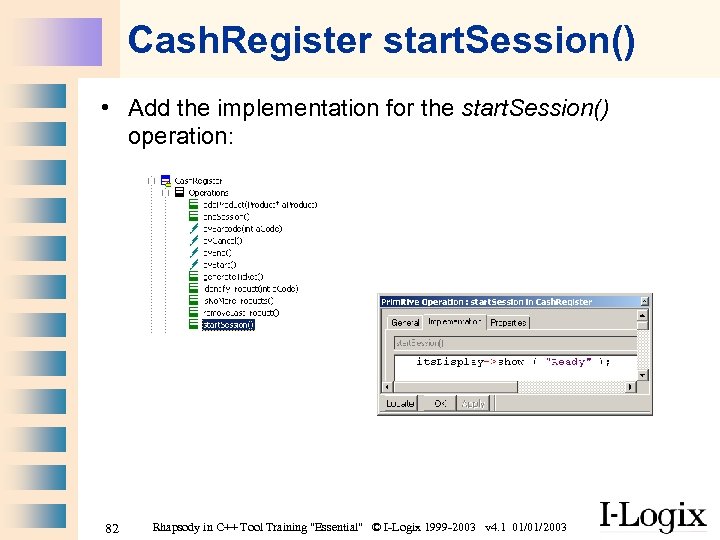

Cash. Register start. Session() • Add the implementation for the start. Session() operation: 82 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

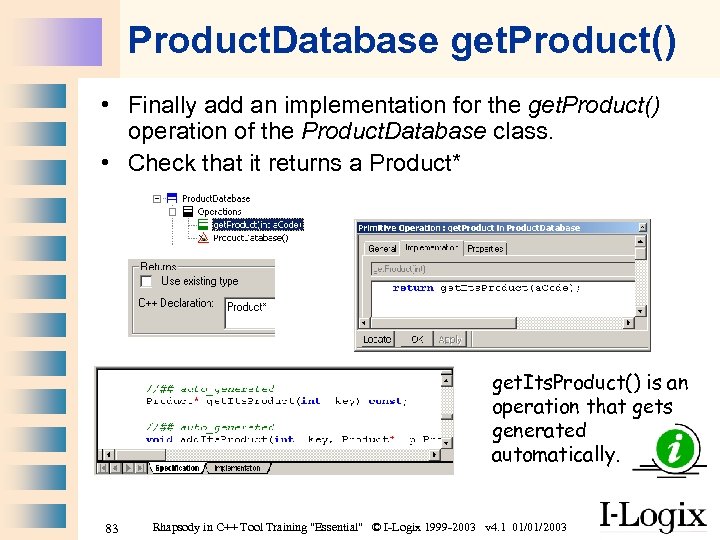

Product. Database get. Product() • Finally add an implementation for the get. Product() operation of the Product. Database class. • Check that it returns a Product* get. Its. Product() is an operation that gets generated automatically. 83 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

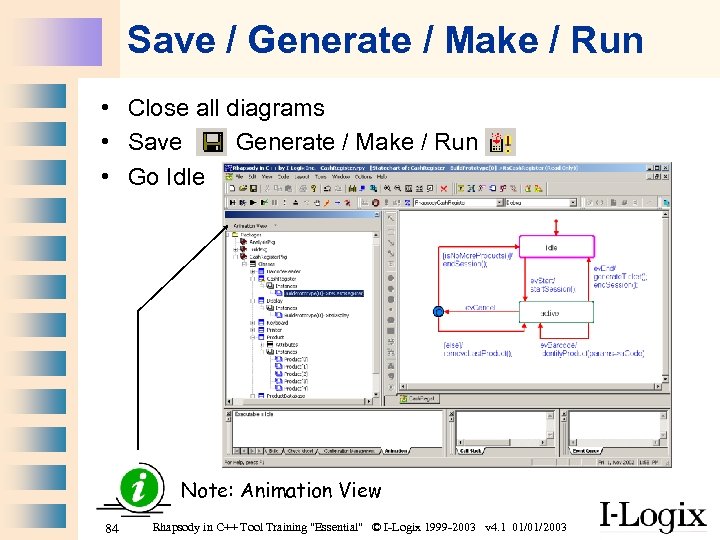

Save / Generate / Make / Run • Close all diagrams • Save Generate / Make / Run • Go Idle Note: Animation View 84 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

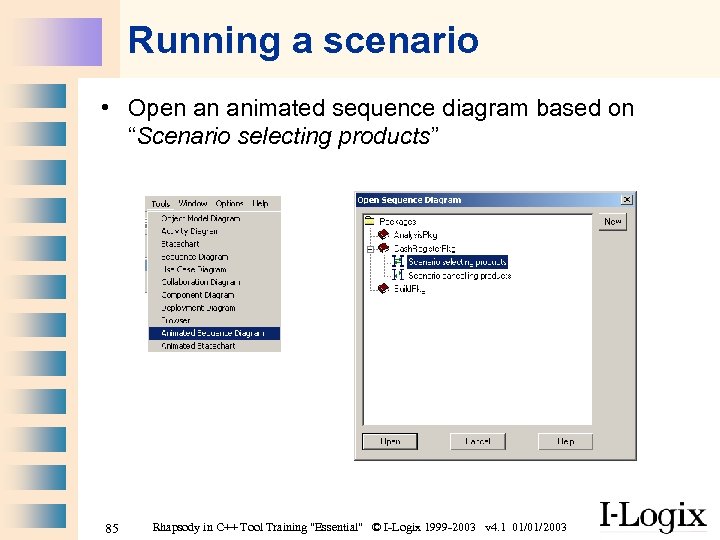

Running a scenario • Open an animated sequence diagram based on “Scenario selecting products” 85 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

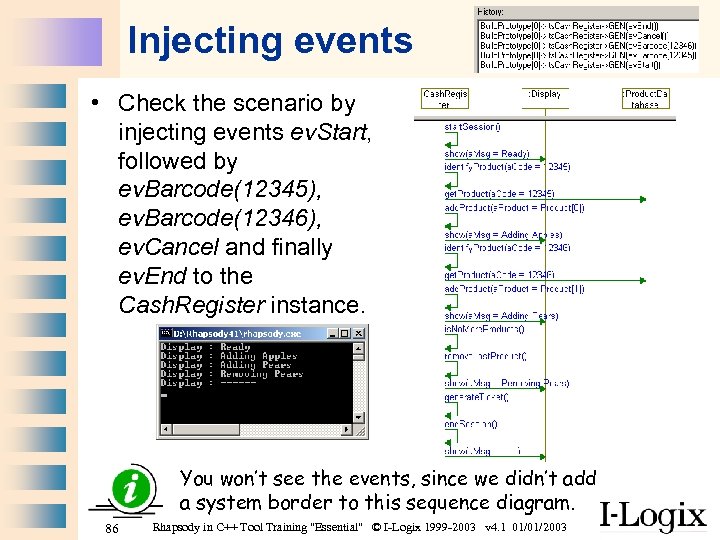

Injecting events • Check the scenario by injecting events ev. Start, followed by ev. Barcode(12345), ev. Barcode(12346), ev. Cancel and finally ev. End to the Cash. Register instance. You won’t see the events, since we didn’t add a system border to this sequence diagram. 86 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

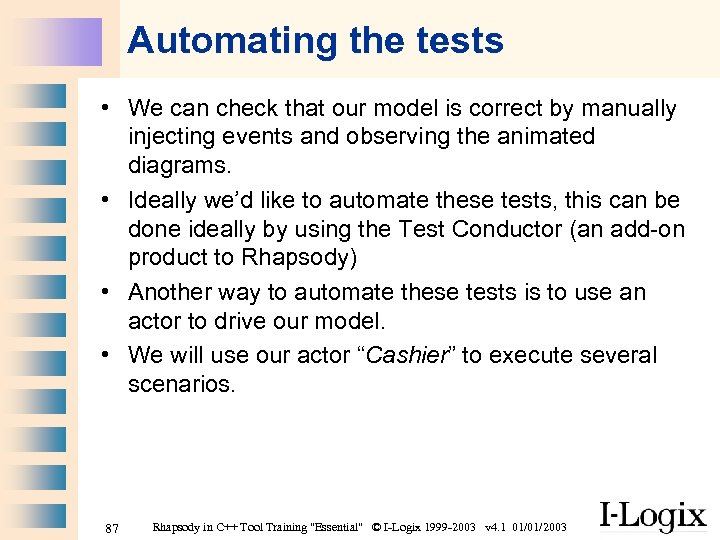

Automating the tests • We can check that our model is correct by manually injecting events and observing the animated diagrams. • Ideally we’d like to automate these tests, this can be done ideally by using the Test Conductor (an add-on product to Rhapsody) • Another way to automate these tests is to use an actor to drive our model. • We will use our actor “Cashier” to execute several scenarios. 87 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

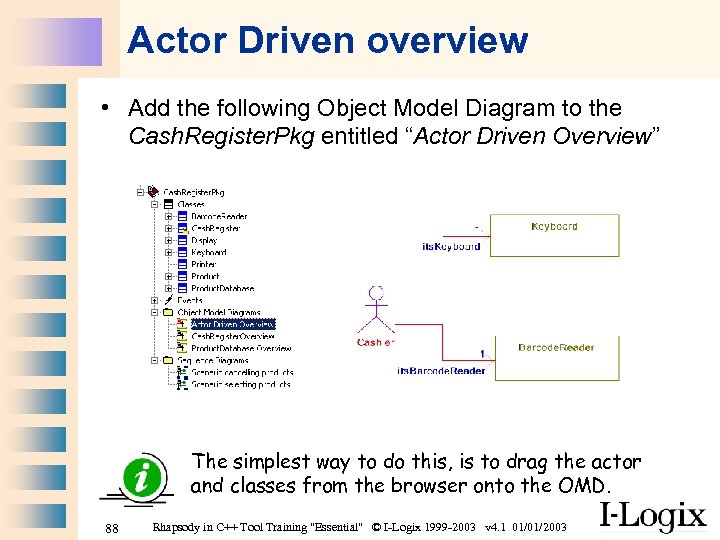

Actor Driven overview • Add the following Object Model Diagram to the Cash. Register. Pkg entitled “Actor Driven Overview” The simplest way to do this, is to drag the actor and classes from the browser onto the OMD. 88 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

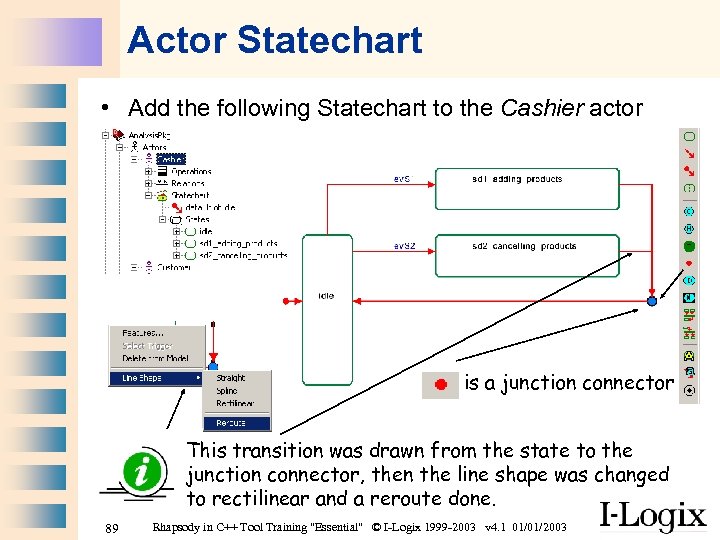

Actor Statechart • Add the following Statechart to the Cashier actor is a junction connector This transition was drawn from the state to the junction connector, then the line shape was changed to rectilinear and a reroute done. 89 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

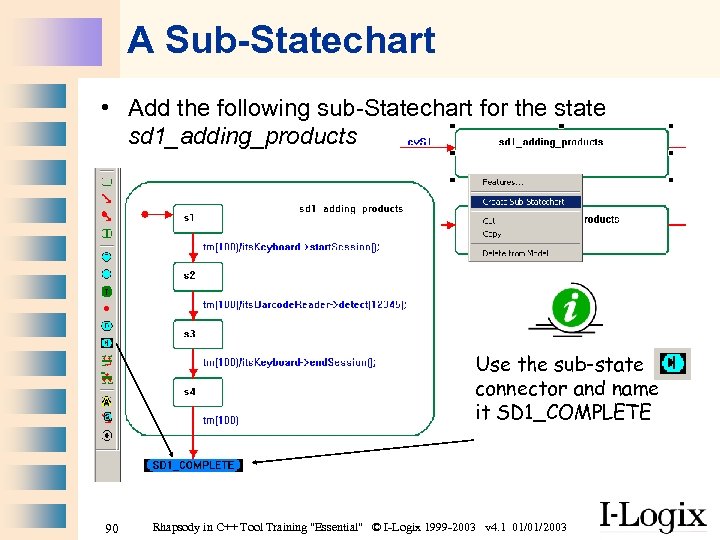

A Sub-Statechart • Add the following sub-Statechart for the state sd 1_adding_products Use the sub-state connector and name it SD 1_COMPLETE 90 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

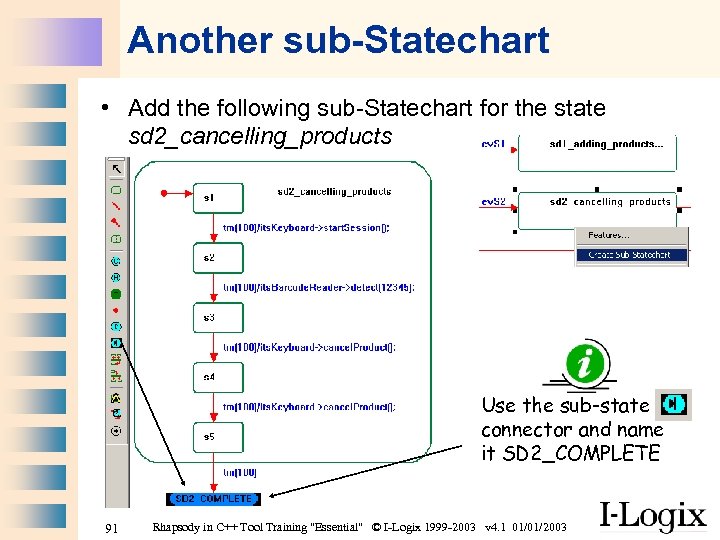

Another sub-Statechart • Add the following sub-Statechart for the state sd 2_cancelling_products Use the sub-state connector and name it SD 2_COMPLETE 91 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Sub-Statechart stub connectors • Add the Sub-Statechart Stub connectors SD 1_COMPLETE and SD 2_COMPLETE to the toplevel Statechart. Note that the … indicates that there is a sub-state. To connect to the sub-state connector, connect to the centre of the connector. 92 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

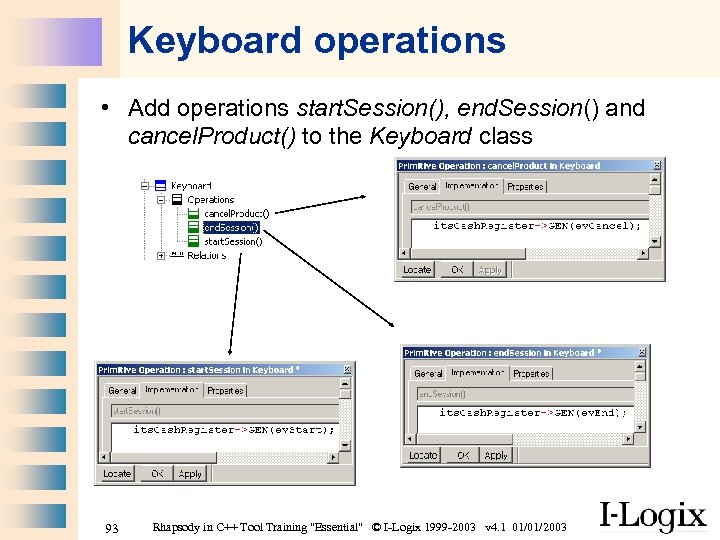

Keyboard operations • Add operations start. Session(), end. Session() and cancel. Product() to the Keyboard class 93 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

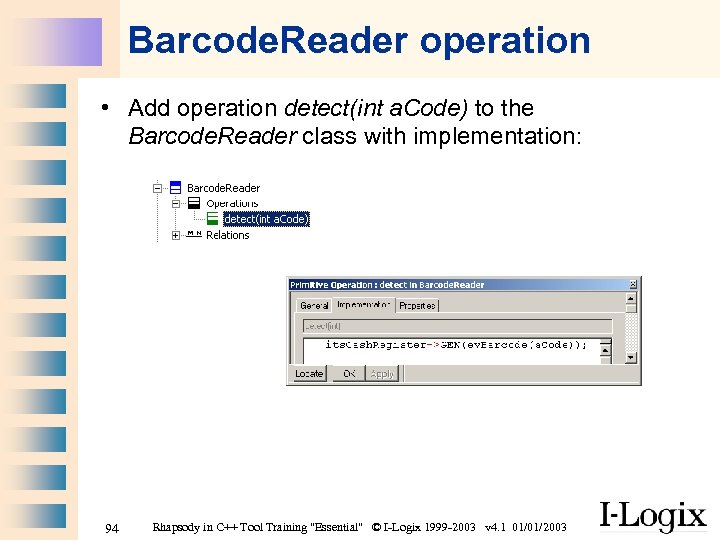

Barcode. Reader operation • Add operation detect(int a. Code) to the Barcode. Reader class with implementation: 94 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

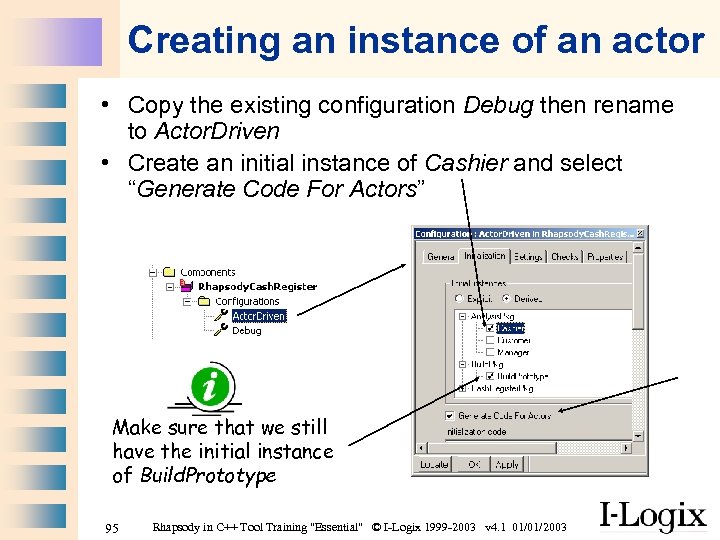

Creating an instance of an actor • Copy the existing configuration Debug then rename to Actor. Driven • Create an initial instance of Cashier and select “Generate Code For Actors” Make sure that we still have the initial instance of Build. Prototype 95 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

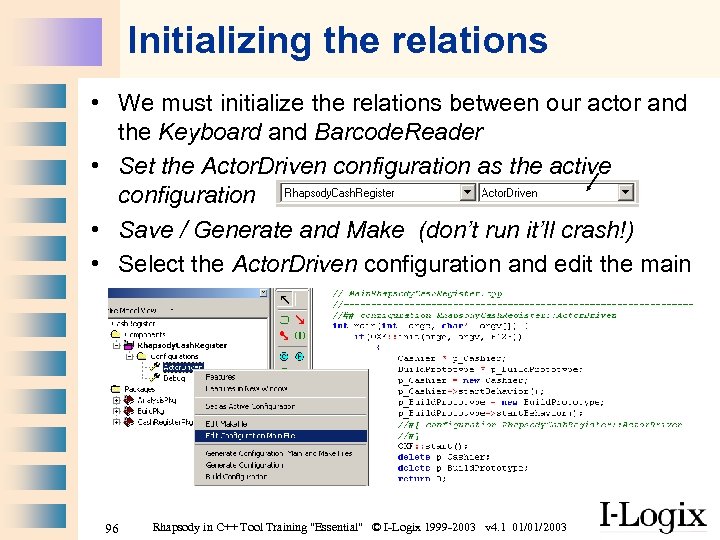

Initializing the relations • We must initialize the relations between our actor and the Keyboard and Barcode. Reader • Set the Actor. Driven configuration as the active configuration • Save / Generate and Make (don’t run it’ll crash!) • Select the Actor. Driven configuration and edit the main 96 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

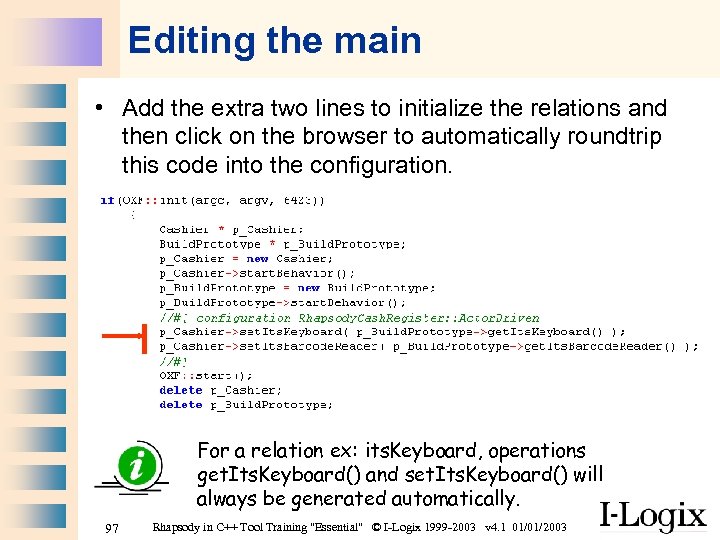

Editing the main • Add the extra two lines to initialize the relations and then click on the browser to automatically roundtrip this code into the configuration. For a relation ex: its. Keyboard, operations get. Its. Keyboard() and set. Its. Keyboard() will always be generated automatically. 97 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

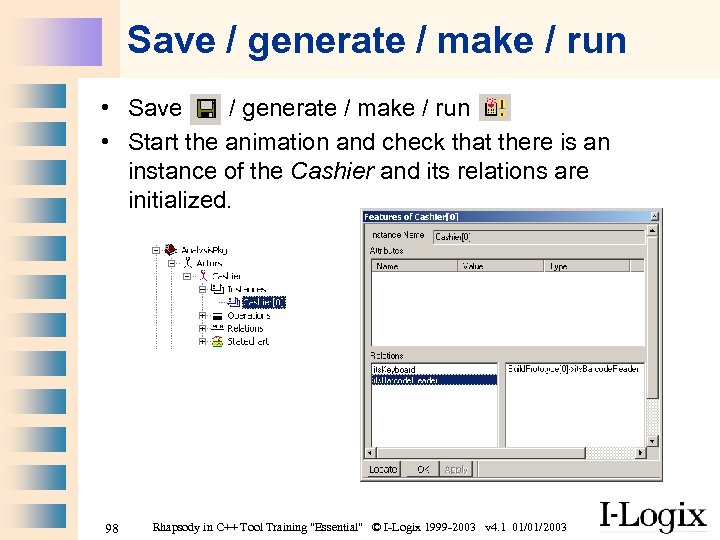

Save / generate / make / run • Start the animation and check that there is an instance of the Cashier and its relations are initialized. 98 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

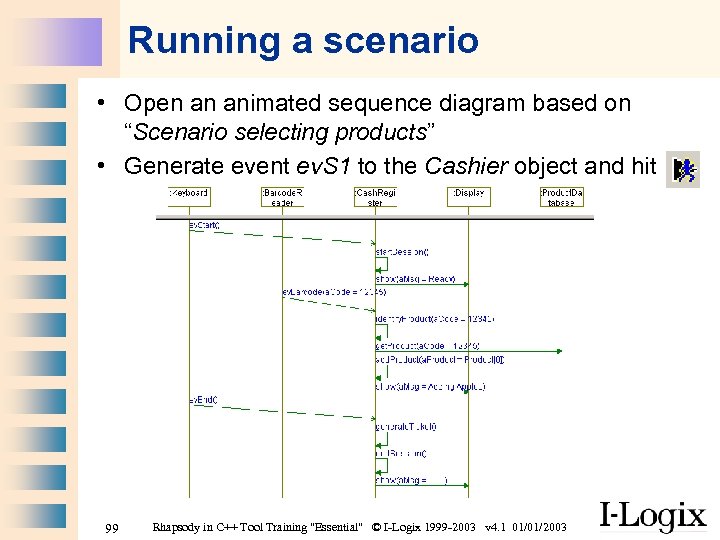

Running a scenario • Open an animated sequence diagram based on “Scenario selecting products” • Generate event ev. S 1 to the Cashier object and hit 99 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Saving the diagram • Stop the animation • Close the animated sequence diagram and click Yes to save it 100 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

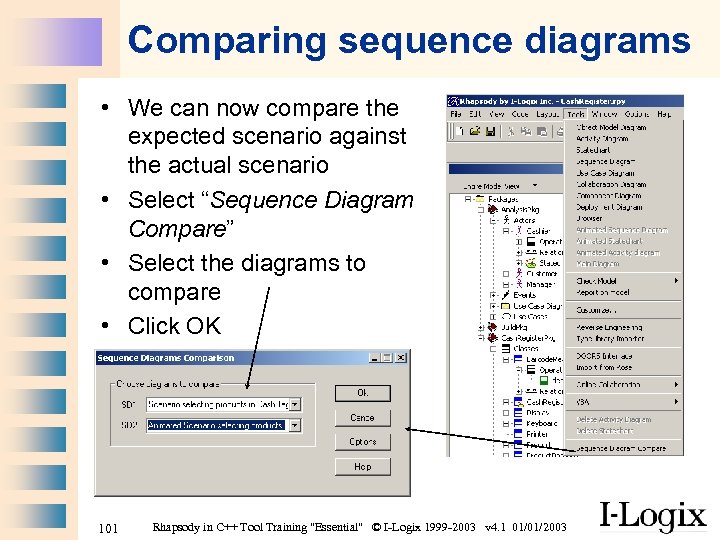

Comparing sequence diagrams • We can now compare the expected scenario against the actual scenario • Select “Sequence Diagram Compare” • Select the diagrams to compare • Click OK 101 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

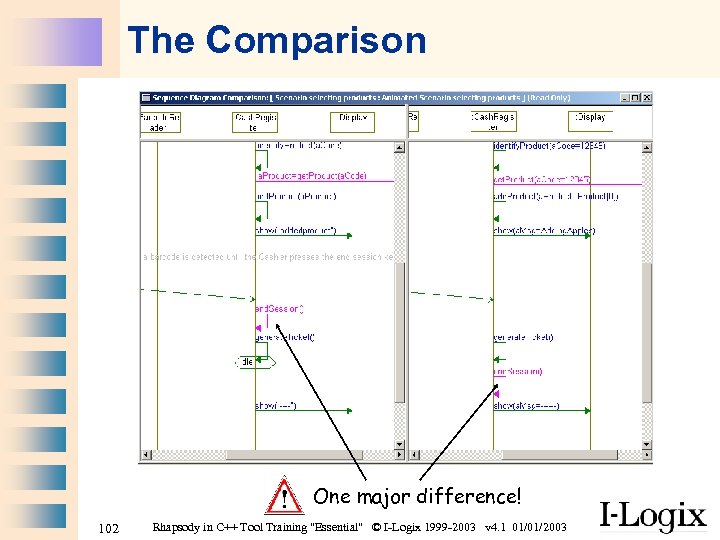

The Comparison One major difference! 102 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

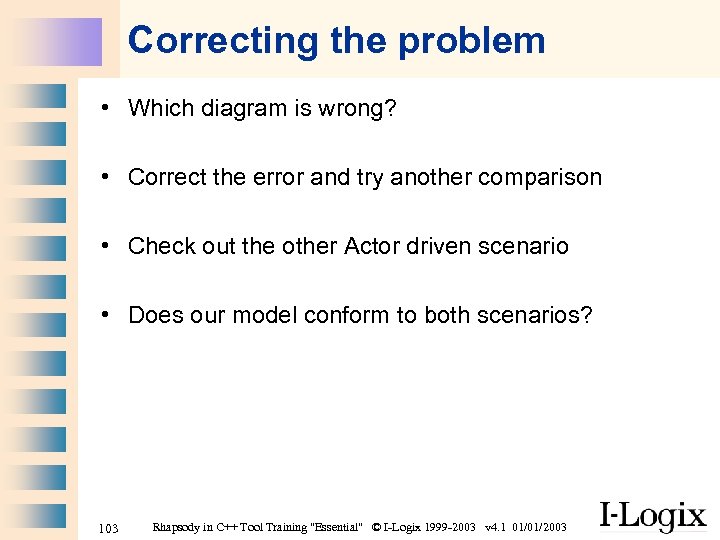

Correcting the problem • Which diagram is wrong? • Correct the error and try another comparison • Check out the other Actor driven scenario • Does our model conform to both scenarios? 103 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

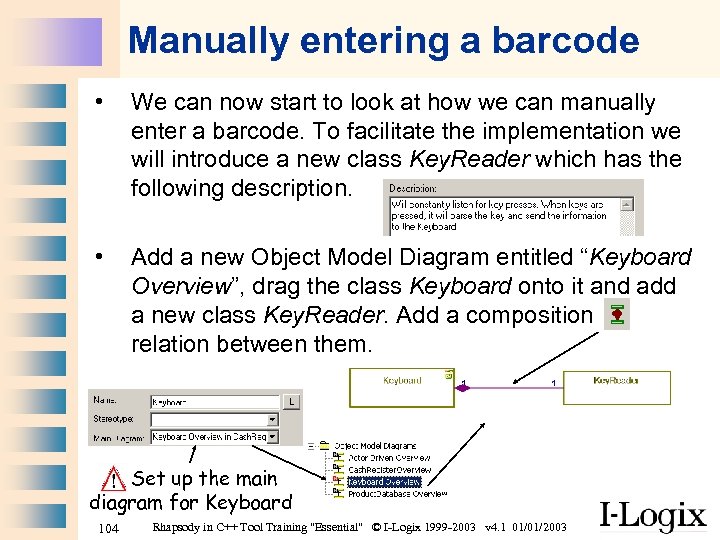

Manually entering a barcode • We can now start to look at how we can manually enter a barcode. To facilitate the implementation we will introduce a new class Key. Reader which has the following description. • Add a new Object Model Diagram entitled “Keyboard Overview”, drag the class Keyboard onto it and add a new class Key. Reader. Add a composition relation between them. Set up the main diagram for Keyboard 104 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

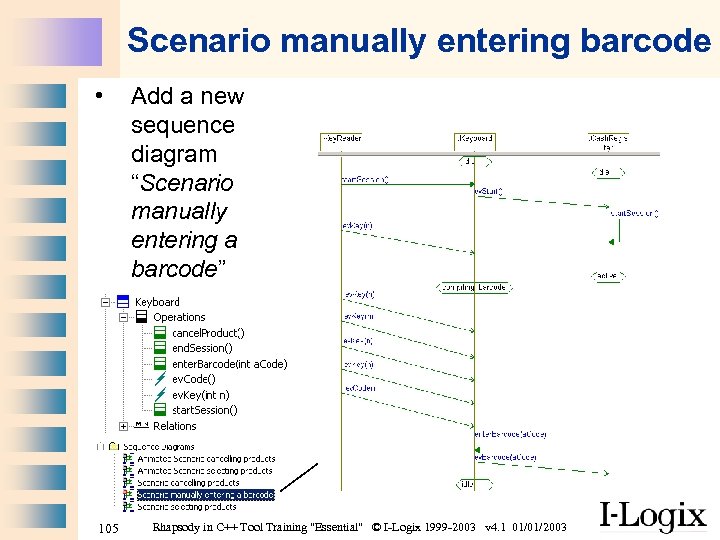

Scenario manually entering barcode • 105 Add a new sequence diagram “Scenario manually entering a barcode” Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

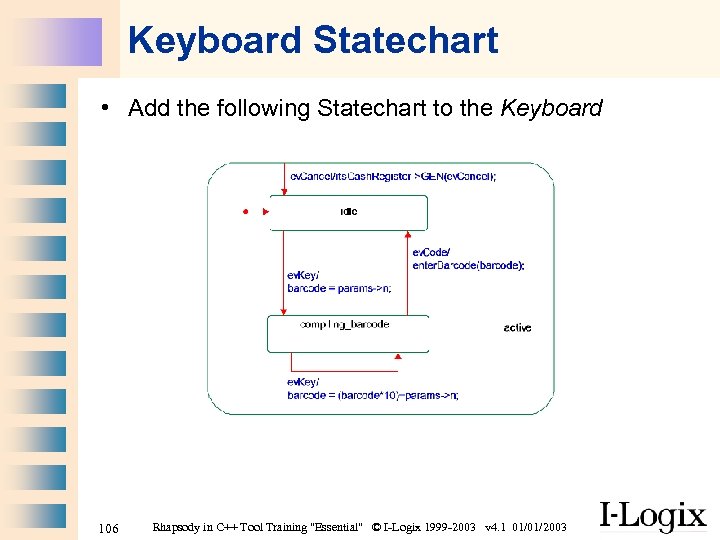

Keyboard Statechart • Add the following Statechart to the Keyboard 106 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

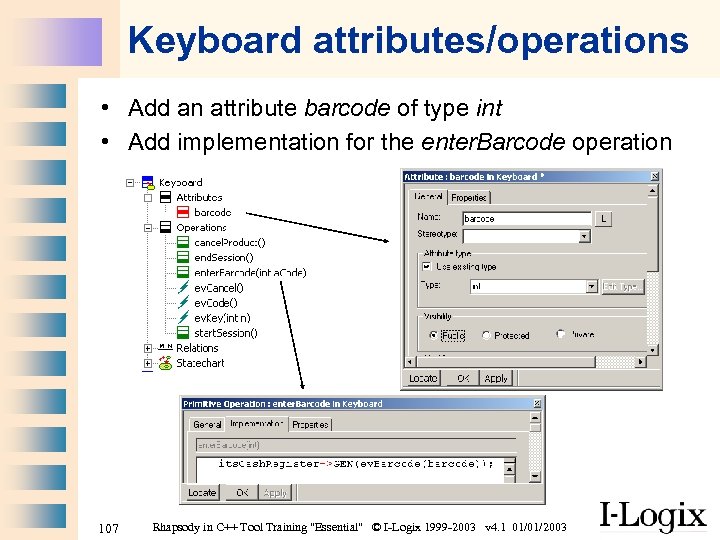

Keyboard attributes/operations • Add an attribute barcode of type int • Add implementation for the enter. Barcode operation 107 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

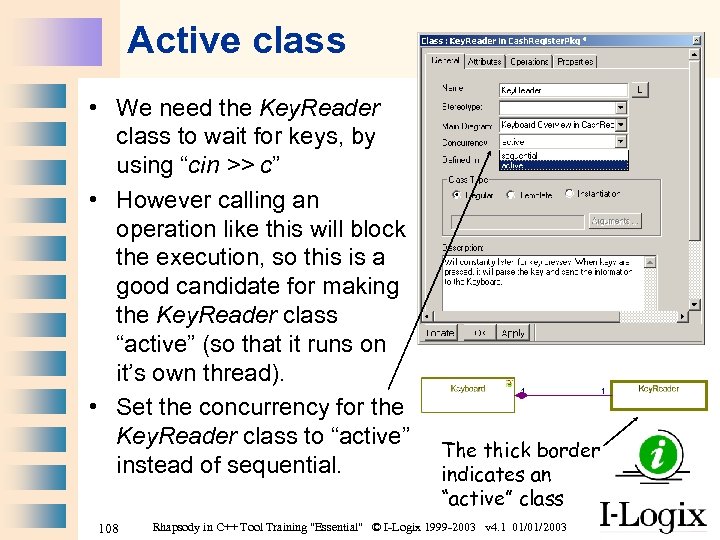

Active class • We need the Key. Reader class to wait for keys, by using “cin >> c” • However calling an operation like this will block the execution, so this is a good candidate for making the Key. Reader class “active” (so that it runs on it’s own thread). • Set the concurrency for the Key. Reader class to “active” instead of sequential. 108 The thick border indicates an “active” class Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

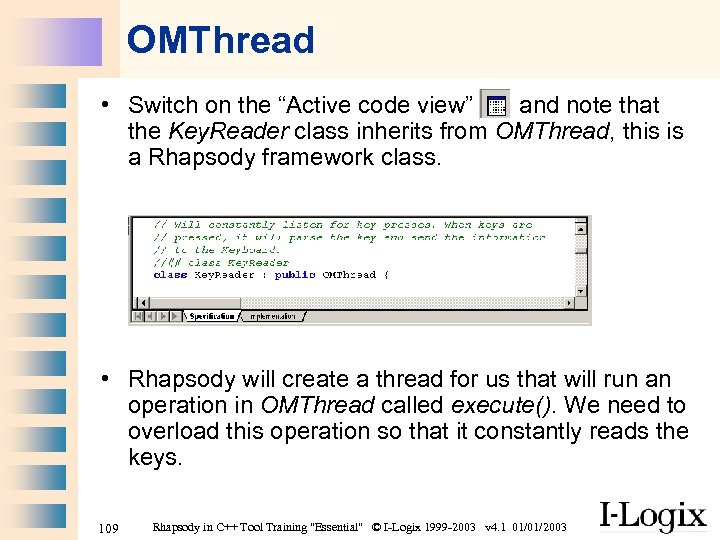

OMThread • Switch on the “Active code view” and note that the Key. Reader class inherits from OMThread, this is a Rhapsody framework class. • Rhapsody will create a thread for us that will run an operation in OMThread called execute(). We need to overload this operation so that it constantly reads the keys. 109 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

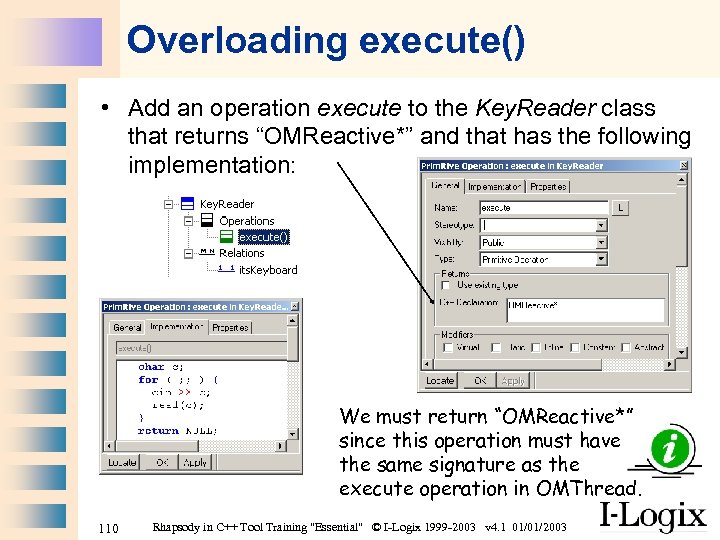

Overloading execute() • Add an operation execute to the Key. Reader class that returns “OMReactive*” and that has the following implementation: We must return “OMReactive*” since this operation must have the same signature as the execute operation in OMThread. 110 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

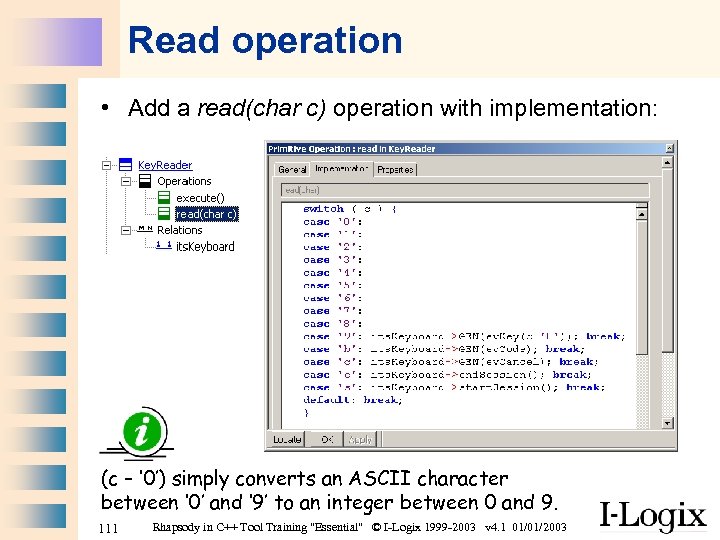

Read operation • Add a read(char c) operation with implementation: (c – ‘ 0’) simply converts an ASCII character between ‘ 0’ and ‘ 9’ to an integer between 0 and 9. 111 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

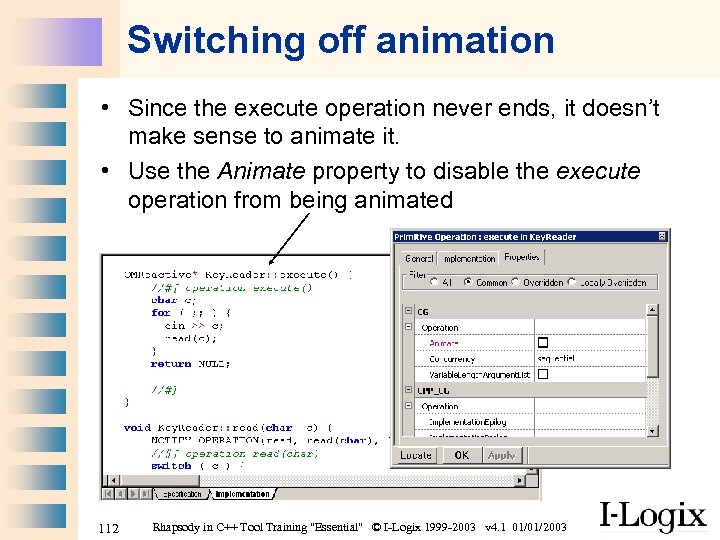

Switching off animation • Since the execute operation never ends, it doesn’t make sense to animate it. • Use the Animate property to disable the execute operation from being animated 112 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

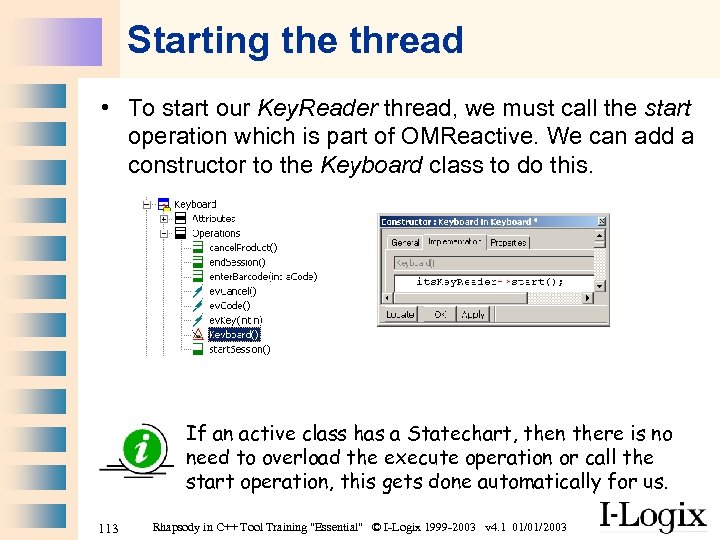

Starting the thread • To start our Key. Reader thread, we must call the start operation which is part of OMReactive. We can add a constructor to the Keyboard class to do this. If an active class has a Statechart, then there is no need to overload the execute operation or call the start operation, this gets done automatically for us. 113 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

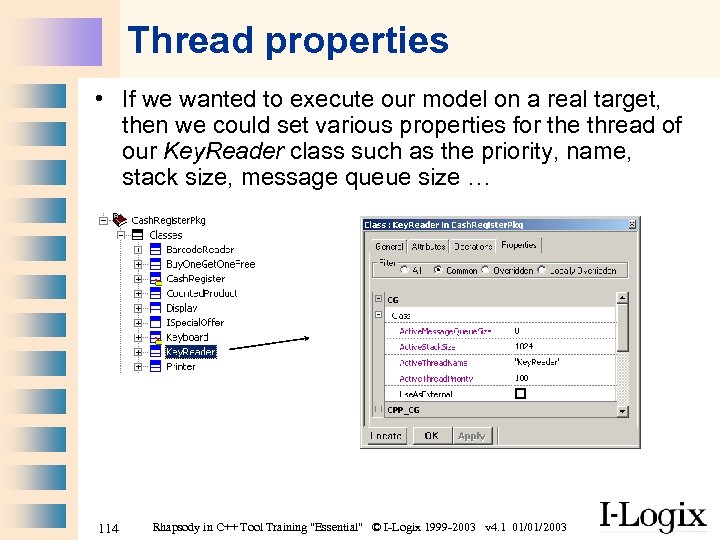

Thread properties • If we wanted to execute our model on a real target, then we could set various properties for the thread of our Key. Reader class such as the priority, name, stack size, message queue size … 114 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

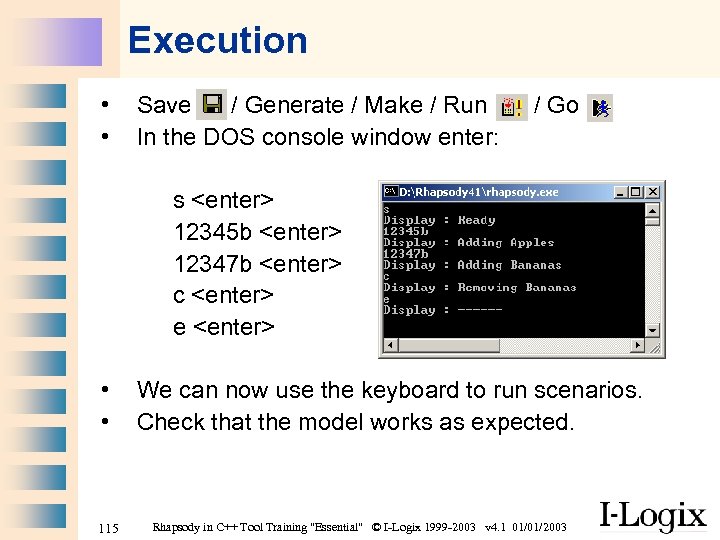

Execution • • Save / Generate / Make / Run In the DOS console window enter: / Go s 12345 b 12347 b c e • • 115 We can now use the keyboard to run scenarios. Check that the model works as expected. Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

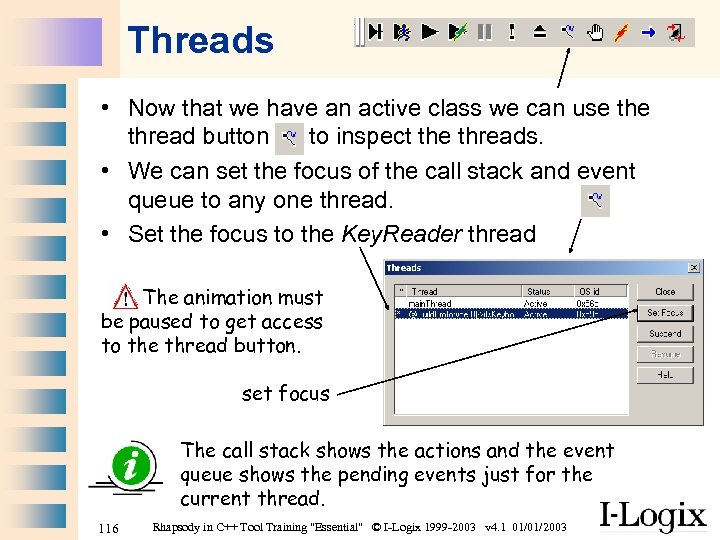

Threads • Now that we have an active class we can use thread button to inspect the threads. • We can set the focus of the call stack and event queue to any one thread. • Set the focus to the Key. Reader thread The animation must be paused to get access to the thread button. set focus The call stack shows the actions and the event queue shows the pending events just for the current thread. 116 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

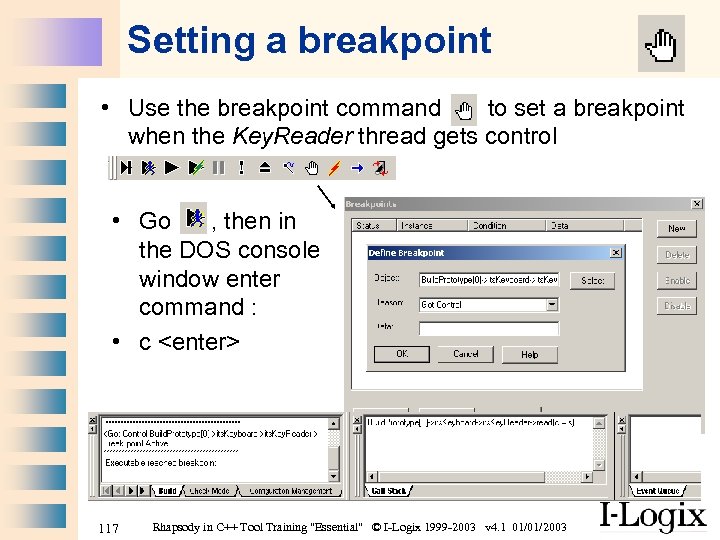

Setting a breakpoint • Use the breakpoint command to set a breakpoint when the Key. Reader thread gets control • Go , then in the DOS console window enter command : • c 117 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Updating the use case • Now that we have created some sequence diagrams, we can associate them with the use case “Keep count of selected products”. 118 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Referenced Sequence Diagrams • Select the use case “Keep count of selected products” in the browser and add the following sequence diagrams as “Referenced Sequence Diagrams” 119 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

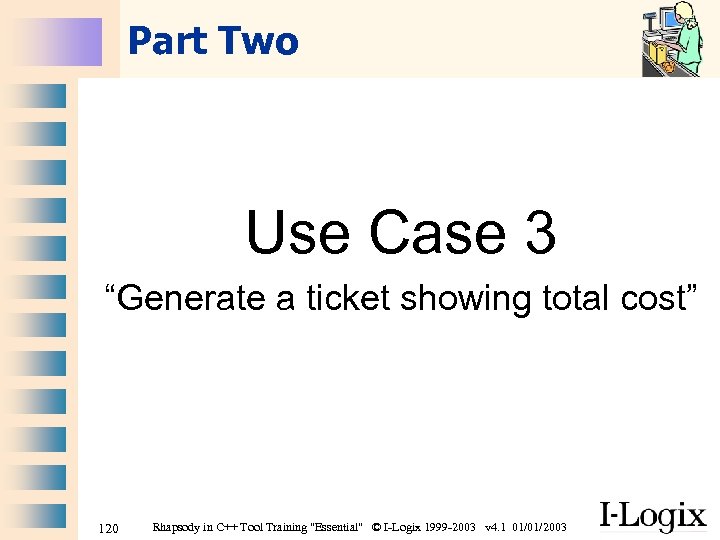

Part Two Use Case 3 “Generate a ticket showing total cost” 120 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

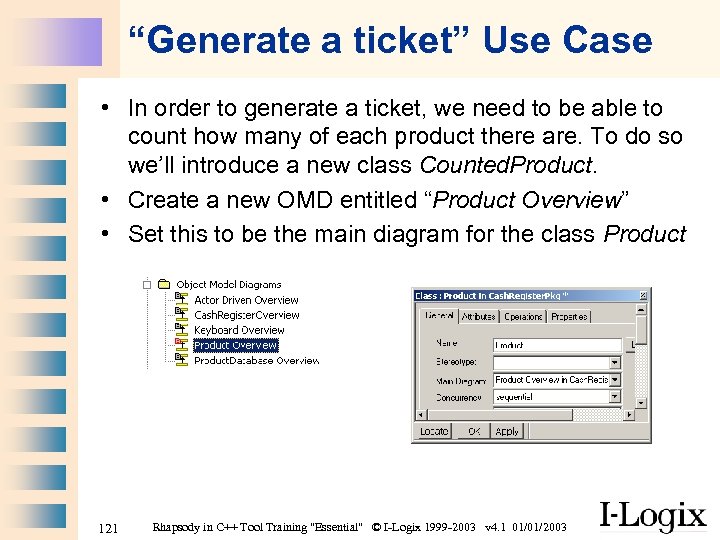

“Generate a ticket” Use Case • In order to generate a ticket, we need to be able to count how many of each product there are. To do so we’ll introduce a new class Counted. Product. • Create a new OMD entitled “Product Overview” • Set this to be the main diagram for the class Product 121 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Product Overview • Drag the classes Cash. Register and Product onto the OMD and add the class Counted. Product • Add inheritance and Qualified association • Add attribute count of type int • Add operation get. Price that returns an int • Add operation increment • Set Multiplicity * 122 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

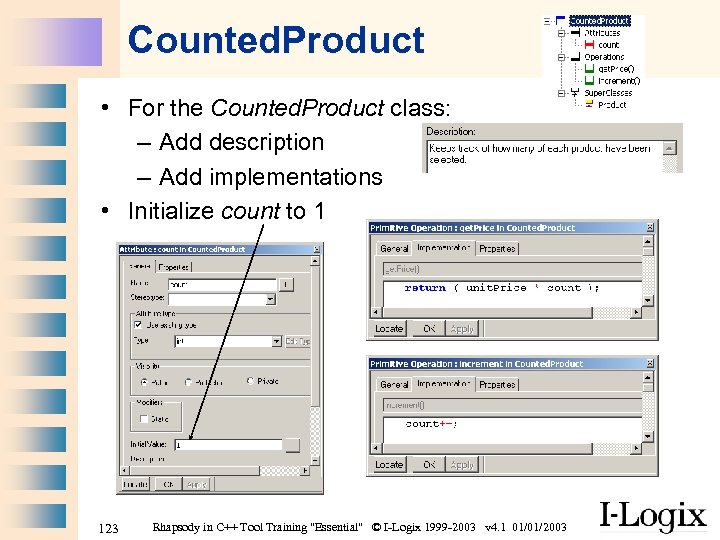

Counted. Product • For the Counted. Product class: – Add description – Add implementations • Initialize count to 1 123 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Counted. Product constructor • We will be creating Counted. Products from Products so we need a constructor that takes a “Product*” as an argument. • Add the constructor 124 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Another Product constructor • Add another constructor to the Product class that is protected and that takes a Product* as an argument 125 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

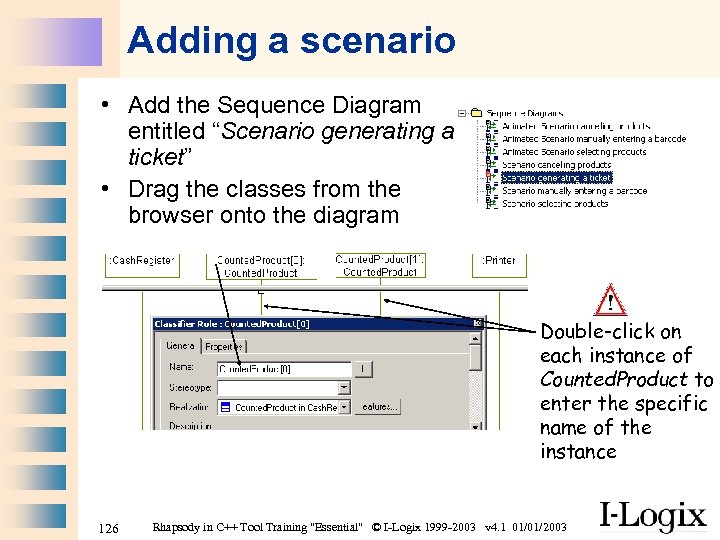

Adding a scenario • Add the Sequence Diagram entitled “Scenario generating a ticket” • Drag the classes from the browser onto the diagram Double-click on each instance of Counted. Product to enter the specific name of the instance 126 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Completing the scenario constructor destructor 127 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

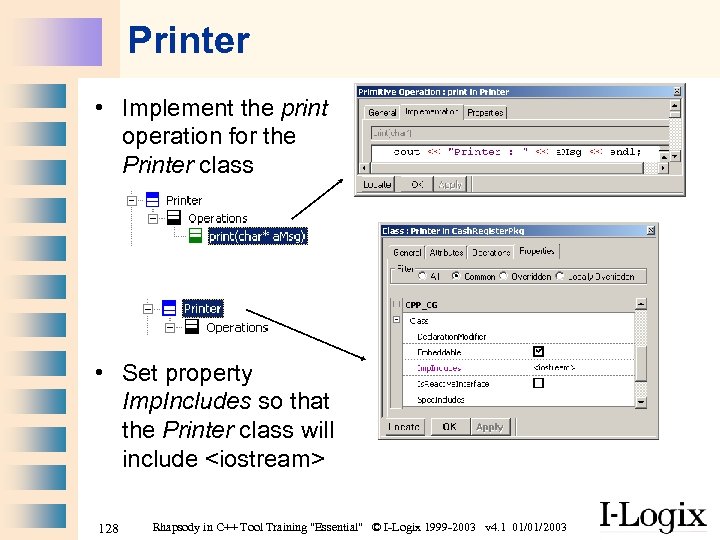

Printer • Implement the print operation for the Printer class • Set property Imp. Includes so that the Printer class will include 128 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

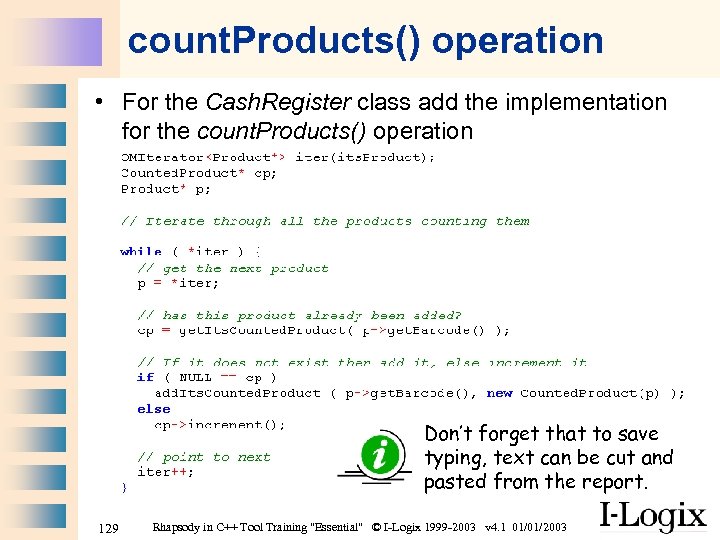

count. Products() operation • For the Cash. Register class add the implementation for the count. Products() operation Don’t forget that to save typing, text can be cut and pasted from the report. 129 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

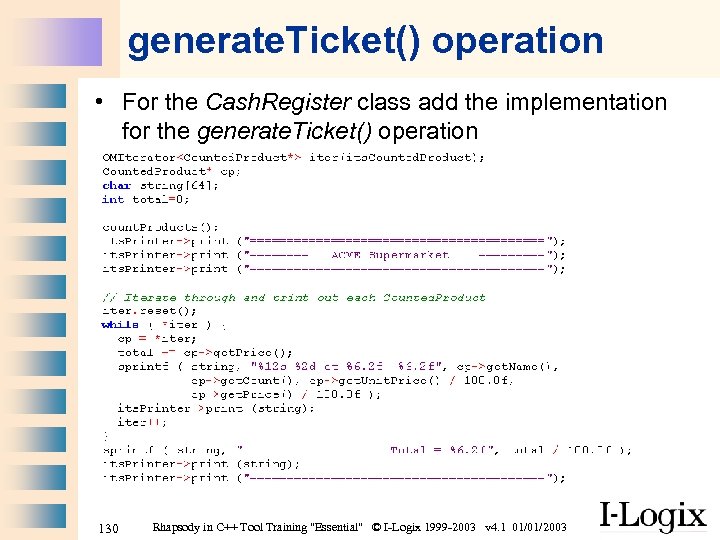

generate. Ticket() operation • For the Cash. Register class add the implementation for the generate. Ticket() operation 130 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

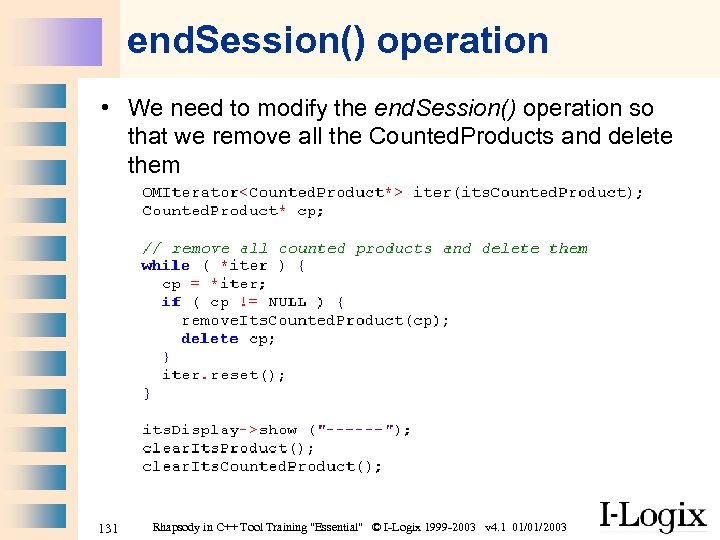

end. Session() operation • We need to modify the end. Session() operation so that we remove all the Counted. Products and delete them 131 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

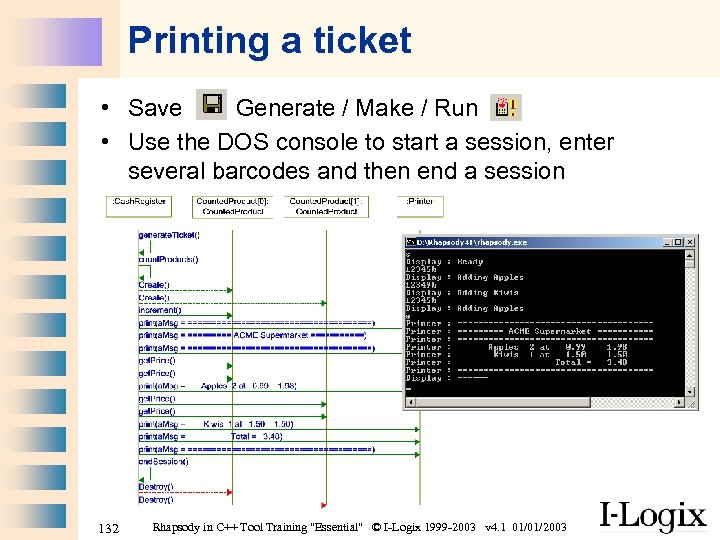

Printing a ticket • Save Generate / Make / Run • Use the DOS console to start a session, enter several barcodes and then end a session 132 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

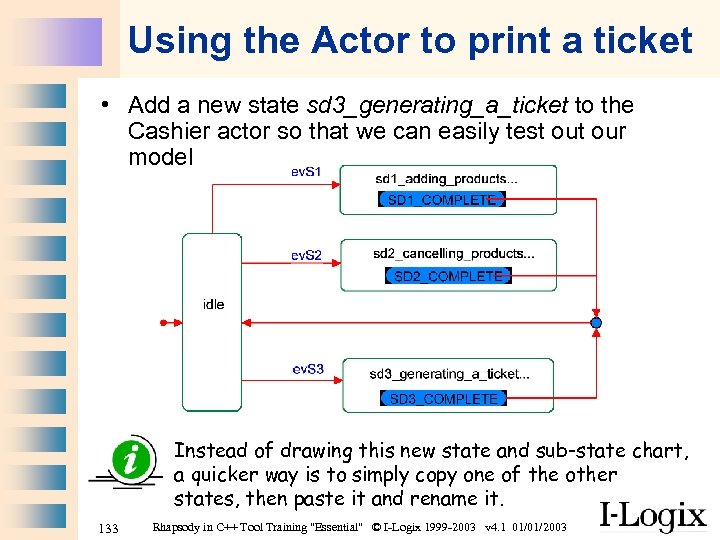

Using the Actor to print a ticket • Add a new state sd 3_generating_a_ticket to the Cashier actor so that we can easily test our model Instead of drawing this new state and sub-state chart, a quicker way is to simply copy one of the other states, then paste it and rename it. 133 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Adding the sub-Statechart Don’t forget that to save typing, text can be cut and pasted from the report. 134 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

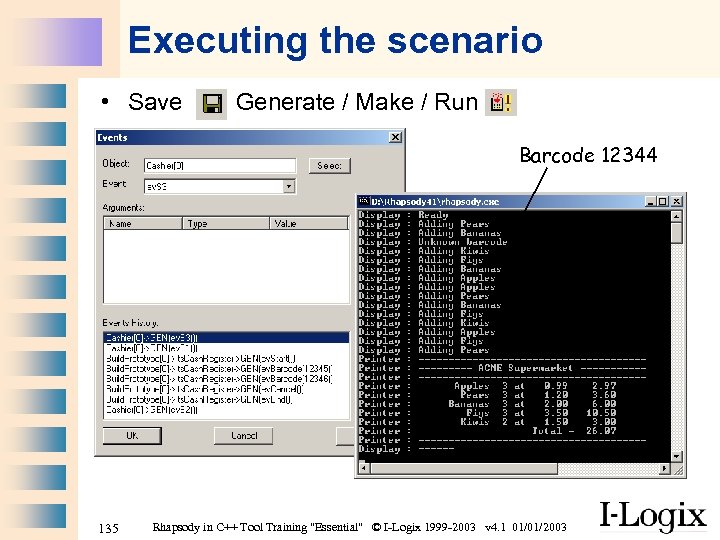

Executing the scenario • Save Generate / Make / Run Barcode 12344 135 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

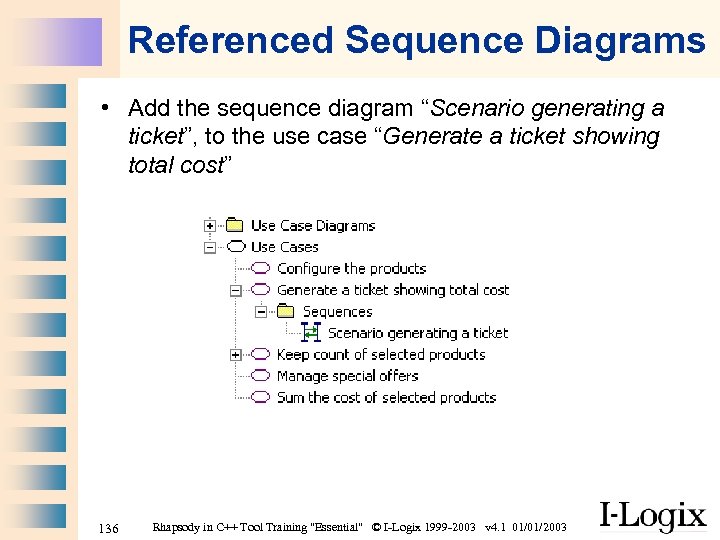

Referenced Sequence Diagrams • Add the sequence diagram “Scenario generating a ticket”, to the use case “Generate a ticket showing total cost” 136 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Part Two Use Case 4 “Manage special offers” 137 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

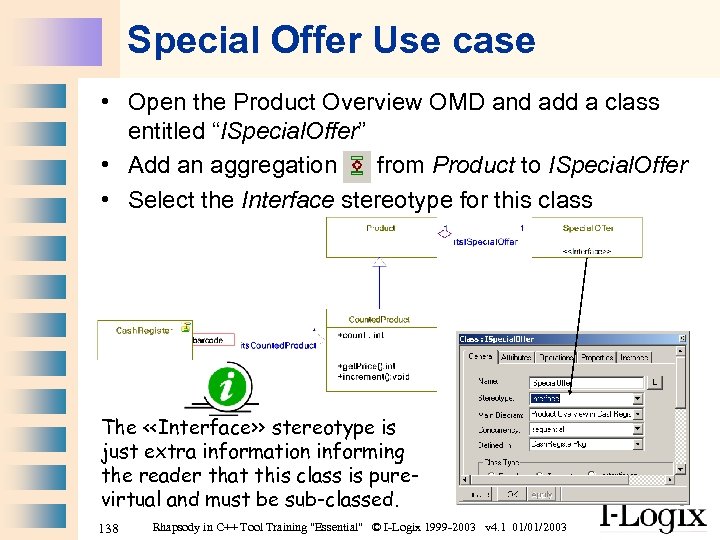

Special Offer Use case • Open the Product Overview OMD and add a class entitled “ISpecial. Offer” • Add an aggregation from Product to ISpecial. Offer • Select the Interface stereotype for this class The <> stereotype is just extra information informing the reader that this class is purevirtual and must be sub-classed. 138 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

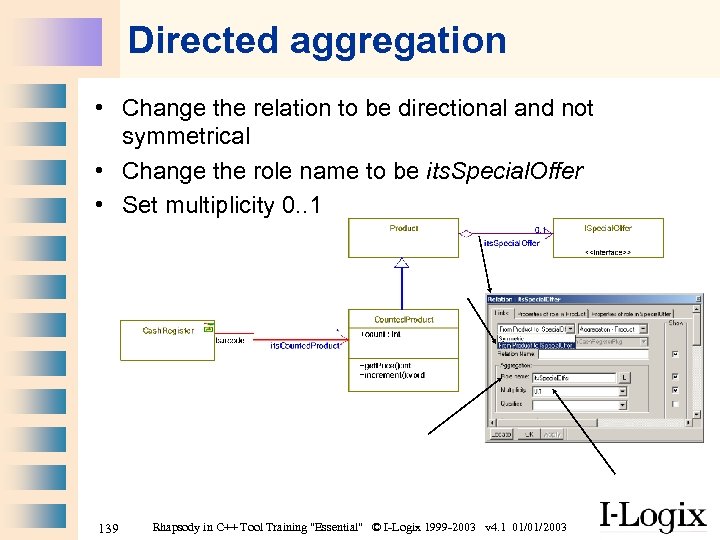

Directed aggregation • Change the relation to be directional and not symmetrical • Change the role name to be its. Special. Offer • Set multiplicity 0. . 1 139 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

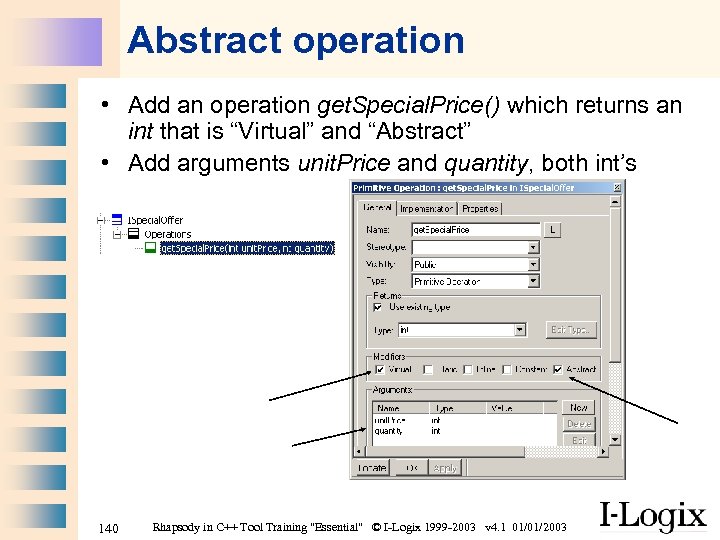

Abstract operation • Add an operation get. Special. Price() which returns an int that is “Virtual” and “Abstract” • Add arguments unit. Price and quantity, both int’s 140 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

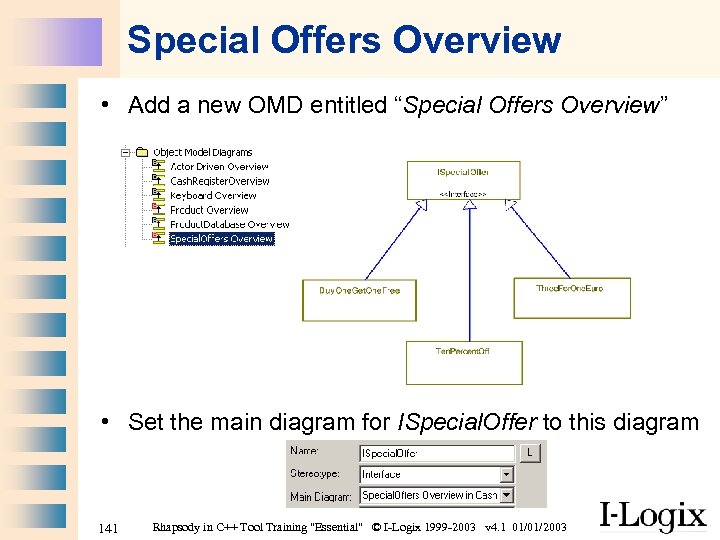

Special Offers Overview • Add a new OMD entitled “Special Offers Overview” • Set the main diagram for ISpecial. Offer to this diagram 141 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

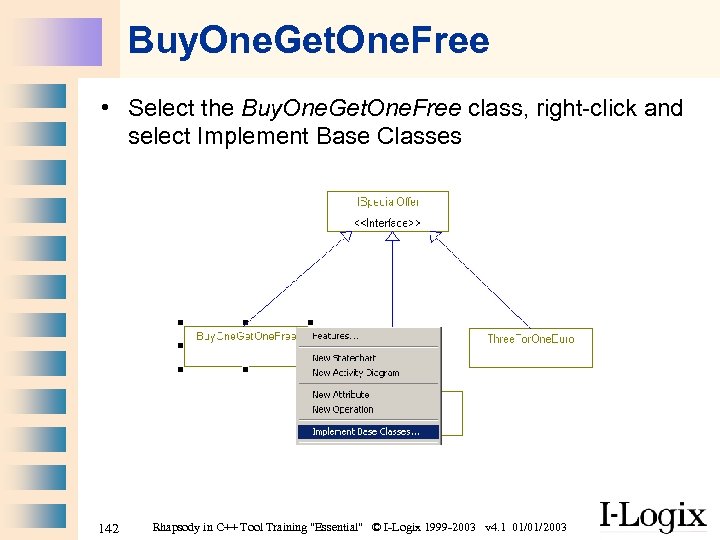

Buy. One. Get. One. Free • Select the Buy. One. Get. One. Free class, right-click and select Implement Base Classes 142 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

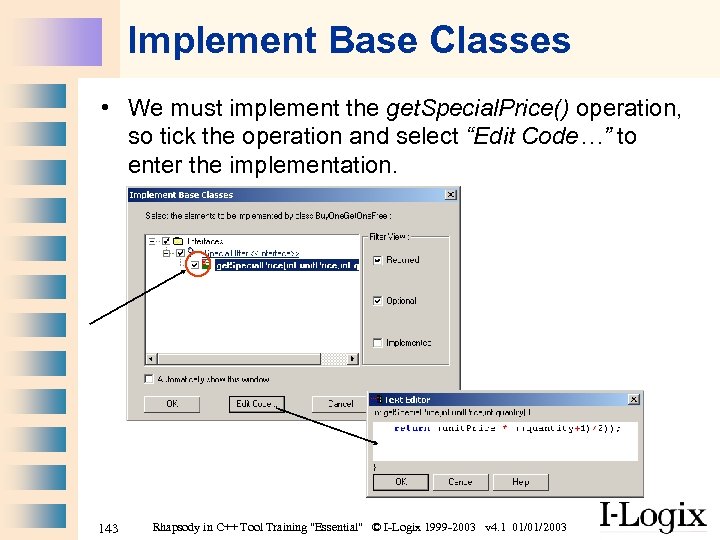

Implement Base Classes • We must implement the get. Special. Price() operation, so tick the operation and select “Edit Code…” to enter the implementation. 143 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

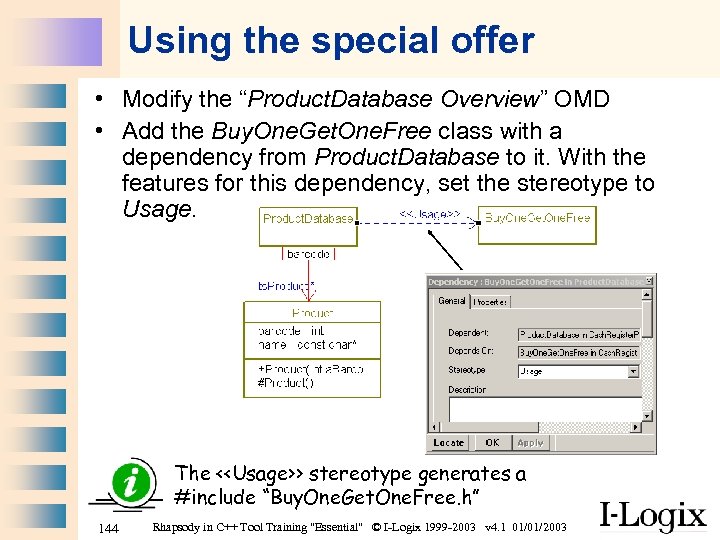

Using the special offer • Modify the “Product. Database Overview” OMD • Add the Buy. One. Get. One. Free class with a dependency from Product. Database to it. With the features for this dependency, set the stereotype to Usage. The <> stereotype generates a #include “Buy. One. Get. One. Free. h” 144 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

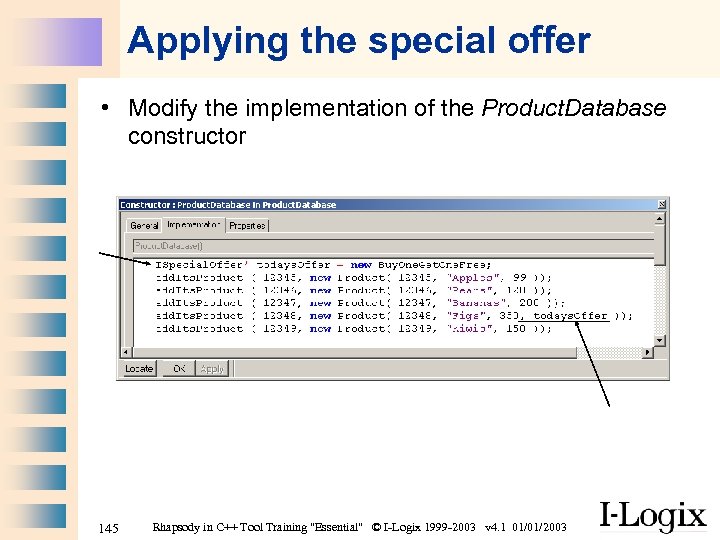

Applying the special offer • Modify the implementation of the Product. Database constructor 145 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

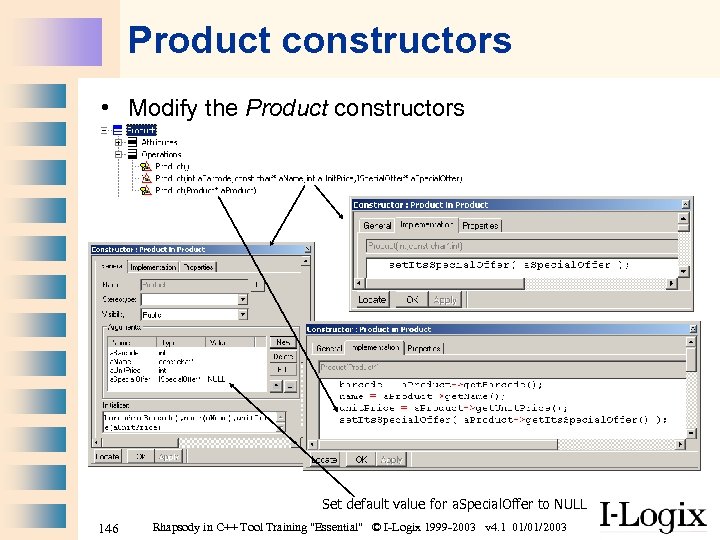

Product constructors • Modify the Product constructors Set default value for a. Special. Offer to NULL 146 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Counted. Product get. Price() • Modify the implementation of the get. Price() operation of the Counted. Product class 147 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

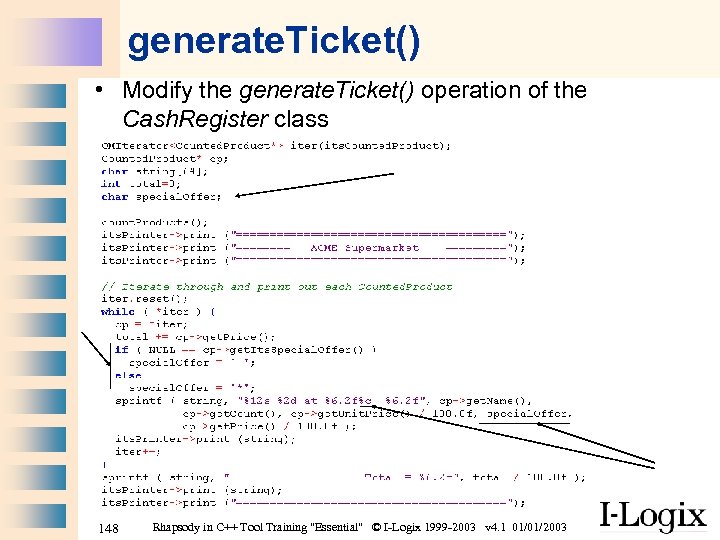

generate. Ticket() • Modify the generate. Ticket() operation of the Cash. Register class 148 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

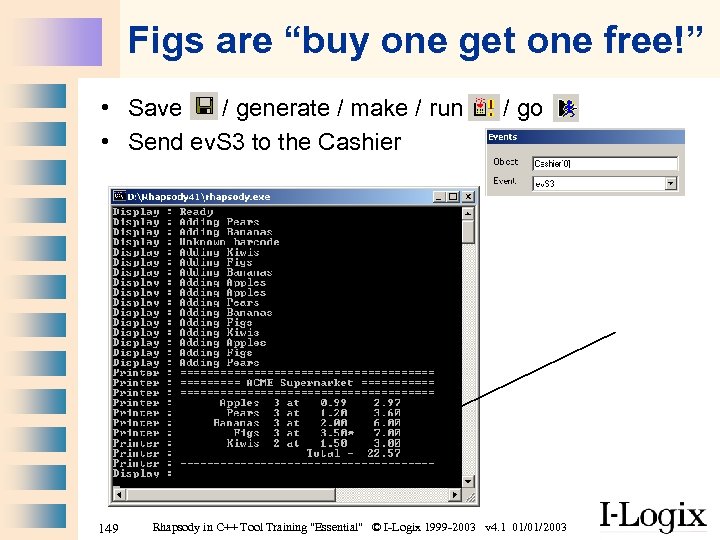

Figs are “buy one get one free!” • Save / generate / make / run • Send ev. S 3 to the Cashier 149 / go Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Optimization : get / set • We’ve implemented all our use cases and everything seems ok, it’s now time to do a little optimization • Rhapsody generates by default a get and set for every attribute. We can tell Rhapsody not to generate these get / set operations and then generate them just when we need them. • Set the following properties: Make sure that you select the properties for the entire project 150 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

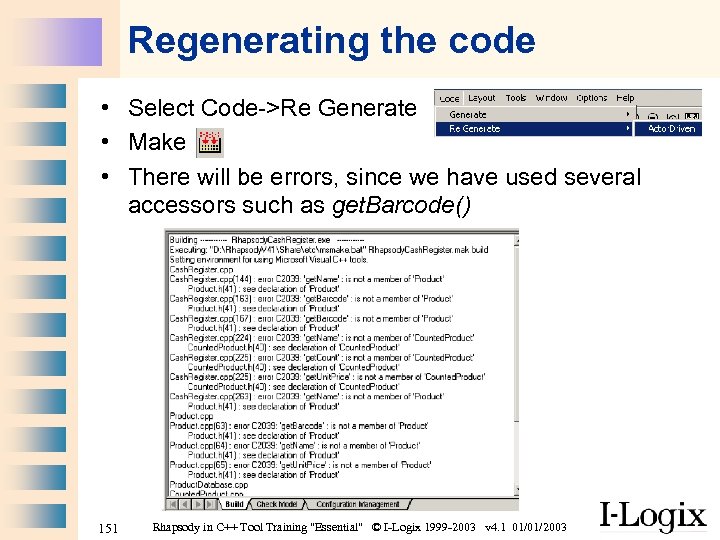

Regenerating the code • Select Code->Re Generate • Make • There will be errors, since we have used several accessors such as get. Barcode() 151 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

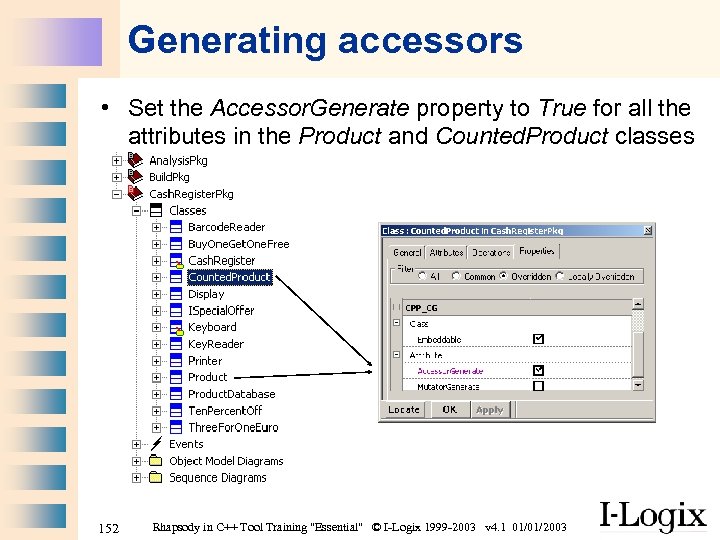

Generating accessors • Set the Accessor. Generate property to True for all the attributes in the Product and Counted. Product classes 152 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

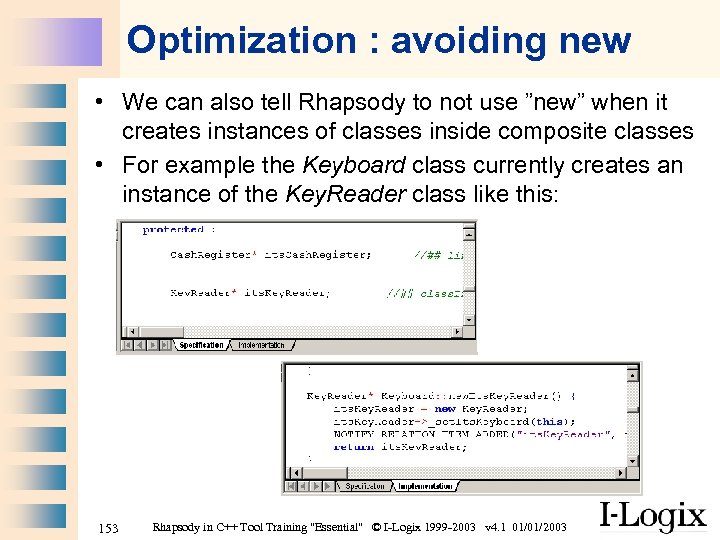

Optimization : avoiding new • We can also tell Rhapsody to not use ”new” when it creates instances of classes inside composite classes • For example the Keyboard class currently creates an instance of the Key. Reader class like this: 153 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

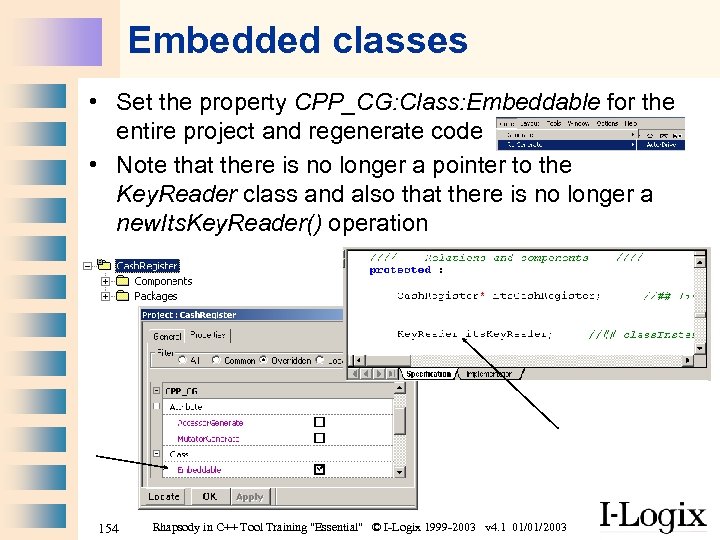

Embedded classes • Set the property CPP_CG: Class: Embeddable for the entire project and regenerate code • Note that there is no longer a pointer to the Key. Reader class and also that there is no longer a new. Its. Key. Reader() operation 154 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

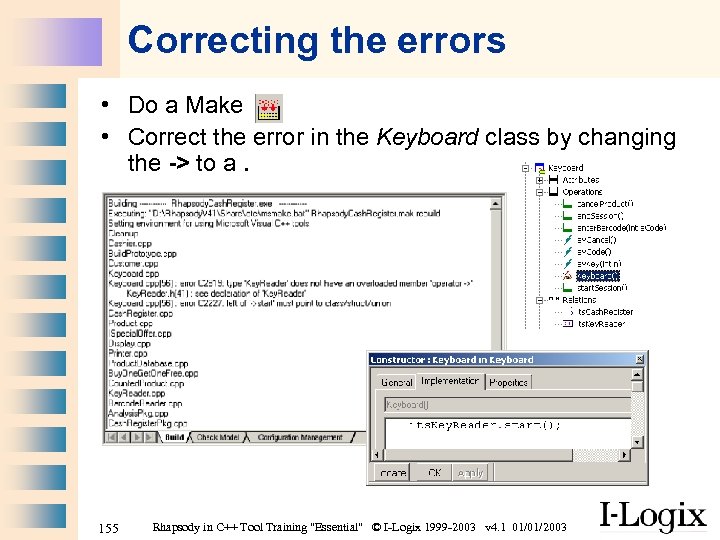

Correcting the errors • Do a Make • Correct the error in the Keyboard class by changing the -> to a. 155 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Embedded classes in the main • Set the property CPP_CG: Configuration: Initialize. Embeddable. Objects By. Value to True and regenerate code 156 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

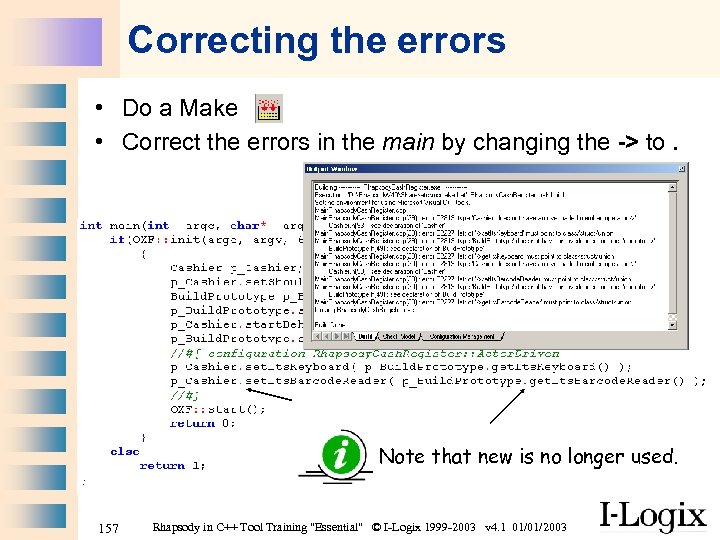

Correcting the errors • Do a Make • Correct the errors in the main by changing the -> to. Note that new is no longer used. 157 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

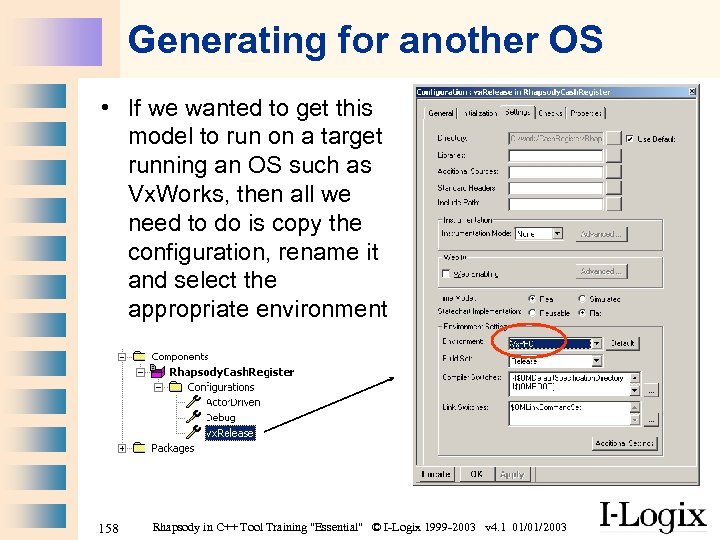

Generating for another OS • If we wanted to get this model to run on a target running an OS such as Vx. Works, then all we need to do is copy the configuration, rename it and select the appropriate environment 158 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

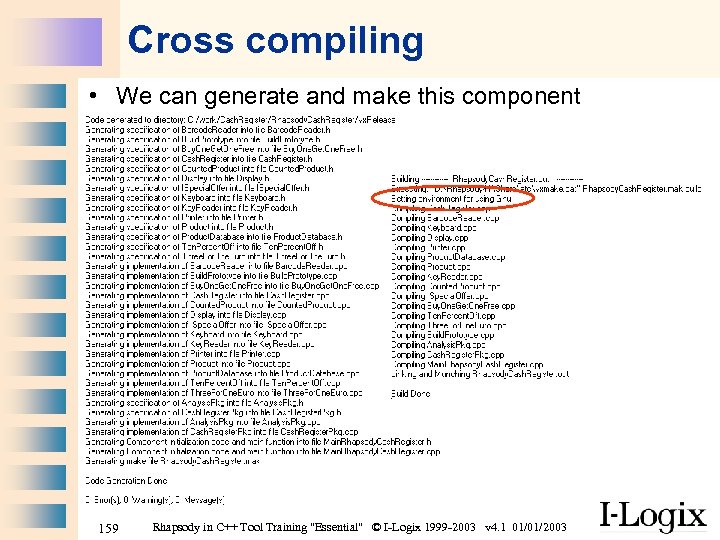

Cross compiling • We can generate and make this component 159 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

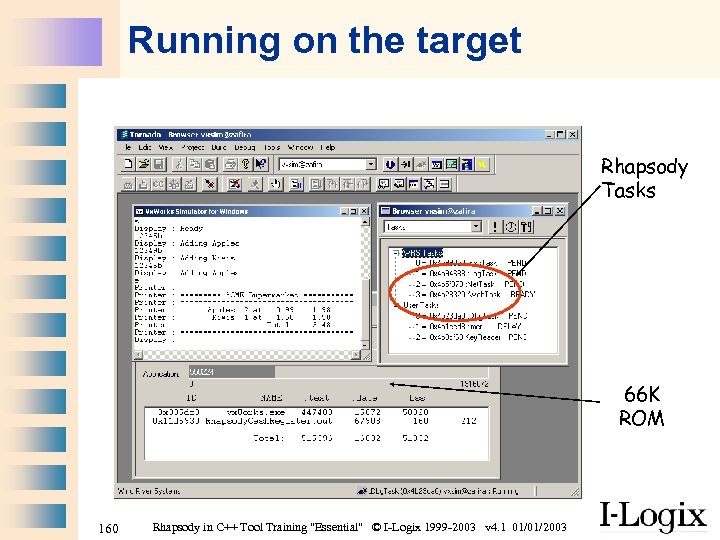

Running on the target Rhapsody Tasks 66 K ROM 160 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

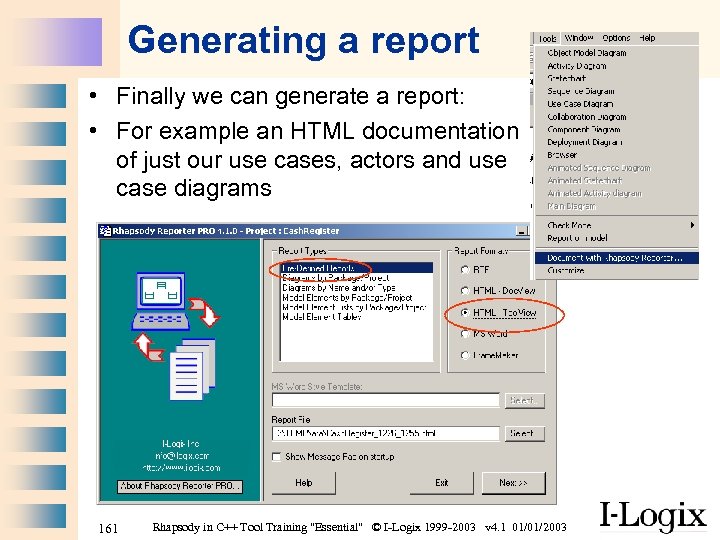

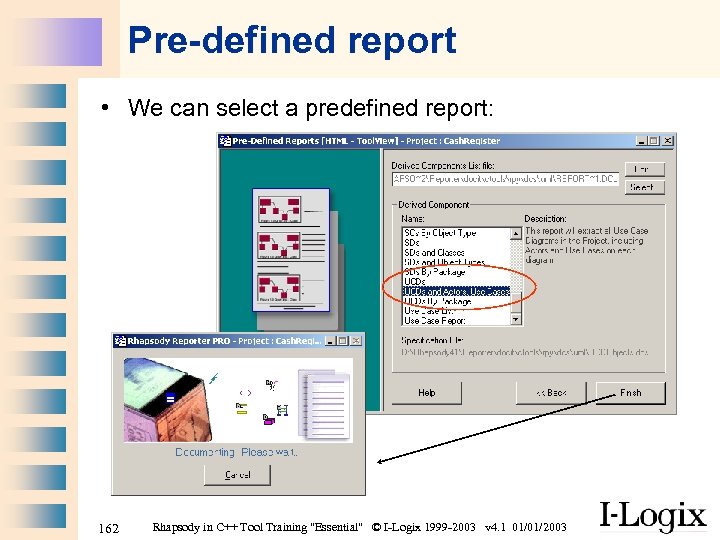

Generating a report • Finally we can generate a report: • For example an HTML documentation of just our use cases, actors and use case diagrams 161 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Pre-defined report • We can select a predefined report: 162 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

Final Report 163 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003

164 Rhapsody in C++ Tool Training "Essential" © I-Logix 1999 -2003 v 4. 1 01/01/2003
