ESA EO Exploitation Programmes Working With Users Mark Doherty Services & Exploitation Division EO Science & Applications Department European Space Agency

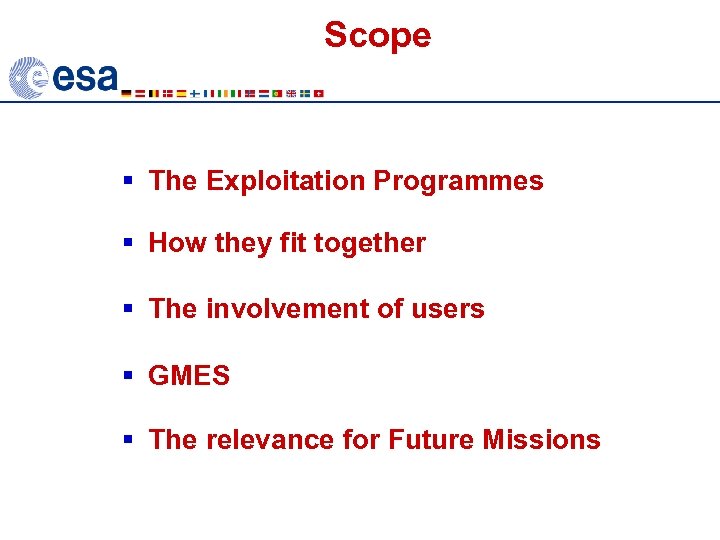

Scope § The Exploitation Programmes § How they fit together § The involvement of users § GMES § The relevance for Future Missions

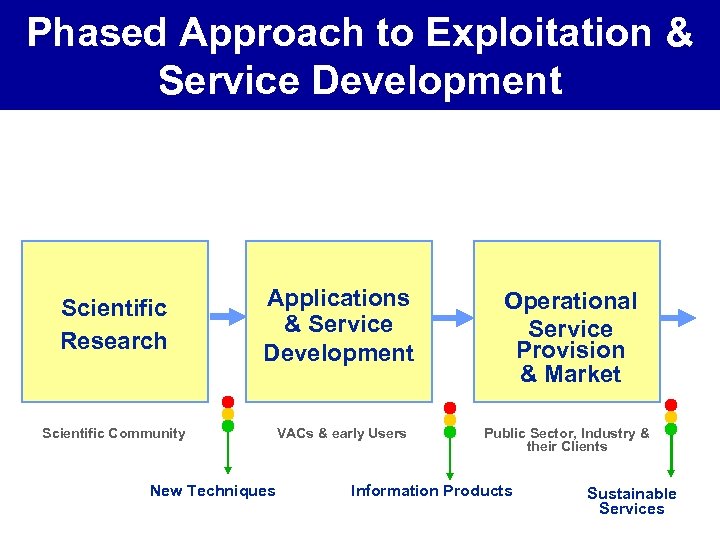

Phased Approach to Exploitation & Service Development Scientific Research Applications & Service Development Operational Service Provision & Market Scientific Community VACs & early Users Public Sector, Industry & their Clients New Techniques Information Products Sustainable Services

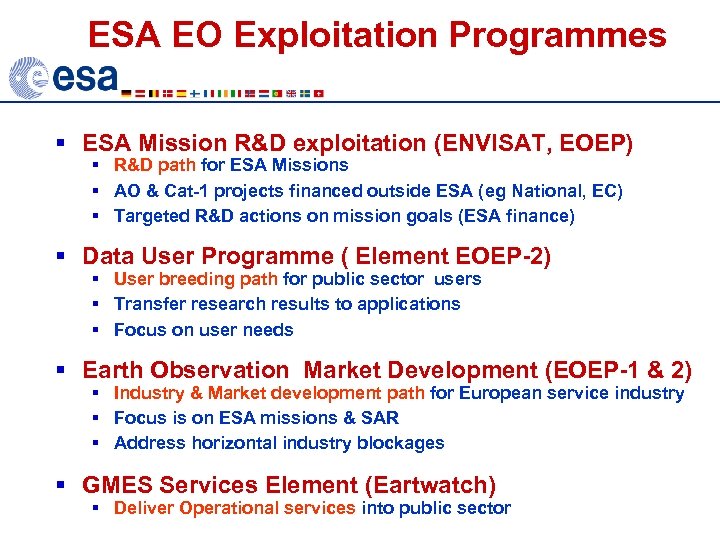

ESA EO Exploitation Programmes § ESA Mission R&D exploitation (ENVISAT, EOEP) § R&D path for ESA Missions § AO & Cat-1 projects financed outside ESA (eg National, EC) § Targeted R&D actions on mission goals (ESA finance) § Data User Programme ( Element EOEP-2) § User breeding path for public sector users § Transfer research results to applications § Focus on user needs § Earth Observation Market Development (EOEP-1 & 2) § Industry & Market development path for European service industry § Focus is on ESA missions & SAR § Address horizontal industry blockages § GMES Services Element (Eartwatch) § Deliver Operational services into public sector

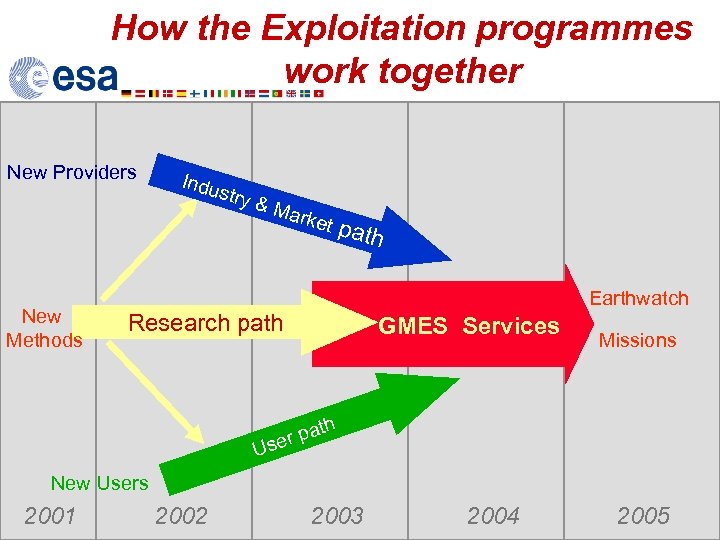

How the Exploitation programmes work together New Providers New Methods Indu stry &M arke t pa th Earthwatch Research path GMES Services Missions th r pa Use New Users 2001 2002 2003 2004 2005

AO & Cat-1 Exploitation Targeted R&D Actions

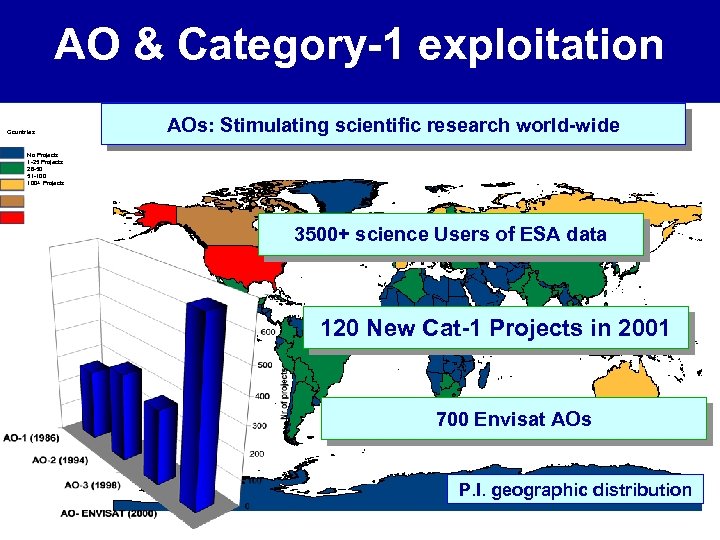

AO & Category-1 exploitation Countries AOs: Stimulating scientific research world-wide No Projects 1 -25 Projects 26 -50 51 -100 100+ Projects 3500+ science Users of ESA data 120 New Cat-1 Projects in 2001 700 Envisat AOs P. I. geographic distribution

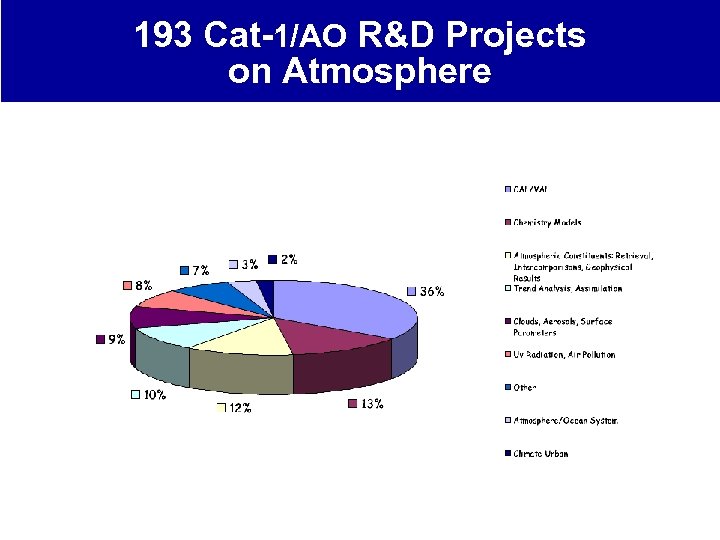

193 Cat-1/AO R&D Projects on Atmosphere

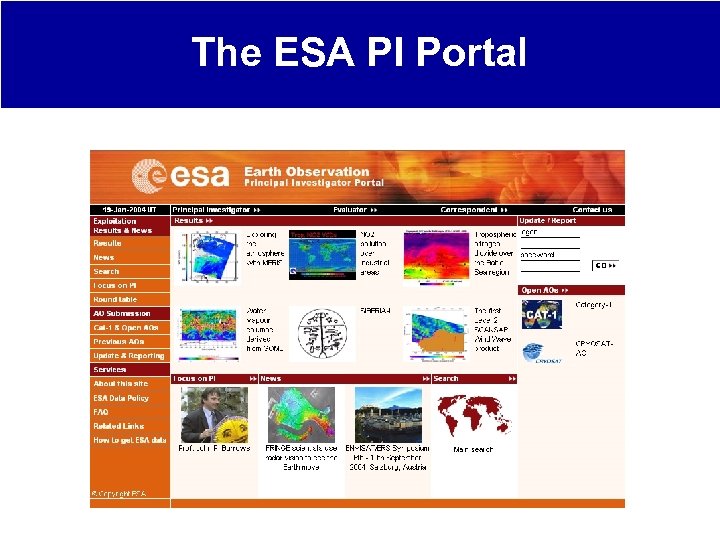

The ESA PI Portal

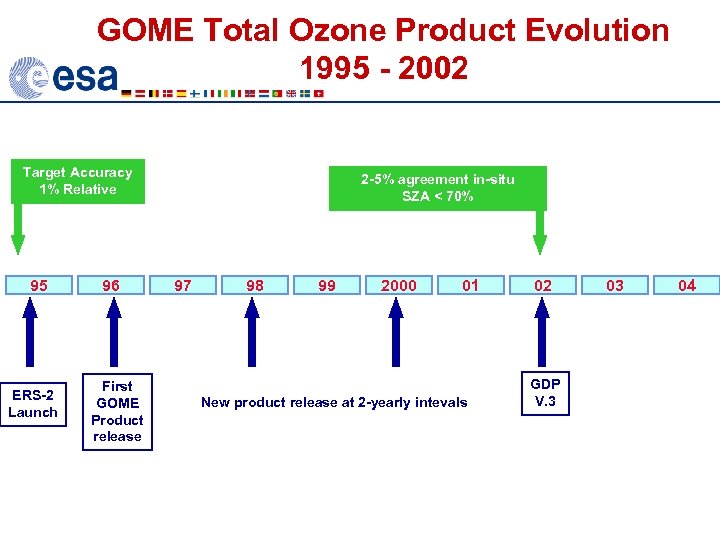

GOME Total Ozone Product Evolution 1995 - 2002 Target Accuracy 1% Relative 95 ERS-2 Launch 96 First GOME Product release 2 -5% agreement in-situ SZA < 70% 97 98 99 2000 01 New product release at 2 -yearly intevals 02 GDP V. 3 03 04

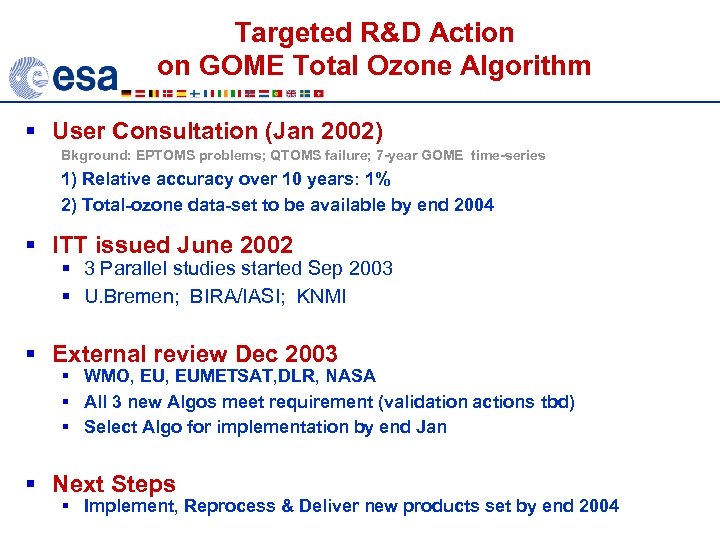

Targeted R&D Action on GOME Total Ozone Algorithm § User Consultation (Jan 2002) Bkground: EPTOMS problems; QTOMS failure; 7 -year GOME time-series 1) Relative accuracy over 10 years: 1% 2) Total-ozone data-set to be available by end 2004 § ITT issued June 2002 § 3 Parallel studies started Sep 2003 § U. Bremen; BIRA/IASI; KNMI § External review Dec 2003 § WMO, EUMETSAT, DLR, NASA § All 3 new Algos meet requirement (validation actions tbd) § Select Algo for implementation by end Jan § Next Steps § Implement, Reprocess & Deliver new products set by end 2004

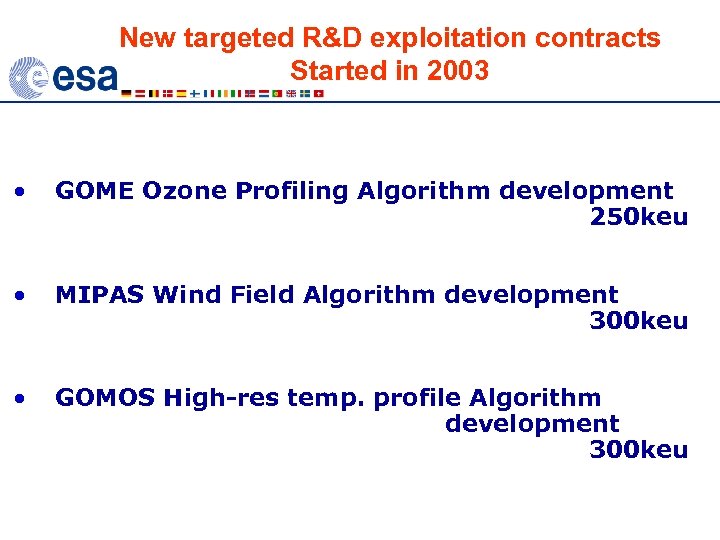

New targeted R&D exploitation contracts Started in 2003 • GOME Ozone Profiling Algorithm development 250 keu • MIPAS Wind Field Algorithm development 300 keu • GOMOS High-res temp. profile Algorithm development 300 keu

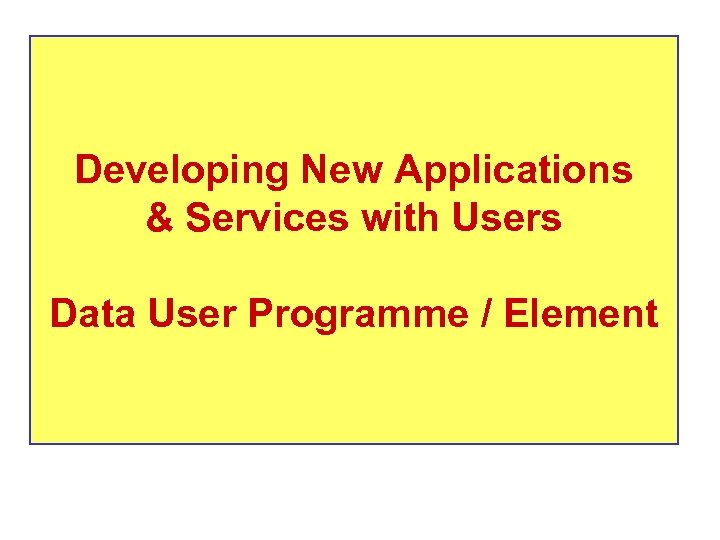

Developing New Applications & Services with Users Data User Programme / Element

The DUP/DUE Programme in a few words The three major objectives of the Data User Program, as stated in the program declaration, are: ü First, to create an environment allowing for the development of user communities for both institutional and commercial applications; ü Second, to support European companies to develop and demonstrate information products derived from ESA current and future missions, based on applications already demonstrated in the framework of pilot projects, e. g. the ERS Announcement of Opportunity (AO) projects; ü Third, to support industry, i. e. value adding and servicing companies, in establishing useful and cost effective services.

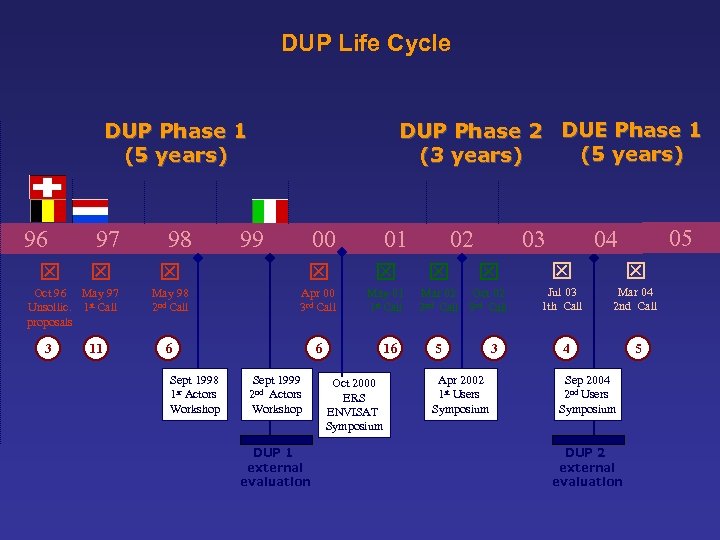

DUP Life Cycle DUP Phase 2 DUE Phase 1 (5 years) (3 years) DUP Phase 1 (5 years) 96 97 98 Oct 96 May 97 Unsollic. 1 st Call proposals May 98 2 nd Call Apr 00 3 rd Call 6 11 Sept 1998 1 sr Actors Workshop 00 05 01 02 03 04 6 3 99 Sept 1999 2 nd Actors Workshop DUP 1 external evaluation May 01 1 st Call 16 Oct 2000 ERS ENVISAT Symposium Mar 02 Oct 02 2 nd Call 3 rd Call 5 Apr 2002 1 st Users Symposium 3 Jul 03 1 th Call Mar 04 2 nd Call 4 Sep 2004 2 nd Users Symposium DUP 2 external evaluation 5

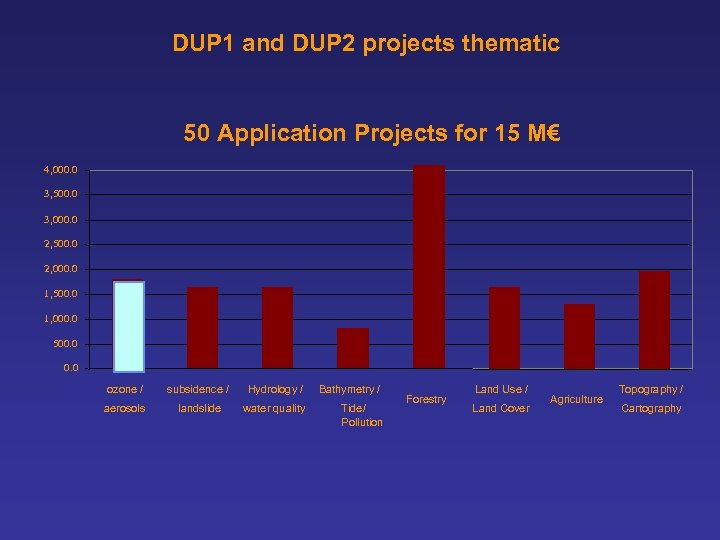

DUP 1 and DUP 2 projects thematic 50 Application Projects for 15 M€ 4, 000. 0 3, 500. 0 3, 000. 0 2, 500. 0 2, 000. 0 1, 500. 0 1, 000. 0 500. 0 ozone / subsidence / Hydrology / Bathymetry / aerosols landslide water quality Tide/ Pollution Forestry Land Use / Land Cover Agriculture Topography / Cartography

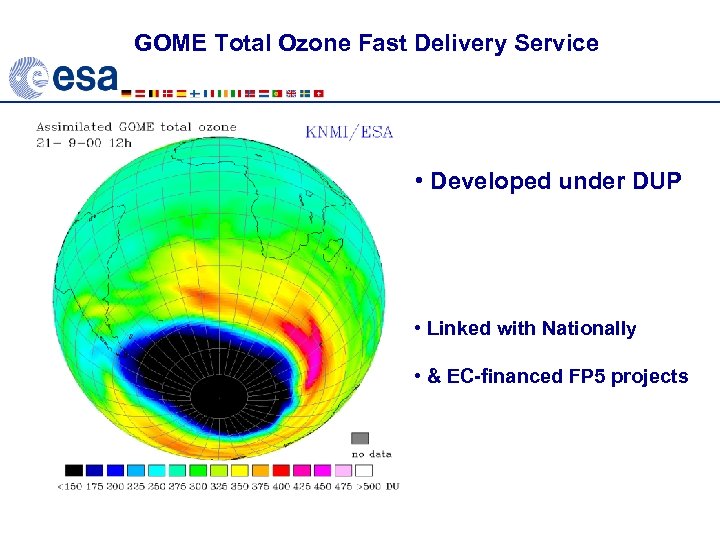

GOME Total Ozone Fast Delivery Service • Developed under DUP • Linked with Nationally • & EC-financed FP 5 projects

User Involvement during the Project User Group: shall devote, at least, 3 man/month of work to the project. This is formalised through letters of commitment (preparation phase). User requirements consolidation Data access & ground truthing Support to products validation Service assessment Service Development EO data Service Products

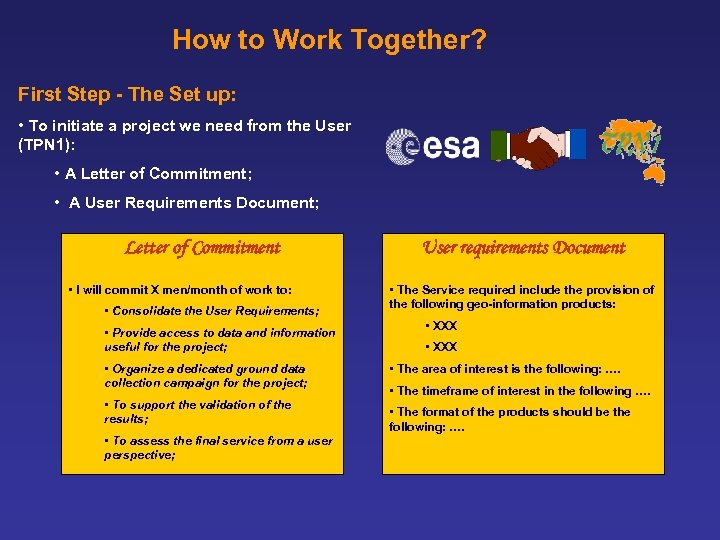

How to Work Together? First Step - The Set up: • To initiate a project we need from the User (TPN 1): • A Letter of Commitment; • A User Requirements Document; Letter of Commitment • I will commit X men/month of work to: • Consolidate the User Requirements; • Provide access to data and information useful for the project; • Organize a dedicated ground data collection campaign for the project; • To support the validation of the results; • To assess the final service from a user perspective; User requirements Document • The Service required include the provision of the following geo-information products: • XXX • The area of interest is the following: …. • The timeframe of interest in the following …. • The format of the products should be the following: ….

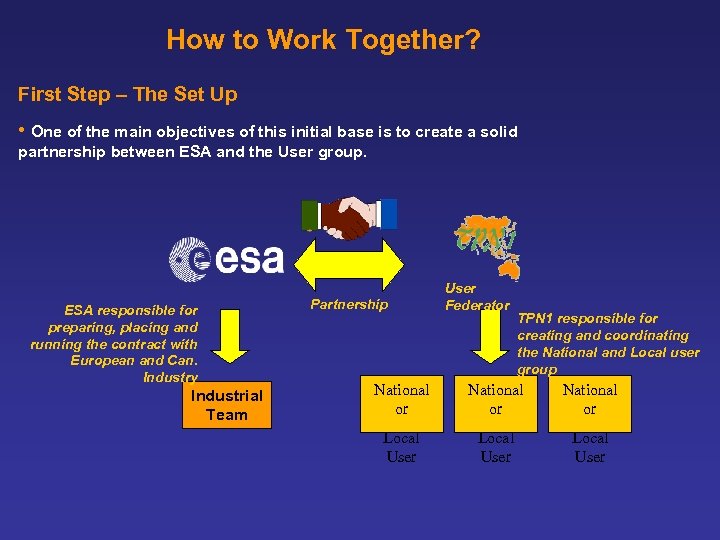

How to Work Together? First Step – The Set Up • One of the main objectives of this initial base is to create a solid partnership between ESA and the User group. ESA responsible for preparing, placing and running the contract with European and Can. Industry Industrial Team Partnership User Federator TPN 1 responsible for creating and coordinating the National and Local user group National or Local User

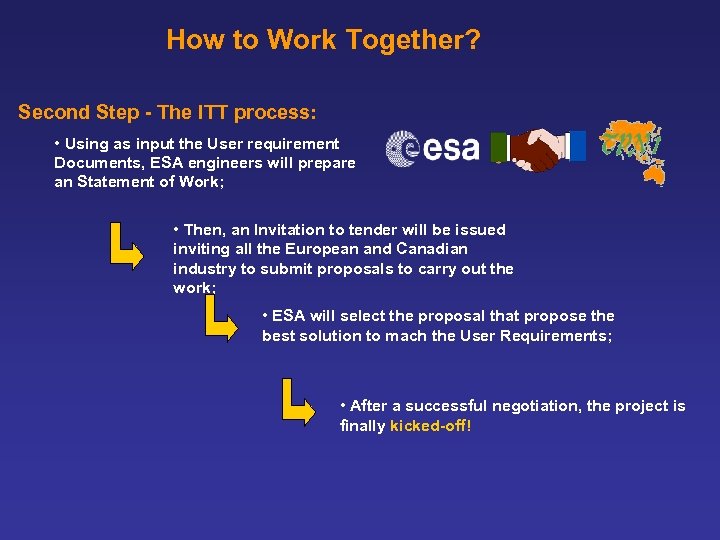

How to Work Together? Second Step - The ITT process: • Using as input the User requirement Documents, ESA engineers will prepare an Statement of Work; • Then, an Invitation to tender will be issued inviting all the European and Canadian industry to submit proposals to carry out the work; • ESA will select the proposal that propose the best solution to mach the User Requirements; • After a successful negotiation, the project is finally kicked-off!

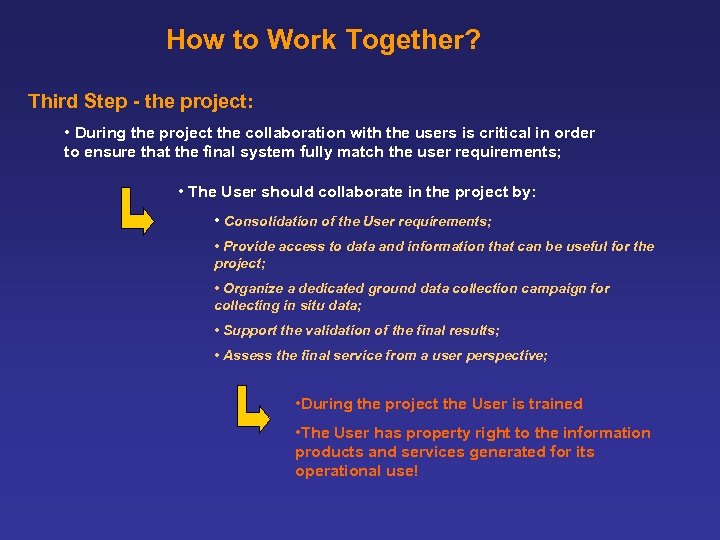

How to Work Together? Third Step - the project: • During the project the collaboration with the users is critical in order to ensure that the final system fully match the user requirements; • The User should collaborate in the project by: • Consolidation of the User requirements; • Provide access to data and information that can be useful for the project; • Organize a dedicated ground data collection campaign for collecting in situ data; • Support the validation of the final results; • Assess the final service from a user perspective; • During the project the User is trained • The User has property right to the information products and services generated for its operational use!

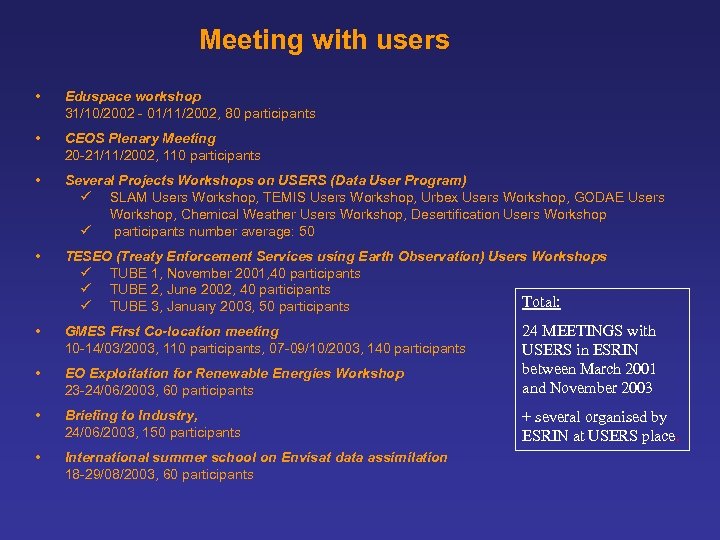

Meeting with users • Eduspace workshop 31/10/2002 - 01/11/2002, 80 participants • CEOS Plenary Meeting 20 -21/11/2002, 110 participants • Several Projects Workshops on USERS (Data User Program) ü SLAM Users Workshop, TEMIS Users Workshop, Urbex Users Workshop, GODAE Users Workshop, Chemical Weather Users Workshop, Desertification Users Workshop ü participants number average: 50 • TESEO (Treaty Enforcement Services using Earth Observation) Users Workshops ü TUBE 1, November 2001, 40 participants ü TUBE 2, June 2002, 40 participants Total: ü TUBE 3, January 2003, 50 participants • GMES First Co-location meeting 10 -14/03/2003, 110 participants, 07 -09/10/2003, 140 participants • EO Exploitation for Renewable Energies Workshop 23 -24/06/2003, 60 participants 24 MEETINGS with USERS in ESRIN between March 2001 and November 2003 • Briefing to Industry, 24/06/2003, 150 participants + several organised by ESRIN at USERS place. • International summer school on Envisat data assimilation 18 -29/08/2003, 60 participants

ESA Supporting International Conventions • ESA supports: ü UNCCD; ü World Heritage Convention; ü Ramsar Convention on Wetlands; ü UNFCCC; • ESA attending key events: ü World Summit, Johannesburg, South Africa, 2002; ü COP 8 of the UNFCCC, New Delhi, India, 2002; ü COP 8 of the Ramsar Convention, Valencia, Spain, 2002; ü COP 6 of the UNCCD, La Havana, Cuba, 2003; üCOP 9 of the UNFCCC, Milano, 2003;

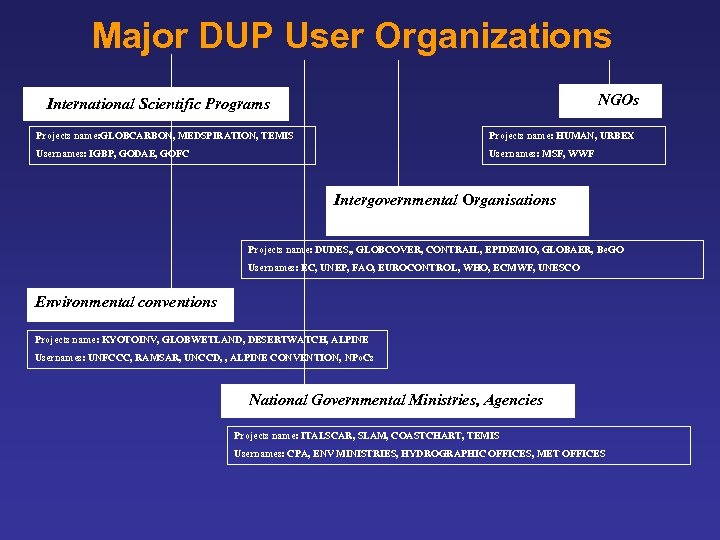

Major DUP User Organizations NGOs International Scientific Programs Projects name: GLOBCARBON, MEDSPIRATION, TEMIS Projects name: HUMAN, URBEX Usernames: IGBP, GODAE, GOFC Usernames: MSF, WWF Intergovernmental Organisations Projects name: DUDES, , GLOBCOVER, CONTRAIL, EPIDEMIO, GLOBAER, Be. GO Usernames: EC, UNEP, FAO, EUROCONTROL, WHO, ECMWF, UNESCO Environmental conventions Projects name: KYOTOINV, GLOBWETLAND, DESERTWATCH, ALPINE Usernames: UNFCCC, RAMSAR, UNCCD, , ALPINE CONVENTION, NPo. Cs National Governmental Ministries, Agencies Projects name: ITALSCAR, SLAM, COASTCHART, TEMIS Usernames: CPA, ENV MINISTRIES, HYDROGRAPHIC OFFICES, MET OFFICES

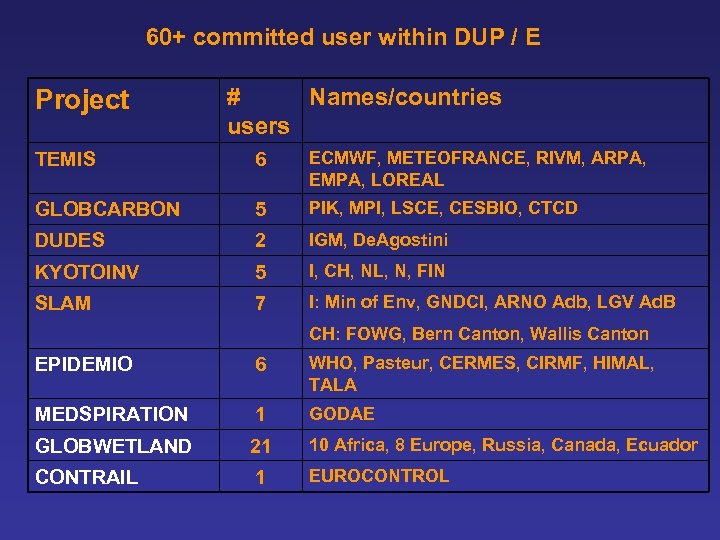

60+ committed user within DUP / E Project # Names/countries users TEMIS 6 ECMWF, METEOFRANCE, RIVM, ARPA, EMPA, LOREAL GLOBCARBON 5 PIK, MPI, LSCE, CESBIO, CTCD DUDES 2 IGM, De. Agostini KYOTOINV 5 I, CH, NL, N, FIN SLAM 7 I: Min of Env, GNDCI, ARNO Adb, LGV Ad. B CH: FOWG, Bern Canton, Wallis Canton EPIDEMIO 6 WHO, Pasteur, CERMES, CIRMF, HIMAL, TALA MEDSPIRATION 1 GODAE GLOBWETLAND 21 CONTRAIL 1 10 Africa, 8 Europe, Russia, Canada, Ecuador EUROCONTROL

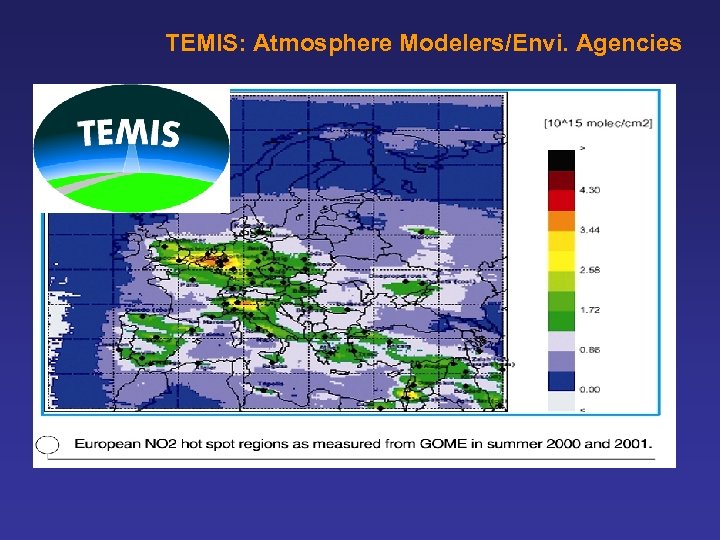

TEMIS: Atmosphere Modelers/Envi. Agencies

CONTRAIL: Air Traffic Environmental Impact (IPCC) Mapping aircraft condensation trails for EUROCONTROL UR: April 2003 KO: November 2003

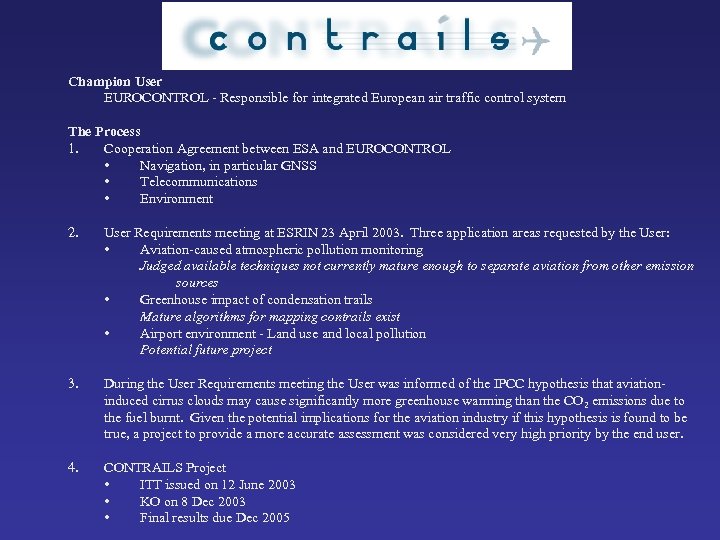

Champion User EUROCONTROL - Responsible for integrated European air traffic control system The Process 1. Cooperation Agreement between ESA and EUROCONTROL • Navigation, in particular GNSS • Telecommunications • Environment 2. User Requirements meeting at ESRIN 23 April 2003. Three application areas requested by the User: • Aviation-caused atmospheric pollution monitoring Judged available techniques not currently mature enough to separate aviation from other emission sources • Greenhouse impact of condensation trails Mature algorithms for mapping contrails exist • Airport environment - Land use and local pollution Potential future project 3. During the User Requirements meeting the User was informed of the IPCC hypothesis that aviationinduced cirrus clouds may cause significantly more greenhouse warming than the CO 2 emissions due to the fuel burnt. Given the potential implications for the aviation industry if this hypothesis is found to be true, a project to provide a more accurate assessment was considered very high priority by the end user. 4. CONTRAILS Project • ITT issued on 12 June 2003 • KO on 8 Dec 2003 • Final results due Dec 2005

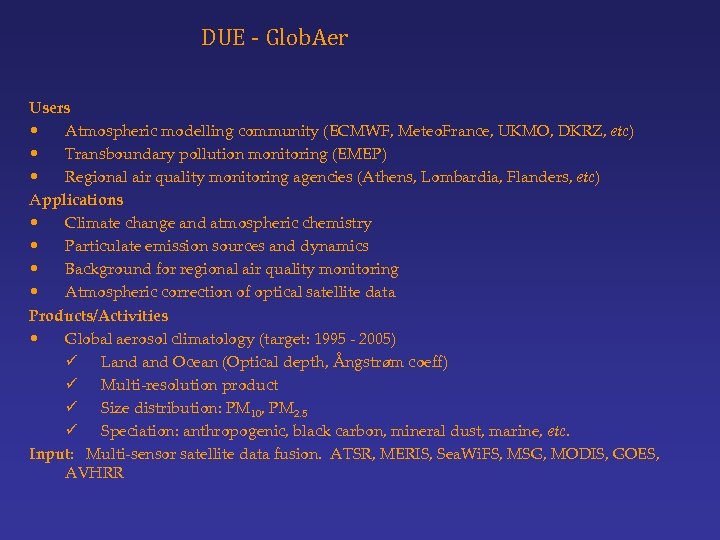

DUE - Glob. Aer Users • Atmospheric modelling community (ECMWF, Meteo. France, UKMO, DKRZ, etc) • Transboundary pollution monitoring (EMEP) • Regional air quality monitoring agencies (Athens, Lombardia, Flanders, etc) Applications • Climate change and atmospheric chemistry • Particulate emission sources and dynamics • Background for regional air quality monitoring • Atmospheric correction of optical satellite data Products/Activities • Global aerosol climatology (target: 1995 - 2005) ü Land Ocean (Optical depth, Ångstrøm coeff) ü Multi-resolution product ü Size distribution: PM 10, PM 2. 5 ü Speciation: anthropogenic, black carbon, mineral dust, marine, etc. Input: Multi-sensor satellite data fusion. ATSR, MERIS, Sea. Wi. FS, MSG, MODIS, GOES, AVHRR

GMES Establishing an integrated European Monitoring Capability

European Commission European Space Agency European and national user agencies European and national space organisations GMES Partnership Industry R&D institutions GMES builds upon existing capacities and expertise and other partners

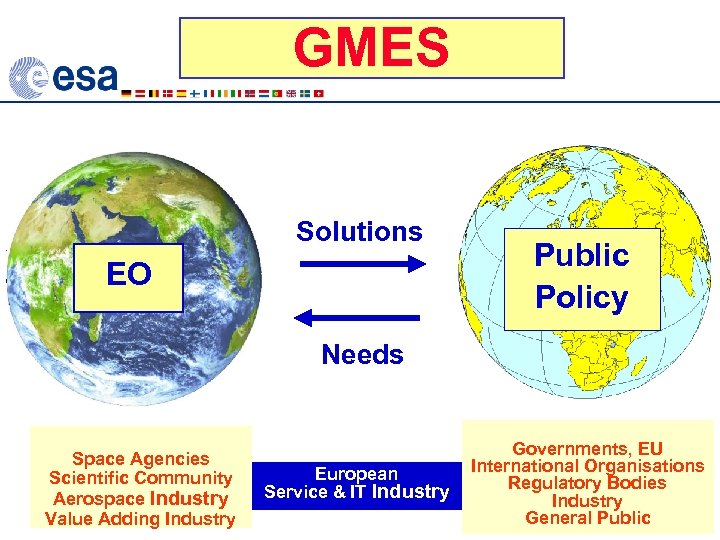

GMES Solutions EO Public Policy Needs Space Agencies Scientific Community Aerospace Industry Value Adding Industry European Service & IT Industry Governments, EU International Organisations Regulatory Bodies Industry General Public

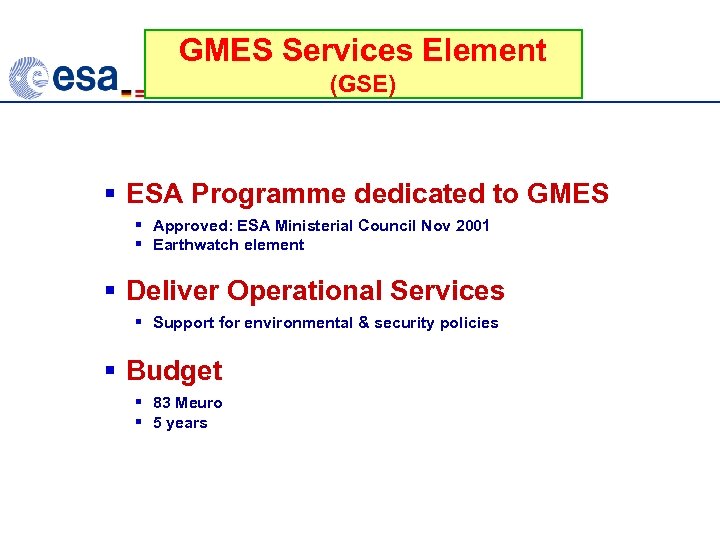

GMES Services Element (GSE) § ESA Programme dedicated to GMES § Approved: ESA Ministerial Council Nov 2001 § Earthwatch element § Deliver Operational Services § Support for environmental & security policies § Budget § 83 Meuro § 5 years

GSE Objectives § Short-term § Foster maximum use of EO-based services in support of European Policies on Environment & Security § Long-Term § Establish case for future EO-based operational systems to delivery policy -related info for benefit of Europe’s citizens

Service Sustainability • Available • readily accessible to users when needed • now & in future • Reliable • consistently meet user-defined quality • & standards • Affordable • overall benefits justify Costs

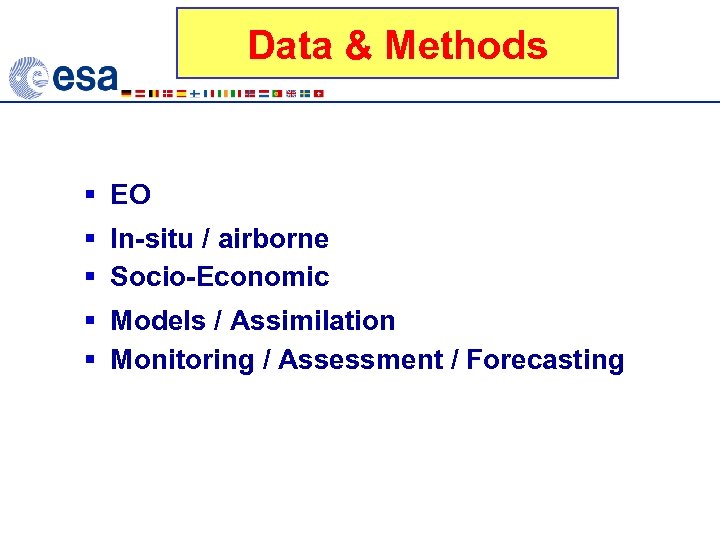

Data & Methods § EO § In-situ / airborne § Socio-Economic § Models / Assimilation § Monitoring / Assessment / Forecasting

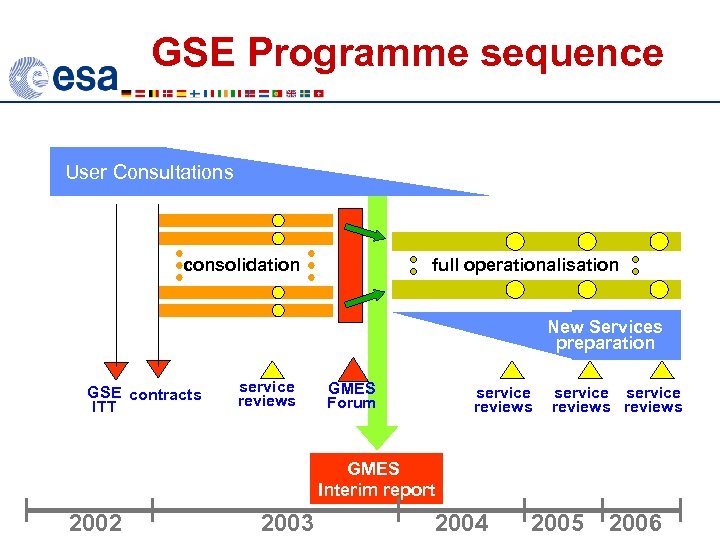

GSE Programme sequence User Consultations consolidation full operationalisation New Services preparation GSE contracts ITT service reviews GMES Forum service reviews GMES Interim report 2002 2003 2004 2005 2006

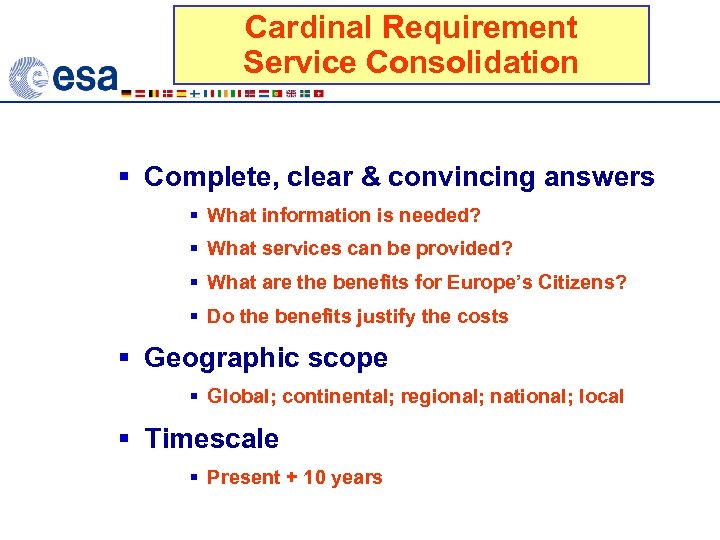

Cardinal Requirement Service Consolidation § Complete, clear & convincing answers § What information is needed? § What services can be provided? § What are the benefits for Europe’s Citizens? § Do the benefits justify the costs § Geographic scope § Global; continental; regional; national; local § Timescale § Present + 10 years

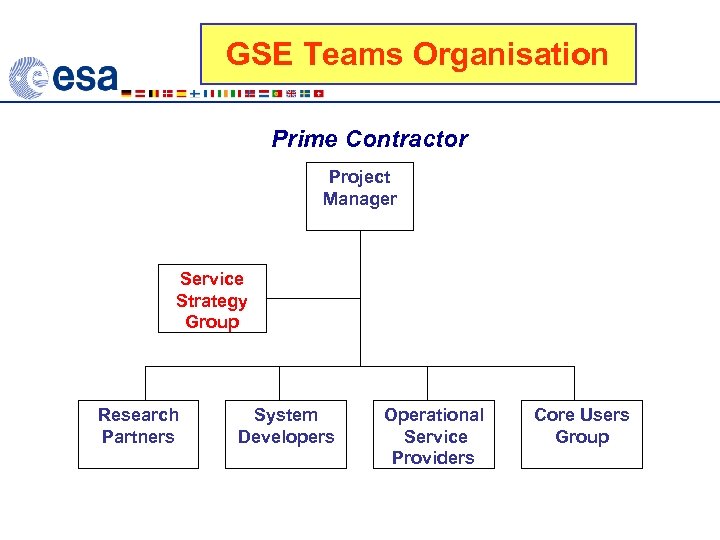

GSE Teams Organisation Prime Contractor Project Manager Service Strategy Group Research Partners System Developers Operational Service Providers Core Users Group

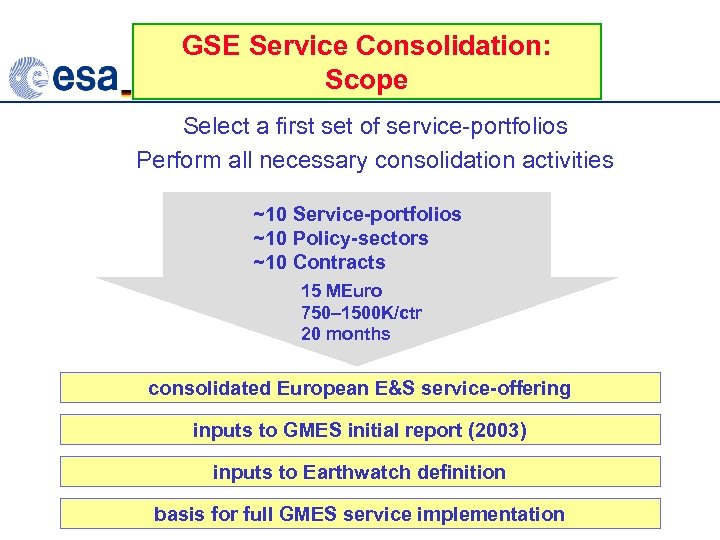

GSE Service Consolidation: Scope Select a first set of service-portfolios Perform all necessary consolidation activities ~10 Service-portfolios ~10 Policy-sectors ~10 Contracts 15 MEuro 750– 1500 K/ctr 20 months consolidated European E&S service-offering inputs to GMES initial report (2003) inputs to Earthwatch definition basis for full GMES service implementation

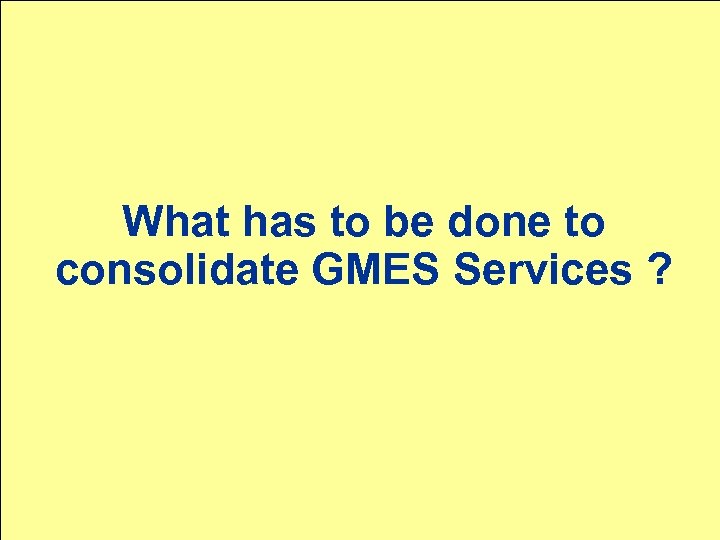

What has to be done to consolidate GMES Services ?

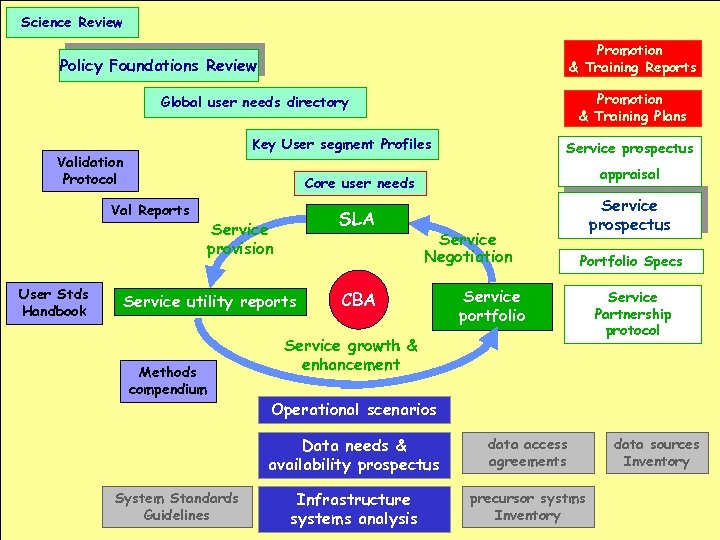

Science Review Promotion & Training Reports Policy Foundations Review Promotion & Training Plans Global user needs directory Key User segment Profiles Validation Protocol appraisal Core user needs Val Reports User Stds Handbook Service prospectus SLA Service provision Service utility reports Methods compendium Service Negotiation CBA Service prospectus Portfolio Specs Service portfolio Service growth & enhancement Operational scenarios Data needs & availability prospectus System Standards Guidelines Service Partnership protocol data access agreements Infrastructure systems analysis precursor systms Inventory data sources Inventory

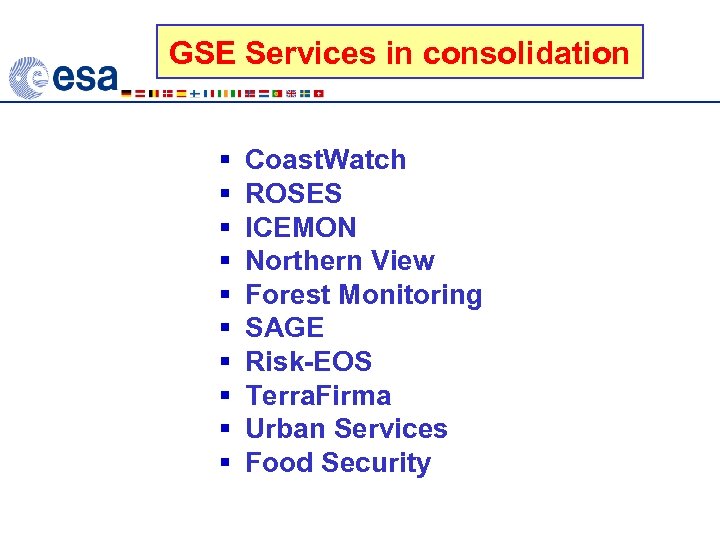

GSE Services in consolidation § § § § § Coast. Watch ROSES ICEMON Northern View Forest Monitoring SAGE Risk-EOS Terra. Firma Urban Services Food Security

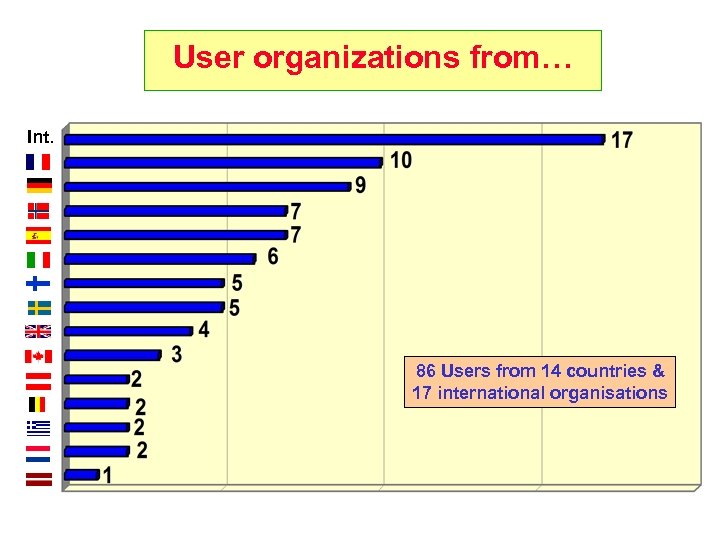

User organizations from… Int. 86 Users from 14 countries & 17 international organisations

New GSE Services Consolidation starting in 2004 § GSE Info Services for Humanitarian Aid § GSE Atmospheric Monitoring Services

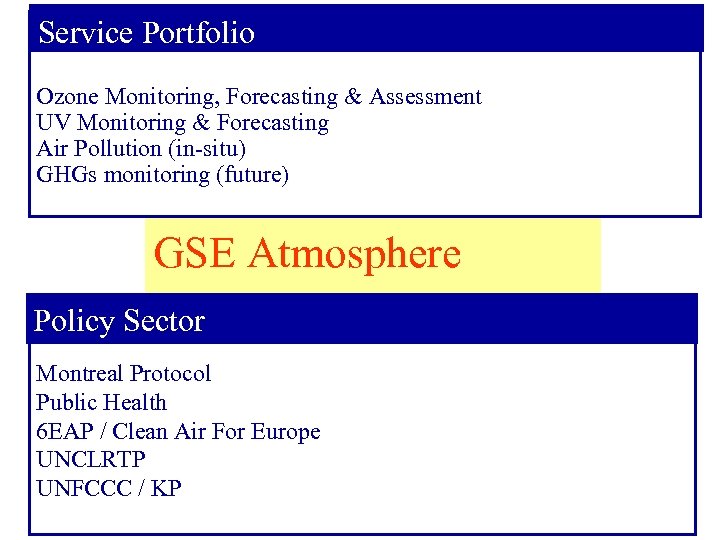

Service Portfolio Ozone Monitoring, Forecasting & Assessment UV Monitoring & Forecasting Air Pollution (in-situ) GHGs monitoring (future) GSE Atmosphere Policy Sector Montreal Protocol Public Health 6 EAP / Clean Air For Europe UNCLRTP UNFCCC / KP
