EPC架構與網路元件介紹 GS 1 專業服務部簡報內容 p 標準發展組織背景介紹

EPC架構與網路元件介紹 GS 1 專業服務部

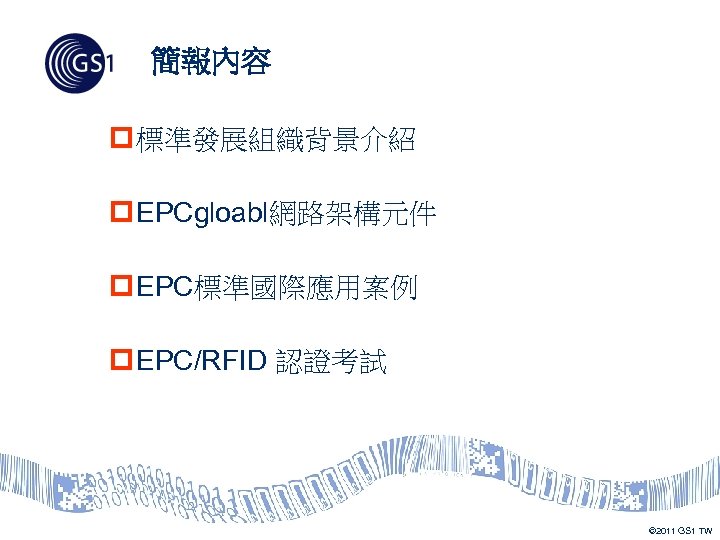

簡報內容 p 標準發展組織背景介紹 p EPCgloabl網路架構元件 p EPC標準國際應用案例 p EPC/RFID 認證考試 © 2011 GS 1

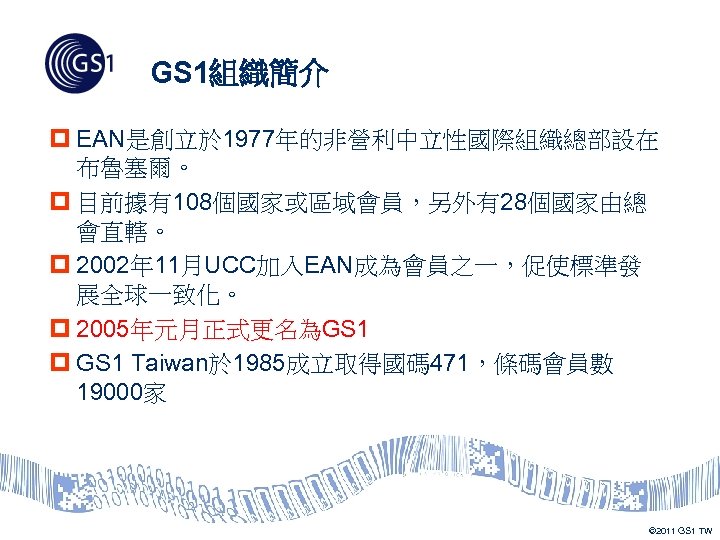

GS 1組織簡介 p EAN是創立於 1977年的非營利中立性國際組織總部設在布魯塞爾。 p 目前據有108個國家或區域會員，另外有28個國家由總會直轄。 p 2002年 11月UCC加入EAN成為會員之一，促使標準發展全球一致化。 p

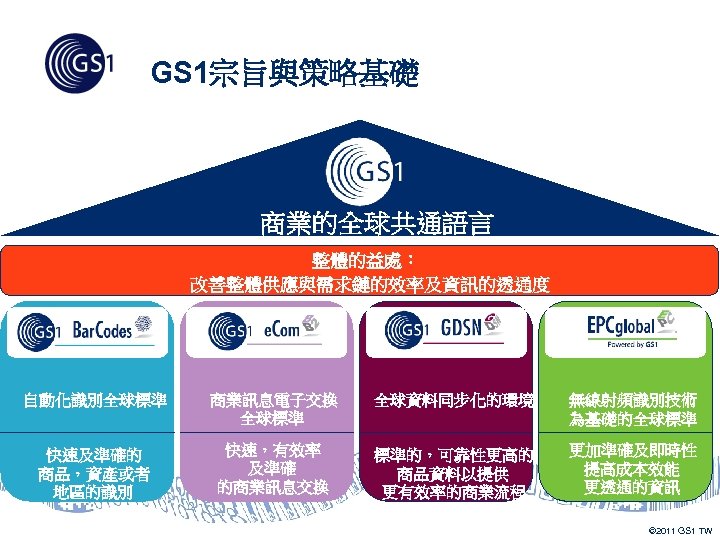

GS 1宗旨與策略基礎商業的全球共通語言整體的益處：改善整體供應與需求鏈的效率及資訊的透通度自動化識別全球標準商業訊息電子交換全球標準全球資料同步化的環境無線射頻識別技術為基礎的全球標準快速及準確的商品，資產或者地區的識別

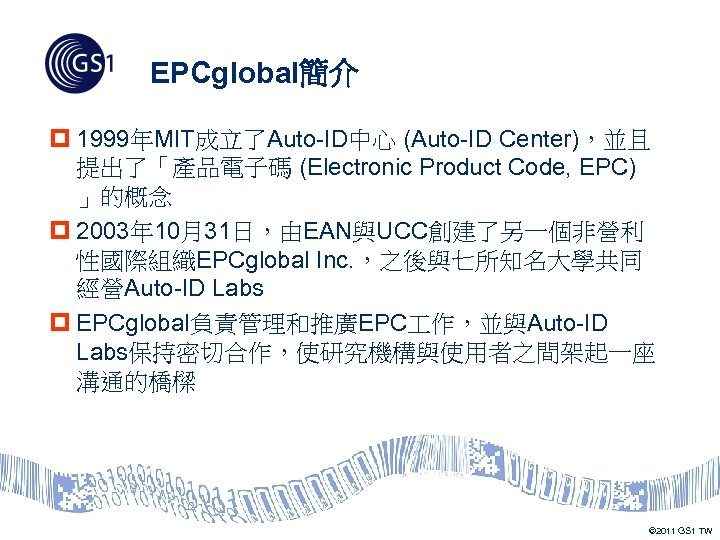

EPCglobal簡介 p 1999年MIT成立了Auto-ID中心 (Auto-ID Center)，並且提出了「產品電子碼 (Electronic Product Code, EPC) 」的概念 p 2003年 10月31日，由EAN與UCC創建了另一個非營利性國際組織EPCglobal Inc. ，之後與七所知名大學共同經營Auto-ID Labs p EPCglobal負責管理和推廣EPC 作，並與Auto-ID Labs保持密切合作，使研究機構與使用者之間架起一座溝通的橋樑 © 2011 GS 1 TW

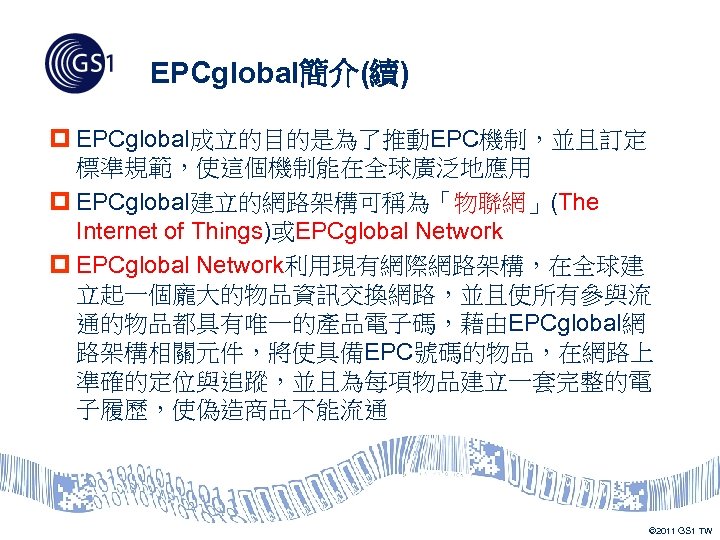

EPCglobal簡介(續) p EPCglobal成立的目的是為了推動EPC機制，並且訂定標準規範，使這個機制能在全球廣泛地應用 p EPCglobal建立的網路架構可稱為「物聯網」(The Internet of Things)或EPCglobal Network p EPCglobal Network利用現有網際網路架構，在全球建立起一個龐大的物品資訊交換網路，並且使所有參與流通的物品都具有唯一的產品電子碼，藉由EPCglobal網路架構相關元件，將使具備EPC號碼的物品，在網路上準確的定位與追蹤，並且為每項物品建立一套完整的電子履歷，使偽造商品不能流通 © 2011 GS 1 TW

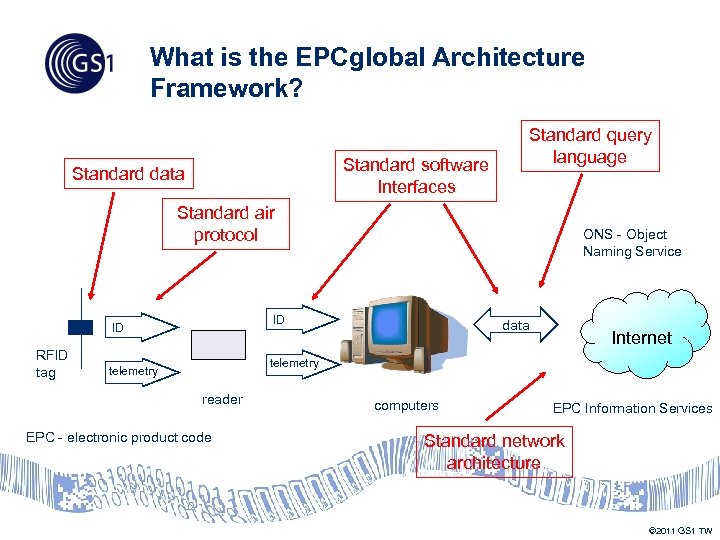

What is the EPCglobal Architecture Framework? Standard software Interfaces Standard data Standard query language Standard air protocol ID ID RFID tag ONS - Object Naming Service data Internet telemetry reader EPC - electronic product code computers EPC Information Services Standard network architecture © 2011 GS 1 TW

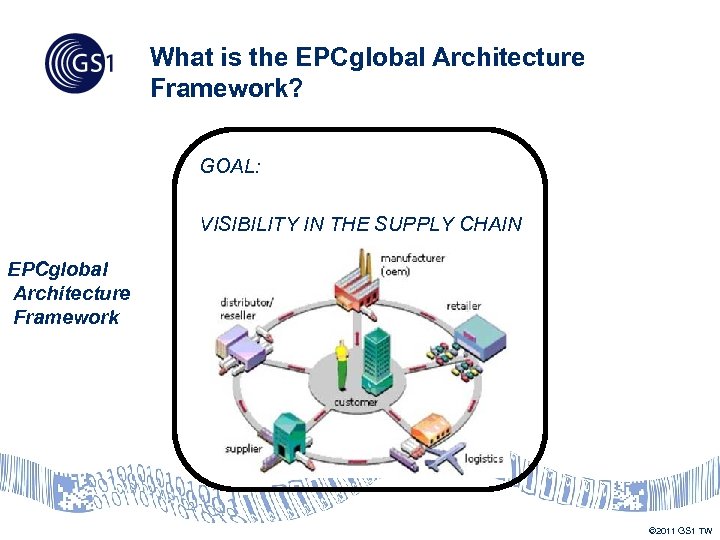

What is the EPCglobal Architecture Framework? GOAL: VISIBILITY IN THE SUPPLY CHAIN EPCglobal Architecture

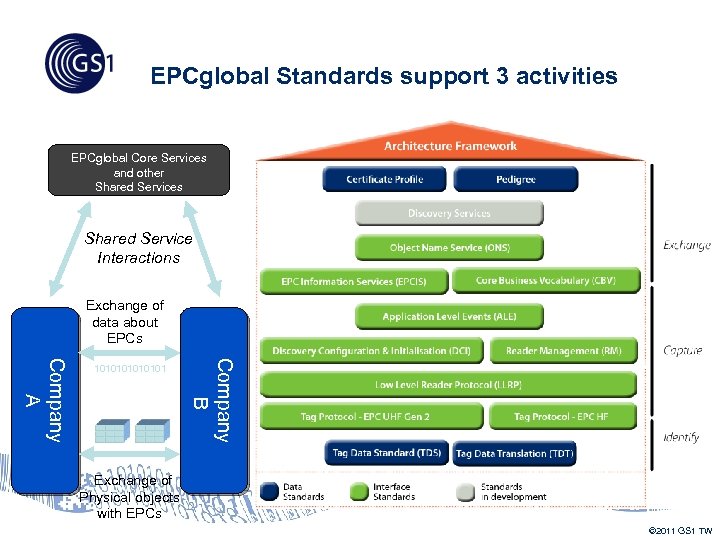

EPCglobal Standards support 3 activities EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Company B Company A 1010101 Exchange of Physical objects with EPCs © 2011 GS 1 TW

Identify – The EPC Tag Data Specifications EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Exchange of Physical objects with EPCs Company B Company A 1010101 Tag Data Identify © 2011 GS 1 TW

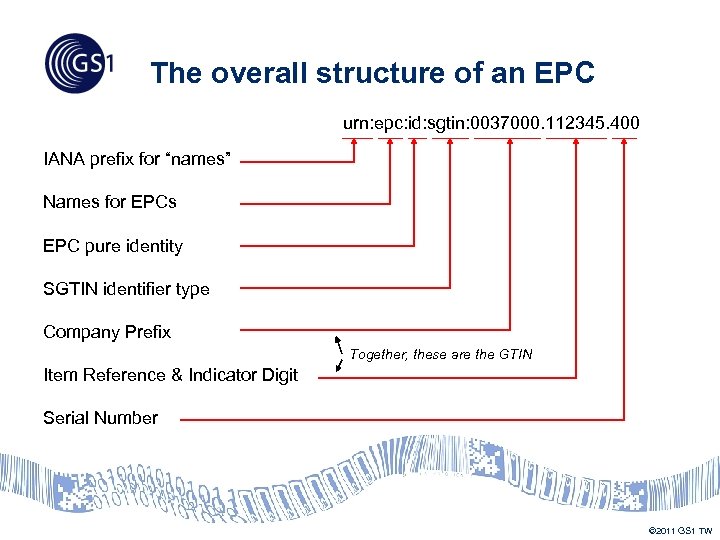

The overall structure of an EPC urn: epc: id: sgtin: 0037000. 112345. 400 IANA prefix for “names” Names for EPCs EPC pure identity SGTIN identifier type Company Prefix Together, these are the GTIN Item Reference & Indicator Digit Serial Number © 2011 GS 1 TW

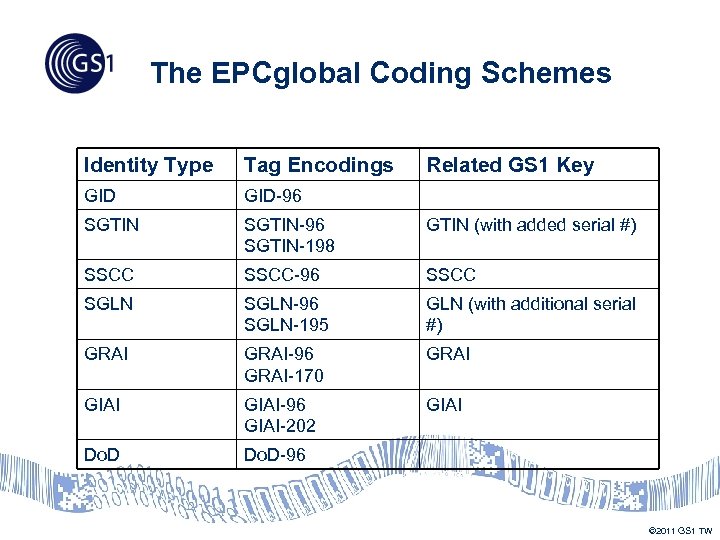

The EPCglobal Coding Schemes Identity Type Tag Encodings Related GS 1 Key GID-96 SGTIN-96 SGTIN-198 GTIN (with added serial #) SSCC-96 SSCC SGLN-96 SGLN-195 GLN (with additional serial #) GRAI-96 GRAI-170 GRAI GIAI-96 GIAI-202 GIAI Do. D-96 © 2011 GS 1 TW

The Representation of EPC urn: epc: id: sgtin: 0037000. 112345. 400 Text Representation in

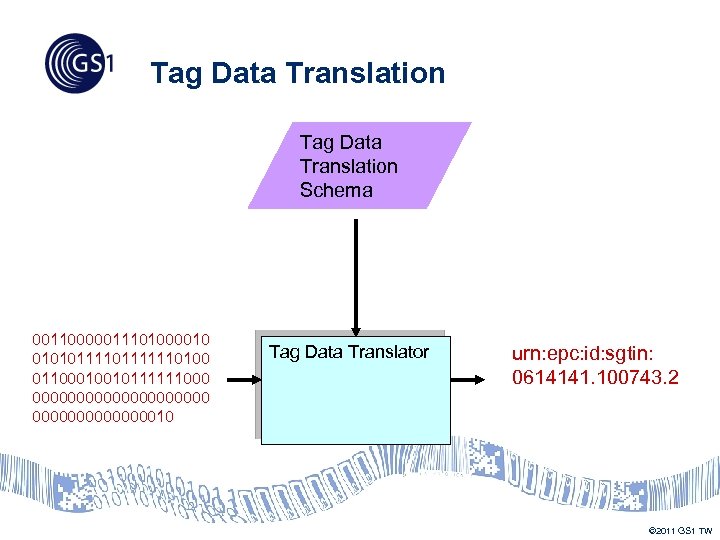

Tag Data Translation Schema 00110000011101000010 010101111110100 01100010010111111000 000000000010 Tag Data Translator urn: epc: id:

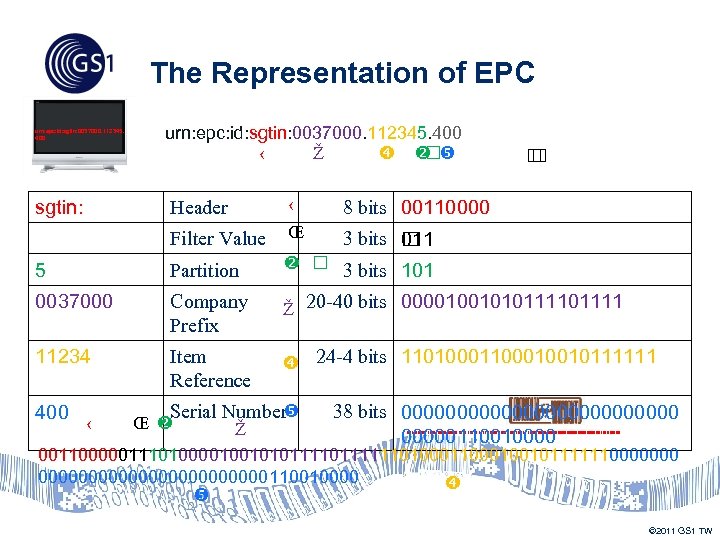

The Representation of EPC urn: epc: id: sgtin: 0037000. 112345. 400 ‹ Ž Header ‹ 8 bits 00110000 Filter Value Œ 3 bits 011 5 Partition 3 bits 101 0037000 Company Prefix Ž 20 -40 bits 000010010101111 11234 Item Reference 24 -4 bits 110100010010111111 sgtin: 400 ‹ Serial Number Œ 38 bits 0000000000000110010000 Ž 00110000011101000010010101111110100010010111111000000000000110010000 00110000011101000010010101111110100010010111111000000000000000110010000 © 2011 GS 1 TW

Tag Data Translation (TDT) Demo HTTP: //WWW. GS 1 GERMANY. DE/INTERNET/CONTENT/E 6/E 158/E 1354/

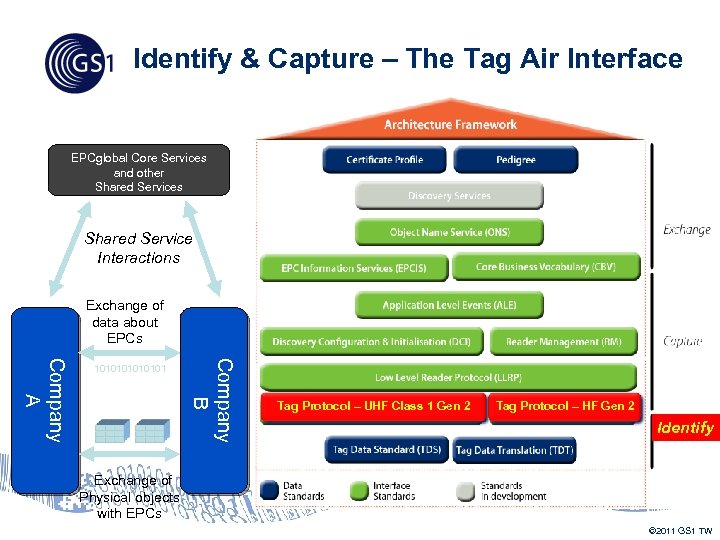

Identify & Capture – The Tag Air Interface EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Company B Company A 1010101 Tag Protocol – UHF Class 1 Gen 2 Tag Protocol – HF Gen 2 Identify Exchange of Physical objects with EPCs © 2011 GS 1 TW

Aim of the Tag Air Interface © 2011 GS 1 TW

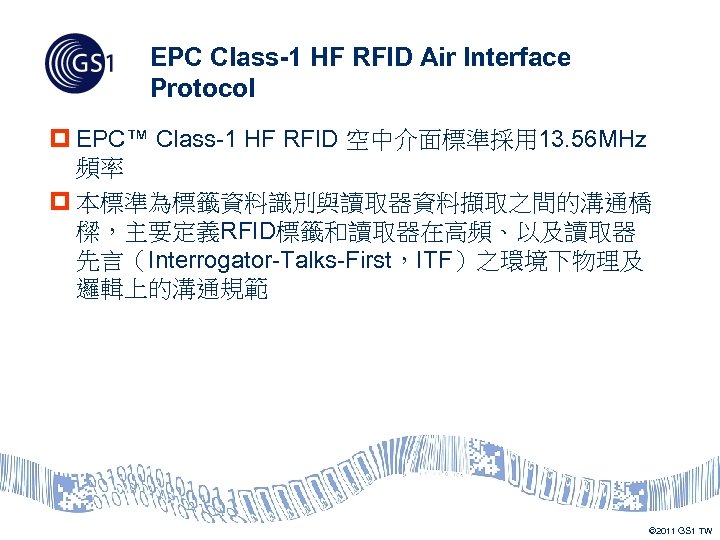

EPC Class-1 HF RFID Air Interface Protocol p EPC™ Class-1 HF RFID 空中介面標準採用 13. 56 MHz 頻率 p 本標準為標籤資料識別與讀取器資料擷取之間的溝通橋樑，主要定義RFID標籤和讀取器在高頻、以及讀取器先言（Interrogator-Talks-First，ITF）之環境下物理及邏輯上的溝通規範 © 2011 GS 1 TW

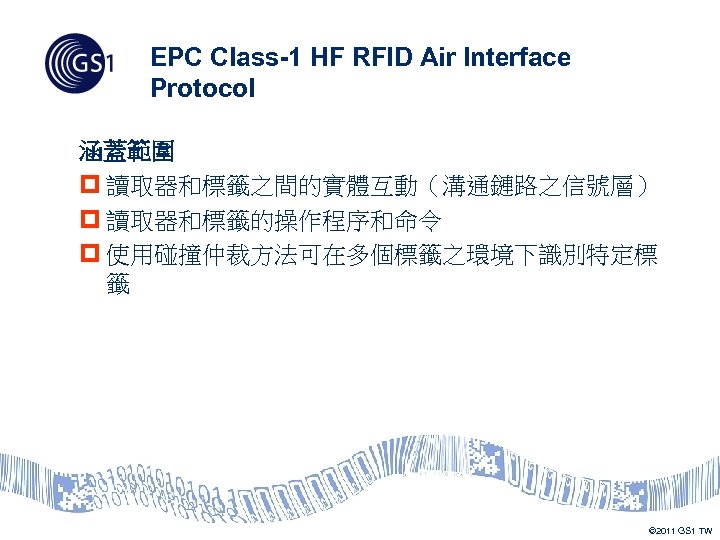

EPC Class-1 HF RFID Air Interface Protocol 涵蓋範圍 p 讀取器和標籤之間的實體互動（溝通鏈路之信號層） p 讀取器和標籤的操作程序和命令 p 使用碰撞仲裁方法可在多個標籤之環境下識別特定標

EPC Class-1 HF RFID Air Interface Protocol p 應用普及：門禁考勤、停車場、識別証、會員卡、資產管理、智慧圖書館以及大眾運輸電子票證等。 © 2011 GS 1

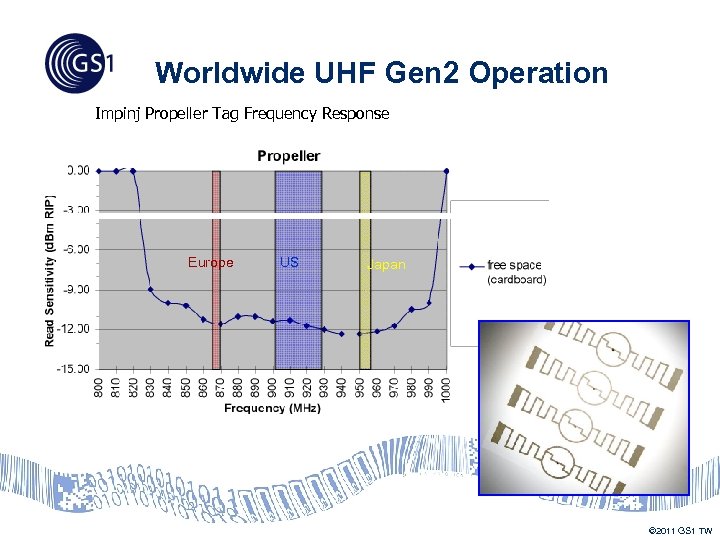

Worldwide UHF Gen 2 Operation Impinj Propeller Tag Frequency Response Europe US Japan ©

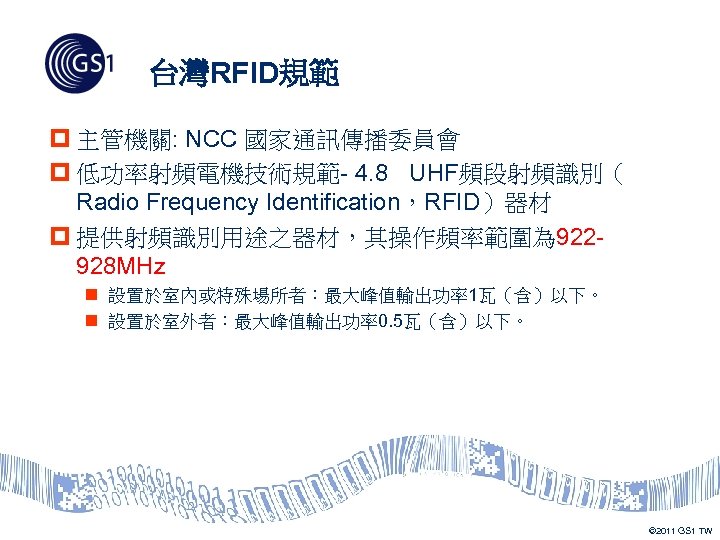

台灣RFID規範 p 主管機關: NCC 國家通訊傳播委員會 p 低功率射頻電機技術規範- 4. 8 UHF頻段射頻識別（ Radio Frequency Identification，RFID）器材 p 提供射頻識別用途之器材，其操作頻率範圍為 922928 MHz n 設置於室內或特殊場所者：最大峰值輸出功率1瓦（含）以下。 n 設置於室外者：最大峰值輸出功率0. 5瓦（含）以下。 © 2011 GS 1 TW

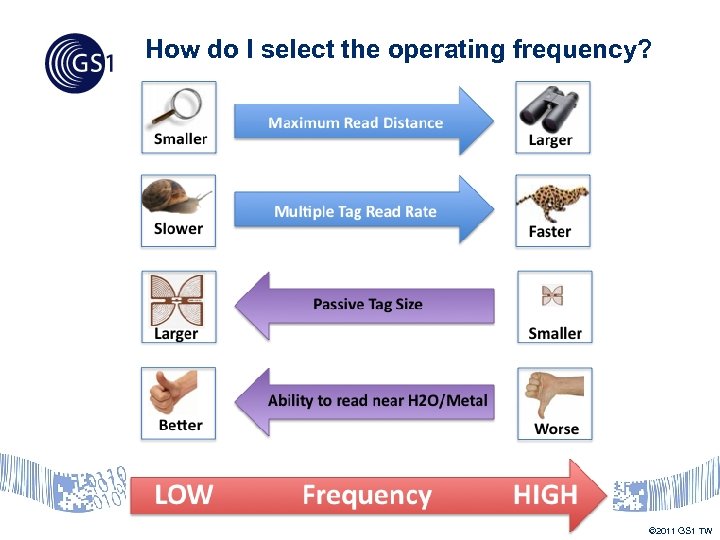

How do I select the operating frequency? © 2011 GS 1 TW

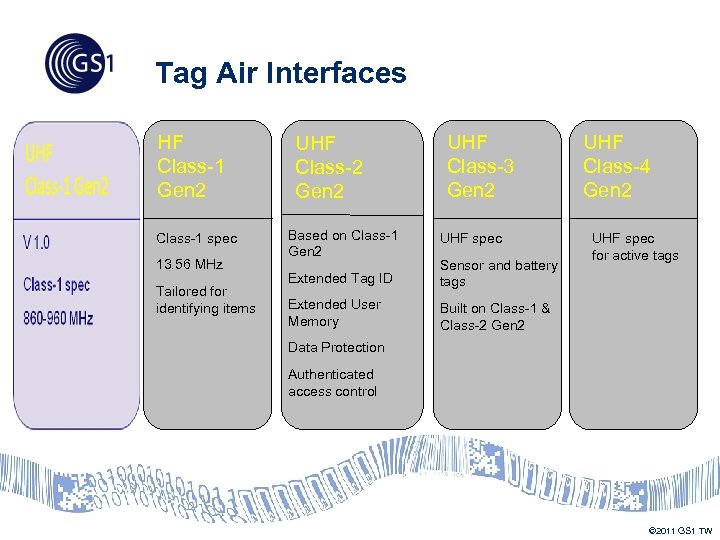

Tag Air Interfaces HF Class-1 Gen 2 Class-1 spec 13. 56 MHz Tailored for identifying items UHF Class-2 Gen 2 Based on Class-1 Gen 2 UHF Class-3 Gen 2 UHF spec Extended Tag ID Sensor and battery tags Extended User Memory UHF Class-4 Gen 2 UHF spec for active tags Built on Class-1 & Class-2 Gen 2 Data Protection Authenticated access control © 2011 GS 1 TW

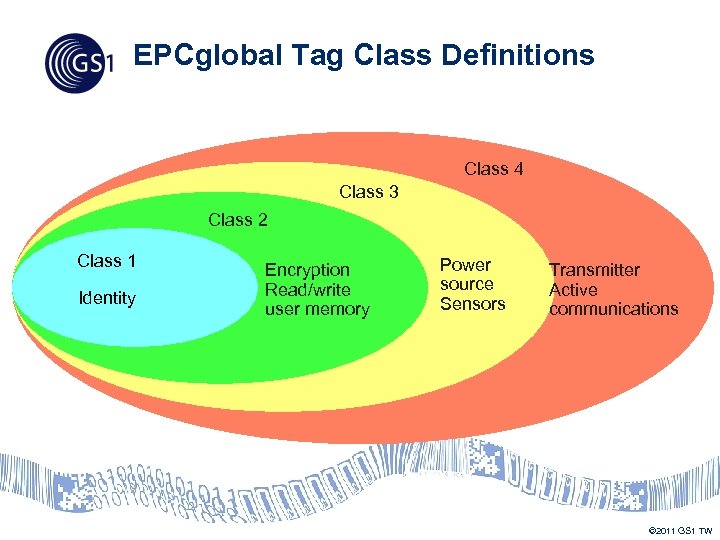

EPCglobal Tag Class Definitions Class 4 Class 3 Class 2 Class 1 Identity Encryption

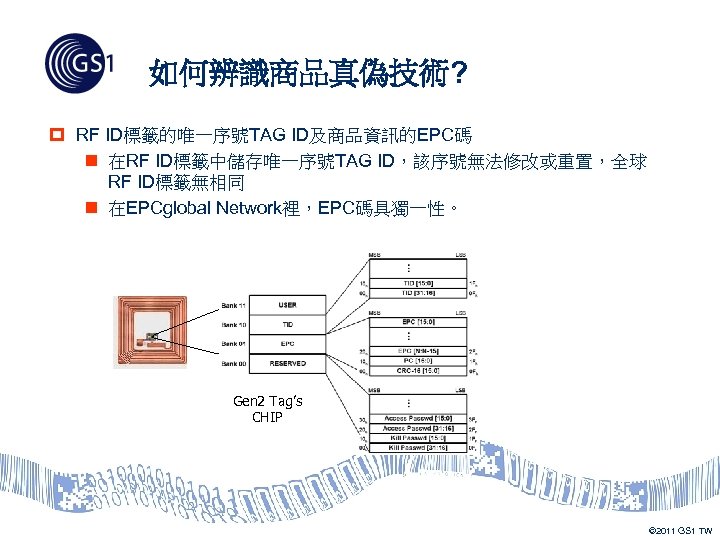

如何辨識商品真偽技術? p RF ID標籤的唯一序號TAG ID及商品資訊的EPC碼 n 在RF ID標籤中儲存唯一序號TAG ID，該序號無法修改或重置，全球 RF ID標籤無相同 n 在EPCglobal Network裡，EPC碼具獨一性。

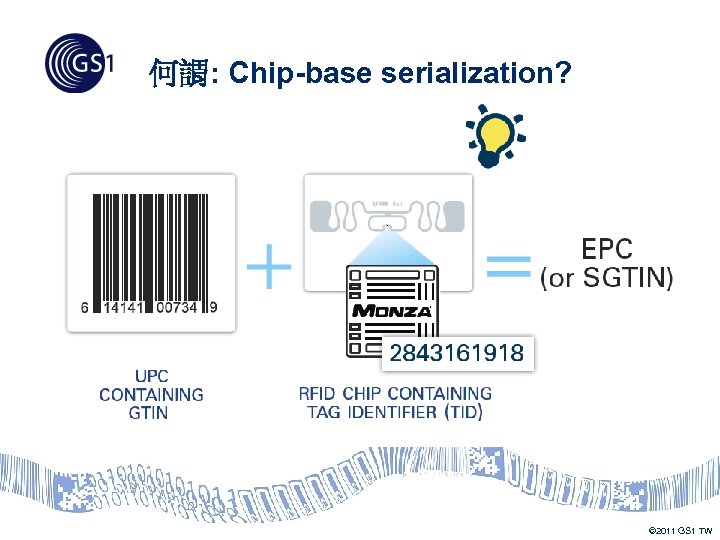

何謂: Chip-base serialization? © 2011 GS 1 TW

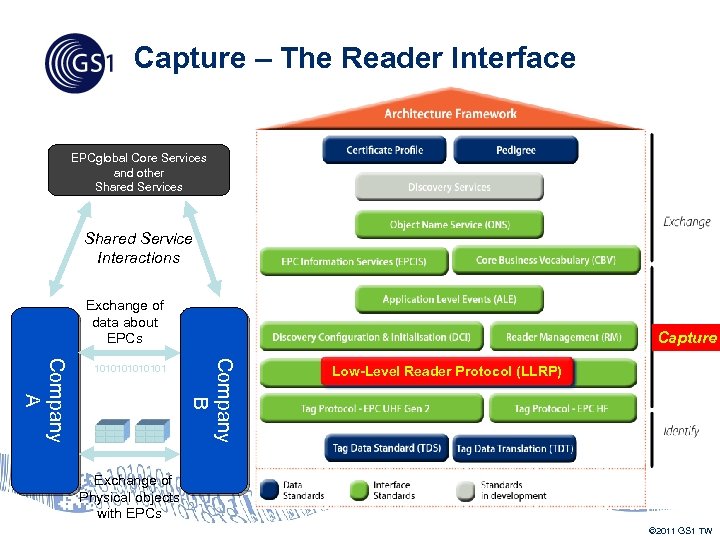

Capture – The Reader Interface EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Company B Company A 1010101 Capture Low-Level Reader Protocol (LLRP) Exchange of Physical objects with EPCs © 2011 GS 1 TW

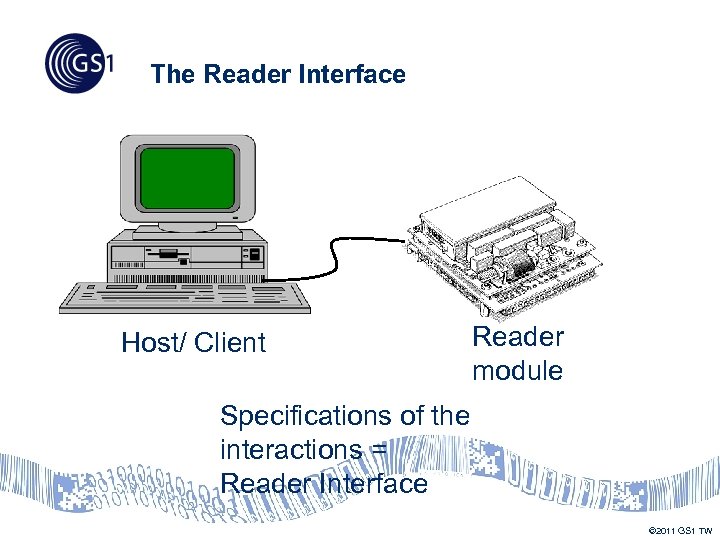

The Reader Interface Host/ Client Reader module Specifications of the interactions = Reader Interface

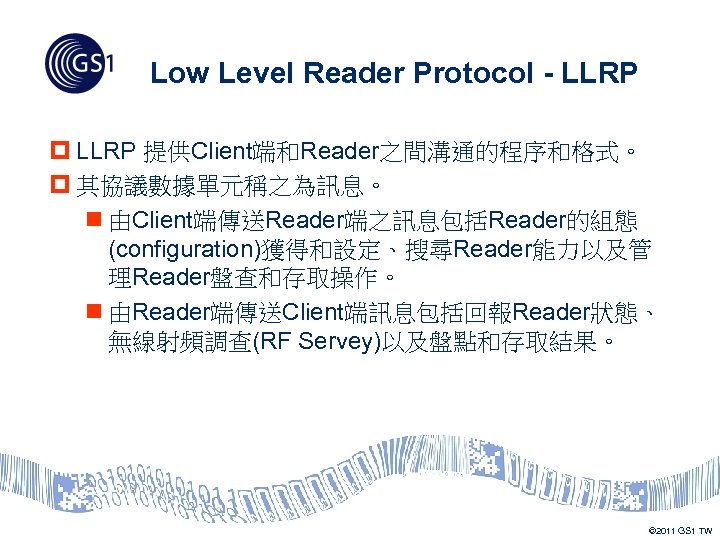

Low Level Reader Protocol - LLRP p LLRP 提供Client端和Reader之間溝通的程序和格式。 p 其協議數據單元稱之為訊息。 n 由Client端傳送Reader端之訊息包括Reader的組態 (configuration)獲得和設定、搜尋Reader能力以及管理Reader盤查和存取操作。 n 由Reader端傳送Client端訊息包括回報Reader狀態、無線射頻調查(RF Servey)以及盤點和存取結果。 © 2011 GS 1 TW

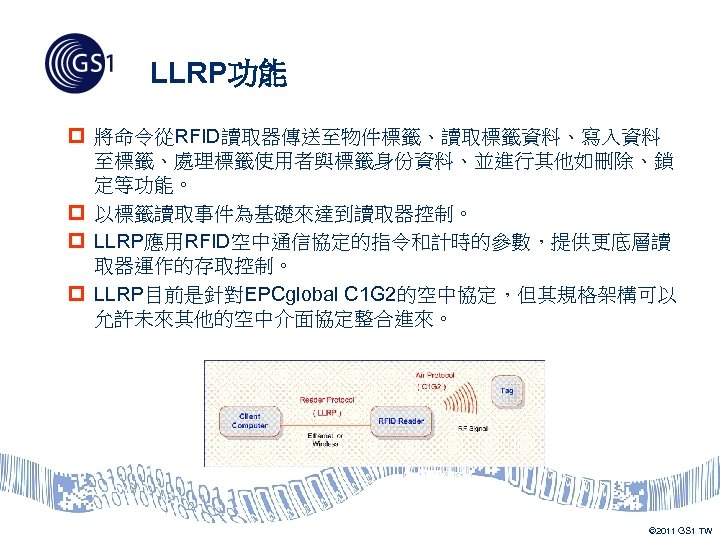

LLRP功能 p 將命令從RFID讀取器傳送至物件標籤、讀取標籤資料、寫入資料至標籤、處理標籤使用者與標籤身份資料、並進行其他如刪除、鎖定等功能。 p 以標籤讀取事件為基礎來達到讀取器控制。 p LLRP應用RFID空中通信協定的指令和計時的參數，提供更底層讀取器運作的存取控制。 p LLRP目前是針對EPCglobal C 1 G 2的空中協定，但其規格架構可以允許未來其他的空中介面協定整合進來。 © 2011 GS 1 TW

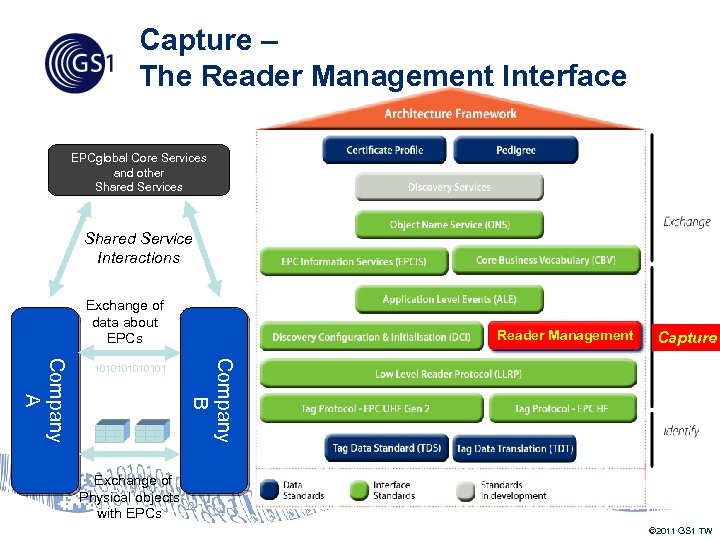

Capture – The Reader Management Interface EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Capture Company B Company A 1010101 Reader Management Exchange of Physical objects with EPCs © 2011 GS 1 TW

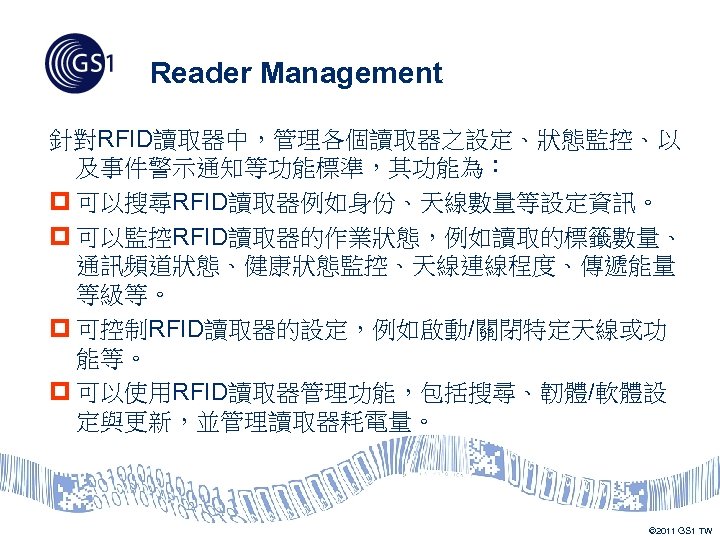

Reader Management 針對RFID讀取器中，管理各個讀取器之設定、狀態監控、以及事件警示通知等功能標準，其功能為： p 可以搜尋RFID讀取器例如身份、天線數量等設定資訊。 p 可以監控RFID讀取器的作業狀態，例如讀取的標籤數量、通訊頻道狀態、健康狀態監控、天線連線程度、傳遞能量等級等。 p 可控制RFID讀取器的設定，例如啟動/關閉特定天線或功能等。 p 可以使用RFID讀取器管理功能，包括搜尋、韌體/軟體設定與更新，並管理讀取器耗電量。 © 2011 GS 1 TW

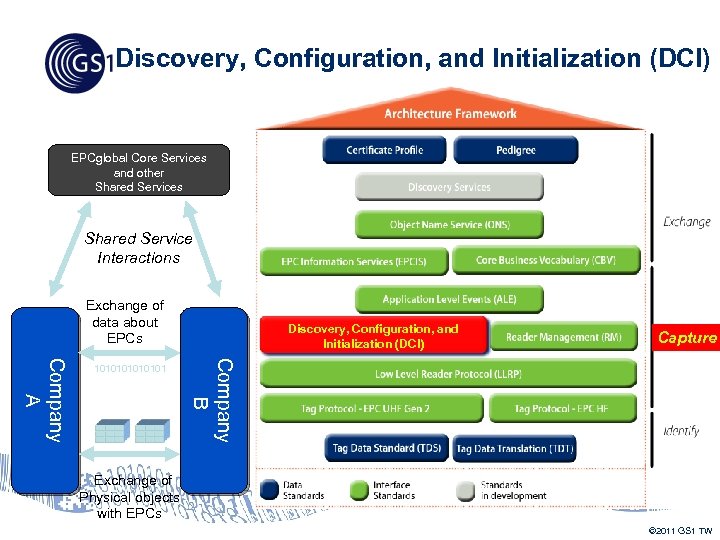

Discovery, Configuration, and Initialization (DCI) EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Capture Company B Company A 1010101 Discovery, Configuration, and Initialization (DCI) Exchange of Physical objects with EPCs © 2011 GS 1 TW

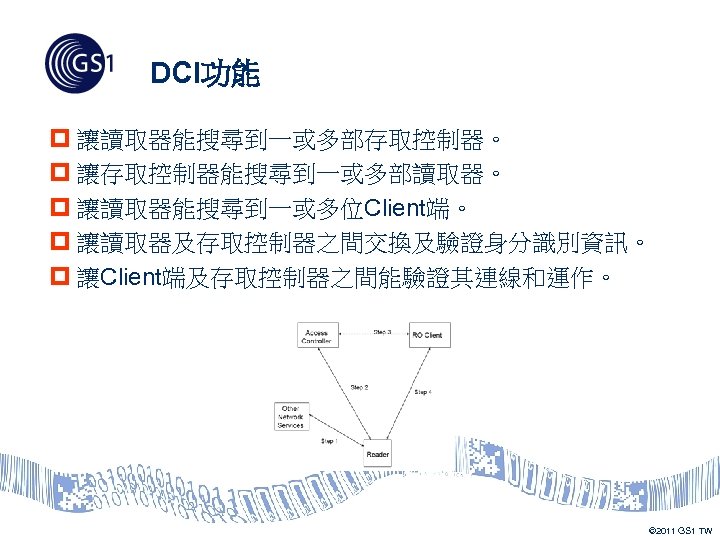

DCI功能 p 讓讀取器能搜尋到一或多部存取控制器。 p 讓存取控制器能搜尋到一或多部讀取器。 p 讓讀取器能搜尋到一或多位Client端。 p 讓讀取器及存取控制器之間交換及驗證身分識別資訊。 p 讓Client端及存取控制器之間能驗證其連線和運作。 © 2011 GS

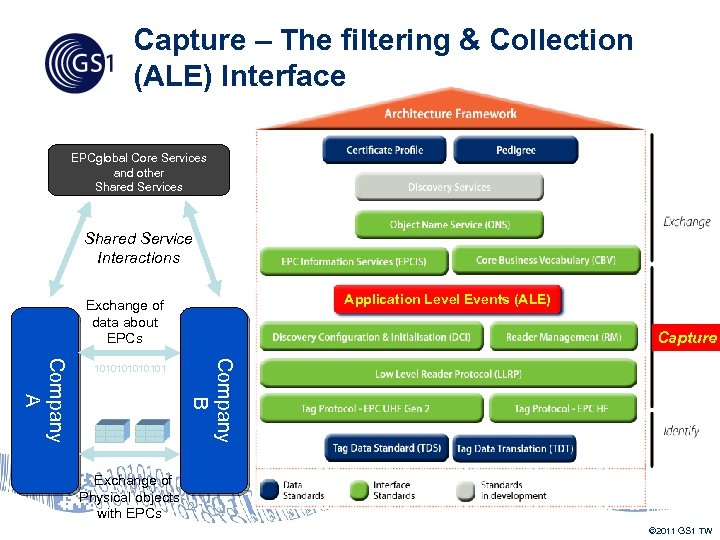

Capture – The filtering & Collection (ALE) Interface EPCglobal Core Services and other Shared Services Shared Service Interactions Application Level Events (ALE) Exchange of data about EPCs Company B Company A 1010101 Capture Exchange of Physical objects with EPCs © 2011 GS 1 TW

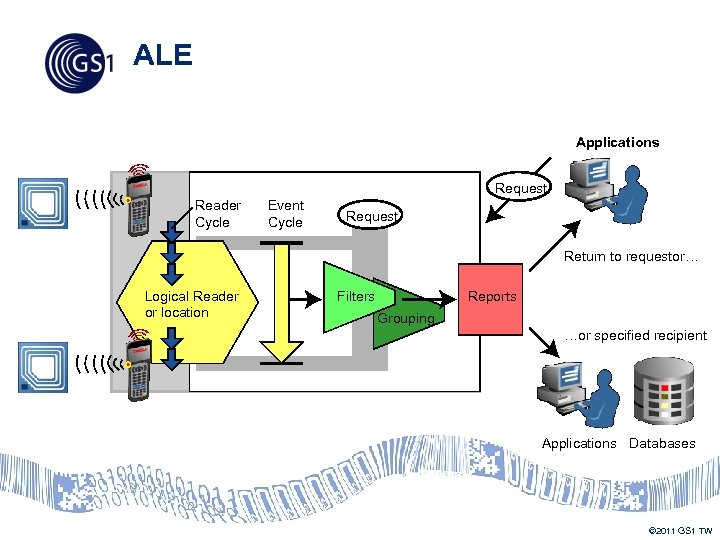

ALE Applications Request Reader Cycle Event Cycle Request Return to requestor… Logical Reader or

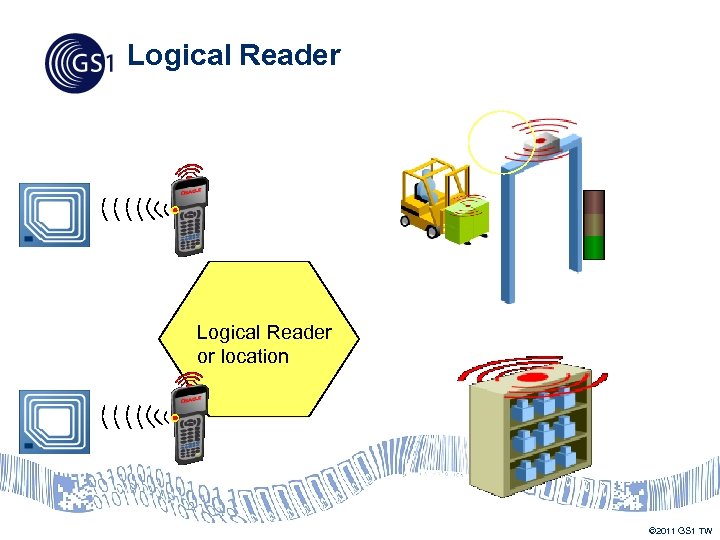

Logical Reader or location © 2011 GS 1 TW

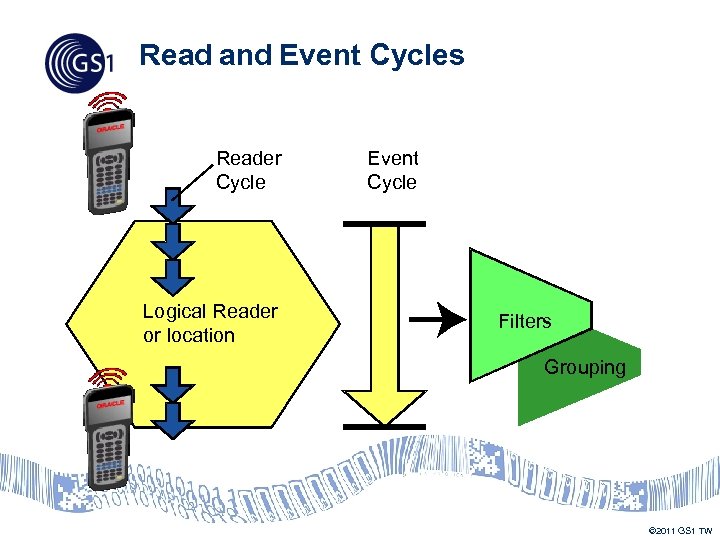

Read and Event Cycles Reader Cycle Logical Reader or location Event Cycle Filters Grouping

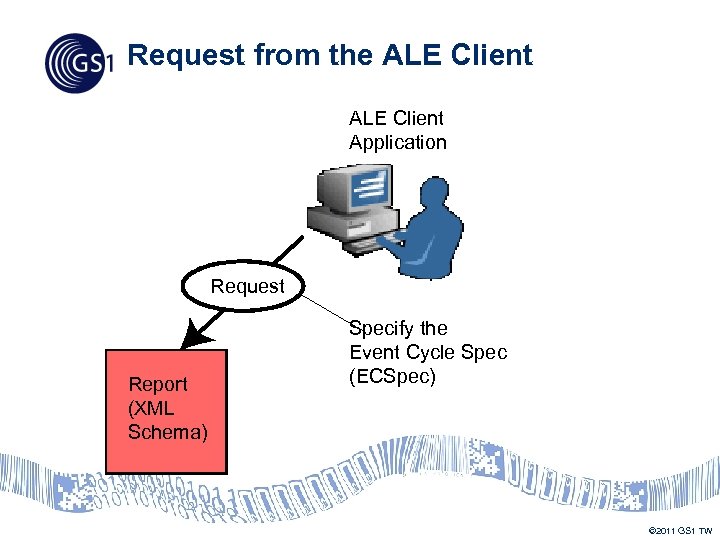

Request from the ALE Client Application Request Report (XML Schema) Specify the Event Cycle

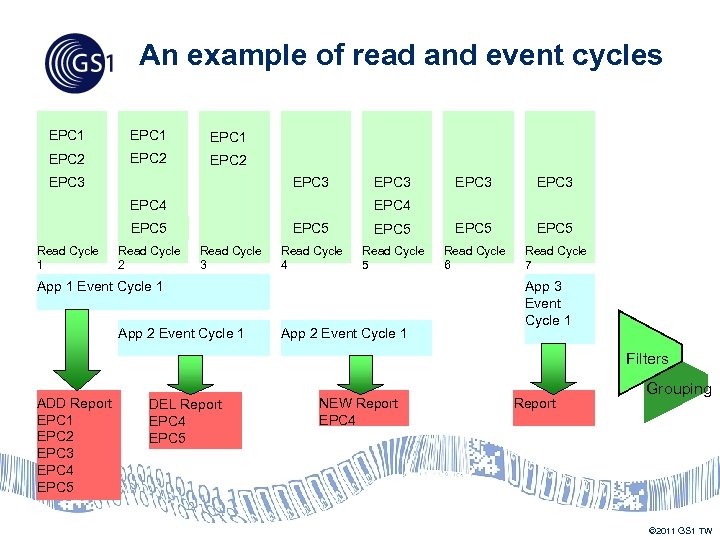

An example of read and event cycles EPC 1 EPC 2 EPC 3 EPC 4 Read Cycle 2 EPC 3 EPC 4 EPC 5 Read Cycle 1 EPC 3 Read Cycle 3 EPC 5 Read Cycle 4 Read Cycle 5 Read Cycle 6 Read Cycle 7 App 1 Event Cycle 1 App 2 Event Cycle 1 App 3 Event Cycle 1 Filters ADD Report EPC 1 EPC 2 EPC 3 EPC 4 EPC 5 DEL Report EPC 4 EPC 5 NEW Report EPC 4 Report Grouping © 2011 GS 1 TW

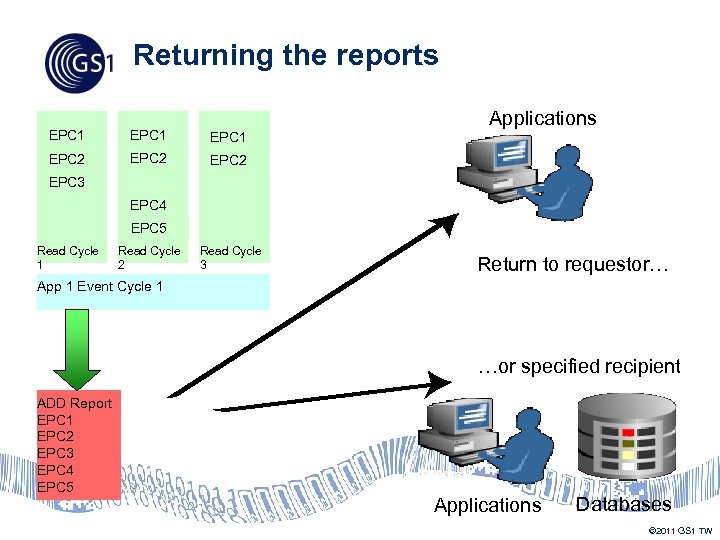

Returning the reports Applications EPC 1 EPC 2 EPC 3 EPC 4 EPC 5 Read Cycle 1 Read Cycle 2 Read Cycle 3 Return to requestor… App 1 Event Cycle 1 …or specified recipient ADD Report EPC 1 EPC 2 EPC 3 EPC 4 EPC 5 Applications Databases © 2011 GS 1 TW

What should the middleware do? Middleware should include 7 core capabilities: 1) Reader and device management Allows users to configure, deploy & issue commands to readers through common interface. 2) Data management Ensures captured data is intelligently filtered & routed to appropriate destinations 3) Application integration You need messaging, routing & connectivity features to reliably integrate RFID data into existing systems (e. g. ERP, WMS or CRM) 4) Partner integration You need B 2 B integration features (e. g. partner profile management & communication protocols) to efficiently integrate with partner’s data over EDI or web-based systems © 2011 GS 1 TW

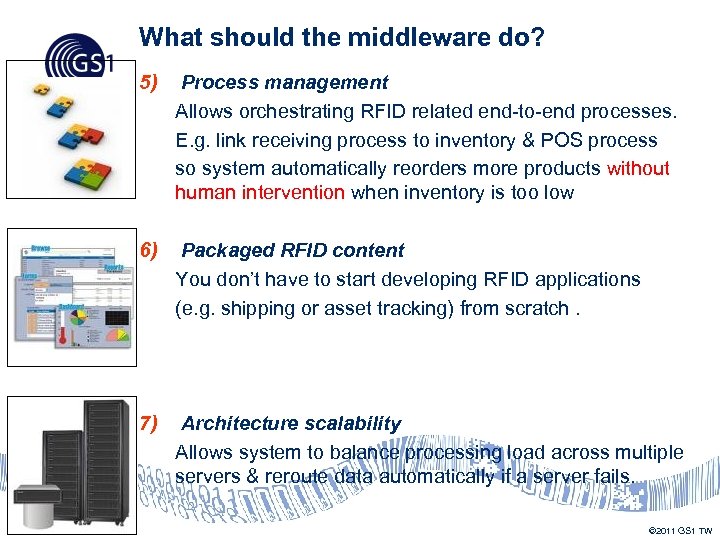

What should the middleware do? 5) Process management Allows orchestrating RFID related end-to-end processes. E. g. link receiving process to inventory & POS process so system automatically reorders more products without human intervention when inventory is too low 6) Packaged RFID content You don’t have to start developing RFID applications (e. g. shipping or asset tracking) from scratch. 7) Architecture scalability Allows system to balance processing load across multiple servers & reroute data automatically if a server fails. © 2011 GS 1 TW

影片欣賞 1. WAL-Mart 未來商店 2. WAL-Mart 物流倉庫 © 2011 GS 1 TW

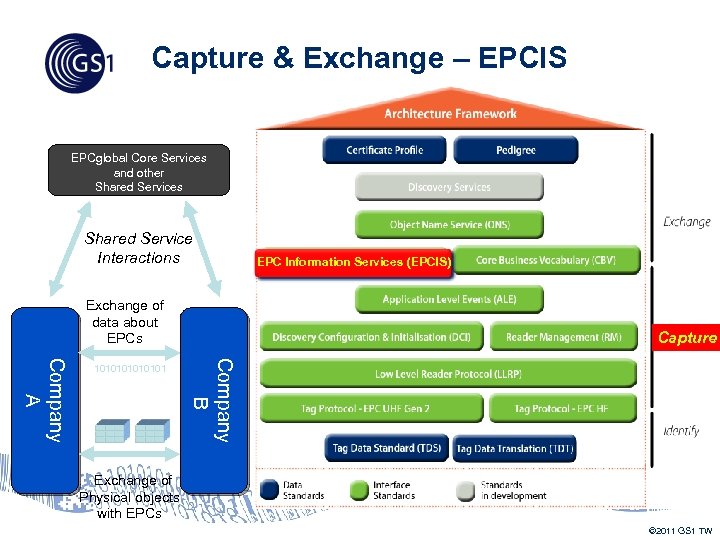

Capture & Exchange – EPCIS EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Capture Company B Company A 1010101 EPC Information Services (EPCIS) Exchange of Physical objects with EPCs © 2011 GS 1 TW

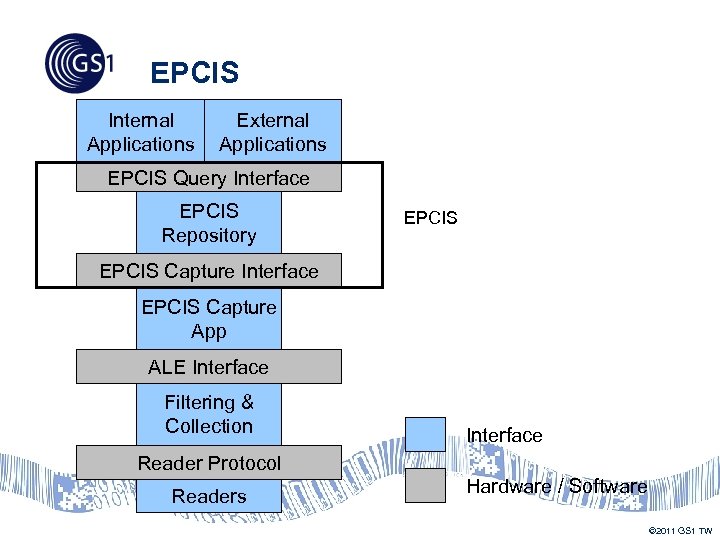

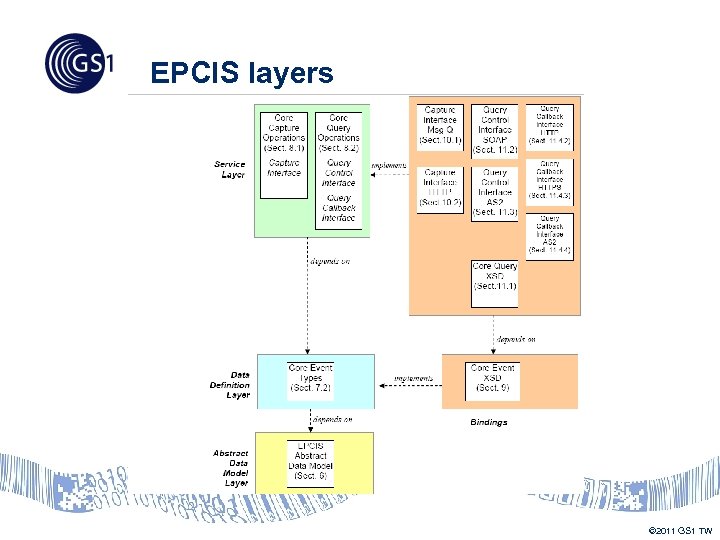

EPCIS Internal Applications External Applications EPCIS Query Interface EPCIS Repository EPCIS Capture Interface EPCIS Capture App ALE Interface Filtering & Collection Interface Reader Protocol Readers Hardware / Software © 2011 GS 1 TW

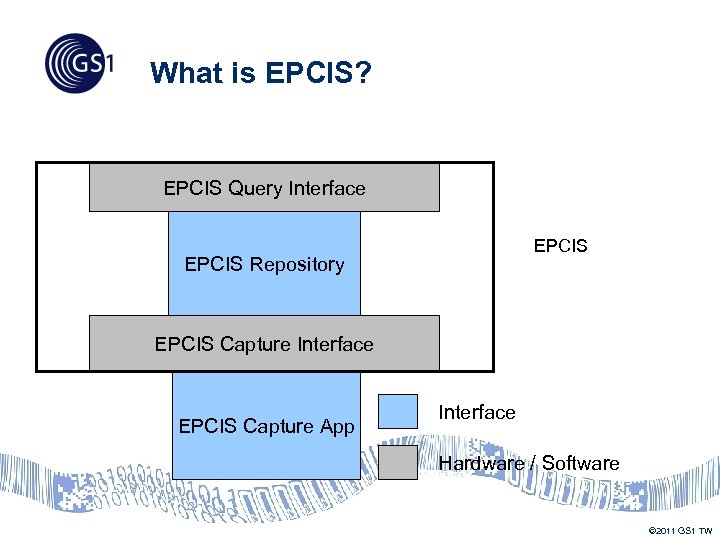

What is EPCIS? EPCIS Query Interface EPCIS Repository EPCIS Capture Interface EPCIS Capture App

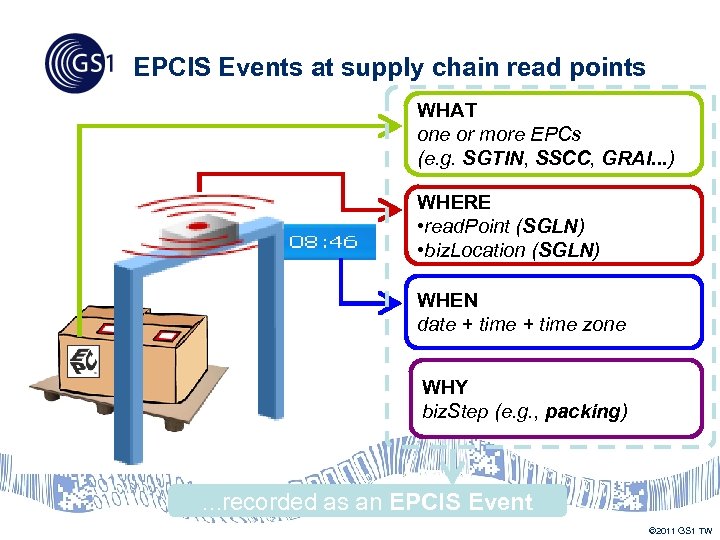

EPCIS Events at supply chain read points WHAT one or more EPCs (e. g. SGTIN, SSCC, GRAI. . . ) WHERE • read. Point (SGLN) • biz. Location (SGLN) WHEN date + time zone WHY biz. Step (e. g. , packing) . . . recorded as an EPCIS Event © 2011 GS 1 TW

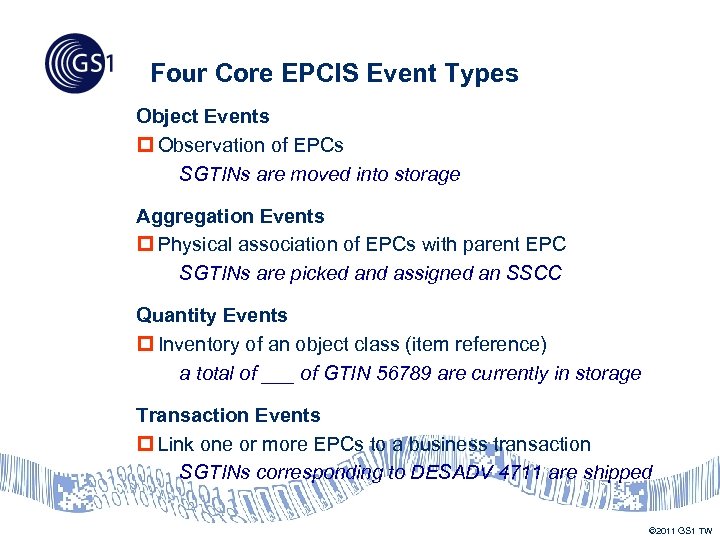

Four Core EPCIS Event Types Object Events p Observation of EPCs SGTINs are moved into storage Aggregation Events p Physical association of EPCs with parent EPC SGTINs are picked and assigned an SSCC Quantity Events p Inventory of an object class (item reference) a total of ___ of GTIN 56789 are currently in storage Transaction Events p Link one or more EPCs to a business transaction SGTINs corresponding to DESADV 4711 are shipped © 2011 GS 1 TW

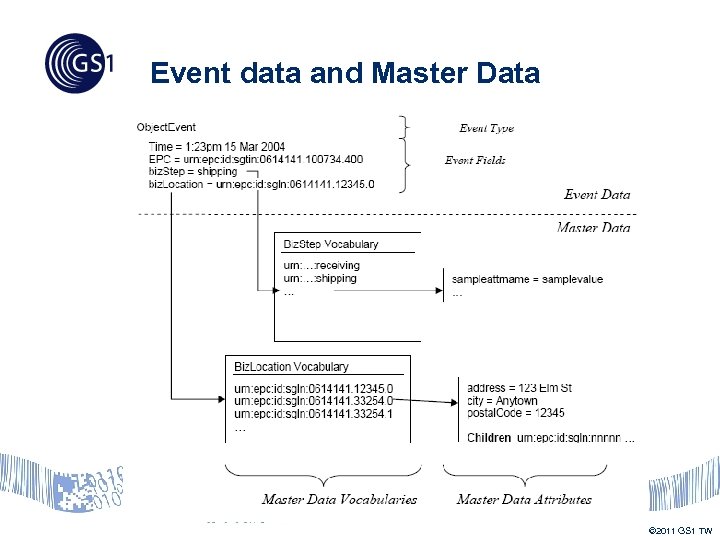

Event data and Master Data © 2011 GS 1 TW

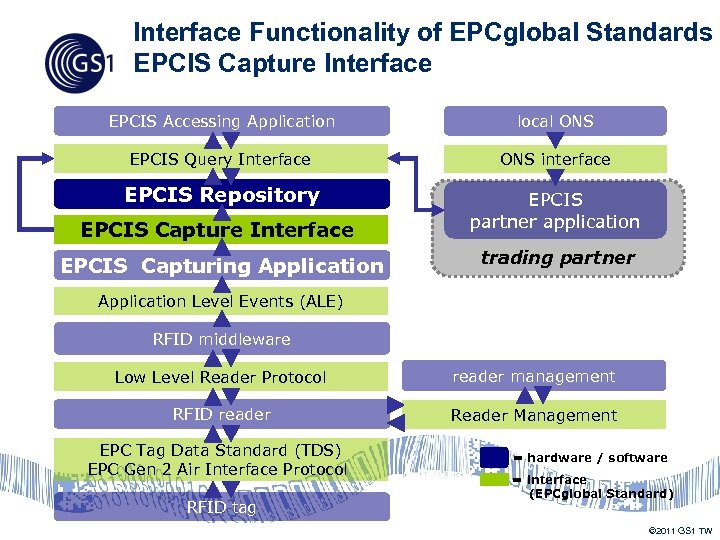

Interface Functionality of EPCglobal Standards EPCIS Capture Interface EPCIS Accessing Application local ONS EPCIS Query Interface ONS interface EPCIS Repository EPCIS partner application EPCIS Capture Interface EPCIS Capturing Application trading partner Application Level Events (ALE) RFID middleware Low Level Reader Protocol reader management RFID reader Reader Management EPC Tag Data Standard (TDS) EPC Gen 2 Air Interface Protocol RFID tag = hardware / software = interface (EPCglobal Standard) © 2011 GS 1 TW

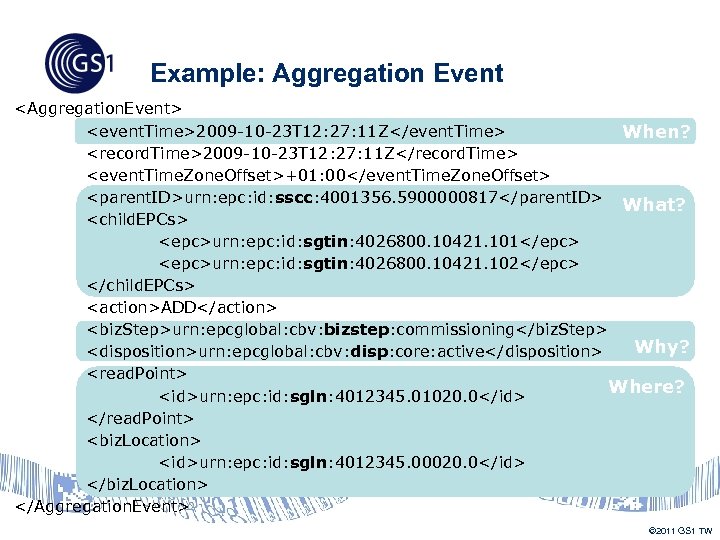

Example: Aggregation Event <Aggregation. Event> <event. Time>2009 -10 -23 T 12: 27: 11 Z</event. Time> When? <record. Time>2009 -10 -23 T 12: 27: 11 Z</record. Time> <event. Time. Zone. Offset>+01: 00</event. Time. Zone. Offset> <parent. ID>urn: epc: id: sscc: 4001356. 5900000817</parent. ID> What? <child. EPCs> <epc>urn: epc: id: sgtin: 4026800. 10421. 101</epc> <epc>urn: epc: id: sgtin: 4026800. 10421. 102</epc> </child. EPCs> <action>ADD</action> <biz. Step>urn: epcglobal: cbv: bizstep: commissioning</biz. Step> Why? <disposition>urn: epcglobal: cbv: disp: core: active</disposition> <read. Point> Where? <id>urn: epc: id: sgln: 4012345. 01020. 0</id> </read. Point> <biz. Location> <id>urn: epc: id: sgln: 4012345. 00020. 0</id> </biz. Location> </Aggregation. Event> © 2011 GS 1 TW

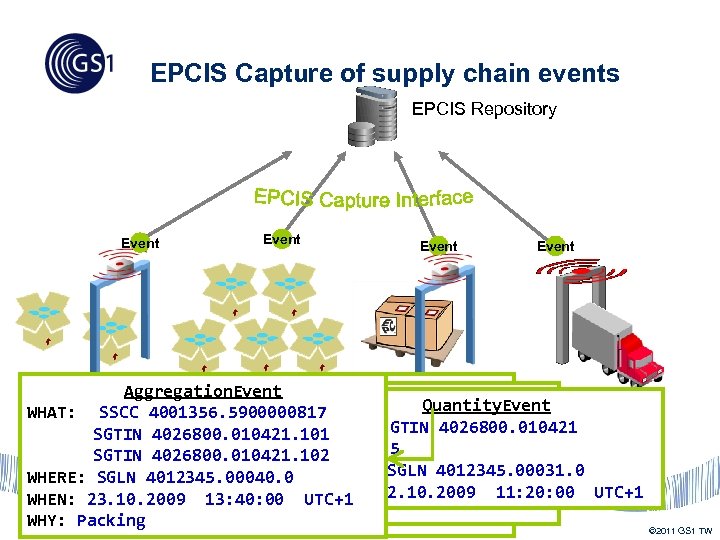

EPCIS Capture of supply chain events EPCIS Repository Event storage Transaction. Event Aggregation. Event commssioning production Object. Event shipping Quantity. Event SSCCWHAT: SSCC 4001356. 5900000817 WHAT: SGTINWHAT: GTIN 4026800. 010421. 101 SGTIN 4026800. 010421. 102 QTY: 5 GTIN 4026800. 010421. 102 SGTIN 4026800. 010421. 102 WHERE: SGLN 4012345. 01010. 0 WHERE: SGLNbiz. Transaction: desadv 471150825 4012345. 00040. 0 WHERE: SGLN 4012345. 00031. 0 WHEN: 22. 10. 2009 09: 25: 00 UTC+1 WHEN: WHERE: SGLN 4012345. 00050. 0 WHEN: 23. 10. 2009 13: 40: 00 UTC+1 22. 10. 2009 11: 20: 00 UTC+1 WHY: packing WHEN: 23. 10. 2009 14: 47: 00 UTC+1 WHY: Packing © 2011 GS 1 TW WHAT:

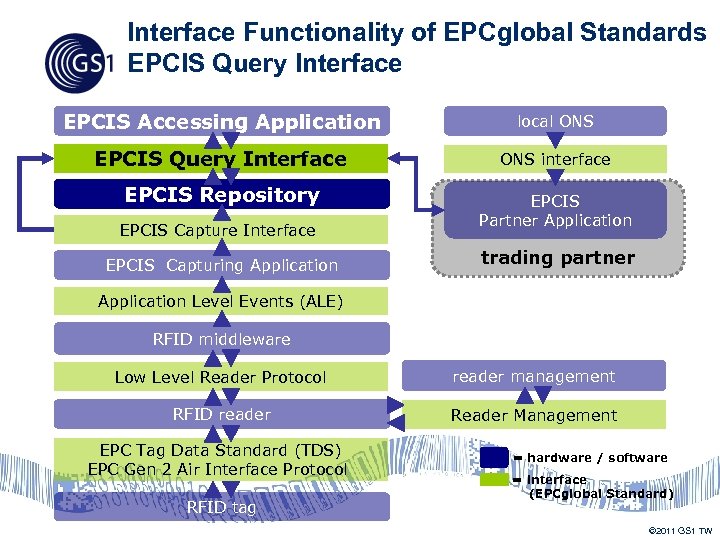

Interface Functionality of EPCglobal Standards EPCIS Query Interface EPCIS Accessing Application local ONS EPCIS Query Interface ONS interface EPCIS Repository EPCIS Capture Interface EPCIS Capturing Application EPCIS Partner Application trading partner Application Level Events (ALE) RFID middleware Low Level Reader Protocol reader management RFID reader Reader Management EPC Tag Data Standard (TDS) EPC Gen 2 Air Interface Protocol RFID tag = hardware / software = interface (EPCglobal Standard) © 2011 GS 1 TW

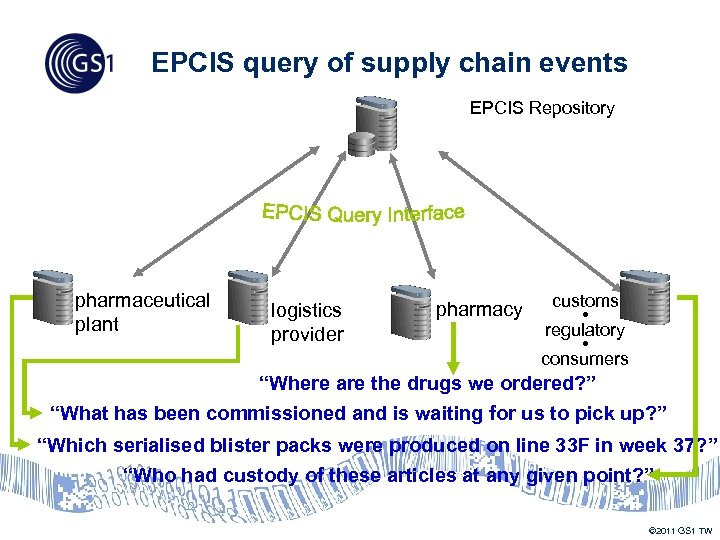

EPCIS query of supply chain events EPCIS Repository pharmaceutical Query plant & Response logistics provider Query & Response pharmacy Query & Response customs Query & regulatory Response consumers “Where are the drugs we ordered? ” “What has been commissioned and is waiting for us to pick up? ” “Which serialised blister packs were produced on line 33 F in week 37? ” “Who had custody of these articles at any given point? ” © 2011 GS 1 TW

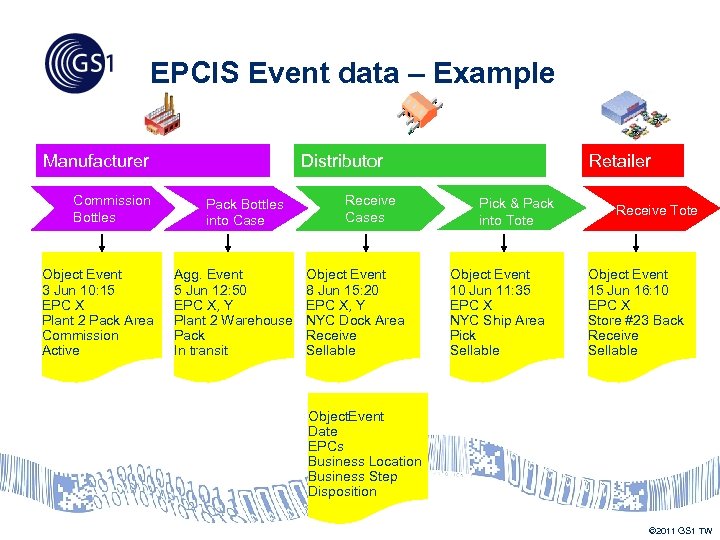

EPCIS Event data – Example Manufacturer Commission Bottles Object Event 3 Jun 10: 15 EPC X Plant 2 Pack Area Commission Active Distributor Pack Bottles into Case Agg. Event 5 Jun 12: 50 EPC X, Y Plant 2 Warehouse Pack In transit Receive Cases Object Event 8 Jun 15: 20 EPC X, Y NYC Dock Area Receive Sellable Retailer Pick & Pack b into Tote Object Event 10 Jun 11: 35 EPC X NYC Ship Area Pick Sellable Receive Tote Object Event 15 Jun 16: 10 EPC X Store #23 Back Receive Sellable Object. Event Date EPCs Business Location Business Step Disposition © 2011 GS 1 TW

EPCIS Demo HTTP: //WWW. FOSSTRAK. ORG/EPCIS/DEMO. HTML © 2011 GS 1 TW

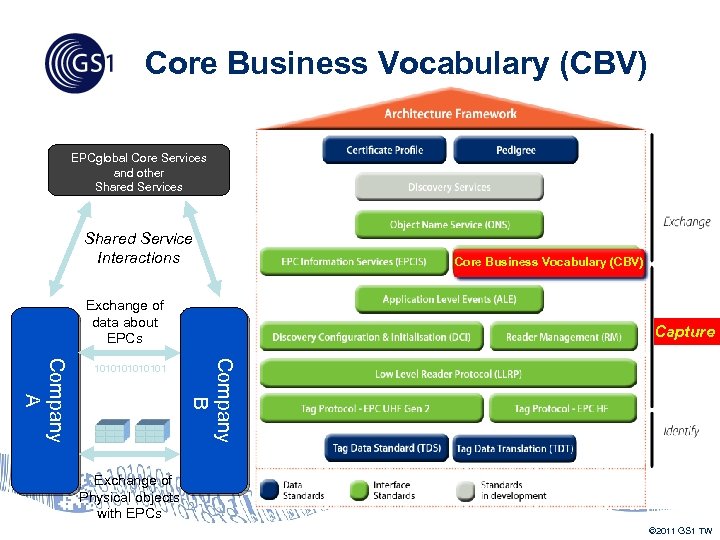

Core Business Vocabulary (CBV) EPCglobal Core Services and other Shared Services Shared Service Interactions Exchange of data about EPCs Capture Company B Company A 1010101 Core Business Vocabulary (CBV) Exchange of Physical objects with EPCs © 2011 GS 1 TW

Core Business Vocabulary (CBV) p 本部標準定義符合EPCIS使用之特定字彙和其資料值，使得不同公司以及公司內部進行資料交換時能有得以依據的機制。 p CBV定義EPCIS之Event data內核心字彙，並適用於一般商業情境之資料分享。因此該標準提供統一的字彙及其代表的意義，讓供應鏈裡不同的節點對該物件資料能有相同的理解。

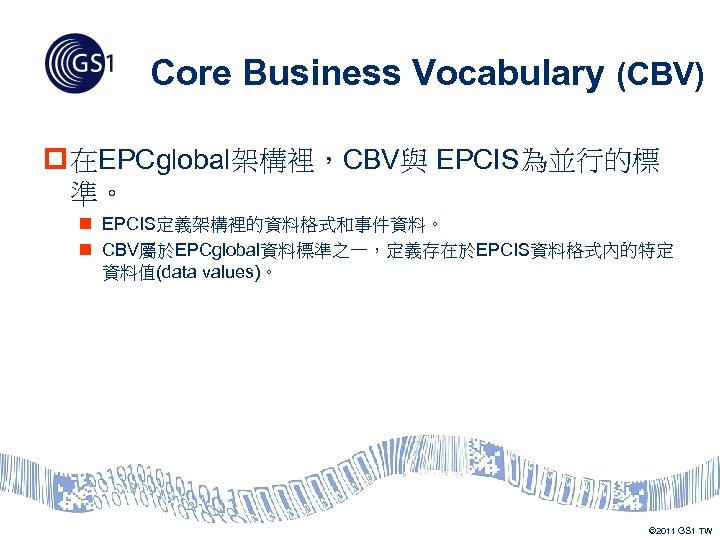

Core Business Vocabulary (CBV) p 在EPCglobal架構裡，CBV與 EPCIS為並行的標準。 n EPCIS定義架構裡的資料格式和事件資料。 n CBV屬於EPCglobal資料標準之一，定義存在於EPCIS資料格式內的特定資料值(data values)。

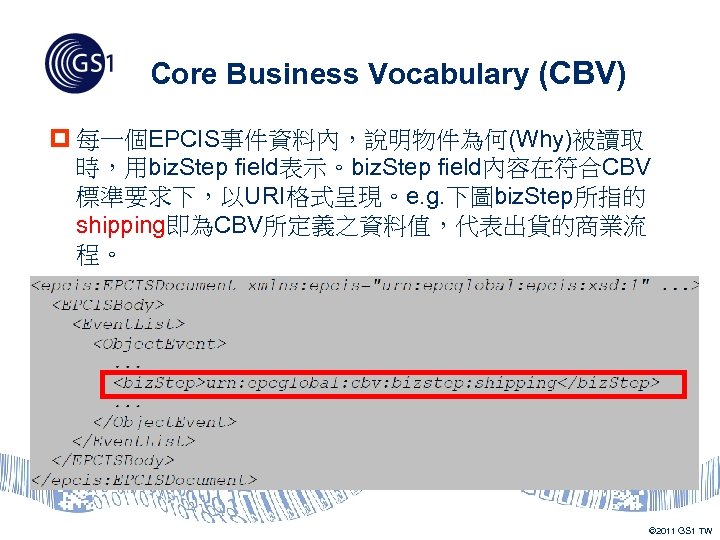

Core Business Vocabulary (CBV) p 每一個EPCIS事件資料內，說明物件為何(Why)被讀取時，用biz. Step field表示。biz. Step field內容在符合CBV 標準要求下，以URI格式呈現。e. g. 下圖biz.

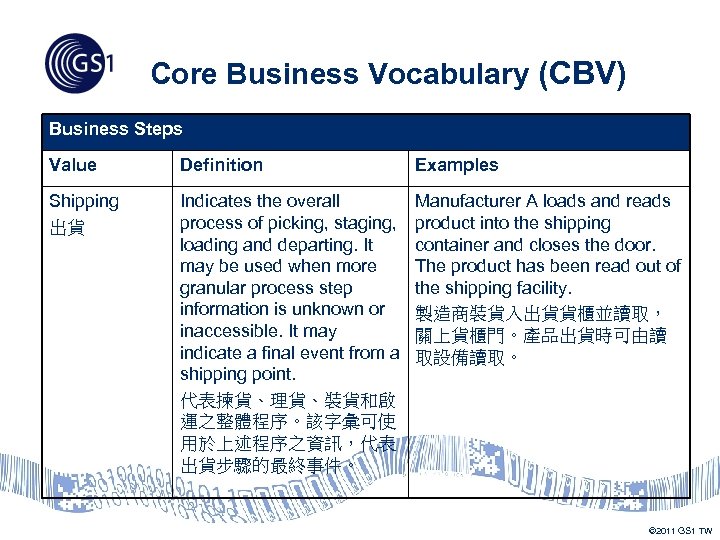

Core Business Vocabulary (CBV) Business Steps Value Definition Examples Shipping 出貨 Indicates the overall process of picking, staging, loading and departing. It may be used when more granular process step information is unknown or inaccessible. It may indicate a final event from a shipping point. 代表揀貨、理貨、裝貨和啟運之整體程序。該字彙可使用於上述程序之資訊，代表出貨步驟的最終事件。 Manufacturer A loads and reads product into the shipping container and closes the door. The product has been read out of the shipping facility. 製造商裝貨入出貨貨櫃並讀取，關上貨櫃門。產品出貨時可由讀取設備讀取。 © 2011 GS 1 TW

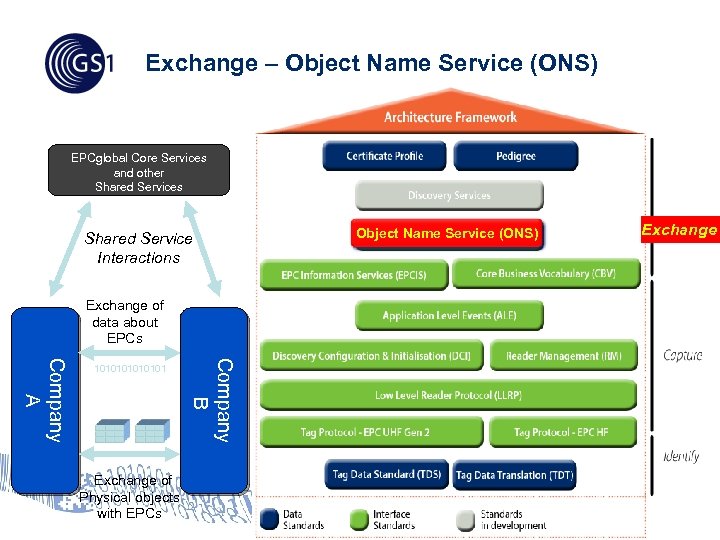

Exchange – Object Name Service (ONS) EPCglobal Core Services and other Shared Services Shared Service Interactions Object Name Service (ONS) Exchange of data about EPCs Company B Company A 1010101 Exchange of Physical objects with EPCs © 2011 GS 1 TW

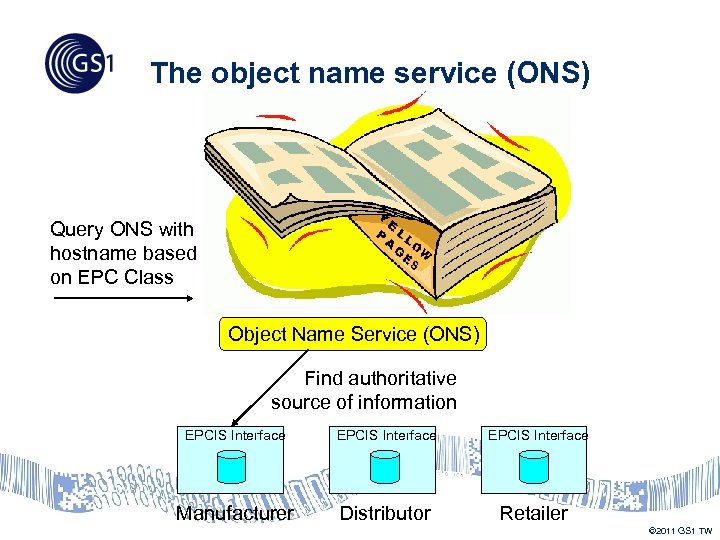

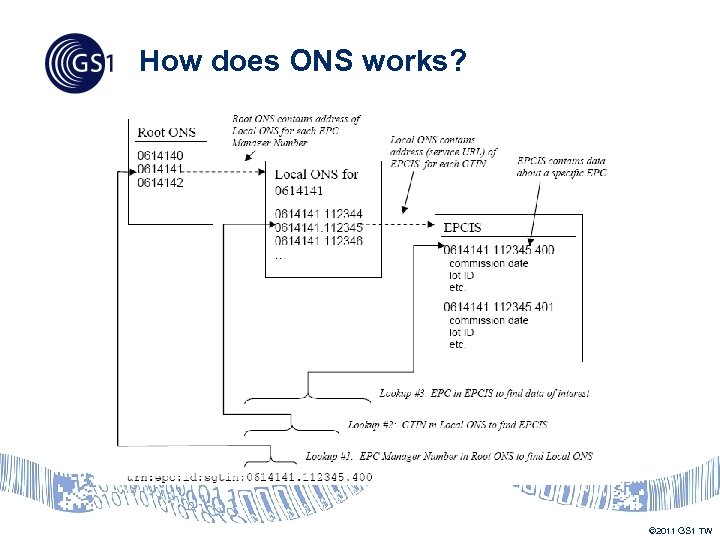

The object name service (ONS) Query ONS with hostname based on EPC Class Object Name Service (ONS) Find authoritative source of information EPCIS Interface Manufacturer Distributor EPCIS Interface Retailer © 2011 GS 1 TW

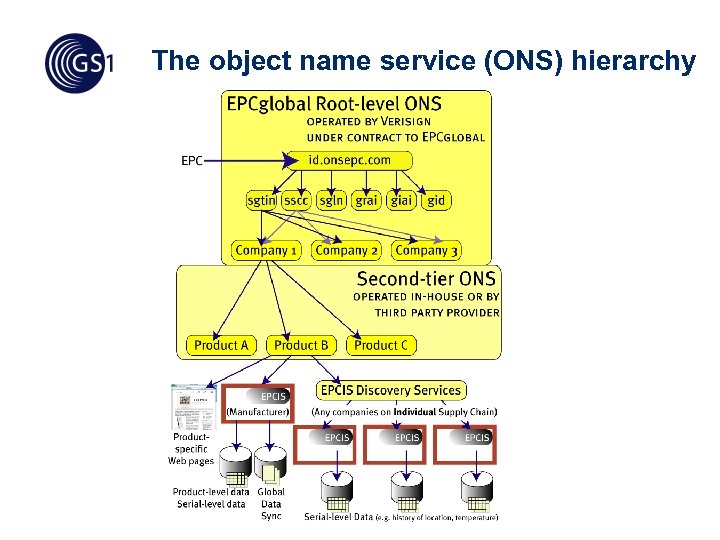

The object name service (ONS) hierarchy © 2011 GS 1 TW

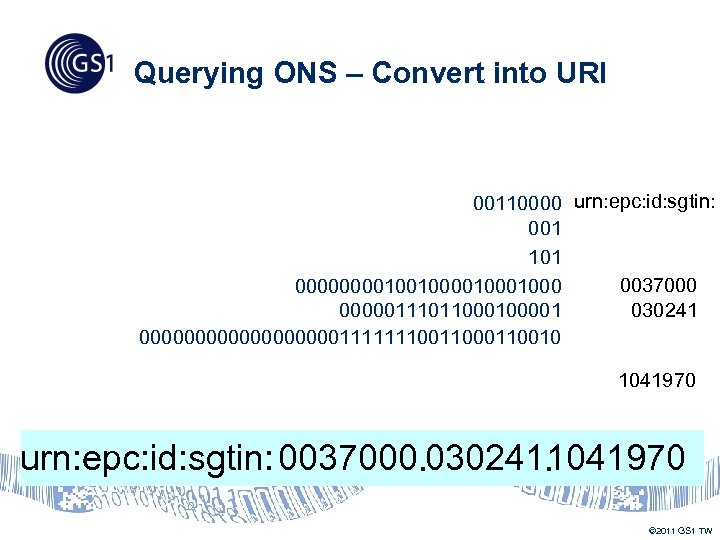

Querying ONS – Convert into URI 00110000 urn: epc: id: sgtin: 001 101 0037000 000010010001000 0000011101100001 030241 0000000001111111000110010 1041970 urn: epc: id: sgtin: 0037000. 0302411041970. © 2011 GS 1 TW

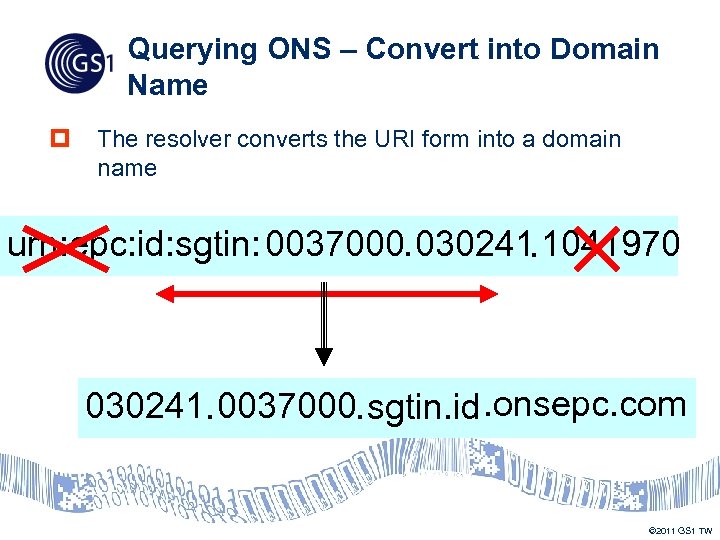

Querying ONS – Convert into Domain Name p The resolver converts the URI form

Querying ONS – DNS Lookup 030241. 0037000. sgtin. id. onsepc. com Order Pref Flags 0 0 0 0 0 1 u u u Service R egular Expression R eplace E +ws PC !^. *$!http: / /w ww. itunes. com/ musicfinder. wsdl! . E +epcis PC !^. *$!http: / /epcservices. apple. com/e pcis. wsdl! . E +html PC !^. *$!http: / /w ww. apple. com/ ipodphoto! . E +xmlrpc PC !^. *$!http: / / gateway 1. xmlrpc. com/ servlet/ apple. com! . E +xmlrpc PC !^. *$!http: / / gateway 2. xmlrpc. com/servlet/ apple. com! . © 2011 GS 1 TW

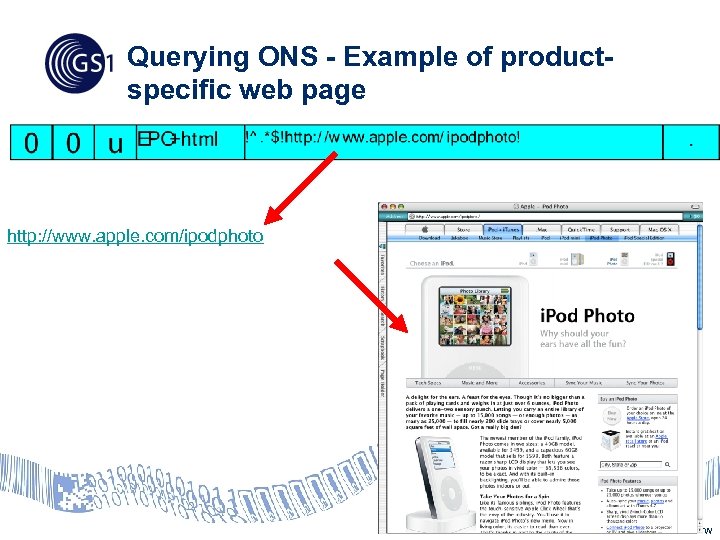

Querying ONS - Example of productspecific web page http: //www. apple. com/ipodphoto © 2011

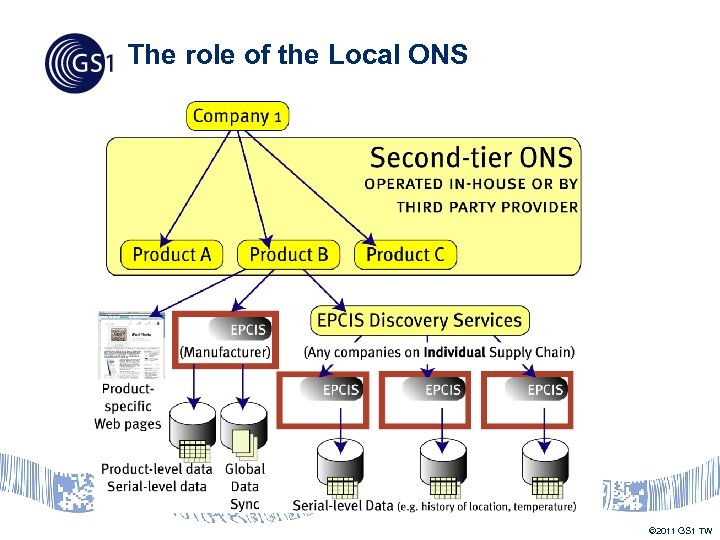

The role of the Local ONS © 2011 GS 1 TW

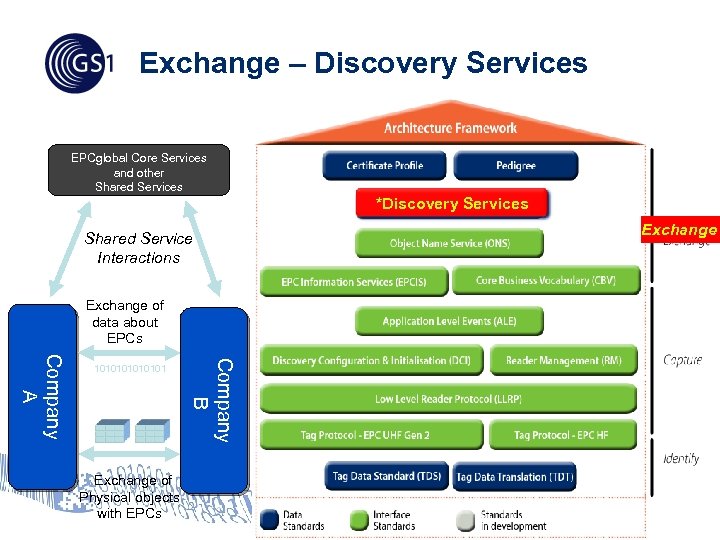

Exchange – Discovery Services EPCglobal Core Services and other Shared Services *Discovery Services Shared Service Interactions Exchange of data about EPCs Company B Company A 1010101 Exchange of Physical objects with EPCs © 2011 GS 1 TW

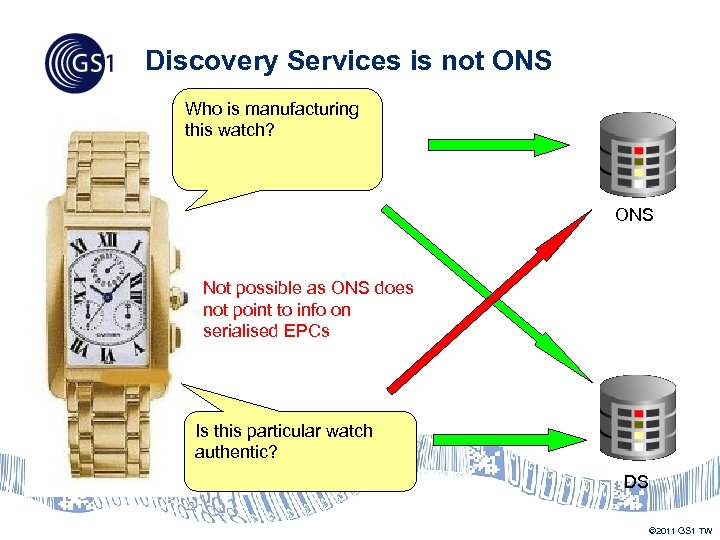

Discovery Services is not ONS Who is manufacturing this watch? ONS Not possible as

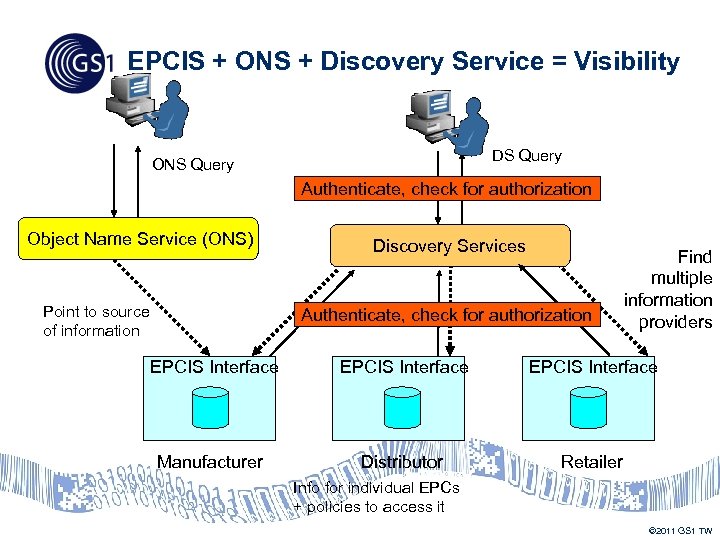

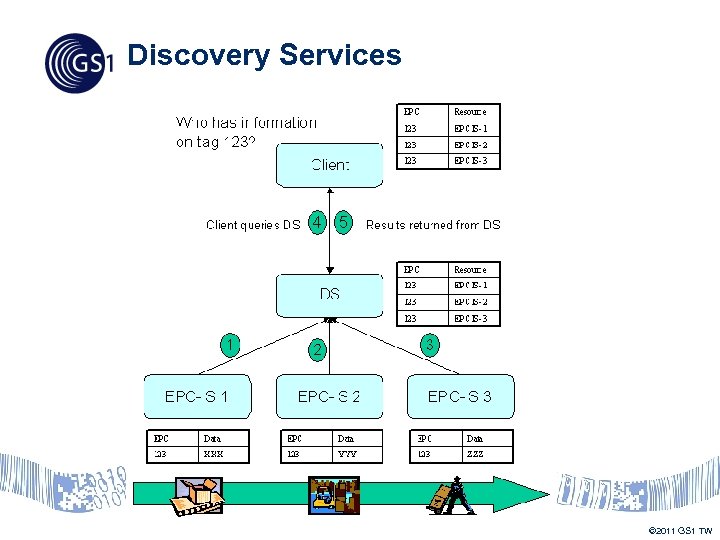

EPCIS + ONS + Discovery Service = Visibility DS Query ONS Query Authenticate, check for authorization Object Name Service (ONS) Point to source of information Discovery Services Authenticate, check for authorization Find multiple information providers EPCIS Interface Manufacturer Distributor Retailer Info for individual EPCs + policies to access it © 2011 GS 1 TW

Exchange – Drug Pedigree EPCglobal Core Services and other Shared Services Shared Service Interactions Drug Pedigree Exchange of data about EPCs Company B Company A 1010101 Exchange of Physical objects with EPCs © 2011 GS 1 TW

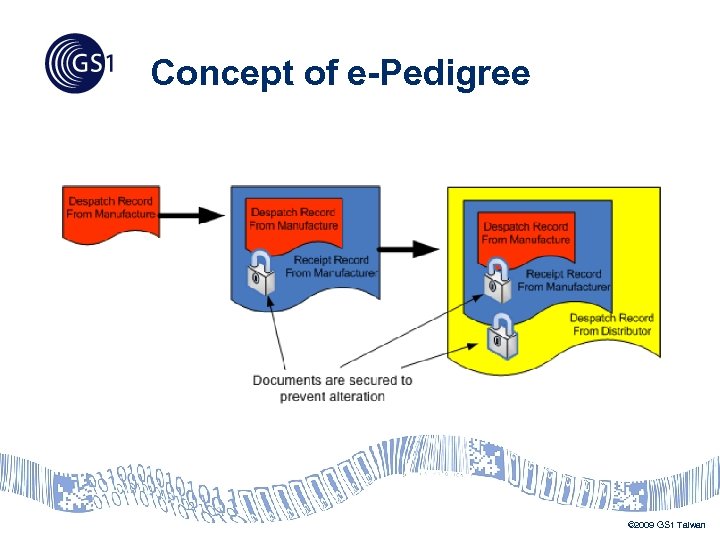

Concept of e-Pedigree © 2009 GS 1 Taiwan

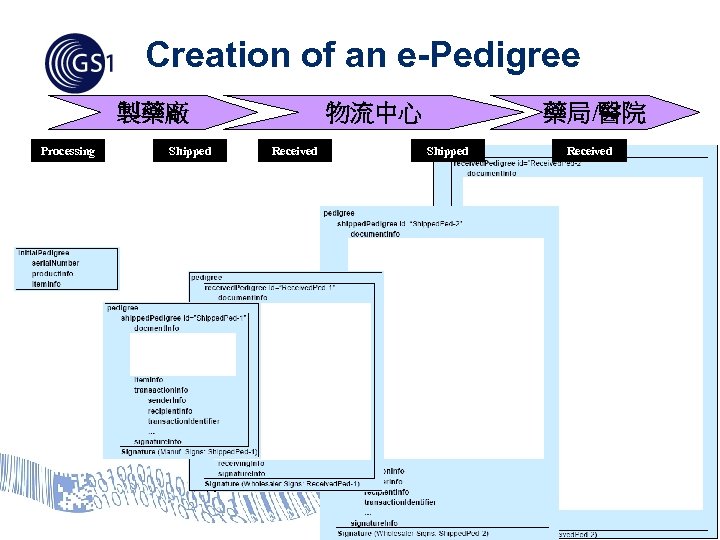

Creation of an e-Pedigree 製藥廠 Processing Shipped 物流中心 Received 藥局/醫院 Shipped Received © 2011

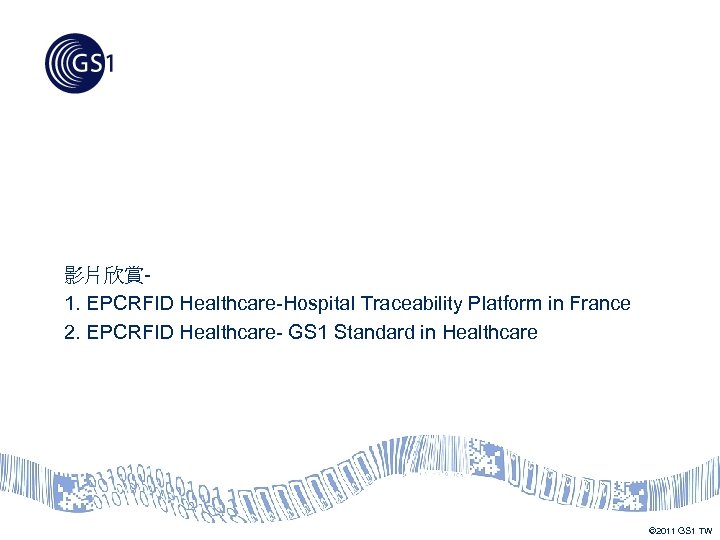

影片欣賞 1. EPCRFID Healthcare-Hospital Traceability Platform in France 2. EPCRFID Healthcare- GS 1 Standard

Exchange – Certificate Profile EPCglobal Core Services and other Shared Services Shared Service Interactions Certificate Profile Exchange of data about EPCs Company B Company A 1010101 Exchange of Physical objects with EPCs © 2011 GS 1 TW

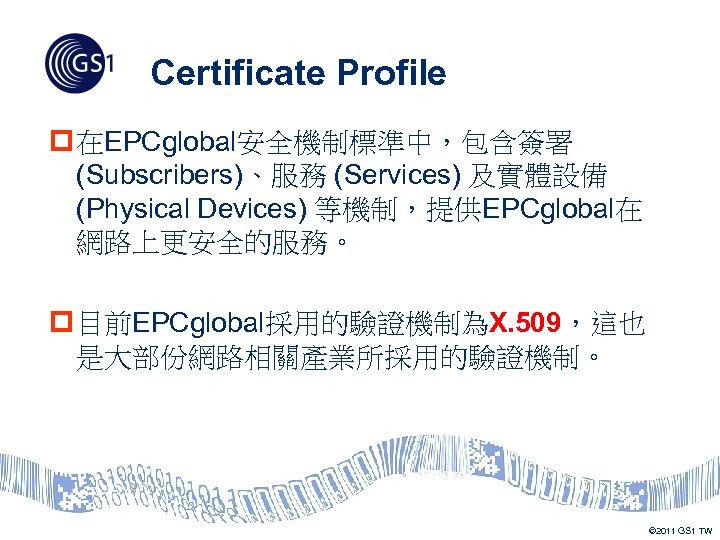

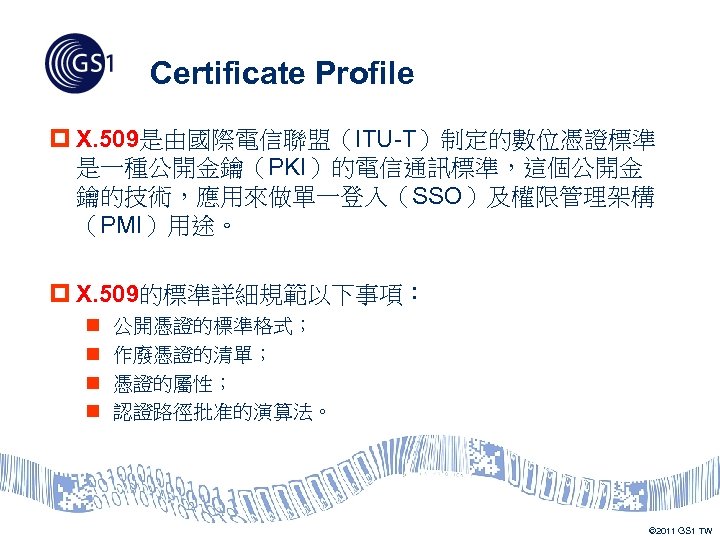

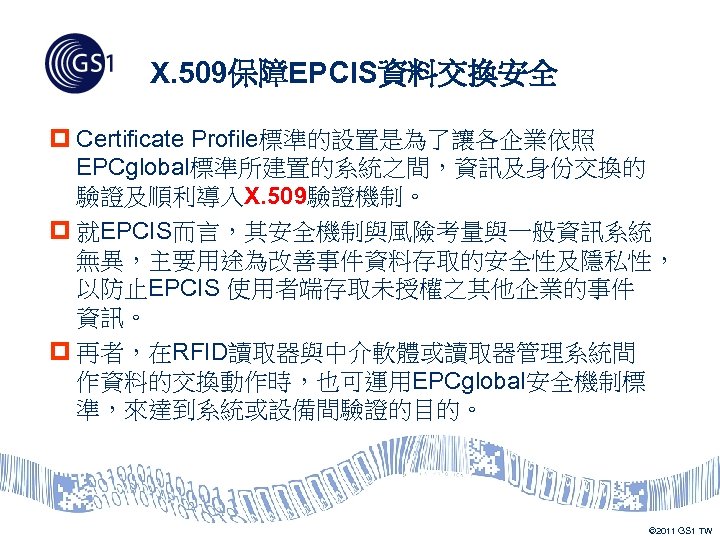

X. 509保障EPCIS資料交換安全 p Certificate Profile標準的設置是為了讓各企業依照 EPCglobal標準所建置的系統之間，資訊及身份交換的驗證及順利導入X. 509驗證機制。 p 就EPCIS而言，其安全機制與風險考量與一般資訊系統無異，主要用途為改善事件資料存取的安全性及隱私性，以防止EPCIS 使用者端存取未授權之其他企業的事件資訊。 p 再者，在RFID讀取器與中介軟體或讀取器管理系統間作資料的交換動作時，也可運用EPCglobal安全機制標準，來達到系統或設備間驗證的目的。 © 2011 GS 1 TW

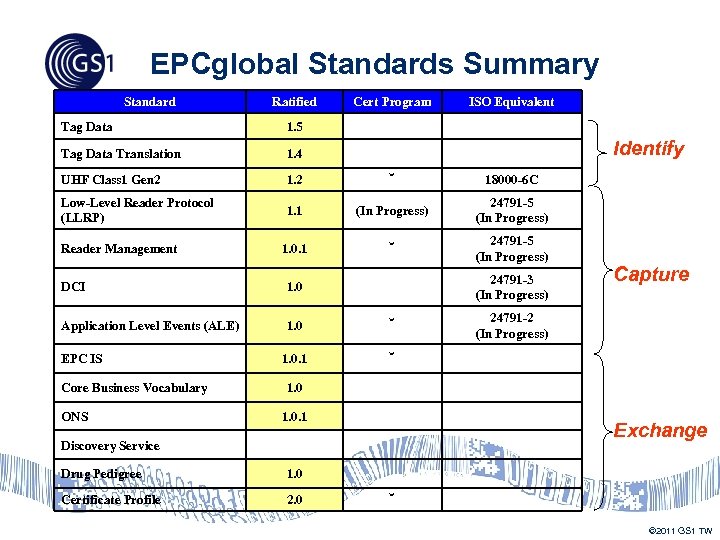

EPCglobal Standards Summary Standard Ratified Cert Program ISO Equivalent Tag Data 1. 5 Tag Data Translation 1. 4 UHF Class 1 Gen 2 1. 2 ˇ 18000 -6 C Low-Level Reader Protocol (LLRP) 1. 1 (In Progress) 24791 -5 (In Progress) 1. 0. 1 ˇ 24791 -5 (In Progress) Reader Management Identify 24791 -3 (In Progress) DCI 1. 0 Application Level Events (ALE) 1. 0 ˇ 1. 0. 1 Capture ˇ EPC IS Core Business Vocabulary ONS 24791 -2 (In Progress) 1. 0. 1 Exchange Discovery Service Drug Pedigree 1. 0 Certificate Profile 2. 0 ˇ © 2011 GS 1 TW

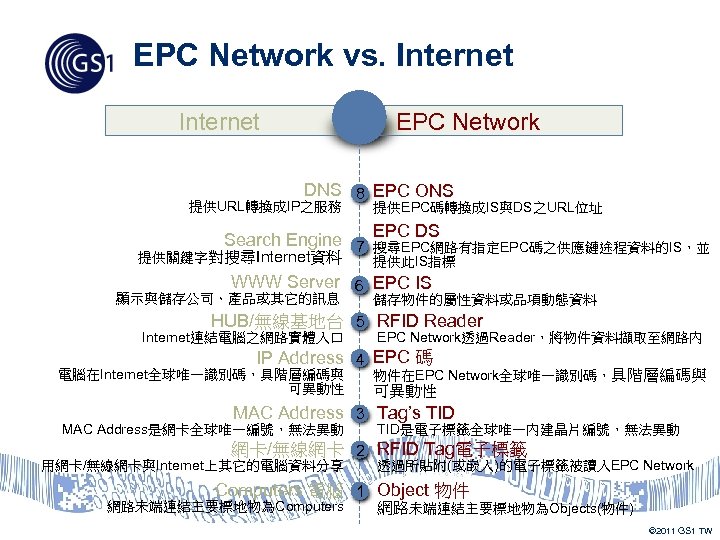

EPC Network vs. Internet EPC Network Internet DNS 8 EPC ONS 提供URL轉換成IP之服務提供EPC碼轉換成IS與DS之URL位址 Search Engine 7 EPC DS 搜尋EPC網路有指定EPC碼之供應鏈途程資料的IS，並提供關鍵字對搜尋Internet資料提供此IS指標 WWW Server 6 EPC IS 顯示與儲存公司、產品或其它的訊息儲存物件的屬性資料或品項動態資料 HUB/無線基地台 5 RFID Reader Internet連結電腦之網路實體入口 EPC Network透過Reader，將物件資料擷取至網路內 IP Address 4 EPC 碼電腦在Internet全球唯一識別碼，具階層編碼與可異動性物件在EPC Network全球唯一識別碼，具階層編碼與可異動性 MAC Address 3 Tag’s TID MAC Address是網卡全球唯一編號，無法異動 TID是電子標籤全球唯一內建晶片編號，無法異動網卡/無線網卡 2 RFID Tag電子標籤用網卡/無線網卡與Internet上其它的電腦資料分享透過所貼附(或嵌入)的電子標籤被讀入EPC Network Computers 電腦 1 Object 物件網路未端連結主要標地物為Computers 網路未端連結主要標地物為Objects(物件) © 2011 GS 1 TW
