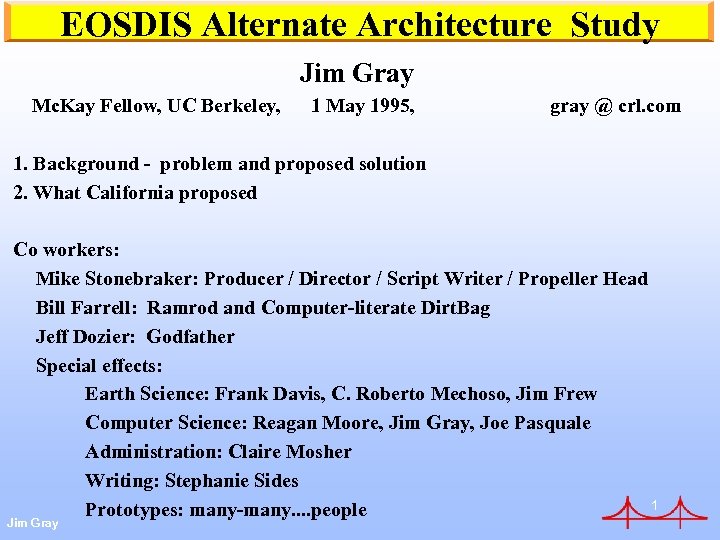

EOSDIS Alternate Architecture Study Jim Gray Mc. Kay Fellow, UC Berkeley, 1 May 1995, gray @ crl. com 1. Background - problem and proposed solution 2. What California proposed Co workers: Mike Stonebraker: Producer / Director / Script Writer / Propeller Head Bill Farrell: Ramrod and Computer-literate Dirt. Bag Jeff Dozier: Godfather Special effects: Earth Science: Frank Davis, C. Roberto Mechoso, Jim Frew Computer Science: Reagan Moore, Jim Gray, Joe Pasquale Administration: Claire Mosher Writing: Stephanie Sides 1 Prototypes: many-many. . people Jim Gray

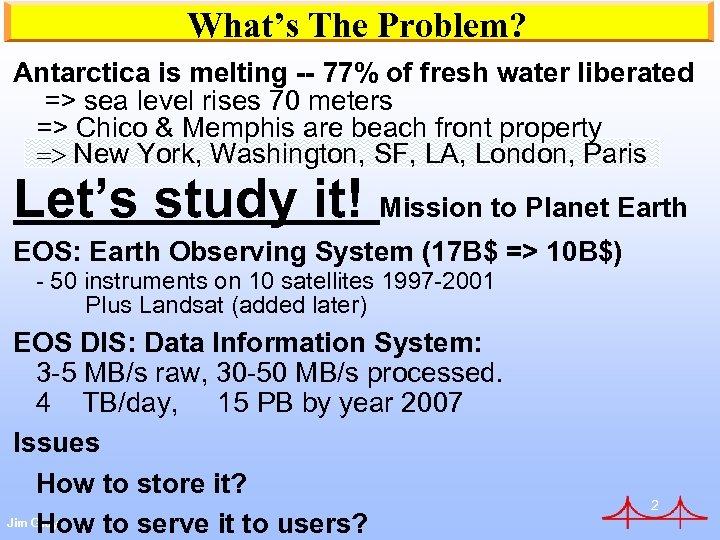

What’s The Problem? Antarctica is melting -- 77% of fresh water liberated => sea level rises 70 meters => Chico & Memphis are beach front property => New York, Washington, SF, LA, London, Paris Let’s study it! Mission to Planet Earth EOS: Earth Observing System (17 B$ => 10 B$) 50 instruments on 10 satellites 1997 2001 Plus Landsat (added later) EOS DIS: Data Information System: 3 5 MB/s raw, 30 50 MB/s processed. 4 TB/day, 15 PB by year 2007 Issues How to store it? Jim Gray How to serve it to users? 2

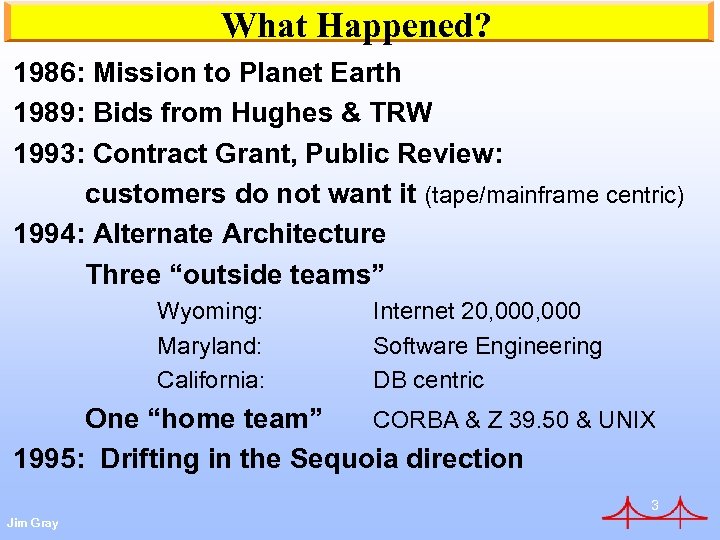

What Happened? 1986: Mission to Planet Earth 1989: Bids from Hughes & TRW 1993: Contract Grant, Public Review: customers do not want it (tape/mainframe centric) 1994: Alternate Architecture Three “outside teams” Wyoming: Maryland: California: Internet 20, 000 Software Engineering DB centric One “home team” CORBA & Z 39. 50 & UNIX 1995: Drifting in the Sequoia direction 3 Jim Gray

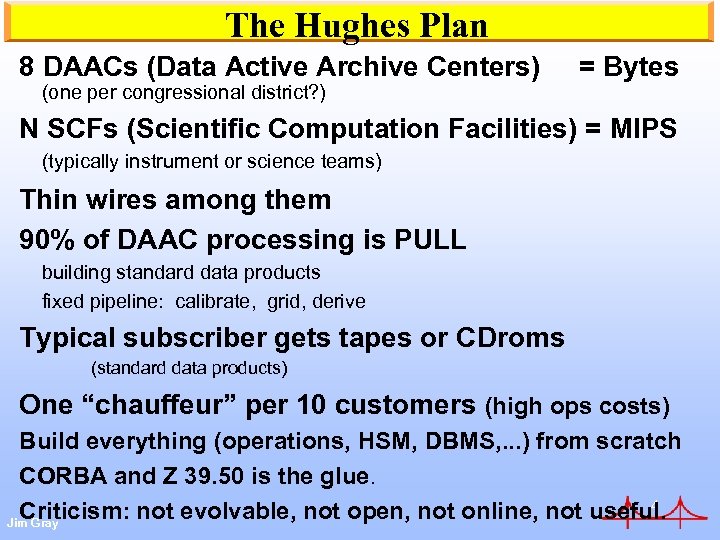

The Hughes Plan 8 DAACs (Data Active Archive Centers) (one per congressional district? ) = Bytes N SCFs (Scientific Computation Facilities) = MIPS (typically instrument or science teams) Thin wires among them 90% of DAAC processing is PULL building standard data products fixed pipeline: calibrate, grid, derive Typical subscriber gets tapes or CDroms (standard data products) One “chauffeur” per 10 customers (high ops costs) Build everything (operations, HSM, DBMS, . . . ) from scratch CORBA and Z 39. 50 is the glue. 4 Criticism: not evolvable, not open, not online, not useful. Jim Gray

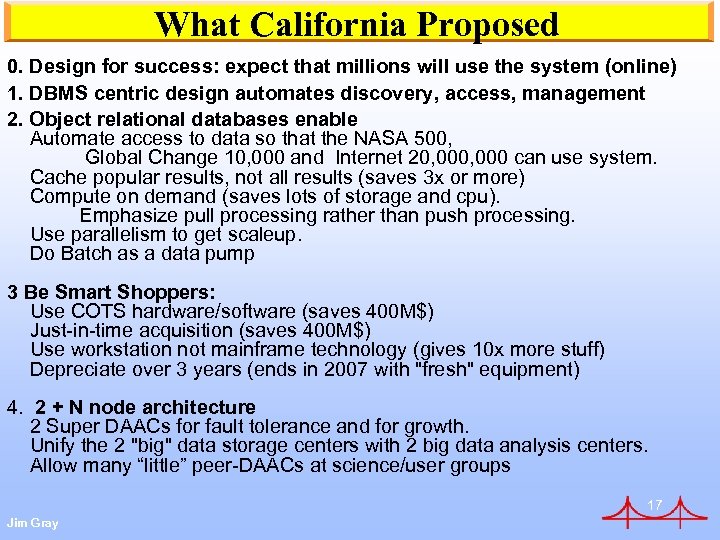

What California Proposed 0. Design for success: expect that millions will use the system (online) 1. DBMS centric design automates discovery, access, management 2. Object relational databases enable Automate access to data so that the NASA 500, Global Change 10, 000 and Internet 20, 000 can use system. Cache popular results, not all results (saves 3 x or more) Compute on demand (saves lots of storage and cpu). Emphasize pull processing rather than push processing. Use parallelism to get scaleup. Do Batch as a data pump 3 Be Smart Shoppers: Use COTS hardware/software (saves 400 M$) Just in time acquisition (saves 400 M$) Use workstation not mainframe technology (gives 10 x more stuff) Depreciate over 3 years (ends in 2007 with "fresh" equipment) 4. 2 + N node architecture 2 Super DAACs for fault tolerance and for growth. Unify the 2 "big" data storage centers with 2 big data analysis centers. Allow many “little” peer DAACs at science/user groups 5 Jim Gray

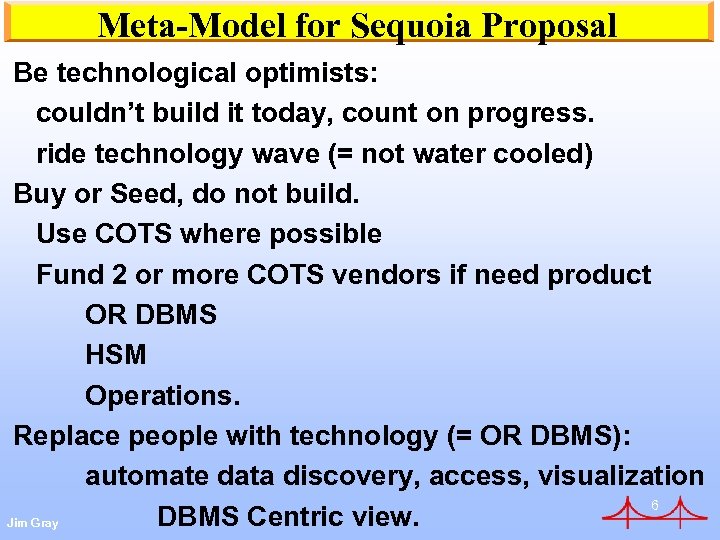

Meta-Model for Sequoia Proposal Be technological optimists: couldn’t build it today, count on progress. ride technology wave (= not water cooled) Buy or Seed, do not build. Use COTS where possible Fund 2 or more COTS vendors if need product OR DBMS HSM Operations. Replace people with technology (= OR DBMS): automate data discovery, access, visualization 6 DBMS Centric view. Jim Gray

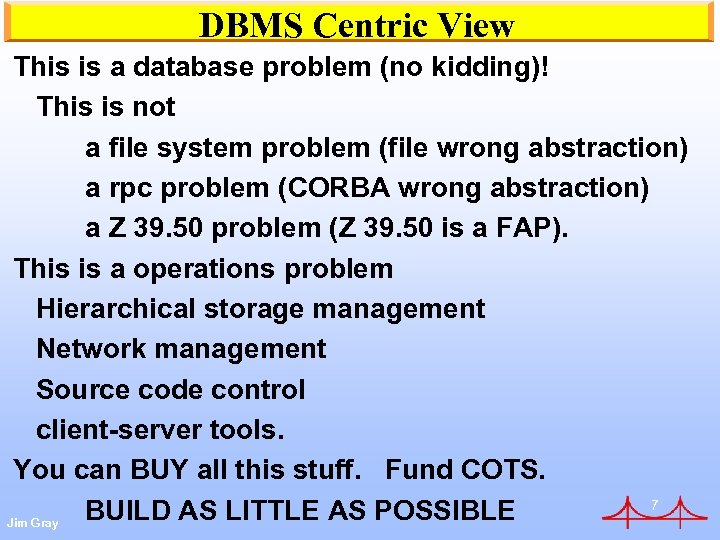

DBMS Centric View This is a database problem (no kidding)! This is not a file system problem (file wrong abstraction) a rpc problem (CORBA wrong abstraction) a Z 39. 50 problem (Z 39. 50 is a FAP). This is a operations problem Hierarchical storage management Network management Source code control client-server tools. You can BUY all this stuff. Fund COTS. 7 BUILD AS LITTLE AS POSSIBLE Jim Gray

What California Proposed 0. Design for success: expect that millions will use the system (online) 1. DBMS centric design automates discovery, access, management 2. Object relational databases enable Automate access to data so that the NASA 500, Global Change 10, 000 and Internet 20, 000 can use system. Cache popular results, not all results (saves 3 x or more) Compute on demand (saves lots of storage and cpu). Emphasize pull processing rather than push processing. Use parallelism to get scaleup. Do Batch as a data pump 3 Be Smart Shoppers: Use COTS hardware/software (saves 400 M$) Just in time acquisition (saves 400 M$) Use workstation not mainframe technology (gives 10 x more stuff) Depreciate over 3 years (ends in 2007 with "fresh" equipment) 4. 2 + N node architecture 2 Super DAACs for fault tolerance and for growth. Unify the 2 "big" data storage centers with 2 big data analysis centers. Allow many “little” peer DAACs at science/user groups 8 Jim Gray

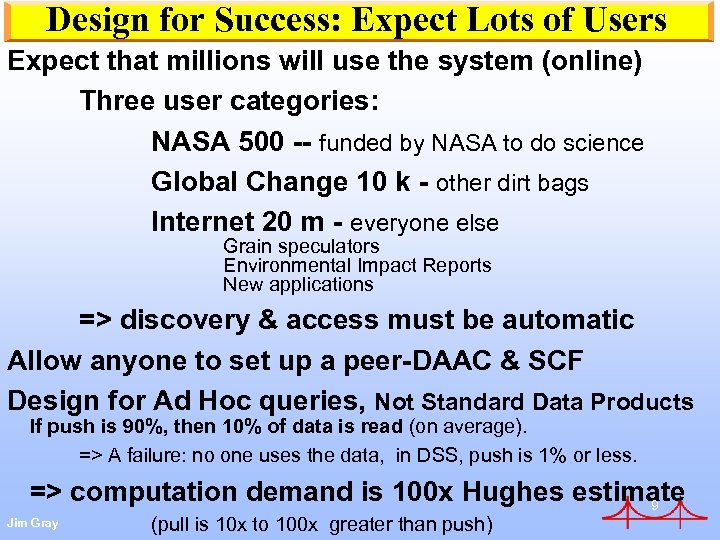

Design for Success: Expect Lots of Users Expect that millions will use the system (online) Three user categories: NASA 500 -- funded by NASA to do science Global Change 10 k - other dirt bags Internet 20 m - everyone else Grain speculators Environmental Impact Reports New applications => discovery & access must be automatic Allow anyone to set up a peer-DAAC & SCF Design for Ad Hoc queries, Not Standard Data Products If push is 90%, then 10% of data is read (on average). => A failure: no one uses the data, in DSS, push is 1% or less. => computation demand is 100 x Hughes estimate 9 Jim Gray (pull is 10 x to 100 x greater than push)

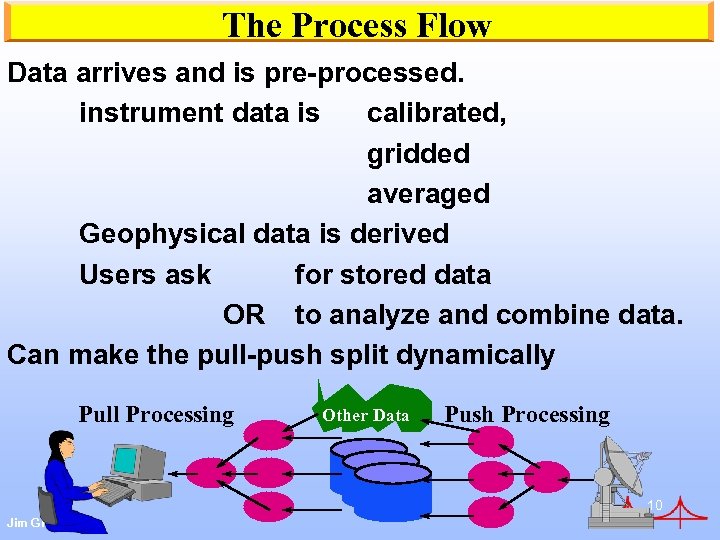

The Process Flow Data arrives and is pre-processed. instrument data is calibrated, gridded averaged Geophysical data is derived Users ask for stored data OR to analyze and combine data. Can make the pull-push split dynamically Pull Processing Other Data Push Processing 10 Jim Gray

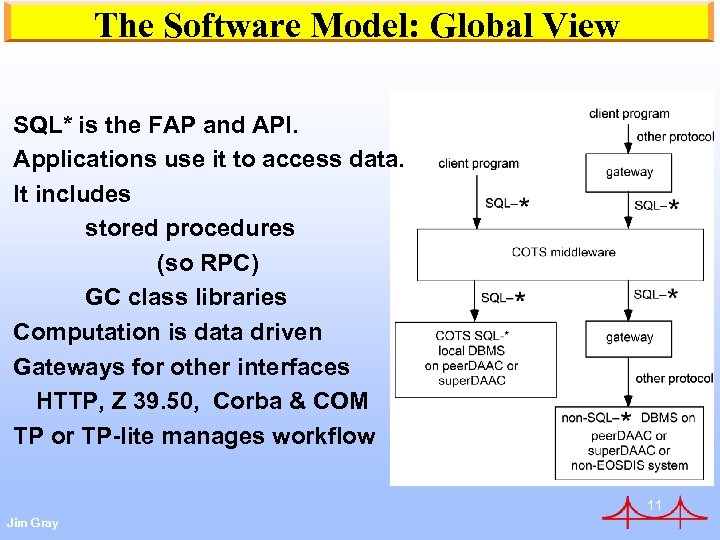

The Software Model: Global View SQL* is the FAP and API. Applications use it to access data. It includes stored procedures (so RPC) GC class libraries Computation is data driven Gateways for other interfaces HTTP, Z 39. 50, Corba & COM TP or TP-lite manages workflow 11 Jim Gray

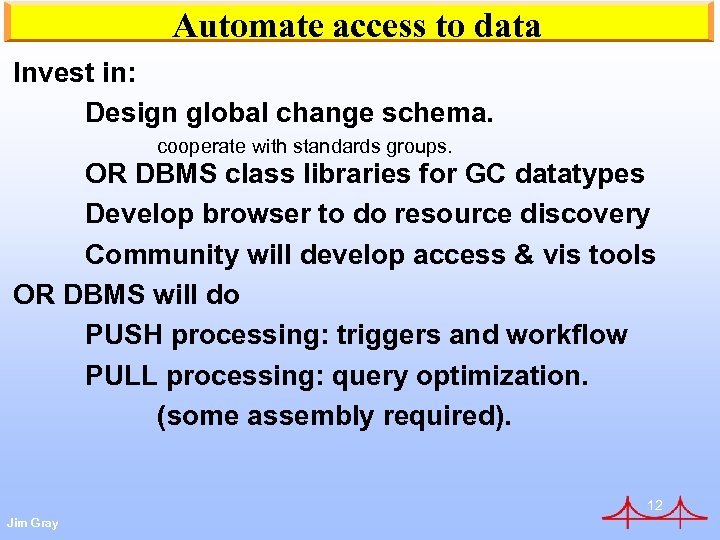

Automate access to data Invest in: Design global change schema. cooperate with standards groups. OR DBMS class libraries for GC datatypes Develop browser to do resource discovery Community will develop access & vis tools OR DBMS will do PUSH processing: triggers and workflow PULL processing: query optimization. (some assembly required). 12 Jim Gray

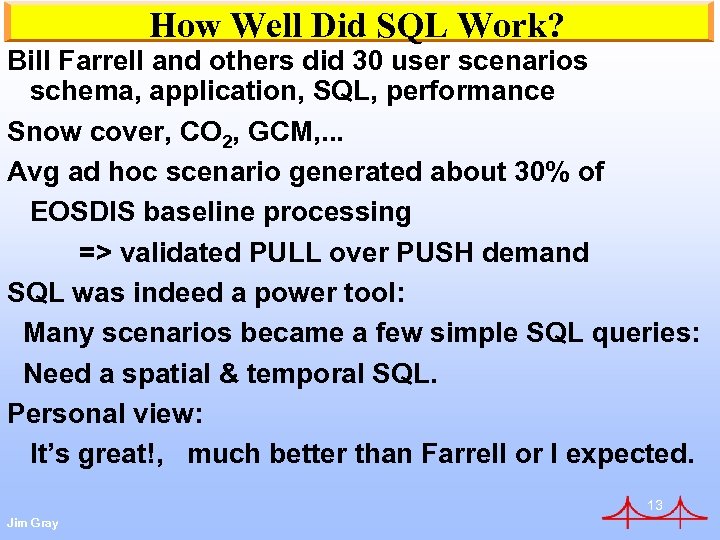

How Well Did SQL Work? Bill Farrell and others did 30 user scenarios schema, application, SQL, performance Snow cover, CO 2, GCM, . . . Avg ad hoc scenario generated about 30% of EOSDIS baseline processing => validated PULL over PUSH demand SQL was indeed a power tool: Many scenarios became a few simple SQL queries: Need a spatial & temporal SQL. Personal view: It’s great!, much better than Farrell or I expected. 13 Jim Gray

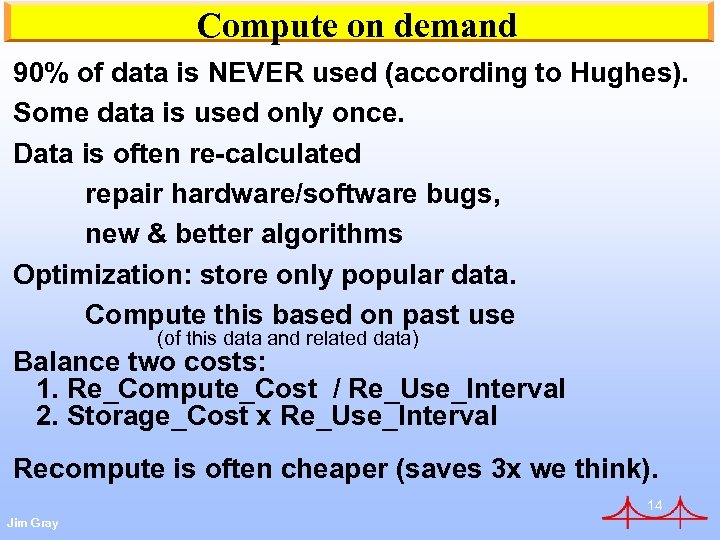

Compute on demand 90% of data is NEVER used (according to Hughes). Some data is used only once. Data is often re-calculated repair hardware/software bugs, new & better algorithms Optimization: store only popular data. Compute this based on past use (of this data and related data) Balance two costs: 1. Re_Compute_Cost / Re_Use_Interval 2. Storage_Cost x Re_Use_Interval Recompute is often cheaper (saves 3 x we think). 14 Jim Gray

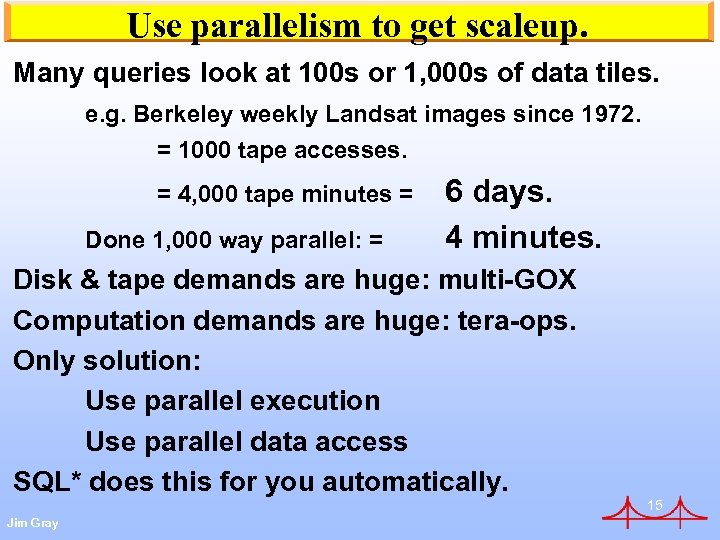

Use parallelism to get scaleup. Many queries look at 100 s or 1, 000 s of data tiles. e. g. Berkeley weekly Landsat images since 1972. = 1000 tape accesses. = 4, 000 tape minutes = Done 1, 000 way parallel: = 6 days. 4 minutes. Disk & tape demands are huge: multi-GOX Computation demands are huge: tera-ops. Only solution: Use parallel execution Use parallel data access SQL* does this for you automatically. 15 Jim Gray

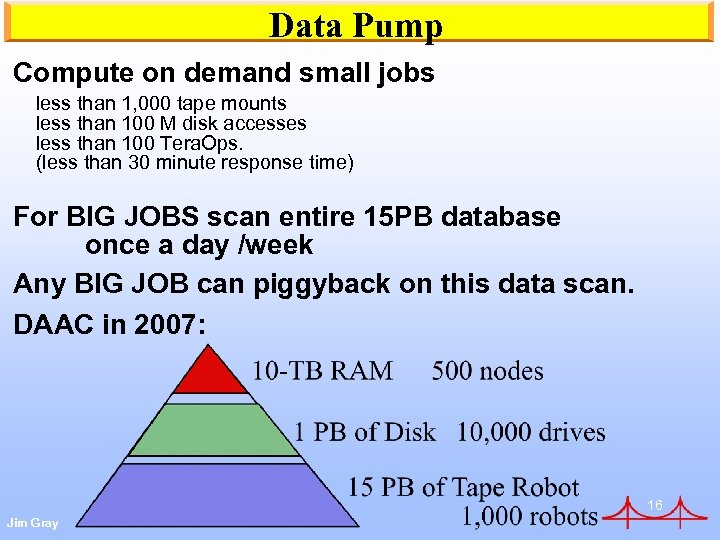

Data Pump Compute on demand small jobs less than 1, 000 tape mounts less than 100 M disk accesses less than 100 Tera. Ops. (less than 30 minute response time) For BIG JOBS scan entire 15 PB database once a day /week Any BIG JOB can piggyback on this data scan. DAAC in 2007: 16 Jim Gray

What California Proposed 0. Design for success: expect that millions will use the system (online) 1. DBMS centric design automates discovery, access, management 2. Object relational databases enable Automate access to data so that the NASA 500, Global Change 10, 000 and Internet 20, 000 can use system. Cache popular results, not all results (saves 3 x or more) Compute on demand (saves lots of storage and cpu). Emphasize pull processing rather than push processing. Use parallelism to get scaleup. Do Batch as a data pump 3 Be Smart Shoppers: Use COTS hardware/software (saves 400 M$) Just in time acquisition (saves 400 M$) Use workstation not mainframe technology (gives 10 x more stuff) Depreciate over 3 years (ends in 2007 with "fresh" equipment) 4. 2 + N node architecture 2 Super DAACs for fault tolerance and for growth. Unify the 2 "big" data storage centers with 2 big data analysis centers. Allow many “little” peer DAACs at science/user groups 17 Jim Gray

Use COTS hardware/software (saves 400 M$) Defense contractors want to build (and maintain) stuff. (they do it for the money) Fund SQL* (SQL-2007): Object-Relational (extensible) supports Global Change data types Automates access Reliable storage Tertiary storage Parallel data search (automatic) Workflow (job control) Reliable Fund Operations software companies (Tivoli. . . ) 18 Jim Gray

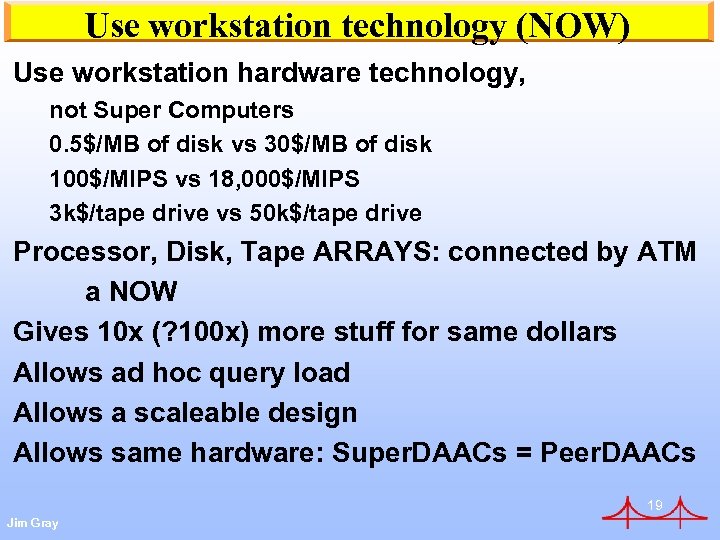

Use workstation technology (NOW) Use workstation hardware technology, not Super Computers 0. 5$/MB of disk vs 30$/MB of disk 100$/MIPS vs 18, 000$/MIPS 3 k$/tape drive vs 50 k$/tape drive Processor, Disk, Tape ARRAYS: connected by ATM a NOW Gives 10 x (? 100 x) more stuff for same dollars Allows ad hoc query load Allows a scaleable design Allows same hardware: Super. DAACs = Peer. DAACs 19 Jim Gray

Use workstation technology (NOW) Study used RS/6000 and DEC 7000 as workstation (they are 100 k$/slice). Should have used Compaq. Price for 20 GFlop, 24 TB disk, 2 PB tape TODAY Compaq/DLT prices computed by Gray. 10% Peer DAAC costs 3 M$ today, 1% Micro DAAC (200 TB) costs 300 K$ 20 Jim Gray

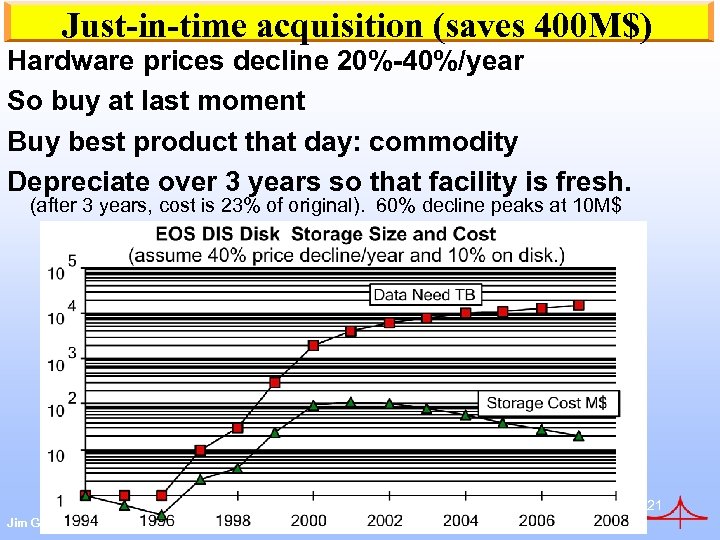

Just-in-time acquisition (saves 400 M$) Hardware prices decline 20%-40%/year So buy at last moment Buy best product that day: commodity Depreciate over 3 years so that facility is fresh. (after 3 years, cost is 23% of original). 60% decline peaks at 10 M$ 21 Jim Gray

What California Proposed 0. Design for success: expect that millions will use the system (online) 1. DBMS centric design automates discovery, access, management 2. Object relational databases enable Automate access to data so that the NASA 500, Global Change 10, 000 and Internet 20, 000 can use system. Cache popular results, not all results (saves 3 x or more) Compute on demand (saves lots of storage and cpu). Emphasize pull processing rather than push processing. Use parallelism to get scaleup. Do Batch as a data pump 3 Be Smart Shoppers: Use COTS hardware/software (saves 400 M$) Just in time acquisition (saves 400 M$) Use workstation not mainframe technology (gives 10 x more stuff) Depreciate over 3 years (ends in 2007 with "fresh" equipment) 4. 2 + N node architecture 2 Super DAACs for fault tolerance and for growth. Unify the 2 "big" data storage centers with 2 big data analysis centers. Allow many “little” peer DAACs at science/user groups 22 Jim Gray

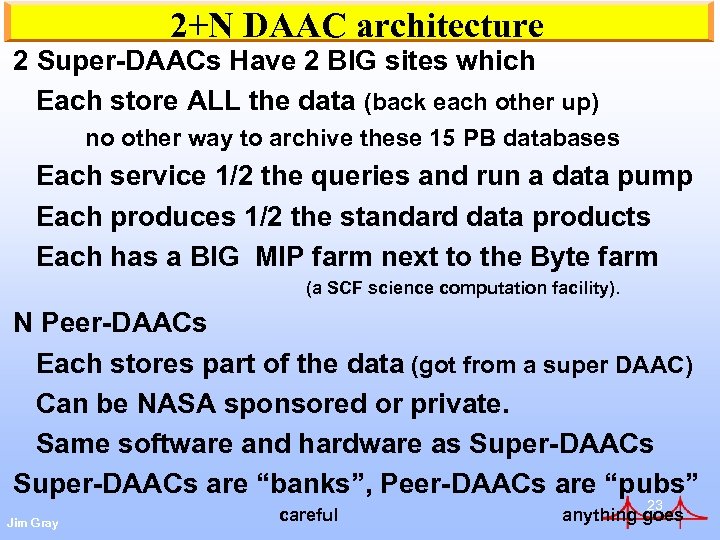

2+N DAAC architecture 2 Super-DAACs Have 2 BIG sites which Each store ALL the data (back each other up) no other way to archive these 15 PB databases Each service 1/2 the queries and run a data pump Each produces 1/2 the standard data products Each has a BIG MIP farm next to the Byte farm (a SCF science computation facility). N Peer-DAACs Each stores part of the data (got from a super DAAC) Can be NASA sponsored or private. Same software and hardware as Super-DAACs are “banks”, Peer-DAACs are “pubs” Jim Gray careful 23 anything goes

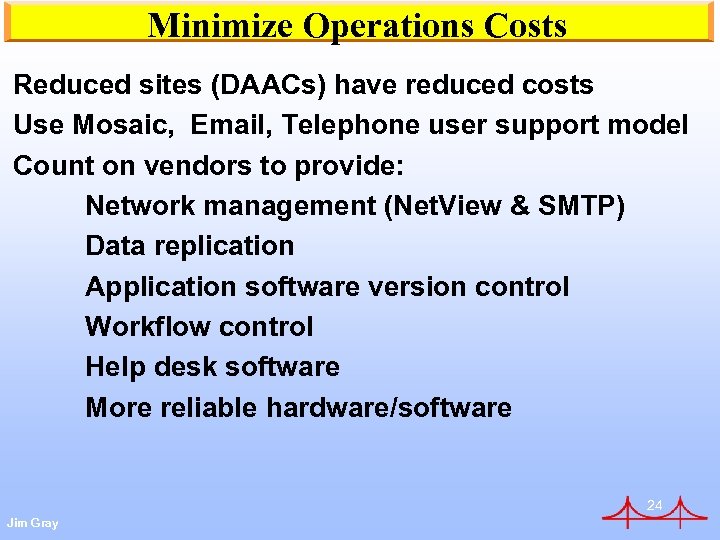

Minimize Operations Costs Reduced sites (DAACs) have reduced costs Use Mosaic, Email, Telephone user support model Count on vendors to provide: Network management (Net. View & SMTP) Data replication Application software version control Workflow control Help desk software More reliable hardware/software 24 Jim Gray

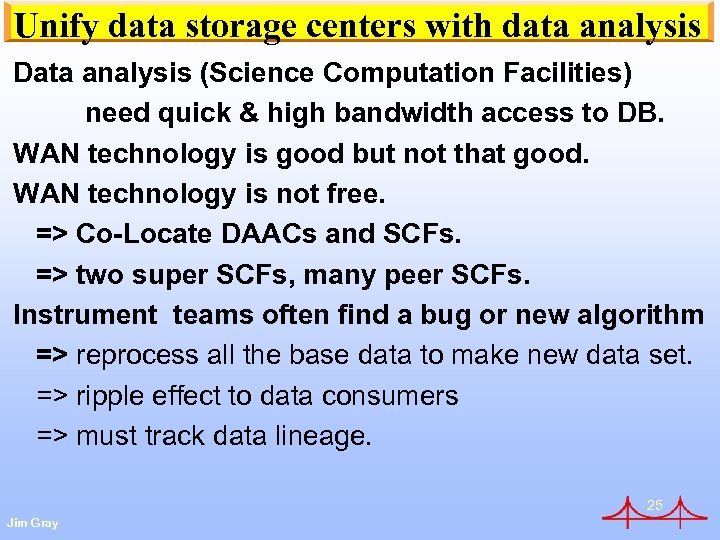

Unify data storage centers with data analysis Data analysis (Science Computation Facilities) need quick & high bandwidth access to DB. WAN technology is good but not that good. WAN technology is not free. => Co-Locate DAACs and SCFs. => two super SCFs, many peer SCFs. Instrument teams often find a bug or new algorithm => reprocess all the base data to make new data set. => ripple effect to data consumers => must track data lineage. 25 Jim Gray

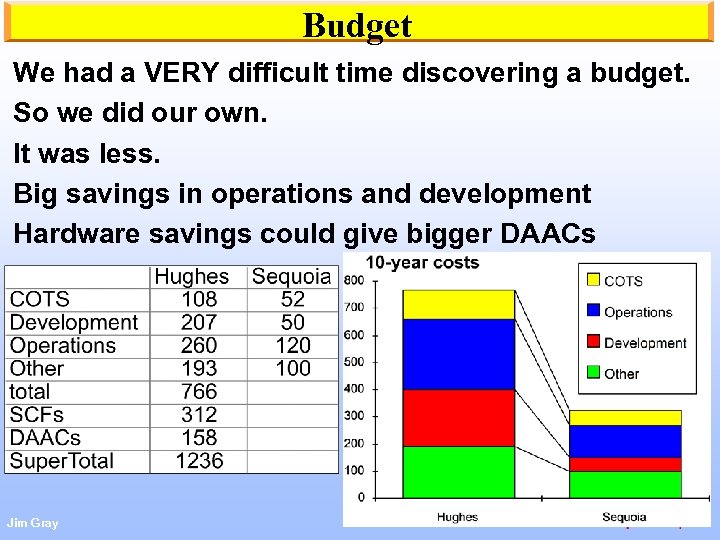

Budget We had a VERY difficult time discovering a budget. So we did our own. It was less. Big savings in operations and development Hardware savings could give bigger DAACs 26 Jim Gray

What California Proposed 0. Design for success: expect that millions will use the system (online) 1. DBMS centric design automates discovery, access, management 2. Object relational databases enable Automate access to data so that the NASA 500, Global Change 10, 000 and Internet 20, 000 can use system. Cache popular results, not all results (saves 3 x or more) Compute on demand (saves lots of storage and cpu). Emphasize pull processing rather than push processing. Use parallelism to get scaleup. Do Batch as a data pump 3 Be Smart Shoppers: Use COTS hardware/software (saves 400 M$) Just in time acquisition (saves 400 M$) Use workstation not mainframe technology (gives 10 x more stuff) Depreciate over 3 years (ends in 2007 with "fresh" equipment) 4. 2 + N node architecture 2 Super DAACs for fault tolerance and for growth. Unify the 2 "big" data storage centers with 2 big data analysis centers. Allow many “little” peer DAACs at science/user groups 27 Jim Gray

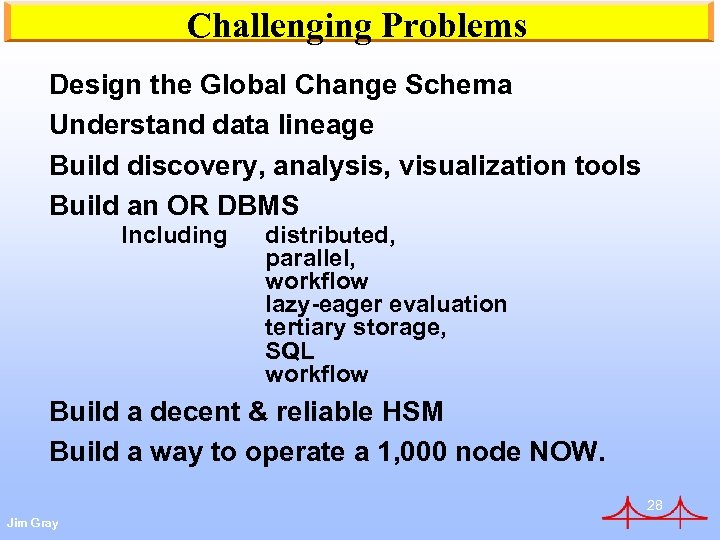

Challenging Problems Design the Global Change Schema Understand data lineage Build discovery, analysis, visualization tools Build an OR DBMS Including distributed, parallel, workflow lazy-eager evaluation tertiary storage, SQL workflow Build a decent & reliable HSM Build a way to operate a 1, 000 node NOW. 28 Jim Gray
