Environmental Public Health Tracking Network (EPHTN): Enterprise Architecture (EA) Ray Buckner Environmental Health Tracking Branch Division of Environmental Hazards and Health Effects National Center for Environmental Health, CDC
Agenda n n n n Tracking Network Enterprise Architecture (EA) Overview Technology Standardization and Reuse Interoperability Data Sharing Overall Program Efficiency and Effectiveness Summary Next Steps
The Federal EA Picture Federal Enterprise Architecture Financial Management LOB Federal Health Architecture Other Dept. Grants Management Human Resources LOB HHS Case Management LOB Other Dept. OPDIV CDC OPDIV C/I/O NCEH C/I/O Tracking Network l HHS’ Enterprise Architecture aligns with the architectures of OMB’s Line Of Business Initiatives

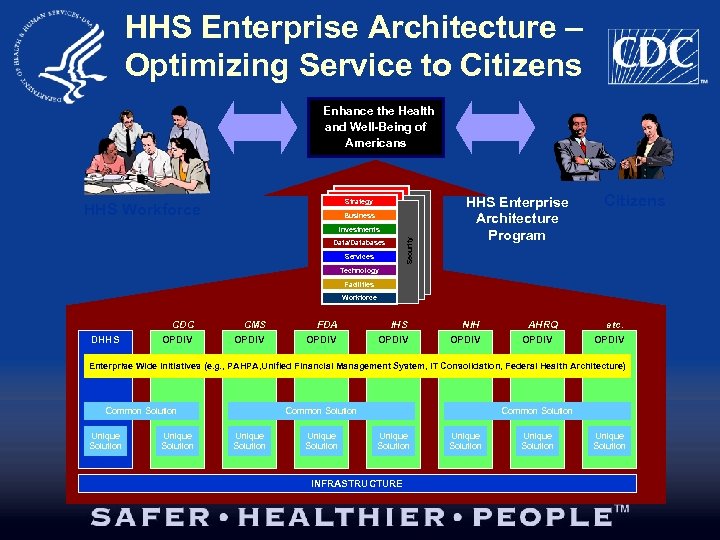

HHS Enterprise Architecture – Optimizing Service to Citizens Strategy Stakeholders Business Investments Data/Databases Applications Services Technology Facilities Workforce HHS Workforce Security Enhance the Health and Well-Being of Americans HHS Enterprise Architecture Program CDC DHHS CMS FDA IHS NIH OPDIV OPDIV AHRQ OPDIV Citizens etc. OPDIV Enterprise Wide Initiatives (e. g. , PAHPA, Unified Financial Management System, IT Consolidation, Federal Health Architecture) Common Solution Unique Solution Common Solution Unique Solution INFRASTRUCTURE Unique Solution
Tracking Network EA Model

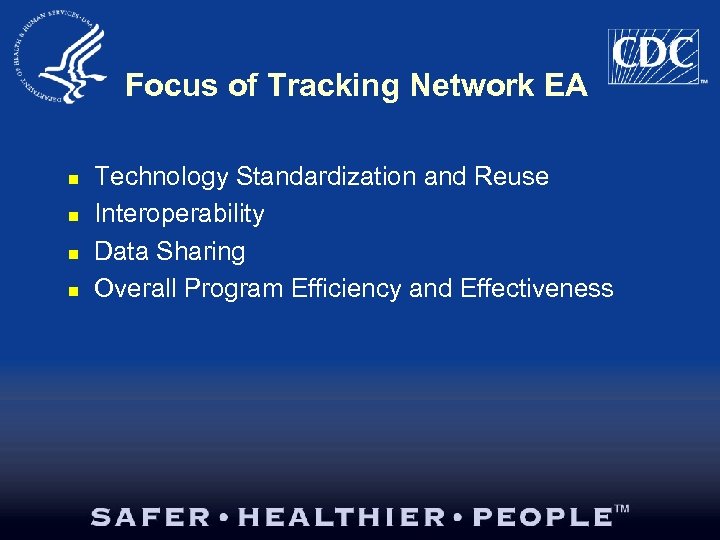

Focus of Tracking Network EA n n Technology Standardization and Reuse Interoperability Data Sharing Overall Program Efficiency and Effectiveness
Technology Standardization and Reuse n Standards based approach that promotes and facilitates Technology Standardization and Reuse with a philosophy of first Reuse, then Buy, then Build. u Technology Standardization • • • u Standard Health Information Contract Language (Included in Current Tracking Network Contracts) American Health Information Communities (AHIC) Use Cases Health Information Technology Standards Panel (HITSP) Interoperability Specifications Reuse • • • Reuse of GIS capabilities (NCEH GRASP) Selected COTS product - Business Objects Web Intelligence Built Row Level Security to fit specific business need

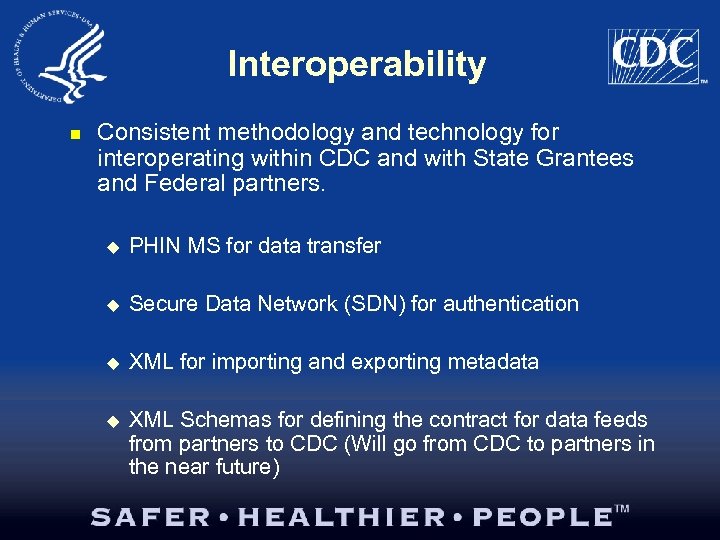

Interoperability n Consistent methodology and technology for interoperating within CDC and with State Grantees and Federal partners. u PHIN MS for data transfer u Secure Data Network (SDN) for authentication u XML for importing and exporting metadata u XML Schemas for defining the contract for data feeds from partners to CDC (Will go from CDC to partners in the near future)

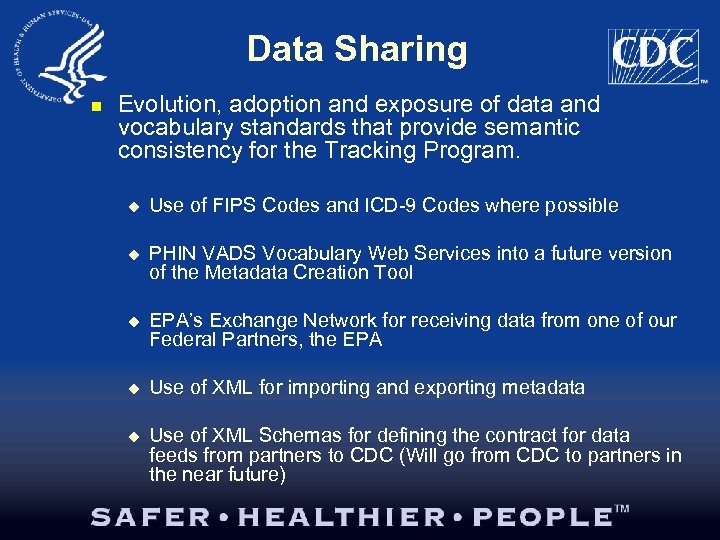

Data Sharing n Evolution, adoption and exposure of data and vocabulary standards that provide semantic consistency for the Tracking Program. u Use of FIPS Codes and ICD-9 Codes where possible u PHIN VADS Vocabulary Web Services into a future version of the Metadata Creation Tool u EPA’s Exchange Network for receiving data from one of our Federal Partners, the EPA u Use of XML for importing and exporting metadata u Use of XML Schemas for defining the contract for data feeds from partners to CDC (Will go from CDC to partners in the near future)

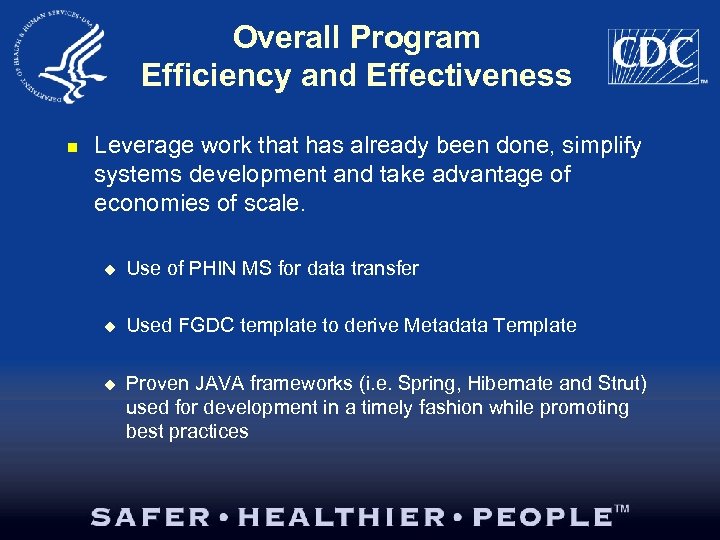

Overall Program Efficiency and Effectiveness n Leverage work that has already been done, simplify systems development and take advantage of economies of scale. u Use of PHIN MS for data transfer u Used FGDC template to derive Metadata Template u Proven JAVA frameworks (i. e. Spring, Hibernate and Strut) used for development in a timely fashion while promoting best practices

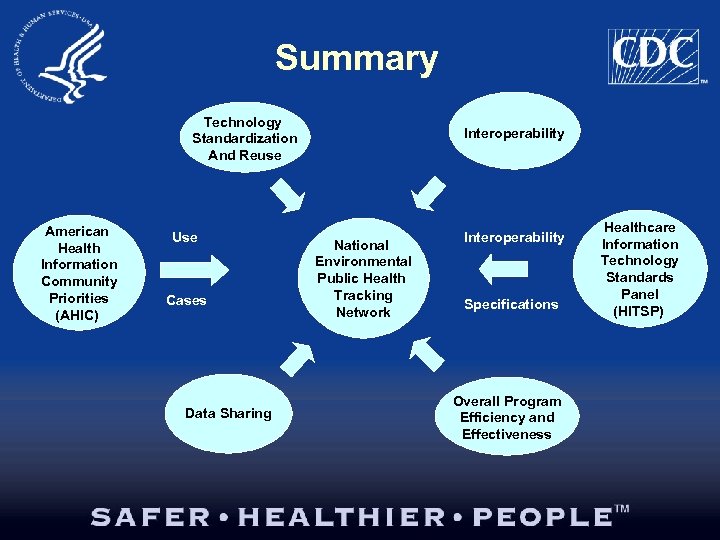

Summary Technology Standardization And Reuse American Health Information Community Priorities (AHIC) Use Cases Data Sharing Interoperability National Environmental Public Health Tracking Network Interoperability Specifications Overall Program Efficiency and Effectiveness Healthcare Information Technology Standards Panel (HITSP)

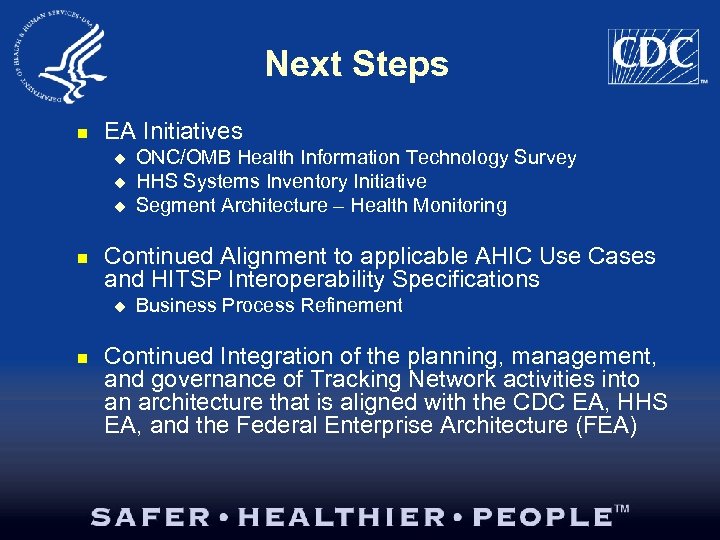

Next Steps n EA Initiatives u u u n Continued Alignment to applicable AHIC Use Cases and HITSP Interoperability Specifications u n ONC/OMB Health Information Technology Survey HHS Systems Inventory Initiative Segment Architecture – Health Monitoring Business Process Refinement Continued Integration of the planning, management, and governance of Tracking Network activities into an architecture that is aligned with the CDC EA, HHS EA, and the Federal Enterprise Architecture (FEA)
