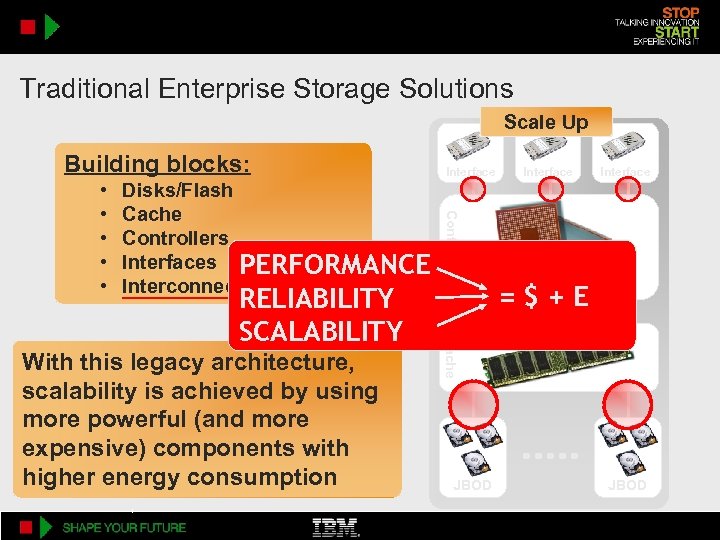

Traditional Enterprise Storage Solutions Scale Up Building blocks: Disks/Flash Cache Controllers Interfaces PERFORMANCE Interconnects With this legacy architecture, scalability is achieved by using more powerful (and more expensive) components with higher energy consumption Interface =$+E Cach e RELIABILITY SCALABILITY Controllers • • • Interface JBOD

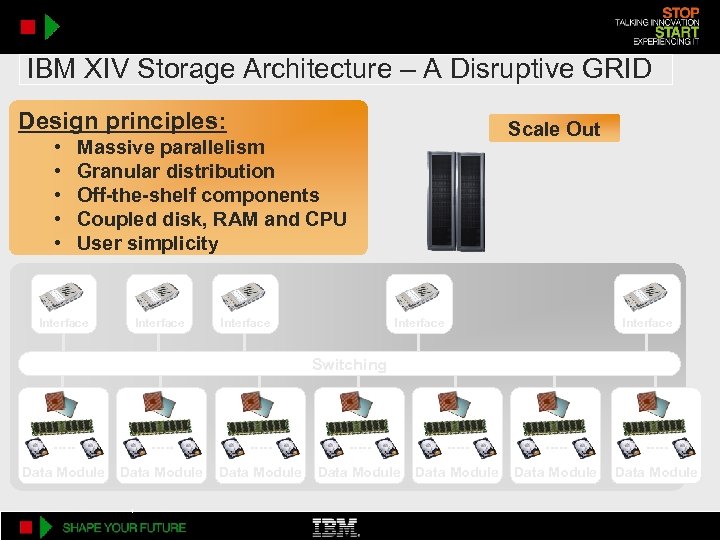

IBM XIV Storage Architecture – A Disruptive GRID Design principles: • • • Scale Out Massive parallelism Granular distribution Off-the-shelf components Coupled disk, RAM and CPU User simplicity Interface Switching Data Module Interface Switching Data Module Data Module

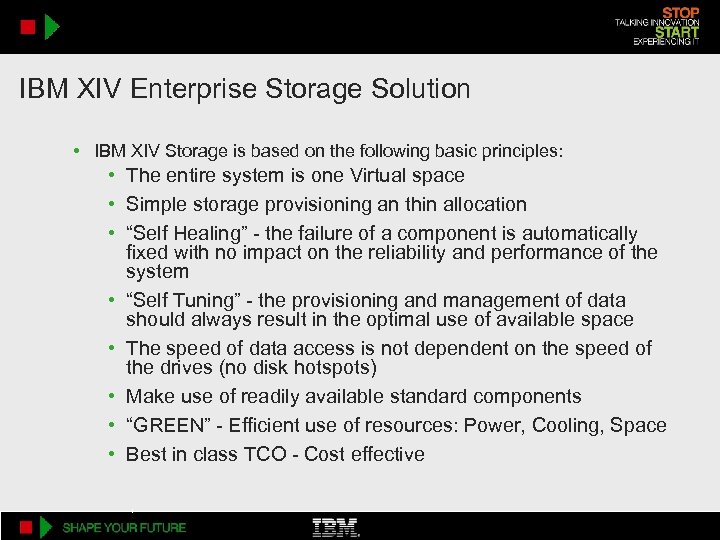

IBM XIV Enterprise Storage Solution • IBM XIV Storage is based on the following basic principles: • The entire system is one Virtual space • Simple storage provisioning an thin allocation • “Self Healing” - the failure of a component is automatically fixed with no impact on the reliability and performance of the system • “Self Tuning” - the provisioning and management of data should always result in the optimal use of available space • The speed of data access is not dependent on the speed of the drives (no disk hotspots) • Make use of readily available standard components • “GREEN” - Efficient use of resources: Power, Cooling, Space • Best in class TCO - Cost effective

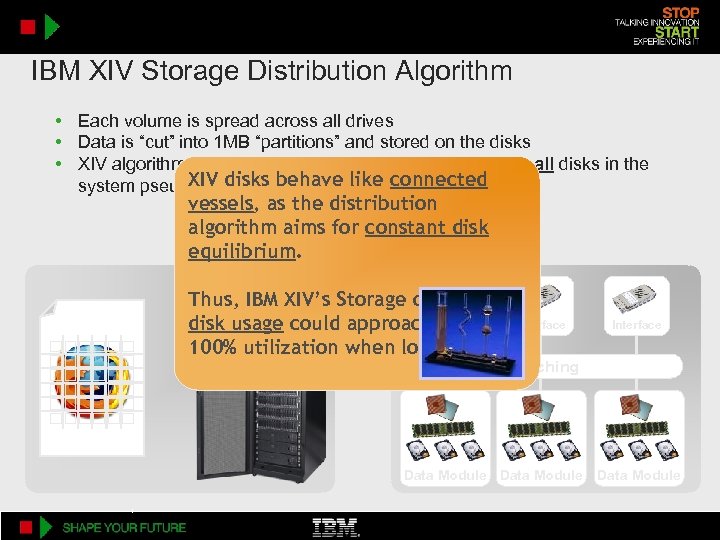

IBM XIV Storage Distribution Algorithm • Each volume is spread across all drives • Data is “cut” into 1 MB “partitions” and stored on the disks • XIV algorithm automatically distributes partitions across all disks in the XIV disks system pseudo-randomlybehave like connected vessels, as the distribution algorithm aims for constant disk equilibrium. Thus, IBM XIV’s Storage overall Interface disk usage could approach 100% utilization when loaded Interface Switching Data Module

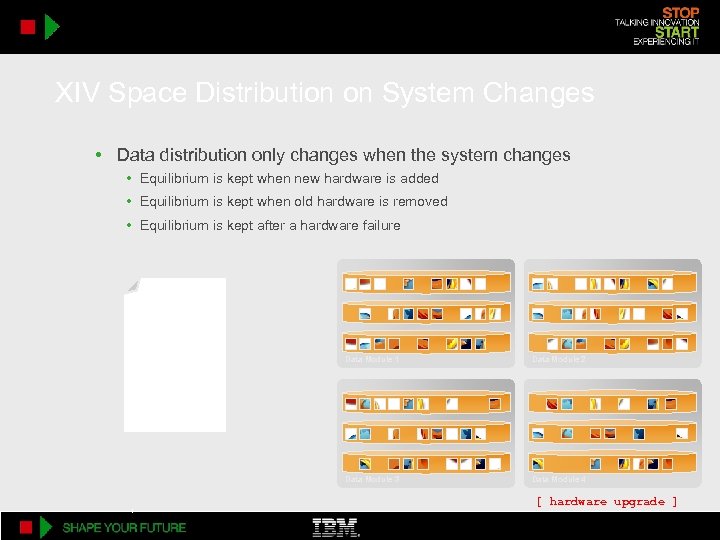

XIV Space Distribution on System Changes • Data distribution only changes when the system changes • Equilibrium is kept when new hardware is added • Equilibrium is kept when old hardware is removed • Equilibrium is kept after a hardware failure Data Module 1 Data Module 2 Data Module 3 Data Module 4 Node 4 [ hardware upgrade ]

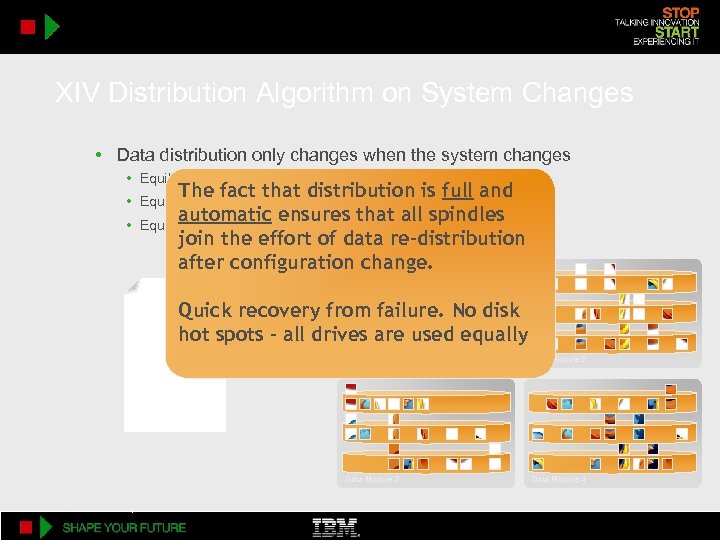

XIV Distribution Algorithm on System Changes • Data distribution only changes when the system changes • Equilibrium is kept when new hardware is added The fact that distribution is full and automatic ensures that all spindles Equilibrium is kept after a hardware failure join the effort of data re-distribution [ hardware failure ] after configuration change. • Equilibrium is kept when old hardware is removed • Quick recovery from failure. No disk hot spots - all drives are used equally Data Module 1 Data Module 2 Data Module 3 Data Module 4

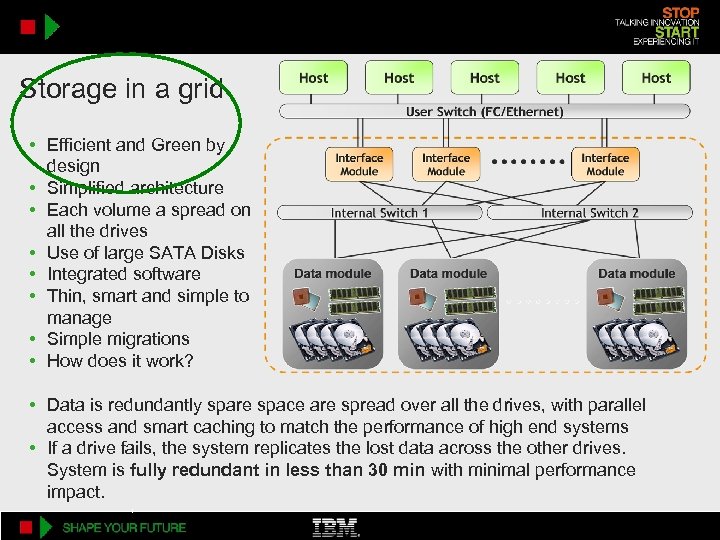

Storage in a grid • Efficient and Green by design • Simplified architecture • Each volume a spread on all the drives • Use of large SATA Disks • Integrated software • Thin, smart and simple to manage • Simple migrations • How does it work? • Data is redundantly spare space are spread over all the drives, with parallel access and smart caching to match the performance of high end systems • If a drive fails, the system replicates the lost data across the other drives. System is fully redundant in less than 30 min with minimal performance impact.

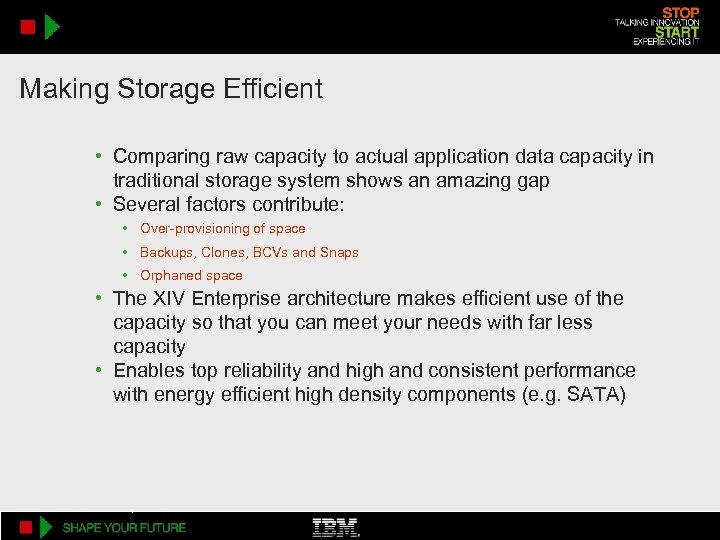

Making Storage Efficient • Comparing raw capacity to actual application data capacity in traditional storage system shows an amazing gap • Several factors contribute: • Over-provisioning of space • Backups, Clones, BCVs and Snaps • Orphaned space • The XIV Enterprise architecture makes efficient use of the capacity so that you can meet your needs with far less capacity • Enables top reliability and high and consistent performance with energy efficient high density components (e. g. SATA)

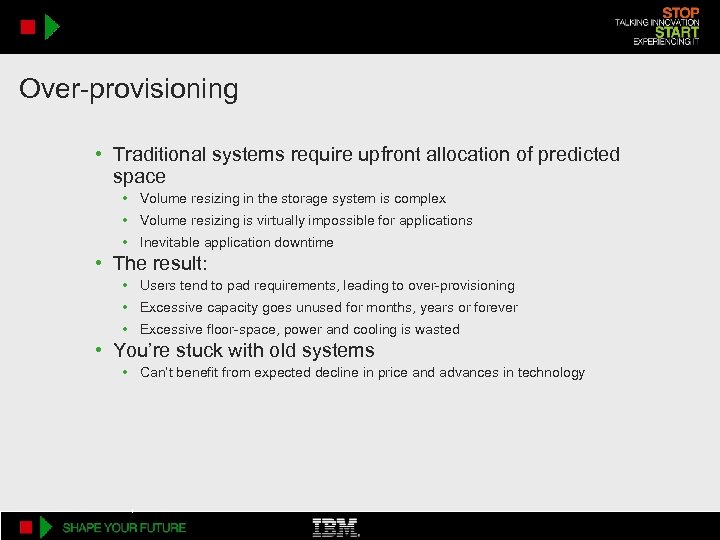

Over-provisioning • Traditional systems require upfront allocation of predicted space • Volume resizing in the storage system is complex • Volume resizing is virtually impossible for applications • Inevitable application downtime • The result: • Users tend to pad requirements, leading to over-provisioning • Excessive capacity goes unused for months, years or forever • Excessive floor-space, power and cooling is wasted • You’re stuck with old systems • Can’t benefit from expected decline in price and advances in technology

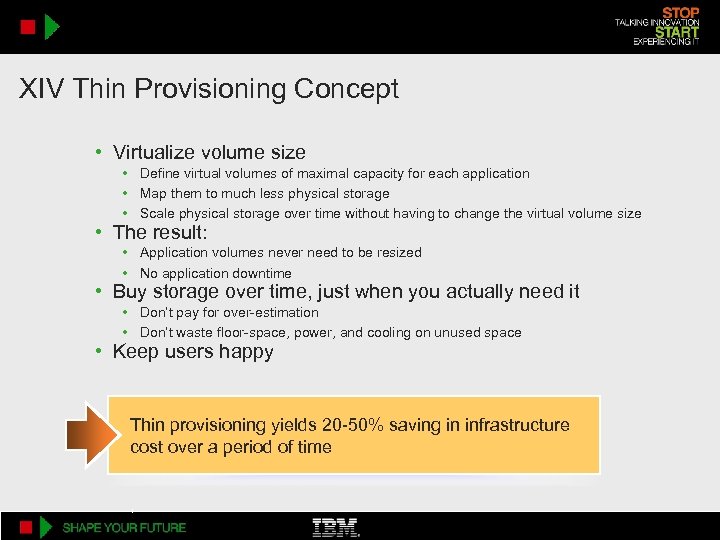

XIV Thin Provisioning Concept • Virtualize volume size • Define virtual volumes of maximal capacity for each application • Map them to much less physical storage • Scale physical storage over time without having to change the virtual volume size • The result: • Application volumes never need to be resized • No application downtime • Buy storage over time, just when you actually need it • Don’t pay for over-estimation • Don’t waste floor-space, power, and cooling on unused space • Keep users happy Thin provisioning yields 20 -50% saving in infrastructure cost over a period of time

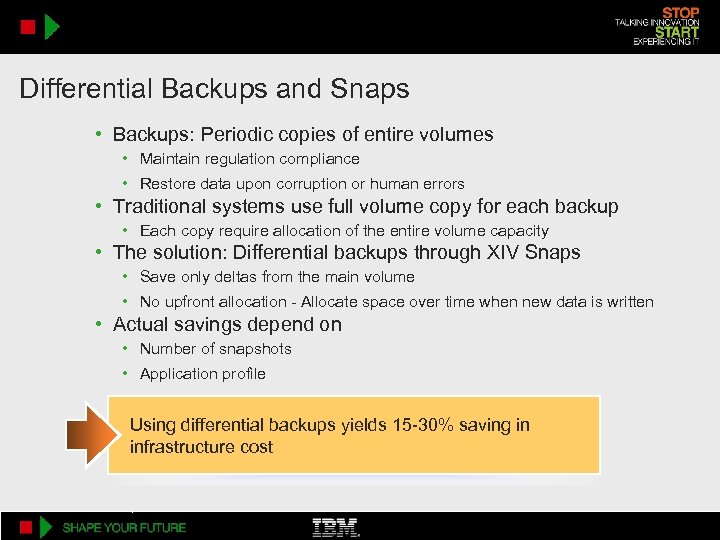

Differential Backups and Snaps • Backups: Periodic copies of entire volumes • Maintain regulation compliance • Restore data upon corruption or human errors • Traditional systems use full volume copy for each backup • Each copy require allocation of the entire volume capacity • The solution: Differential backups through XIV Snaps • Save only deltas from the main volume • No upfront allocation - Allocate space over time when new data is written • Actual savings depend on • Number of snapshots • Application profile Using differential backups yields 15 -30% saving in infrastructure cost

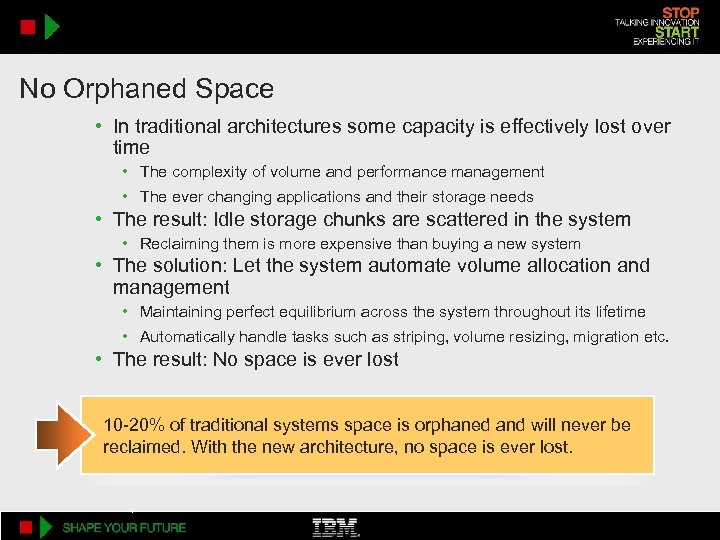

No Orphaned Space • In traditional architectures some capacity is effectively lost over time • The complexity of volume and performance management • The ever changing applications and their storage needs • The result: Idle storage chunks are scattered in the system • Reclaiming them is more expensive than buying a new system • The solution: Let the system automate volume allocation and management • Maintaining perfect equilibrium across the system throughout its lifetime • Automatically handle tasks such as striping, volume resizing, migration etc. • The result: No space is ever lost 10 -20% of traditional systems space is orphaned and will never be reclaimed. With the new architecture, no space is ever lost.

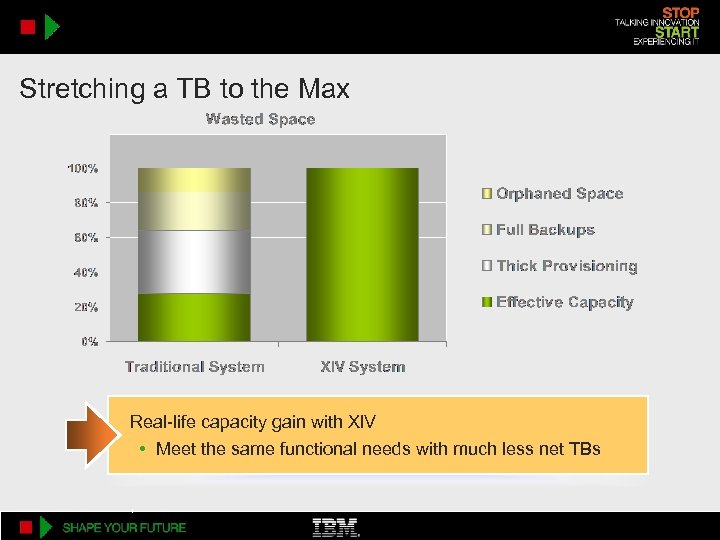

Stretching a TB to the Max Real-life capacity gain with XIV • Meet the same functional needs with much less net TBs

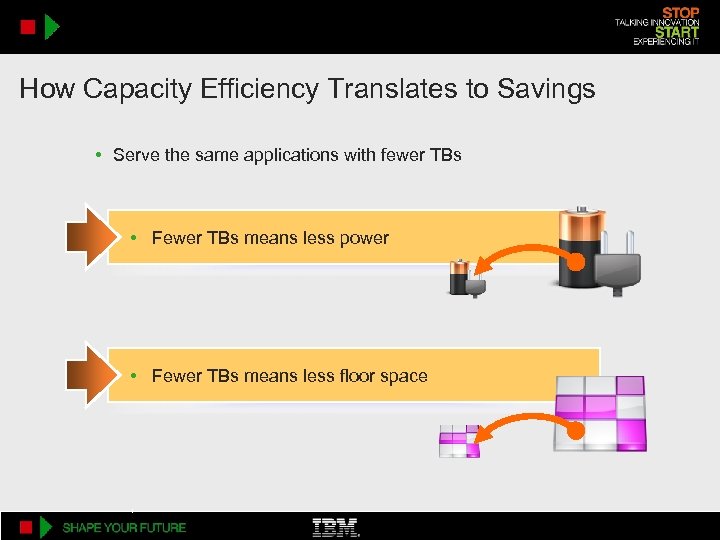

How Capacity Efficiency Translates to Savings • Serve the same applications with fewer TBs • Fewer TBs means less power • Fewer TBs means less floor space

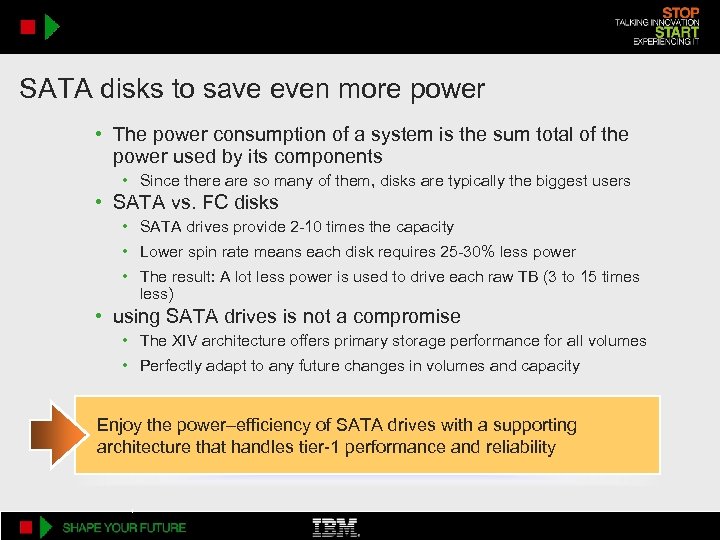

SATA disks to save even more power • The power consumption of a system is the sum total of the power used by its components • Since there are so many of them, disks are typically the biggest users • SATA vs. FC disks • SATA drives provide 2 -10 times the capacity • Lower spin rate means each disk requires 25 -30% less power • The result: A lot less power is used to drive each raw TB (3 to 15 times less) • using SATA drives is not a compromise • The XIV architecture offers primary storage performance for all volumes • Perfectly adapt to any future changes in volumes and capacity Enjoy the power–efficiency of SATA drives with a supporting architecture that handles tier-1 performance and reliability

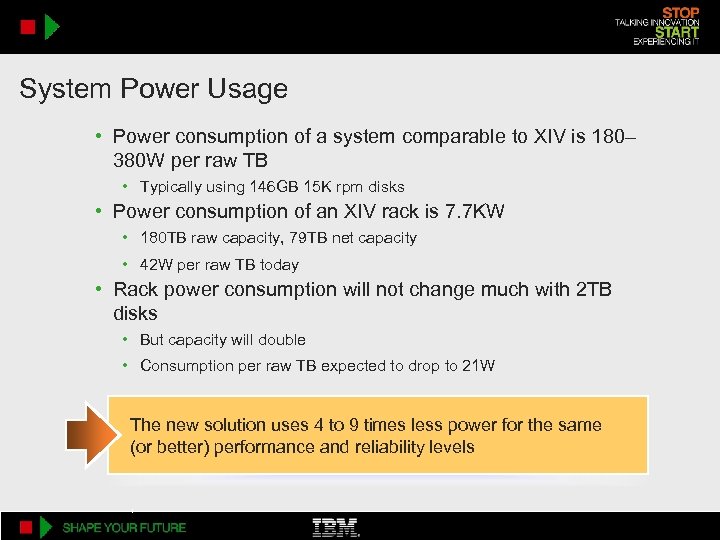

System Power Usage • Power consumption of a system comparable to XIV is 180– 380 W per raw TB • Typically using 146 GB 15 K rpm disks • Power consumption of an XIV rack is 7. 7 KW • 180 TB raw capacity, 79 TB net capacity • 42 W per raw TB today • Rack power consumption will not change much with 2 TB disks • But capacity will double • Consumption per raw TB expected to drop to 21 W The new solution uses 4 to 9 times less power for the same (or better) performance and reliability levels

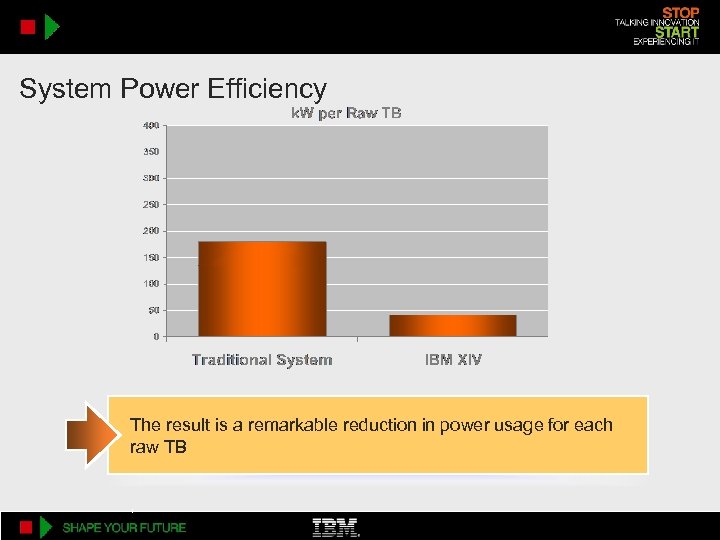

System Power Efficiency The result is a remarkable reduction in power usage for each raw TB

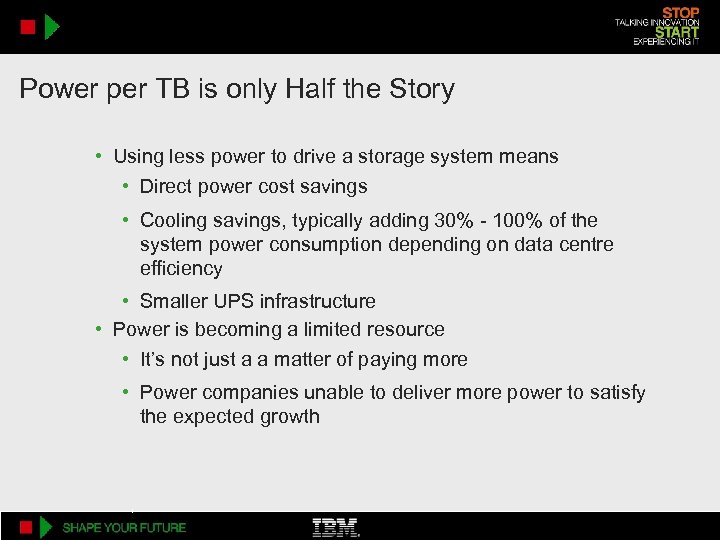

Power per TB is only Half the Story • Using less power to drive a storage system means • Direct power cost savings • Cooling savings, typically adding 30% - 100% of the system power consumption depending on data centre efficiency • Smaller UPS infrastructure • Power is becoming a limited resource • It’s not just a a matter of paying more • Power companies unable to deliver more power to satisfy the expected growth

XIV TCO Advantage Management and migration Cost

Ease of Management

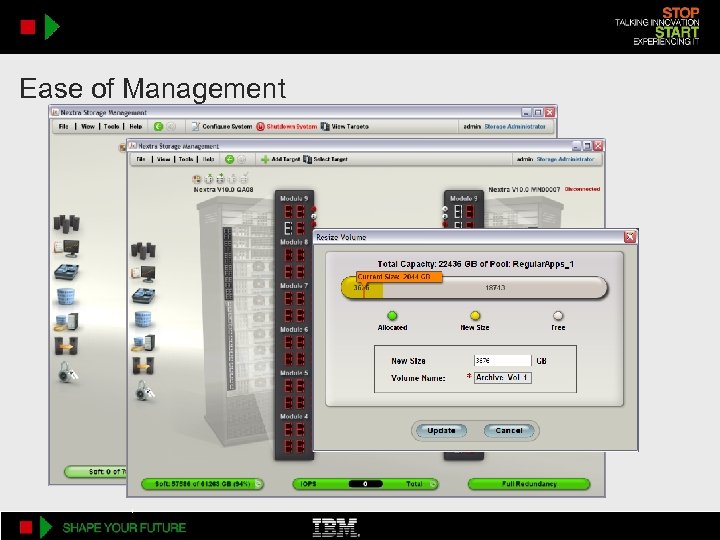

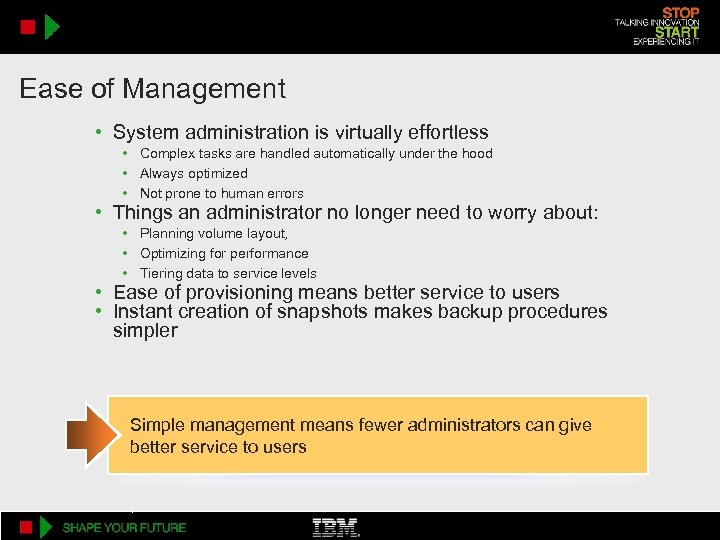

Ease of Management • System administration is virtually effortless • Complex tasks are handled automatically under the hood • Always optimized • Not prone to human errors • Things an administrator no longer need to worry about: • Planning volume layout, • Optimizing for performance • Tiering data to service levels • Ease of provisioning means better service to users • Instant creation of snapshots makes backup procedures simpler Simple management means fewer administrators can give better service to users

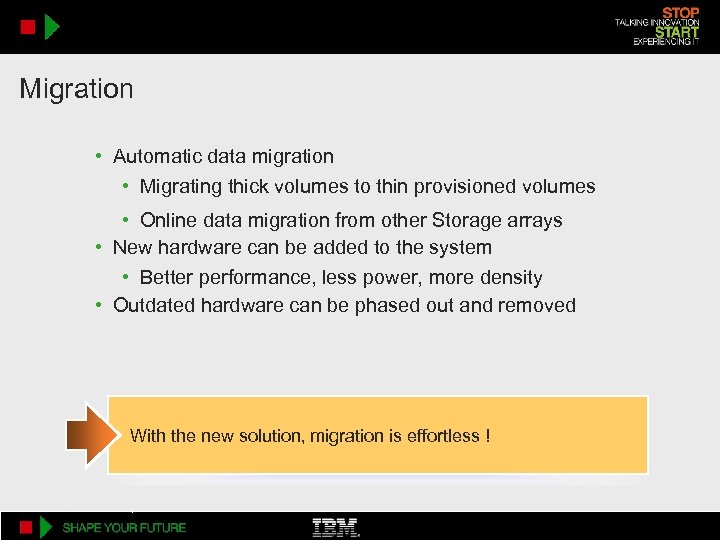

Migration • Automatic data migration • Migrating thick volumes to thin provisioned volumes • Online data migration from other Storage arrays • New hardware can be added to the system • Better performance, less power, more density • Outdated hardware can be phased out and removed With the new solution, migration is effortless !

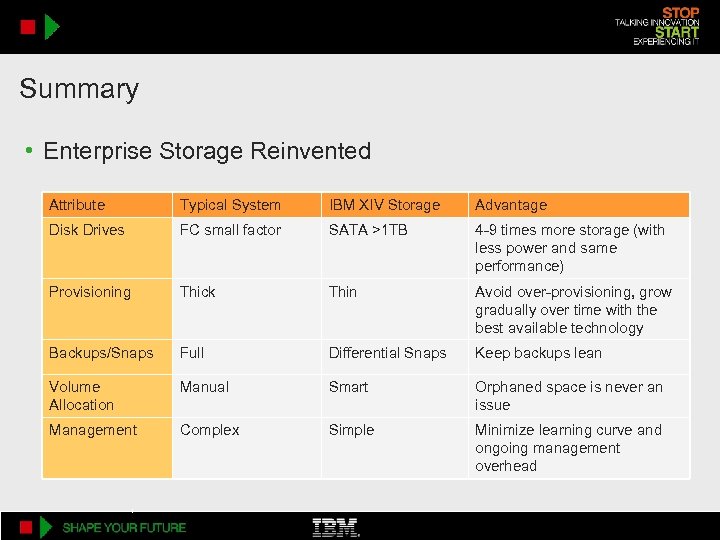

Summary • Enterprise Storage Reinvented Attribute Typical System IBM XIV Storage Advantage Disk Drives FC small factor SATA >1 TB 4 -9 times more storage (with less power and same performance) Provisioning Thick Thin Avoid over-provisioning, grow gradually over time with the best available technology Backups/Snaps Full Differential Snaps Keep backups lean Volume Allocation Manual Smart Orphaned space is never an issue Management Complex Simple Minimize learning curve and ongoing management overhead
