Enterprise Po E IP Phone VIP-360 PT Icon

Enterprise Po. E IP Phone VIP-360 PT Icon 1 Icon 2 Icon 3 Icon 4 Icon 5

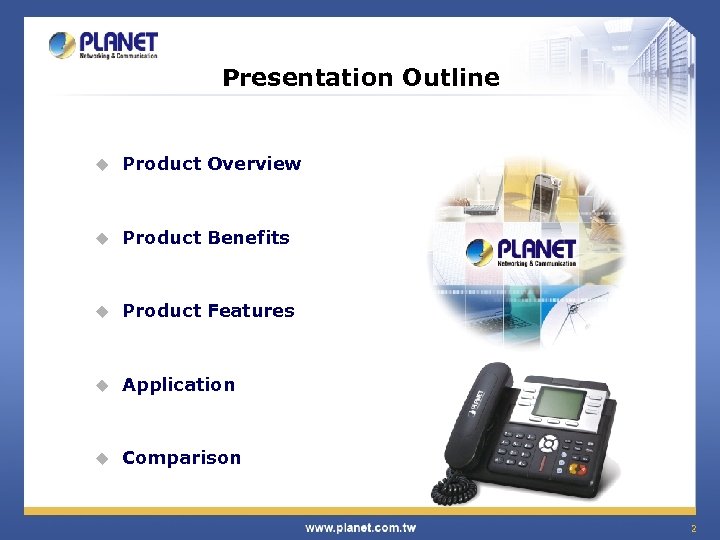

Presentation Outline u Product Overview u Product Benefits u Product Features u Application u Comparison 2

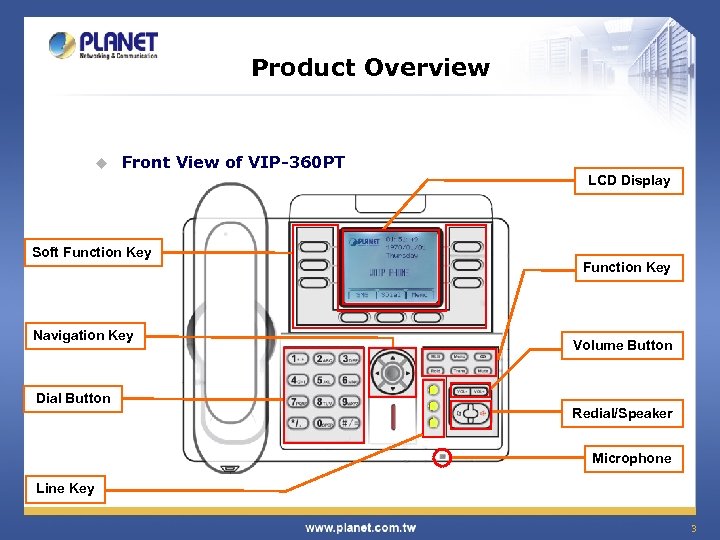

Product Overview u Front View of VIP-360 PT LCD Display Soft Function Key Navigation Key Dial Button Volume Button Redial/Speaker Microphone Line Key 3

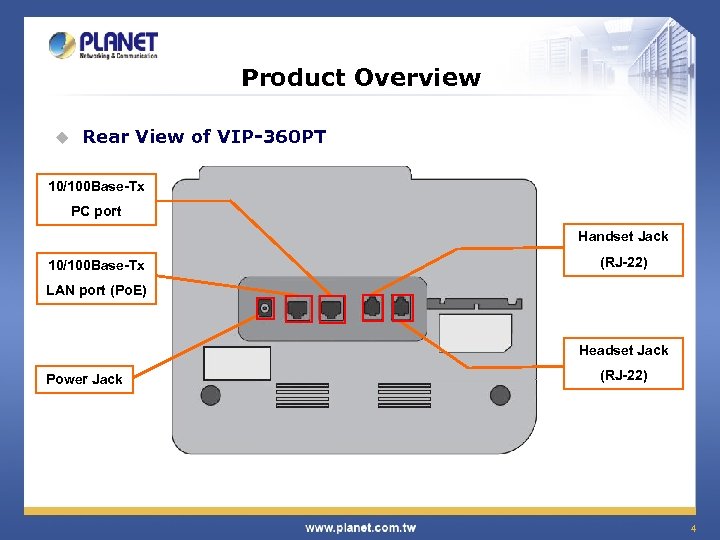

Product Overview u Rear View of VIP-360 PT 10/100 Base-Tx PC port Handset Jack 10/100 Base-Tx (RJ-22) LAN port (Po. E) Headset Jack Power Jack (RJ-22) 4

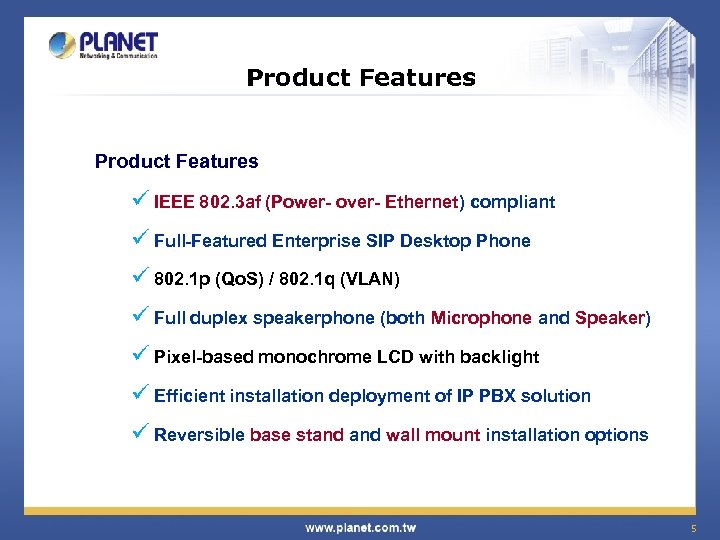

Product Features ü IEEE 802. 3 af (Power- over- Ethernet) compliant ü Full-Featured Enterprise SIP Desktop Phone ü 802. 1 p (Qo. S) / 802. 1 q (VLAN) ü Full duplex speakerphone (both Microphone and Speaker) ü Pixel-based monochrome LCD with backlight ü Efficient installation deployment of IP PBX solution ü Reversible base stand wall mount installation options 5

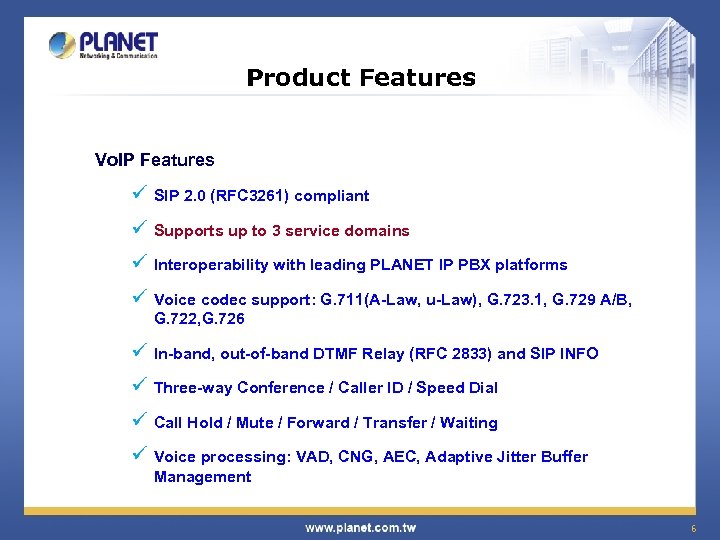

Product Features Vo. IP Features ü SIP 2. 0 (RFC 3261) compliant ü Supports up to 3 service domains ü Interoperability with leading PLANET IP PBX platforms ü Voice codec support: G. 711(A-Law, u-Law), G. 723. 1, G. 729 A/B, G. 722, G. 726 ü In-band, out-of-band DTMF Relay (RFC 2833) and SIP INFO ü Three-way Conference / Caller ID / Speed Dial ü Call Hold / Mute / Forward / Transfer / Waiting ü Voice processing: VAD, CNG, AEC, Adaptive Jitter Buffer Management 6

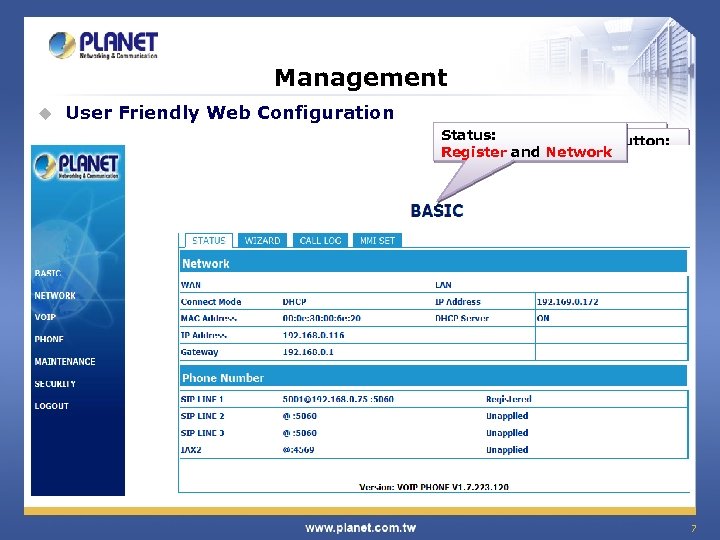

Management u User Friendly Web Configuration Account: Status: Network: Programmable Button: Account 1~3 IP and PPPo. E Register and Network DHCP, Speed Dial、DTMF Static 7

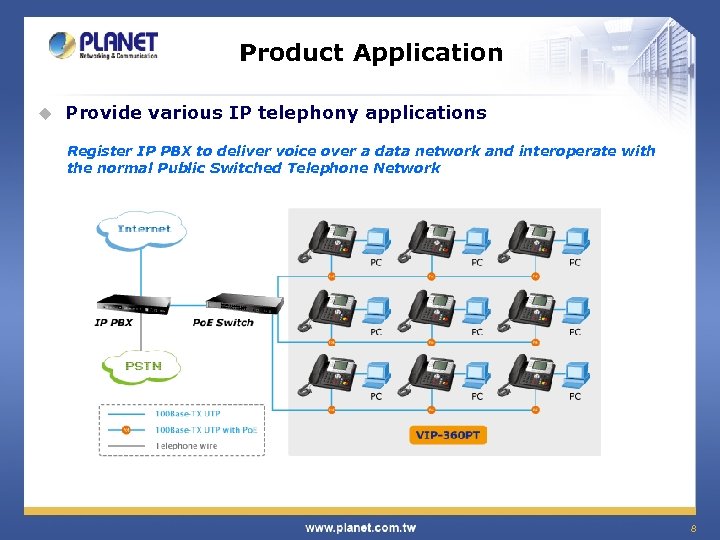

Product Application u Provide various IP telephony applications Register IP PBX to deliver voice over a data network and interoperate with the normal Public Switched Telephone Network 8

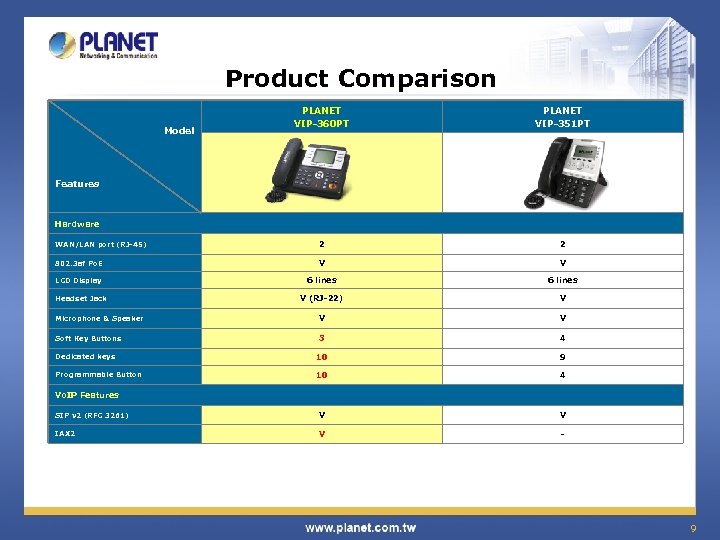

Product Comparison PLANET VIP-360 PT PLANET VIP-351 PT WAN/LAN port (RJ-45) 2 2 802. 3 af Po. E V V LCD Display 6 lines V (RJ-22) V Microphone & Speaker V V Soft Key Buttons 3 4 Dedicated keys 10 9 Programmable Button 10 4 SIP v 2 (RFC 3261) V V IAX 2 V - Model Features Hardware Headset Jack Vo. IP Features 9

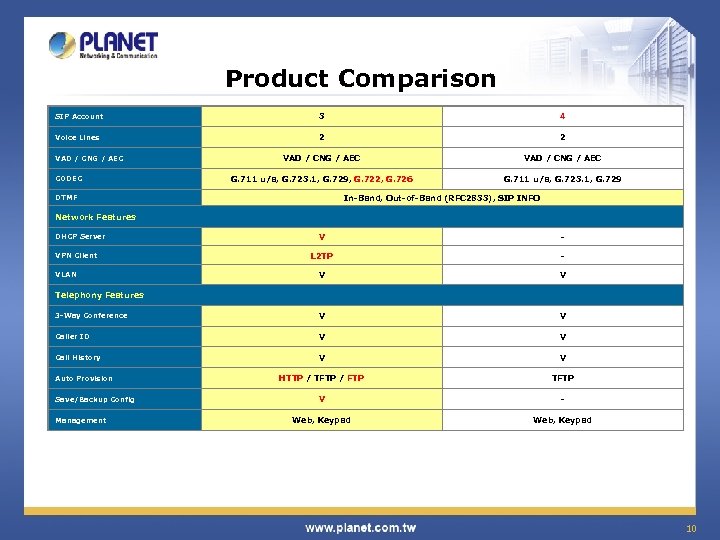

Product Comparison SIP Account 3 4 Voice Lines 2 2 VAD / CNG / AEC G. 711 u/a, G. 723. 1, G. 729, G. 722, G. 726 G. 711 u/a, G. 723. 1, G. 729 VAD / CNG / AEC CODEC In-Band, Out-of-Band (RFC 2833), SIP INFO DTMF Network Features V - L 2 TP - V V 3 -Way Conference V V Caller ID V V Call History V V HTTP / TFTP / FTP TFTP V - Web, Keypad DHCP Server VPN Client VLAN Telephony Features Auto Provision Save/Backup Config Management 10

11

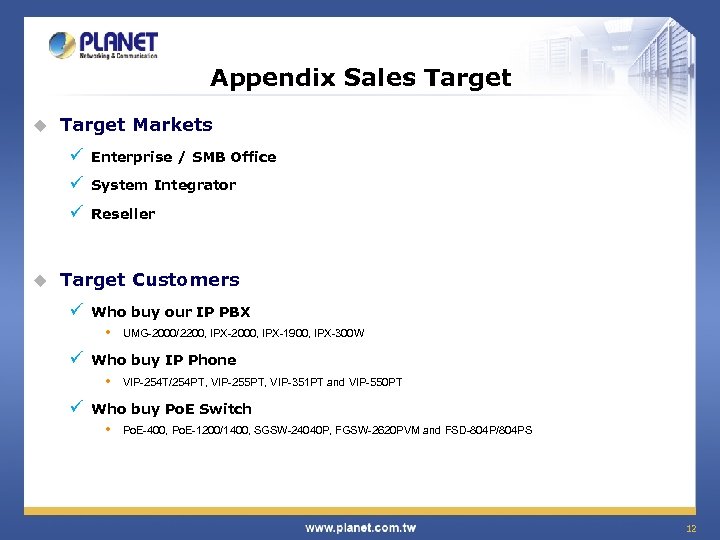

Appendix Sales Target u Target Markets ü ü System Integrator ü u Enterprise / SMB Office Reseller Target Customers ü Who buy our IP PBX • ü Who buy IP Phone • ü UMG-2000/2200, IPX-2000, IPX-1900, IPX-300 W VIP-254 T/254 PT, VIP-255 PT, VIP-351 PT and VIP-550 PT Who buy Po. E Switch • Po. E-400, Po. E-1200/1400, SGSW-24040 P, FGSW-2620 PVM and FSD-804 P/804 PS 12
