Enterprise E 911 Presentation for Martin Hickey Regional

Enterprise E 911 Presentation for: Martin Hickey Regional Sales Director Red. Sky Technologies, Inc. mhickey@redskytech. com 415 -298 -3479

Today’s Agenda • • Company Background – Who is Red. Sky E 911 – The Problems We Address – Day to day business issues – Legislation • Other Business Issues to Consider – Political Landscape – Regulatory – Risk Management • E 911 Technical Requirements – What is E 911 – Call process – Network, PBX, ALI Management • Options for location management (why you need E 911 Manager) – Traditional vs. IP – E 911 Manager options – Product Features • • • Global Capabilities E 911 – Final Points Q & A // Comments // Next Steps www. redsky. E 911. com

The Leader in Automated E 911 Solutions • Enterprise software company (Chicago IL HQ’s) specializing in a Patented E 911 solution that provides accurate location information for all phones for emergency services. – Software & services for traditional and IP telephony – Over 200 customers, including 50 Fortune 500 companies and multiple federal, state and local government agencies • E 911 Manager is the leading solution for large, distributed organizations – Single server automatically interfaces to the enterprise phone system real-time – Location identification for IP phones and traditional end-points – Emergency On-site Notification improves emergency response • Partnerships – Avaya Partner – Industry Partners – NRIC, NENA, E 911 Institute, APCO www. redsky. E 911. com

The Best Solution for Government & Large Enterprises • Cook County in Chicago – one of the largest governmental entities in the nation – 24, 000 users; 68 PBXs – Avaya, Nortel and Centrex • Chase Bank – Facilities across multiple states – 25, 000 users; 7 Avaya PBXs – Implemented in 45 days across all locations including audit services www. redsky. E 911. com

The Company We Keep www. redsky. E 911. com

The Business Issues & Problems Red. Sky Addresses

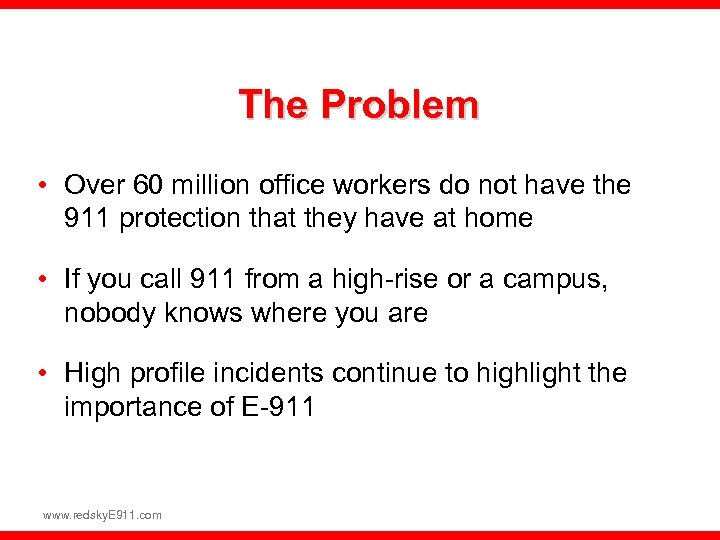

The Problem • Over 60 million office workers do not have the 911 protection that they have at home • If you call 911 from a high-rise or a campus, nobody knows where you are • High profile incidents continue to highlight the importance of E-911 www. redsky. E 911. com

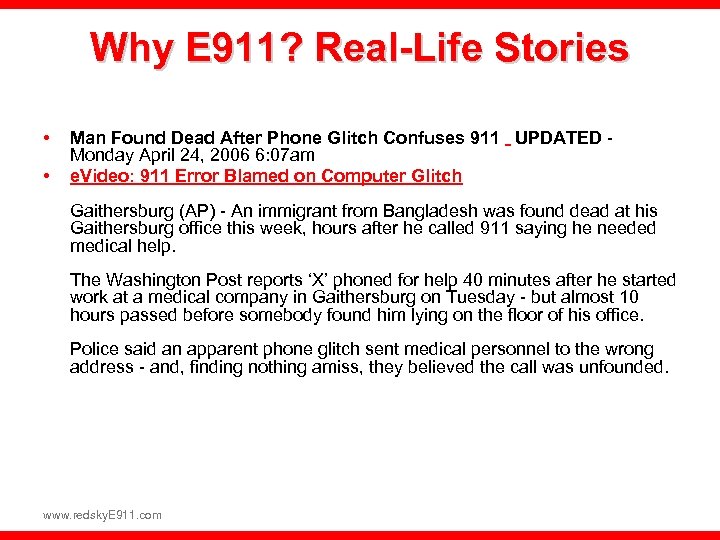

Why E 911? Real-Life Stories • • Man Found Dead After Phone Glitch Confuses 911 UPDATED - Monday April 24, 2006 6: 07 am e. Video: 911 Error Blamed on Computer Glitch Gaithersburg (AP) - An immigrant from Bangladesh was found dead at his Gaithersburg office this week, hours after he called 911 saying he needed medical help. The Washington Post reports ‘X’ phoned for help 40 minutes after he started work at a medical company in Gaithersburg on Tuesday - but almost 10 hours passed before somebody found him lying on the floor of his office. Police said an apparent phone glitch sent medical personnel to the wrong address - and, finding nothing amiss, they believed the call was unfounded. www. redsky. E 911. com

Effective and Timely 911 Emergency Response is Critical on several fronts: q Business Imperative q Protection for valued corporate assets and people q Moral Imperative q Ethical responsibility to your people q Legal Imperative q Protecting the organization from liability caused by poor response to an emergency q Technology enables it q Workplace safety issues q Health q Workplace/school violence q Fire or environmental q Regulatory Requirement www. redsky. E 911. com q Federal & State Government Legislation mandates it

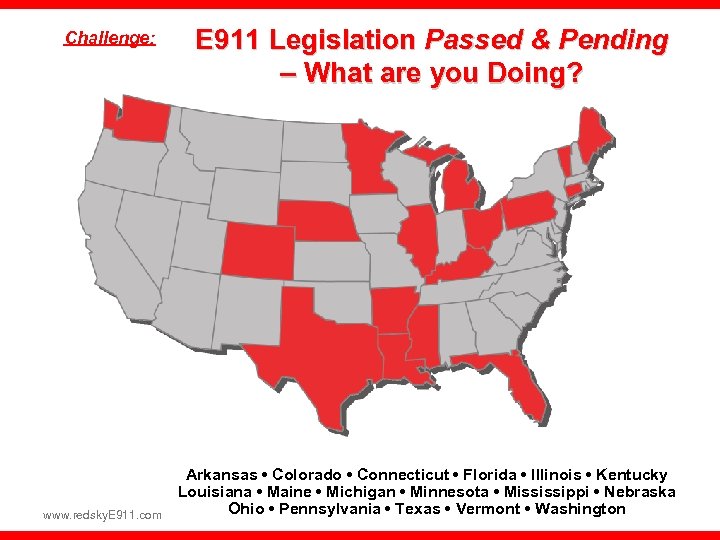

Challenge: www. redsky. E 911. com E 911 Legislation Passed & Pending – What are you Doing? Arkansas • Colorado • Connecticut • Florida • Illinois • Kentucky Louisiana • Maine • Michigan • Minnesota • Mississippi • Nebraska Ohio • Pennsylvania • Texas • Vermont • Washington

What is E 911?

Enhanced 911 Defined • Pinpoints the exact location of a 911 call for dispatchers – FLR 10 STE 1000 RM 1004 – FLR 3 6 th AVE WALL • Essential for multi-floor building and campuses • Puts location information directly in the hands of emergency responders • Saves lives! www. redsky. E 911. com

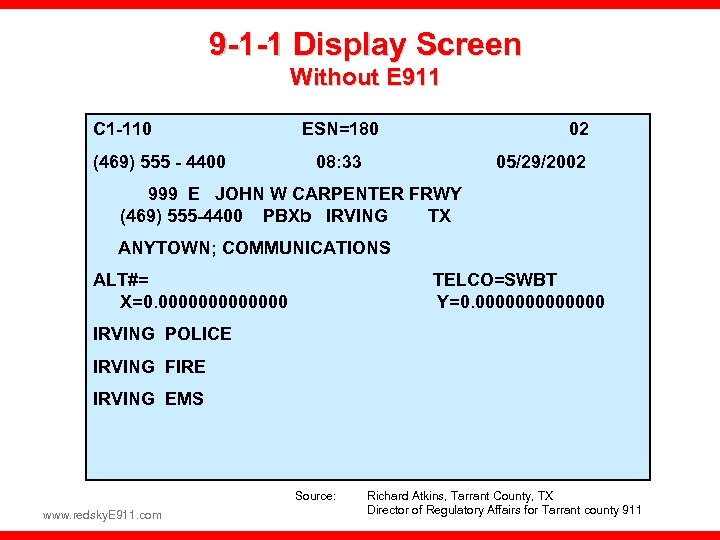

9 -1 -1 Display Screen Without E 911 C 1 -110 (469) 555 - 4400 ESN=180 02 08: 33 05/29/2002 999 E JOHN W CARPENTER FRWY (469) 555 -4400 PBXb IRVING TX ANYTOWN; COMMUNICATIONS ALT#= X=0. 0000000 TELCO=SWBT Y=0. 0000000 IRVING POLICE IRVING FIRE IRVING EMS Source: www. redsky. E 911. com Richard Atkins, Tarrant County, TX Director of Regulatory Affairs for Tarrant county 911

E-9 -1 -1 Display Screen With E 911 C 1 -110 ESN=180 (469) 555 - 4450 02 08: 33 10/17/2001 999 E JOHN W CARPENTER FRWY (469) 555 -4400 PBXb IRVING TX FLOOR 7 SUITE 709 ALT#= X=0. 0000000 BUSINESS NAME TELCO=SWBT Y=0. 0000000 IRVING POLICE IRVING FIRE IRVING EMS Source: www. redsky. E 911. com Richard Atkins, Tarrant County, TX Director of Regulatory Affairs for Tarrant county 911

E 911 ALI and ANI Components • What is ALI? – Automatic Location Identification (ALI) – ALI provides the Public Safety Answering Point with the location information for emergency personnel • What is ALI data? – A format that includes • Phone number • Location, 20 characters • Business name • Street directional • Street name • Community and state www. redsky. E 911. com

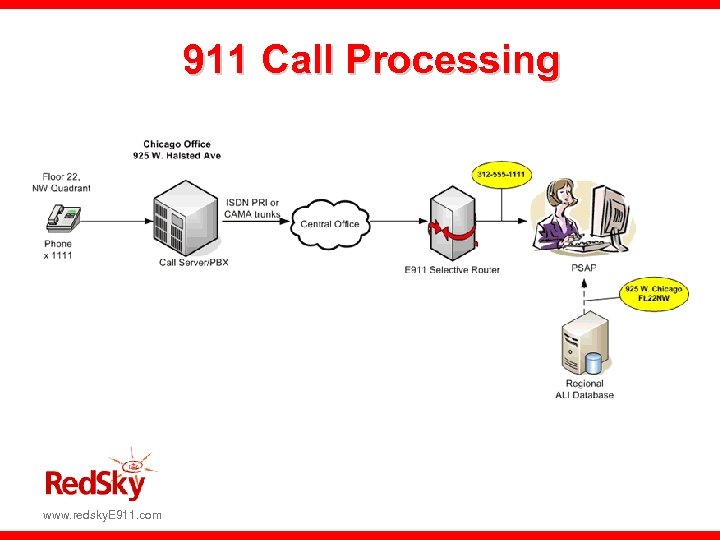

911 Call Processing www. redsky. E 911. com

How did the location information for phone number (312)555 -1111 get into the Public Safety Answering Point’s Server? AND Who is responsible for getting it there? Well, it’s quite the Challenge to an organization as you’ll see…. www. redsky. E 911. com

E 911: The Key Requirements • Implement ISDN PRI or CAMA – – Passes ANI or unique telephone number of 911 caller Ensures proper call routing through the PSTN 911 center must be able to call back the 911 caller Identifies appropriate ALI association • Establish and Maintain ALI at regional databases – – Define location information for every phone Send data to regional E 911 databases in NENA format Establish process for ongoing ALI updates Monitor acceptance and verification to ensure accuracy • Track and store historical and transaction detail – Record of risk management and compliance – Evidence in the event of litigation • Engage the time and resources to complete the task www. redsky. E 911. com

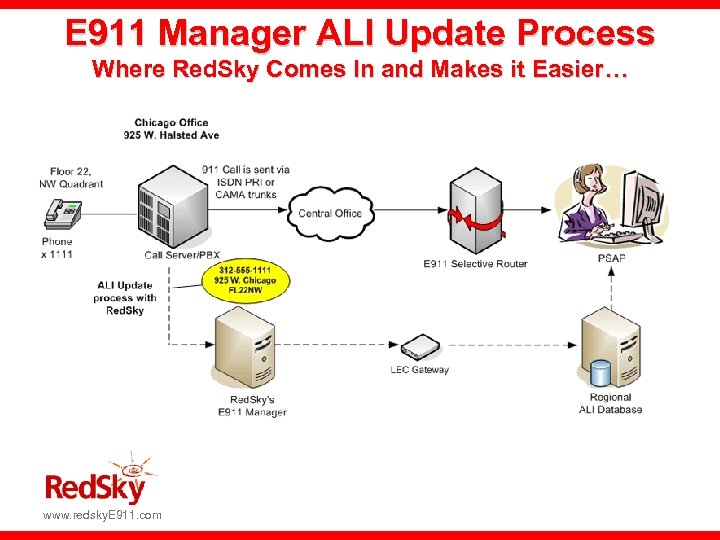

E 911 Manager ALI Update Process Where Red. Sky Comes In and Makes it Easier… www. redsky. E 911. com

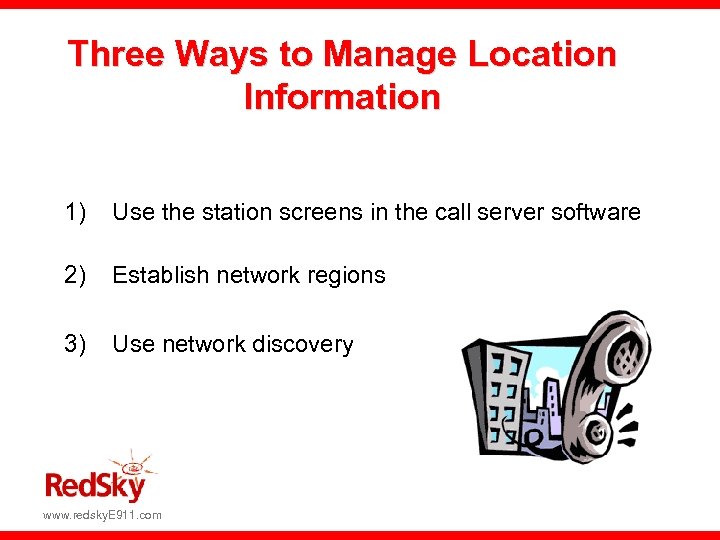

Three Ways to Manage Location Information 1) Use the station screens in the call server software 2) Establish network regions 3) Use network discovery www. redsky. E 911. com

Defining Locations using the Station Screen www. redsky. E 911. com

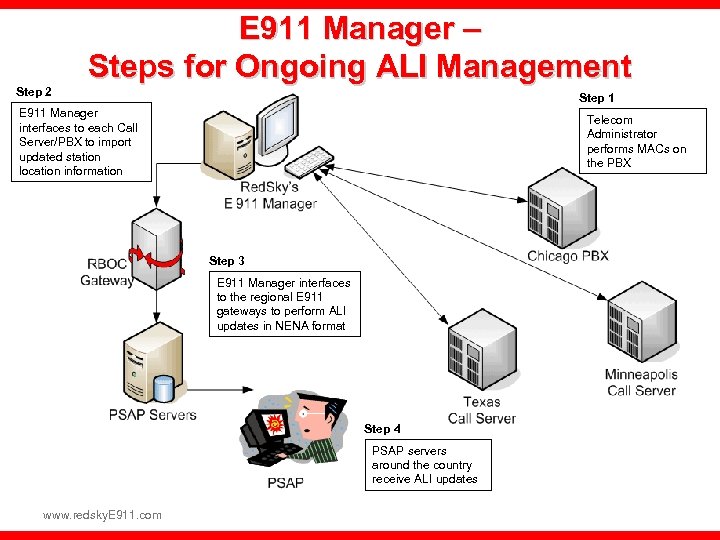

Step 2 E 911 Manager – Steps for Ongoing ALI Management Step 1 E 911 Manager interfaces to each Call Server/PBX to import updated station location information Telecom Administrator performs MACs on the PBX Step 3 E 911 Manager interfaces to the regional E 911 gateways to perform ALI updates in NENA format Step 4 PSAP servers around the country receive ALI updates www. redsky. E 911. com

Challenges of E 911 in Vo. IP Networks • Mobility – – Users can move around on the network • Location Definition – – “Real Time” location control – How precise do you describe your location? – Using Network Regions and Network Discovery www. redsky. E 911. com

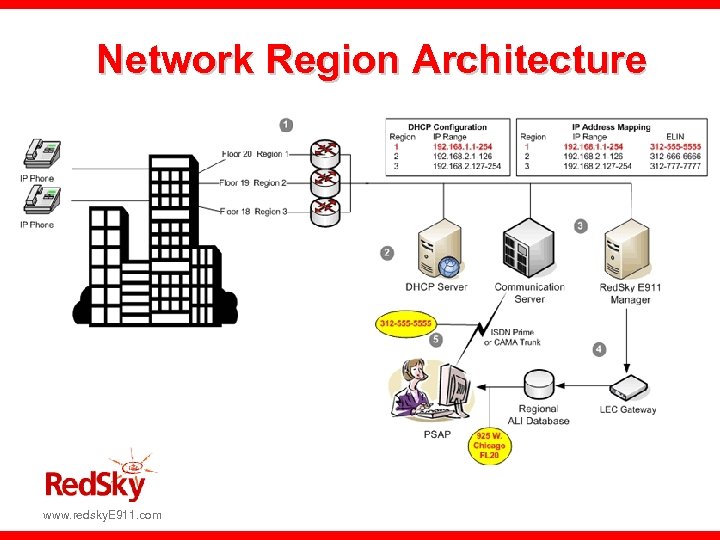

Network Region Architecture www. redsky. E 911. com

Network Discovery Architecture S-011 Ext 1111 RTR/LDAP www. redsky. E 911. com 1 00 -01 -03 -85 -2 E-45 1111

E 911 – Emergency On -Site Notification (EON)

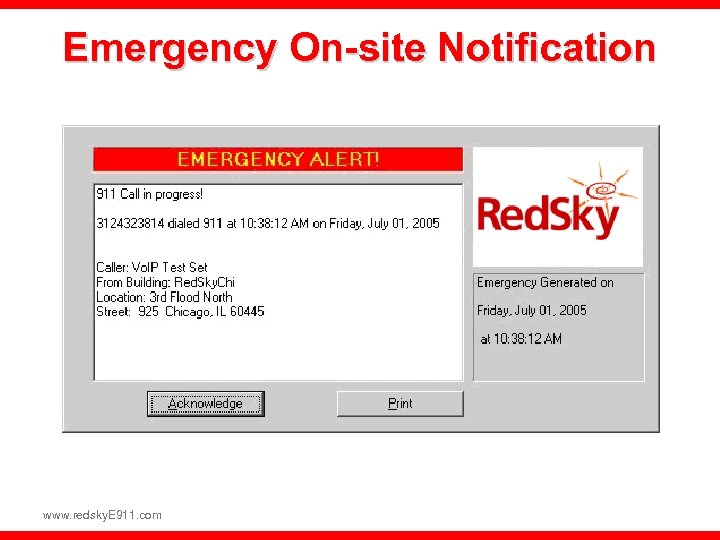

Emergency On-site Notification www. redsky. E 911. com

EON Email Notification www. redsky. E 911. com

E 911 – Red. Sky’s Ability to Handle Mobility / “Road Warriors”

New business issues present opportunity for you… Issue #1: The existing 911 network does not support mobility, work at home or remote offices without local 911 trunks Issue #2: Local trunks are not always cost effective or even an option depending on the type of user The solution: Red. Sky’s integration with Avaya and partnership with Intrado & TCS offers a solution for home office, remote office and nomadic IP phone users without local trunks: E 911 Manager with Location Information Services (LIS) www. redsky. E 911. com

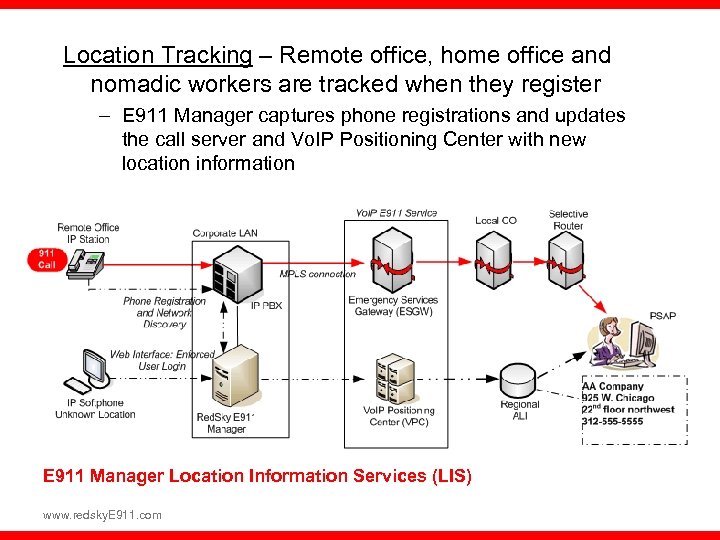

Location Tracking – Remote office, home office and nomadic workers are tracked when they register – E 911 Manager captures phone registrations and updates the call server and Vo. IP Positioning Center with new location information E 911 Manager Location Information Services (LIS) www. redsky. E 911. com

Remote users are prompted to designate new location upon login to their Avaya softphone • User must select from one of four options • Pre-defined locations are easily recalled and selected by the user • New locations are validated through Red. Sky Location Information Services • User can “opt-out” of 911 service by agreeing to a legal waiver www. redsky. E 911. com

E 911 – Red. Sky’s Ability to Provide a Global E 911 Solution

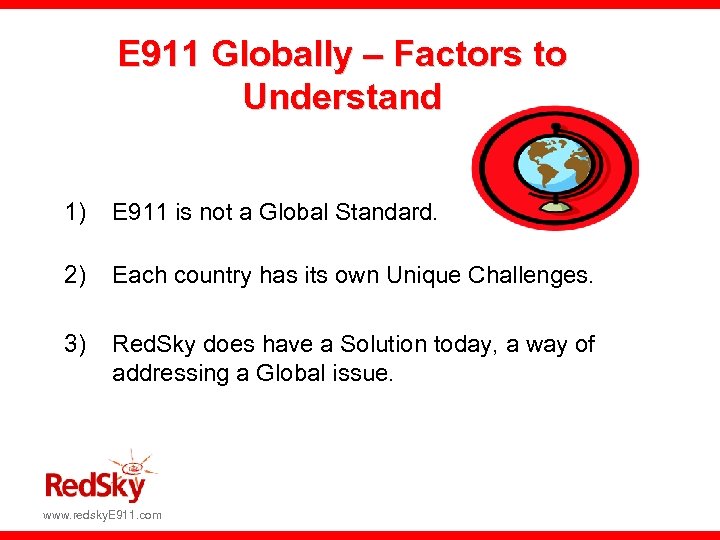

E 911 Globally – Factors to Understand 1) E 911 is not a Global Standard. 2) Each country has its own Unique Challenges. 3) Red. Sky does have a Solution today, a way of addressing a Global issue. www. redsky. E 911. com

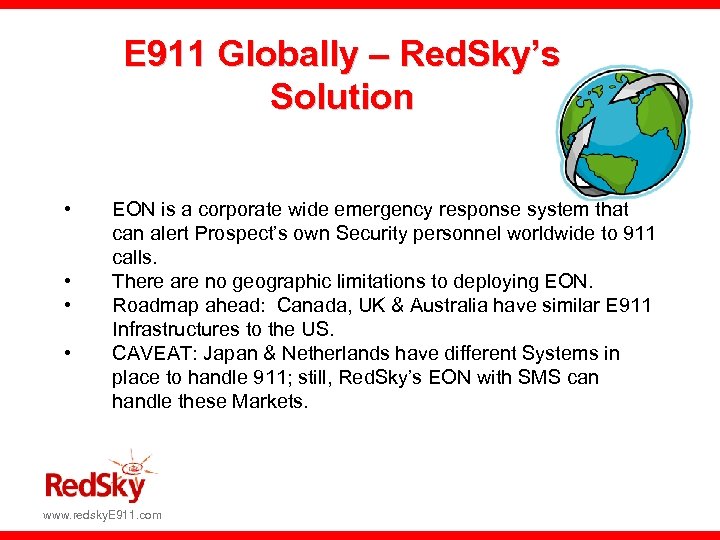

E 911 Globally – Red. Sky’s Solution • • EON is a corporate wide emergency response system that can alert Prospect’s own Security personnel worldwide to 911 calls. There are no geographic limitations to deploying EON. Roadmap ahead: Canada, UK & Australia have similar E 911 Infrastructures to the US. CAVEAT: Japan & Netherlands have different Systems in place to handle 911; still, Red. Sky’s EON with SMS can handle these Markets. www. redsky. E 911. com

E 911 – Final Points

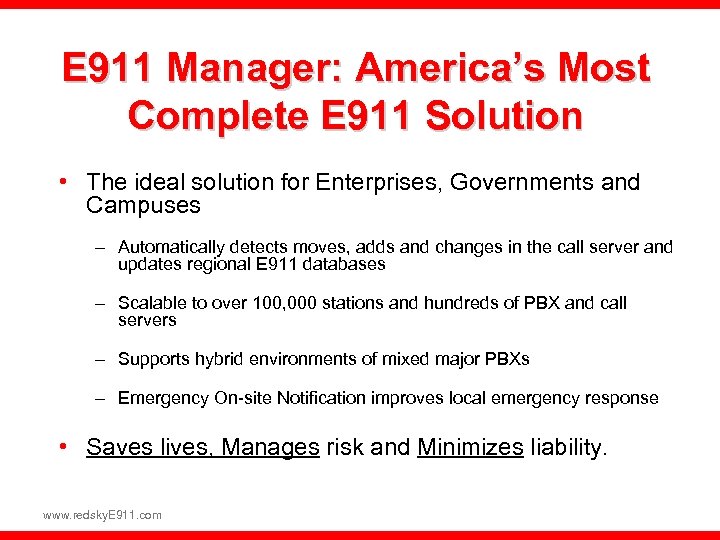

E 911 Manager: America’s Most Complete E 911 Solution • The ideal solution for Enterprises, Governments and Campuses – Automatically detects moves, adds and changes in the call server and updates regional E 911 databases – Scalable to over 100, 000 stations and hundreds of PBX and call servers – Supports hybrid environments of mixed major PBXs – Emergency On-site Notification improves local emergency response • Saves lives, Manages risk and Minimizes liability. www. redsky. E 911. com

More Information – E-911 Requirements and Solutions www. redsky. E 911. com – Industry websites • National Emergency Number Association: www. nena. org • Association of Public Safety Communications Officials: www. apcointl. org Thank You! Martin Hickey – Regional Sales Director Red. Sky Technologies mhickey@redskytech. com (415) 298 3479 www. redsky. E 911. com
