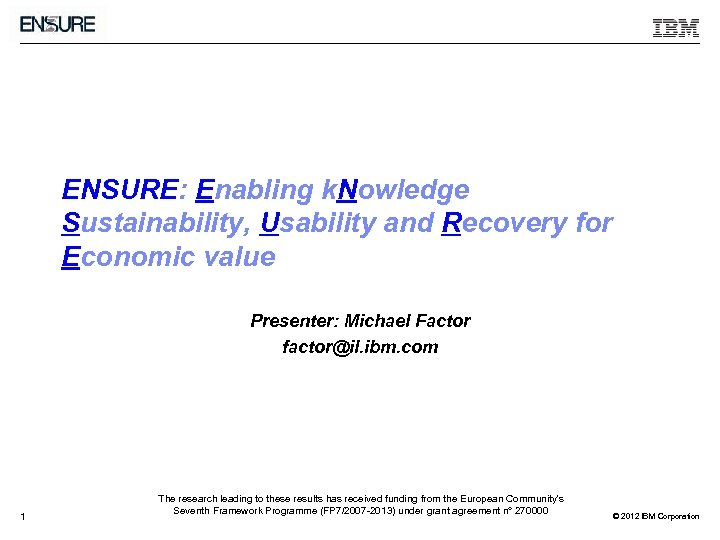

ENSURE: Enabling k. Nowledge Sustainability, Usability and Recovery for Economic value Presenter: Michael Factor factor@il. ibm. com 1 The research leading to these results has received funding from the European Community's Seventh Framework Programme (FP 7/2007 -2013) under grant agreement n° 270000 © 2012 IBM Corporation

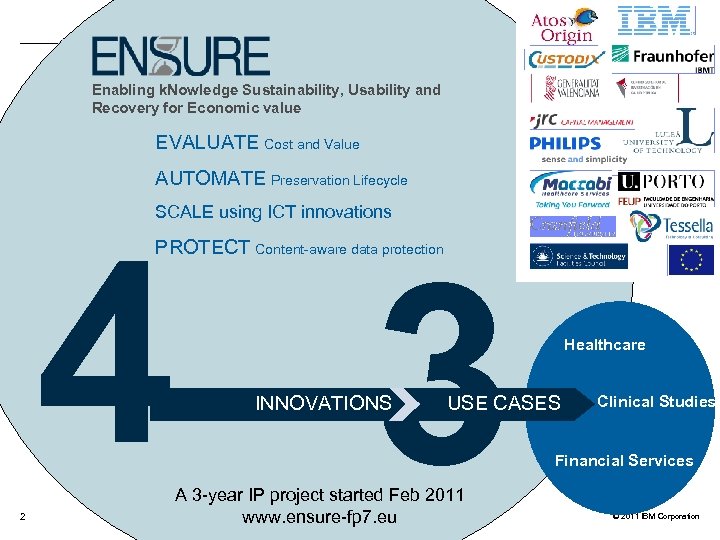

Enabling k. Nowledge Sustainability, Usability and Recovery for Economic value EVALUATE Cost and Value AUTOMATE Preservation Lifecycle SCALE using ICT innovations 4 3 PROTECT Content-aware data protection INNOVATIONS 2 Healthcare USE CASES A 3 -year IP project started Feb 2011 www. ensure-fp 7. eu Clinical Studies Financial Services © 2011 IBM Corporation

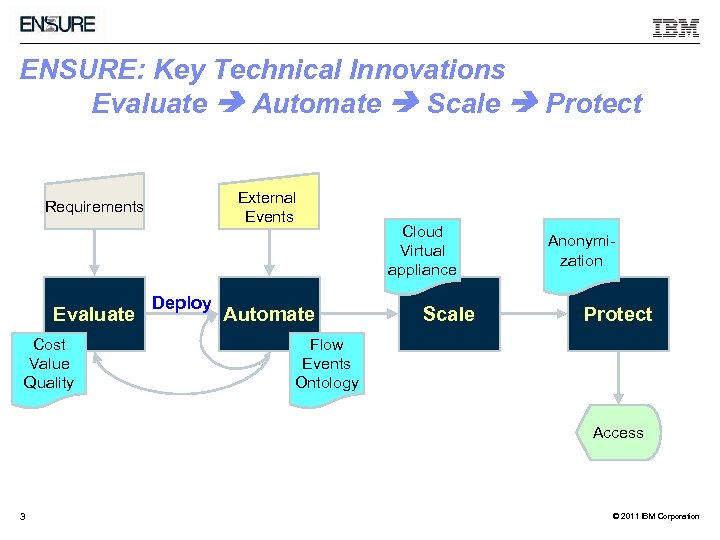

ENSURE: Key Technical Innovations Evaluate Automate Scale Protect External Events Requirements Evaluate Cost Value Quality Deploy Automate Cloud Virtual appliance Scale Anonymization Protect Flow Events Ontology Access 3 © 2011 IBM Corporation

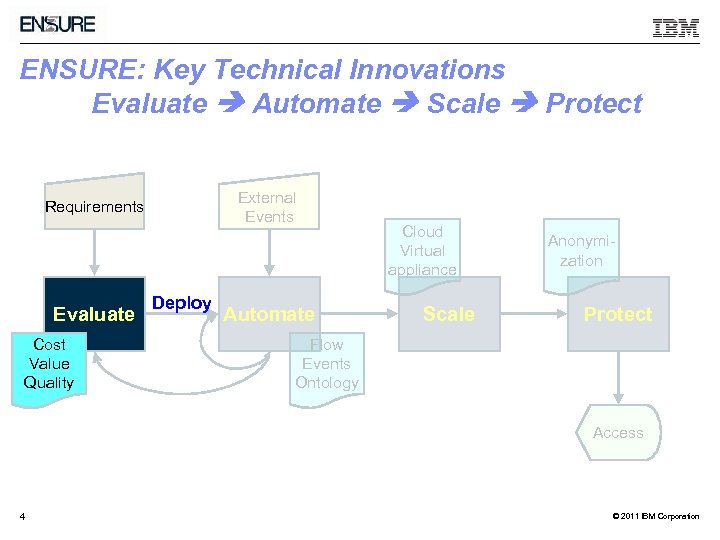

ENSURE: Key Technical Innovations Evaluate Automate Scale Protect External Events Requirements Evaluate Cost Value Quality Deploy Automate Cloud Virtual appliance Scale Anonymization Protect Flow Events Ontology Access 4 © 2011 IBM Corporation

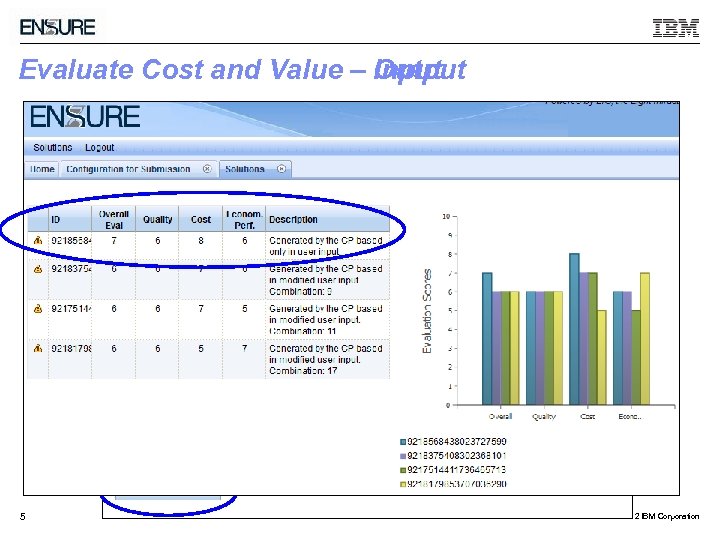

Evaluate Cost and Value – Input Output 5 5 © 2012 IBM Corporation

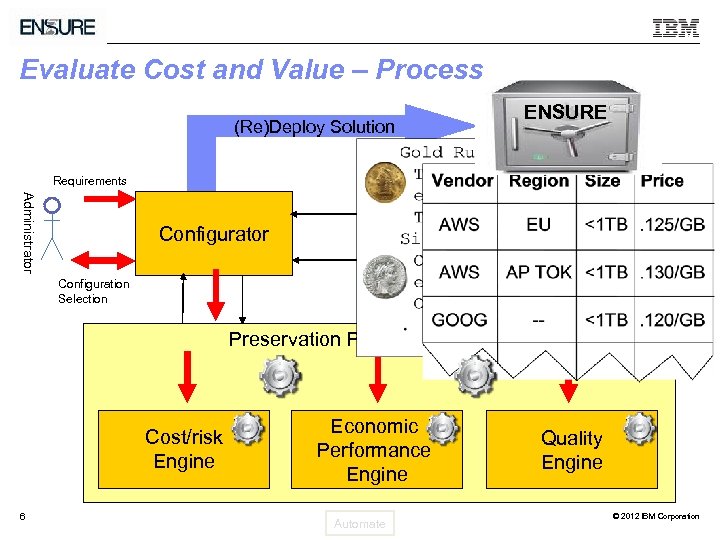

Evaluate Cost and Value – Process ENSURE (Re)Deploy Solution Requirements Administrator Translation Rules Configurator Data Repositories Configuration Selection Preservation Plan Optimizer Cost/risk Engine 6 Economic Performance Engine Automate Quality Engine © 2012 IBM Corporation
Evaluate cost and value: Preservation Plan Optimizer • Genetic algorithm generates results based upon engines • Really n-dimensions • The user chooses a solution from the Pareto frontier • No dimension can be improved without degrading at least one other dimension Quality QOE Cost 7 © 2012 IBM Corporation
ENSURE: Key Technical Innovations Evaluate Automate Scale Protect External Events Requirements Evaluate Cost Value Quality Deploy Automate Cloud Virtual appliance Scale Anonymization Protect Flow Events Ontology Access 8 © 2012 IBM Corporation

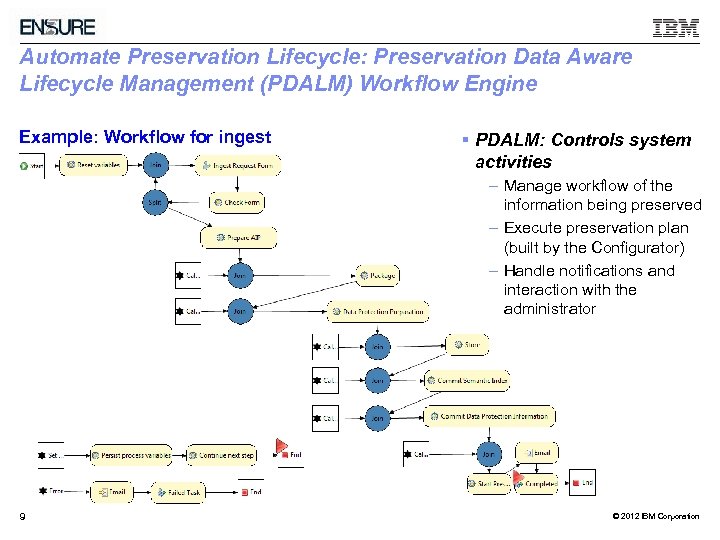

Automate Preservation Lifecycle: Preservation Data Aware Lifecycle Management (PDALM) Workflow Engine Example: Workflow for ingest § PDALM: Controls system activities – Manage workflow of the information being preserved – Execute preservation plan (built by the Configurator) – Handle notifications and interaction with the administrator 9 9 © 2012 IBM Corporation

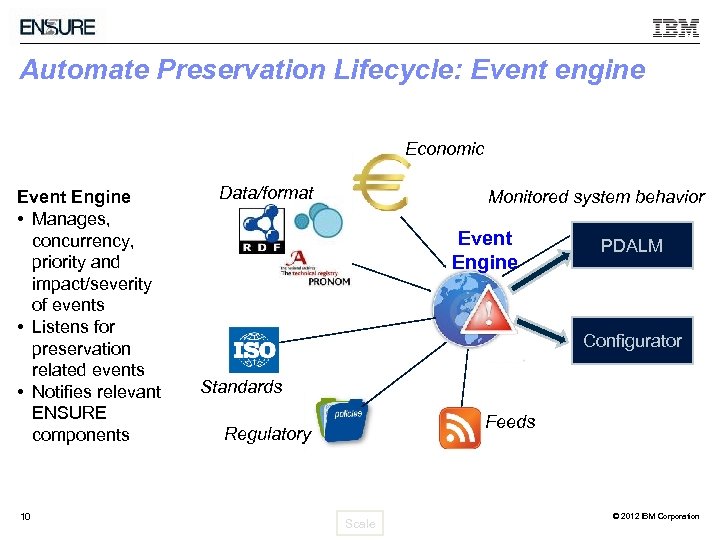

Automate Preservation Lifecycle: Event engine Economic Event Engine • Manages, concurrency, priority and impact/severity of events • Listens for preservation related events • Notifies relevant ENSURE components 10 Data/format Monitored system behavior Event Engine PDALM Configurator Standards Feeds Regulatory Scale © 2012 IBM Corporation

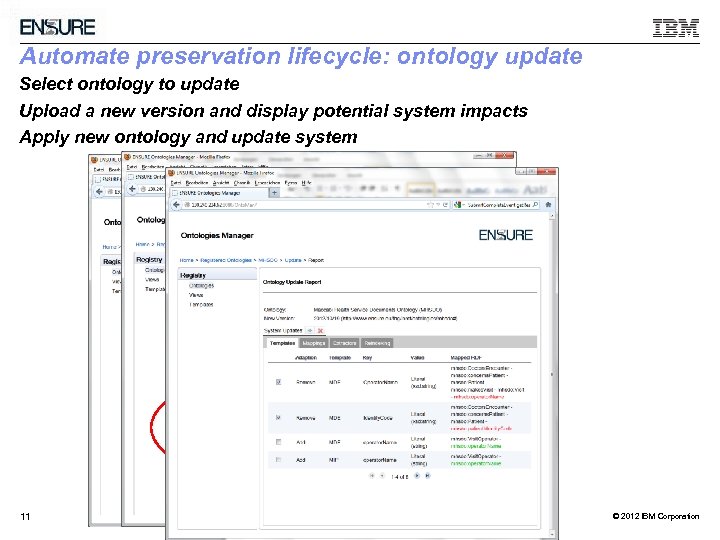

Automate preservation lifecycle: ontology update Select ontology to update Upload a new version and display potential system impacts Apply new ontology and update system 11 © 2012 IBM Corporation

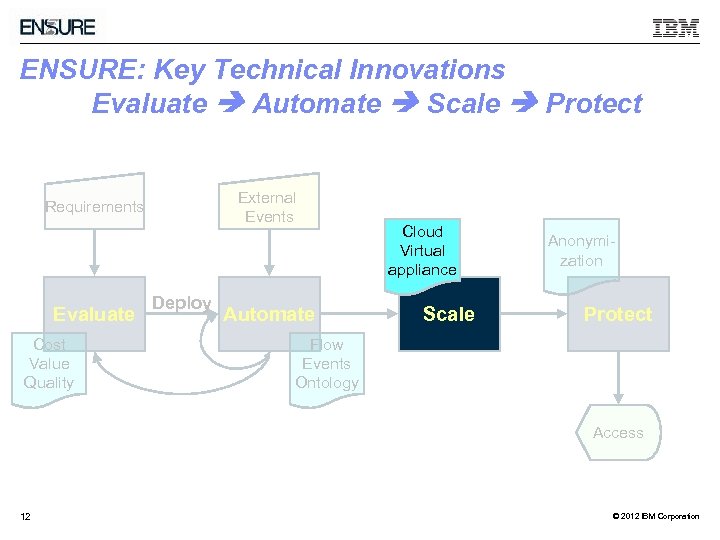

ENSURE: Key Technical Innovations Evaluate Automate Scale Protect External Events Requirements Evaluate Cost Value Quality Deploy Automate Cloud Virtual appliance Scale Anonymization Protect Flow Events Ontology Access 12 © 2012 IBM Corporation

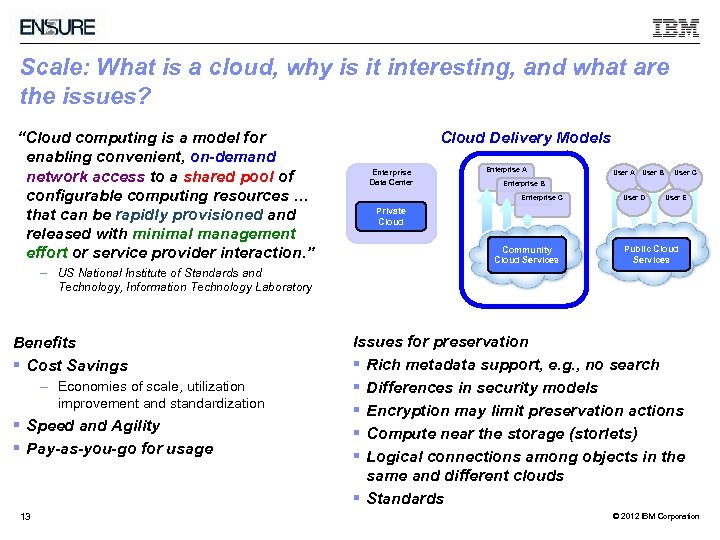

Scale: What is a cloud, why is it interesting, and what are the issues? “Cloud computing is a model for enabling convenient, on-demand network access to a shared pool of configurable computing resources … that can be rapidly provisioned and released with minimal management effort or service provider interaction. ” Cloud Delivery Models Enterprise Data Center Enterprise A User B User C Enterprise B Enterprise C User D User E Private Cloud Community Cloud Services Public Cloud Services – US National Institute of Standards and Technology, Information Technology Laboratory Benefits § Cost Savings – Economies of scale, utilization improvement and standardization § Speed and Agility § Pay-as-you-go for usage 13 Issues for preservation § Rich metadata support, e. g. , no search § Differences in security models § Encryption may limit preservation actions § Compute near the storage (storlets) § Logical connections among objects in the same and different clouds § Standards © 2012 IBM Corporation

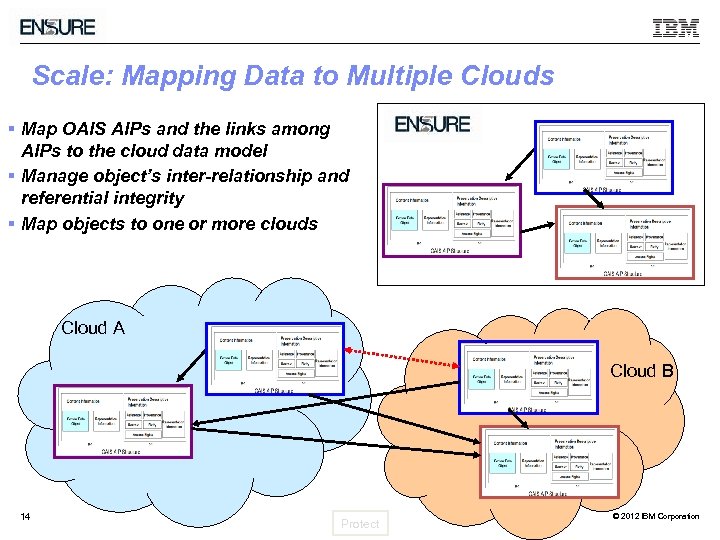

Scale: Mapping Data to Multiple Clouds § Map OAIS AIPs and the links among AIPs to the cloud data model § Manage object’s inter-relationship and referential integrity § Map objects to one or more clouds Cloud A Cloud B 14 Protect © 2012 IBM Corporation

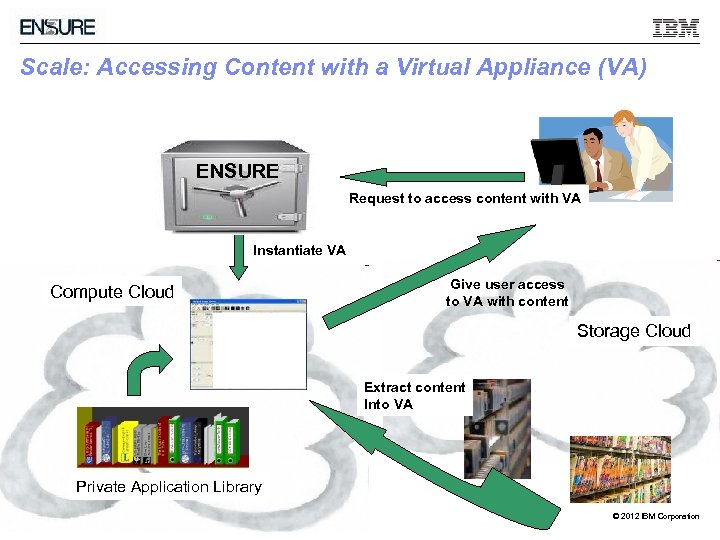

Scale: Accessing Content with a Virtual Appliance (VA) ENSURE Request to access content with VA Instantiate VA Compute Cloud Give user access to VA with content Storage Cloud Extract content Into VA Private Application Library 15 © 2012 IBM Corporation

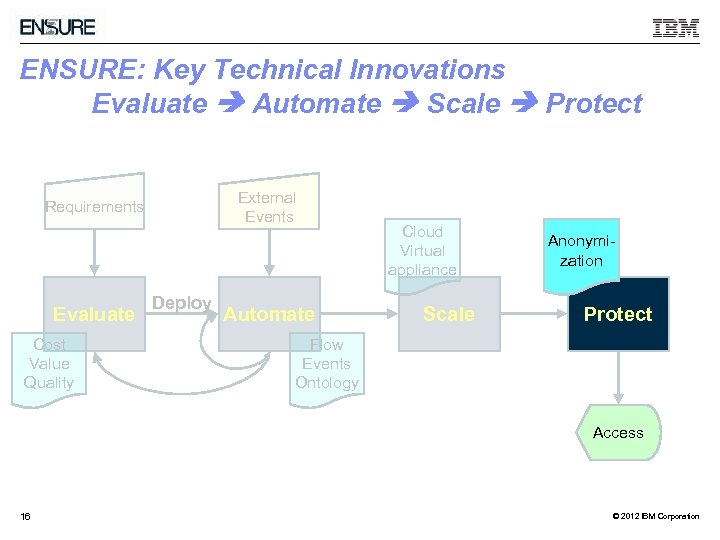

ENSURE: Key Technical Innovations Evaluate Automate Scale Protect External Events Requirements Evaluate Cost Value Quality Deploy Automate Cloud Virtual appliance Scale Anonymization Protect Flow Events Ontology Access 16 © 2012 IBM Corporation

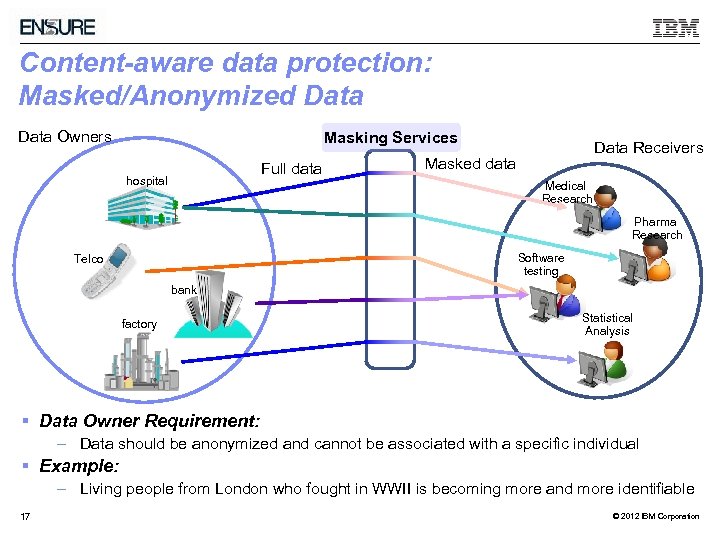

Content-aware data protection: Masked/Anonymized Data Owners Masking Services Full data hospital Data Receivers Masked data Medical Research Pharma Research Software testing Telco bank factory Statistical Analysis § Data Owner Requirement: – Data should be anonymized and cannot be associated with a specific individual § Example: – Living people from London who fought in WWII is becoming more and more identifiable 17 © 2012 IBM Corporation

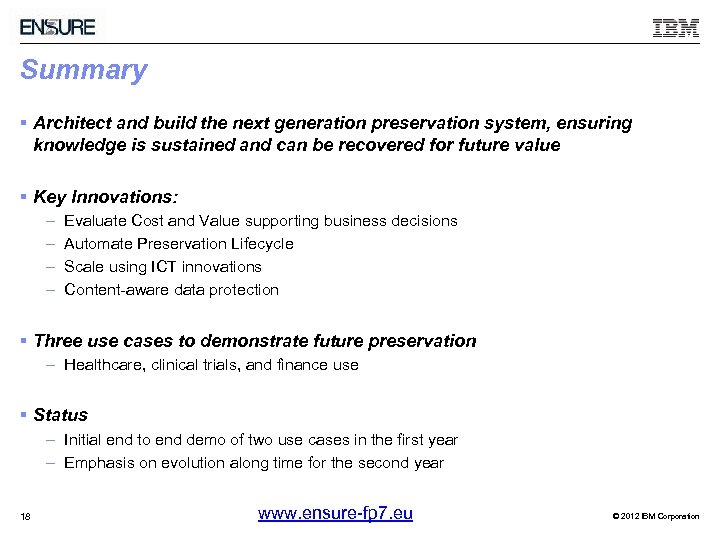

Summary § Architect and build the next generation preservation system, ensuring knowledge is sustained and can be recovered for future value § Key Innovations: – – Evaluate Cost and Value supporting business decisions Automate Preservation Lifecycle Scale using ICT innovations Content-aware data protection § Three use cases to demonstrate future preservation – Healthcare, clinical trials, and finance use § Status – Initial end to end demo of two use cases in the first year – Emphasis on evolution along time for the second year 18 www. ensure-fp 7. eu © 2012 IBM Corporation
Thank You 19 © 2012 IBM Corporation

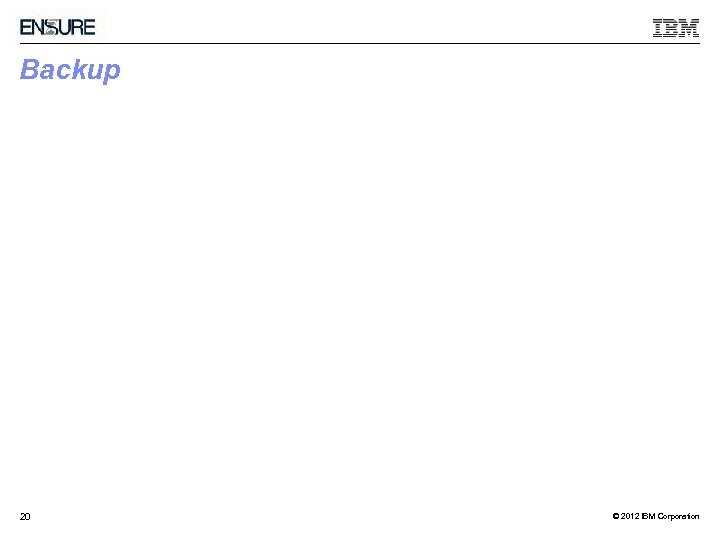

Backup 20 © 2012 IBM Corporation
