Enigmätron — High-Security Data Encryption Equipment Product

Enigmätron - High-Security Data Encryption Equipment

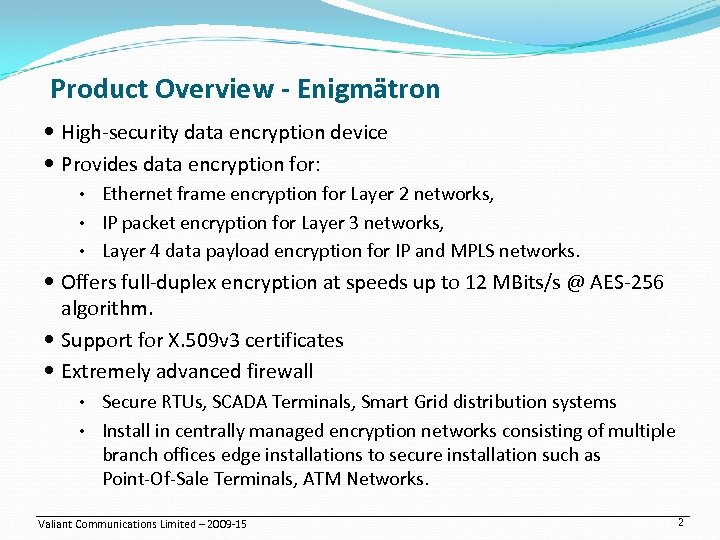

Product Overview - Enigmätron High-security data encryption device Provides data encryption for: • Ethernet frame encryption for Layer 2 networks, • IP packet encryption for Layer 3 networks, • Layer 4 data payload encryption for IP and MPLS networks. Offers full-duplex encryption at speeds up to 12 MBits/s @ AES-256 algorithm. Support for X. 509 v 3 certificates Extremely advanced firewall • Secure RTUs, SCADA Terminals, Smart Grid distribution systems • Install in centrally managed encryption networks consisting of multiple branch offices edge installations to secure installation such as Point-Of-Sale Terminals, ATM Networks. Valiant Communications Limited – 2009 -15 2

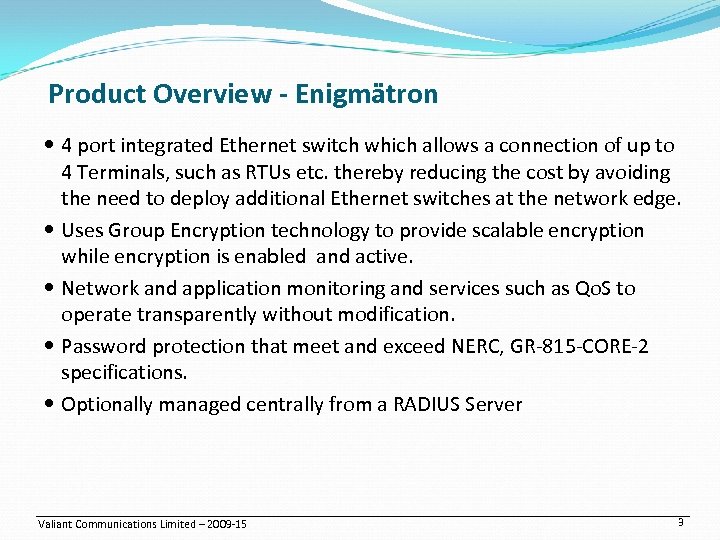

Product Overview - Enigmätron 4 port integrated Ethernet switch which allows a connection of up to 4 Terminals, such as RTUs etc. thereby reducing the cost by avoiding the need to deploy additional Ethernet switches at the network edge. Uses Group Encryption technology to provide scalable encryption while encryption is enabled and active. Network and application monitoring and services such as Qo. S to operate transparently without modification. Password protection that meet and exceed NERC, GR-815 -CORE-2 specifications. Optionally managed centrally from a RADIUS Server Valiant Communications Limited – 2009 -15 3

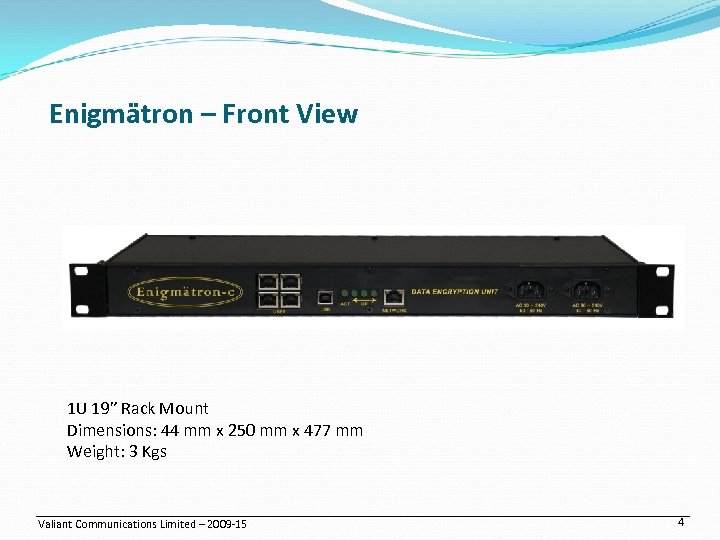

Enigmätron – Front View 1 U 19” Rack Mount Dimensions: 44 mm x 250 mm x 477 mm Weight: 3 Kgs Valiant Communications Limited – 2009 -15 4

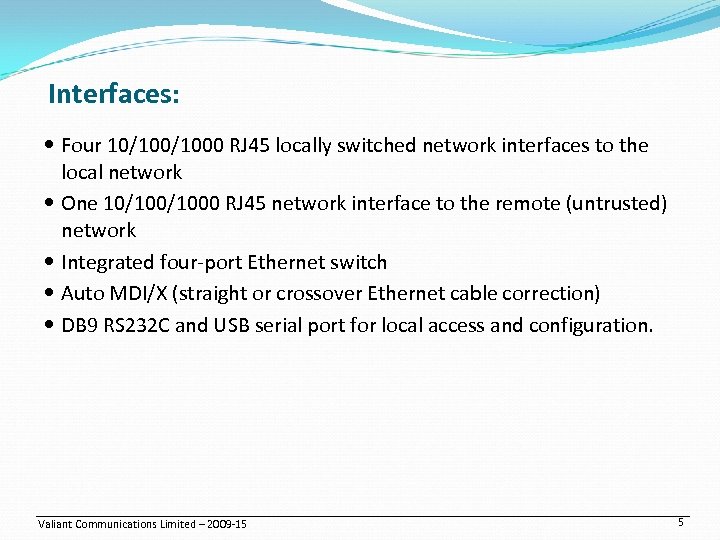

Interfaces: Four 10/1000 RJ 45 locally switched network interfaces to the local network One 10/1000 RJ 45 network interface to the remote (untrusted) network Integrated four-port Ethernet switch Auto MDI/X (straight or crossover Ethernet cable correction) DB 9 RS 232 C and USB serial port for local access and configuration. Valiant Communications Limited – 2009 -15 5

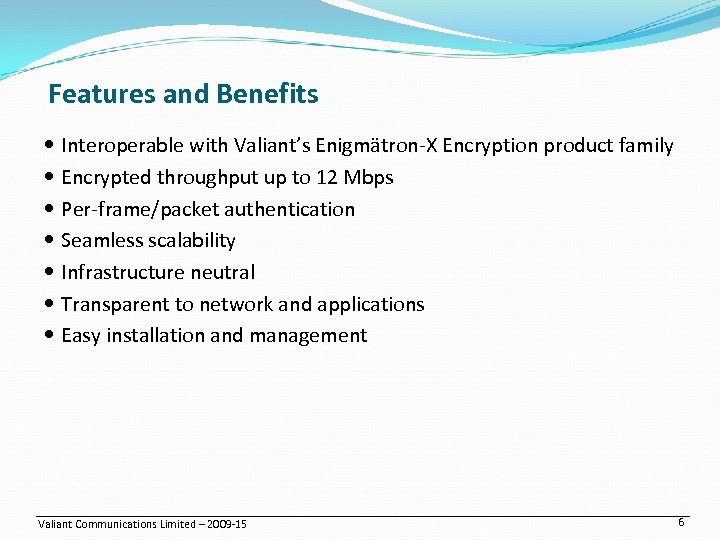

Features and Benefits Interoperable with Valiant’s Enigmätron-X Encryption product family Encrypted throughput up to 12 Mbps Per-frame/packet authentication Seamless scalability Infrastructure neutral Transparent to network and applications Easy installation and management Valiant Communications Limited – 2009 -15 6

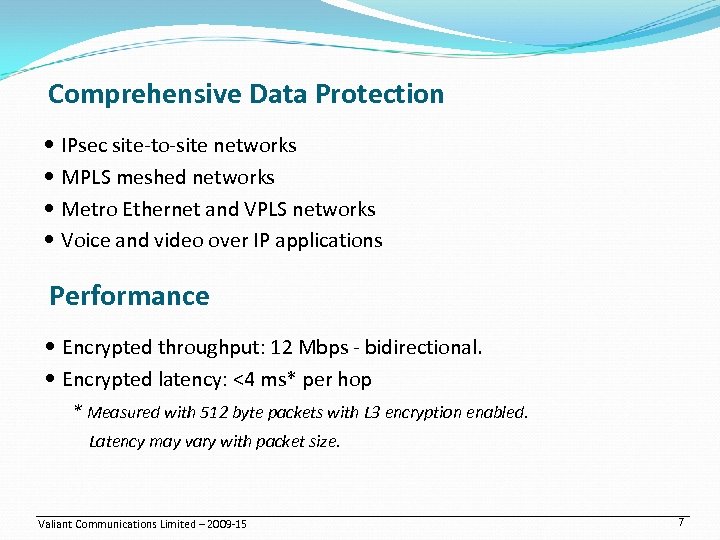

Comprehensive Data Protection IPsec site-to-site networks MPLS meshed networks Metro Ethernet and VPLS networks Voice and video over IP applications Performance Encrypted throughput: 12 Mbps - bidirectional. Encrypted latency: <4 ms* per hop * Measured with 512 byte packets with L 3 encryption enabled. Latency may vary with packet size. Valiant Communications Limited – 2009 -15 7

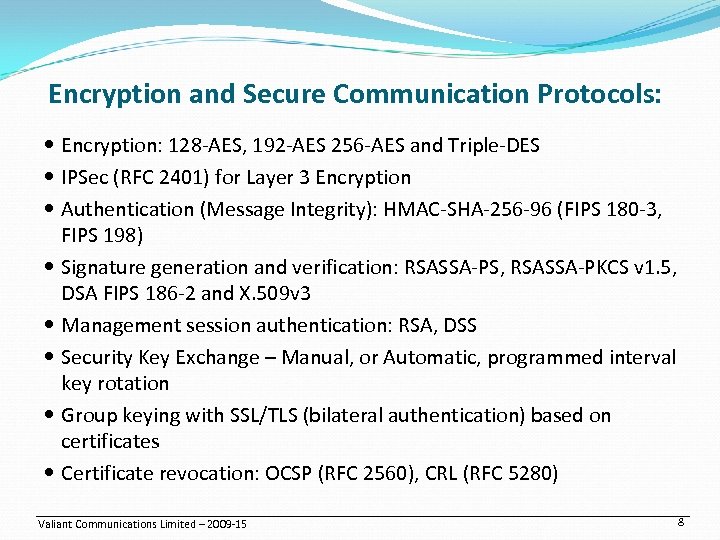

Encryption and Secure Communication Protocols: Encryption: 128 -AES, 192 -AES 256 -AES and Triple-DES IPSec (RFC 2401) for Layer 3 Encryption Authentication (Message Integrity): HMAC-SHA-256 -96 (FIPS 180 -3, FIPS 198) Signature generation and verification: RSASSA-PS, RSASSA-PKCS v 1. 5, DSA FIPS 186 -2 and X. 509 v 3 Management session authentication: RSA, DSS Security Key Exchange – Manual, or Automatic, programmed interval key rotation Group keying with SSL/TLS (bilateral authentication) based on certificates Certificate revocation: OCSP (RFC 2560), CRL (RFC 5280) Valiant Communications Limited – 2009 -15 8

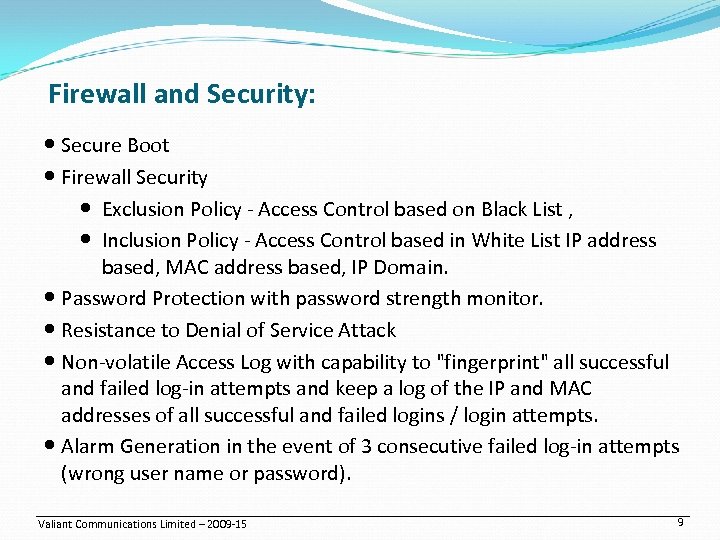

Firewall and Security: Secure Boot Firewall Security Exclusion Policy - Access Control based on Black List , Inclusion Policy - Access Control based in White List IP address based, MAC address based, IP Domain. Password Protection with password strength monitor. Resistance to Denial of Service Attack Non-volatile Access Log with capability to "fingerprint" all successful and failed log-in attempts and keep a log of the IP and MAC addresses of all successful and failed logins / login attempts. Alarm Generation in the event of 3 consecutive failed log-in attempts (wrong user name or password). Valiant Communications Limited – 2009 -15 9

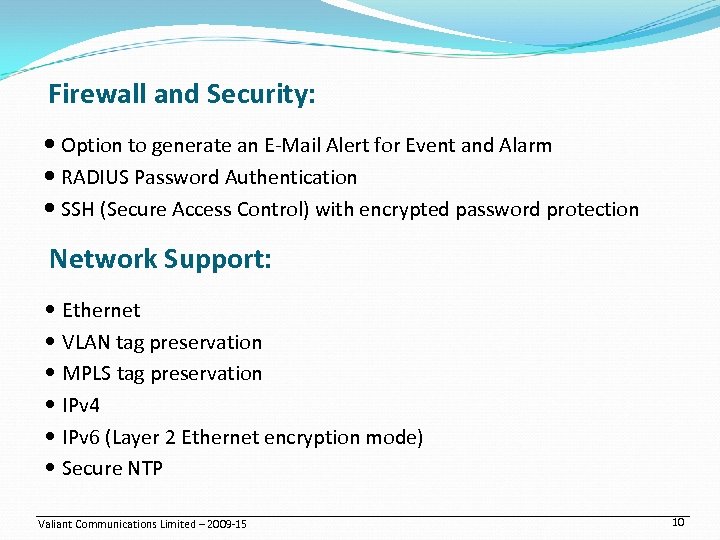

Firewall and Security: Option to generate an E-Mail Alert for Event and Alarm RADIUS Password Authentication SSH (Secure Access Control) with encrypted password protection Network Support: Ethernet VLAN tag preservation MPLS tag preservation IPv 4 IPv 6 (Layer 2 Ethernet encryption mode) Secure NTP Valiant Communications Limited – 2009 -15 10

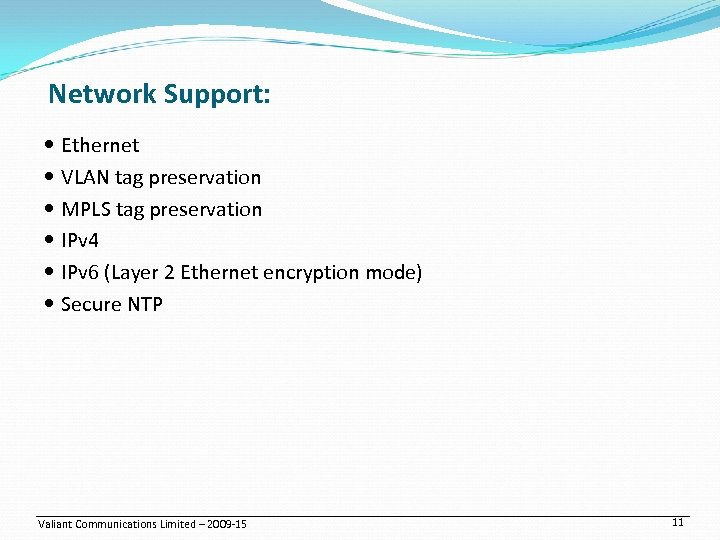

Network Support: Ethernet VLAN tag preservation MPLS tag preservation IPv 4 IPv 6 (Layer 2 Ethernet encryption mode) Secure NTP Valiant Communications Limited – 2009 -15 11

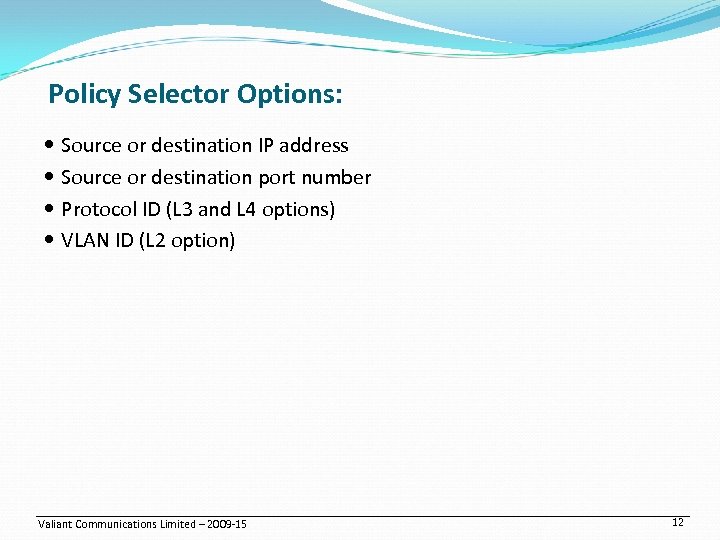

Policy Selector Options: Source or destination IP address Source or destination port number Protocol ID (L 3 and L 4 options) VLAN ID (L 2 option) Valiant Communications Limited – 2009 -15 12

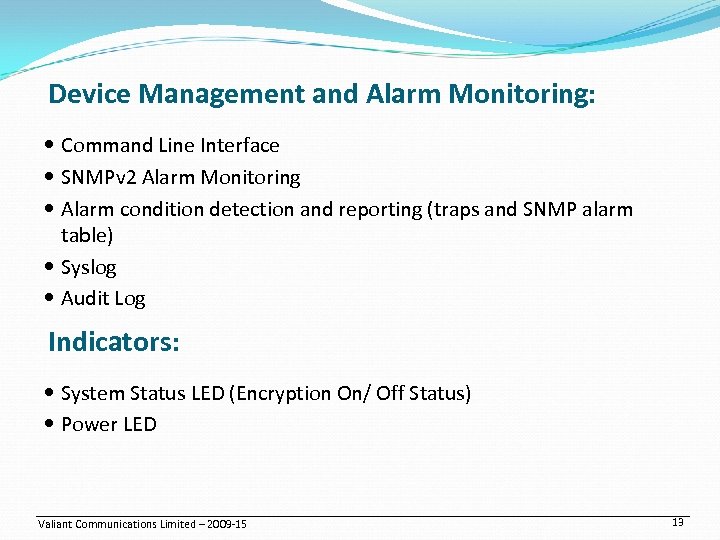

Device Management and Alarm Monitoring: Command Line Interface SNMPv 2 Alarm Monitoring Alarm condition detection and reporting (traps and SNMP alarm table) Syslog Audit Log Indicators: System Status LED (Encryption On/ Off Status) Power LED Valiant Communications Limited – 2009 -15 13

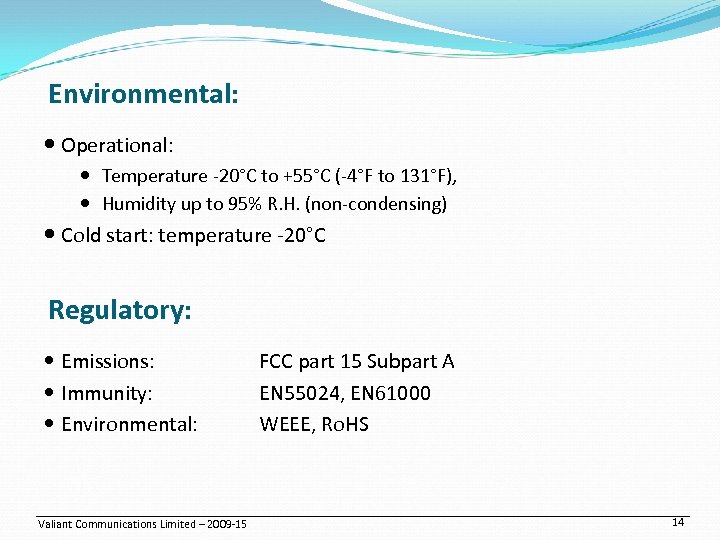

Environmental: Operational: Temperature -20°C to +55°C (-4°F to 131°F), Humidity up to 95% R. H. (non-condensing) Cold start: temperature -20°C Regulatory: Emissions: Immunity: Environmental: Valiant Communications Limited – 2009 -15 FCC part 15 Subpart A EN 55024, EN 61000 WEEE, Ro. HS 14

Physical: 19 -Inch, 1 U high Industrial Chassis Power: 1+0 and 1+1 Redundant Power Supply Options. 100~240 V AC, 50/60 Hz; -48 V DC; 110 V DC Note: * 1+1 Redundant Power Supply option available in 19 -Inch version only. Power consumption: 9 W at maximum load MTBF: ≥ 280, 000 hours with dual redundant power supplies Valiant Communications Limited – 2009 -15 15

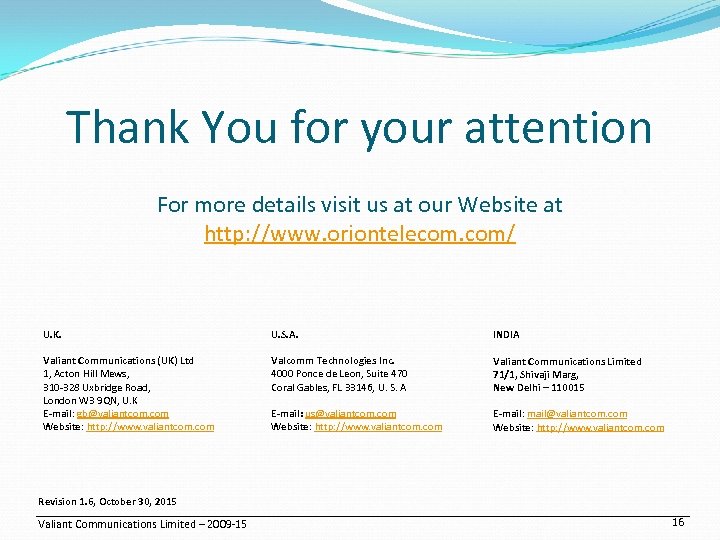

Thank You for your attention For more details visit us at our Website at http: //www. oriontelecom. com/ U. K. U. S. A. INDIA Valiant Communications (UK) Ltd 1, Acton Hill Mews, 310 -328 Uxbridge Road, London W 3 9 QN, U. K E-mail: gb@valiantcom. com Website: http: //www. valiantcom. com Valcomm Technologies Inc. 4000 Ponce de Leon, Suite 470 Coral Gables, FL 33146, U. S. A Valiant Communications Limited 71/1, Shivaji Marg, New Delhi – 110015 E-mail: us@valiantcom. com Website: http: //www. valiantcom. com E-mail: mail@valiantcom. com Website: http: //www. valiantcom. com Revision 1. 6, October 30, 2015 Valiant Communications Limited – 2009 -15 16
