Enhancing Performance with Pipelining Slides developed by Rami

Enhancing Performance with Pipelining Slides developed by Rami Abielmona and modified by Miodrag Bolic High-Level Computer Systems Design

Presentation Outline (1) l l l l l What is pipelining ? Pipeline Taxonomies Instruction Pipelines MIPS Instruction Pipeline Hazards MIPS Pipelined Datapath Load Word Instruction Example Pipeline Datapath Example Pipeline Control Pipeline Instruction Example

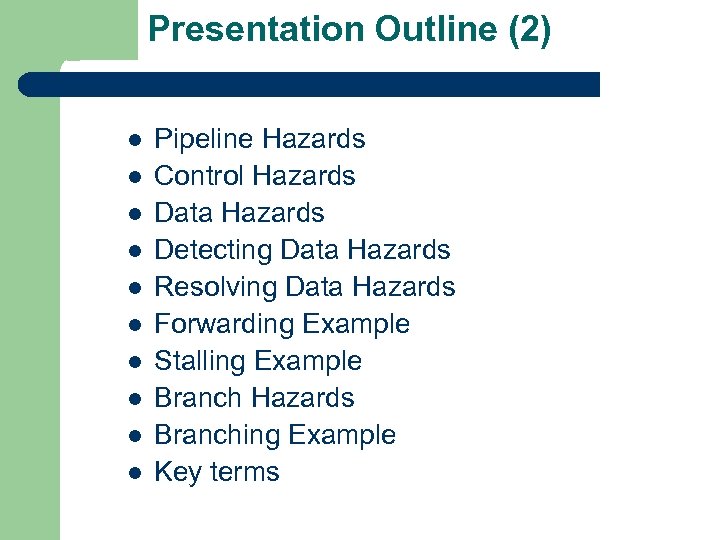

Presentation Outline (2) l l l l l Pipeline Hazards Control Hazards Data Hazards Detecting Data Hazards Resolving Data Hazards Forwarding Example Stalling Example Branch Hazards Branching Example Key terms

What is Pipelining ? (1) l There are two main ways to increase the performance of a processor through high-level system architecture – – Increasing the memory access speed Increasing the number of supported concurrent operations l l l Pipelining ! Parallelism ? Pipelining is the process by which instructions are parallelized over several overlapping stages of execution, in order to maximize datapath efficiency

What is Pipelining ? (2) l Pipelining is analogous to many everyday scenarios – – – l Car manufacturing process Batch laundry jobs Basically, any assembly-line operation applies Two important concepts: – – New inputs are accepted at one end before previously accepted inputs appear as outputs at the other end; The number of operations performed per second is increased, even though the elapsed time needed to perform any one operation remains the same

What is Pipelining ? (3) Looking at the textbook’s example, we have a 4 -stage pipeline of laundry tasks: 1. Place one dirty load of clothes into washer 2. Place the washed clothes into a dryer 3. Place a dry load on a table and fold 4. Put the clothes away Graphically speaking: l Sequential (top) vs. l Pipelined (bottom) execution

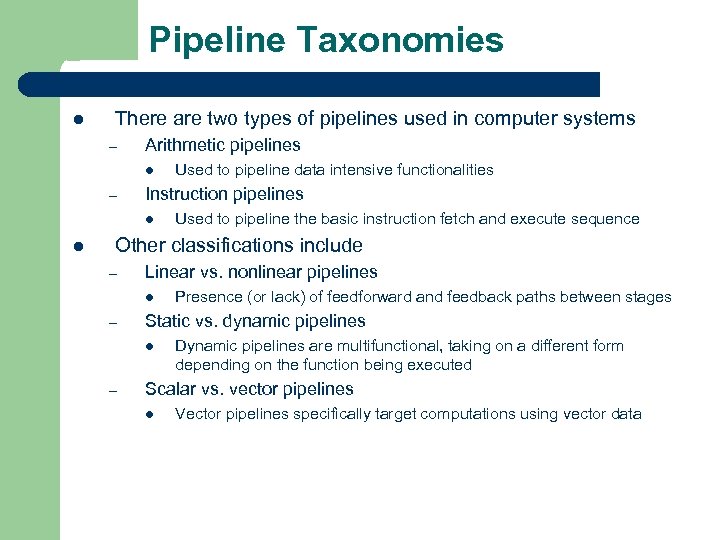

Pipeline Taxonomies l There are two types of pipelines used in computer systems – Arithmetic pipelines l – Instruction pipelines l l Used to pipeline data intensive functionalities Used to pipeline the basic instruction fetch and execute sequence Other classifications include – Linear vs. nonlinear pipelines l – Static vs. dynamic pipelines l – Presence (or lack) of feedforward and feedback paths between stages Dynamic pipelines are multifunctional, taking on a different form depending on the function being executed Scalar vs. vector pipelines l Vector pipelines specifically target computations using vector data

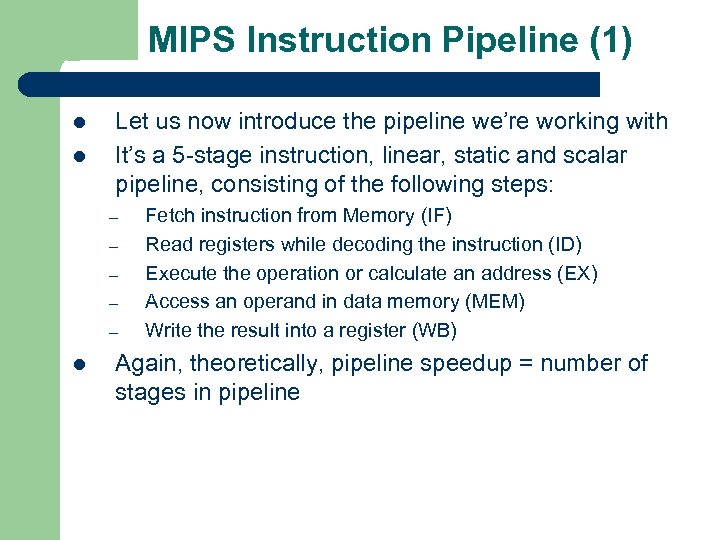

MIPS Instruction Pipeline (1) l l Let us now introduce the pipeline we’re working with It’s a 5 -stage instruction, linear, static and scalar pipeline, consisting of the following steps: – – – l Fetch instruction from Memory (IF) Read registers while decoding the instruction (ID) Execute the operation or calculate an address (EX) Access an operand in data memory (MEM) Write the result into a register (WB) Again, theoretically, pipeline speedup = number of stages in pipeline

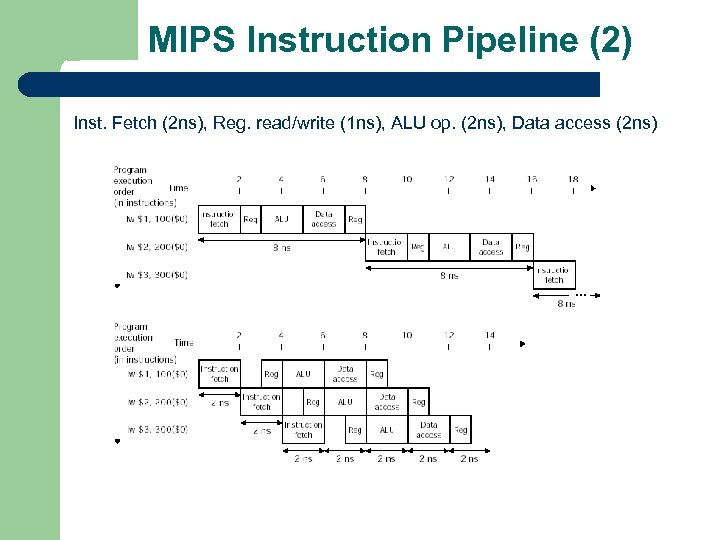

MIPS Instruction Pipeline (2) Inst. Fetch (2 ns), Reg. read/write (1 ns), ALU op. (2 ns), Data access (2 ns)

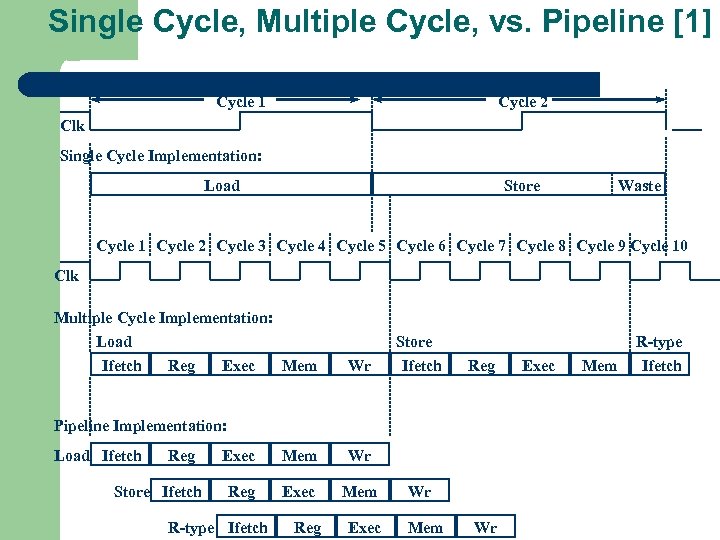

Single Cycle, Multiple Cycle, vs. Pipeline [1] Cycle 1 Cycle 2 Clk Single Cycle Implementation: Load Store Waste Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9 Cycle 10 Clk Multiple Cycle Implementation: Load Ifetch Reg Exec Mem Wr Store Ifetch Reg Pipeline Implementation: Load Ifetch Reg Store Ifetch Exec Mem Wr Reg Exec Mem R-type Ifetch Reg Exec Wr Mem Wr Exec Mem R-type Ifetch

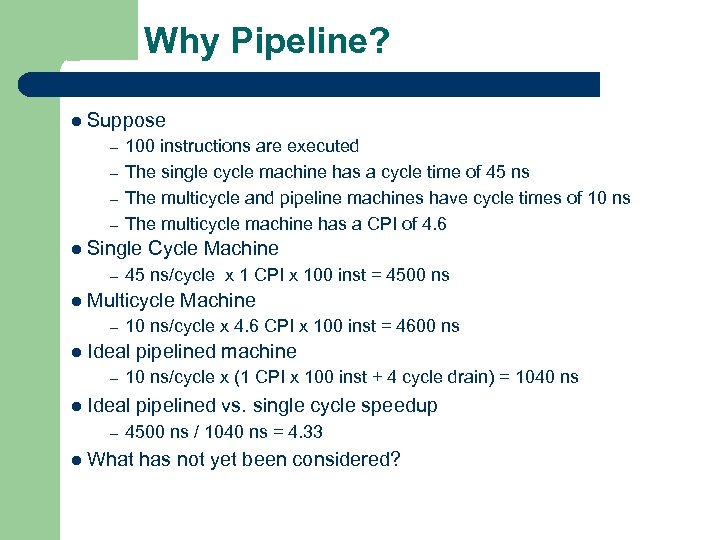

Why Pipeline? l Suppose – – 100 instructions are executed The single cycle machine has a cycle time of 45 ns The multicycle and pipeline machines have cycle times of 10 ns The multicycle machine has a CPI of 4. 6 l Single – Cycle Machine 45 ns/cycle x 1 CPI x 100 inst = 4500 ns l Multicycle – 10 ns/cycle x 4. 6 CPI x 100 inst = 4600 ns l Ideal – pipelined machine 10 ns/cycle x (1 CPI x 100 inst + 4 cycle drain) = 1040 ns l Ideal – Machine pipelined vs. single cycle speedup 4500 ns / 1040 ns = 4. 33 l What has not yet been considered?

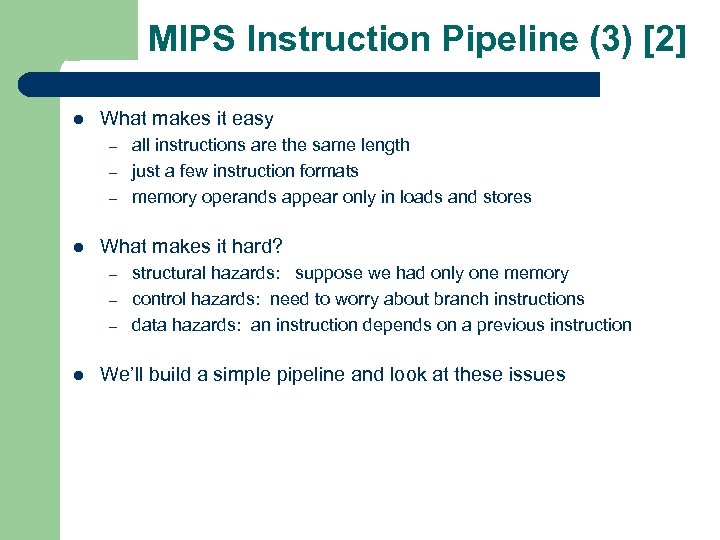

MIPS Instruction Pipeline (3) [2] l What makes it easy – – – l What makes it hard? – – – l all instructions are the same length just a few instruction formats memory operands appear only in loads and stores structural hazards: suppose we had only one memory control hazards: need to worry about branch instructions data hazards: an instruction depends on a previous instruction We’ll build a simple pipeline and look at these issues

Pipeline Hazards [1] – structural hazards: attempt to use the same resource two different ways at the same time l – data hazards: attempt to use item before it is ready l – instruction depends on result of prior instruction still in the pipeline add r 1, r 2, r 3 sub r 4, r 2, r 1 control hazards: attempt to make a decision before condition is evaulated l l E. g. , two instructions try to read the same memory at the same time branch instructions beq r 1, loop add r 1, r 2, r 3 Can always resolve hazards by waiting – – pipeline control must detect the hazard take action (or delay action) to resolve hazards

MIPS Pipelined Datapath (1) What do we need to split the datapath into stages ?

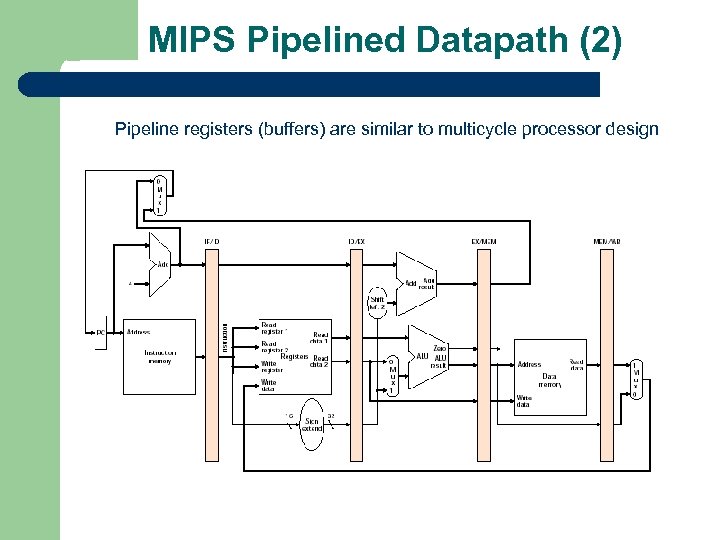

MIPS Pipelined Datapath (2) Pipeline registers (buffers) are similar to multicycle processor design

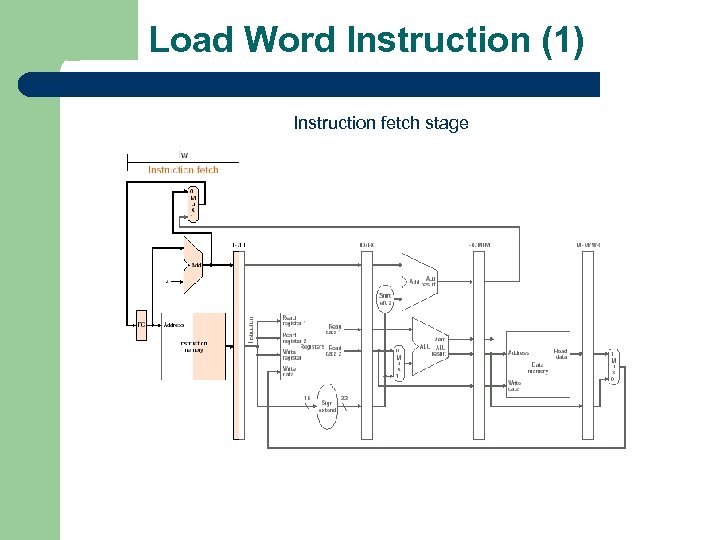

Load Word Instruction (1) Instruction fetch stage

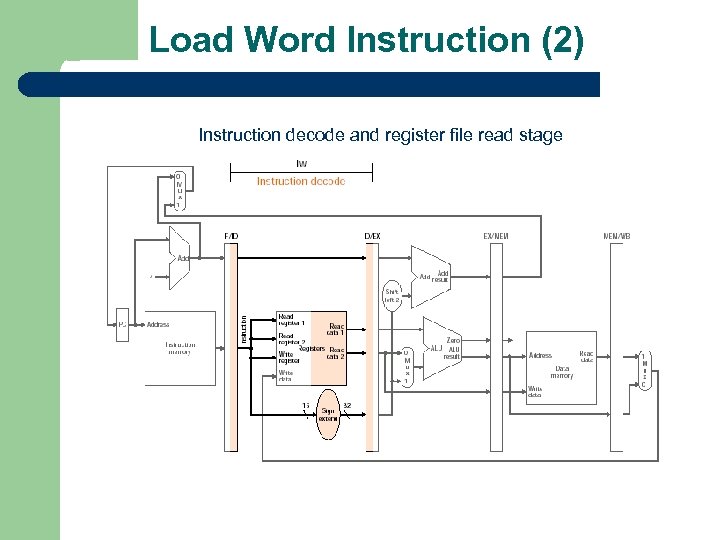

Load Word Instruction (2) Instruction decode and register file read stage

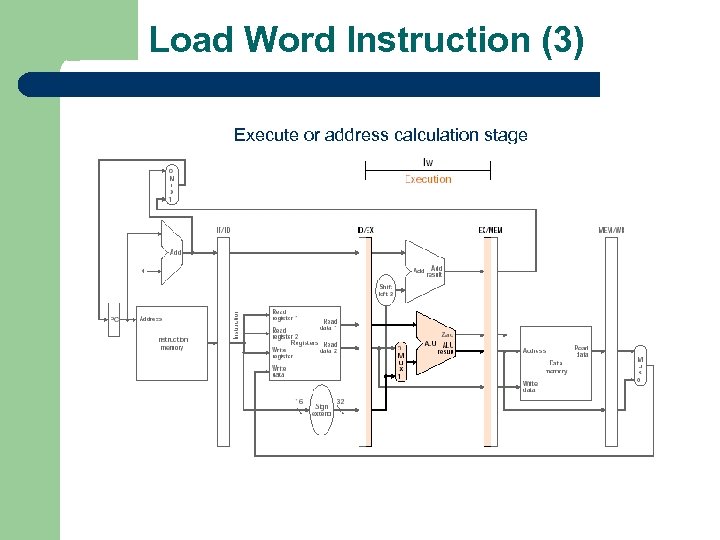

Load Word Instruction (3) Execute or address calculation stage

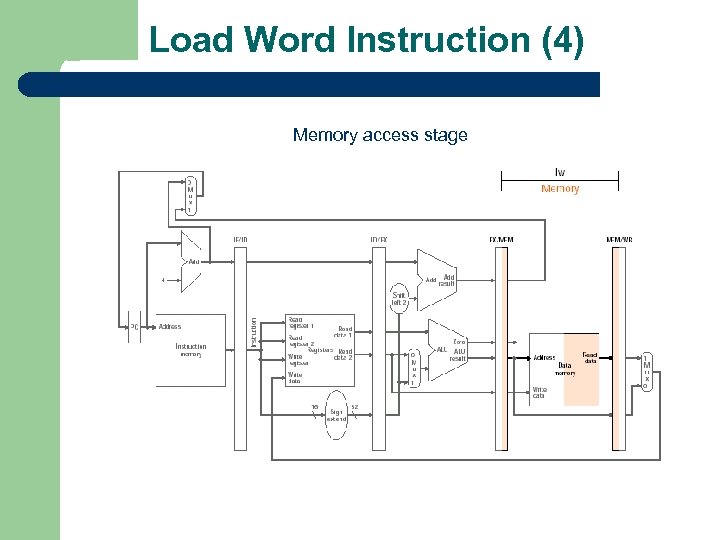

Load Word Instruction (4) Memory access stage

Load Word Instruction (5) Write back stage

Load Word Corrected Datapath Write register number comes from the MEM/WB pipeline register along with the data

Graphical Representations Multiple-clock cycle (vs. single-clock cycle) pipelined diagrams

Pipeline Datapath Example (1) Single-cycle pipeline diagram with one instruction on the pipeline

Pipeline Datapath Example (2) Single-cycle pipeline diagram with two instructions on the pipeline

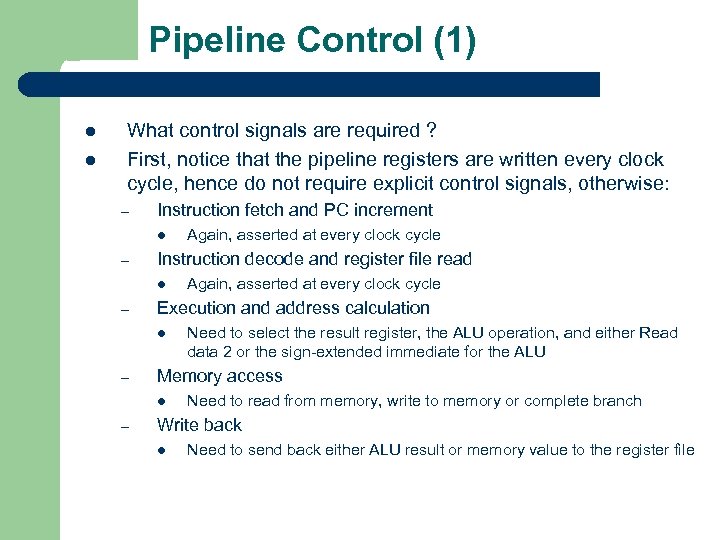

Pipeline Control (1) l l What control signals are required ? First, notice that the pipeline registers are written every clock cycle, hence do not require explicit control signals, otherwise: – Instruction fetch and PC increment l – Instruction decode and register file read l – Need to select the result register, the ALU operation, and either Read data 2 or the sign-extended immediate for the ALU Memory access l – Again, asserted at every clock cycle Execution and address calculation l – Again, asserted at every clock cycle Need to read from memory, write to memory or complete branch Write back l Need to send back either ALU result or memory value to the register file

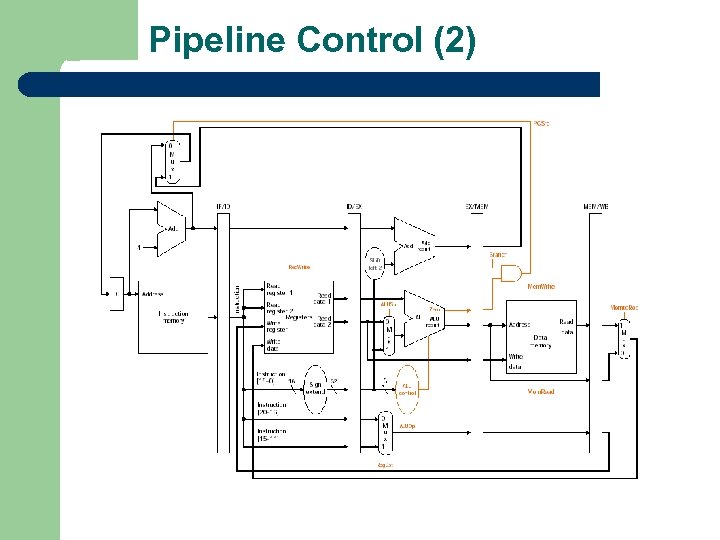

Pipeline Control (2)

Pipeline Control (3)

Pipeline Datapath with Control

Pipeline Instruction Example (1)

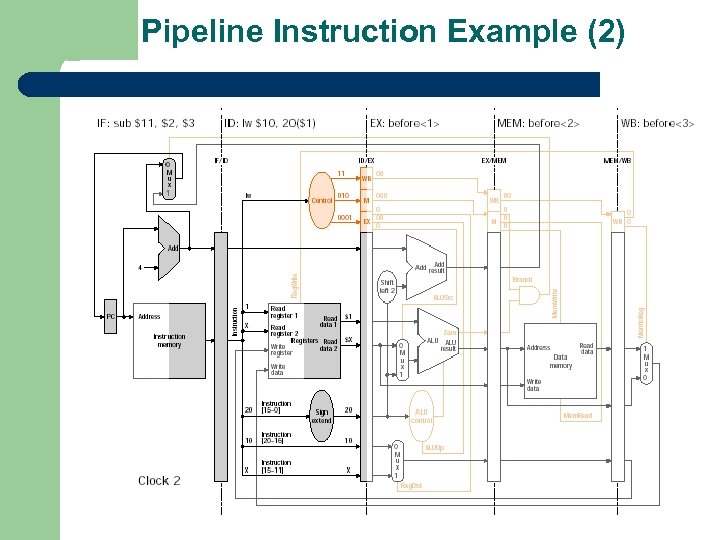

Pipeline Instruction Example (2)

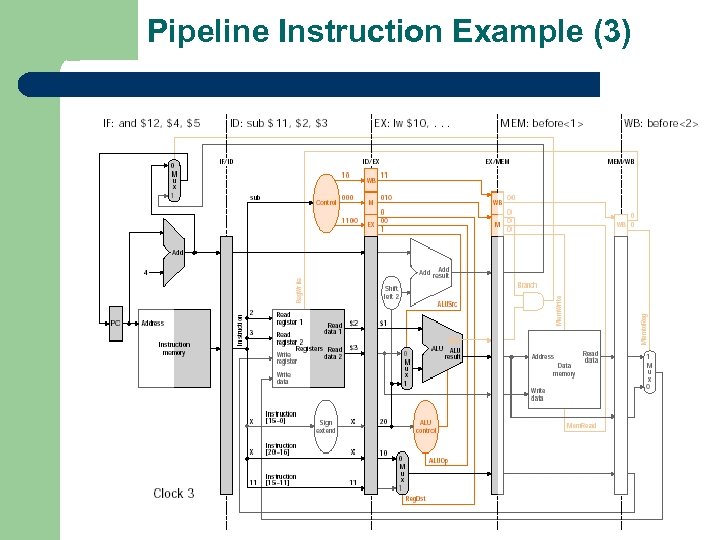

Pipeline Instruction Example (3)

Pipeline Instruction Example (4)

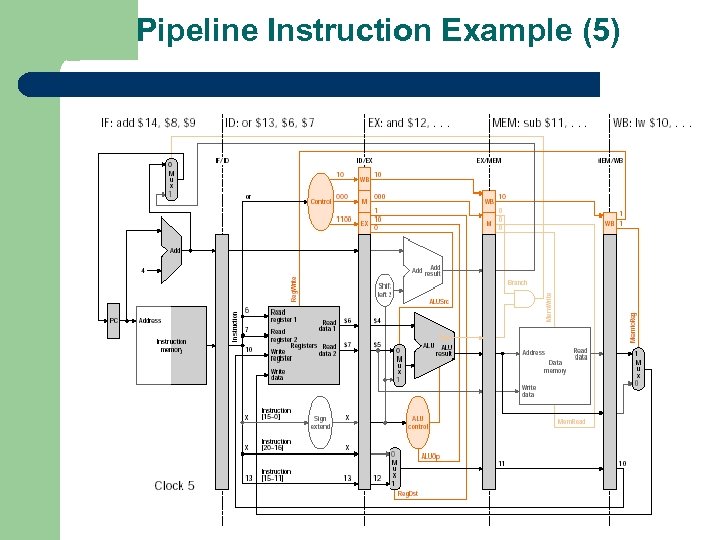

Pipeline Instruction Example (5)

Pipeline Instruction Example (6)

Pipeline Instruction Example (7)

Pipeline Instruction Example (8)

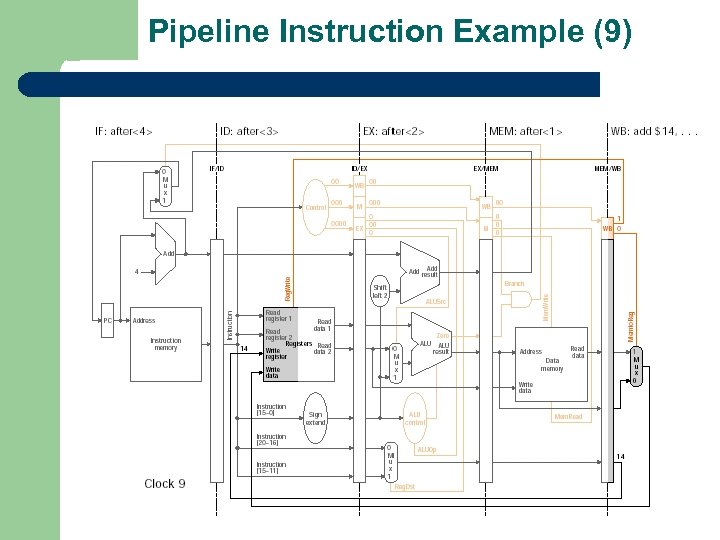

Pipeline Instruction Example (9)

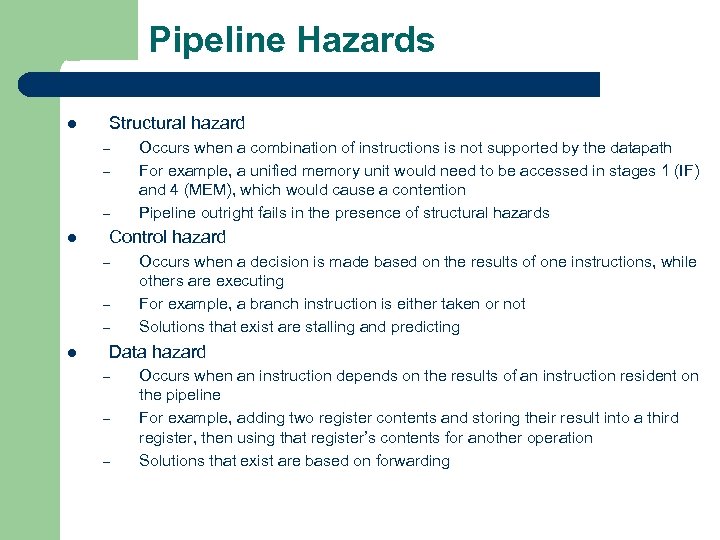

Pipeline Hazards l Structural hazard – – – l Control hazard – – – l Occurs when a combination of instructions is not supported by the datapath For example, a unified memory unit would need to be accessed in stages 1 (IF) and 4 (MEM), which would cause a contention Pipeline outright fails in the presence of structural hazards Occurs when a decision is made based on the results of one instructions, while others are executing For example, a branch instruction is either taken or not Solutions that exist are stalling and predicting Data hazard – – – Occurs when an instruction depends on the results of an instruction resident on the pipeline For example, adding two register contents and storing their result into a third register, then using that register’s contents for another operation Solutions that exist are based on forwarding

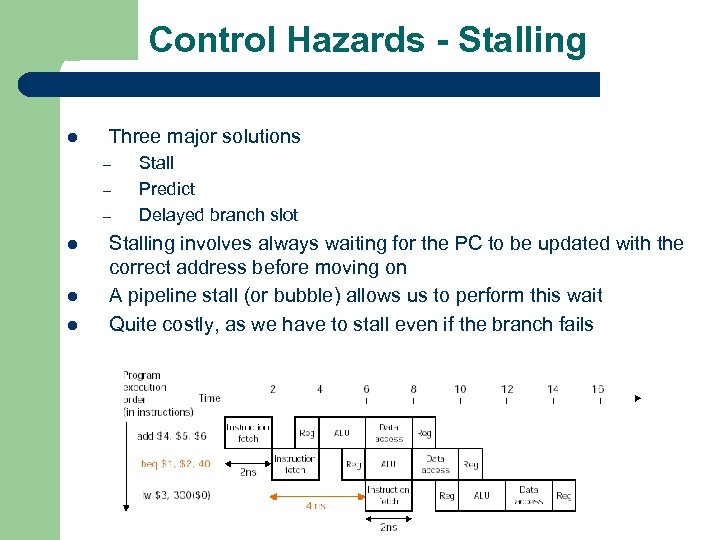

Control Hazards - Stalling l Three major solutions – – – l l l Stall Predict Delayed branch slot Stalling involves always waiting for the PC to be updated with the correct address before moving on A pipeline stall (or bubble) allows us to perform this wait Quite costly, as we have to stall even if the branch fails

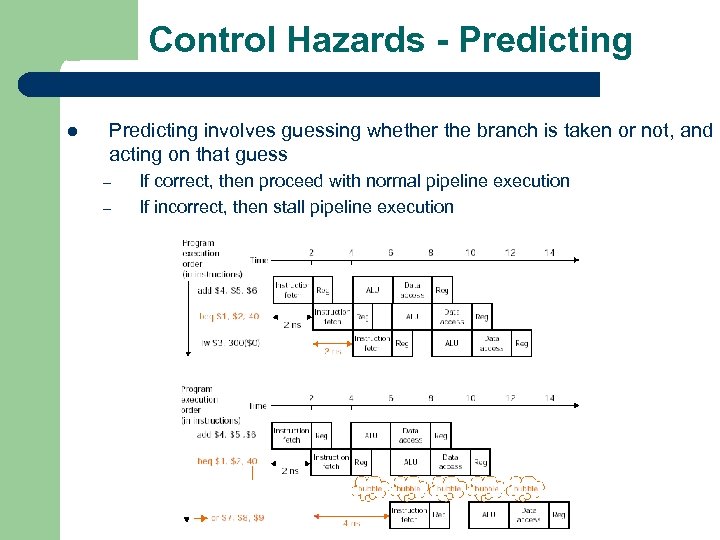

Control Hazards - Predicting l Predicting involves guessing whether the branch is taken or not, and acting on that guess – – If correct, then proceed with normal pipeline execution If incorrect, then stall pipeline execution

Control Hazards – Delayed branch l l Delayed branch involves executing the next sequential instruction with the branch taking place after that delayed branch slot The assembler automatically adjusts the instructions to make it transparent from the programmer – – – The instruction has to be safe, as in it shouldn’t affect the branch Longer pipelines requires the use of more branch delay slots Actual MIPS architecture solution

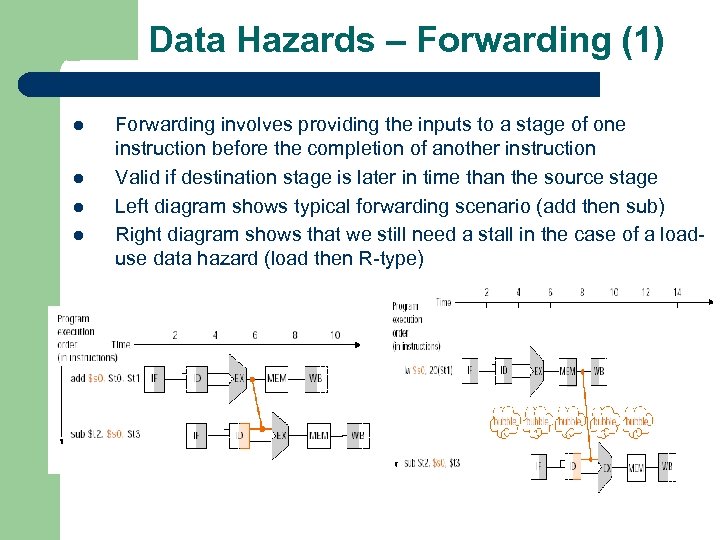

Data Hazards – Forwarding (1) l l Forwarding involves providing the inputs to a stage of one instruction before the completion of another instruction Valid if destination stage is later in time than the source stage Left diagram shows typical forwarding scenario (add then sub) Right diagram shows that we still need a stall in the case of a loaduse data hazard (load then R-type)

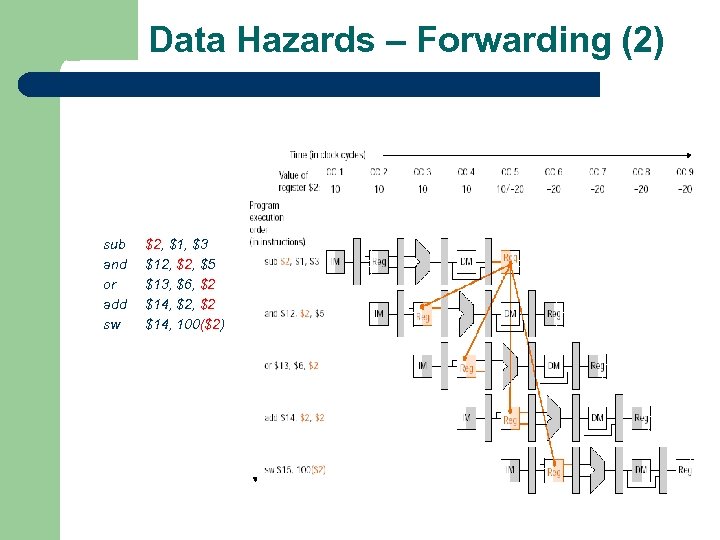

Data Hazards – Forwarding (2) sub and or add sw $2, $1, $3 $12, $5 $13, $6, $2 $14, 100($2)

Data Hazards – Crude Solution l We could insert “no operation” (nop) instructions to delay the pipeline execution until the correct result is in the register file sub nop and or add sw l l $2, $1, $3 $12, $5 $13, $6, $2 $14, 100($2) Too slow as it adds extra useless clock cycles In reality, we try to find useful instructions to execute between datadependent instructions, but this happens too often to be efficient

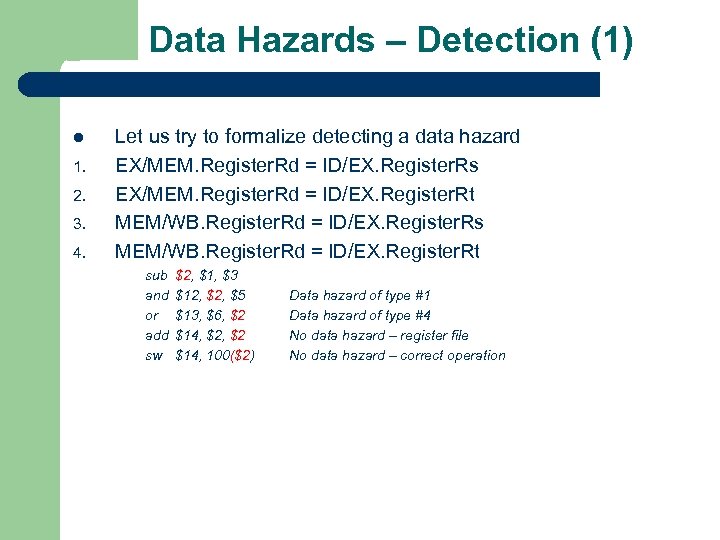

Data Hazards – Detection (1) l 1. 2. 3. 4. Let us try to formalize detecting a data hazard EX/MEM. Register. Rd = ID/EX. Register. Rs EX/MEM. Register. Rd = ID/EX. Register. Rt MEM/WB. Register. Rd = ID/EX. Register. Rs MEM/WB. Register. Rd = ID/EX. Register. Rt sub and or add sw $2, $1, $3 $12, $5 $13, $6, $2 $14, 100($2) Data hazard of type #1 Data hazard of type #4 No data hazard – register file No data hazard – correct operation

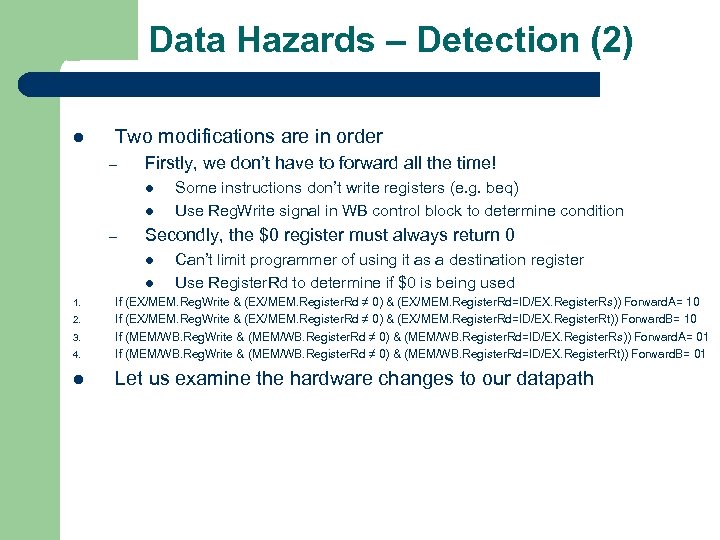

Data Hazards – Detection (2) l Two modifications are in order – Firstly, we don’t have to forward all the time! l l – Some instructions don’t write registers (e. g. beq) Use Reg. Write signal in WB control block to determine condition Secondly, the $0 register must always return 0 l Can’t limit programmer of using it as a destination register Use Register. Rd to determine if $0 is being used 4. l If (EX/MEM. Reg. Write & (EX/MEM. Register. Rd ≠ 0) & (EX/MEM. Register. Rd=ID/EX. Register. Rs)) Forward. A= 10 If (EX/MEM. Reg. Write & (EX/MEM. Register. Rd ≠ 0) & (EX/MEM. Register. Rd=ID/EX. Register. Rt)) Forward. B= 10 If (MEM/WB. Reg. Write & (MEM/WB. Register. Rd ≠ 0) & (MEM/WB. Register. Rd=ID/EX. Register. Rs)) Forward. A= 01 If (MEM/WB. Reg. Write & (MEM/WB. Register. Rd ≠ 0) & (MEM/WB. Register. Rd=ID/EX. Register. Rt)) Forward. B= 01 l Let us examine the hardware changes to our datapath 1. 2. 3.

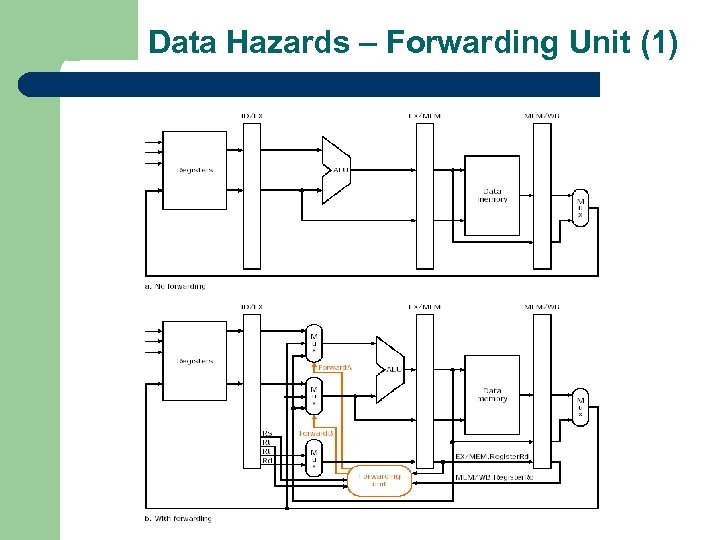

Data Hazards – Forwarding Unit (1)

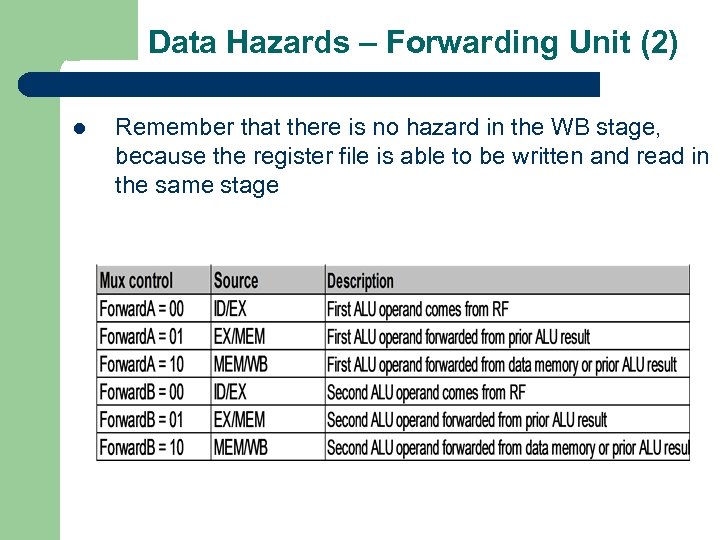

Data Hazards – Forwarding Unit (2) l Remember that there is no hazard in the WB stage, because the register file is able to be written and read in the same stage

Data Hazards – Forwarding Unit (3)

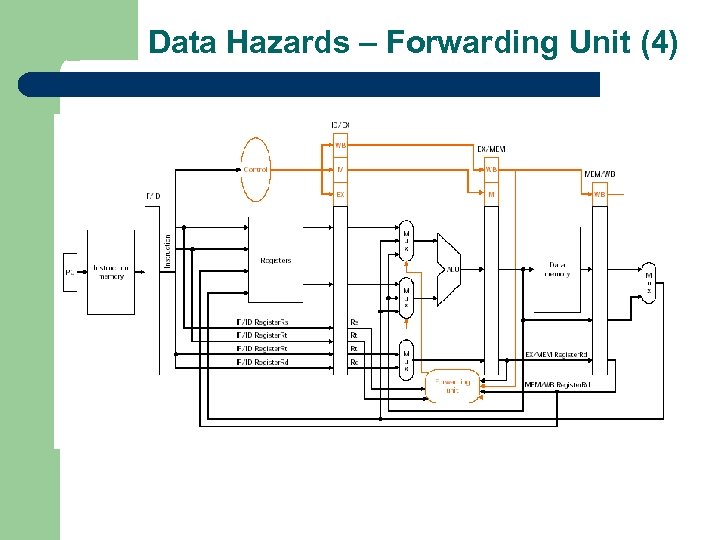

Data Hazards – Forwarding Unit (4)

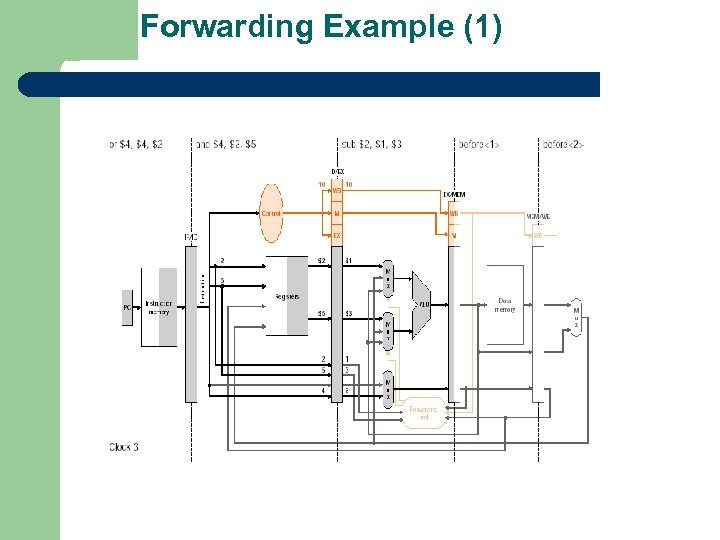

Forwarding Example (1)

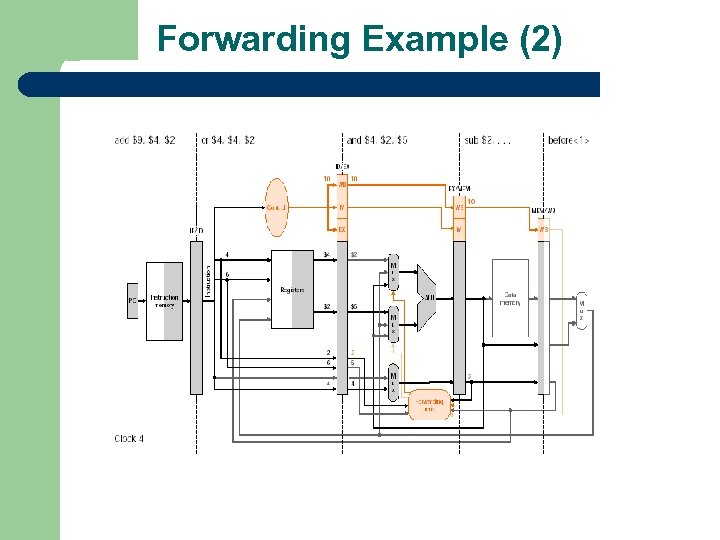

Forwarding Example (2)

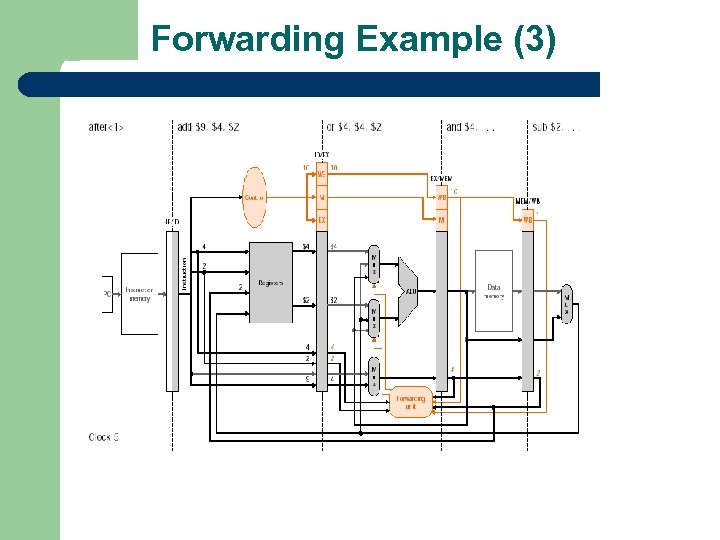

Forwarding Example (3)

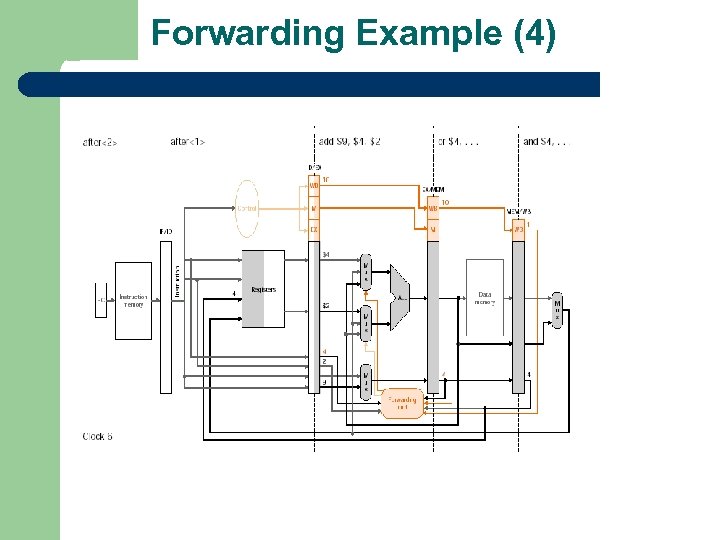

Forwarding Example (4)

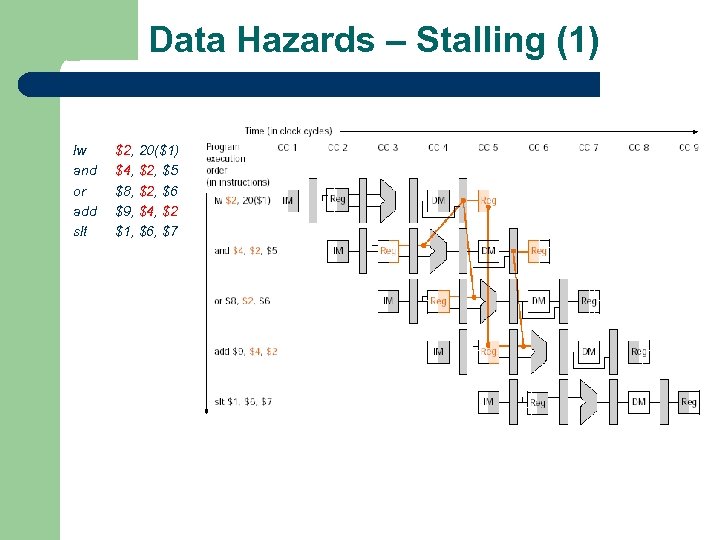

Data Hazards – Stalling (1) lw and or add slt $2, 20($1) $4, $2, $5 $8, $2, $6 $9, $4, $2 $1, $6, $7

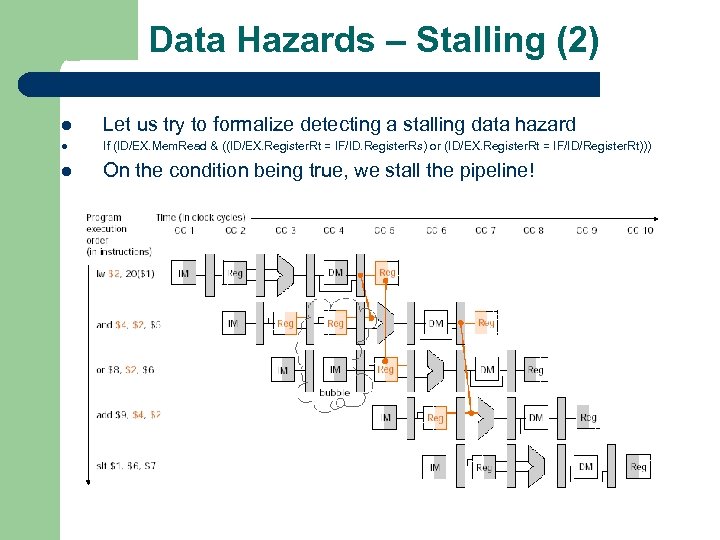

Data Hazards – Stalling (2) l Let us try to formalize detecting a stalling data hazard l If (ID/EX. Mem. Read & ((ID/EX. Register. Rt = IF/ID. Register. Rs) or (ID/EX. Register. Rt = IF/ID/Register. Rt))) l On the condition being true, we stall the pipeline!

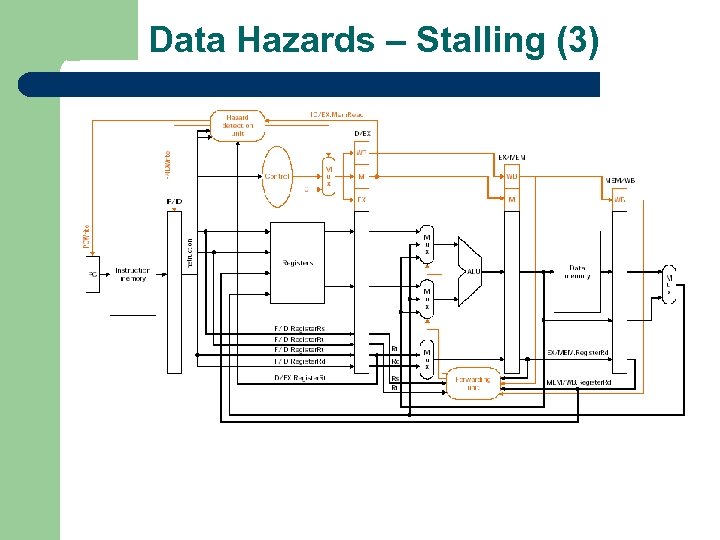

Data Hazards – Stalling (3)

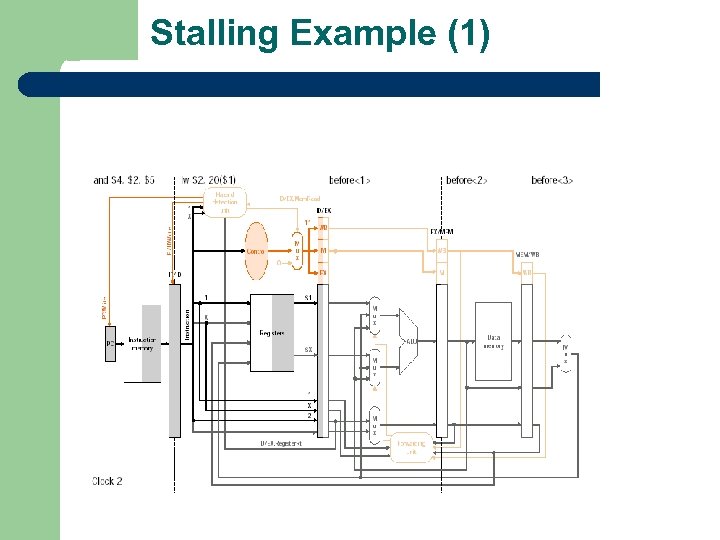

Stalling Example (1)

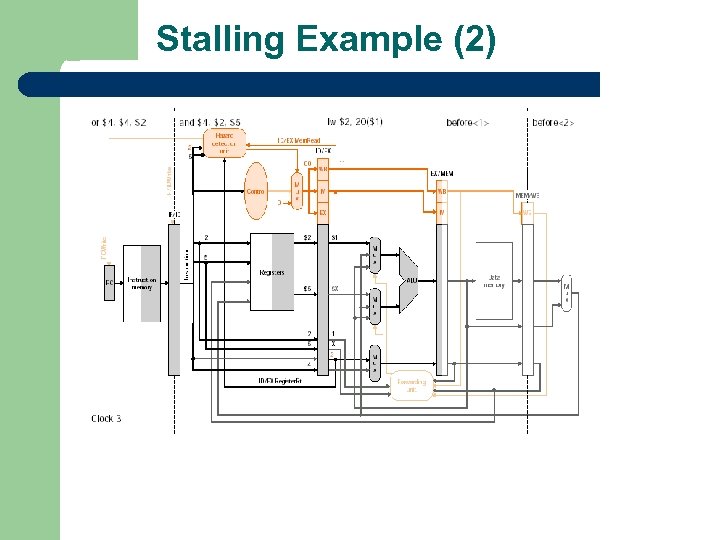

Stalling Example (2)

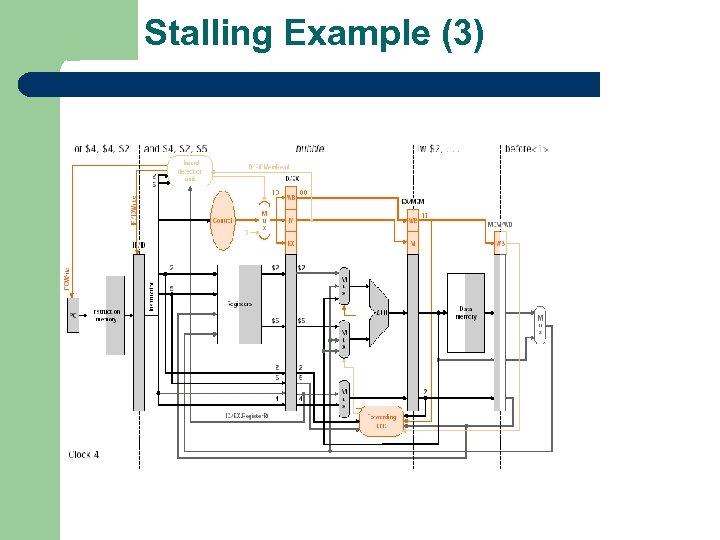

Stalling Example (3)

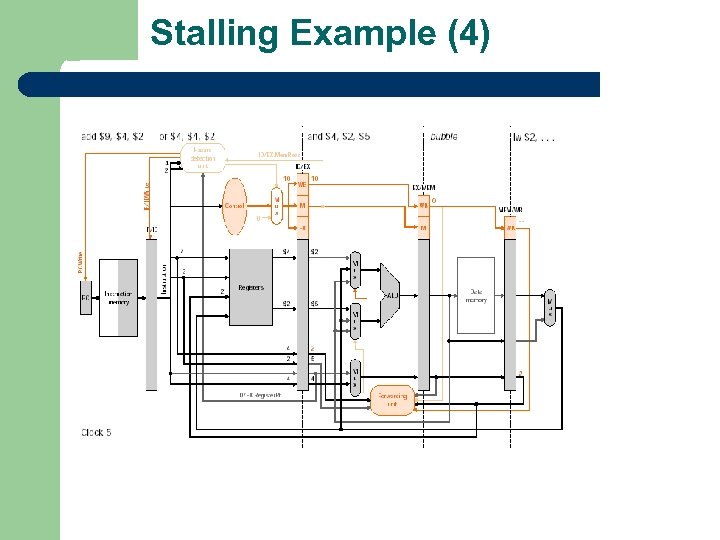

Stalling Example (4)

Stalling Example (5)

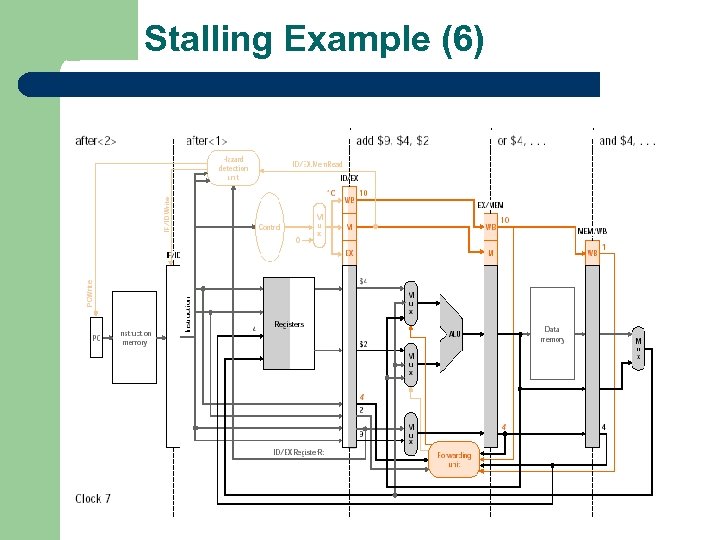

Stalling Example (6)

Branch Hazards l Other instructions are on the pipeline when we find out whether we take the branch or not!

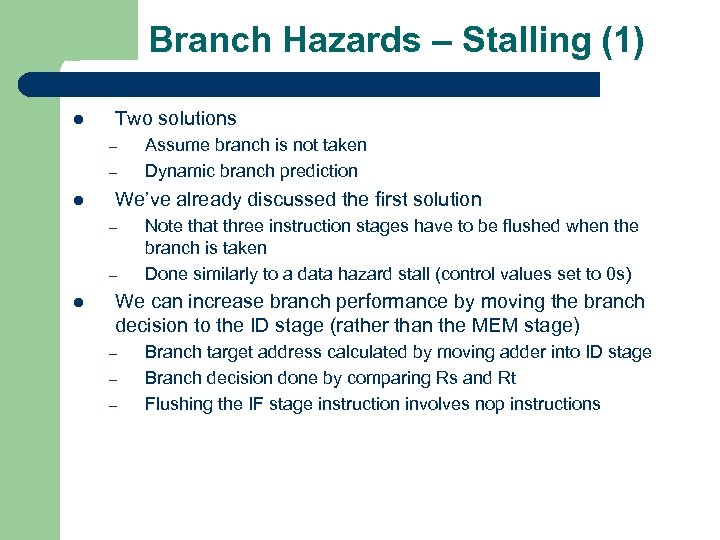

Branch Hazards – Stalling (1) l Two solutions – – l We’ve already discussed the first solution – – l Assume branch is not taken Dynamic branch prediction Note that three instruction stages have to be flushed when the branch is taken Done similarly to a data hazard stall (control values set to 0 s) We can increase branch performance by moving the branch decision to the ID stage (rather than the MEM stage) – – – Branch target address calculated by moving adder into ID stage Branch decision done by comparing Rs and Rt Flushing the IF stage instruction involves nop instructions

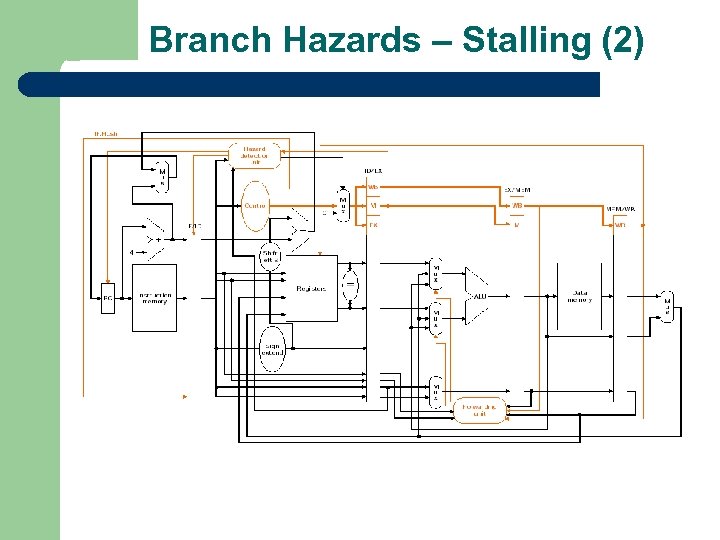

Branch Hazards – Stalling (2)

Branching Example (1)

Branching Example (2)

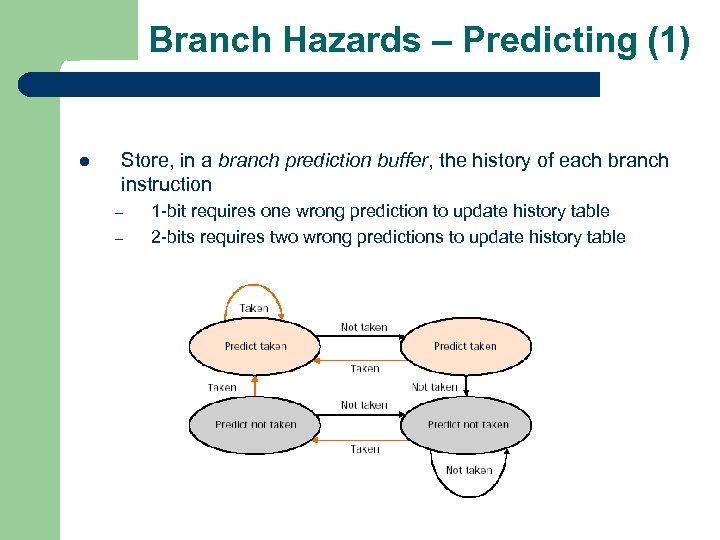

Branch Hazards – Predicting (1) l Store, in a branch prediction buffer, the history of each branch instruction – – 1 -bit requires one wrong prediction to update history table 2 -bits requires two wrong predictions to update history table

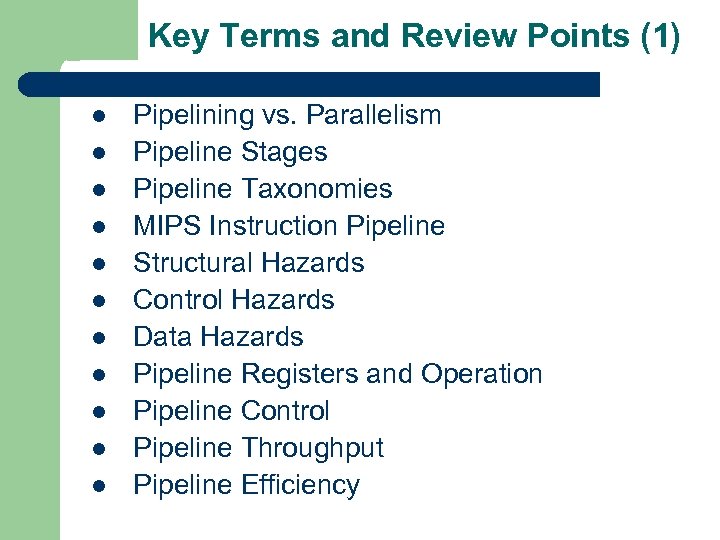

Key Terms and Review Points (1) l l l Pipelining vs. Parallelism Pipeline Stages Pipeline Taxonomies MIPS Instruction Pipeline Structural Hazards Control Hazards Data Hazards Pipeline Registers and Operation Pipeline Control Pipeline Throughput Pipeline Efficiency

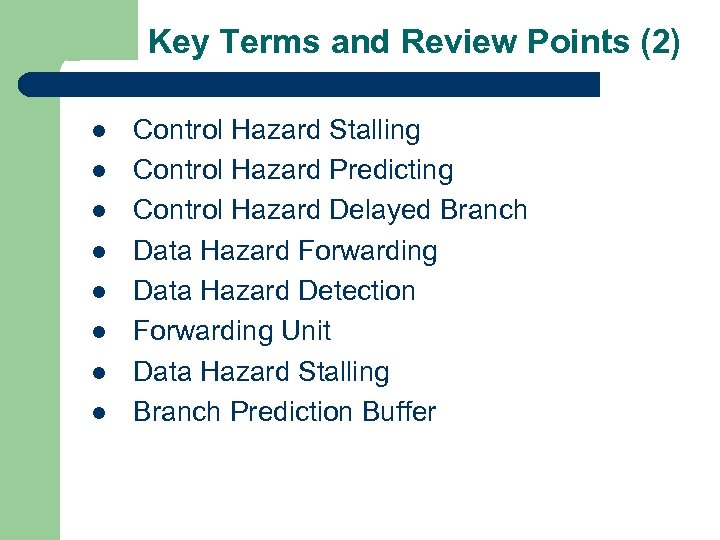

Key Terms and Review Points (2) l l l l Control Hazard Stalling Control Hazard Predicting Control Hazard Delayed Branch Data Hazard Forwarding Data Hazard Detection Forwarding Unit Data Hazard Stalling Branch Prediction Buffer

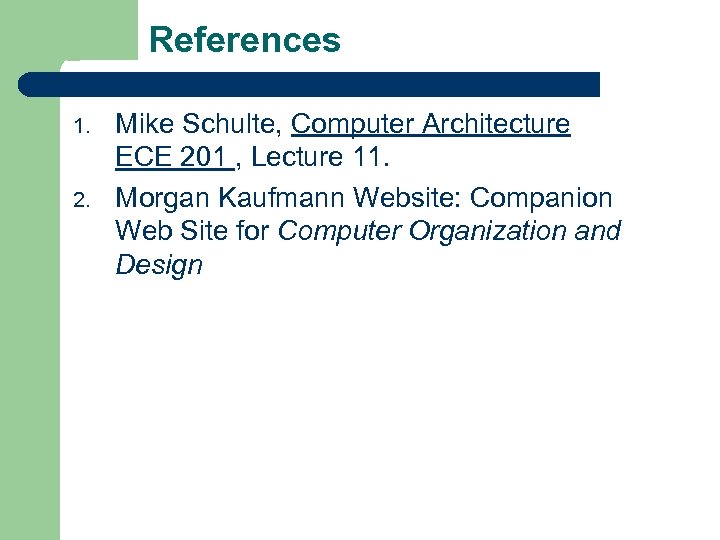

References 1. 2. Mike Schulte, Computer Architecture ECE 201 , Lecture 11. Morgan Kaufmann Website: Companion Web Site for Computer Organization and Design
