ENERGY STAR Qualified Homes 2011 Specifications Overview

ENERGY STAR FOR HOMES GROWTH THE ROAD TO ONE MILLION HOMES 1, 000 800, 000 Number Labeled Homes 600, 000 Cumulative 400, 000 Annual 200, 000 0 96 97 98 99 00 01 02 03 04 05 06 07 08 09 Year

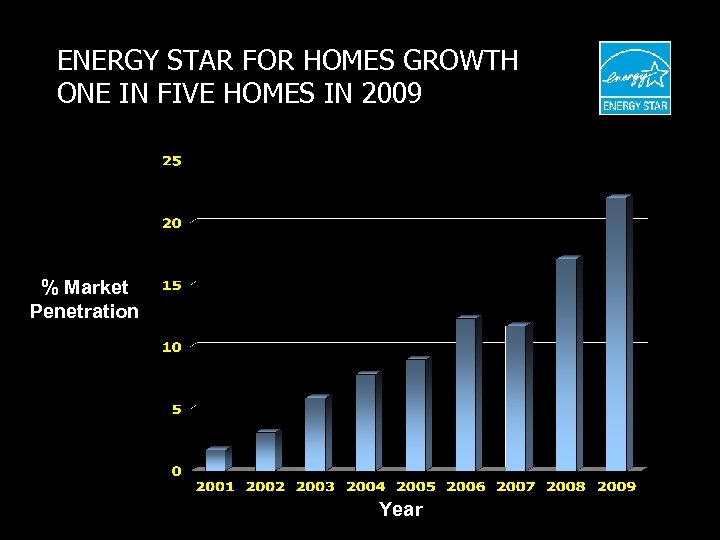

ENERGY STAR FOR HOMES GROWTH ONE IN FIVE HOMES IN 2009 % Market Penetration Year

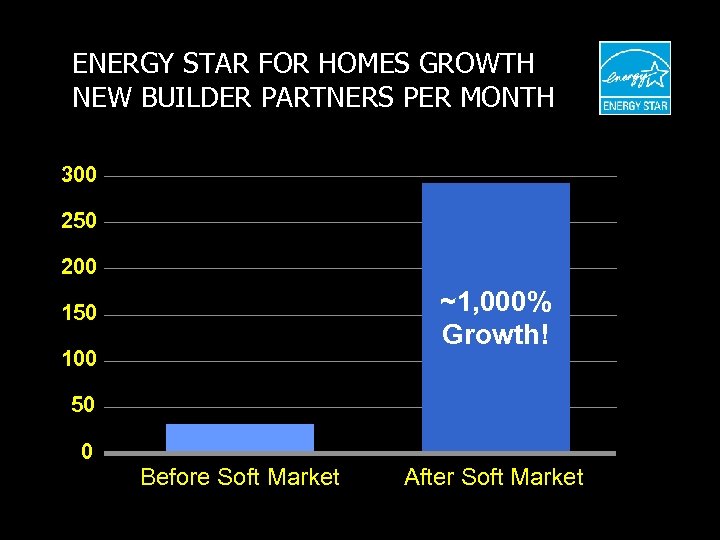

ENERGY STAR FOR HOMES GROWTH NEW BUILDER PARTNERS PER MONTH 300 250 200 ~1, 000% Growth! 150 100 50 0 Before Soft Market After Soft Market

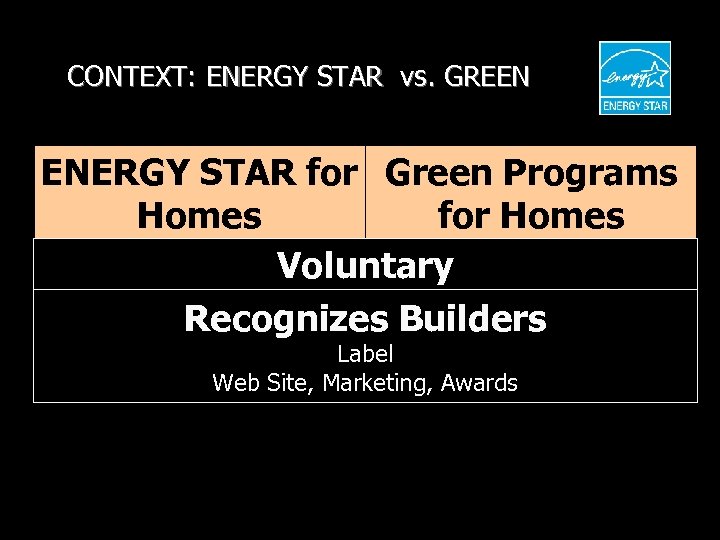

CONTEXT: ENERGY STAR vs. GREEN ENERGY STAR for Green Programs Homes for Homes Voluntary Recognizes Builders Label Web Site, Marketing, Awards

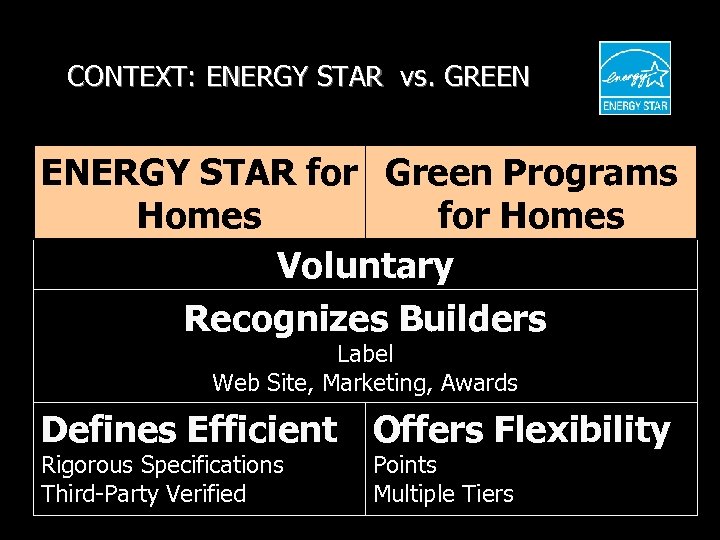

CONTEXT: ENERGY STAR vs. GREEN ENERGY STAR for Green Programs Homes for Homes Voluntary Recognizes Builders Label Web Site, Marketing, Awards Defines Efficient Offers Flexibility Rigorous Specifications Third-Party Verified Points Multiple Tiers

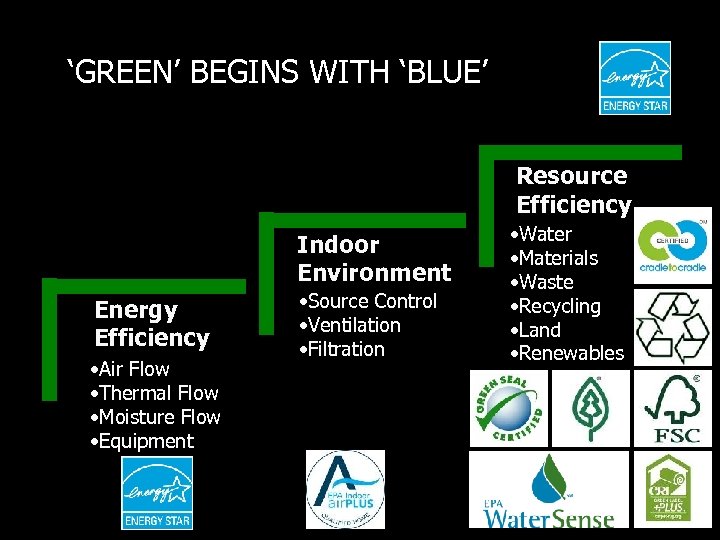

‘GREEN’ BEGINS WITH ‘BLUE’ Resource Efficiency Indoor Environment Energy Efficiency • Air Flow • Thermal Flow • Moisture Flow • Equipment • Source Control • Ventilation • Filtration • Water • Materials • Waste • Recycling • Land • Renewables

WHY SPECIFICATIONS SO IMPORTANT A voluntary labeling program that: · Defines Energy Efficient Rigorous Specifications Third-Party Verified · Recognizes Builders Government-Backed Label Web Site, Marketing, Awards

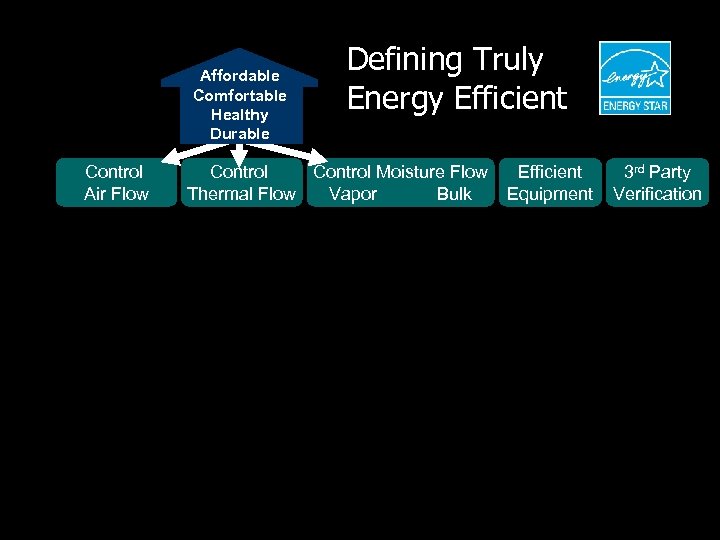

Affordable Comfortable Healthy Durable Control Air Flow Defining Truly Energy Efficient Control Moisture Flow Thermal Flow Vapor Bulk Efficient Equipment 3 rd Party Verification

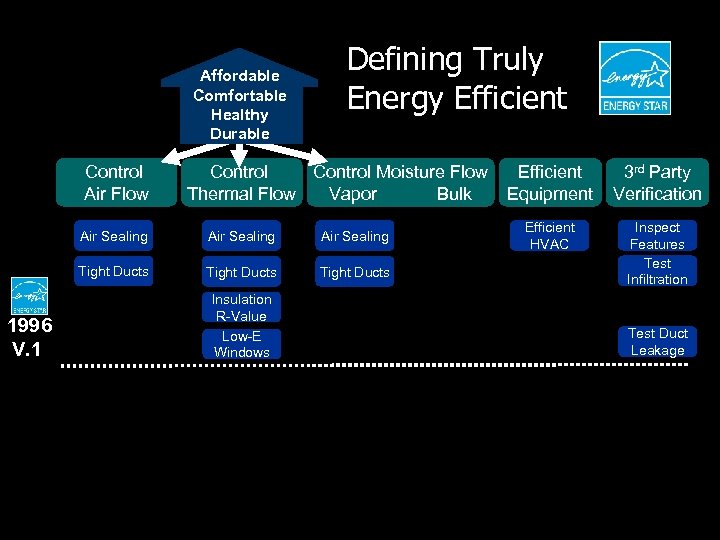

Affordable Comfortable Healthy Durable Control Air Flow Defining Truly Energy Efficient Control Moisture Flow Thermal Flow Vapor Bulk Air Sealing Tight Ducts 1996 V. 1 Air Sealing Tight Ducts Insulation R-Value Low-E Windows Efficient Equipment 3 rd Party Verification Efficient HVAC Inspect Features Test Infiltration Test Duct Leakage

Affordable Comfortable Healthy Durable Control Air Flow Defining Truly Energy Efficient Control Moisture Flow Thermal Flow Vapor Bulk Air Sealing Tight Ducts 3 rd Party Verification Efficient HVAC Inspect Features Test Infiltration Tight Ducts Insulation R-Value Low-E Windows 1996 V. 1 Air Barriers 2006 V. 2 Efficient Equipment Test Duct Leakage Air Barriers Insulation Alignment Right-Sizing Efficient WH System Efficient Lgtg. /Appl. Thermal Bypass Chk

How we sold 2006 spec, first we asked a question… What technology will revolutionize the housing industry? Hint: it has nothing to do with construction…

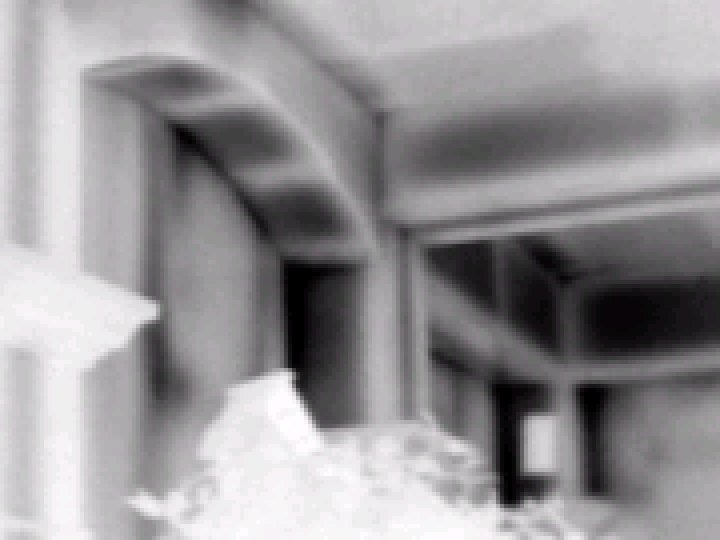

Answer… Low Cost Infrared Cameras

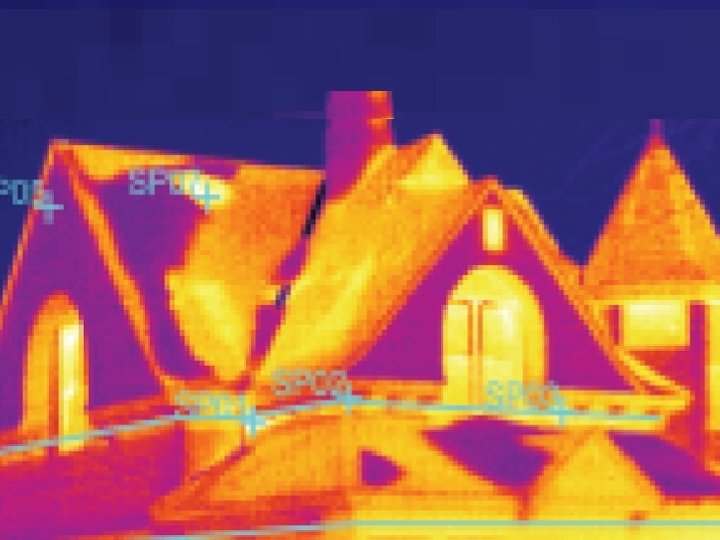

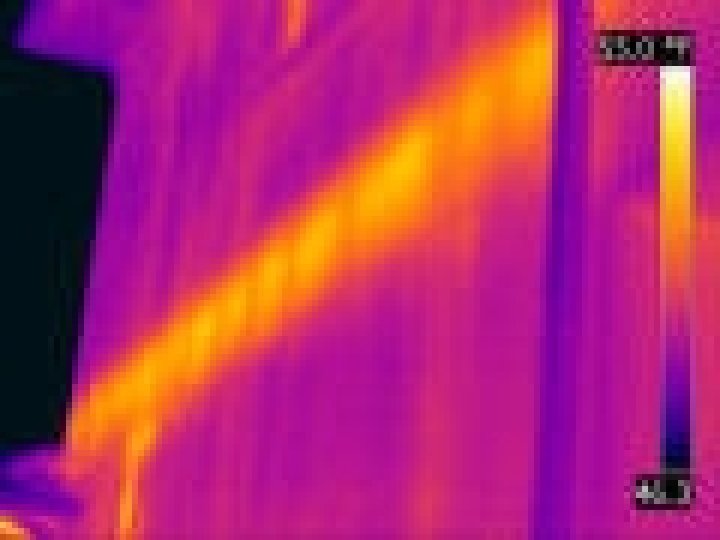

OBSOLETE COMPETITION

BUILDING SCIENCE RULES TO LIVE BY · Driving Forces Move More to Less: - More Heat to Less Heat - More Pressure to Less Pressure - More Humidity to Less Humidity · Gravity Makes Things Fall

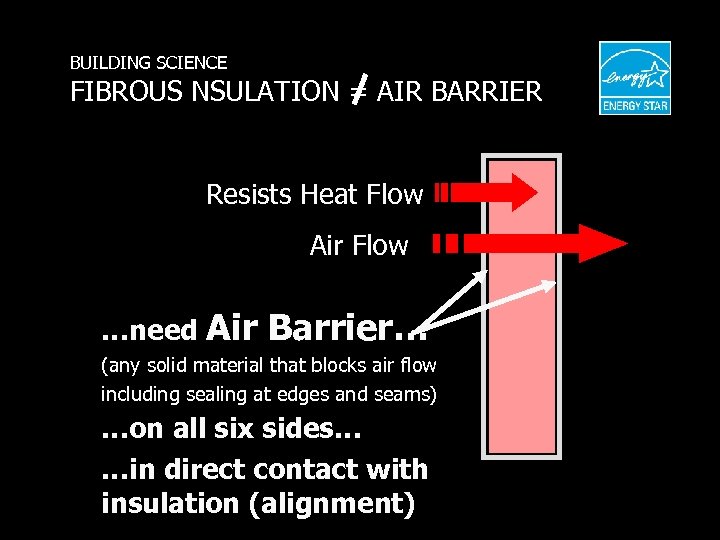

BUILDING SCIENCE FIBROUS NSULATION = AIR BARRIER Resists Heat Flow Air Flow …need Air Barrier… (any solid material that blocks air flow including sealing at edges and seams) …on all six sides… …in direct contact with insulation (alignment)

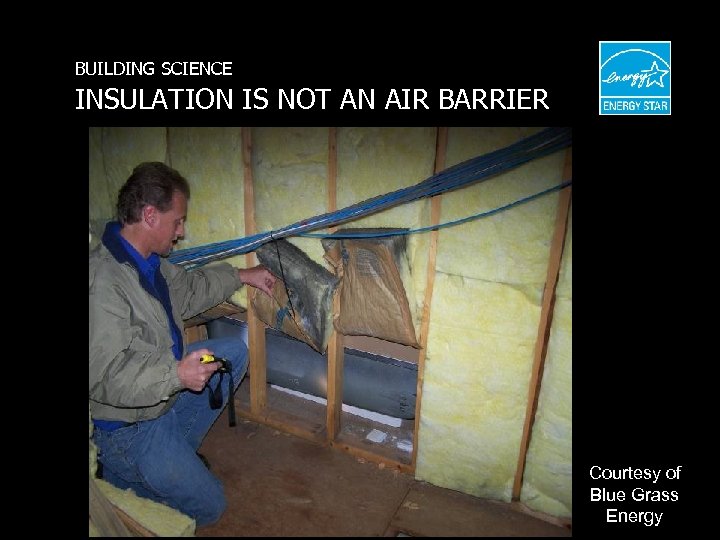

BUILDING SCIENCE INSULATION IS NOT AN AIR BARRIER Courtesy of Blue Grass Energy

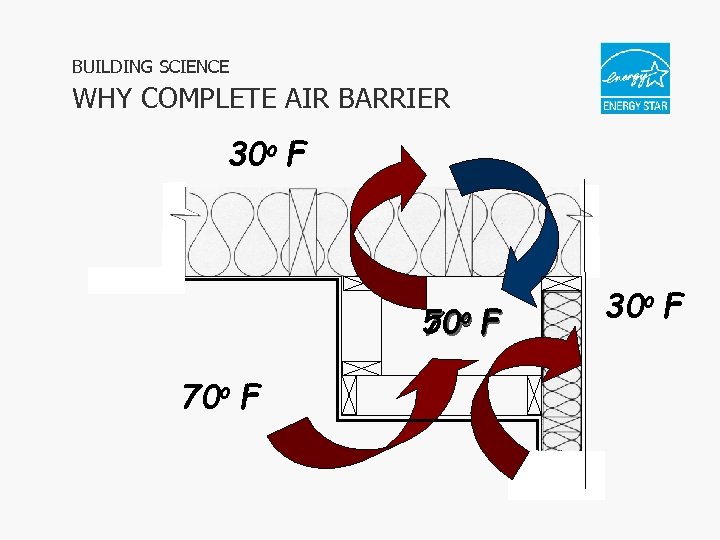

BUILDING SCIENCE WHY COMPLETE AIR BARRIER 30 o F 50 o F 70 o 70 o F 30 o F

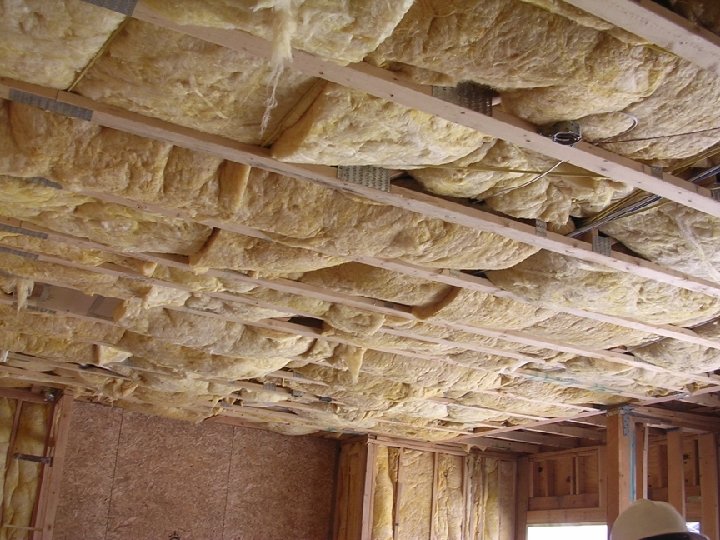

INSET STAPLING = MISALIGNMENT

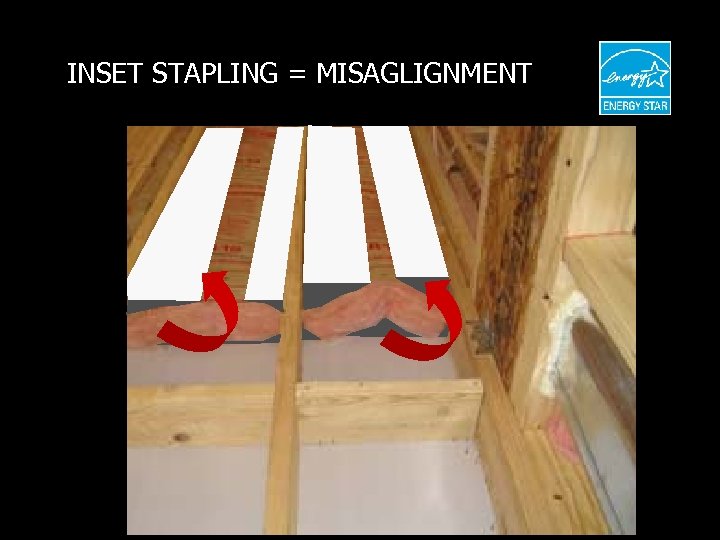

INSET STAPLING = MISAGLIGNMENT

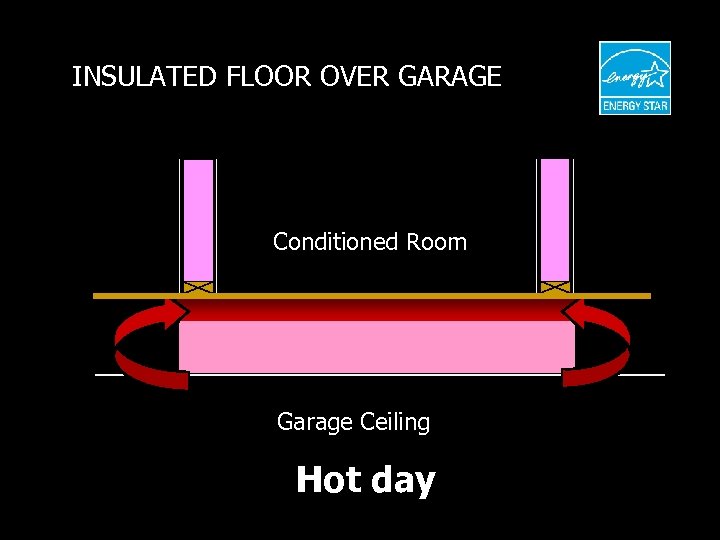

INSULATED FLOOR OVER GARAGE Conditioned Room Garage Ceiling Hot day

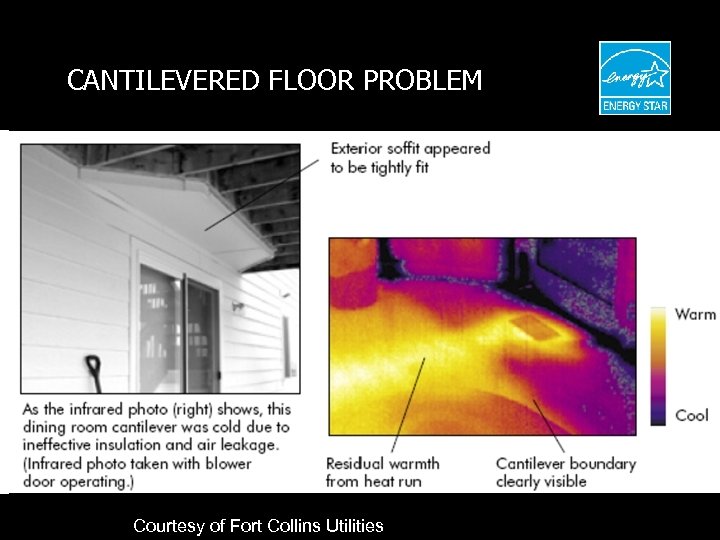

CANTILEVERED FLOOR PROBLEM Courtesy of Fort Collins Utilities

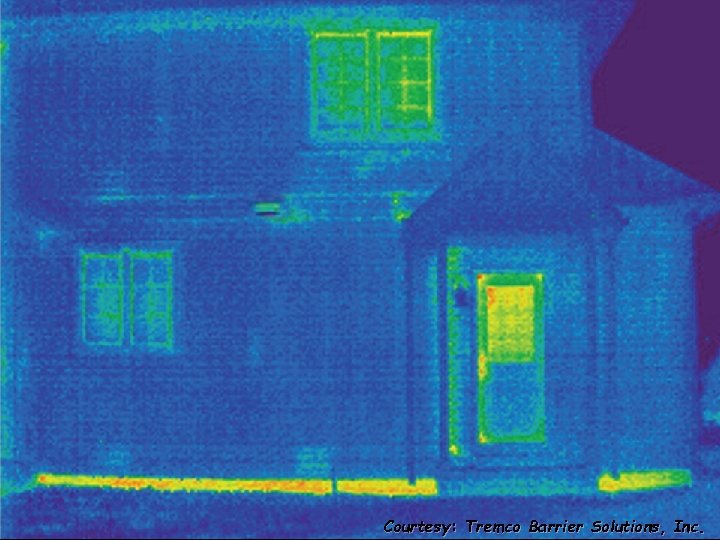

Courtesy: Tremco Barrier Solutions, Inc.

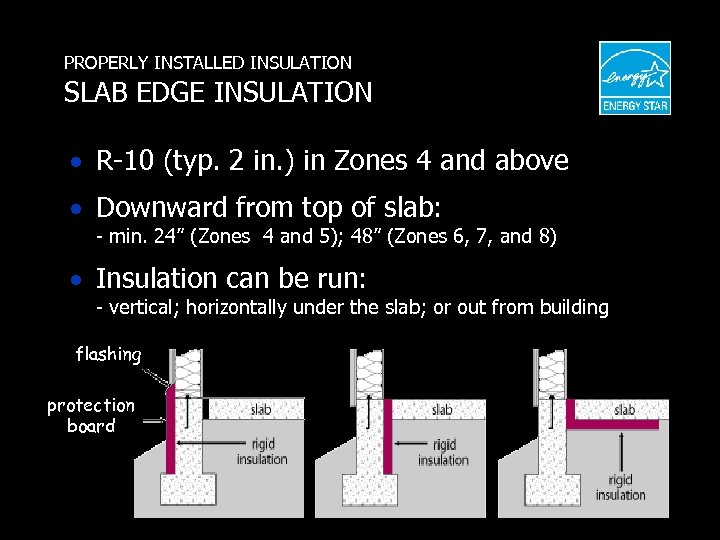

PROPERLY INSTALLED INSULATION SLAB EDGE INSULATION · R-10 (typ. 2 in. ) in Zones 4 and above · Downward from top of slab: - min. 24” (Zones 4 and 5); 48” (Zones 6, 7, and 8) · Insulation can be run: - vertical; horizontally under the slab; or out from building flashing protection board

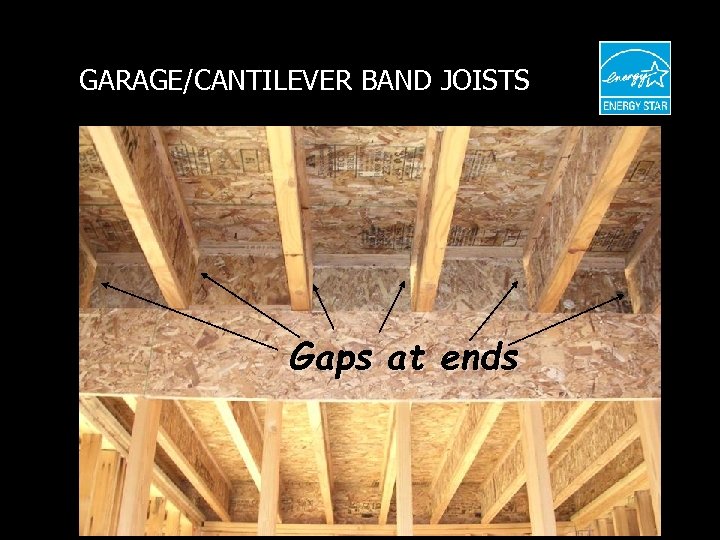

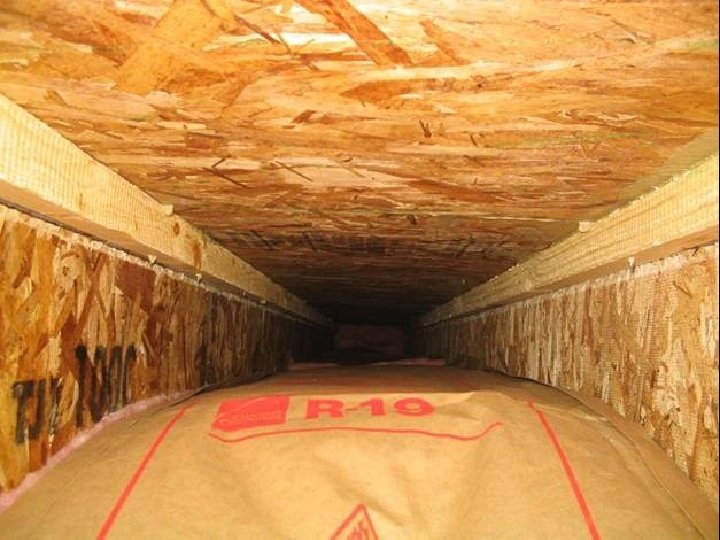

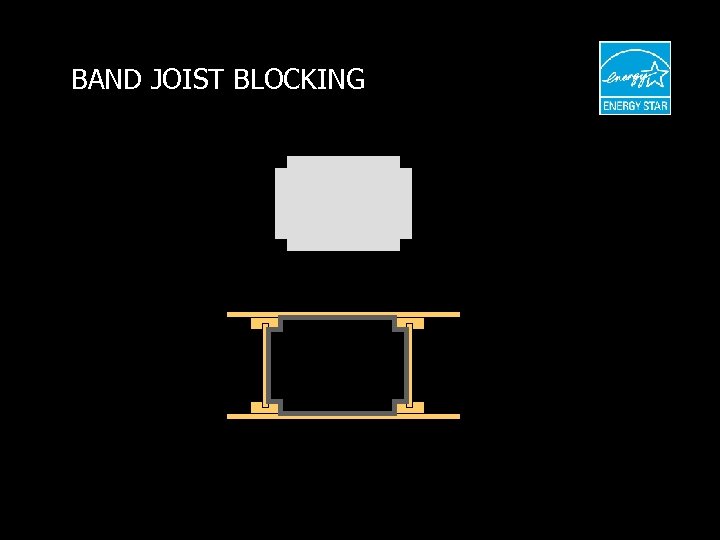

GARAGE/CANTILEVER BAND JOISTS Gaps at ends

BAND JOIST BLOCKING Filler blocking much harder shape with Engineered lumber

Now it’s time for 2011 spec… What value proposition will make used and minimum code homes even more obsolete? Complete Systems

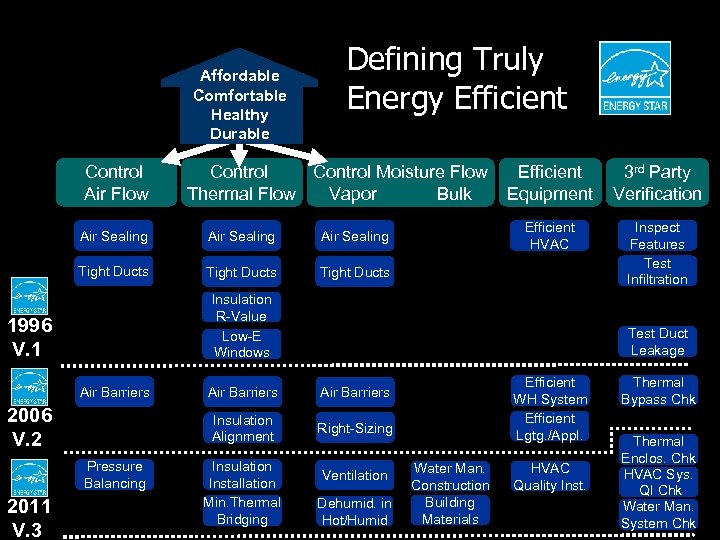

Affordable Comfortable Healthy Durable Control Air Flow Defining Truly Energy Efficient Control Moisture Flow Thermal Flow Vapor Bulk Air Sealing Tight Ducts Inspect Features Test Infiltration Tight Ducts Insulation R-Value Low-E Windows 1996 V. 1 Air Barriers Test Duct Leakage Pressure Balancing Air Barriers Efficient WH System Efficient Lgtg. /Appl. Air Barriers Insulation Alignment 2006 V. 2 2011 V. 3 3 rd Party Verification Efficient HVAC Air Sealing Efficient Equipment Right-Sizing Insulation Installation Min. Thermal Bridging Ventilation Dehumid. in Hot/Humid Water Man. Construction Building Materials HVAC Quality Inst. Thermal Bypass Chk Thermal Enclos. Chk HVAC Sys. QI Chk Water Man. System Chk

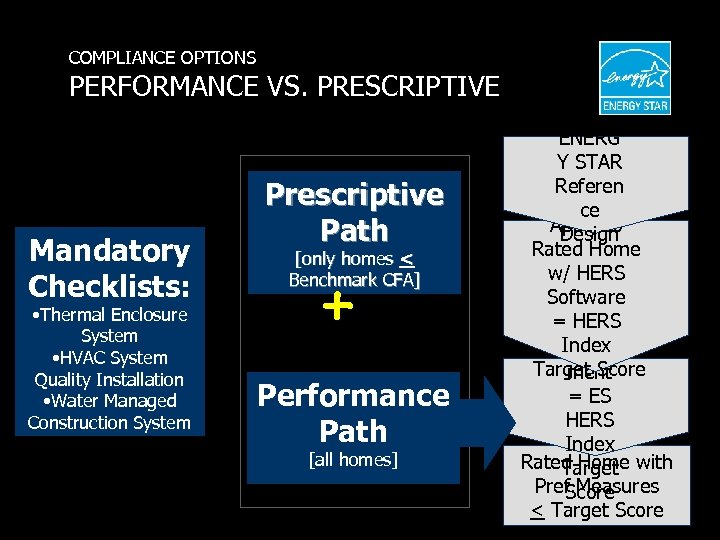

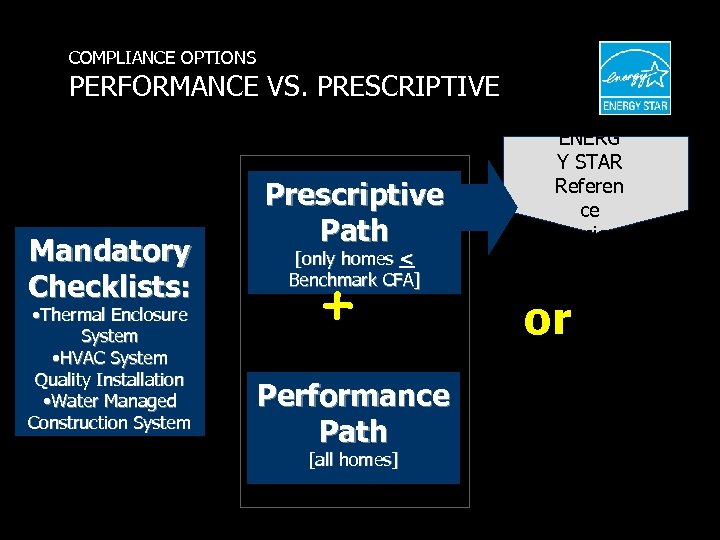

COMPLIANCE OPTIONS PERFORMANCE VS. PRESCRIPTIVE Mandatory Checklists: • Thermal Enclosure System • HVAC System Quality Installation • Water Managed Construction System Prescriptive Path [only homes < Benchmark CFA] + Performance Path [all homes] ENERG Y STAR Referen ce Design or

COMPLIANCE OPTIONS PERFORMANCE VS. PRESCRIPTIVE Mandatory Checklists: • Thermal Enclosure System • HVAC System Quality Installation • Water Managed Construction System Prescriptive Path [only homes < Benchmark CFA] + Performance Path [all homes] ENERG Y STAR Referen ce Apply to Design Rated Home w/ HERS Software = Size HERS Index Adjust Target Score ment = ES HERS Index Rated Home with Target Pref. Measures Score < Target Score or

COMPLIANCE OPTIONS PERFORMANCE VS. PRESCRIPTIVE Likely to be automated by software Mandatory Checklists: • Thermal Enclosure System • HVAC System Quality Installation • Water Managed Construction System Prescriptive Path [only homes < Benchmark CFA] + Performance Path [all homes] ENERG Y STAR Referen ce Apply to Design Rated Home w/ HERS Software = Size HERS Index Adjust Target Score ment = ES HERS Index Rated Home with Target Pref. Measures Score < Target Score or

ENERGY STAR REFERENCE DESIGN Heating and Cooling Equipment: · ENERGY STAR Min. Efficiency [climate based] · > ENERGY STAR for Heat Pumps in Cold Climates Envelope Window and Doors · Tight Construction [1 ach tighter than ENERGY STAR 2006] · Insulation Levels > 2009 IECC · Properly Installed Insulation [RESNET Grade 1] · ENERGY STAR Window [2009 IECC min w/Performance Path] · Radiant Barrier at Roof if Ducts in Attic [CZ 1 -3]

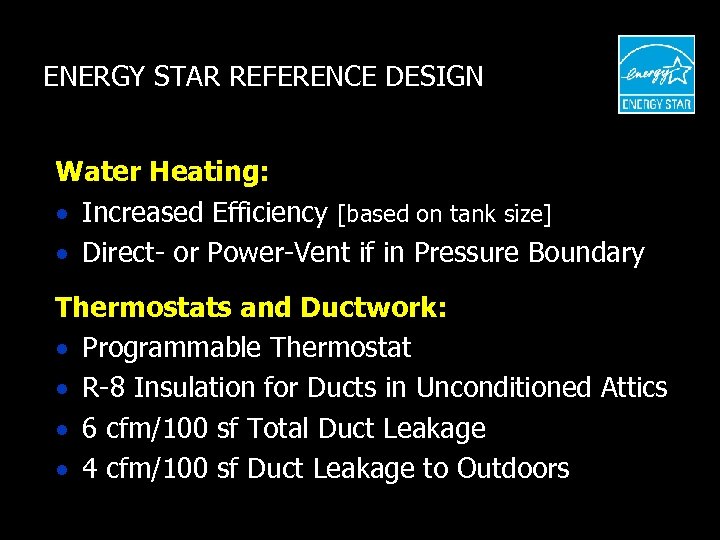

ENERGY STAR REFERENCE DESIGN Water Heating: · Increased Efficiency [based on tank size] · Direct- or Power-Vent if in Pressure Boundary Thermostats and Ductwork: · Programmable Thermostat · R-8 Insulation for Ducts in Unconditioned Attics · 6 cfm/100 sf Total Duct Leakage · 4 cfm/100 sf Duct Leakage to Outdoors

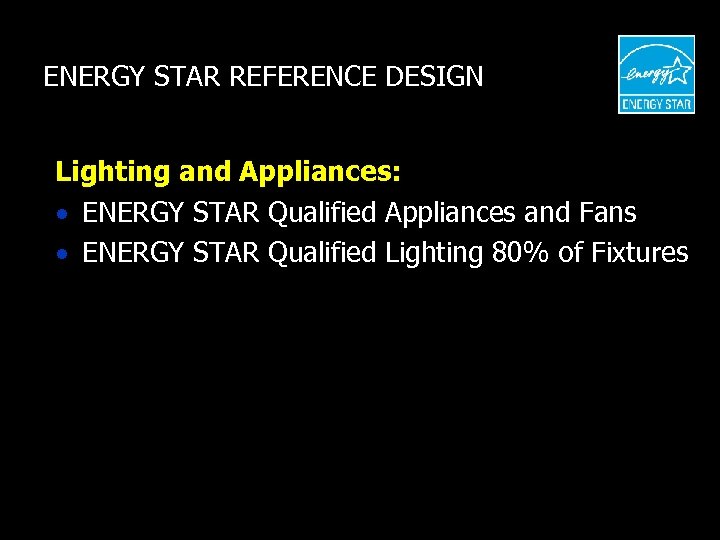

ENERGY STAR REFERENCE DESIGN Lighting and Appliances: · ENERGY STAR Qualified Appliances and Fans · ENERGY STAR Qualified Lighting 80% of Fixtures

COMPLETING SYSTEMS: CHECKLISTS Thermal Enclosure System: • Air Leakage • Insulation R-Value • Insulation Installation • Air Barriers • Thermal Bridging • High-Perf. Windows HVAC System Quality Installation: • Efficient Equipment • Right-Sizing • Air Distribution • Refrigerant Charge • Duct Installation • Pressure Balancing • Ventilation • Filtration Water Management System: • Roof Membranes • Flashing • WRB’s • Fabric Filters • Capillary Breaks • Drainage Layer

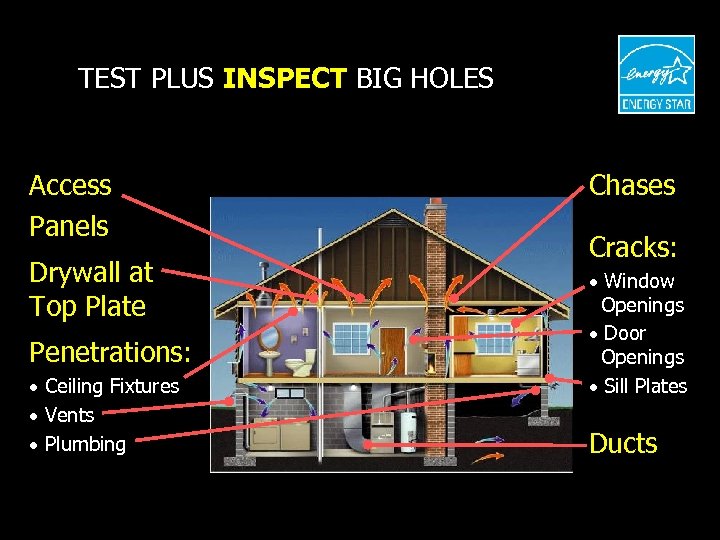

TEST PLUS INSPECT BIG HOLES Access Panels Drywall at Top Plate Penetrations: · Ceiling Fixtures · Vents · Plumbing Chases Cracks: · Window Openings · Door Openings · Sill Plates Ducts

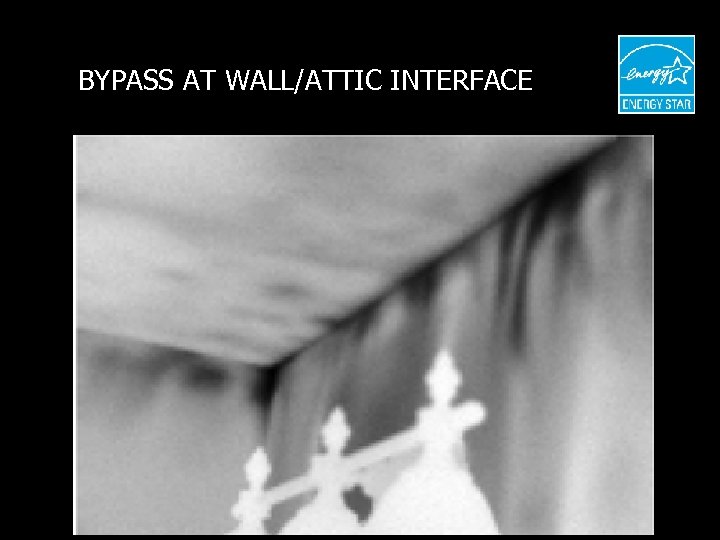

BYPASS AT WALL/ATTIC INTERFACE

WALL/ATTIC INTERFACE DETAIL

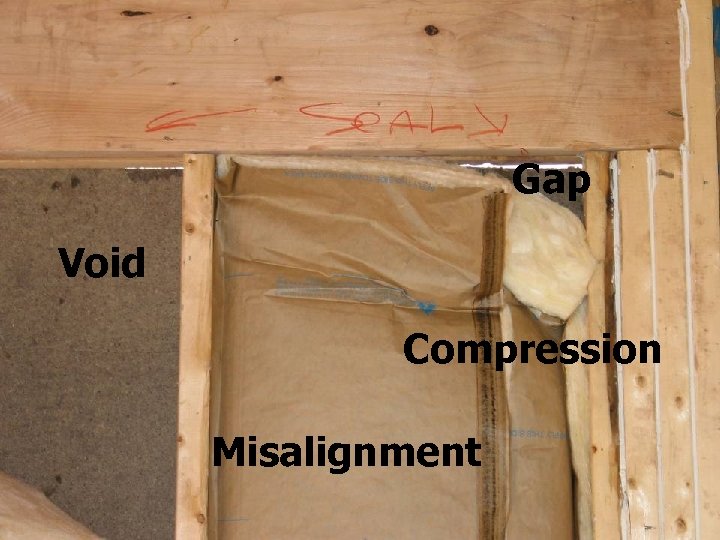

Gap Void Compression Misalignment

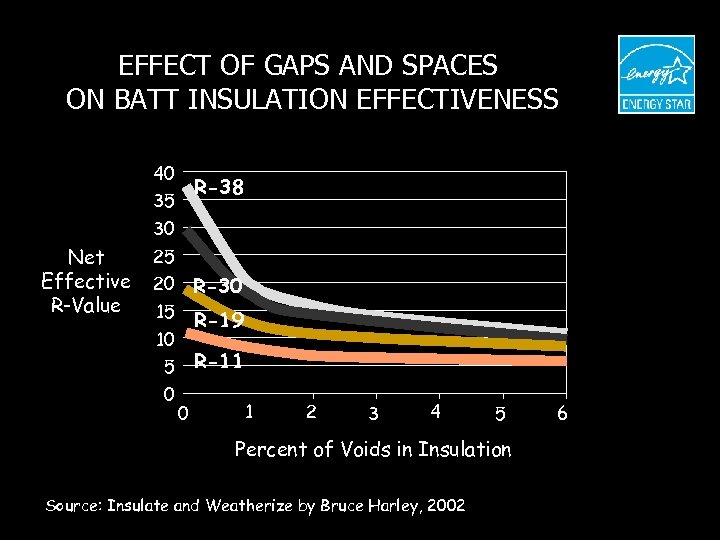

EFFECT OF GAPS AND SPACES ON BATT INSULATION EFFECTIVENESS 40 R-38 35 30 Net Effective R-Value 25 20 R-30 15 R-19 10 R-11 5 0 0 1 2 3 4 5 Percent of Voids in Insulation Source: Insulate and Weatherize by Bruce Harley, 2002 6

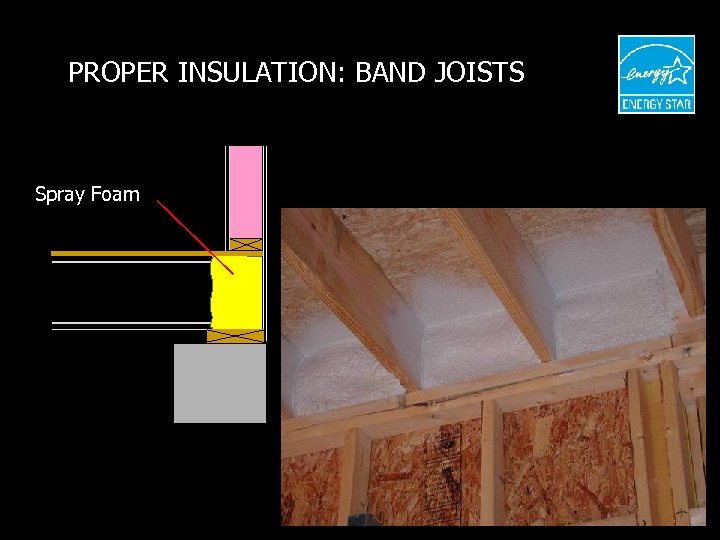

PROPER INSULATION: BAND JOISTS Spray Foam

PROPER INSULATION: BAND JOISTS SIP Panel

THERMAL BRIDGING

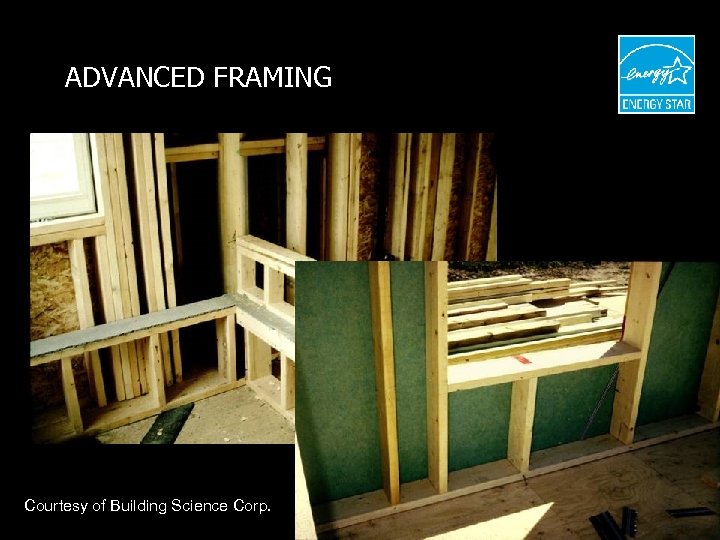

ADVANCED FRAMING Courtesy of Building Science Corp.

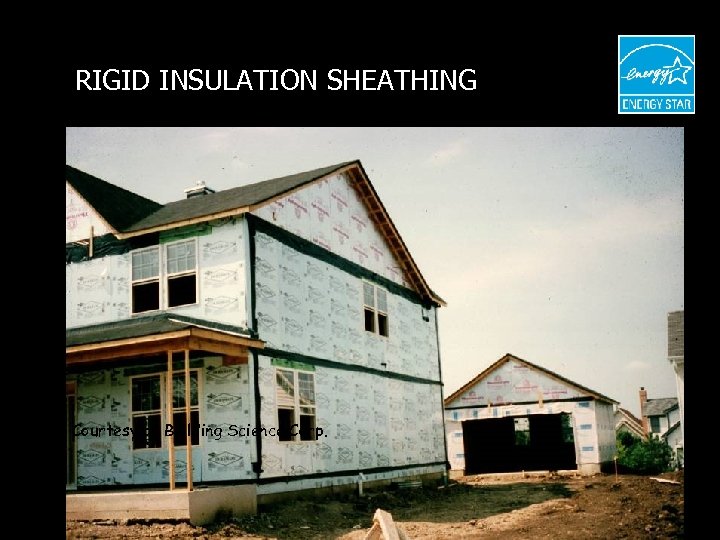

RIGID INSULATION SHEATHING Courtesy of Building Science Corp.

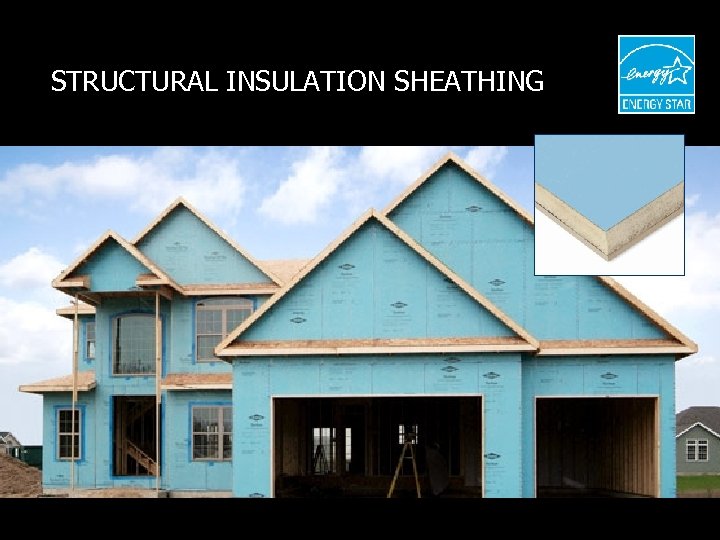

STRUCTURAL INSULATION SHEATHING

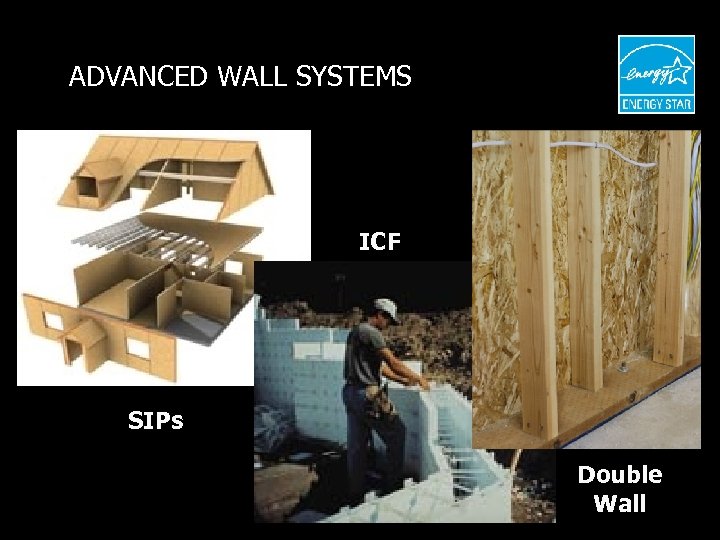

ADVANCED WALL SYSTEMS ICF SIPs Double Wall

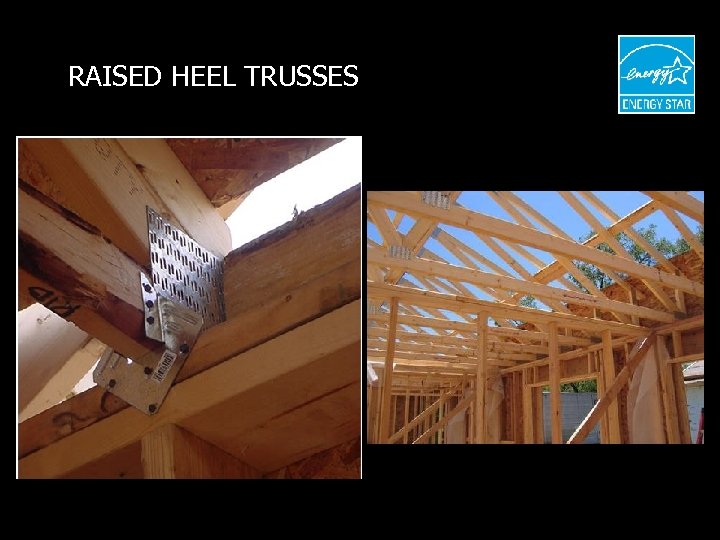

RAISED HEEL TRUSSES

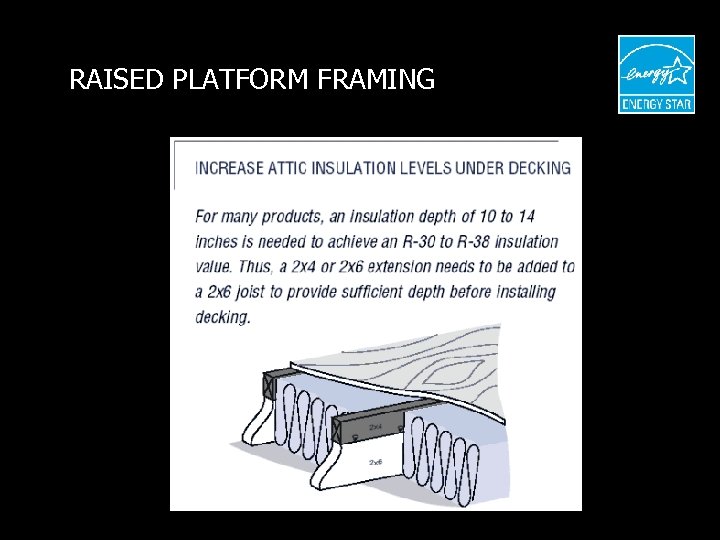

RAISED PLATFORM FRAMING

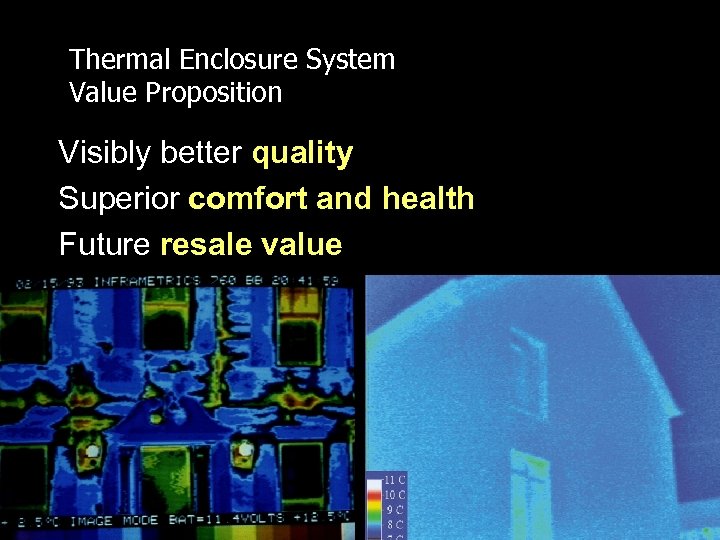

Thermal Enclosure System Value Proposition Visibly better quality Superior comfort and health Future resale value

COMPLETING SYSTEMS: CHECKLISTS Thermal Enclosure System: • Air Leakage • Insulation R-Value • Insulation Installation • Air Barriers • Thermal Bridging • High-Perf. Windows HVAC System Quality Installation: • Efficient Equipment • Right-Sizing • Air Distribution • Refrigerant Charge • Duct Installation • Pressure Balancing • Ventilation • Filtration Water Management System: • Roof Membranes • Flashing • WRB’s • Fabric Filters • Capillary Breaks • Drainage Layer

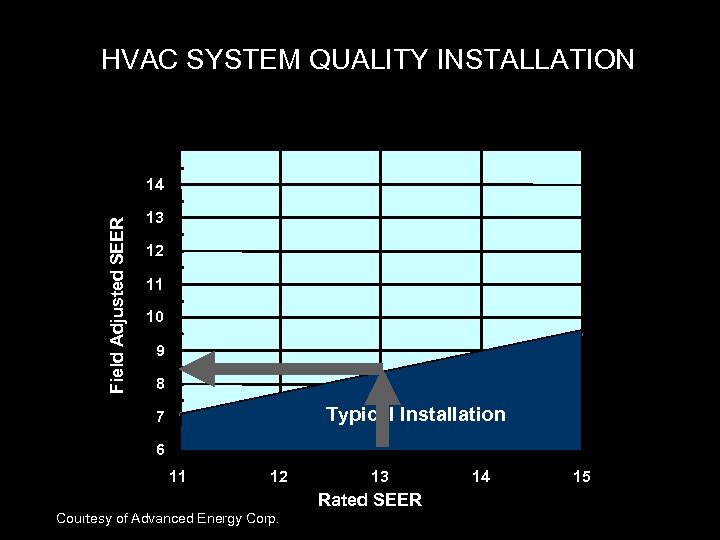

HVAC SYSTEM QUALITY INSTALLATION Field Adjusted SEER 14 13 12 11 10 9 8 Typical Installation 7 6 11 12 13 Rated SEER Courtesy of Advanced Energy Corp. 14 15

HVAC SYSTEM QUALITY INSTALLATION Field Adjusted SEER 14 1. 5 0. 5 13 e harg r. C w ope Pr t Flo c orre C 2. 0 ts c ht Du Airtig 5 ht. 7 ig ized R S 12 11 10 9 8 Typical Installation 7 6 11 12 13 Rated SEER Courtesy of Advanced Energy Corp. 14 15

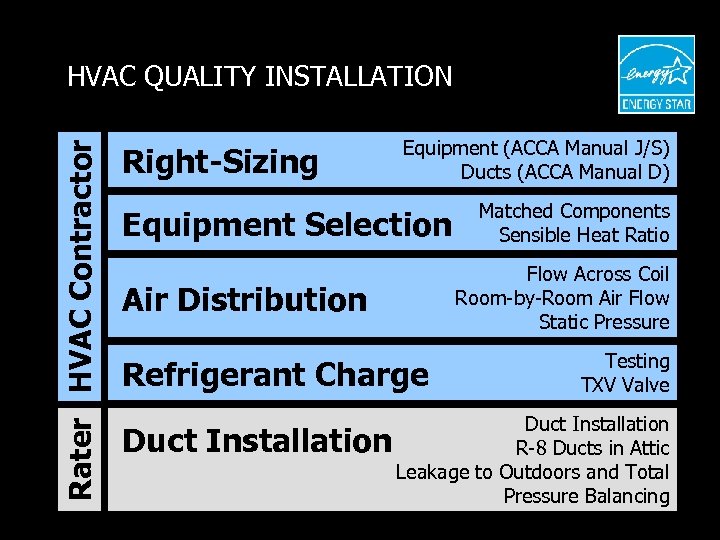

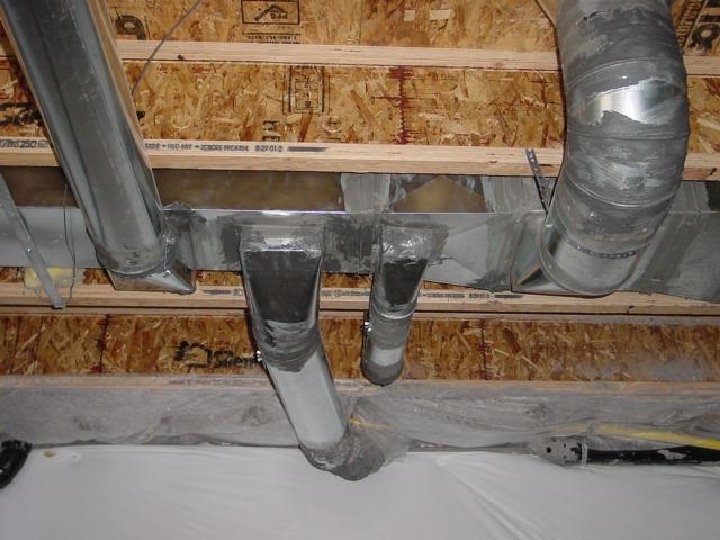

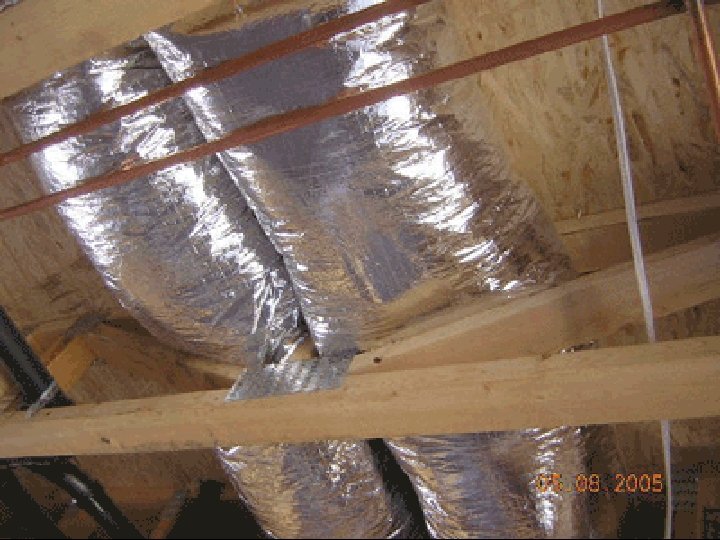

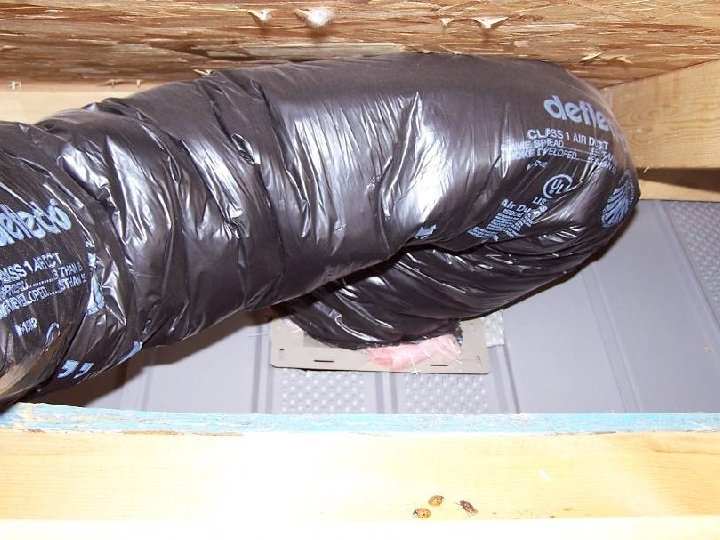

Rater HVAC Contractor HVAC QUALITY INSTALLATION Right-Sizing Equipment (ACCA Manual J/S) Ducts (ACCA Manual D) Equipment Selection Flow Across Coil Room-by-Room Air Flow Static Pressure Air Distribution Refrigerant Charge Duct Installation Matched Components Sensible Heat Ratio Testing TXV Valve Duct Installation R-8 Ducts in Attic Leakage to Outdoors and Total Pressure Balancing

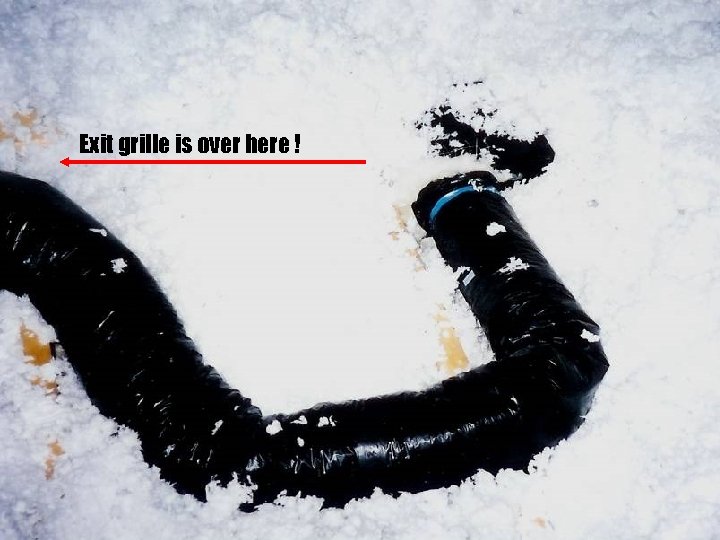

Exit grille is over here !

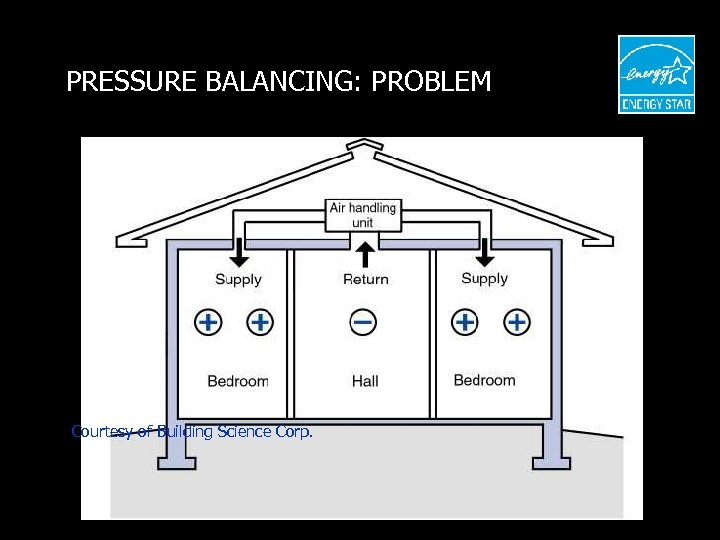

PRESSURE BALANCING: PROBLEM Courtesy of Building Science Corp.

PRESSURE BALANCING: SOLUTIONS TRANSFER GRILLE JUMP DUCT

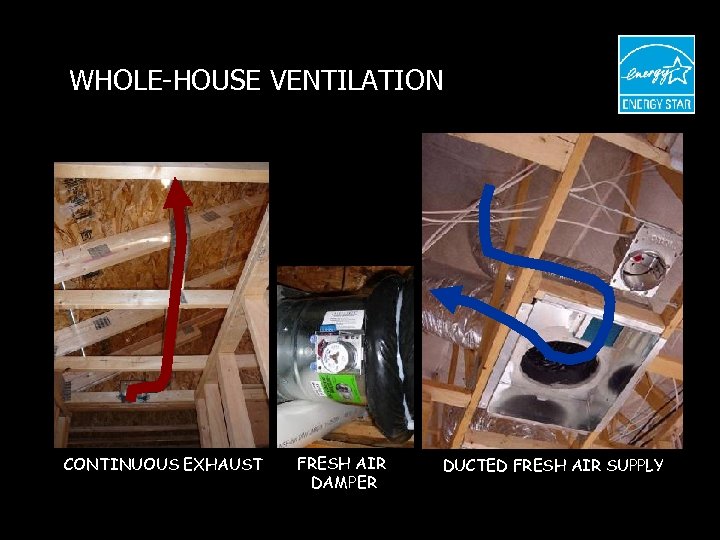

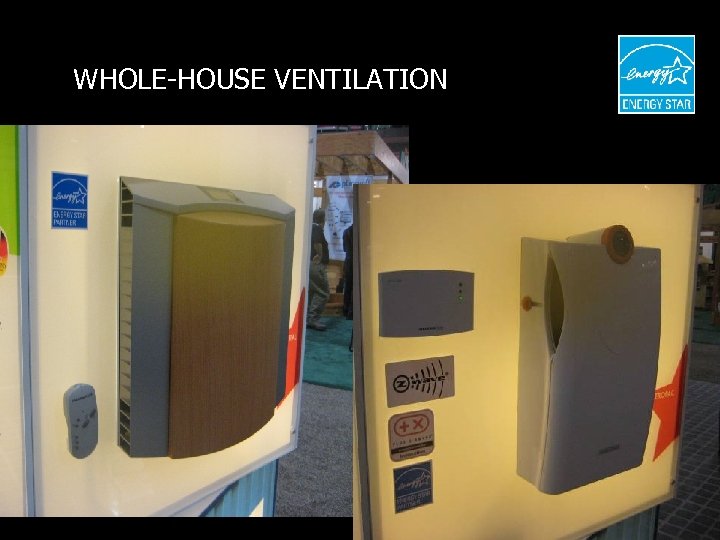

WHOLE-HOUSE VENTILATION CONTINUOUS EXHAUST FRESH AIR DAMPER DUCTED FRESH AIR SUPPLY

WHOLE-HOUSE VENTILATION

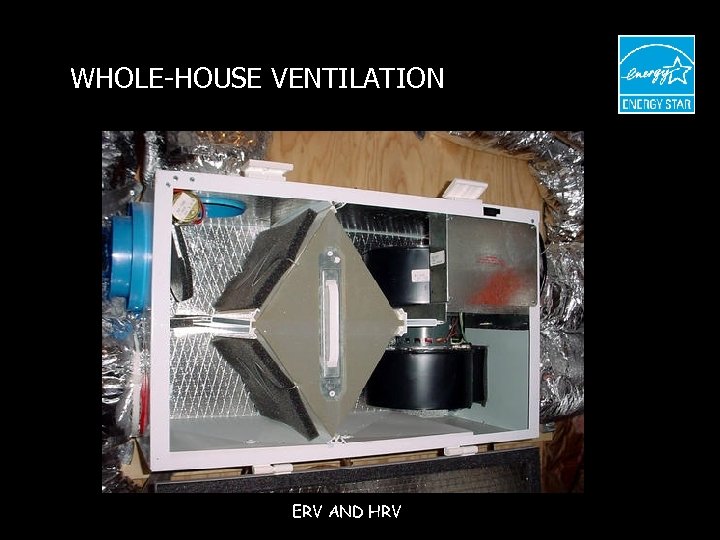

WHOLE-HOUSE VENTILATION ERV AND HRV

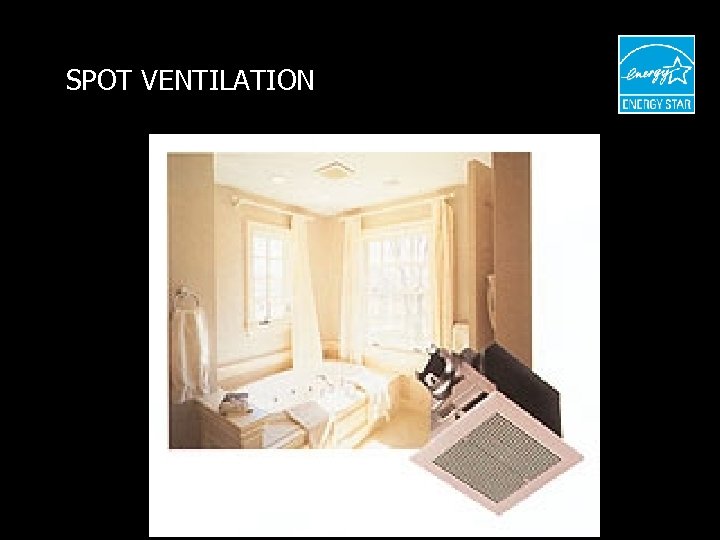

SPOT VENTILATION

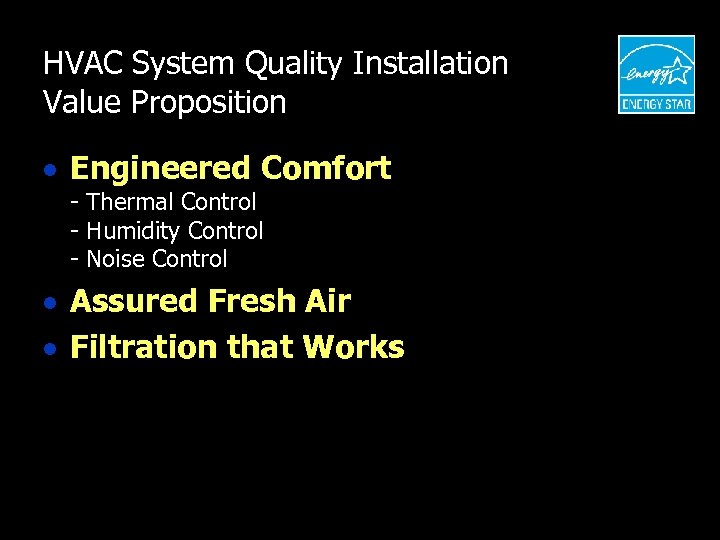

HVAC System Quality Installation Value Proposition · Engineered Comfort - Thermal Control - Humidity Control - Noise Control · Assured Fresh Air · Filtration that Works

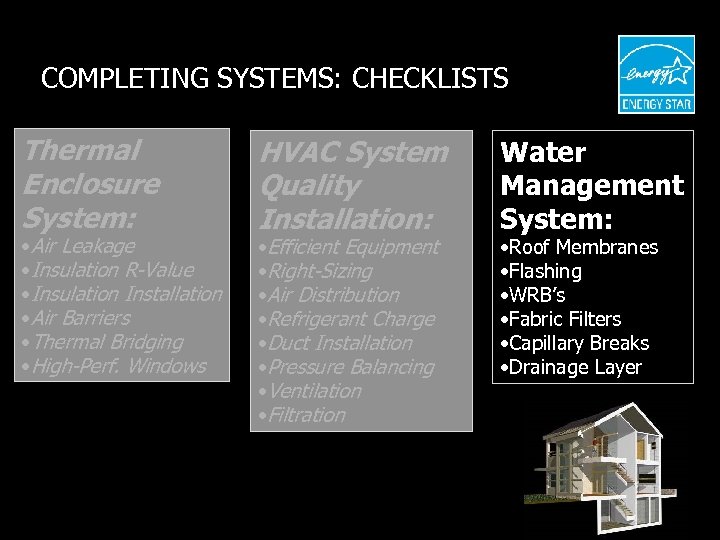

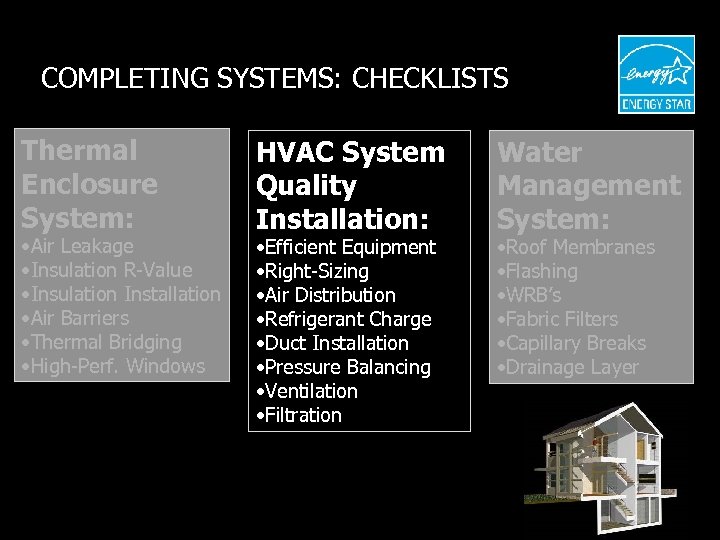

COMPLETING SYSTEMS: CHECKLISTS Thermal Enclosure System: • Air Leakage • Insulation R-Value • Insulation Installation • Air Barriers • Thermal Bridging • High-Perf. Windows HVAC System Quality Installation: • Efficient Equipment • Right-Sizing • Air Distribution • Refrigerant Charge • Duct Installation • Pressure Balancing • Ventilation • Filtration Water Management System: • Roof Membranes • Flashing • WRB’s • Fabric Filters • Capillary Breaks • Drainage Layer

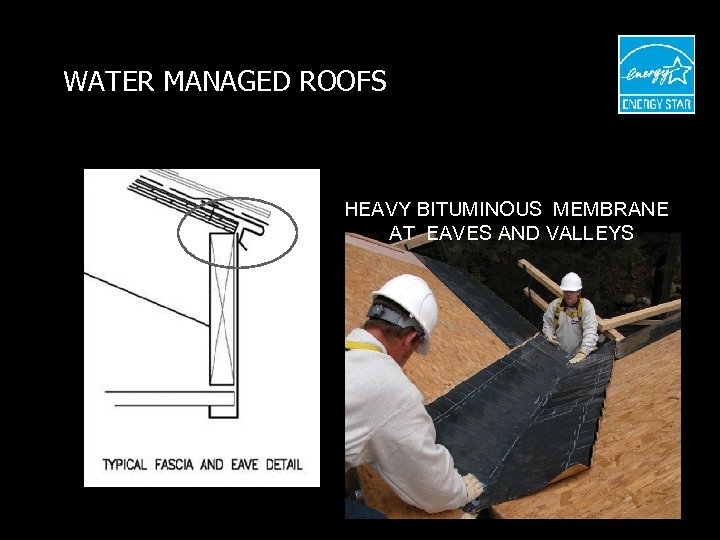

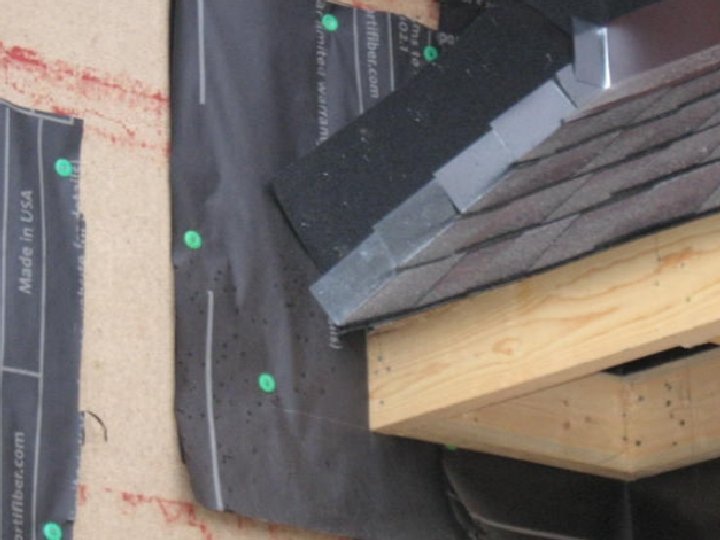

WATER MANAGED ROOFS HEAVY BITUMINOUS MEMBRANE AT EAVES AND VALLEYS

WATER MANAGED CONSTRUCTION

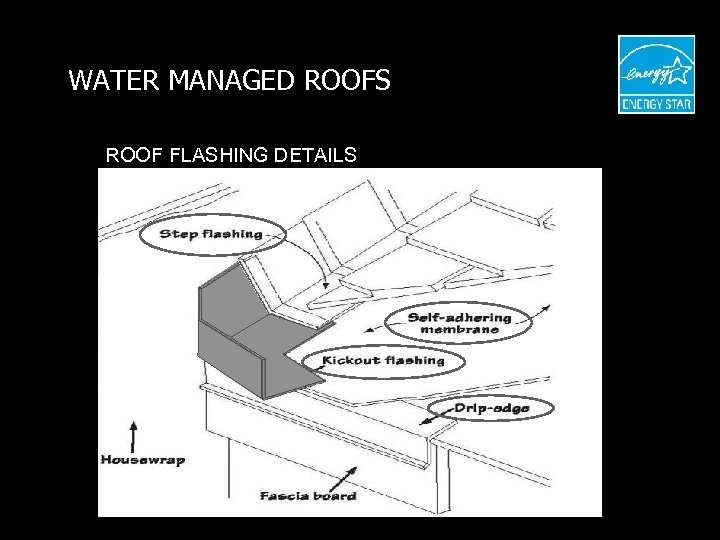

WATER MANAGED ROOFS ROOF FLASHING DETAILS

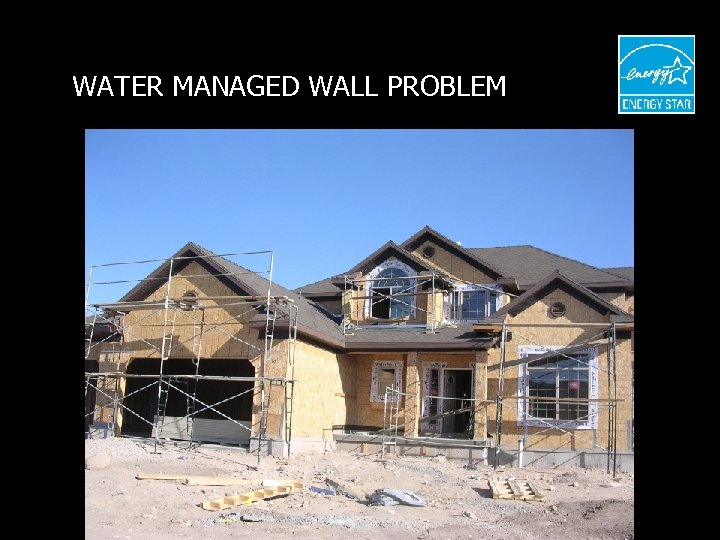

WATER MANAGED WALL PROBLEM

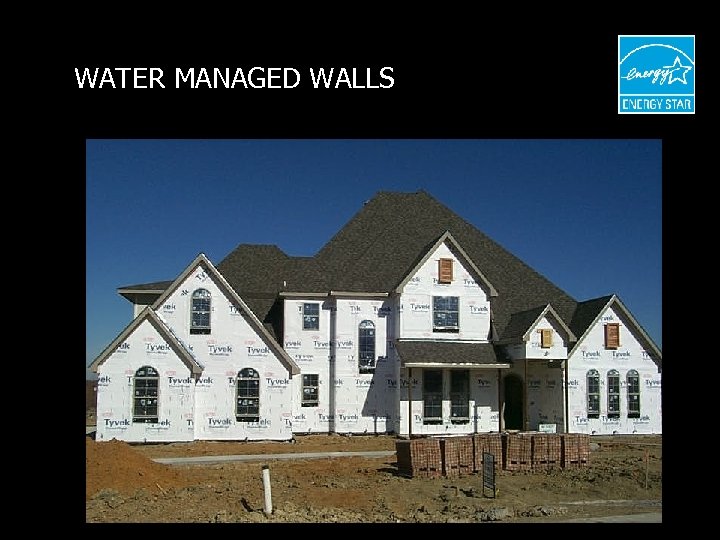

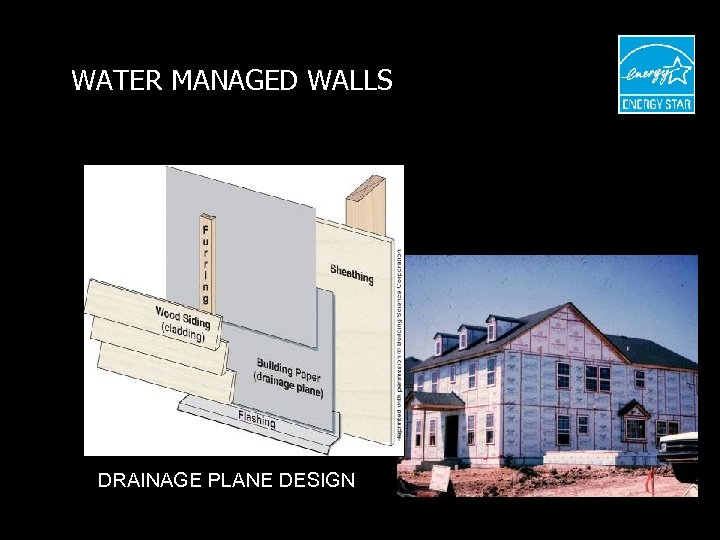

WATER MANAGED WALLS DRAINAGE PLANE DESIGN

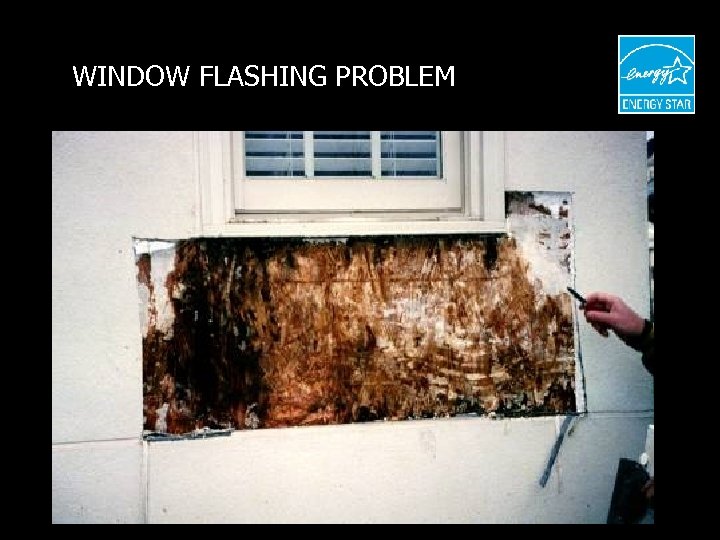

WINDOW FLASHING PROBLEM

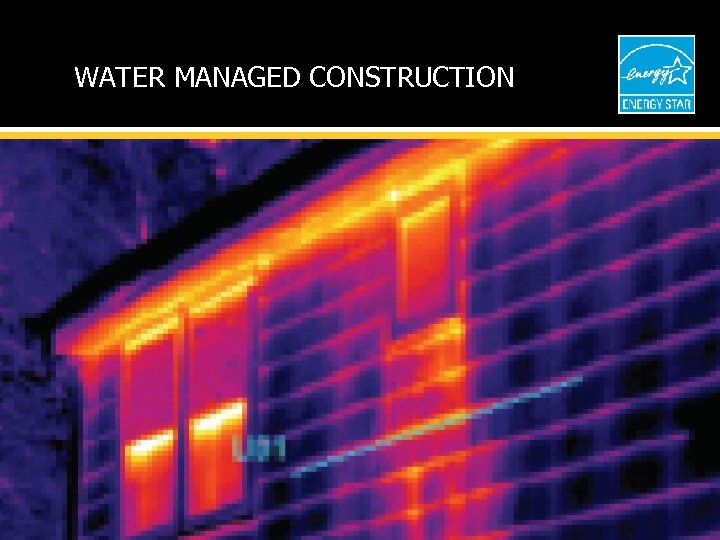

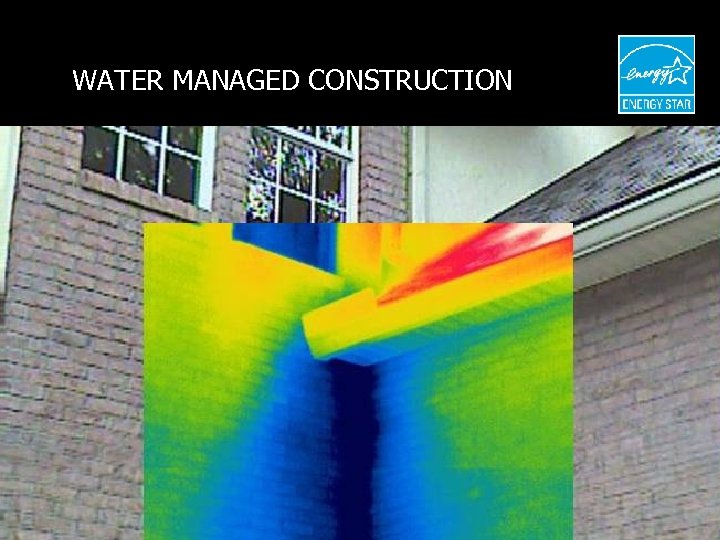

WATER MANAGED CONSTRUCTION

WATER MANAGED WALLS BEST PRACTICE INSTALLATION WINDOW/DOOR PAN FLASHING

WATER MANAGED WALLS WINDOW/DOOR PAN FLASHING

CONTROLLING MOISTURE FLOW: BULK MOISTURE CAPILLARY BREAKS, FABRIC FILTER FOUNDATION DRAINAGE SYSTEM WITH CAPILLARY BREAKS Free-draining back-fill Perforated drainage pipe in gravel with fabric filter Poly vapor retarder/capillary break Course gravel granular drainage Pipe connection to granular drainage

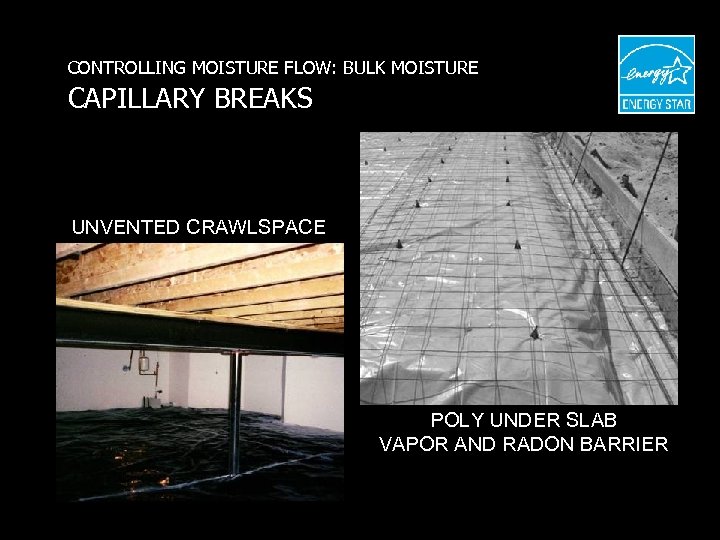

CONTROLLING MOISTURE FLOW: BULK MOISTURE CAPILLARY BREAKS UNVENTED CRAWLSPACE POLY UNDER SLAB VAPOR AND RADON BARRIER

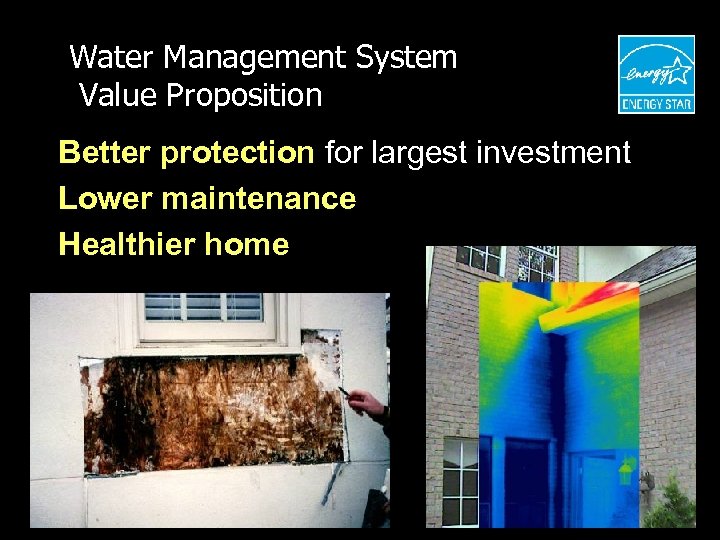

Water Management System Value Proposition Better protection for largest investment Lower maintenance Healthier home

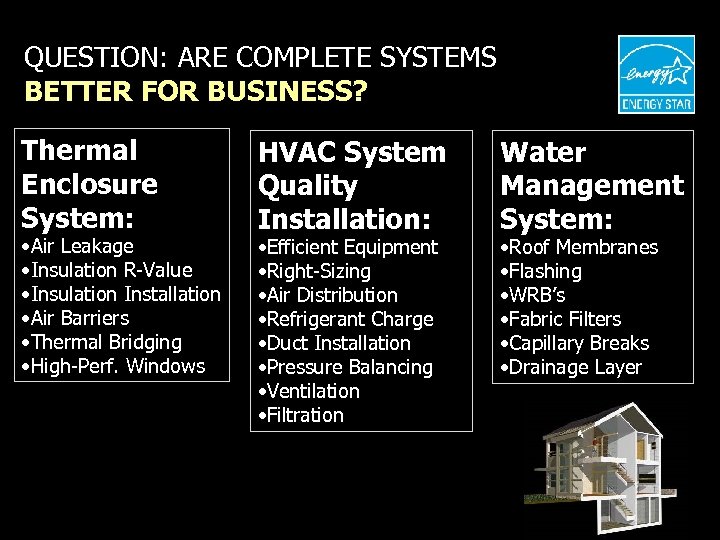

QUESTION: ARE COMPLETE SYSTEMS BETTER FOR BUSINESS? Thermal Enclosure System: • Air Leakage • Insulation R-Value • Insulation Installation • Air Barriers • Thermal Bridging • High-Perf. Windows HVAC System Quality Installation: • Efficient Equipment • Right-Sizing • Air Distribution • Refrigerant Charge • Duct Installation • Pressure Balancing • Ventilation • Filtration Water Management System: • Roof Membranes • Flashing • WRB’s • Fabric Filters • Capillary Breaks • Drainage Layer

Answer… Yes… if making 90% of competition obsolete is good for business…

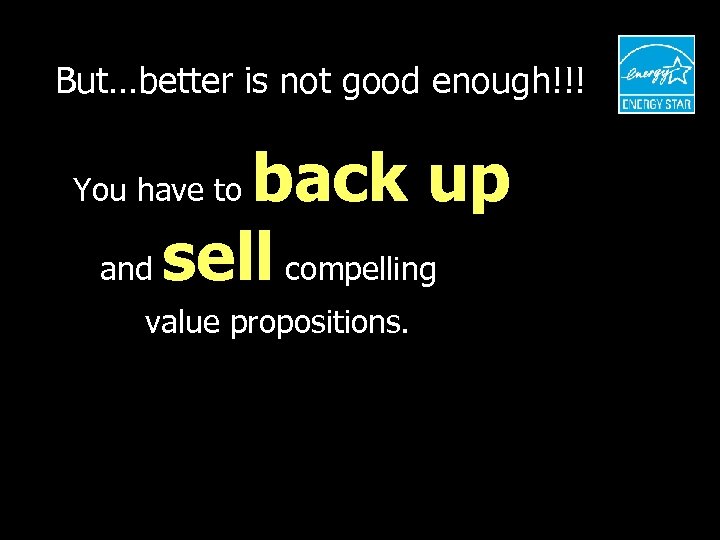

But…better is not good enough!!! back up and sell compelling You have to value propositions.

Better is Not Good Enough… You Have to Sell ENERGY STAR · · Label Every Home Train Sales Agents Hold Agents Accountable Create ‘Value’ Experiences And Remember… · Design & Location Trump

ENERGY STAR Qualified Homes 2011 Specification: Where Go From Here?

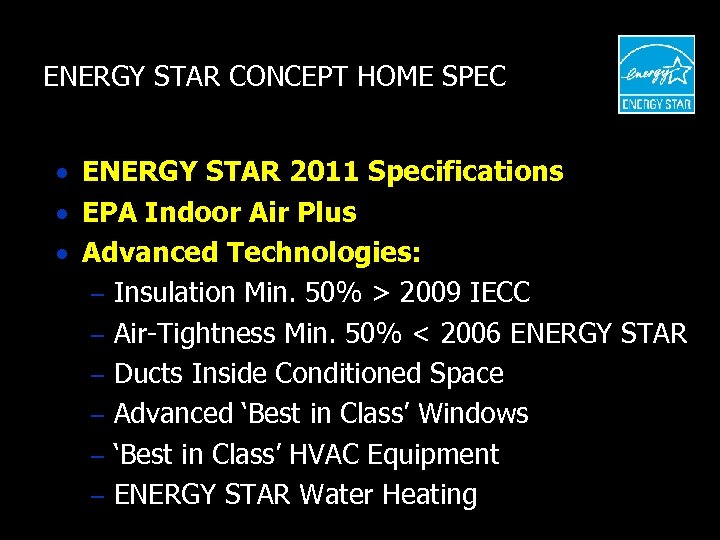

ENERGY STAR CONCEPT HOME SPEC · ENERGY STAR 2011 Specifications · EPA Indoor Air Plus · Advanced Technologies: – Insulation Min. 50% > 2009 IECC – Air-Tightness Min. 50% < 2006 ENERGY STAR – Ducts Inside Conditioned Space – Advanced ‘Best in Class’ Windows – ‘Best in Class’ HVAC Equipment – ENERGY STAR Water Heating

PATH TO NO/LOW CARBON ENERGY STAR for Homes 2011 Draft Specs Advanced Technologies EPA Indoor air. Plus Advanced Design Occupant Behavior Renewable Power (Purchase or On-site)

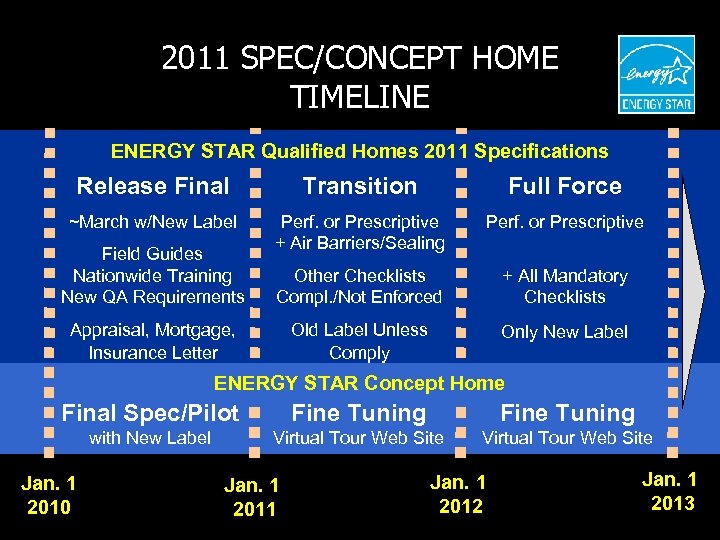

2011 SPEC/CONCEPT HOME TIMELINE ENERGY STAR Qualified Homes 2011 Specifications Release Final Transition Full Force ~March w/New Label Perf. or Prescriptive + Air Barriers/Sealing Perf. or Prescriptive Other Checklists Compl. /Not Enforced + All Mandatory Checklists Old Label Unless Comply Only New Label Field Guides Nationwide Training New QA Requirements Appraisal, Mortgage, Insurance Letter ENERGY STAR Concept Home Final Spec/Pilot Fine Tuning with New Label Virtual Tour Web Site Jan. 1 2010 Jan. 1 2011 Jan. 1 2012 Jan. 1 2013

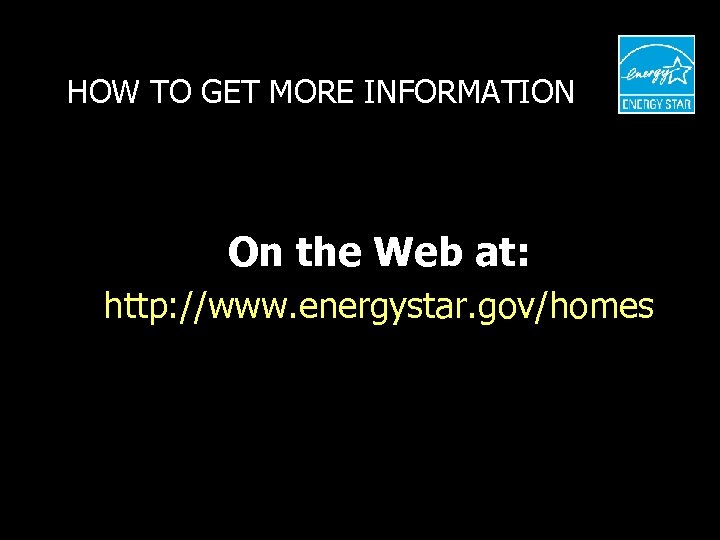

HOW TO GET MORE INFORMATION On the Web at: http: //www. energystar. gov/homes
