Energy Savings & Efficiency Workshop

Our Mission Inspired by diverse faith perspectives to care for the natural world and its most vulnerable inhabitants, Maine Interfaith Power and Light works to engage the faith communities of Maine in efforts to counter climate change through education, advocacy, energy conservation and the use of clean renewable power 2

“If humanity wishes to preserve a planet similar to that on which civilization developed and to which life on Earth is adapted… CO 2 will need to be reduced from its current 387 ppm to at most 350 ppm. ” NASA climatologist Dr. James E. Hansen, 2008 3

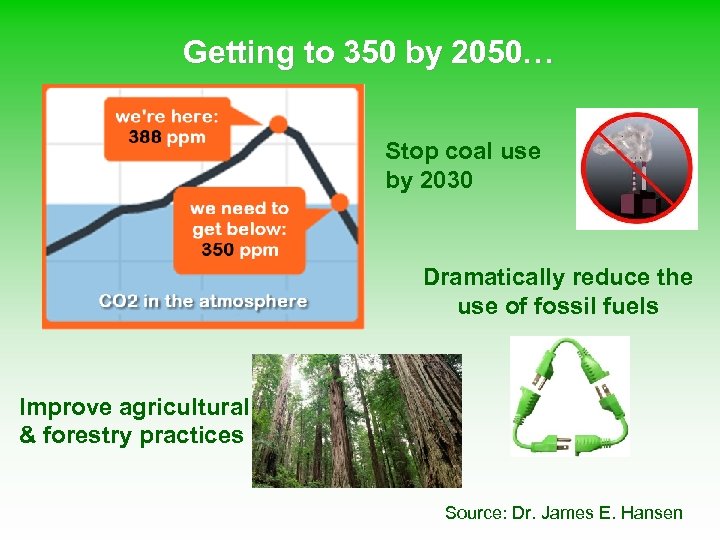

Getting to 350 by 2050… Stop coal use by 2030 Dramatically reduce the use of fossil fuels Improve agricultural & forestry practices Source: Dr. James E. Hansen

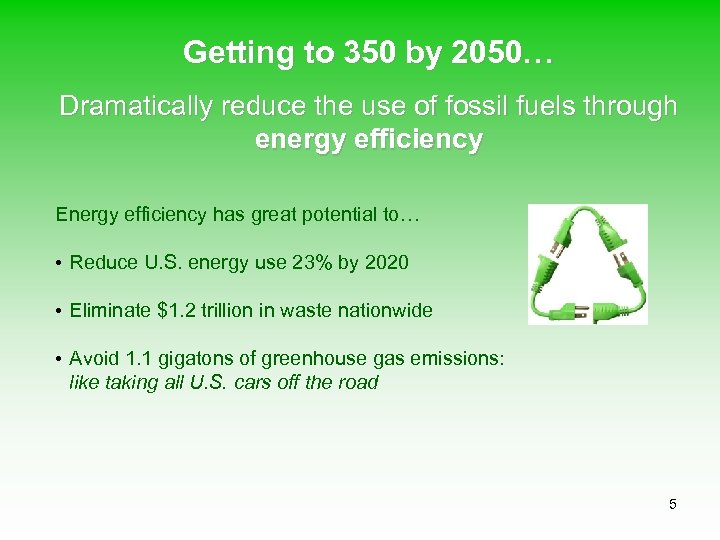

Getting to 350 by 2050… Dramatically reduce the use of fossil fuels through energy efficiency Energy efficiency has great potential to… • Reduce U. S. energy use 23% by 2020 • Eliminate $1. 2 trillion in waste nationwide • Avoid 1. 1 gigatons of greenhouse gas emissions: like taking all U. S. cars off the road 5

What can you do? Take the challenge… 6

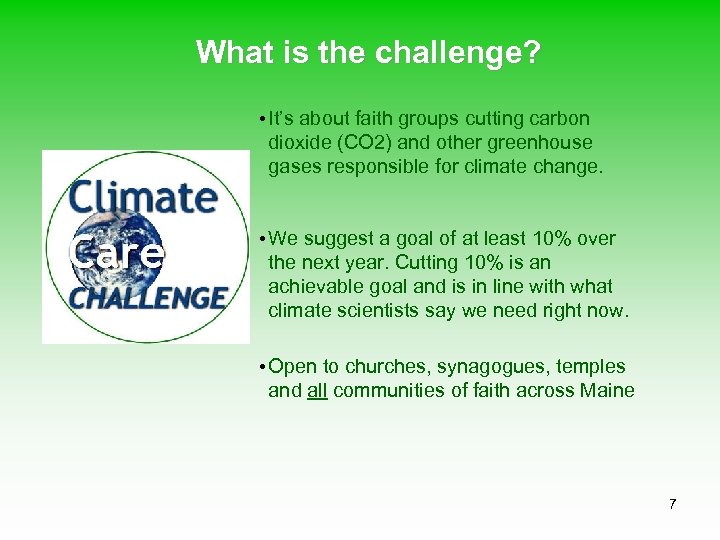

What is the challenge? • It’s about faith groups cutting carbon dioxide (CO 2) and other greenhouse gases responsible for climate change. • We suggest a goal of at least 10% over the next year. Cutting 10% is an achievable goal and is in line with what climate scientists say we need right now. • Open to churches, synagogues, temples and all communities of faith across Maine 7

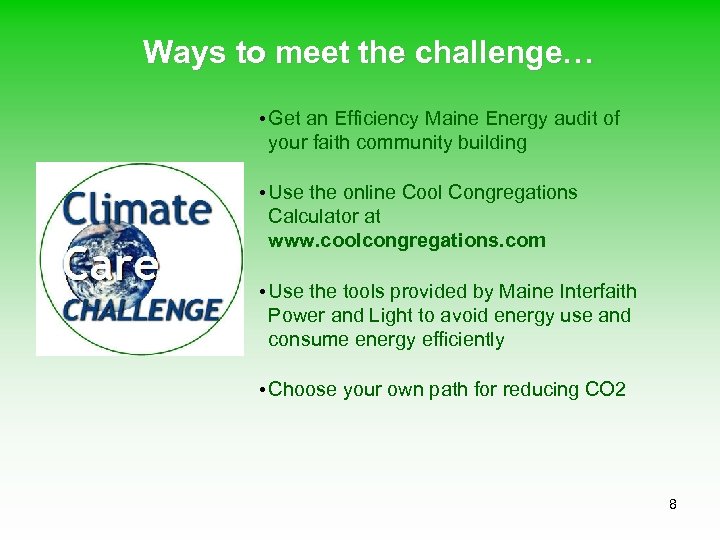

Ways to meet the challenge… • Get an Efficiency Maine Energy audit of your faith community building • Use the online Cool Congregations Calculator at www. coolcongregations. com • Use the tools provided by Maine Interfaith Power and Light to avoid energy use and consume energy efficiently • Choose your own path for reducing CO 2 8

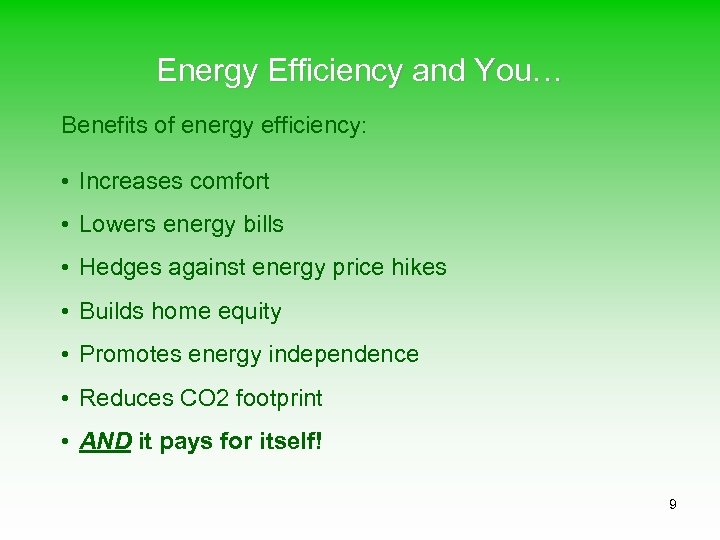

Energy Efficiency and You… Benefits of energy efficiency: • Increases comfort • Lowers energy bills • Hedges against energy price hikes • Builds home equity • Promotes energy independence • Reduces CO 2 footprint • AND it pays for itself! 9

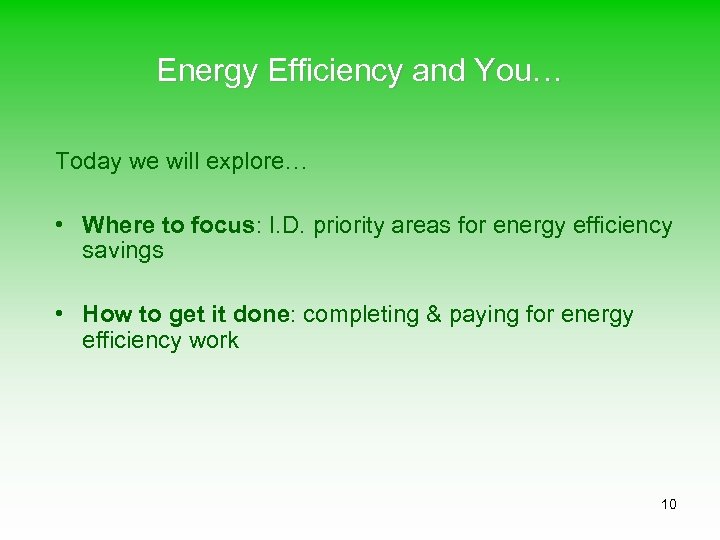

Energy Efficiency and You… Today we will explore… • Where to focus: I. D. priority areas for energy efficiency savings • How to get it done: completing & paying for energy efficiency work 10

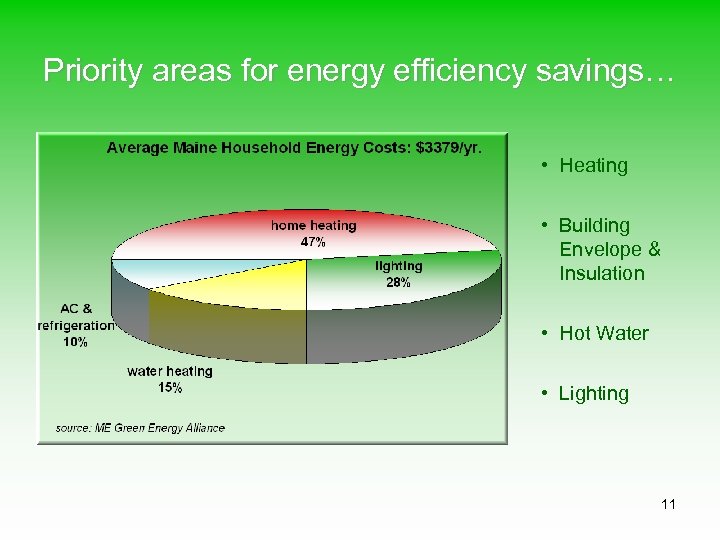

Priority areas for energy efficiency savings… • Heating • Building Envelope & Insulation • Hot Water • Lighting 11

Heating 12

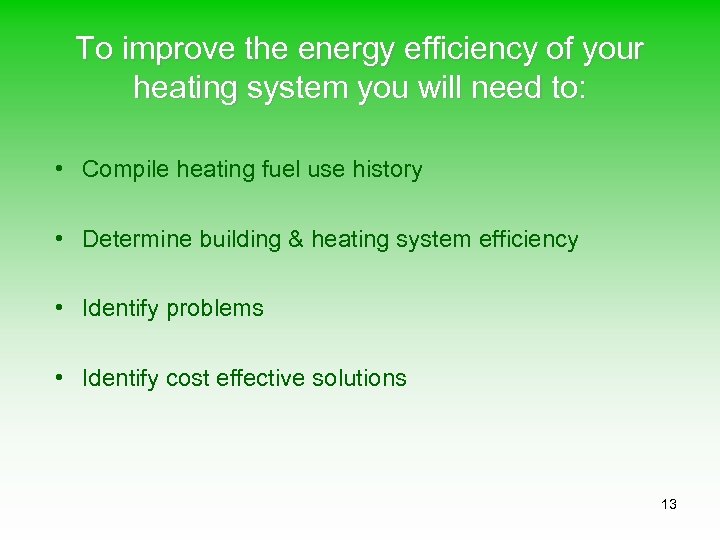

To improve the energy efficiency of your heating system you will need to: • Compile heating fuel use history • Determine building & heating system efficiency • Identify problems • Identify cost effective solutions 13

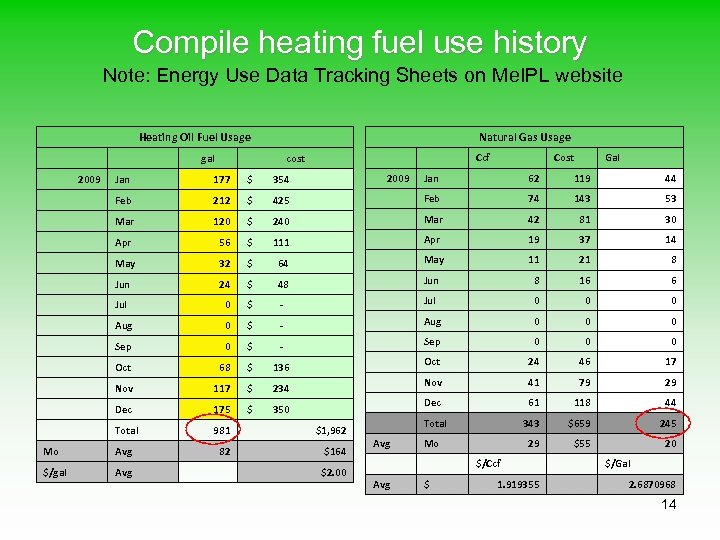

Compile heating fuel use history Note: Energy Use Data Tracking Sheets on Me. IPL website Natural Gas Usage Heating Oil Fuel Usage gal cost Cost Gal Jan 62 119 44 Feb 74 143 53 $ 240 Mar 42 81 30 56 $ 111 Apr 19 37 14 May 32 $ 64 May 11 21 8 Jun 24 $ 48 Jun 8 16 6 Jul 0 $ - Jul 0 0 0 Aug 0 $ - Aug 0 0 0 Sep 0 $ - Sep 0 0 0 Oct 68 $ 136 Oct 24 46 17 Nov 117 $ 234 Nov 41 79 29 Dec 175 $ 350 Dec 61 118 44 Total 981 $1, 962 Total 343 $659 245 Mo Avg 82 $164 Avg Mo 29 $55 20 $/gal Avg $ 2009 Jan 177 $ 354 Feb 212 $ 425 Mar 120 Apr 2009 Ccf $2. 00 $/Ccf 1. 919355 $/Gal 2. 6870968 14

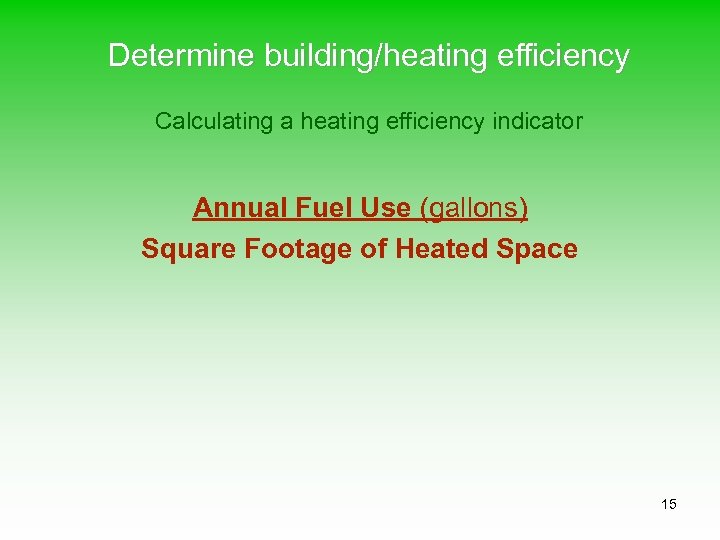

Determine building/heating efficiency Calculating a heating efficiency indicator Annual Fuel Use (gallons) Square Footage of Heated Space 15

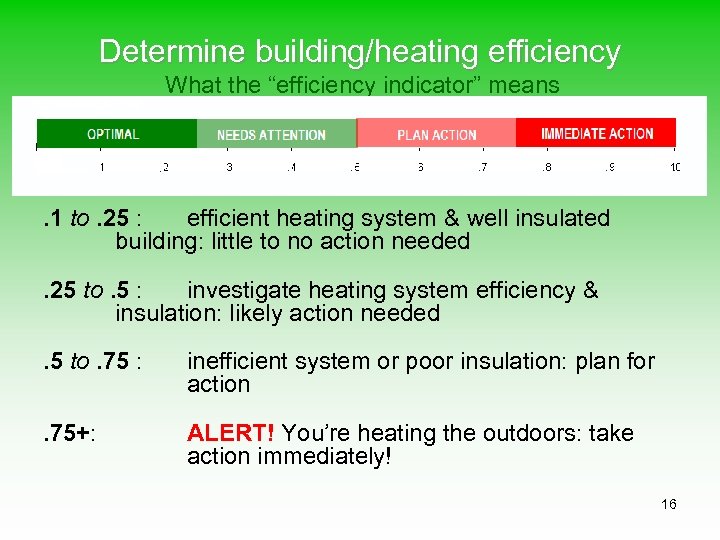

Determine building/heating efficiency What the “efficiency indicator” means . 1 to. 25 : efficient heating system & well insulated building: little to no action needed. 25 to. 5 : investigate heating system efficiency & insulation: likely action needed. 5 to. 75 : inefficient system or poor insulation: plan for action . 75+: ALERT! You’re heating the outdoors: take action immediately! 16

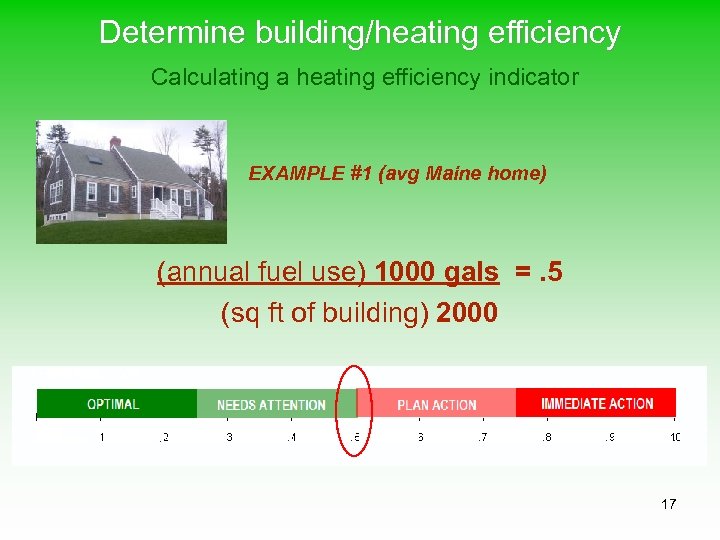

Determine building/heating efficiency Calculating a heating efficiency indicator EXAMPLE #1 (avg Maine home) (annual fuel use) 1000 gals =. 5 (sq ft of building) 2000 17

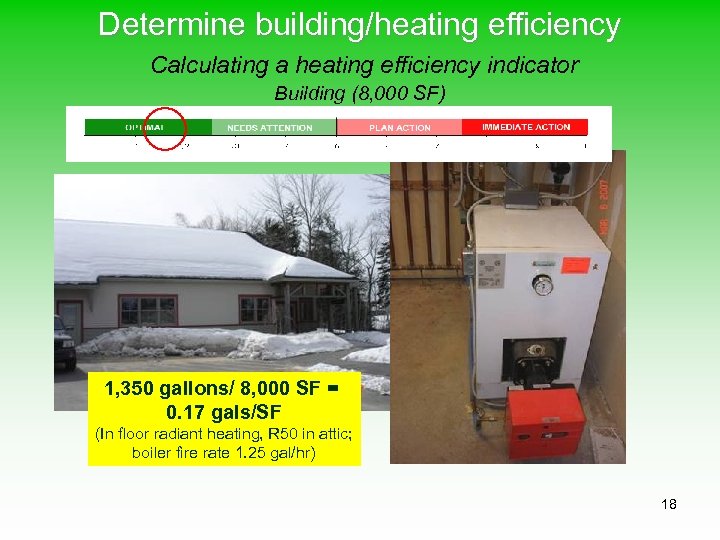

Determine building/heating efficiency Calculating a heating efficiency indicator Building (8, 000 SF) 1, 350 gallons/ 8, 000 SF = 0. 17 gals/SF (In floor radiant heating, R 50 in attic; boiler fire rate 1. 25 gal/hr) 18

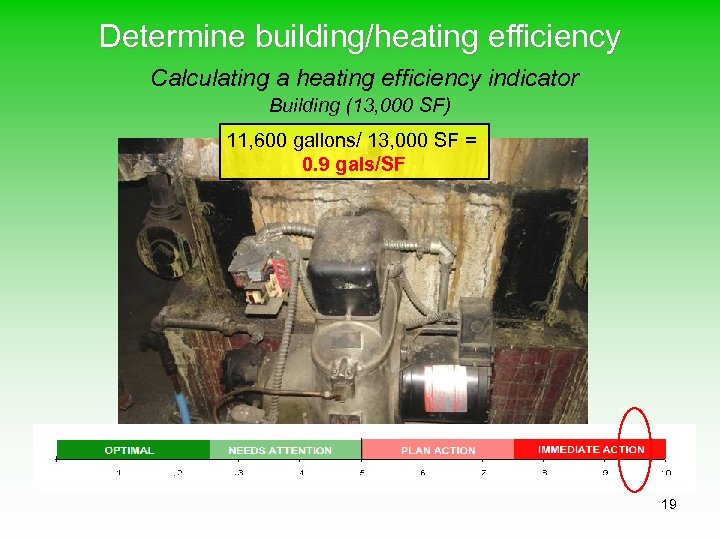

Determine building/heating efficiency Calculating a heating efficiency indicator Building (13, 000 SF) 11, 600 gallons/ 13, 000 SF = 0. 9 gals/SF 19

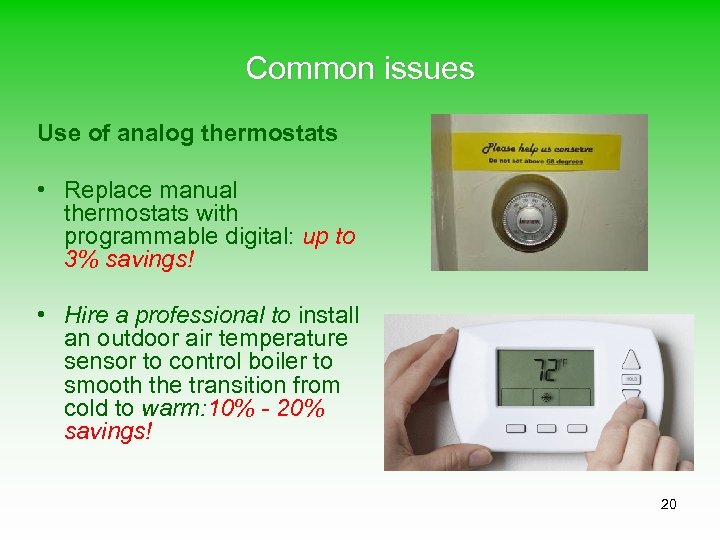

Common issues Use of analog thermostats • Replace manual thermostats with programmable digital: up to 3% savings! • Hire a professional to install an outdoor air temperature sensor to control boiler to smooth the transition from cold to warm: 10% - 20% savings! 20

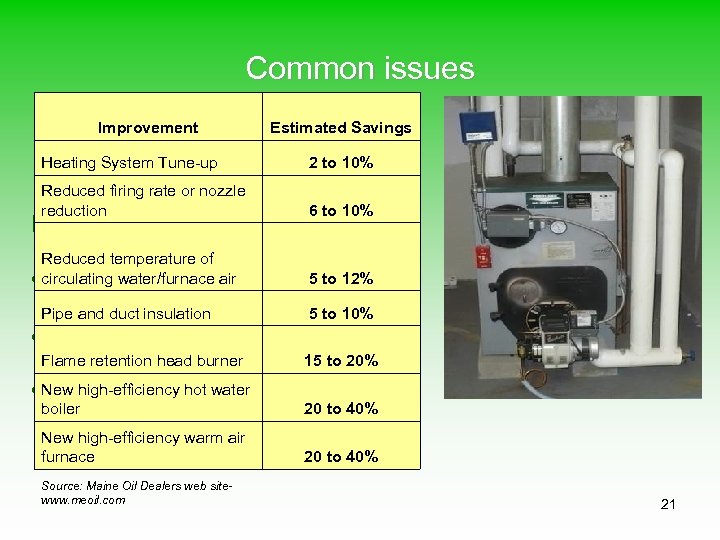

Common issues Improvement Estimated Savings Reduced firing rate or nozzle reduction 6 to 10% Outdated and ill-maintained Heating System Tune-up systems 10% 2 to heating Hire a professional to Reduced temperature of • circulating system tune Get a water/furnace air Pipe and duct insulation up 5 to 12% 5 to 10% • Update controls on boilers Flame retention head burner 15 to 20% • New high-efficiency hot water Buy a new boiler/furnace if 15 -25 boiler 20 to 40% yrs old New high-efficiency warm air furnace Source: Maine Oil Dealers web sitewww. meoil. com 20 to 40% 21

Building Envelope & Insulation 22

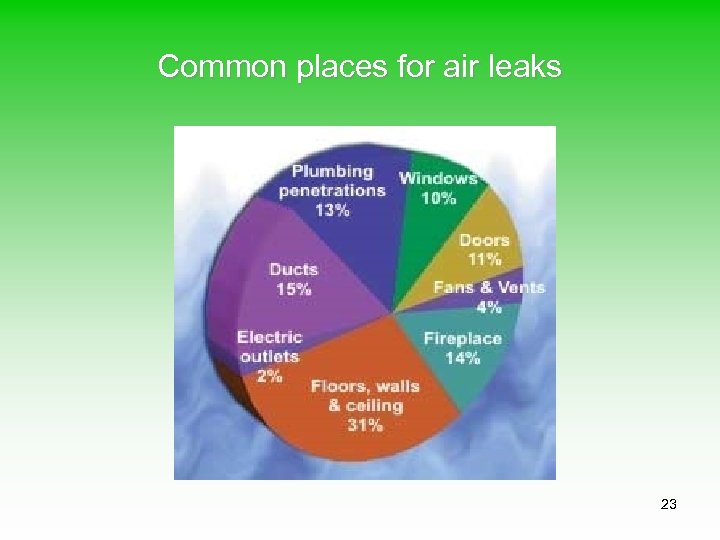

Common places for air leaks 23

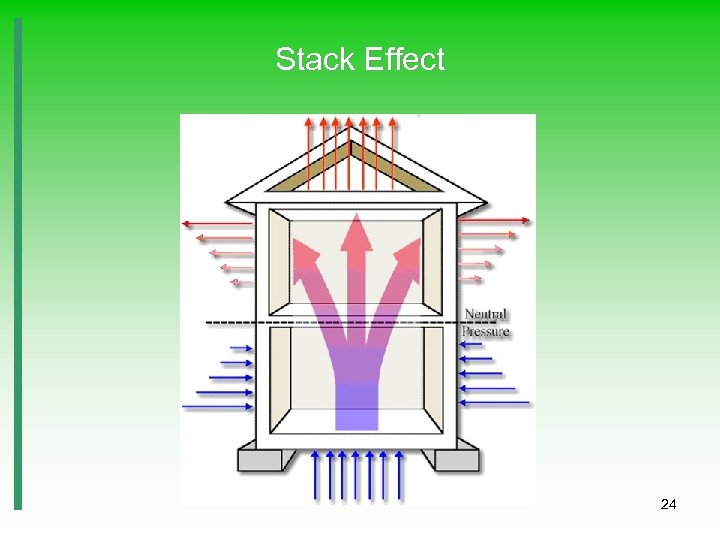

Stack Effect 24

Common places for air leaks Image adapted from http: //www. energyauditgo. com/Work. html 25

Common places for air leaks ice dams 10/08/10 insulation / envelope 26

Eliminate air leaks Sill plates At a minimum insulate the sill plate area to prevent cold air infiltration 27

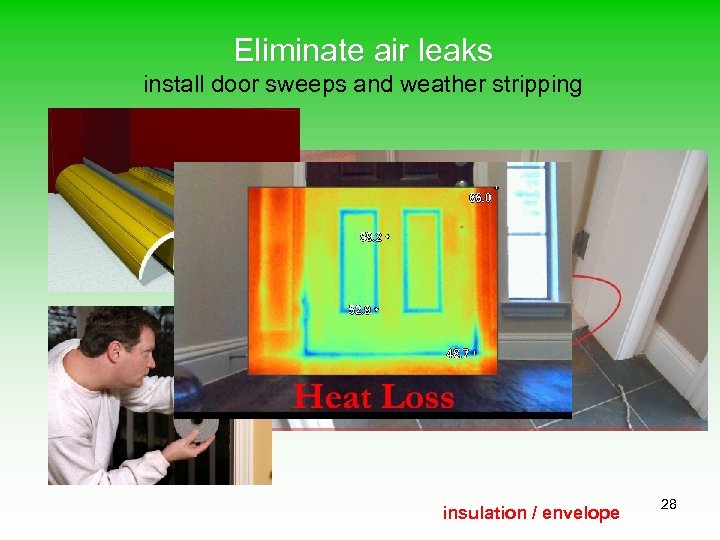

Eliminate air leaks install door sweeps and weather stripping insulation / envelope 28

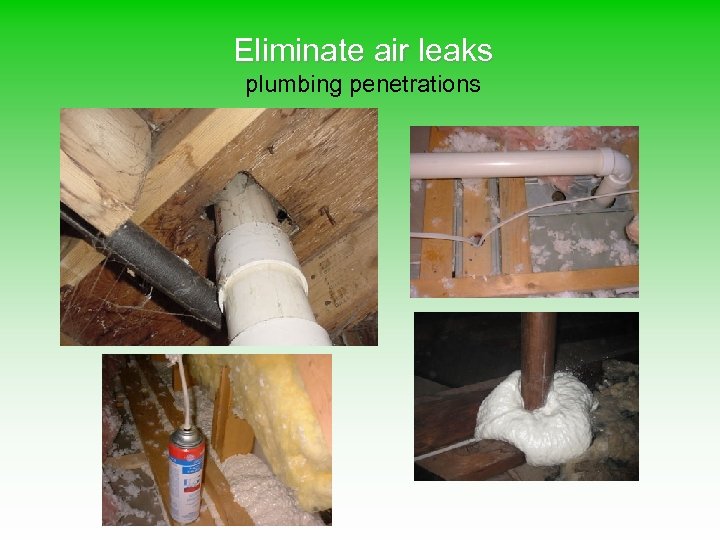

Eliminate air leaks plumbing penetrations

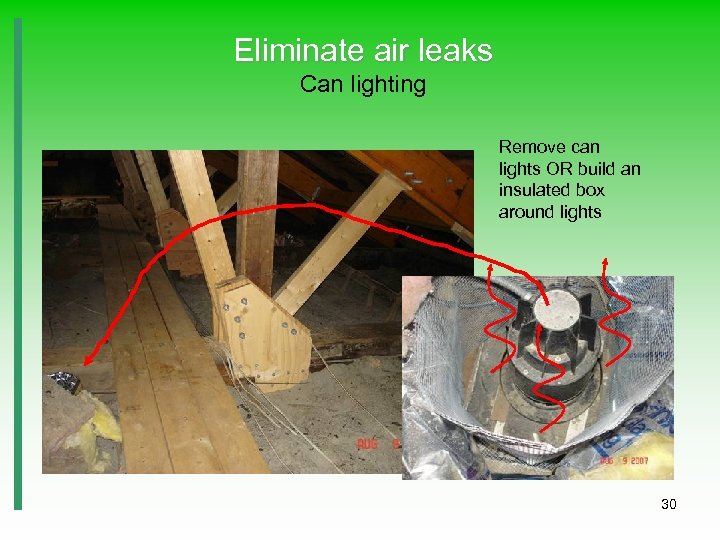

Eliminate air leaks Can lighting Remove can lights OR build an insulated box around lights 30

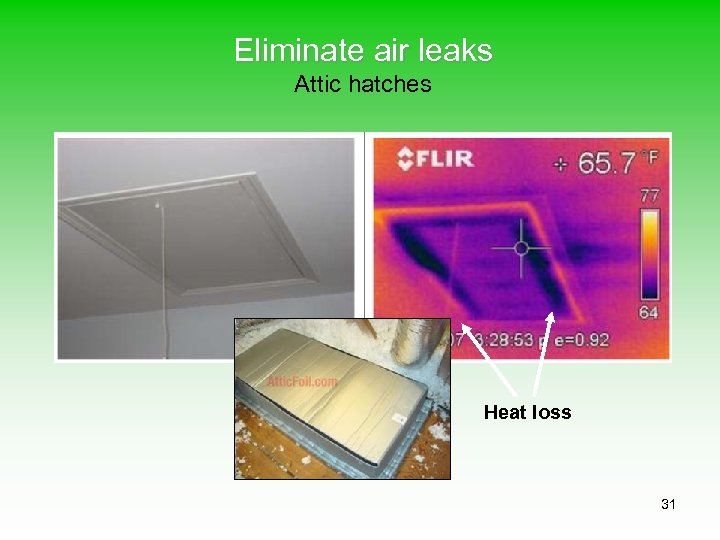

Eliminate air leaks Attic hatches Heat loss 31

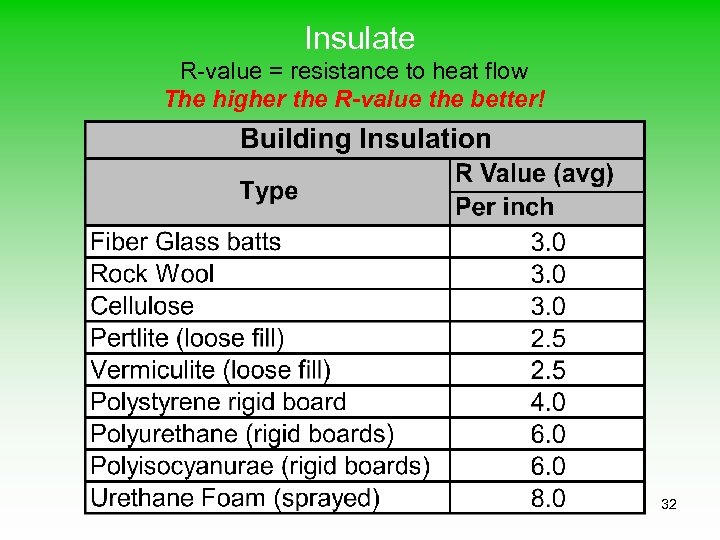

Insulate R-value = resistance to heat flow The higher the R-value the better! 32

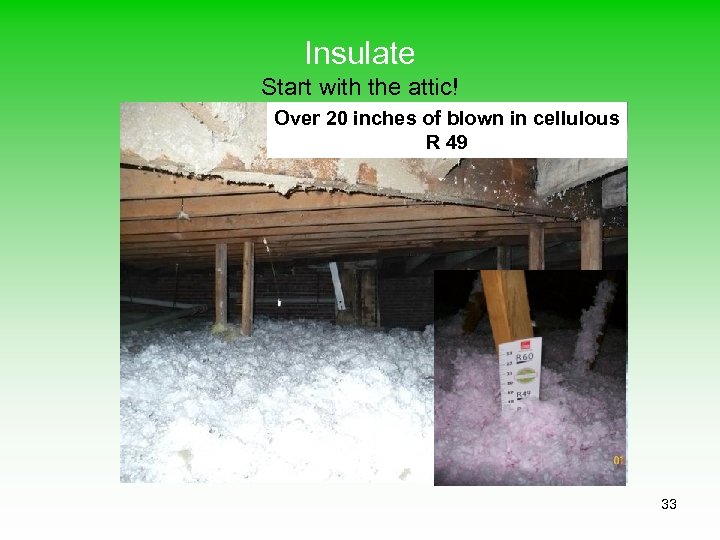

Insulate Start with the attic! R 19 Over 20 inches of blown in cellulous R 49 33

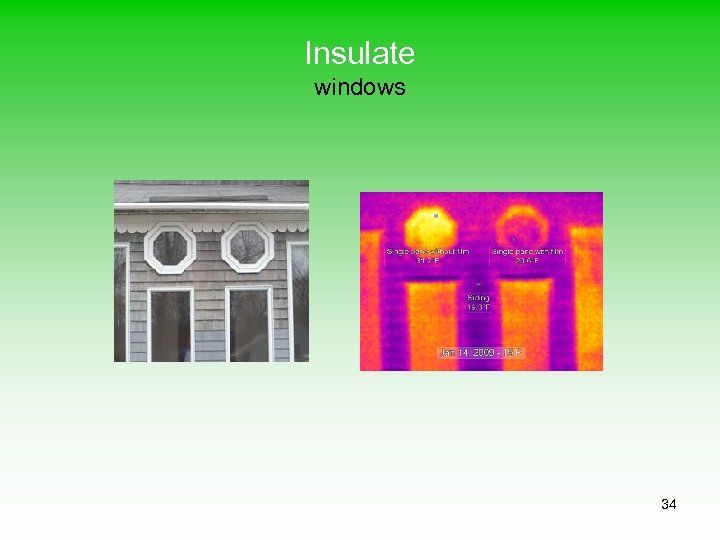

Insulate windows 34

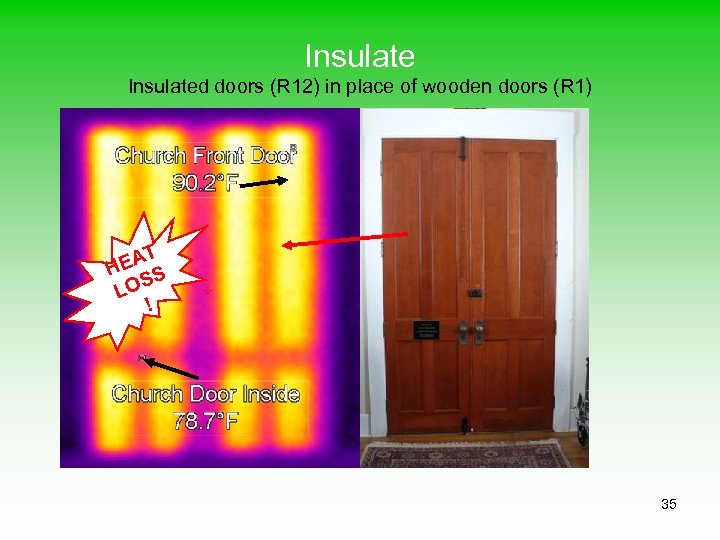

Insulated doors (R 12) in place of wooden doors (R 1) T EA H S OS L ! 35

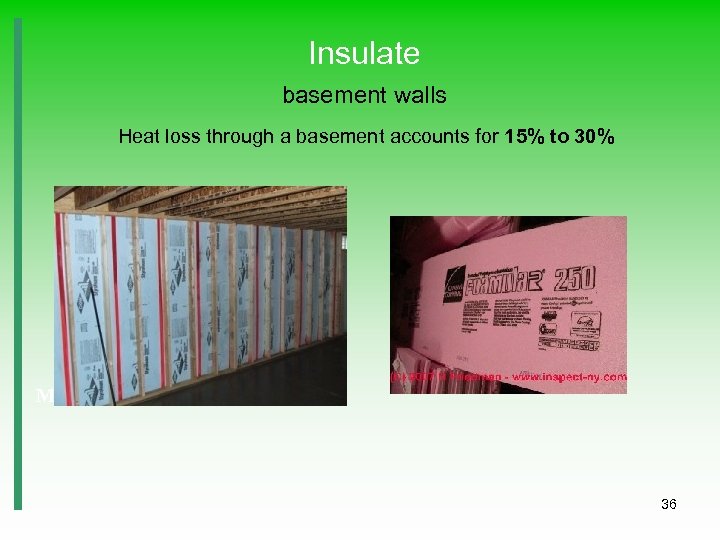

Insulate basement walls Heat loss through a basement accounts for 15% to 30% Masonry Foundation 36

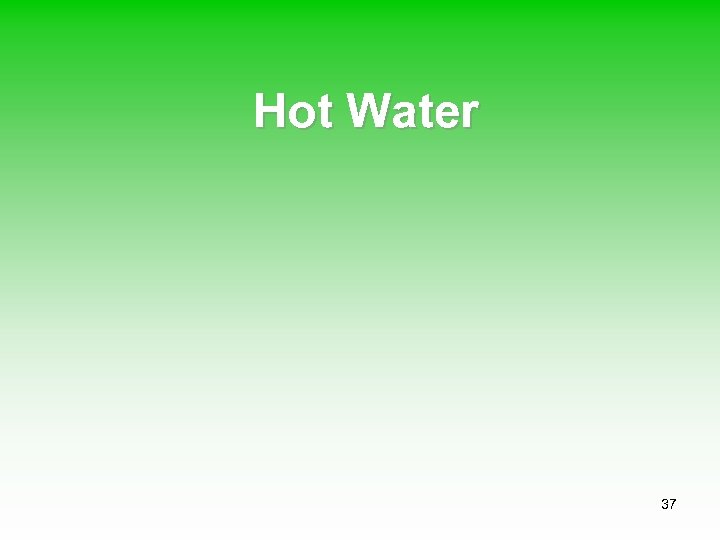

Hot Water 37

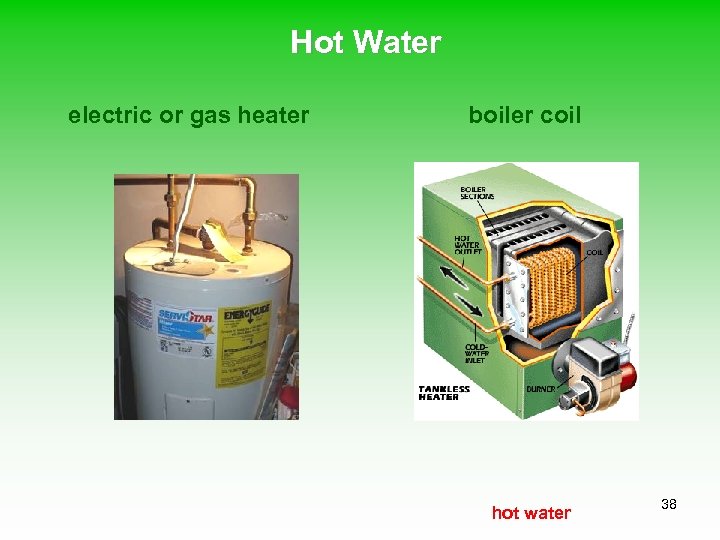

Hot Water electric or gas heater boiler coil hot water 38

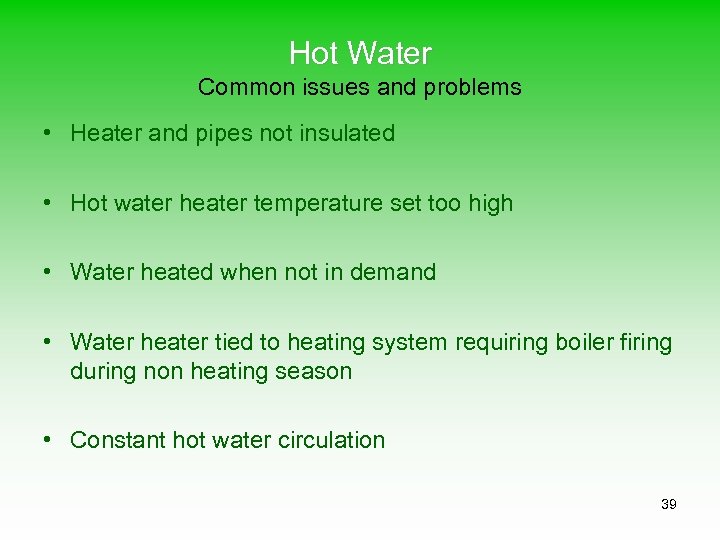

Hot Water Common issues and problems • Heater and pipes not insulated • Hot water heater temperature set too high • Water heated when not in demand • Water heater tied to heating system requiring boiler firing during non heating season • Constant hot water circulation 39

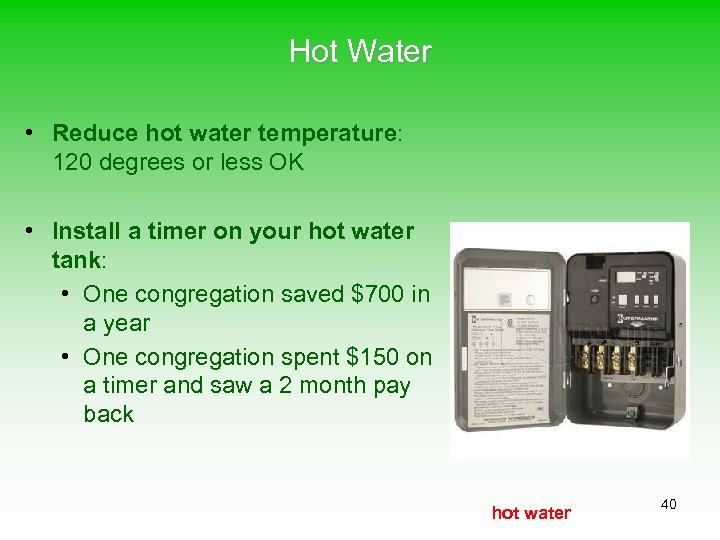

Hot Water • Reduce hot water temperature: 120 degrees or less OK • Install a timer on your hot water tank: • One congregation saved $700 in a year • One congregation spent $150 on a timer and saw a 2 month pay back hot water 40

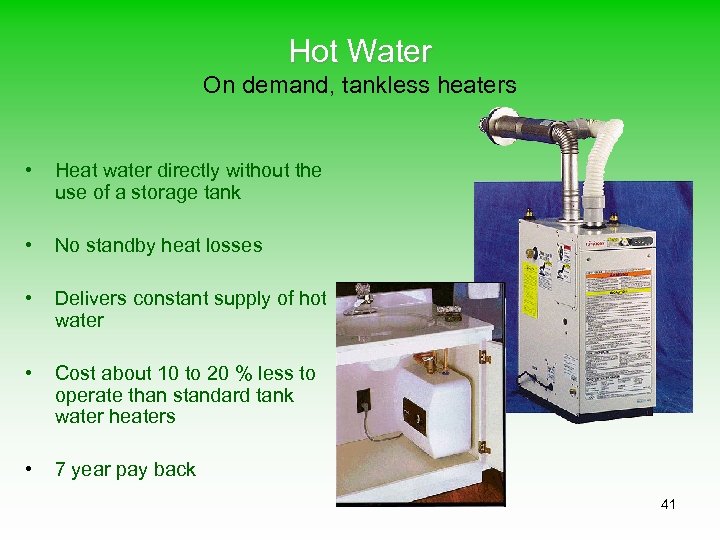

Hot Water On demand, tankless heaters • Heat water directly without the use of a storage tank • No standby heat losses • Delivers constant supply of hot water • Cost about 10 to 20 % less to operate than standard tank water heaters • 7 year pay back 41

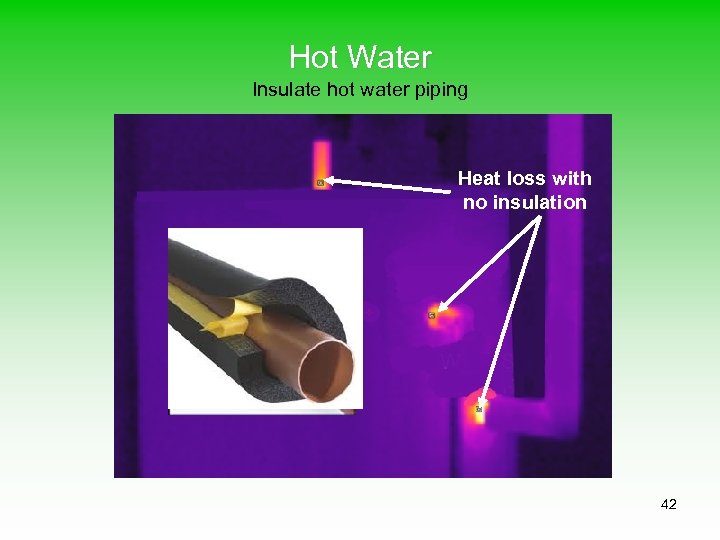

Hot Water Insulate hot water piping Heat loss with no insulation 42

Lighting 43

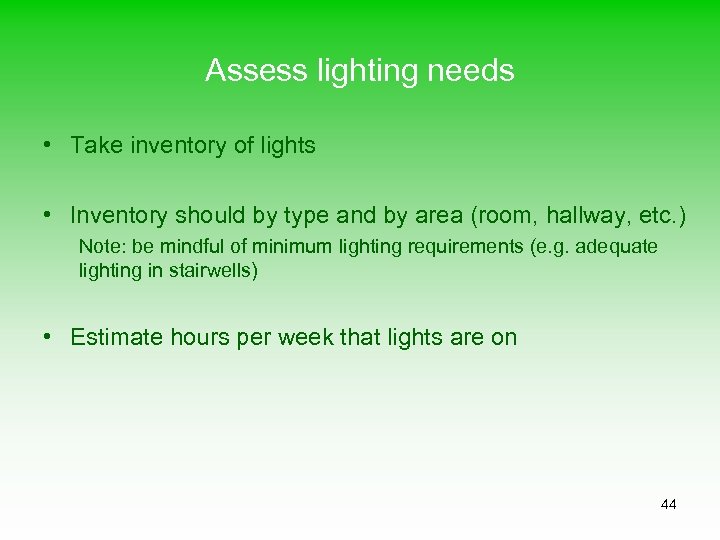

Assess lighting needs • Take inventory of lights • Inventory should by type and by area (room, hallway, etc. ) Note: be mindful of minimum lighting requirements (e. g. adequate lighting in stairwells) • Estimate hours per week that lights are on 44

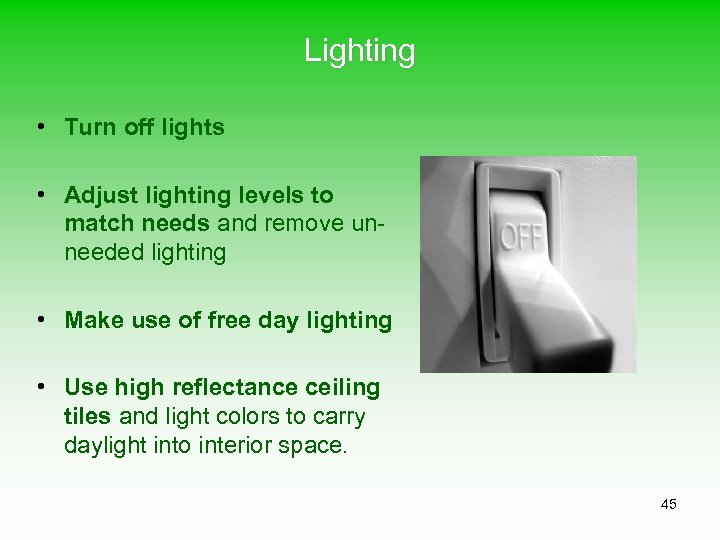

Lighting • Turn off lights • Adjust lighting levels to match needs and remove unneeded lighting • Make use of free day lighting • Use high reflectance ceiling tiles and light colors to carry daylight into interior space. 45

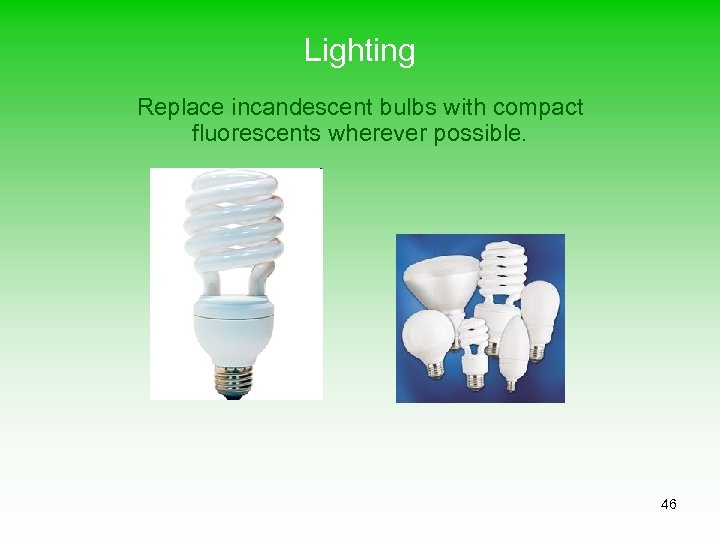

Lighting Replace incandescent bulbs with compact fluorescents wherever possible. 46

Special Considerations for Faith Communities 47

Special Considerations for Faith Communities Schedule activities on common days to save energy 48

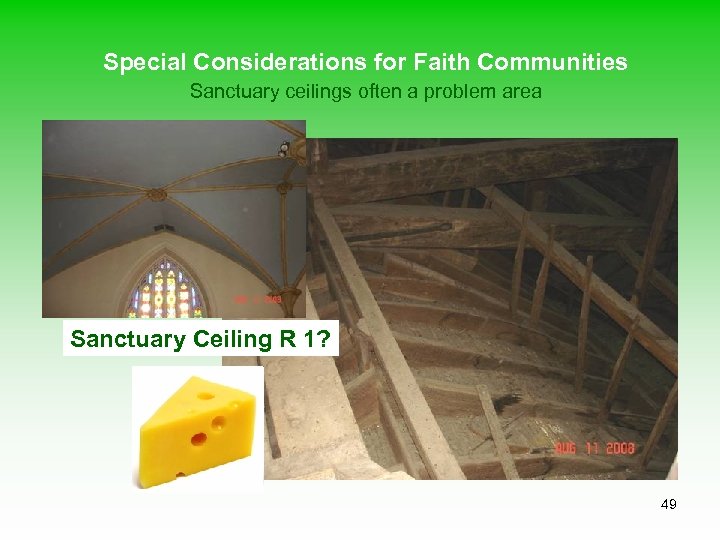

Special Considerations for Faith Communities Sanctuary ceilings often a problem area Sanctuary Ceiling R 1? 49

Special Considerations for Faith Communities address air circulation (especially in sanctuaries) Airius Thermal Equalizers • Installation of the units will help to stabilize the temperature • Peak ceiling temperature are 5 to 10 degrees warmer than the floor. • Reported fuel oil savings 10 -20% • Available at Maine Green Building Supply in Portland 50

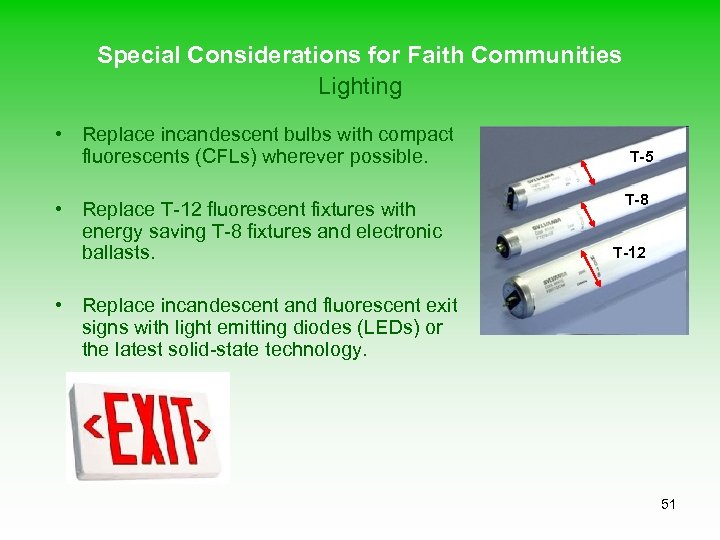

Special Considerations for Faith Communities Lighting • Replace incandescent bulbs with compact fluorescents (CFLs) wherever possible. • Replace T-12 fluorescent fixtures with energy saving T-8 fixtures and electronic ballasts. T-5 T-8 T-12 • Replace incandescent and fluorescent exit signs with light emitting diodes (LEDs) or the latest solid-state technology. 51

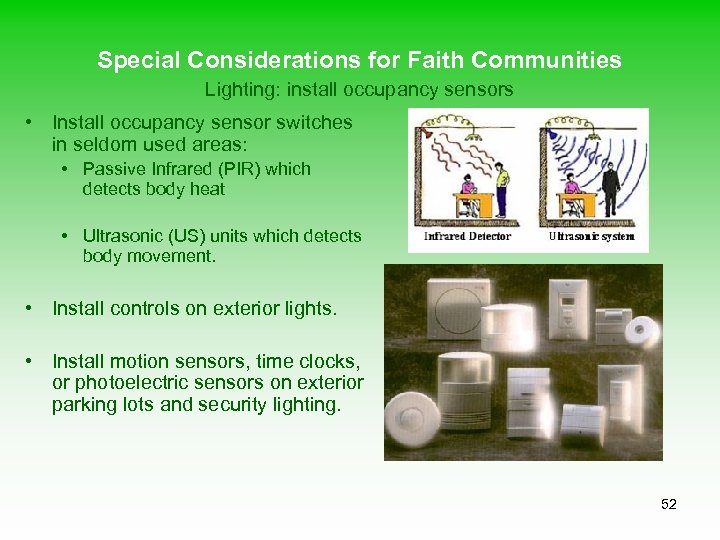

Special Considerations for Faith Communities Lighting: install occupancy sensors • Install occupancy sensor switches in seldom used areas: • Passive Infrared (PIR) which detects body heat • Ultrasonic (US) units which detects body movement. • Install controls on exterior lights. • Install motion sensors, time clocks, or photoelectric sensors on exterior parking lots and security lighting. 52

Energy Efficiency Assistance 53

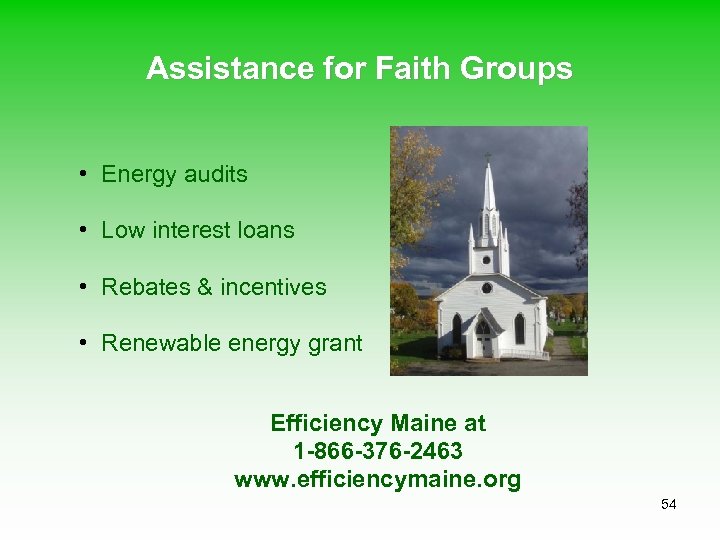

Assistance for Faith Groups • Energy audits • Low interest loans • Rebates & incentives • Renewable energy grant Efficiency Maine at 1 -866 -376 -2463 www. efficiencymaine. org 54

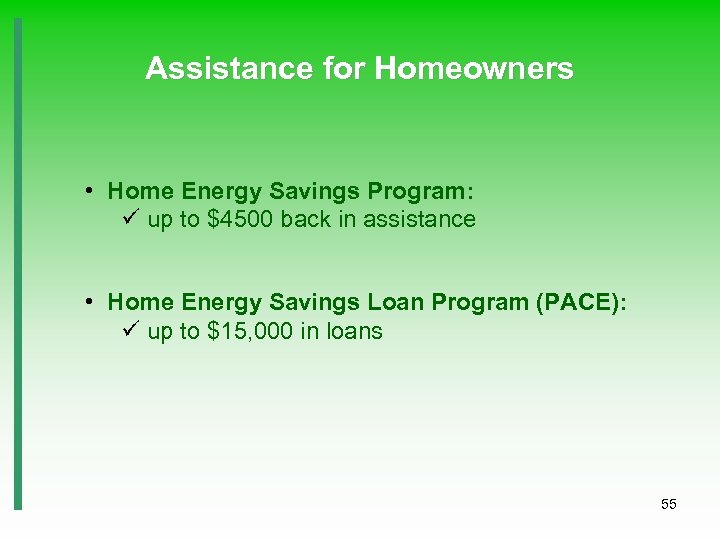

Assistance for Homeowners • Home Energy Savings Program: ü up to $4500 back in assistance • Home Energy Savings Loan Program (PACE): ü up to $15, 000 in loans 55

Other programs • Low Income Weatherization Program • Central Heating Improvement Program (CHIP) • And many other programs 56

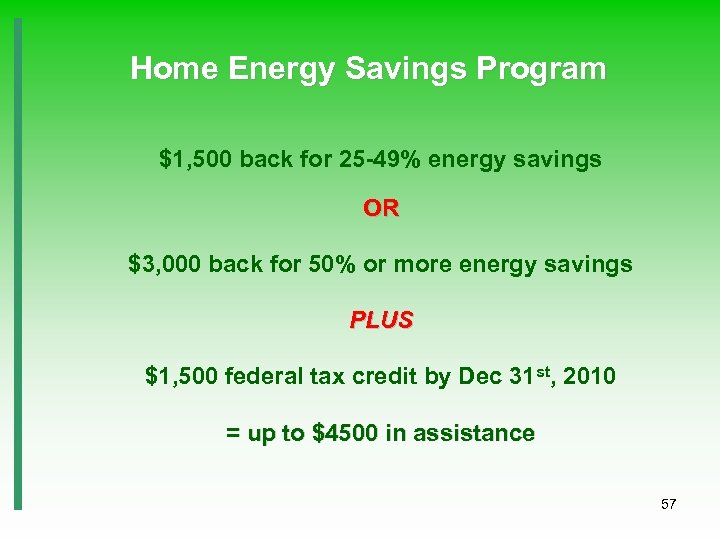

Home Energy Savings Program $1, 500 back for 25 -49% energy savings OR $3, 000 back for 50% or more energy savings PLUS $1, 500 federal tax credit by Dec 31 st, 2010 = up to $4500 in assistance 57

Home Energy Savings Program 58

Home Energy Savings Program Example 2800 square foot home Heating bill = $3000 (1300 gallons of oil) Electricity = $1500 Efficiency indicator =. 46 (1300/2800) Recommended Improvements Seal air leaks Insulate attic Insulate basement walls Replace light bulbs with CFLs Projected Savings from Improvements Lower heating bills by 39% Lower electricity bills by 12% 59

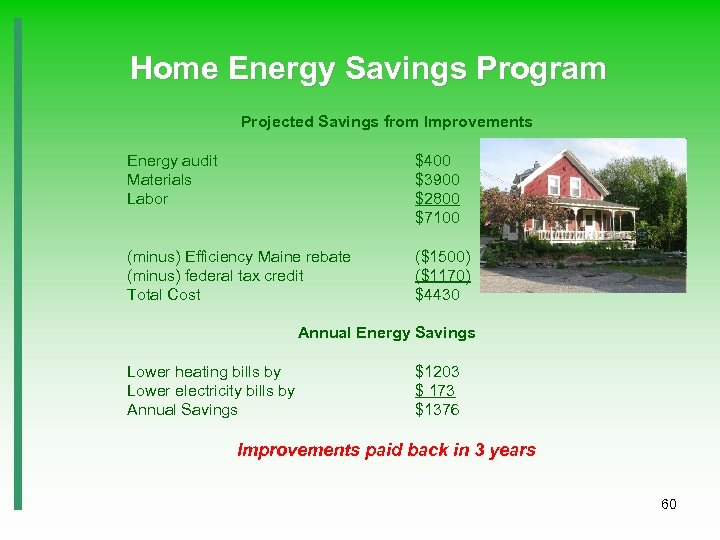

Home Energy Savings Program Projected Savings from Improvements Energy audit Materials Labor $400 $3900 $2800 $7100 (minus) Efficiency Maine rebate (minus) federal tax credit Total Cost ($1500) ($1170) $4430 Annual Energy Savings Lower heating bills by Lower electricity bills by Annual Savings $1203 $ 173 $1376 Improvements paid back in 3 years 60

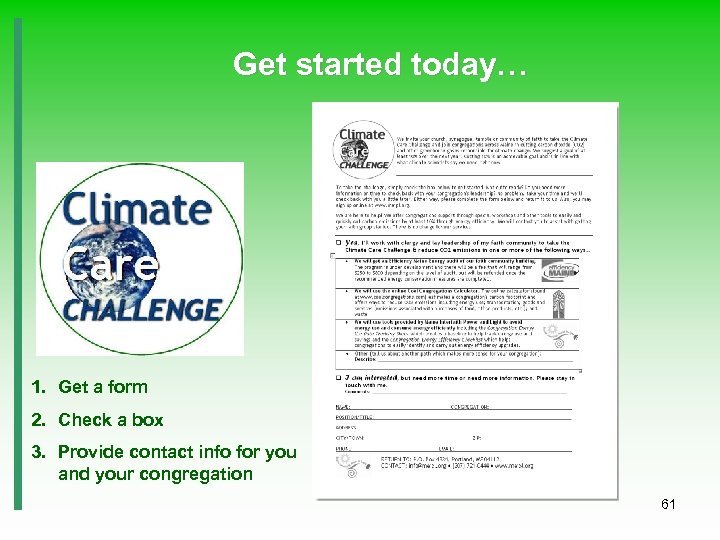

Get started today… 1. Get a form 2. Check a box 3. Provide contact info for you and your congregation 61

Contact Information Maine Interfaith Power and Light (207) 721 -0444 info@meipl. org 62
