Energy Management for Dummies Reduced Emissions Positive Cash Flow A Sustainable Activity Dick Pearson, Energy Management for Dummies Reduced Emissions Positive Cash Flow A Sustainable Activity Dick Pearson, P. E. , ASHRAE Fellow

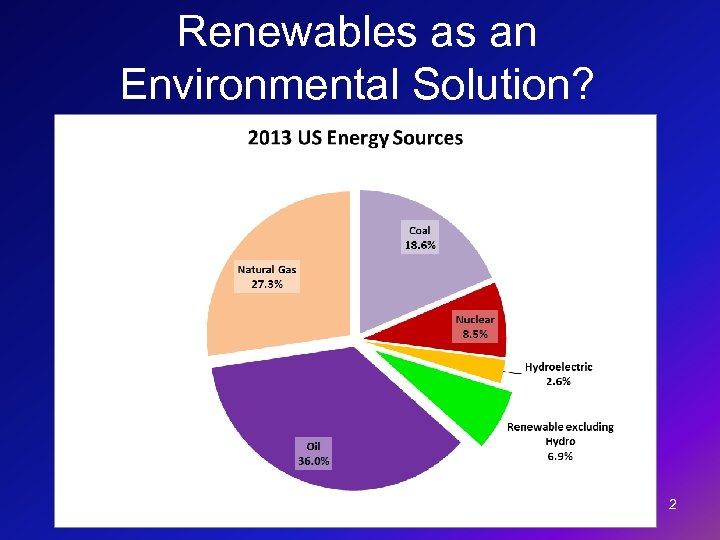

Renewables as an Environmental Solution? 2 Renewables as an Environmental Solution? 2

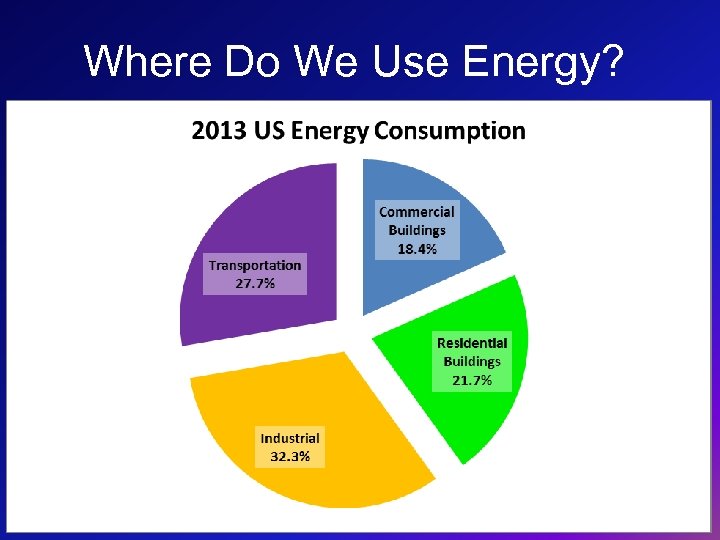

Where Do We Use Energy? 4 Where Do We Use Energy? 4

Energy Management is the Quickest, Cheapest, Cleanest Way to Extend World Energy Supplies Energy Energy Management is the Quickest, Cheapest, Cleanest Way to Extend World Energy Supplies Energy management can provide 2. 5 times the environmental impact of renewable energy 5

6 6

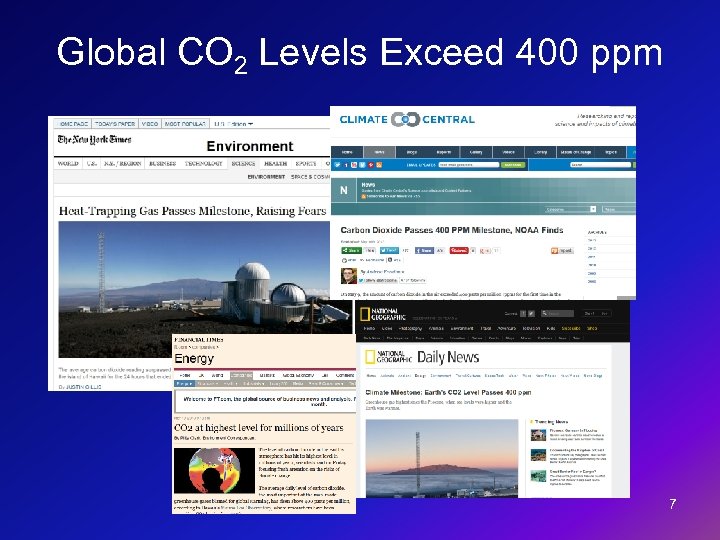

Global CO 2 Levels Exceed 400 ppm 7 Global CO 2 Levels Exceed 400 ppm 7

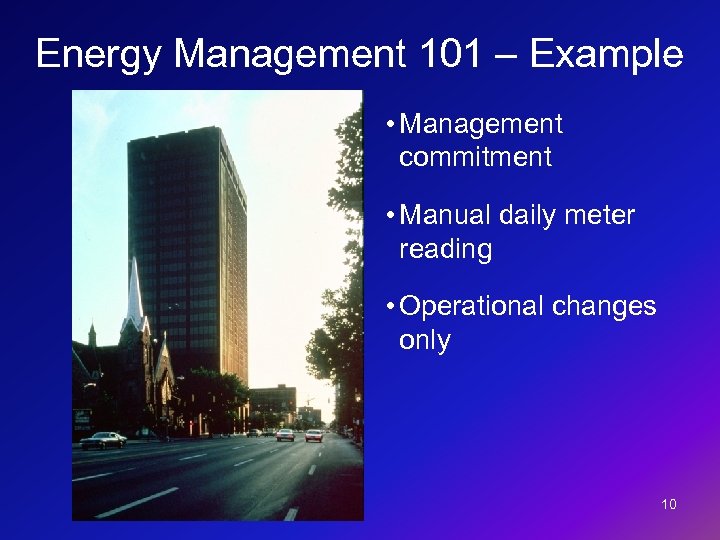

Energy Management 101 – Example • Management commitment • Manual daily meter reading • Energy Management 101 – Example • Management commitment • Manual daily meter reading • Operational changes only 10

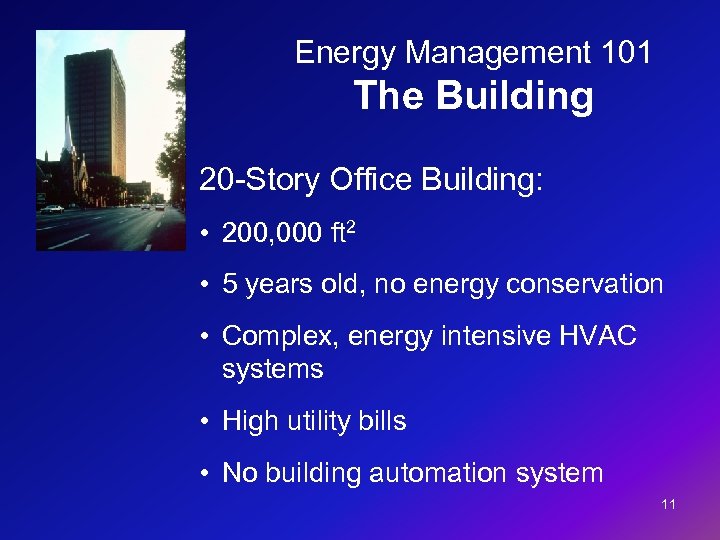

Energy Management 101 The Building 20 -Story Office Building: • 200, 000 ft 2 Energy Management 101 The Building 20 -Story Office Building: • 200, 000 ft 2 • 5 years old, no energy conservation • Complex, energy intensive HVAC systems • High utility bills • No building automation system 11

Energy Management 101 How It Worked Actions by Facility Manager: • Reviewed operations ideas Energy Management 101 How It Worked Actions by Facility Manager: • Reviewed operations ideas with building engineer and design engineer • Reviewed daily meter data for impact, intuitively adjusting for weather • Harassed/complimented building engineer daily on performance 12

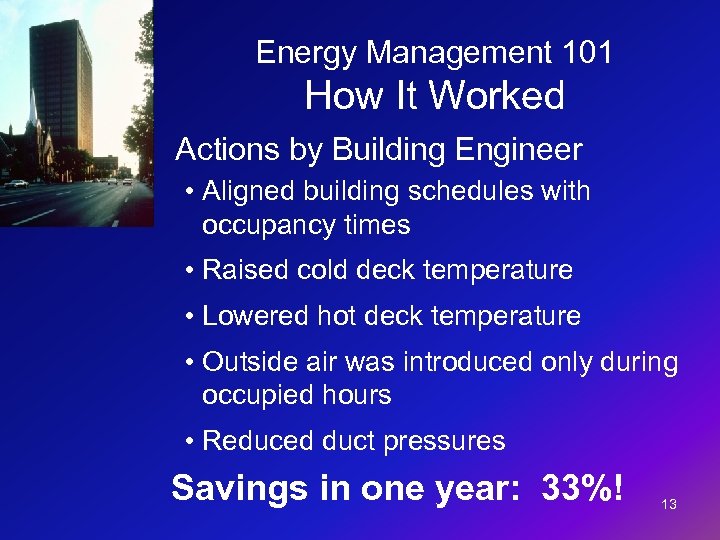

Energy Management 101 How It Worked Actions by Building Engineer • Aligned building schedules Energy Management 101 How It Worked Actions by Building Engineer • Aligned building schedules with occupancy times • Raised cold deck temperature • Lowered hot deck temperature • Outside air was introduced only during occupied hours • Reduced duct pressures Savings in one year: 33%! 13

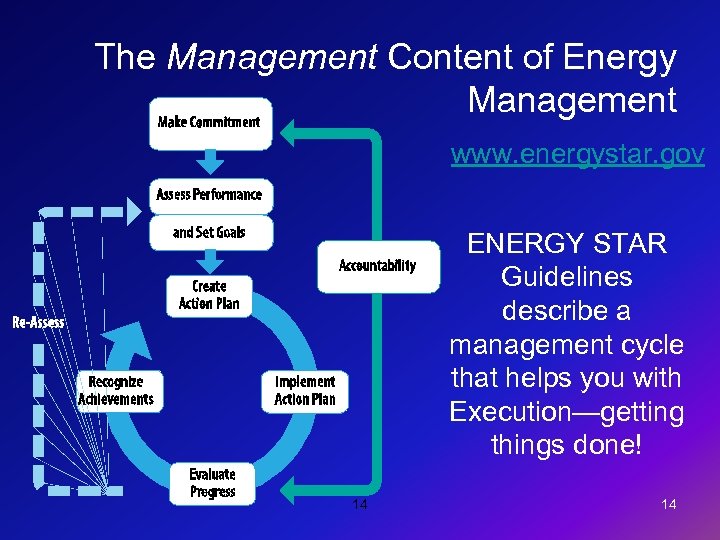

The Management Content of Energy Management www. energystar. gov ENERGY STAR Guidelines describe a The Management Content of Energy Management www. energystar. gov ENERGY STAR Guidelines describe a management cycle that helps you with Execution—getting things done! 14 14

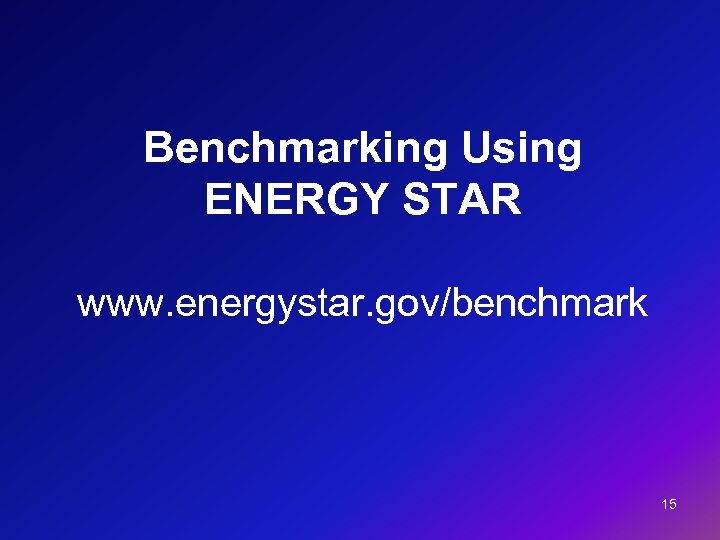

Benchmarking Using ENERGY STAR www. energystar. gov/benchmark 15 Benchmarking Using ENERGY STAR www. energystar. gov/benchmark 15

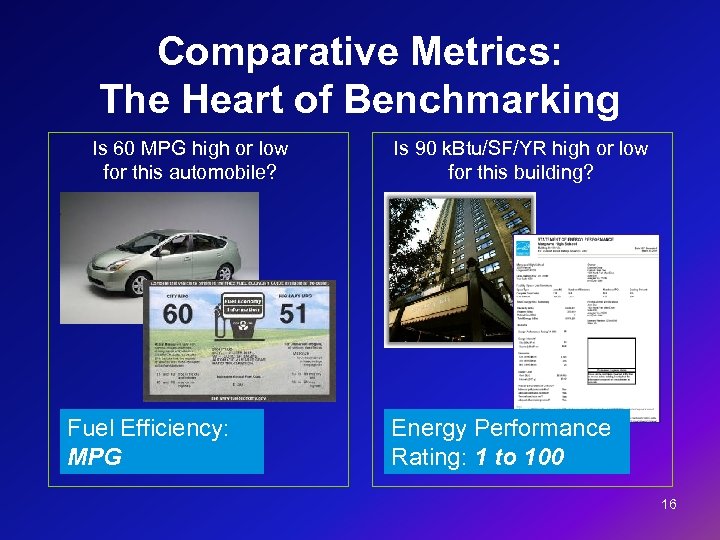

Comparative Metrics: The Heart of Benchmarking Is 60 MPG high or low for this Comparative Metrics: The Heart of Benchmarking Is 60 MPG high or low for this automobile? Fuel Efficiency: MPG Is 90 k. Btu/SF/YR high or low for this building? Energy Performance Rating: 1 to 100 16

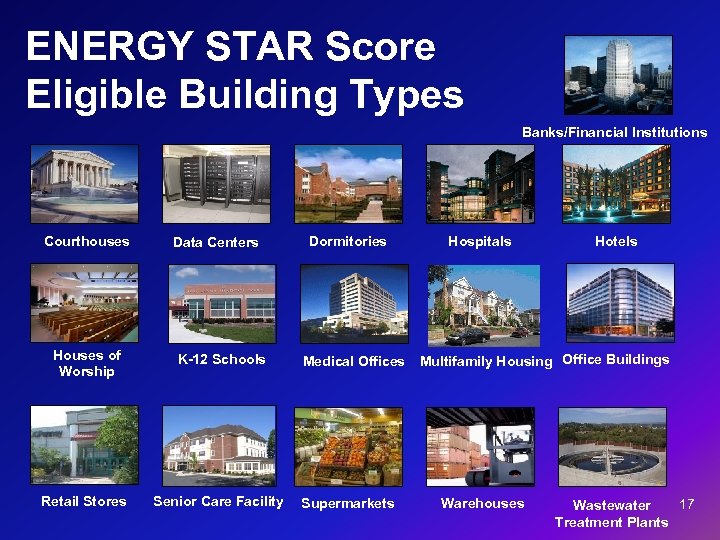

ENERGY STAR Score Eligible Building Types Banks/Financial Institutions Courthouses Data Centers Houses of Worship ENERGY STAR Score Eligible Building Types Banks/Financial Institutions Courthouses Data Centers Houses of Worship K-12 Schools Retail Stores Senior Care Facility Dormitories Medical Offices Supermarkets Hospitals Hotels Multifamily Housing Office Buildings Warehouses 17 Wastewater Treatment Plants

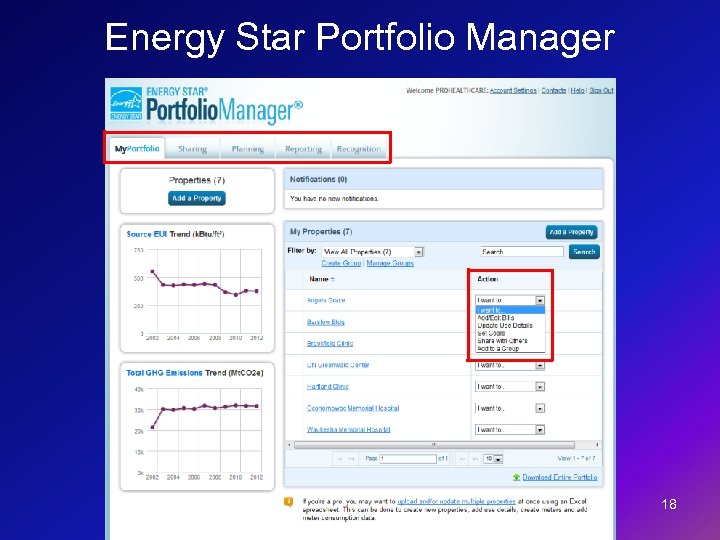

Energy Star Portfolio Manager 18 Energy Star Portfolio Manager 18

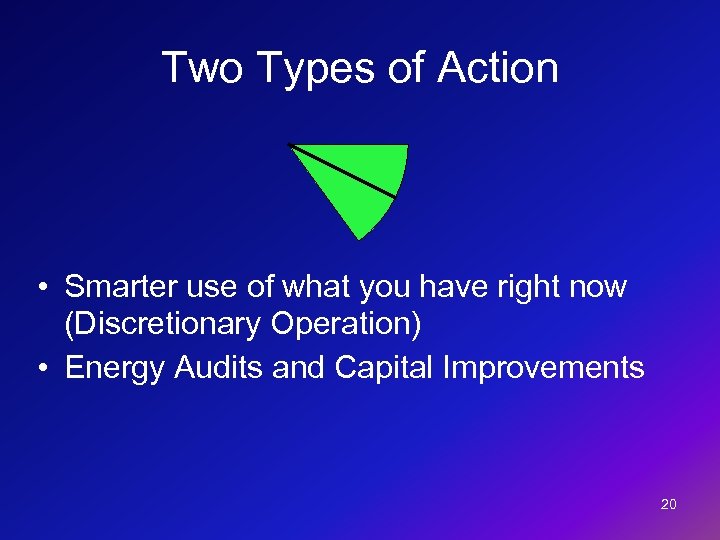

Two Types of Action • Smarter use of what you have right now (Discretionary Two Types of Action • Smarter use of what you have right now (Discretionary Operation) • Energy Audits and Capital Improvements 20

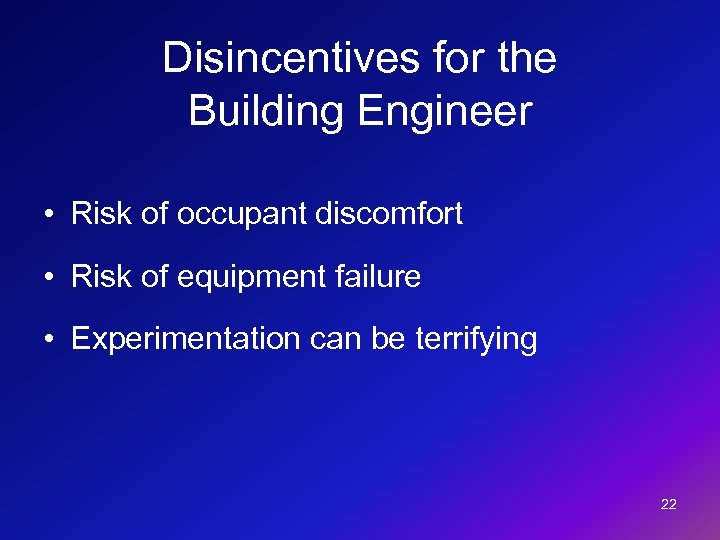

Disincentives for the Building Engineer • Risk of occupant discomfort • Risk of equipment Disincentives for the Building Engineer • Risk of occupant discomfort • Risk of equipment failure • Experimentation can be terrifying 22

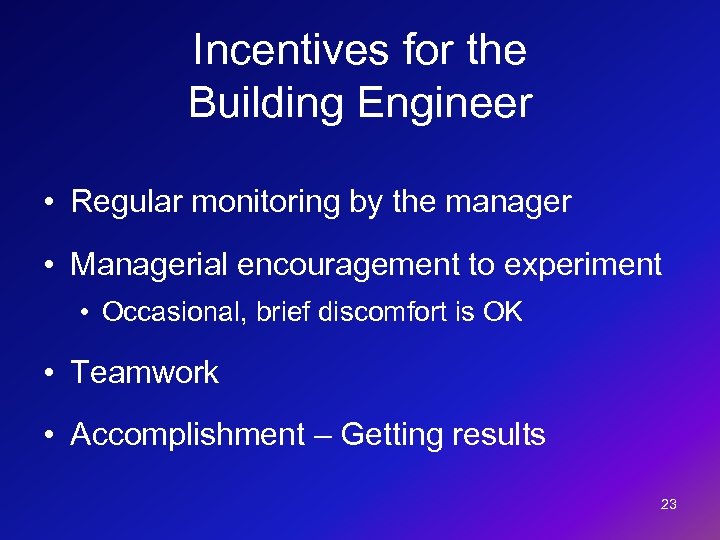

Incentives for the Building Engineer • Regular monitoring by the manager • Managerial encouragement Incentives for the Building Engineer • Regular monitoring by the manager • Managerial encouragement to experiment • Occasional, brief discomfort is OK • Teamwork • Accomplishment – Getting results 23

Examples of Success 24 Examples of Success 24

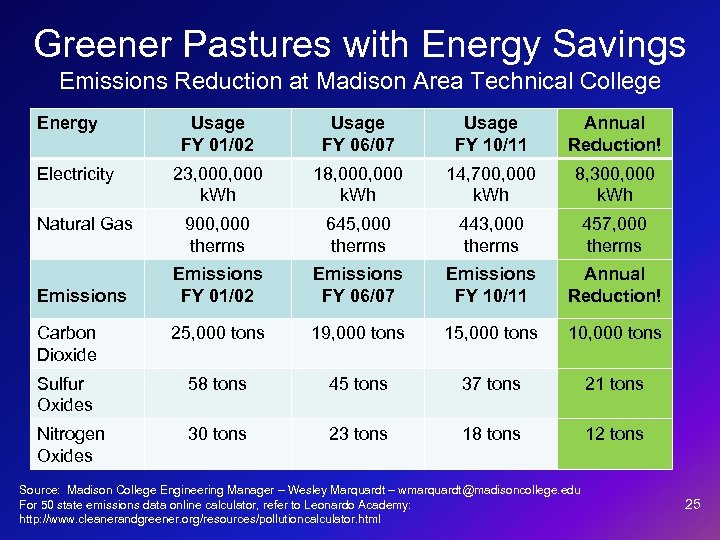

Greener Pastures with Energy Savings Emissions Reduction at Madison Area Technical College Energy Usage Greener Pastures with Energy Savings Emissions Reduction at Madison Area Technical College Energy Usage FY 01/02 Usage FY 06/07 Usage FY 10/11 Annual Reduction! 23, 000 k. Wh 18, 000 k. Wh 14, 700, 000 k. Wh 8, 300, 000 k. Wh 900, 000 therms 645, 000 therms 443, 000 therms 457, 000 therms Emissions FY 01/02 Emissions FY 06/07 Emissions FY 10/11 Annual Reduction! Carbon Dioxide 25, 000 tons 19, 000 tons 15, 000 tons 10, 000 tons Sulfur Oxides 58 tons 45 tons 37 tons 21 tons Nitrogen Oxides 30 tons 23 tons 18 tons 12 tons Electricity Natural Gas Emissions Source: Madison College Engineering Manager – Wesley Marquardt – wmarquardt@madisoncollege. edu For 50 state emissions data online calculator, refer to Leonardo Academy: http: //www. cleanerandgreener. org/resources/pollutioncalculator. html 25

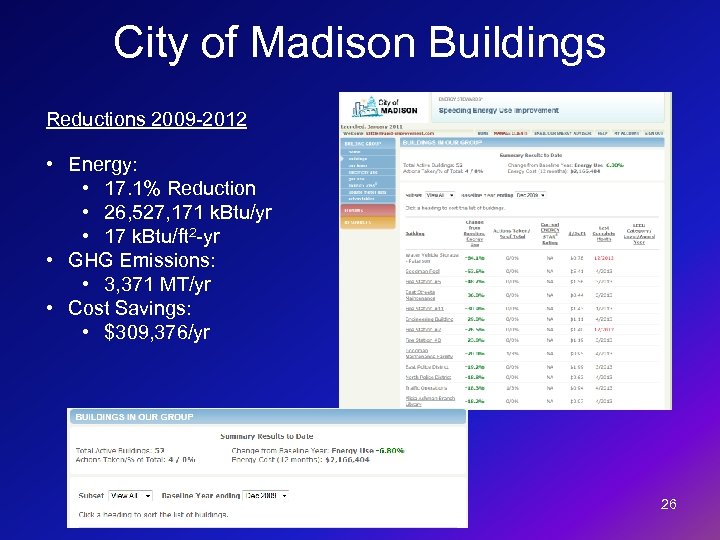

City of Madison Buildings Reductions 2009 -2012 • Energy: • 17. 1% Reduction • City of Madison Buildings Reductions 2009 -2012 • Energy: • 17. 1% Reduction • 26, 527, 171 k. Btu/yr • 17 k. Btu/ft 2 -yr • GHG Emissions: • 3, 371 MT/yr • Cost Savings: • $309, 376/yr 26

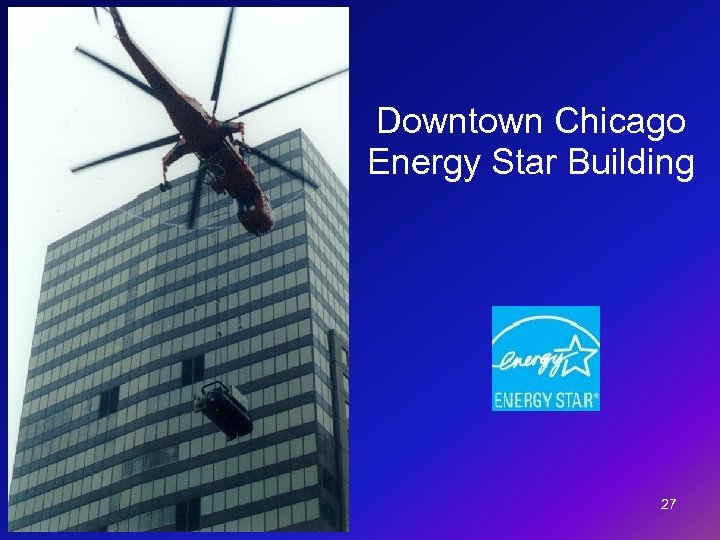

Downtown Chicago Energy Star Building 27 Downtown Chicago Energy Star Building 27

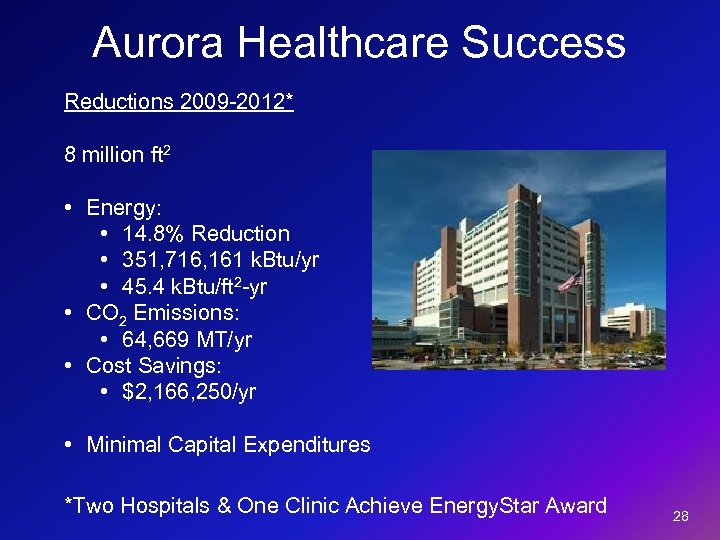

Aurora Healthcare Success Reductions 2009 -2012* 8 million ft 2 • Energy: • 14. Aurora Healthcare Success Reductions 2009 -2012* 8 million ft 2 • Energy: • 14. 8% Reduction • 351, 716, 161 k. Btu/yr • 45. 4 k. Btu/ft 2 -yr • CO 2 Emissions: • 64, 669 MT/yr • Cost Savings: • $2, 166, 250/yr • Minimal Capital Expenditures *Two Hospitals & One Clinic Achieve Energy. Star Award 28

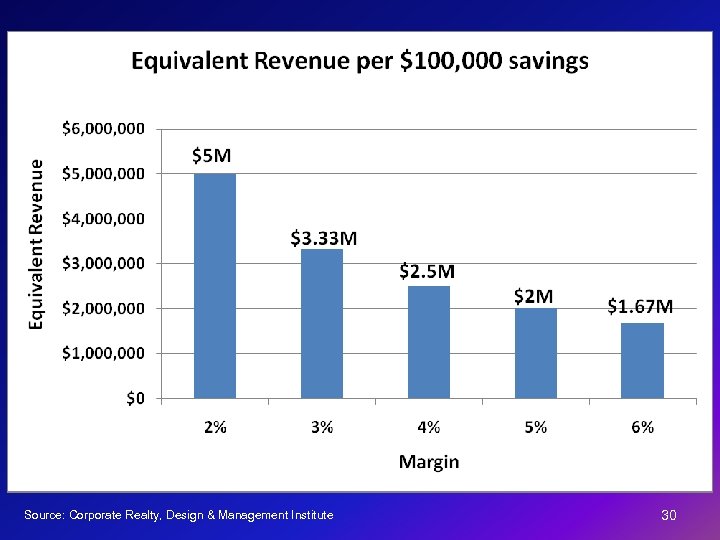

Source: Corporate Realty, Design & Management Institute 30 Source: Corporate Realty, Design & Management Institute 30

Aurora Health Care Equivalent Revenue Using a 4% margin • 2009 – 2012 Total Aurora Health Care Equivalent Revenue Using a 4% margin • 2009 – 2012 Total Energy Savings (weather-normalized) Total Savings = $8, 665, 000 • $8, 665, 000 ÷ 0. 04 (margin) = $216, 625, 000 equivalent revenue • $216, 625, 000 ÷ 4 years = $54, 156, 250 EQUIVALENT REVENUE PER YEAR 31

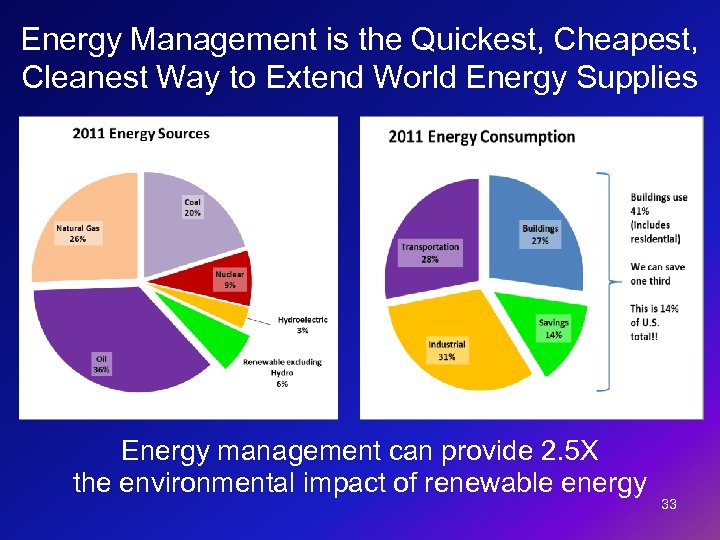

Energy Management is the Quickest, Cheapest, Cleanest Way to Extend World Energy Supplies Energy Energy Management is the Quickest, Cheapest, Cleanest Way to Extend World Energy Supplies Energy management can provide 2. 5 X the environmental impact of renewable energy 33

Remember to Monitor!! 34 Remember to Monitor!! 34
