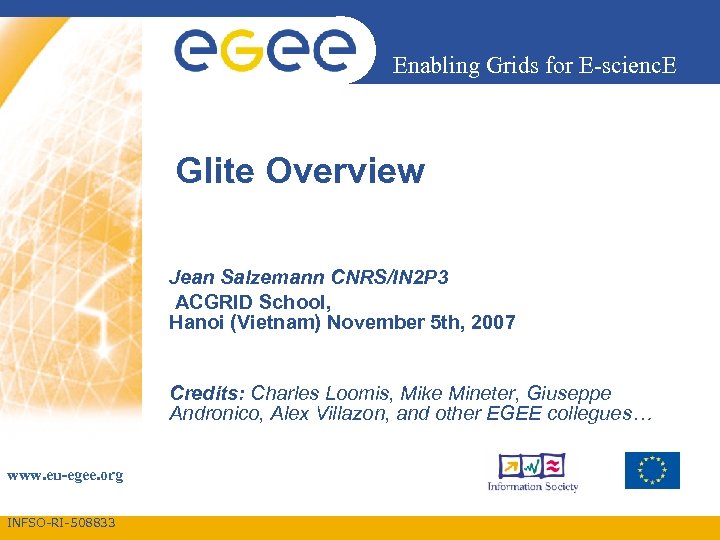

Enabling Grids for E-scienc. E Glite Overview Jean Salzemann CNRS/IN 2 P 3 ACGRID School, Hanoi (Vietnam) November 5 th, 2007 Credits: Charles Loomis, Mike Mineter, Giuseppe Andronico, Alex Villazon, and other EGEE collegues… www. eu-egee. org INFSO-RI-508833

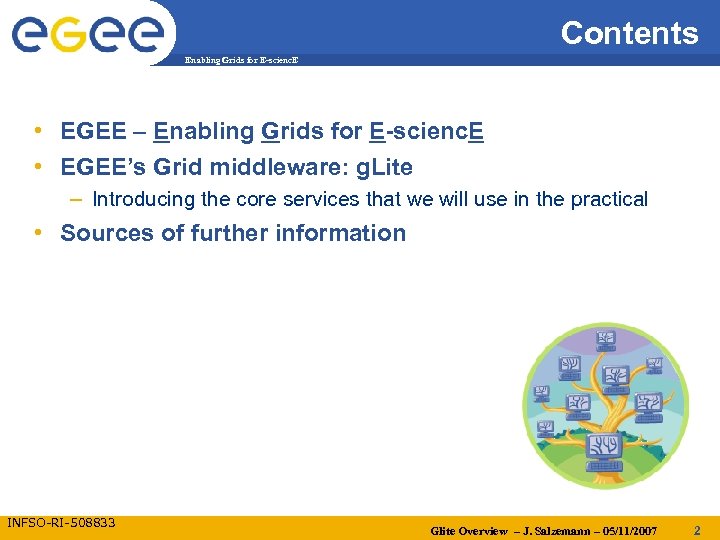

Contents Enabling Grids for E-scienc. E • EGEE – Enabling Grids for E-scienc. E • EGEE’s Grid middleware: g. Lite – Introducing the core services that we will use in the practical • Sources of further information INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 2

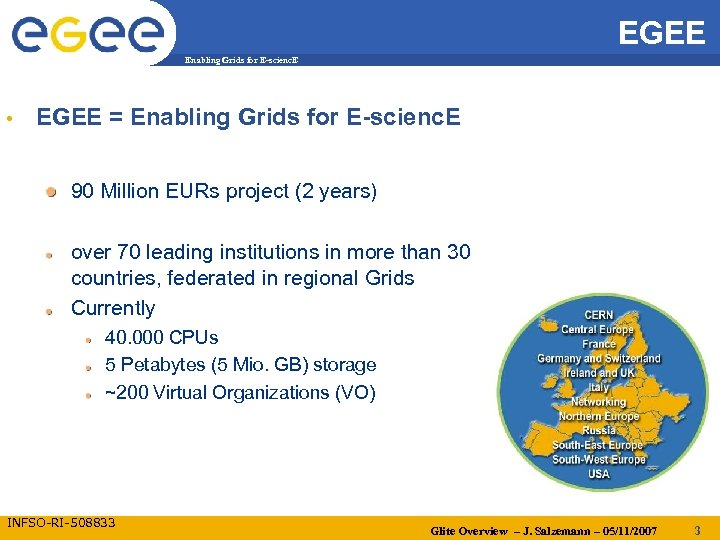

EGEE Enabling Grids for E-scienc. E • EGEE = Enabling Grids for E-scienc. E 90 Million EURs project (2 years) over 70 leading institutions in more than 30 countries, federated in regional Grids Currently 40. 000 CPUs 5 Petabytes (5 Mio. GB) storage ~200 Virtual Organizations (VO) INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 3
g. Lite – Grid middleware Enabling Grids for E-scienc. E • The Grid relies on advanced software – the middleware which interfaces between resources and the applications • The GRID middleware Finds convenient places for the application to be executed Optimises use of resources Organises efficient access to data Deals with authentication to the different sites that are used Run the job & monitors progress Transfers the result back to the scientist INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 4

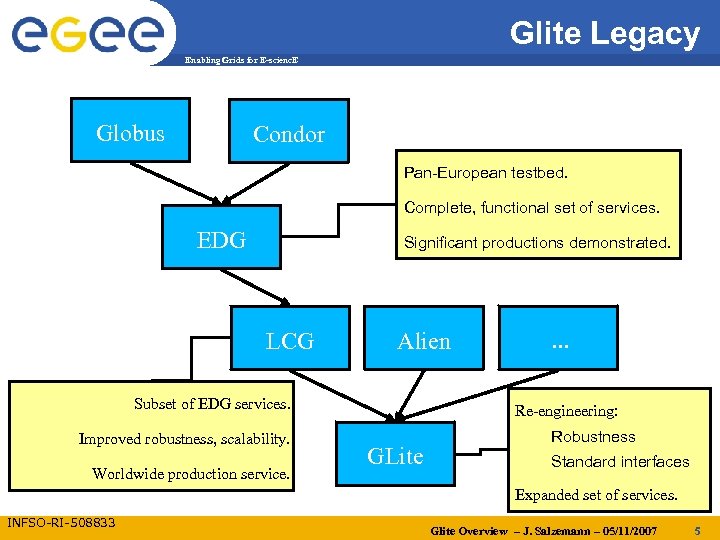

Glite Legacy Enabling Grids for E-scienc. E Globus Condor Pan-European testbed. Complete, functional set of services. EDG Significant productions demonstrated. LCG Alien Subset of EDG services. Improved robustness, scalability. Worldwide production service. . Re-engineering: GLite Robustness Standard interfaces Expanded set of services. INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 5

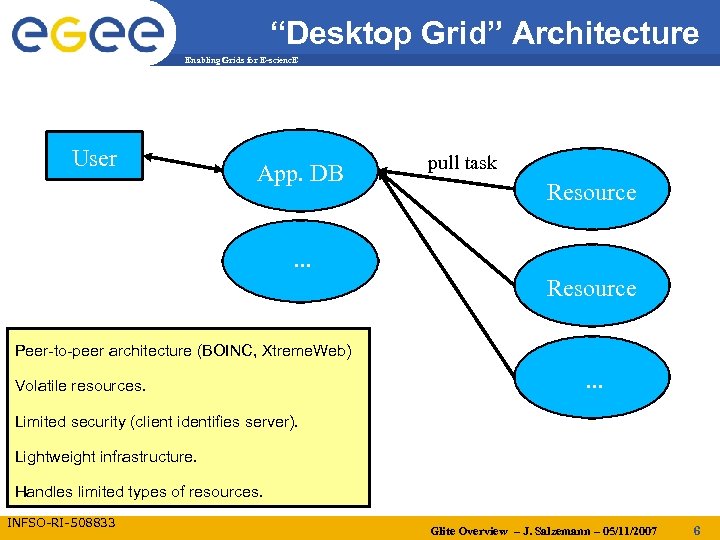

“Desktop Grid” Architecture Enabling Grids for E-scienc. E User App. DB pull task Resource . . . Resource Peer-to-peer architecture (BOINC, Xtreme. Web) Volatile resources. . Limited security (client identifies server). Lightweight infrastructure. Handles limited types of resources. INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 6
LCG Architecture Enabling Grids for E-scienc. E Info. Sys. User publish descriptions query submit Resource Broker Resource Batch-like architecture. Stable, well-maintained resources. Secured via Public Key Infrastructure (PKI) submit . . . Heavy support infrastructure. Can handle large range of resources. INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 7

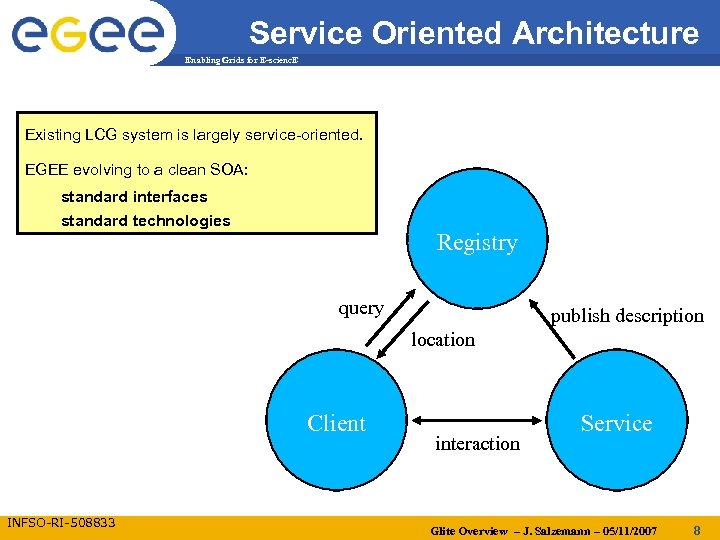

Service Oriented Architecture Enabling Grids for E-scienc. E Existing LCG system is largely service-oriented. EGEE evolving to a clean SOA: standard interfaces standard technologies Registry query publish description location Client INFSO-RI-508833 interaction Service Glite Overview – J. Salzemann – 05/11/2007 8
Convergence of Technologies Enabling Grids for E-scienc. E • Web Services – Clean, complete specification of service APIs. – Supported technology: Good support within commercial sector. Adequate support within open-source community. – Very active ➔ proposed standards rapidly evolving. • EGEE Service Evolution – Plain web services: Avoid “proprietary” protocols and interfaces. Fairly stable, will ease further evolution. – Adopt WSRF and/or WS-* standards as appropriate. • Expect user-visible changes in APIs. INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 9

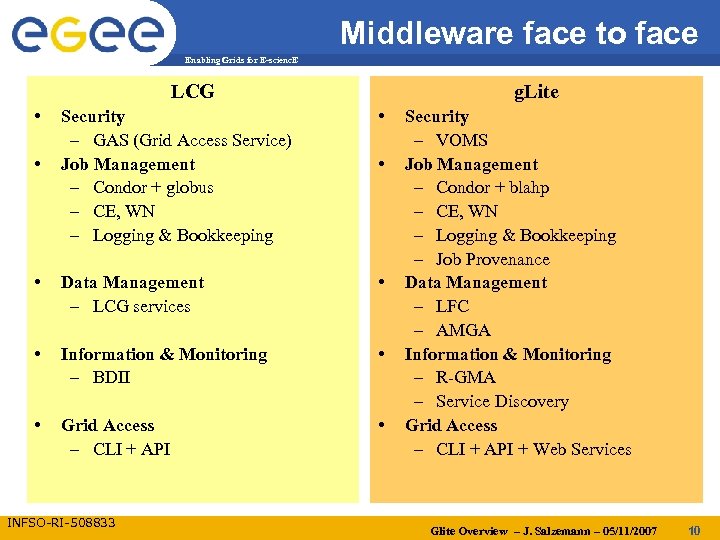

Middleware face to face Enabling Grids for E-scienc. E LCG • g. Lite Security – GAS (Grid Access Service) Job Management – Condor + globus – CE, WN – Logging & Bookkeeping • • Data Management – LCG services • • Information & Monitoring – BDII • • Grid Access – CLI + API • • INFSO-RI-508833 • Security – VOMS Job Management – Condor + blahp – CE, WN – Logging & Bookkeeping – Job Provenance Data Management – LFC – AMGA Information & Monitoring – R-GMA – Service Discovery Grid Access – CLI + API + Web Services Glite Overview – J. Salzemann – 05/11/2007 10

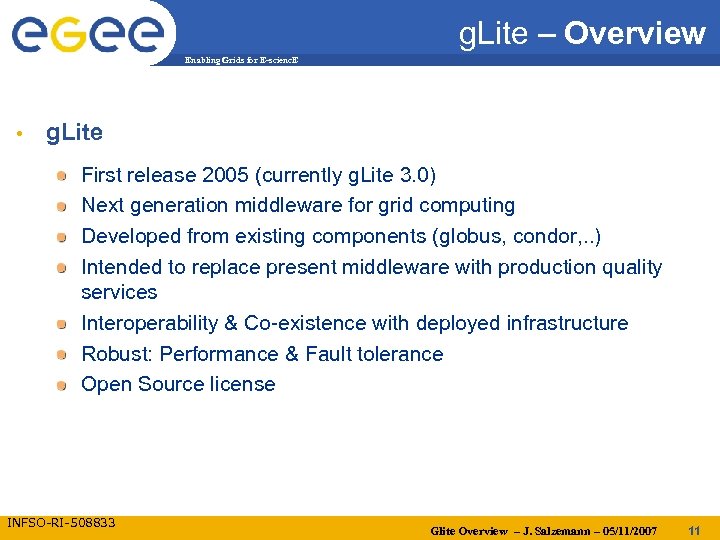

g. Lite – Overview Enabling Grids for E-scienc. E • g. Lite First release 2005 (currently g. Lite 3. 0) Next generation middleware for grid computing Developed from existing components (globus, condor, . . ) Intended to replace present middleware with production quality services Interoperability & Co-existence with deployed infrastructure Robust: Performance & Fault tolerance Open Source license INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 11

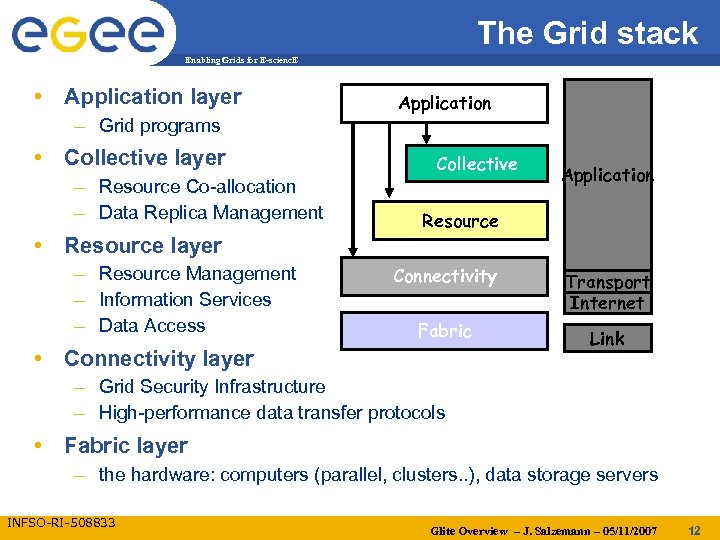

The Grid stack Enabling Grids for E-scienc. E • Application layer – Grid programs • Collective layer – Resource Co-allocation – Data Replica Management Application Collective Application Resource • Resource layer – Resource Management – Information Services – Data Access Connectivity Transport Internet Fabric Link • Connectivity layer – Grid Security Infrastructure – High-performance data transfer protocols • Fabric layer – the hardware: computers (parallel, clusters. . ), data storage servers INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 12

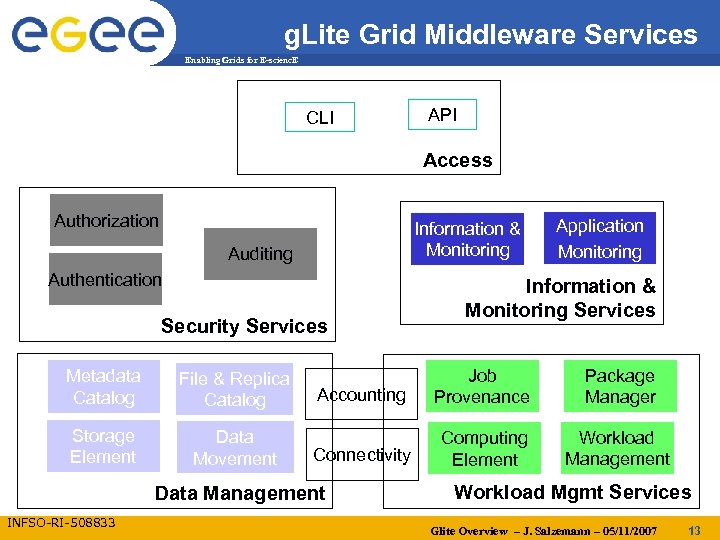

g. Lite Grid Middleware Services Enabling Grids for E-scienc. E CLI API Access Authorization Information & Monitoring Auditing Authentication Security Services Metadata Catalog File & Replica Catalog Storage Element Data Movement Information & Monitoring Services Accounting Job Provenance Package Manager Connectivity Computing Element Workload Management Data Management INFSO-RI-508833 Application Monitoring Workload Mgmt Services Glite Overview – J. Salzemann – 05/11/2007 13
Main components Enabling Grids for E-scienc. E User Interface (UI): (UI) The place where users logon to the Grid Resource Broker (RB): Matches the user requirements with the available (RB) resources on the Grid Information System: Characteristics and status of CE and SE System (Uses “GLUE schema”) Computing Element (CE): A batch queue on a site’s computers where (CE) the user’s job is executed Storage Element (SE): provides (large-scale) storage for files (SE) INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 14
Current production middleware Enabling Grids for E-scienc. E “User interface” Input “sandbox” Replica Catalogue Information Service Data. Sets info Output “sandbox” SE & In CE i nfo s tu St a Jo b nfo Job Status Publish san t“ INFSO-RI-508833 tpu Ou Logging & Book-keeping Job Query Job Submit Event Author. &Authen. I er ok Br ”+ ox ” db ox san db t“ pu Resource Broker Storage Element Computing Element Glite Overview – J. Salzemann – 05/11/2007 15
g. Lite: Workload Management System (WMS) Enabling Grids for E-scienc. E • Job Management Services related to job management/execution – Computing Element job management (submission, control, …) information about characteristics and status Actual execution is done in a Worker Node (WN) – Workload Management core component (see next slides) – Job Provenance keeps track of job definition, execution conditions, environment important points of the job life cycle • debugging, post-mortem analysis, comparision of job execution – Package Manager extension of a traditional package management system to a grid • automates the process of installing, upgrading, configuring and removing software packages from a shared area on a grid site INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 16

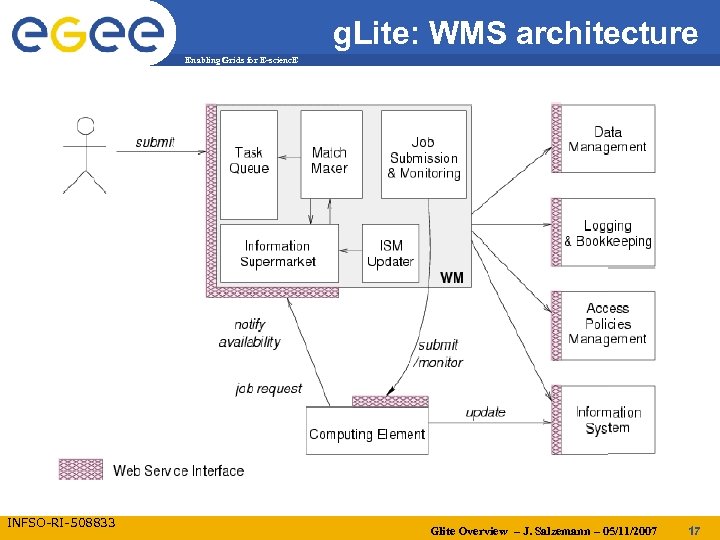

g. Lite: WMS architecture Enabling Grids for E-scienc. E INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 17

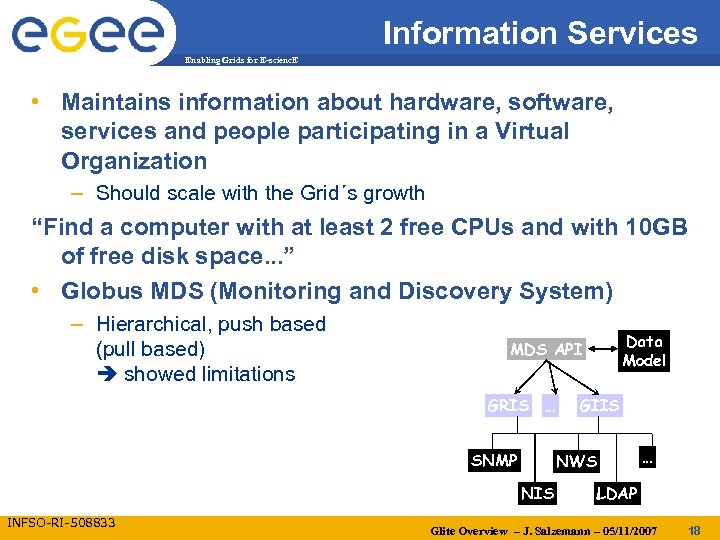

Information Services Enabling Grids for E-scienc. E • Maintains information about hardware, software, services and people participating in a Virtual Organization – Should scale with the Grid´s growth “Find a computer with at least 2 free CPUs and with 10 GB of free disk space. . . ” • Globus MDS (Monitoring and Discovery System) – Hierarchical, push based (pull based) showed limitations GRIS … SNMP GIIS … NWS NIS INFSO-RI-508833 Data Model MDS API LDAP Glite Overview – J. Salzemann – 05/11/2007 18

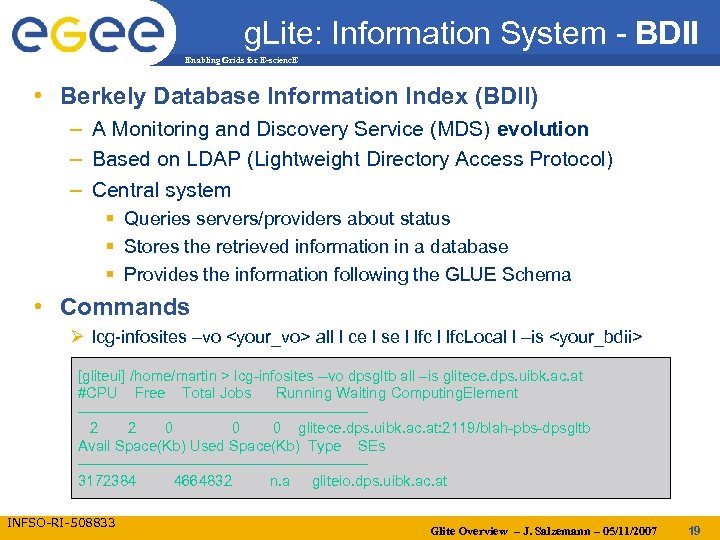

g. Lite: Information System - BDII Enabling Grids for E-scienc. E • Berkely Database Information Index (BDII) – A Monitoring and Discovery Service (MDS) evolution – Based on LDAP (Lightweight Directory Access Protocol) – Central system Queries servers/providers about status Stores the retrieved information in a database Provides the information following the GLUE Schema • Commands Ø lcg-infosites –vo <your_vo> all l ce l se l lfc. Local l –is <your_bdii> [gliteui] /home/martin > lcg-infosites --vo dpsgltb all –is glitece. dps. uibk. ac. at #CPU Free Total Jobs Running Waiting Computing. Element -----------------------------2 2 0 0 0 glitece. dps. uibk. ac. at: 2119/blah-pbs-dpsgltb Avail Space(Kb) Used Space(Kb) Type SEs -----------------------------3172384 4664832 n. a gliteio. dps. uibk. ac. at INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 19

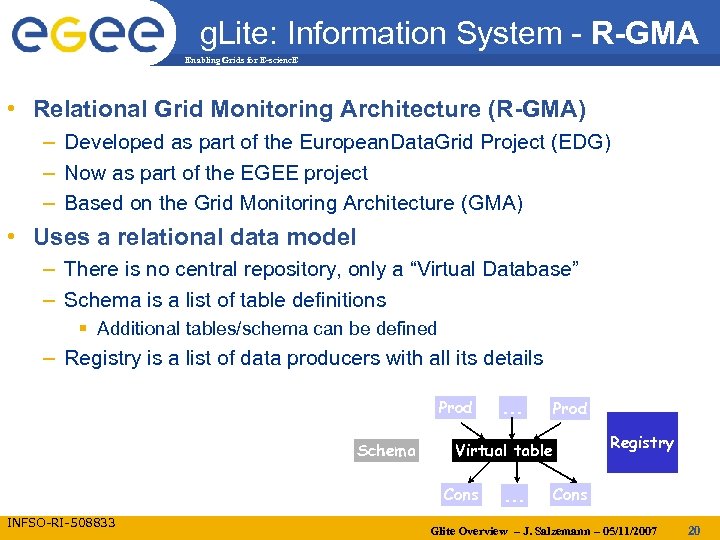

g. Lite: Information System - R-GMA Enabling Grids for E-scienc. E • Relational Grid Monitoring Architecture (R-GMA) – Developed as part of the European. Data. Grid Project (EDG) – Now as part of the EGEE project – Based on the Grid Monitoring Architecture (GMA) • Uses a relational data model – There is no central repository, only a “Virtual Database” – Schema is a list of table definitions Additional tables/schema can be defined – Registry is a list of data producers with all its details Prod Schema Prod Virtual table Cons INFSO-RI-508833 . . . Registry Cons Glite Overview – J. Salzemann – 05/11/2007 20

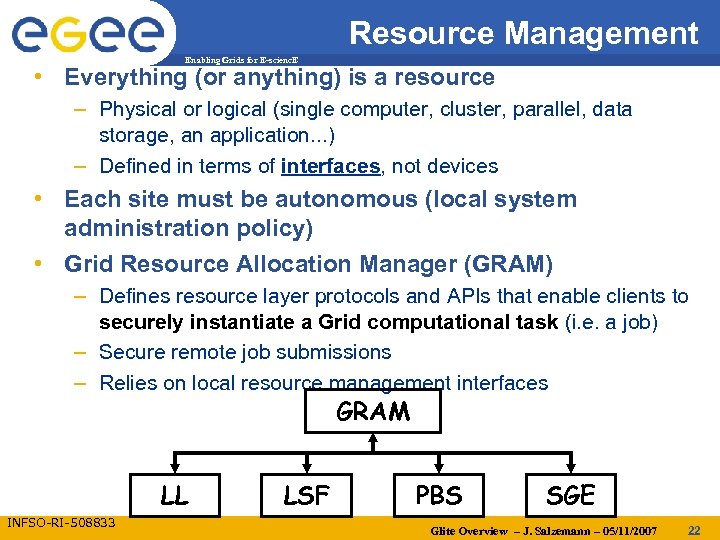

Resource Management Enabling Grids for E-scienc. E • Everything (or anything) is a resource – Physical or logical (single computer, cluster, parallel, data storage, an application. . . ) – Defined in terms of interfaces, not devices • Each site must be autonomous (local system administration policy) • Grid Resource Allocation Manager (GRAM) – Defines resource layer protocols and APIs that enable clients to securely instantiate a Grid computational task (i. e. a job) – Secure remote job submissions – Relies on local resource management interfaces GRAM LL INFSO-RI-508833 LSF PBS SGE Glite Overview – J. Salzemann – 05/11/2007 22

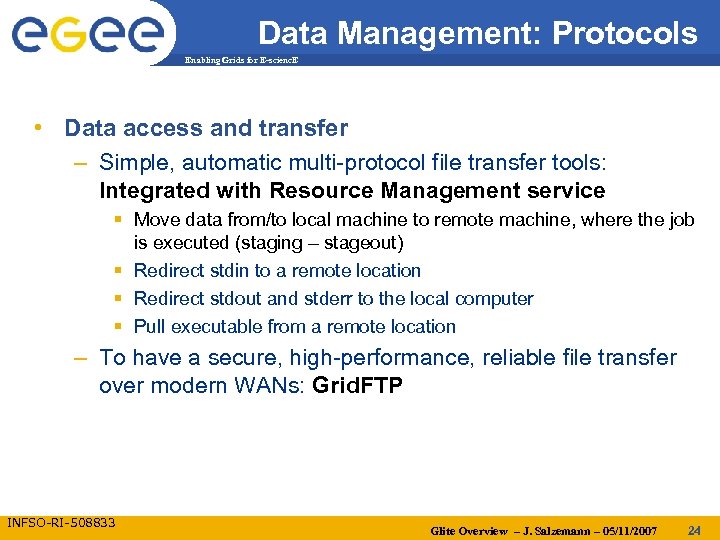

Data Management: Protocols Enabling Grids for E-scienc. E • Data access and transfer – Simple, automatic multi-protocol file transfer tools: Integrated with Resource Management service Move data from/to local machine to remote machine, where the job is executed (staging – stageout) Redirect stdin to a remote location Redirect stdout and stderr to the local computer Pull executable from a remote location – To have a secure, high-performance, reliable file transfer over modern WANs: Grid. FTP INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 24
g. Lite: Data management - Services Enabling Grids for E-scienc. E • Catalog – – File and Replica Catalog File Authorization Service Metadata catalog Distribution of catalogs, conflicts resolution • Storage Elements (SE) – SRM (Storage Resource Manager) interface – Transfer protocols (gsiftp, rfio, …) SE INFSO-RI-508833 Catalog SE SE Glite Overview – J. Salzemann – 05/11/2007 25

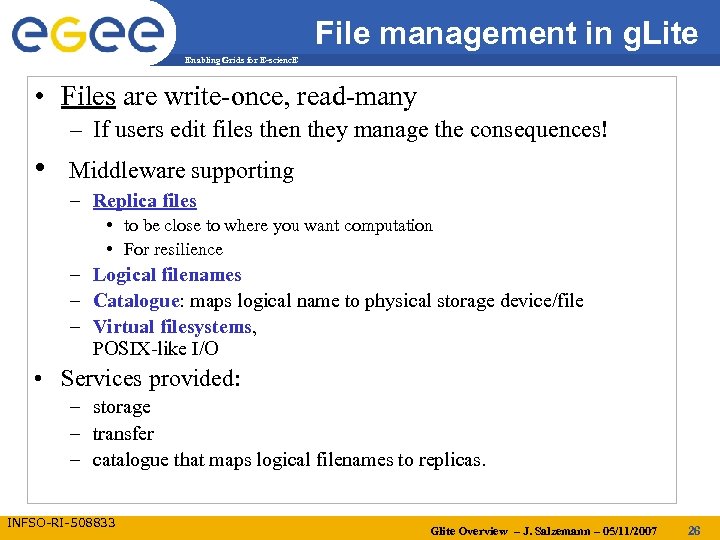

File management in g. Lite Enabling Grids for E-scienc. E • Files are write-once, read-many – If users edit files then they manage the consequences! • Middleware supporting – Replica files • to be close to where you want computation • For resilience – Logical filenames – Catalogue: maps logical name to physical storage device/file – Virtual filesystems, POSIX-like I/O • Services provided: – storage – transfer – catalogue that maps logical filenames to replicas. INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 26

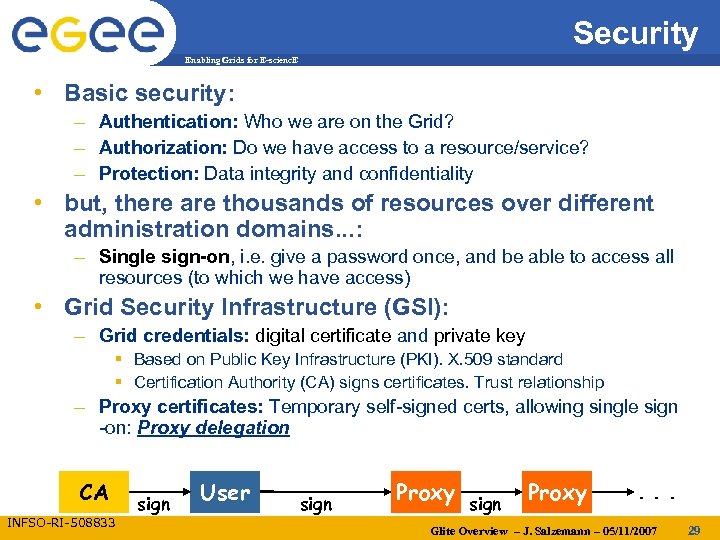

Security Enabling Grids for E-scienc. E • Basic security: – Authentication: Who we are on the Grid? – Authorization: Do we have access to a resource/service? – Protection: Data integrity and confidentiality • but, there are thousands of resources over different administration domains. . . : – Single sign-on, i. e. give a password once, and be able to access all resources (to which we have access) • Grid Security Infrastructure (GSI): – Grid credentials: digital certificate and private key Based on Public Key Infrastructure (PKI). X. 509 standard Certification Authority (CA) signs certificates. Trust relationship – Proxy certificates: Temporary self-signed certs, allowing single sign -on: Proxy delegation CA INFSO-RI-508833 sign User sign Proxy . . . Glite Overview – J. Salzemann – 05/11/2007 29
Conventional grid security Enabling Grids for E-scienc. E Bob Cert request Certification Authority (CA) Bob´s Grid certificate grid-proxy-init - Single sign-on - Delegation through proxy certificate Grid resources (B) User Interface (UI) Grid resources (A) Sysadmin. A : - Create user “grid 1“ - Map Bob´s certificateto “grid 01“ INFSO-RI-508833 Sysadmin. B : - Create user “user 001“ - Map Bob´s certificateto “user 001“ - Manual user “mapping“ - No info about VOs Glite Overview – J. Salzemann – 05/11/2007 30
g. Lite – Enhanced security in g. Lite Enabling Grids for E-scienc. E Bob Certification Authority (CA) Cert request Bob´s Grid certificate VO membership request VO Service User Interface (UI) VO VO Database VO Manager voms-proxy-init Grid resources (A) Automatic mapping for Bob VO Account Pool INFSO-RI-508833 Automatic mapping for Bob Grid resources (B) VO Account Pool Glite Overview – J. Salzemann – 05/11/2007 31

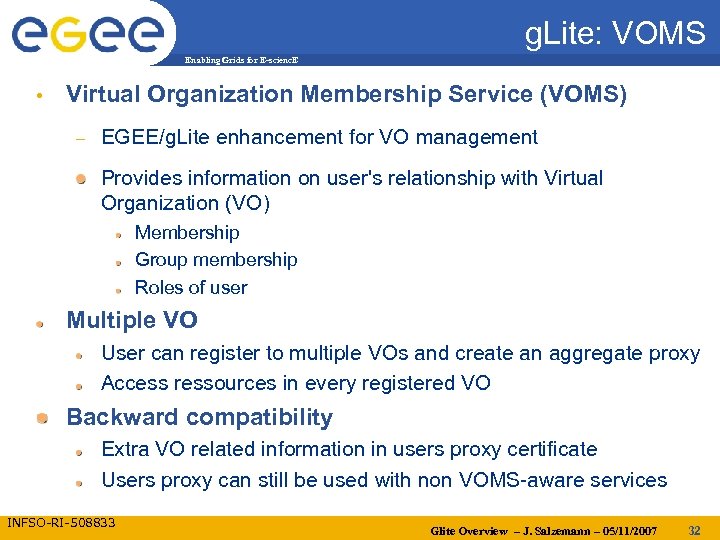

g. Lite: VOMS Enabling Grids for E-scienc. E • Virtual Organization Membership Service (VOMS) – EGEE/g. Lite enhancement for VO management Provides information on user's relationship with Virtual Organization (VO) Membership Group membership Roles of user Multiple VO User can register to multiple VOs and create an aggregate proxy Access ressources in every registered VO Backward compatibility Extra VO related information in users proxy certificate Users proxy can still be used with non VOMS-aware services INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 32

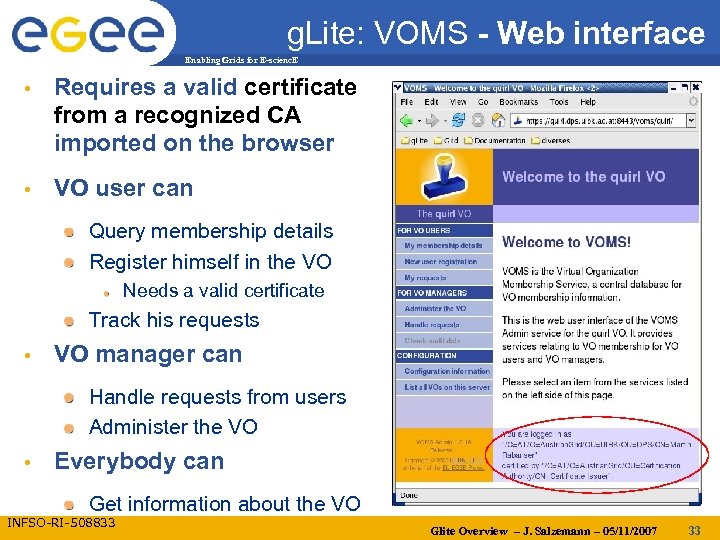

g. Lite: VOMS - Web interface Enabling Grids for E-scienc. E • Requires a valid certificate from a recognized CA imported on the browser • VO user can Query membership details Register himself in the VO Needs a valid certificate Track his requests • VO manager can Handle requests from users Administer the VO • Everybody can Get information about the VO INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 33
Enabling Grids for E-scienc. E INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 34
Enabling Grids for E-scienc. E QUESTIONS ? ? INFSO-RI-508833 Glite Overview – J. Salzemann – 05/11/2007 35
