Enable Cloud with Virtual Application Networks Transforming Delivery of Applications to Users Mike Banic, VP Marketing, HP Networking © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Cloud Application Delivery Expectations Over Just 50% 1% Workloads will be virtualized by the end of 2012 PRIVATE, PUBLIC AND INDEPENDENT CLOUDS 2 Of smartphones consume 50% of mobile data DYNAMIC AND MOBILE SERVICE CONSUMPTION © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Over 3 months To deploy a new application from data center to user COMPLEXITY OF THE INFRASTRUCTURE

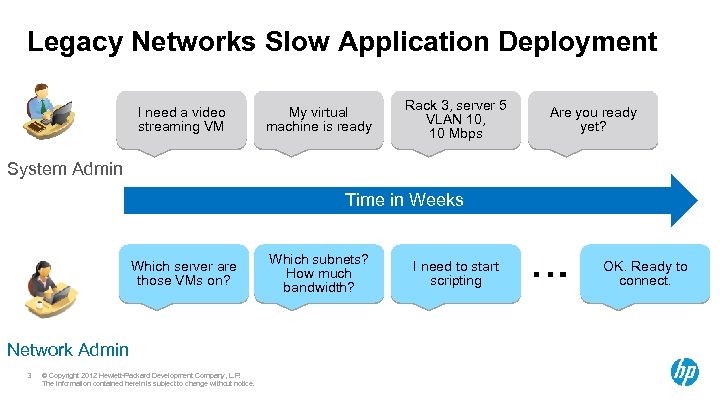

Legacy Networks Slow Application Deployment I need a video streaming VM My virtual machine is ready Rack 3, server 5 VLAN 10, 10 Mbps Are you ready yet? System Admin Time in Weeks Which server are those VMs on? Network Admin 3 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Which subnets? How much bandwidth? I need to start scripting … OK. Ready to connect.

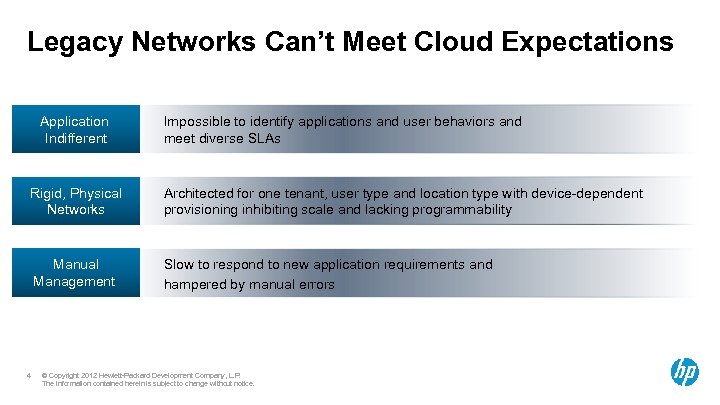

Legacy Networks Can’t Meet Cloud Expectations Application Indifferent Impossible to identify applications and user behaviors and meet diverse SLAs Rigid, Physical Networks Architected for one tenant, user type and location type with device-dependent provisioning inhibiting scale and lacking programmability Manual Management Slow to respond to new application requirements and hampered by manual errors 4 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

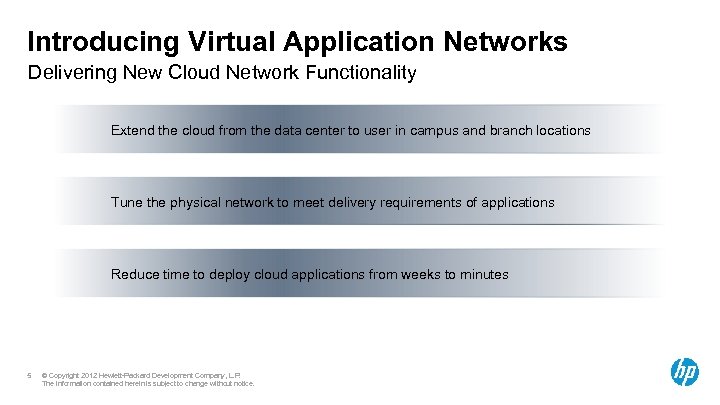

Introducing Virtual Application Networks Delivering New Cloud Network Functionality Extend the cloud from the data center to user in campus and branch locations Tune the physical network to meet delivery requirements of applications Reduce time to deploy cloud applications from weeks to minutes 5 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

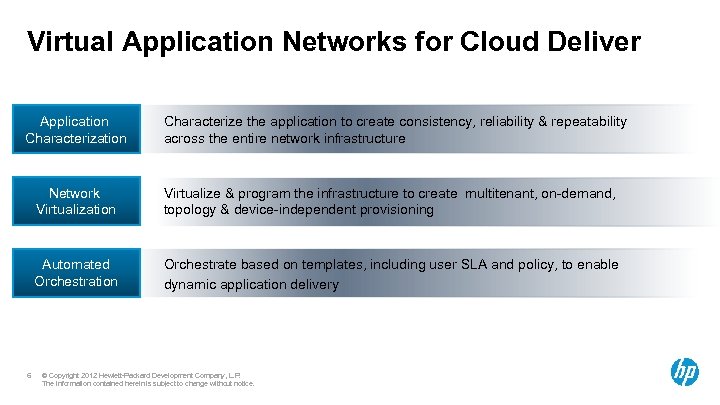

Virtual Application Networks for Cloud Deliver Application Characterize the application to create consistency, reliability & repeatability across the entire network infrastructure Network Virtualization Automated Orchestration 6 Virtualize & program the infrastructure to create multitenant, on-demand, topology & device-independent provisioning Orchestrate based on templates, including user SLA and policy, to enable dynamic application delivery © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

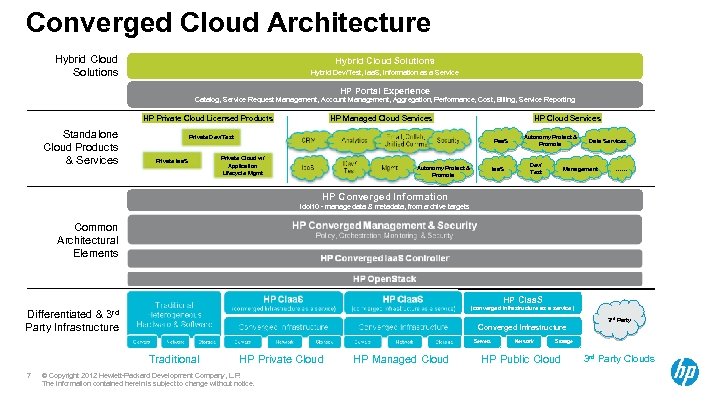

Converged Cloud Architecture Hybrid Cloud Solutions Hybrid Dev/Test, Iaa. S, Information as a Service HP Portal Experience Catalog, Service Request Management, Account Management, Aggregation, Performance, Cost, Billing, Service Reporting HP Private Cloud Licensed Products Standalone Cloud Products & Services HP Managed Cloud Services HP Cloud Services Private Dev/Test Private Iaa. S Private Cloud w/ Application Lifecycle Mgmt Autonomy Protect & Promote Iaa. S Autonomy Protect & Promote Dev/ Test Data Services Management …… HP Converged Information Idol 10 - manage data & metadata, from archive targets Common Architectural Elements HP CIaa. S (converged Infrastructure as a service) 3 rd Differentiated & Party Infrastructure Converged Infrastructure Servers Traditional 7 HP Private Cloud © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. HP Managed Cloud Network 3 rd Party Storage HP Public Cloud 3 rd Party Clouds

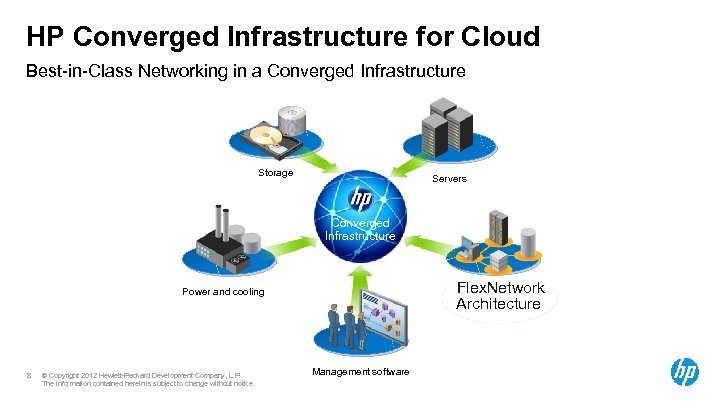

HP Converged Infrastructure for Cloud Best-in-Class Networking in a Converged Infrastructure Storage Servers Converged Infrastructure Flex. Network Architecture Power and cooling 8 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. HP Proprietary and Confidential Management software

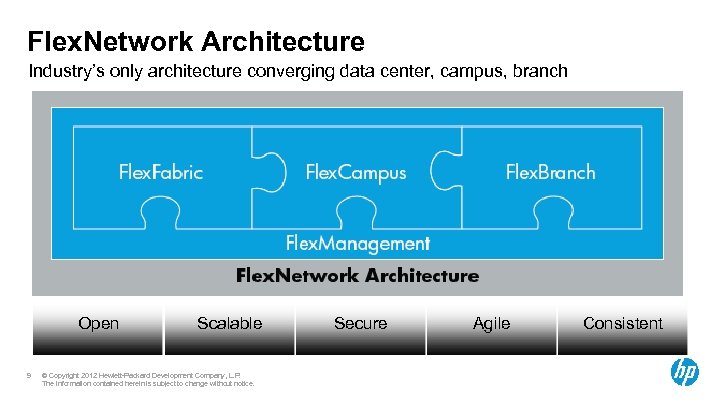

Flex. Network Architecture Industry’s only architecture converging data center, campus, branch Open 9 Scalable © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Secure Agile Consistent

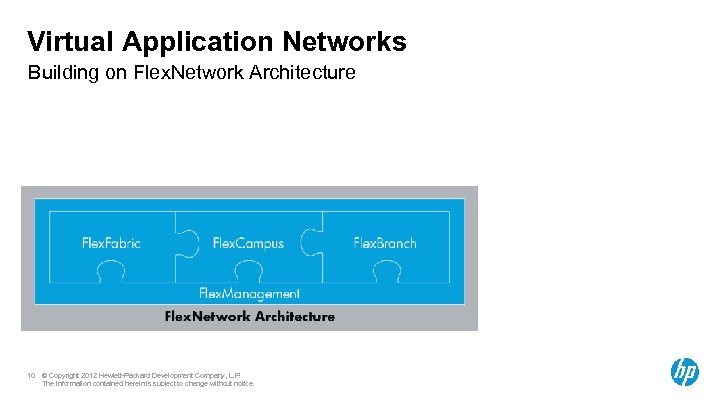

Virtual Application Networks Building on Flex. Network Architecture 10 © Copyright 2012 Hewlett-Packard Development

Virtual Application Networks Virtualize by Extending a Control Plane Across the Entire Network Built on HP Innovations Intelligent Resilient Framework (IRF) 11 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

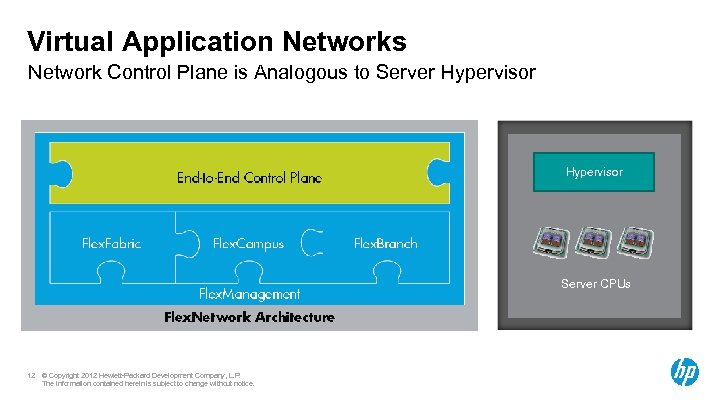

Virtual Application Networks Network Control Plane is Analogous to Server Hypervisor Server CPUs 12 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

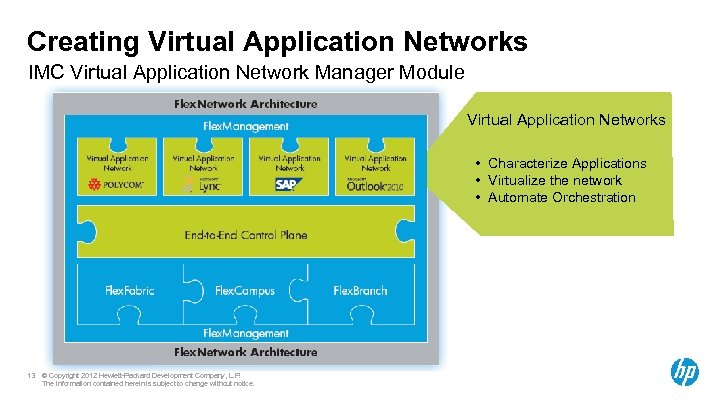

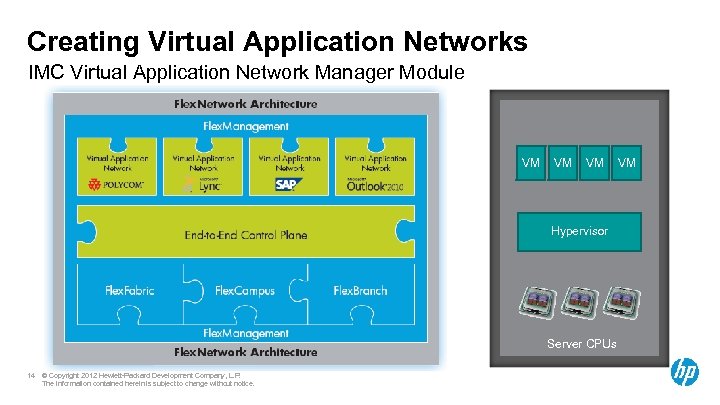

Creating Virtual Application Networks IMC Virtual Application Network Manager Module Virtual Application Networks • Characterize Applications • Virtualize the network • Automate Orchestration 13 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Creating Virtual Application Networks IMC Virtual Application Network Manager Module VM VM VM Hypervisor Server CPUs 14 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. VM

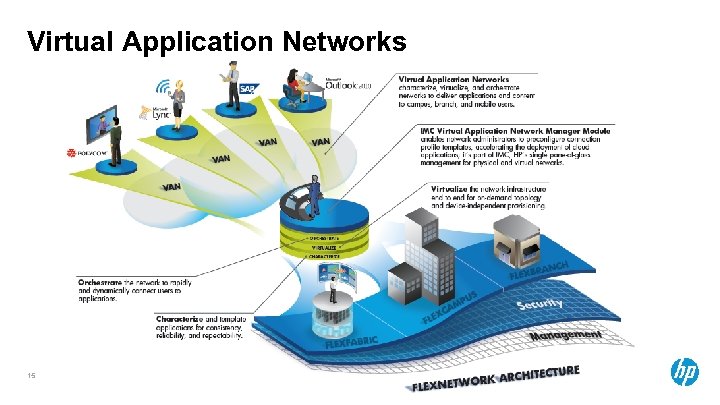

Virtual Application Networks 15 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information

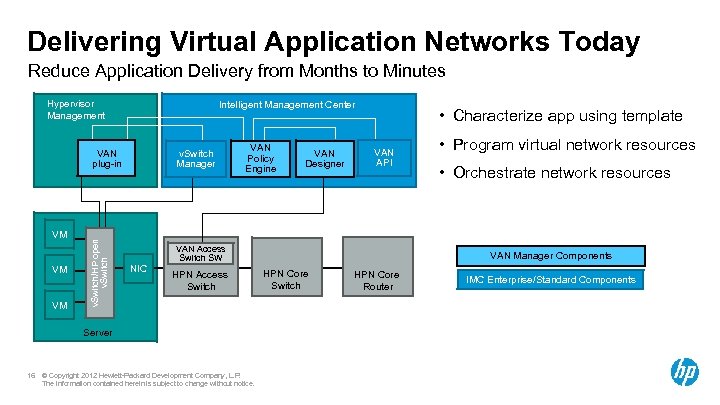

Delivering Virtual Application Networks Today Reduce Application Delivery from Months to Minutes Hypervisor Management Intelligent Management Center v. Switch Manager VM VM VM v. Switch/HP open v. Switch VAN plug-in VAN Policy Engine VAN Access Switch SW NIC HPN Access Switch Server 16 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. VAN Designer HPN Data Center HPN Core Fabric Switch • Characterize app using template VAN API • Program virtual network resources • Orchestrate network resources VAN Manager Components HPN Core Router IMC Enterprise/Standard Components

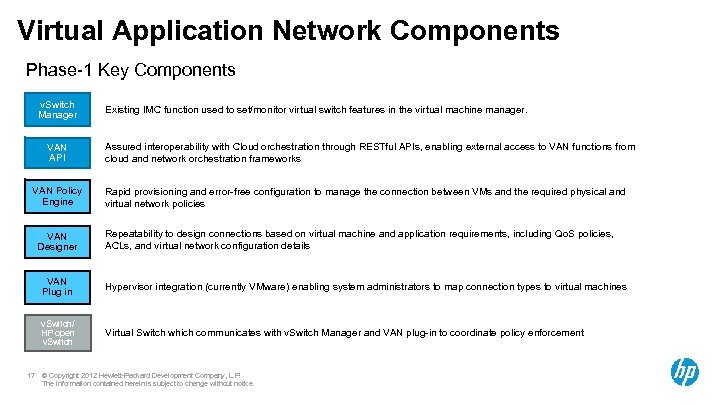

Virtual Application Network Components Phase-1 Key Components v. Switch Manager VAN API VAN Policy Engine VAN Designer Existing IMC function used to set/monitor virtual switch features in the virtual machine manager. Assured interoperability with Cloud orchestration through RESTful APIs, enabling external access to VAN functions from cloud and network orchestration frameworks Rapid provisioning and error-free configuration to manage the connection between VMs and the required physical and virtual network policies Repeatability to design connections based on virtual machine and application requirements, including Qo. S policies, ACLs, and virtual network configuration details VAN Plug in v. Switch/ HP open v. Switch 17 Hypervisor integration (currently VMware) enabling system administrators to map connection types to virtual machines Virtual Switch which communicates with v. Switch Manager and VAN plug-in to coordinate policy enforcement © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

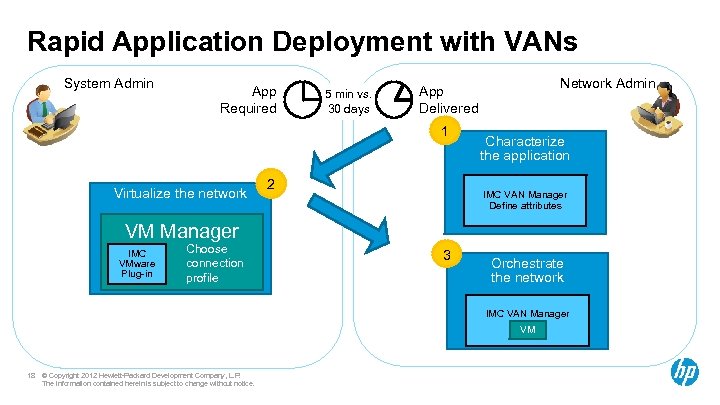

Rapid Application Deployment with VANs System Admin App Required 5 min vs. 30 days 1 Virtualize the network Network Admin App Delivered 2 Characterize the application IMC VAN Manager Define attributes VM Manager IMC VMware Plug-in Choose connection profile 3 Orchestrate the network IMC VAN Manager VM 18 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

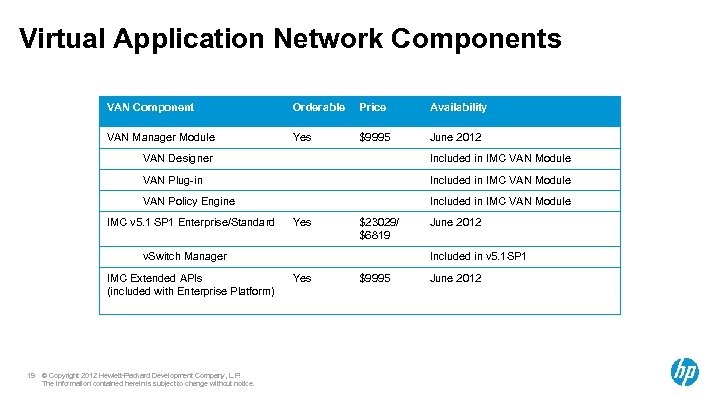

Virtual Application Network Components VAN Component Orderable Price Availability VAN Manager Module Yes $9995 June 2012 VAN Designer Included in IMC VAN Module VAN Plug-in Included in IMC VAN Module VAN Policy Engine Included in IMC VAN Module IMC v 5. 1 SP 1 Enterprise/Standard Yes $23029/ $6819 v. Switch Manager IMC Extended APIs (included with Enterprise Platform) 19 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. June 2012 Included in v 5. 1 SP 1 Yes $9995 June 2012

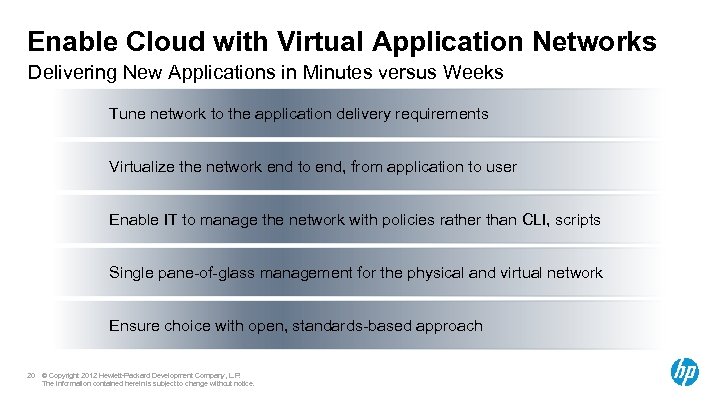

Enable Cloud with Virtual Application Networks Delivering New Applications in Minutes versus Weeks Tune network to the application delivery requirements Virtualize the network end to end, from application to user Enable IT to manage the network with policies rather than CLI, scripts Single pane-of-glass management for the physical and virtual network Ensure choice with open, standards-based approach 20 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.
