EMu Slice Test – Status & Plans Frank Geurts FNAL/Rice http: //cern. ch/Emu. Slice. Test CERN -- March 15, 2005 F. Geurts -- EMu Slice Test

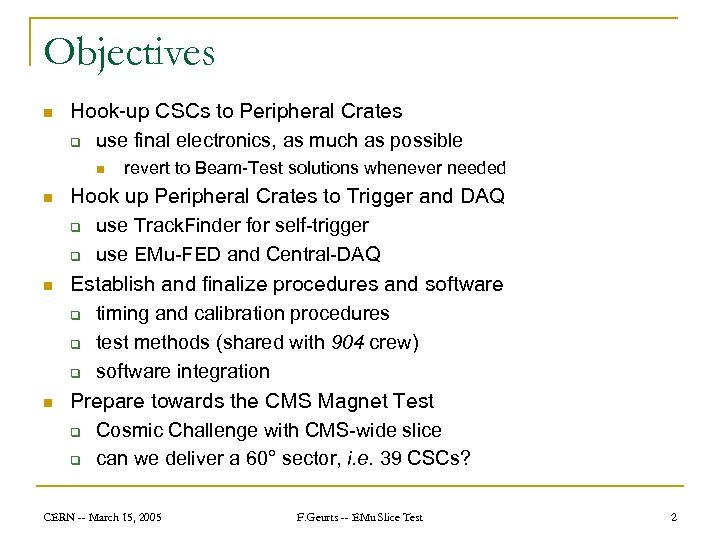

Objectives n Hook-up CSCs to Peripheral Crates q use final electronics, as much as possible n n revert to Beam-Test solutions whenever needed Hook up Peripheral Crates to Trigger and DAQ q use Track. Finder for self-trigger q use EMu-FED and Central-DAQ Establish and finalize procedures and software q timing and calibration procedures q test methods (shared with 904 crew) q software integration Prepare towards the CMS Magnet Test q Cosmic Challenge with CMS-wide slice q can we deliver a 60° sector, i. e. 39 CSCs? CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 2

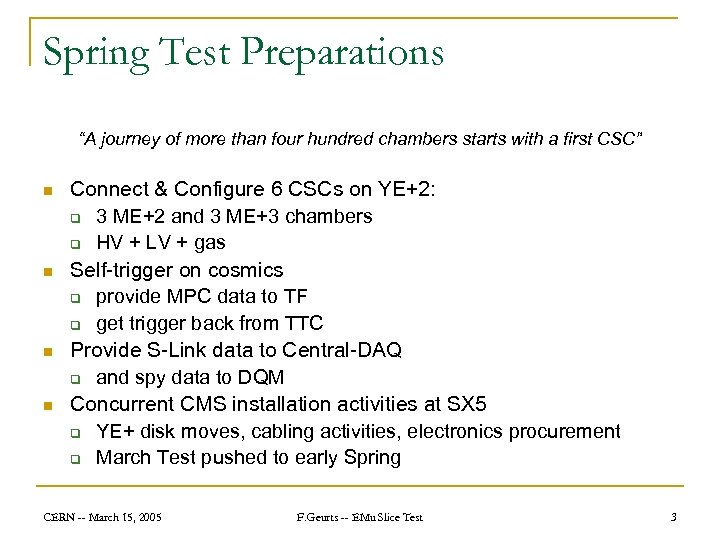

Spring Test Preparations “A journey of more than four hundred chambers starts with a first CSC” n n Connect & Configure 6 CSCs on YE+2: q 3 ME+2 and 3 ME+3 chambers q HV + LV + gas Self-trigger on cosmics q provide MPC data to TF q get trigger back from TTC Provide S-Link data to Central-DAQ q and spy data to DQM Concurrent CMS installation activities at SX 5 q YE+ disk moves, cabling activities, electronics procurement q March Test pushed to early Spring CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 3

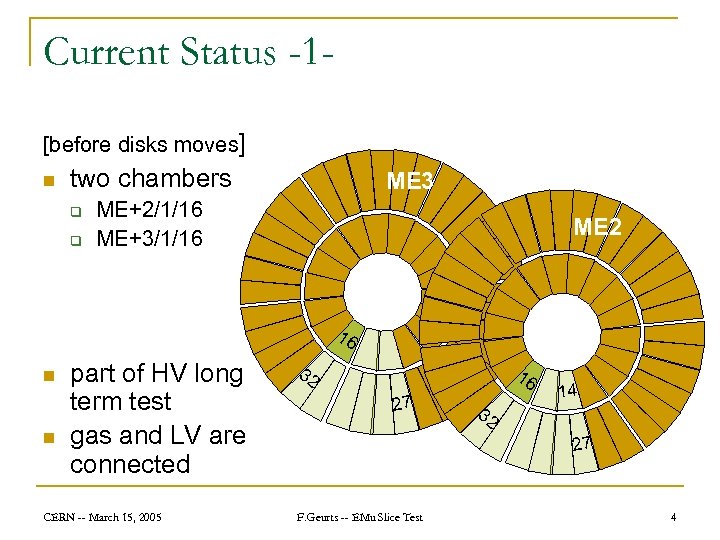

Current Status -1[before disks moves] n two chambers q q ME 3 ME+2/1/16 ME+3/1/16 ME 2 16 n n part of HV long term test gas and LV are connected CERN -- March 15, 2005 32 16 27 32 14 27 F. Geurts -- EMu Slice Test 4

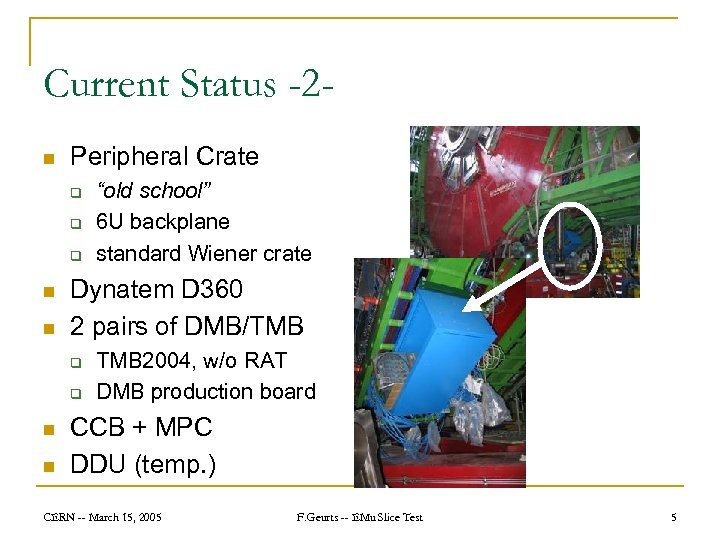

Current Status -2 n Peripheral Crate q q q n n Dynatem D 360 2 pairs of DMB/TMB q q n n “old school” 6 U backplane standard Wiener crate TMB 2004, w/o RAT DMB production board CCB + MPC DDU (temp. ) CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 5

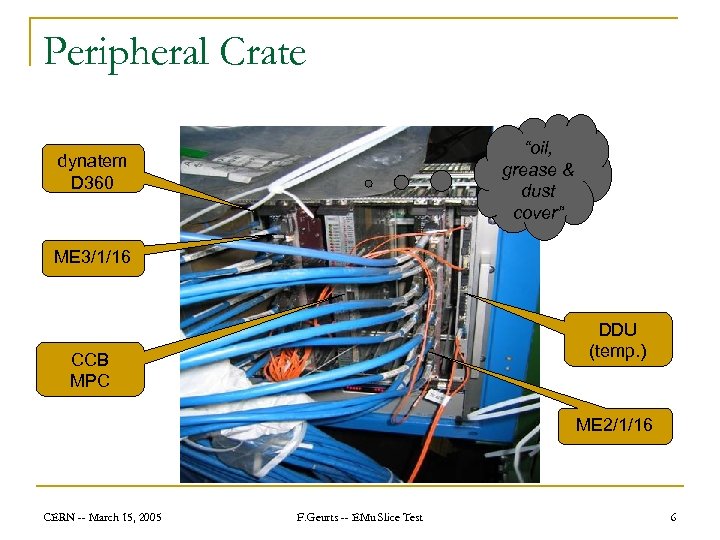

Peripheral Crate “oil, grease & dust cover” dynatem D 360 ME 3/1/16 DDU (temp. ) CCB MPC ME 2/1/16 CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 6

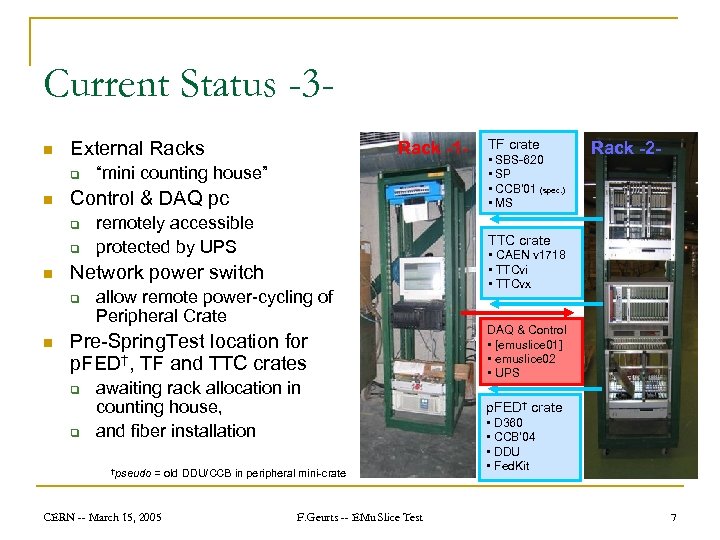

Current Status -3 n External Racks q n q remotely accessible protected by UPS allow remote power-cycling of Peripheral Crate Pre-Spring. Test location for p. FED†, TF and TTC crates q q awaiting rack allocation in counting house, and fiber installation †pseudo = old DDU/CCB in peripheral mini-crate CERN -- March 15, 2005 TF crate • SBS-620 • SP • CCB’ 01 (spec. ) • MS Rack -2 - TTC crate Network power switch q n “mini counting house” Control & DAQ pc q n Rack -1 - F. Geurts -- EMu Slice Test • CAEN v 1718 • TTCvi • TTCvx DAQ & Control • [emuslice 01] • emuslice 02 • UPS p. FED† crate • D 360 • CCB’ 04 • DDU • Fed. Kit 7

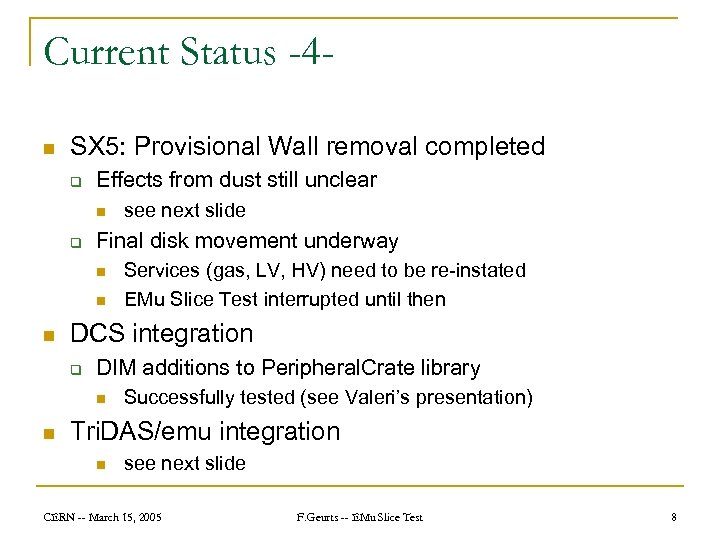

Current Status -4 n SX 5: Provisional Wall removal completed q Effects from dust still unclear n q Final disk movement underway n n n Services (gas, LV, HV) need to be re-instated EMu Slice Test interrupted until then DCS integration q DIM additions to Peripheral. Crate library n n see next slide Successfully tested (see Valeri’s presentation) Tri. DAS/emu integration n see next slide CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 8

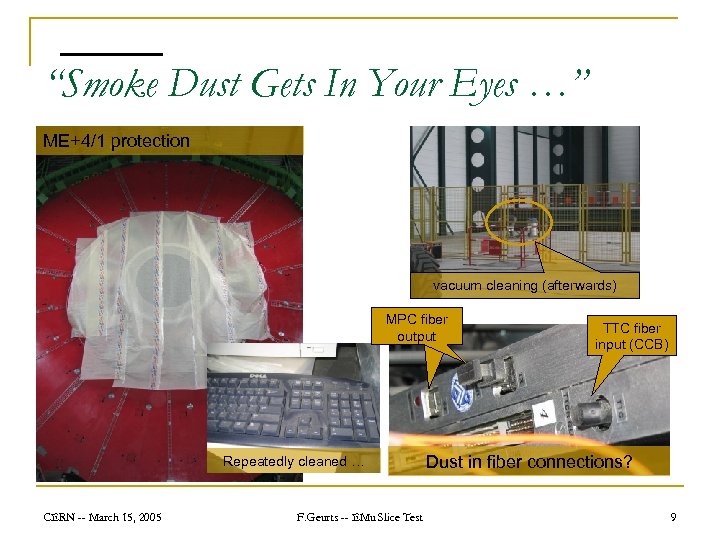

“Smoke Dust Gets In Your Eyes …” ME+4/1 protection vacuum cleaning (afterwards) MPC fiber output Repeatedly cleaned … CERN -- March 15, 2005 F. Geurts -- EMu Slice Test TTC fiber input (CCB) Dust in fiber connections? 9

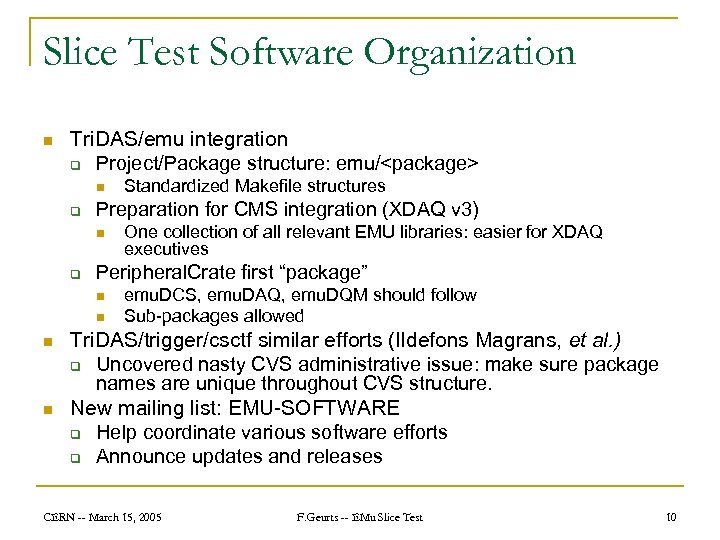

Slice Test Software Organization n Tri. DAS/emu integration q Project/Package structure: emu/ n q Preparation for CMS integration (XDAQ v 3) n q n n One collection of all relevant EMU libraries: easier for XDAQ executives Peripheral. Crate first “package” n n Standardized Makefile structures emu. DCS, emu. DAQ, emu. DQM should follow Sub-packages allowed Tri. DAS/trigger/csctf similar efforts (Ildefons Magrans, et al. ) q Uncovered nasty CVS administrative issue: make sure package names are unique throughout CVS structure. New mailing list: EMU-SOFTWARE q Help coordinate various software efforts q Announce updates and releases CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 10

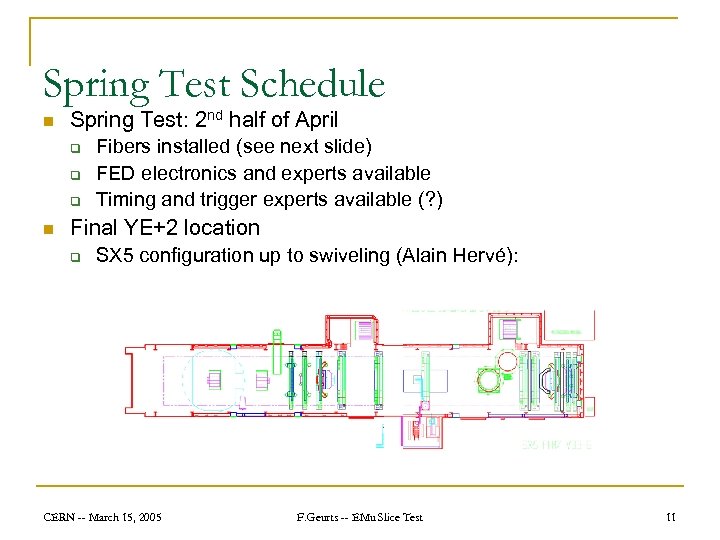

Spring Test Schedule n Spring Test: 2 nd half of April q q q n Fibers installed (see next slide) FED electronics and experts available Timing and trigger experts available (? ) Final YE+2 location q SX 5 configuration up to swiveling (Alain Hervé): CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 11

Fiber Duct Installation & DAQ Room n n We have asked Luit de Jong et al. to install fiber ducts for the Slice Test and Magnet Test EMU Fibers q DAQ path = DMB-DDU + Crate. Controller-Hub q TRG path = TTC-CCB + MPC-SP n n n From Slice Test towards Magnet Test: q 60° ME 2, 3 sector, i. e. 2 crates. q Patch panel will be on the YE+2 mini-rack (Trigger Sect. 5) n n all are multi-mode fibers with LC connectors except for TTC-CCB: single-mode with ST connectors test various patch connector options Magnet Test q 60° ME 1 -4 sector, i. e. 5 crates q patch panel on YE+1 q Finalize requirements soon (i. e. during CMS week) CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 12

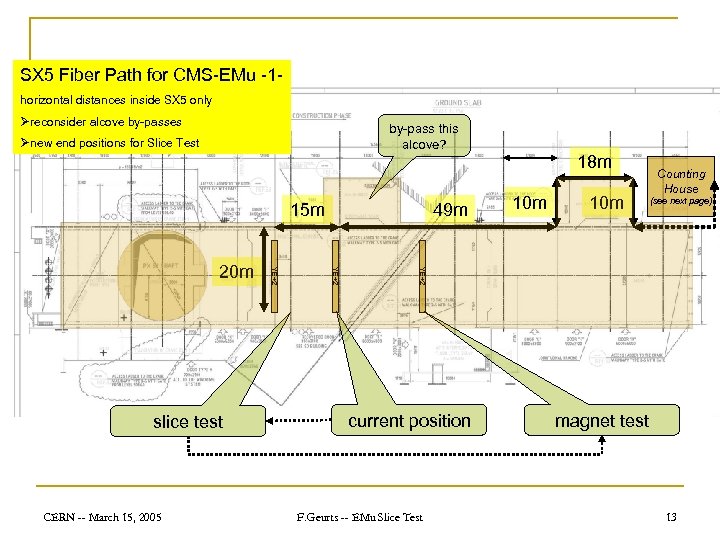

SX 5 Fiber Path for CMS-EMu -1 horizontal distances inside SX 5 only Øreconsider alcove by-passes by-pass this alcove? Ønew end positions for Slice Test 18 m 15 m 10 m (see next page) YE+2 CERN -- March 15, 2005 YE+2 slice test YE+2 20 m 49 m Counting House current position F. Geurts -- EMu Slice Test magnet test 13

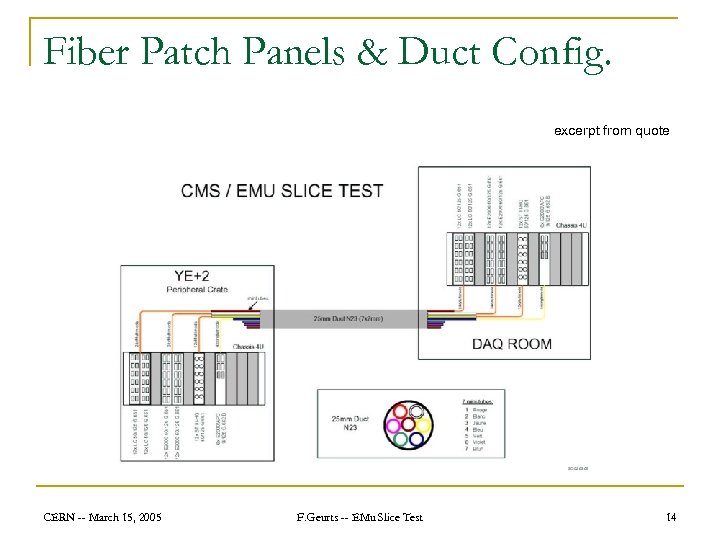

Fiber Patch Panels & Duct Config. excerpt from quote CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 14

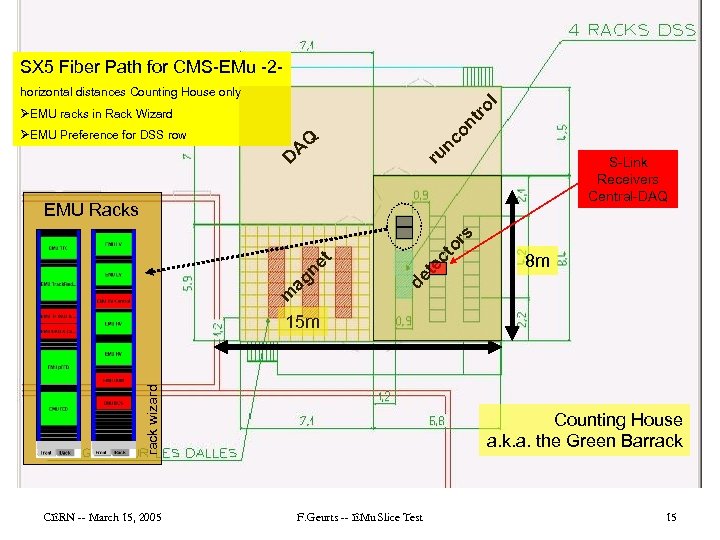

SX 5 Fiber Path for CMS-EMu -2 on tr ol horizontal distances Counting House only ØEMU racks in Rack Wizard nc ru D A Q ØEMU Preference for DSS row S-Link Receivers Central-DAQ ct o de te 8 m m ag ne t rs EMU Racks rack wizard 15 m CERN -- March 15, 2005 Counting House a. k. a. the Green Barrack F. Geurts -- EMu Slice Test 15

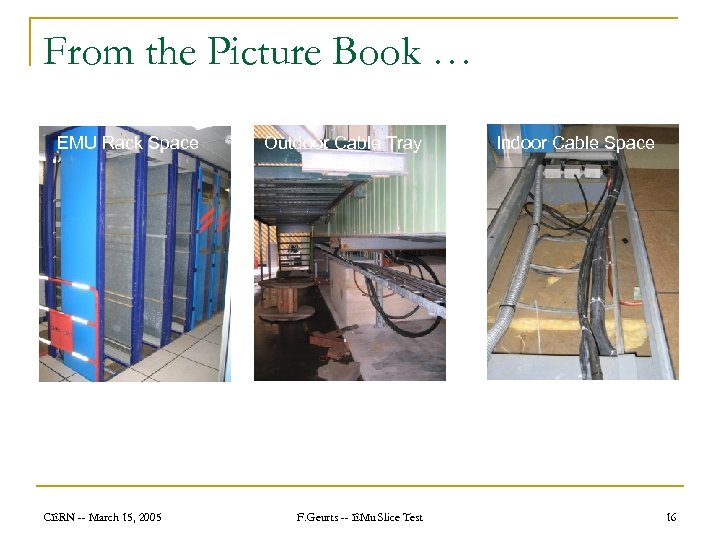

From the Picture Book … EMU Rack Space CERN -- March 15, 2005 Outdoor Cable Tray F. Geurts -- EMu Slice Test Indoor Cable Space 16

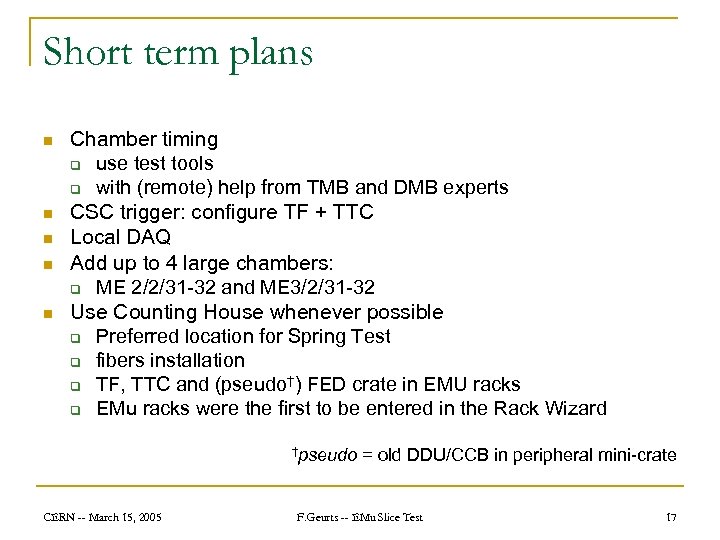

Short term plans n n n Chamber timing q use test tools q with (remote) help from TMB and DMB experts CSC trigger: configure TF + TTC Local DAQ Add up to 4 large chambers: q ME 2/2/31 -32 and ME 3/2/31 -32 Use Counting House whenever possible q Preferred location for Spring Test q fibers installation q TF, TTC and (pseudo†) FED crate in EMU racks q EMu racks were the first to be entered in the Rack Wizard †pseudo CERN -- March 15, 2005 = old DDU/CCB in peripheral mini-crate F. Geurts -- EMu Slice Test 17

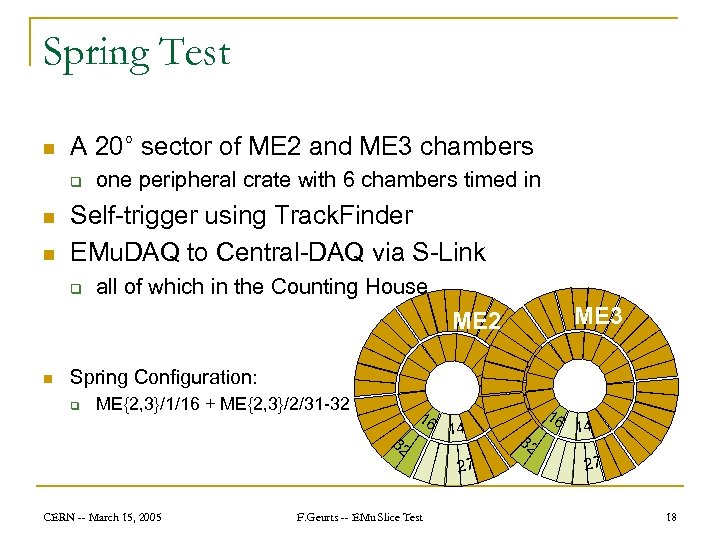

Spring Test n A 20° sector of ME 2 and ME 3 chambers q n n one peripheral crate with 6 chambers timed in Self-trigger using Track. Finder EMu. DAQ to Central-DAQ via S-Link q all of which in the Counting House ME 3 ME 2 n Spring Configuration: q ME{2, 3}/1/16 + ME{2, 3}/2/31 -32 16 32 14 27 CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 16 32 14 27 18

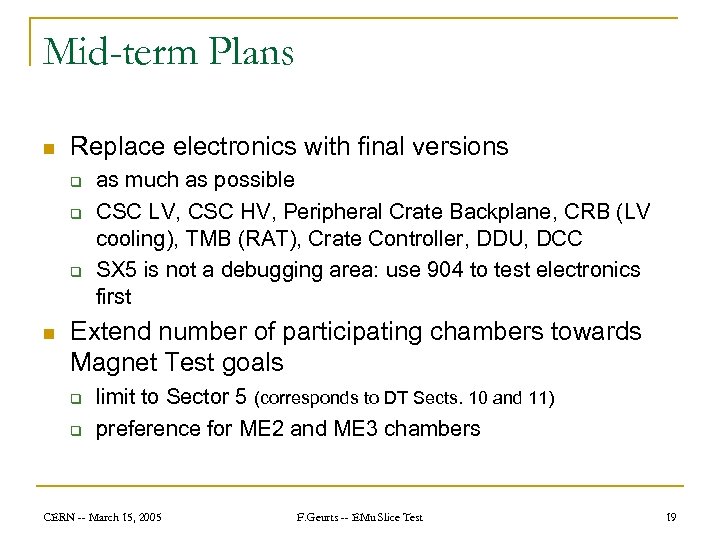

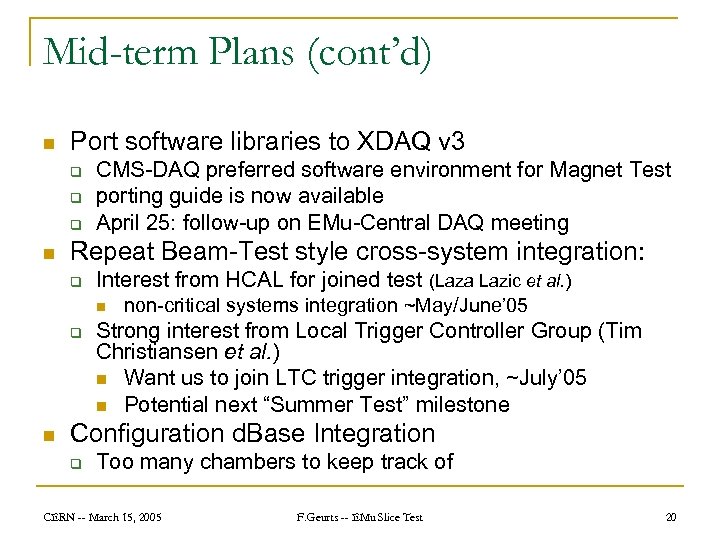

Mid-term Plans n Replace electronics with final versions q q q n as much as possible CSC LV, CSC HV, Peripheral Crate Backplane, CRB (LV cooling), TMB (RAT), Crate Controller, DDU, DCC SX 5 is not a debugging area: use 904 to test electronics first Extend number of participating chambers towards Magnet Test goals q q limit to Sector 5 (corresponds to DT Sects. 10 and 11) preference for ME 2 and ME 3 chambers CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 19

Mid-term Plans (cont’d) n Port software libraries to XDAQ v 3 q q q n CMS-DAQ preferred software environment for Magnet Test porting guide is now available April 25: follow-up on EMu-Central DAQ meeting Repeat Beam-Test style cross-system integration: q Interest from HCAL for joined test (Laza Lazic et al. ) n q n non-critical systems integration ~May/June’ 05 Strong interest from Local Trigger Controller Group (Tim Christiansen et al. ) n Want us to join LTC trigger integration, ~July’ 05 n Potential next “Summer Test” milestone Configuration d. Base Integration q Too many chambers to keep track of CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 20

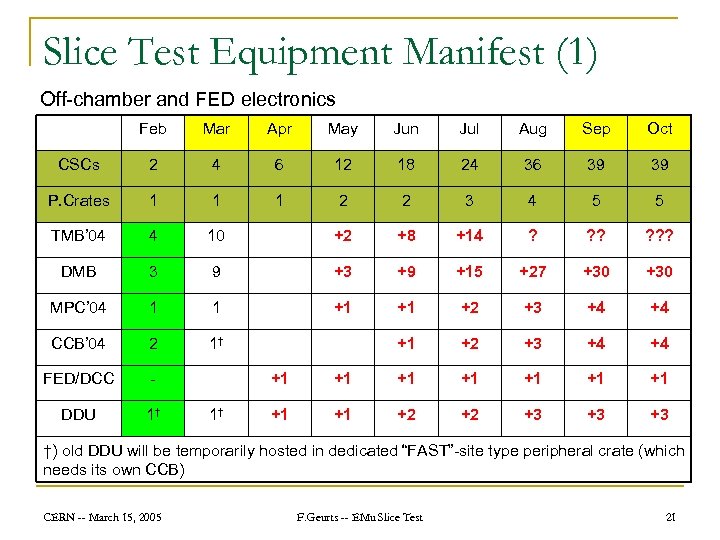

Slice Test Equipment Manifest (1) Off-chamber and FED electronics Feb Mar Apr May Jun Jul Aug Sep Oct CSCs 2 4 6 12 18 24 36 39 39 P. Crates 1 1 1 2 2 3 4 5 5 TMB’ 04 4 10 +2 +8 +14 ? ? ? ? DMB 3 9 +3 +9 +15 +27 +30 MPC’ 04 1 1 +1 +1 +2 +3 +4 +4 CCB’ 04 2 1† +1 +2 +3 +4 +4 FED/DCC - DDU 1† +1 +1 +1 +2 +2 +3 +3 +3 †) old DDU will be temporarily hosted in dedicated “FAST”-site type peripheral crate (which needs its own CCB) CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 21

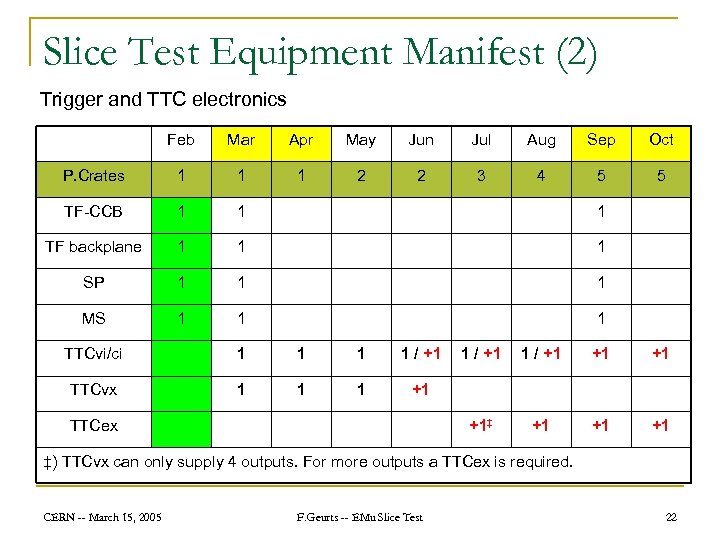

Slice Test Equipment Manifest (2) Trigger and TTC electronics Feb Mar Apr May Jun Jul Aug Sep Oct P. Crates 1 1 1 2 2 3 4 5 5 TF-CCB 1 1 1 TF backplane 1 1 1 SP 1 1 1 MS 1 1 1 TTCvi/ci 1 1 / +1 TTCvx 1 1 1 +1 1 / +1 +1‡ TTCex 1 / +1 +1 ‡) TTCvx can only supply 4 outputs. For more outputs a TTCex is required. CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 22

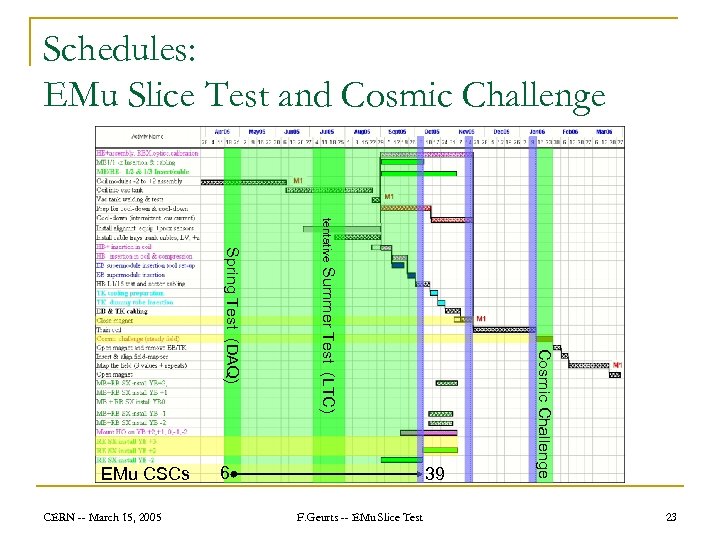

Schedules: EMu Slice Test and Cosmic Challenge 6 39 F. Geurts -- EMu Slice Test Cosmic Challenge Summer Test (LTC) CERN -- March 15, 2005 tentative Spring Test (DAQ) EMu CSCs 23

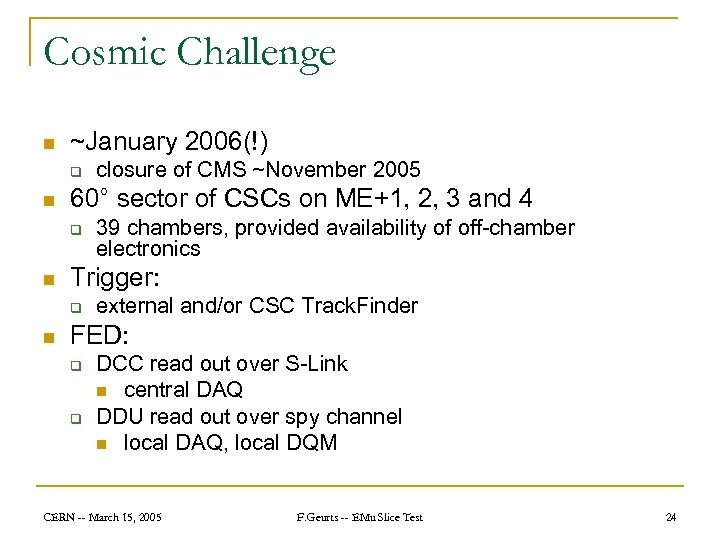

Cosmic Challenge n ~January 2006(!) q n 60° sector of CSCs on ME+1, 2, 3 and 4 q n 39 chambers, provided availability of off-chamber electronics Trigger: q n closure of CMS ~November 2005 external and/or CSC Track. Finder FED: q q DCC read out over S-Link n central DAQ DDU read out over spy channel n local DAQ, local DQM CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 24

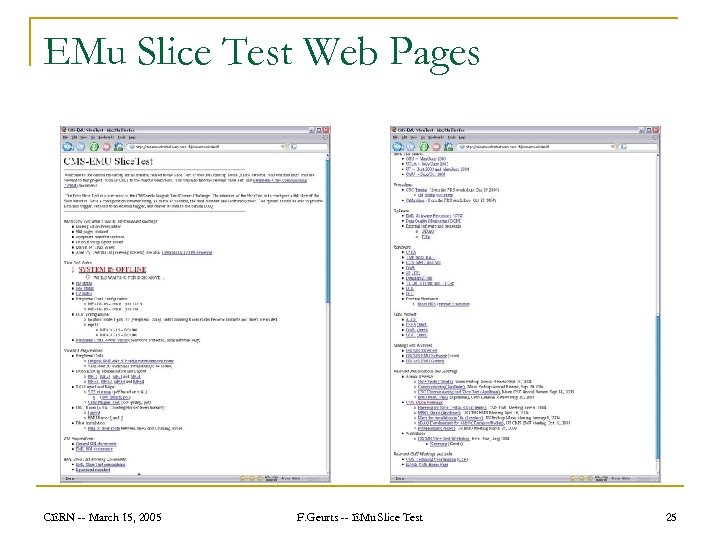

EMu Slice Test Web Pages CERN -- March 15, 2005 F. Geurts -- EMu Slice Test 25
