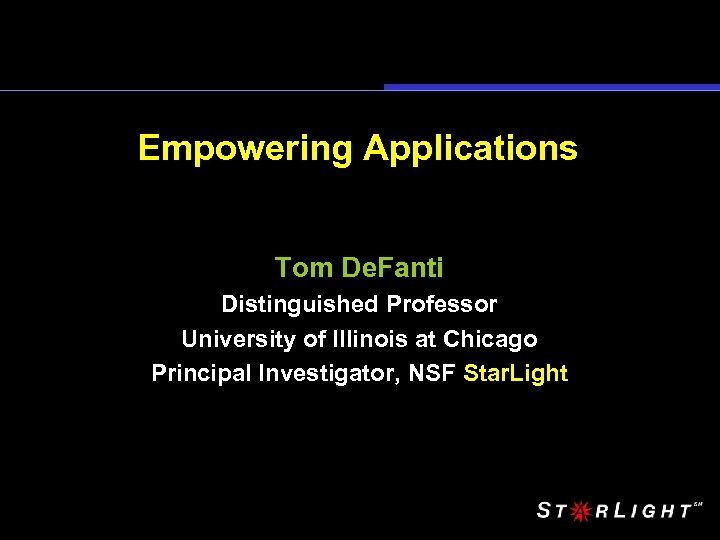

Empowering Applications Tom De. Fanti Distinguished Professor University of Illinois at Chicago Principal Investigator, NSF Star. Light

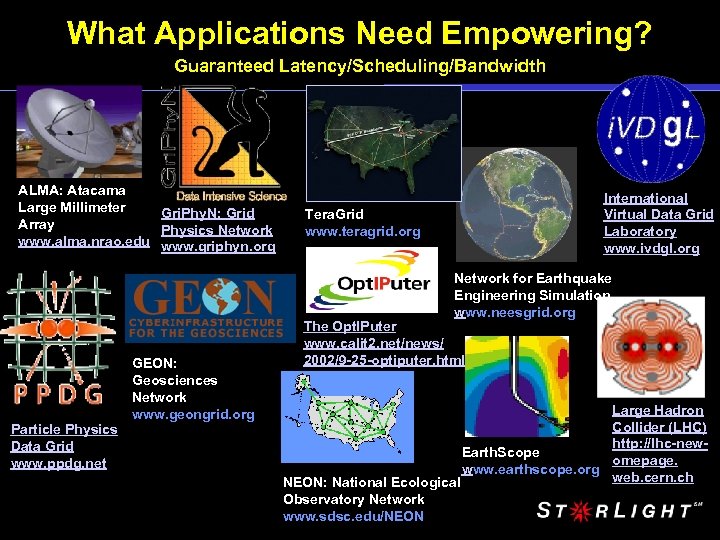

What Applications Need Empowering? Guaranteed Latency/Scheduling/Bandwidth ALMA: Atacama Large Millimeter Gri. Phy. N: Grid Array Physics Network www. alma. nrao. edu www. griphyn. org International Virtual Data Grid Laboratory www. ivdgl. org Tera. Grid www. teragrid. org Network for Earthquake Engineering Simulation www. neesgrid. org Particle Physics Data Grid www. ppdg. net GEON: Geosciences Network www. geongrid. org The Opt. IPuter www. calit 2. net/news/ 2002/9 -25 -optiputer. html Large Hadron Collider (LHC) http: //lhc-new. Earth. Scope omepage. www. earthscope. org web. cern. ch NEON: National Ecological Observatory Network www. sdsc. edu/NEON

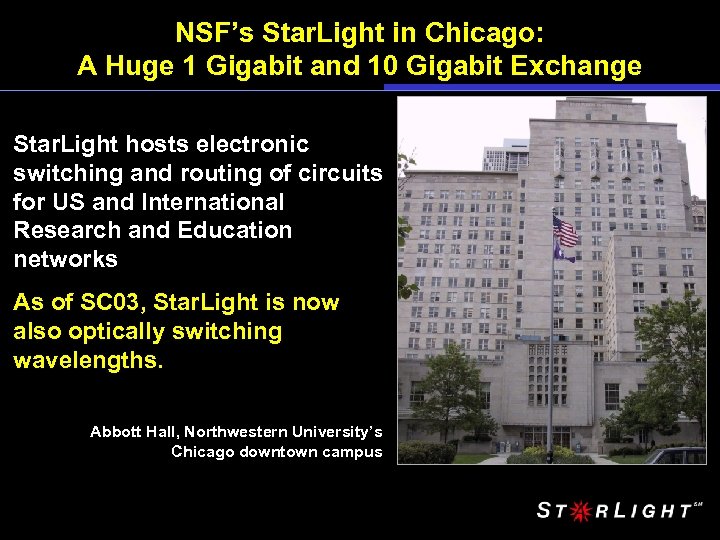

NSF’s Star. Light in Chicago: A Huge 1 Gigabit and 10 Gigabit Exchange Star. Light hosts electronic switching and routing of circuits for US and International Research and Education networks As of SC 03, Star. Light is now also optically switching wavelengths. Abbott Hall, Northwestern University’s Chicago downtown campus

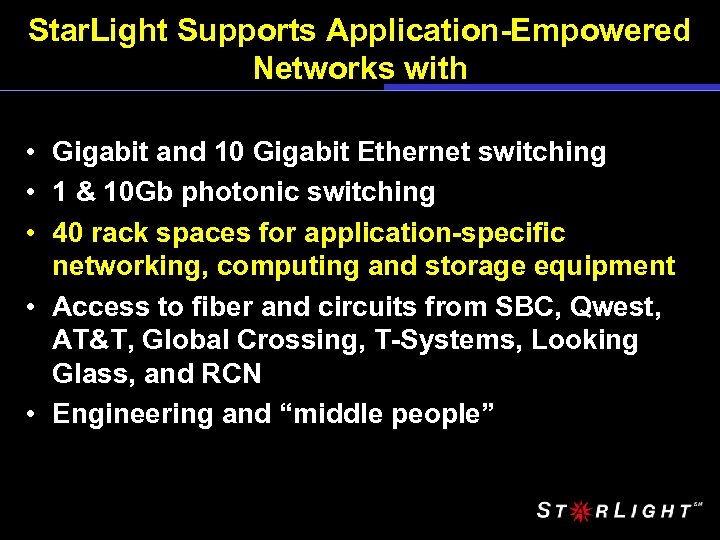

Star. Light Supports Application-Empowered Networks with • Gigabit and 10 Gigabit Ethernet switching • 1 & 10 Gb photonic switching • 40 rack spaces for application-specific networking, computing and storage equipment • Access to fiber and circuits from SBC, Qwest, AT&T, Global Crossing, T-Systems, Looking Glass, and RCN • Engineering and “middle people”

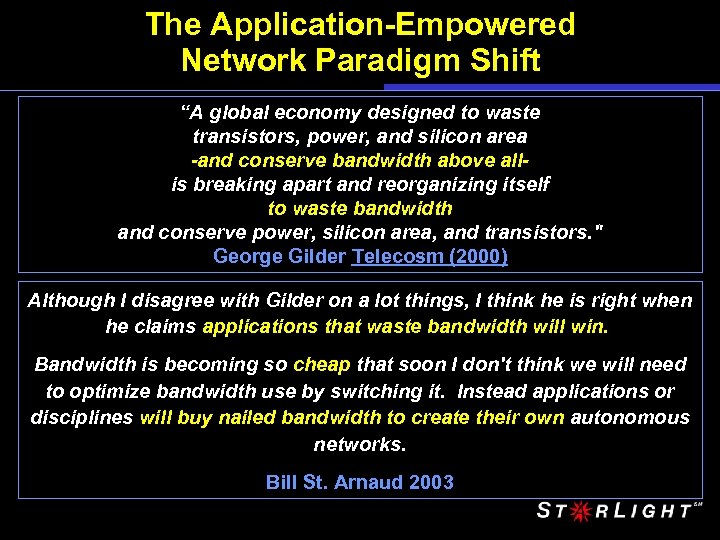

The Application-Empowered Network Paradigm Shift “A global economy designed to waste transistors, power, and silicon area -and conserve bandwidth above all- is breaking apart and reorganizing itself to waste bandwidth and conserve power, silicon area, and transistors. " George Gilder Telecosm (2000) Although I disagree with Gilder on a lot things, I think he is right when he claims applications that waste bandwidth will win. Bandwidth is becoming so cheap that soon I don't think we will need to optimize bandwidth use by switching it. Instead applications or disciplines will buy nailed bandwidth to create their own autonomous networks. Bill St. Arnaud 2003

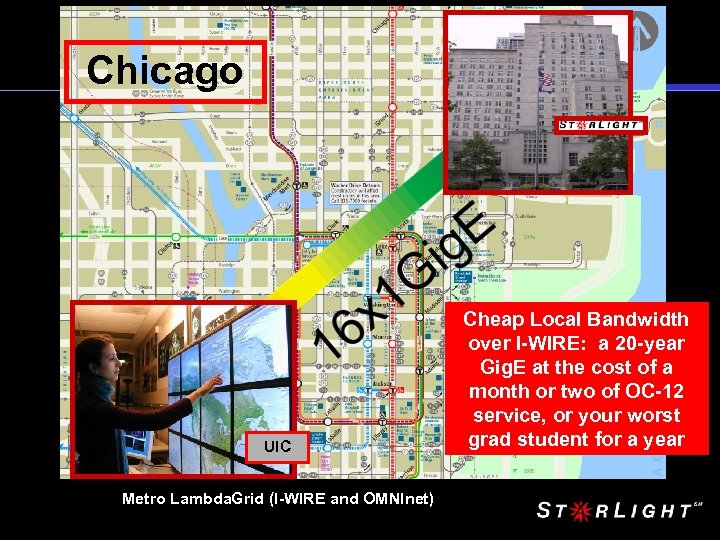

Chicago UIC Metro Lambda. Grid (I-WIRE and OMNInet) Cheap Local Bandwidth over I-WIRE: a 20 -year Gig. E at the cost of a month or two of OC-12 service, or your worst grad student for a year

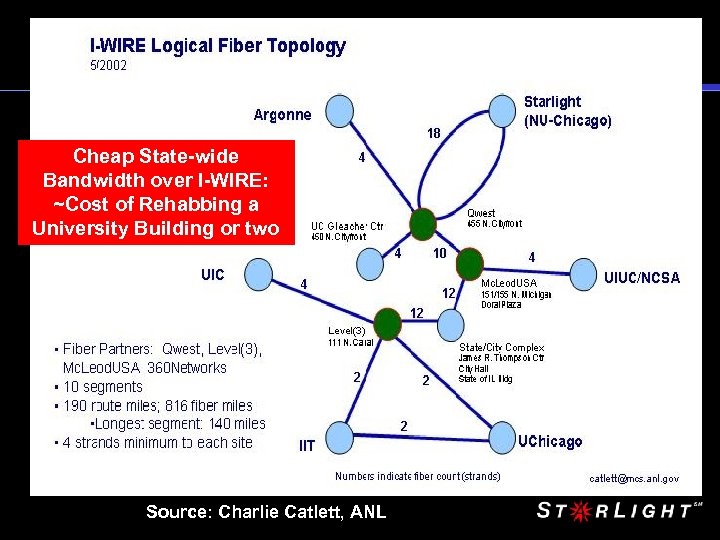

Cheap State-wide Bandwidth over I-WIRE: ~Cost of Rehabbing a University Building or two Source: Charlie Catlett, ANL

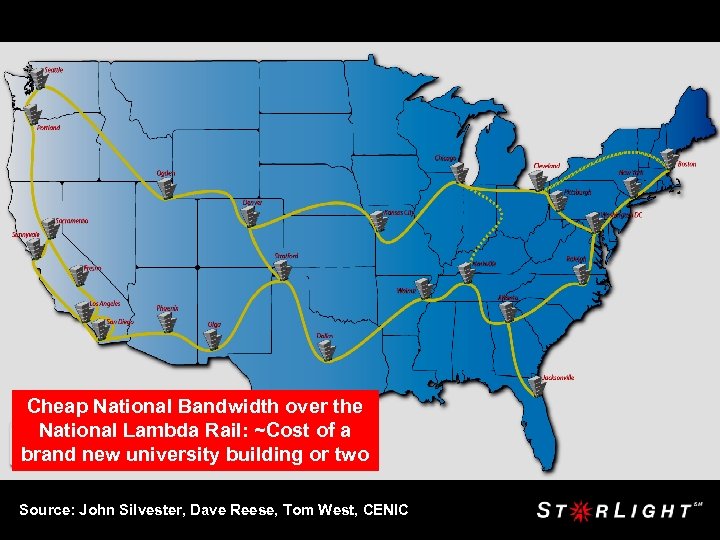

Cheap National Bandwidth over the National Lambda Rail: ~Cost of a brand new university building or two Source: John Silvester, Dave Reese, Tom West, CENIC

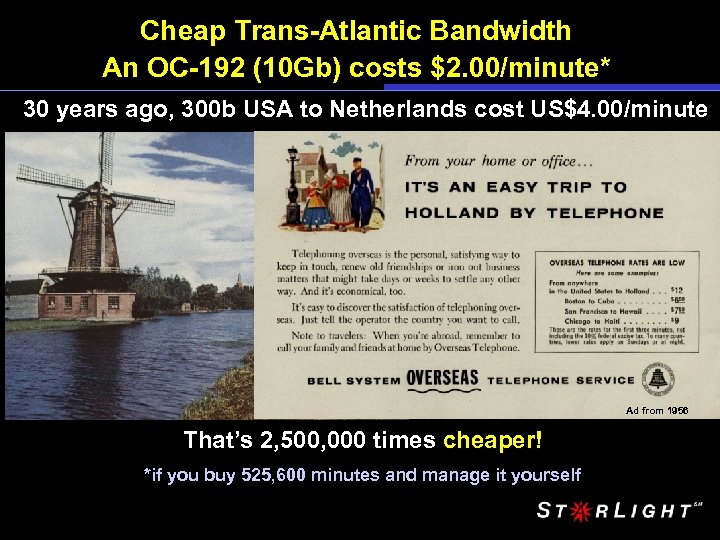

Cheap Trans-Atlantic Bandwidth An OC-192 (10 Gb) costs $2. 00/minute* 30 years ago, 300 b USA to Netherlands cost US$4. 00/minute Ad from 1956 That’s 2, 500, 000 times cheaper! *if you buy 525, 600 minutes and manage it yourself

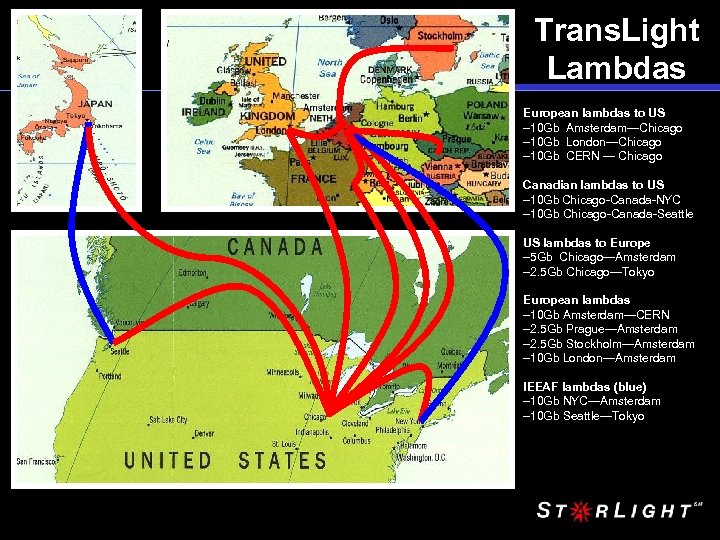

Trans. Light Lambdas European lambdas to US – 10 Gb Amsterdam—Chicago – 10 Gb London—Chicago – 10 Gb CERN — Chicago Canadian lambdas to US – 10 Gb Chicago-Canada-NYC – 10 Gb Chicago-Canada-Seattle US lambdas to Europe – 5 Gb Chicago—Amsterdam – 2. 5 Gb Chicago—Tokyo European lambdas – 10 Gb Amsterdam—CERN – 2. 5 Gb Prague—Amsterdam – 2. 5 Gb Stockholm—Amsterdam – 10 Gb London—Amsterdam IEEAF lambdas (blue) – 10 Gb NYC—Amsterdam – 10 Gb Seattle—Tokyo

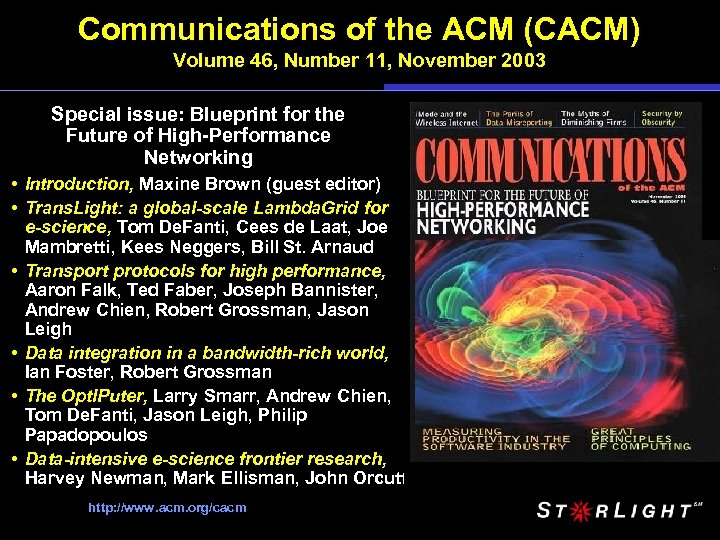

Communications of the ACM (CACM) Volume 46, Number 11, November 2003 Special issue: Blueprint for the Future of High-Performance Networking • Introduction, Maxine Brown (guest editor) • Trans. Light: a global-scale Lambda. Grid for e-science, Tom De. Fanti, Cees de Laat, Joe Mambretti, Kees Neggers, Bill St. Arnaud • Transport protocols for high performance, Aaron Falk, Ted Faber, Joseph Bannister, Andrew Chien, Robert Grossman, Jason Leigh • Data integration in a bandwidth-rich world, Ian Foster, Robert Grossman • The Opt. IPuter, Larry Smarr, Andrew Chien, Tom De. Fanti, Jason Leigh, Philip Papadopoulos • Data-intensive e-science frontier research, Harvey Newman, Mark Ellisman, John Orcutt http: //www. acm. org/cacm

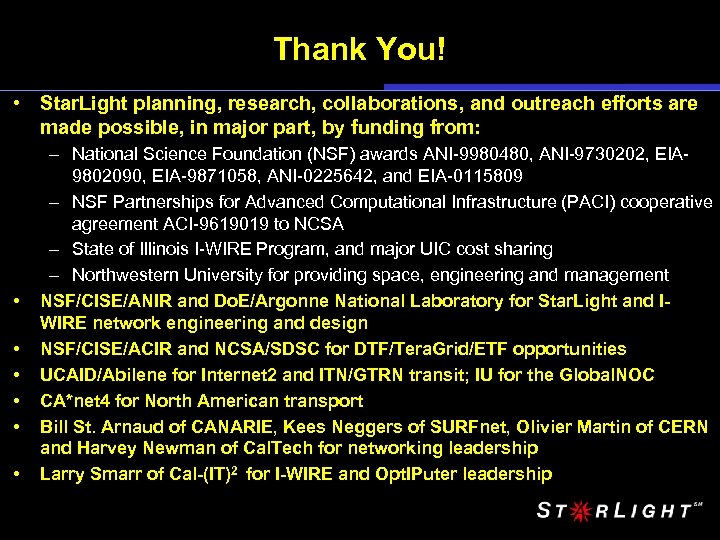

Thank You! • Star. Light planning, research, collaborations, and outreach efforts are made possible, in major part, by funding from: • • • – National Science Foundation (NSF) awards ANI-9980480, ANI-9730202, EIA 9802090, EIA-9871058, ANI-0225642, and EIA-0115809 – NSF Partnerships for Advanced Computational Infrastructure (PACI) cooperative agreement ACI-9619019 to NCSA – State of Illinois I-WIRE Program, and major UIC cost sharing – Northwestern University for providing space, engineering and management NSF/CISE/ANIR and Do. E/Argonne National Laboratory for Star. Light and IWIRE network engineering and design NSF/CISE/ACIR and NCSA/SDSC for DTF/Tera. Grid/ETF opportunities UCAID/Abilene for Internet 2 and ITN/GTRN transit; IU for the Global. NOC CA*net 4 for North American transport Bill St. Arnaud of CANARIE, Kees Neggers of SURFnet, Olivier Martin of CERN and Harvey Newman of Cal. Tech for networking leadership Larry Smarr of Cal-(IT)2 for I-WIRE and Opt. IPuter leadership
