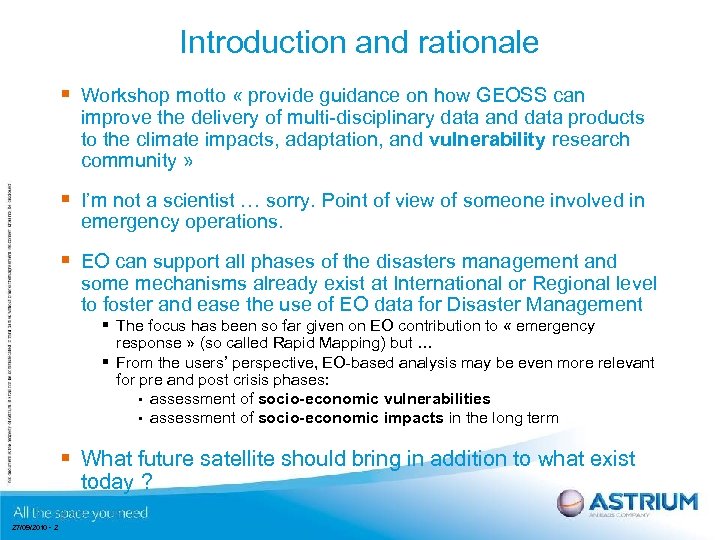

Introduction and rationale § Workshop motto « provide guidance on how GEOSS can improve the delivery of multi-disciplinary data and data products to the climate impacts, adaptation, and vulnerability research community » § I’m not a scientist … sorry. Point of view of someone involved in emergency operations. § EO can support all phases of the disasters management and some mechanisms already exist at International or Regional level to foster and ease the use of EO data for Disaster Management § The focus has been so far given on EO contribution to « emergency response » (so called Rapid Mapping) but … § From the users’ perspective, EO-based analysis may be even more relevant for pre and post crisis phases: § assessment of socio-economic vulnerabilities § assessment of socio-economic impacts in the long term § What future satellite should bring in addition to what exist today ? 27/09/2010 - 2

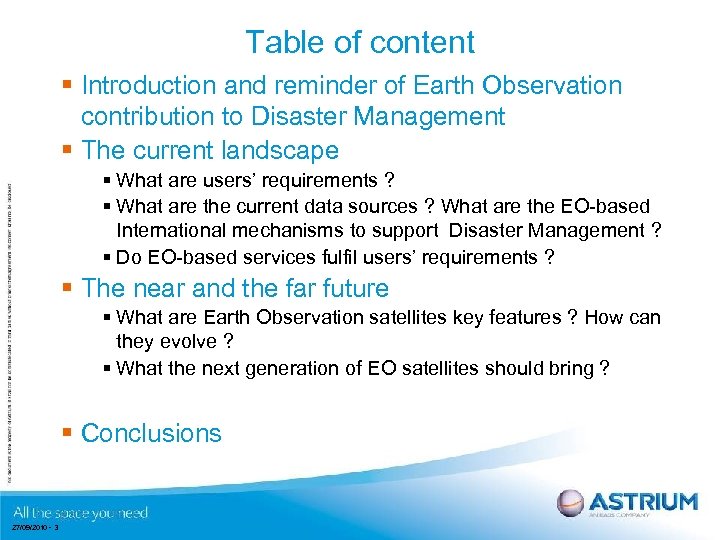

Table of content § Introduction and reminder of Earth Observation contribution to Disaster Management § The current landscape § What are users’ requirements ? § What are the current data sources ? What are the EO-based International mechanisms to support Disaster Management ? § Do EO-based services fulfil users’ requirements ? § The near and the far future § What are Earth Observation satellites key features ? How can they evolve ? § What the next generation of EO satellites should bring ? § Conclusions 27/09/2010 - 3

EO for Disaster Management

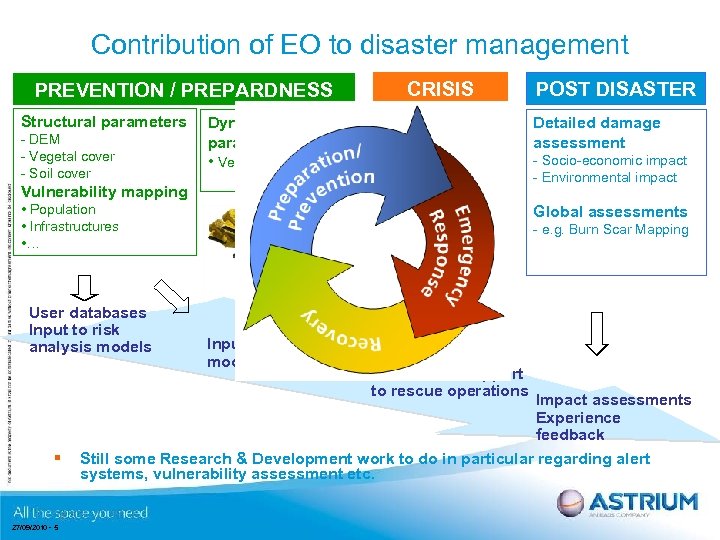

Contribution of EO to disaster management PREVENTION / PREPARDNESS Structural parameters - DEM - Vegetal cover - Soil cover Dynamic parameters • Vegetation wetness 27/09/2010 - 5 Global monitoring Detailed damage assessment - Socio-economic impact - Environmental impact • Disaster mapping • Rapid damage assessment • Population • Infrastructures • … § POST DISASTER Rapid Mapping Vulnerability mapping User databases Input to risk analysis models CRISIS Input to forecasting models Information support to rescue operations Global assessments - e. g. Burn Scar Mapping Impact assessments Experience feedback Still some Research & Development work to do in particular regarding alert systems, vulnerability assessment etc.

The current landscape

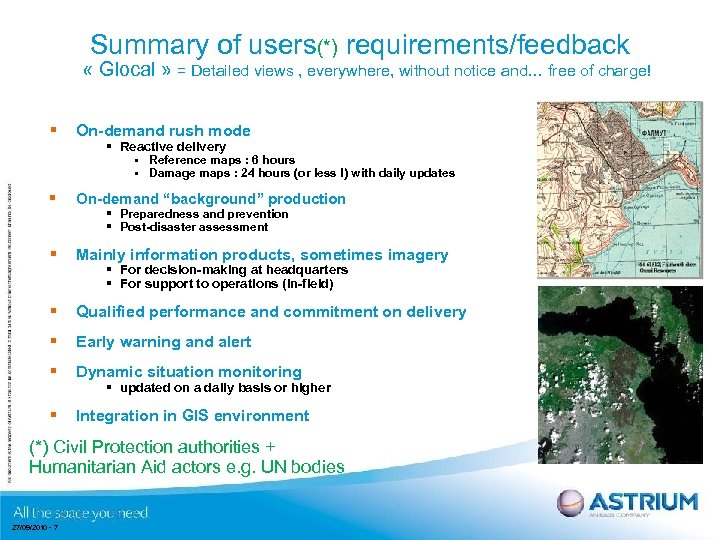

Summary of users(*) requirements/feedback « Glocal » = Detailed views , everywhere, without notice and… free of charge! § On-demand rush mode § Reactive delivery § § Reference maps : 6 hours Damage maps : 24 hours (or less !) with daily updates § On-demand “background” production § Mainly information products, sometimes imagery § Qualified performance and commitment on delivery § Early warning and alert § Dynamic situation monitoring § Integration in GIS environment § Preparedness and prevention § Post-disaster assessment § For decision-making at headquarters § For support to operations (in-field) § updated on a daily basis or higher (*) Civil Protection authorities + Humanitarian Aid actors e. g. UN bodies 27/09/2010 - 7

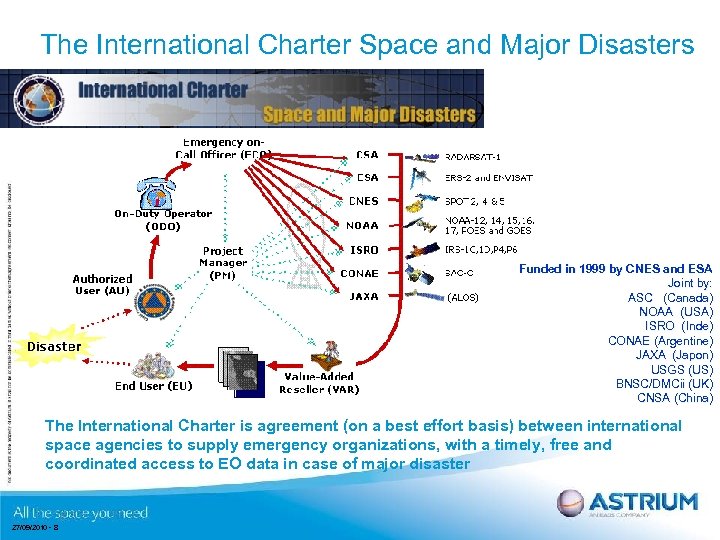

The International Charter Space and Major Disasters Funded in 1999 by CNES and ESA Joint by: ASC (Canada) NOAA (USA) ISRO (Inde) CONAE (Argentine) JAXA (Japon) USGS (US) BNSC/DMCii (UK) CNSA (China) The International Charter is agreement (on a best effort basis) between international space agencies to supply emergency organizations, with a timely, free and coordinated access to EO data in case of major disaster 27/09/2010 - 8

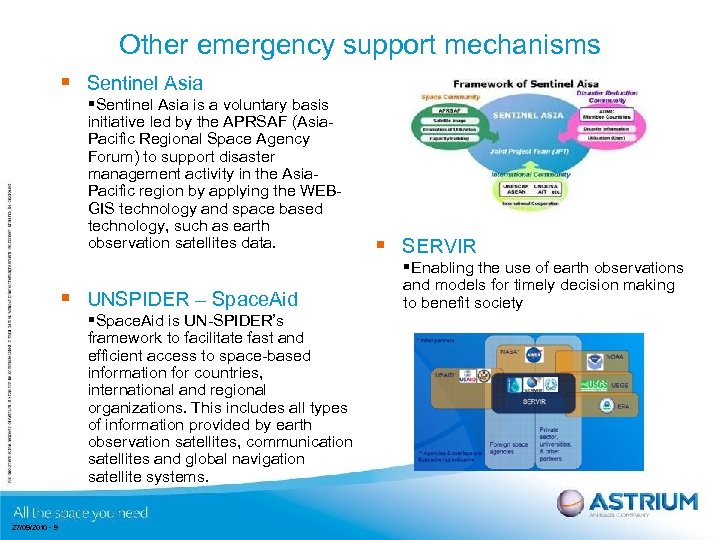

Other emergency support mechanisms § Sentinel Asia §Sentinel Asia is a voluntary basis initiative led by the APRSAF (Asia. Pacific Regional Space Agency Forum) to support disaster management activity in the Asia. Pacific region by applying the WEBGIS technology and space based technology, such as earth observation satellites data. § UNSPIDER – Space. Aid §Space. Aid is UN-SPIDER’s framework to facilitate fast and efficient access to space-based information for countries, international and regional organizations. This includes all types of information provided by earth observation satellites, communication satellites and global navigation satellite systems. 27/09/2010 - 9 § SERVIR §Enabling the use of earth observations and models for timely decision making to benefit society

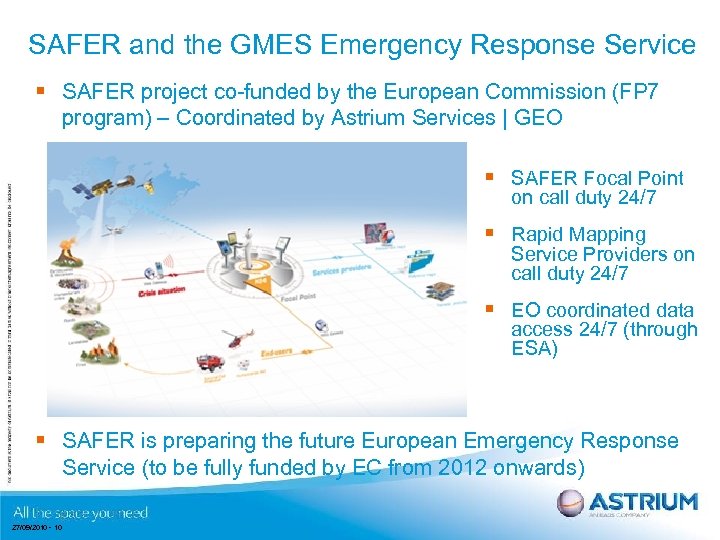

SAFER and the GMES Emergency Response Service § SAFER project co-funded by the European Commission (FP 7 program) – Coordinated by Astrium Services | GEO § SAFER Focal Point on call duty 24/7 § Rapid Mapping Service Providers on call duty 24/7 § EO coordinated data access 24/7 (through ESA) § SAFER is preparing the future European Emergency Response Service (to be fully funded by EC from 2012 onwards) 27/09/2010 - 10

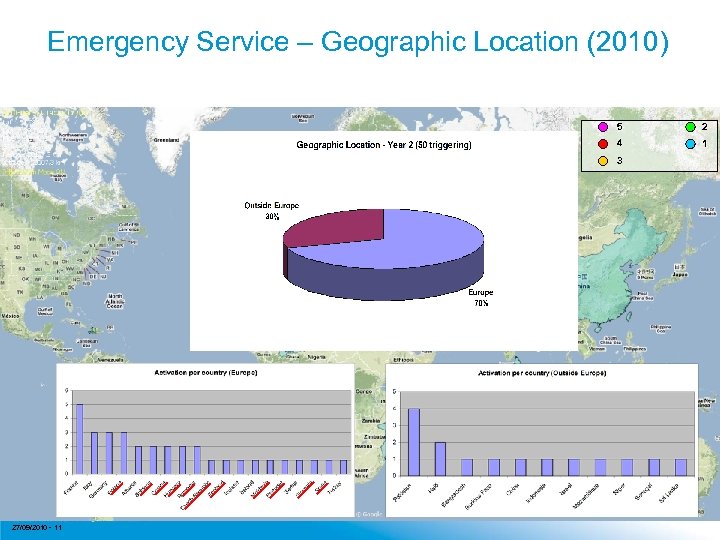

Emergency Service – Geographic Location (2010) 4 3 5 27/09/2010 - 11 1 2

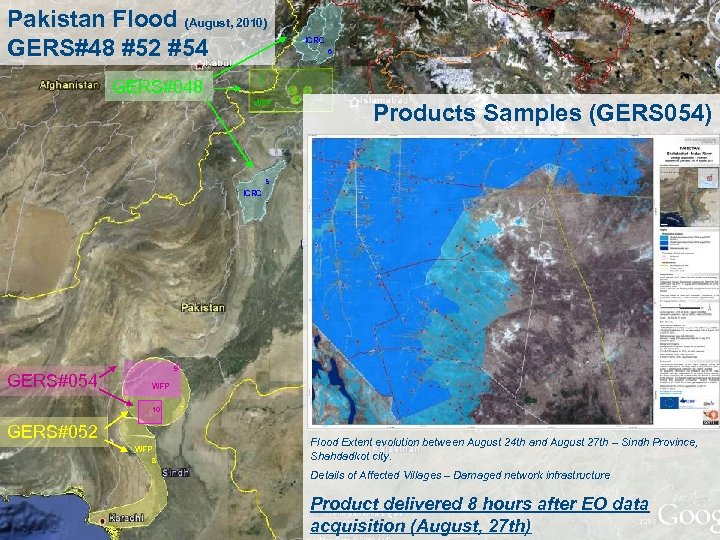

Pakistan Flood (August, 2010) GERS#48 #52 #54 GERS#048 ICRC 6 2 1 WFP 3 4 Products Samples (GERS 054) 5 ICRC GERS#054 9 WFP 10 GERS#052 WFP 8 7 Flood Extent evolution between August 24 th and August 27 th – Sindh Province, Shahdadkot city. Details of Affected Villages – Damaged network infrastructure 27/09/2010 - 12 Product delivered 8 hours after EO data acquisition (August, 27 th)

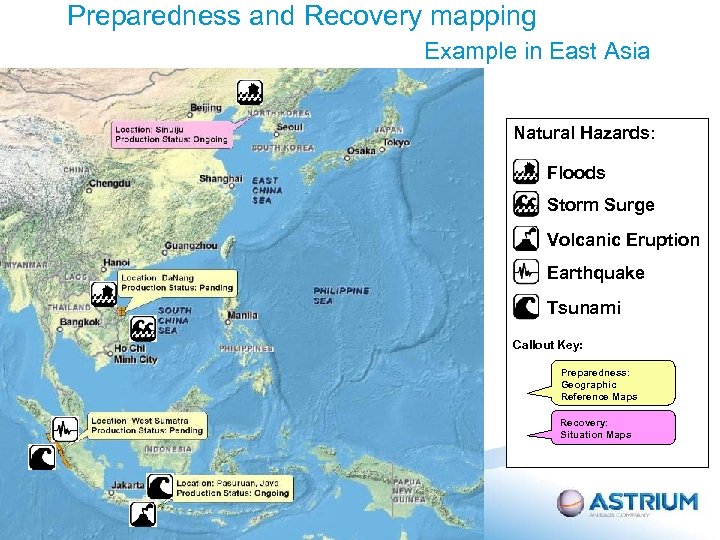

Preparedness and Recovery mapping Example in East Asia Natural Hazards: Floods Storm Surge Volcanic Eruption Earthquake Tsunami Callout Key: Preparedness: Geographic Reference Maps Recovery: Situation Maps 27/09/2010 - 13

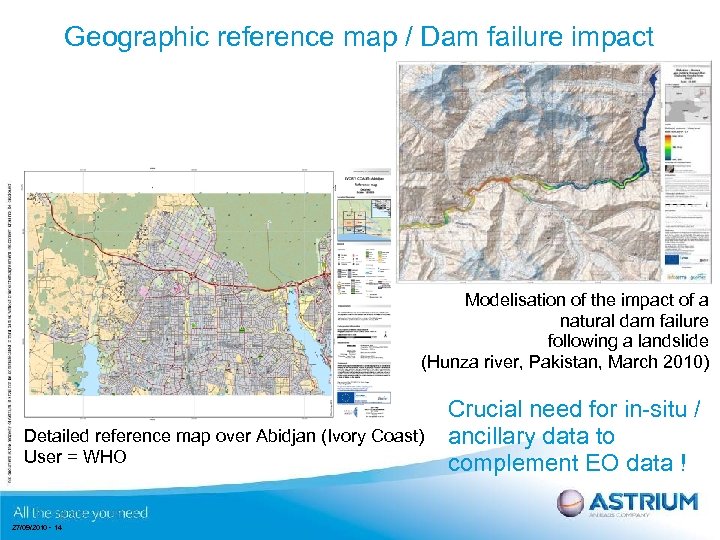

Geographic reference map / Dam failure impact Modelisation of the impact of a natural dam failure following a landslide (Hunza river, Pakistan, March 2010) Detailed reference map over Abidjan (Ivory Coast) User = WHO 27/09/2010 - 14 Crucial need for in-situ / ancillary data to complement EO data !

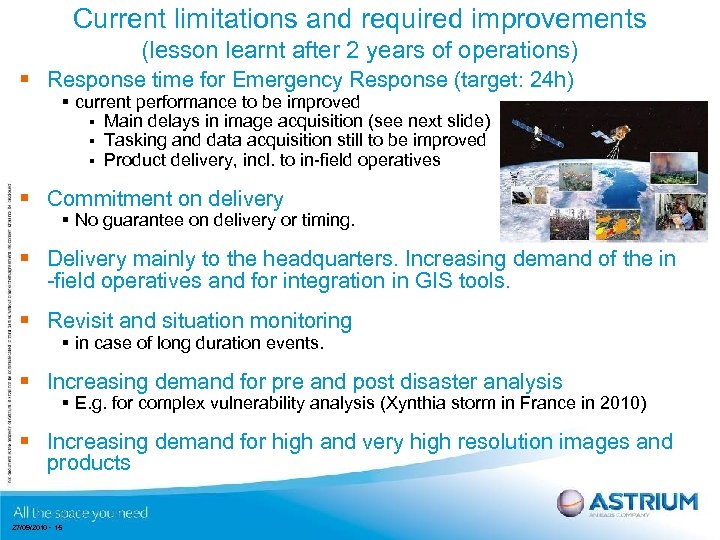

Current limitations and required improvements (lesson learnt after 2 years of operations) § Response time for Emergency Response (target: 24 h) § current performance to be improved § Main delays in image acquisition (see next slide) § Tasking and data acquisition still to be improved § Product delivery, incl. to in-field operatives § Commitment on delivery § No guarantee on delivery or timing. § Delivery mainly to the headquarters. Increasing demand of the in -field operatives and for integration in GIS tools. § Revisit and situation monitoring § in case of long duration events. § Increasing demand for pre and post disaster analysis § E. g. for complex vulnerability analysis (Xynthia storm in France in 2010) § Increasing demand for high and very high resolution images and products 27/09/2010 - 15

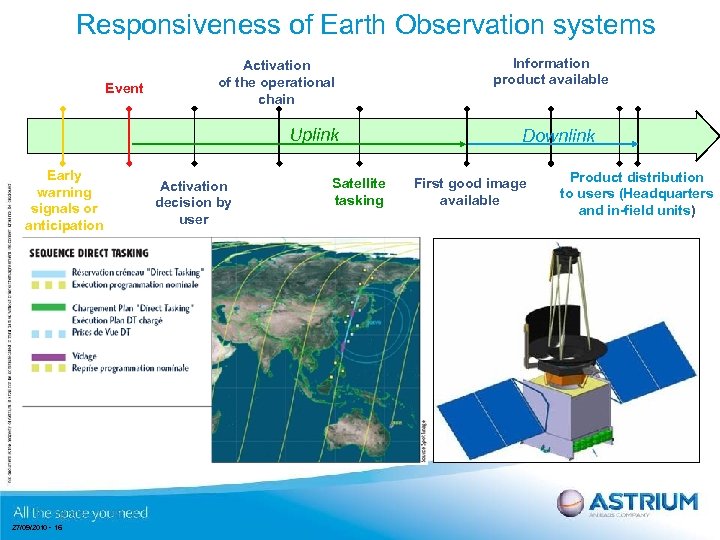

Responsiveness of Earth Observation systems Event Activation of the operational chain Uplink Early warning signals or anticipation 27/09/2010 - 16 Activation decision by user Satellite tasking Information product available Downlink First good image available Product distribution to users (Headquarters and in-field units)

The future …

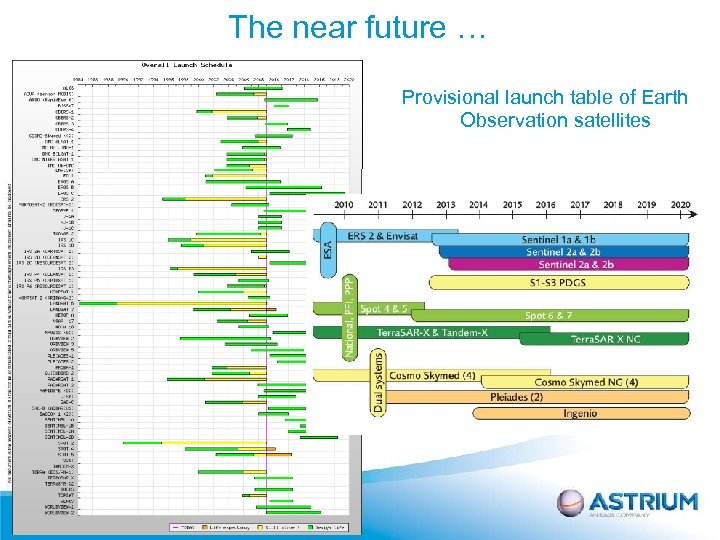

The near future … Provisional launch table of Earth Observation satellites 27/09/2010 - 18

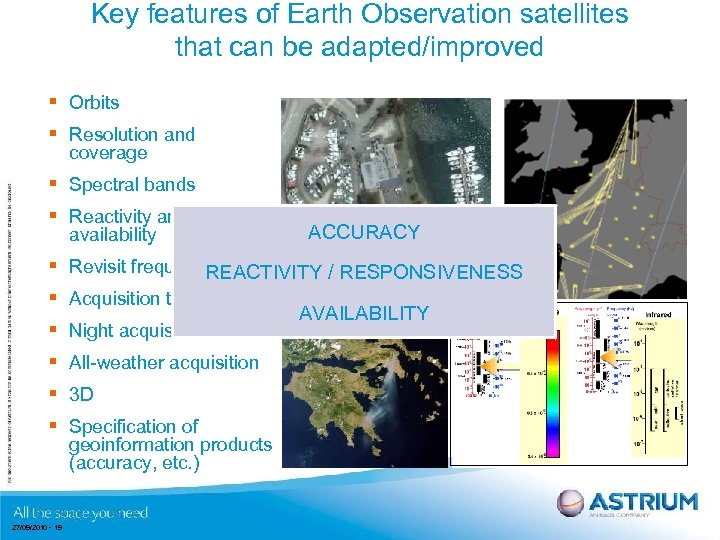

Key features of Earth Observation satellites that can be adapted/improved § Orbits § Resolution and coverage § Spectral bands § Reactivity and availability § § § 27/09/2010 - 19 ACCURACY Revisit frequency REACTIVITY / RESPONSIVENESS Acquisition time Night acquisition All-weather acquisition 3 D Specification of geoinformation products (accuracy, etc. ) AVAILABILITY

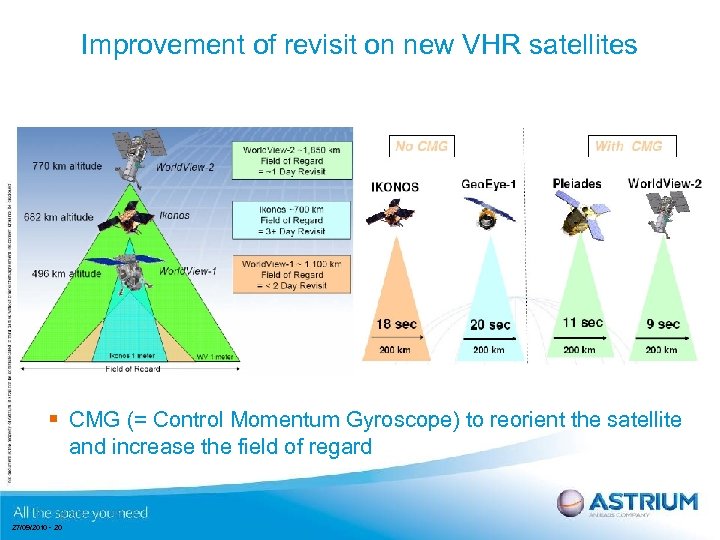

Improvement of revisit on new VHR satellites § CMG (= Control Momentum Gyroscope) to reorient the satellite and increase the field of regard 27/09/2010 - 20

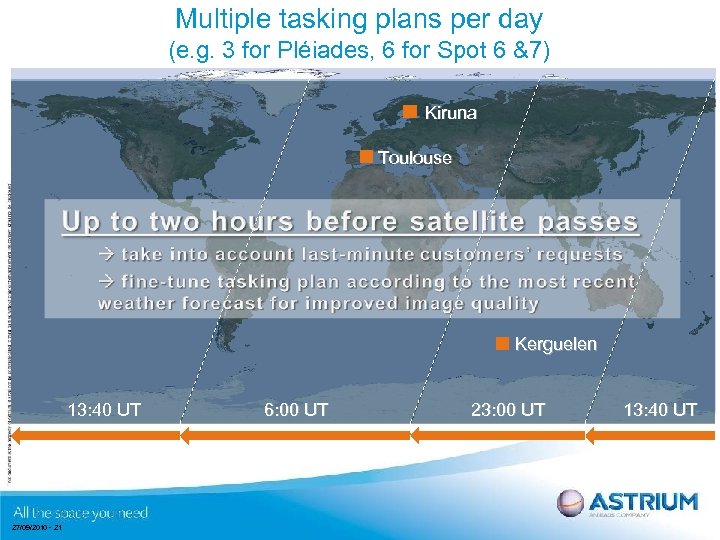

Multiple tasking plans per day (e. g. 3 for Pléiades, 6 for Spot 6 &7) Kiruna Toulouse Kerguelen 13: 40 UT 27/09/2010 - 21 6: 00 UT 23: 00 UT 13: 40 UT

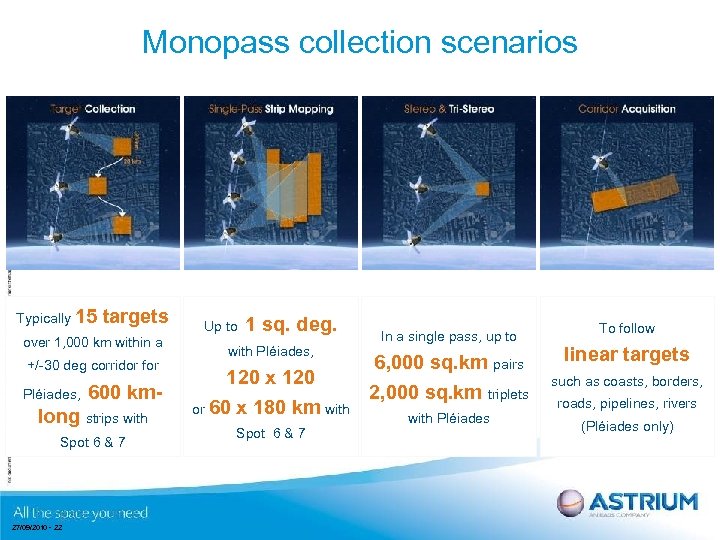

Monopass collection scenarios Typically 15 targets over 1, 000 km within a +/-30 deg corridor for Pléiades, 600 km- long strips with Spot 6 & 7 27/09/2010 - 22 Up to 1 sq. deg. with Pléiades, 120 x 120 or 60 x 180 km with Spot 6 & 7 In a single pass, up to 6, 000 sq. km pairs 2, 000 sq. km triplets with Pléiades To follow linear targets such as coasts, borders, roads, pipelines, rivers (Pléiades only)

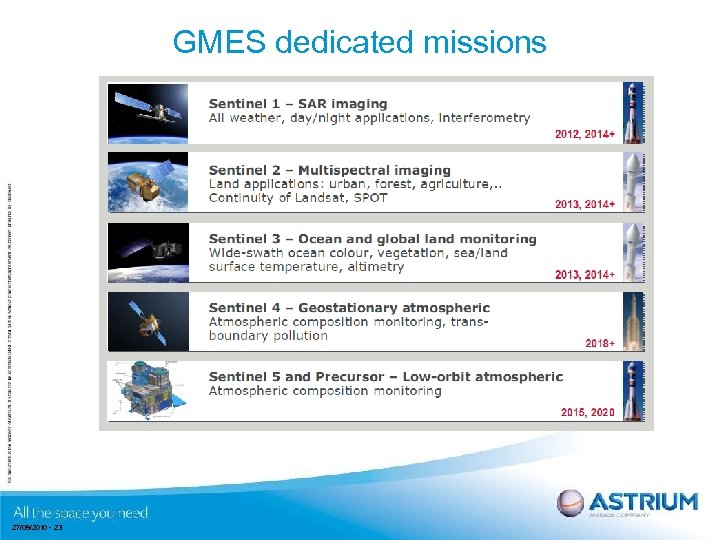

GMES dedicated missions 27/09/2010 - 23

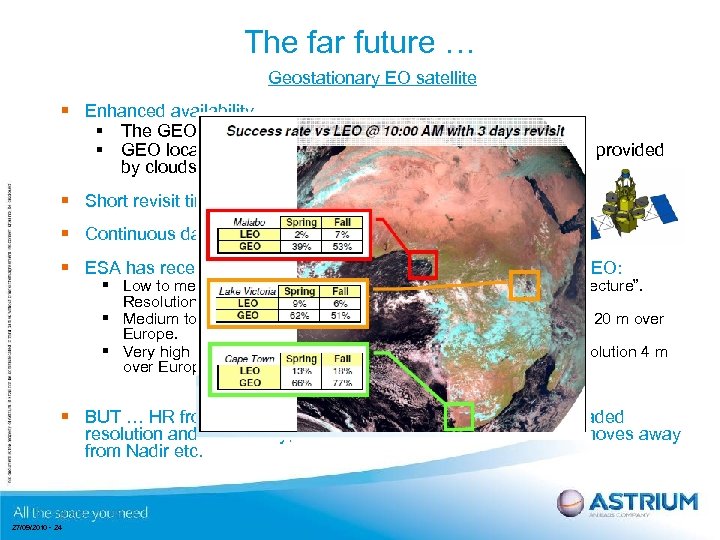

The far future … Geostationary EO satellite § Enhanced availability § The GEO satellite observes only over the areas of interest § GEO located instruments can use any transient opportunity provided by clouds absence § Short revisit times § Continuous data downlink § ESA has recently performed three studies on optical EO from GEO: § Low to medium resolution observation in “Alternative GMES architecture”. Resolution 500 m. § Medium to high resolution observation in “Geo. Oculus”. Resolution 20 m over Europe. § Very high resolution observation in “Towards 1 -m from GEO”. Resolution 4 m over Europe § BUT … HR from GEO has well known disadvantages e. g. degraded resolution and radiometry, distortion as the line of observation moves away from Nadir etc. 27/09/2010 - 24

Conlusions

Conclusions § On the Space component side § The continuity of EO missions needs off course to be insured in order to fulfill users’ requirements on a sustainable way (current trend = increase number of disasters + increased severity ) § The development of new missions/sensors to better fit with users’ expectations worldwide is a key success factor § On the application side § The future GMES Emergency Response Service (as well as other GMES services e. g. land, ocean, climate, security, atmosphere) is a good candidate to contribute to map climate impacts as well as socio-economic vulnerabilities based on EO analysis § GMES products are deamed to be fully and freely accessible for scientific work ! § Don’t forget in-situ data ! § Census data, socio-economic statistics § Some GMES initiatives in progress (e. g. GISC/EEA) 27/09/2010 - 26

Contact David HELLO Head of Risk and Crisis management department +33 5 62 19 63 48 +33 6 70 82 51 40 david. hello@spotimage. fr www. emergencyresponse. eu 27/09/2010 - 27

Annexes

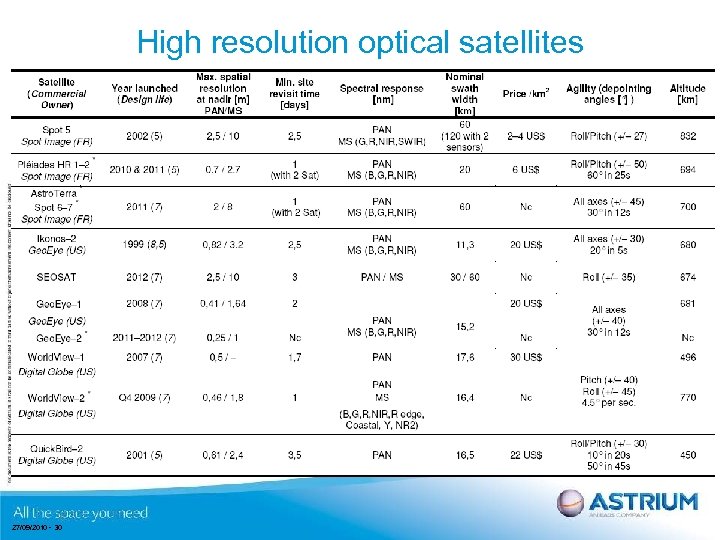

High resolution optical satellites 27/09/2010 - 29

High resolution optical satellites 27/09/2010 - 30

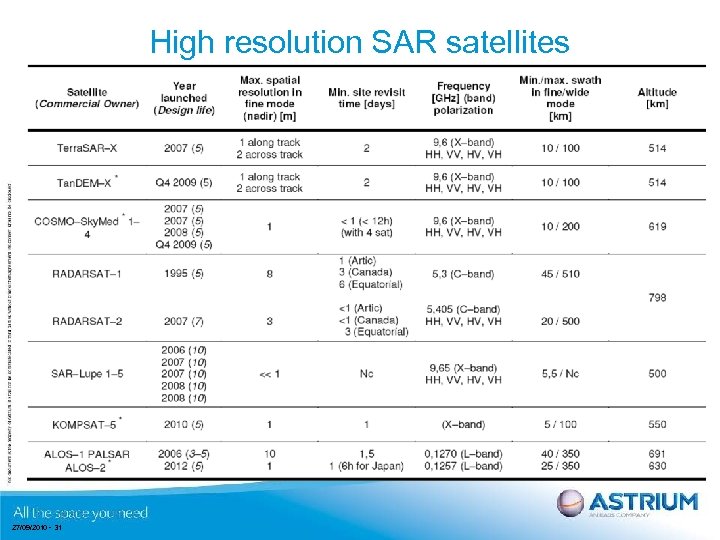

High resolution SAR satellites 27/09/2010 - 31
