Embedded Print Technology Tempest DSM Presented by Mark Brown
• WML embedded systems developer • Many years experience in desktop printing • Supplier of Thin Client and Tablet technology • Best of breed platforms

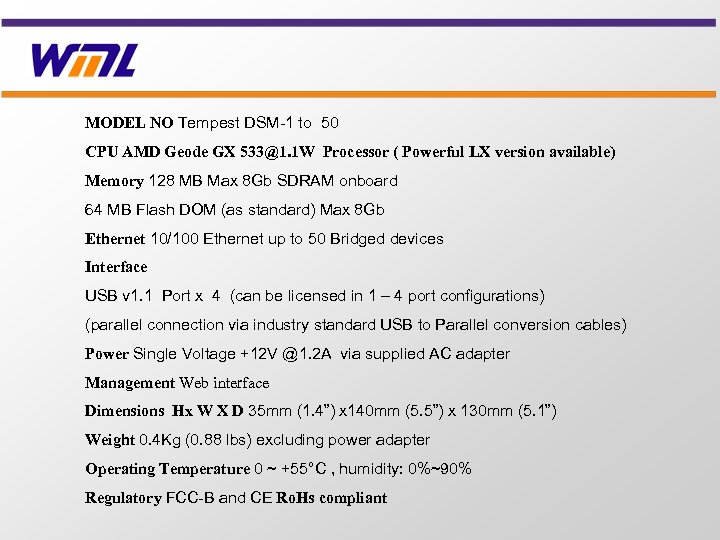

MODEL NO Tempest DSM-1 to 50 CPU AMD Geode GX 533@1. 1 W Processor ( Powerful LX version available) Memory 128 MB Max 8 Gb SDRAM onboard 64 MB Flash DOM (as standard) Max 8 Gb Ethernet 10/100 Ethernet up to 50 Bridged devices Interface USB v 1. 1 Port x 4 (can be licensed in 1 – 4 port configurations) (parallel connection via industry standard USB to Parallel conversion cables) Power Single Voltage +12 V @1. 2 A via supplied AC adapter Management Web interface Dimensions Hx W X D 35 mm (1. 4”) x 140 mm (5. 5”) x 130 mm (5. 1”) Weight 0. 4 Kg (0. 88 lbs) excluding power adapter Operating Temperature 0 ~ +55°C , humidity: 0%~90% Regulatory FCC-B and CE Ro. Hs compliant

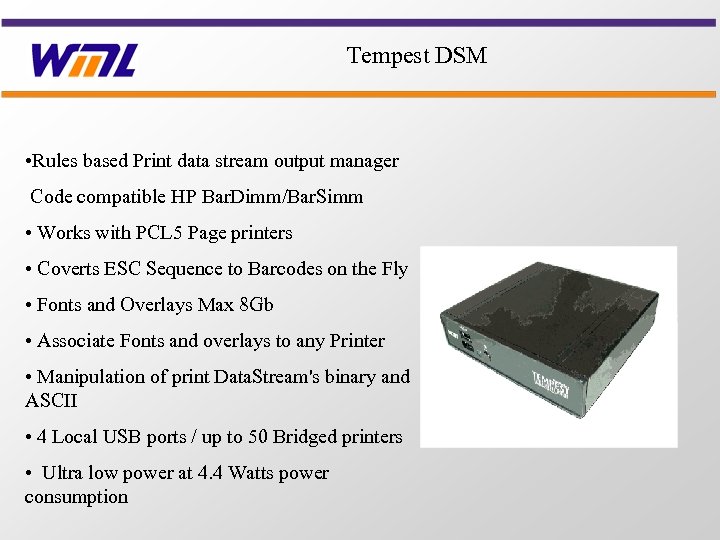

Tempest DSM • Rules based Print data stream output manager Code compatible HP Bar. Dimm/Bar. Simm • Works with PCL 5 Page printers • Coverts ESC Sequence to Barcodes on the Fly • Fonts and Overlays Max 8 Gb • Associate Fonts and overlays to any Printer • Manipulation of print Data. Stream's binary and ASCII • 4 Local USB ports / up to 50 Bridged printers • Ultra low power at 4. 4 Watts power consumption
Tempest DSM • Easy solution for SAP hosted servers • Fraction of the cost of server based systems • Supports SAP Unicode fonts converts to PCL • On board Emulations Kyocera Pre. Scribe, FX 100, Pro. Printer and Printronix. • wireless option • Print & PDF Achieve option • Military Spec hardware solid state • Backup and restore function
Printer Queues Local ports 9100 – 9103 Bridged ports 9111 – 9160
Per Queue set logical functions
Fonts & Overlays selected per page

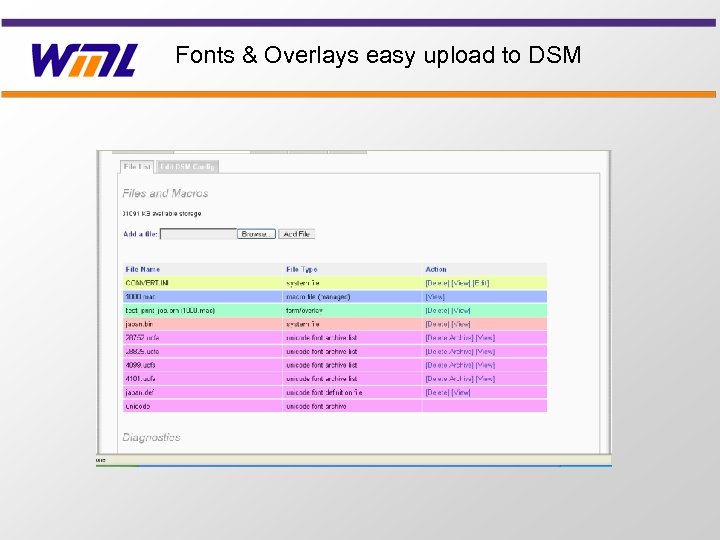

Fonts & Overlays easy upload to DSM

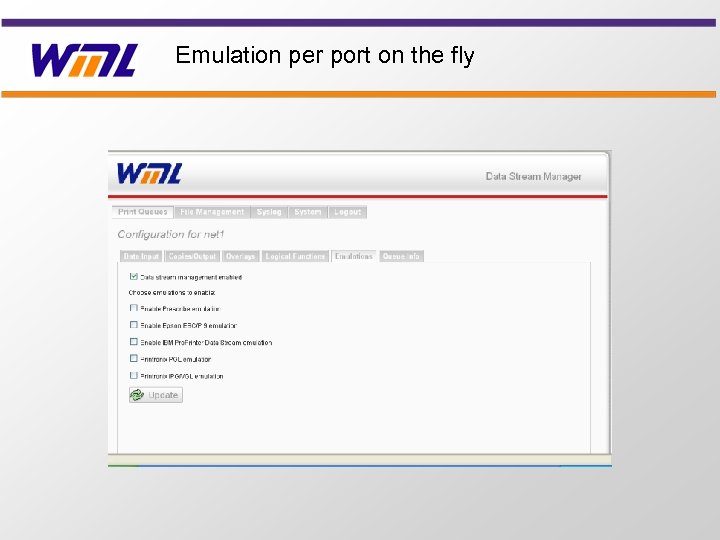

Emulation per port on the fly

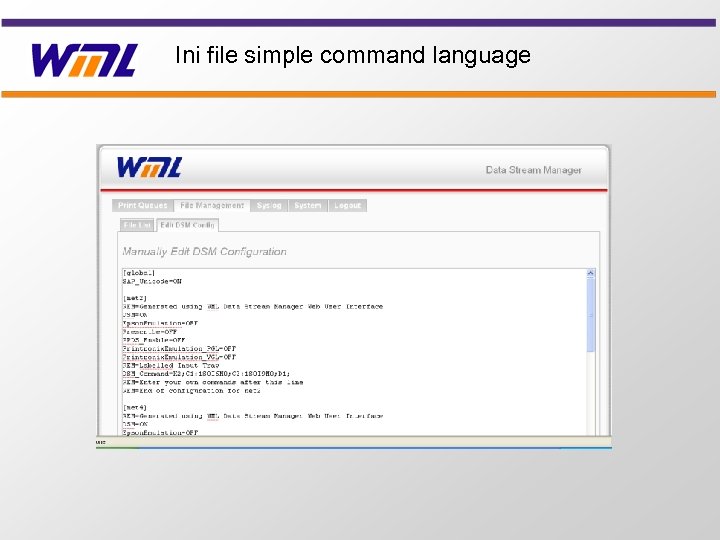

Ini file simple command language

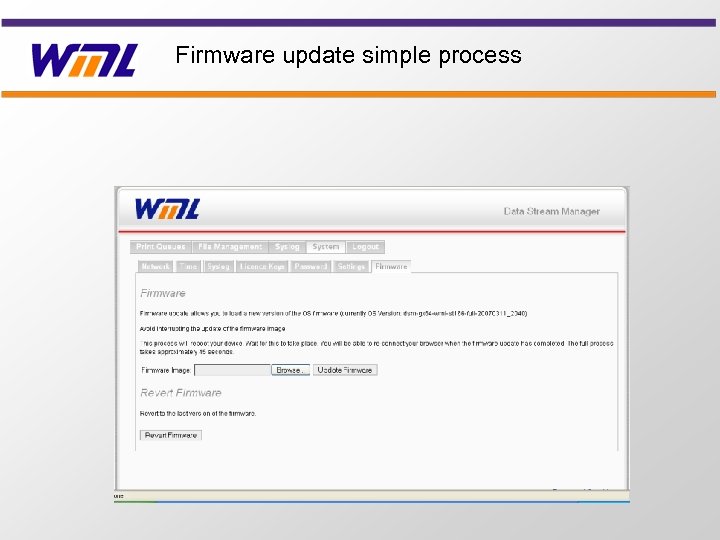

Firmware update simple process

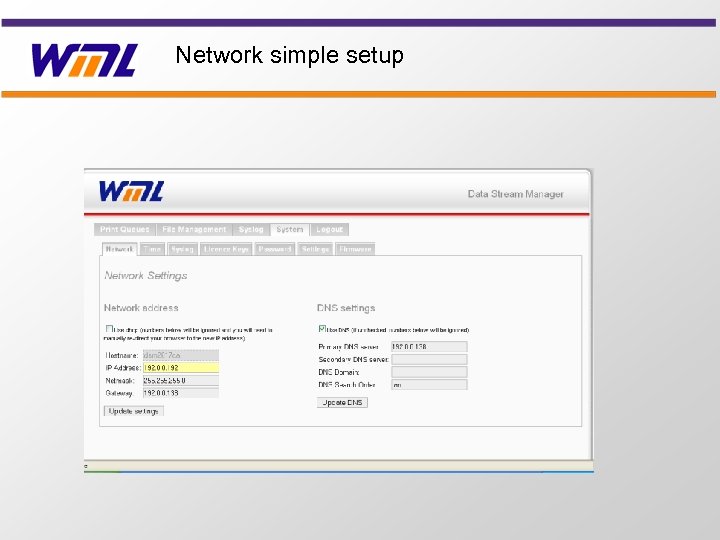

Network simple setup

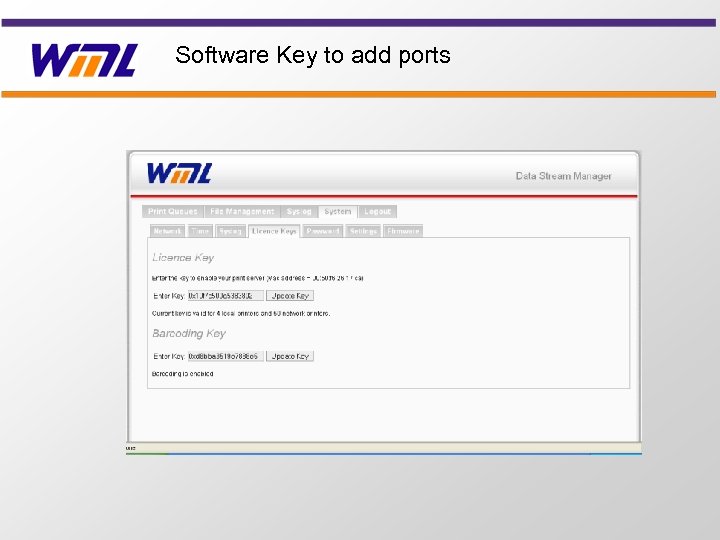

Software Key to add ports

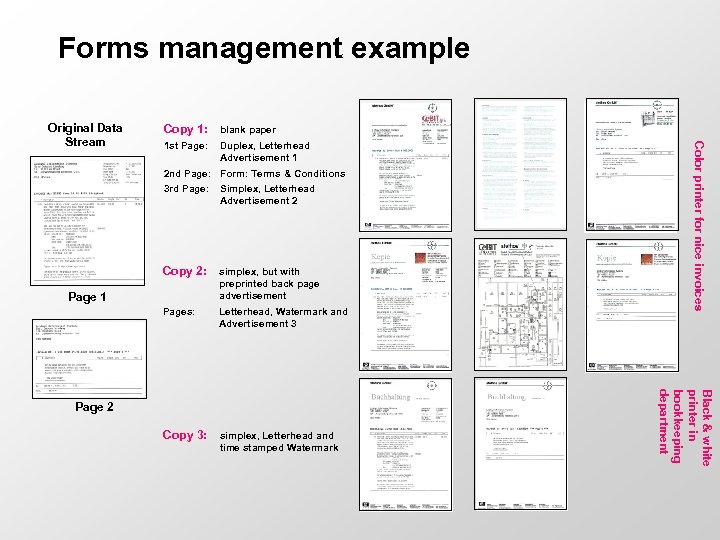

Forms management example Copy 1: blank paper 1 st Page: Duplex, Letterhead Advertisement 1 2 nd Page: Form: Terms & Conditions Simplex, Letterhead Advertisement 2 Copy 2: simplex, but with preprinted back page advertisement Pages: Letterhead, Watermark and Advertisement 3 Copy 3: simplex, Letterhead and time stamped Watermark Page 1 Page 2 Black & white printer in bookkeeping department 3 rd Page: Color printer for nice invoices Original Data Stream

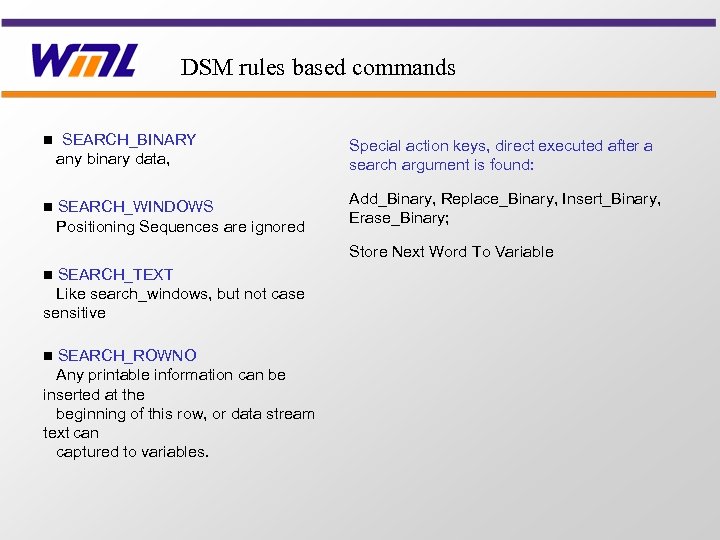

DSM rules based commands n SEARCH_BINARY any binary data, n SEARCH_WINDOWS Positioning Sequences are ignored Special action keys, direct executed after a search argument is found: Add_Binary, Replace_Binary, Insert_Binary, Erase_Binary; Store Next Word To Variable SEARCH_TEXT Like search_windows, but not case sensitive n SEARCH_ROWNO Any printable information can be inserted at the beginning of this row, or data stream text can captured to variables. n
DSM rules based commands preset variables #ACTTIME# #DATENUM# #DATETEXT_D# #DATETEXT_PL# #DATESERIAL# #MILLISECONDS ##MONTH# #MONTH_D# #MONTH_PL# #WEEKDAY_D# #WEEKDAY_PL# #TODAYNUM# #PCNAME# #VAR_OUTFILESIZE# #PRINTDOCNAME# #PRINTERDRIVERNAME# #PRINTERSHARENAME# #USERNAME# #VAR_TCPIP_PORT# #VAR_ORIENTATION# #VAR_PAGESIZE# #VAR_PAPERTRAY# #VAR_RESOLUTION# #VAR_SIMPLEXDUPLEX# #VAR_TCPIP_PORT# #IN_DSM_FILENAMEWITHOUTPATH# #OUT_DSM_FILENAMEWITHOUTPATH# #ELP_FORMS_PATH# #ELP_PROG_PATH# #LAST_ARCHIVE_FILE# #RANDOM#

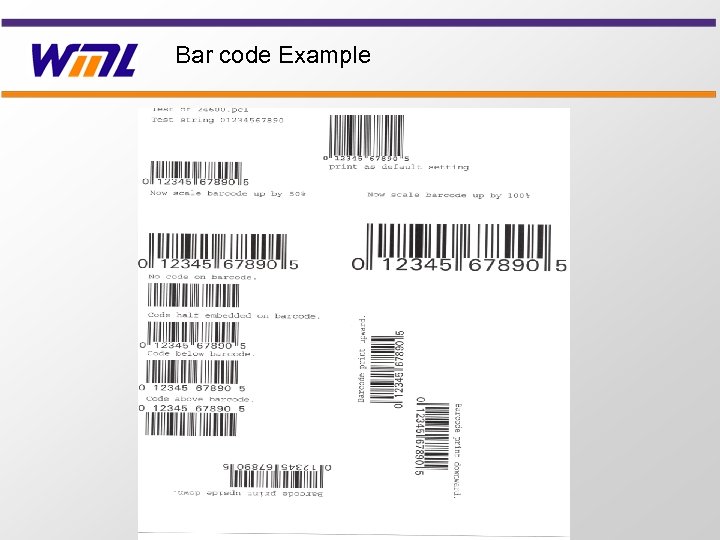

Bar code Example
