Embedded Linux Structure Customer & Third Party Applications XFCE AXWM (Windows 2000 GUI style) XFree 86 Library / GTK+ Library Embedded Feature WDT DIO BID HWM Networking & Application Packages Protect Linux Kernel / Device Drivers SBC Board Hardware Reference Global Marketing Division E. Linux SK Ver. V 1. 1

Linux Kernel / Device Drivers n Kernel version ü VT 8606, VT 8601, NS-GX 1 ü CLE 266, i 852/i 855 GME ü VT 8606, CLE 266, i 852/i 855 GME : 2. 4. 25 -006 or later : 2. 4. 28 -001 or later : 2. 6. 8. 1 or later n Function summary ü Storage Target ü Network Device ü ü ü PS/2 Device Serial Port Parallel Port Floppy IDE ISA : : : : : IDE(HDD, CF, DOM), DOC, USB, SATA Realtek 8139/8100 serials 10/100 Mbits Realtek 8169/8110 serial Gigabits Intel Express. Pro 10/1000 Mbits serials PS 2 Keyboard and Mouse RS-232 COM 1~COM 4, Ir. DA IEEE-1284, Console on line printer 1. 44 M HDD (LBA 48 bit), CD-ROM, Compact. Flash, DOM Disk-On-Chip Global Marketing Division E. Linux SK Ver. V 1. 1

Linux Kernel / Device Drivers ü USB 1. 1/2. 0 ü ü ü ü : : : Display : Networking : Network service : File System : Embedded Feature : GUI : : Language : : Demo Program : : Full HID Keyboard and Mouse UHCI, EHCI, USB-Storage OHCI (only for GX 1 platform) VESA VGA TCP/IP, IPV 4, Netfilter (for masq/NAT) FTP, NFS, Telnet and DHCP client ext 2, ext 3, FAT, ISO-9660, Joliet CD-ROM BID, WDT, HWM, DIO Windows 2000 style windows manager Easy customization for owner GUI English, French, German, Italian, Korean Japanese, Chinese Simplify and Traditional Mpeg-Player ( DVD, VCD), MP 3 -Player Screen Keyboard, Game, Editor, Browser Global Marketing Division E. Linux SK Ver. V 1. 1

Embedded Features n On-Board Embedded Function ü WDT ü DIO ü BID ü HWM : : : : Watch-Dog-Timer Device Driver API library and sample program Digital I/O Device Driver API library and sample program DS-2401 Device Driver API library and sample program Hardware Monitor Device Driver API library and sample program n BID : Board unique ID ü This ID was read from On-Board DS-2401 device content that is a unique ID. Global Marketing Division E. Linux SK Ver. V 1. 1

Embedded Features n WDT : Watch Dog Timer ü Timer range 1: (used u. P) • 0. 5 sec ~ 8 sec step 0. 5 sec • 10 sec ~ 80 sec step 5 sec • 100 sec ~ 800 sec step 50 sec • 800 sec ~ 1600 sec step 100 sec ü Timer range 2: (used Super. IO) • 1~255 sec • 1~255 minute n DIO : Digital Input / Output n HWM : Hardware Monitor ü Read current Temperature and Voltage information Global Marketing Division E. Linux SK Ver. V 1. 1

Networking & Application Packages n Application Function ü ü Networking : FTP , Telnet , NFS, DHCP client Utility and Tools : Busy. Box, Tiny. Login Keyboard Layout : Setting the Keyboard layout Time Zone: Setting the Time Zone for local ü Language (i 18 n) : Multi-Language support (Internationalization) • (English, French, German, Italian, Japanese, Korean, Chinese Simplify, Chinese Traditional ) Global Marketing Division E. Linux SK Ver. V 1. 1

AXWM GUI System l AXWM is a windows manager like the Windows 2000 style l That supports multi-language GUI with English, French, German, Italian, Korean, Japanese, Chinese Simplify and Chinese Traditional. Customer will easy to customization for their GUI and add their language system. l Build-in ELO-touch and Penmount-3 M touch drivers Global Marketing Division E. Linux SK Ver. V 1. 1

Development Environment n Kernel 2. 4. x version ü Re-command Red. Hat 9. 0 ü Other kernel 2. 4. x Linux Platform, like Mandrake 8. 1 n Kernel 2. 6. x version ü Re-command Fedora Core 2 or later ü Other kernel 2. 6. x Linux Platform, like Mandrake 10. 0 Global Marketing Division E. Linux SK Ver. V 1. 1

Product Availability n SBC 84600 VEA Series ü With AX 10440 D + Wireless LAN ü With AX 10440 D + Storage devices ü With AX 10466 n SBC 84500 VEA-300 ü With AX 10440 D + Wireless LAN ü With AX 10440 D + Storage devices ü With AX 10466 n SBC 84510 VEE-300 ü With AX 10440 D + Wireless LAN ü With AX 10440 D + Storage devices ü With AX 10466 n STX 88601/02 VEA Series + STB 97300 ü ü ü With With AX 10440 D + Wireless LAN AX 10440 D + Storage device AX 10466 AX 10442 + Wireless LAN AX 10442 + Storage devices AX 12500 + AX 89330/AX 89331/AX 92210 Global Marketing Division E. Linux SK Ver. V 1. 1

Product Availability n SBC 83810 VEA Series ü With AX 10440 D + Wireless LAN ü With AX 10440 D + Storage devices n SBC 836 A 1 Series ü With AX 10440 D + Wireless LAN ü With AX 10440 D + Storage devices n SBC 856 A 1 Series n SBC 836 A 0 Series ü With AX 10440 D + Wireless LAN ü With AX 10440 D + Storage device n SBC 83675 Series ü With AX 10466 n SBC 82600 Series Global Marketing Division E. Linux SK Ver. V 1. 1

Embedded Linux Service Flow Global Marketing Division E. Linux SK Ver. V 1. 1

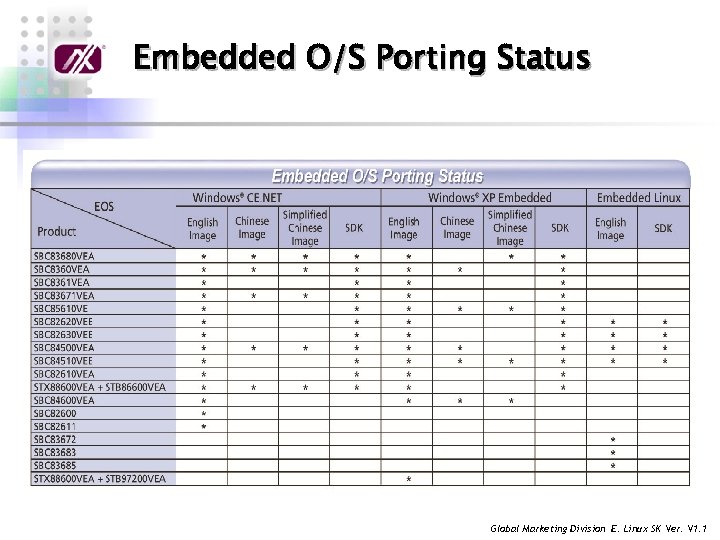

Embedded O/S Porting Status Global Marketing Division E. Linux SK Ver. V 1. 1

Business Module n OS Image is free download from our FTP Site for our SI/Distributor only ü Product Validation Key Utility is provided to our SI/Distributor only to protect/secure their business/project from other competitors n Issue ~ ü BSP is chargeable as USD 299 Global Marketing Division E. Linux SK Ver. V 1. 1
