Elemental, My Dear Watson Paul Middlestead University of Ottawa, G. G. Hatch Laboratory For 20 th Continuous Flow Conference, Davis, 2014

Who/what is this talk for? This talk is for new users We will touch the basics on Elemental analysers A mix bag of tricks and advices Refer to manufacturer’s instruction manuals Only endorsed products are: Rickards Red and Rickards White !

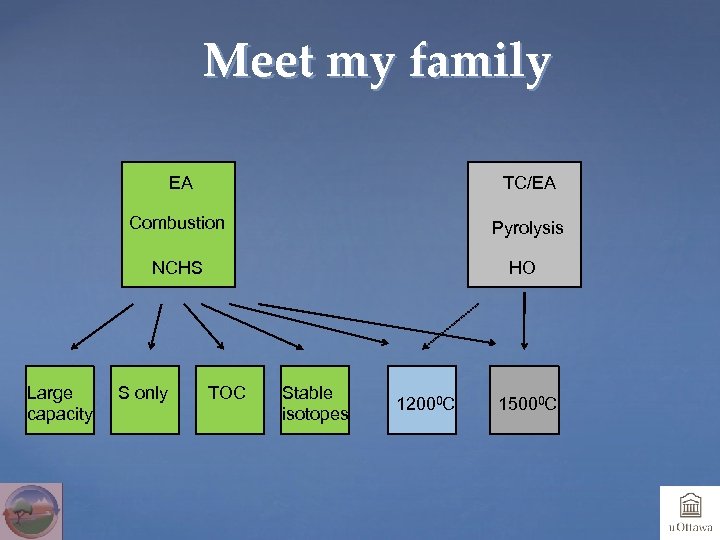

Meet my family EA TC/EA Combustion Pyrolysis NCHS Large capacity S only HO TOC Stable isotopes 12000 C 15000 C

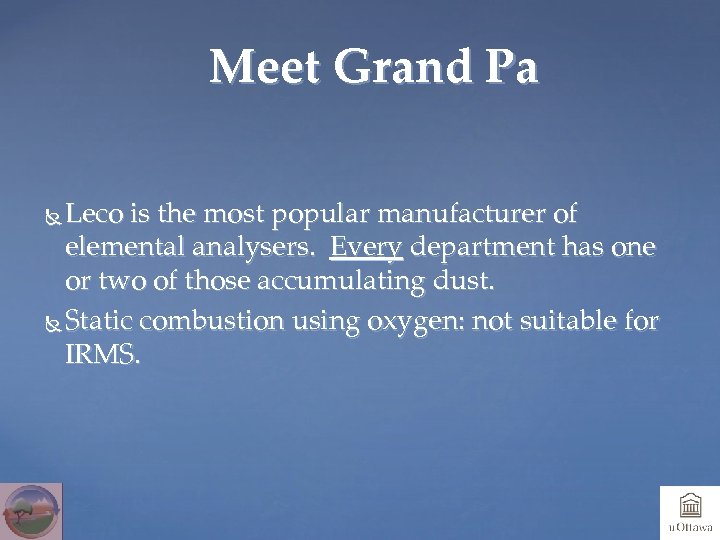

Meet Grand Pa Leco is the most popular manufacturer of elemental analysers. Every department has one or two of those accumulating dust. Static combustion using oxygen: not suitable for IRMS.

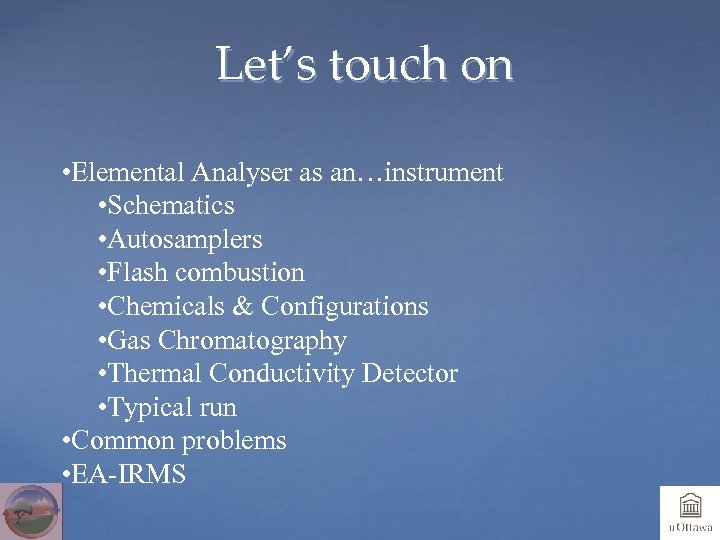

Let’s touch on • Elemental Analyser as an…instrument • Schematics • Autosamplers • Flash combustion • Chemicals & Configurations • Gas Chromatography • Thermal Conductivity Detector • Typical run • Common problems • EA-IRMS

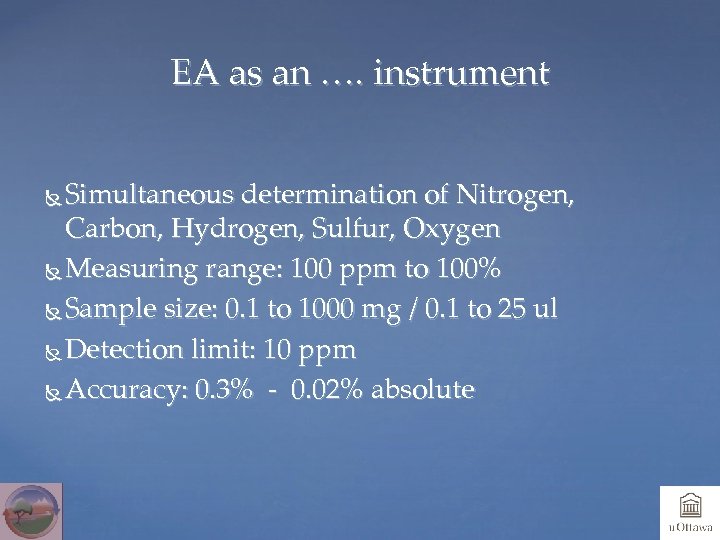

EA as an …. instrument Simultaneous determination of Nitrogen, Carbon, Hydrogen, Sulfur, Oxygen Measuring range: 100 ppm to 100% Sample size: 0. 1 to 1000 mg / 0. 1 to 25 ul Detection limit: 10 ppm Accuracy: 0. 3% - 0. 02% absolute

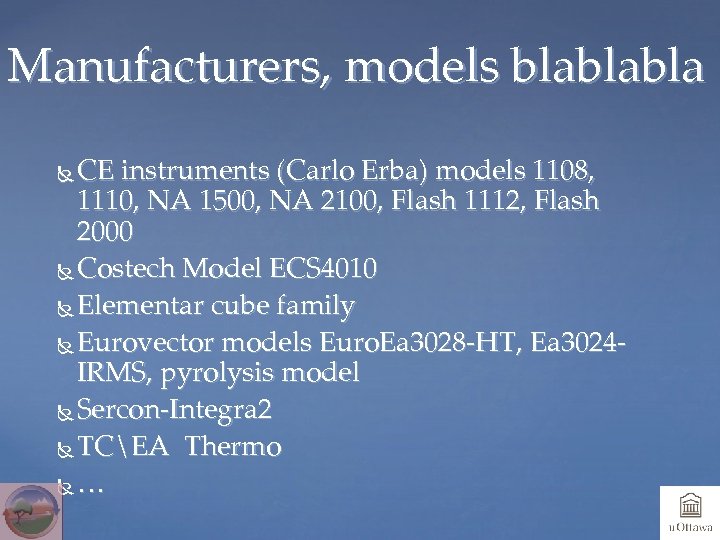

Manufacturers, models blablabla CE instruments (Carlo Erba) models 1108, 1110, NA 1500, NA 2100, Flash 1112, Flash 2000 Costech Model ECS 4010 Elementar cube family Eurovector models Euro. Ea 3028 -HT, Ea 3024 IRMS, pyrolysis model Sercon-Integra 2 TCEA Thermo …

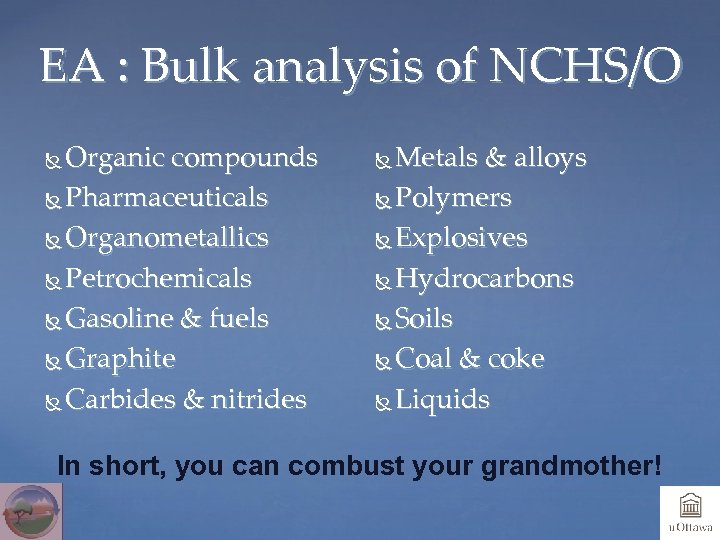

EA : Bulk analysis of NCHS/O Organic compounds Pharmaceuticals Organometallics Petrochemicals Gasoline & fuels Graphite Carbides & nitrides Metals & alloys Polymers Explosives Hydrocarbons Soils Coal & coke Liquids In short, you can combust your grandmother!

Typical EA setup with IRMS Ref gas 1 Ref gas 2 Elemental Analyser (CNS) (OH) He 2 m Interface Isotope Ratio Mass Spectrometer

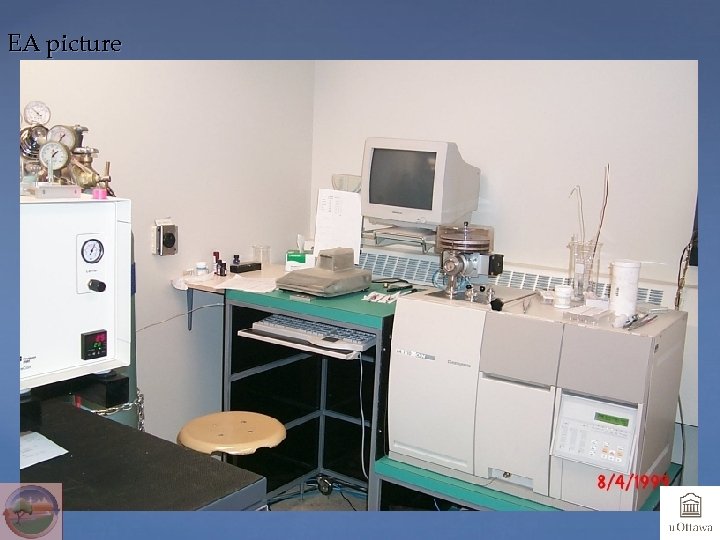

EA picture

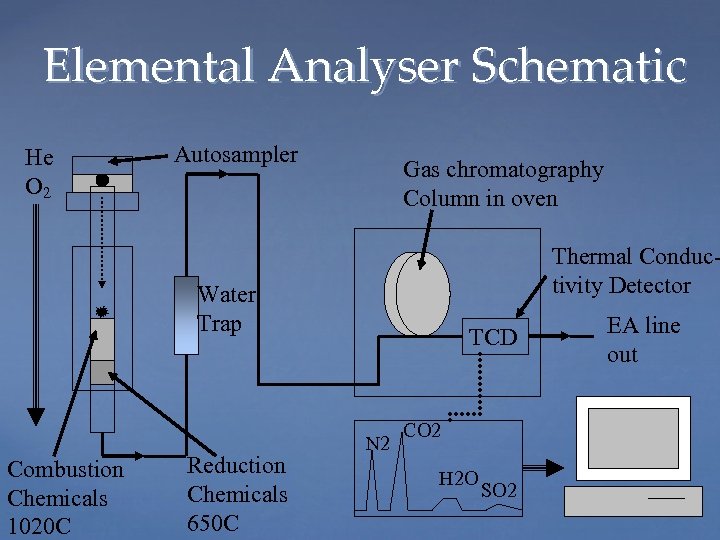

Elemental Analyser Schematic He O 2 Autosampler Gas chromatography Column in oven Thermal Conductivity Detector Water Trap Combustion Chemicals 1020 C Reduction Chemicals 650 C TCD N 2 CO 2 H 2 O SO 2 EA line out

Found the problem with the previous slide? A beer if you do… (5 seconds)

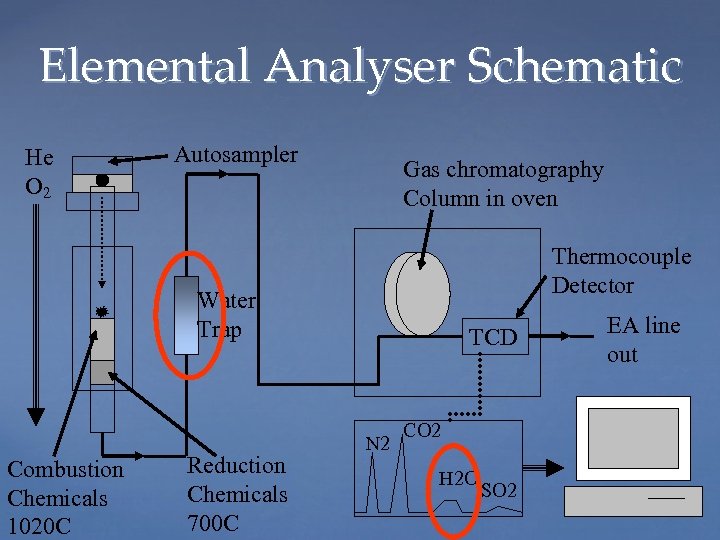

Elemental Analyser Schematic He O 2 Autosampler Gas chromatography Column in oven Thermocouple Detector Water Trap Combustion Chemicals 1020 C Reduction Chemicals 700 C TCD N 2 CO 2 H 2 O SO 2 EA line out

A cold Rickard’s Red for me please.

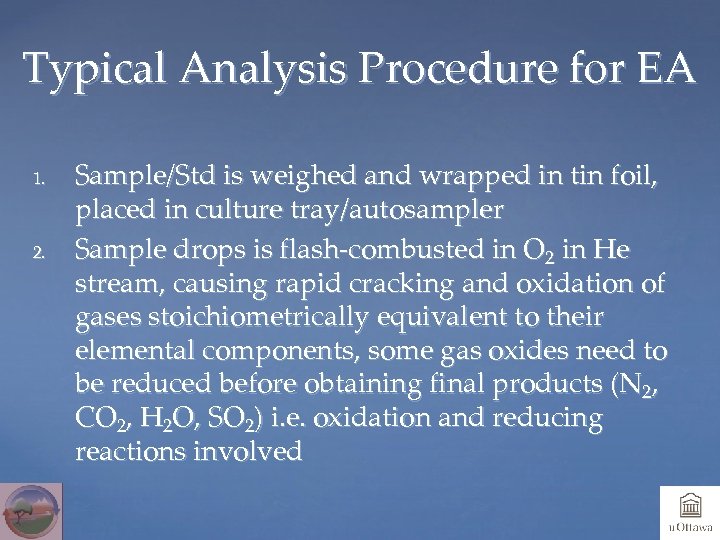

Typical Analysis Procedure for EA 1. 2. Sample/Std is weighed and wrapped in tin foil, placed in culture tray/autosampler Sample drops is flash-combusted in O 2 in He stream, causing rapid cracking and oxidation of gases stoichiometrically equivalent to their elemental components, some gas oxides need to be reduced before obtaining final products (N 2, CO 2, H 2 O, SO 2) i. e. oxidation and reducing reactions involved

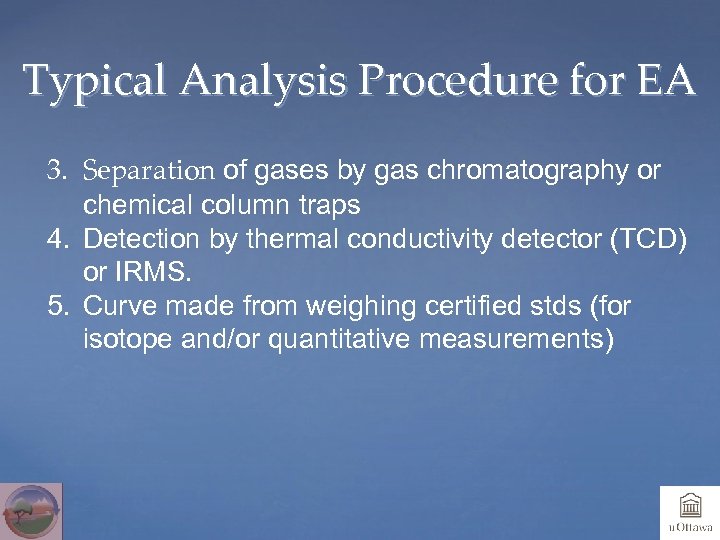

Typical Analysis Procedure for EA 3. Separation of gases by gas chromatography or chemical column traps 4. Detection by thermal conductivity detector (TCD) or IRMS. 5. Curve made from weighing certified stds (for isotope and/or quantitative measurements)

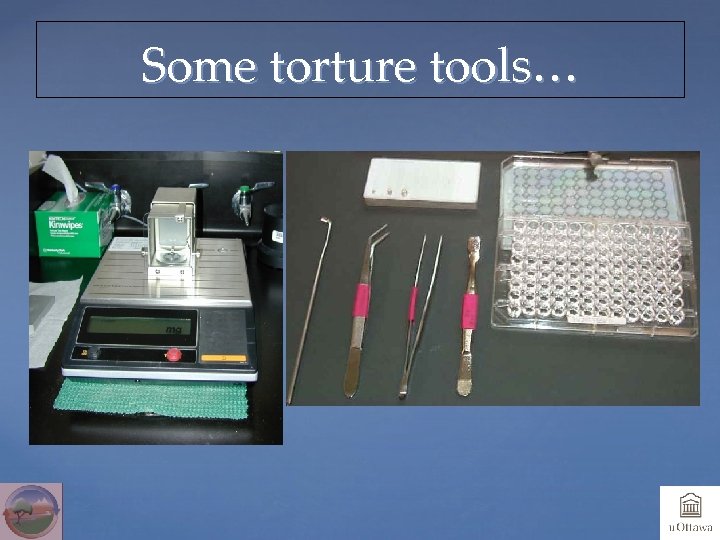

Some torture tools…

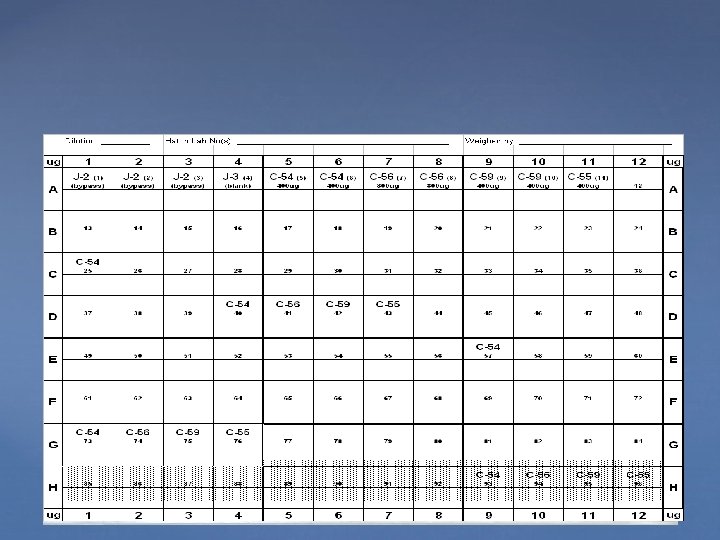

Well well, got culture?

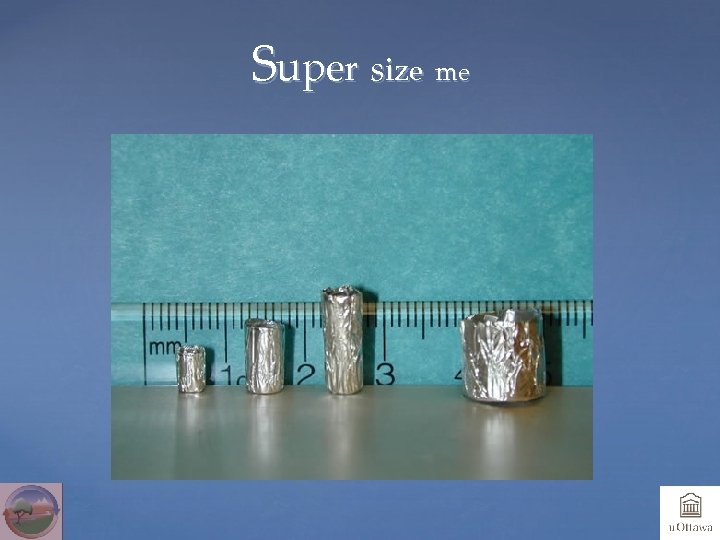

Super size me

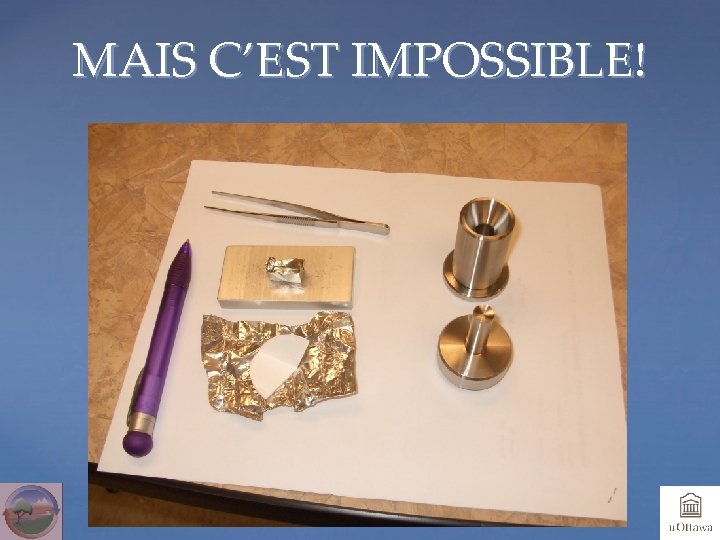

MAIS C’EST IMPOSSIBLE!

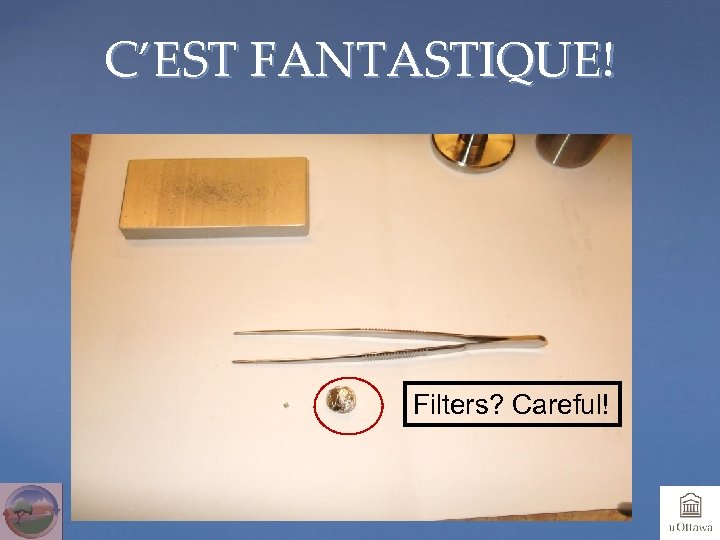

C’EST FANTASTIQUE! Filters? Careful!

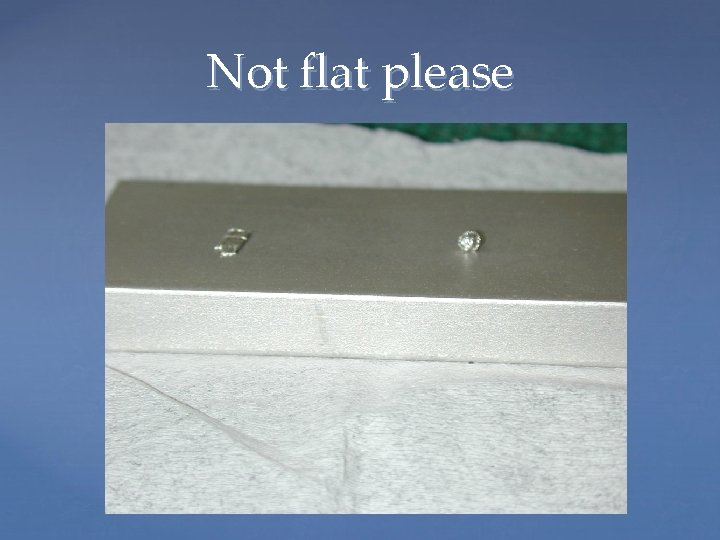

Not flat please

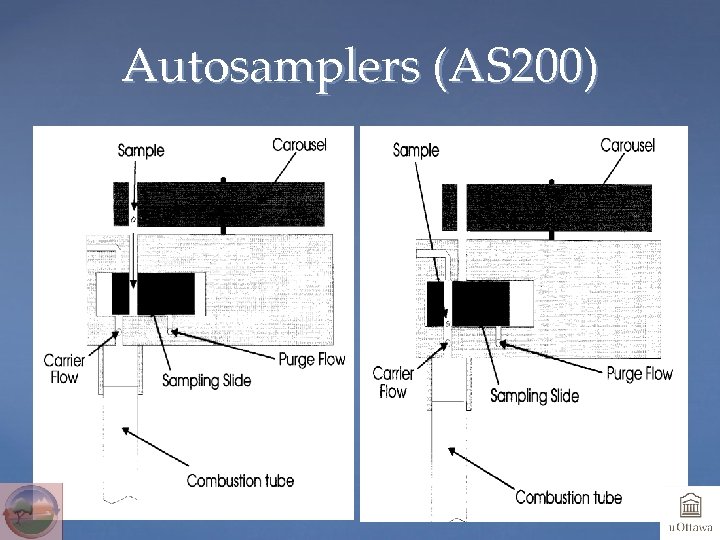

Autosamplers (AS 200)

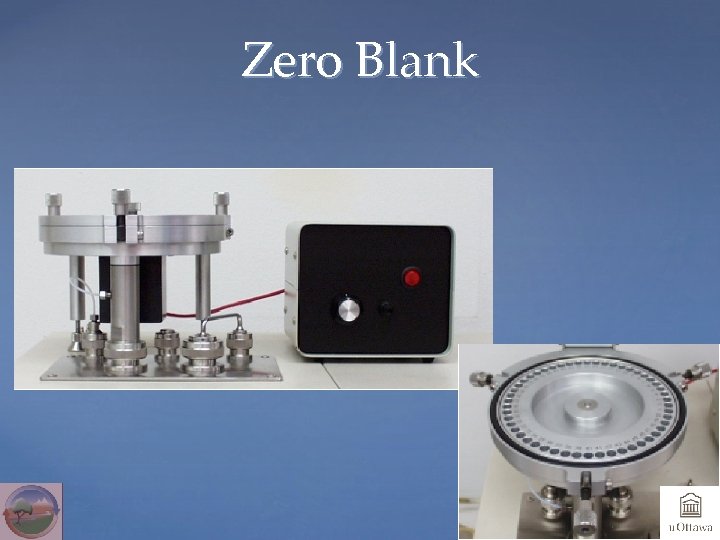

Zero Blank

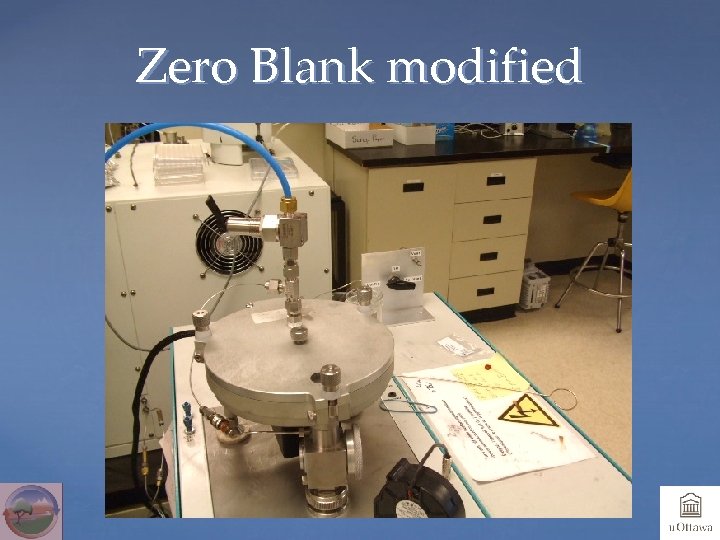

Zero Blank modified

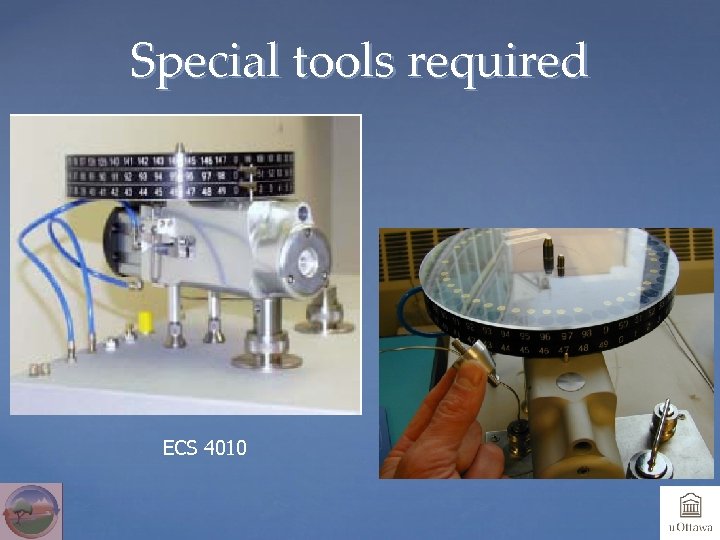

Special tools required ECS 4010

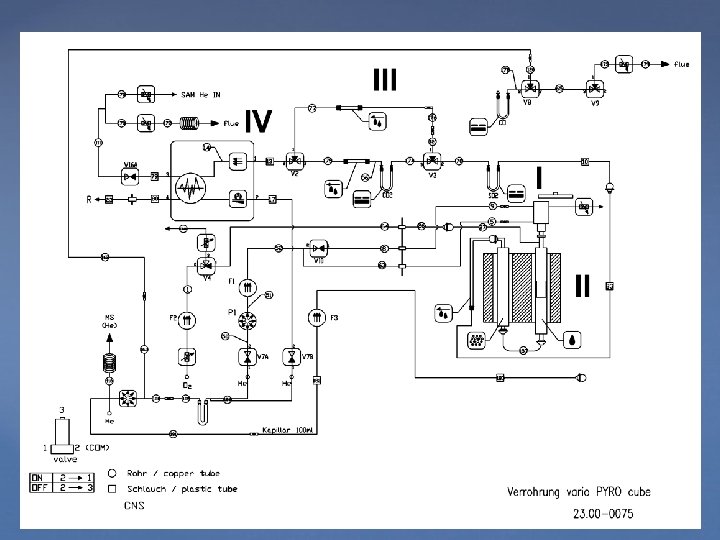

Be good to yourself Take 20 minutes to study the gas schematics of your instrument

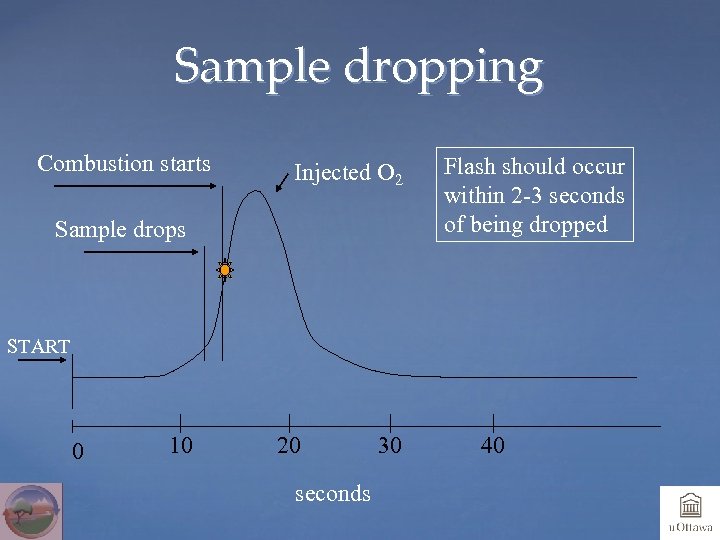

Sample dropping Combustion starts Injected O 2 Sample drops Flash should occur within 2 -3 seconds of being dropped START 0 10 20 seconds 30 40

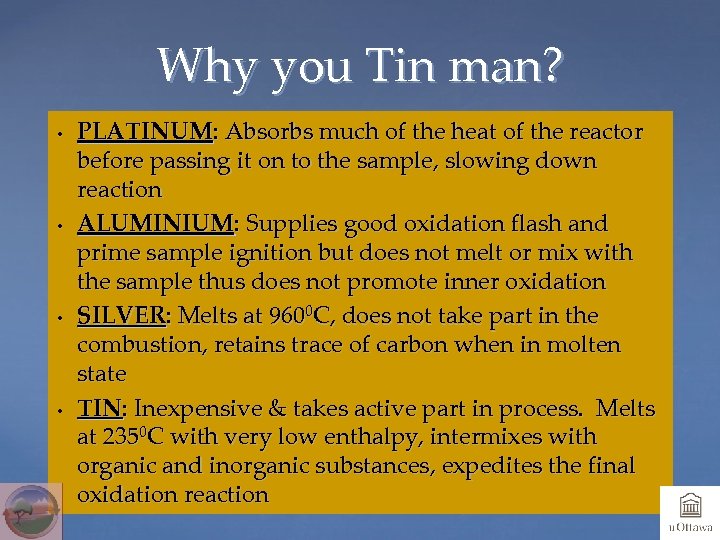

Why you Tin man? • • PLATINUM: Absorbs much of the heat of the reactor before passing it on to the sample, slowing down reaction ALUMINIUM: Supplies good oxidation flash and prime sample ignition but does not melt or mix with the sample thus does not promote inner oxidation SILVER: Melts at 9600 C, does not take part in the combustion, retains trace of carbon when in molten state TIN: Inexpensive & takes active part in process. Melts at 2350 C with very low enthalpy, intermixes with organic and inorganic substances, expedites the final oxidation reaction

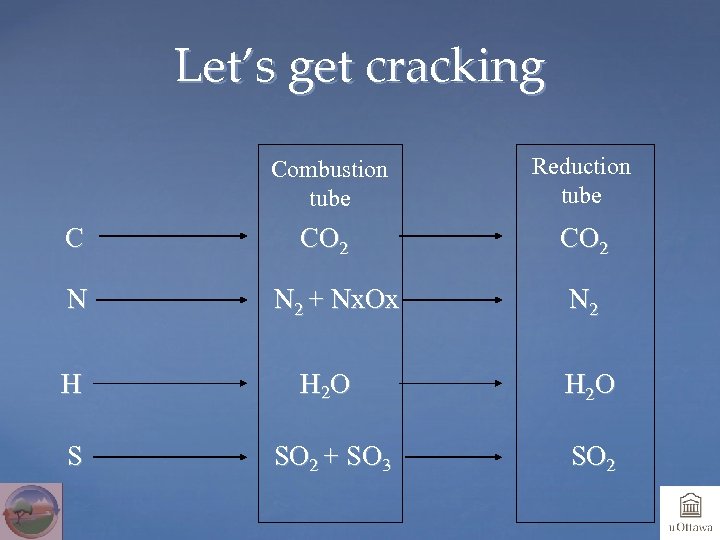

Let’s get cracking Combustion tube C N Reduction tube CO 2 N 2 + Nx. Ox N 2 H H 2 O S SO 2 + SO 3 SO 2

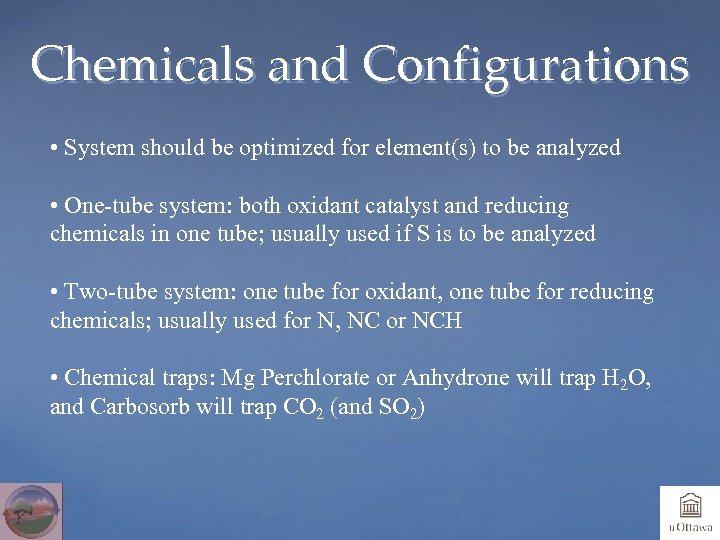

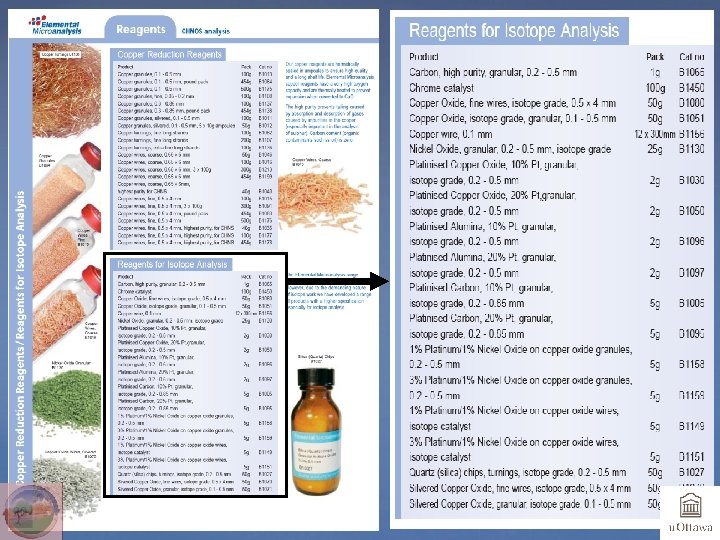

Chemicals and Configurations • System should be optimized for element(s) to be analyzed • One-tube system: both oxidant catalyst and reducing chemicals in one tube; usually used if S is to be analyzed • Two-tube system: one tube for oxidant, one tube for reducing chemicals; usually used for N, NC or NCH • Chemical traps: Mg Perchlorate or Anhydrone will trap H 2 O, and Carbosorb will trap CO 2 (and SO 2)

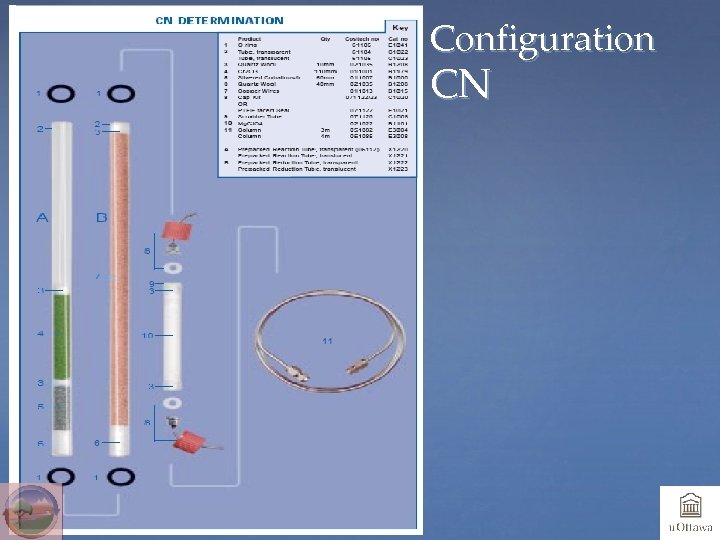

Configuration CN

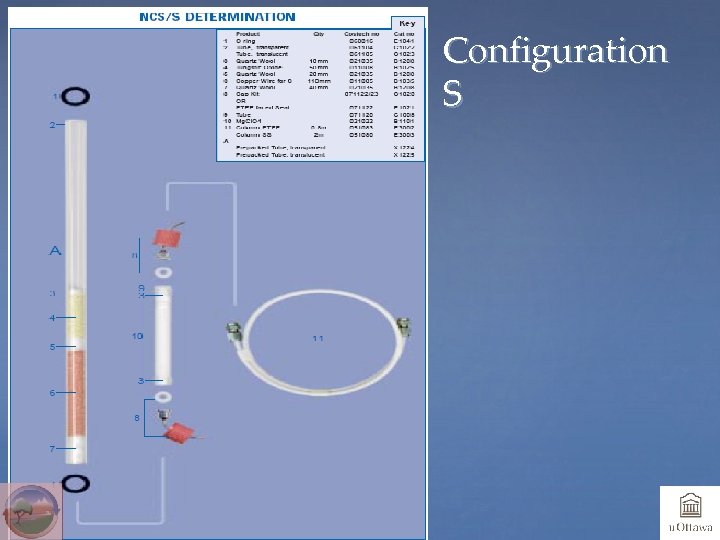

Configuration S

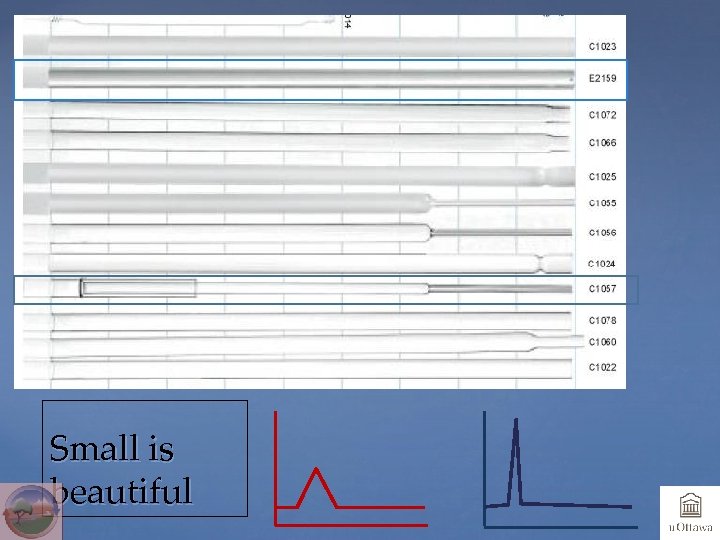

Small is beautiful

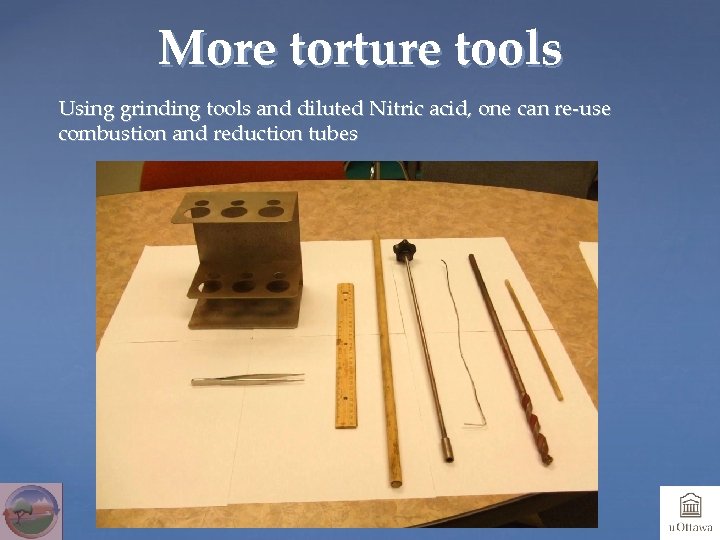

More torture tools Using grinding tools and diluted Nitric acid, one can re-use combustion and reduction tubes

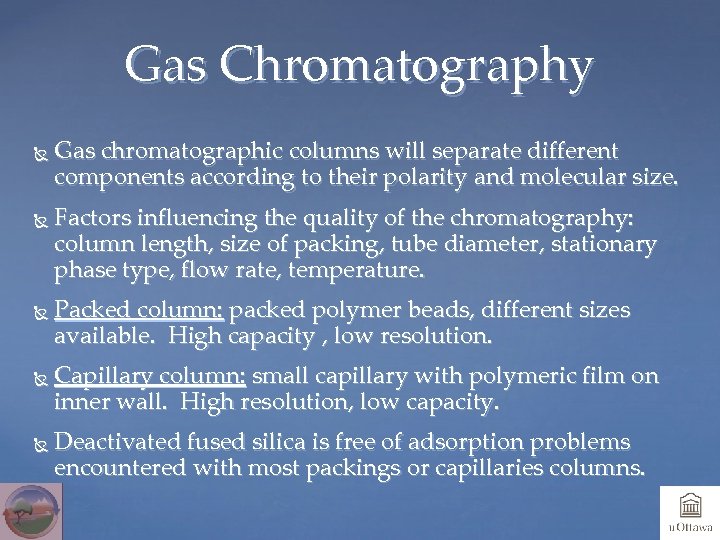

Gas Chromatography Gas chromatographic columns will separate different components according to their polarity and molecular size. Factors influencing the quality of the chromatography: column length, size of packing, tube diameter, stationary phase type, flow rate, temperature. Packed column: packed polymer beads, different sizes available. High capacity , low resolution. Capillary column: small capillary with polymeric film on inner wall. High resolution, low capacity. Deactivated fused silica is free of adsorption problems encountered with most packings or capillaries columns.

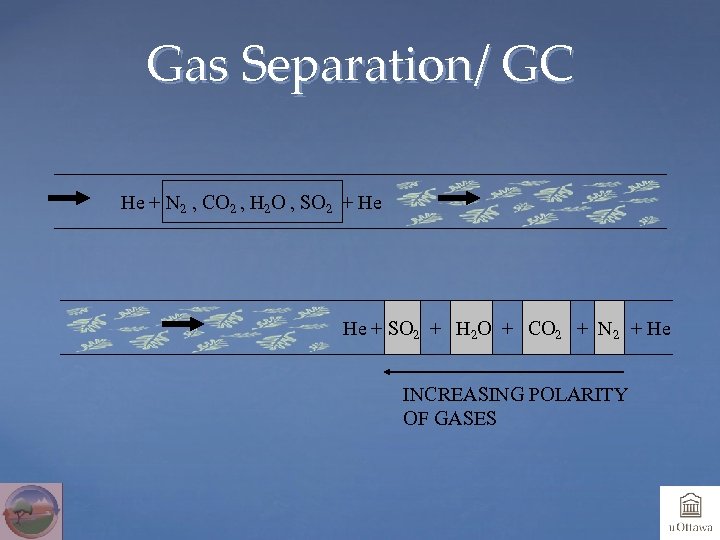

Gas Separation/ GC He + N 2 , CO 2 , H 2 O , SO 2 + He He + SO 2 + H 2 O + CO 2 + N 2 + He INCREASING POLARITY OF GASES

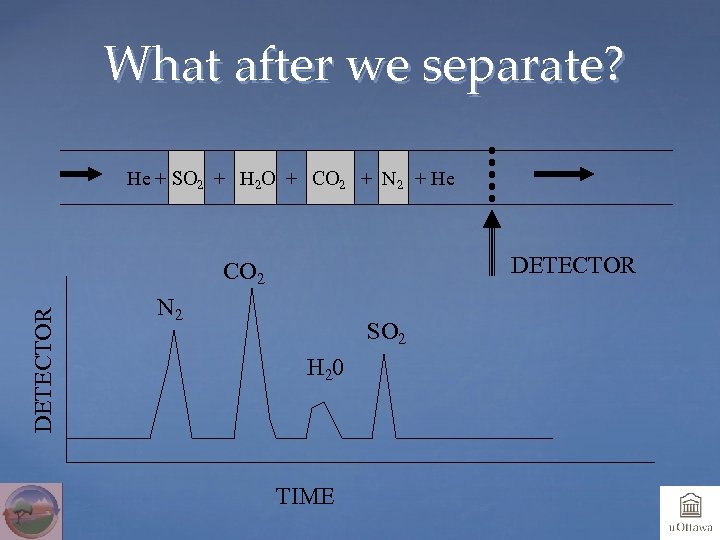

What after we separate? He + SO 2 + H 2 O + CO 2 + N 2 + He DETECTOR CO 2 N 2 SO 2 H 20 TIME

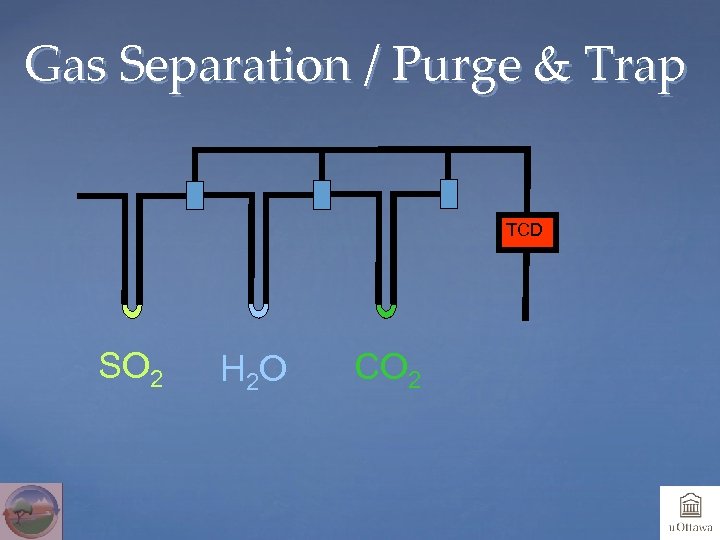

Gas Separation / Purge & Trap TCD SO 2 H 2 O CO 2

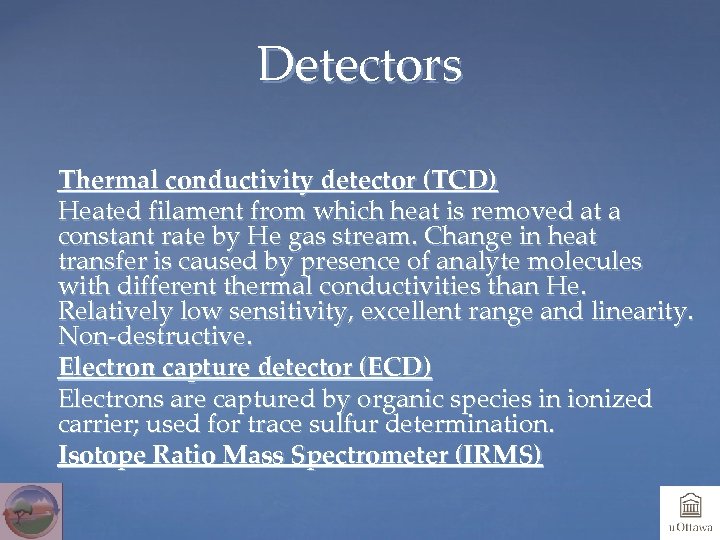

Detectors Thermal conductivity detector (TCD) Heated filament from which heat is removed at a constant rate by He gas stream. Change in heat transfer is caused by presence of analyte molecules with different thermal conductivities than He. Relatively low sensitivity, excellent range and linearity. Non-destructive. Electron capture detector (ECD) Electrons are captured by organic species in ionized carrier; used for trace sulfur determination. Isotope Ratio Mass Spectrometer (IRMS)

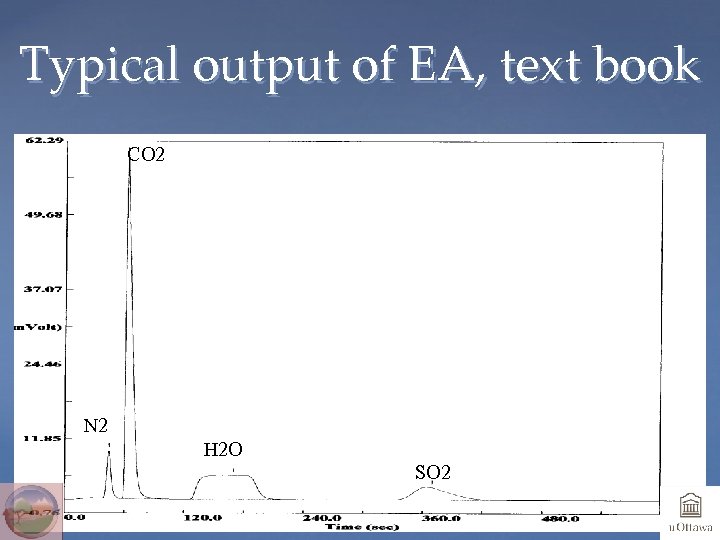

Typical output of EA, text book CO 2 N 2 H 2 O SO 2

Balance: Get the best A 0. 01 mg readability translates in an error of 0. 25% on a 2 mg sample (on 100% carbon)

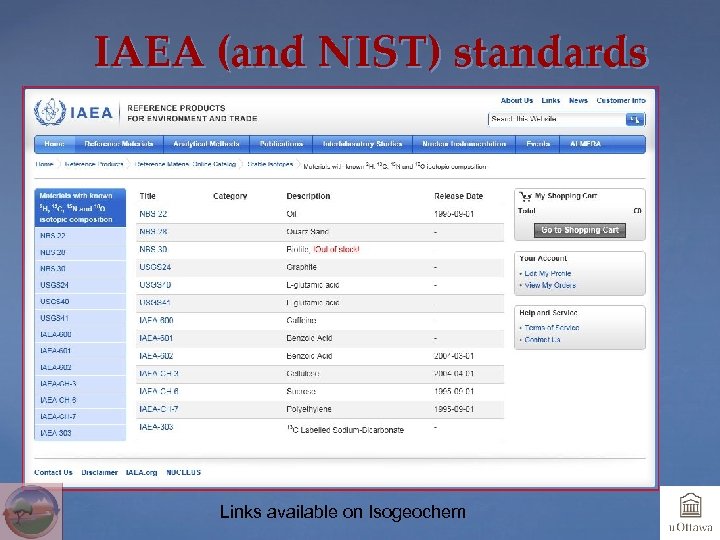

IAEA (and NIST) standards Links available on Isogeochem

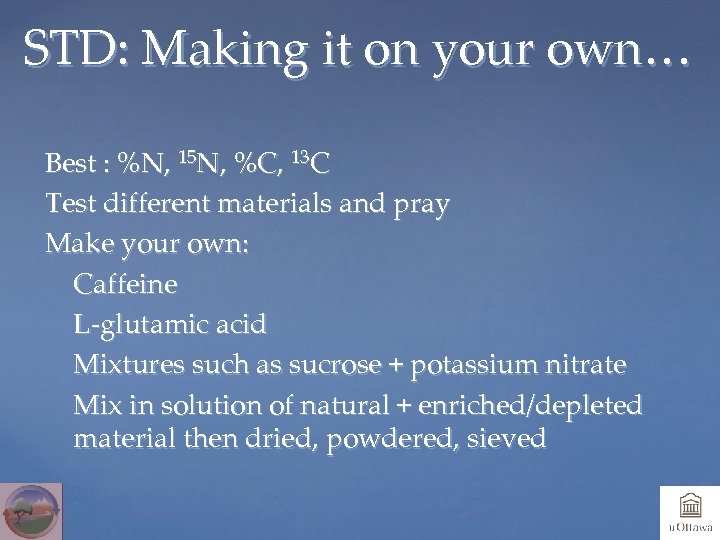

STD: Making it on your own… Best : %N, 15 N, %C, 13 C Test different materials and pray Make your own: Caffeine L-glutamic acid Mixtures such as sucrose + potassium nitrate Mix in solution of natural + enriched/depleted material then dried, powdered, sieved

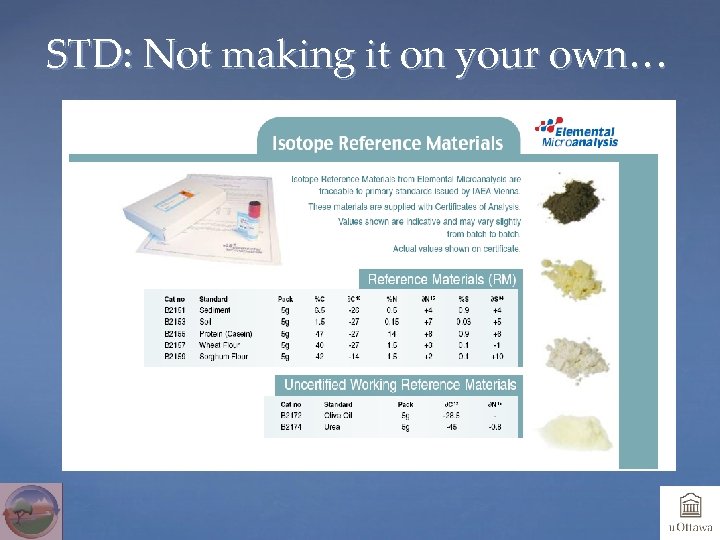

STD: Not making it on your own…

STD: Not making it on your own… Can also contact other university labs to buy or obtain their internal standards. ARNDT SCHIMMELMANN Indiana University http: //mypage. iu. edu/~aschimme/hc. htm

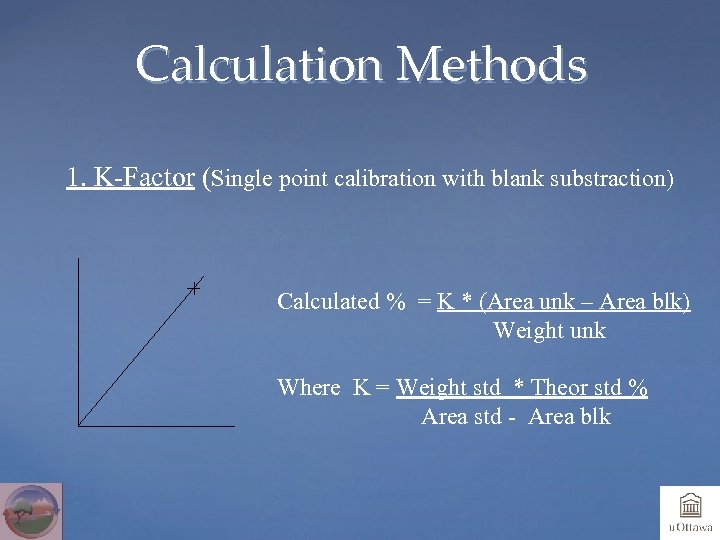

Calculation Methods 1. K-Factor (Single point calibration with blank substraction) Calculated % = K * (Area unk – Area blk) Weight unk Where K = Weight std * Theor std % Area std - Area blk

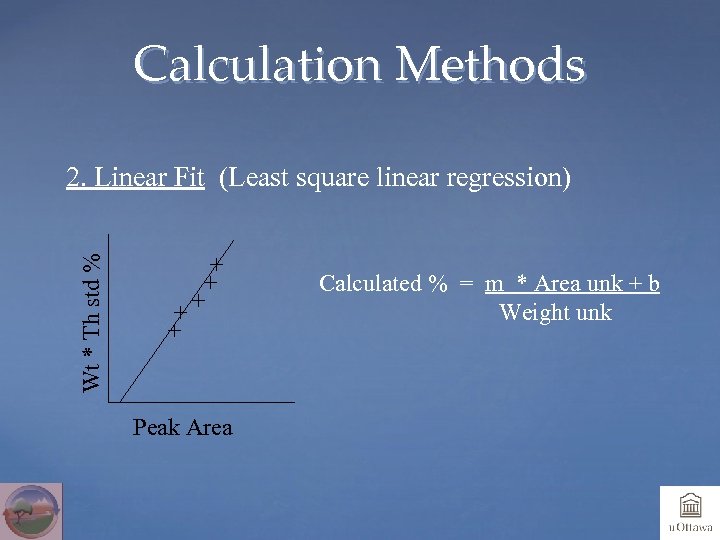

Calculation Methods Wt * Th std % 2. Linear Fit (Least square linear regression) Calculated % = m * Area unk + b Weight unk Peak Area

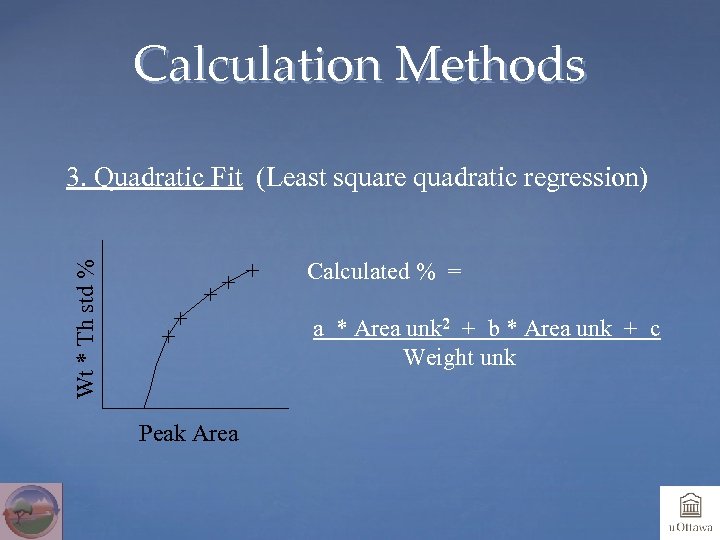

Calculation Methods 3. Quadratic Fit (Least square quadratic regression) Wt * Th std % Calculated % = a * Area unk 2 + b * Area unk + c Weight unk Peak Area

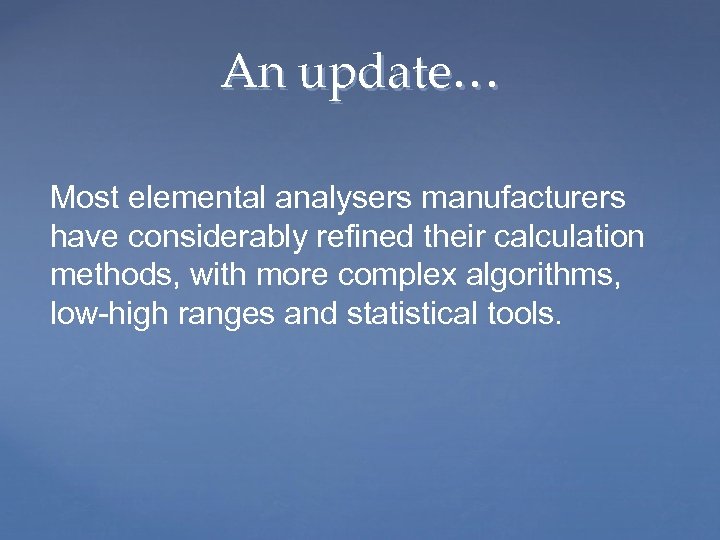

An update… Most elemental analysers manufacturers have considerably refined their calculation methods, with more complex algorithms, low-high ranges and statistical tools.

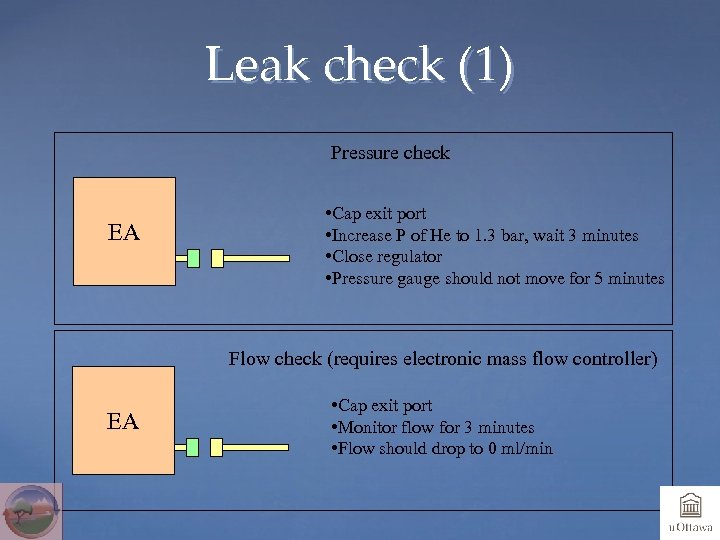

Leak check (1) Pressure check EA • Cap exit port • Increase P of He to 1. 3 bar, wait 3 minutes • Close regulator • Pressure gauge should not move for 5 minutes Flow check (requires electronic mass flow controller) EA • Cap exit port • Monitor flow for 3 minutes • Flow should drop to 0 ml/min

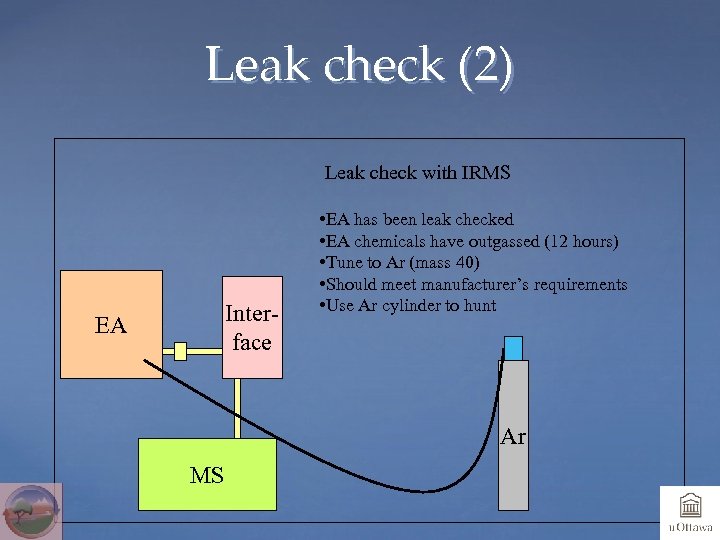

Leak check (2) Leak check with IRMS Interface EA • EA has been leak checked • EA chemicals have outgassed (12 hours) • Tune to Ar (mass 40) • Should meet manufacturer’s requirements • Use Ar cylinder to hunt Ar MS

Elemental Analyser Schematic for IRMS Autosampler Water trap Gas chromatography Column Thermocouple Detector TCD N 2 Combustion tube Reduction tube CO 2 To MS Interface Diluter & ref gas

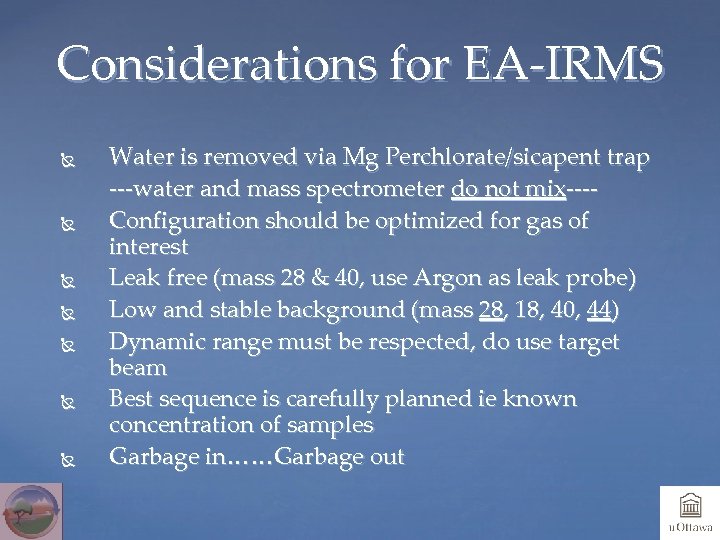

Considerations for EA-IRMS Water is removed via Mg Perchlorate/sicapent trap ---water and mass spectrometer do not mix---Configuration should be optimized for gas of interest Leak free (mass 28 & 40, use Argon as leak probe) Low and stable background (mass 28, 18, 40, 44) Dynamic range must be respected, do use target beam Best sequence is carefully planned ie known concentration of samples Garbage in……Garbage out

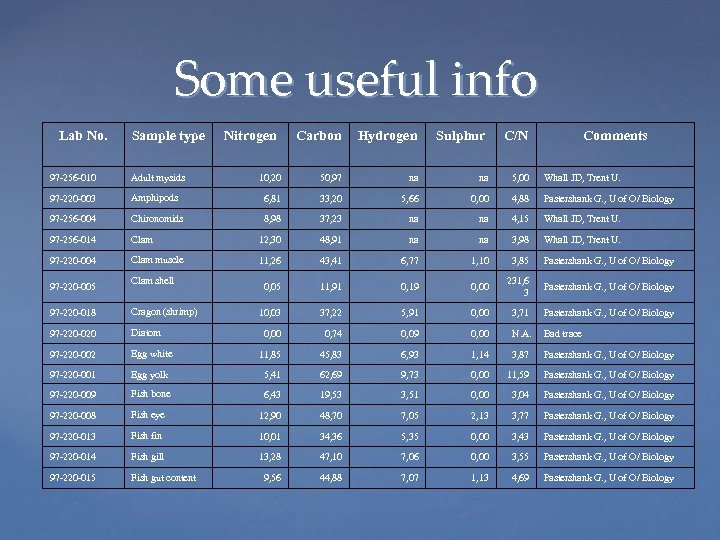

Some useful info Lab No. Sample type Nitrogen Carbon Hydrogen Sulphur C/N Comments 10, 20 50, 97 na na 5, 00 Whall JD, Trent U. 97 -256 -010 Adult mysids 97 -220 -003 Amphipods 6, 81 33, 20 5, 66 0, 00 4, 88 Pastershank G. , U of O/ Biology 97 -256 -004 Chironomids 8, 98 37, 23 na na 4, 15 Whall JD, Trent U. 97 -256 -014 Clam 12, 30 48, 91 na na 3, 98 Whall JD, Trent U. 97 -220 -004 Clam muscle 11, 26 43, 41 6, 77 1, 10 3, 85 Pastershank G. , U of O/ Biology 0, 05 11, 91 0, 19 0, 00 231, 6 3 Pastershank G. , U of O/ Biology 10, 03 37, 22 5, 91 0, 00 3, 71 Pastershank G. , U of O/ Biology 0, 00 0, 74 0, 09 0, 00 N. A. Bad trace 97 -220 -005 Clam shell 97 -220 -018 Cragon (shrimp) 97 -220 -020 Diatom 97 -220 -002 Egg white 11, 85 45, 83 6, 93 1, 14 3, 87 Pastershank G. , U of O/ Biology 97 -220 -001 Egg yolk 5, 41 62, 69 9, 73 0, 00 11, 59 Pastershank G. , U of O/ Biology 97 -220 -009 Fish bone 6, 43 19, 53 3, 51 0, 00 3, 04 Pastershank G. , U of O/ Biology 97 -220 -008 Fish eye 12, 90 48, 70 7, 05 2, 13 3, 77 Pastershank G. , U of O/ Biology 97 -220 -013 Fish fin 10, 01 34, 36 5, 35 0, 00 3, 43 Pastershank G. , U of O/ Biology 97 -220 -014 Fish gill 13, 28 47, 10 7, 06 0, 00 3, 55 Pastershank G. , U of O/ Biology 97 -220 -015 Fish gut content 9, 56 44, 88 7, 07 1, 13 4, 69 Pastershank G. , U of O/ Biology

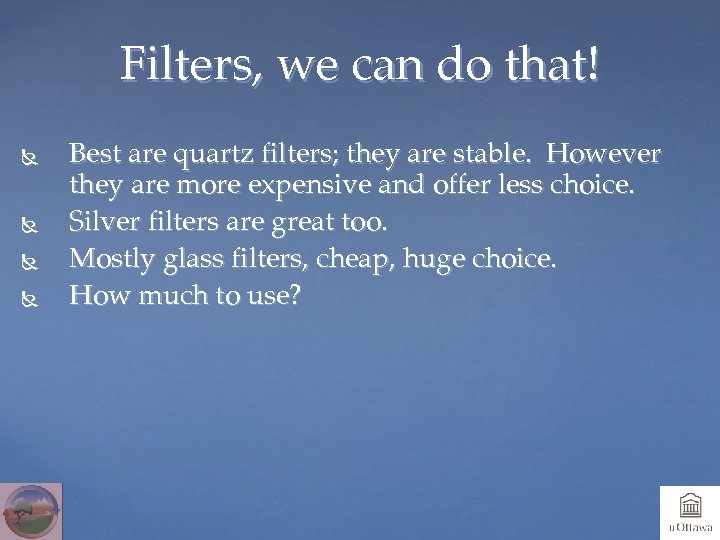

Filters, we can do that! Best are quartz filters; they are stable. However they are more expensive and offer less choice. Silver filters are great too. Mostly glass filters, cheap, huge choice. How much to use?

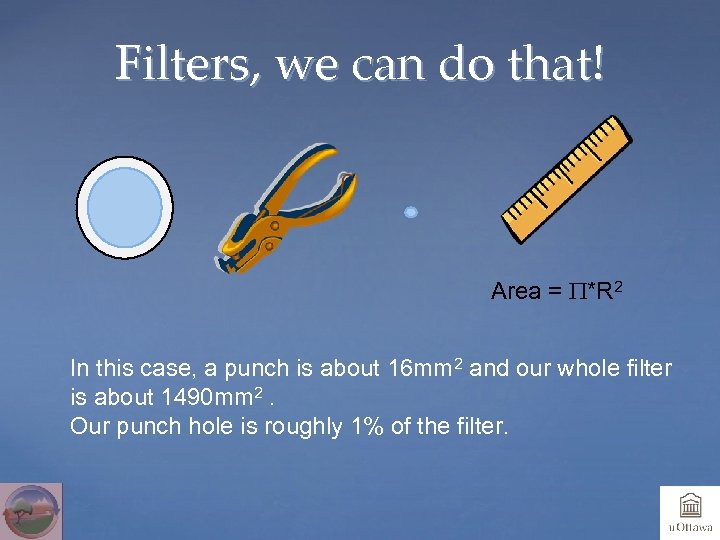

Filters, we can do that! Area = P*R 2 In this case, a punch is about 16 mm 2 and our whole filter is about 1490 mm 2. Our punch hole is roughly 1% of the filter.

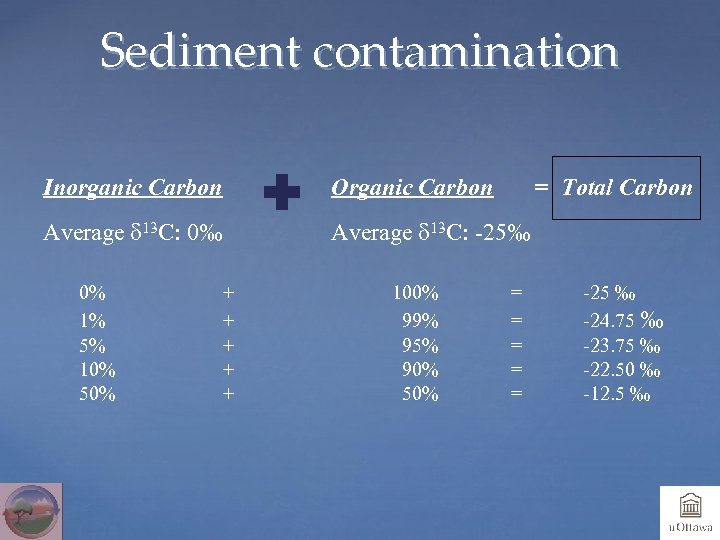

Sediment contamination Inorganic Carbon Organic Carbon Average d 13 C: 0‰ Average d 13 C: -25‰ 0% 1% 5% 10% 50% + + + 100% 99% 95% 90% 50% = Total Carbon = = = -25 ‰ -24. 75 ‰ -23. 75 ‰ -22. 50 ‰ -12. 5 ‰

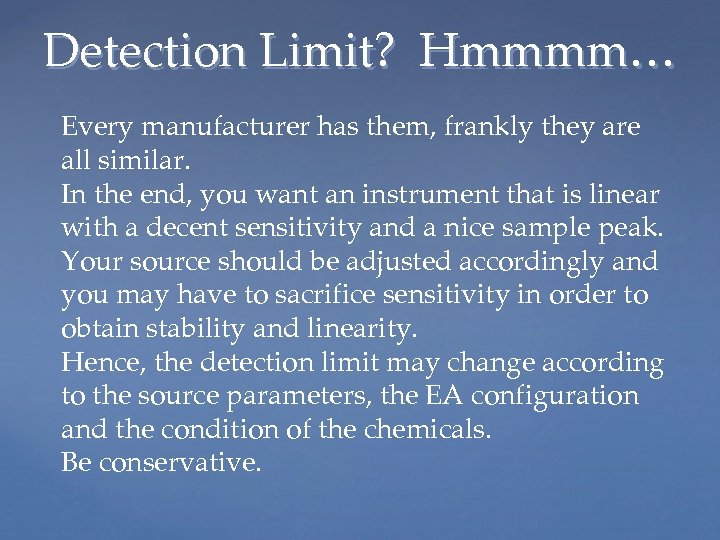

Detection Limit? Hmmmm… Every manufacturer has them, frankly they are all similar. In the end, you want an instrument that is linear with a decent sensitivity and a nice sample peak. Your source should be adjusted accordingly and you may have to sacrifice sensitivity in order to obtain stability and linearity. Hence, the detection limit may change according to the source parameters, the EA configuration and the condition of the chemicals. Be conservative.

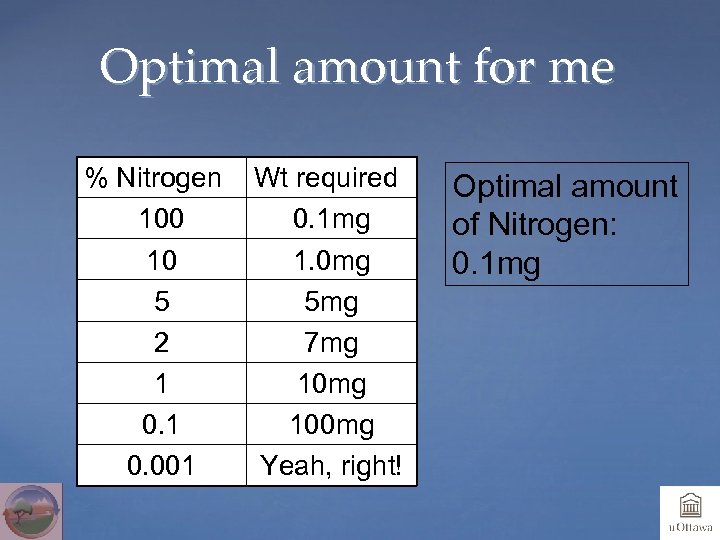

Optimal amount for me % Nitrogen 100 10 5 2 1 0. 001 Wt required 0. 1 mg 1. 0 mg 5 mg 7 mg 100 mg Yeah, right! Optimal amount of Nitrogen: 0. 1 mg

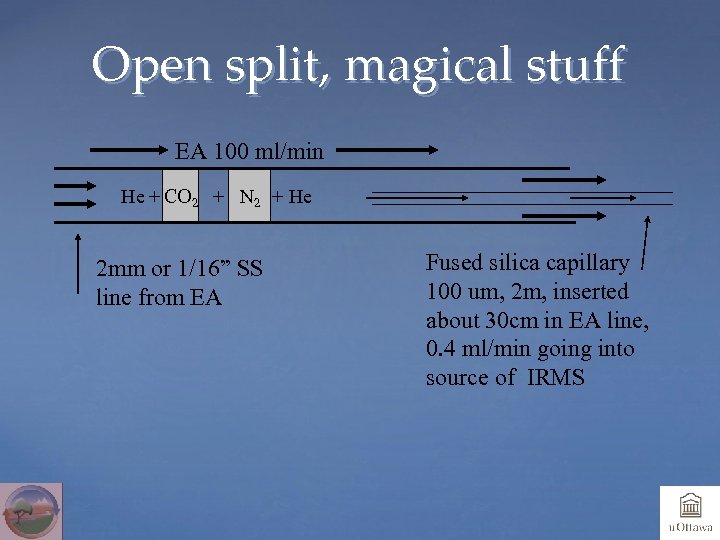

Open split, magical stuff EA 100 ml/min He + CO 2 + N 2 + He 2 mm or 1/16” SS line from EA Fused silica capillary 100 um, 2 m, inserted about 30 cm in EA line, 0. 4 ml/min going into source of IRMS

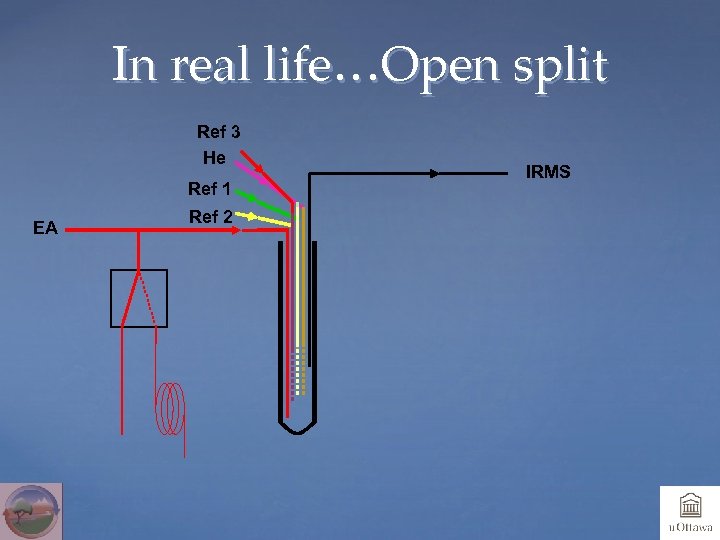

In real life…Open split Ref 3 He Ref 1 EA Ref 2 IRMS

The joy of sniffing EA only CO 2 TCD output from EA N 2 Mass spectrometer output Mass 44, 45, 46 Mass 28, 29 Magnet Peakjump

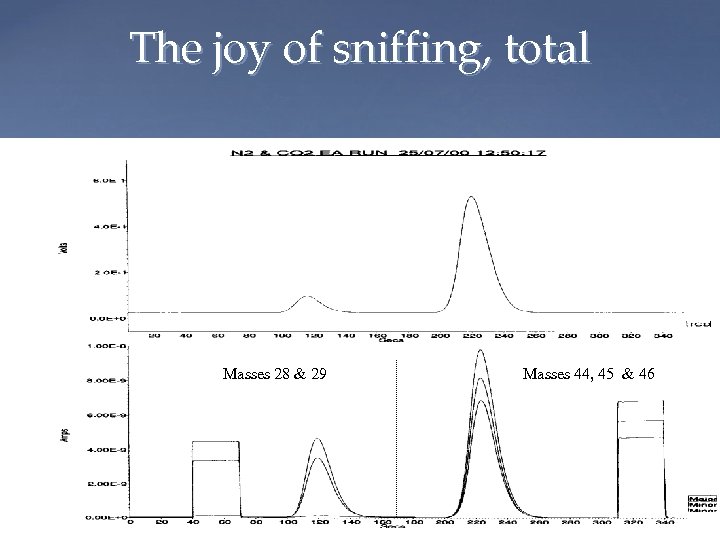

The joy of sniffing, total CO 2 TCD output from EA N 2 Mass spectrometer output Masses 28 & 29 Masses 44, 45 & 46 Mass 44, 45, 46 Mass 28, 29 Magnet Peakjump

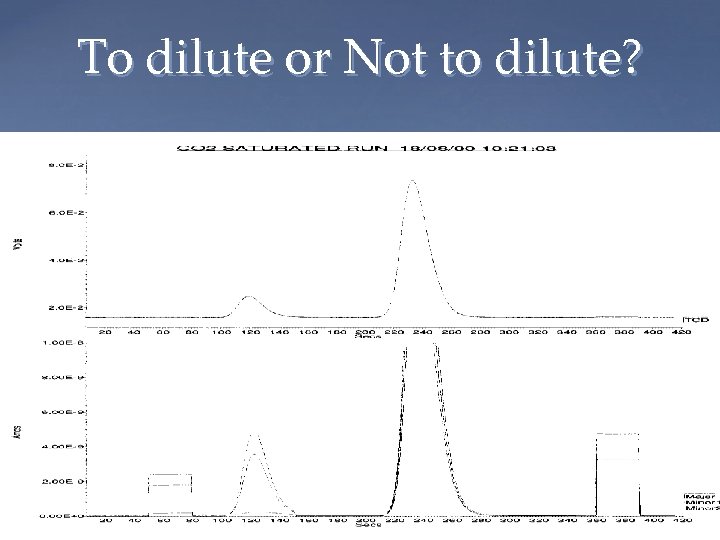

To dilute or Not to dilute?

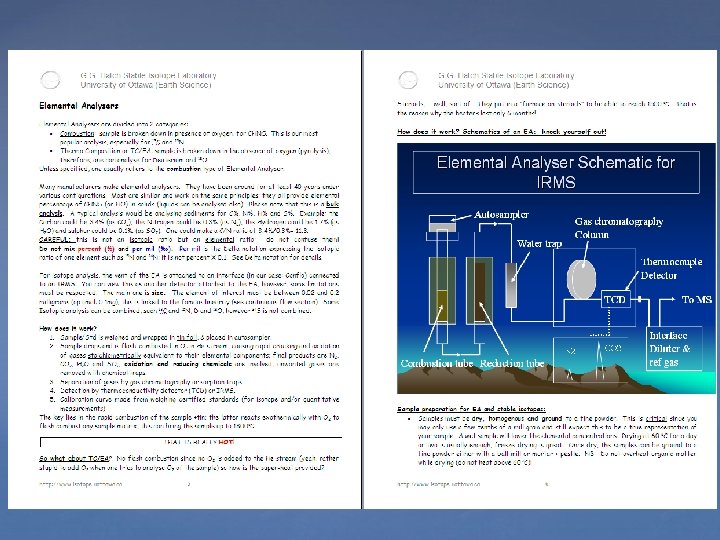

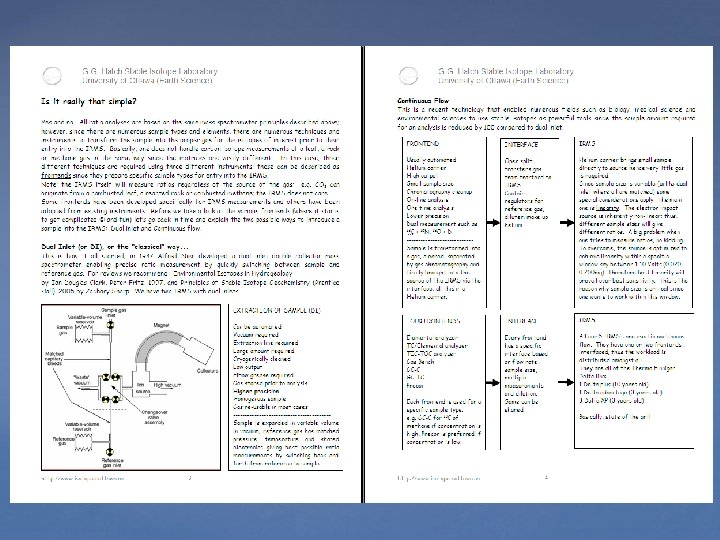

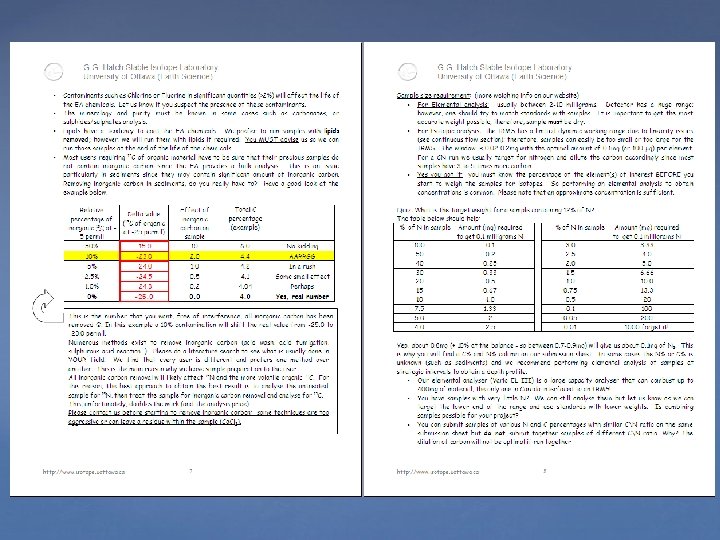

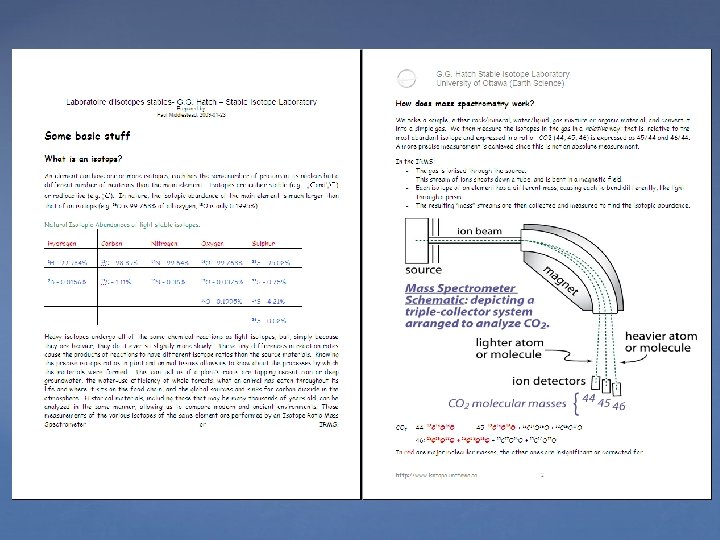

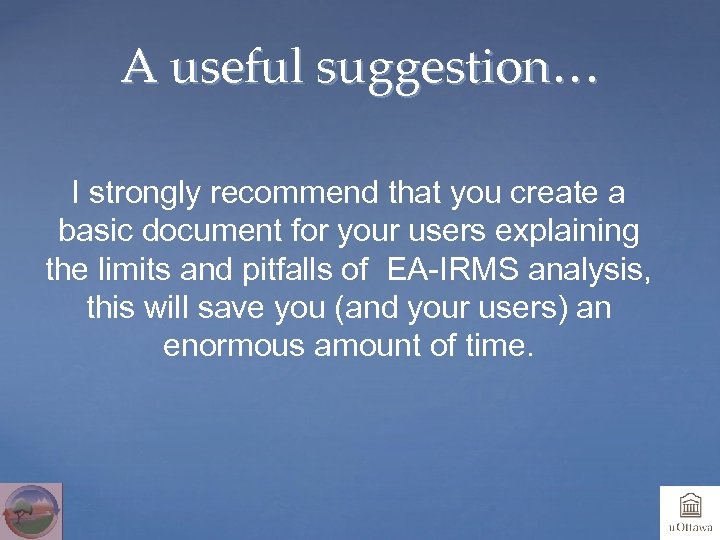

A useful suggestion… I strongly recommend that you create a basic document for your users explaining the limits and pitfalls of EA-IRMS analysis, this will save you (and your users) an enormous amount of time.

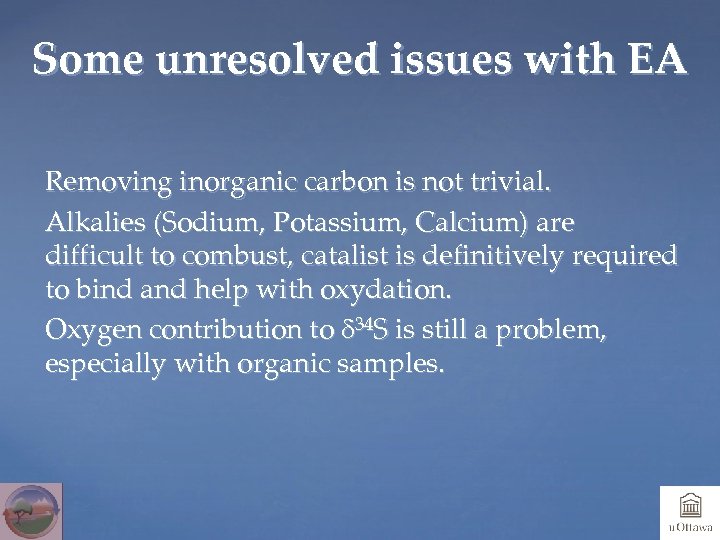

Some unresolved issues with EA Removing inorganic carbon is not trivial. Alkalies (Sodium, Potassium, Calcium) are difficult to combust, catalist is definitively required to bind and help with oxydation. Oxygen contribution to d 34 S is still a problem, especially with organic samples.

Last suggestion and only Official Endorsement The only product fully and officially endorsed by the author is: rickard’s White

Thank you My thanks to: Wendy Abdi, Nik Binder, Fred Longstaffe, Scott Hughes, Gilles St-Jean, Peter Stow and Patricia Wickham for the use of material, brain power and time …
