Electroporation based Technologies and Treatments Damijan Miklavčič University of Ljubljana Faculty of Electrical Engineering Ljubljana, SLOVENIA

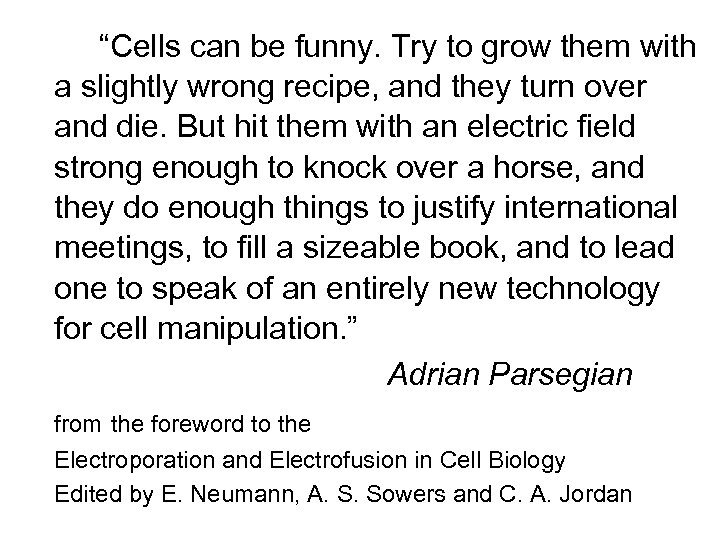

“Cells can be funny. Try to grow them with a slightly wrong recipe, and they turn over and die. But hit them with an electric field strong enough to knock over a horse, and they do enough things to justify international meetings, to fill a sizeable book, and to lead one to speak of an entirely new technology for cell manipulation. ” Adrian Parsegian from the foreword to the Electroporation and Electrofusion in Cell Biology Edited by E. Neumann, A. S. Sowers and C. A. Jordan

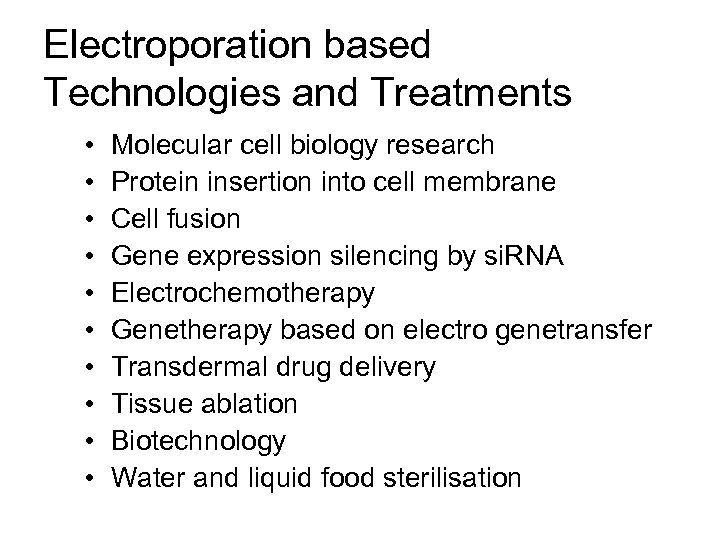

Electroporation based Technologies and Treatments • • • Molecular cell biology research Protein insertion into cell membrane Cell fusion Gene expression silencing by si. RNA Electrochemotherapy Genetherapy based on electro genetransfer Transdermal drug delivery Tissue ablation Biotechnology Water and liquid food sterilisation

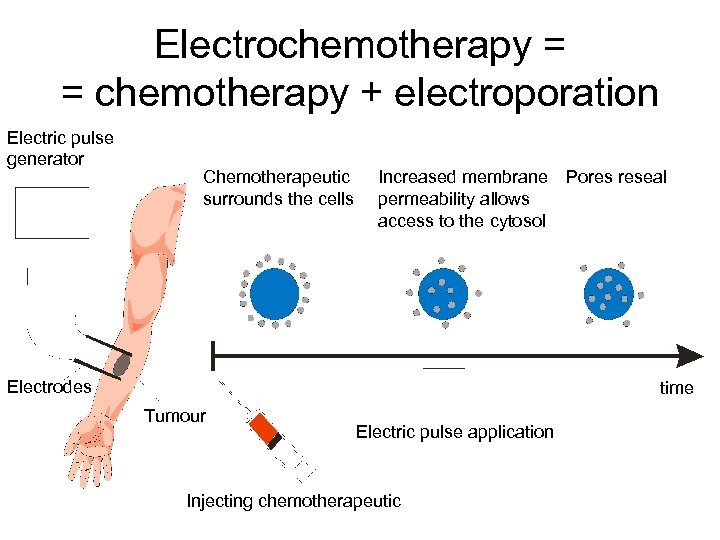

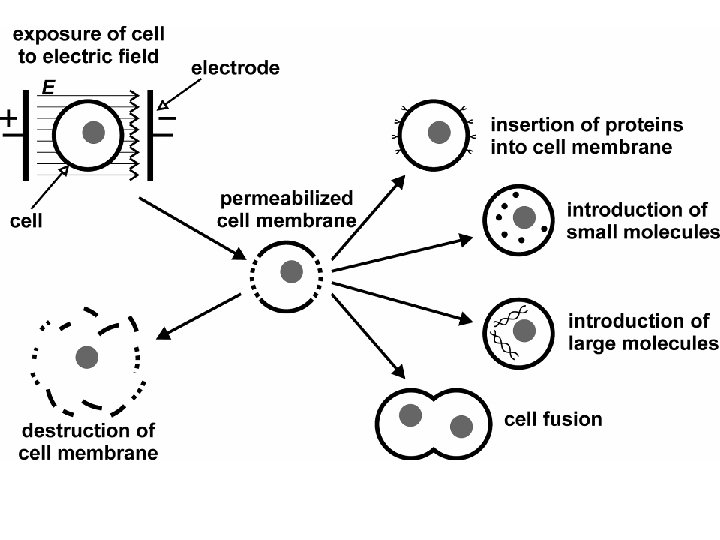

Electrochemotherapy = = chemotherapy + electroporation Electric pulse generator Chemotherapeutic surrounds the cells Increased membrane Pores reseal permeability allows access to the cytosol Electrodes time Tumour Electric pulse application Injecting chemotherapeutic

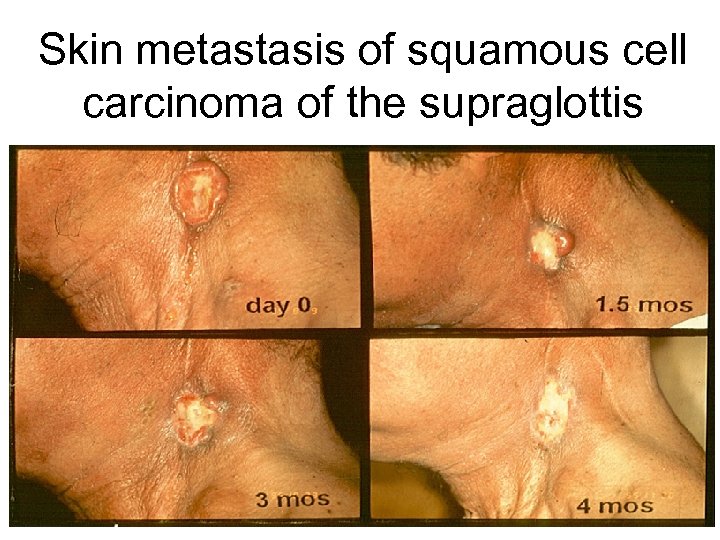

Skin metastasis of squamous cell carcinoma of the supraglottis

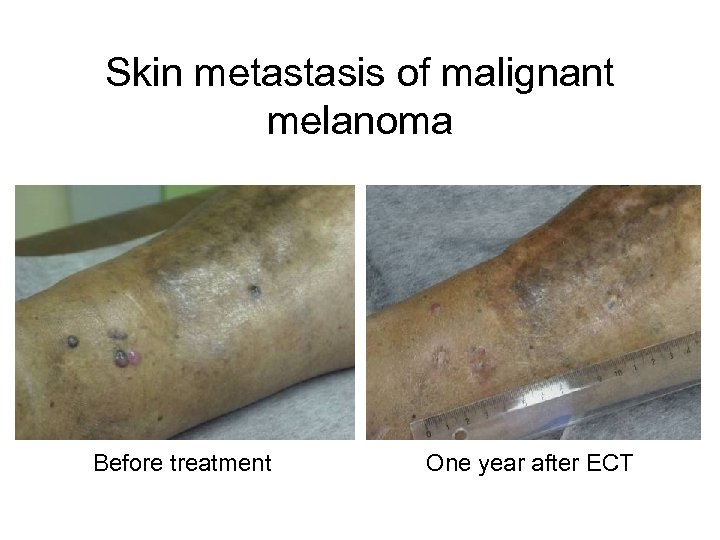

Skin metastasis of malignant melanoma Before treatment One year after ECT
EU 5 th FP: Quality of Life Cliniporator QLK 3 -1999 -00484 (20002003) – Electro-medical device for ECT ESOPE QLK 3 - 2002 -02003 (2003 -2004) – European Standard Operating Procedures for ECT

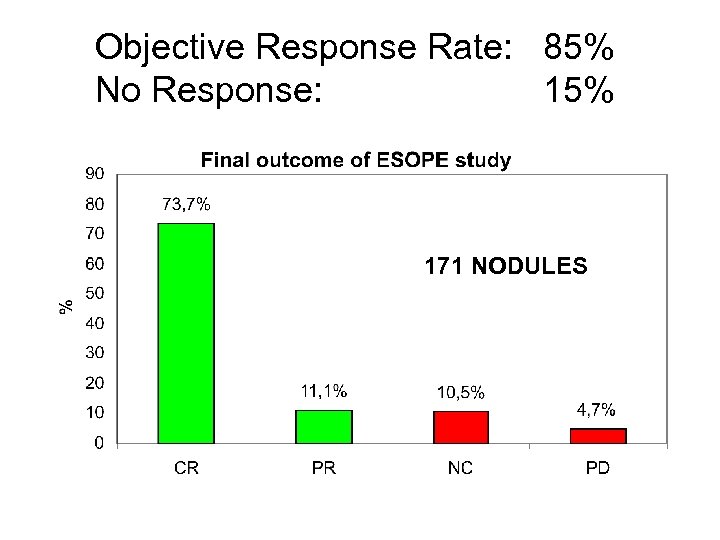

Objective Response Rate: 85% No Response: 15% 171 NODULES
Gene. Therapy of diseases with altered angiogenesis: Psoriasis and Malignant Melanoma

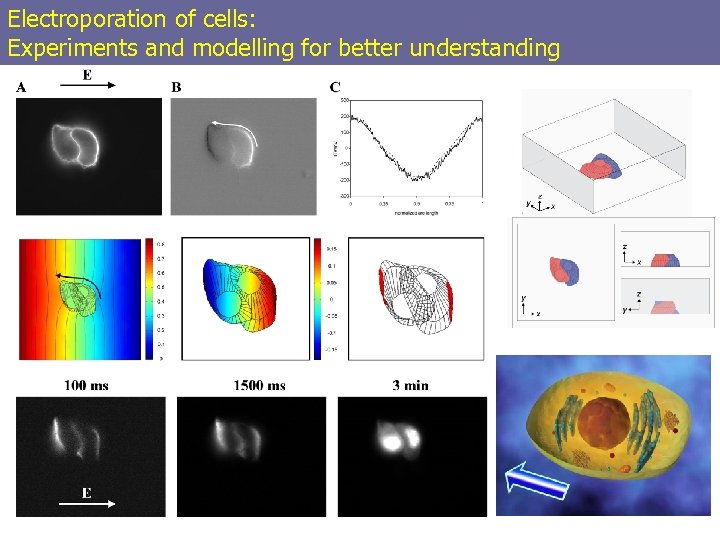

Electroporation of cells: Experiments and modelling for better understanding

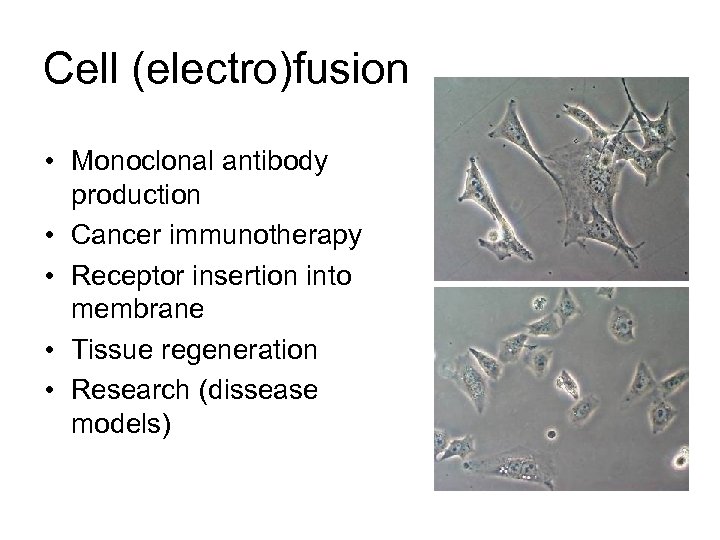

Cell (electro)fusion • Monoclonal antibody production • Cancer immunotherapy • Receptor insertion into membrane • Tissue regeneration • Research (dissease models)

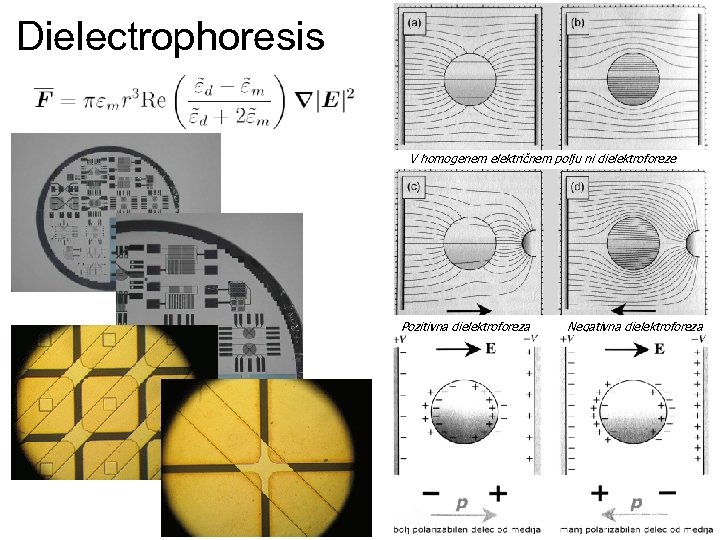

Dielectrophoresis V homogenem električnem polju ni dielektroforeze Pozitivna dielektroforeza Negativna dielektroforeza

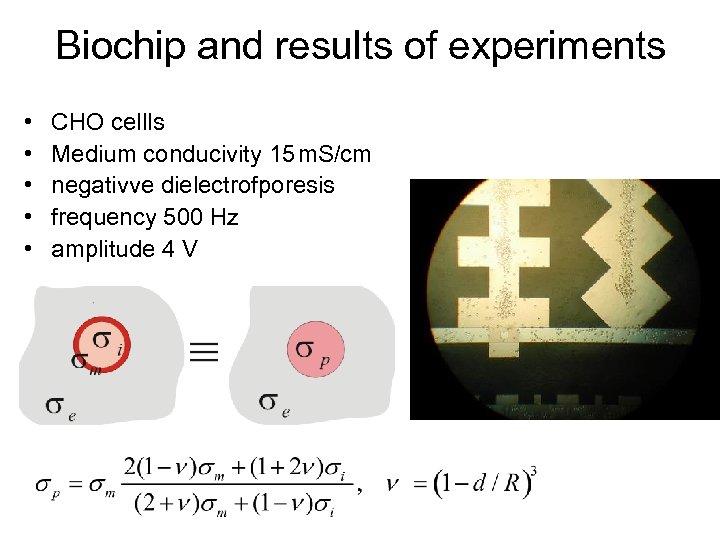

Biochip and results of experiments • • • CHO cellls Medium conducivity 15 m. S/cm negativve dielectrofporesis frequency 500 Hz amplitude 4 V

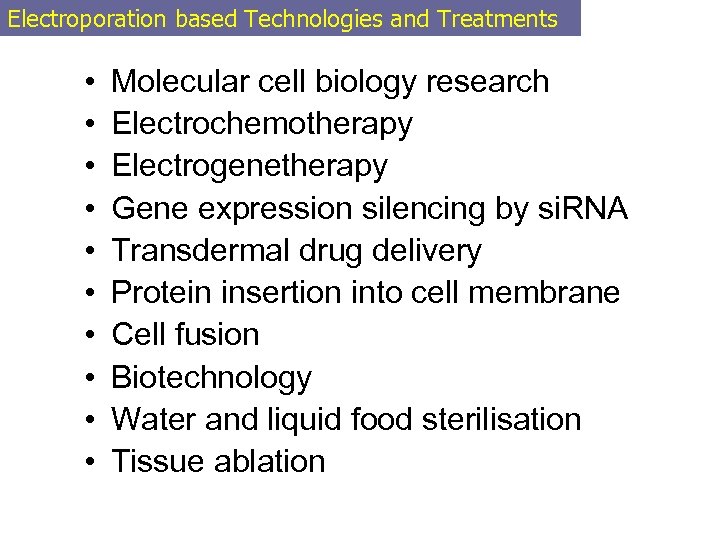

Electroporation based Technologies and Treatments • • • Molecular cell biology research Electrochemotherapy Electrogenetherapy Gene expression silencing by si. RNA Transdermal drug delivery Protein insertion into cell membrane Cell fusion Biotechnology Water and liquid food sterilisation Tissue ablation

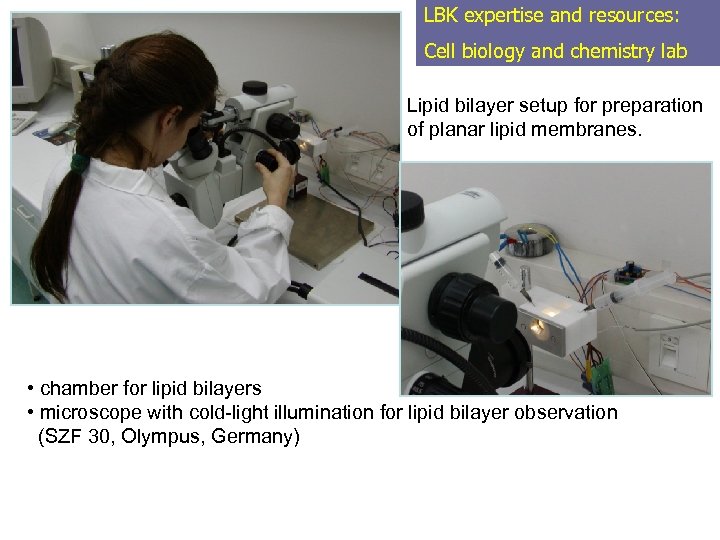

LBK expertise and resources: Cell biology and chemistry lab Lipid bilayer setup for preparation of planar lipid membranes. • chamber for lipid bilayers • microscope with cold-light illumination for lipid bilayer observation (SZF 30, Olympus, Germany)

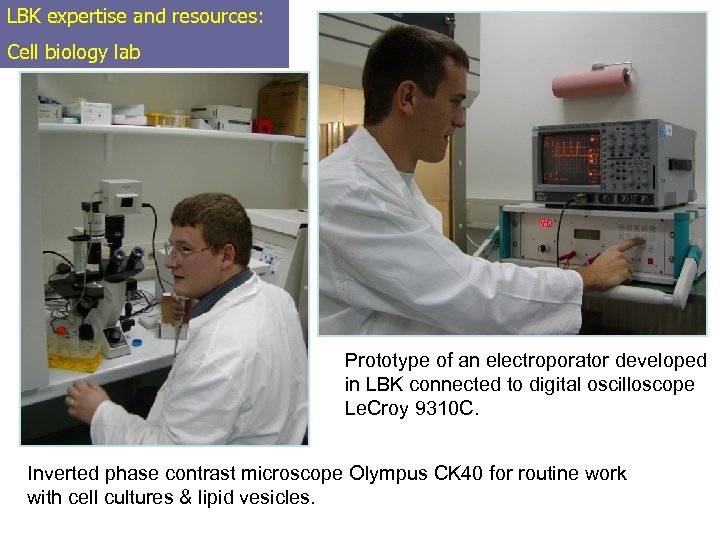

LBK expertise and resources: Cell biology lab Prototype of an electroporator developed in LBK connected to digital oscilloscope Le. Croy 9310 C. Inverted phase contrast microscope Olympus CK 40 for routine work with cell cultures & lipid vesicles.

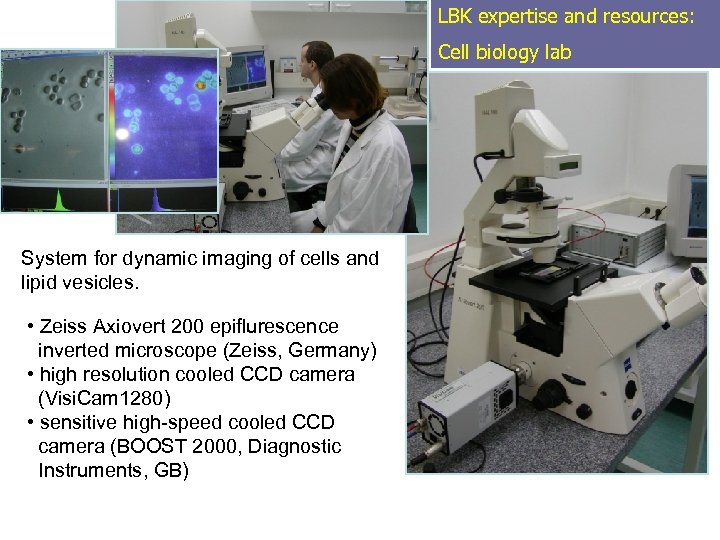

LBK expertise and resources: Cell biology lab System for dynamic imaging of cells and lipid vesicles. • Zeiss Axiovert 200 epiflurescence inverted microscope (Zeiss, Germany) • high resolution cooled CCD camera (Visi. Cam 1280) • sensitive high-speed cooled CCD camera (BOOST 2000, Diagnostic Instruments, GB)

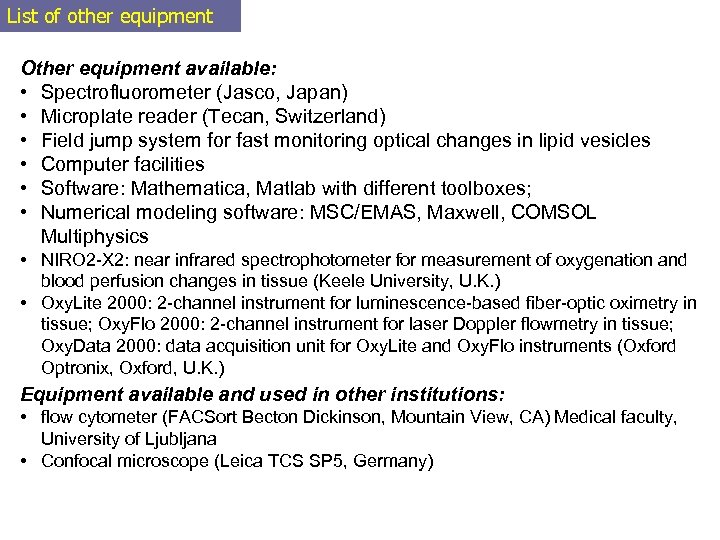

List of other equipment Other equipment available: • Spectrofluorometer (Jasco, Japan) • Microplate reader (Tecan, Switzerland) • Field jump system for fast monitoring optical changes in lipid vesicles • Computer facilities • Software: Mathematica, Matlab with different toolboxes; • Numerical modeling software: MSC/EMAS, Maxwell, COMSOL Multiphysics • NIRO 2 -X 2: near infrared spectrophotometer for measurement of oxygenation and blood perfusion changes in tissue (Keele University, U. K. ) • Oxy. Lite 2000: 2 -channel instrument for luminescence-based fiber-optic oximetry in tissue; Oxy. Flo 2000: 2 -channel instrument for laser Doppler flowmetry in tissue; Oxy. Data 2000: data acquisition unit for Oxy. Lite and Oxy. Flo instruments (Oxford Optronix, Oxford, U. K. ) Equipment available and used in other institutions: • flow cytometer (FACSort Becton Dickinson, Mountain View, CA) Medical faculty, University of Ljubljana • Confocal microscope (Leica TCS SP 5, Germany)

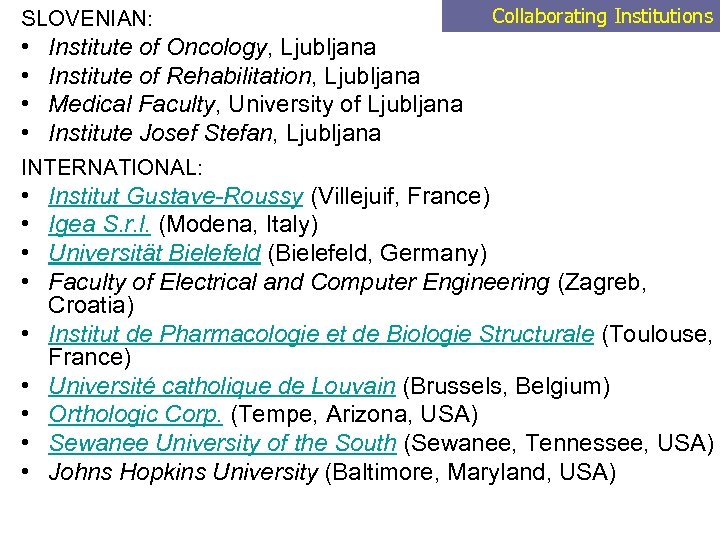

SLOVENIAN: • • Collaborating Institutions Institute of Oncology, Ljubljana Institute of Rehabilitation, Ljubljana Medical Faculty, University of Ljubljana Institute Josef Stefan, Ljubljana INTERNATIONAL: • • • Institut Gustave-Roussy (Villejuif, France) Igea S. r. l. (Modena, Italy) Universität Bielefeld (Bielefeld, Germany) Faculty of Electrical and Computer Engineering (Zagreb, Croatia) Institut de Pharmacologie et de Biologie Structurale (Toulouse, France) Université catholique de Louvain (Brussels, Belgium) Orthologic Corp. (Tempe, Arizona, USA) Sewanee University of the South (Sewanee, Tennessee, USA) Johns Hopkins University (Baltimore, Maryland, USA)
Laboratory for bio cybernetics http: //lbk. fe. uni-lj. si Peter, Katja, Marko, Jakob, Tadej, David, Matej K. , Tomaž, Matej R. , Denis, Blaž, Damijan, Ivan, Janez, Mojca, Stanislav, Gorazd, Vilko, Selma, Čarli, Nataša, Maša, Alenka, Barbara (mising from the photo: Anže, Jerneja. Tina, Duša)
Thank you ! damijan. miklavcic@fe. uni-lj. si http: //lbk. fe. uni-lj. si
