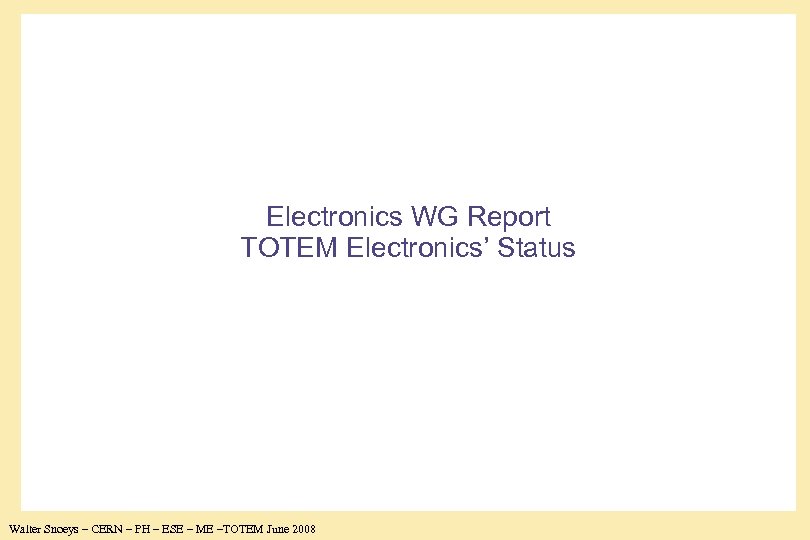

Electronics WG Report TOTEM Electronics’ Status Walter Snoeys – CERN – PH – ESE Electronics WG Report TOTEM Electronics’ Status Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

Agenda WG RP motherboard and HOST board status RP hybrids measurements/measurement results database T Agenda WG RP motherboard and HOST board status RP hybrids measurements/measurement results database T 1 electronics status/issues T 2 electronics status/issues Installation status/issues Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

Status § Gennaro: n n § RP hybrids in production. Production and test at Status § Gennaro: n n § RP hybrids in production. Production and test at TIF. Detector test of Sully works as an independent unit. Procedure with traveler sheet implemented. First pot in H 8 (urgent !!), 14 hybrids ready for bars, 15 hybrids being equipped with VFATs Gueorgui: n n n n n RP motherboard 3 produced, 1 fully tested in 555 now in H 8. 2 more partially tested. 10 now in production. 15 later. Giovanni collects comps for all 25. Trigger mezzanine: a few more produced and mounted. More to follow. CC mezzanine: to be back june 25 th. To be mounted afterwards. Repeater card: schematics ready, in layout. Dohm: 25 pcb’s produced, 8 mounted by Giovanni. DOHs spliced for mounting. Test in 555. Question: can we speed up configuration Startup sequence for GOH: through flag 0 and flag 1, and reset. Done for RP motherboard, and for ROC (T 1), for T 2 FPGA possible. Is writing RP motherboard manual. Question Saverio: redundancy does not work for the ROC. Software crashes. Need special configuration in software. Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

Status § Gueorgui: n n n § Host board : Components VME board + Status § Gueorgui: n n n § Host board : Components VME board + optoreceiver board. Later on Slink 5 V 1 produced 4 V 2 produced Final prod to be sent to CERN beginning of July. Two test setups: 1 at cern, 1 in Israel. Manual written. FPGA’s: 3 different FPGAs cyclone, stratix II GX, 4 different designs VME controller, data…, merger. First version exist for all. Doc on web. Acceptance test to be organized Paul: n n n Database for RP T 2 and T 1 hybrids Checked acceptance for Gas detector hybrids. Need to check latency for TTP go from 228 to 227 but with another phase for gas hybrids instead of RP hybrids. Gas hybrids procedure still needs to be optimized a bit still (Parameter values). RP : 14 hybrids passed, one (#15) with one dead channel. 3 hybrids in “rework’ hybrid 6, 7 and 16. Database shown Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

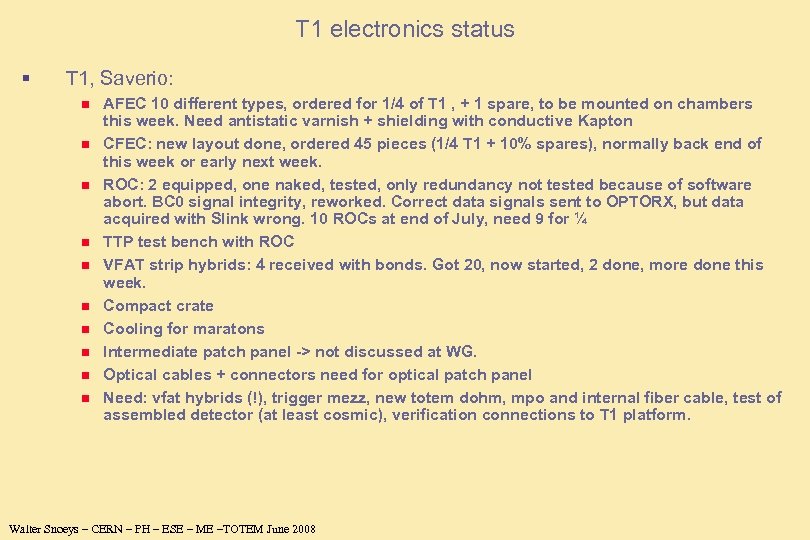

T 1 electronics status § T 1, Saverio: n n n n n AFEC T 1 electronics status § T 1, Saverio: n n n n n AFEC 10 different types, ordered for 1/4 of T 1 , + 1 spare, to be mounted on chambers this week. Need antistatic varnish + shielding with conductive Kapton CFEC: new layout done, ordered 45 pieces (1/4 T 1 + 10% spares), normally back end of this week or early next week. ROC: 2 equipped, one naked, tested, only redundancy not tested because of software abort. BC 0 signal integrity, reworked. Correct data signals sent to OPTORX, but data acquired with Slink wrong. 10 ROCs at end of July, need 9 for ¼ TTP test bench with ROC VFAT strip hybrids: 4 received with bonds. Got 20, now started, 2 done, more done this week. Compact crate Cooling for maratons Intermediate patch panel -> not discussed at WG. Optical cables + connectors need for optical patch panel Need: vfat hybrids (!), trigger mezz, new totem dohm, mpo and internal fiber cable, test of assembled detector (at least cosmic), verification connections to T 1 platform. Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

T 2 electronics/detector status § T 2 GEM, Eraldo: § § § § Walter T 2 electronics/detector status § T 2 GEM, Eraldo: § § § § Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008 Hybrids: 83 % good, 7. 4 % fail power/i 2 c, other 8. 2% fail other parameters Full detector test in H 8. Monostable 1 position. 3 chambers higher noise. If monostable pulse length increases, minimum threshold decreases ! Very nice behavior at 4 clks stretch length. Combination between strips and pads creates ‘jump’ in the minimum threshold. Shield improved noise considerably: pads less than 5, strips 8 GEM detectors ok for 20 planes. VFATs 130 pads and 40 strips mounted and tested on Triple GEM Horseshoe: 11 ready and tested + 1 adjusted 11 th card (arrived today, will be tested this week) Final corrected card expected for July 11 th CCUM carrier late, need to look at replacement if Mid July Need to do full detector installation still + local cabling. Pulled long distance cables into T 2 rack last week. HF- will be moved into the garage this week. Lots of work in the garage in the next coming weeks.

Installation Status § RP: n n n § Need dohm installation in the tunnel. Installation Status § RP: n n n § Need dohm installation in the tunnel. Finalization of the short cables. LV power + circuit breakers + then LV system test in situ Final short cables, including slow control Optical link between patch panel and RP MB HV patch panel in the counting room Counting room: n n n n n LV Rack: Power to be connected, ethernet almost connected. Circuit breakers for RP Need heat exchangers, Mounting of minimum set = S 2 E 11, S 2 B 02 -03 + LV + motor control DCS Rack: design with ELMBs to be finalized and connections made HV Rack: Crate to be installed + RP HV patch panel + connectorizing. Trigger + DAQ rack: connectorizing TTC signaling Beam interlock DSS defined, still need cabling. Need to cable up PC to VME links, etc… Get workspace organized. Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

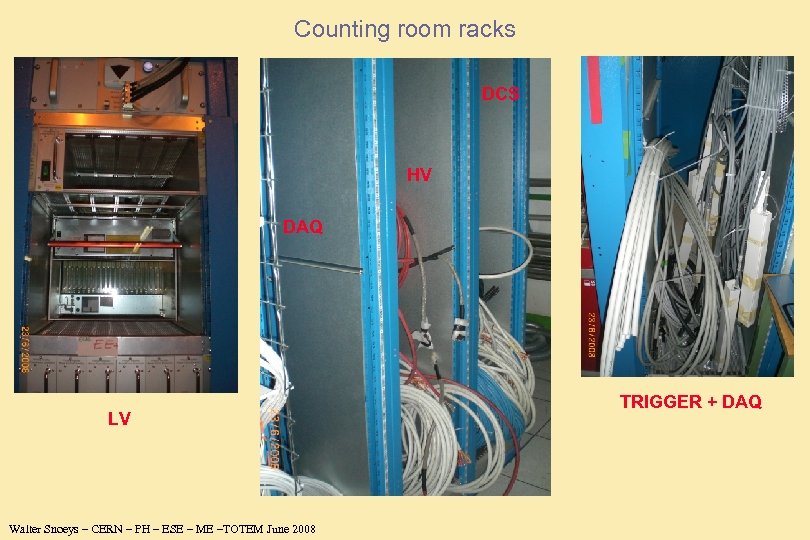

Counting room racks DCS HV DAQ LV Walter Snoeys – CERN – PH – Counting room racks DCS HV DAQ LV Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008 TRIGGER + DAQ

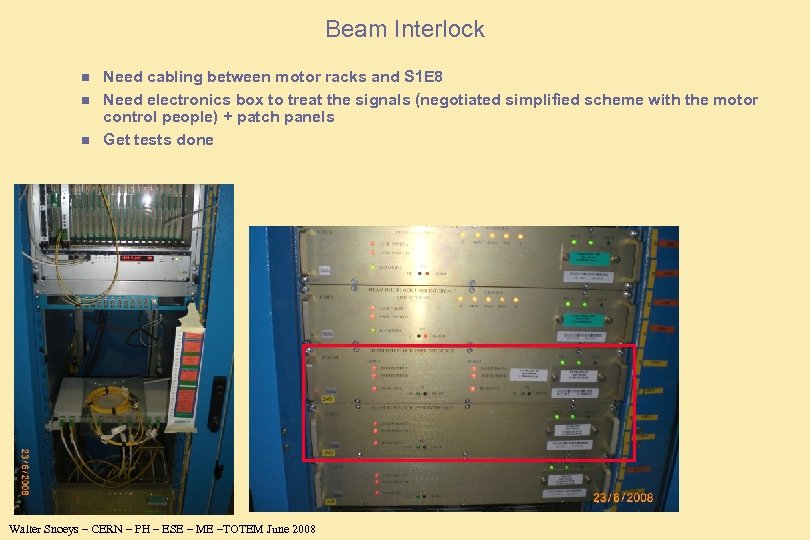

Beam Interlock n n n Need cabling between motor racks and S 1 E Beam Interlock n n n Need cabling between motor racks and S 1 E 8 Need electronics box to treat the signals (negotiated simplified scheme with the motor control people) + patch panels Get tests done Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

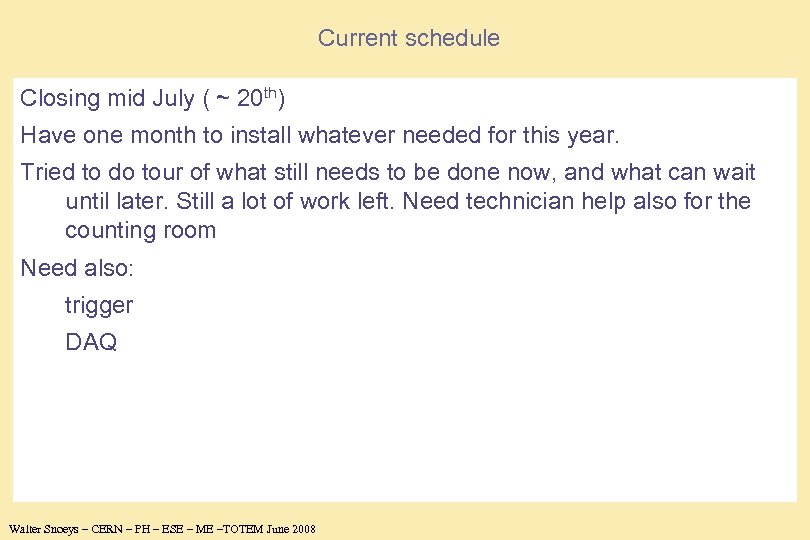

Current schedule Closing mid July ( ~ 20 th) Have one month to install Current schedule Closing mid July ( ~ 20 th) Have one month to install whatever needed for this year. Tried to do tour of what still needs to be done now, and what can wait until later. Still a lot of work left. Need technician help also for the counting room Need also: trigger DAQ Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008

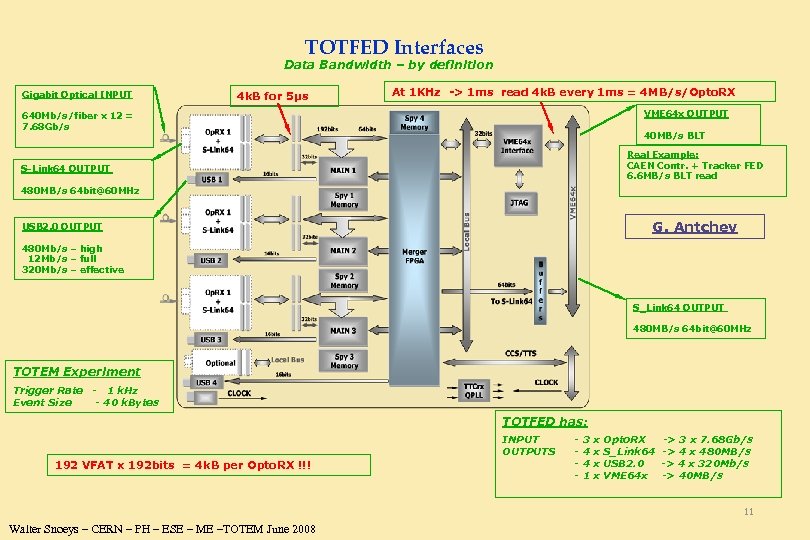

TOTFED Interfaces Data Bandwidth – by definition Gigabit Optical INPUT 4 k. B for TOTFED Interfaces Data Bandwidth – by definition Gigabit Optical INPUT 4 k. B for 5μs At 1 KHz -> 1 ms read 4 k. B every 1 ms = 4 MB/s/Opto. RX VME 64 x OUTPUT 640 Mb/s/fiber x 12 = 7. 68 Gb/s 40 MB/s BLT Real Example: CAEN Contr. + Tracker FED 6. 6 MB/s BLT read S-Link 64 OUTPUT 480 MB/s 64 [email protected] MHz G. Antchev USB 2. 0 OUTPUT 480 Mb/s – high 12 Mb/s – full 320 Mb/s – effective S_Link 64 OUTPUT 480 MB/s 64 [email protected] MHz TOTEM Experiment Trigger Rate - 1 k. Hz Event Size - 40 k. Bytes TOTFED has: INPUT OUTPUTS 192 VFAT x 192 bits = 4 k. B per Opto. RX !!! - 3 4 4 1 x x Opto. RX S_Link 64 USB 2. 0 VME 64 x -> 3 x 7. 68 Gb/s -> 4 x 480 MB/s -> 4 x 320 Mb/s -> 40 MB/s 11 Walter Snoeys – CERN – PH – ESE – ME –TOTEM June 2008
