Electrical What are those lines above our heads? Electrical What are those lines above our heads?

Power transmission From Ohm’s For the same power to be transmitted – a higher Power transmission From Ohm’s For the same power to be transmitted – a higher voltage will require a lower current which in turn will require smaller conductors or wires. However higher voltage is more expensive more hazardous than low voltage. From Mechanical & electrical Systems in Buildings 4 th edition By Janis & Tao The key is smaller wire less weight on towers lower cost for the infrastructure

High Voltage Line I N T R O D U C T I O High Voltage Line I N T R O D U C T I O N Ground Hot Center Tap Transformer

I N T R O D U C T I O N I N T R O D U C T I O N

I N T R O D U C T I O N I N T R O D U C T I O N

I N T R O D U C T I O N I N T R O D U C T I O N

Wires Overhead to the Use of Electrical What’s going on? Principals of Electricity Chapter Wires Overhead to the Use of Electrical What’s going on? Principals of Electricity Chapter 25 Electrical Systems and Materials Chapter 26 Electrical Systems and Materials Chapter 27 Electrical Wire Design Chapter 28

Use of Electrical What’s going on? Principals of Electricity Chapter 25 Circuits AC vs Use of Electrical What’s going on? Principals of Electricity Chapter 25 Circuits AC vs DC power

CIRCUITS A Circuit Parallel Series CIRCUITS A Circuit Parallel Series

Use of Electrical Circuit Use of Electrical Circuit

Use of Electrical Parallel Use of Electrical Parallel

Use of Electrical Series Use of Electrical Series

AC VS. DC POWER AC VS. DC POWER

Electrical Power The electricity that reaches a house or building from a power company Electrical Power The electricity that reaches a house or building from a power company is …. AC power and not DC power

AC & DC AC & DC

Goals Understand the difference between DC and AC power Understand the different properties of Goals Understand the difference between DC and AC power Understand the different properties of AC power Be able to calculate the quantities of these AC properties Understand this is not a Heavy Metal rock band.

Terms Direct Current (DC) Alternating Current (AC) Power Generation Ohm’s Law Impedance Terms Direct Current (DC) Alternating Current (AC) Power Generation Ohm’s Law Impedance

Direct Current (DC) An electric current that flows through a circuit in only one Direct Current (DC) An electric current that flows through a circuit in only one direction, although the rate of flow may vary Most common household items and appliances operate on DC power

DC Power Generation 2 Methods of power generation: Batteries that convert chemical energy into DC Power Generation 2 Methods of power generation: Batteries that convert chemical energy into electrical energy Generator converts mechanical energy into electrical energy

Ohm’s Law for DC Ohm’s Law for Direct Current: I=E/R Where: I = Current Ohm’s Law for DC Ohm’s Law for Direct Current: I=E/R Where: I = Current (Amperes) E = Voltage (Volts) R = Resistance (Ohms)

Alternating Current (AC) An Alternating Current (AC) system is an electrical system in which Alternating Current (AC) An Alternating Current (AC) system is an electrical system in which voltage and current are reversed periodically or cyclically in the circuit Nearly all power proved by electrical companies in the U. S. is through AC systems

Practice Problem What is the current flow in a 12 -V DC circuit containing Practice Problem What is the current flow in a 12 -V DC circuit containing a total resistance of 2 Ohms? E = 12, R = 2 I=E/R I = 12 / 2 = 6 Amperes

AC Generation – Basic Concepts Simple Generators (alternators) Stationary Windings (conductors) Voltage generated by AC Generation – Basic Concepts Simple Generators (alternators) Stationary Windings (conductors) Voltage generated by a conductors rotating in a magnetic flux field Rotating Coil Sine Wave of Voltage

Using multiple magnets Using multiple magnets

Alternating Current (AC) Or looking at it from this view Alternating Current (AC) Or looking at it from this view

Alternating Current AC generators (large electromagnets) can be built with much larger and powerful Alternating Current AC generators (large electromagnets) can be built with much larger and powerful voltage ratings than DC Less expensive than DC to produce due to the simplicity of the winding and brushes Voltages can be stepped down or up efficiently by the use of simple transformers (induction principle) DC voltages changes are obtained by the use of resistors as a result have power losses Current loss is very low and it can travel long distances economically

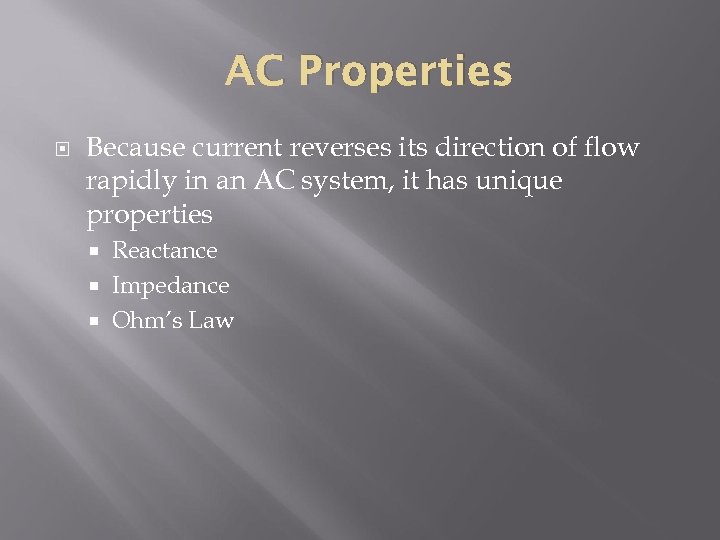

AC Properties Because current reverses its direction of flow rapidly in an AC system, AC Properties Because current reverses its direction of flow rapidly in an AC system, it has unique properties Reactance Impedance Ohm’s Law

AC vs. DC There are two main advantages of AC over DC: Lower Generating AC vs. DC There are two main advantages of AC over DC: Lower Generating Cost Easier Voltage Transformations

AC Verses DC In 1887 direct current (DC) was king. 121 Edison power stations AC Verses DC In 1887 direct current (DC) was king. 121 Edison power stations scattered across the United States delivering DC electricity However DC had a great limitation power plants could only send DC electricity about a mile before the electricity began to lose power. So when George Westinghouse introduced his system based on high-voltage alternating current (AC), which could carry electricity hundreds of miles with little loss of power, people naturally took notice. A "battle of the currents" ensued. In the end, Westinghouse's AC prevailed. But this special feature isn't about the two electrical systems and how they worked. Rather, it's a simple explanation that shows the difference between AC and DC.

AC Verses DC George Westinghouse introduced his system based on high-voltage alternating current (AC) AC Verses DC George Westinghouse introduced his system based on high-voltage alternating current (AC) This system could carry electricity hundreds of miles with little loss of power. A "battle of the currents" ensued.

AC Verses DC In the end, Westinghouse's AC prevailed. AC Verses DC In the end, Westinghouse's AC prevailed.

You earthlings ……. Westinghouse huh! You earthlings ……. Westinghouse huh!

AC vs. DC Review AC dominant power system for buildings DC needed for electronic AC vs. DC Review AC dominant power system for buildings DC needed for electronic equipment, TV’s computers etc. and special building equipment such as elevators and industrial equipment Conversion AC to DC and DC to AC converted to DC is by a rectifier DC converted to AC is by an inverter

TRANSFORMERS Kick it up or kick it down Change it from AC to DC TRANSFORMERS Kick it up or kick it down Change it from AC to DC

Transformers No, not this type of transformer Transformers No, not this type of transformer

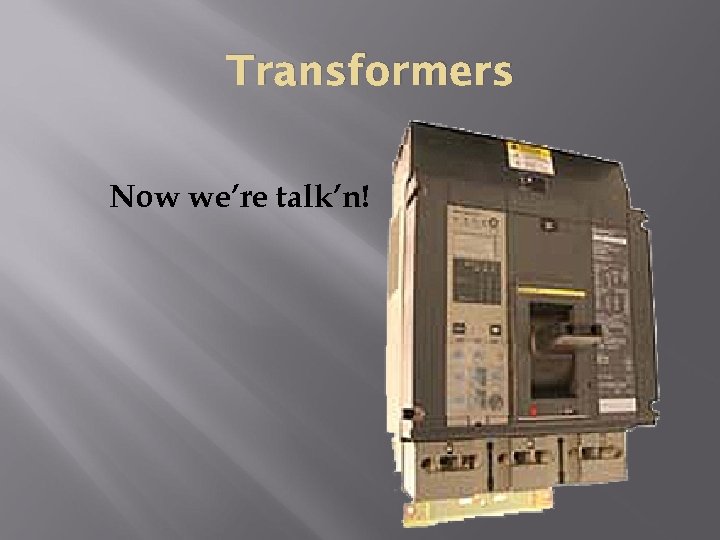

Transformers Now we’re talk’n! Transformers Now we’re talk’n!

Transformers Real transformers This is exciting! Transformers Real transformers This is exciting!

Transformers We could talk about actors that work with transformers Transformers We could talk about actors that work with transformers

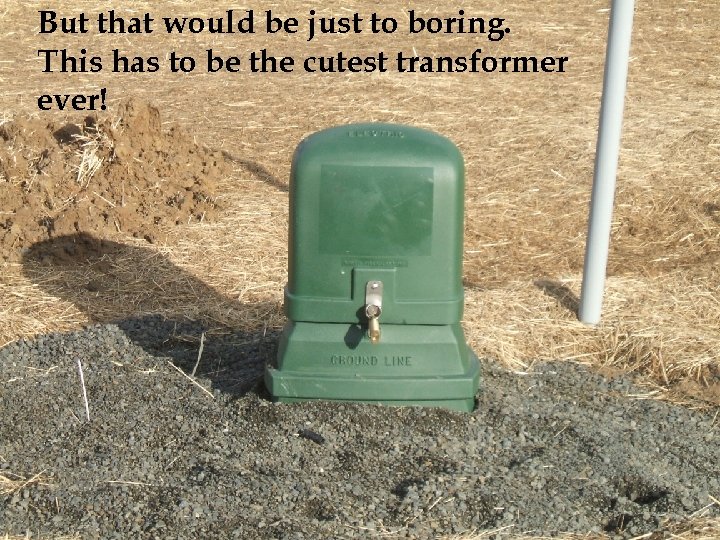

But that would be just to boring. This has to be the cutest transformer But that would be just to boring. This has to be the cutest transformer ever!

What a piece of beauty What a piece of beauty

Transformers Residential Transformers Residential

Transformers Residential Transformers Residential

Transformers Mikaela. . is that a Delta transformer -or- a Wye transformer? Transformers Mikaela. . is that a Delta transformer -or- a Wye transformer?

Transformers 3 -Phase Power Primarily found in Commercial Buildings Delta Wye Transformers 3 -Phase Power Primarily found in Commercial Buildings Delta Wye

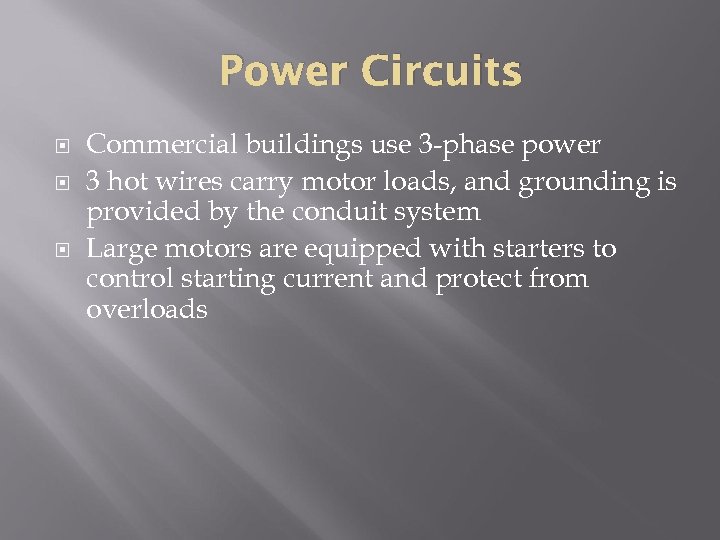

Power Circuits Commercial buildings use 3 -phase power 3 hot wires carry motor loads, Power Circuits Commercial buildings use 3 -phase power 3 hot wires carry motor loads, and grounding is provided by the conduit system Large motors are equipped with starters to control starting current and protect from overloads

Power Circuits Residential uses single phase power Power Circuits Residential uses single phase power

Panels Commercial buildings use many panels to subdivide current and protect individual circuits Separate Panels Commercial buildings use many panels to subdivide current and protect individual circuits Separate panels are used for: Lighting Power Emergency Miscellaneous

Panels Panels

Lighting Commercial lighting circuits differ from their residential counterparts as follows: Shared Neutral More Lighting Commercial lighting circuits differ from their residential counterparts as follows: Shared Neutral More Amperes Higher Voltage Duplex outlets are NOT connected to lighting in commercial

Transformers Transformers

Electrical Service Commercial buildings all use 3 -phase power Voltages are usually 480/277 Difference Electrical Service Commercial buildings all use 3 -phase power Voltages are usually 480/277 Difference is the setup Delta Wye

3 phase power 3 phase power

3 phase power A single phase generator is an alternator with a single set 3 phase power A single phase generator is an alternator with a single set armature coil producing a single voltage waveform. A three –phase alternator has three sets of coils spaced at 120 o apart and generates three sets of voltage waveforms.

Delta Neutral conductor is centered between twophase conductors High leg serves only 3 -phase Delta Neutral conductor is centered between twophase conductors High leg serves only 3 -phase loads and cannot be used with the neutral

Wye Neutral conductor is connected between all 3 -phase conductors Allows each phase to Wye Neutral conductor is connected between all 3 -phase conductors Allows each phase to be used for single phase loads

Transformers Delta is usually used in industrial applications Wye is typical for office buildings Transformers Delta is usually used in industrial applications Wye is typical for office buildings and shopping centers

Transformers Transformers

Transformers Transformers

Transformers Transformers

Now we need to discuss reactance, inductive reactance, and impedance Now we need to discuss reactance, inductive reactance, and impedance

The opposition to alternating current due to capacitance (capacitive reactance) or inductance (inductive reactance). The opposition to alternating current due to capacitance (capacitive reactance) or inductance (inductive reactance). Reactance What does that mean?

Reactance is of two types: Inductive and Capacitive. Inductive reactance is associated with the Reactance is of two types: Inductive and Capacitive. Inductive reactance is associated with the magnetic field that surrounds a wire or a coil carrying a current.

Reactance An alternating current in such a conductor, or inductor, sets up an alternating Reactance An alternating current in such a conductor, or inductor, sets up an alternating magnetic field that in turn affects the current in, and the voltage (potential difference) across, that part of the circuit

Inductive Reactance Alternating current induces an alternating magnetic field in the coil that increases Inductive Reactance Alternating current induces an alternating magnetic field in the coil that increases the opposition to the flow of current.

Inductive Reactance This magnetic field, and the inductive reactance that arises from it, is Inductive Reactance This magnetic field, and the inductive reactance that arises from it, is amplified by the presence of the iron core in the coil, so that the electrical reactance (combined with the resistance) becomes so great that an inadequate current supply reaches the lamps.

Inductive Reactance Can you think of an example of Inductive Reactance in your apartment Inductive Reactance Can you think of an example of Inductive Reactance in your apartment or home? A dimmer switch

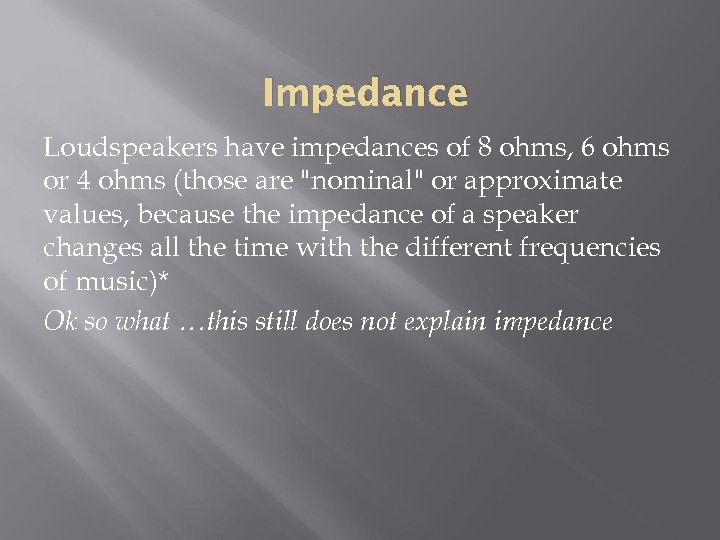

Impedance Loudspeakers have impedances of 8 ohms, 6 ohms or 4 ohms (those are Impedance Loudspeakers have impedances of 8 ohms, 6 ohms or 4 ohms (those are "nominal" or approximate values, because the impedance of a speaker changes all the time with the different frequencies of music)* Ok so what …this still does not explain impedance

Impedance First impedance has nothing to do with sound quality* In a loudspeaker, current Impedance First impedance has nothing to do with sound quality* In a loudspeaker, current does all the work; voltage is the "push" behind the current, kind of similar to the way water pressure (voltage) forces the water (current) through a hose. *

Impedance If you have a narrow hose (a high impedance), not as much water Impedance If you have a narrow hose (a high impedance), not as much water (current) flows. Use a larger diameter hose (lower resistance) and more water (current) flows. *

Impedance If speaker impedance is too low, too much current will run through the Impedance If speaker impedance is too low, too much current will run through the AV receiver's output transistors, causing the receiver to overheat and shut down*. * Speaker Impedance and Ohms Explained by Alan Lofft

Impedance you do not want your speaker cables to raise impedance or resistance and Impedance you do not want your speaker cables to raise impedance or resistance and waste your AV receiver's power on its way to your speakers. * Use 12 -gauge speaker cables between the receiver and speakers to eliminate problems of increased resistance.

Impedance Ohm's Law states: In an electrical circuit, current flow is directly proportional to Impedance Ohm's Law states: In an electrical circuit, current flow is directly proportional to voltage and inversely proportional to impedance So now you know
