Electric Baseload Basics ACI 09 FUND 8

Electric Baseload Basics ACI 09 FUND 8: Wednesday, April 29, 2009 2: 00 pm to 3: 40 pm Kansas City, Missouri Rana Belshe Conservation Connection Consulting Fairchild, Wisconsin 715 -334 -2707 A. Tamasin Sterner Pure Energy Lancaster, Pennsylvania 717 -293 -8990

Session Objectives • Learn how to separate electric baseload from whole house electric use • Explore how occupants, equipment, and use patterns affect electricity consumption • Evaluate options and actions to reduce use

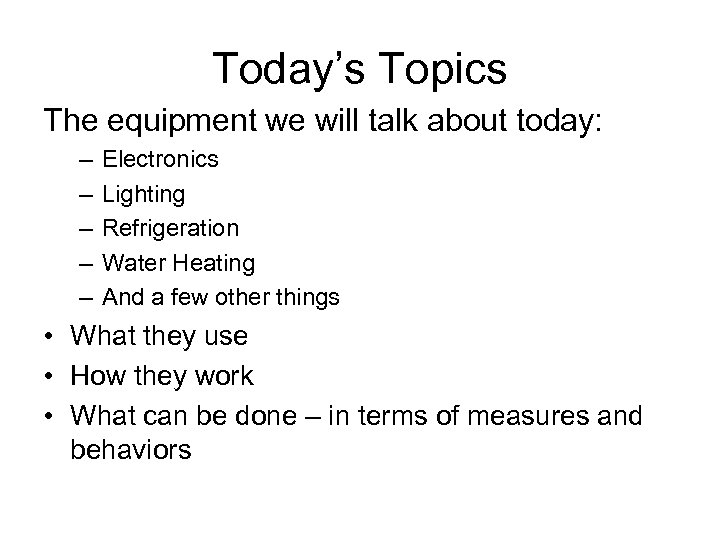

Today’s Topics The equipment we will talk about today: – – – Electronics Lighting Refrigeration Water Heating And a few other things • What they use • How they work • What can be done – in terms of measures and behaviors

Weatherization Core Competencies

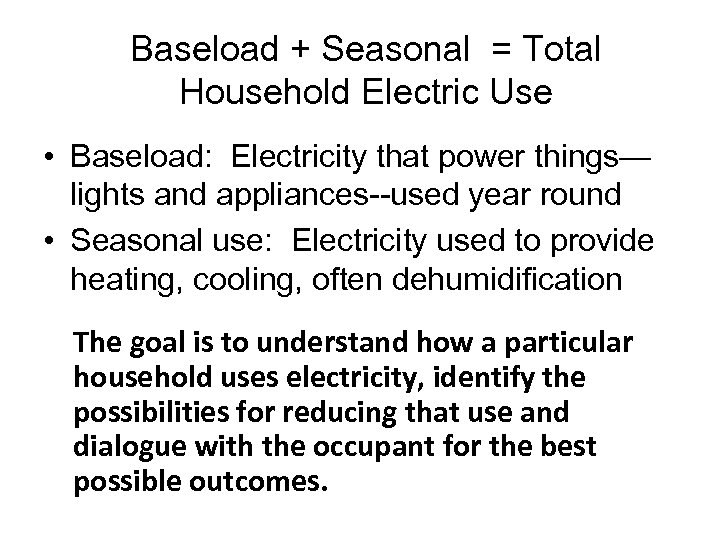

Baseload + Seasonal = Total Household Electric Use • Baseload: Electricity that power things— lights and appliances--used year round • Seasonal use: Electricity used to provide heating, cooling, often dehumidification The goal is to understand how a particular household uses electricity, identify the possibilities for reducing that use and dialogue with the occupant for the best possible outcomes.

Holiday Hell-o Photo: A. Tamasin Sterner, Pure Energy Example of lighting as a seasonal load

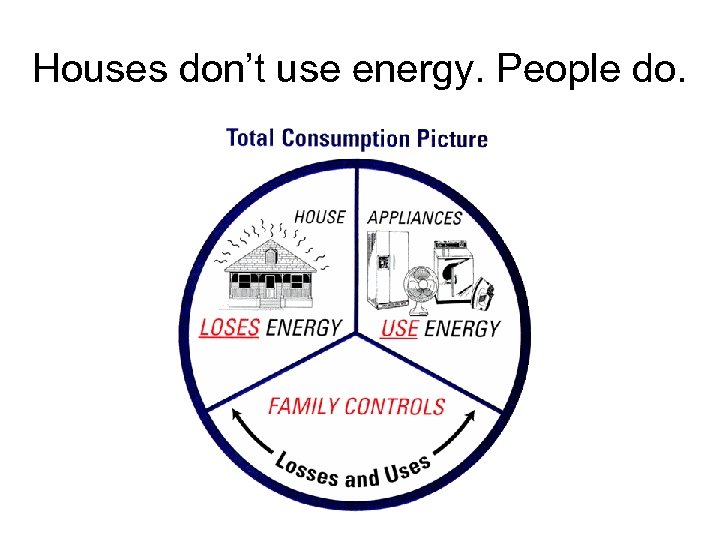

Houses don’t use energy. People do.

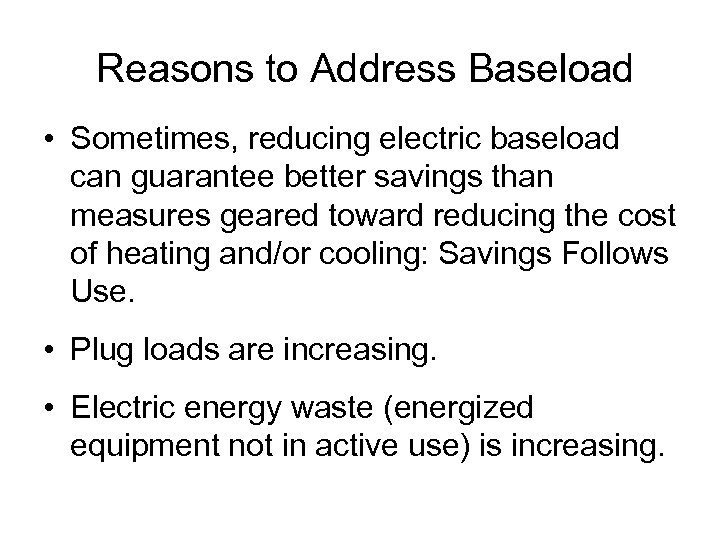

Reasons to Address Baseload • Sometimes, reducing electric baseload can guarantee better savings than measures geared toward reducing the cost of heating and/or cooling: Savings Follows Use. • Plug loads are increasing. • Electric energy waste (energized equipment not in active use) is increasing.

“ Electricity originates inside clouds. There it forms lightning, which is attracted to the earth by golfers. After entering the ground, the electricity hardens into coal, which, when dug up by power companies and burned in big ovens called “generators, ” turns back into electricity, which is sent in the form of “volts” (also known as “watts” or “rpm” for short) through special wires with birds sitting on them to consumers’ homes, where it is transformed by TV sets into commercials for beer, which passes through the consumer and back into the ground, thus completing what is known as a “circuit. ” Dave Barry, Funny Times, 2002

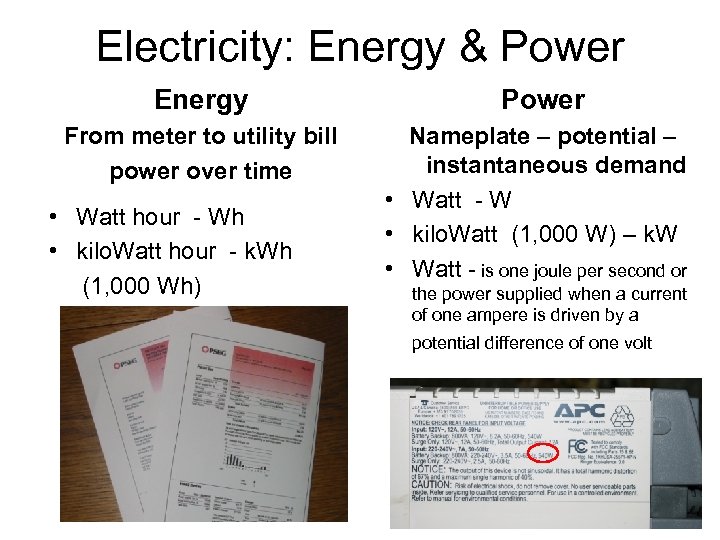

Electricity: Energy & Power Energy From meter to utility bill power over time • Watt hour - Wh • kilo. Watt hour - k. Wh (1, 000 Wh) Power Nameplate – potential – instantaneous demand • Watt - W • kilo. Watt (1, 000 W) – k. W • Watt - is one joule per second or the power supplied when a current of one ampere is driven by a potential difference of one volt

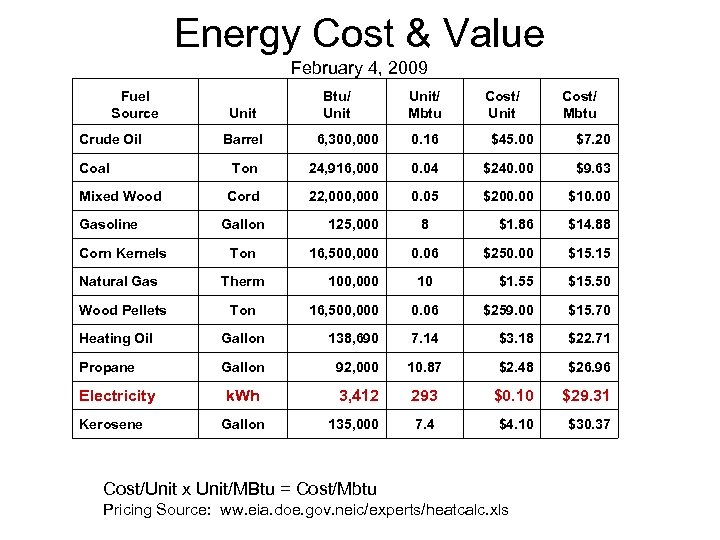

Energy Cost & Value February 4, 2009 Fuel Source Crude Oil Unit Btu/ Unit/ Mbtu Cost/ Unit Cost/ Mbtu Barrel 6, 300, 000 0. 16 $45. 00 $7. 20 Coal Ton 24, 916, 000 0. 04 $240. 00 $9. 63 Mixed Wood Cord 22, 000 0. 05 $200. 00 $1. 86 $14. 88 $250. 00 $15. 15 $1. 55 $15. 50 Gasoline Corn Kernels Natural Gas Wood Pellets Gallon Therm Ton 125, 000 16, 500, 000 100, 000 8 0. 06 10 16, 500, 000 0. 06 $259. 00 $15. 70 Heating Oil Gallon 138, 690 7. 14 $3. 18 $22. 71 Propane Gallon 92, 000 10. 87 $2. 48 $26. 96 k. Wh 3, 412 293 $0. 10 $29. 31 135, 000 7. 4 $4. 10 $30. 37 Electricity Kerosene Gallon Cost/Unit x Unit/MBtu = Cost/Mbtu Pricing Source: ww. eia. doe. gov. neic/experts/heatcalc. xls

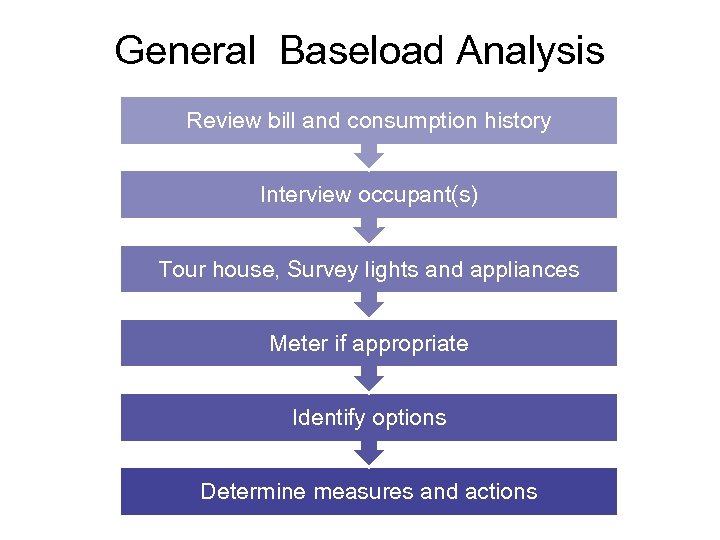

General Baseload Analysis Review bill and consumption history Interview occupant(s) Tour house, Survey lights and appliances Meter if appropriate Identify options Determine measures and actions

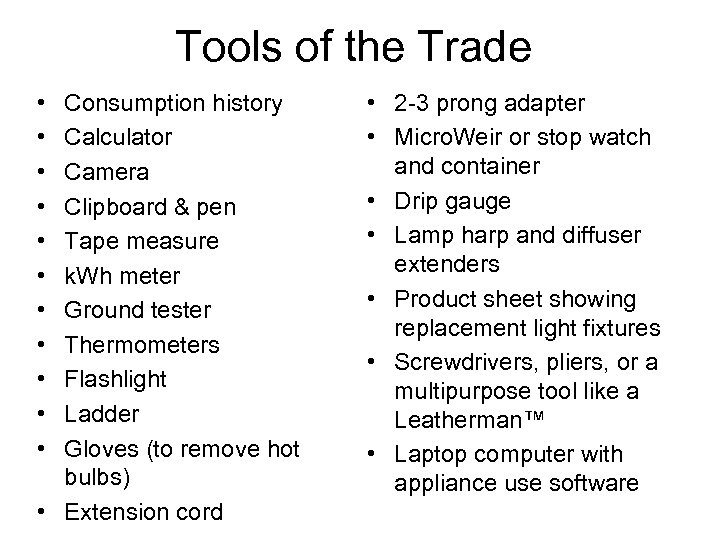

Tools of the Trade • • • Consumption history Calculator Camera Clipboard & pen Tape measure k. Wh meter Ground tester Thermometers Flashlight Ladder Gloves (to remove hot bulbs) • Extension cord • 2 -3 prong adapter • Micro. Weir or stop watch and container • Drip gauge • Lamp harp and diffuser extenders • Product sheet showing replacement light fixtures • Screwdrivers, pliers, or a multipurpose tool like a Leatherman™ • Laptop computer with appliance use software

Establish Baseload Use • Obtain (a printout of) the customer’s electricity use for at least one year prior to the site visit. • Separate the baseload use from the total use by: 1. adding together the three lowest months (not weird numbers) 2. dividing the sum by 3 to get an average baseload month’s use 3. multiplying that number by 12 months • This can easily be done visually from a bar chart. • There are lots of ways to do this. They all work.

Annual Customer Usage Printout LANCASTER 40256 S 25894 Active Bill Date Billing (not use date) Days Tariff Schedule PA 17603 Non Ele Ht Cool Reading Source KWH/ Day Bill Amount 7/10/2007 32 RSO Regular Company 2, 043 64 $181. 45 6/8/2007 30 RSO Regular Company 1, 134 38 $107. 44 5/9/2007 29 RSO Estimate 1, 056 36 $101. 09 4/10/2007 32 RSO Regular Company 1, 492 47 $136. 59 3/9/2007 30 RSO Regular Company 1, 972 66 $175. 67 2/7/2007 28 RSO Regular Company 1, 599 57 $145. 30 1/10/2007 33 RSO Regular Company 1, 396 42 $128. 74 12/8/2006 29 RSO Regular Company 1, 194 41 $112. 28 11/9/2006 30 RSO Regular Company 1, 314 44 $122. 05 10/10/2006 29 RSO Regular Company 892 31 $87. 69 9/11/2006 33 RSO Regular Company 1, 740 53 $156. 71 8/9/2006 29 RSO Regular Company 2, 386 82 $209. 33 $ 1, 664. 34 Total 18, 218 $ 1, 126. 25 Total Baseload 12, 328 1. Three lowest months = 892+ 1, 056+ 1, 134 = 3, 082 ÷ 3 months 2. Average monthly use = 1, 027 k. Wh/mo 3. 1, 027 k. Wh/mo x 12 mo = 12, 328 k. Wh/yr baseload

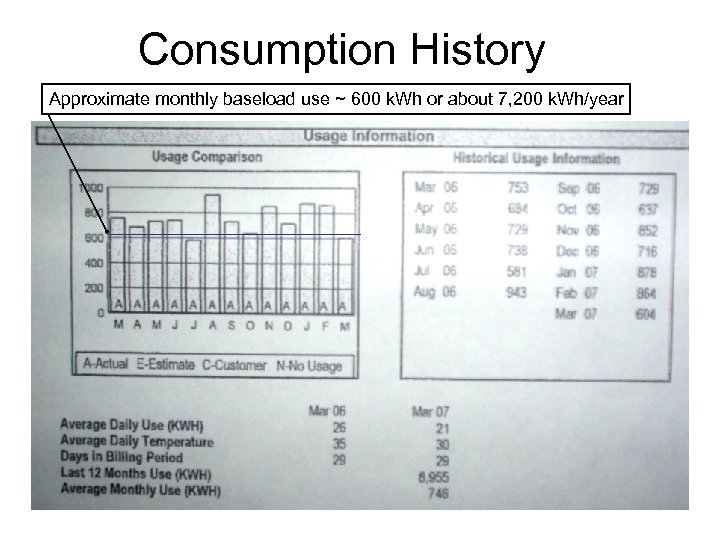

Consumption History Approximate monthly baseload use ~ 600 k. Wh or about 7, 200 k. Wh/year

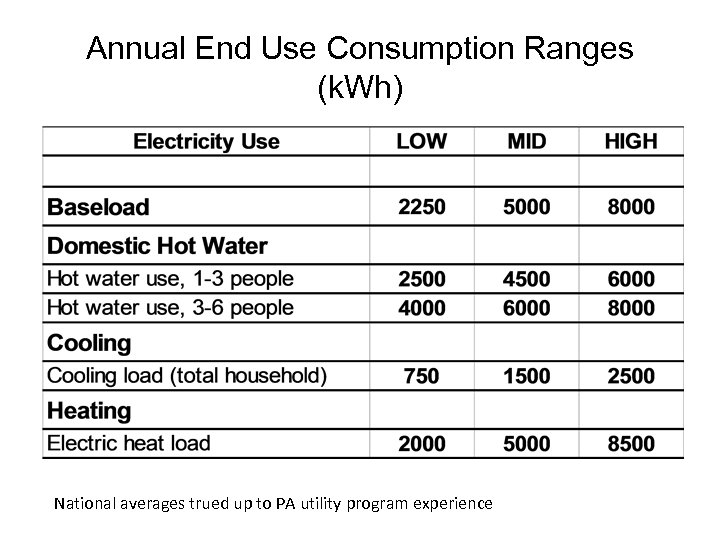

Annual End Use Consumption Ranges (k. Wh) National averages trued up to PA utility program experience

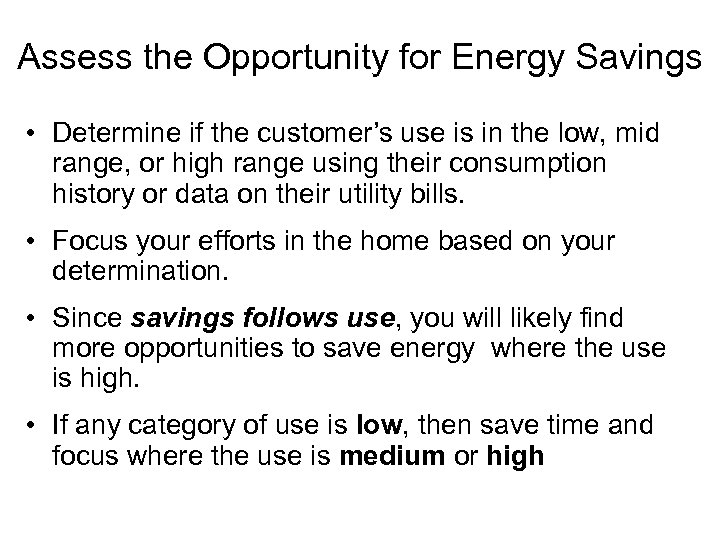

Assess the Opportunity for Energy Savings • Determine if the customer’s use is in the low, mid range, or high range using their consumption history or data on their utility bills. • Focus your efforts in the home based on your determination. • Since savings follows use, you will likely find more opportunities to save energy where the use is high. • If any category of use is low, then save time and focus where the use is medium or high

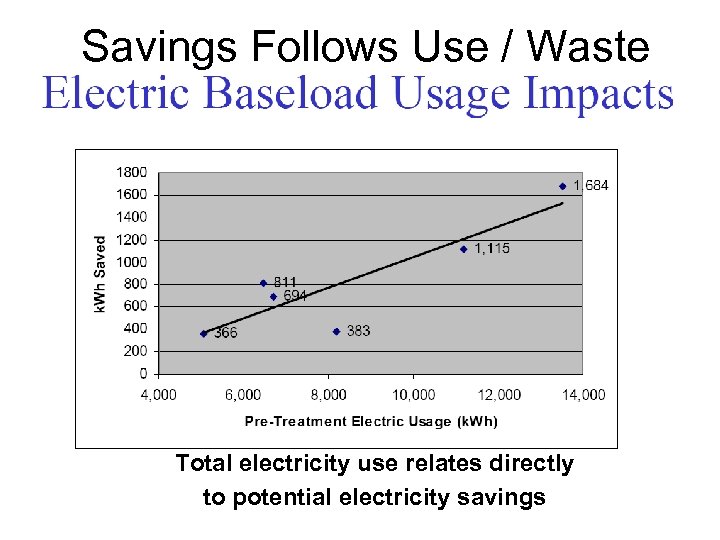

Savings Follows Use / Waste Total electricity use relates directly to potential electricity savings

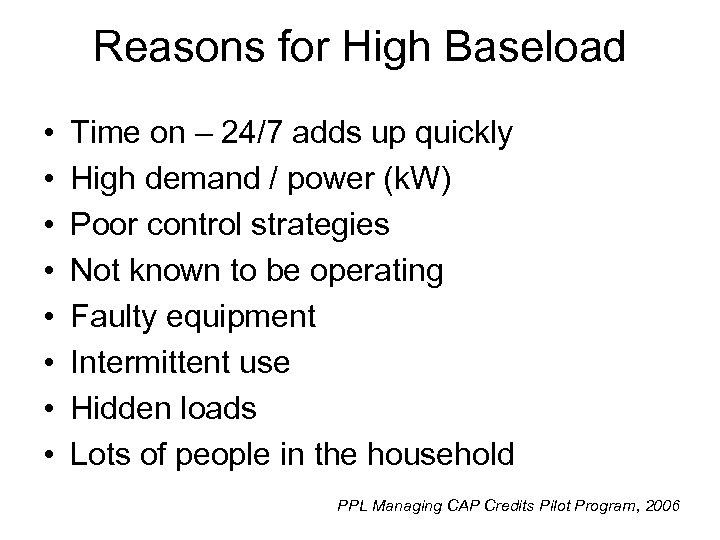

Reasons for High Baseload • • Time on – 24/7 adds up quickly High demand / power (k. W) Poor control strategies Not known to be operating Faulty equipment Intermittent use Hidden loads Lots of people in the household PPL Managing CAP Credits Pilot Program, 2006

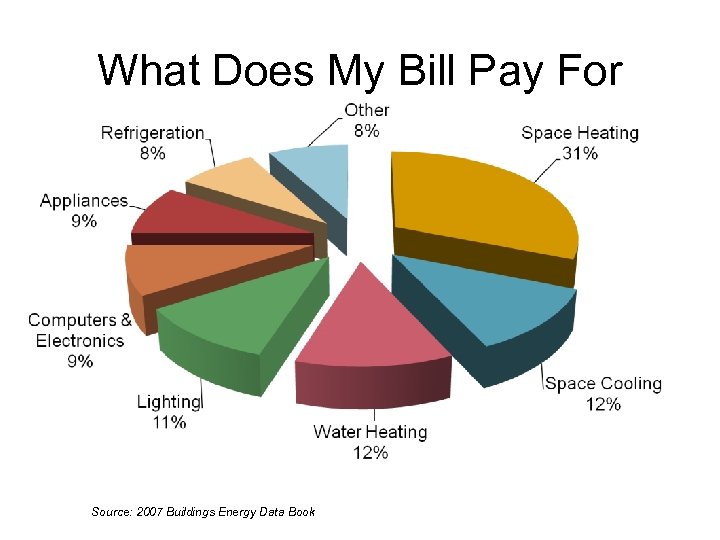

What Does My Bill Pay For Source: 2007 Buildings Energy Data Book

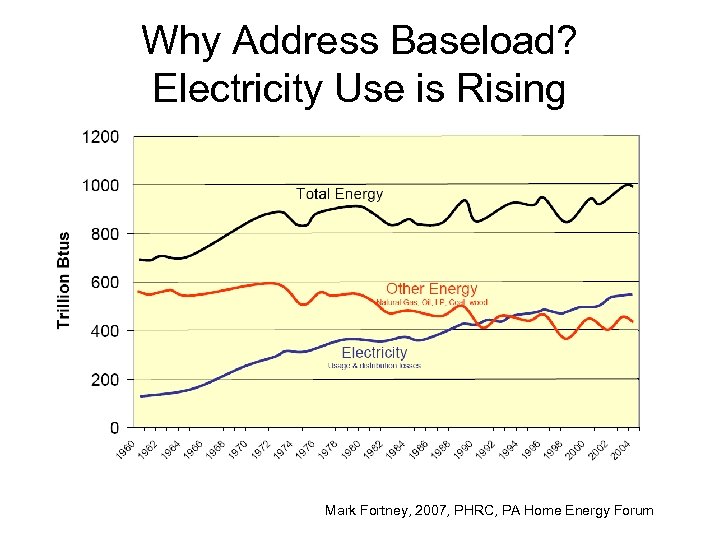

Why Address Baseload? Electricity Use is Rising Mark Fortney, 2007, PHRC, PA Home Energy Forum

Plug Load Energy Use is Increasing U. S. delivered residential energy consumption by end use, 2001, 2004, 2015, and 2030 (million Btu per household) Source: Energy Information Administration 2006

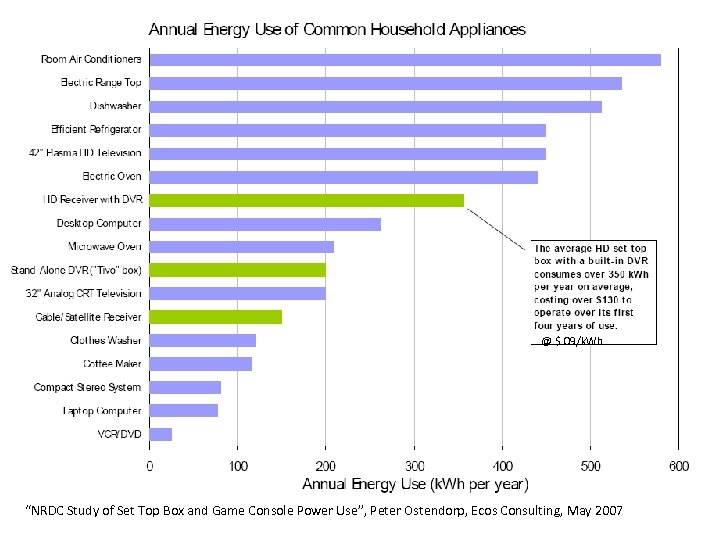

@ $. 09/k. Wh “NRDC Study of Set Top Box and Game Console Power Use”, Peter Ostendorp, Ecos Consulting, May 2007

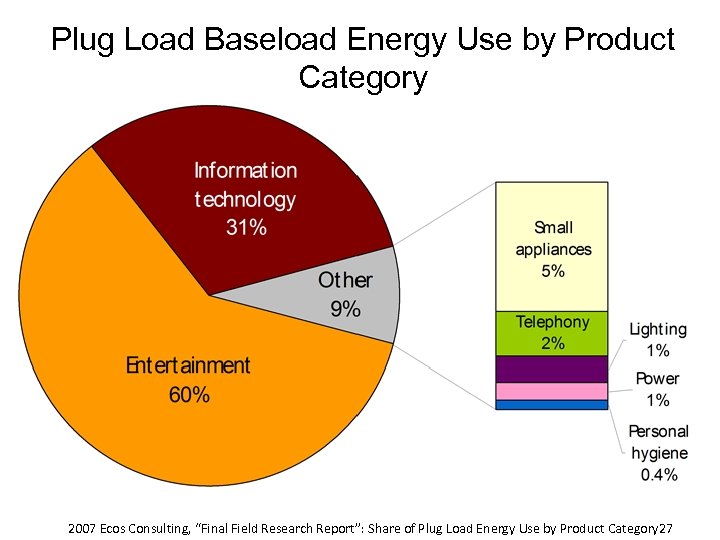

Plug Load Baseload Energy Use by Product Category 2007 Ecos Consulting, “Final Field Research Report”: Share of Plug Load Energy Use by Product Category 27

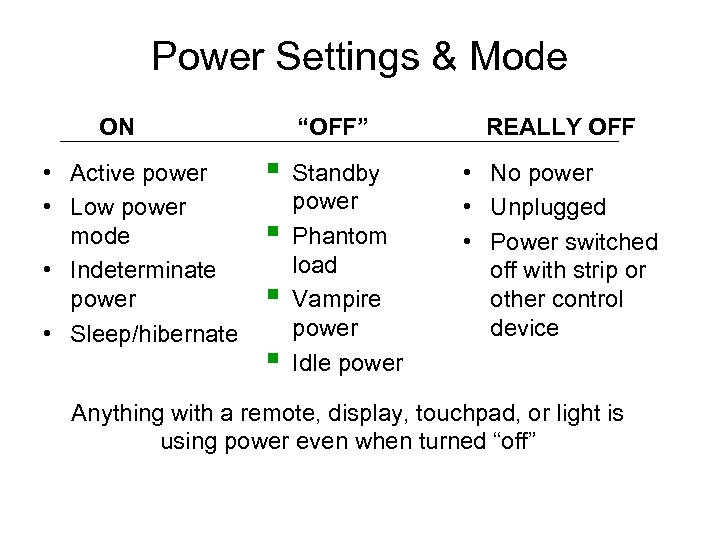

Power Settings & Mode ON • Active power • Low power mode • Indeterminate power • Sleep/hibernate “OFF” § § Standby power Phantom load Vampire power Idle power REALLY OFF • No power • Unplugged • Power switched off with strip or other control device Anything with a remote, display, touchpad, or light is using power even when turned “off”

Game Console Power Use NRDC Study of Set Top Box and Game Console Power Use, May 2007, Peter Ostendorp, Ecos Consulting

Power Supplies: A Growing Component • Function: convert wall voltage ac to low voltage dc needed to operate today’s digital chips, LED indicators, displays, etc. • 6% to 10% of U. S. electricity flows through the nation’s 3. 6 billion power supplies Roughly 1 to 2% of U. S. electricity could be saved by improving power supply efficiency • $2. 1 to 4. 2 billion saved by consumers on their electricity bills • Prevent release of 40 to 80 million tons of CO 2 into the atmosphere • Equivalent of taking 2. 3 to 4. 6 million cars off the road • Equivalent of building roughly 4. 5 to 9 average sized power plants 2007 Ecos Consulting, “Final Field Research Report”

Sample Annual k. Wh of TVs by Mode • Standby power is similar regardless of TV type or size. • Newer TVs use a lot more energy than older ones. • Larger and newer technologies (plasma & rear projection) tend to be used more and are frequently part of a larger entertainment set up. Source: Ecos Consulting, “Final Field Research Report”, 2007

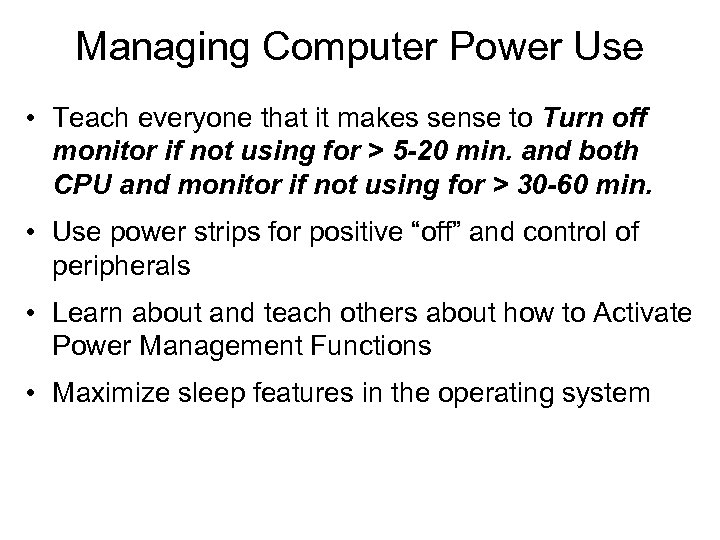

Managing Computer Power Use • Teach everyone that it makes sense to Turn off monitor if not using for > 5 -20 min. and both CPU and monitor if not using for > 30 -60 min. • Use power strips for positive “off” and control of peripherals • Learn about and teach others about how to Activate Power Management Functions • Maximize sleep features in the operating system

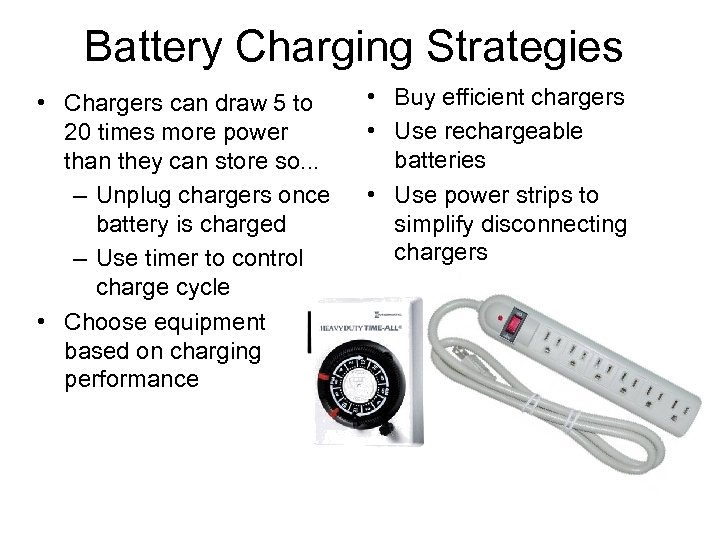

Battery Charging Strategies • Chargers can draw 5 to 20 times more power than they can store so. . . – Unplug chargers once battery is charged – Use timer to control charge cycle • Choose equipment based on charging performance • Buy efficient chargers • Use rechargeable batteries • Use power strips to simplify disconnecting chargers

Advanced Power Strip Options http: //www. p 3 international. com http: //wattstopper. com http: //www. smarthomeusa. com/Shop/Smart-Energy/Smart-Strip

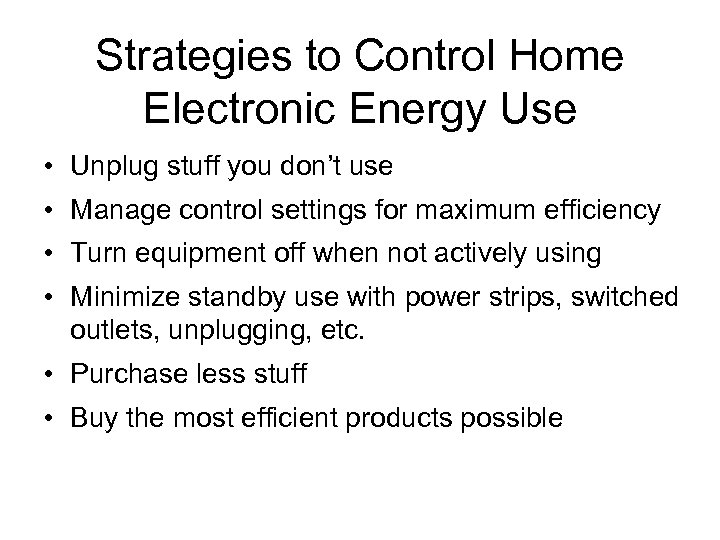

Strategies to Control Home Electronic Energy Use • Unplug stuff you don’t use • Manage control settings for maximum efficiency • Turn equipment off when not actively using • Minimize standby use with power strips, switched outlets, unplugging, etc. • Purchase less stuff • Buy the most efficient products possible

Nighttime from the Space Shuttle

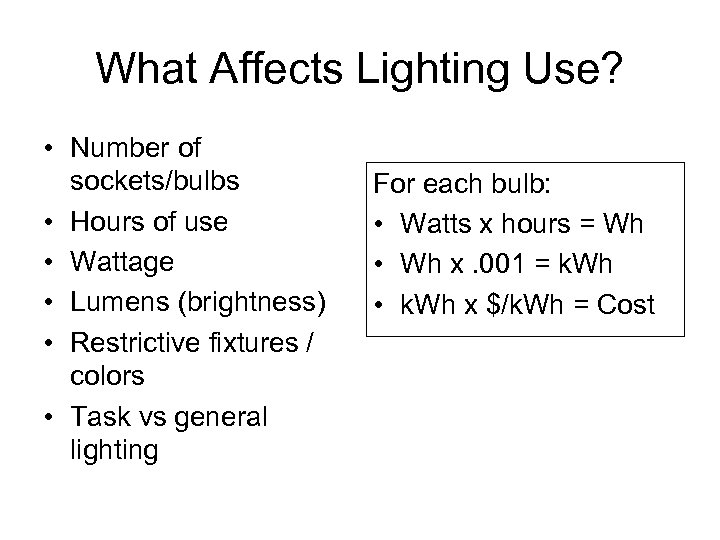

What Affects Lighting Use? • Number of sockets/bulbs • Hours of use • Wattage • Lumens (brightness) • Restrictive fixtures / colors • Task vs general lighting For each bulb: • Watts x hours = Wh • Wh x. 001 = k. Wh • k. Wh x $/k. Wh = Cost

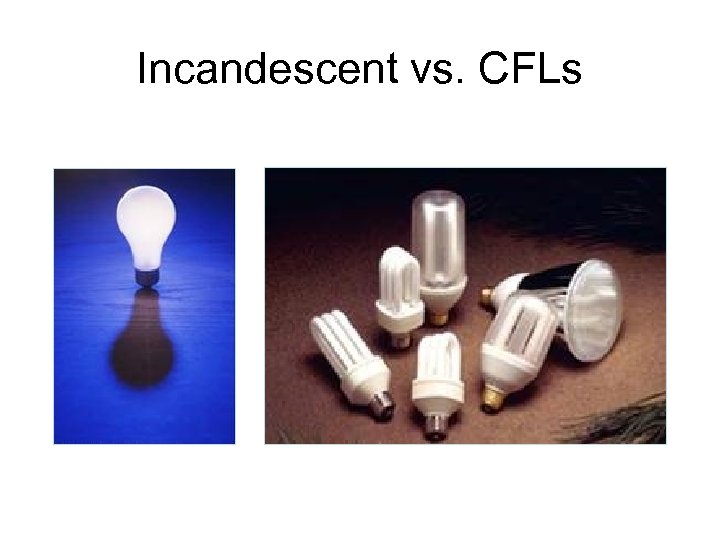

Incandescent vs. CFLs

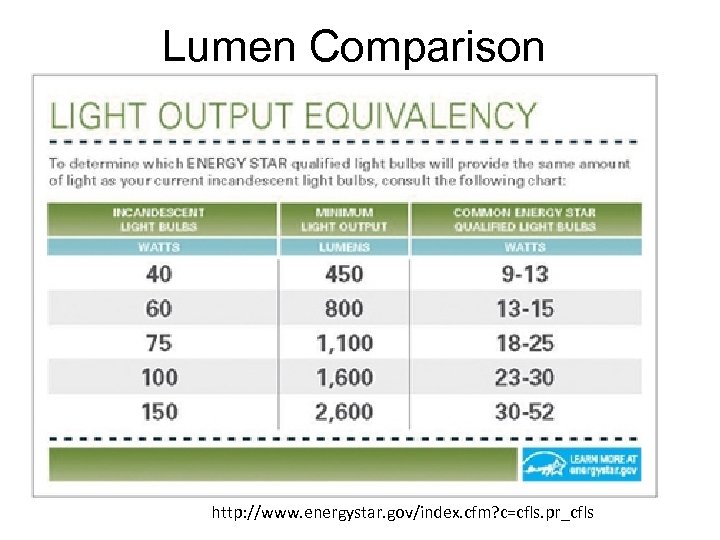

Lumen Comparison http: //www. energystar. gov/index. cfm? c=cfls. pr_cfls

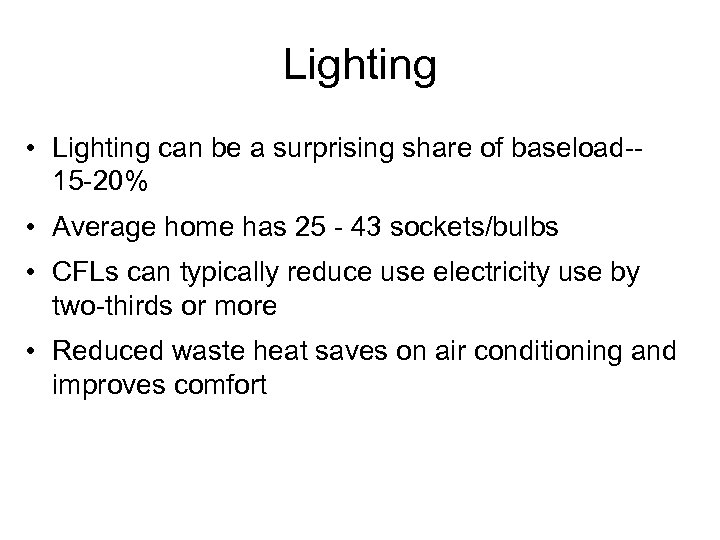

Lighting • Lighting can be a surprising share of baseload-15 -20% • Average home has 25 - 43 sockets/bulbs • CFLs can typically reduce use electricity use by two-thirds or more • Reduced waste heat saves on air conditioning and improves comfort

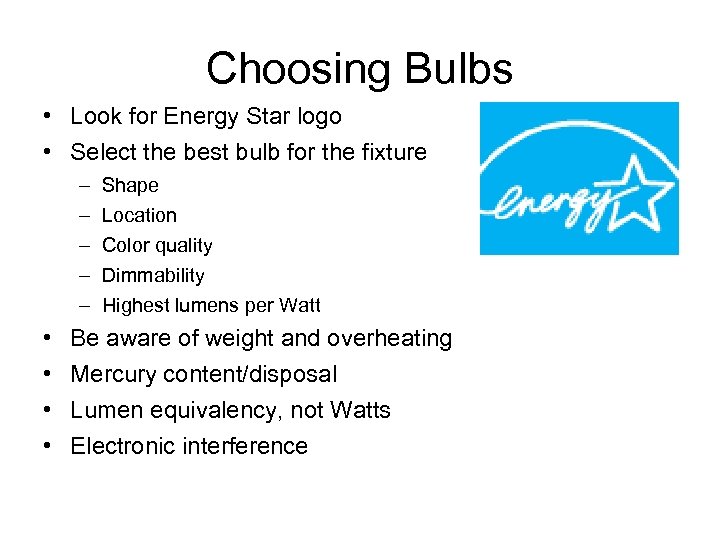

Choosing Bulbs • Look for Energy Star logo • Select the best bulb for the fixture – – – • • Shape Location Color quality Dimmability Highest lumens per Watt Be aware of weight and overheating Mercury content/disposal Lumen equivalency, not Watts Electronic interference

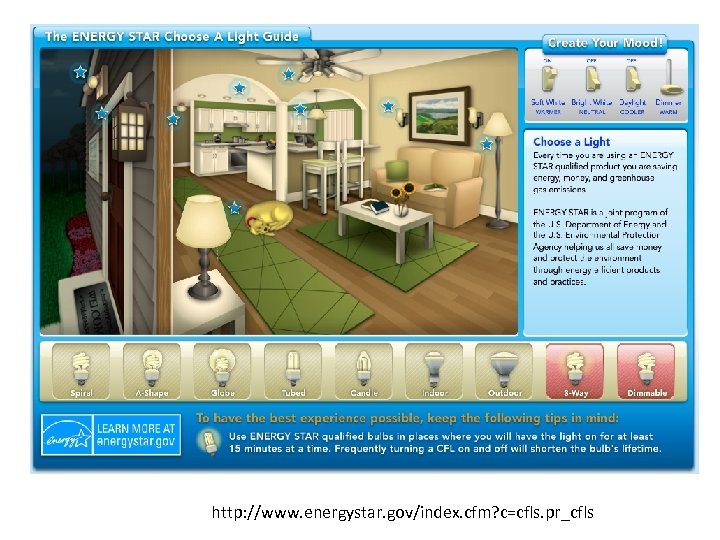

http: //www. energystar. gov/index. cfm? c=cfls. pr_cfls

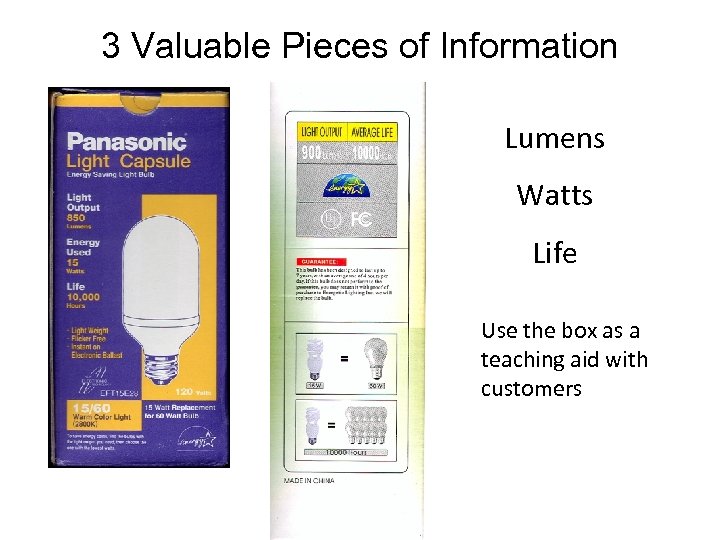

3 Valuable Pieces of Information Lumens Watts Life Use the box as a teaching aid with customers

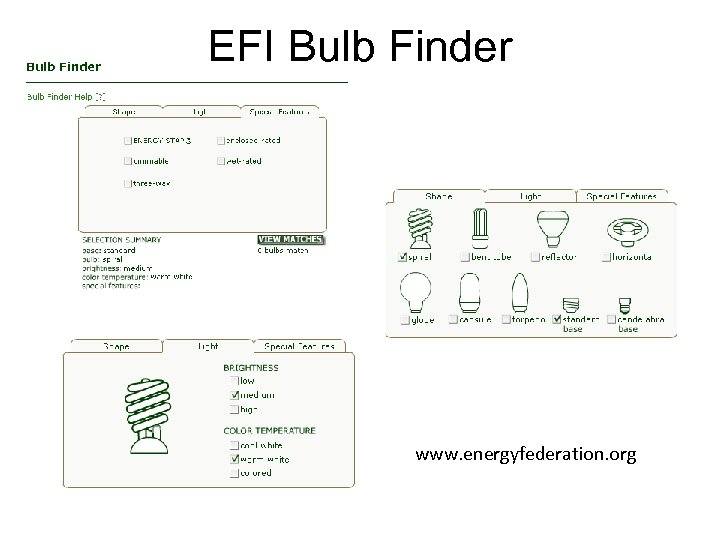

EFI Bulb Finder www. energyfederation. org

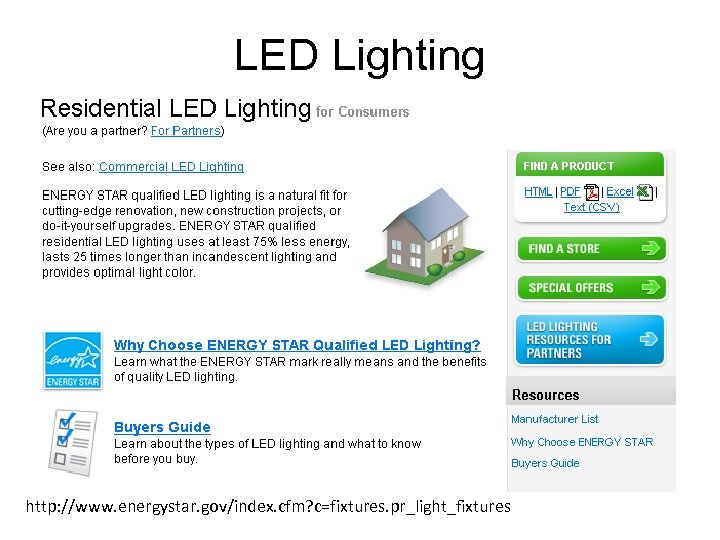

LED Lighting http: //www. energystar. gov/index. cfm? c=fixtures. pr_light_fixtures

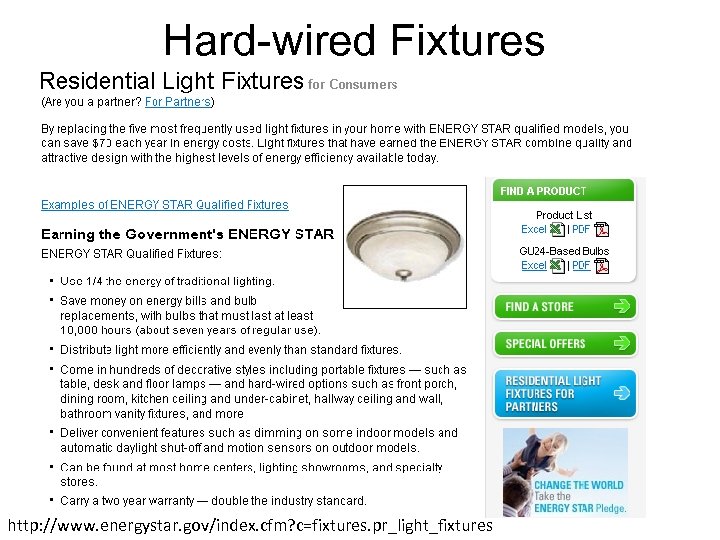

Hard-wired Fixtures http: //www. energystar. gov/index. cfm? c=fixtures. pr_light_fixtures

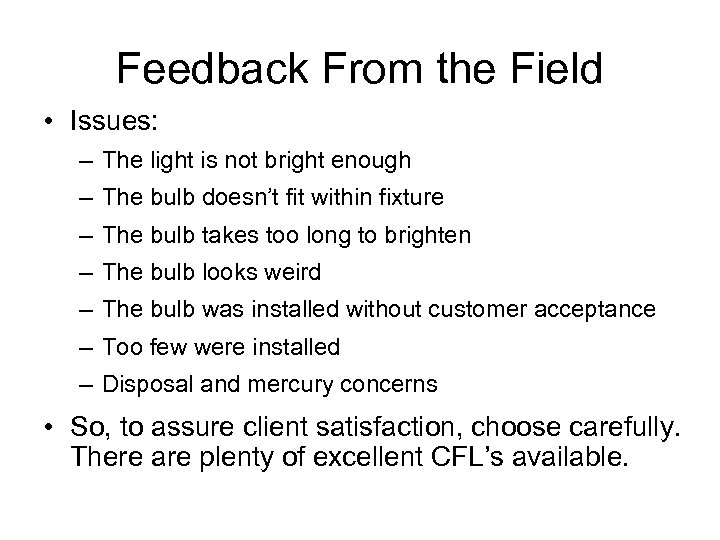

Feedback From the Field • Issues: – The light is not bright enough – The bulb doesn’t fit within fixture – The bulb takes too long to brighten – The bulb looks weird – The bulb was installed without customer acceptance – Too few were installed – Disposal and mercury concerns • So, to assure client satisfaction, choose carefully. There are plenty of excellent CFL’s available.

Baseload and Building Science One example: § Recessed lights are holes in the envelope, most of which leak air § Local hot spot enhances exfiltration forces § A 13 watt bulb increases air flow through a leaky can by 60% when it’s on, a 50 watt bulb by 170% and a 100 watt bulb by 400%! Larry Kinney, Synertech Systems Inc

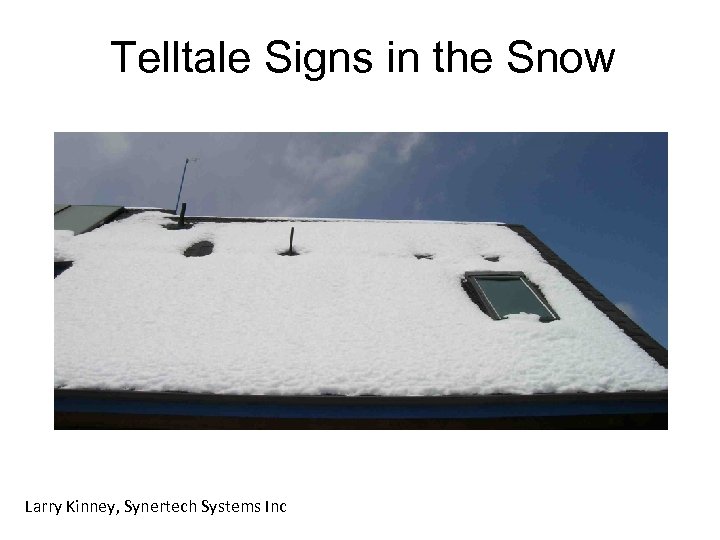

Telltale Signs in the Snow Larry Kinney, Synertech Systems Inc

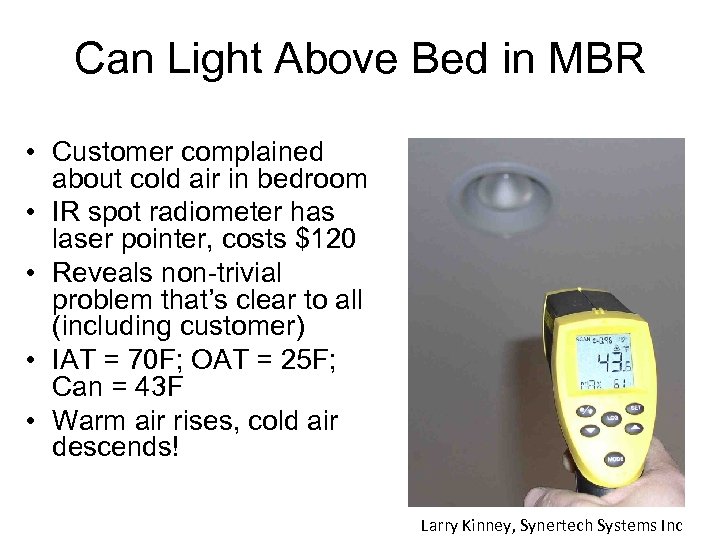

Can Light Above Bed in MBR • Customer complained about cold air in bedroom • IR spot radiometer has laser pointer, costs $120 • Reveals non-trivial problem that’s clear to all (including customer) • IAT = 70 F; OAT = 25 F; Can = 43 F • Warm air rises, cold air descends! Larry Kinney, Synertech Systems Inc

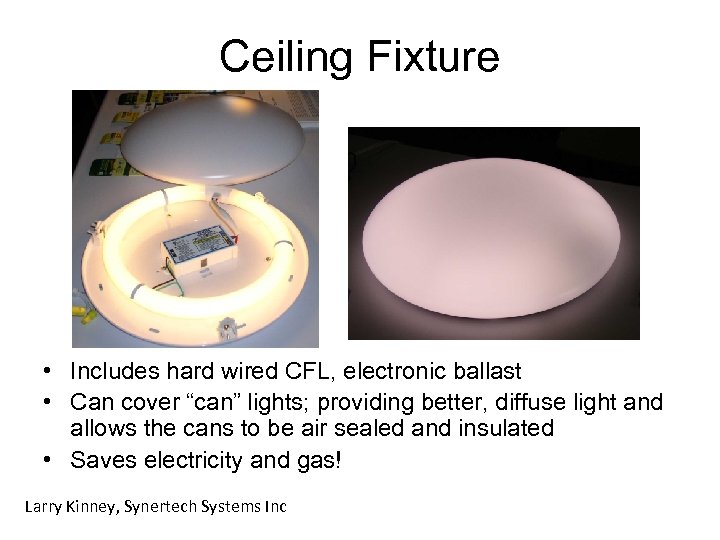

Ceiling Fixture • Includes hard wired CFL, electronic ballast • Can cover “can” lights; providing better, diffuse light and allows the cans to be air sealed and insulated • Saves electricity and gas! Larry Kinney, Synertech Systems Inc

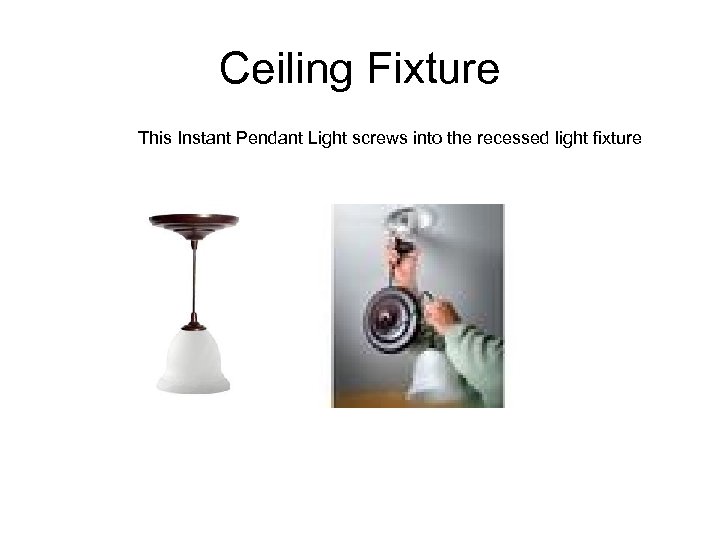

Ceiling Fixture This Instant Pendant Light screws into the recessed light fixture

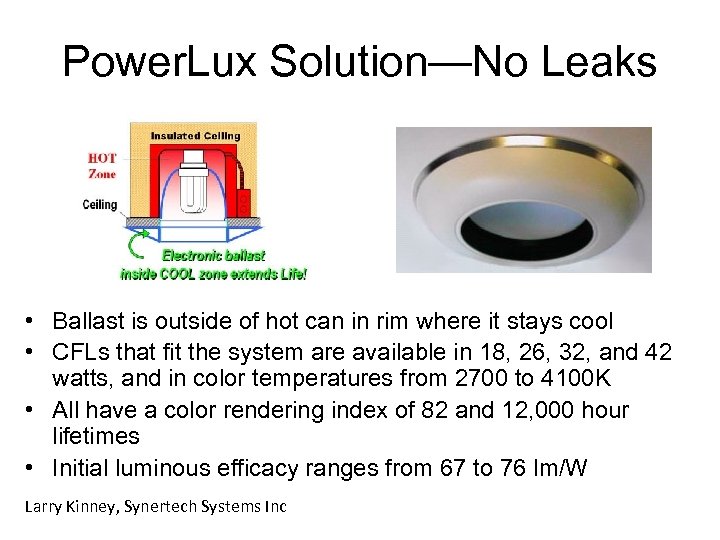

Power. Lux Solution—No Leaks • Ballast is outside of hot can in rim where it stays cool • CFLs that fit the system are available in 18, 26, 32, and 42 watts, and in color temperatures from 2700 to 4100 K • All have a color rendering index of 82 and 12, 000 hour lifetimes • Initial luminous efficacy ranges from 67 to 76 lm/W Larry Kinney, Synertech Systems Inc

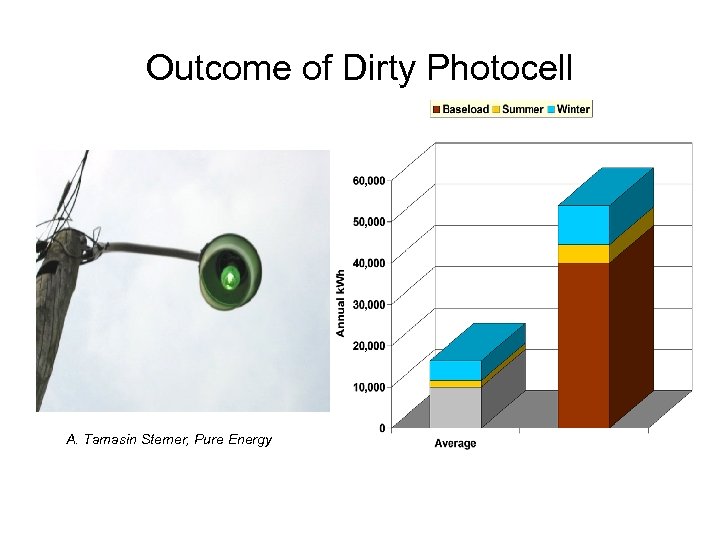

Outcome of Dirty Photocell A. Tamasin Sterner, Pure Energy

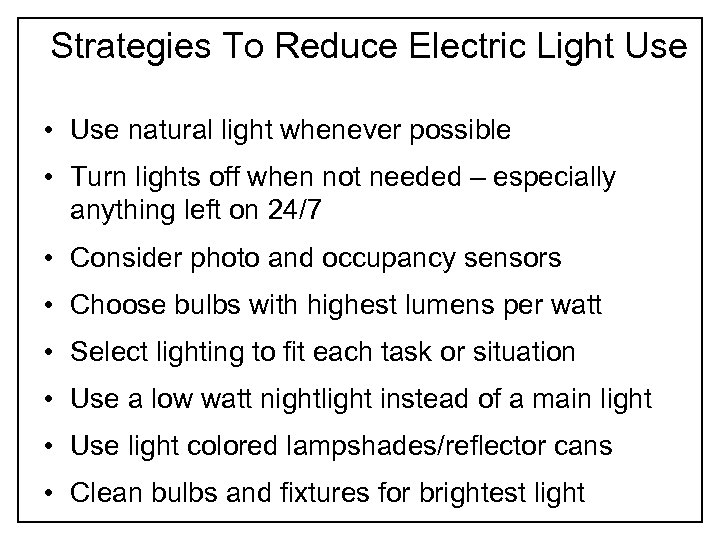

Strategies To Reduce Electric Light Use • Use natural light whenever possible • Turn lights off when not needed – especially anything left on 24/7 • Consider photo and occupancy sensors • Choose bulbs with highest lumens per watt • Select lighting to fit each task or situation • Use a low watt nightlight instead of a main light • Use light colored lampshades/reflector cans • Clean bulbs and fixtures for brightest light

GE Refrigerator circa 1934

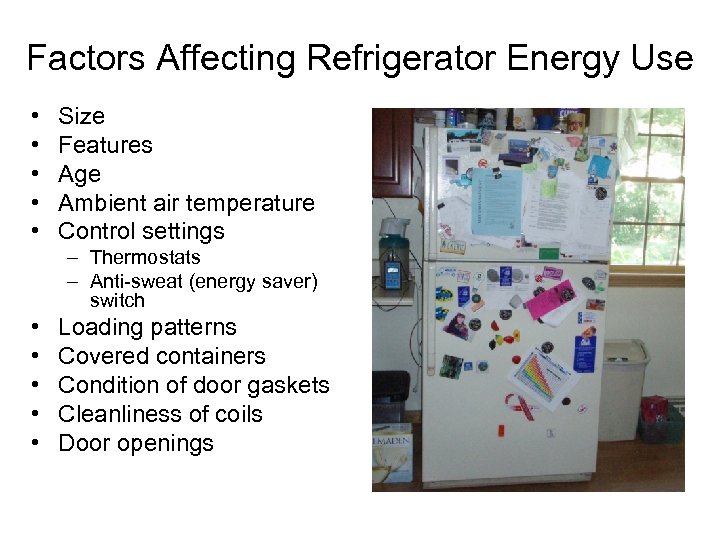

Factors Affecting Refrigerator Energy Use • • • Size Features Age Ambient air temperature Control settings – Thermostats – Anti-sweat (energy saver) switch • • • Loading patterns Covered containers Condition of door gaskets Cleanliness of coils Door openings

Safe and Efficient Temperatures Desired Temperatures: Fresh food: 36 -40°F Freezer: 0 -5°F • Measure temperatures in the middle of the fresh food and freezer compartments • Use standard or digital thermometers. A non-contact thermometer is not suitable for testing the temperatures inside refrigerators. http: //www. aham. org/ht/a/Get. Document. Action/i/844

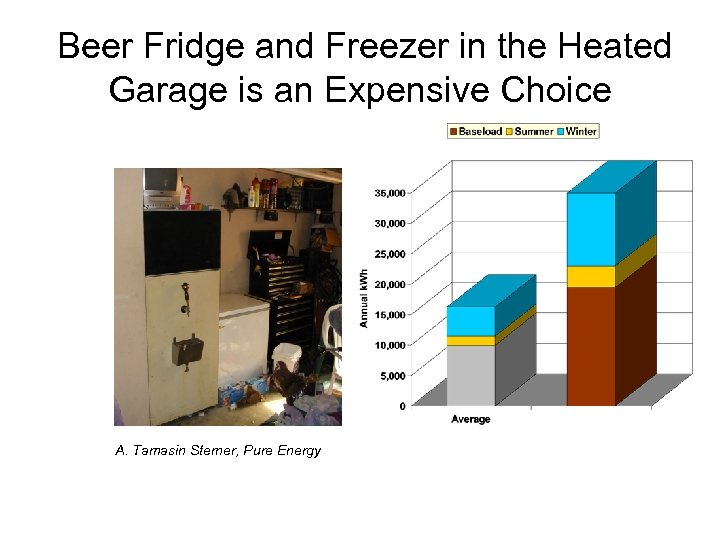

Beer Fridge and Freezer in the Heated Garage is an Expensive Choice A. Tamasin Sterner, Pure Energy

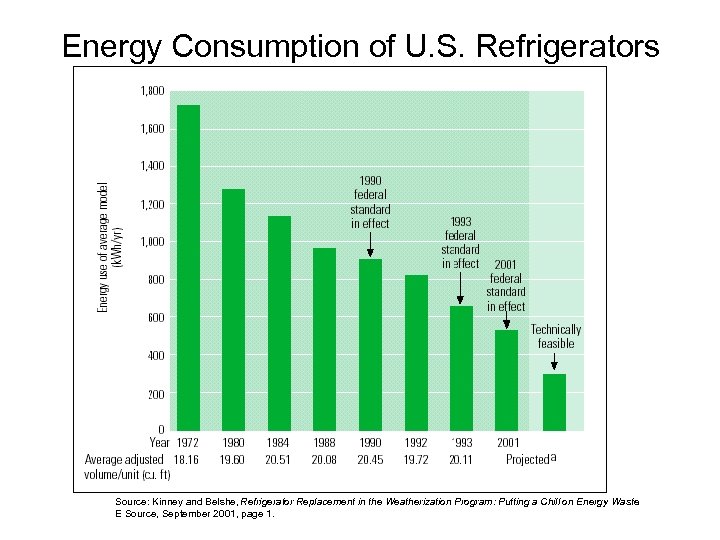

Energy Consumption of U. S. Refrigerators Source: Kinney and Belshe, Refrigerator Replacement in the Weatherization Program: Putting a Chill on Energy Waste. E Source, September 2001, page 1.

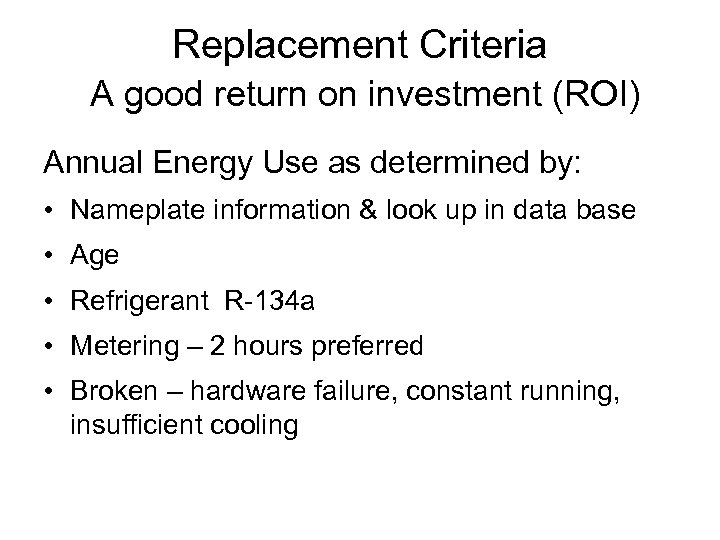

Replacement Criteria A good return on investment (ROI) Annual Energy Use as determined by: • Nameplate information & look up in data base • Age • Refrigerant R-134 a • Metering – 2 hours preferred • Broken – hardware failure, constant running, insufficient cooling

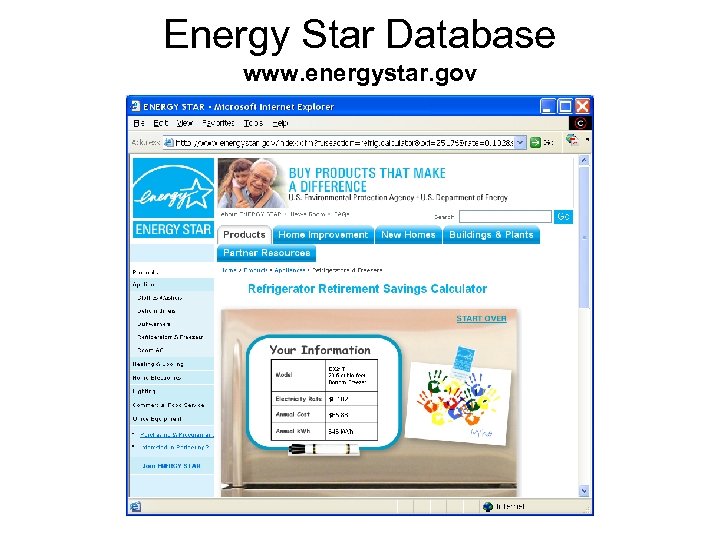

Energy Star Database www. energystar. gov

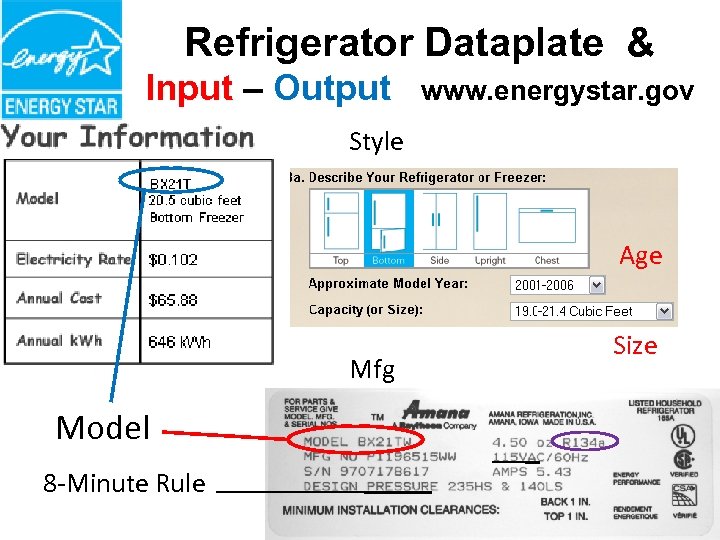

Refrigerator Dataplate & Input – Output www. energystar. gov Style Age Mfg Model 8 -Minute Rule Size

Calculating Payback Fridge/Freezer Removal k. Wh/yr x $/k. Wh = operating cost/year = annual Savings for removing unit Replacement Savings old op cost – new op cost = savings/yr Purchase Price / savings $/yr = simple payback in years and “Savings” = tax free income!

If You Meter Refrigerators Using the Brultech ECM-1200

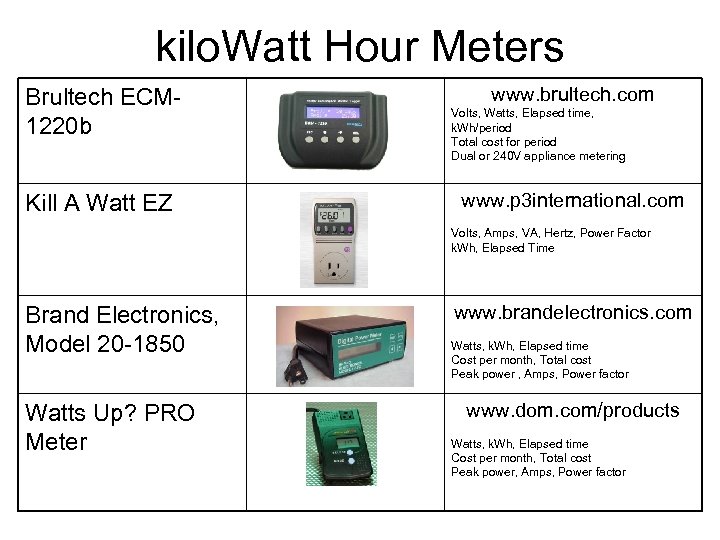

kilo. Watt Hour Meters Brultech ECM 1220 b Kill A Watt EZ www. brultech. com Volts, Watts, Elapsed time, k. Wh/period Total cost for period Dual or 240 V appliance metering www. p 3 international. com Volts, Amps, VA, Hertz, Power Factor k. Wh, Elapsed Time Brand Electronics, Model 20 -1850 Watts Up? PRO Meter www. brandelectronics. com Watts, k. Wh, Elapsed time Cost per month, Total cost Peak power , Amps, Power factor www. dom. com/products Watts, k. Wh, Elapsed time Cost per month, Total cost Peak power, Amps, Power factor

Refrigerator Testing Tips • If you interrupt a compressor cycle, wait 8 minutes before plugging it back in • If door is closed and you still have 40 W on the meter, perhaps the door switch is broken or the anti-sweat heater is running • The usual running range (compressor on) is 200400 Watts. Newer refrigerators draw about 150 Watts • Watch for defrost periods (~400 Watts) • Unplug a refrigerator to clean the coils

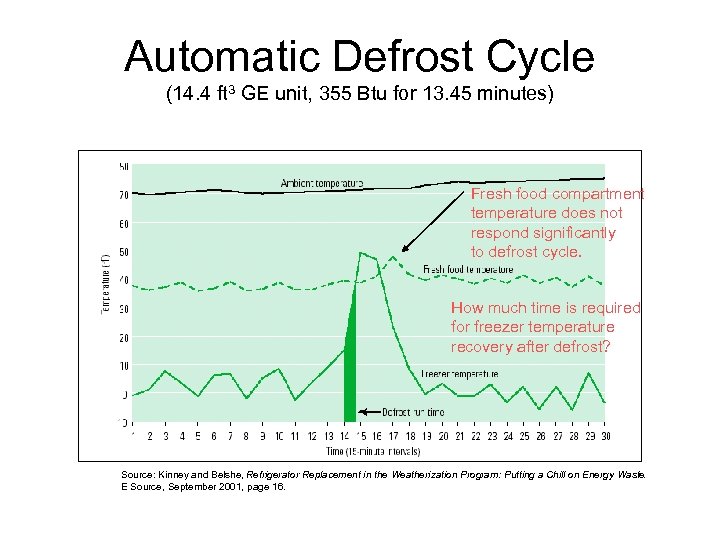

Automatic Defrost Cycle (14. 4 ft 3 GE unit, 355 Btu for 13. 45 minutes) Fresh food compartment temperature does not respond significantly to defrost cycle. How much time is required for freezer temperature recovery after defrost? Source: Kinney and Belshe, Refrigerator Replacement in the Weatherization Program: Putting a Chill on Energy Waste. E Source, September 2001, page 16.

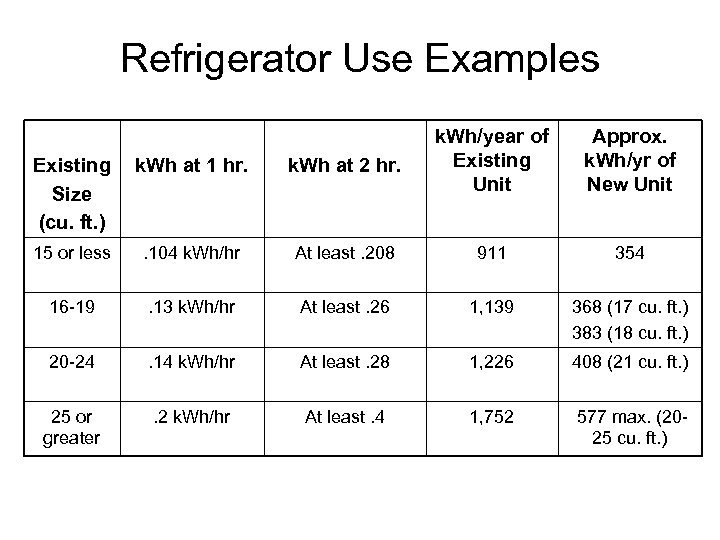

Refrigerator Use Examples Existing k. Wh at 1 hr. Size (cu. ft. ) k. Wh at 2 hr. k. Wh/year of Existing Unit Approx. k. Wh/yr of New Unit 15 or less . 104 k. Wh/hr At least. 208 911 354 16 -19 . 13 k. Wh/hr At least. 26 1, 139 368 (17 cu. ft. ) 383 (18 cu. ft. ) 20 -24 . 14 k. Wh/hr At least. 28 1, 226 408 (21 cu. ft. ) 25 or greater . 2 k. Wh/hr At least. 4 1, 752 577 max. (2025 cu. ft. )

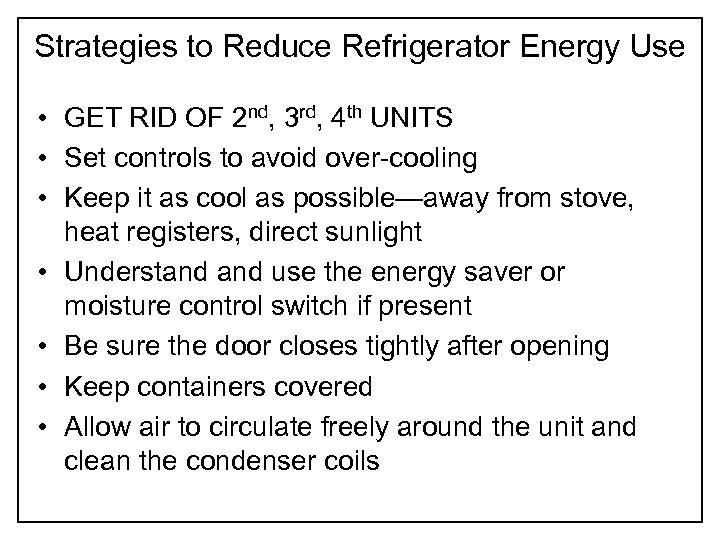

Strategies to Reduce Refrigerator Energy Use • GET RID OF 2 nd, 3 rd, 4 th UNITS • Set controls to avoid over-cooling • Keep it as cool as possible—away from stove, heat registers, direct sunlight • Understand use the energy saver or moisture control switch if present • Be sure the door closes tightly after opening • Keep containers covered • Allow air to circulate freely around the unit and clean the condenser coils

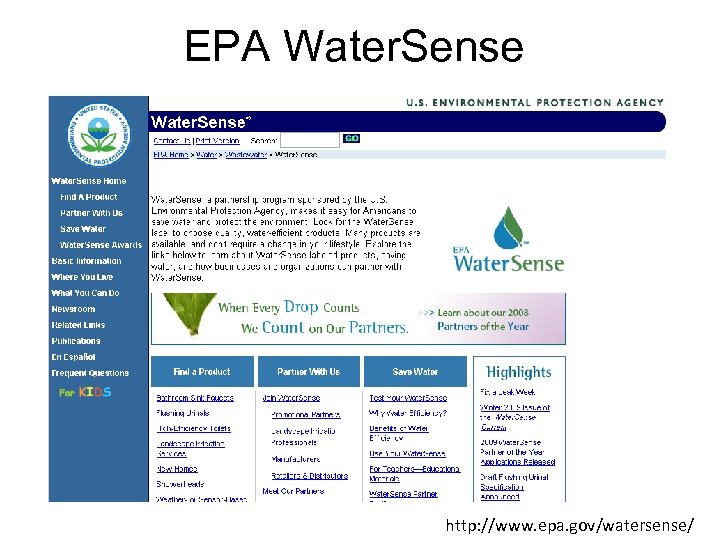

EPA Water. Sense http: //www. epa. gov/watersense/

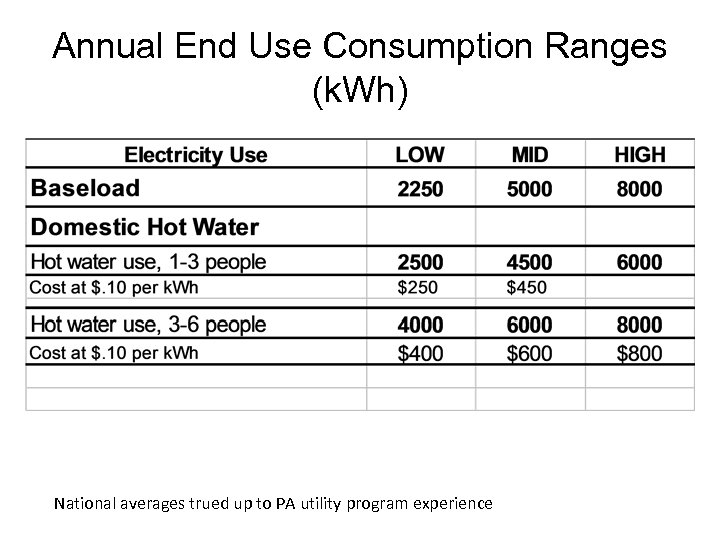

Annual End Use Consumption Ranges (k. Wh) National averages trued up to PA utility program experience

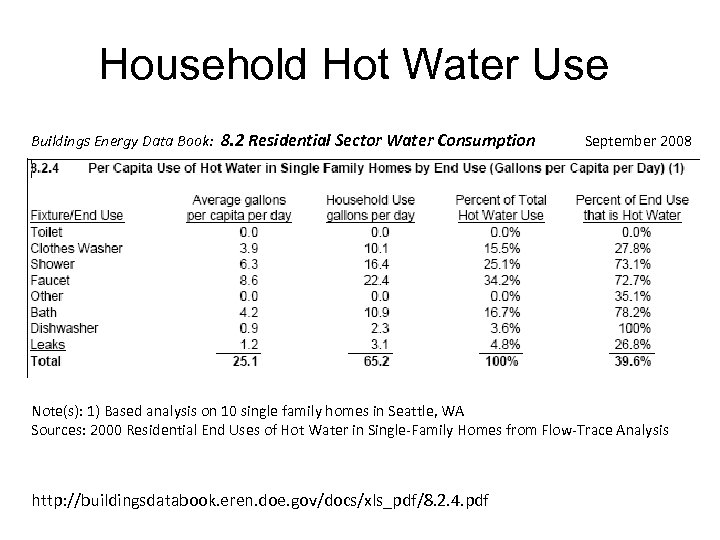

Household Hot Water Use Buildings Energy Data Book: 8. 2 Residential Sector Water Consumption September 2008 Note(s): 1) Based analysis on 10 single family homes in Seattle, WA Sources: 2000 Residential End Uses of Hot Water in Single-Family Homes from Flow-Trace Analysis http: //buildingsdatabook. eren. doe. gov/docs/xls_pdf/8. 2. 4. pdf

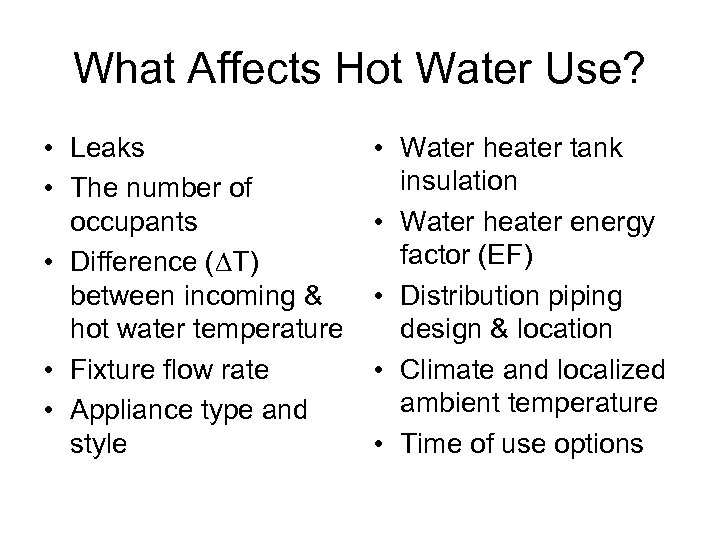

What Affects Hot Water Use? • Leaks • The number of occupants • Difference (∆T) between incoming & hot water temperature • Fixture flow rate • Appliance type and style • Water heater tank insulation • Water heater energy factor (EF) • Distribution piping design & location • Climate and localized ambient temperature • Time of use options

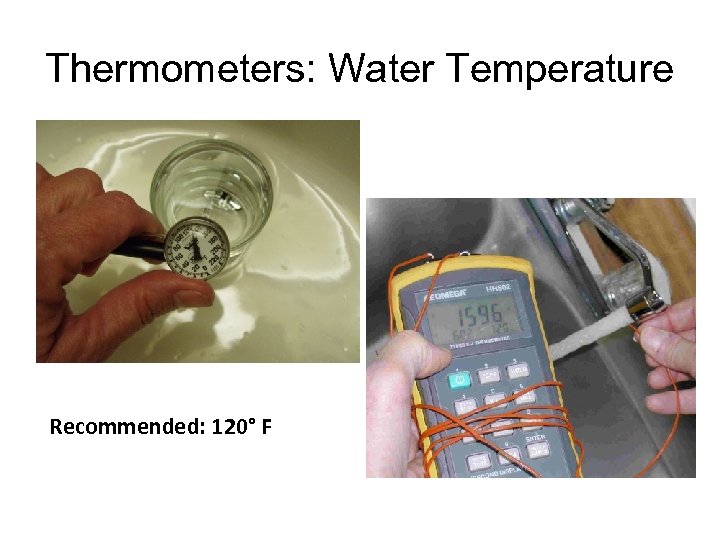

Thermometers: Water Temperature Recommended: 120° F

Too Hot Water is Dangerous Children and elderly people are at greater risk for injury

Water Temperature Setting for Clothes Washer (millions of households) Wash Cycle • Hot. . . . 6. 2 • Warm. . . . 49. 7 • Cold. . . . 28. 2 Rinse Cycle • Hot. . . . 1. 4 • Warm. . . . 16. 6 • Cold. . . . 66. 1 No Washing Machine. . . . 22. 9 Source: www. projectlaundrylist. org http: //www. eia. doe. gov/emeu/recs 2001/hc_pdf/usage/hc 6 -1 a_climate 2001. pdf

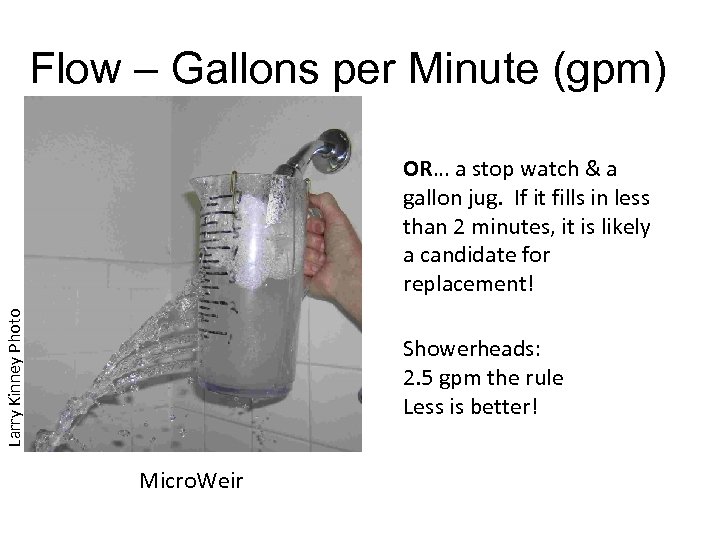

Flow – Gallons per Minute (gpm) Larry Kinney Photo OR… a stop watch & a gallon jug. If it fills in less than 2 minutes, it is likely a candidate for replacement! Showerheads: 2. 5 gpm the rule Less is better! Micro. Weir

Household Water Use – Not only Hot http: //www. energyfederation. org/consumer/default. php/c. Path/27

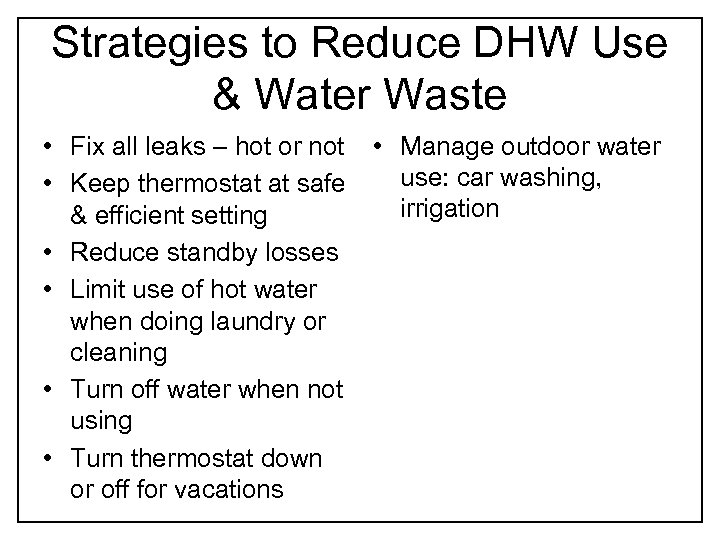

Strategies to Reduce DHW Use & Water Waste • Fix all leaks – hot or not • Keep thermostat at safe & efficient setting • Reduce standby losses • Limit use of hot water when doing laundry or cleaning • Turn off water when not using • Turn thermostat down or off for vacations • Manage outdoor water use: car washing, irrigation

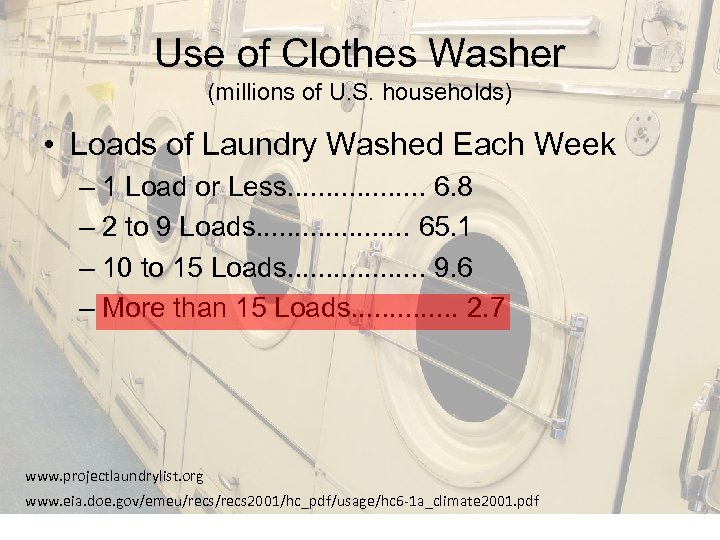

Use of Clothes Washer (millions of U. S. households) • Loads of Laundry Washed Each Week – 1 Load or Less. . . . 6. 8 – 2 to 9 Loads. . . . . 65. 1 – 10 to 15 Loads. . . . 9. 6 – More than 15 Loads. . . 2. 7 www. projectlaundrylist. org www. eia. doe. gov/emeu/recs 2001/hc_pdf/usage/hc 6 -1 a_climate 2001. pdf

Use of Clothes Dryer (millions of U. S. households) • Use a Clothes Dryer. . . . 78. 8 – Every Time Clothes are Washed. . . 63. 5 – Some, but not All, Loads. . . . 12. 7 – Used Infrequently. . . . 2. 7 • No Clothes Dryer. . . . 28. 2 www. projectlaundrylist. org www. eia. doe. gov/emeu/recs 2001/hc_pdf/usage/hc 6 -1 a_climate 2001. pdf

www. projectlaundrylist. org Dryers are responsible for 6 -10% of domestic electricity use.

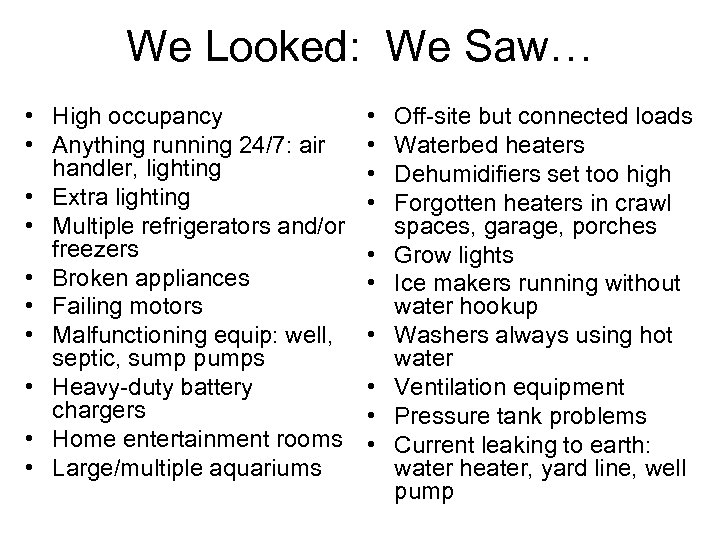

We Looked: We Saw… • High occupancy • Anything running 24/7: air handler, lighting • Extra lighting • Multiple refrigerators and/or freezers • Broken appliances • Failing motors • Malfunctioning equip: well, septic, sump pumps • Heavy-duty battery chargers • Home entertainment rooms • Large/multiple aquariums • • • Off-site but connected loads Waterbed heaters Dehumidifiers set too high Forgotten heaters in crawl spaces, garage, porches Grow lights Ice makers running without water hookup Washers always using hot water Ventilation equipment Pressure tank problems Current leaking to earth: water heater, yard line, well pump

Example: Cost of Operation • Airhandler fans on 24/7 (@400 -600 W) 500 W x 24 hours x 365 days x. 001 k. W/W = 4, 380 k. Wh/yr @$. 10 = $438 per year Ceiling fans, too if on 24/7 • Radon exhaust fans. EPA IAQ house standards require them in attached garages. (@80 -125 W) 100 W x 8760 hrs/yr x. 001 k. W/W = 876 k. Wh/yr @ $. 10 = $88 per year

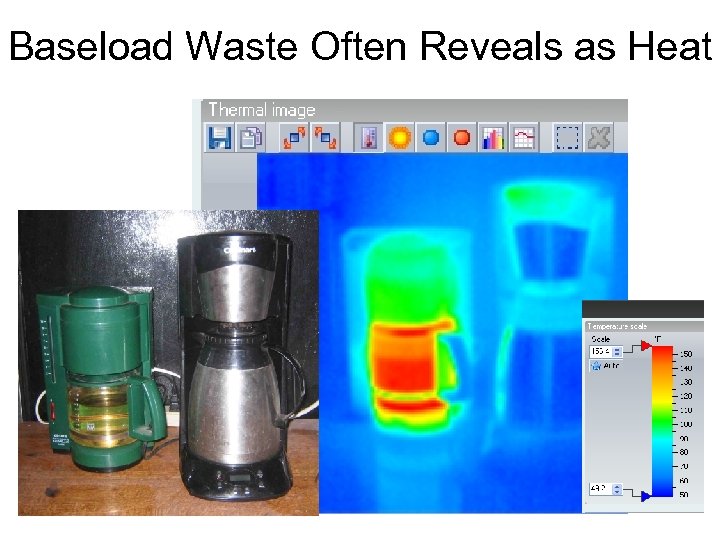

Baseload Waste Often Reveals as Heat

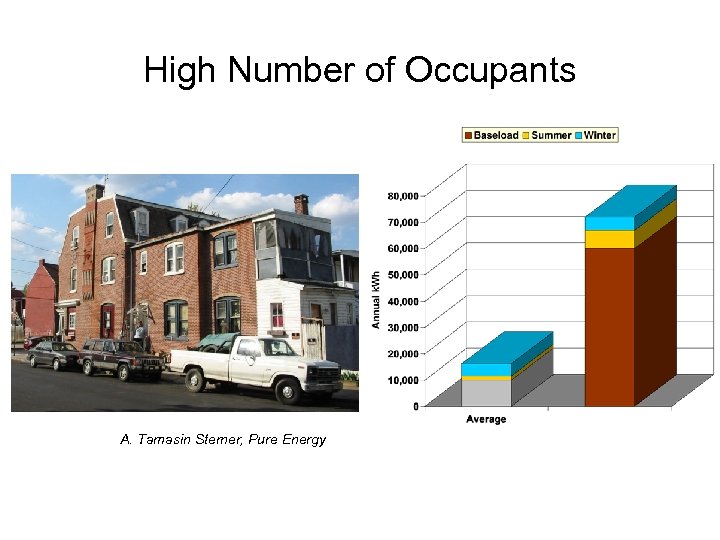

High Number of Occupants A. Tamasin Sterner, Pure Energy

Influencing Change • Identify all possible opportunities to save • Put costs on operations and equipment use • Recognize what customer cares about and will/won’t do • Focus on biggest users • Prioritize where you spend your time • Present only options that make sense and offer a return on investment

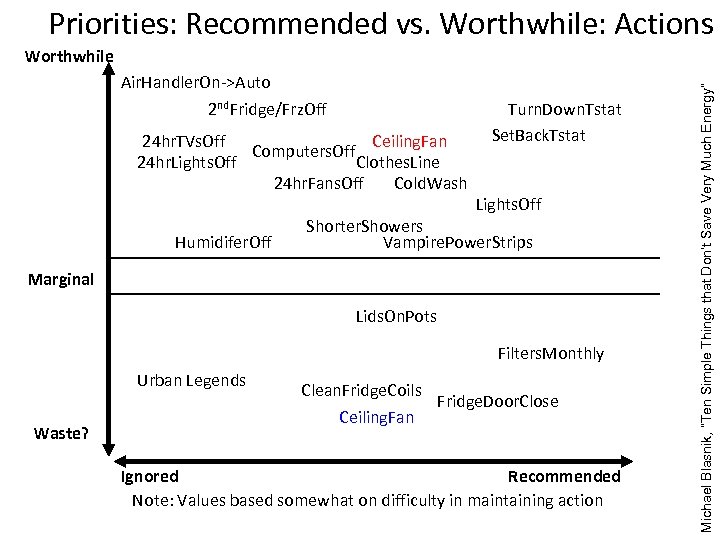

Priorities: Recommended vs. Worthwhile: Actions Air. Handler. On->Auto 2 nd. Fridge/Frz. Off 24 hr. TVs. Off Ceiling. Fan Computers. Off 24 hr. Lights. Off Clothes. Line 24 hr. Fans. Off Cold. Wash Humidifer. Off Turn. Down. Tstat Set. Back. Tstat Lights. Off Shorter. Showers Vampire. Power. Strips Marginal Lids. On. Pots Filters. Monthly Urban Legends Waste? Clean. Fridge. Coils Fridge. Door. Close Ceiling. Fan Ignored Recommended Note: Values based somewhat on difficulty in maintaining action Michael Blasnik, “Ten Simple Things that Don’t Save Very Much Energy” Worthwhile

Baseload is a Waste & Pollution Issue • Over a five year period, an incandescent bulb uses electricity equal to 10 mg of mercury emissions from a coalfired plant. • A CFL may contain 1 - 4 mg of mercury, but “uses” only 2. 4 mg of emissions from electricity. • Mercury in a CFL is contained and is recycled with proper disposal*. Once out of the smokestack mercury is uncontrollable. • Electricity generated from coal-fired plants is only 33% efficient at the plug. The rest of the source energy is “wasted” in generation, transmission, & distribution losses. * www. Earth 911. org U. S. EAP 2002

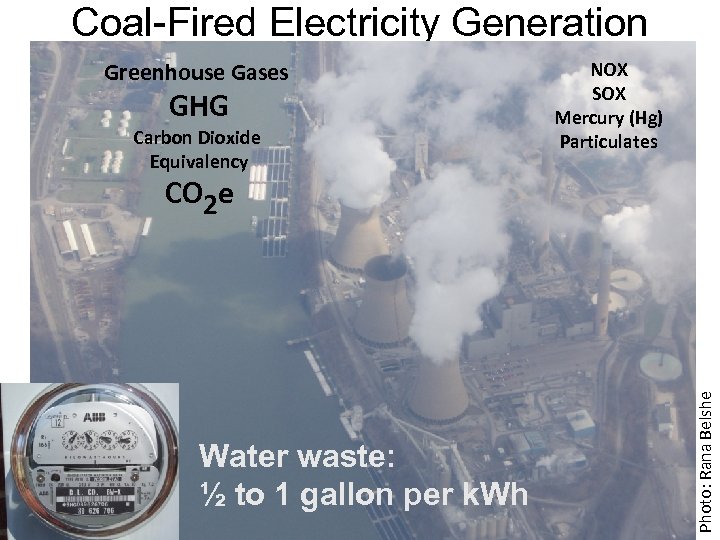

Coal-Fired Electricity Generation Greenhouse Gases GHG Carbon Dioxide Equivalency NOX SOX Mercury (Hg) Particulates Water waste: ½ to 1 gallon per k. Wh Photo: Rana Belshe CO 2 e

Feedback Welcome! A. Tamasin Sterner www. pureenergyaudits. com Thanks to: Larry Kinney www. synertechsystems. com Rick Karg www. karg. com Rana Belshe 715 -334 -2707 ranabelshe@centurytel. net

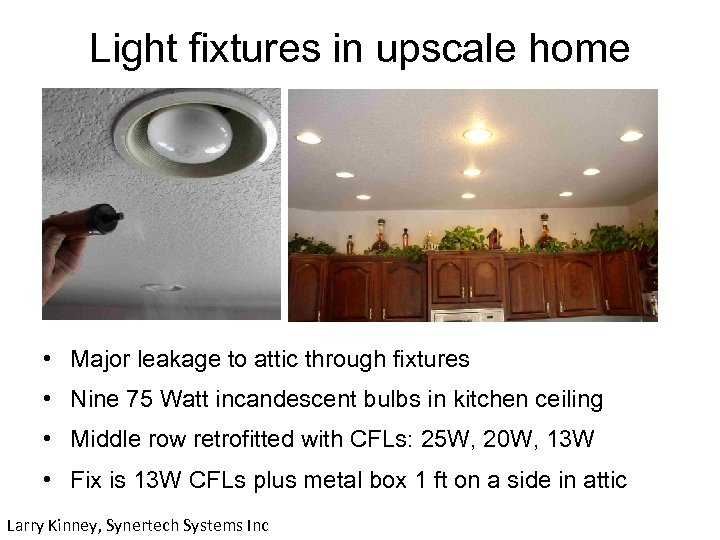

Light fixtures in upscale home • Major leakage to attic through fixtures • Nine 75 Watt incandescent bulbs in kitchen ceiling • Middle row retrofitted with CFLs: 25 W, 20 W, 13 W • Fix is 13 W CFLs plus metal box 1 ft on a side in attic Larry Kinney, Synertech Systems Inc
