ELEC-E 7410 Communication Transmission Lines Introduction Digital Dividend

ELEC-E 7410 Communication Transmission Lines Introduction: §“Digital Dividend”, 4 G/Long Term Evolution (LTE) and coexistence with Cable Networks § Gauss’s Law, Ampere´s Law, Faraday´s Law and § Maxwell´s Equations and Wave Equations § Telegraphic Equations Lecture 11 April 2016 / Lauri Halme 1

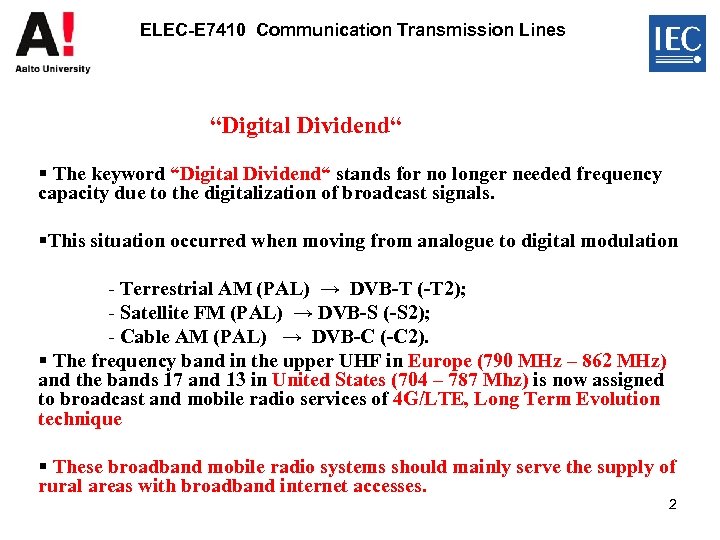

ELEC-E 7410 Communication Transmission Lines “Digital Dividend“ § The keyword “Digital Dividend“ stands for no longer needed frequency capacity due to the digitalization of broadcast signals. §This situation occurred when moving from analogue to digital modulation - Terrestrial AM (PAL) → DVB-T (-T 2); - Satellite FM (PAL) → DVB-S (-S 2); - Cable AM (PAL) → DVB-C (-C 2). § The frequency band in the upper UHF in Europe (790 MHz – 862 MHz) and the bands 17 and 13 in United States (704 – 787 Mhz) is now assigned to broadcast and mobile radio services of 4 G/LTE, Long Term Evolution technique § These broadband mobile radio systems should mainly serve the supply of rural areas with broadband internet accesses. 2

ELEC-E 7410 Communication Transmission Lines § §The co-existence of broadcast transmissions via terrestrial and cable networks and the new mobile radio services in the same frequency bands may cause disturbances due to in-sufficient*) Electromagnetic screening or shielding (EMC) characteristics of: - TV sets, STB etc. - Cable networks in total - Active and passive cable network equipment - Coaxial cables - Receiver leads (coaxial cable assemblies) - Too high transmitter power of LTE base stations and cell-phones - Too small distance between “broadcast” and LTE equipment (especially in-house and in-home!) § Urgent research and standardisation are needed! *) Not applying to relevant standards 3

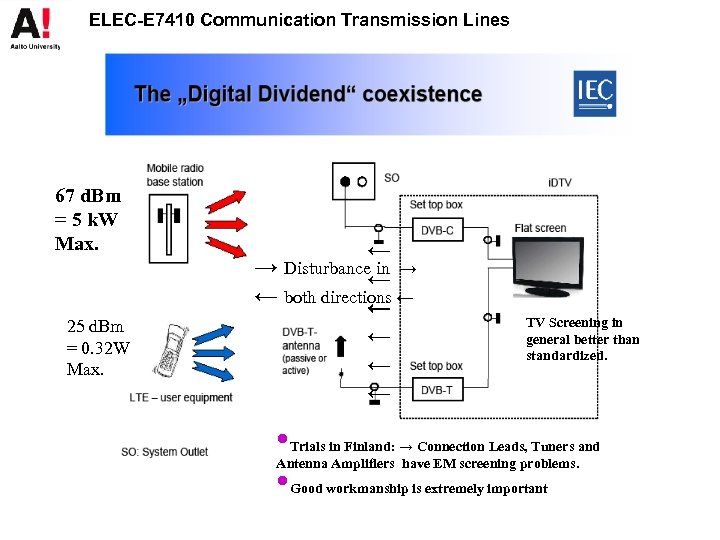

ELEC-E 7410 Communication Transmission Lines 67 d. Bm = 5 k. W Max. . 25 d. Bm = 0. 32 W Max. ← → Disturbance← → in ← both directions ← ← ← • • TV Screening in general better than standardized. Trials in Finland: → Connection Leads, Tuners and Antenna Amplifiers have EM screening problems. Good workmanship is extremely important 4

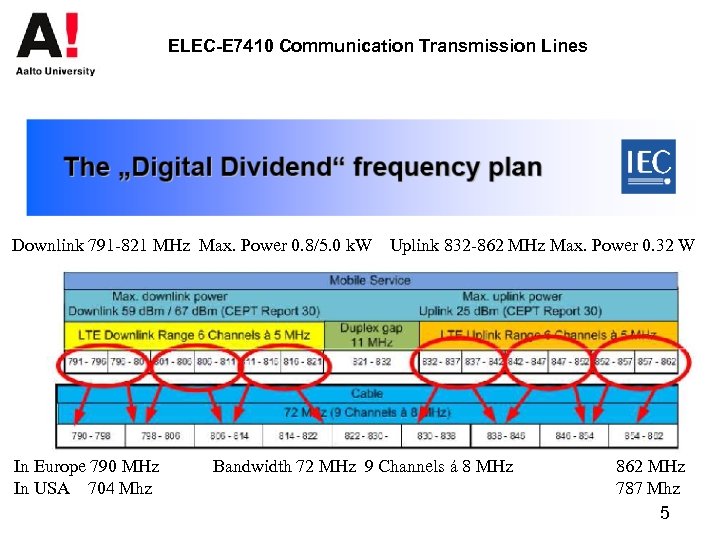

ELEC-E 7410 Communication Transmission Lines Downlink 791 -821 MHz Max. Power 0. 8/5. 0 k. W Uplink 832 -862 MHz Max. Power 0. 32 W . In Europe 790 MHz In USA 704 Mhz Bandwidth 72 MHz 9 Channels á 8 MHz 862 MHz 787 Mhz 4 5 5

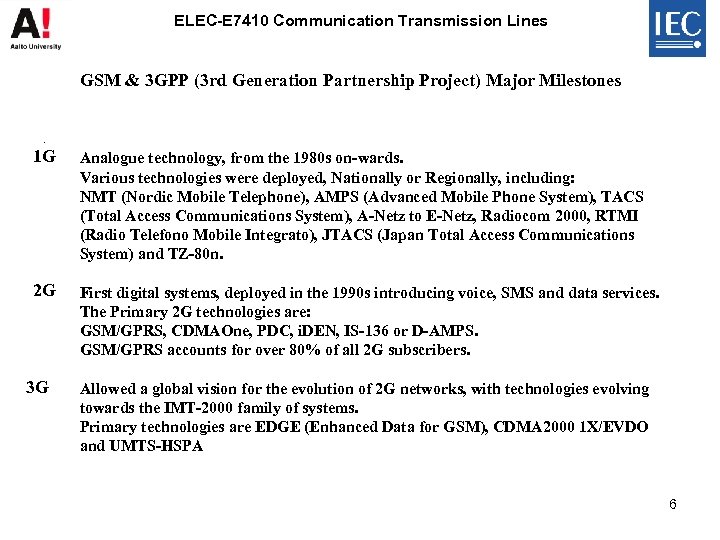

ELEC-E 7410 Communication Transmission Lines GSM & 3 GPP (3 rd Generation Partnership Project) Major Milestones . 1 G Analogue technology, from the 1980 s on-wards. Various technologies were deployed, Nationally or Regionally, including: NMT (Nordic Mobile Telephone), AMPS (Advanced Mobile Phone System), TACS (Total Access Communications System), A-Netz to E-Netz, Radiocom 2000, RTMI (Radio Telefono Mobile Integrato), JTACS (Japan Total Access Communications System) and TZ-80 n. 2 G First digital systems, deployed in the 1990 s introducing voice, SMS and data services. The Primary 2 G technologies are: GSM/GPRS, CDMAOne, PDC, i. DEN, IS-136 or D-AMPS. GSM/GPRS accounts for over 80% of all 2 G subscribers. 3 G Allowed a global vision for the evolution of 2 G networks, with technologies evolving towards the IMT-2000 family of systems. Primary technologies are EDGE (Enhanced Data for GSM), CDMA 2000 1 X/EVDO and UMTS-HSPA 6

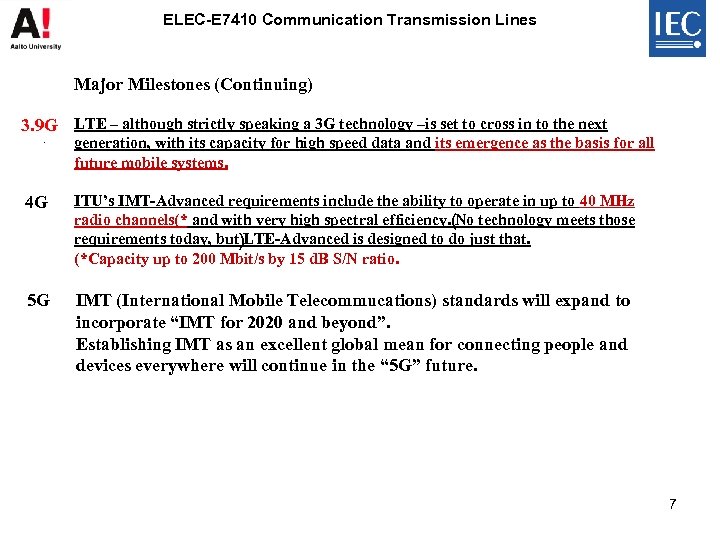

ELEC-E 7410 Communication Transmission Lines Major Milestones (Continuing) 3. 9 G LTE – although strictly speaking a 3 G technology –is set to cross in to the next . generation, with its capacity for high speed data and its emergence as the basis for all future mobile systems. 4 G ITU’s IMT-Advanced requirements include the ability to operate in up to 40 MHz radio channels(* and with very high spectral efficiency. No technology meets those ( requirements today, but LTE-Advanced is designed to do just that. ) (*Capacity up to 200 Mbit/s by 15 d. B S/N ratio. 5 G IMT (International Mobile Telecommucations) standards will expand to incorporate “IMT for 2020 and beyond”. Establishing IMT as an excellent global mean for connecting people and devices everywhere will continue in the “ 5 G” future. 7

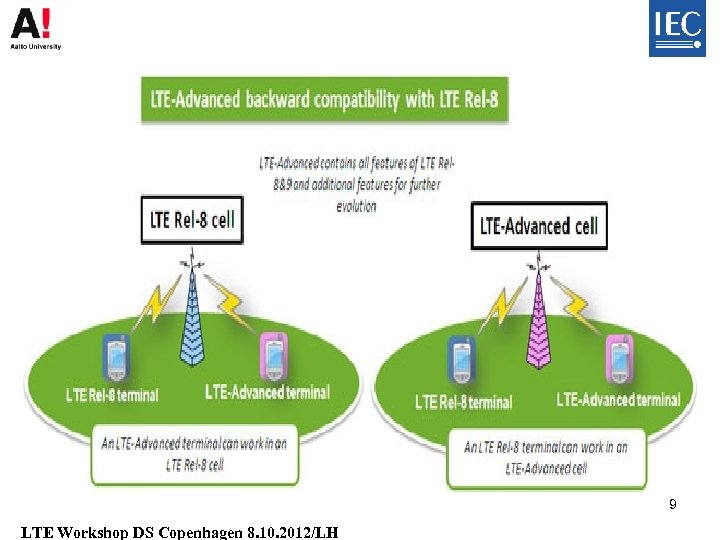

LTE Workshop DS Copenhagen 8. 10. 2012/LH 8

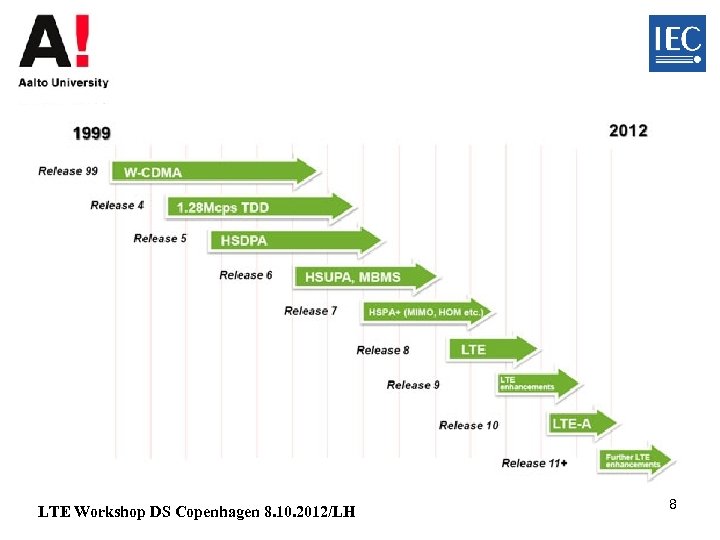

. 9 LTE Workshop DS Copenhagen 8. 10. 2012/LH

ELEC-E 7410 Communication Transmission Lines Network EMC and Cable Standards European Standard EN 50083, EN 50569 . EN 50228 and EN 50117 series International Standard Title or content of the European IEC 60728, IEC 61156 and IEC Standard 61196 series EN 50083 -2: 2012 IEC 60728 -2: 2002 Cable networks for television signals, sound signals and interactive services; Part 2: Electromagnetic compatibility (EMC) for equipment EN 50083 -8: 2002. IEC 60728 -12: 2001 (2013) Cable networks for television signals, sound signals and interactive services; Part 8: Electromagnetic compatibility (EMC) for networks Fpr. EN 50083 -8 accepted by 34 th TC 209 meeting in Berlin; under final preparation for UAP EN 50569 series --- Electromagnetic compatibility for transmission networks EN 50228 series IEC 61156 series “Symmetric Cables” EN 50117 series IEC 61196 series “Coaxial Cables” 10

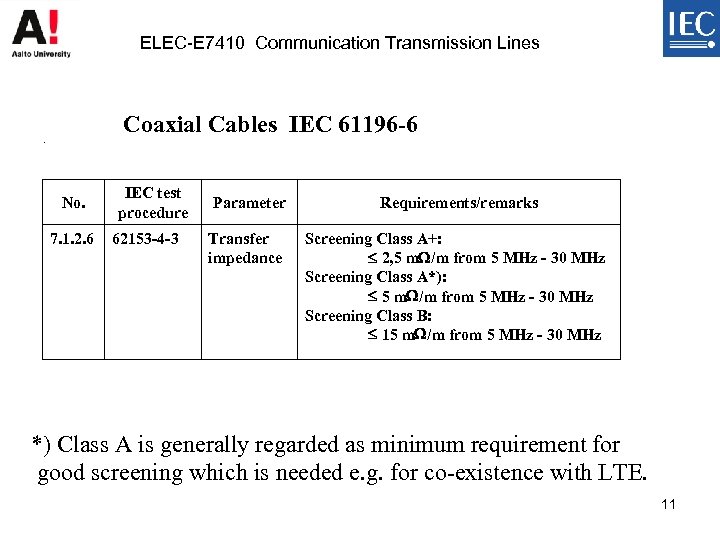

ELEC-E 7410 Communication Transmission Lines Coaxial Cables IEC 61196 -6 . No. 7. 1. 2. 6 IEC test procedure 62153 -4 -3 Parameter Requirements/remarks Transfer impedance Screening Class A+: 2, 5 m /m from 5 MHz - 30 MHz Screening Class A*): 5 m /m from 5 MHz - 30 MHz Screening Class B: 15 m /m from 5 MHz - 30 MHz *) Class A is generally regarded as minimum requirement for good screening which is needed e. g. for co-existence with LTE. 11

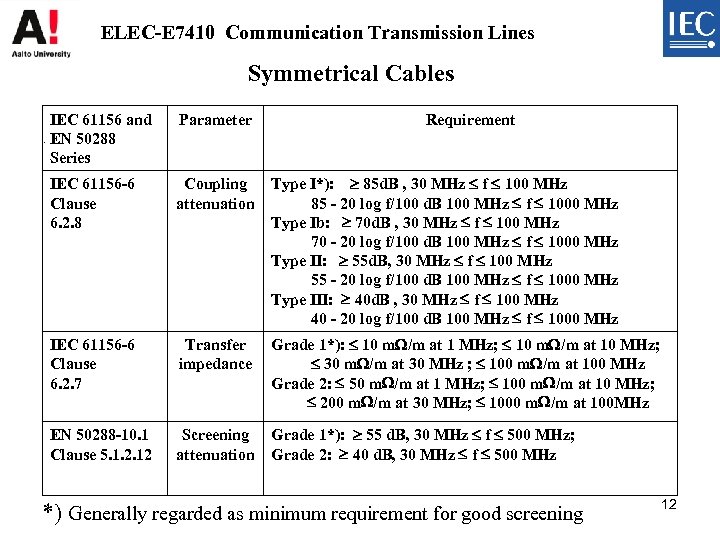

ELEC-E 7410 Communication Transmission Lines Symmetrical Cables IEC 61156 and . EN 50288 Series Parameter Requirement IEC 61156 -6 Clause 6. 2. 8 Coupling Type I*): 85 d. B , 30 MHz f 100 MHz attenuation 85 - 20 log f/100 d. B 100 MHz f 1000 MHz Type Ib: 70 d. B , 30 MHz f 100 MHz 70 - 20 log f/100 d. B 100 MHz f 1000 MHz Type II: 55 d. B, 30 MHz f 100 MHz 55 - 20 log f/100 d. B 100 MHz f 1000 MHz Type III: 40 d. B , 30 MHz f 100 MHz 40 - 20 log f/100 d. B 100 MHz f 1000 MHz IEC 61156 -6 Clause 6. 2. 7 Transfer impedance Grade 1*): 10 m /m at 1 MHz; 10 m /m at 10 MHz; 30 m /m at 30 MHz ; 100 m /m at 100 MHz Grade 2: 50 m /m at 1 MHz; 100 m /m at 10 MHz; 200 m /m at 30 MHz; 1000 m /m at 100 MHz EN 50288 -10. 1 Clause 5. 1. 2. 12 Screening attenuation Grade 1*): 55 d. B, 30 MHz f 500 MHz; Grade 2: 40 d. B, 30 MHz f 500 MHz *) Generally regarded as minimum requirement for good screening 12

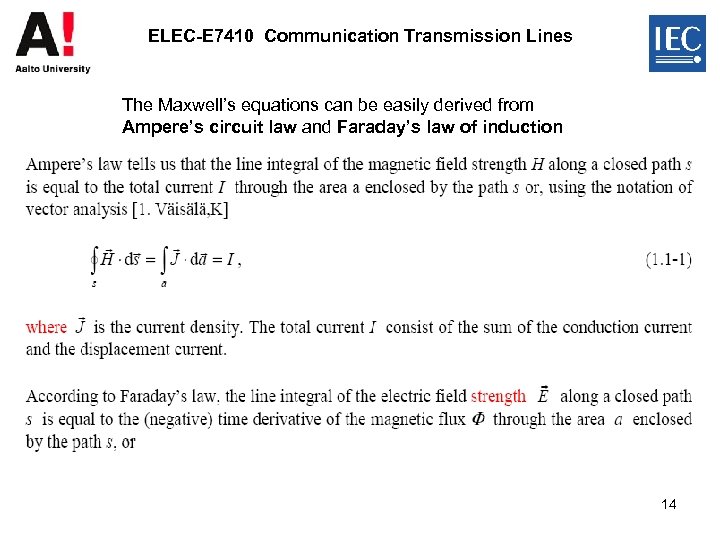

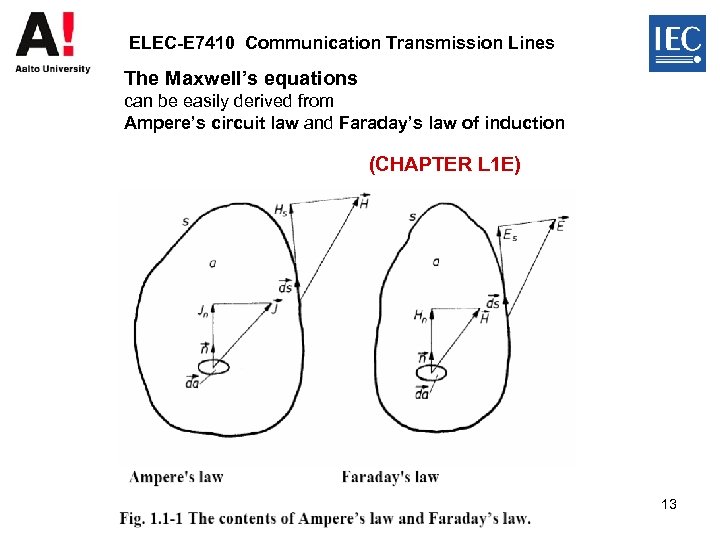

ELEC-E 7410 Communication Transmission Lines The Maxwell’s equations can be easily derived from Ampere’s circuit law and Faraday’s law of induction (CHAPTER L 1 E) 13

ELEC-E 7410 Communication Transmission Lines The Maxwell’s equations can be easily derived from Ampere’s circuit law and Faraday’s law of induction (Continues CHAPTER L 1 E) 14

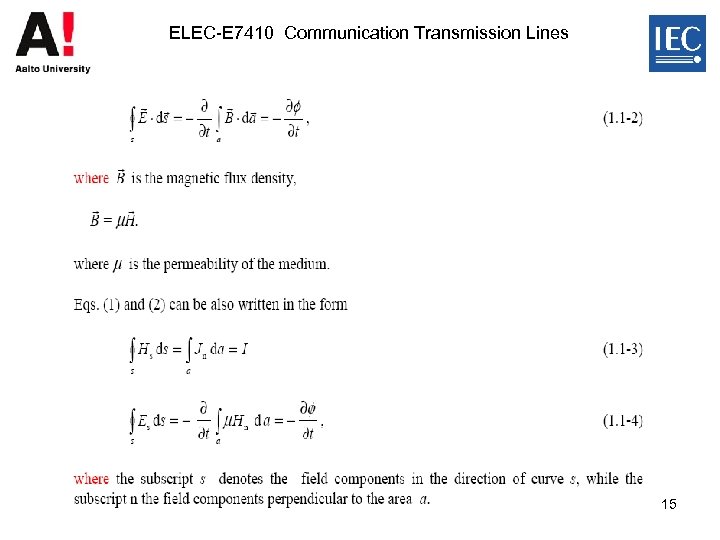

ELEC-E 7410 Communication Transmission Lines 15

ELEC-E 7410 Communication Transmission Lines 16

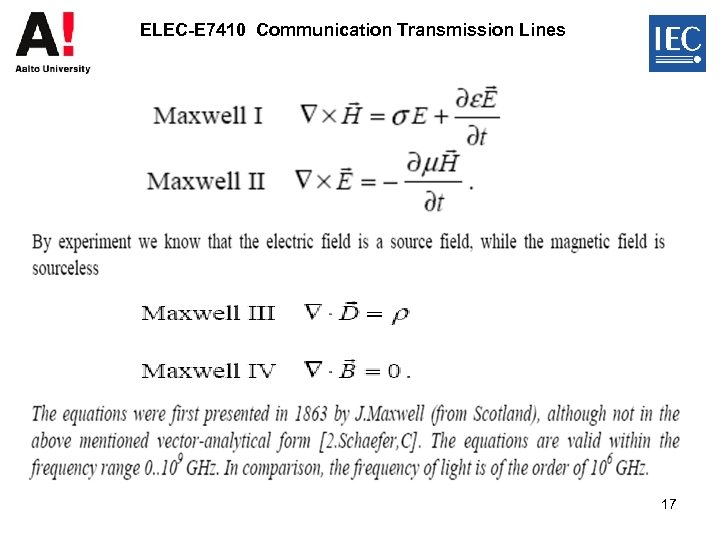

ELEC-E 7410 Communication Transmission Lines 17

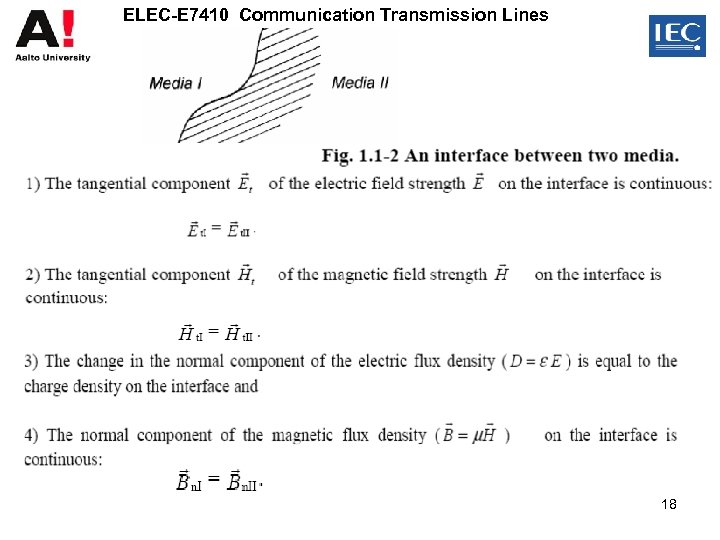

ELEC-E 7410 Communication Transmission Lines 18

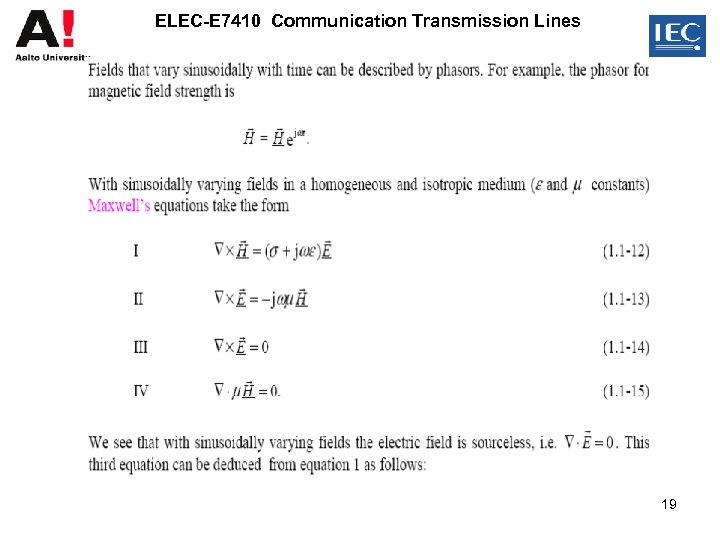

ELEC-E 7410 Communication Transmission Lines 19

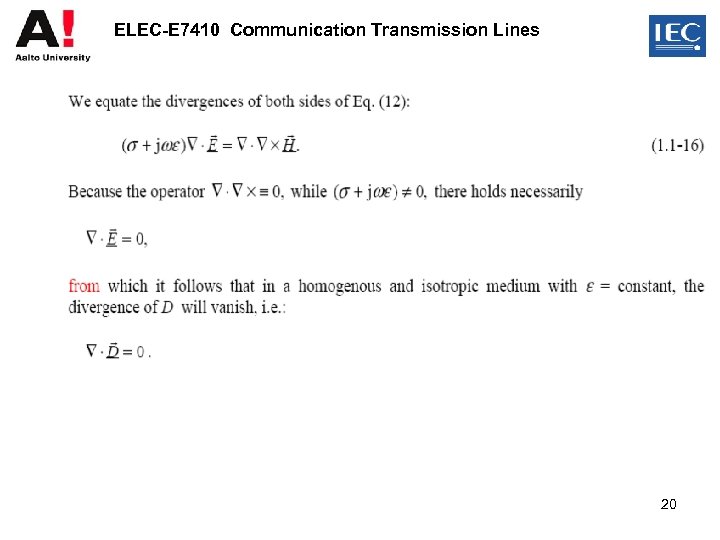

ELEC-E 7410 Communication Transmission Lines 20

ELEC-E 7410 Communication Transmission Lines 21

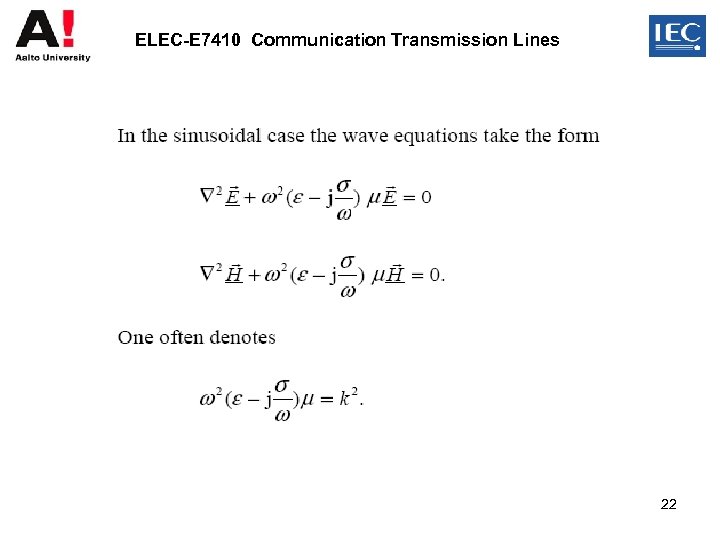

ELEC-E 7410 Communication Transmission Lines 22

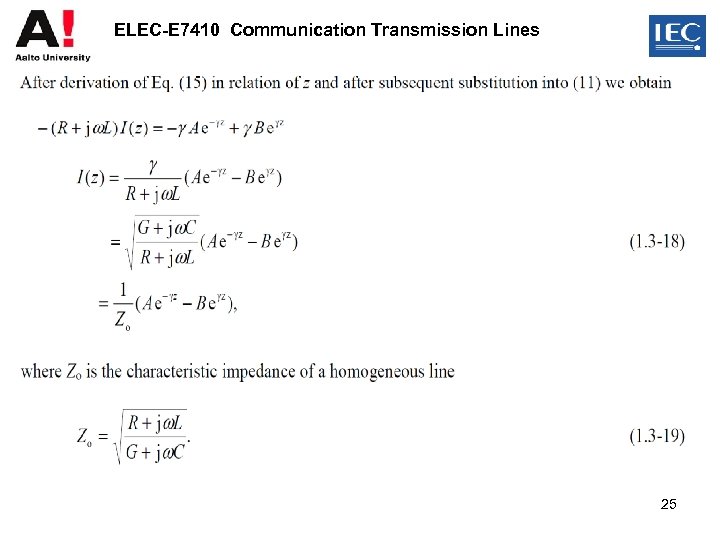

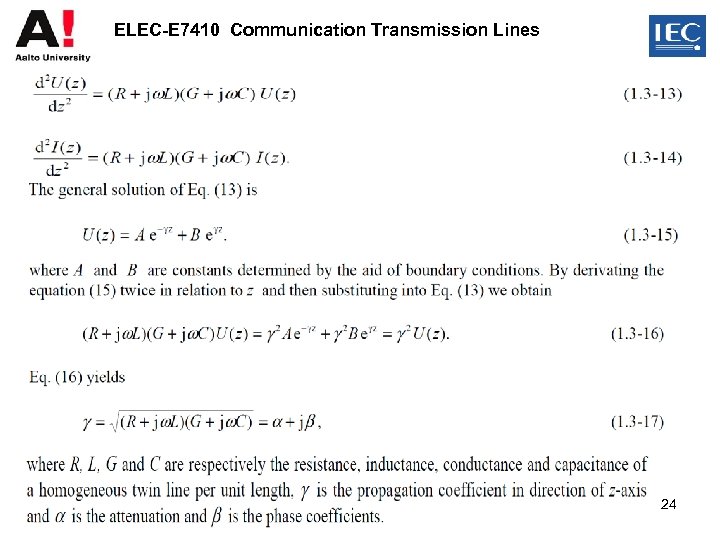

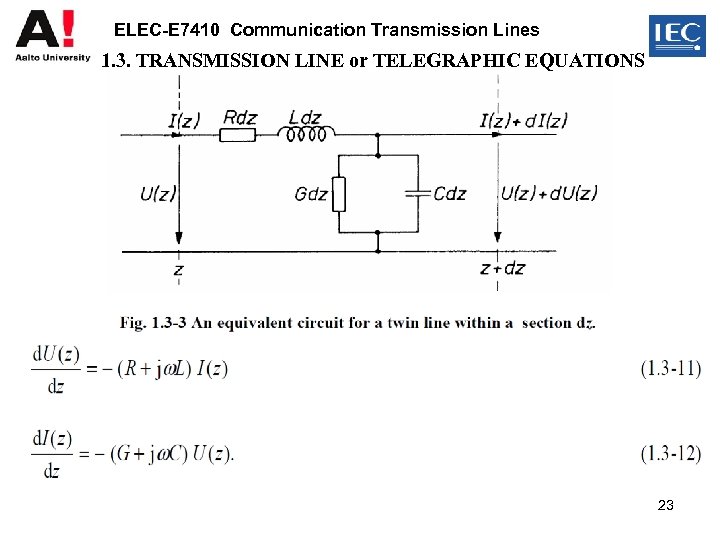

ELEC-E 7410 Communication Transmission Lines 1. 3. TRANSMISSION LINE or TELEGRAPHIC EQUATIONS 23

ELEC-E 7410 Communication Transmission Lines 24

ELEC-E 7410 Communication Transmission Lines 25

ELEC-E 7410 Communication Transmission Lines 26

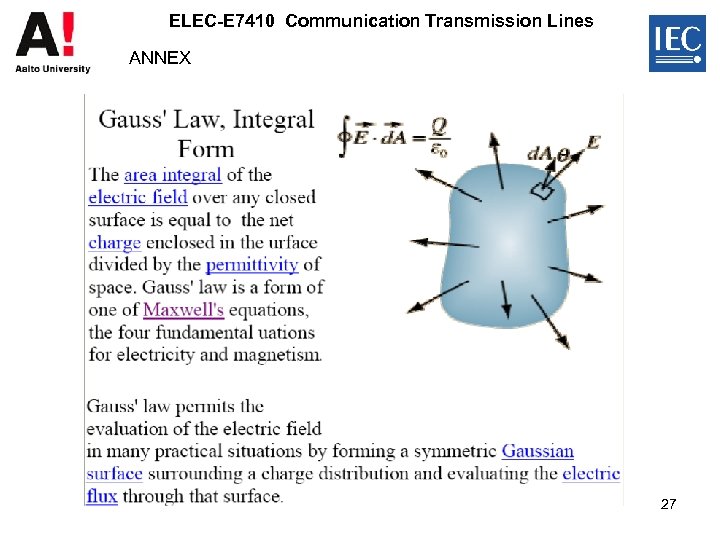

ELEC-E 7410 Communication Transmission Lines ANNEX 27

28

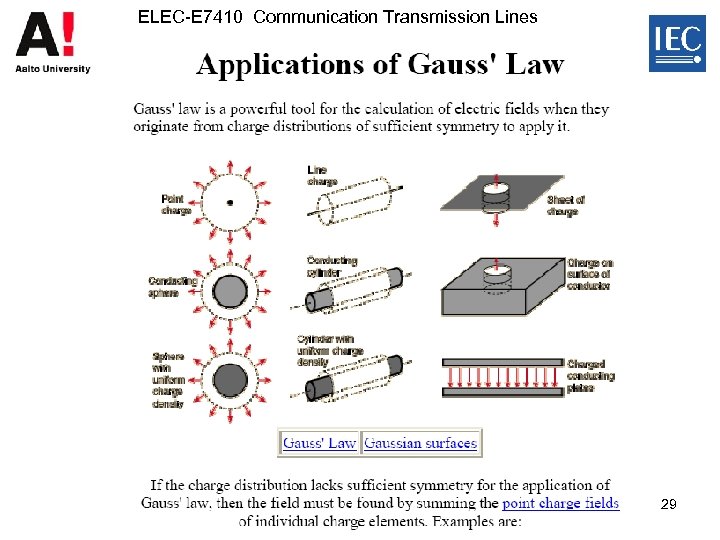

ELEC-E 7410 Communication Transmission Lines 29

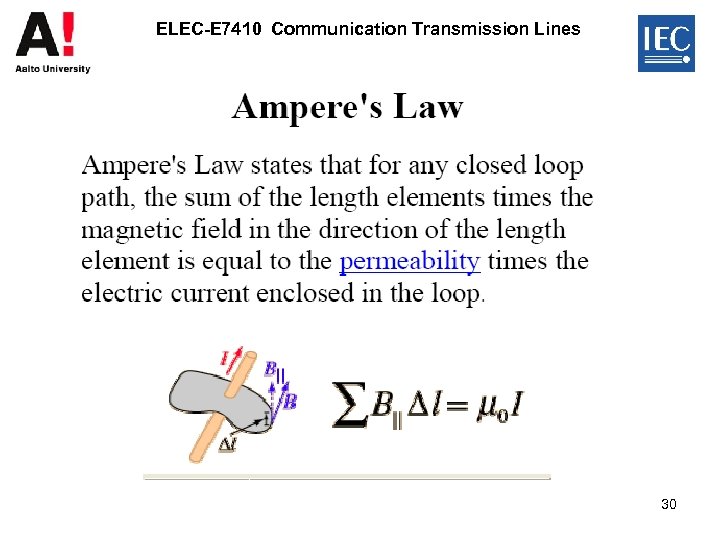

ELEC-E 7410 Communication Transmission Lines 30

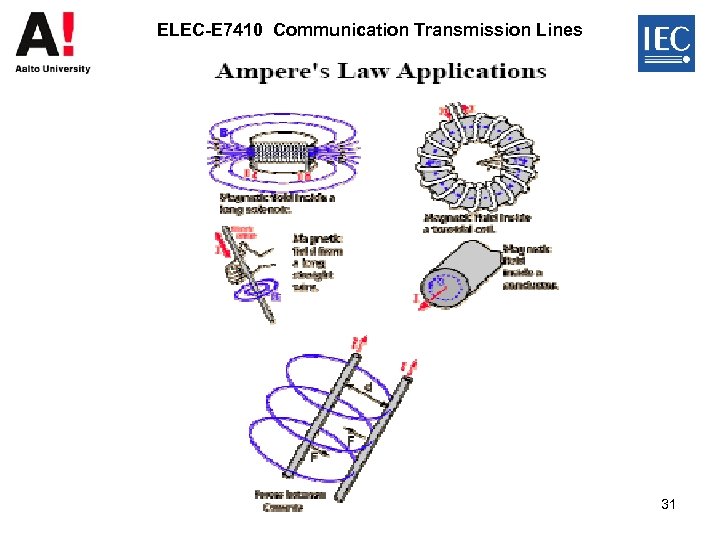

ELEC-E 7410 Communication Transmission Lines 31

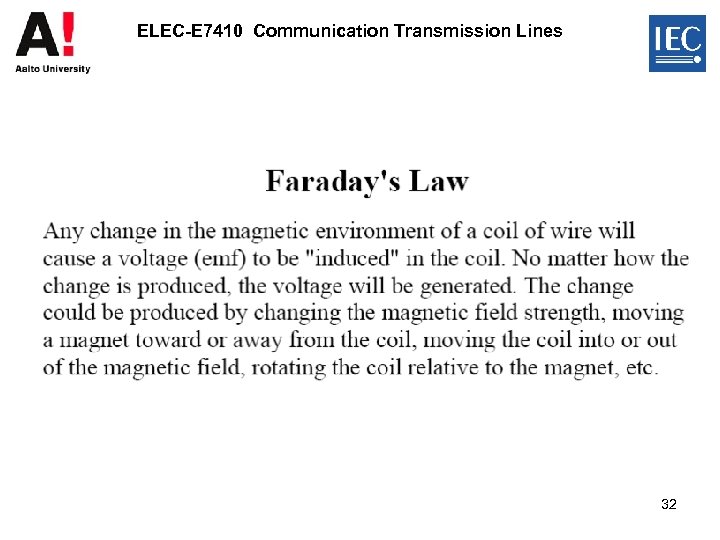

ELEC-E 7410 Communication Transmission Lines 32

ELEC-E 7410 Communication Transmission Lines 33

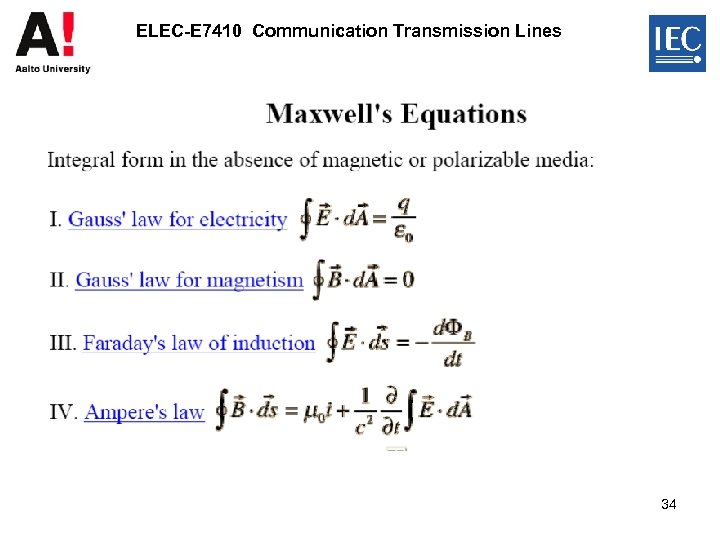

ELEC-E 7410 Communication Transmission Lines 34

ELEC-E 7410 Communication Transmission Lines 35

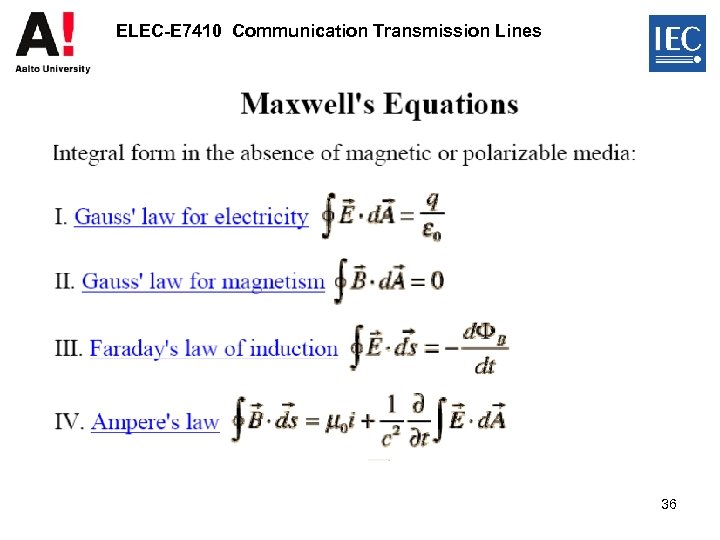

ELEC-E 7410 Communication Transmission Lines 36

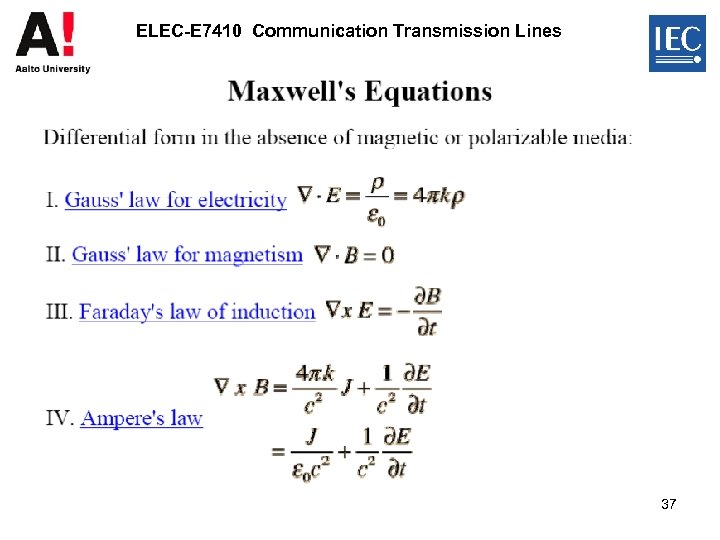

ELEC-E 7410 Communication Transmission Lines 37
