Egate-2000 Version 1. 00 General Availability May-2012 RAD Company Confidential Egate-200_2012 Slide 1
Agenda • Egate-2000 applications • Main Features • Management capabilities • Sales tools • Summary RAD Company Confidential Egate-200_2012 Slide 2
Ethernet Access Portfolio: Maximum Reach, Uniform Service Ethernet over Fiber Ethernet over PDH ETX-205 A Gb. E Branch 10/100 BT RIC Eo. PDH E 1/T 1/E 3/DS 3 ETX-5300 A RIC Gb. E n x Eo. PDH Bonding ETX-203 AX/AM Ethernet over DSL SDH/ SONET DSLAM n x Eo. CU Bonding Gb. E STM-1/OC-3 3 x DS 3 Gb. E Egate Branch ETX-220 A 10 Gb. E Eo. PDH/E 1/T 1/ E 3/DS 3 RIC HQ Packet Switched Network DSLAM Gb. E Eo. CU LA LA Branch 10/100 BT • Extending the reach of the provider’s network over a variety of access technologies • Consistent Ethernet service across different access technologies • End-to-end Qo. S with verifiable SLAs RAD Company Confidential Egate-200_2012 Slide 3

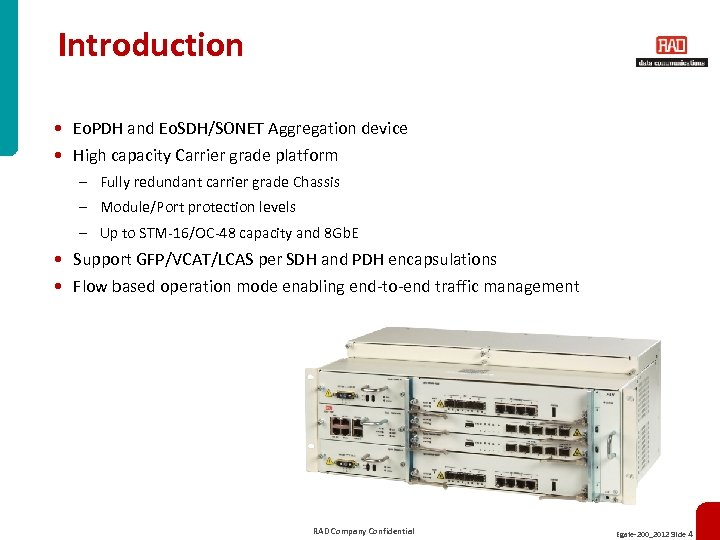

Introduction • Eo. PDH and Eo. SDH/SONET Aggregation device • High capacity Carrier grade platform – Fully redundant carrier grade Chassis – Module/Port protection levels – Up to STM-16/OC-48 capacity and 8 Gb. E • Support GFP/VCAT/LCAS per SDH and PDH encapsulations • Flow based operation mode enabling end-to-end traffic management RAD Company Confidential Egate-200_2012 Slide 4

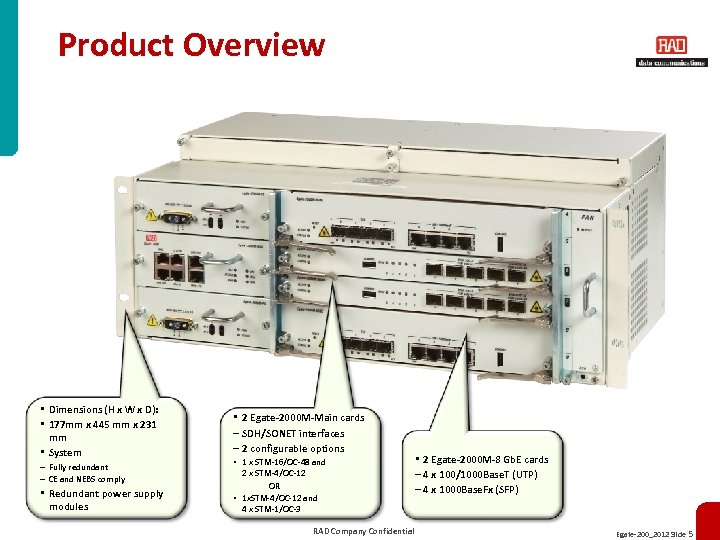

Product Overview • Dimensions (H x W x D): • 177 mm x 445 mm x 231 mm • System – Fully redundant – CE and NEBS comply • Redundant power supply modules • 2 Egate-2000 M-Main cards – SDH/SONET interfaces – 2 configurable options • 1 x STM-16/OC-48 and 2 x STM-4/OC-12 OR • 1 x. STM-4/OC-12 and 4 x STM-1/OC-3 RAD Company Confidential • 2 Egate-2000 M-8 Gb. E cards – 4 x 100/1000 Base. T (UTP) – 4 x 1000 Base. Fx (SFP) Egate-200_2012 Slide 5

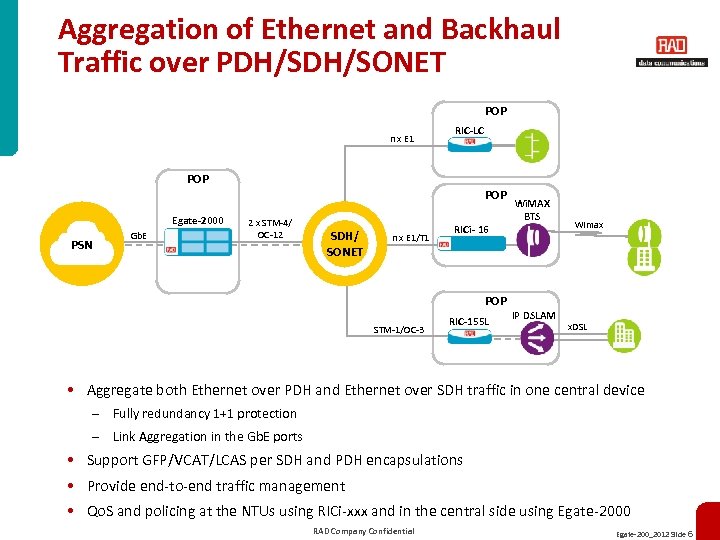

Aggregation of Ethernet and Backhaul Traffic over PDH/SONET POP n x E 1 RIC-LC POP Egate-2000 PSN Gb. E 2 x STM-4/ OC-12 SDH/ SONET n x E 1/T 1 RICi- 16 POP STM-1/OC-3 RIC-155 L Wi. MAX BTS IP DSLAM Wimax x. DSL • Aggregate both Ethernet over PDH and Ethernet over SDH traffic in one central device – Fully redundancy 1+1 protection – Link Aggregation in the Gb. E ports • Support GFP/VCAT/LCAS per SDH and PDH encapsulations • Provide end-to-end traffic management • Qo. S and policing at the NTUs using RICi-xxx and in the central side using Egate-2000 RAD Company Confidential Egate-200_2012 Slide 6
Aggregation of SDH RICs POP STM-1 ETX w/ Mi. RICi-155 POP Egate-2000 PSN Gb. E 2 x STM-4/ OC-12 SDH/ SONET STM-1 RIC-155 L POP STM-1 Wi. MAX BTS RIC-155 L IP DSLAM Wimax x. DSL • Egate-2000 aggregate traffic from remotes RICi-155 L using high order VCAT • Egate-2000 can aggregate up to 2 x. STM-4/OC-12 traffic rate with up to 256 VCGs using 2 x 8 Gb. E modules RAD Company Confidential Egate-200_2012 Slide 7

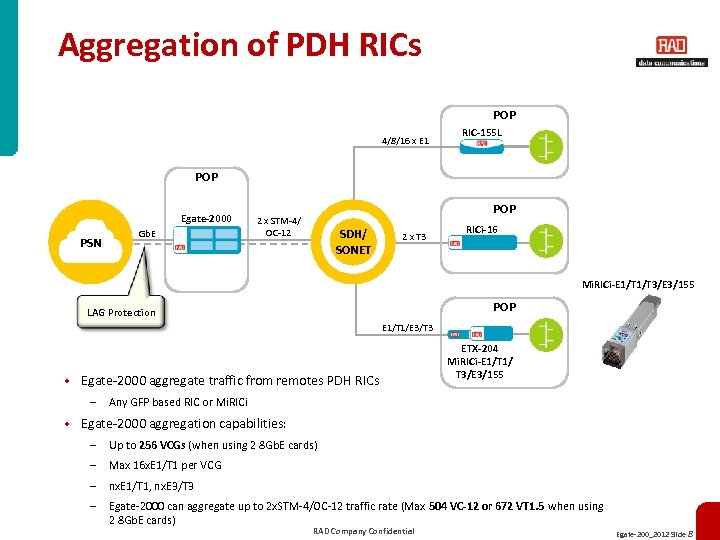

Aggregation of PDH RICs POP 4/8/16 x E 1 RIC-155 L POP Egate-2000 PSN Gb. E POP 2 x STM-4/ OC-12 SDH/ SONET 2 x T 3 RICi-16 Mi. RICi-E 1/T 3/E 3/155 POP LAG Protection E 1/T 1/E 3/T 3 • Egate-2000 aggregate traffic from remotes PDH RICs – ETX-204 Mi. RICi-E 1/T 1/ T 3/E 3/155 Any GFP based RIC or Mi. RICi • Egate-2000 aggregation capabilities: – Up to 256 VCGs (when using 2 8 Gb. E cards) – Max 16 x. E 1/T 1 per VCG – nx. E 1/T 1, nx. E 3/T 3 – Egate-2000 can aggregate up to 2 x. STM-4/OC-12 traffic rate (Max 504 VC-12 or 672 VT 1. 5 when using 2 8 Gb. E cards) RAD Company Confidential Egate-200_2012 Slide 8

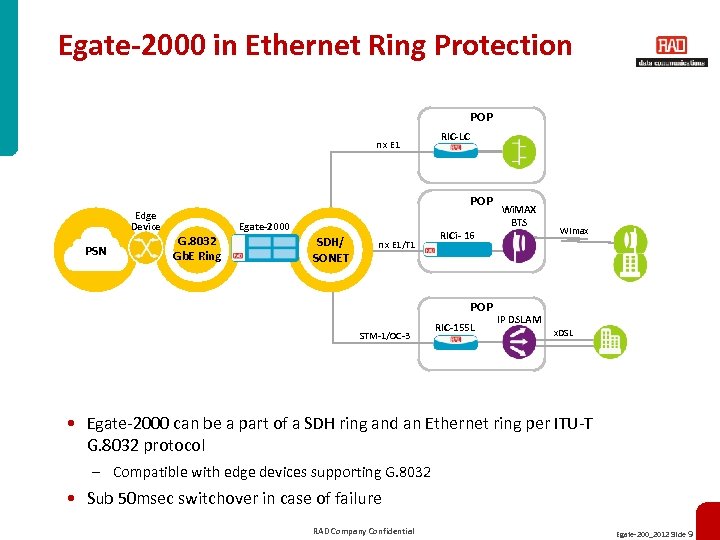

Egate-2000 in Ethernet Ring Protection POP n x E 1 Edge Device PSN RIC-LC POP G. 8032 Gb. E Ring Egate-2000 SDH/ SONET n x E 1/T 1 RICi- 16 POP STM-1/OC-3 RIC-155 L Wi. MAX BTS Wimax IP DSLAM x. DSL • Egate-2000 can be a part of a SDH ring and an Ethernet ring per ITU-T G. 8032 protocol – Compatible with edge devices supporting G. 8032 • Sub 50 msec switchover in case of failure RAD Company Confidential Egate-200_2012 Slide 9

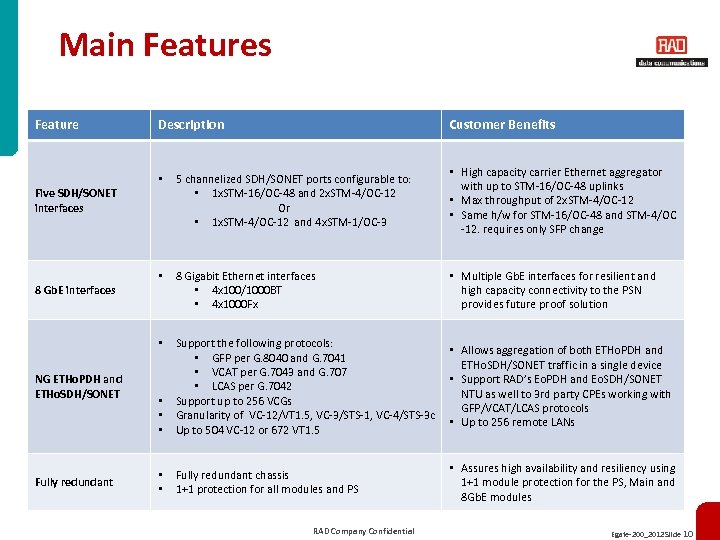

Main Features Feature Description Customer Benefits • 5 channelized SDH/SONET ports configurable to: • 1 x. STM-16/OC-48 and 2 x. STM-4/OC-12 Or • 1 x. STM-4/OC-12 and 4 x. STM-1/OC-3 • High capacity carrier Ethernet aggregator with up to STM-16/OC-48 uplinks • Max throughput of 2 x. STM-4/OC-12 • Same h/w for STM-16/OC-48 and STM-4/OC -12. requires only SFP change • 8 Gigabit Ethernet interfaces • 4 x 100/1000 BT • 4 x 1000 Fx • Multiple Gb. E interfaces for resilient and high capacity connectivity to the PSN provides future proof solution • • Support the following protocols: • GFP per G. 8040 and G. 7041 • VCAT per G. 7043 and G. 707 • LCAS per G. 7042 Support up to 256 VCGs Granularity of VC-12/VT 1. 5, VC-3/STS-1, VC-4/STS-3 c Up to 504 VC-12 or 672 VT 1. 5 • Allows aggregation of both ETHo. PDH and ETHo. SDH/SONET traffic in a single device • Support RAD’s Eo. PDH and Eo. SDH/SONET NTU as well to 3 rd party CPEs working with GFP/VCAT/LCAS protocols • Up to 256 remote LANs • • Fully redundant chassis 1+1 protection for all modules and PS • Assures high availability and resiliency using 1+1 module protection for the PS, Main and 8 Gb. E modules Five SDH/SONET interfaces 8 Gb. E interfaces NG ETHo. PDH and ETHo. SDH/SONET Fully redundant RAD Company Confidential Egate-200_2012 Slide 10

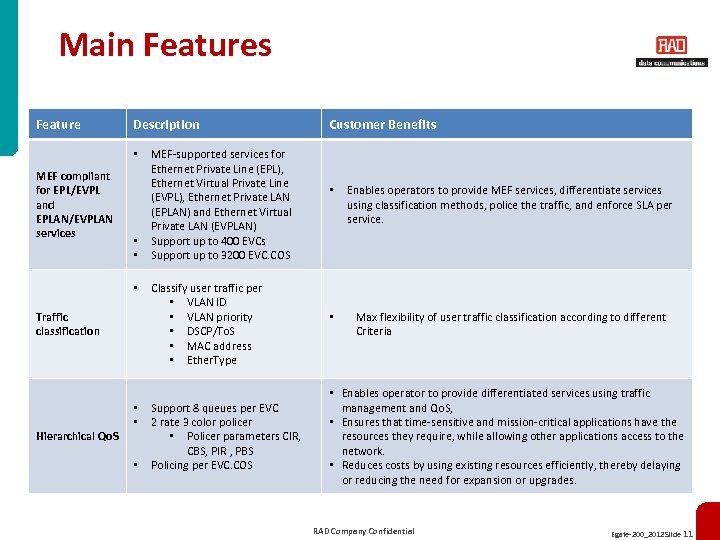

Main Features Feature Description • MEF compliant for EPL/EVPL and EPLAN/EVPLAN services • • • Traffic classification • • Hierarchical Qo. S • MEF-supported services for Ethernet Private Line (EPL), Ethernet Virtual Private Line (EVPL), Ethernet Private LAN (EPLAN) and Ethernet Virtual Private LAN (EVPLAN) Support up to 400 EVCs Support up to 3200 EVC. COS Classify user traffic per • VLAN ID • VLAN priority • DSCP/To. S • MAC address • Ether. Type Support 8 queues per EVC 2 rate 3 color policer • Policer parameters CIR, CBS, PIR , PBS Policing per EVC. COS Customer Benefits • Enables operators to provide MEF services, differentiate services using classification methods, police the traffic, and enforce SLA per service. • Max flexibility of user traffic classification according to different Criteria • Enables operator to provide differentiated services using traffic management and Qo. S, • Ensures that time-sensitive and mission-critical applications have the resources they require, while allowing other applications access to the network. • Reduces costs by using existing resources efficiently, thereby delaying or reducing the need for expansion or upgrades. RAD Company Confidential Egate-200_2012 Slide 11
Main Features Feature Scheduling, rate limiting and shaping Description • • • VLAN aware VLAN stacking P-bit remarking Link Aggregation and Ethernet Ring protection • • Customer Benefits Strict priority and WFQ scheduling options Rate limiting and shaping per EVC Support Independent VLAN Learning ( IVL), and Shared VLAN Learning (SVL) Support Qin. Q P-bit remarking Support Link Aggregation per IEEE 802. 1 ad (w/o LACP) Ethernet ring per G. 8032 • Queues scheduling per Strict priority and WFQ enable flexibility for providing differentiated services • Using rate limiting and shaping to maintain bursty traffic and control the traffic entering the PSN • Service provider can assign different service-provider (SP -VLANs) to different customer traffic. This guarantees a separation between each customer’s traffic within the service provider network • P-bit remarking enables modifying the traffic priority and assures differentiated services and prioritization. • Ability to bond several Gb. E interfaces together and provide link resiliency and higher capacity • Ethernet ring per G. 8032 enables link protection and resiliency in Ethernet rings. Egate-2000 can be part of Ethernet ring with 3 rd party equipment RAD Company Confidential Egate-200_2012 Slide 12
Main Features Feature Description Customer Benefits Ethernet OAM • OAM CFM per 802. 1 ag • Performance monitoring per Y. 1731 • Ethernet OAM enables operator to monitor network faults, perform measurements and gather statistics proactively and assure SLA RAD Company Confidential Egate-200_2012 Slide 13

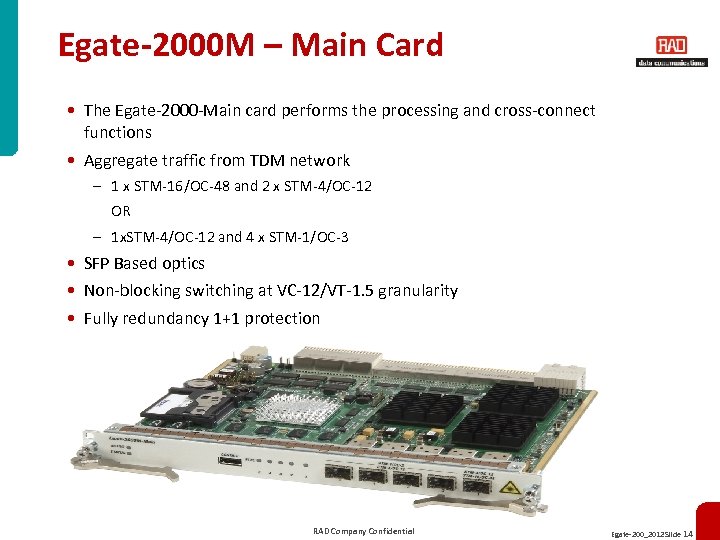

Egate-2000 M – Main Card • The Egate-2000 -Main card performs the processing and cross-connect functions • Aggregate traffic from TDM network – 1 x STM-16/OC-48 and 2 x STM-4/OC-12 OR – 1 x. STM-4/OC-12 and 4 x STM-1/OC-3 • SFP Based optics • Non-blocking switching at VC-12/VT-1. 5 granularity • Fully redundancy 1+1 protection RAD Company Confidential Egate-200_2012 Slide 14

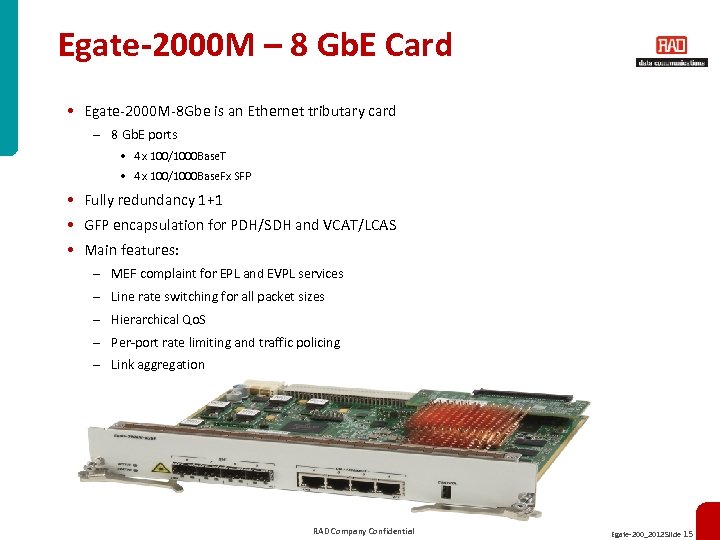

Egate-2000 M – 8 Gb. E Card • Egate-2000 M-8 Gbe is an Ethernet tributary card – 8 Gb. E ports • 4 x 100/1000 Base. T • 4 x 100/1000 Base. Fx SFP • Fully redundancy 1+1 • GFP encapsulation for PDH/SDH and VCAT/LCAS • Main features: – MEF complaint for EPL and EVPL services – Line rate switching for all packet sizes – Hierarchical Qo. S – Per-port rate limiting and traffic policing – Link aggregation RAD Company Confidential Egate-200_2012 Slide 15
Egate-2000 M – MNG • Control – Ethernet Local configuration of the device via WEB sever • MNG-ETH – Out-of-Band interface • MNG – 2 configurable options: – F 1 user data channel of 64 Kbps for in-band management – External analog modem using serial point-to-point connectivity with PPP • EXT CLK – BITS 2 Mhz clock interface or E 1/T 1 • Alm In/Out – Alarm input and Alarm output interfaces RAD Company Confidential Egate-200_2012 Slide 16
Egate-2000 Basic Configuration • Basic configuration – port redundancy – 1 x Main card – 1+1 STM-4/OC-12 – 1 x 8 Gb. E card – LAG between 2 Gb. E – 128 VCGs and STM-4/OC-12 capacity • 252 VC-12 or 336 VT 1. 5 RAD Company Confidential Egate-200_2012 Slide 17
Egate-2000 Full Redundancy Configuration • Full configuration – 1+1 card redundancy – 2 x Main cards – up to STM-16/OC-48 card protection – 2 x 8 Gb. E cards – LAG with 1 Gb. E from each 8 Gb. E cards – 128 VCGs and STM-4/OC-12 capacity • 252 VC-12 or 336 VT 1. 5 RAD Company Confidential Egate-200_2012 Slide 18

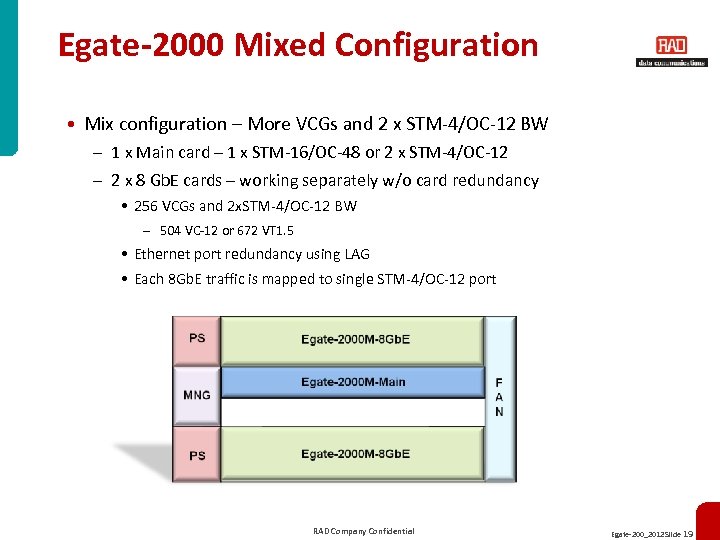

Egate-2000 Mixed Configuration • Mix configuration – More VCGs and 2 x STM-4/OC-12 BW – 1 x Main card – 1 x STM-16/OC-48 or 2 x STM-4/OC-12 – 2 x 8 Gb. E cards – working separately w/o card redundancy • 256 VCGs and 2 x. STM-4/OC-12 BW – 504 VC-12 or 672 VT 1. 5 • Ethernet port redundancy using LAG • Each 8 Gb. E traffic is mapped to single STM-4/OC-12 port RAD Company Confidential Egate-200_2012 Slide 19

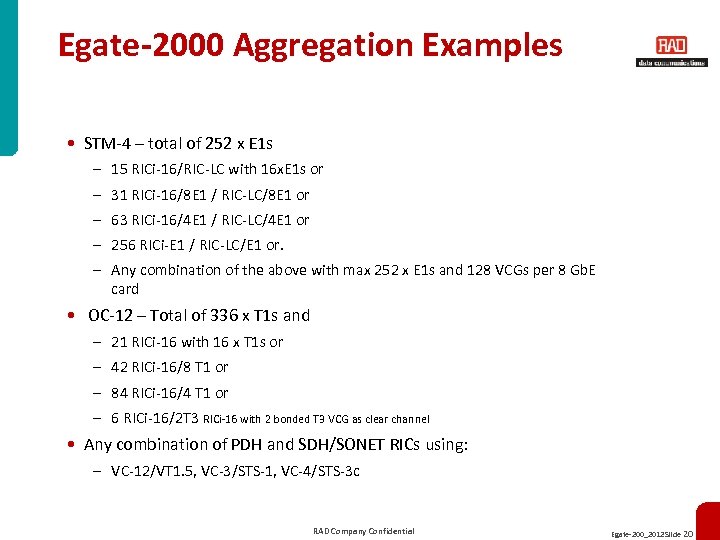

Egate-2000 Aggregation Examples • STM-4 – total of 252 x E 1 s – 15 RICi-16/RIC-LC with 16 x. E 1 s or – 31 RICi-16/8 E 1 / RIC-LC/8 E 1 or – 63 RICi-16/4 E 1 / RIC-LC/4 E 1 or – 256 RICi-E 1 / RIC-LC/E 1 or. – Any combination of the above with max 252 x E 1 s and 128 VCGs per 8 Gb. E card • OC-12 – Total of 336 x T 1 s and – 21 RICi-16 with 16 x T 1 s or – 42 RICi-16/8 T 1 or – 84 RICi-16/4 T 1 or – 6 RICi-16/2 T 3 RICi-16 with 2 bonded T 3 VCG as clear channel • Any combination of PDH and SDH/SONET RICs using: – VC-12/VT 1. 5, VC-3/STS-1, VC-4/STS-3 c RAD Company Confidential Egate-200_2012 Slide 20

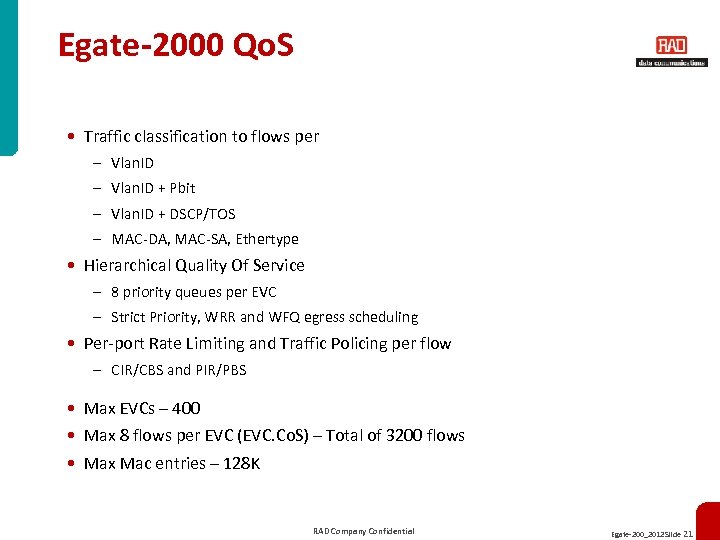

Egate-2000 Qo. S • Traffic classification to flows per – Vlan. ID + Pbit – Vlan. ID + DSCP/TOS – MAC-DA, MAC-SA, Ethertype • Hierarchical Quality Of Service – 8 priority queues per EVC – Strict Priority, WRR and WFQ egress scheduling • Per-port Rate Limiting and Traffic Policing per flow – CIR/CBS and PIR/PBS • Max EVCs – 400 • Max 8 flows per EVC (EVC. Co. S) – Total of 3200 flows • Max Mac entries – 128 K RAD Company Confidential Egate-200_2012 Slide 21

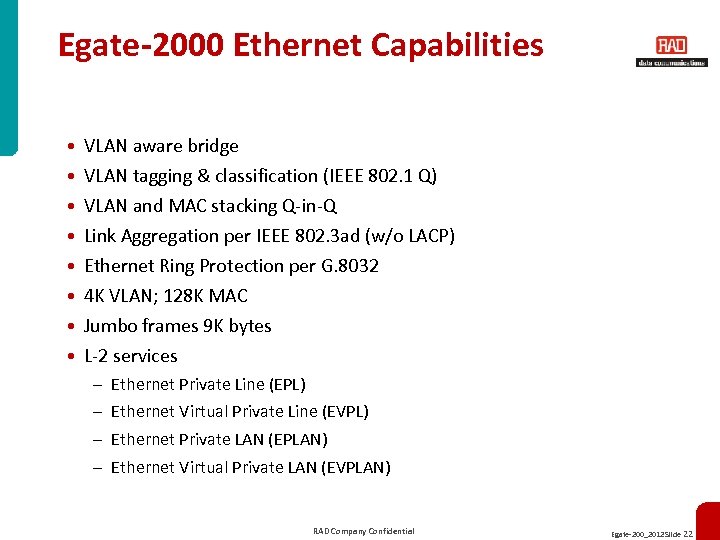

Egate-2000 Ethernet Capabilities • • VLAN aware bridge VLAN tagging & classification (IEEE 802. 1 Q) VLAN and MAC stacking Q-in-Q Link Aggregation per IEEE 802. 3 ad (w/o LACP) Ethernet Ring Protection per G. 8032 4 K VLAN; 128 K MAC Jumbo frames 9 K bytes L-2 services – – Ethernet Private Line (EPL) Ethernet Virtual Private Line (EVPL) Ethernet Private LAN (EPLAN) Ethernet Virtual Private LAN (EVPLAN) RAD Company Confidential Egate-200_2012 Slide 22

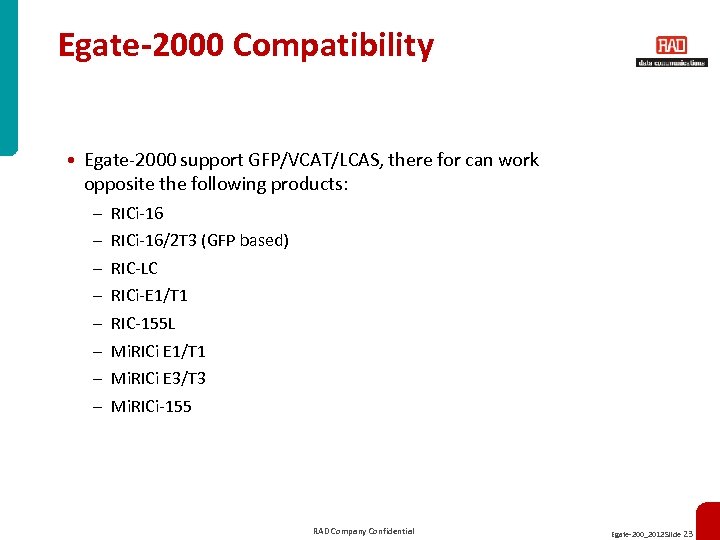

Egate-2000 Compatibility • Egate-2000 support GFP/VCAT/LCAS, there for can work opposite the following products: – – – – RICi-16/2 T 3 (GFP based) RIC-LC RICi-E 1/T 1 RIC-155 L Mi. RICi E 1/T 1 Mi. RICi E 3/T 3 Mi. RICi-155 RAD Company Confidential Egate-200_2012 Slide 23
Ethernet OAM Branch A PE Real Time Priority Data Best Effort Ethernet over Fiber NTU Best Effort EVC 1 Best Effort UNI PSN Branch B UNI EVC Ethernet over x. DSL NTU IEEE 802. 3 -2005 (802. 3 ah) Real Time Priority Data IP DSLAM IEEE 802. 3 -2005 (802. 3 ah) Real Time Priority Data PE EVC 2 Real Time Priority Data EVC Headquarters Ethernet over PDH NTU Best Effort UNI IEEE 802. 3 -2005 (802. 3 ah) IEEE 802. 1 ag Connectivity Management ITU Y. 1731 Performance Monitoring • Egate-2000 support Connectivity Fault Management per 802. 1 ag and PM per Y. 1731 – Fault Detection – CCM – Fault Verification – LB (LBM/LBR) – Fault Isolation – LT (LTM/LTR) – 2 way Delay measurements (DM) – Loss Measurement (Dual ended based on CCM) RAD Company Confidential Egate-200_2012 Slide 24
Management RAD Company Confidential Egate-200_2012 Slide 25
Management • Egate-2000 is supported buy RADview (web configuration interface) • Egate-2000 can be managed using the following: – Out-of-band via a dedicated Ethernet port – In-band via Gb. E or TDM ports • Gb. E interfaces connected to the PSN • Dedicated E 1 • DCC RAD Company Confidential Egate-200_2012 Slide 26

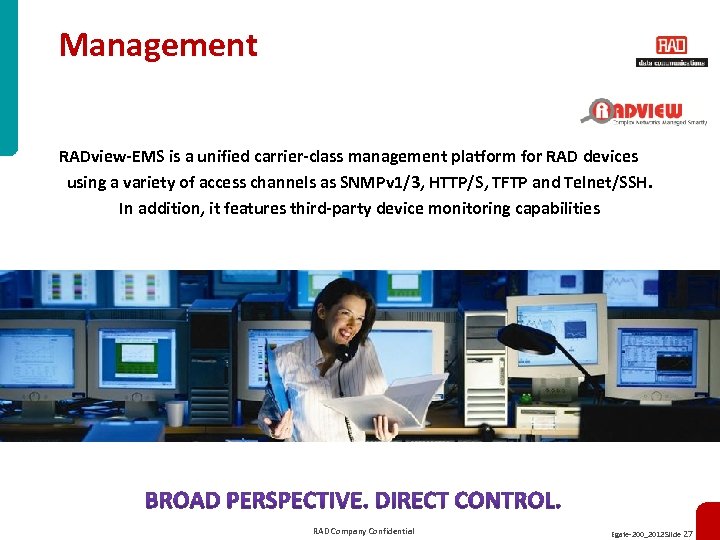

Management RADview-EMS is a unified carrier-class management platform for RAD devices using a variety of access channels as SNMPv 1/3, HTTP/S, TFTP and Telnet/SSH. In addition, it features third-party device monitoring capabilities RAD Company Confidential Egate-200_2012 Slide 27
Management, Benefits & Features Benefits ● Turnkey system including hardware and software! ● Fully compliant with TMN standards ● Client/server architecture with multi-user support ● Interoperable with third-party NMS and leading OSS systems ● IBM Tivoli’s Netcool®/OMNIbus™ plug-in ● Minimize integrations costs associated with new NE Key features ● Ensures device health and congestion control ● Topology maps and network inventory ● Advanced FCAPS functionality ● Software & configuration management ● Business continuity - High-Availability and Disaster Recovery ● Handover between operators RAD Company Confidential Egate-200_2012 Slide 28
RADview-EMS advanced FCAPS Fault management • Detects and isolates faults in network devices, initiates remedial actions and distributes alarm messages to other management entities in the network. Configuration management • Enables operators to configure, install and distribute software to all devices across the network. In addition, the system tracks version changes and maintains software configuration history Accounting management • Manages individual and group user accounts and passwords, generating network usage reports to monitor user activities. Performance management • Supports real-time monitoring of Qo. S and Co. S, producing real-time and periodic statistics. The statistics collector compresses data to minimize bandwidth use for management traffic and exports CSV files to OSS or third-party management systems Security management • Allows network administrators to track user activities and control the access to network resources with a choice of security features RAD Company Confidential Egate-200_2012 Slide 29
Device Management • Egate-2000 Supports Device Management ● NTP ● Radius ● TFTP ● SNMP v 1, v 2 ● SSL ● Out-of-band mgt port ● In-band mgt ● ICMP RAD Company Confidential Egate-200_2012 Slide 30

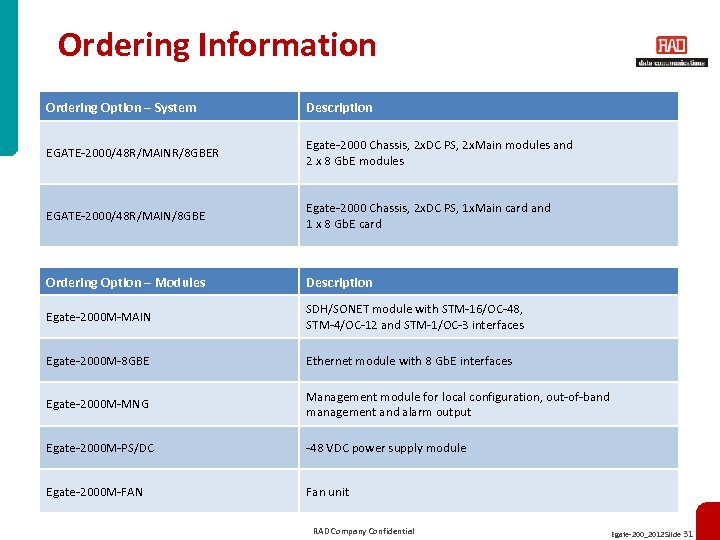

Ordering Information Ordering Option – System Description EGATE-2000/48 R/MAINR/8 GBER Egate-2000 Chassis, 2 x. DC PS, 2 x. Main modules and 2 x 8 Gb. E modules EGATE-2000/48 R/MAIN/8 GBE Egate-2000 Chassis, 2 x. DC PS, 1 x. Main card and 1 x 8 Gb. E card Ordering Option – Modules Description Egate-2000 M-MAIN SDH/SONET module with STM-16/OC-48, STM-4/OC-12 and STM-1/OC-3 interfaces Egate-2000 M-8 GBE Ethernet module with 8 Gb. E interfaces Egate-2000 M-MNG Management module for local configuration, out-of-band management and alarm output Egate-2000 M-PS/DC -48 VDC power supply module Egate-2000 M-FAN Fan unit RAD Company Confidential Egate-200_2012 Slide 31

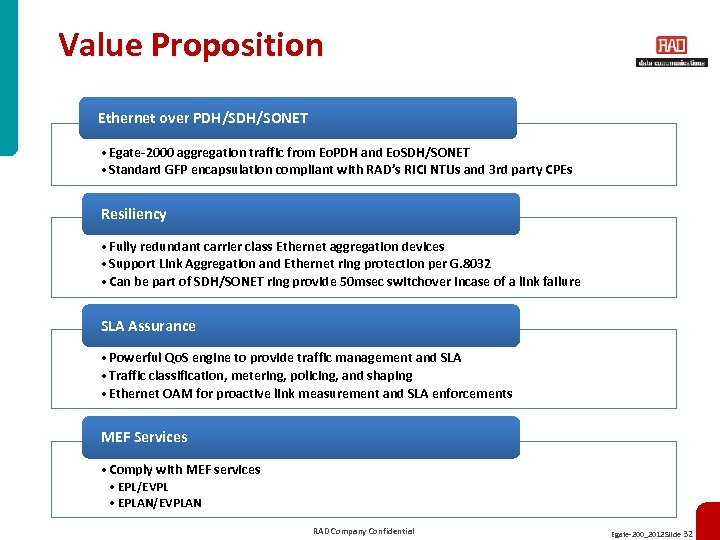

Value Proposition Ethernet over PDH/SONET • Egate-2000 aggregation traffic from Eo. PDH and Eo. SDH/SONET • Standard GFP encapsulation compliant with RAD’s RICi NTUs and 3 rd party CPEs Resiliency • Fully redundant carrier class Ethernet aggregation devices • Support Link Aggregation and Ethernet ring protection per G. 8032 • Can be part of SDH/SONET ring provide 50 msec switchover incase of a link failure SLA Assurance • Powerful Qo. S engine to provide traffic management and SLA • Traffic classification, metering, policing, and shaping • Ethernet OAM for proactive link measurement and SLA enforcements MEF Services • Comply with MEF services • EPL/EVPL • EPLAN/EVPLAN RAD Company Confidential Egate-200_2012 Slide 32
Thank You For Your Attention www. rad. com RAD Company Confidential Egate-200_2012 Slide 33
