Efeitos do Sol nas Redes Elétricas Kepler de

Efeitos do Sol nas Redes Elétricas Kepler de Souza Oliveira Filho http: //astro. if. ufrgs. br

Correntes induzidas

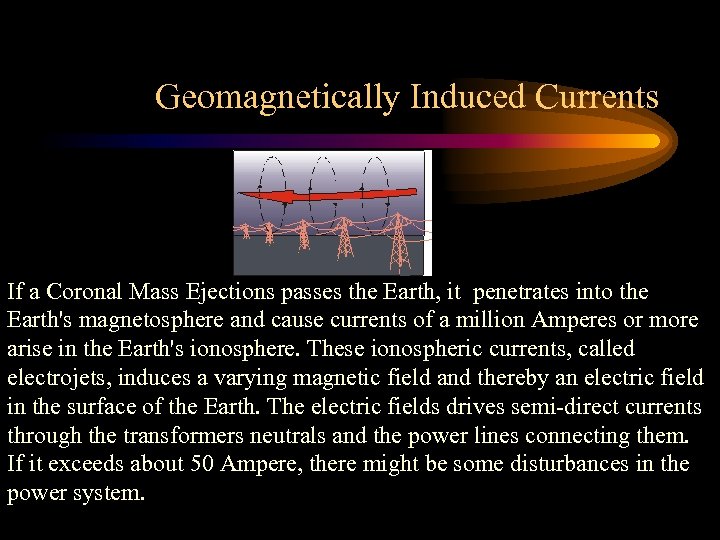

Geomagnetically Induced Currents If a Coronal Mass Ejections passes the Earth, it penetrates into the Earth's magnetosphere and cause currents of a million Amperes or more arise in the Earth's ionosphere. These ionospheric currents, called electrojets, induces a varying magnetic field and thereby an electric field in the surface of the Earth. The electric fields drives semi-direct currents through the transformers neutrals and the power lines connecting them. If it exceeds about 50 Ampere, there might be some disturbances in the power system.

Geomagnetically induced currents (GIC) are driven by the electric fields produced by the magnetic field variations that occur during a geomagnetic disturbance. Because of their low frequency compared to the AC frequency, the geomagnetically induced currents appear to a transformer as a slowly-varying DC current. GIC flowing through the transformer winding produces extra magnetisation which, during the halfcycles when the AC magnetisation is in the same direction, can saturate the core of the transformer. This results in a very spikey AC waveform with increased harmonic levels that can cause misoperation of relays and other equipment on the system and lead to problems ranging from tripouts of individual lines to collapse of the whole grid. Saturation of the transformer core produces extra eddy currents in the transformer core and structural supports which heat the transformer. The large thermal mass of a high voltage power transformer means that this heating produces a negligible change in the overall transformer temperature. However, localised hot spots can occur and cause damage to the transformer windings. The costs to power system operators involve not only replacement of damaged equipment but also the loss of revenue from sale of power. The Quebec blackout on March 13, 1989 had a net cost of about $13. 2 million; damaged equipment accounts for about $6. 5 million of that estimated cost. The transformer at the Salem, New Jersey, nuclear generating station, that burnt-out during the March 13, 1989 magnetic disturbance, cost several million dollars to replace. Such expensive units are usually built to order and the delivery time is normally about one year. Unusually, in the Salem case, a replacement transformer was available and delivery and installation took only 6 weeks. Even so , having the transformer out of service restricted the power that could be delivered from the Salem generating station and the purchase of replacement power from neighbouring utilities cost about $17 million, far more than the cost of the transformer.

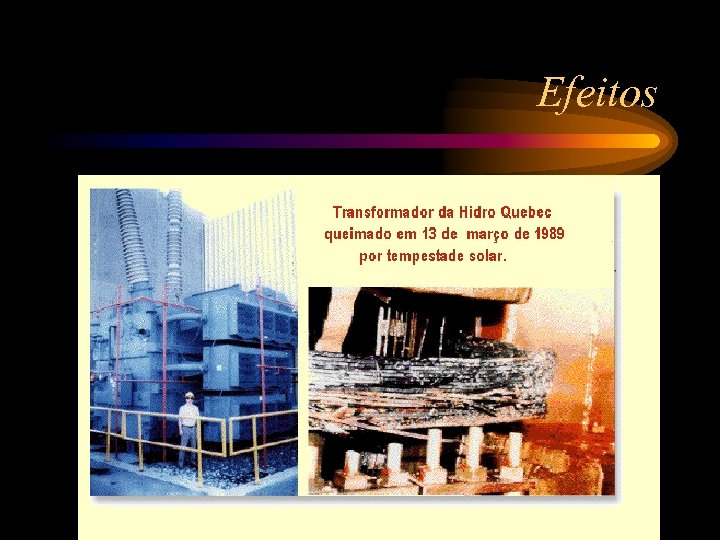

Efeitos

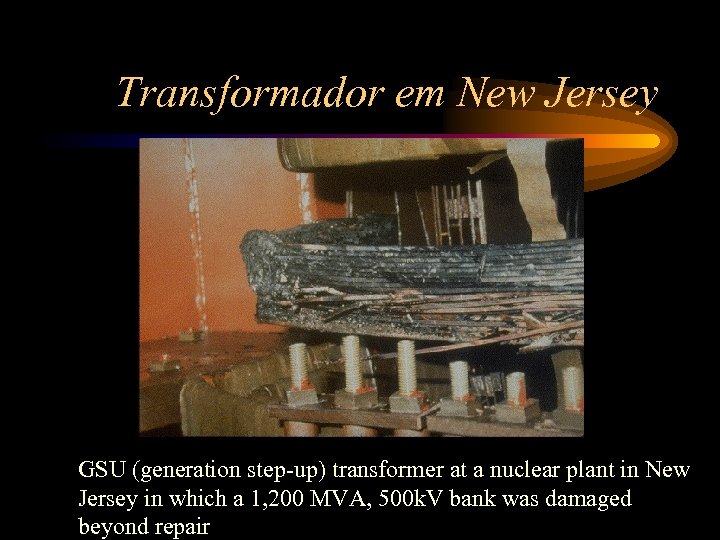

Transformador em New Jersey GSU (generation step-up) transformer at a nuclear plant in New Jersey in which a 1, 200 MVA, 500 k. V bank was damaged beyond repair

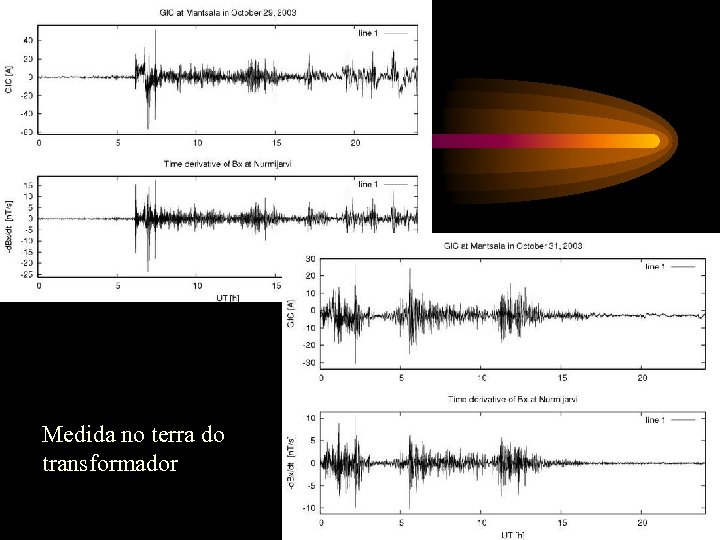

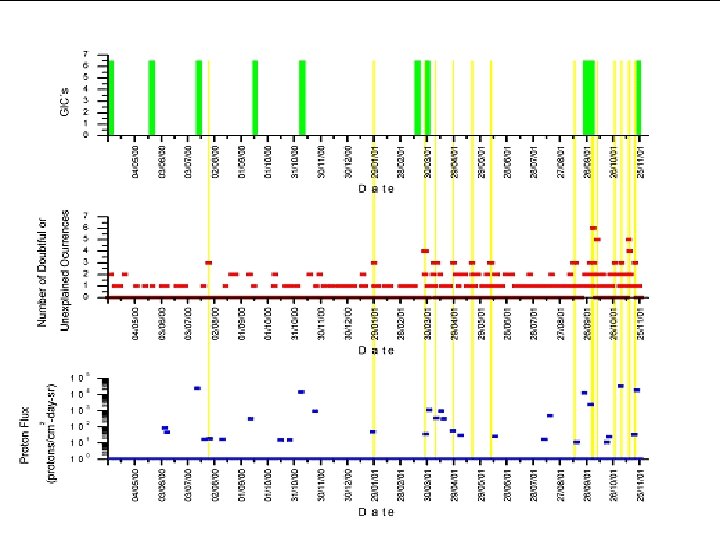

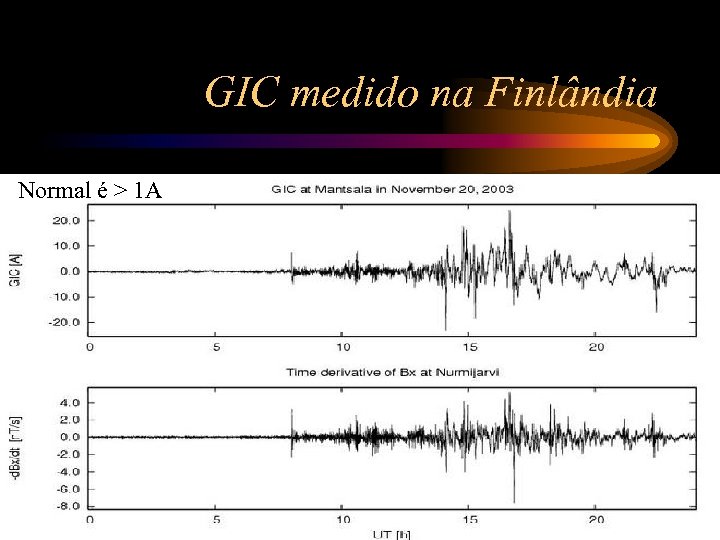

GIC medido na Finlândia Normal é > 1 A

Medida no terra do transformador

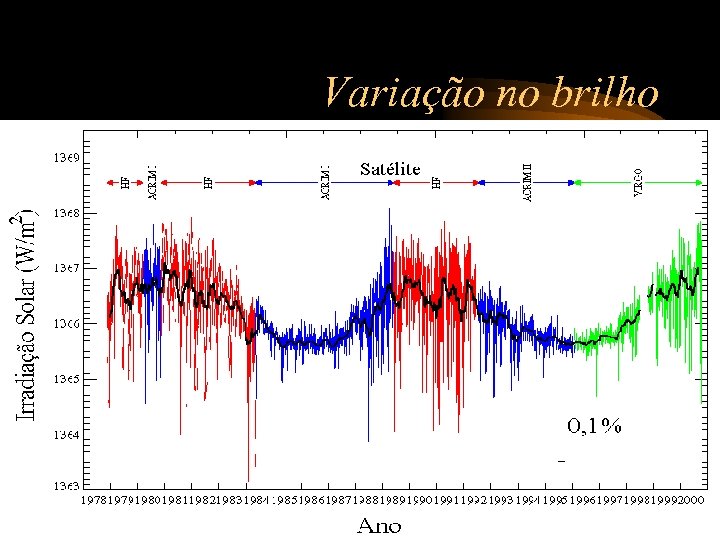

Variação no brilho

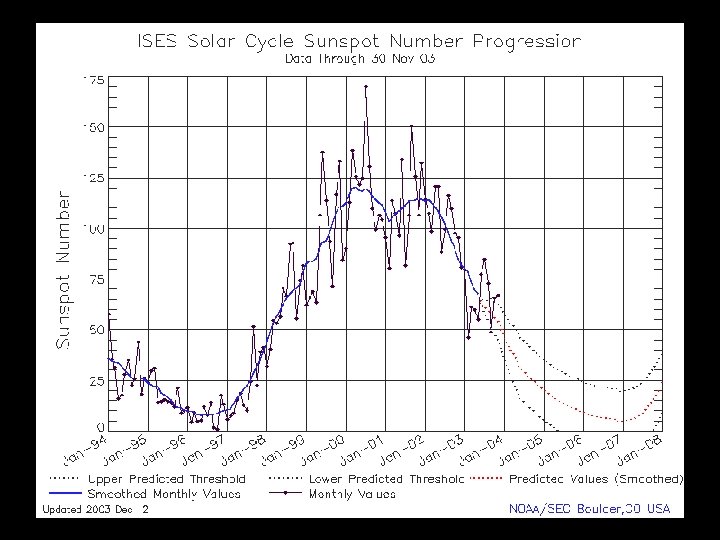

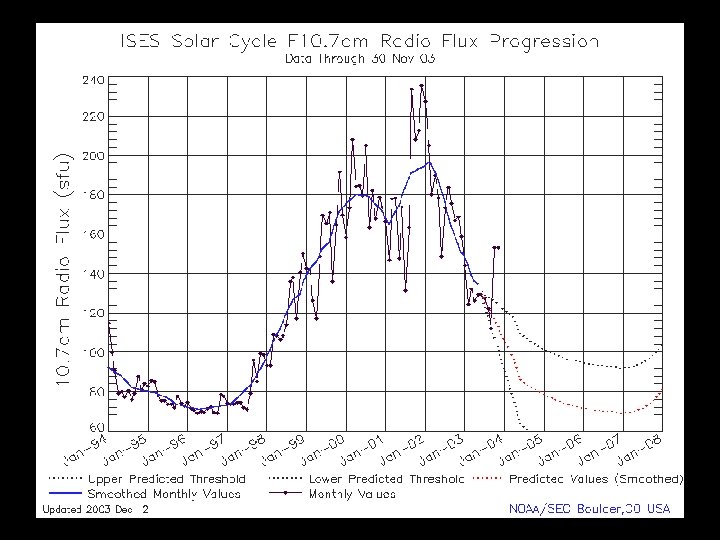

Mínimo e Máximo

Manchas?

Sol no raio-X

Ejeta bolhas de partículas ionizadas

Bolhas com bilhões de toneladas Viajam a 1 milhão km/hr Levam 3 a 4 d para chegar na Terra

Ejeção coronal de massa Algumas bolhas vêm em nossa direção

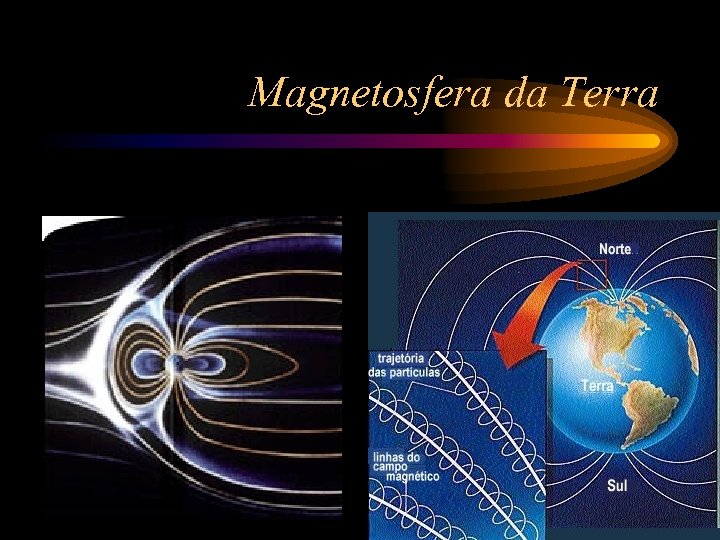

Magnetosfera da Terra

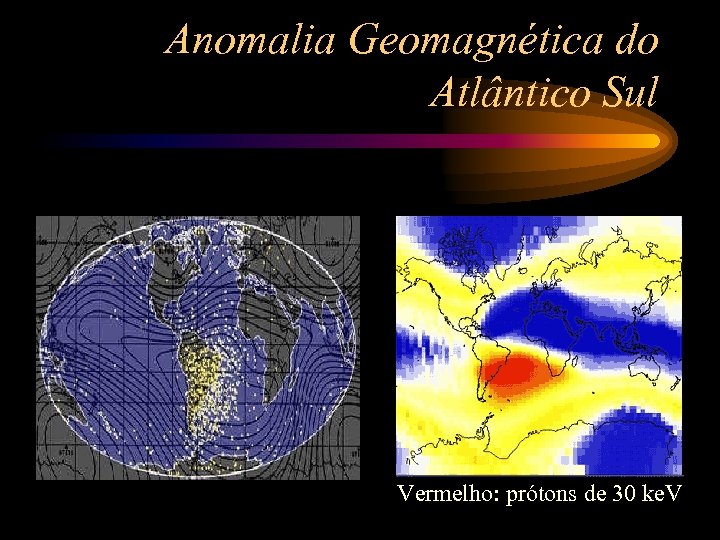

Anomalia Geomagnética do Atlântico Sul Vermelho: prótons de 30 ke. V

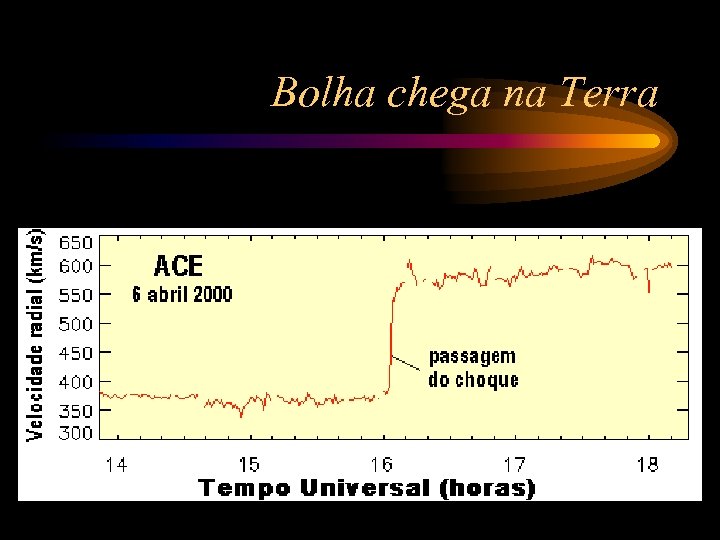

Bolha chega na Terra

Data 20 nov 2003 4 out 2003 Últimas tempestades Hora (UT) Índice Kp 12 hr 9 12 hr 7 30 out 2003 0 hr 9 11 hr 9 24 out 2003 15 out 2003 17 set 2003 23 ago 2003 18 ago 2003 6 ago 2003 12 jul 2003 14 hr 9 hr 11 hr 9 hr 6 hr 18 jun 2003 29 maio 2003 9 hr 7 22 hr 8 7 7 7 7 http: //www. sec. noaa. gov

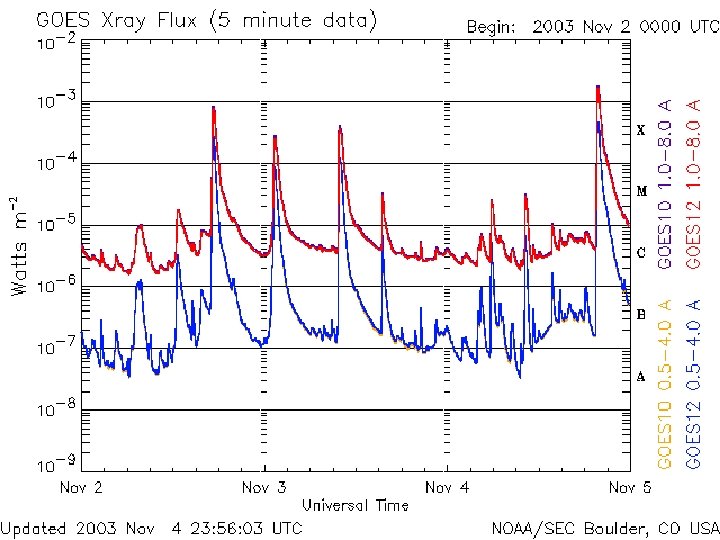

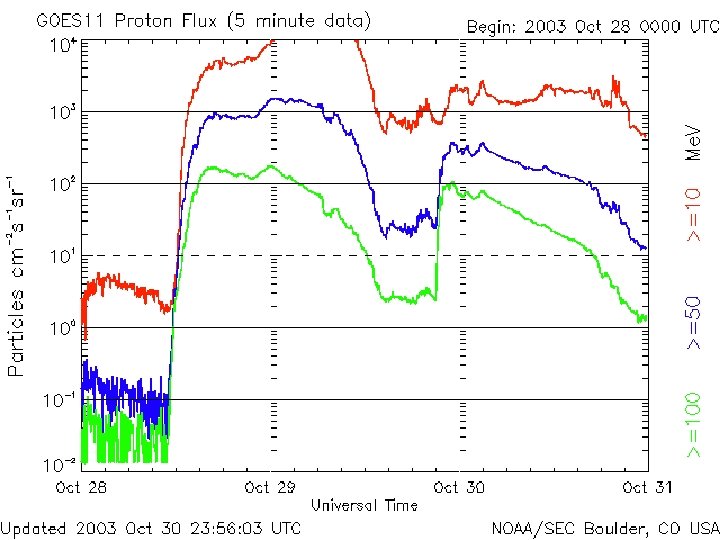

Fluxo 100 000 maior! Equivalente a 10 -100 raio-X

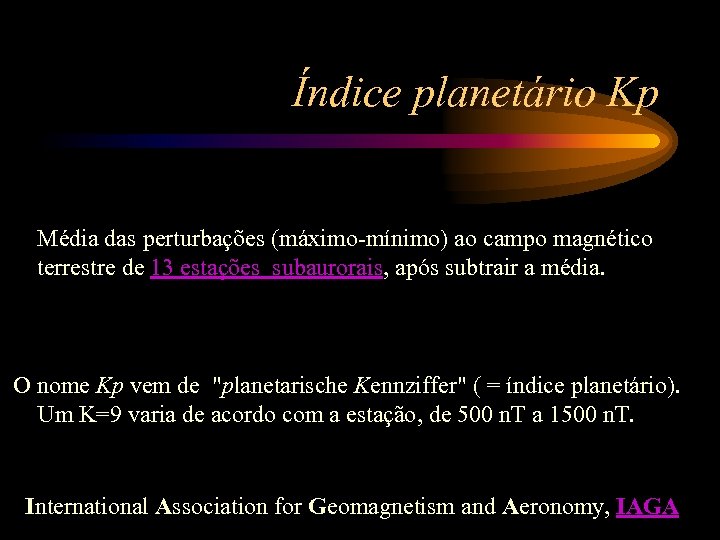

Índice planetário Kp Média das perturbações (máximo-mínimo) ao campo magnético terrestre de 13 estações subaurorais, após subtrair a média. O nome Kp vem de "planetarische Kennziffer" ( = índice planetário). Um K=9 varia de acordo com a estação, de 500 n. T a 1500 n. T. International Association for Geomagnetism and Aeronomy, IAGA

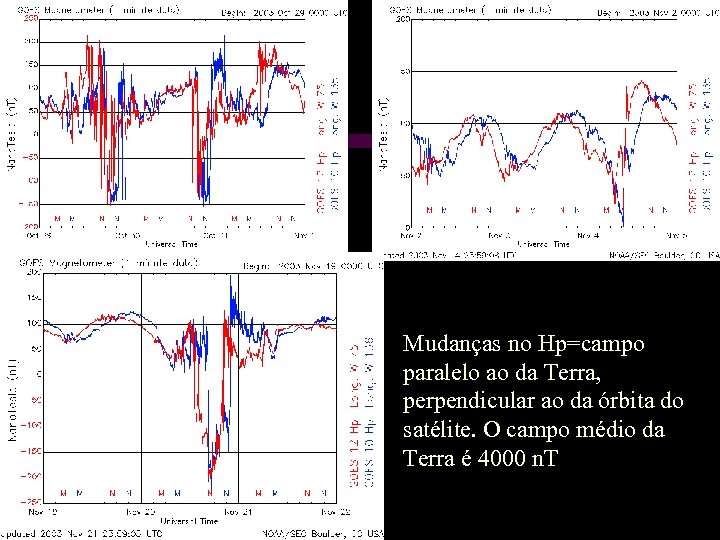

Mudanças no Hp=campo paralelo ao da Terra, perpendicular ao da órbita do satélite. O campo médio da Terra é 4000 n. T

4 Nov 2003

30 0 ut 2003

Out-nov 2003

Julho 2000

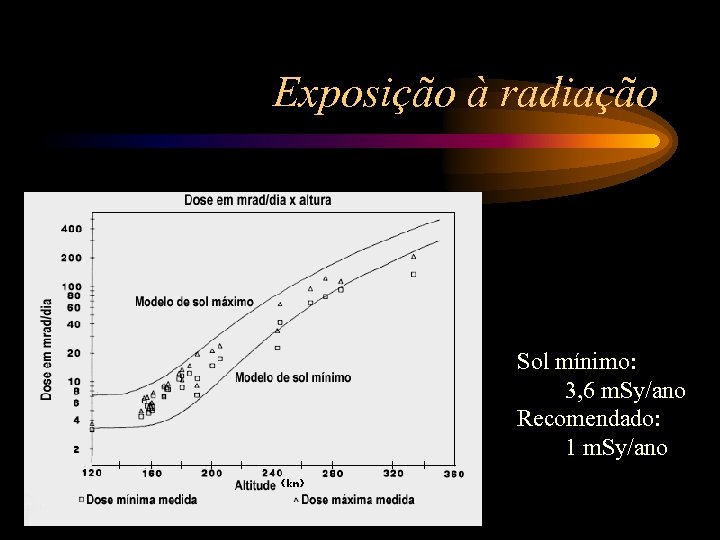

Exposição à radiação Sol mínimo: 3, 6 m. Sy/ano Recomendado: 1 m. Sy/ano

Radiação ultravioleta ao meio-dia

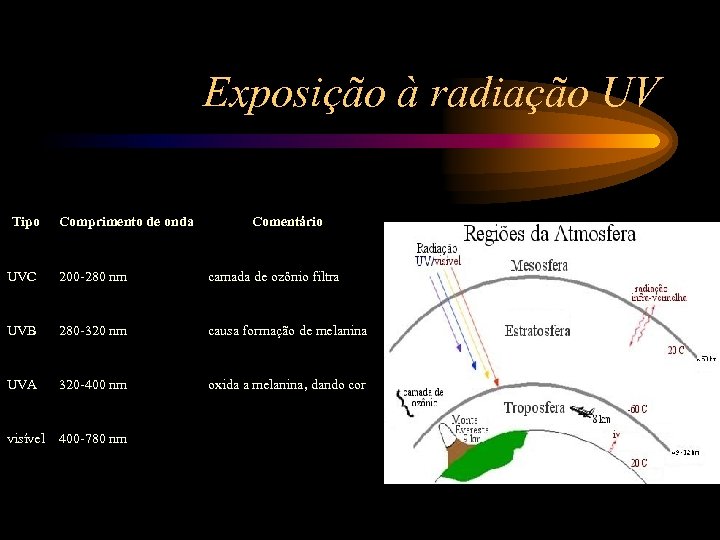

Exposição à radiação UV Tipo Comprimento de onda Comentário UVC 200 -280 nm camada de ozônio filtra UVB 280 -320 nm causa formação de melanina UVA 320 -400 nm oxida a melanina, dando cor visível 400 -780 nm

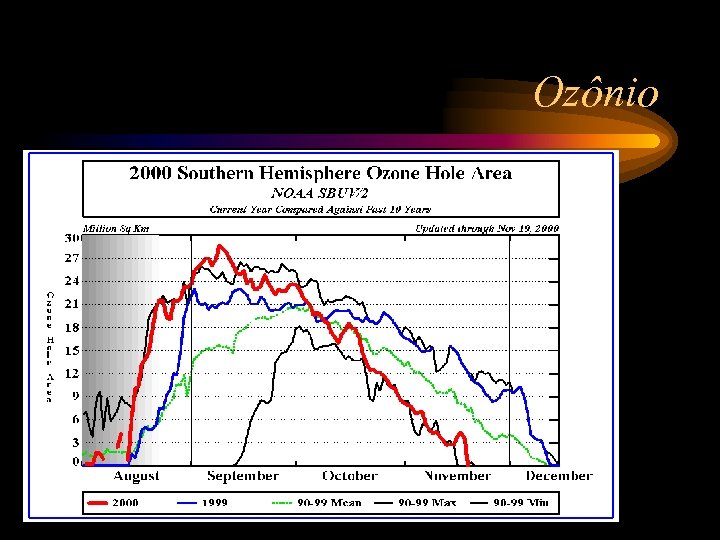

Ozônio

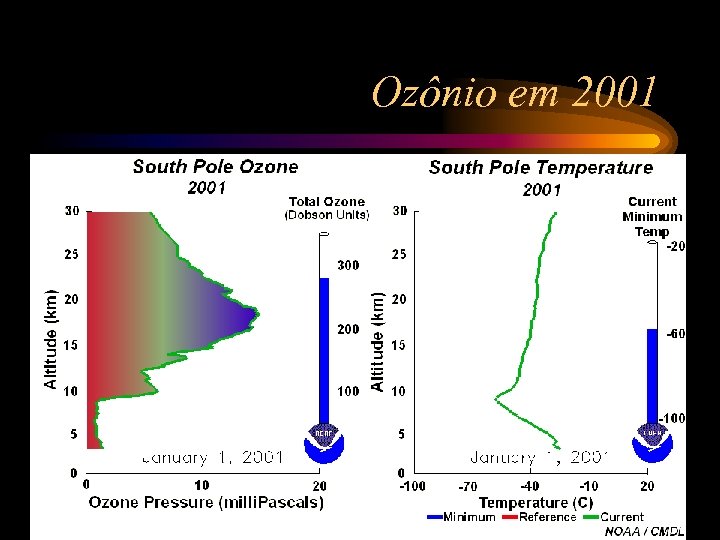

Ozônio em 2001

Buraco de agosto a novembro

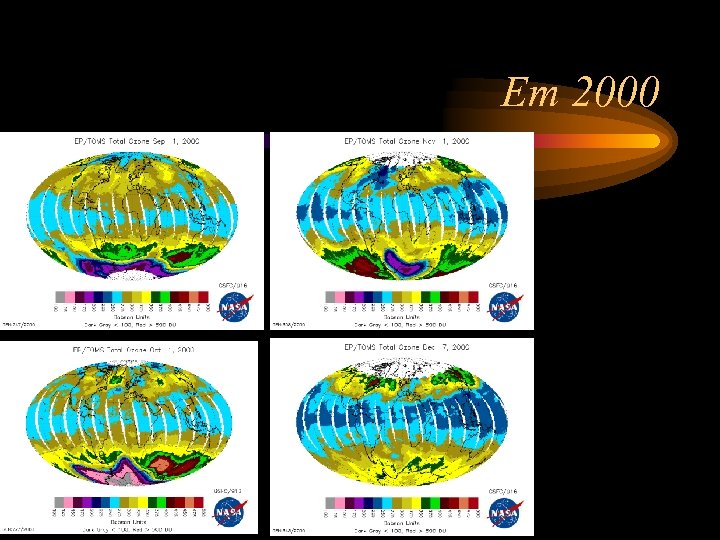

Em 2000

Absorção pela atmosfera

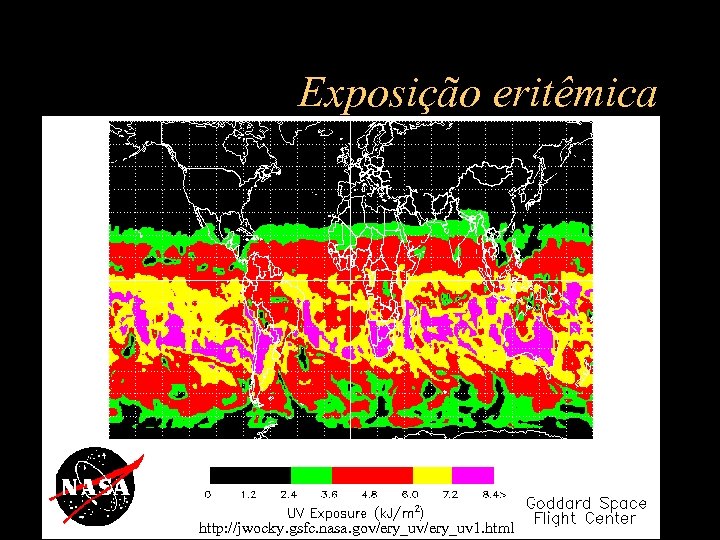

Exposição eritêmica http: //jwocky. gsfc. nasa. gov/ery_uv 1. html
