EET 422 EMC COMPLIANCE ENGINEERING Prof R

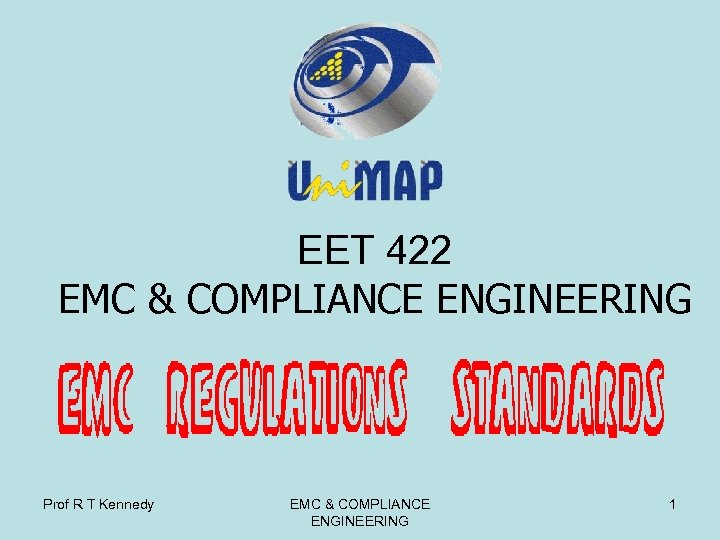

EET 422 EMC & COMPLIANCE ENGINEERING Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 1

EET 422 EMC & COMPLIANCE ENGINEERING Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 2

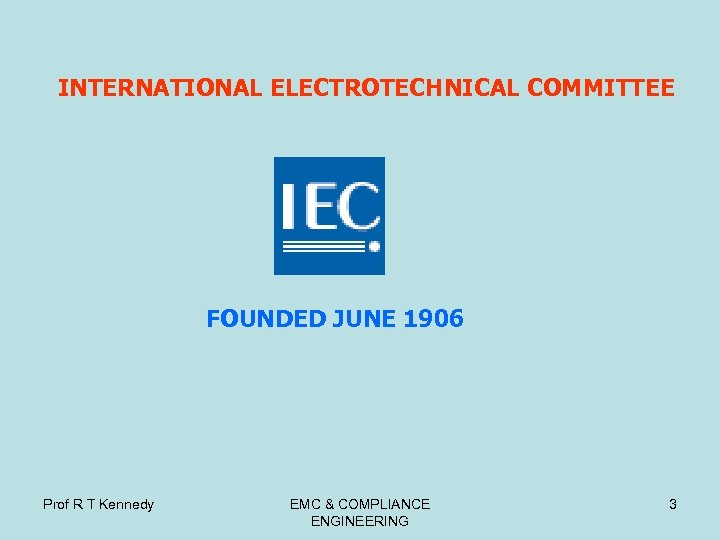

INTERNATIONAL ELECTROTECHNICAL COMMITTEE FOUNDED JUNE 1906 Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 3

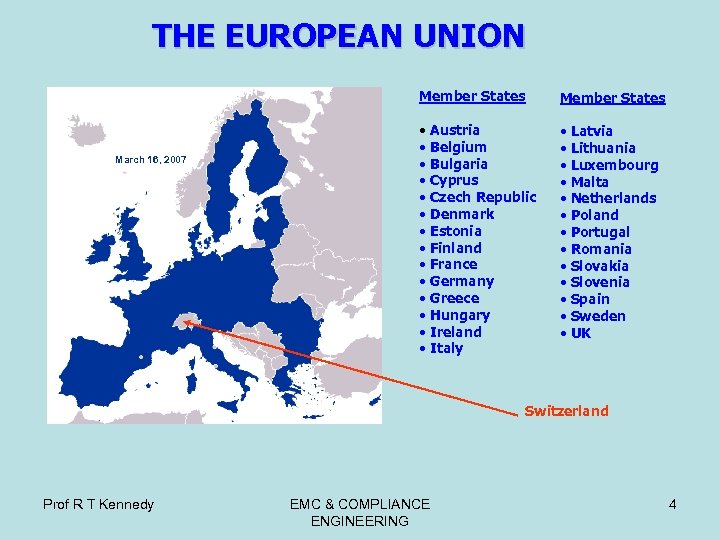

THE EUROPEAN UNION Member States March 16, 2007 Member States • Austria • Belgium • Bulgaria • Cyprus • Czech Republic • Denmark • Estonia • Finland • France • Germany • Greece • Hungary • Ireland • Italy • Latvia • Lithuania • Luxembourg • Malta • Netherlands • Poland • Portugal • Romania • Slovakia • Slovenia • Spain • Sweden • UK Switzerland Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 4

1914 LISTS –TERMS & DEFINITIONS electrical machinery and apparatus (inc. transformers) international letter symbols for quantities names and signs of units 4 TECHNICAL COMMITTEES nomenclature symbols rating of Electrical Machinery and Prime Movers Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 5

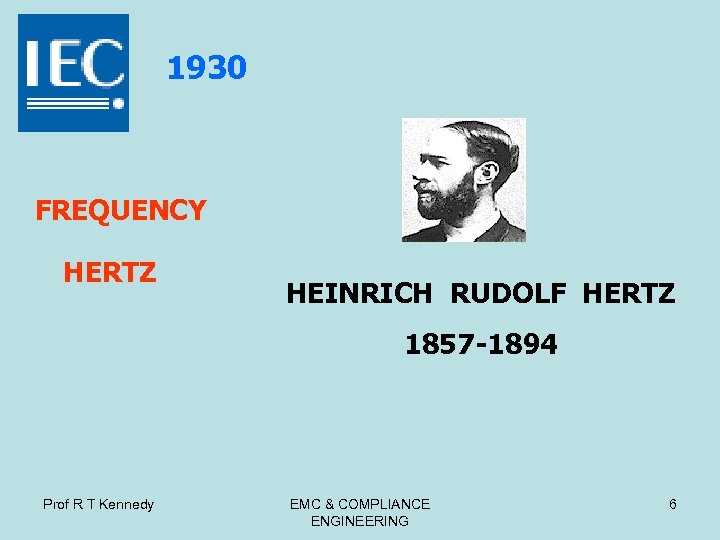

1930 FREQUENCY HERTZ HEINRICH RUDOLF HERTZ 1857 -1894 Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 6

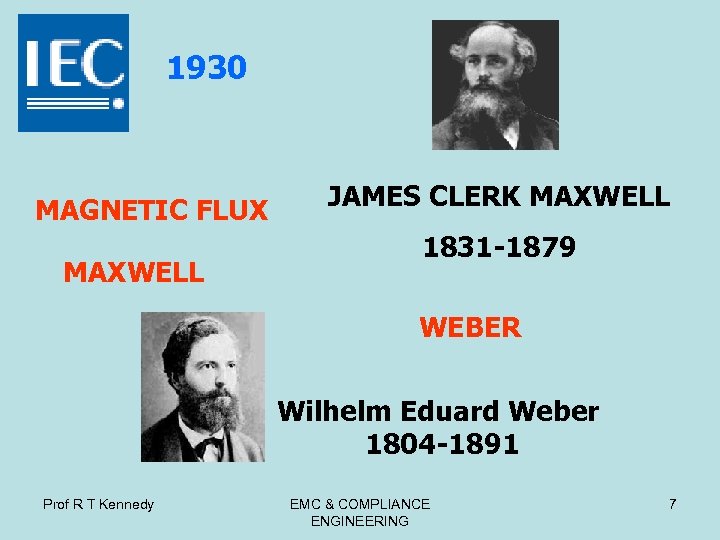

1930 MAGNETIC FLUX MAXWELL JAMES CLERK MAXWELL 1831 -1879 WEBER Wilhelm Eduard Weber 1804 -1891 Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 7

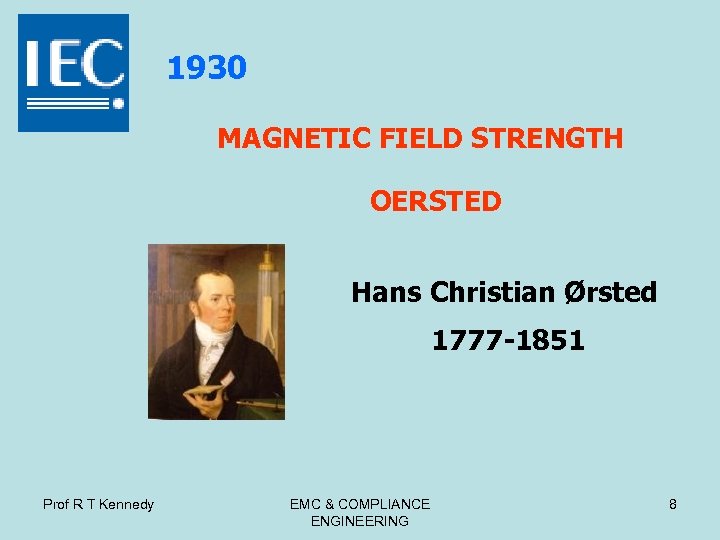

1930 MAGNETIC FIELD STRENGTH OERSTED Hans Christian Ørsted 1777 -1851 Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 8

1930 MAGNETIC FLUX DENSITY GAUSS Johann Carl Friedrich Gauss 1777 -1855 Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 9

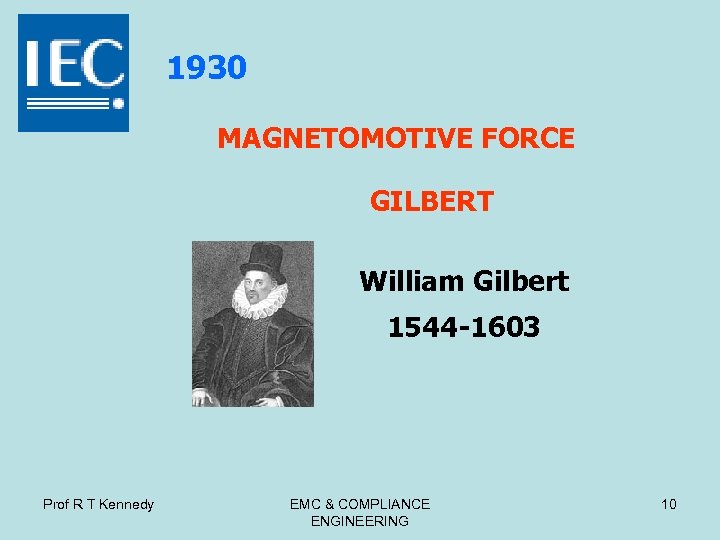

1930 MAGNETOMOTIVE FORCE GILBERT William Gilbert 1544 -1603 Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 10

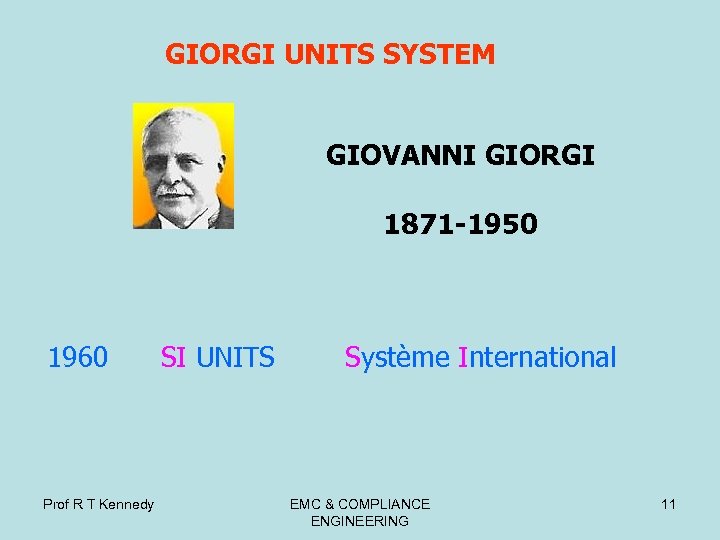

GIORGI UNITS SYSTEM GIOVANNI GIORGI 1871 -1950 1960 Prof R T Kennedy SI UNITS Système International EMC & COMPLIANCE ENGINEERING 11

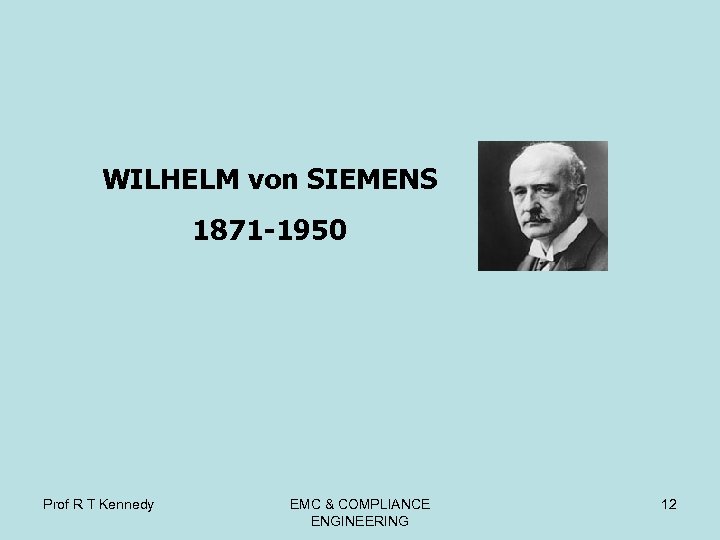

WILHELM von SIEMENS 1871 -1950 Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 12

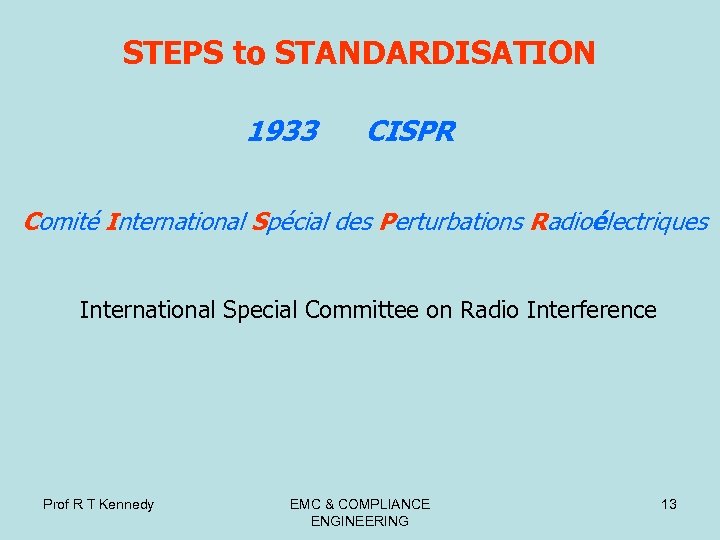

STEPS to STANDARDISATION 1933 CISPR Comité International Spécial des Perturbations Radioélectriques International Special Committee on Radio Interference Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 13

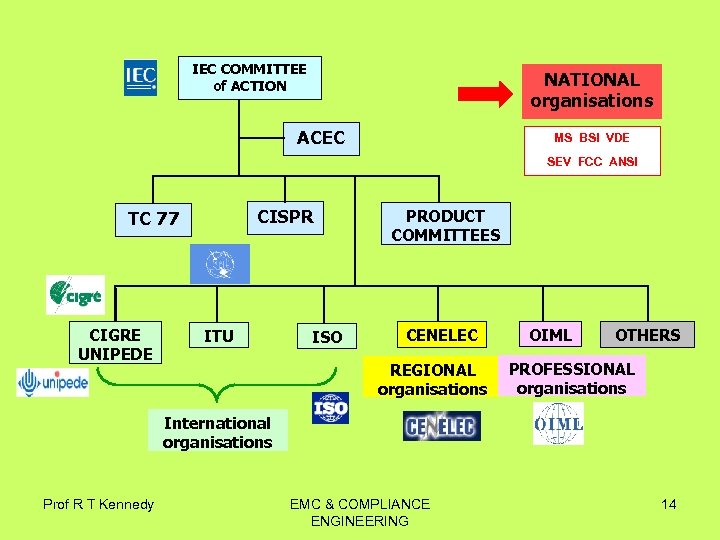

IEC COMMITTEE of ACTION NATIONAL organisations ACEC MS BSI VDE SEV FCC ANSI CISPR TC 77 CIGRE UNIPEDE ITU ISO PRODUCT COMMITTEES CENELEC REGIONAL organisations OIML OTHERS PROFESSIONAL organisations International organisations Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 14

Role of ACEC • provides advice to the Standardization Management Board (SMB) • coordinates the EMC work of IEC committees • coordinates the EMC work of the IEC with other organizations ( ITU ISO OIML ) • identifies market needs in EMC • publicises the EMC work in the IEC Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 15

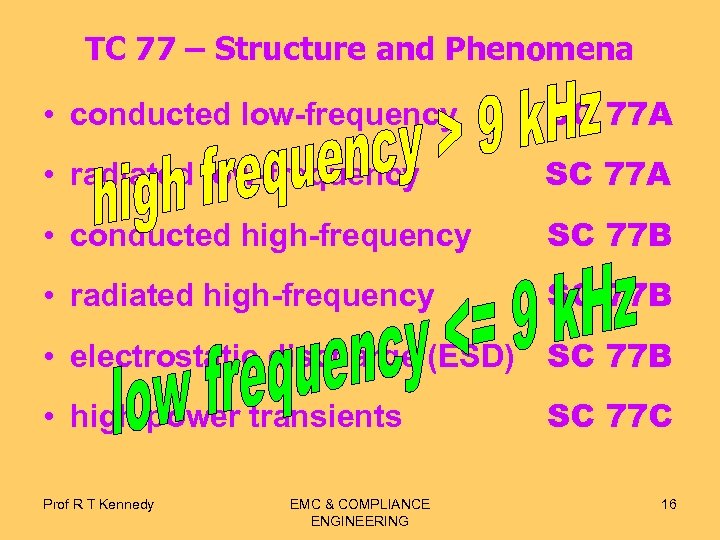

TC 77 – Structure and Phenomena • conducted low-frequency SC 77 A • radiated low-frequency SC 77 A • conducted high-frequency SC 77 B • radiated high-frequency SC 77 B • electrostatic discharge (ESD) SC 77 B • high power transients SC 77 C Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 16

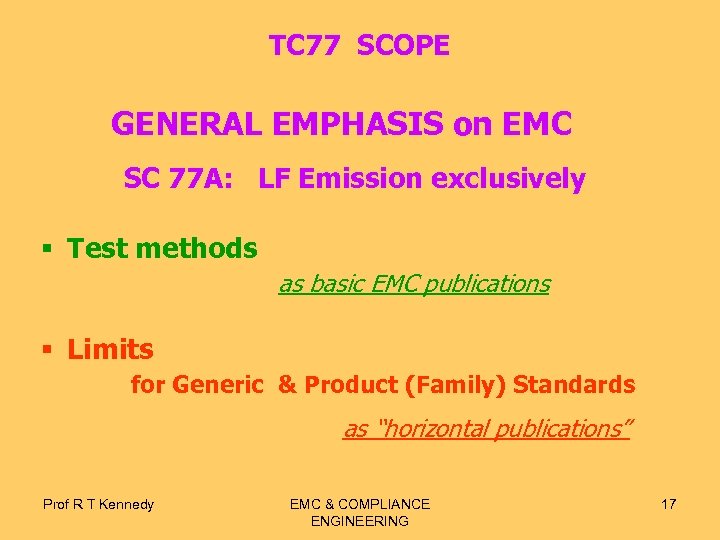

TC 77 SCOPE GENERAL EMPHASIS on EMC SC 77 A: LF Emission exclusively § Test methods as basic EMC publications § Limits for Generic & Product (Family) Standards as “horizontal publications” Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 17

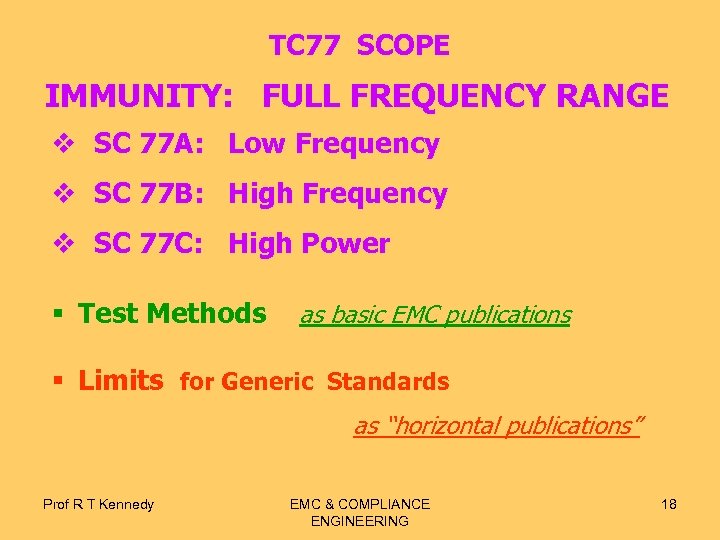

TC 77 SCOPE IMMUNITY: FULL FREQUENCY RANGE v SC 77 A: Low Frequency v SC 77 B: High Frequency v SC 77 C: High Power § Test Methods as basic EMC publications § Limits for Generic Standards as “horizontal publications” Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 18

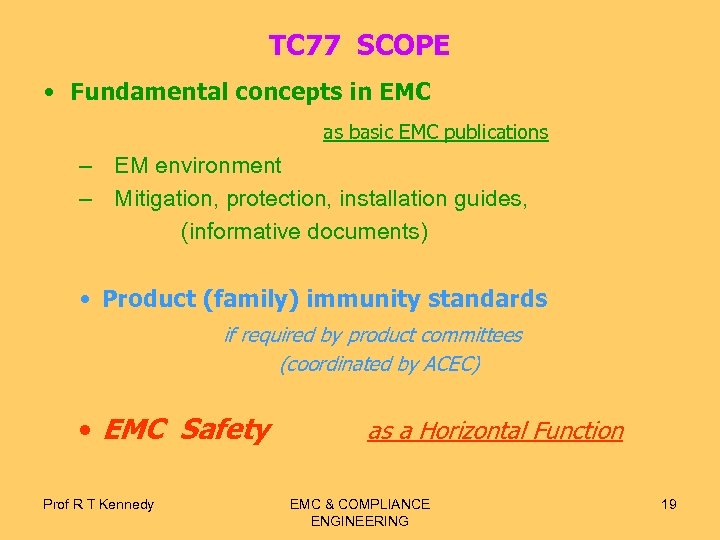

TC 77 SCOPE • Fundamental concepts in EMC as basic EMC publications – EM environment – Mitigation, protection, installation guides, (informative documents) • Product (family) immunity standards if required by product committees (coordinated by ACEC) • EMC Safety Prof R T Kennedy as a Horizontal Function EMC & COMPLIANCE ENGINEERING 19

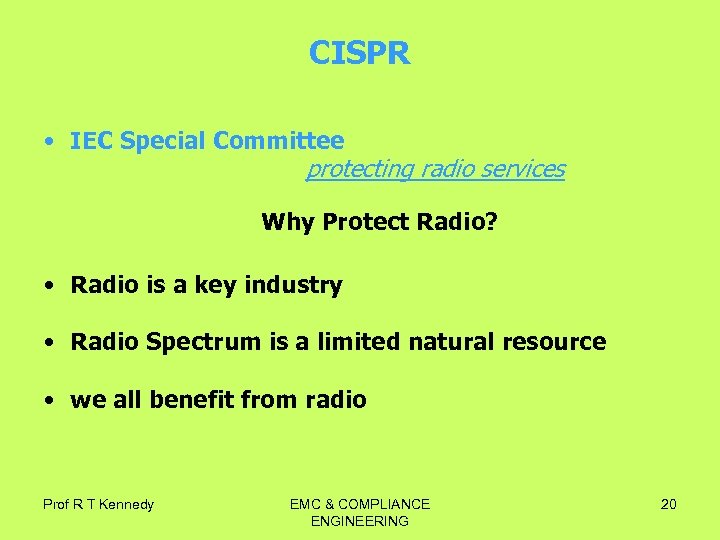

CISPR • IEC Special Committee protecting radio services Why Protect Radio? • Radio is a key industry • Radio Spectrum is a limited natural resource • we all benefit from radio Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 20

CISPR EMISSION STANDARDS FAMILY PRODUCT STANDARDS Product Committees GENERIC STANDARDS Limits BASIC STANDARDS Measurements Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 21

CISPR PRODUCT EMISSION STANDARDS • Industrial Products • Vehicles • Domestic & Lighting Products • ITE & Multi-Media Products Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 22

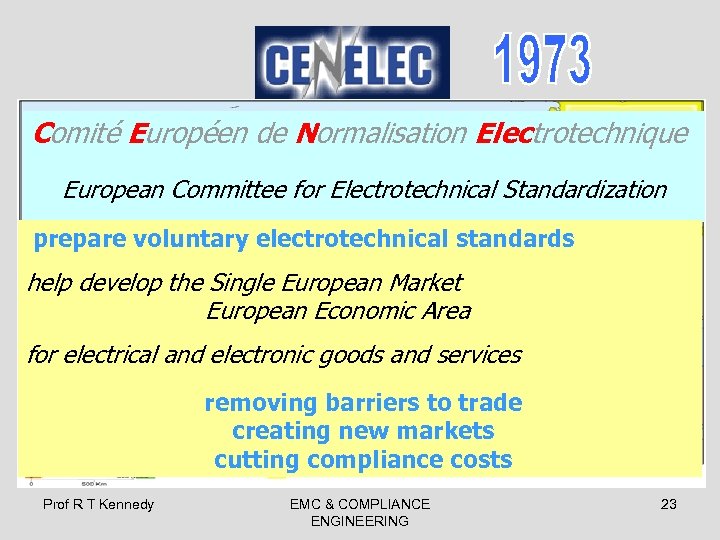

Comité Européen de Normalisation Electrotechnique European Committee for Electrotechnical Standardization prepare voluntary electrotechnical standards help develop the Single European Market European Economic Area for electrical and electronic goods and services removing barriers to trade creating new markets cutting compliance costs Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 23

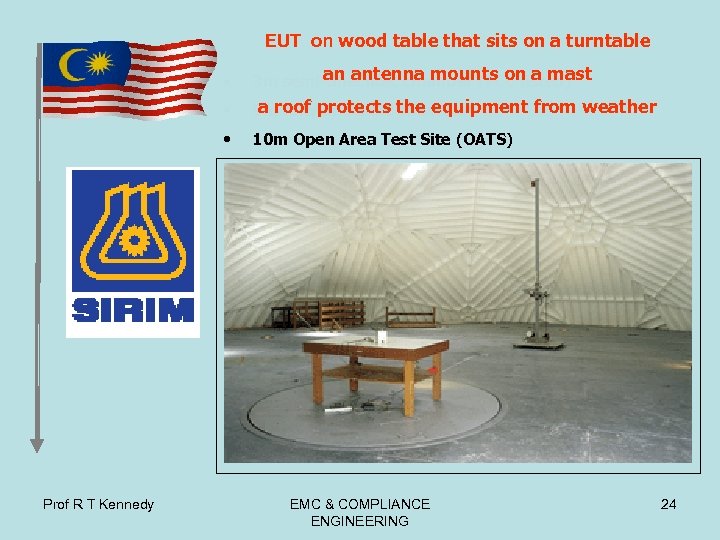

EUT on wood table that sits on a turntable • a roof anechoic chamber 5 m fullyprotects the equipment from weather • 10 m Open Area Test Site (OATS) • 6 shielded enclosures • fully automated Conducted / Radiated Emission Test • fully automated Conducted / Radiated Immunity Test • fully automated EMC Test for Audio / Video products • Electrostatic Discharge Test (ESD) • Electric Fast Transient / Burst Immunity Test System • Harmonics, Voltage Dips, Surge • Magnetic Field Immunity Test • Immunity Test System for car components • Prof R T Kennedy an antenna mounts on a mast 3 m semi-anechoic chamber (FCC listed) fully automated conducted / radiated Emission / Immunity Testing for Telecommunication Equipment EMC & COMPLIANCE ENGINEERING 24

Want to know more? Prof R T Kennedy EMC & COMPLIANCE ENGINEERING 25
