EE 3721 Computer System Principles Week 7 Input Output

EE 3721 Computer System Principles Week 7 Input/Output Systems 1

Why I/O is important Ø How to control a motor using a PC? Ø The motor will be regarded as an output device Ø How can the computer communicate with the motor? 2

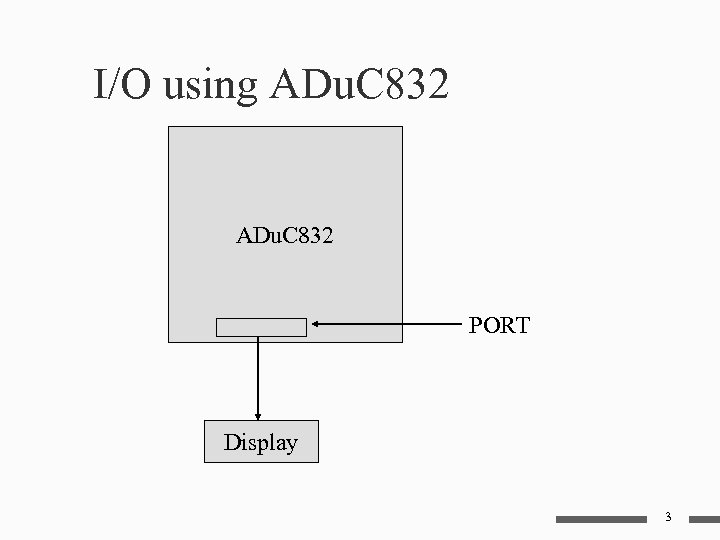

I/O using ADu. C 832 PORT Display 3

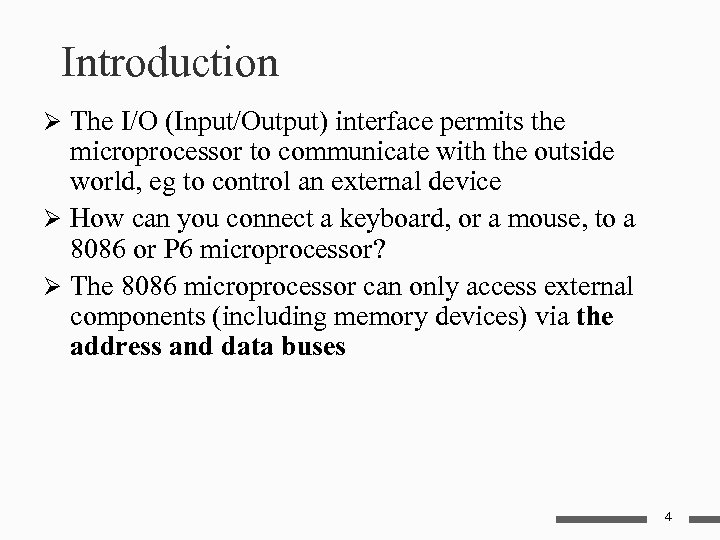

Introduction Ø The I/O (Input/Output) interface permits the microprocessor to communicate with the outside world, eg to control an external device Ø How can you connect a keyboard, or a mouse, to a 8086 or P 6 microprocessor? Ø The 8086 microprocessor can only access external components (including memory devices) via the address and data buses 4

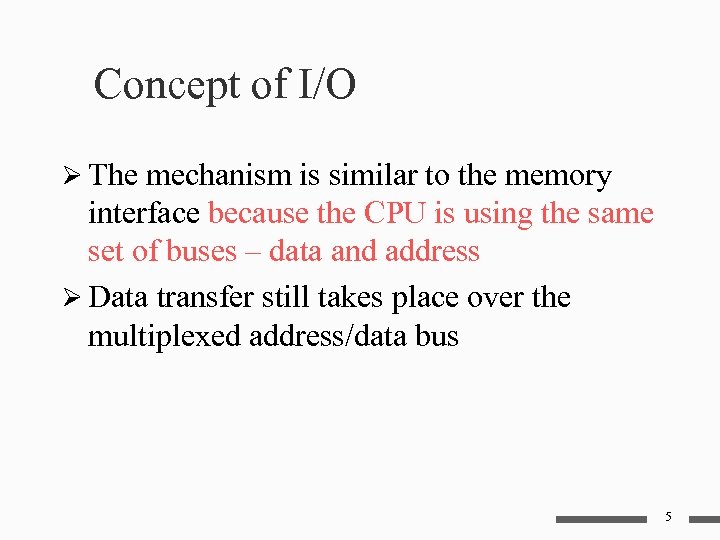

Concept of I/O Ø The mechanism is similar to the memory interface because the CPU is using the same set of buses – data and address Ø Data transfer still takes place over the multiplexed address/data bus 5

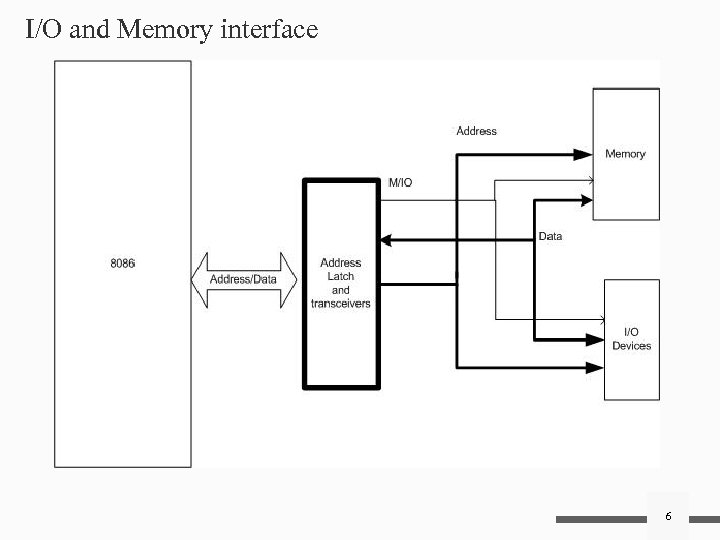

I/O and Memory interface 6

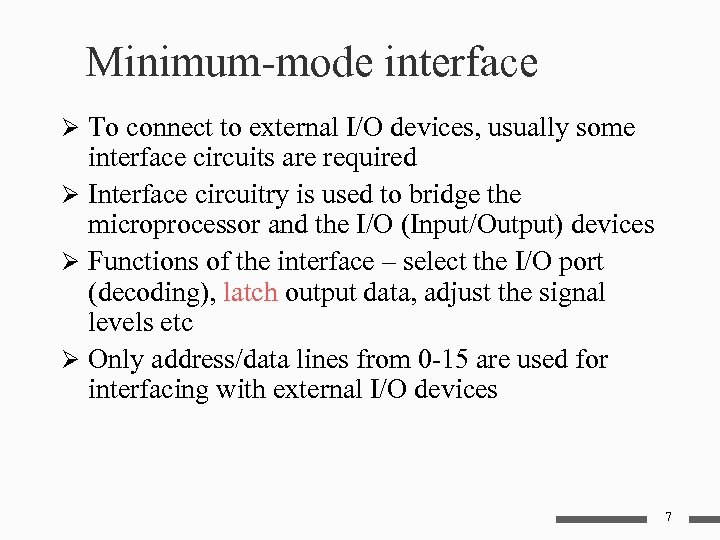

Minimum-mode interface Ø To connect to external I/O devices, usually some interface circuits are required Ø Interface circuitry is used to bridge the microprocessor and the I/O (Input/Output) devices Ø Functions of the interface – select the I/O port (decoding), latch output data, adjust the signal levels etc Ø Only address/data lines from 0 -15 are used for interfacing with external I/O devices 7

Block diagram for IO system The control signals are same as those used in memory operations 8

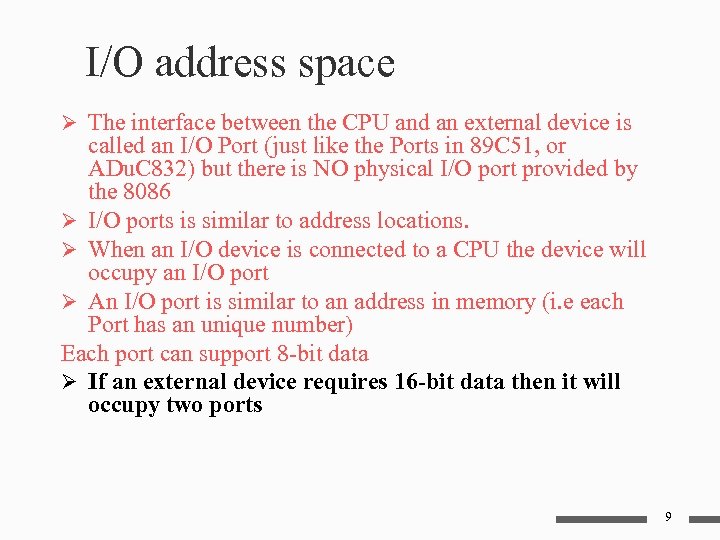

I/O address space Ø The interface between the CPU and an external device is called an I/O Port (just like the Ports in 89 C 51, or ADu. C 832) but there is NO physical I/O port provided by the 8086 Ø I/O ports is similar to address locations. Ø When an I/O device is connected to a CPU the device will occupy an I/O port Ø An I/O port is similar to an address in memory (i. e each Port has an unique number) Each port can support 8 -bit data Ø If an external device requires 16 -bit data then it will occupy two ports 9

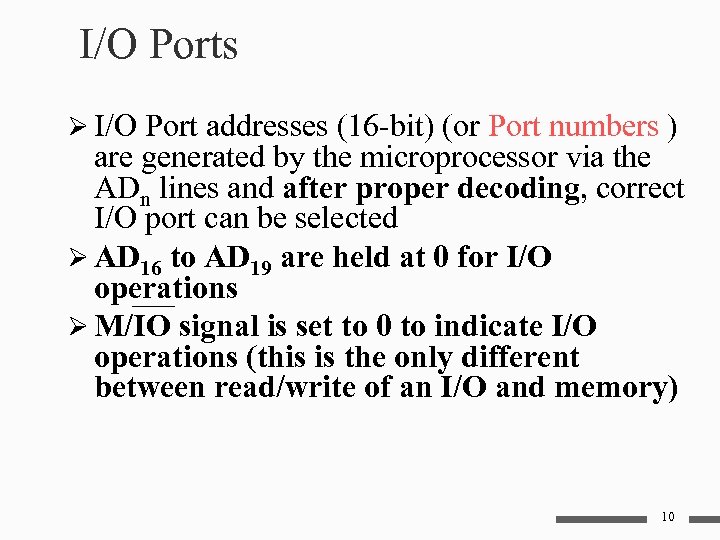

I/O Ports Ø I/O Port addresses (16 -bit) (or Port numbers ) are generated by the microprocessor via the ADn lines and after proper decoding, correct I/O port can be selected Ø AD 16 to AD 19 are held at 0 for I/O operations Ø M/IO signal is set to 0 to indicate I/O operations (this is the only different between read/write of an I/O and memory) 10

I/O ports for a PC 03 FF – 03 F 8 02 FF – 02 F 8 03 DF – 03 D 0 037 F – 0378 032 F – 0320 0063 - 0060 0043 – 0040 0023 – 0020 000 F - 0000 COM 1 COM 2 CGA adapter LPT 1 Hard disk 8255 (PPI) Timer Interrupt controller DMA controller 11

I/O instructions Ø How to read/write to/from I/O devices? Ø In 8086, IN and OUT are I/O instructions Ø IN - input from port into AL or AX Ø OUT - Output from AL or AX to port Ø IN AL, FF (move a byte in from port FF) Ø OUT FF, AL (move a byte out from AL) Ø IN and OUT are called direct instruction to access I/O ports Ø Using IN, or OUT the max. port no. is 255 (FF) 12

I/O instructions Ø Can also use indirect with DX holding the port address Ø IN AL, DX Ø OUT DX, AL Ø Indirect addressing can access 64 K ports (WHY? ) 13

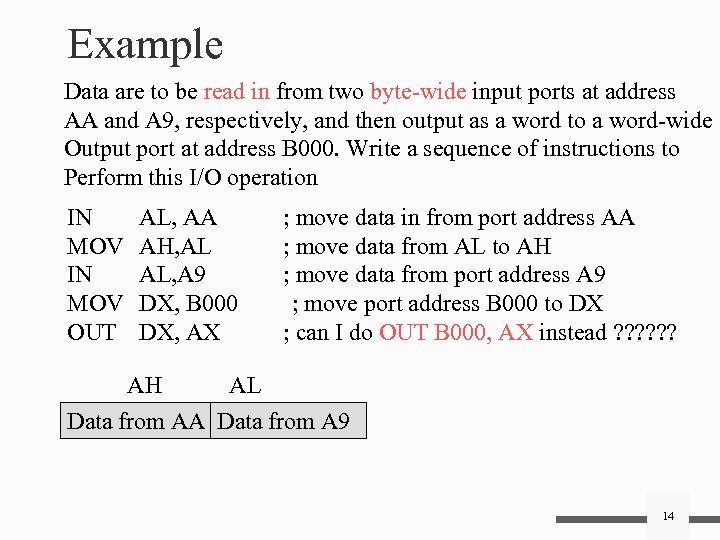

Example Data are to be read in from two byte-wide input ports at address AA and A 9, respectively, and then output as a word to a word-wide Output port at address B 000. Write a sequence of instructions to Perform this I/O operation IN MOV OUT AL, AA AH, AL AL, A 9 DX, B 000 DX, AX ; move data in from port address AA ; move data from AL to AH ; move data from port address A 9 ; move port address B 000 to DX ; can I do OUT B 000, AX instead ? ? ? AH AL Data from AA Data from A 9 14

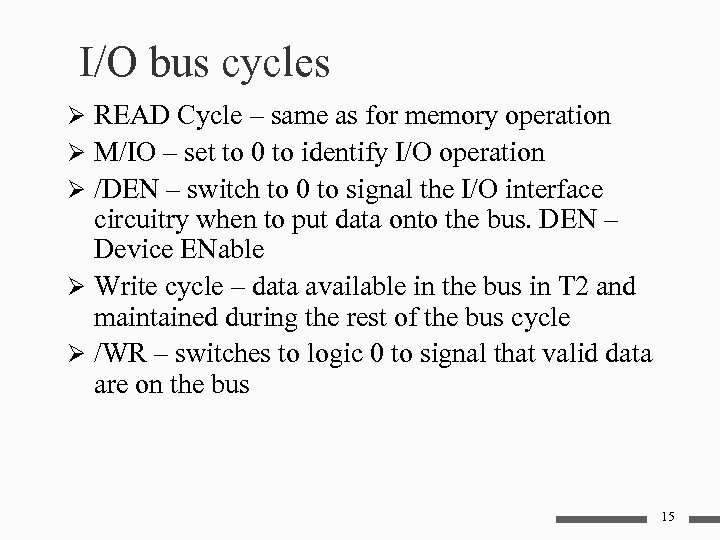

I/O bus cycles Ø READ Cycle – same as for memory operation Ø M/IO – set to 0 to identify I/O operation Ø /DEN – switch to 0 to signal the I/O interface circuitry when to put data onto the bus. DEN – Device ENable Ø Write cycle – data available in the bus in T 2 and maintained during the rest of the bus cycle Ø /WR – switches to logic 0 to signal that valid data are on the bus 15

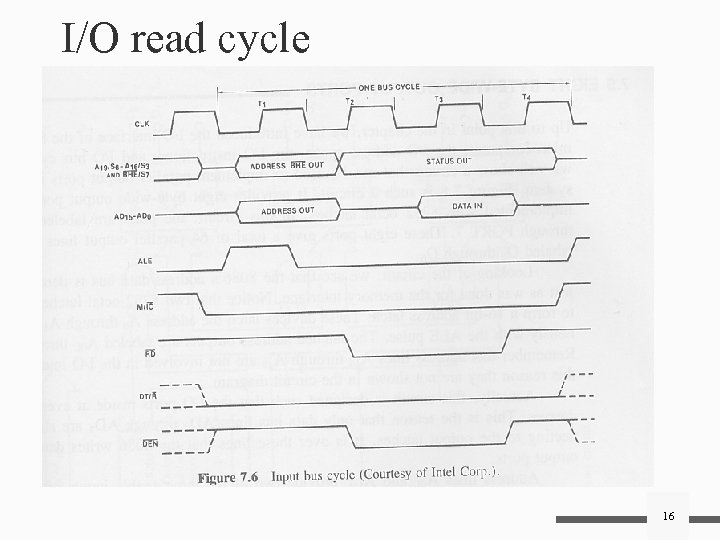

I/O read cycle 16

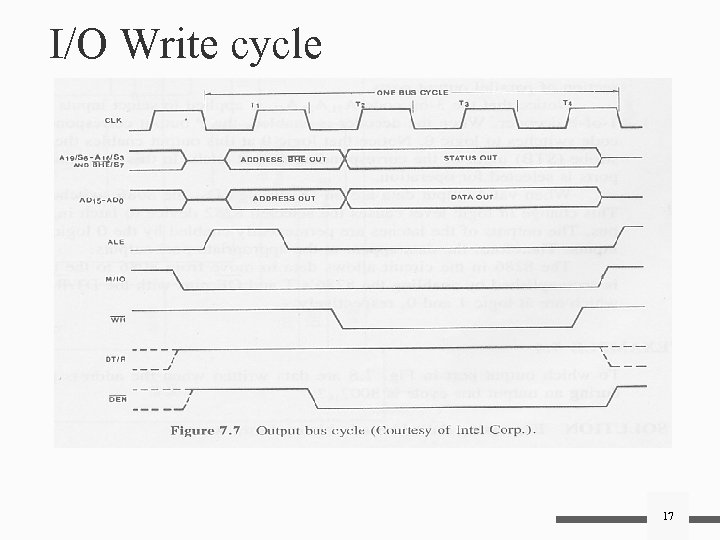

I/O Write cycle 17

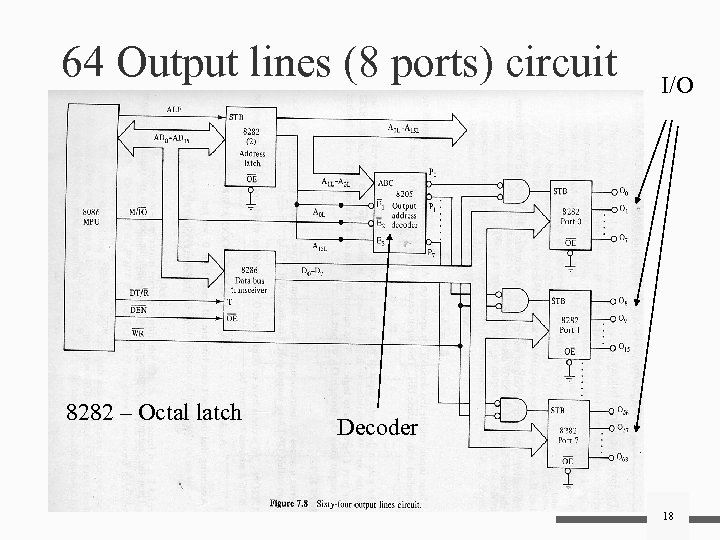

64 Output lines (8 ports) circuit 8282 – Octal latch I/O Decoder 18

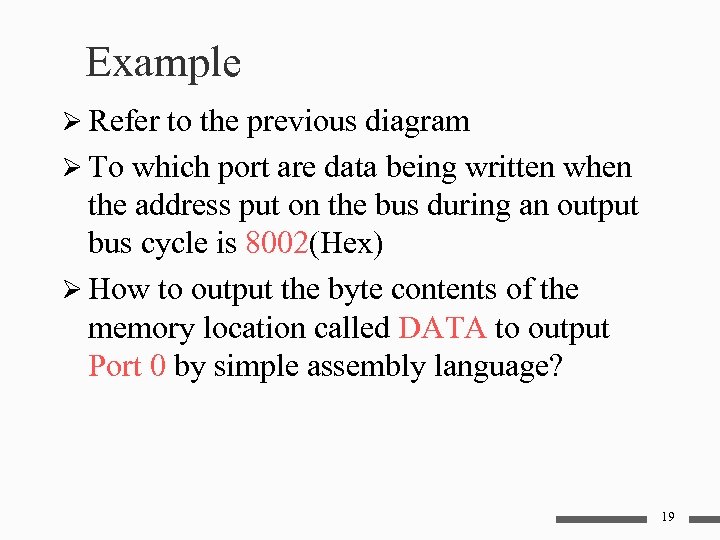

Example Ø Refer to the previous diagram Ø To which port are data being written when the address put on the bus during an output bus cycle is 8002(Hex) Ø How to output the byte contents of the memory location called DATA to output Port 0 by simple assembly language? 19

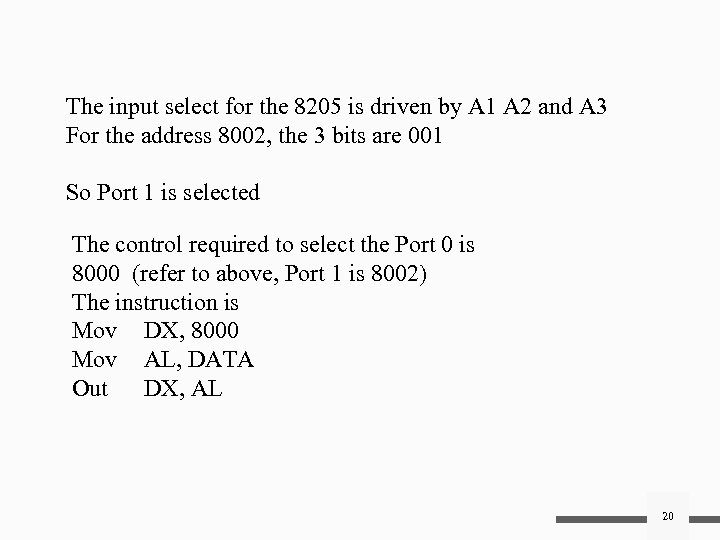

The input select for the 8205 is driven by A 1 A 2 and A 3 For the address 8002, the 3 bits are 001 So Port 1 is selected The control required to select the Port 0 is 8000 (refer to above, Port 1 is 8002) The instruction is Mov DX, 8000 Mov AL, DATA Out DX, AL 20

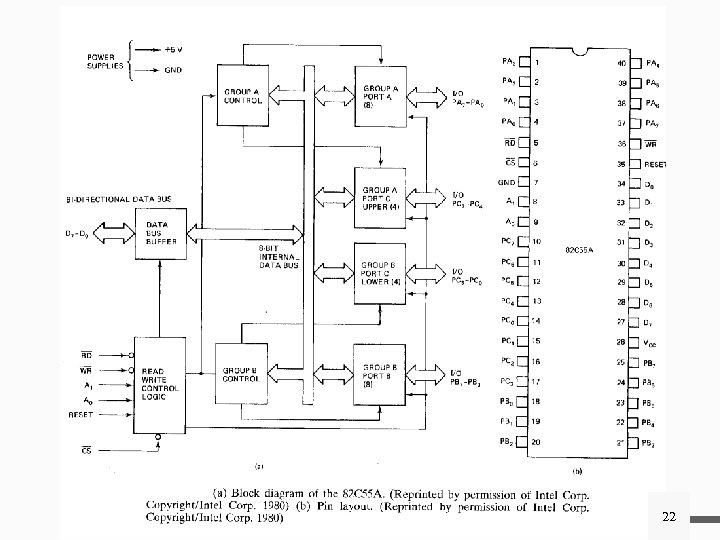

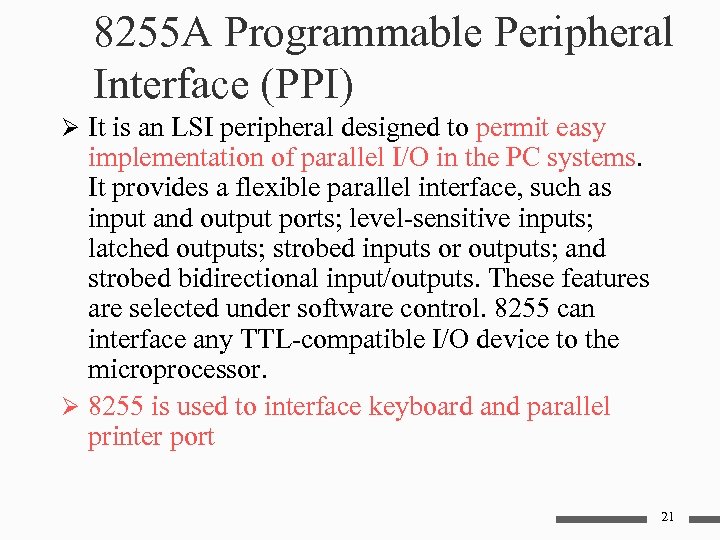

8255 A Programmable Peripheral Interface (PPI) Ø It is an LSI peripheral designed to permit easy implementation of parallel I/O in the PC systems. It provides a flexible parallel interface, such as input and output ports; level-sensitive inputs; latched outputs; strobed inputs or outputs; and strobed bidirectional input/outputs. These features are selected under software control. 8255 can interface any TTL-compatible I/O device to the microprocessor. Ø 8255 is used to interface keyboard and parallel printer port 21

22

To/From CPU To/From I/O devices 23

8255 PPI Ø It consists of 3 ports Ø Each port is 8 -bit Ø Address A 0 and A 1 (these are input of 8255 not 8086) are used to select the port to read/write Ø Data are transferred through a 8 -bit bidirectional data bus Ø Chip select (/CS) of the 8255 must be enabled 24

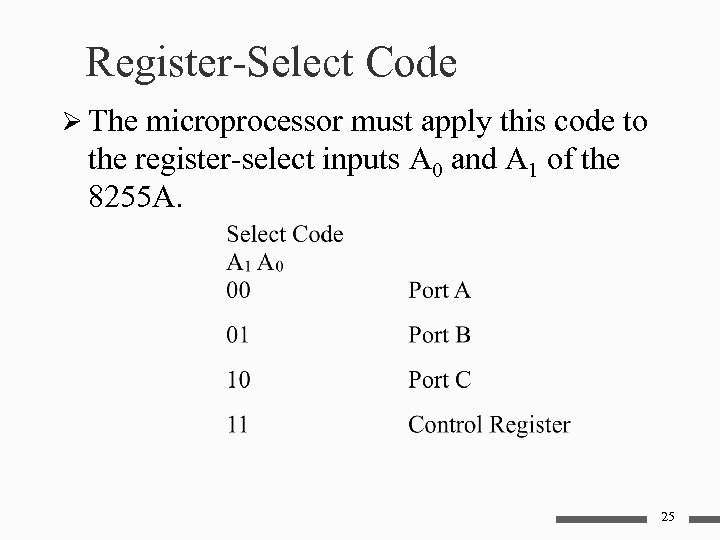

Register-Select Code Ø The microprocessor must apply this code to the register-select inputs A 0 and A 1 of the 8255 A. 25

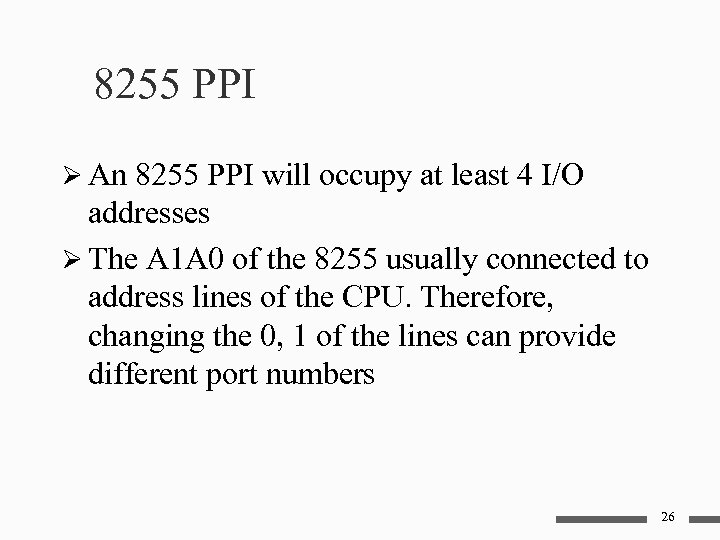

8255 PPI Ø An 8255 PPI will occupy at least 4 I/O addresses Ø The A 1 A 0 of the 8255 usually connected to address lines of the CPU. Therefore, changing the 0, 1 of the lines can provide different port numbers 26

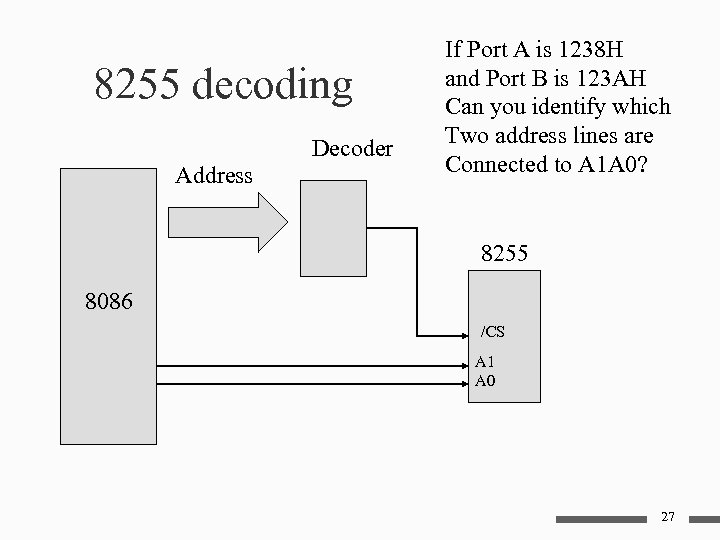

8255 decoding Decoder Address If Port A is 1238 H and Port B is 123 AH Can you identify which Two address lines are Connected to A 1 A 0? 8255 8086 /CS A 1 A 0 27

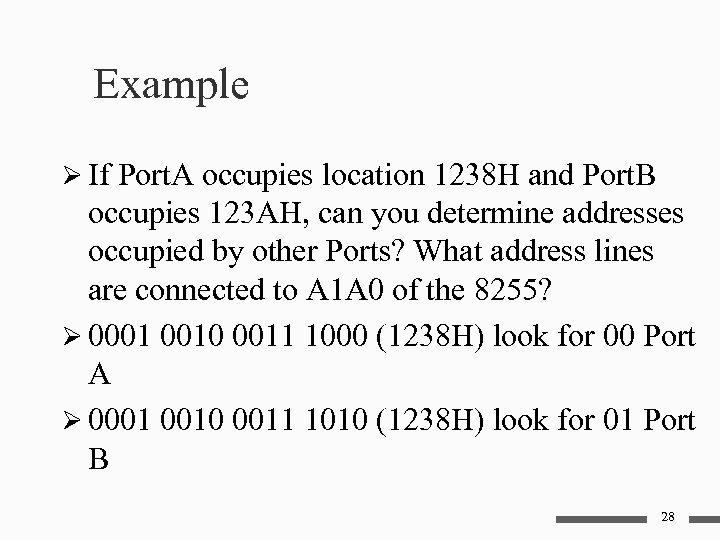

Example Ø If Port. A occupies location 1238 H and Port. B occupies 123 AH, can you determine addresses occupied by other Ports? What address lines are connected to A 1 A 0 of the 8255? Ø 0001 0010 0011 1000 (1238 H) look for 00 Port A Ø 0001 0010 0011 1010 (1238 H) look for 01 Port B 28

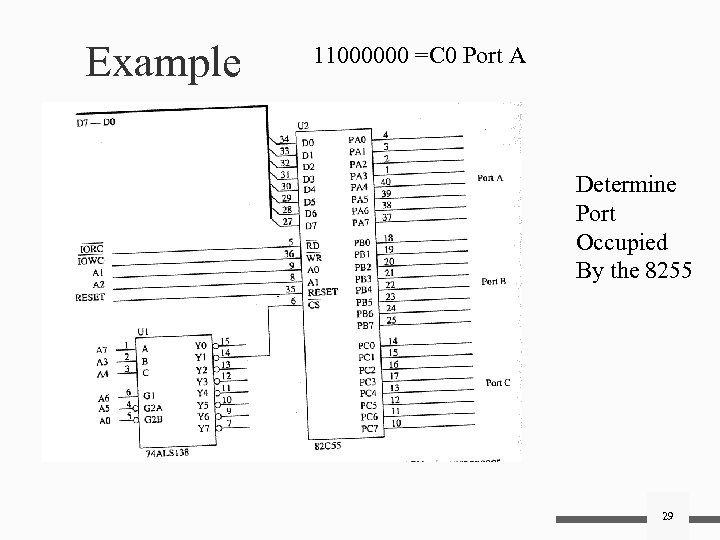

Example 11000000 =C 0 Port A Determine Port Occupied By the 8255 29

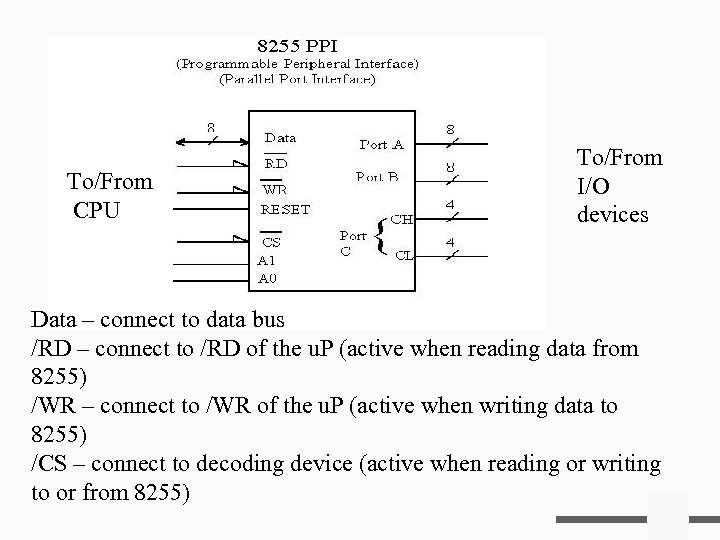

To/From CPU To/From I/O devices Data – connect to data bus /RD – connect to /RD of the u. P (active when reading data from 8255) /WR – connect to /WR of the u. P (active when writing data to 8255) /CS – connect to decoding device (active when reading or writing to or from 8255) 30

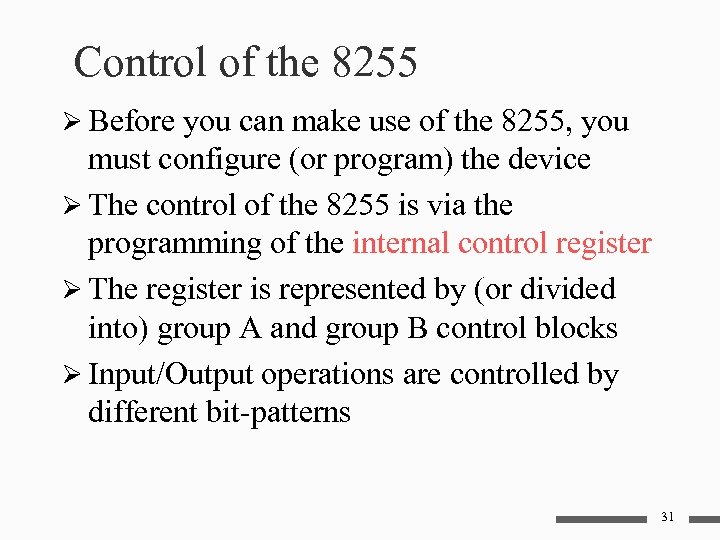

Control of the 8255 Ø Before you can make use of the 8255, you must configure (or program) the device Ø The control of the 8255 is via the programming of the internal control register Ø The register is represented by (or divided into) group A and group B control blocks Ø Input/Output operations are controlled by different bit-patterns 31

8255 PPI Ø To program the 8255, A 1 A 0 = 11 and a write cycle is initialized so that the proper bit pattern is written to the control register Ø After the configuration the PORTs A, B, C can be used accordingly 32

Control Word bit functions D 4 Port A D 6, D 5 D 7 Port C upper Mode selection Command type 0 Mode 1 0 Output Input 00 Mode 1 1 X Group A Input 01 D 3 Mode selection Output 1 D 2 0 1 Port B Input 1 D 1 Port C lower Output 1 Group B 0 1 D 0 Mode 2 0 Bit set/reset 1 Mode set 33

Control Bits Ø D 0 – set input/output for lower 4 -bit of Port C (1 for input; 0 for output ) Ø D 1 – set input/output for 8 -bit of Port B Ø D 2 – mode selection (0 – mode 0; 1 – mode 1) Ø D 3 – same as D 0 but for upper 4 -bit Ø D 4 – same as D 1 but for Port A Ø D 5 & D 6 – mode selection (00 – mode 0, 01 – mode 1, 1 X – mode 2) Ø D 7 – mode set flag ( 1 - active) 34

Mode Selection Ø Mode set flag is the D 7 bit in the control, it must be at logic 1 whenever the mode operation is to be changed. There are three modes of operation which are known as mode 0, mode 1, and mode 2 respectively. Ø We will only discuss Mode 0 and Mode 1!!!! Ø But you should study Mode 2 by yourself!!!!!!! 35

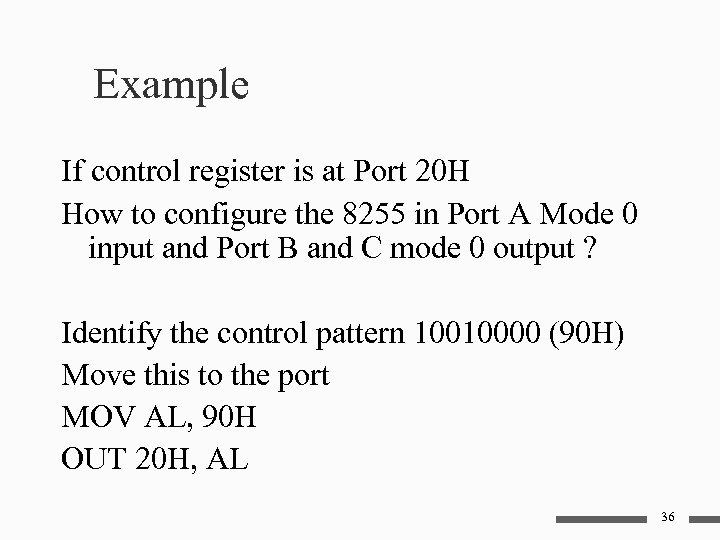

Example If control register is at Port 20 H How to configure the 8255 in Port A Mode 0 input and Port B and C mode 0 output ? Identify the control pattern 10010000 (90 H) Move this to the port MOV AL, 90 H OUT 20 H, AL 36

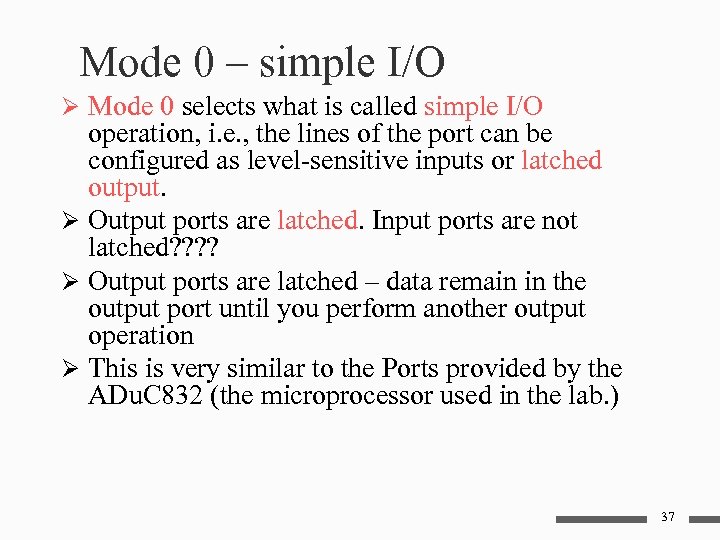

Mode 0 – simple I/O Ø Mode 0 selects what is called simple I/O operation, i. e. , the lines of the port can be configured as level-sensitive inputs or latched output. Ø Output ports are latched. Input ports are not latched? ? Ø Output ports are latched – data remain in the output port until you perform another output operation Ø This is very similar to the Ports provided by the ADu. C 832 (the microprocessor used in the lab. ) 37

Example What is the mode and I/O configuration for ports A, B, and C of an 8255 A after its control register is loaded with 82 Hex The binary pattern is 10000010 (82 H) refer to the table of control word D 0 = 0 lower 4 bits of Port C are outputs D 1 = 1 Port B are inputs D 2 = 0 mode 0 operation for both Port B and the lower 4 bits of Port C D 3 = 0 upper 4 bits of Port C are outputs D 4 = 0 Port A are outputs D 6 D 5 = 00 mode 0 operation for both Port A and the upper part Of Port C D 7 =1 mode enable 38

Exercise Ø If port A is F 0 H, Port C is F 4 H Ø First configure Port. A mode 0 output and Port. B mode 0 input Ø Then use a loop to send 10 character via port A and read 0 byte from port B 39

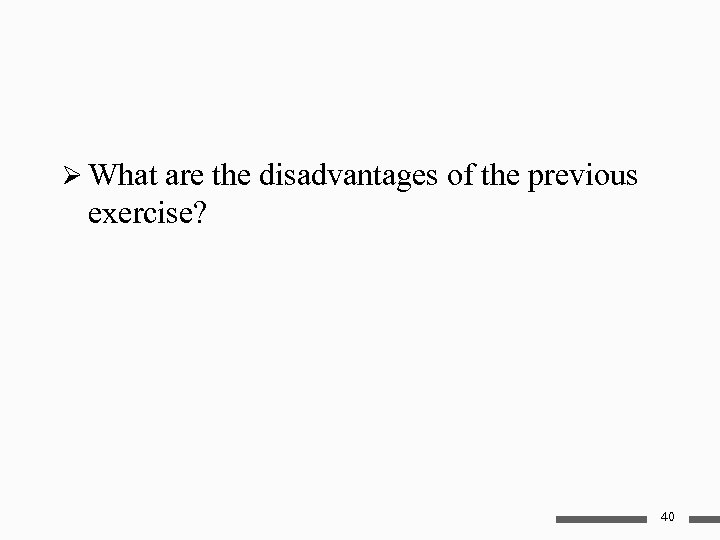

Ø What are the disadvantages of the previous exercise? 40

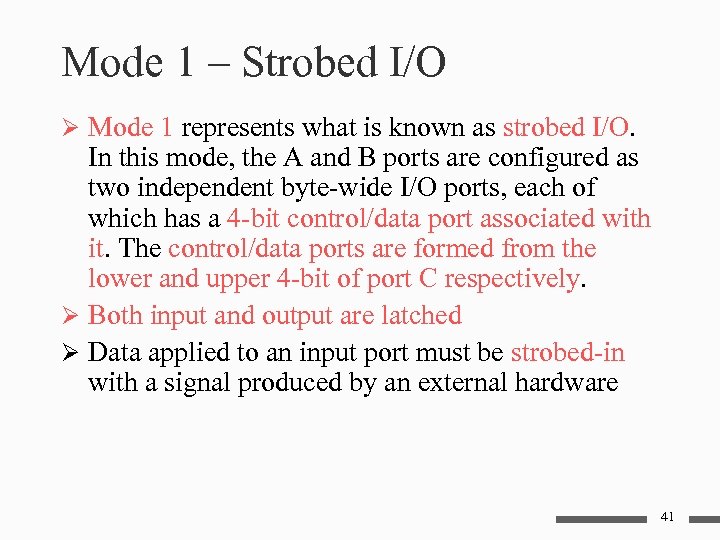

Mode 1 – Strobed I/O Ø Mode 1 represents what is known as strobed I/O. In this mode, the A and B ports are configured as two independent byte-wide I/O ports, each of which has a 4 -bit control/data port associated with it. The control/data ports are formed from the lower and upper 4 -bit of port C respectively. Ø Both input and output are latched Ø Data applied to an input port must be strobed-in with a signal produced by an external hardware 41

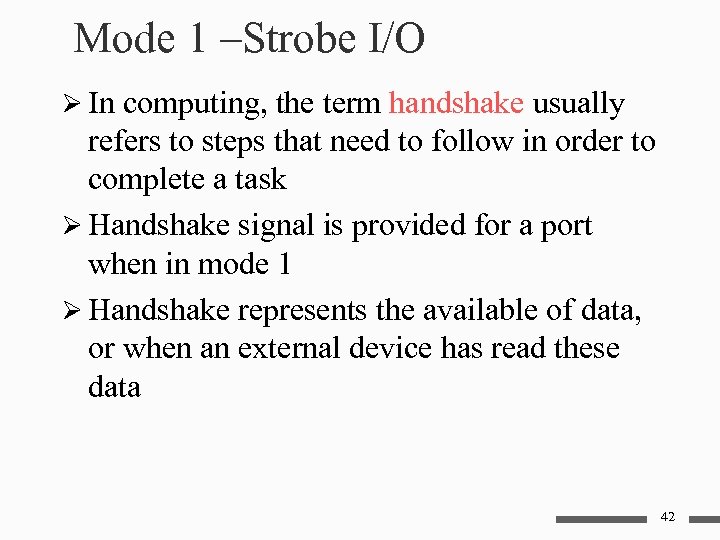

Mode 1 –Strobe I/O Ø In computing, the term handshake usually refers to steps that need to follow in order to complete a task Ø Handshake signal is provided for a port when in mode 1 Ø Handshake represents the available of data, or when an external device has read these data 42

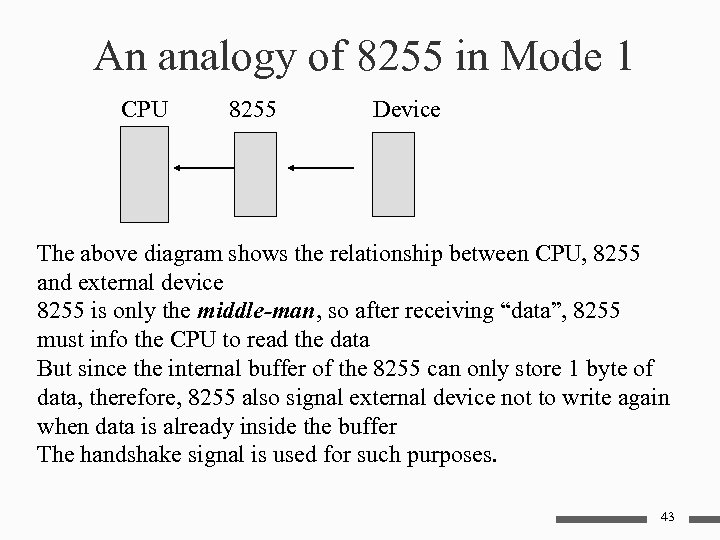

An analogy of 8255 in Mode 1 CPU 8255 Device The above diagram shows the relationship between CPU, 8255 and external device 8255 is only the middle-man, so after receiving “data”, 8255 must info the CPU to read the data But since the internal buffer of the 8255 can only store 1 byte of data, therefore, 8255 also signal external device not to write again when data is already inside the buffer The handshake signal is used for such purposes. 43

Example If the control register is loaded with 10111 XXX. What is the Configuration for the 8255? Port A is in mode 1 input port Upper 4 -bit of Port C is reconfigured to provide the Port A Control/data lines PC 4 – strobe input (/STBA) (to strobe data in Port A into the latch) (1 -> 0) PC 5 – input buffer full when 1 (IBFA) (output to signal external device) PC 3 – interrupt request (INTRA) (used when action should be performed by the microprocessor ) (output) PC 6, 7 – I/O PCx – PC (Port C bit x ) 44

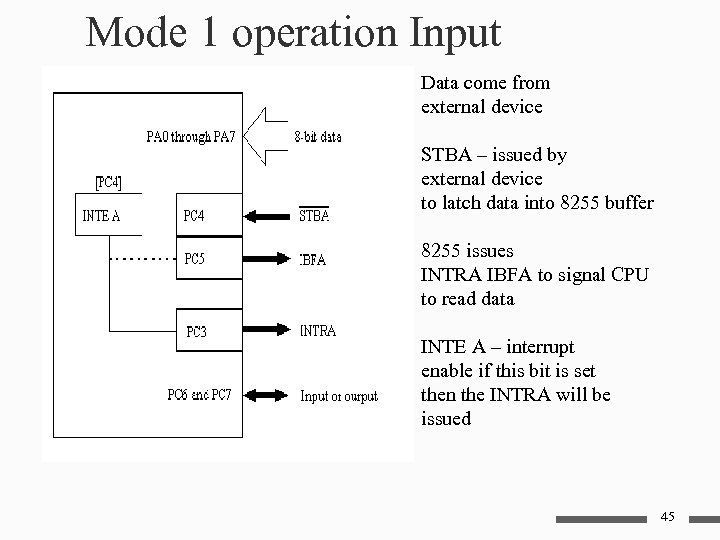

Mode 1 operation Input Data come from external device STBA – issued by external device to latch data into 8255 buffer 8255 issues INTRA IBFA to signal CPU to read data INTE A – interrupt enable if this bit is set then the INTRA will be issued 45

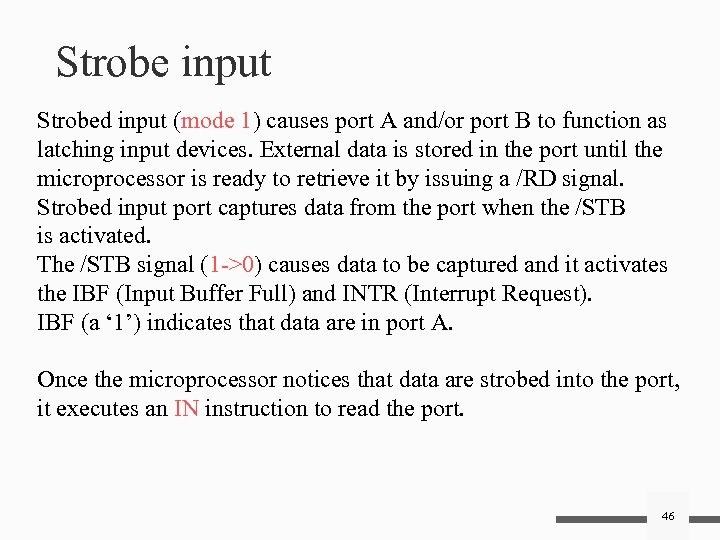

Strobe input Strobed input (mode 1) causes port A and/or port B to function as latching input devices. External data is stored in the port until the microprocessor is ready to retrieve it by issuing a /RD signal. Strobed input port captures data from the port when the /STB is activated. The /STB signal (1 ->0) causes data to be captured and it activates the IBF (Input Buffer Full) and INTR (Interrupt Request). IBF (a ‘ 1’) indicates that data are in port A. Once the microprocessor notices that data are strobed into the port, it executes an IN instruction to read the port. 46

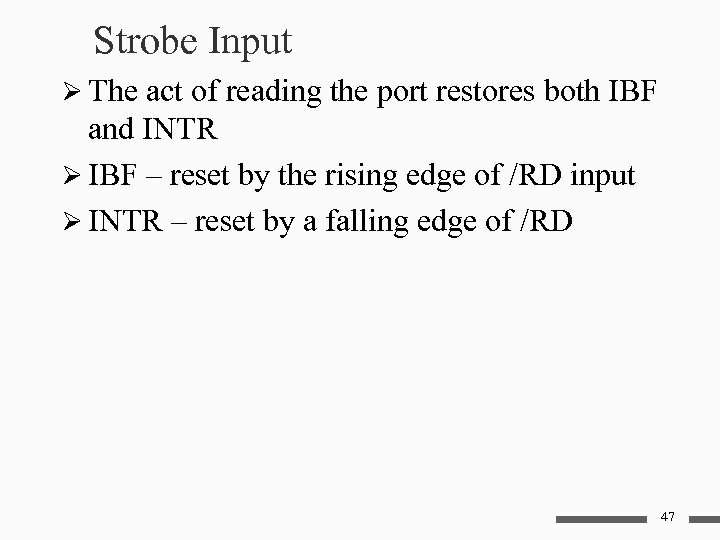

Strobe Input Ø The act of reading the port restores both IBF and INTR Ø IBF – reset by the rising edge of /RD input Ø INTR – reset by a falling edge of /RD 47

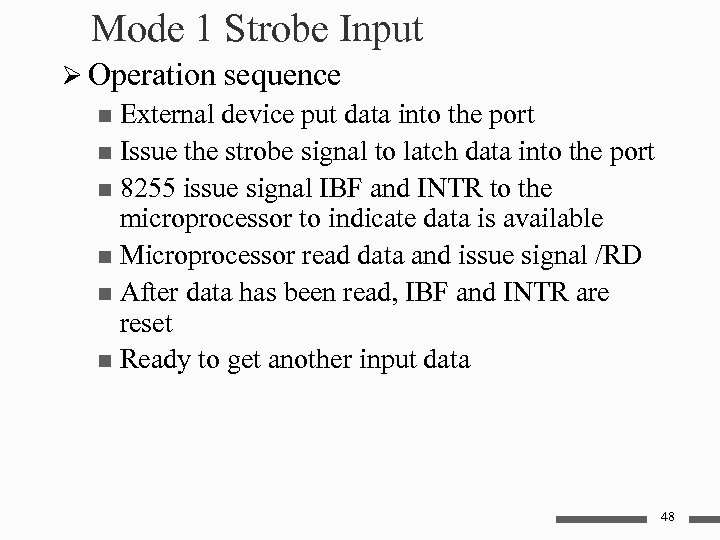

Mode 1 Strobe Input Ø Operation sequence n External device put data into the port n Issue the strobe signal to latch data into the port n 8255 issue signal IBF and INTR to the microprocessor to indicate data is available n Microprocessor read data and issue signal /RD n After data has been read, IBF and INTR are reset n Ready to get another input data 48

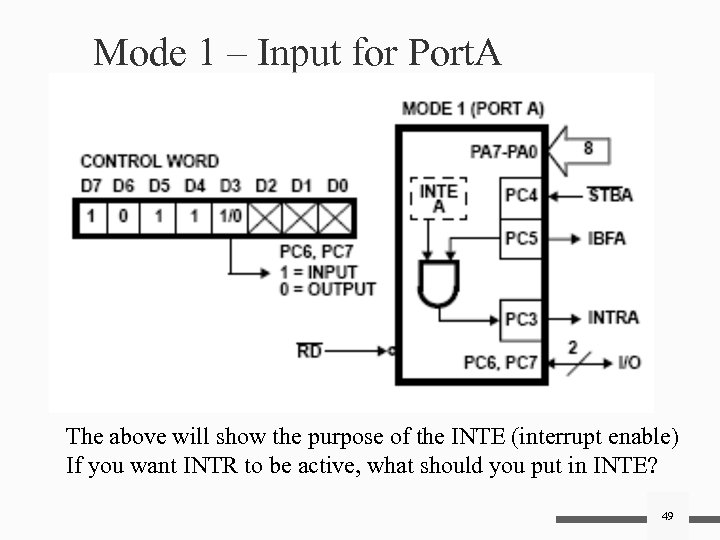

Mode 1 – Input for Port. A The above will show the purpose of the INTE (interrupt enable) If you want INTR to be active, what should you put in INTE? 49

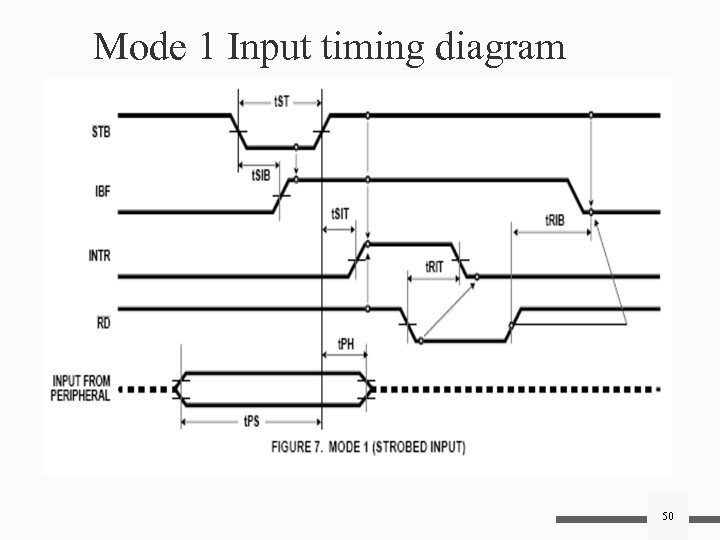

Mode 1 Input timing diagram 50

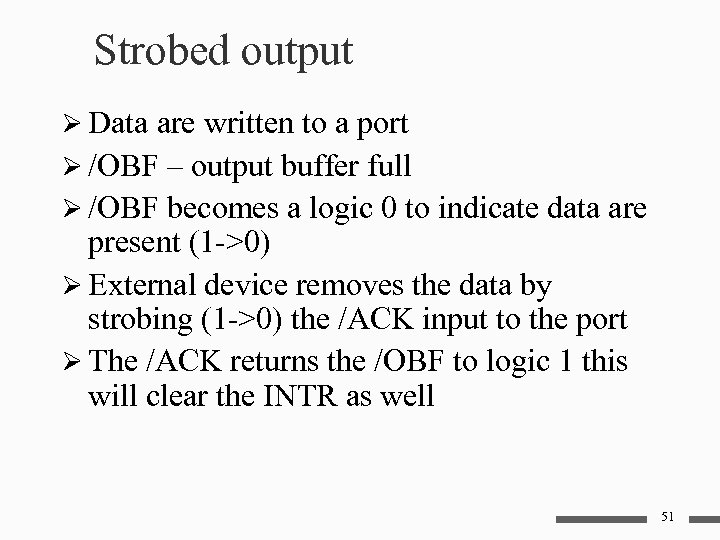

Strobed output Ø Data are written to a port Ø /OBF – output buffer full Ø /OBF becomes a logic 0 to indicate data are present (1 ->0) Ø External device removes the data by strobing (1 ->0) the /ACK input to the port Ø The /ACK returns the /OBF to logic 1 this will clear the INTR as well 51

Mode 1 Output 52

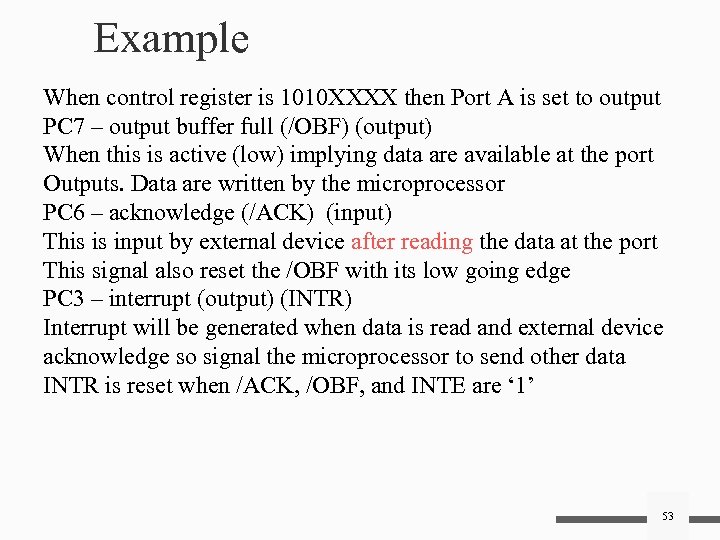

Example When control register is 1010 XXXX then Port A is set to output PC 7 – output buffer full (/OBF) (output) When this is active (low) implying data are available at the port Outputs. Data are written by the microprocessor PC 6 – acknowledge (/ACK) (input) This is input by external device after reading the data at the port This signal also reset the /OBF with its low going edge PC 3 – interrupt (output) (INTR) Interrupt will be generated when data is read and external device acknowledge so signal the microprocessor to send other data INTR is reset when /ACK, /OBF, and INTE are ‘ 1’ 53

Mode 1 Output 54

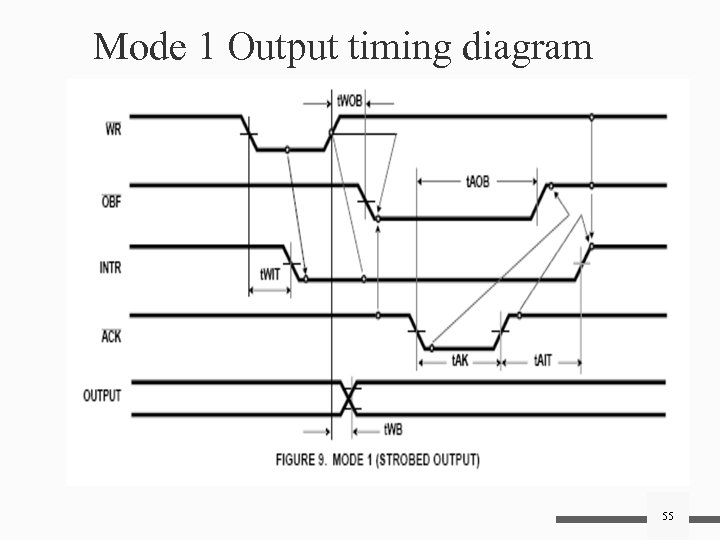

Mode 1 Output timing diagram 55

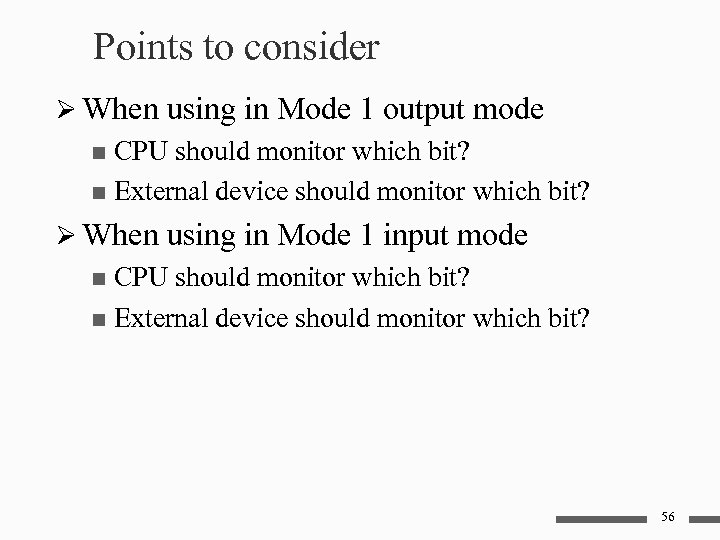

Points to consider Ø When using in Mode 1 output mode n CPU should monitor which bit? n External device should monitor which bit? Ø When using in Mode 1 input mode n CPU should monitor which bit? n External device should monitor which bit? 56

Example What is the purposes of the following very simple assembly codes? Hints: consider what does Bit 5 represent? Read: In AL, Port. C AND AL, #00100000 B JZ Read IN AL, Port. A ; test if bit 5 of port. C is ‘ 1’ Ret 57

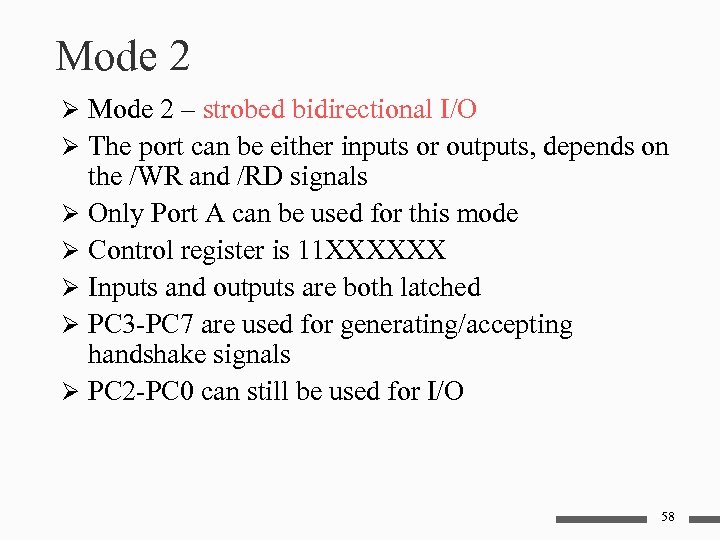

Mode 2 Ø Mode 2 – strobed bidirectional I/O Ø The port can be either inputs or outputs, depends on the /WR and /RD signals Ø Only Port A can be used for this mode Ø Control register is 11 XXXXXX Ø Inputs and outputs are both latched Ø PC 3 -PC 7 are used for generating/accepting handshake signals Ø PC 2 -PC 0 can still be used for I/O 58

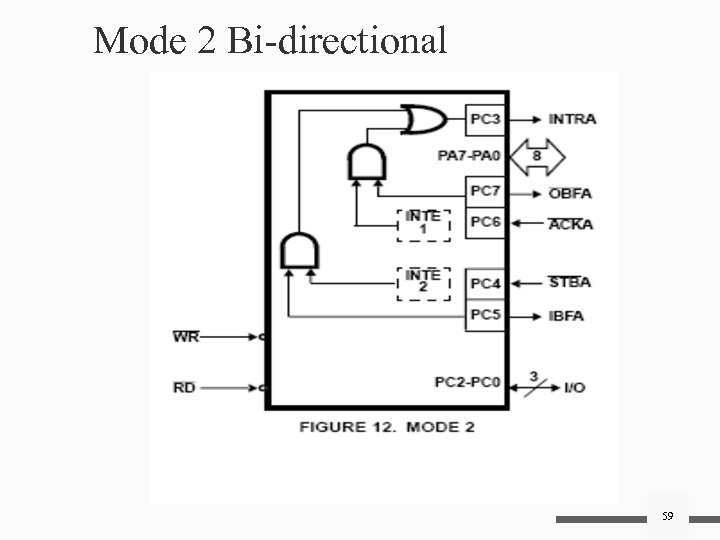

Mode 2 Bi-directional 59

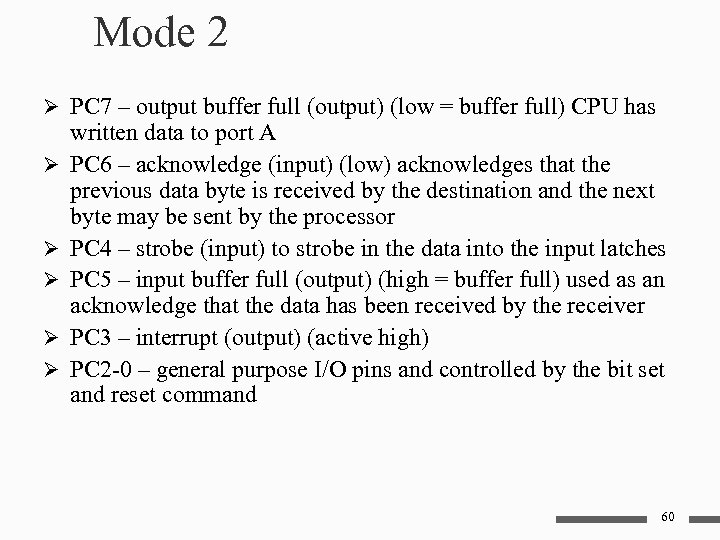

Mode 2 Ø PC 7 – output buffer full (output) (low = buffer full) CPU has Ø Ø Ø written data to port A PC 6 – acknowledge (input) (low) acknowledges that the previous data byte is received by the destination and the next byte may be sent by the processor PC 4 – strobe (input) to strobe in the data into the input latches PC 5 – input buffer full (output) (high = buffer full) used as an acknowledge that the data has been received by the receiver PC 3 – interrupt (output) (active high) PC 2 -0 – general purpose I/O pins and controlled by the bit set and reset command 60

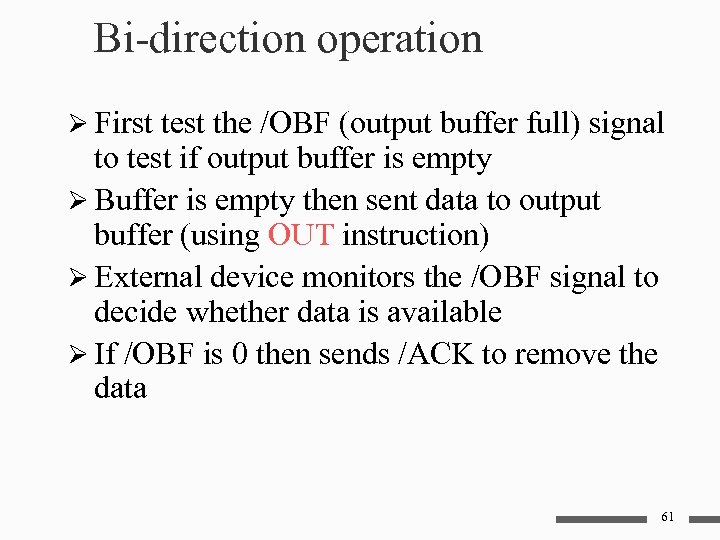

Bi-direction operation Ø First test the /OBF (output buffer full) signal to test if output buffer is empty Ø Buffer is empty then sent data to output buffer (using OUT instruction) Ø External device monitors the /OBF signal to decide whether data is available Ø If /OBF is 0 then sends /ACK to remove the data 61

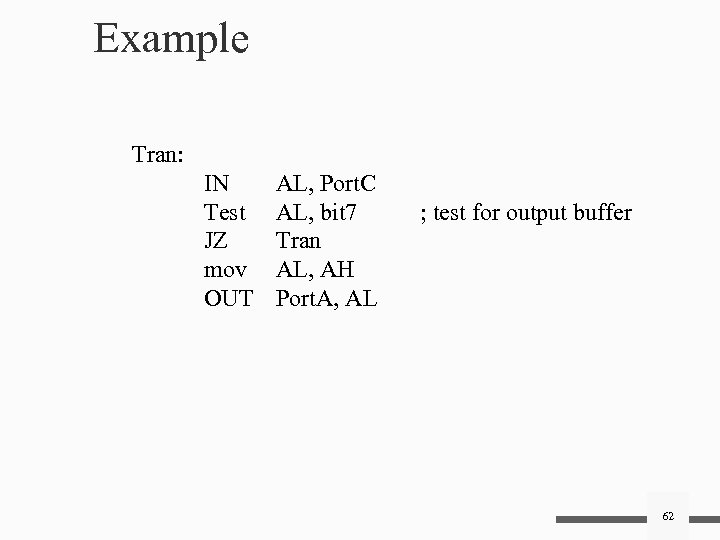

Example Tran: IN Test JZ mov OUT AL, Port. C AL, bit 7 Tran AL, AH Port. A, AL ; test for output buffer 62

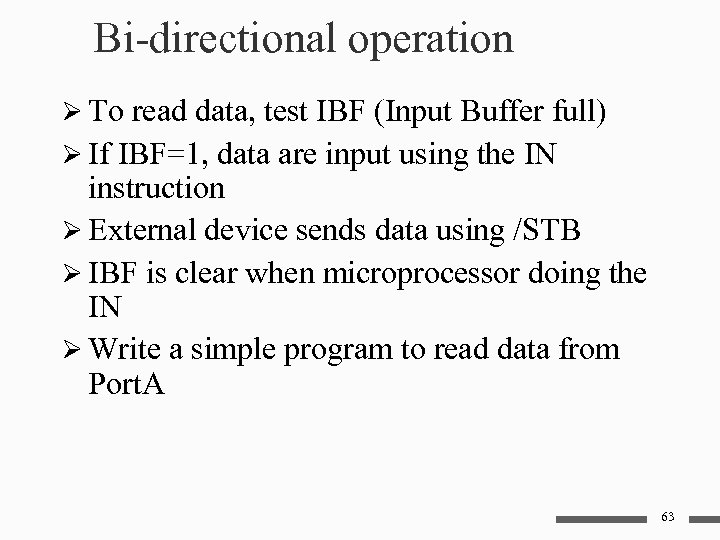

Bi-directional operation Ø To read data, test IBF (Input Buffer full) Ø If IBF=1, data are input using the IN instruction Ø External device sends data using /STB Ø IBF is clear when microprocessor doing the IN Ø Write a simple program to read data from Port. A 63

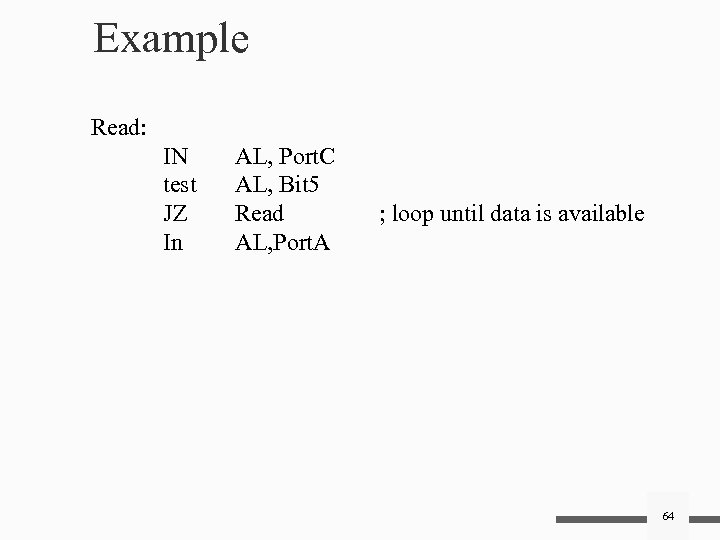

Example Read: IN test JZ In AL, Port. C AL, Bit 5 Read AL, Port. A ; loop until data is available 64

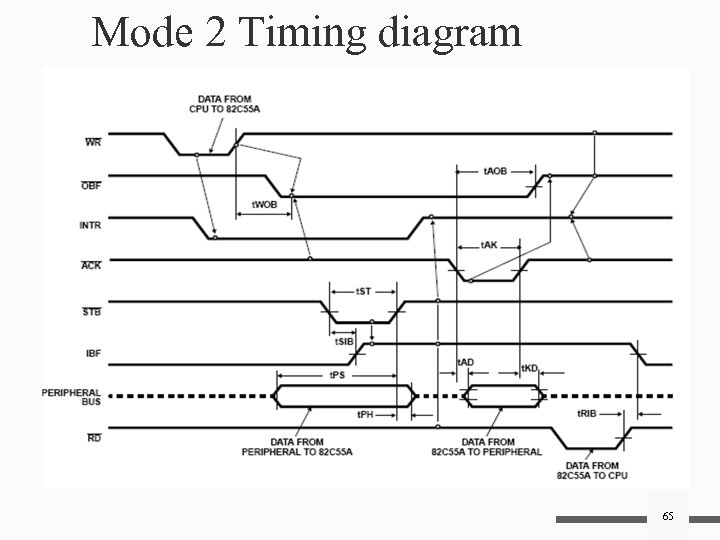

Mode 2 Timing diagram 65

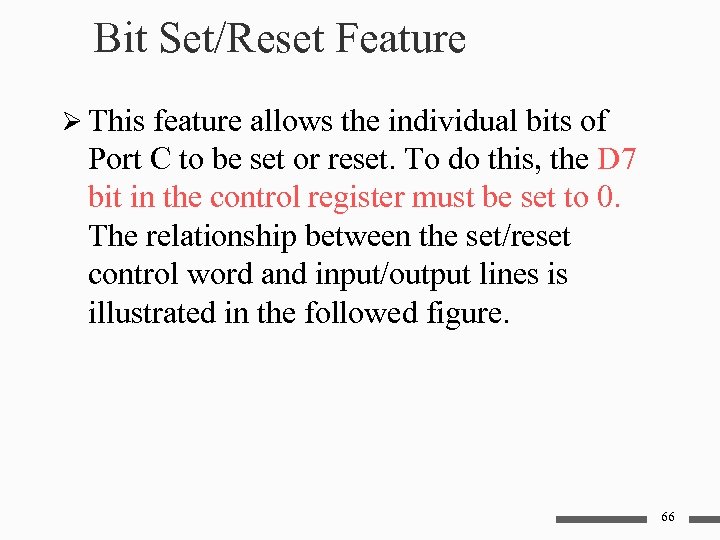

Bit Set/Reset Feature Ø This feature allows the individual bits of Port C to be set or reset. To do this, the D 7 bit in the control register must be set to 0. The relationship between the set/reset control word and input/output lines is illustrated in the followed figure. 66

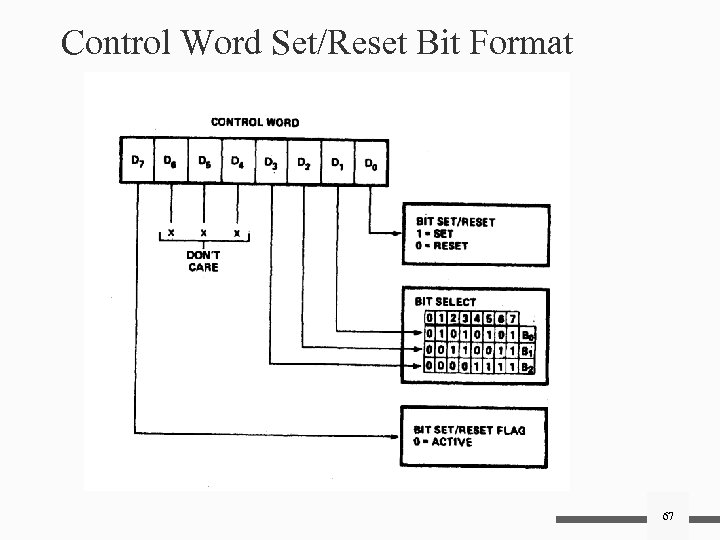

Control Word Set/Reset Bit Format 67

Example Ø If control register is 00001111 Ø Then the logic level to be set is ‘ 1’ represented by D 0 Ø The bit to be set is 111 represented by D 3 D 2 D 1 (i. e 7 in this case ) Ø So after the control word is written PC 7 is set to 1 Ø Why want to set the bits of Port C? Ø In Mode 1, the bits of Port C not used for control can only be written by the set/reset feature 68

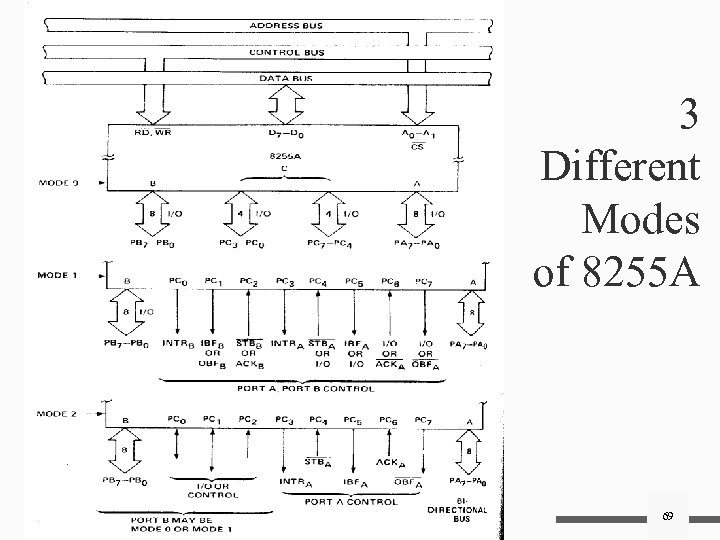

3 Different Modes of 8255 A 69

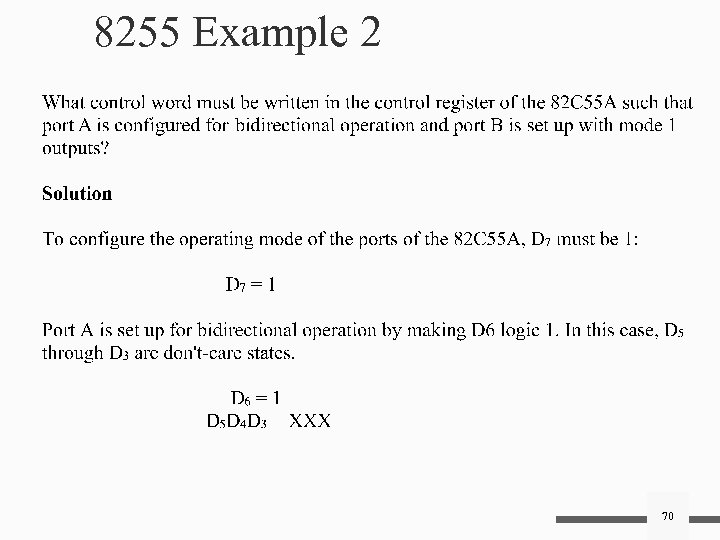

8255 Example 2 70

8255 Example 2 (Cont’d) 71

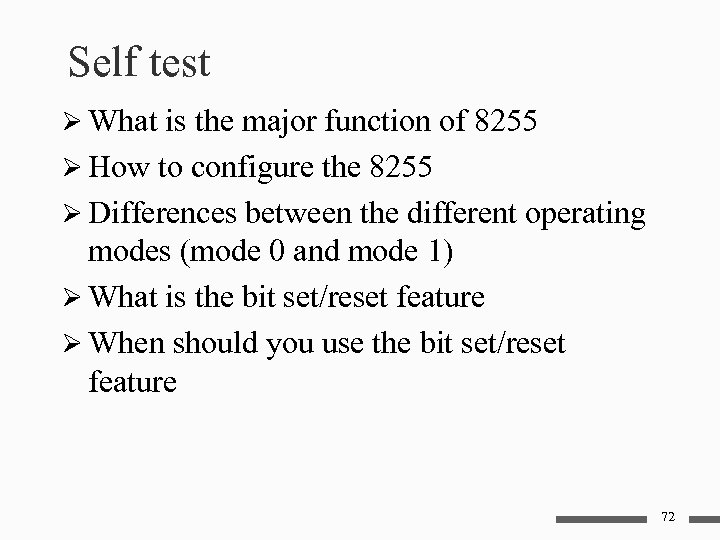

Self test Ø What is the major function of 8255 Ø How to configure the 8255 Ø Differences between the different operating modes (mode 0 and mode 1) Ø What is the bit set/reset feature Ø When should you use the bit set/reset feature 72

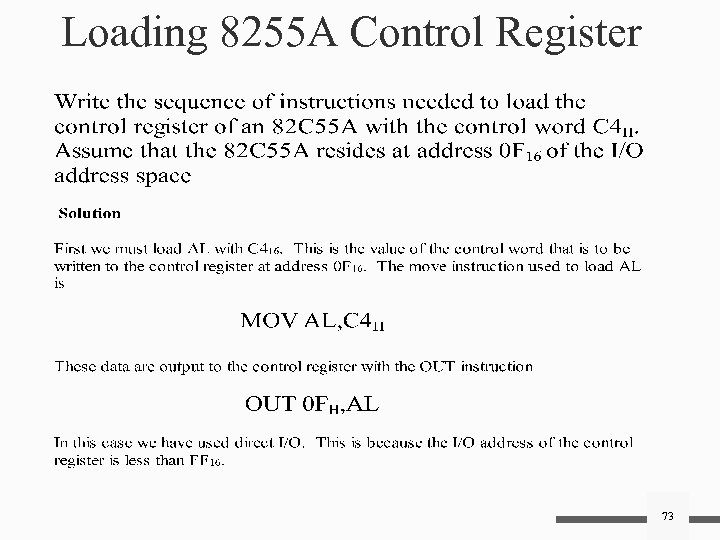

Loading 8255 A Control Register 73

Application of 8255 Printer PB D 0 -D 7 PC 4 Strobe PC 2 ACK 74

Example Transfers ASCII character from AH to the printer via port B Port. C equ 62 H Port. B equ 61 H CMD equ 63 H Print: IN AL, Port. C AND AL, #00000010 B ; test if buffer is full JZ Print mov AL, AH out port. B, AL mov AL, 8 ; send a strobe out CMD, AL mov AL, 9 out CMD, AL 75

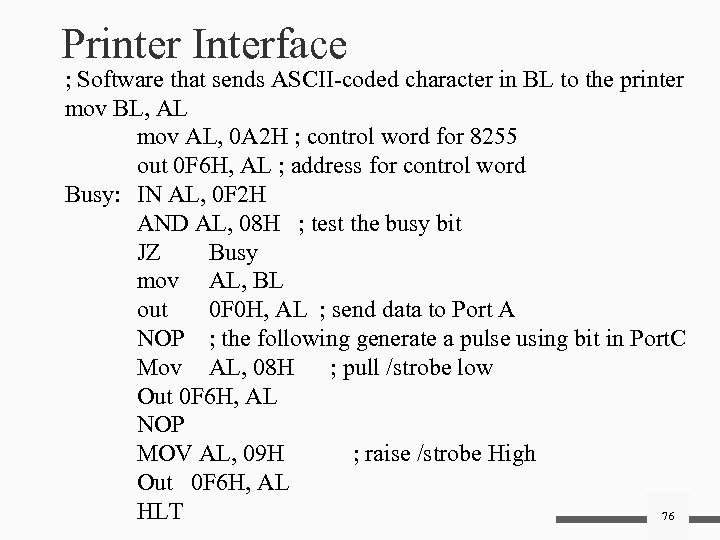

Printer Interface ; Software that sends ASCII-coded character in BL to the printer mov BL, AL mov AL, 0 A 2 H ; control word for 8255 out 0 F 6 H, AL ; address for control word Busy: IN AL, 0 F 2 H AND AL, 08 H ; test the busy bit JZ Busy mov AL, BL out 0 F 0 H, AL ; send data to Port A NOP ; the following generate a pulse using bit in Port. C Mov AL, 08 H ; pull /strobe low Out 0 F 6 H, AL NOP MOV AL, 09 H ; raise /strobe High Out 0 F 6 H, AL HLT 76

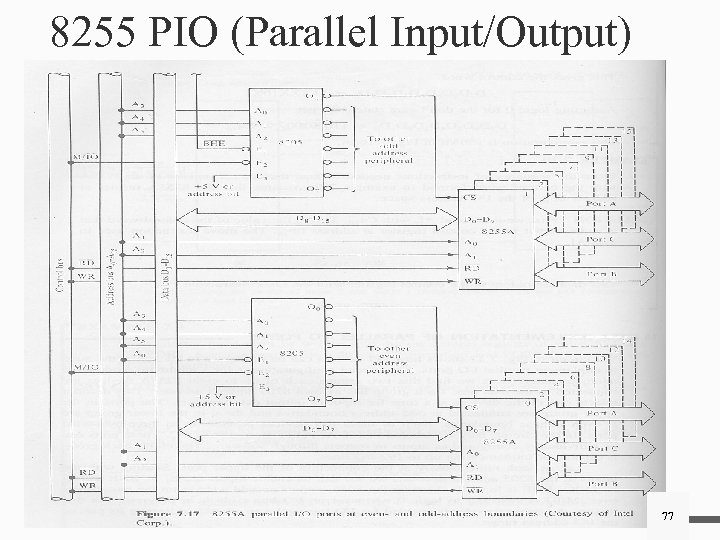

8255 PIO (Parallel Input/Output) 77

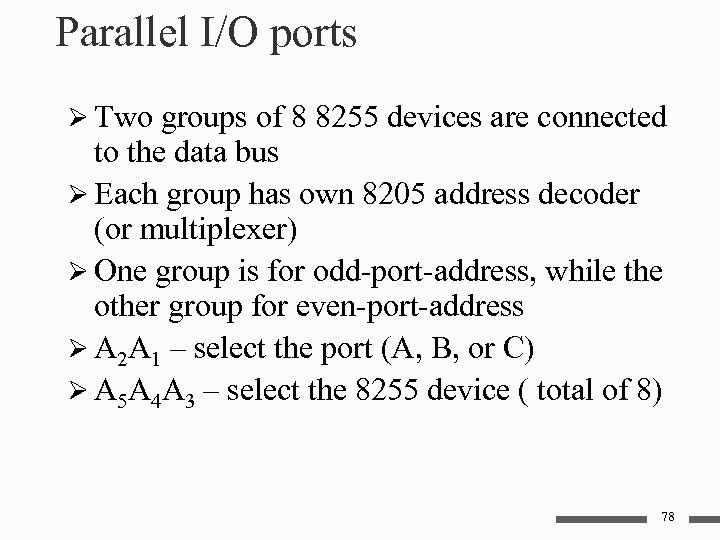

Parallel I/O ports Ø Two groups of 8 8255 devices are connected to the data bus Ø Each group has own 8205 address decoder (or multiplexer) Ø One group is for odd-port-address, while the other group for even-port-address Ø A 2 A 1 – select the port (A, B, or C) Ø A 5 A 4 A 3 – select the 8255 device ( total of 8) 78

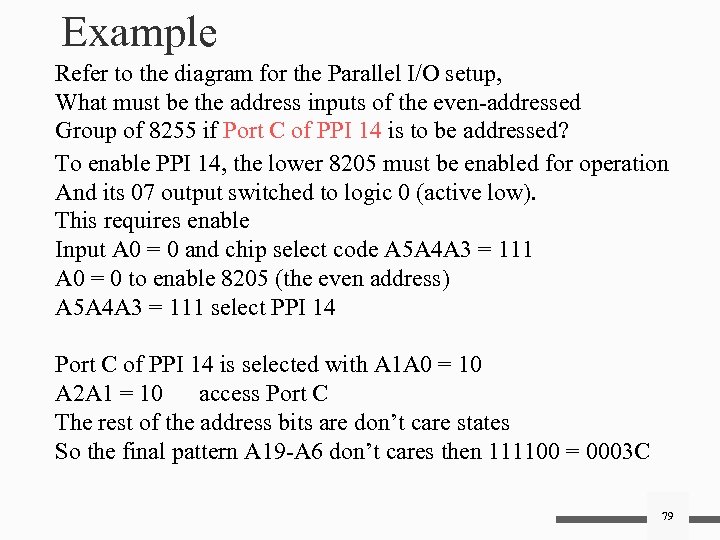

Example Refer to the diagram for the Parallel I/O setup, What must be the address inputs of the even-addressed Group of 8255 if Port C of PPI 14 is to be addressed? To enable PPI 14, the lower 8205 must be enabled for operation And its 07 output switched to logic 0 (active low). This requires enable Input A 0 = 0 and chip select code A 5 A 4 A 3 = 111 A 0 = 0 to enable 8205 (the even address) A 5 A 4 A 3 = 111 select PPI 14 Port C of PPI 14 is selected with A 1 A 0 = 10 A 2 A 1 = 10 access Port C The rest of the address bits are don’t care states So the final pattern A 19 -A 6 don’t cares then 111100 = 0003 C 79

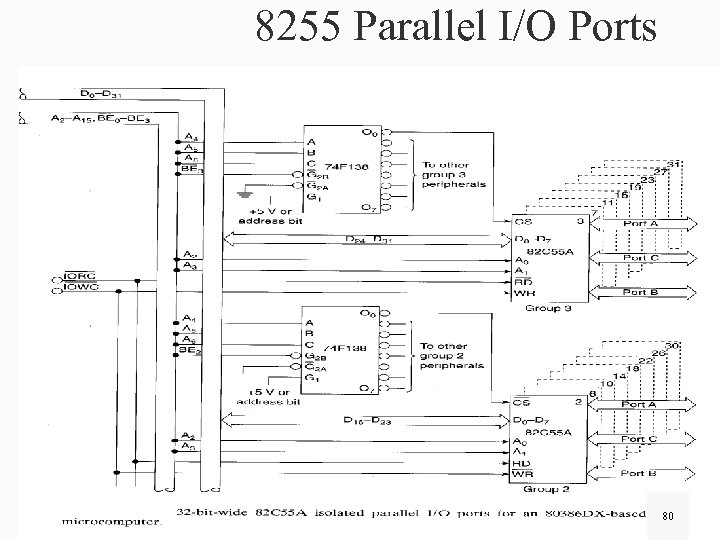

8255 Parallel I/O Ports 80

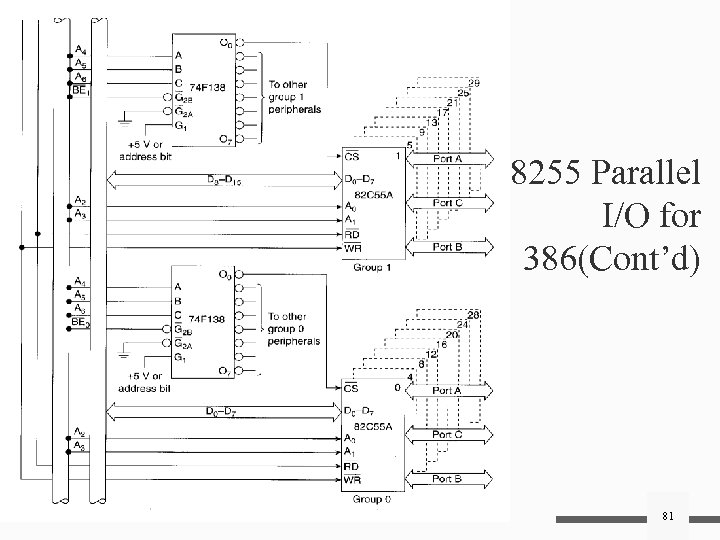

8255 Parallel I/O for 386(Cont’d) 81

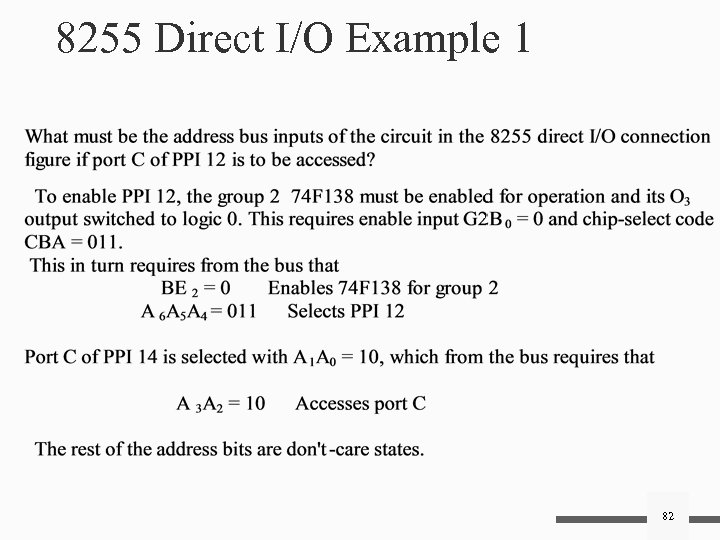

8255 Direct I/O Example 1 82

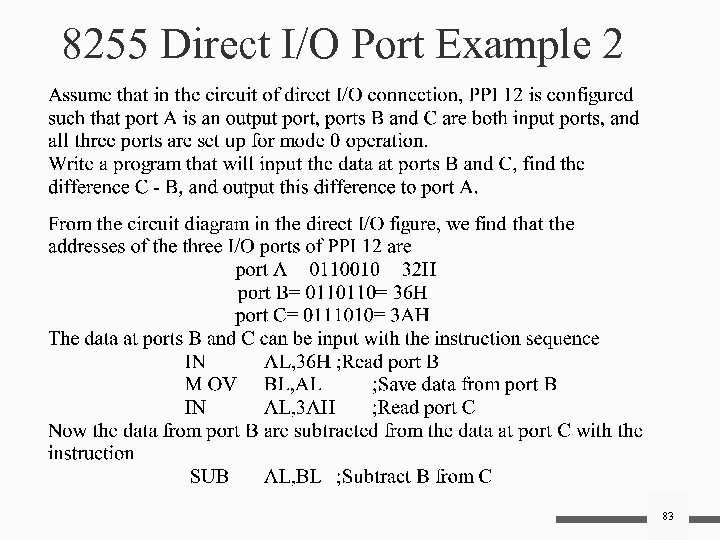

8255 Direct I/O Port Example 2 83

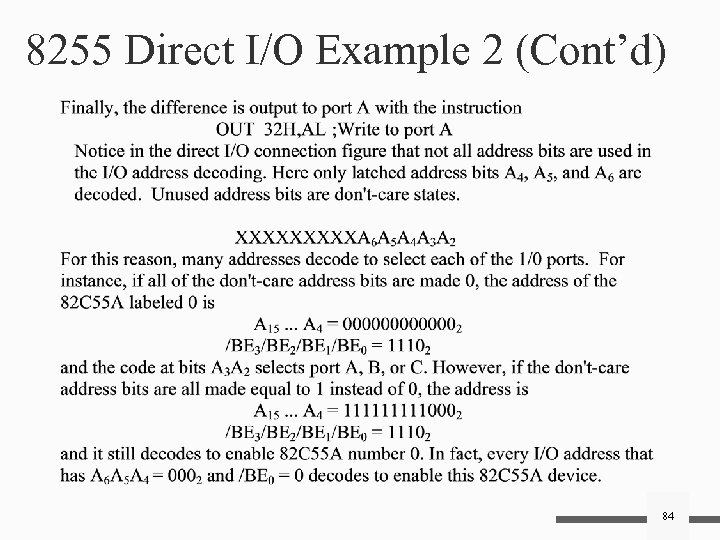

8255 Direct I/O Example 2 (Cont’d) 84

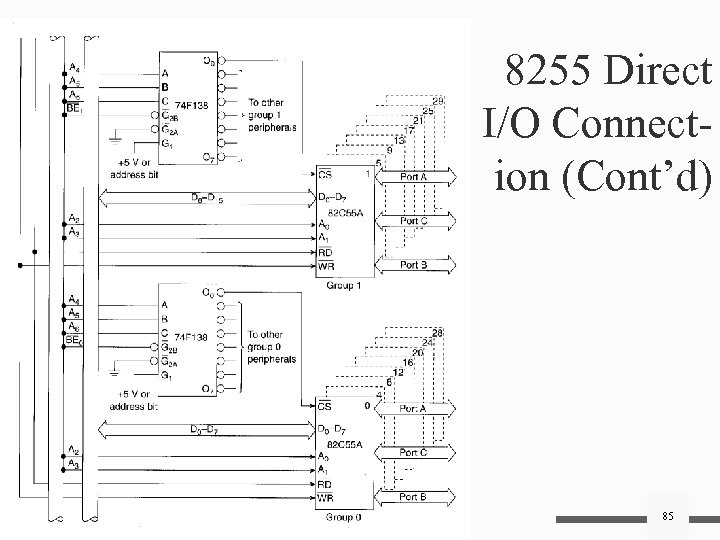

8255 Direct I/O Connection (Cont’d) 85

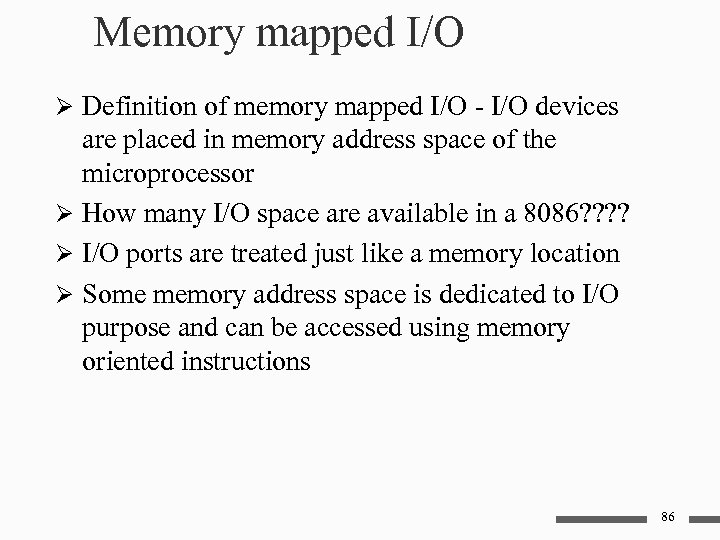

Memory mapped I/O Ø Definition of memory mapped I/O - I/O devices are placed in memory address space of the microprocessor Ø How many I/O space are available in a 8086? ? Ø I/O ports are treated just like a memory location Ø Some memory address space is dedicated to I/O purpose and can be accessed using memory oriented instructions 86

Memory mapped I/0 Memory 1 M Memory I/O Total 1 M I/O 64 K Memory Traditional setup Memory mapped I/O 87

Traditional I/O and Memory interface 88

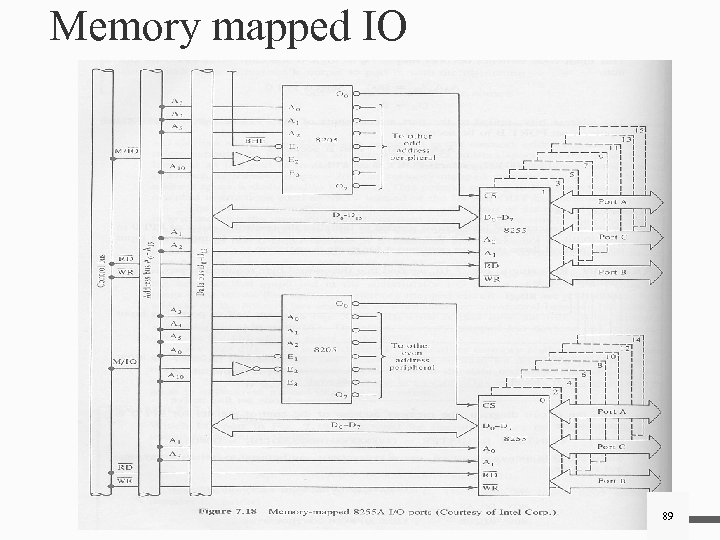

Memory mapped IO 89

8255 PIO 90

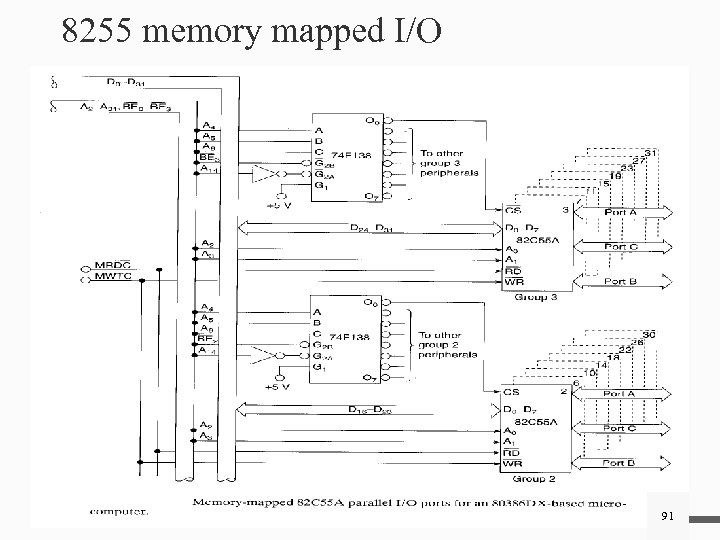

8255 memory mapped I/O 91

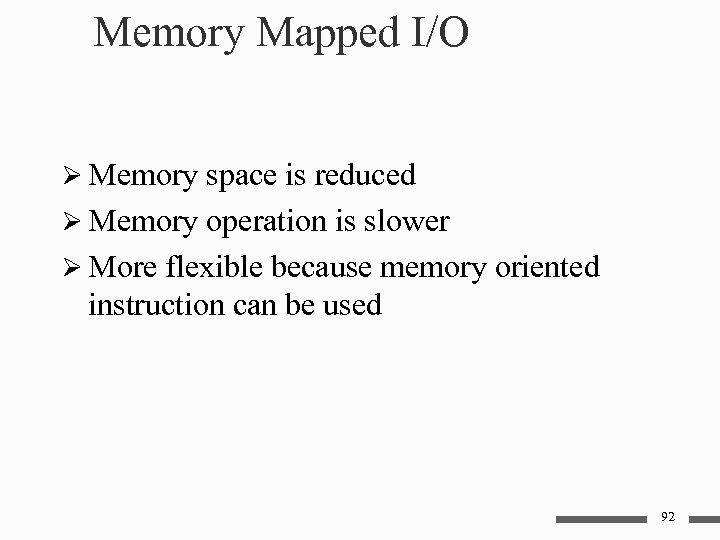

Memory Mapped I/O Ø Memory space is reduced Ø Memory operation is slower Ø More flexible because memory oriented instruction can be used 92

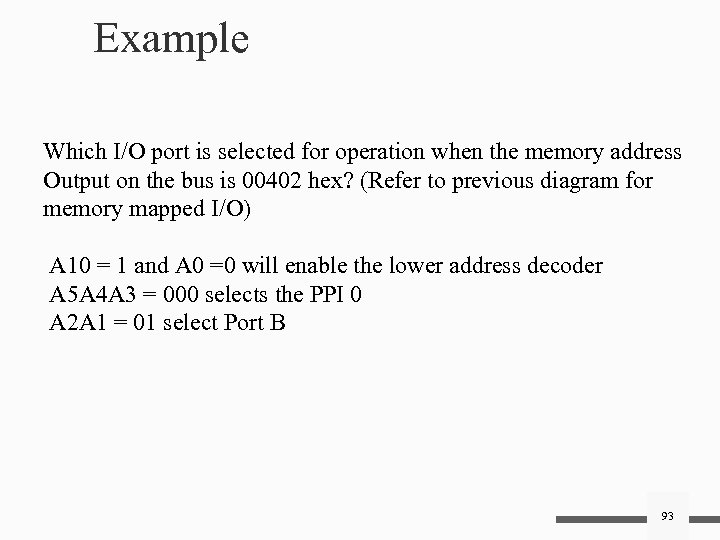

Example Which I/O port is selected for operation when the memory address Output on the bus is 00402 hex? (Refer to previous diagram for memory mapped I/O) A 10 = 1 and A 0 =0 will enable the lower address decoder A 5 A 4 A 3 = 000 selects the PPI 0 A 2 A 1 = 01 select Port B 93

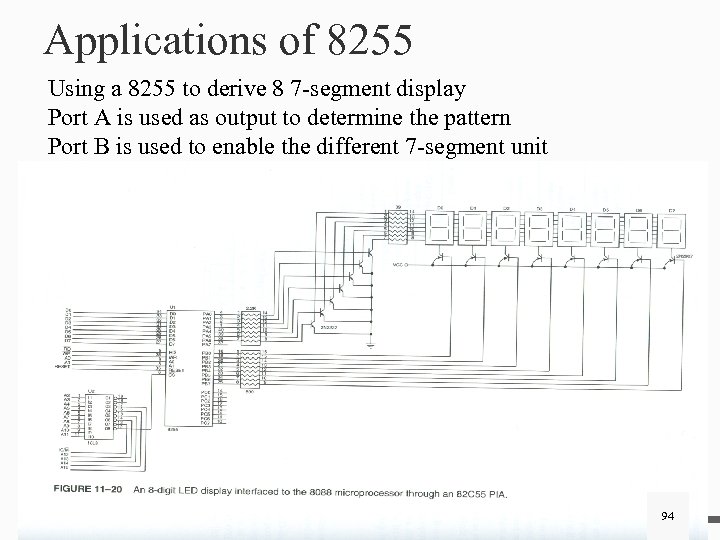

Applications of 8255 Using a 8255 to derive 8 7 -segment display Port A is used as output to determine the pattern Port B is used to enable the different 7 -segment unit 94

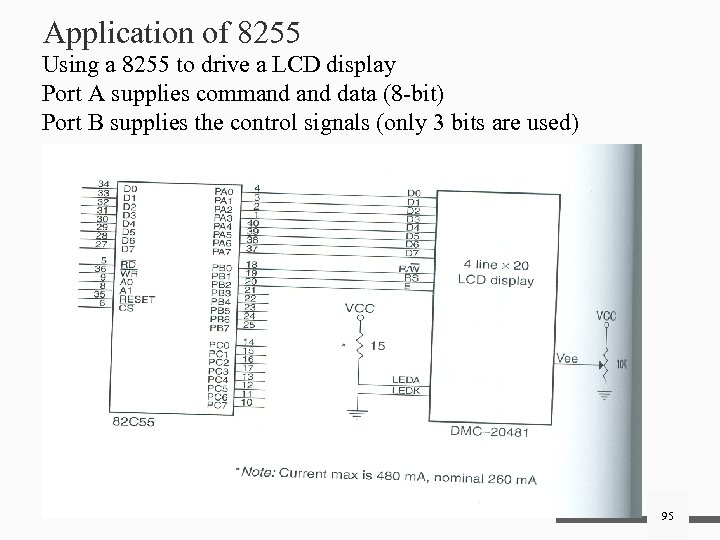

Application of 8255 Using a 8255 to drive a LCD display Port A supplies command data (8 -bit) Port B supplies the control signals (only 3 bits are used) 95

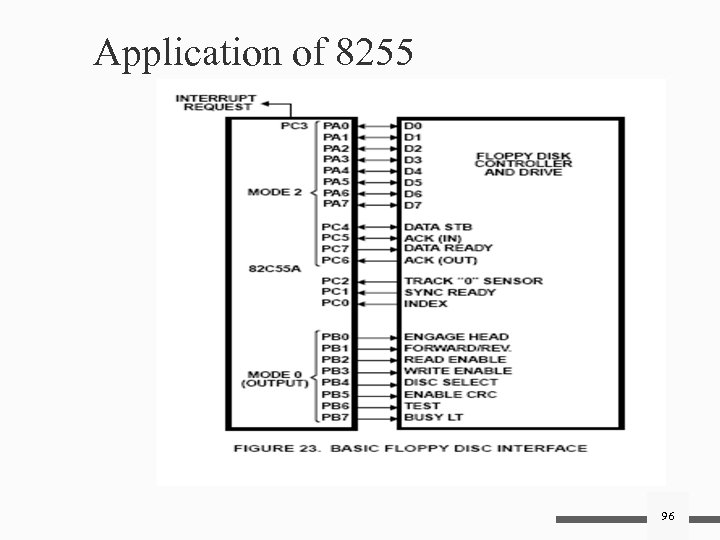

Application of 8255 96
