EE 2174: Digital Logic and Lab Professor Shiyan Hu Department of Electrical and Computer Engineering Michigan Technological University CHAPTER 4 Technology Mapping

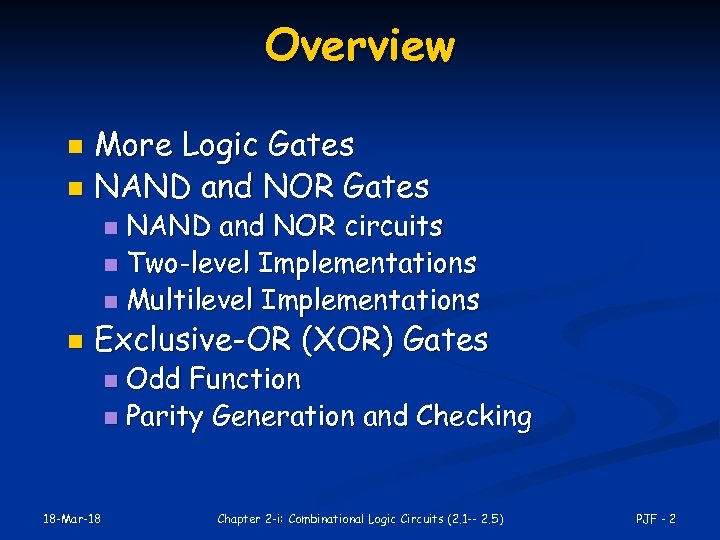

Overview More Logic Gates n NAND and NOR circuits n Two-level Implementations n Multilevel Implementations n n Exclusive-OR (XOR) Gates Odd Function n Parity Generation and Checking n 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 2

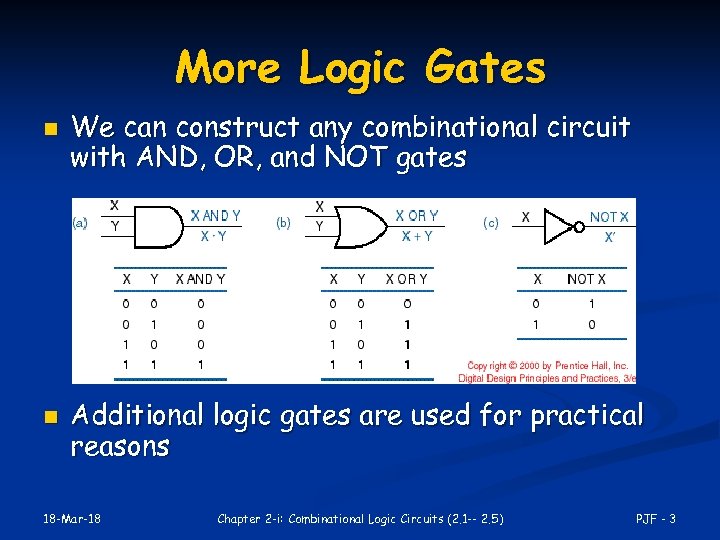

More Logic Gates n n We can construct any combinational circuit with AND, OR, and NOT gates Additional logic gates are used for practical reasons 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 3

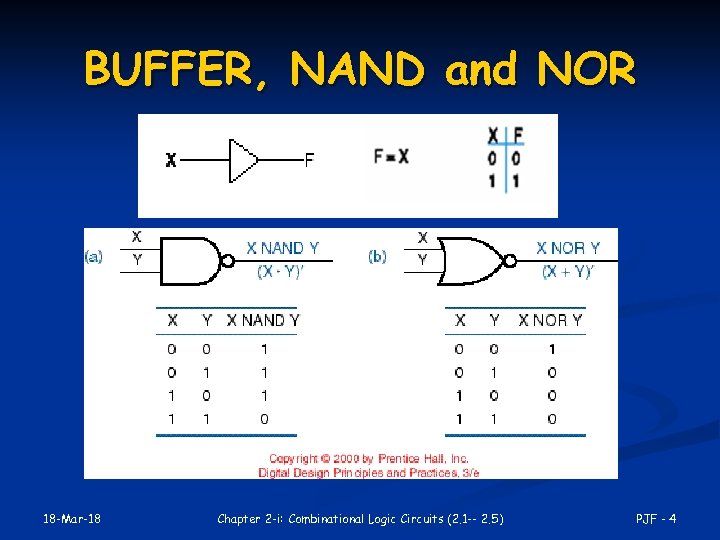

BUFFER, NAND and NOR 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 4
XOR and XNOR X Y XNOR: “equal” gate X Y 18 -Mar-18 F F = X Y 0 0 1 1 1 0 X Y F = X Y 0 0 1 0 1 0 0 1 F Y 1 XOR: “not-equal” gate X 1 1 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 5
NAND Gate Known as a “universal” gate because ANY digital circuit can be implemented with NAND gates alone. n To prove the above, it suffices to show that AND, OR, and NOT can be implemented using NAND gates only. n 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 6

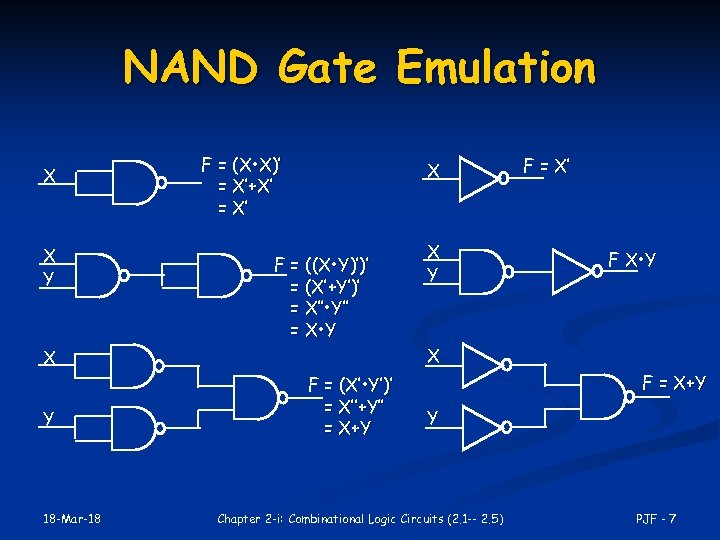

NAND Gate Emulation X X Y F = (X • X)’ = X’+X’ = X’ X F = ((X • Y)’)’ = (X’+Y’)’ = X’’ • Y’’ = X • Y 18 -Mar-18 F X • Y X X Y F = X’ F = (X’ • Y’)’ = X’’+Y’’ = X+Y F = X+Y Y Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 7

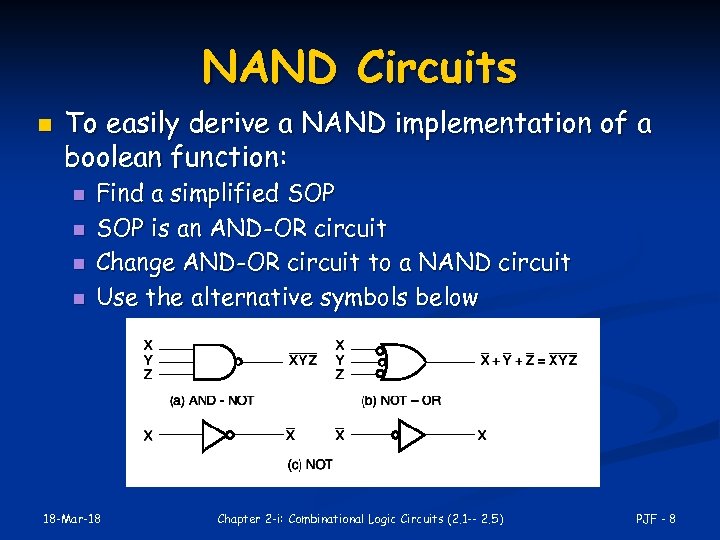

NAND Circuits n To easily derive a NAND implementation of a boolean function: n n Find a simplified SOP is an AND-OR circuit Change AND-OR circuit to a NAND circuit Use the alternative symbols below 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 8

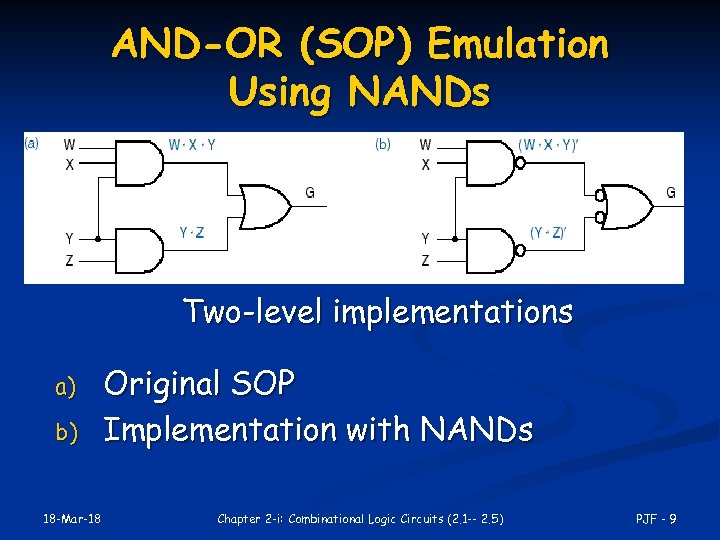

AND-OR (SOP) Emulation Using NANDs Two-level implementations a) b) 18 -Mar-18 Original SOP Implementation with NANDs Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 9

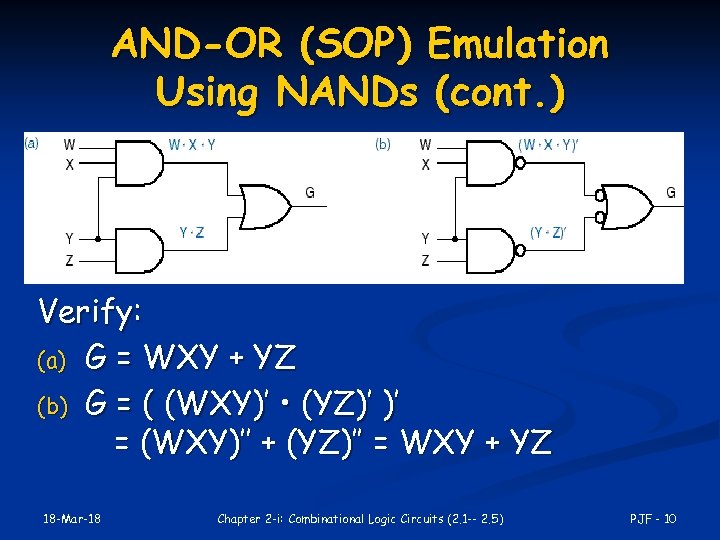

AND-OR (SOP) Emulation Using NANDs (cont. ) Verify: (a) G = WXY + YZ (b) G = ( (WXY)’ • (YZ)’ )’ = (WXY)’’ + (YZ)’’ = WXY + YZ 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 10

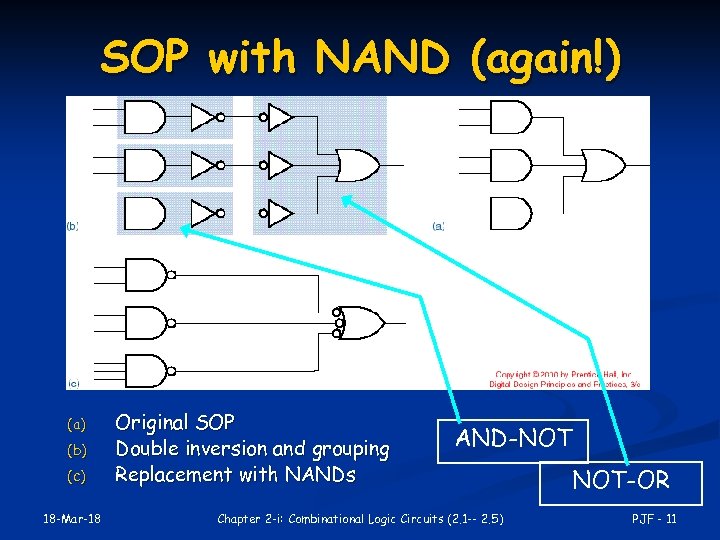

SOP with NAND (again!) (a) (b) (c) 18 -Mar-18 Original SOP Double inversion and grouping Replacement with NANDs AND-NOT Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) NOT-OR PJF - 11
Two-Level NAND Gate Implementation - Example F (X, Y, Z) = m(0, 6) 1. Express F in SOP form: F = X’Y’Z’ + XYZ’ 2. Obtain the AND-OR implementation for F. 3. Add bubbles and inverters to transform AND-OR to NAND-NAND gates. 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 12
Example (cont. ) Two-level implementation with NANDs F = X’Y’Z’ + XYZ’ 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 13
Multilevel NAND Circuits Starting from a multilevel circuit: 1. Convert all AND gates to NAND gates with AND-NOT graphic symbols. 2. Convert all OR gates to NAND gates with NOT-OR graphic symbols. 3. Check all the bubbles in the diagram. For every bubble that is not counteracted by another bubble along the same line, insert a NOT gate or complement the input literal from its original appearance. 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 14

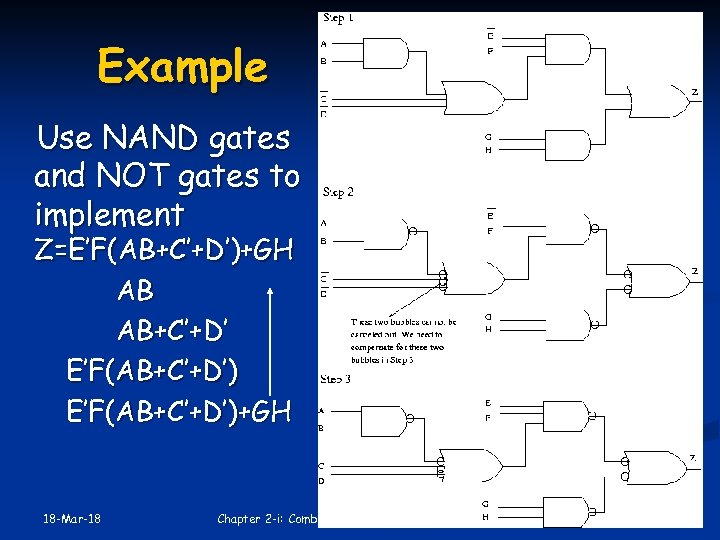

Example Use NAND gates and NOT gates to implement Z=E’F(AB+C’+D’)+GH AB AB+C’+D’ E’F(AB+C’+D’)+GH 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 15

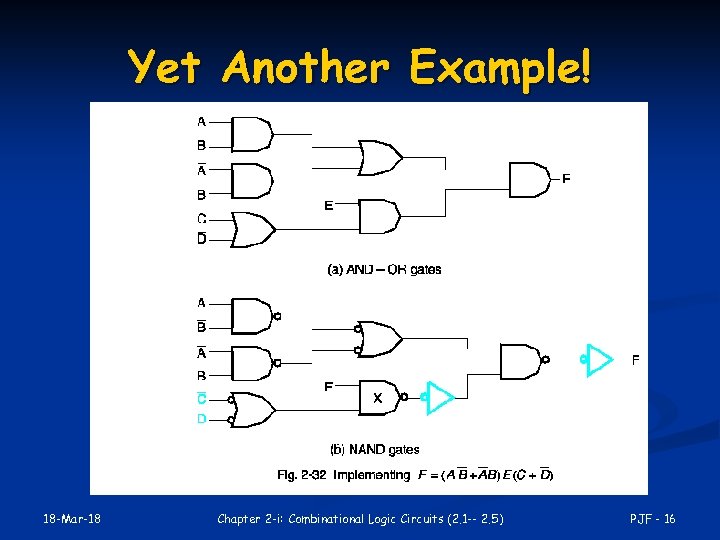

Yet Another Example! 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 16

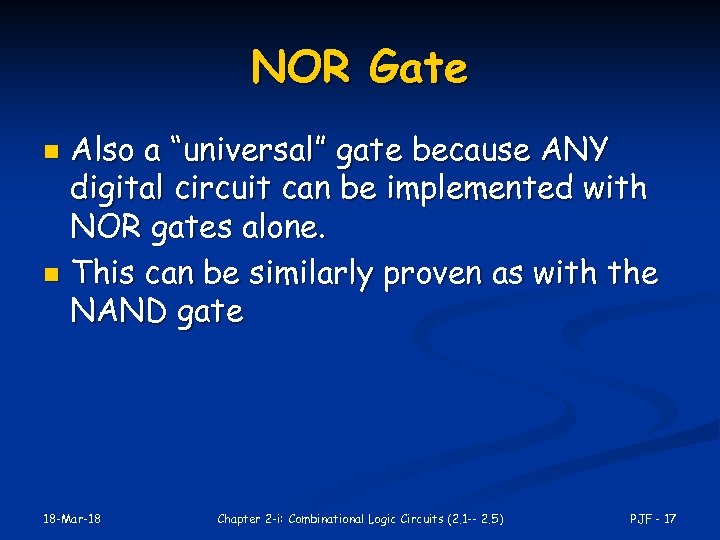

NOR Gate Also a “universal” gate because ANY digital circuit can be implemented with NOR gates alone. n This can be similarly proven as with the NAND gate n 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 17

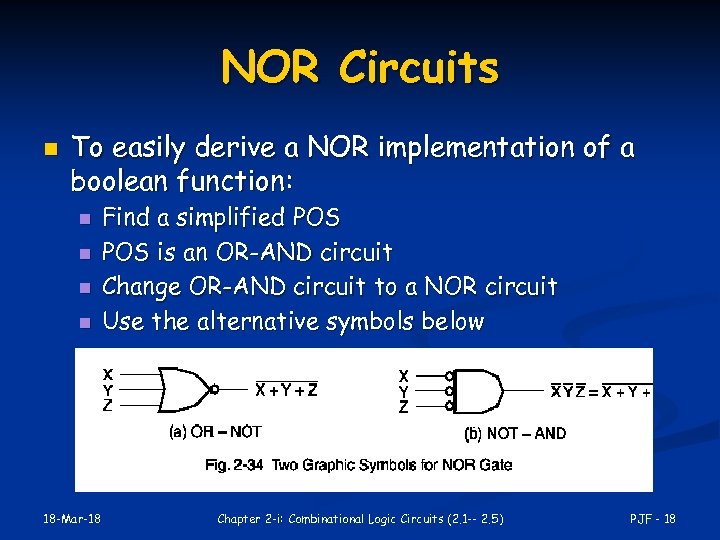

NOR Circuits n To easily derive a NOR implementation of a boolean function: n n 18 -Mar-18 Find a simplified POS is an OR-AND circuit Change OR-AND circuit to a NOR circuit Use the alternative symbols below Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 18
Two-Level NOR Gate Implementation - Example F(X, Y, Z) = m(0, 6) 1. Express F’ in SOP form: 1. 2. 3. 4. F’ = m(1, 2, 3, 4, 5, 7) = X’Y’Z + X’YZ’ + X’YZ + XY’Z’ + XY’Z + XYZ F’ = XY’ + X’Y + Z Take the complement of F’ to get F in the POS form: F = (F’)' = (X'+Y)(X+Y')Z' Obtain the OR-AND implementation for F. Add bubbles and inverters to transform OR-AND implementation to NOR-NOR implementation. 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 19

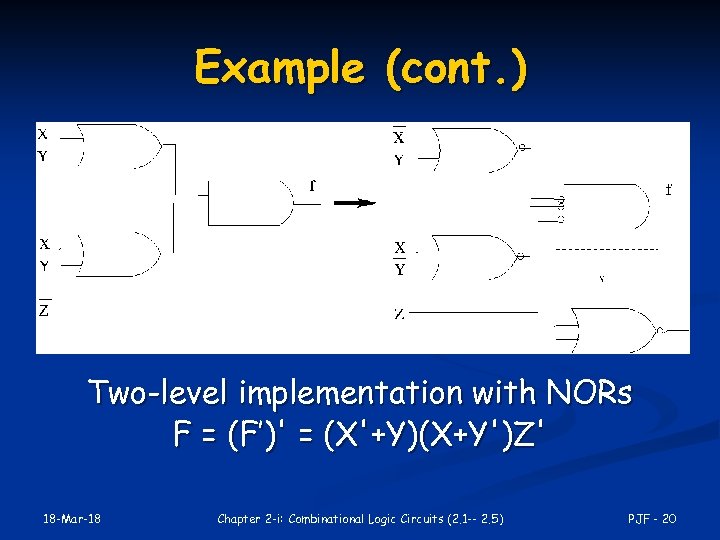

Example (cont. ) Two-level implementation with NORs F = (F’)' = (X'+Y)(X+Y')Z' 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 20

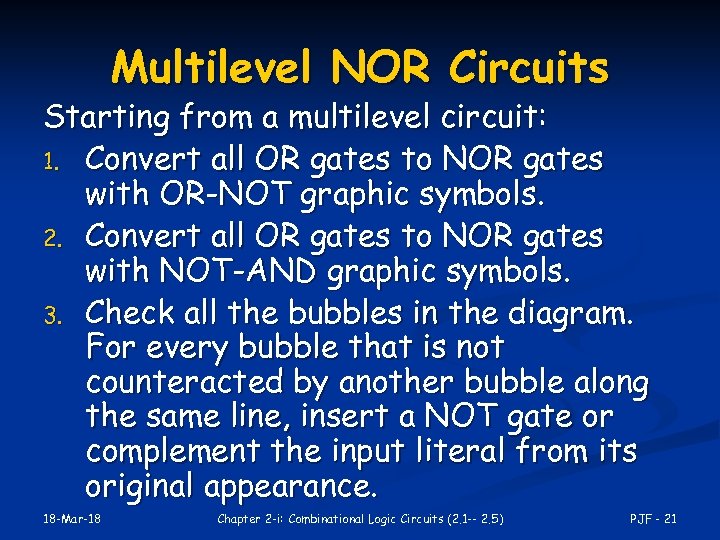

Multilevel NOR Circuits Starting from a multilevel circuit: 1. Convert all OR gates to NOR gates with OR-NOT graphic symbols. 2. Convert all OR gates to NOR gates with NOT-AND graphic symbols. 3. Check all the bubbles in the diagram. For every bubble that is not counteracted by another bubble along the same line, insert a NOT gate or complement the input literal from its original appearance. 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 21

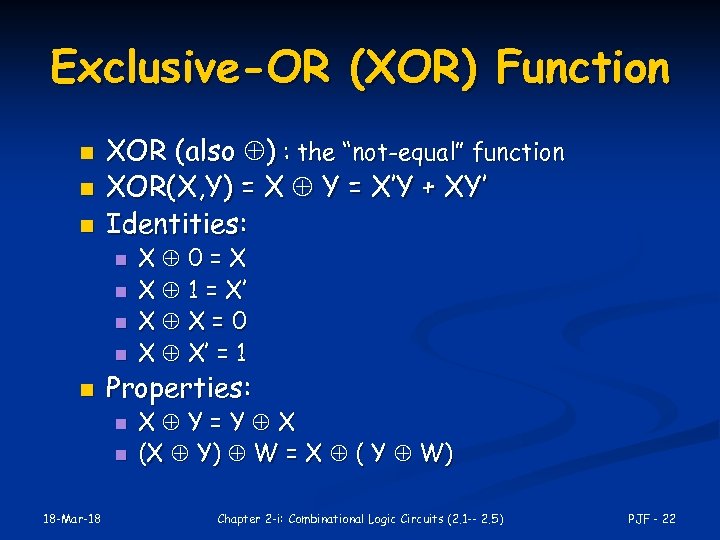

Exclusive-OR (XOR) Function n XOR (also ) : the “not-equal” function XOR(X, Y) = X Y = X’Y + XY’ Identities: n n n Properties: n n 18 -Mar-18 X 0=X X 1 = X’ X X=0 X X’ = 1 X Y=Y X (X Y) W = X ( Y W) Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 22
XOR function implementation XOR(a, b) = ab’ + a’b n Straightforward: 5 gates n 2 inverters, two 2 -input ANDs, one 2 -input OR n 2 inverters & 3 2 -input NANDs n n Nonstraightforward: n 18 -Mar-18 4 NAND gates Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 23

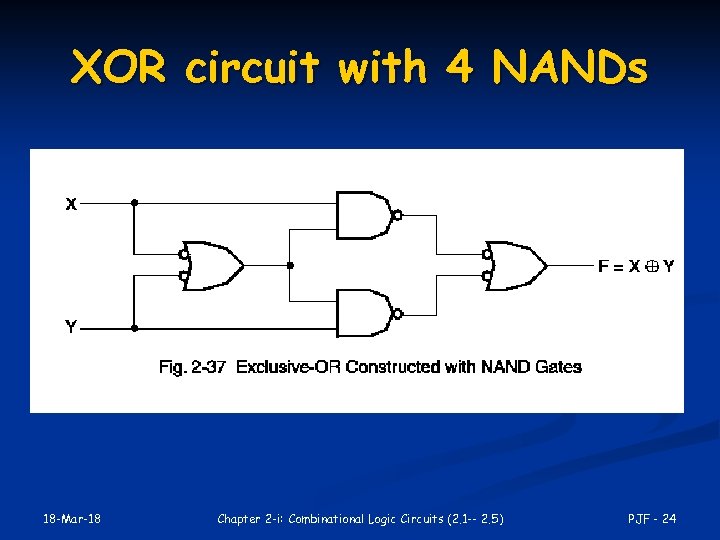

XOR circuit with 4 NANDs 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 24

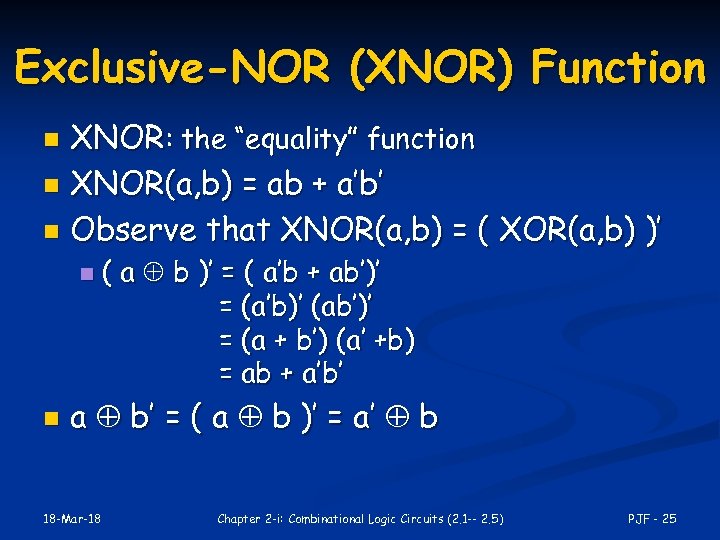

Exclusive-NOR (XNOR) Function XNOR: the “equality” function n XNOR(a, b) = ab + a’b’ n Observe that XNOR(a, b) = ( XOR(a, b) )’ n n n ( a b )’ = ( a’b + ab’)’ = (a’b)’ (ab’)’ = (a + b’) (a’ +b) = ab + a’b’ a b’ = ( a b )’ = a’ b 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 25

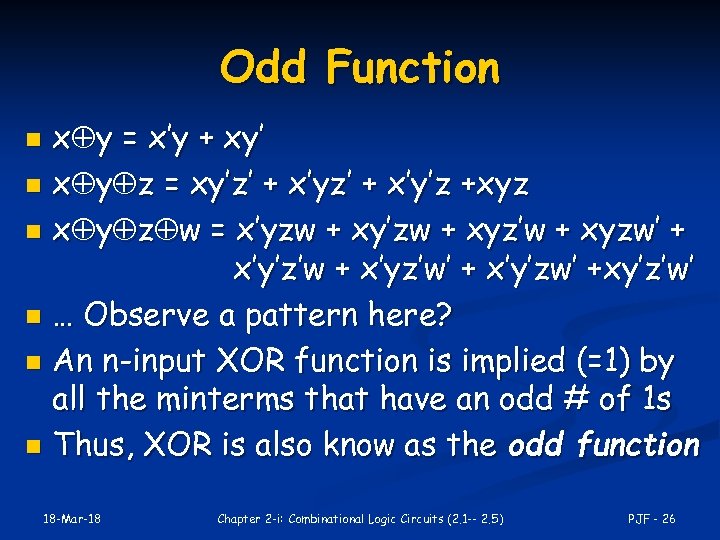

Odd Function x y = x’y + xy’ n x y z = xy’z’ + x’y’z +xyz n x y z w = x’yzw + xy’zw + xyz’w + xyzw’ + x’y’z’w + x’yz’w’ + x’y’zw’ +xy’z’w’ n … Observe a pattern here? n An n-input XOR function is implied (=1) by all the minterms that have an odd # of 1 s n Thus, XOR is also know as the odd function n 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 26

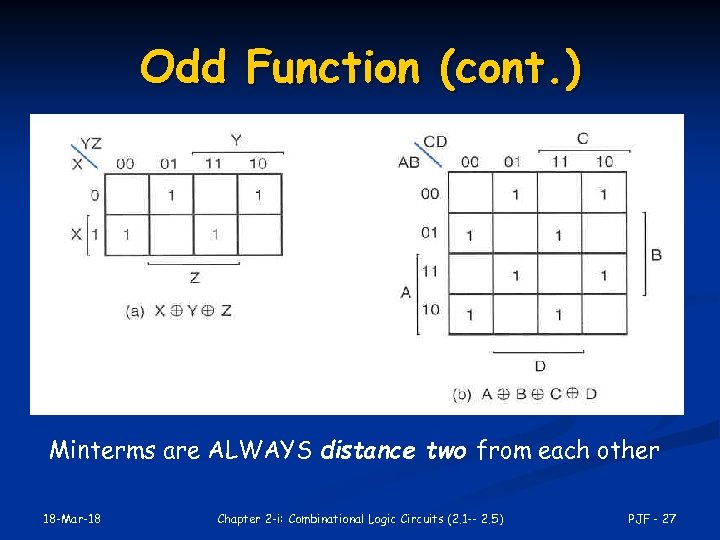

Odd Function (cont. ) Minterms are ALWAYS distance two from each other 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 27
Odd Function (cont. ) 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 28

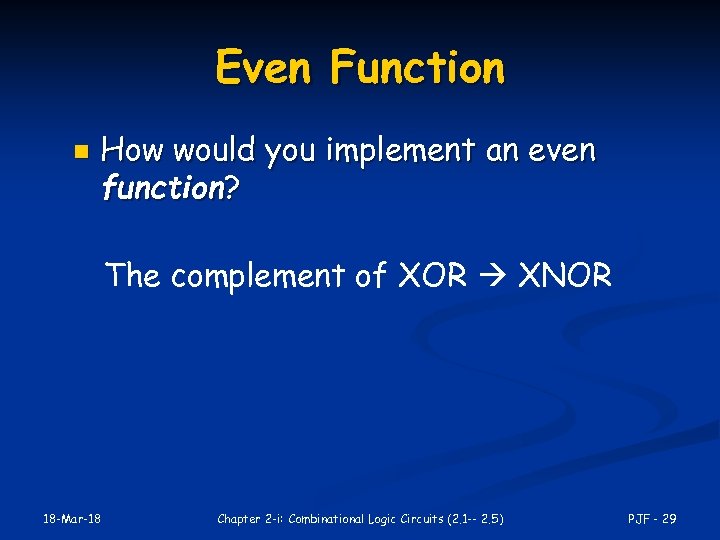

Even Function n How would you implement an even function? The complement of XOR XNOR 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 29

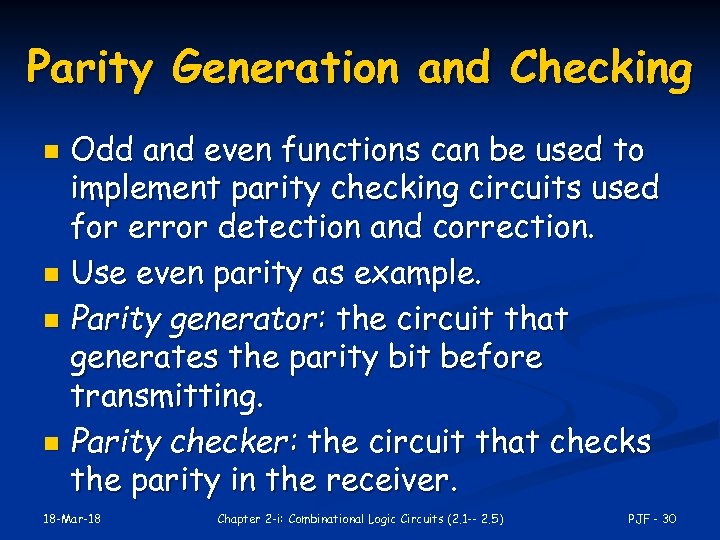

Parity Generation and Checking Odd and even functions can be used to implement parity checking circuits used for error detection and correction. n Use even parity as example. n Parity generator: the circuit that generates the parity bit before transmitting. n Parity checker: the circuit that checks the parity in the receiver. n 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 30
Even Parity Generation n n P(X, Y, Z) must produce a 1 for all the input combinations that contain an odd number of 1 s Thus, it is a 3 -input odd function P = X Y Z 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 31

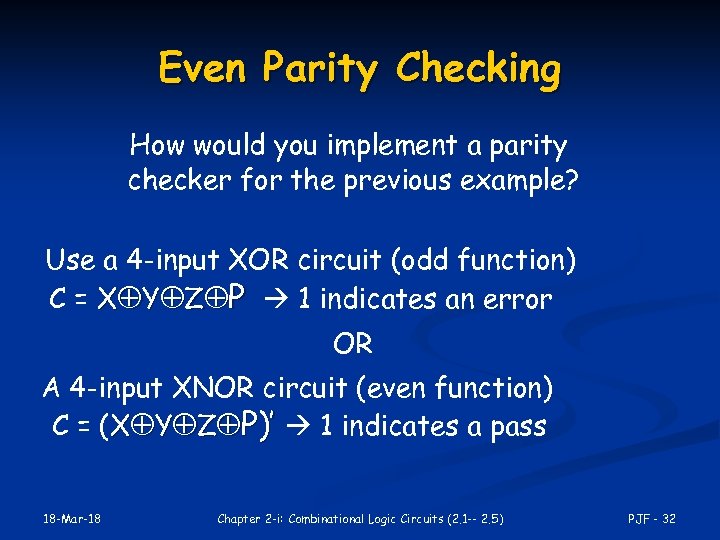

Even Parity Checking How would you implement a parity checker for the previous example? Use a 4 -input XOR circuit (odd function) C = X Y Z P 1 indicates an error OR A 4 -input XNOR circuit (even function) C = (X Y Z P)’ 1 indicates a pass 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 32

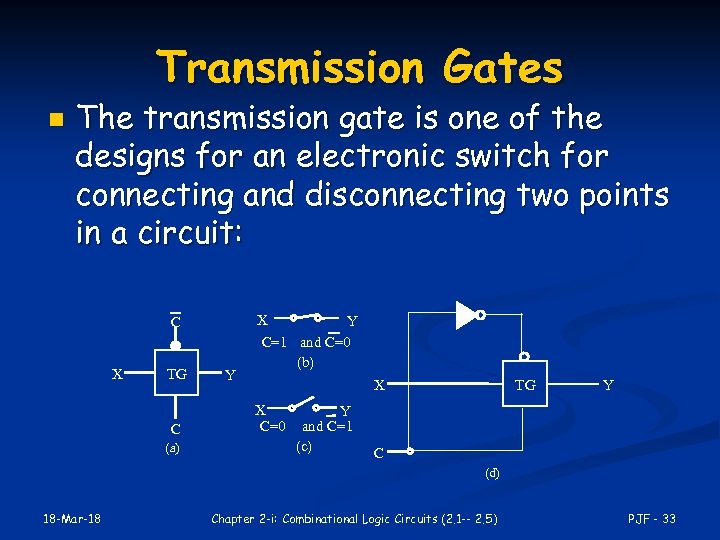

Transmission Gates n The transmission gate is one of the designs for an electronic switch for connecting and disconnecting two points in a circuit: X C X TG C (a) Y Y C=1 and C=0 (b) X X C=0 Y and C=1 (c) TG Y C (d) 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 33

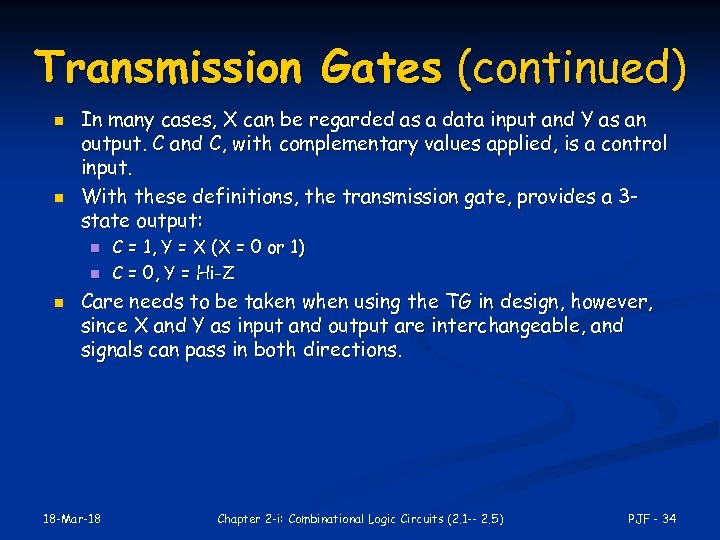

Transmission Gates (continued) n n In many cases, X can be regarded as a data input and Y as an output. C and C, with complementary values applied, is a control input. With these definitions, the transmission gate, provides a 3 state output: n n n C = 1, Y = X (X = 0 or 1) C = 0, Y = Hi-Z Care needs to be taken when using the TG in design, however, since X and Y as input and output are interchangeable, and signals can pass in both directions. 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 34

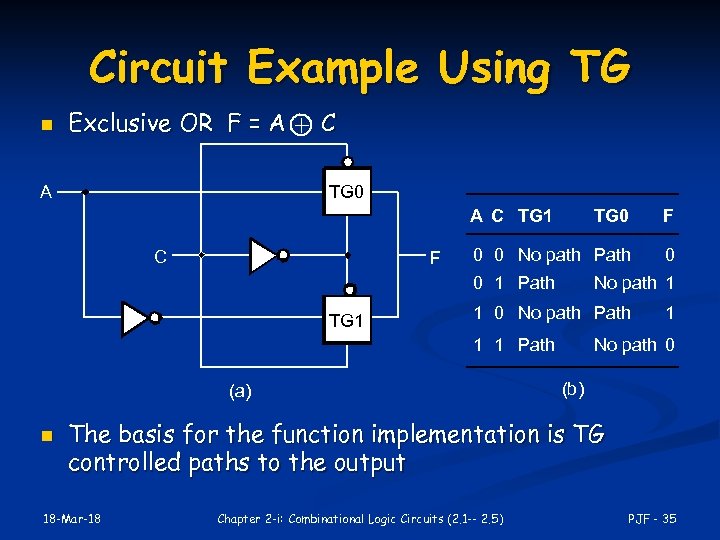

Circuit Example Using TG n Exclusive OR F = A + C A TG 0 A C TG 1 C F TG 0 F 0 0 No path Path 0 0 1 Path TG 1 No path 1 1 0 No path Path 1 1 Path (a) n 1 No path 0 (b) The basis for the function implementation is TG controlled paths to the output 18 -Mar-18 Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 35

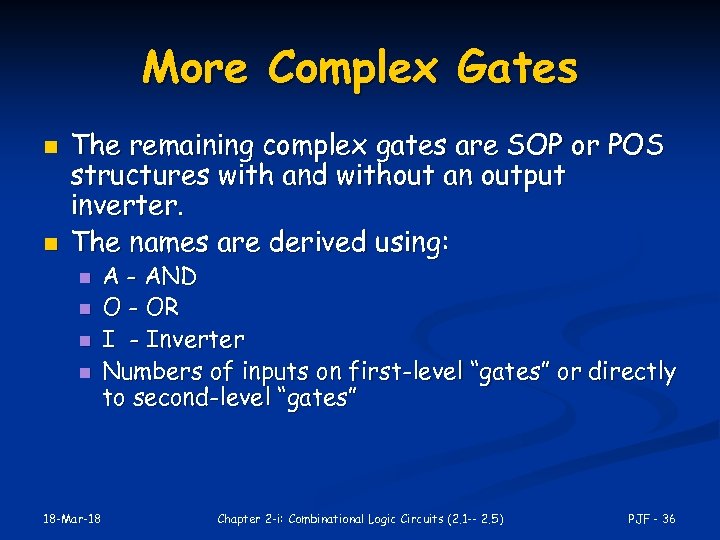

More Complex Gates n n The remaining complex gates are SOP or POS structures with and without an output inverter. The names are derived using: n n 18 -Mar-18 A - AND O - OR I - Inverter Numbers of inputs on first-level “gates” or directly to second-level “gates” Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 36
More Complex Gates (continued) n n Example: AOI - AND-OR-Invert consists of a single gate with AND functions driving an OR function which is inverted (page 95 in the textbook). These gate types are used because: n n 18 -Mar-18 The number of transistors needed is fewer than required by connecting together primitive gates Potentially, the circuit delay is smaller, increasing the circuit operating speed Chapter 2 -i: Combinational Logic Circuits (2. 1 -- 2. 5) PJF - 37
