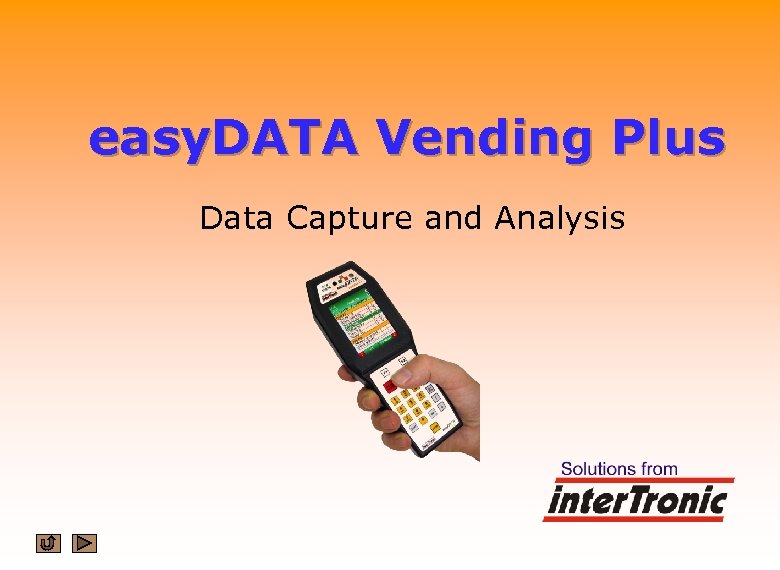

easy DATA Vending Plus Data Capture and Analysis

easy. DATA Vending Plus Data Capture and Analysis

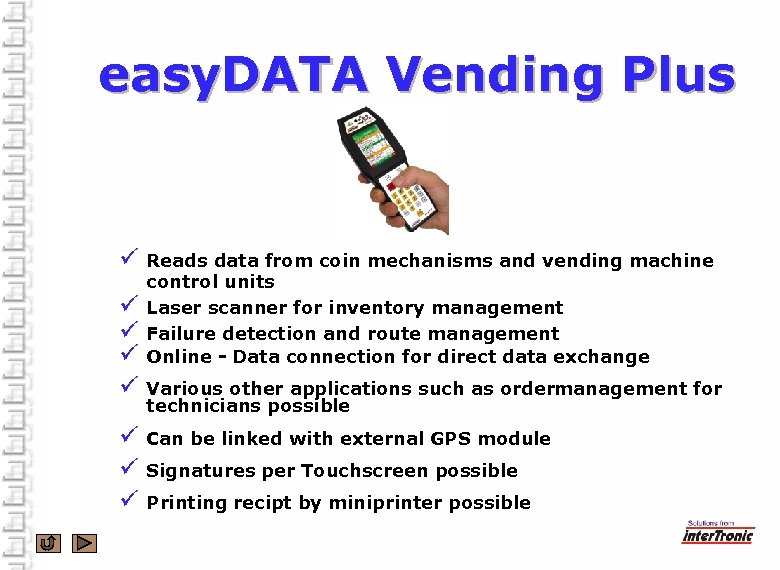

easy. DATA Vending Plus ü ü ü ü Reads data from coin mechanisms and vending machine control units Laser scanner for inventory management Failure detection and route management Online - Data connection for direct data exchange Various other applications such as ordermanagement for technicians possible Can be linked with external GPS module Signatures per Touchscreen possible Printing recipt by miniprinter possible

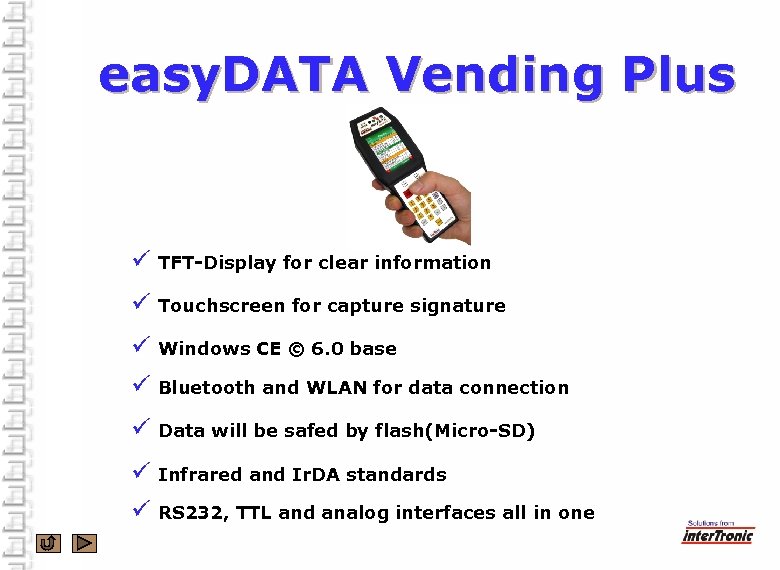

easy. DATA Vending Plus ü TFT-Display for clear information ü Touchscreen for capture signature ü Windows CE © 6. 0 base ü Bluetooth and WLAN for data connection ü Data will be safed by flash(Micro-SD) ü Infrared and Ir. DA standards ü RS 232, TTL and analog interfaces all in one

easy. DATA Vending Plus ü Easy to operate, even without training ü Absolutely safe and secure data storage ü Bar-code extension enables inventory management ü Continuously adapted to the requirements and specific features of leading manufacturers ü Adapted to state-of-the-art technologies ü easy. DATA-series is often fieldtested in vending branch

easy. DATA Vending Plus in a network Touchscreen for capture signature Data link over UMTS Inventory management, errors, time Server Route managment, Contract for engineers, Delivery notes, wares Mobile printer GPS-receiver Data of vendingmachines / Update Encashment data ü All relevant information are exchanged online with the home network and are available directly at the machine on site and in the office.

easy. DATA Vending Plus in a network ü Refiller orders, technicians orders, delivery notes, diagrams for engineers can be sent and directly read data, malfunctions, repairs, etc. can be sent back to the office. ü If necessary, GPS coordinates can be determined with external GPS receiver and will be immediately sent to the company. Thus, those supervisors can be determined, which has the shortest distance to a malfunctioning machine. ü Documents can be sent to Easy. Data and printed out via a mobile printer on site. ü Data link to the home server via GPRS / EDGE / UMTS / HSDPA mobile phone and via Bluetooth. ü The application possibilities are almost unlimited.

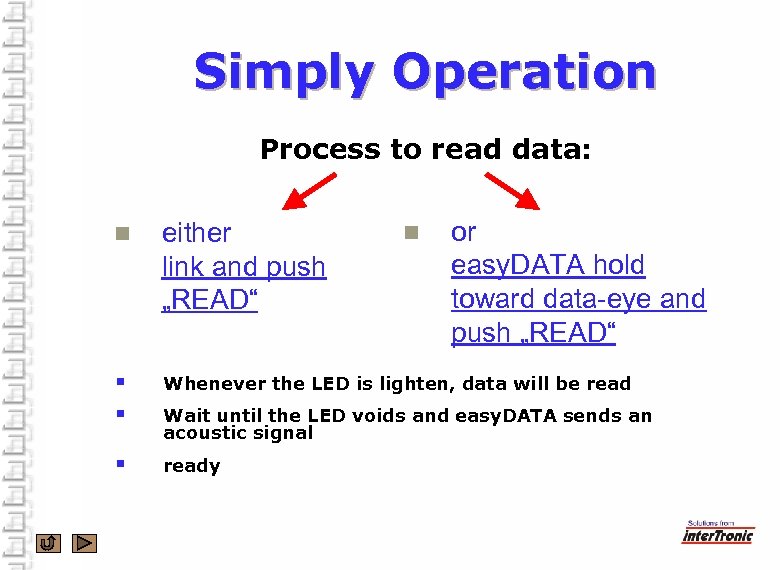

Simply Operation Process to read data: or easy. DATA hold toward data-eye and push „READ“ n either link and push „READ“ § § Whenever the LED is lighten, data will be read § ready n Wait until the LED voids and easy. DATA sends an acoustic signal

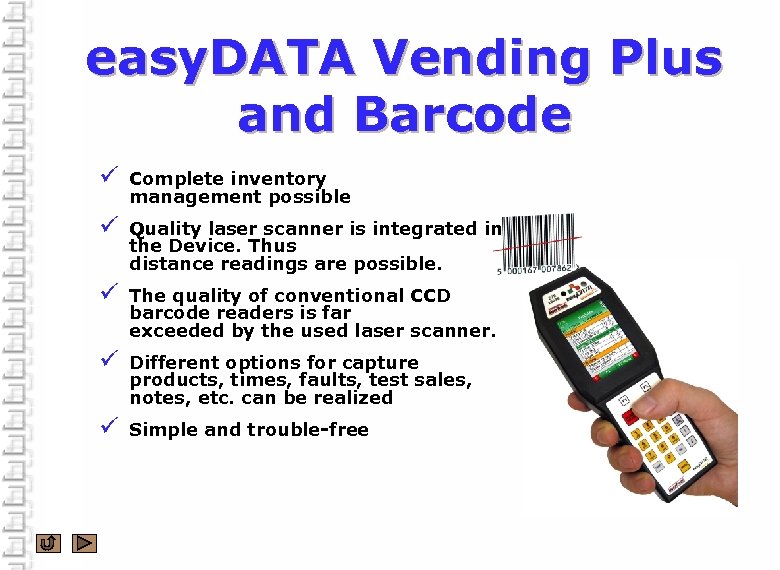

easy. DATA Vending Plus and Barcode ü Complete inventory management possible ü Quality laser scanner is integrated in the Device. Thus distance readings are possible. ü The quality of conventional CCD barcode readers is far exceeded by the used laser scanner. ü Different options for capture products, times, faults, test sales, notes, etc. can be realized ü Simple and trouble-free

Barcode - an efficient concept 1. In each machine is a barcode stuck with the machine number 2. The supervisor logs in to the vendingmachine by scanning a barcode 3. When needed, the coin control unit or the vending machine controller will be read out 4. The filled or removed products, times, faults, test sales, etc. will be read in 5. The final step is the logout at the vending machine by scanning the barcode

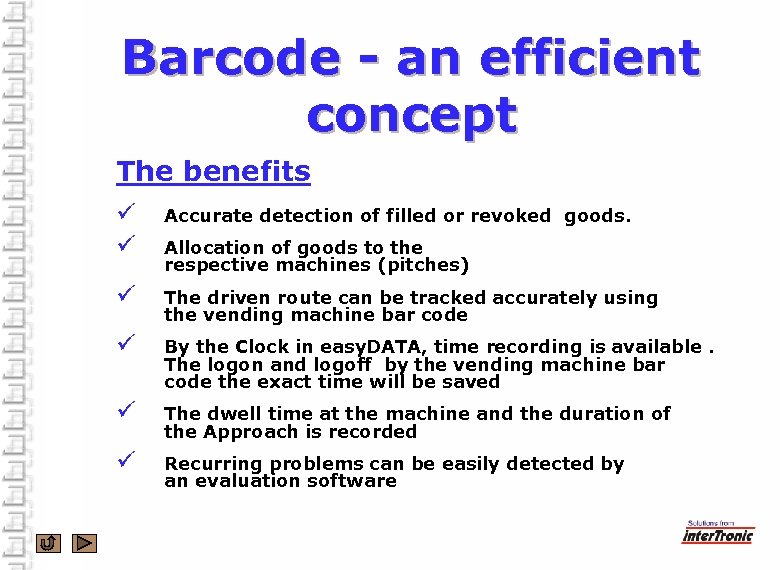

Barcode - an efficient concept The benefits ü ü Accurate detection of filled or revoked goods. ü The driven route can be tracked accurately using the vending machine bar code ü By the Clock in easy. DATA, time recording is available. The logon and logoff by the vending machine bar code the exact time will be saved ü The dwell time at the machine and the duration of the Approach is recorded ü Recurring problems can be easily detected by an evaluation software Allocation of goods to the respective machines (pitches)

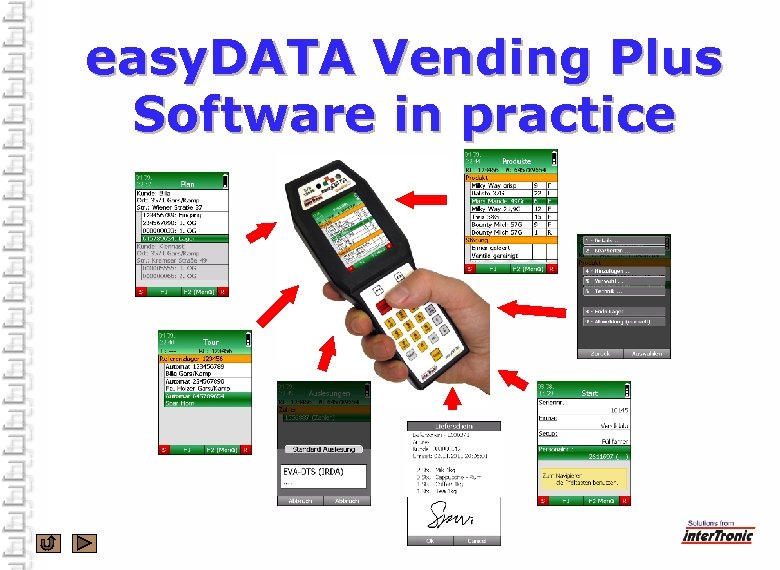

easy. DATA Vending Plus Software in practice

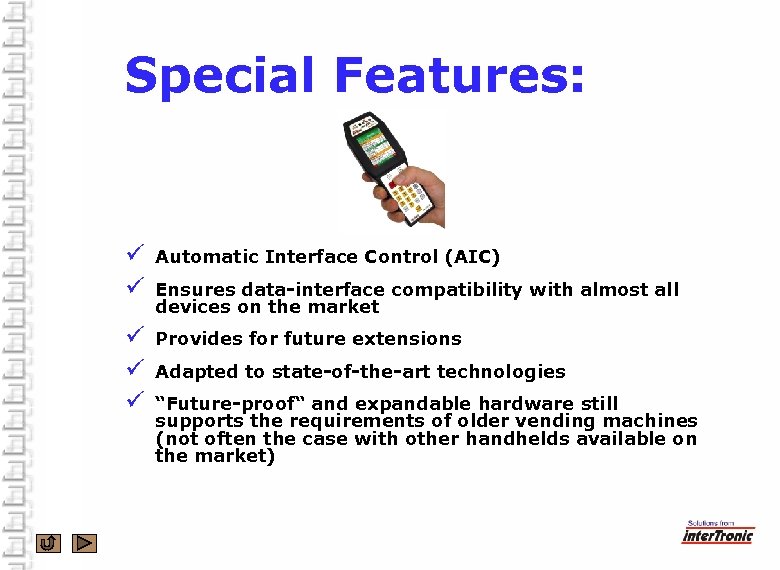

Special Features: ü ü Automatic Interface Control (AIC) ü ü ü Provides for future extensions Ensures data-interface compatibility with almost all devices on the market Adapted to state-of-the-art technologies “Future-proof“ and expandable hardware still supports the requirements of older vending machines (not often the case with other handhelds available on the market)

Functions & Features Interfaces / Protocols: ü ü ü 9 -pin D-Sub for RS 232 printer output ü IRDA infrared e. DDCMP (Eva-Dts 5. 0, Eva-Dts 6. 0) NRI G 26 Höfer mode using plug-in connection or IR G 46 DDCMP using plug-in connection or IR DEX/UCS using adapter cable (IR available) Standard infrared DDCMP (Eva-Dts 4. 0, Vidts) supporting a wide variety of coin mechanisms and vending-machine control units

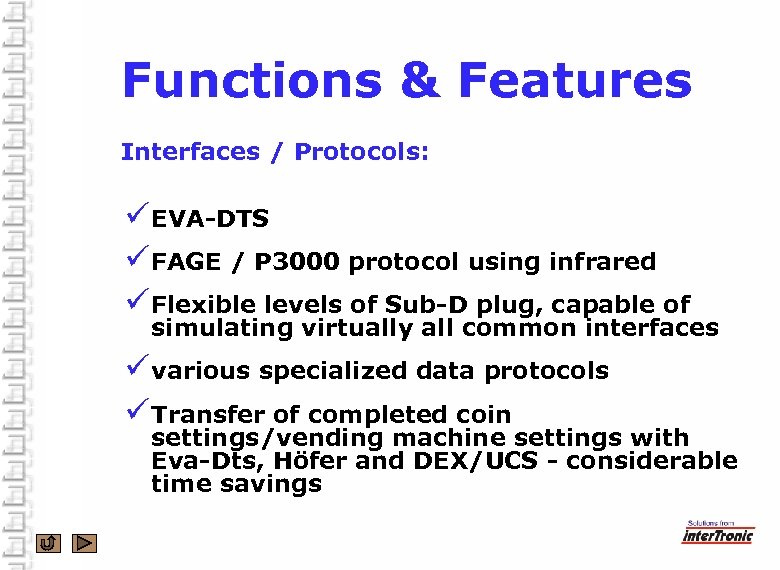

Functions & Features Interfaces / Protocols: ü EVA-DTS ü FAGE / P 3000 protocol using infrared ü Flexible levels of Sub-D plug, capable of simulating virtually all common interfaces ü various specialized data protocols ü Transfer of completed coin settings/vending machine settings with Eva-Dts, Höfer and DEX/UCS - considerable time savings

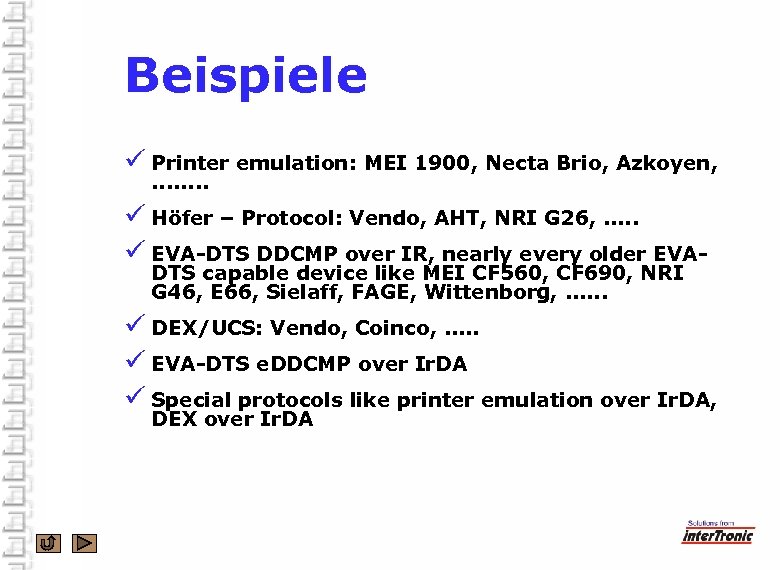

Beispiele ü Printer emulation: MEI 1900, Necta Brio, Azkoyen, . . . . ü Höfer – Protocol: Vendo, AHT, NRI G 26, . . . ü EVA-DTS DDCMP over IR, nearly every older EVADTS capable device like MEI CF 560, CF 690, NRI G 46, E 66, Sielaff, FAGE, Wittenborg, . . . ü DEX/UCS: Vendo, Coinco, . . . ü EVA-DTS e. DDCMP over Ir. DA ü Special protocols like printer emulation over Ir. DA, DEX over Ir. DA

Technical Data: n n n n Infrared and Ir. DA-standard RS 232, TTL and Analog interface, all in one Laserscanner Windows CE © 6. 0 –Basis Processor PXA 300 128 MB RAM TFT-Touchscreen USB Bluetooth WLAN Micro-SD (1 GB) for safe Datastorage Li-Ion Accu with 2 x 2600 m. Ah Dimension: 203 mm x 75 mm x 39 mm Wight (Standard 1 Accu): 285 g

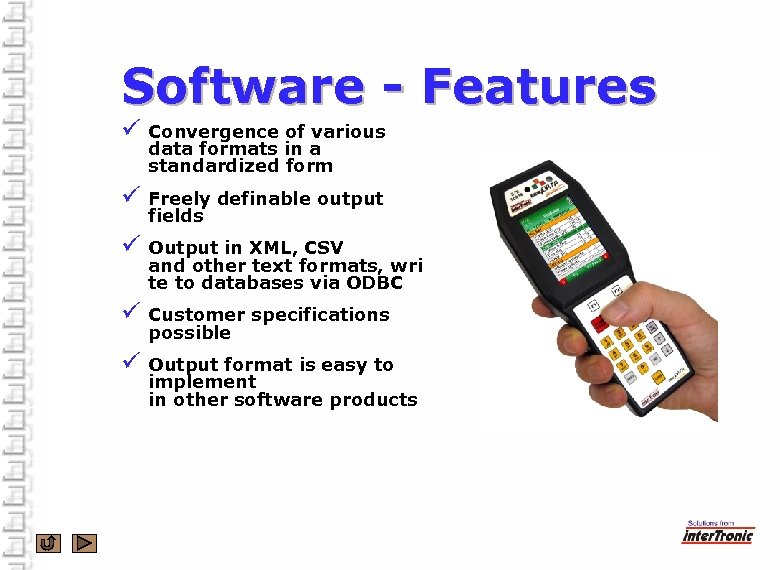

Software - Features ü Convergence of various data formats in a standardized form ü Freely definable output fields ü Output in XML, CSV and other text formats, wri te to databases via ODBC ü Customer specifications possible ü Output format is easy to implement in other software products

inter. Tronic Innovations Gmb. H Schiller Strasse 661 A-3571 Gars am Kamp, Austria www. intertronic. at Reseller: Thank you for your attention!
