e Fina X Teller System 2000 5 25

e. Fina. X Teller System 2000. 5. 25

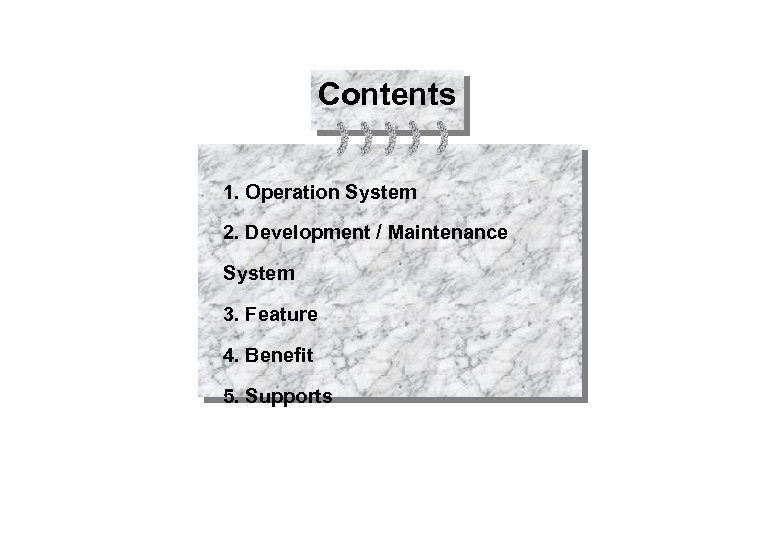

Contents 1. Operation System 2. Development / Maintenance System 3. Feature 4. Benefit 5. Supports

e. Fina. X Teller System Operation System Web Application Server Log & Journal Map Parser Adater TX Parser Windows 95/98/NT/2000 Workflow Manager Web Browser Session Manager Map Pars er Broadcaster Printer Teller Server Internet / Intranet Passboo k Printer Card Swipes Teller Terminal Workflo w Devic Process or e Drive Message r Process or Log & Journal Screen Map DB Web Server OS Back Office 2 (Tx System) Back Office 1 (Tx System) -1 - SNA(LU 0, LU 6. 2) TCP / IP MQSeries Message Hub (Such as MQS 1)

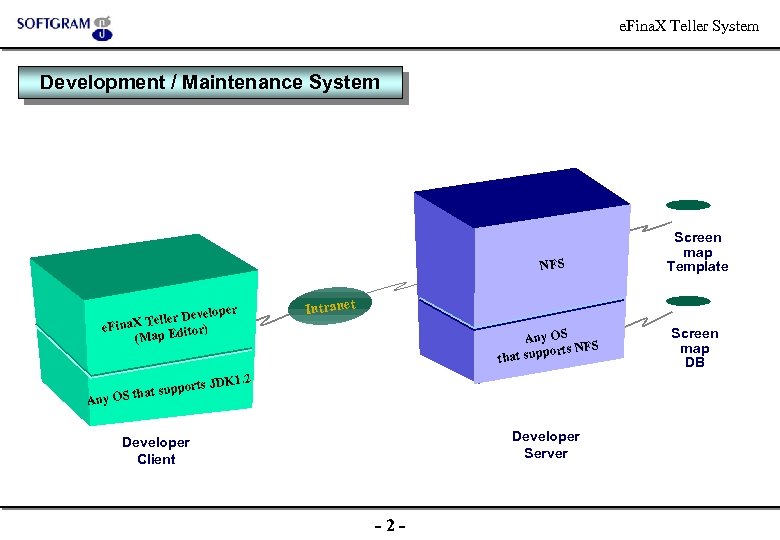

e. Fina. X Teller System Development / Maintenance System NFS r Develope X Teller e. Fina itor) (Map Ed Screen map Template Intranet Any OS orts NFS that supp s JDK 1. 2 t support y OS tha An Developer Server Developer Client -2 - Screen map DB

e. Fina. X Teller System Feature q Teller Server Adapter : Communication with multiple legacy systems. Supports SNA(LU 0, LU 6. 2), TCP/IP and MQSeries Tx Parser : Parsing from/to screen map to/from transaction map of legacy system. The parsing rule can be defined through DB. Map Parser : Parsing screen map using screen map database. Workflow Manager : Provide approval process and interoperability between users. Session Manager : Manage on-line user session. Broadcaster : Broadcast messages, stock index and other notification message from system administrator. Log/Journal Manager : Logging and manage journaling. Screen map database : Screen map database and transaction database which is developed by developer system. -3 -

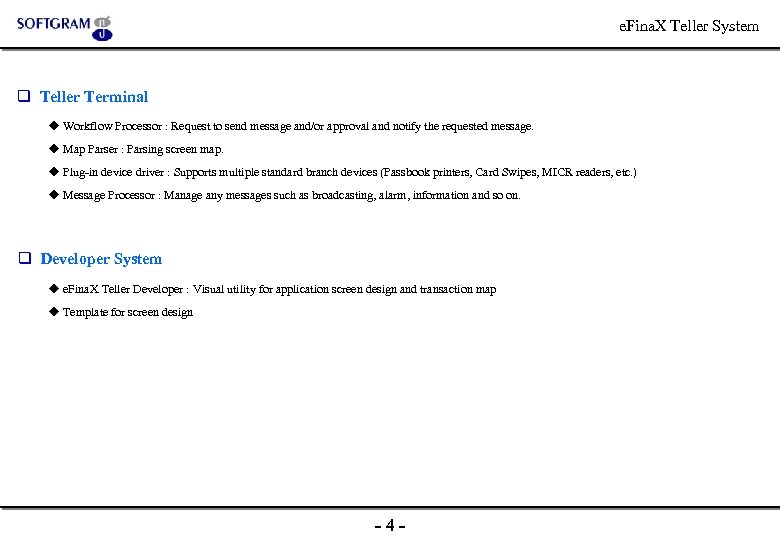

e. Fina. X Teller System q Teller Terminal Workflow Processor : Request to send message and/or approval and notify the requested message. Map Parser : Parsing screen map. Plug-in device driver : Supports multiple standard branch devices (Passbook printers, Card Swipes, MICR readers, etc. ) Message Processor : Manage any messages such as broadcasting, alarm, information and so on. q Developer System e. Fina. X Teller Developer : Visual utility for application screen design and transaction map Template for screen design -4 -

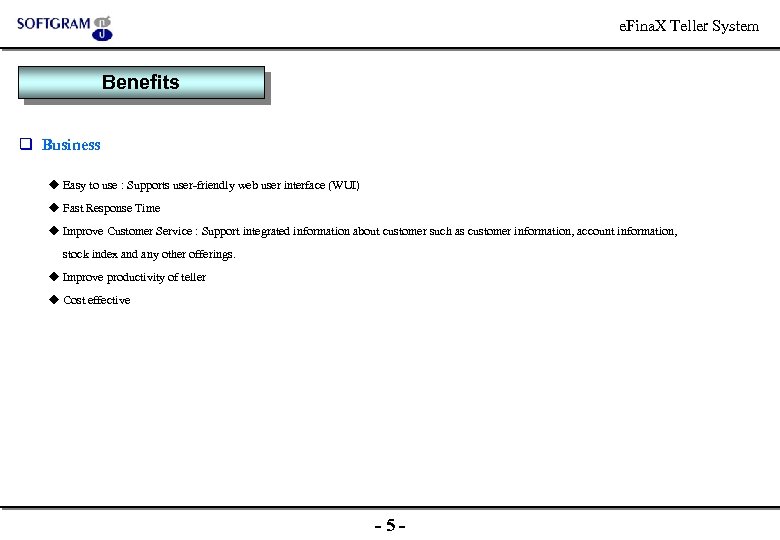

e. Fina. X Teller System Benefits q Business Easy to use : Supports user-friendly web user interface (WUI) Fast Response Time Improve Customer Service : Support integrated information about customer such as customer information, account information, stock index and any other offerings. Improve productivity of teller Cost effective -5 -

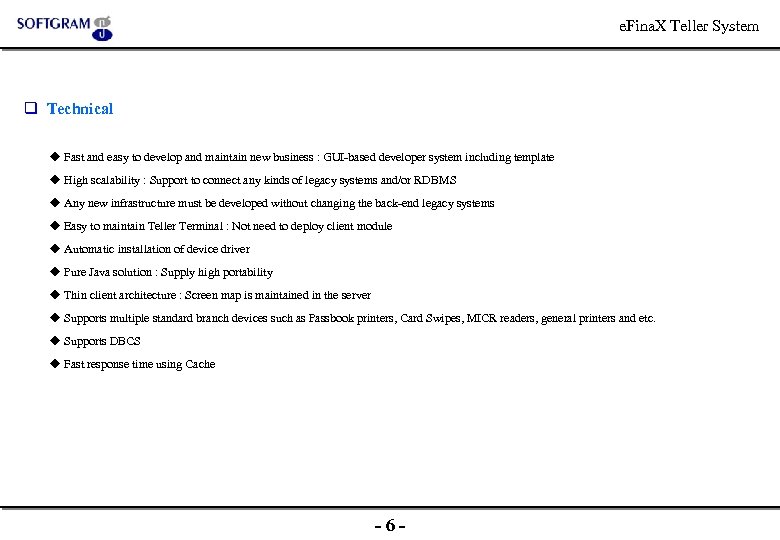

e. Fina. X Teller System q Technical Fast and easy to develop and maintain new business : GUI-based developer system including template High scalability : Support to connect any kinds of legacy systems and/or RDBMS Any new infrastructure must be developed without changing the back-end legacy systems Easy to maintain Teller Terminal : Not need to deploy client module Automatic installation of device driver Pure Java solution : Supply high portability Thin client architecture : Screen map is maintained in the server Supports multiple standard branch devices such as Passbook printers, Card Swipes, MICR readers, general printers and etc. Supports DBCS Fast response time using Cache -6 -

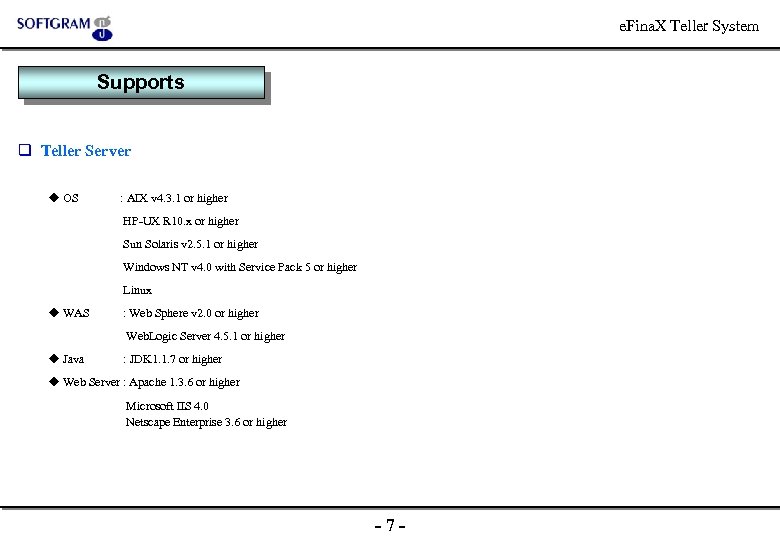

e. Fina. X Teller System Supports q Teller Server OS : AIX v 4. 3. 1 or higher HP-UX R 10. x or higher Sun Solaris v 2. 5. 1 or higher Windows NT v 4. 0 with Service Pack 5 or higher Linux WAS : Web Sphere v 2. 0 or higher Web. Logic Server 4. 5. 1 or higher Java : JDK 1. 1. 7 or higher Web Server : Apache 1. 3. 6 or higher Microsoft IIS 4. 0 Netscape Enterprise 3. 6 or higher -7 -

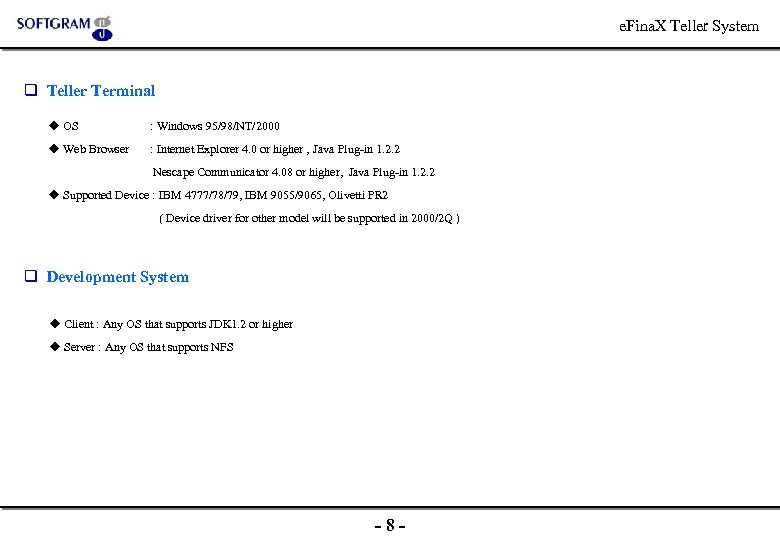

e. Fina. X Teller System q Teller Terminal OS : Windows 95/98/NT/2000 Web Browser : Internet Explorer 4. 0 or higher , Java Plug-in 1. 2. 2 Nescape Communicator 4. 08 or higher, Java Plug-in 1. 2. 2 Supported Device : IBM 4777/78/79, IBM 9055/9065, Olivetti PR 2 ( Device driver for other model will be supported in 2000/2 Q ) q Development System Client : Any OS that supports JDK 1. 2 or higher Server : Any OS that supports NFS -8 -
