Dustin Borg ME Patrick Henley BME Ali Husain

Dustin Borg, ME Patrick Henley, BME Ali Husain, BME Nick Stroeher, BME Advisor: Dr. Paul King

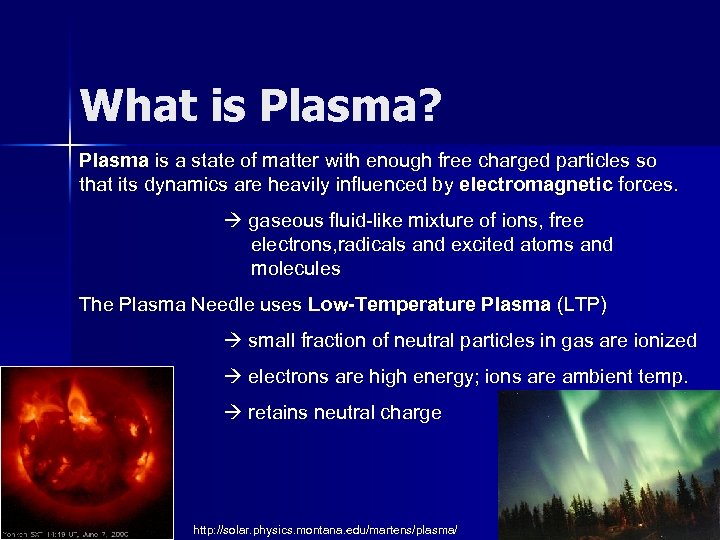

What is Plasma? Plasma is a state of matter with enough free charged particles so that its dynamics are heavily influenced by electromagnetic forces. gaseous fluid-like mixture of ions, free electrons, radicals and excited atoms and molecules The Plasma Needle uses Low-Temperature Plasma (LTP) small fraction of neutral particles in gas are ionized electrons are high energy; ions are ambient temp. retains neutral charge http: //solar. physics. montana. edu/martens/plasma/

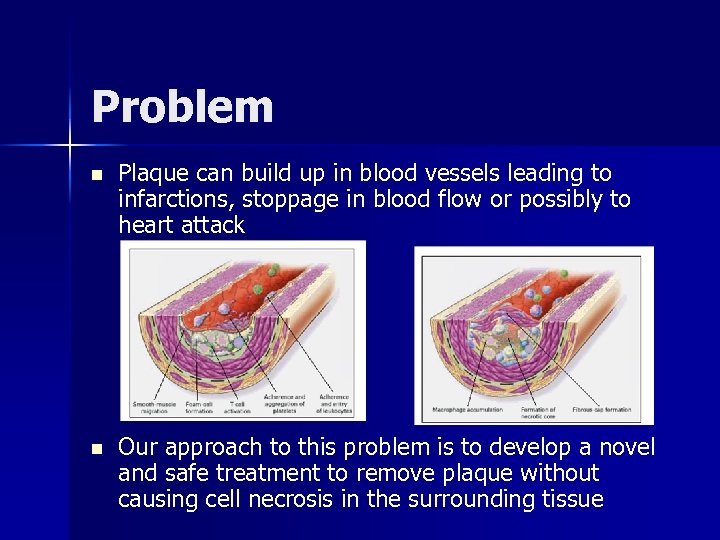

Problem n Plaque can build up in blood vessels leading to infarctions, stoppage in blood flow or possibly to heart attack n Our approach to this problem is to develop a novel and safe treatment to remove plaque without causing cell necrosis in the surrounding tissue

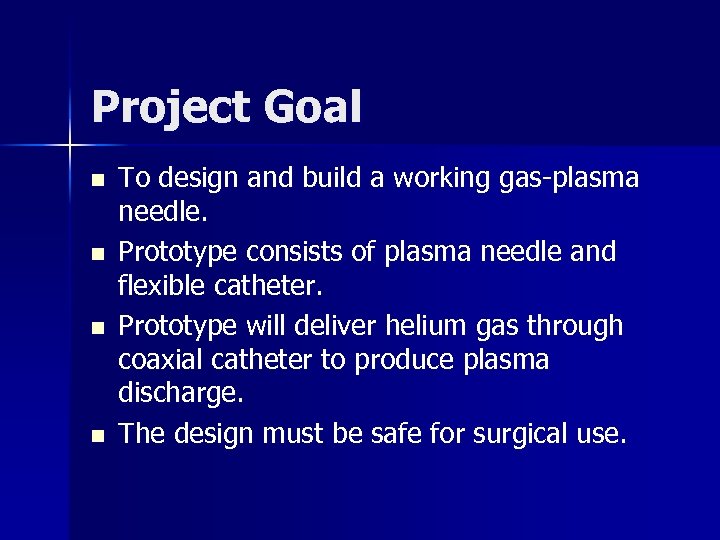

Project Goal n n To design and build a working gas-plasma needle. Prototype consists of plasma needle and flexible catheter. Prototype will deliver helium gas through coaxial catheter to produce plasma discharge. The design must be safe for surgical use.

Requirements to Meet Goals n Flexibility: – – – n Tungsten electrode Bending catheter should not affect gas helium flow Insulating material Safety: – Helium flow no greater than 100 cc/min – Separating material between plasma discharge and biological tissue – No blood flowing into catheter and no bubbles going into bloodstream

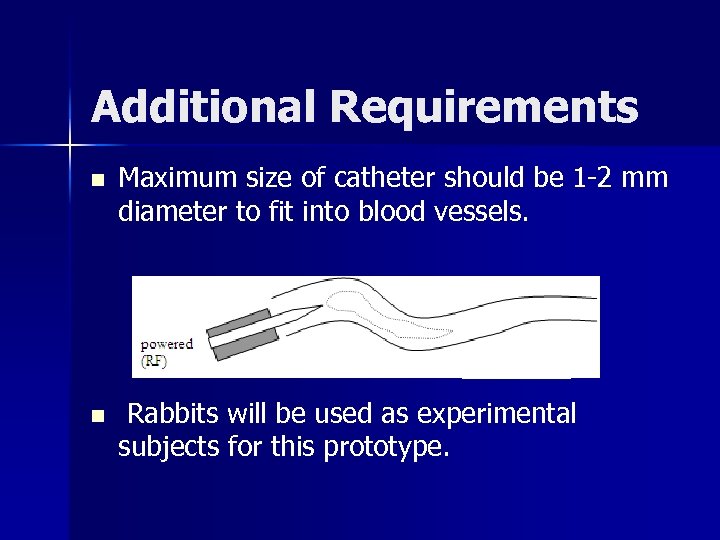

Additional Requirements n n Maximum size of catheter should be 1 -2 mm diameter to fit into blood vessels. Rabbits will be used as experimental subjects for this prototype.

Our Progress So Far Research n Literature from Eindhoven n Independent Research: – Compatibility of helium gas with biological tissue – Effect of free radicalization on cell-adhesion molecules – Design more flexible needle for catheter Coordination n Net. Meeting n Identified vendors for prototype parts n Potentially procured lab space after review of technical specifications in the EE welding lab

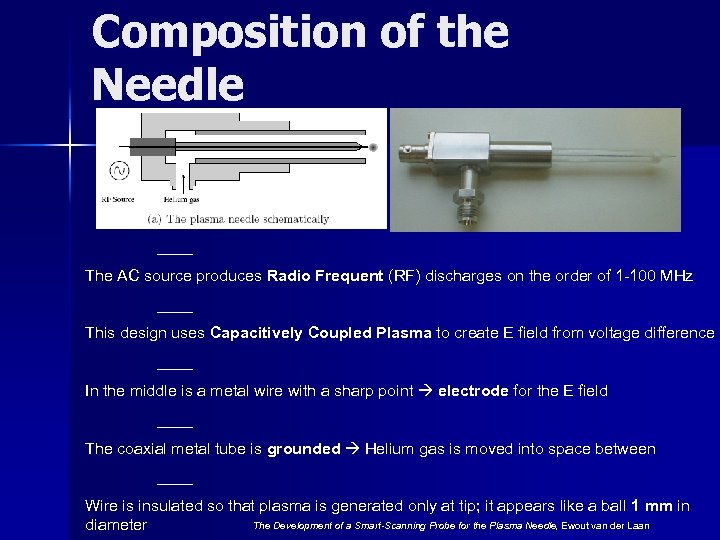

Composition of the Needle ____ The AC source produces Radio Frequent (RF) discharges on the order of 1 -100 MHz ____ This design uses Capacitively Coupled Plasma to create E field from voltage difference ____ In the middle is a metal wire with a sharp point electrode for the E field ____ The coaxial metal tube is grounded Helium gas is moved into space between ____ Wire is insulated so that plasma is generated only at tip; it appears like a ball 1 mm in The Development of a Smart-Scanning Probe for the Plasma Needle, Ewout van der Laan diameter

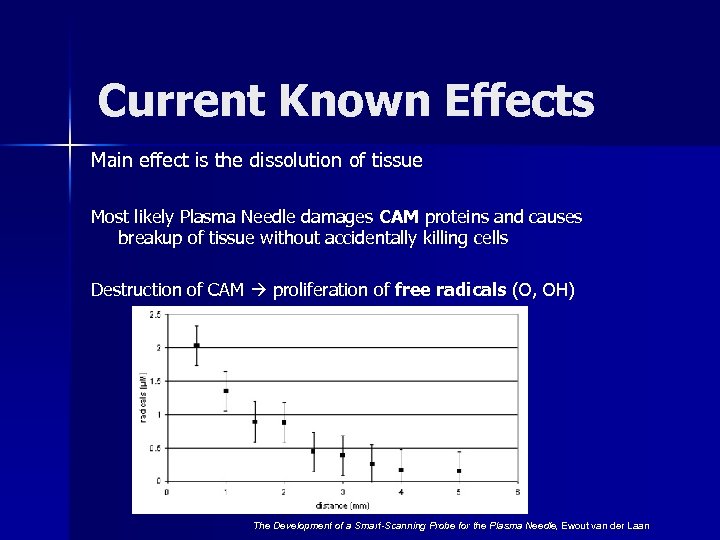

Current Known Effects Main effect is the dissolution of tissue Most likely Plasma Needle damages CAM proteins and causes breakup of tissue without accidentally killing cells Destruction of CAM proliferation of free radicals (O, OH) The Development of a Smart-Scanning Probe for the Plasma Needle, Ewout van der Laan

Catheter Specifications n n n n Length = 5 cm Frequency = 13. 56 MHz (universal) Plasma resistance = 2 ohms Needle resistance = 1. 1 ohm Needle Capacitance = 28. 8 p. F Plasma discharge is purely resistive. Helium flow = 0. 1 L/min Minimum voltage to ignite plasma = 250 V

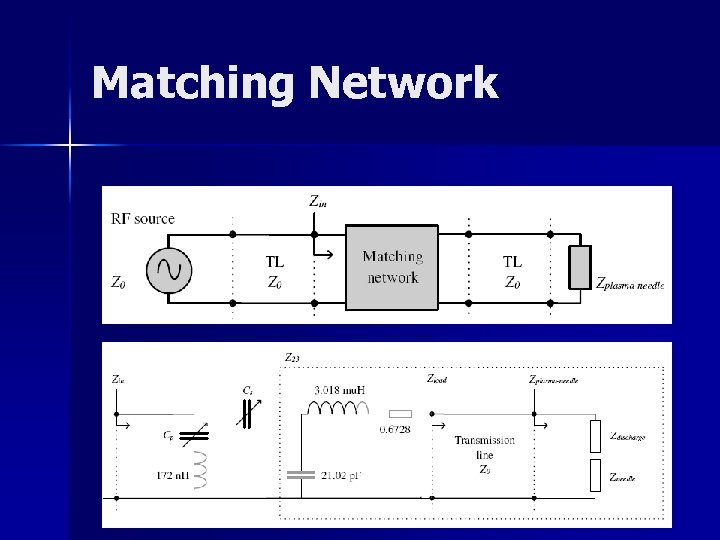

Matching Network

Variable Matchbox – Connects two circuits together via a network in such a way that the maximum transfer of energy occurs between the circuits. – The max transfer occurs when the impedances of those two circuits are equal. (source and plasma) – Better: power that has to be delivered by the amplifier reduces with a factor of 10. – Tunable – Cheap – Small: 25 X 9 mm – Very large capacitance ranges (15 -120 p. F)

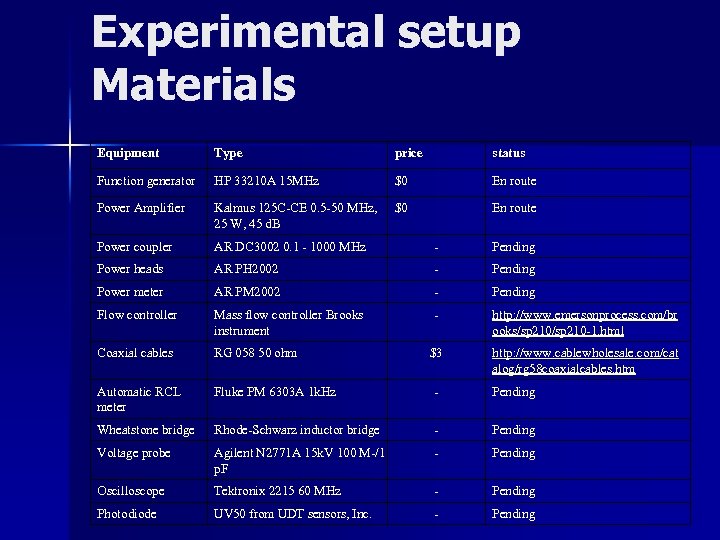

Experimental setup Materials Equipment Type price status Function generator HP 33210 A 15 MHz $0 En route Power Amplifier Kalmus 125 C CE 0. 5 50 MHz, 25 W, 45 d. B $0 En route Power coupler AR DC 3002 0. 1 1000 MHz Pending Power heads AR PH 2002 Pending Power meter AR PM 2002 Pending Flow controller Mass flow controller Brooks instrument http: //www. emersonprocess. com/br ooks/sp 210 1. html Coaxial cables RG 058 50 ohm $3 http: //www. cablewholesale. com/cat alog/rg 58 coaxialcables. htm Automatic RCL meter Fluke PM 6303 A 1 k. Hz Pending Wheatstone bridge Rhode Schwarz inductor bridge Pending Voltage probe Agilent N 2771 A 15 k. V 100 M /1 p. F Pending Oscilloscope Tektronix 2215 60 MHz Pending Photodiode UV 50 from UDT sensors, Inc. Pending

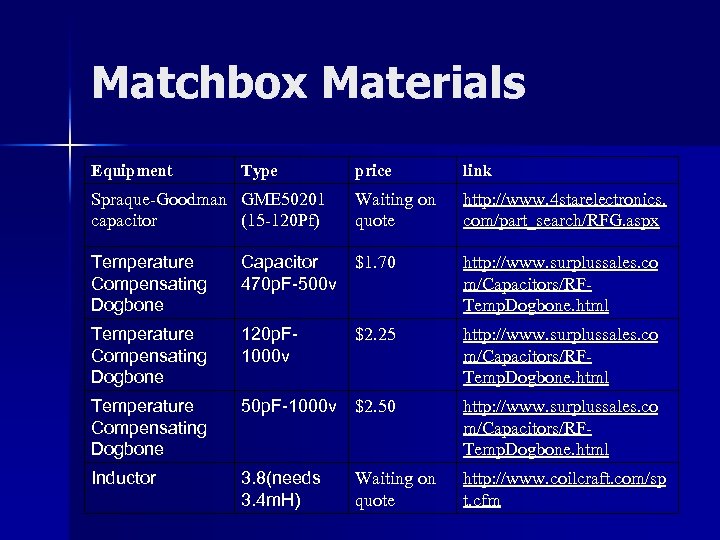

Matchbox Materials Equipment Type Spraque Goodman GME 50201 capacitor (15 120 Pf) price link Waiting on quote http: //www. 4 starelectronics. com/part_search/RFG. aspx Temperature Compensating Dogbone $1. 70 Capacitor 470 p. F-500 v http: //www. surplussales. co m/Capacitors/RF Temp. Dogbone. html Temperature Compensating Dogbone 120 p. F 1000 v $2. 25 http: //www. surplussales. co m/Capacitors/RF Temp. Dogbone. html Temperature Compensating Dogbone 50 p. F-1000 v $2. 50 http: //www. surplussales. co m/Capacitors/RF Temp. Dogbone. html Inductor 3. 8(needs 3. 4 m. H) http: //www. coilcraft. com/sp t. cfm Waiting on quote

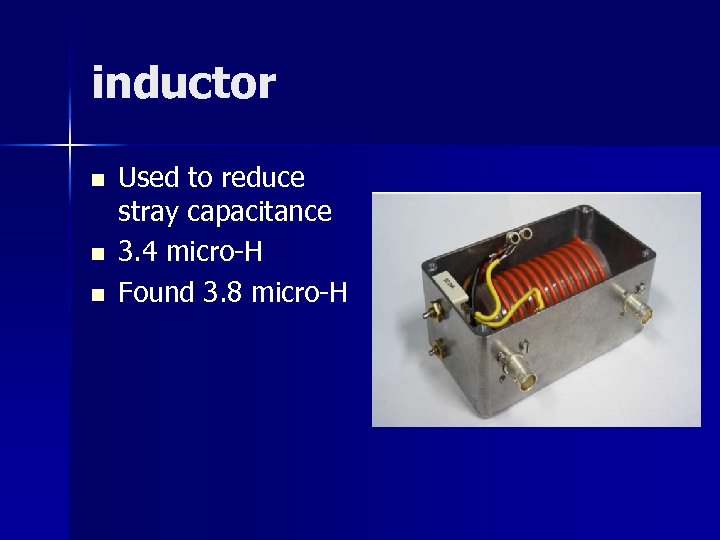

inductor n n n Used to reduce stray capacitance 3. 4 micro-H Found 3. 8 micro-H

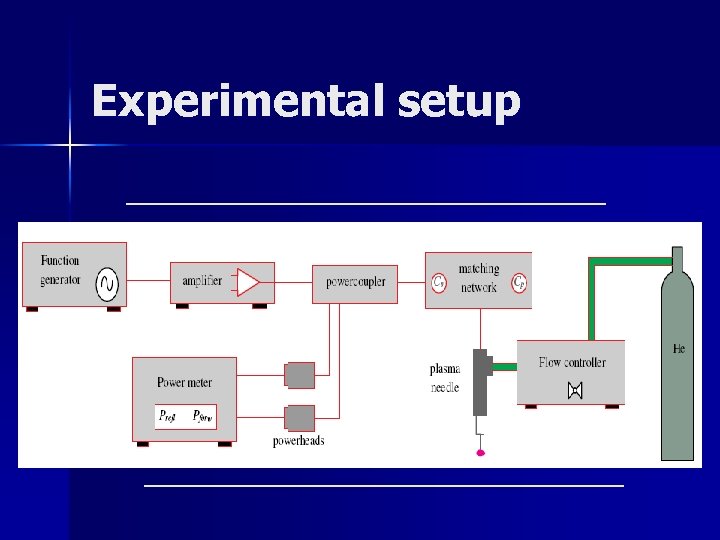

Experimental setup

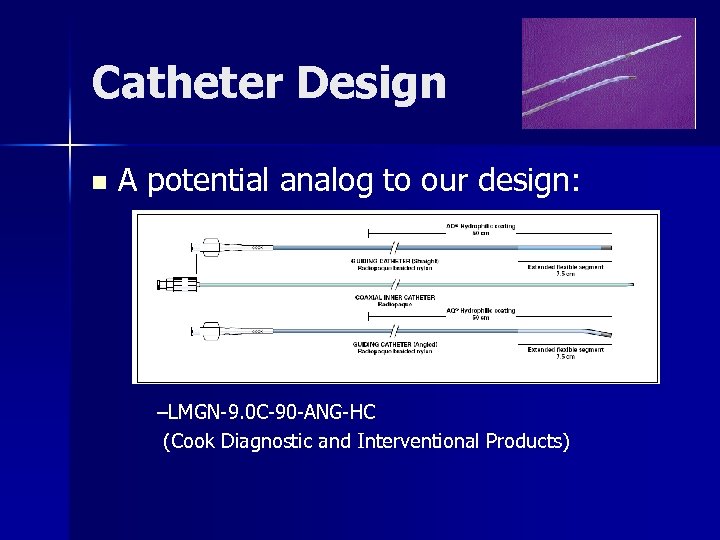

Catheter Design n A potential analog to our design: –LMGN-9. 0 C-90 -ANG-HC (Cook Diagnostic and Interventional Products)

Immediate Goals (next two weeks) 1. Construction of plasma needle prototype § § 2. Buy components Lab space Acquire generator Consult an electrical engineering professor / technician Focused research efforts § Catheter § § § Materials Specifications Selectively Porous Membranes

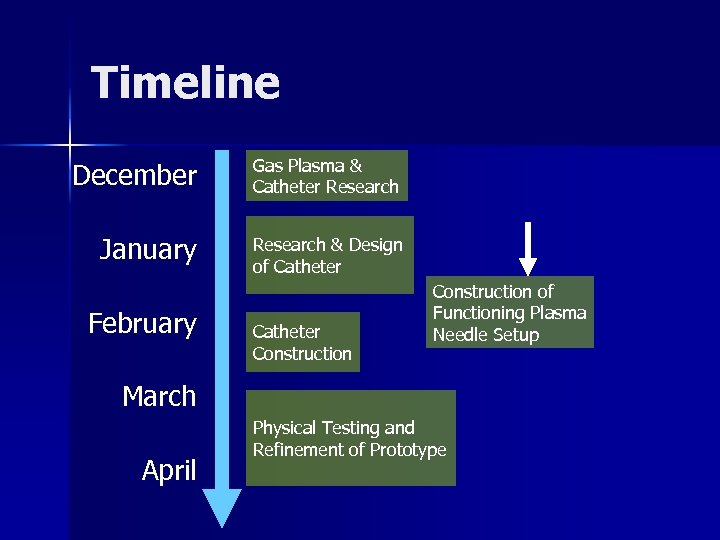

Timeline December Gas Plasma & Catheter Research January Research & Design of Catheter February Catheter Construction of Functioning Plasma Needle Setup March April Physical Testing and Refinement of Prototype

Our Dutch Counterparts Willem-Jan van Harskamp, Applied Physics Vivian Roode, BME Gijs Snieders, BME M. van Vlimmeren, BME Advisor: Dr. Eva Adamowicz

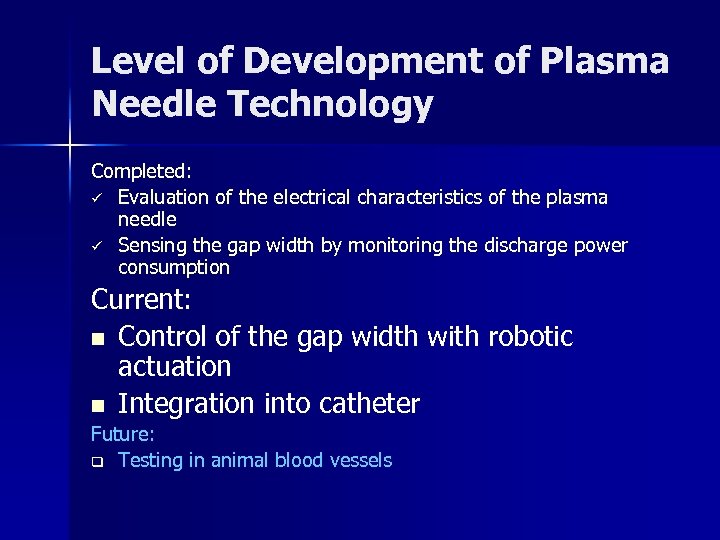

Level of Development of Plasma Needle Technology Completed: ü Evaluation of the electrical characteristics of the plasma needle ü Sensing the gap width by monitoring the discharge power consumption Current: n Control of the gap width with robotic actuation n Integration into catheter Future: q Testing in animal blood vessels
