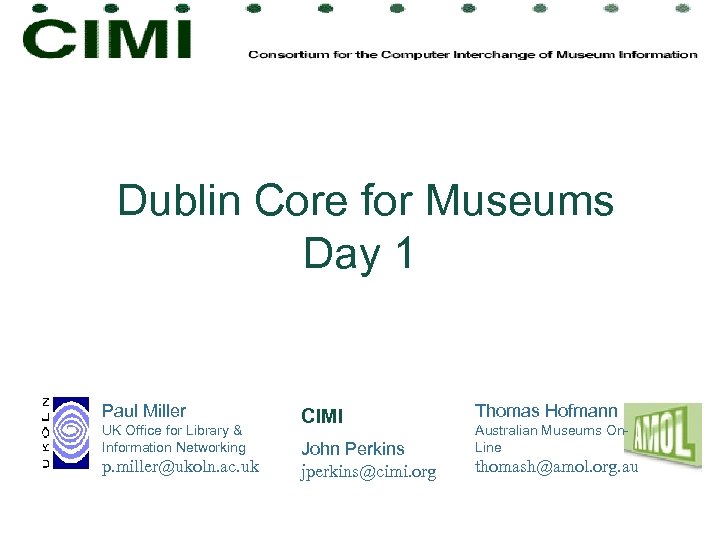

Dublin Core for Museums Day 1 Paul Miller UK Office for Library & Information Networking p. miller@ukoln. ac. uk CIMI Thomas Hofmann John Perkins jperkins@cimi. org thomash@amol. org. au Australian Museums On. Line
Overview for Thursday March 25 Ø Introduction to Metadata Ø Introducing the Dublin Core Ø CIMI DC Guidelines - Dublin Core for Museums Ø Break Ø DC for museums continued. . . Ø Lunch Ø Practicalities of Implementing DC Ø Break Ø Introduction to MICI

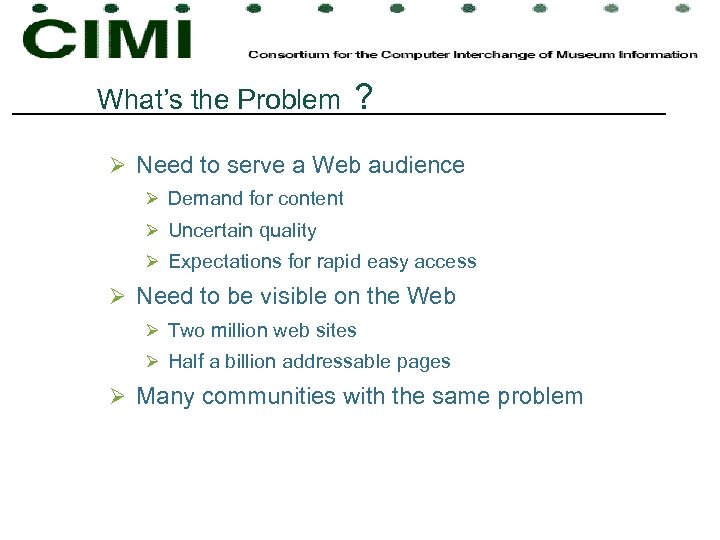

What’s the Problem ? Ø Need to serve a Web audience Ø Demand for content Ø Uncertain quality Ø Expectations for rapid easy access Ø Need to be visible on the Web Ø Two million web sites Ø Half a billion addressable pages Ø Many communities with the same problem

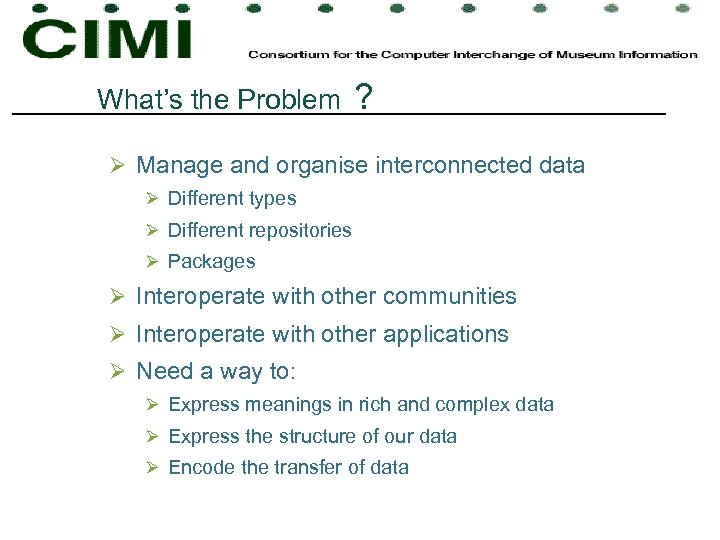

What’s the Problem ? Ø Manage and organise interconnected data Ø Different types Ø Different repositories Ø Packages Ø Interoperate with other communities Ø Interoperate with other applications Ø Need a way to: Ø Express meanings in rich and complex data Ø Express the structure of our data Ø Encode the transfer of data

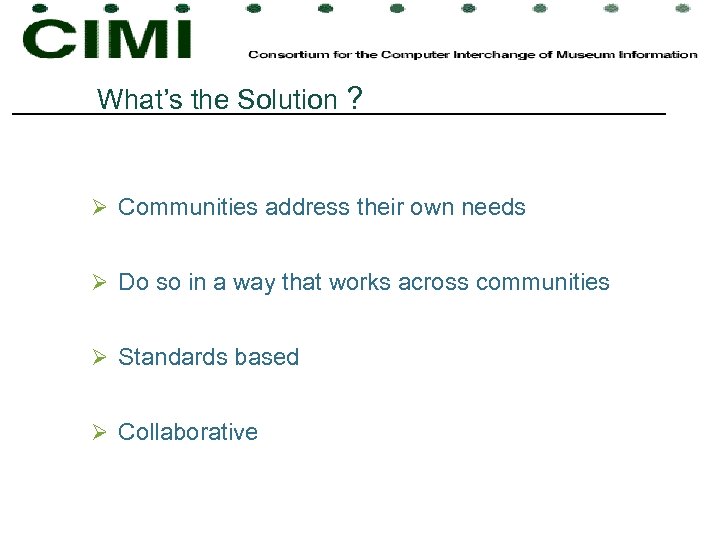

What’s the Solution ? Ø Communities address their own needs Ø Do so in a way that works across communities Ø Standards based Ø Collaborative

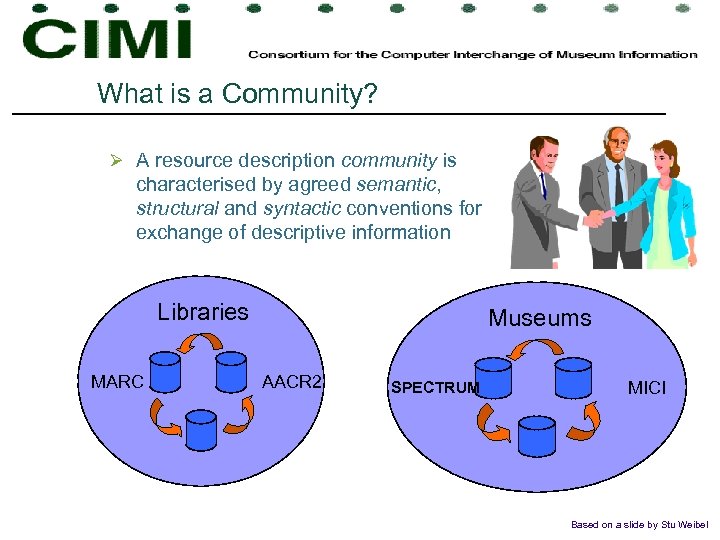

What is a Community? Ø A resource description community is characterised by agreed semantic, structural and syntactic conventions for exchange of descriptive information Libraries MARC Museums AACR 2 SPECTRUM MICI Based on a slide by Stu Weibel
Communities working together Home Pages Scientific Databases Libraries Geo Commerce ‘Internet Commons’ Museums Whatever. . . Based on a slide by Stu Weibel

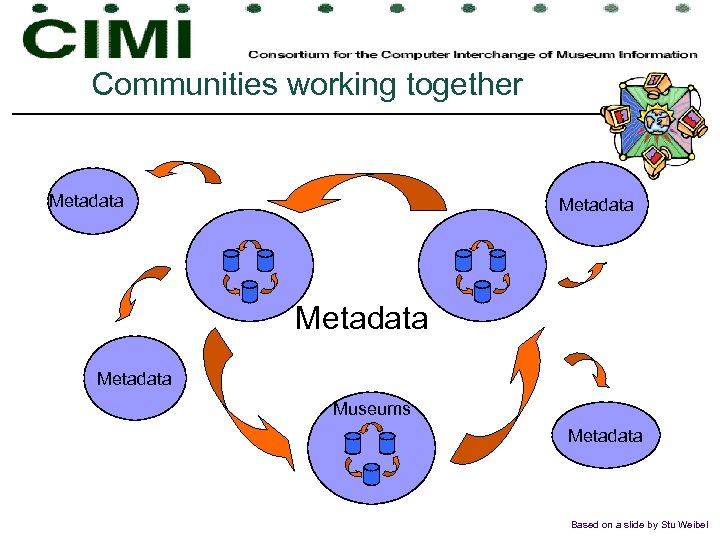

Communities working together Metadata Museums Metadata Based on a slide by Stu Weibel

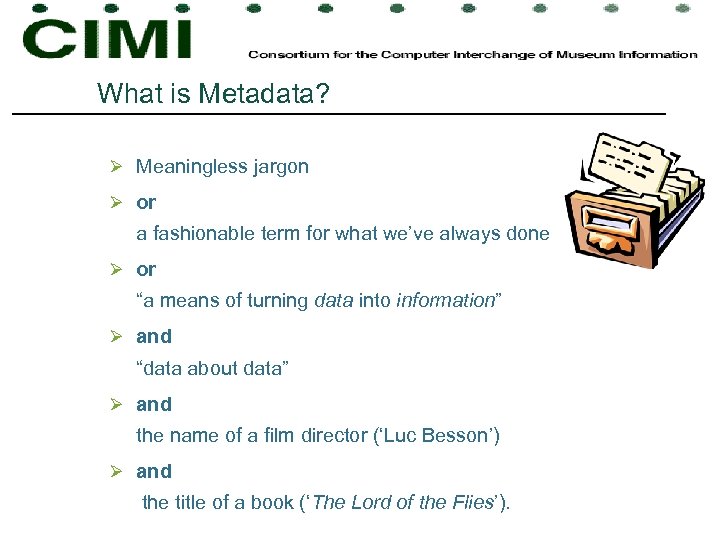

What is Metadata? Ø Meaningless jargon Ø or a fashionable term for what we’ve always done Ø or “a means of turning data into information” Ø and “data about data” Ø and the name of a film director (‘Luc Besson’) Ø and the title of a book (‘The Lord of the Flies’).

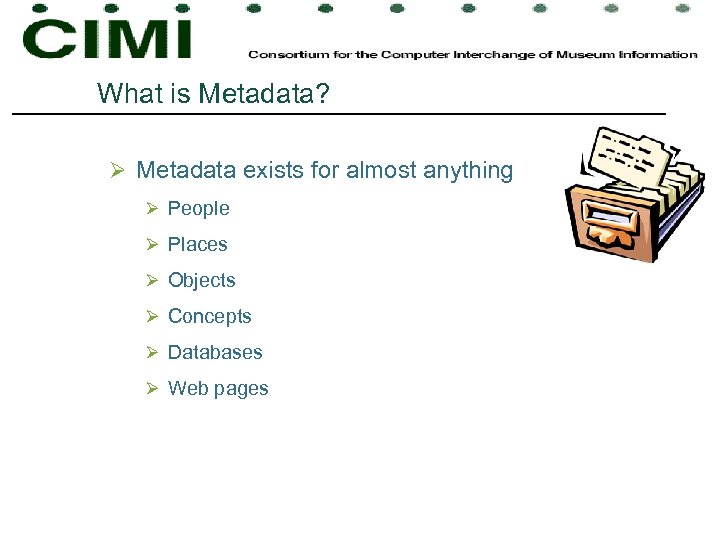

What is Metadata? Ø Metadata exists for almost anything Ø People Ø Places Ø Objects Ø Concepts Ø Databases Ø Web pages

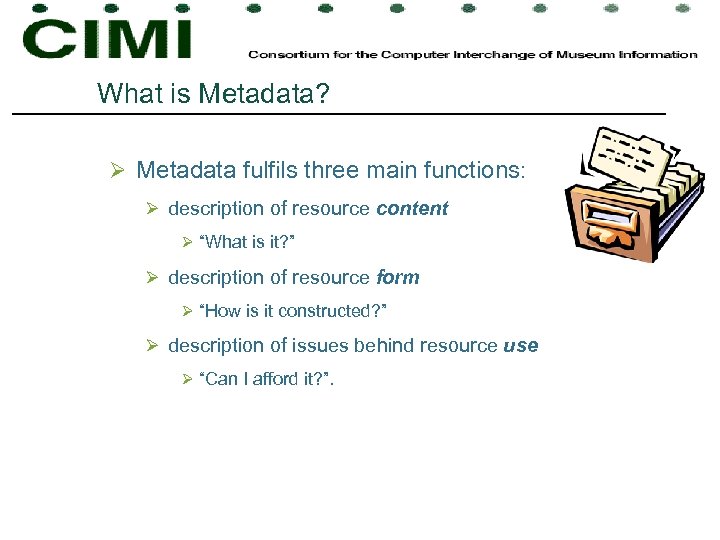

What is Metadata? Ø Metadata fulfils three main functions: Ø description of resource content Ø “What is it? ” Ø description of resource form Ø “How is it constructed? ” Ø description of issues behind resource use Ø “Can I afford it? ”.
What is Metadata? Ø Many structures have evolved at different levels, and to meet different requirements. . . MICI
For human communication we need. . . Semantic Interoperability Standardisation of content “Let’s talk English” “cat milk sat drank mat ” Structural Interoperability Standardisation of form “Here’s how to make a sentence” “Cat sat on mat. Drank milk. ” Syntactic Interoperability Standardisation of expression “These are the rules “The cat sat on the mat. of grammar” It drank some milk. ”

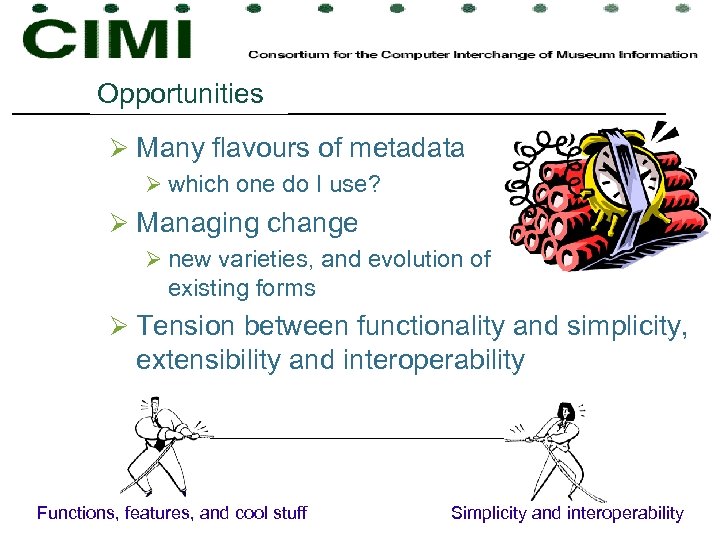

Opportunities Challenges Ø Many flavours of metadata Ø which one do I use? Ø Managing change Ø new varieties, and evolution of existing forms Ø Tension between functionality and simplicity, extensibility and interoperability Functions, features, and cool stuff Simplicity and interoperability
Introducing the Dublin Core Ø An attempt to improve resource discovery on the Web Ø now adopted more broadly Ø Building an interdisciplinary consensus about a core element set for resource discovery Ø simple and intuitive Ø cross–disciplinary Ø international Ø flexible.

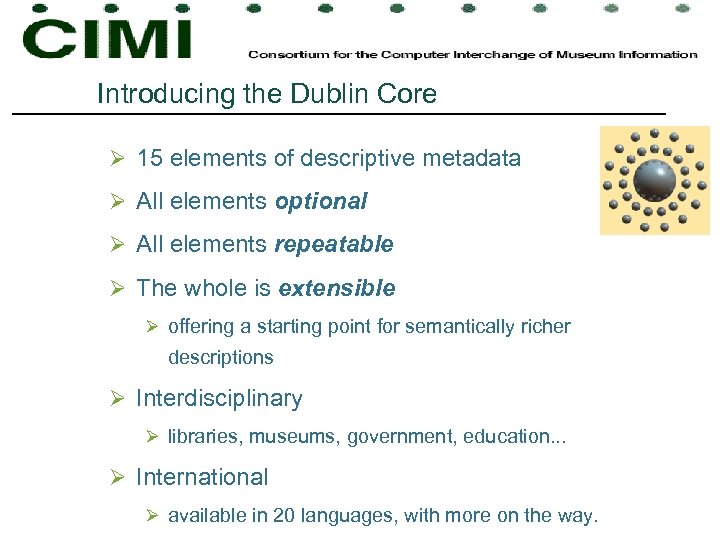

Introducing the Dublin Core Ø 15 elements of descriptive metadata Ø All elements optional Ø All elements repeatable Ø The whole is extensible Ø offering a starting point for semantically richer descriptions Ø Interdisciplinary Ø libraries, museums, government, education. . . Ø International Ø available in 20 languages, with more on the way.

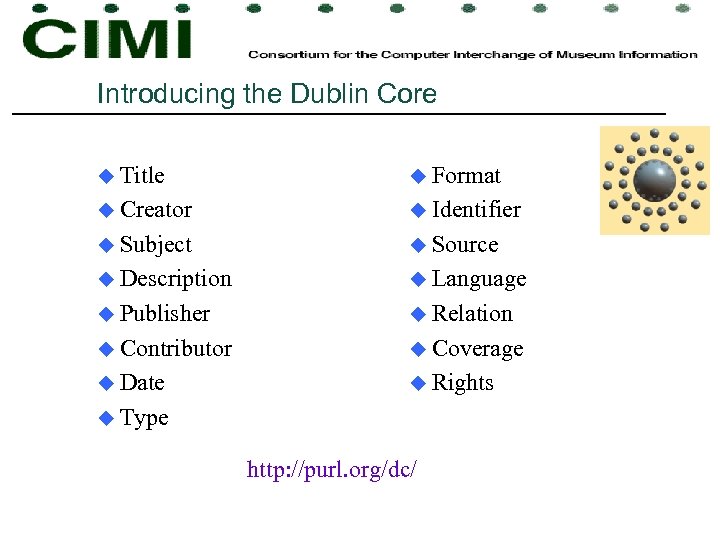

Introducing the Dublin Core u Title u Format u Creator u Identifier u Subject u Source u Description u Language u Publisher u Relation u Contributor u Coverage u Date u Rights u Type http: //purl. org/dc/

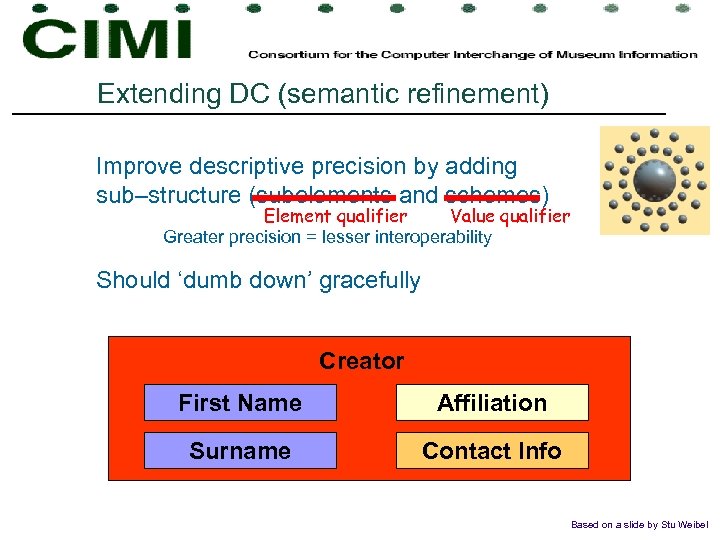

Extending DC (semantic refinement) Improve descriptive precision by adding sub–structure (subelements and schemes) Element qualifier Value qualifier Greater precision = lesser interoperability Should ‘dumb down’ gracefully Creator First Name Affiliation Surname Contact Info Based on a slide by Stu Weibel

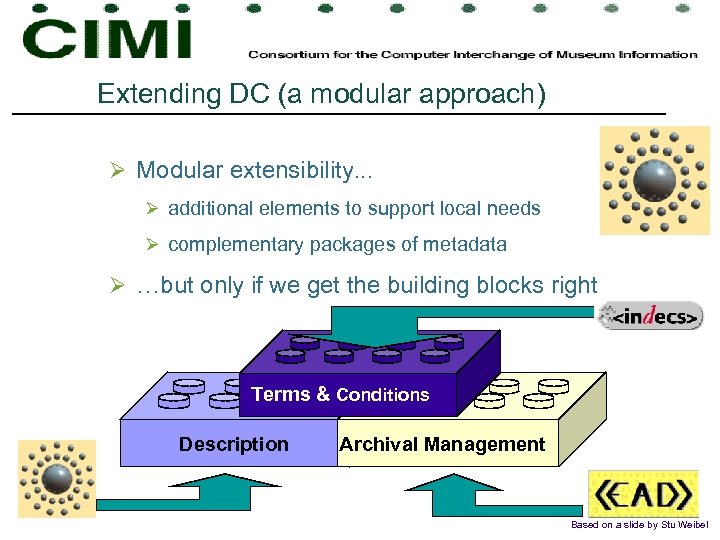

Extending DC (a modular approach) Ø Modular extensibility. . . Ø additional elements to support local needs Ø complementary packages of metadata Ø …but only if we get the building blocks right Terms & Conditions Description Archival Management Based on a slide by Stu Weibel

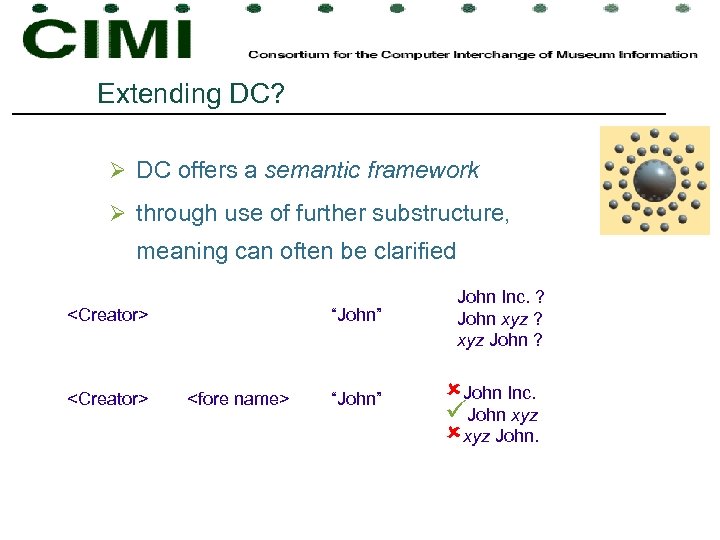

Extending DC? Ø DC offers a semantic framework Ø through use of further substructure, meaning can often be clarified <Creator> “John” <fore name> “John” John Inc. ? John xyz ? xyz John ? ûJohn Inc. üJohn xyz ûxyz John.

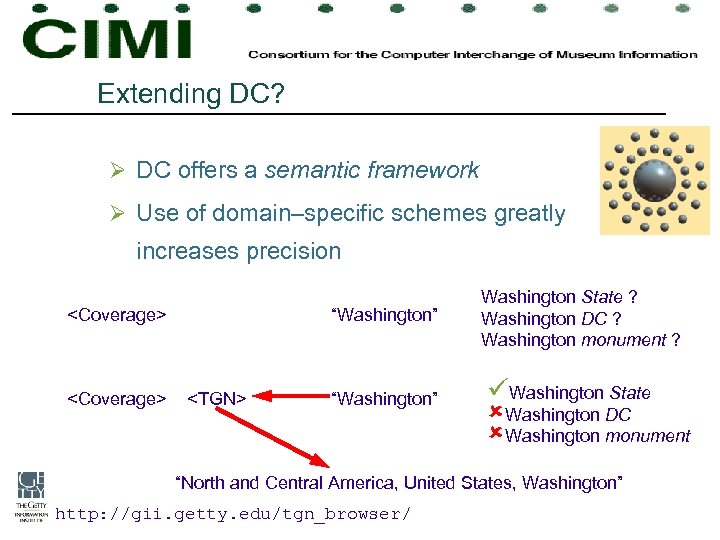

Extending DC? Ø DC offers a semantic framework Ø Use of domain–specific schemes greatly increases precision <Coverage> “Washington” <TGN> “Washington” Washington State ? Washington DC ? Washington monument ? üWashington State ûWashington DC ûWashington monument “North and Central America, United States, Washington” http: //gii. getty. edu/tgn_browser/

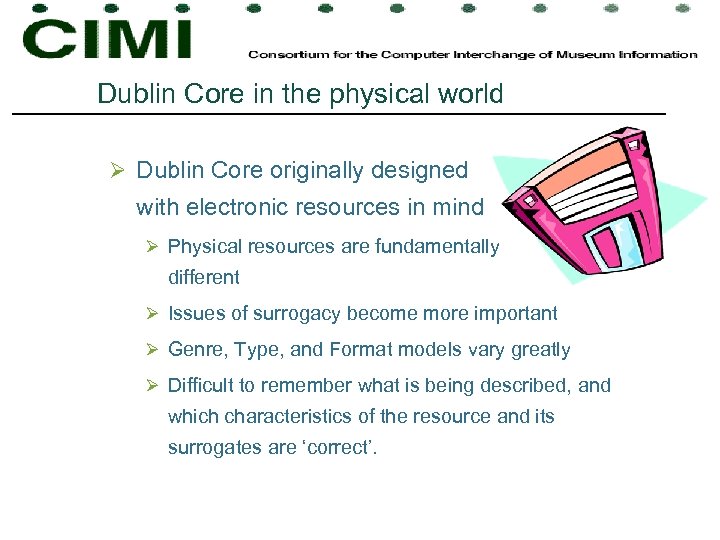

Dublin Core in the physical world Ø Dublin Core originally designed with electronic resources in mind Ø Physical resources are fundamentally different Ø Issues of surrogacy become more important Ø Genre, Type, and Format models vary greatly Ø Difficult to remember what is being described, and which characteristics of the resource and its surrogates are ‘correct’.

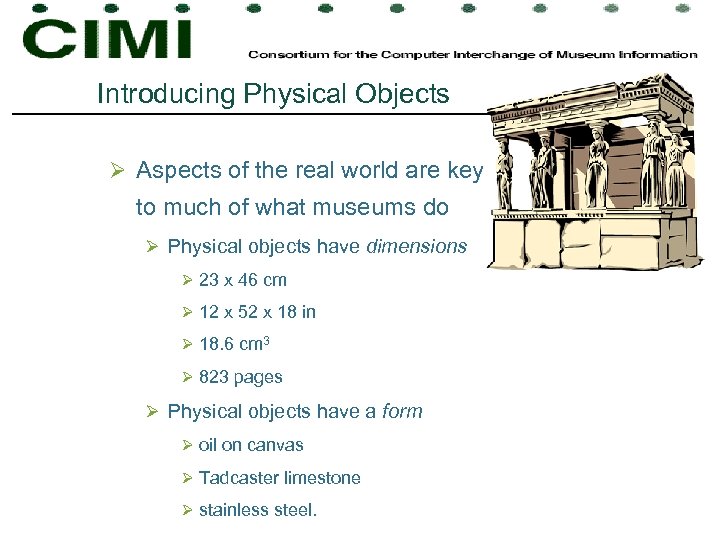

Introducing Physical Objects Ø Aspects of the real world are key to much of what museums do Ø Physical objects have dimensions Ø 23 x 46 cm Ø 12 x 52 x 18 in Ø 18. 6 cm 3 Ø 823 pages Ø Physical objects have a form Ø oil on canvas Ø Tadcaster limestone Ø stainless steel.

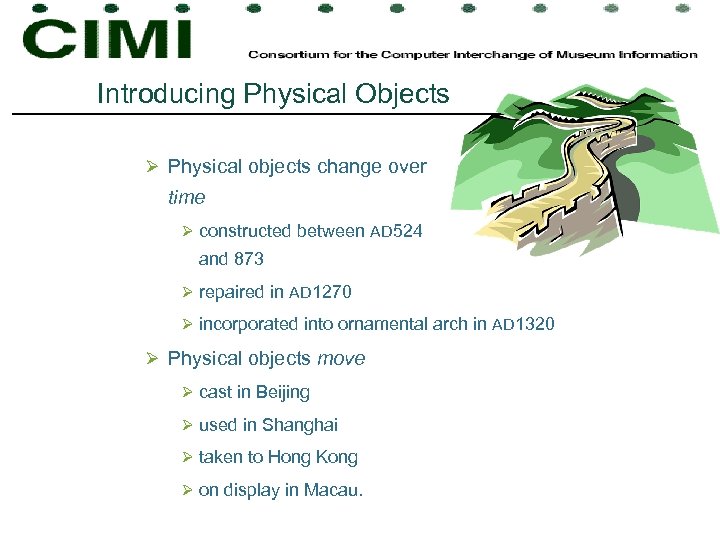

Introducing Physical Objects Ø Physical objects change over time Ø constructed between AD 524 and 873 Ø repaired in AD 1270 Ø incorporated into ornamental arch in AD 1320 Ø Physical objects move Ø cast in Beijing Ø used in Shanghai Ø taken to Hong Kong Ø on display in Macau.

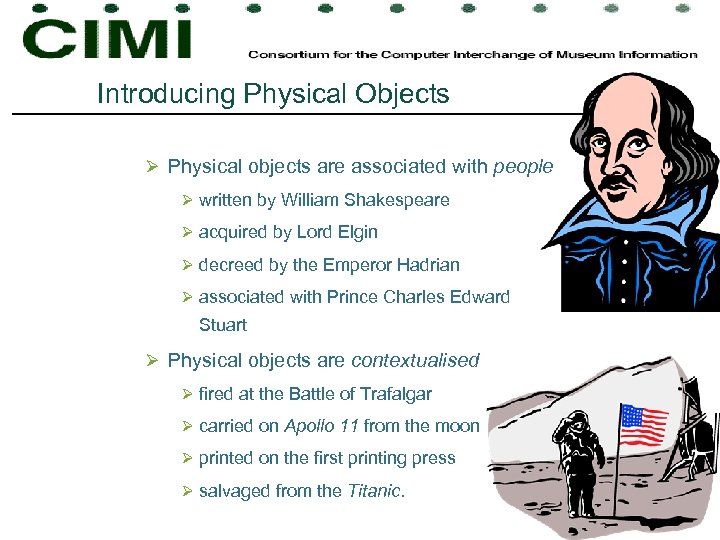

Introducing Physical Objects Ø Physical objects are associated with people Ø written by William Shakespeare Ø acquired by Lord Elgin Ø decreed by the Emperor Hadrian Ø associated with Prince Charles Edward Stuart Ø Physical objects are contextualised Ø fired at the Battle of Trafalgar Ø carried on Apollo 11 from the moon Ø printed on the first printing press Ø salvaged from the Titanic.

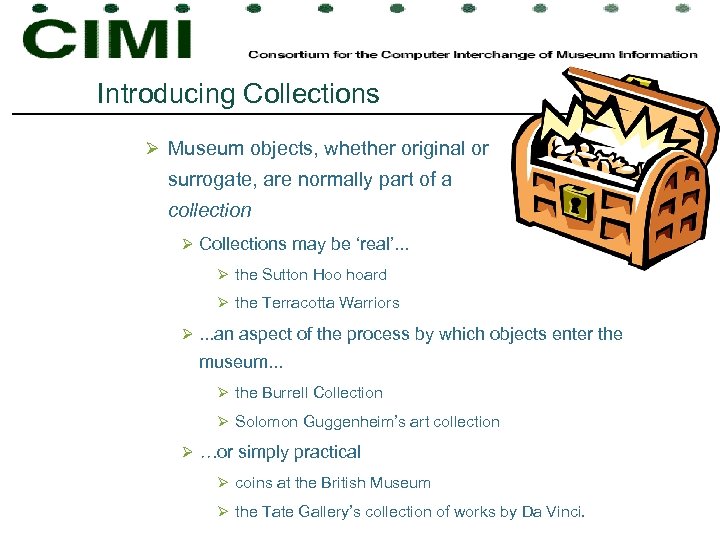

Introducing Collections Ø Museum objects, whether original or surrogate, are normally part of a collection Ø Collections may be ‘real’. . . Ø the Sutton Hoo hoard Ø the Terracotta Warriors Ø. . . an aspect of the process by which objects enter the museum. . . Ø the Burrell Collection Ø Solomon Guggenheim’s art collection Ø …or simply practical Ø coins at the British Museum Ø the Tate Gallery’s collection of works by Da Vinci.

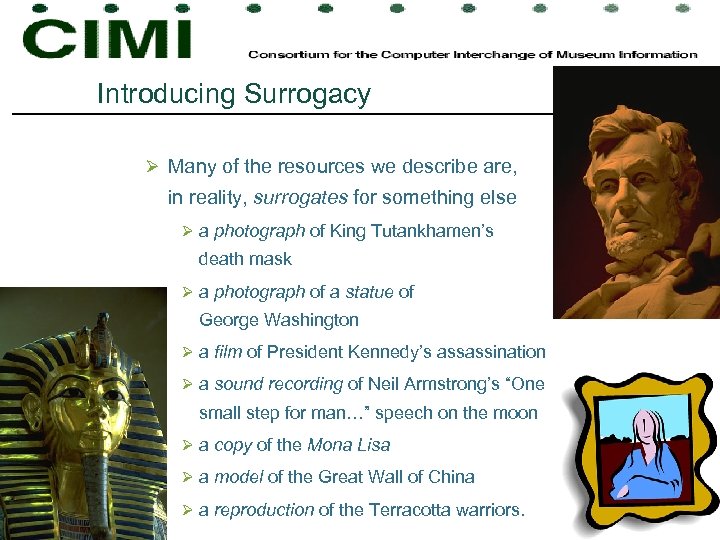

Introducing Surrogacy Ø Many of the resources we describe are, in reality, surrogates for something else Ø a photograph of King Tutankhamen’s death mask Ø a photograph of a statue of George Washington Ø a film of President Kennedy’s assassination Ø a sound recording of Neil Armstrong’s “One small step for man…” speech on the moon Ø a copy of the Mona Lisa Ø a model of the Great Wall of China Ø a reproduction of the Terracotta warriors.
Issues of Surrogacy Ø Many of the resources we describe are, in reality, surrogates for something else Ø we need to be clear whether we are describing the resource or its surrogate Ø the sculptor of a statue is often not the person who made its photographic surrogate Ø the model of the Forbidden City is unlikely to have been created at the same date as the Forbidden City itself Ø the format of a computer image of the Mona Lisa (image/jpeg ? )is not the same as the format of the original painting (oil on canvas ? ).

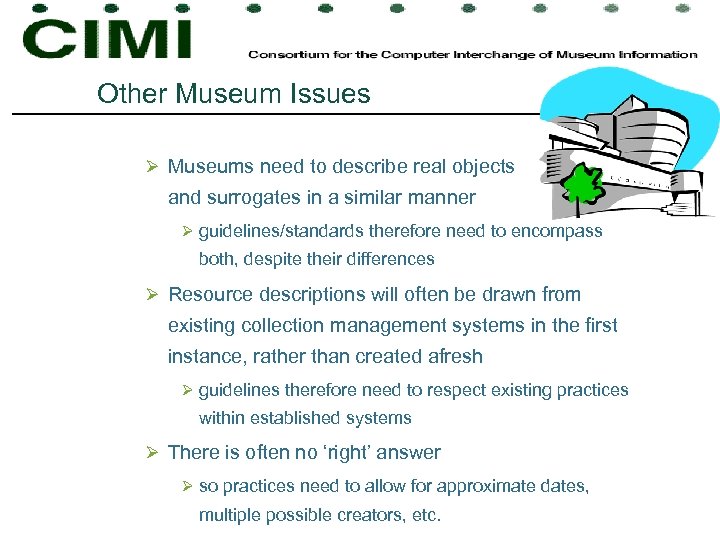

Other Museum Issues Ø Museums need to describe real objects and surrogates in a similar manner Ø guidelines/standards therefore need to encompass both, despite their differences Ø Resource descriptions will often be drawn from existing collection management systems in the first instance, rather than created afresh Ø guidelines therefore need to respect existing practices within established systems Ø There is often no ‘right’ answer Ø so practices need to allow for approximate dates, multiple possible creators, etc.

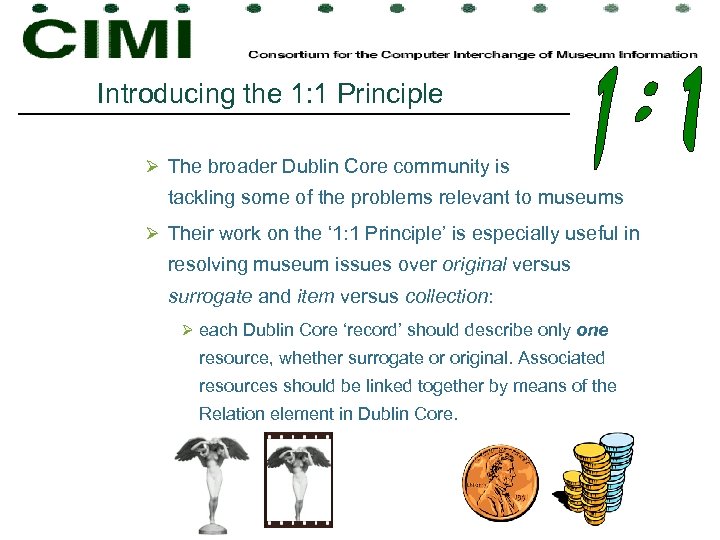

Introducing the 1: 1 Principle Ø The broader Dublin Core community is tackling some of the problems relevant to museums Ø Their work on the ‘ 1: 1 Principle’ is especially useful in resolving museum issues over original versus surrogate and item versus collection: Ø each Dublin Core ‘record’ should describe only one resource, whether surrogate or original. Associated resources should be linked together by means of the Relation element in Dublin Core.

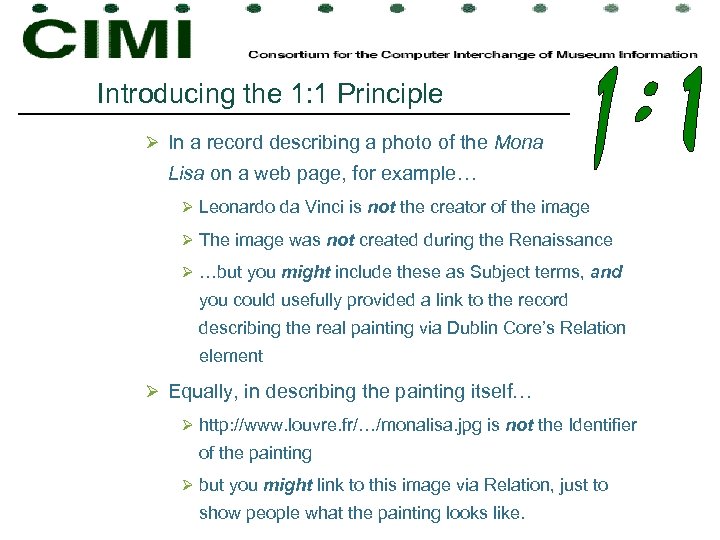

Introducing the 1: 1 Principle Ø In a record describing a photo of the Mona Lisa on a web page, for example… Ø Leonardo da Vinci is not the creator of the image Ø The image was not created during the Renaissance Ø …but you might include these as Subject terms, and you could usefully provided a link to the record describing the real painting via Dublin Core’s Relation element Ø Equally, in describing the painting itself… Ø http: //www. louvre. fr/…/monalisa. jpg is not the Identifier of the painting Ø but you might link to this image via Relation, just to show people what the painting looks like.

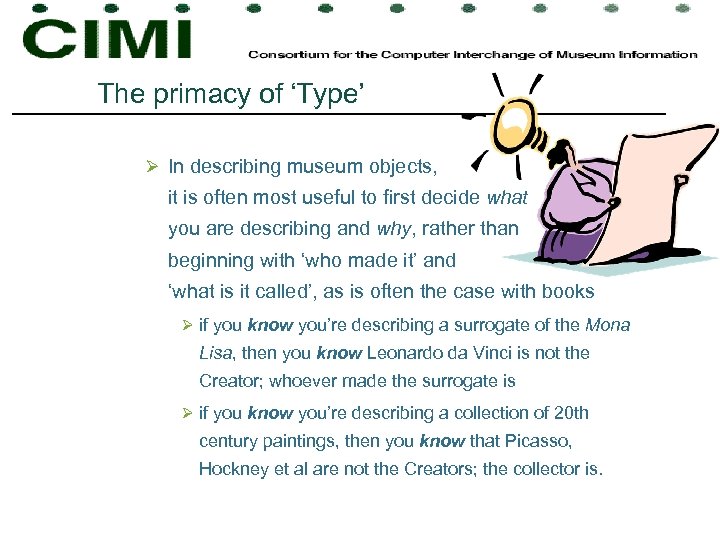

The primacy of ‘Type’ Ø In describing museum objects, it is often most useful to first decide what you are describing and why, rather than beginning with ‘who made it’ and ‘what is it called’, as is often the case with books Ø if you know you’re describing a surrogate of the Mona Lisa, then you know Leonardo da Vinci is not the Creator; whoever made the surrogate is Ø if you know you’re describing a collection of 20 th century paintings, then you know that Picasso, Hockney et al are not the Creators; the collector is.
The primacy of ‘Type’ Ø if you know you’re describing the Sutton Hoo helmet, then the fact that it was added to a particular museum collection in 1939 perhaps doesn’t matter; that information is better placed in the collection record Ø if you know you’re describing a natural specimen, then perhaps it has no Creator; there may be a ‘creator’ associated with its identification or collection, though.

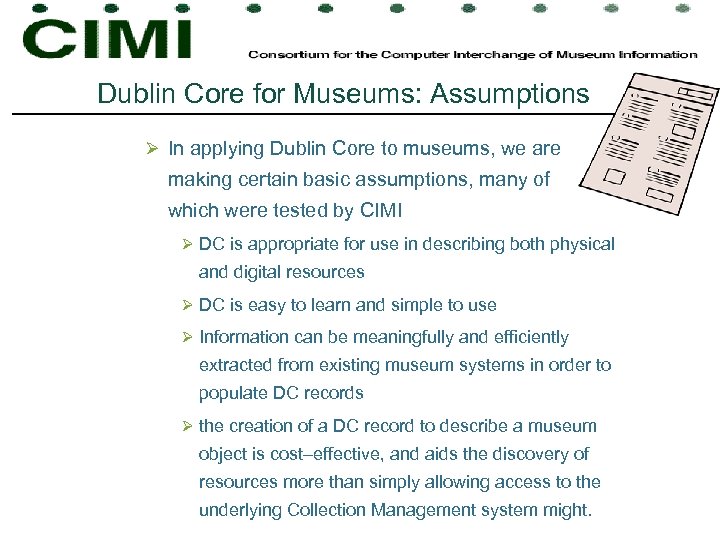

Dublin Core for Museums: Assumptions Ø In applying Dublin Core to museums, we are making certain basic assumptions, many of which were tested by CIMI Ø DC is appropriate for use in describing both physical and digital resources Ø DC is easy to learn and simple to use Ø Information can be meaningfully and efficiently extracted from existing museum systems in order to populate DC records Ø the creation of a DC record to describe a museum object is cost–effective, and aids the discovery of resources more than simply allowing access to the underlying Collection Management system might.

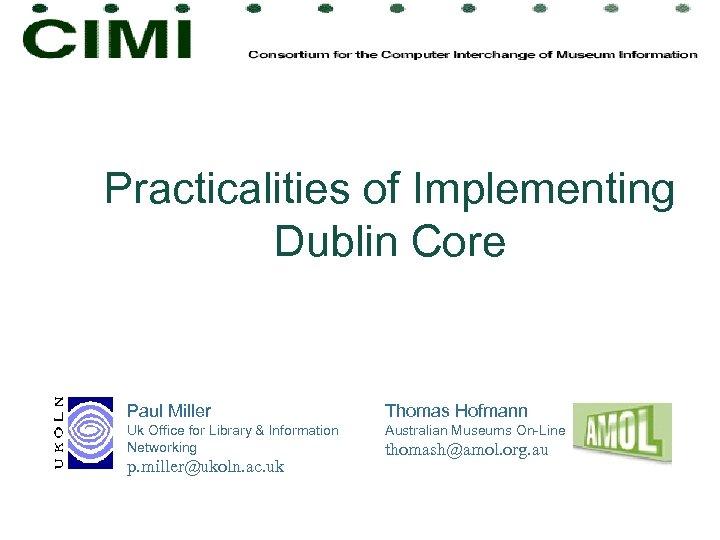

Practicalities of Implementing Dublin Core Paul Miller Thomas Hofmann Uk Office for Library & Information Networking Australian Museums On-Line p. miller@ukoln. ac. uk thomash@amol. org. au

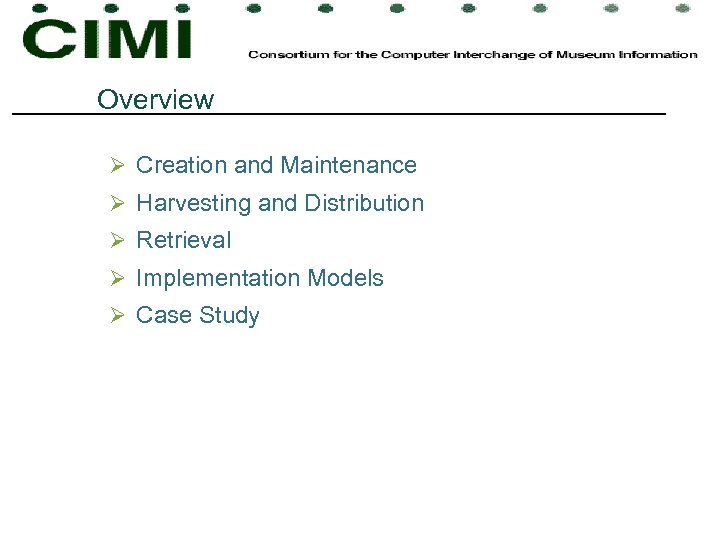

Overview Ø Creation and Maintenance Ø Harvesting and Distribution Ø Retrieval Ø Implementation Models Ø Case Study

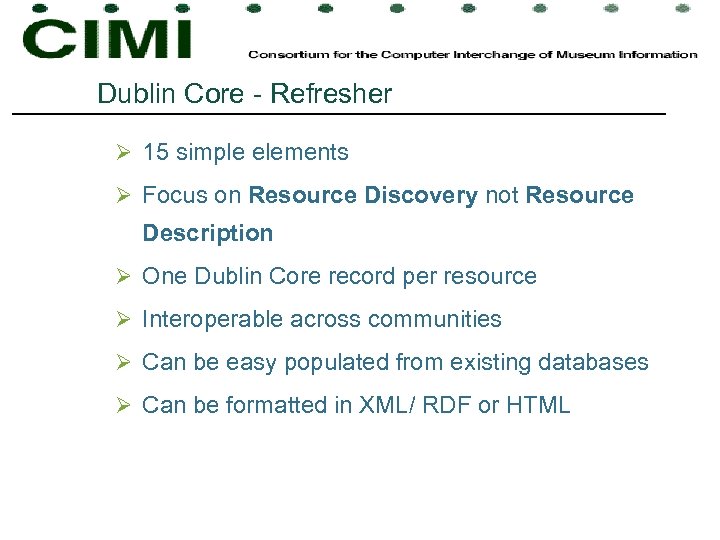

Dublin Core - Refresher Ø 15 simple elements Ø Focus on Resource Discovery not Resource Description Ø One Dublin Core record per resource Ø Interoperable across communities Ø Can be easy populated from existing databases Ø Can be formatted in XML/ RDF or HTML

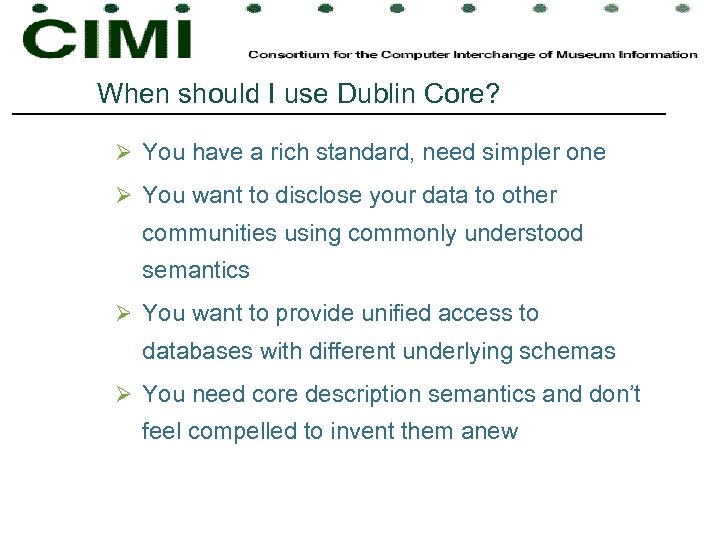

When should I use Dublin Core? Ø You have a rich standard, need simpler one Ø You want to disclose your data to other communities using commonly understood semantics Ø You want to provide unified access to databases with different underlying schemas Ø You need core description semantics and don’t feel compelled to invent them anew

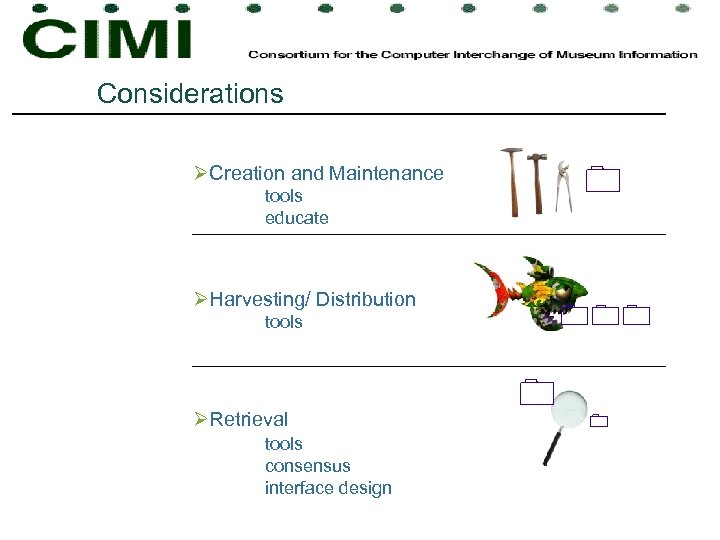

Considerations ØCreation and Maintenance tools educate ØHarvesting/ Distribution tools ØRetrieval tools consensus interface design

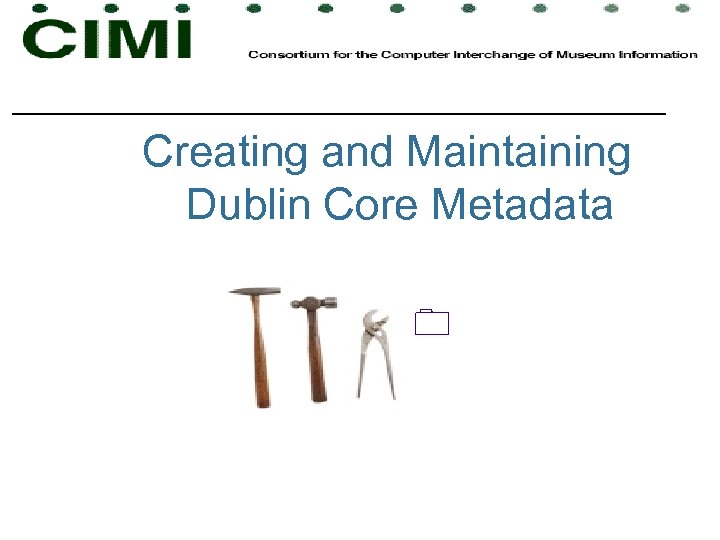

Creating and Maintaining Dublin Core Metadata

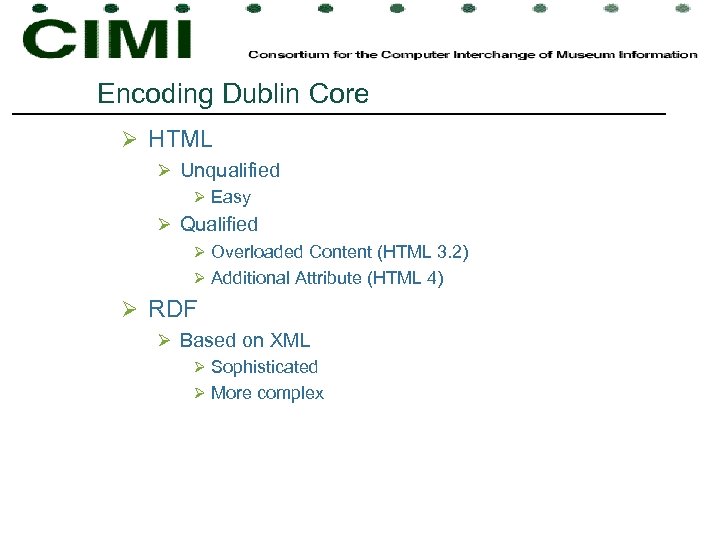

Encoding Dublin Core Ø HTML Ø Unqualified Ø Easy Ø Qualified Ø Overloaded Content (HTML 3. 2) Ø Additional Attribute (HTML 4) Ø RDF Ø Based on XML Ø Sophisticated Ø More complex

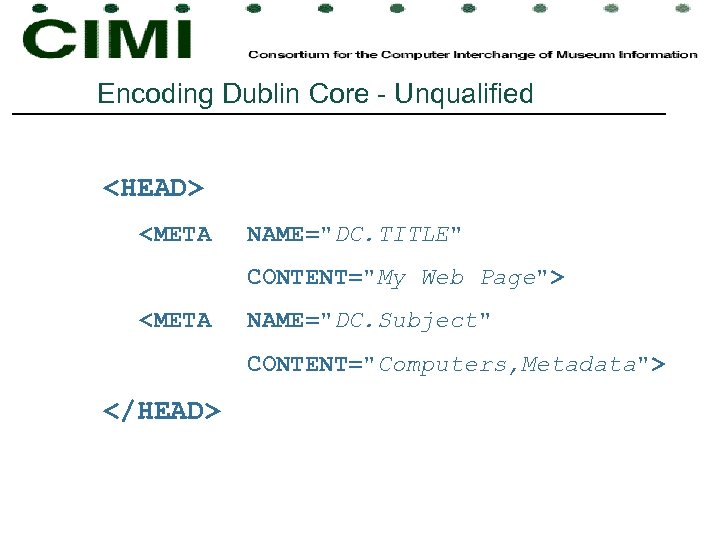

Encoding Dublin Core - Unqualified <HEAD> <META NAME="DC. TITLE" CONTENT="My Web Page"> <META NAME="DC. Subject" CONTENT="Computers, Metadata"> </HEAD>

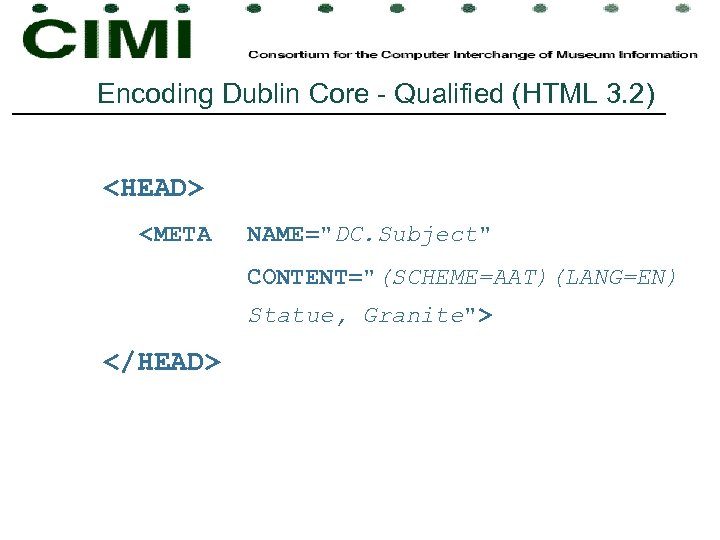

Encoding Dublin Core - Qualified (HTML 3. 2) <HEAD> <META NAME="DC. Subject" CONTENT="(SCHEME=AAT)(LANG=EN) Statue, Granite"> </HEAD>

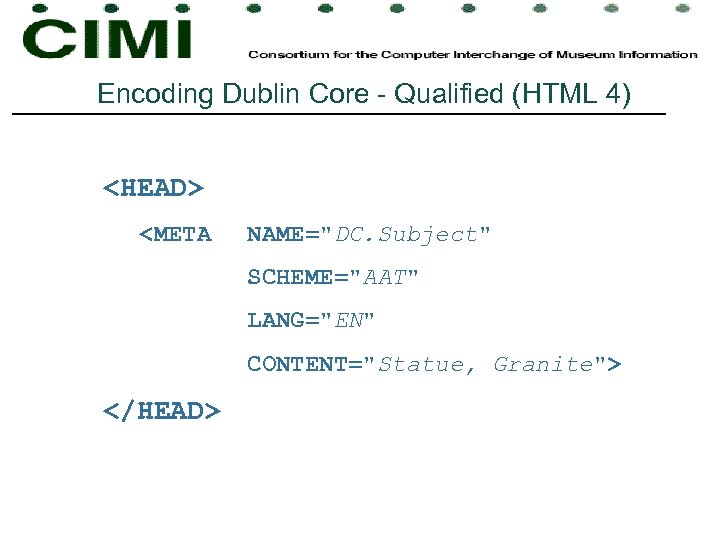

Encoding Dublin Core - Qualified (HTML 4) <HEAD> <META NAME="DC. Subject" SCHEME="AAT" LANG="EN" CONTENT="Statue, Granite"> </HEAD>

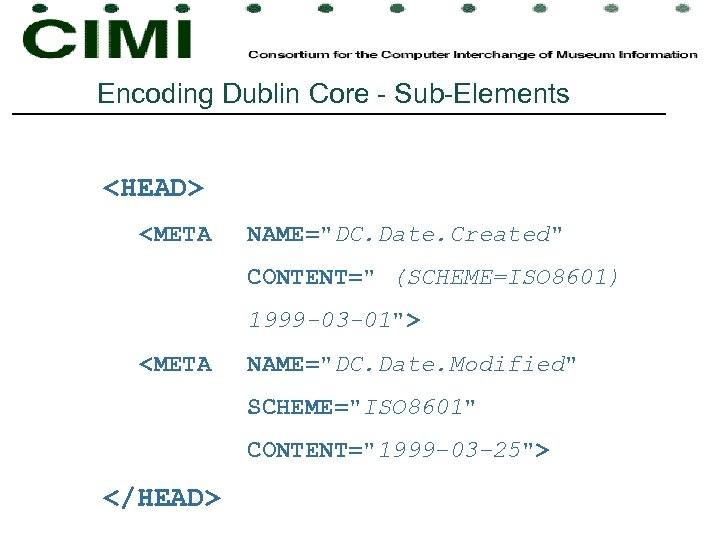

Encoding Dublin Core - Sub-Elements <HEAD> <META NAME="DC. Date. Created" CONTENT=" (SCHEME=ISO 8601) 1999 -03 -01"> <META NAME="DC. Date. Modified" SCHEME="ISO 8601" CONTENT="1999– 03– 25"> </HEAD>

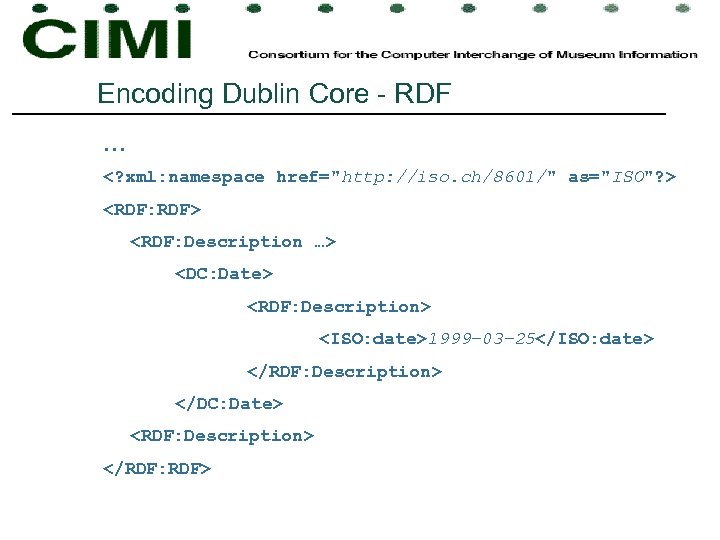

Encoding Dublin Core - RDF. . . <? xml: namespace href="http: //iso. ch/8601/" as="ISO"? > <RDF: RDF> <RDF: Description …> <DC: Date> <RDF: Description> <ISO: date>1999– 03– 25</ISO: date> </RDF: Description> </DC: Date> <RDF: Description> </RDF: RDF>

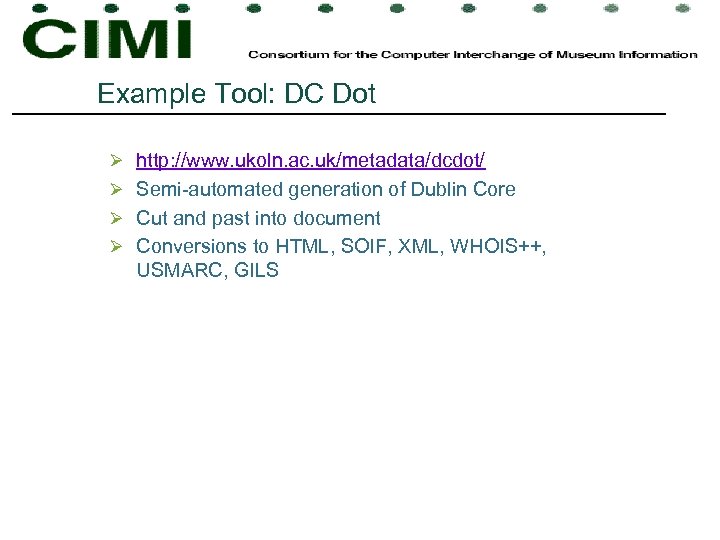

Example Tool: DC Dot Ø http: //www. ukoln. ac. uk/metadata/dcdot/ Ø Semi-automated generation of Dublin Core Ø Cut and past into document Ø Conversions to HTML, SOIF, XML, WHOIS++, USMARC, GILS

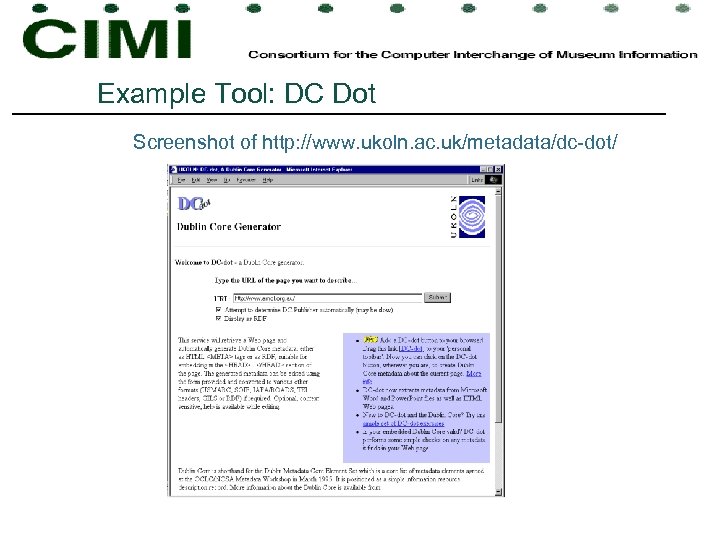

Example Tool: DC Dot Screenshot of http: //www. ukoln. ac. uk/metadata/dc-dot/

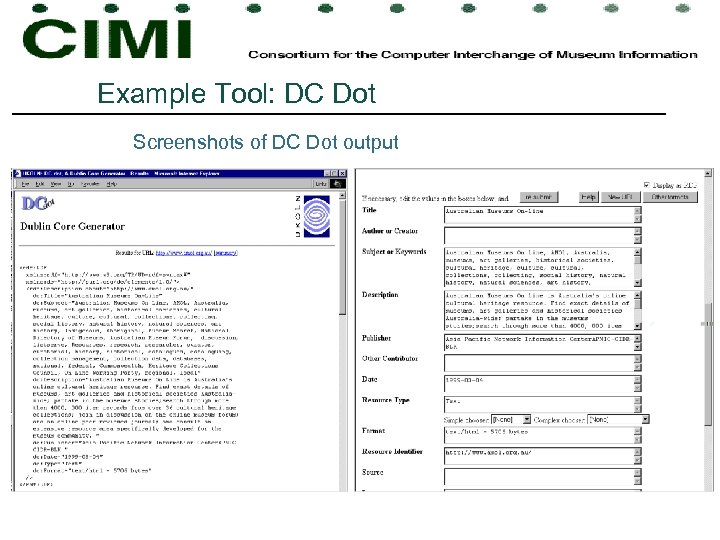

Example Tool: DC Dot Screenshots of DC Dot output

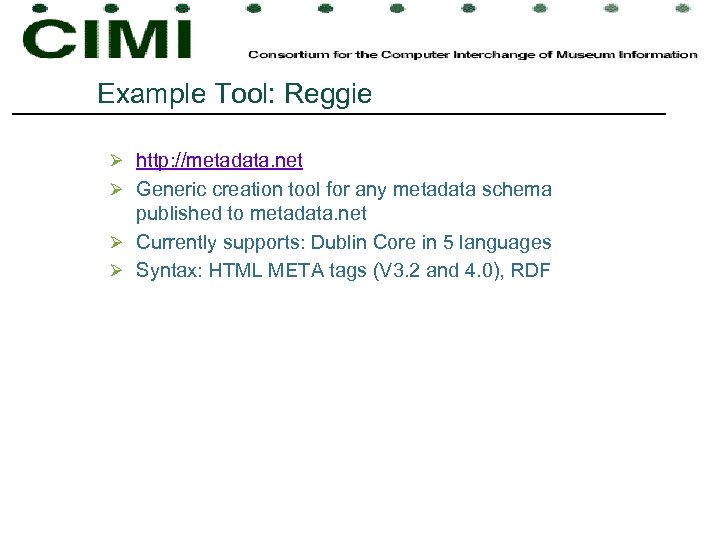

Example Tool: Reggie Ø http: //metadata. net Ø Generic creation tool for any metadata schema published to metadata. net Ø Currently supports: Dublin Core in 5 languages Ø Syntax: HTML META tags (V 3. 2 and 4. 0), RDF

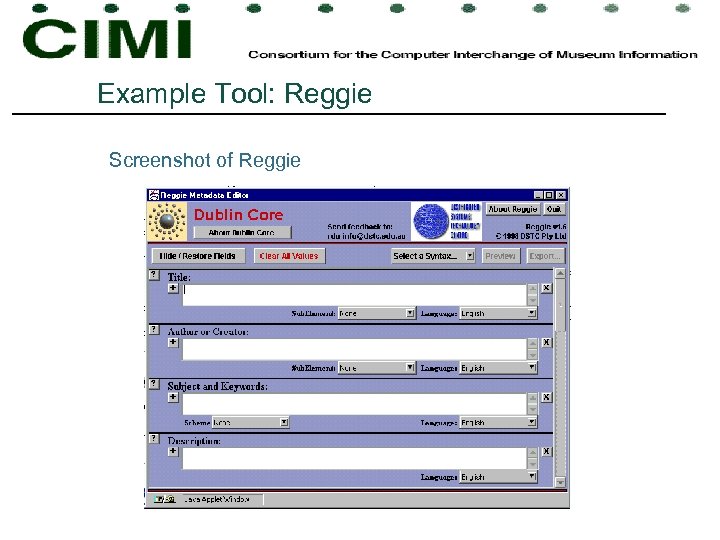

Example Tool: Reggie Screenshot of Reggie

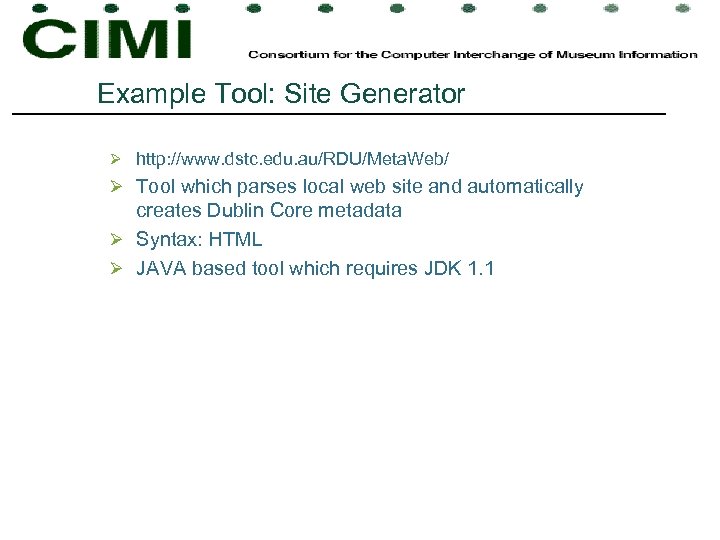

Example Tool: Site Generator Ø http: //www. dstc. edu. au/RDU/Meta. Web/ Ø Tool which parses local web site and automatically creates Dublin Core metadata Ø Syntax: HTML Ø JAVA based tool which requires JDK 1. 1

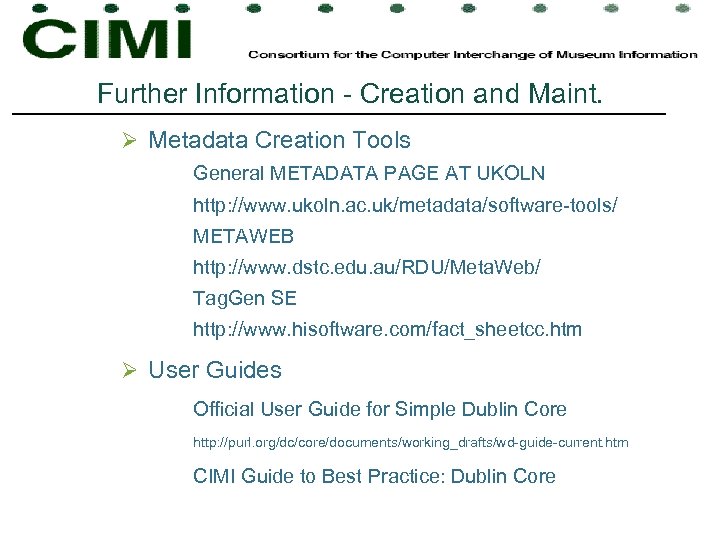

Further Information - Creation and Maint. Ø Metadata Creation Tools General METADATA PAGE AT UKOLN http: //www. ukoln. ac. uk/metadata/software-tools/ METAWEB http: //www. dstc. edu. au/RDU/Meta. Web/ Tag. Gen SE http: //www. hisoftware. com/fact_sheetcc. htm Ø User Guides Official User Guide for Simple Dublin Core http: //purl. org/dc/core/documents/working_drafts/wd-guide-current. htm CIMI Guide to Best Practice: Dublin Core
Harvesting and Distributing Dublin Core Metadata

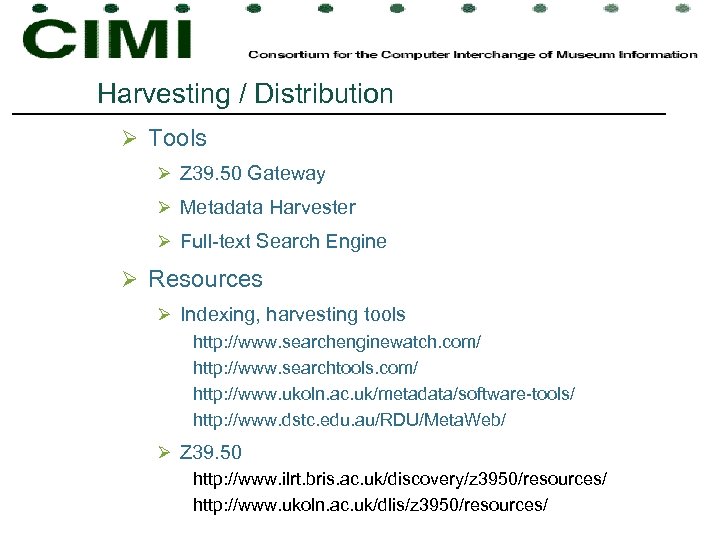

Harvesting / Distribution Ø Tools Ø Z 39. 50 Gateway Ø Metadata Harvester Ø Full-text Search Engine Ø Resources Ø Indexing, harvesting tools http: //www. searchenginewatch. com/ http: //www. searchtools. com/ http: //www. ukoln. ac. uk/metadata/software-tools/ http: //www. dstc. edu. au/RDU/Meta. Web/ Ø Z 39. 50 http: //www. ilrt. bris. ac. uk/discovery/z 3950/resources/ http: //www. ukoln. ac. uk/dlis/z 3950/resources/

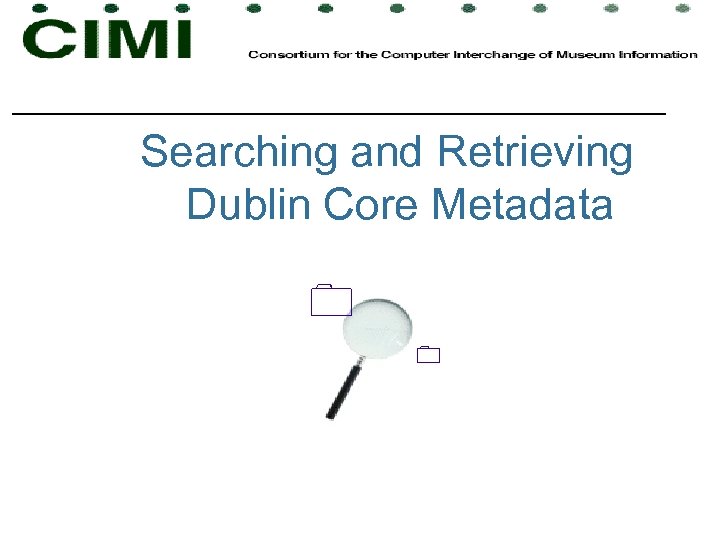

Searching and Retrieving Dublin Core Metadata

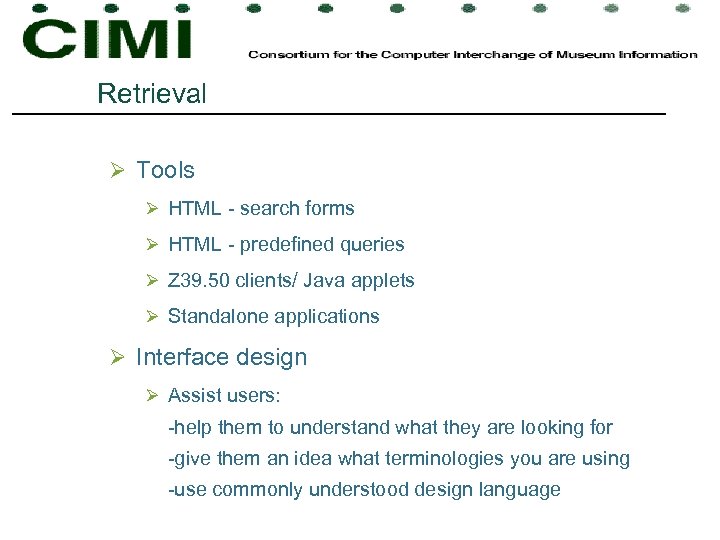

Retrieval Ø Tools Ø HTML - search forms Ø HTML - predefined queries Ø Z 39. 50 clients/ Java applets Ø Standalone applications Ø Interface design Ø Assist users: -help them to understand what they are looking for -give them an idea what terminologies you are using -use commonly understood design language

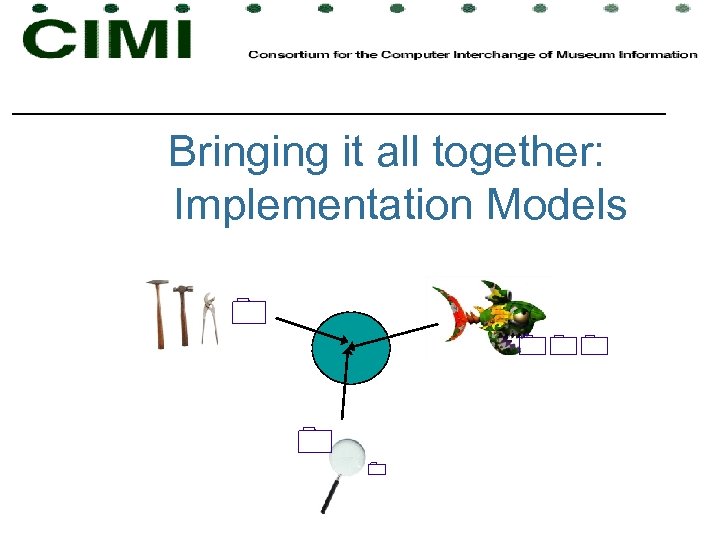

Bringing it all together: Implementation Models

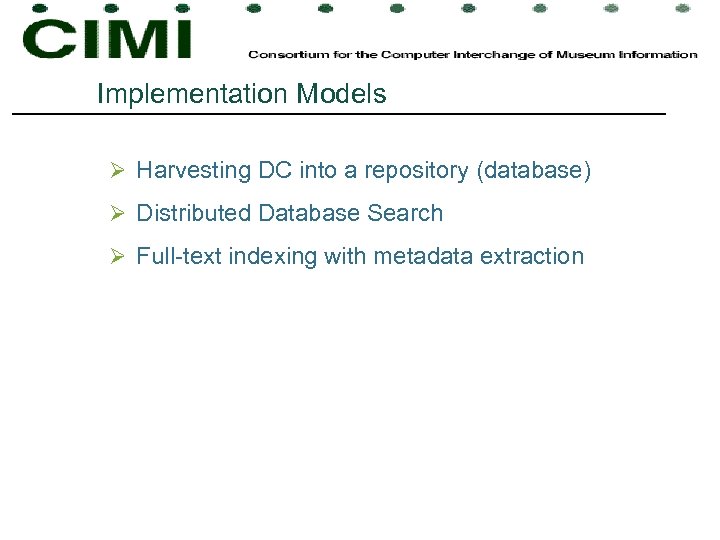

Implementation Models Ø Harvesting DC into a repository (database) Ø Distributed Database Search Ø Full-text indexing with metadata extraction

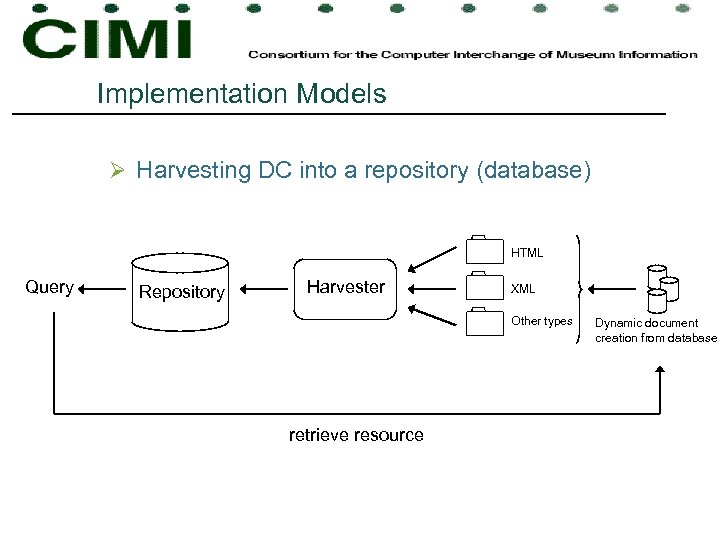

Implementation Models Ø Harvesting DC into a repository (database) Query Repository Harvester retrieve resource HTML XML Other types Dynamic document creation from database

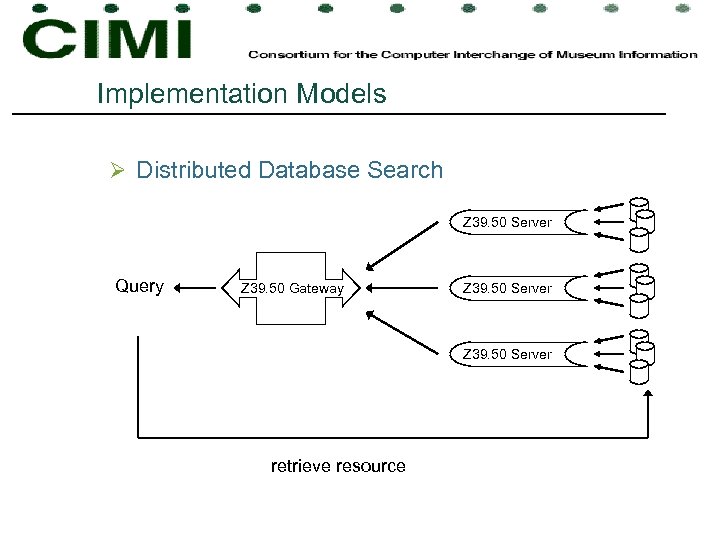

Implementation Models Ø Distributed Database Search Z 39. 50 Server Query Z 39. 50 Gateway Z 39. 50 Server retrieve resource

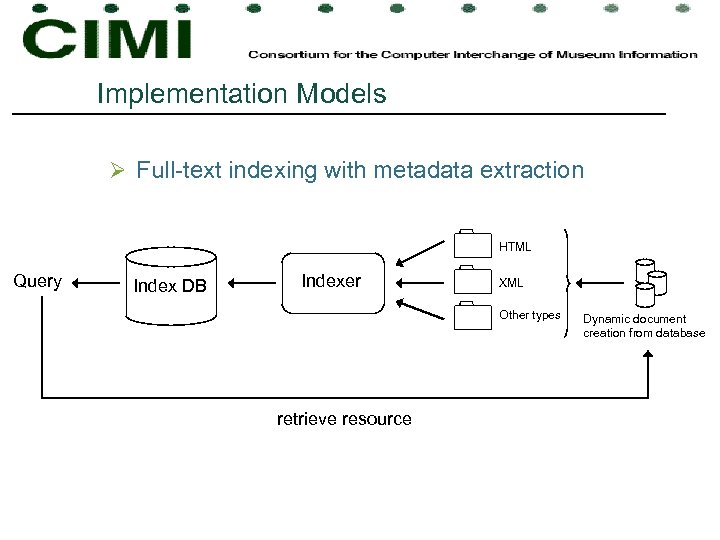

Implementation Models Ø Full-text indexing with metadata extraction Query Index DB Indexer retrieve resource HTML XML Other types Dynamic document creation from database

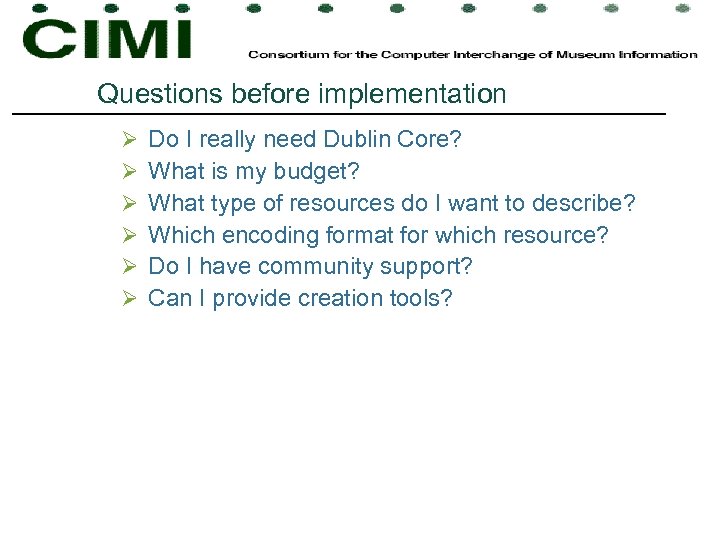

Questions before implementation Ø Ø Ø Do I really need Dublin Core? What is my budget? What type of resources do I want to describe? Which encoding format for which resource? Do I have community support? Can I provide creation tools?
Challenges of implementing Dublin Core Ø Intellectual Ø Education of information creators Ø Community consensus Ø Resistance against sharing information Ø Technical Ø Efficient tools Ø Infrastructure Ø Economical Ø Automatic generation vs. manual creation Ø Cost of training Ø Cost of tools

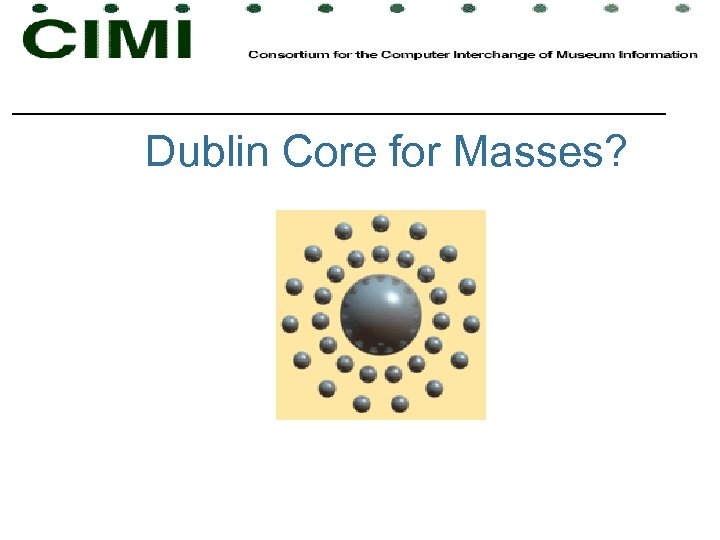

Dublin Core for Masses?

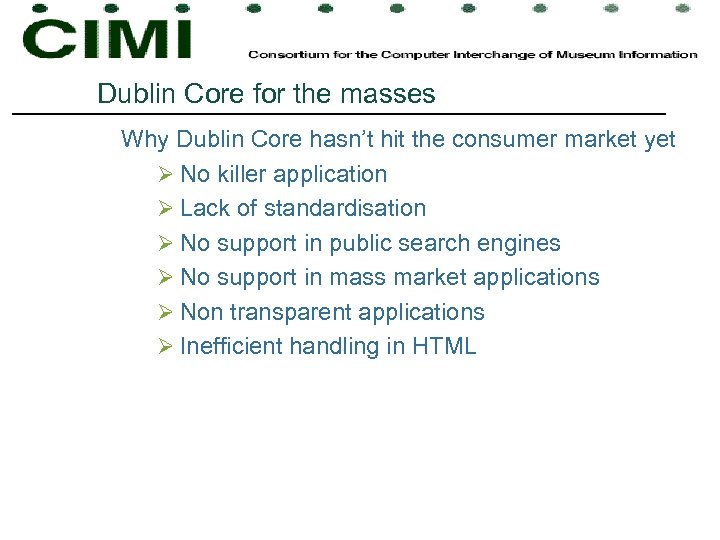

Dublin Core for the masses Why Dublin Core hasn’t hit the consumer market yet Ø No killer application Ø Lack of standardisation Ø No support in public search engines Ø No support in mass market applications Ø Non transparent applications Ø Inefficient handling in HTML
Further Information Ø Projects Official Dublin Core web site http: //purl. oclc. org/dc/projects/index. htm Ø Mailing lists Dublin Core Implementors workgroup Mailing list http: //www. mailbase. ac. uk/lists/dc-implementors/

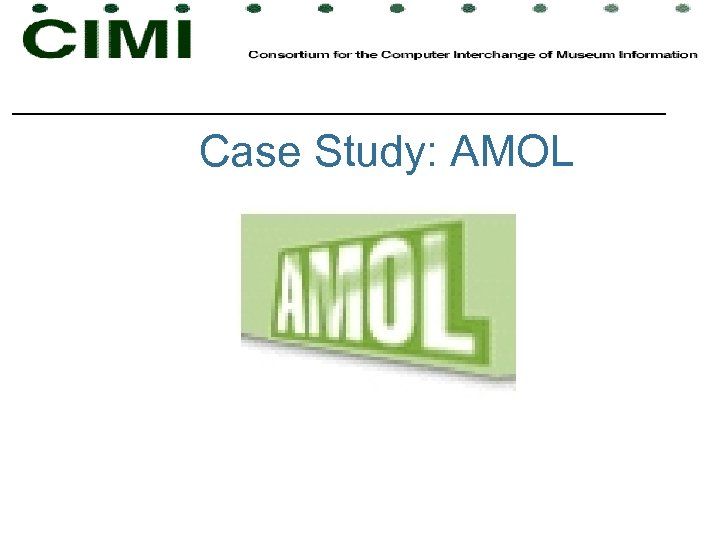

Case Study: AMOL

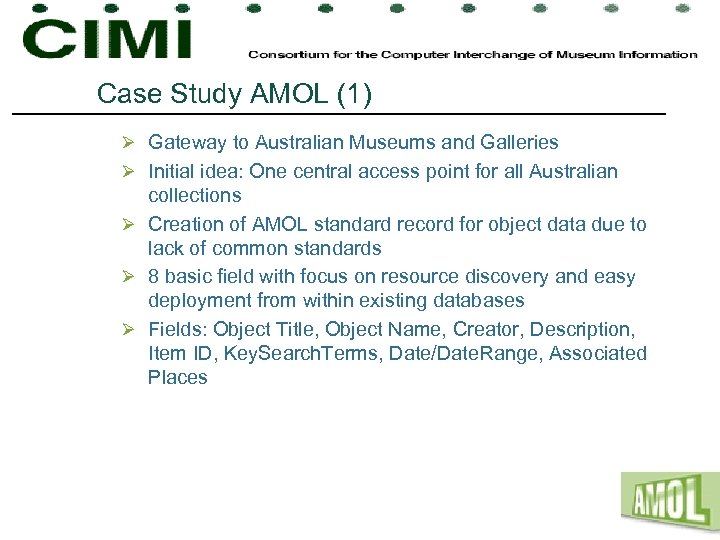

Case Study AMOL (1) Ø Gateway to Australian Museums and Galleries Ø Initial idea: One central access point for all Australian collections Ø Creation of AMOL standard record for object data due to lack of common standards Ø 8 basic field with focus on resource discovery and easy deployment from within existing databases Ø Fields: Object Title, Object Name, Creator, Description, Item ID, Key. Search. Terms, Date/Date. Range, Associated Places

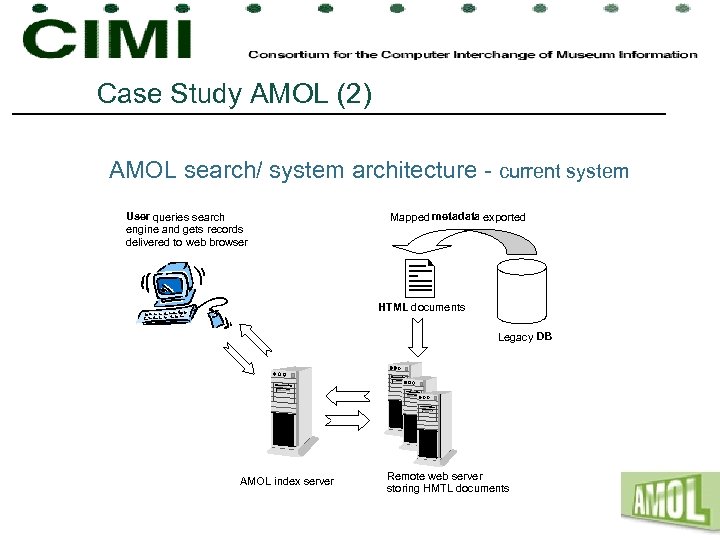

Case Study AMOL (2) AMOL search/ system architecture - current system User queries search engine and gets records delivered to web browser Mapped metadata exported HTML documents Legacy DB AMOL index server Remote web server storing HMTL documents

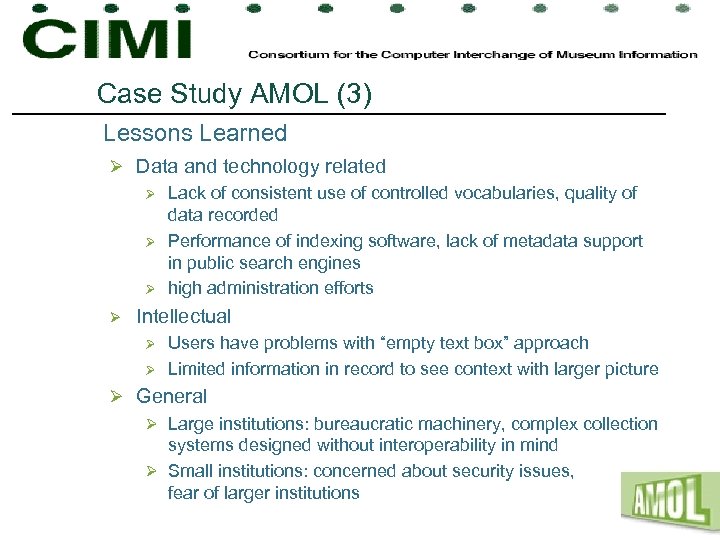

Case Study AMOL (3) Lessons Learned Ø Data and technology related Ø Lack of consistent use of controlled vocabularies, quality of data recorded Ø Performance of indexing software, lack of metadata support in public search engines Ø high administration efforts Ø Intellectual Ø Ø Users have problems with “empty text box” approach Limited information in record to see context with larger picture Ø General Ø Large institutions: bureaucratic machinery, complex collection systems designed without interoperability in mind Ø Small institutions: concerned about security issues, fear of larger institutions

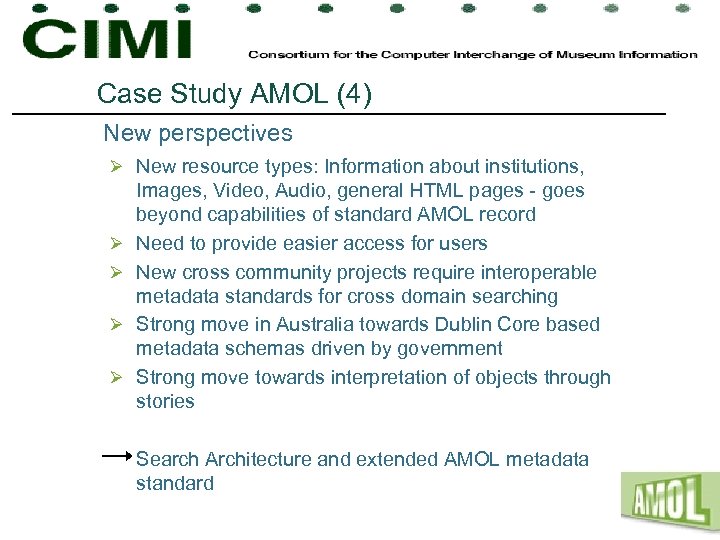

Case Study AMOL (4) New perspectives Ø New resource types: Information about institutions, Ø Ø Images, Video, Audio, general HTML pages - goes beyond capabilities of standard AMOL record Need to provide easier access for users New cross community projects require interoperable metadata standards for cross domain searching Strong move in Australia towards Dublin Core based metadata schemas driven by government Strong move towards interpretation of objects through stories Search Architecture and extended AMOL metadata standard

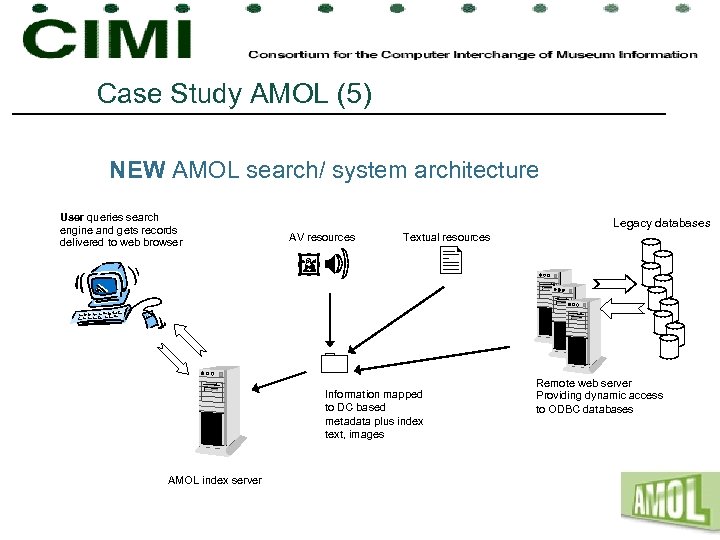

Case Study AMOL (5) NEW AMOL search/ system architecture User queries search engine and gets records delivered to web browser Legacy databases AV resources Textual resources Information mapped to DC based metadata plus index text, images AMOL index server Remote web server Providing dynamic access to ODBC databases

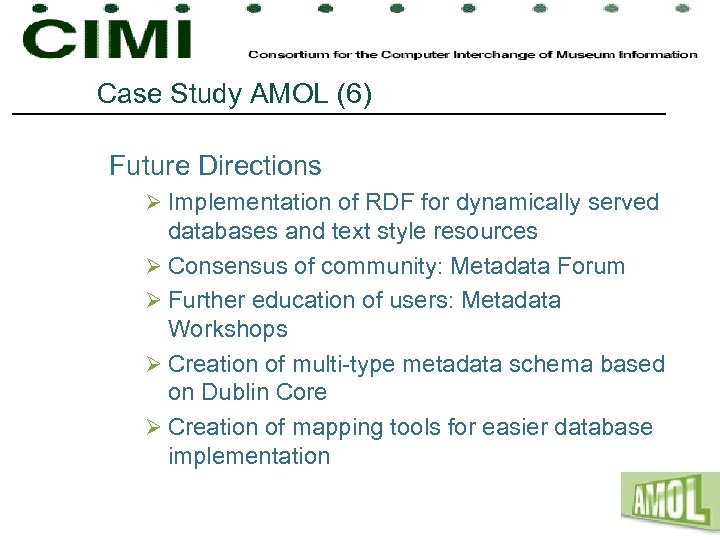

Case Study AMOL (6) Future Directions Ø Implementation of RDF for dynamically served databases and text style resources Ø Consensus of community: Metadata Forum Ø Further education of users: Metadata Workshops Ø Creation of multi-type metadata schema based on Dublin Core Ø Creation of mapping tools for easier database implementation

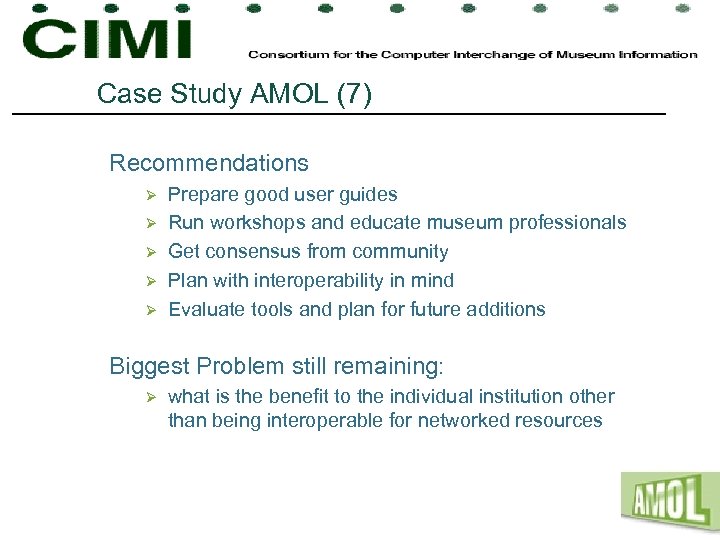

Case Study AMOL (7) Recommendations Ø Ø Ø Prepare good user guides Run workshops and educate museum professionals Get consensus from community Plan with interoperability in mind Evaluate tools and plan for future additions Biggest Problem still remaining: Ø what is the benefit to the individual institution other than being interoperable for networked resources
Dublin Core for Masses?
Dublin Core for the masses Why Dublin Core hasn’t hit the consumer market yet Ø No killer application Ø Lack of standardisation Ø No support in public search engines Ø No support in mass market applications Ø Non transparent applications Ø Inefficient handling in HTML

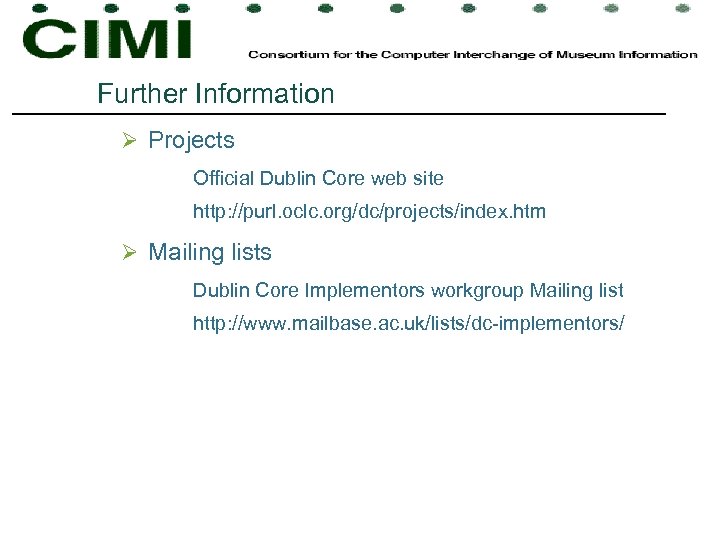

Further Information Ø Projects Official Dublin Core web site http: //purl. oclc. org/dc/projects/index. htm Ø Mailing lists Dublin Core Implementors workgroup Mailing list http: //www. mailbase. ac. uk/lists/dc-implementors/

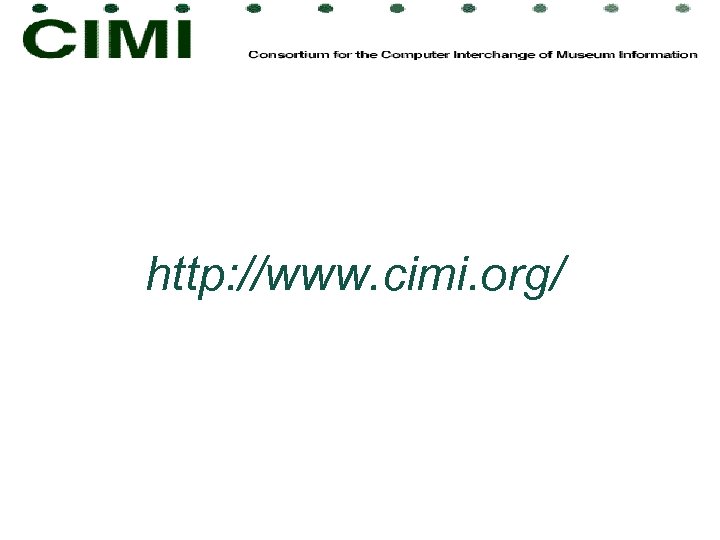

http: //www. cimi. org/

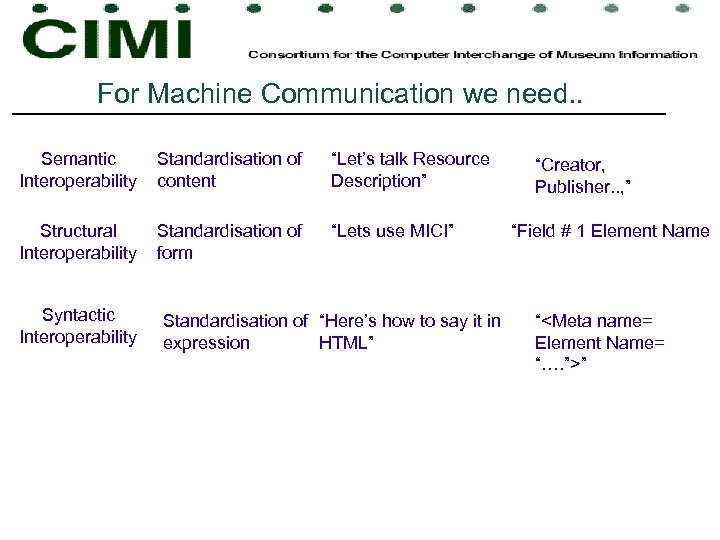

For Machine Communication we need. . Semantic Interoperability Standardisation of content “Let’s talk Resource Description” Structural Interoperability Standardisation of form “Lets use MICI” Syntactic Interoperability Standardisation of “Here’s how to say it in expression HTML” “Creator, Publisher. . , ” “Field # 1 Element Name “<Meta name= Element Name= “…. ”>”
